Opel Antara 2011 Owner Manual

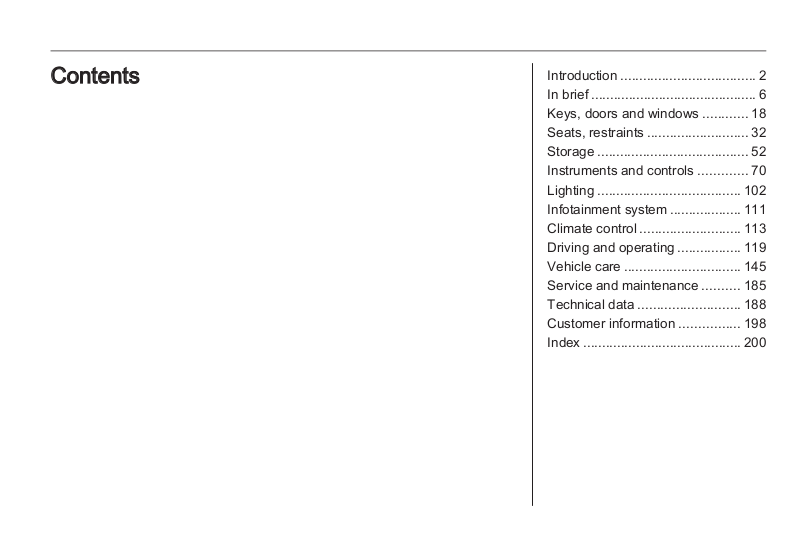

Contents
Introduction .................................... 2
In brief ............................................ 6
Keys, doors and windows ............ 18
Seats, restraints ........................... 32
Storage ........................................ 52
Instruments and controls ............. 70
Lighting ...................................... 102
Infotainment system ................... 111
Climate control ........................... 113
Driving and operating ................. 119
Vehicle care ............................... 145
Service and maintenance .......... 185
Technical data ........................... 188
Customer information ................ 198
Index .......................................... 200
2 Introduction

Introduction

Vehicle specific data
Please enter your vehicle's data on the previous page to keep it easily accessible. This information is available in the sections "Service and maintenance" and "Technical data" as well as on the identification plate.
Introduction
Your vehicle is a designed combination of advanced technology, safety, environmental friendliness and economy.
This Owner's Manual provides you with all the necessary information to enable you to drive your vehicle safely and efficiently.
Make sure your passengers are aware of the possible risk of accident and injury which may result from improper use of the vehicle.
You must always comply with the specific laws and regulations of the country that you are in. These laws may differ from the information in this Owner's Manual.
When this Owner's Manual refers to a workshop visit, we recommend your Opel Service Partner.
All Opel Service Partners provide first-class service at reasonable prices. Experienced mechanics trained by Opel work according to specific Opel instructions.
The customer literature pack should always be kept ready to hand in the vehicle.
Using this manual
■ This manual describes all options and features available for this model. Certain descriptions, including those for display and menu functions, may not apply to your vehicle due to model variant, country specifications, special equipment or accessories.
■ The "In brief" section will give you an initial overview.
■ The table of contents at the beginning of this manual and within each section shows where the information is located.
■ The index will enable you to search for specific information.
■ This Owner's Manual depicts left­hand drive vehicles. Operation is similar for right-hand drive vehicles.
■ The Owner's Manual uses the factory engine designations. The corresponding sales designations can be found in the section "Technical data".
■ Directional data, e.g. left or right, or front or back, always relate to the direction of travel.
■ The vehicle display screens may not support your specific language.
■ Display messages and interior labelling are written in bold letters.
Danger, Warnings and Cautions
9 Danger
Text marked 9 Danger provides information on risk of fatal injury. Disregarding this information may endanger life.
4 Introduction
9 Warning
Text marked 9 Warning provides information on risk of accident or injury. Disregarding this information may lead to injury.
Caution
Text marked Caution provides information on possible damage to the vehicle. Disregarding this information may lead to vehicle damage.
Symbols
Page references are indicated with 3. 3 means "see page".
We wish you many hours of pleasurable driving.
Adam Opel GmbH
6 In brief

In brief

Initial drive information

Vehicle unlocking

Press button q to unlock the doors and load compartment. Open the doors by pulling the handles. To open the tailgate, operate button above number plate.
Radio remote control 3 18, Central locking system 3 20, Load compartment 3 22.

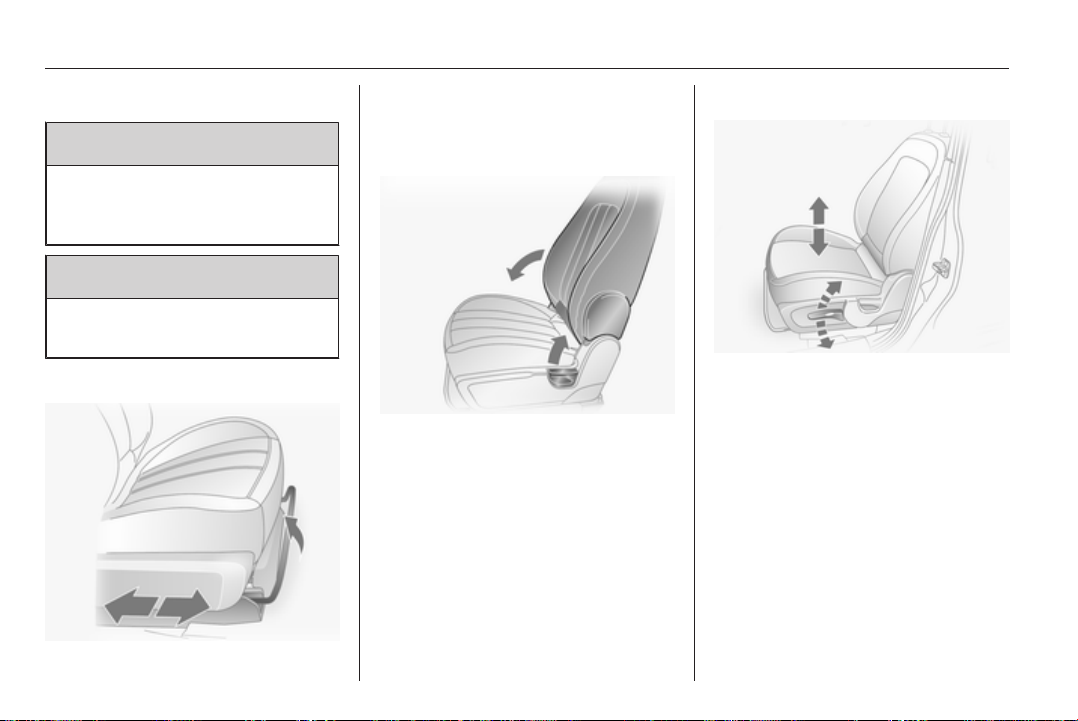

Seat adjustment

Seat positioning
Pull handle, slide seat, release handle.
Seat position 3 33, Seat adjustment 3 34.
9 Danger
Do not sit nearer than 25 cm from the steering wheel, to permit safe airbag deployment.
In brief 7
Seat backrests
Pull lever, adjust inclination and release lever. Allow the backrest to engage audibly. Do not lean on the seat backrest whilst adjusting it.
Seat position 3 33, Seat adjustment 3 34.
Seat height
Lever pumping motion up = seat higher
down = seat lower
Seat position 3 33, Seat adjustment 3 34.

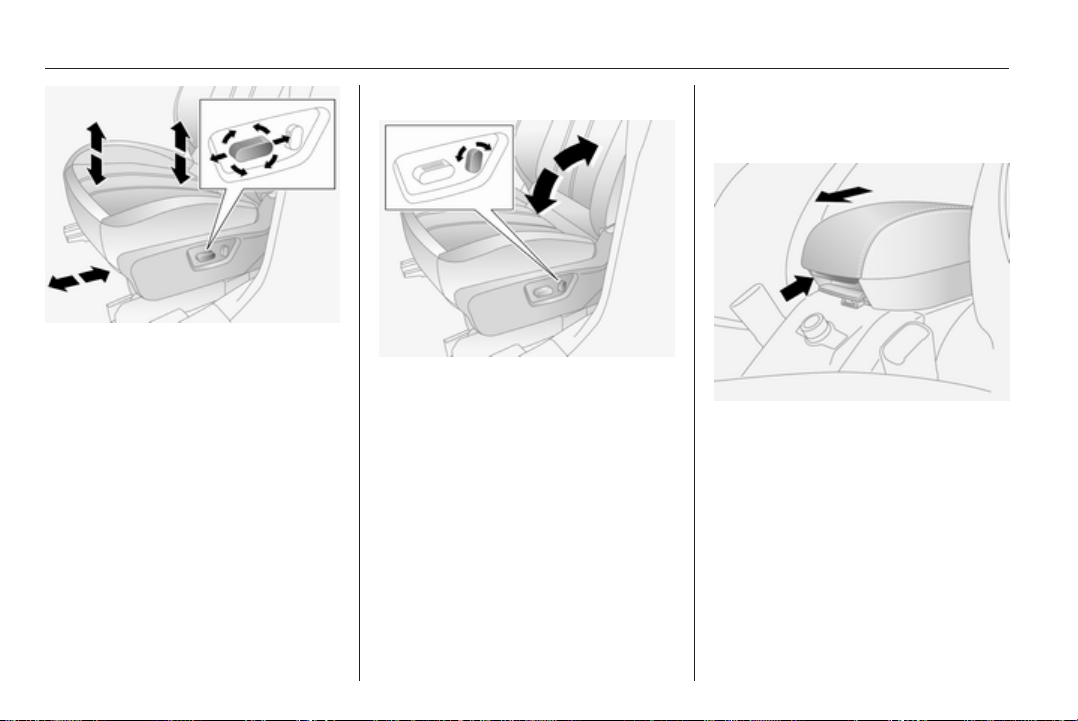

Power seat adjustment
Operate switches.
8 In brief
Positioning = move front switch
forwards/backwards Height of front part of seat
Height of rear part of seat
Height of entire seat
Backrest = move upper part of
Seat position 3 33, Power seat adjustment 3 35.
= move front part of
front switch
upwards/
downwards
= move rear part of
front switch
upwards/
downwards
= move entire front
switch upwards/
downwards
rear switch
forwards/backwards

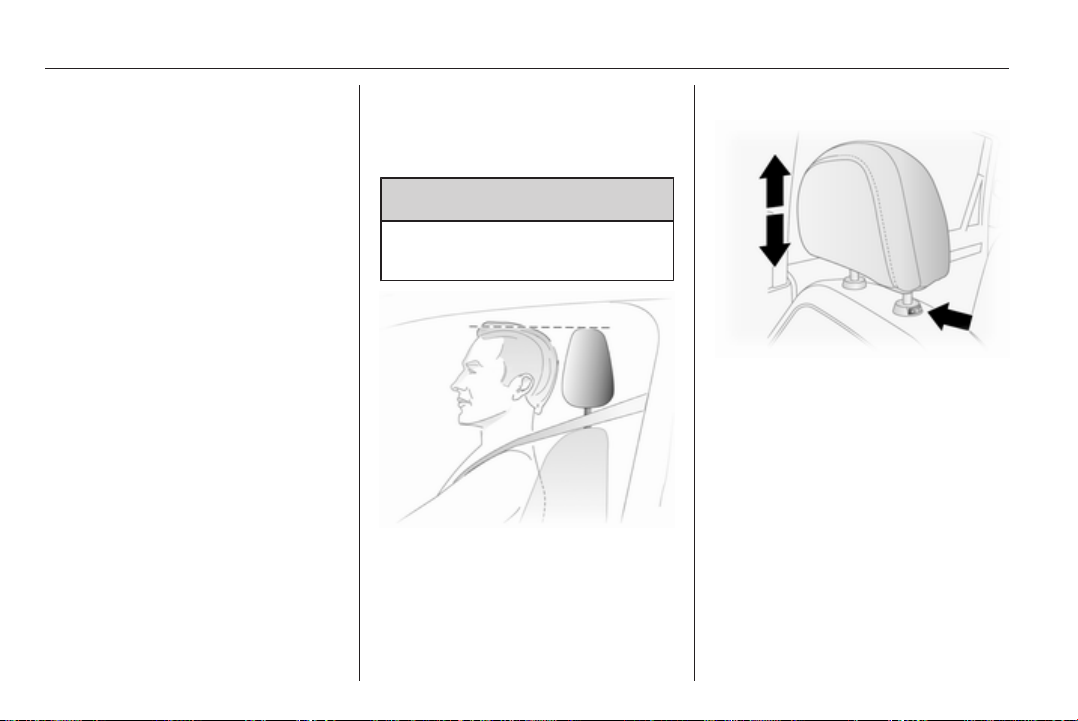

Head restraint adjustment

Press release button, adjust height and engage.
Head restraints 3 32.

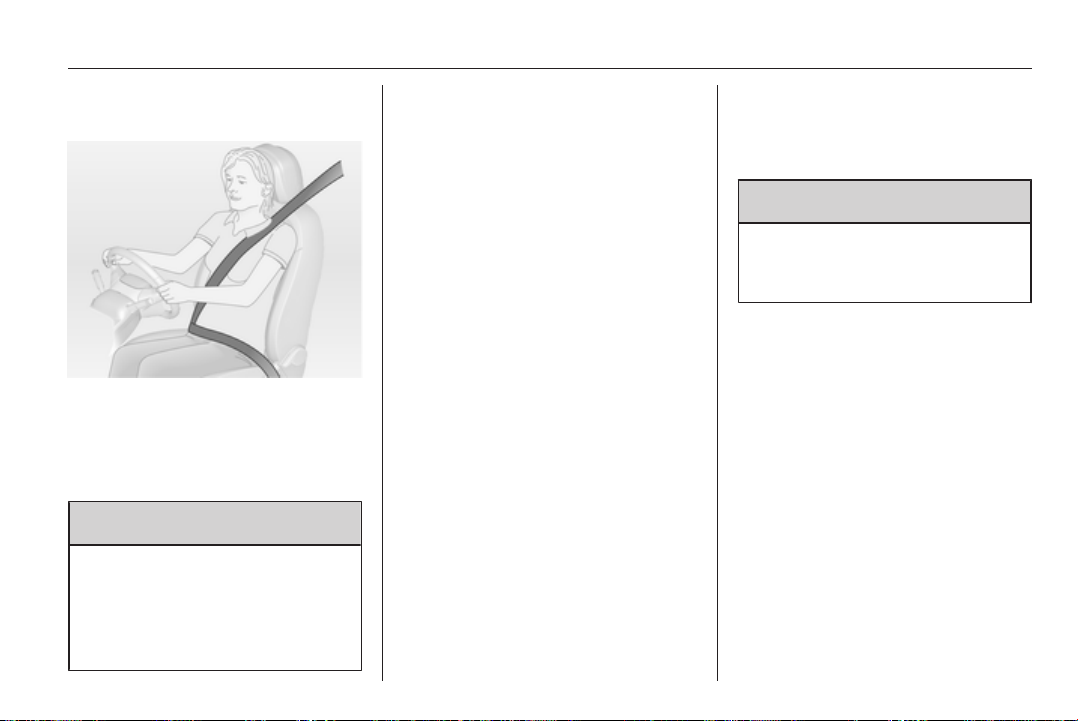

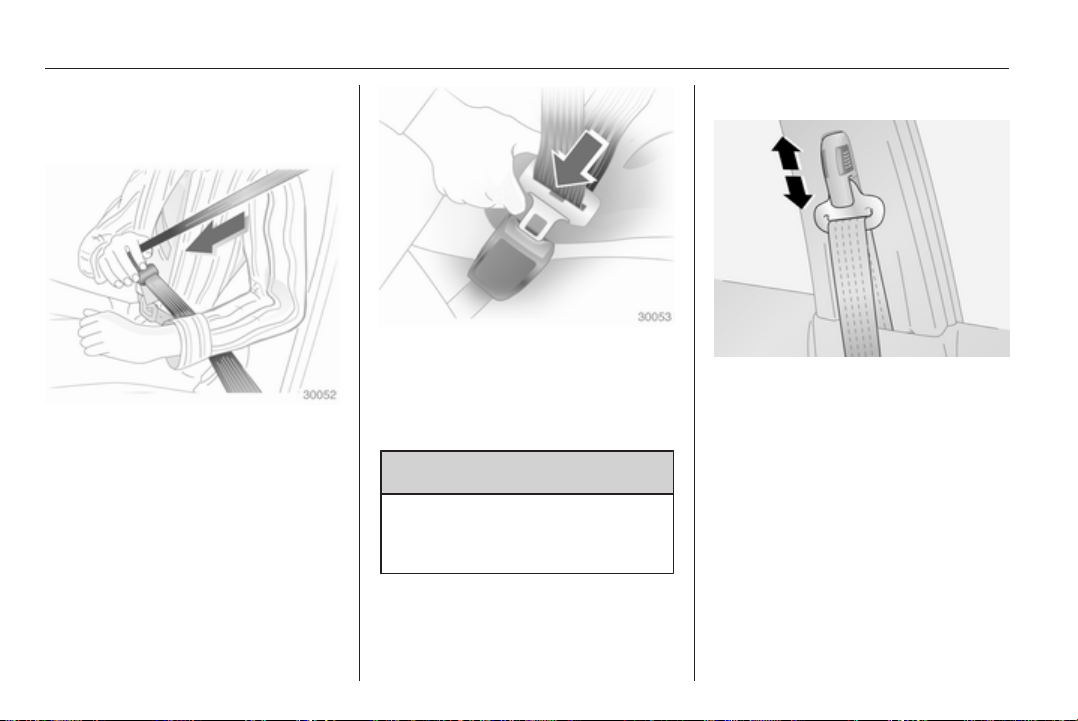

Seat belt

Pull out the seat belt and engage in belt buckle. The seat belt must not be twisted and must fit close against the body. The backrest must not be tilted back too far (maximum approx. 25 °).
To release belt, press red button on belt buckle.
Seat position 3 33, Seat belts 3 39, Airbag system 3 42.
In brief 9

Mirror adjustment

Interior mirror
To reduce dazzle, adjust the lever on the underside of the mirror housing.
Interior mirror 3 28, Automatic anti­dazzle interior mirror 3 28.
Exterior mirrors
Select the relevant exterior mirror and adjust it.
Convex exterior mirrors 3 26, Electric adjustment 3 26, Folding exterior mirrors 3 27, Heated exterior mirrors 3 27, Automatic anti-dazzle exterior mirrors 3 28.

Steering wheel adjustment

Unlock lever, adjust steering wheel, then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless vehicle is stationary and steering wheel lock has been released.
Airbag system 3 42, Ignition positions 3 120.
10 In brief
In brief 11

Instrument panel overview

1 Side air vents ..................... 117
2 Fixed air vents .................... 117
3 High beam .......................... 103
Headlight flash ................... 103
Turn and lane-change
signals ................................ 105
Exit lighting ......................... 109
Parking lights ..................... 106
Cruise control ....................... 87
4 Remote control on
steering wheel ...................... 70
Trip computer ....................... 97
5 Horn ..................................... 71
6 Instruments .......................... 77
7 Windscreen wiper and
washer system, headlight
washer system ..................... 71
Rear window wiper and
washer system ..................... 73
8 Info-Display .......................... 91
Infotainment system ........... 111
Check control, tyre
pressure monitoring
system ................................ 169
Trip computer ....................... 97
9 Centre air vents .................. 117
10 Hazard warning flashers ....104
Parking assist ..................... 137
Electronic Stability Control . 133
Descent control system ...... 134
Control indicator for front
passenger seat belt ............. 40
Status LED for anti-theft
alarm system ........................ 23
Folding exterior mirrors ........ 27
11 Infotainment system ........... 111
12 Front passenger airbag ........ 42
13 Status LEDs for front
passenger airbag ................. 44
14 Glovebox .............................. 52
15 Fuse box ............................ 163
16 Climate control system ....... 113
17 Ignition switch with
steering wheel lock ............ 120
18 Accelerator pedal ............... 119
19 Driver airbag ........................ 42
20 Brake pedal ........................ 130
21 Clutch pedal ....................... 119
22 Steering wheel adjustment ..70
23 Bonnet release ................... 146
24 Coin storage ......................... 53
25 Card holder .......................... 53
26 Light switch ........................ 102
Automatic light control .......102
Instrument illumination ....... 107
Rear fog light ...................... 106
Front fog lights ................... 105
Headlight range
adjustment ......................... 103
12 In brief

Exterior lighting

Turn light switch AUTO = Automatic light control:
Headlights are switched on and off automatically.
7
8 9
Press button
> r
Lighting 3 102.
= Off (or deactivation of
automatic light control) = Sidelights = Headlights
= Front fog lights = Rear fog light
Headlight flash, high beam and low beam
headlight flash high beam = push lever low beam = pull lever back
Automatic light control 3 102, High beam 3 103, Headlight flash 3 103.
= pull lever
towards steering wheel
Turn and lane-change signals
right = lever up left = lever down
Turn and lane-change signals 3 105, Parking lights 3 106.
In brief 13
Hazard warning flashers
Operated with the ¨ button. Hazard warning flashers 3 104.

Horn

Press j.

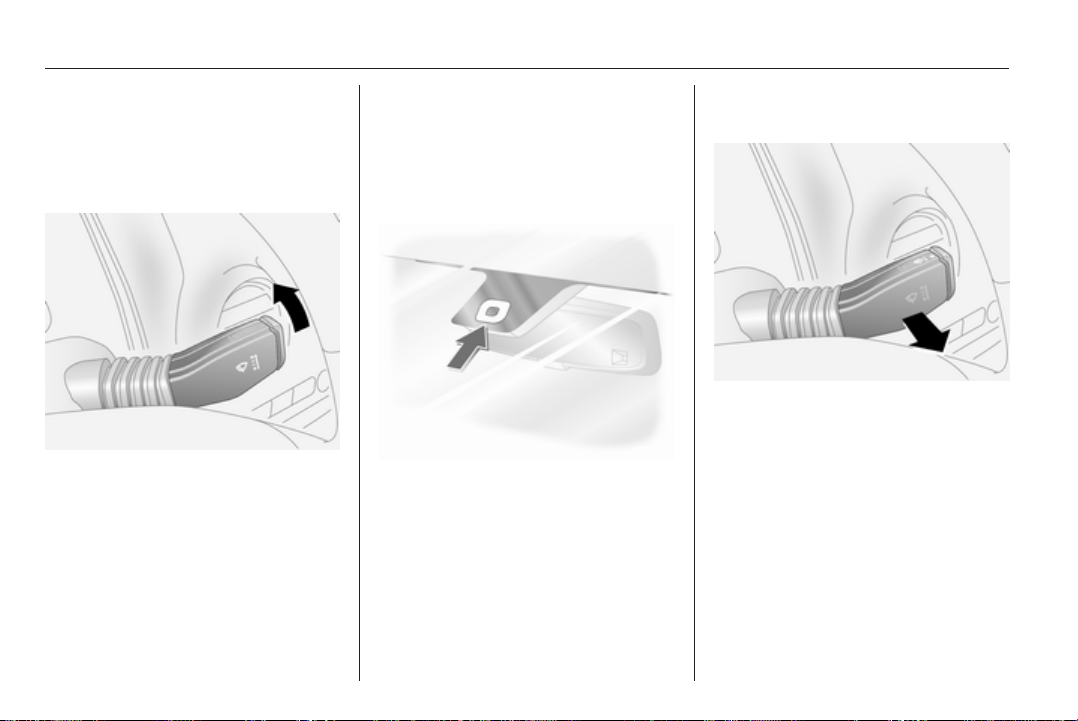

Washer and wiper systems

Windscreen wiper
= fast
&
= slow
%
= timed interval wiping or
$
automatic wiping with rain sensor
= off
§
For a single wipe when the windscreen wiper is off, press the lever down.
Windscreen wiper 3 71, Wiper blade replacement 3 152.
14 In brief
Windscreen and headlight washer systems
Pull lever. Windscreen and headlight washer
system 3 71, Washer fluid 3 149.
Rear window wiper and washer system
Wiper on = push lever Wiper off = pull lever Wash = press and hold button
Rear window wiper and washer system 3 73, Wiper blade replacement 3 152, Washer fluid 3 149.

Climate control

Heated rear window, heated exterior mirrors
Heating is operated by pressing the Ü button.
Heated rear window 3 30, Heated exterior mirrors 3 27.
In brief 15
Demisting and defrosting the windows
Air distribution to l. Cooling n and air recirculation 4
are switched on automatically to improve defrosting efficiency.
Set temperature to highest level. Set fan speed to highest level. Switch on heated rear window Ü. Close centre air vents, open side air
vents and direct them towards the door windows.
Climate control system 3 113.

Transmission

Manual transmission
Reverse: with the vehicle stationary, depress clutch pedal and engage the gear.
If the gear does not engage, set the lever to neutral, release the clutch pedal and depress again; then repeat gear selection.
Manual transmission 3 127.
Automatic transmission
P = park R = reverse N = neutral D = drive
Manual mode: move selector lever from D to the left.
= higher gear
<
= lower gear
]
The selector lever can only be moved out of P when the ignition is on and the foot brake is applied. To engage P or R, push the release button.
Automatic transmission 3 123.
16 In brief

Starting off

Check before starting off
■ Tyre pressure and condition 3 169, 3 195.
■ Engine oil level and fluid levels 3 147.
■ All windows, mirrors, exterior lighting and number plates are free from dirt, snow and ice and are operational.
■ Proper position of mirrors, seats, and seat belts 3 26, 3 33, 3 40.
■ Brake function at low speed, particularly if the brakes are wet.
Starting the engine
■ Turn key to position ACC
■ move the steering wheel slightly to release the steering wheel lock
■ manual transmission in neutral
■ operate clutch and brake pedals
■ automatic transmission in P or N
■ do not accelerate
■ diesel engines: turn key to ON for preheating and wait until control indicator ! extinguishes
■ turn key to START and release
Starting the engine 3 120.

Parking

■ Always apply the electrical parking brake.
Pull switch m. For maximum force, e.g. parking
with a trailer or on inclines, pull switch m twice.
■ Switch off the engine and turn the ignition key to position LOCK, push key into ignition switch and remove.
Turn the steering wheel until the steering wheel lock is felt to engage.
For vehicles with automatic transmission, depress foot brake and shift into P before pushing key into ignition switch and removing.
■ If the vehicle is on a level surface or uphill slope, engage first gear or move the selector lever to P before switching off the ignition. On an uphill slope, turn the front wheels away from the kerb.
If the vehicle is on a downhill slope, engage reverse gear or move the selector lever to P before switching
off the ignition. Turn the front wheels towards the kerb.
■ Lock the vehicle with button p on the radio remote control 3 20 and activate the anti-theft alarm system 3 23.
■ Do not park the vehicle on an easily ignitable surface. The high temperature of the exhaust system could ignite the surface.
■ Close windows and sunroof.
■ Switch off exterior lights, otherwise the headlight warning device will sound when the driver's door is opened.
■ The engine cooling fans may run after the engine has been switched off 3 146.
■ After running at high engine speeds or with high engine loads, operate the engine briefly at a low load or run in neutral for approx. 1 or 2 minutes, before switching off in order to protect the turbocharger.
Keys, locks 3 18, Laying the vehicle up for a long period of time 3 145.
In brief 17
18 Keys, doors and windows

Keys, doors and windows

Keys, locks ................................... 18
Doors ........................................... 22
Vehicle security ............................ 23
Exterior mirrors ............................ 26
Interior mirrors ............................. 28
Windows ...................................... 29
Roof ............................................. 31

Keys, locks

Keys

Replacement keys
The key number is specified in the Car Pass or on a detachable tag.
The key number must be quoted when ordering replacement keys as it is a component of the immobiliser system.
Locks 3 182.
Key with foldaway key section
Press button to extend. To fold the key, first press the button.

Car Pass

The Car Pass contains security related vehicle data and should therefore be kept in a safe place.
When the vehicle is taken to a workshop, this vehicle data is needed in order to perform certain operations.

Radio remote control

Keys, doors and windows 19
Used to operate:
■ Central locking system
■ Anti-theft locking system
■ Anti-theft alarm system
The radio remote control has a range of approx. 6 metres. This range can be affected by outside influences. The hazard warning flashers confirm operation.
Handle with care, protect from moisture and high temperatures and avoid unnecessary operation.
Fault
If the central locking system cannot be operated with the radio remote control, it may be due to the following:
■ Range exceeded.
■ Battery voltage too low.
■ Frequent, repeated operation of the radio remote control while not in range, which will require reprogramming. Seek the assistance of a workshop.
■ Overload of the central locking system by operating at frequent intervals, the power supply is interrupted for a short time.
■ Interference from higher-power radio waves from other sources.
Unlocking 3 20.
Radio remote control battery replacement
Replace the battery as soon as the range reduces.
Batteries do not belong in household waste. They must be disposed of at an appropriate recycling collection point.
Key with foldaway key section
Extend the key and open the unit. Replace the battery (battery type CR2032), paying attention to the installation position. Close the unit.
Key with fixed key section
Open the unit with a small screwdriver in the notch on the cover. Replace the battery (battery type CR2032), paying attention to the installation position. Close the unit.
20 Keys, doors and windows

Central locking system

Unlocks and locks doors, load compartment and fuel filler flap.
Note In the event of an accident of a certain severity, the vehicle unlocks automatically.
Unlocking
Press button q.
Note If no door is opened within 5 minutes after the vehicle has been unlocked, the vehicle is relocked automatically (and the anti-theft alarm is reactivated).
When button q is pressed, the instrument panel illuminates for approx. 30 seconds or until ignition switch is turned to position ACC.
Locking
Close doors, load compartment, fuel filler flap, bonnet, windows and sunroof.
Press button p.
The central locking system can be activated with the windows open.
Note For safety reasons, the vehicle cannot be locked or unlocked via the remote control (and the anti-theft systems will not be activated) if the key is in the ignition switch.
Unlocking the tailgate
Press button q. The tailgate is unlocked together with
the doors.
Keys, doors and windows 21
With the engine running, the tailgate will only unlock when the electrical parking brake is applied or automatic transmission is in position P.
Central locking buttons
Locks or unlocks all doors, the load compartment and fuel filler flap from the passenger compartment.
Press left part of switch m to lock. Press right part of switch m to unlock. When the key is in the ignition switch,
locking is only possible if all doors are closed.
Fault in radio remote control system
Unlocking Manually unlock the driver's door by turning the key in the lock. Switch on the ignition and press the left part of central locking switch m to unlock all doors, load compartment and fuel filler flap.
Locking Manually lock the driver's door by turning the key in the lock.

Child locks

9 Warning
Use the child locks whenever children are occupying the rear seats.
Using a key or suitable screwdriver, turn button on rear door lock to the horizontal position. The door cannot be opened from inside.
22 Keys, doors and windows

Doors

Load compartment

Tailgate
Opening
Operate the button above the number plate and lift the tailgate.
If the tailgate is open when the ignition is switched on, control indicator 1 illuminates in the instrument cluster 3 88.
Central locking system 3 20.
Caution
Ensure there are no obstructions and that there is adequate clearance when opening the tailgate.
9 Warning
Do not drive with the tailgate open or ajar, e.g. when transporting bulky objects, since toxic exhaust gases, which can not be seen or smelled, could enter the vehicle. This can cause unconsciousness and even death.
Note The installation of certain heavy accessories onto the tailgate may affect its ability to remain open.
Closing
Use the interior handle. Do not operate the button above the
number plate while closing the tailgate, as this will unlock it again.
Central locking system 3 20.
Keys, doors and windows 23
Fault
To open the tailgate in the event of power interruption:
Remove the interior trim cover from the central latch area, then push the lever using a suitable tool.

Vehicle security

Anti-theft locking system

9 Warning
Do not use the system if there are people in the vehicle! The doors cannot be unlocked from the inside.
The system deadlocks all the doors. All doors must be closed otherwise the system cannot be activated.
If the ignition was on, the driver's door must be opened and closed once so that the vehicle can be secured.
Unlocking the vehicle disables the mechanical anti-theft locking system. This is not possible with the central locking button.
Activating
Press button p on the radio remote control twice within 3 seconds.
Alternatively, turn key in driver's door towards rear of vehicle again within 3 seconds after locking.

Anti-theft alarm system

The system monitors:
■ Doors, tailgate, bonnet
■ Passenger compartment including adjoining load compartment
■ Vehicle inclination, e.g. if it is raised
24 Keys, doors and windows
■ Siren power supply
■ Ignition
Activation
Ensure the doors, tailgate, fuel filler flap, bonnet, windows and sunroof are closed.
Press button p on radio remote control or manually lock the driver's door.
The system is activated:
■ Automatically, 30 seconds after locking the vehicle (initialisation of the system)
■ Directly by pressing p on the radio remote control once more after locking
If the hazard warning lights do not flash once upon activation or the control indicator flashes rapidly, this may indicate that a door, the tailgate or the bonnet is not fully closed.
Note Changes to the vehicle interior such as the use of seat covers, and open windows or sunroof, could impair the function of passenger compartment monitoring.
Activation without monitoring of passenger compartment and vehicle inclination
Switch off the monitoring of passenger compartment and vehicle inclination when people or animals are being left in the vehicle, because of high volume ultrasonic signals, movements triggering the alarm and when the vehicle is on a ferry or train.
1. Close tailgate, bonnet, windows and sunroof.
2. Press button o. Control indicator o illuminates yellow in the instrument cluster.
Keys, doors and windows 25
3. Close doors.
4. Activate the anti-theft alarm system.
Press button o again to cancel. Control indicator o extinguishes.
Status LED
Status LED is located in the centre console.
Status during the first 30 seconds of anti-theft alarm system activation:
LED illuminates LED flashes quickly
Status after system is armed: LED flashes
slowly LED flashes quickly 3 times after unlocking
Seek the assistance of a workshop in the event of faults.
= test, arming delay.
= doors, tailgate or
bonnet not completely closed, or system fault.
= system is
armed.
= system is
disarmed.
Deactivation
Unlocking the vehicle deactivates anti-theft alarm system. Hazard warning lights flash twice upon deactivation.
If no door is opened or the engine is not started within 30 seconds after the vehicle has been unlocked, the vehicle is relocked automatically and the alarm is reactivated.
If the alarm has been triggered, the hazard warning lights will not flash upon deactivation.
Alarm
When triggered, the alarm sounds via a separate battery-backed power sounder, and the hazard warning lights flash simultaneously. The number and duration of alarm signals are stipulated by legislation.
The alarm can be silenced by pressing any button of the radio remote control or manually unlocking the driver's door with the ignition key. The anti-theft alarm system is deactivated at the same time.
26 Keys, doors and windows

Immobiliser

The system is integrated into the ignition switch and checks whether the vehicle is allowed to start with the key being used. If the transponder in the key is recognized, the engine can be started.
The electronic immobiliser is activated automatically after the key has been removed from the ignition switch.
Control indicator d illuminates in the instrument cluster when the ignition is switched on, then extinguishes. If d remains illuminated when the ignition
is on, there is a fault in the system; the engine cannot be started. Switch off the ignition and remove key, wait approx. 2 seconds and then repeat the start attempt.
If the control indicator remains illuminated, attempt to start the engine using the spare key and seek the assistance of a workshop.
Note The immobiliser does not lock the doors. You should always lock the vehicle after leaving it and switch on the anti-theft alarm system 3 20, 3 23.
Control indicator d 3 87.

Exterior mirrors

Convex shape

The convex exterior mirror reduces blind spots. The shape of the mirror makes objects appear smaller, which will affect the ability to estimate distances.

Electric adjustment

Select the relevant exterior mirror by turning the switch to left (L) or right (R). Then swivel the control to adjust the mirror.
Keys, doors and windows 27

Folding

For pedestrian safety, the exterior mirrors will swing out of their normal mounting position if they are struck with sufficient force. Reposition the mirror by applying slight pressure to the mirror housing.
Manual folding
Press lightly on the outside of the mirror housing to fold in the exterior mirrors.
Electric folding
With ignition switch in positions ACC or ON, press button n and both exterior mirrors will fold in.
Press button n again - both exterior mirrors return to their original position.
If an electrically folded mirror is manually extended, pressing button n will only electrically extend the other mirror. Pressing button n again folds both mirrors back in.
Fold mirrors back to the driving position before driving the vehicle.

Heated

Operated by pressing the Ü button. LED illuminates in the button.
Heating works with the key in ignition switch positions ACC or ON and is switched off automatically after a short time.
To avoid discharging the battery, operate only with the engine running. Do not operate when you are just starting the vehicle, or if there is a build up of snow or ice on the exterior mirrors.
28 Keys, doors and windows
Do not use sharp instruments or abrasive cleaners on the exterior mirrors and avoid scratching or damaging the heating elements.

Automatic dimming

Exterior mirrors dim to reduce glare automatically in conjunction with the automatic anti-dazzle interior mirror 3 28.

Interior mirrors

Manual anti-dazzle

To reduce dazzle, adjust the lever on the underside of the mirror housing.

Automatic anti-dazzle

Press button on mirror housing to turn function on; button illuminates and dazzle from following vehicles at night is automatically reduced. Press button again to turn function off.
There are two light sensors in the mirror housing. To avoid interference and loss of function, do not cover the sensors or hang anything on the mirror.
Keys, doors and windows 29

Windows

Manual windows

The door windows can be opened or closed with the window winders.

Power windows

9 Warning
Take care when operating the power windows. Risk of injury, particularly to children.
If there are children on the rear seats, switch on the child safety system for the power windows.
Keep a close watch on the windows when closing them. Ensure that nothing becomes trapped in them as they move.
Power windows can be operated:
■ with ignition on,
■ within 10 minutes of switching ignition off.
After switching off the ignition, window operation is disabled when the driver's door is opened.
Operate the switch for the respective window by pushing to open or pulling to close.
For incremental operation: Push or pull switch briefly.
For automatic opening or closing: Push or pull switch for longer. Window moves up or down automatically with safety function enabled. To stop movement, operate the switch once more in the same direction.
Additional switches are located in the front passenger's door and the rear doors. The rear windows do not open fully.
Safety function
If the window glass encounters resistance above the middle of the window during automatic closing, it is immediately stopped and opened again.
Override safety function
In the event of closing difficulties due to frost or the like, pull the relevant window switch several times until the window is closed. The window moves up with the safety function disabled.
30 Keys, doors and windows
Child safety system for rear windows
Press switch z to deactivate rear door power windows. To reactivate, press z again.
With the child safety system on, rear door windows can only be operated via the switches in the driver's door.
Overload
If the windows are repeatedly operated within short intervals, the window operation is disabled for some time.

Heated rear window

Operated by pressing the Ü button. LED illuminates in the button.
Heating works with the key in ignition switch positions ACC or ON and is switched off automatically after a short time.
To avoid discharging the battery, operate only with the engine running. Do not operate when you are just starting the vehicle, or if there is a build up of snow or ice on the rear window.
Do not use sharp instruments or abrasive cleaners on the rear window and avoid scratching or damaging the heating elements.

Sun visors

The sun visors can be folded down or swivelled to the side to prevent dazzling.
Sun visors have vanity mirrors and a ticket holder on the rear. When the vanity mirror covers are opened, the sun visor light illuminates.
The mirror covers should be closed when driving.
Loading...
+ 174 hidden pages
