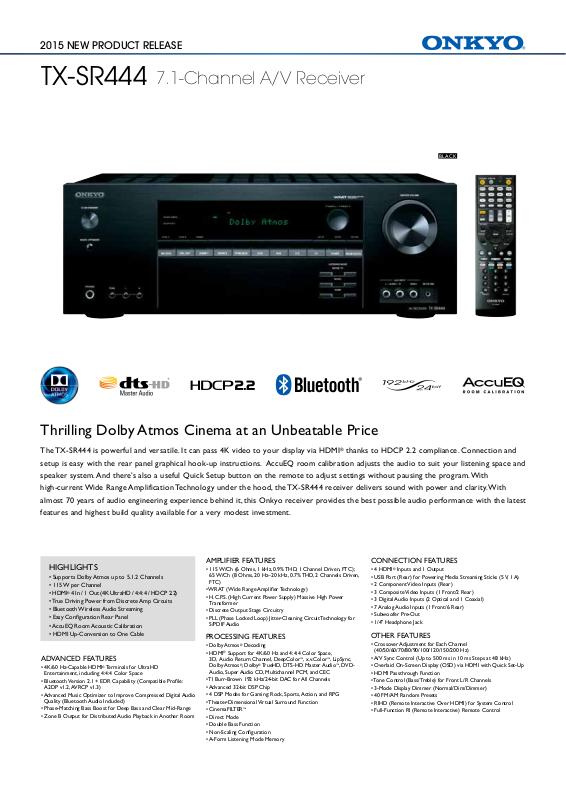

Onkyo TX-SR444 Product Sheet

2015 NEW PRODUCT RELEASE

TX-SR444

7.1-Channel A/V Receiver

BLAC K

Thrilling Dolby Atmos Cinema at an Unbeatable Price

The TX-SR444 is powerful and versatile. It can pass 4K video to your display via HDMI® thanks to HDCP 2.2 compliance. Connection and

setup is easy with the rear panel graphical hook-up instructions. AccuEQ room calibration adjusts the audio to suit your listening space and

speaker system. And there’s also a useful Quick Setup button on the remote to adjust settings without pausing the program. With

high-current Wide Range Amplification Technology under the hood, the TX-SR444 receiver delivers sound with power and clarity. With

almost 70 years of audio engineering experience behind it, this Onkyo receiver provides the best possible audio performance with the latest

features and highest build quality available for a very modest investment.

HIGHLIGHTS

• Supports Dolby Atmos up to 5.1.2 Channels

• 115 W per Channel

• HDMI

4 In / 1 Out (4K UltraHD / 4:4:4 / HDCP 2.2)

• True Driving Power from Discrete Amp Circuits

• Bluetooth Wireless Audio Streaming

• Easy Conguration Rear Panel

• AccuEQ Room Acoustic Calibration

• HDMI Up-Conversion to One Cable

ADVANCED FEATURES

• 4K/60 Hz-Capable HDMI® Terminals for UltraHD Entertainment, including 4:4:4 Color Space

• Bluetooth Version 2.1 + EDR Capability (Compatible Prole:

A2DP v1.2, AVRCP v1.3)

• Advanced Music Optimizer to Improve Compressed Digital Audio Quality (Bluetooth Audio Included)

• Phase-Matching Bass Boost for Deep Bass and Clear Mid-Range

• Zone B Output for Distributed Audio Playback in Another Room

AMPLIFIER FEATURES

• 115 W/Ch (6 Ohms, 1 kHz, 0.9% THD, 1 Channel Driven, FTC); 65 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.7% THD, 2 Channels Driven, FTC)

• WRAT (Wide Range Amplier Technology)

• H.C.P.S. (High Current Power Supply) Massive High Power Transformer

• Discrete Output Stage Circuitry

• PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio

PROCESSING FEATURES

• Dolby Atmos® Decoding

Support for 4K/60 Hz and 4:4:4 Color Space,

• HDMI 3D, Audio Return Channel, DeepColor Dolby Atmos Audio, Super Audio CD, Multichannel PCM, and CEC

• TI Burr-Brown 192 kHz/24-bit DAC for All Channels

• Advanced 32-bit DSP Chip

• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG

• Theater-Dimensional Virtual Surround Function

• CinemaFILTER

• Direct Mode

• Double Bass Function

• Non-Scaling Conguration

• A-Form Listening Mode Memory

, Dolby® TrueHD, DTS-HD Master Audio™, DVD-

™

, x.v.Color™, LipSync,

CONNECTION FEATURES

• 4 HDMI® Inputs and 1 Output

• USB Port (Rear) for Powering Media Streaming Sticks (5 V, 1 A)

• 2 Component Video Inputs (Rear)

• 3 Composite Video Inputs (1 Front/2 Rear)

• 3 Digital Audio Inputs (2 Optical and 1 Coaxial)

• 7 Analog Audio Inputs (1 Front/6 Rear)

• Subwoofer Pre-Out

• 1/4" Headphone Jack

OTHER FEATURES

• Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/200 Hz)

• A/V Sync Control (Up to 500 ms in 10 ms Steps at 48 kHz)

• Overlaid On-Screen Display (OSD) via HDMI with Quick Set-Up

• HDMI Passthrough Function

• Tone Control (Bass/Treble) for Front L/R Channels

• 3-Mode Display Dimmer (Normal/Dim/Dimmer)

• 40 FM/AM Random Presets

• RIHD (Remote Interactive Over HDMI) for System Control

• Full-Function RI (Remote Interactive) Remote Control

TX-SR444

7.1-Channel A/V Receiver

Extraordinary Dolby Atmos

Dolby Atmos transports you into an extraordinary surround sound experience with captivating, multidimensional sound

objects that ll your room and ow all around you. This

7.1-channel receiver can power a 5.1.2-channel Dolby Atmos speaker setup: 5.1 standard surround conguration plus two in-ceiling or height channels: 5.1.2.

HDMI® 4 In / 1 Out for UltraHD

The latest HDMI specication and HDCP 2.2 compatibility

support the latest formats and technologies planned for

Hollywood content. This latest HDMI spec offers a signicant increase in bandwidth (up to 18Gbps) to support new features such as 4K@50/60 (2160p), which is 4 times the clarity of 1080p/60 video resolution, and 4:4:4 color space.

True Power from Discrete Ampliers

Discrete Amps deliver high instantaneous current to increase

speaker control for accurate and dynamic audio reproduction. This precise power is the cornerstone of Onkyo’s amplication philosophy.

Bluetooth Audio Streaming

Stream virtually any audio from your smartphone, tablet, or

PC to your home theater for clear and powerful sound.

Easy Connection Guide on Back Panel

Connections to speakers and external devices are illustrated and clearly labeled on the back panel.

AccuEQ Room Acoustic Calibration

AccuEQ measures and corrects speaker distances, output levels, crossover frequencies, and frequency response from one quick and easy listening position to ensure clear and balanced

surround-sound.

HDMI Video Up-Conversion

Only one wire! Every video signal is conver ted and sent to your TV through one HDMI cable.

Ready for Streaming Media Devices

The handy USB port supplies power to streaming media players. Keep up with your video subscription services and other programs streamed from the Internet.

SPECIFICATIONS

Amplier Section

Power Output

All Channels 115 W/Ch (6 Ohms, 1 kHz, 0.9% THD, 1 Channel Driven, FTC) 65 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.7% THD, 2 Channels Driven, FTC)

Dynamic Power 160 W (3 Ohms, Front) 125 W (4 Ohms, Front) 85 W (8 Ohms, Front)

THD+N (Total Harmonic Distortion + Noise)

0.08% (20 Hz–20 kHz, Half Power) Damping Factor Over 40 (Front, 1 kHz, 8 Ohms) Input Sensitivity and Impedance

200 mV/47 k-ohms (Line)

Rated RCA Output Level and Impedance 1V /470 Ohms (Subwoofer Pre Out)

Frequency Response 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode) Tone Control ±10 dB, 20 Hz (Bass)

±10 dB, 20 kHz (Treble)

Signal-to-Noise Ratio 100 dB (Line, IHF-A) Speaker Impedance 6 Ohms–16 Ohms

Video Section

Input Sensitivity/Output Level and Impedance

Video 1.0 Vp–p/75 Ohms (Component Y)

0.7 Vp–p/75 Ohms (Component P

1.0 Vp–p/75 Ohms (Composite)

Component Video Frequency Response 5 Hz–13.5 MHz/+0 dB, -3 dB

Tuner Section

Tuning Frequency Range

FM 87.5 MHz–107.9 MHz AM 530 kHz–1,710 kHz

FM/AM Preset Memory 40 Stations

General

Power Supply AC 120 V~, 60 Hz Power Consumption 4.3 A No-Sound Power Consumption

55 W Standby Power Consumption

0.15 W Dimensions (W x H x D) 17

(435 x 160 x 328 mm) Weight 17.2 lbs. (7.8 kg)

CARTON

Dimensions (W x H x D) 21 (537 x 265 x 416 mm)

Weight 23.1 lbs. (10.5 kg)

UPC CODE

(B) 751398012198

Supplied Accessories

• Indoor FM antenna • AM loop antenna

• Speaker setup microphone • Instruction manual

• Remote controller • AA (R6) batteries x 2

/8˝ x 6 5/16˝ x 12 15/16˝

/8˝ x 10 7/16˝ x 16 3/8˝

B/CB

, PR/CR)

Text on receiver may var y with region.
