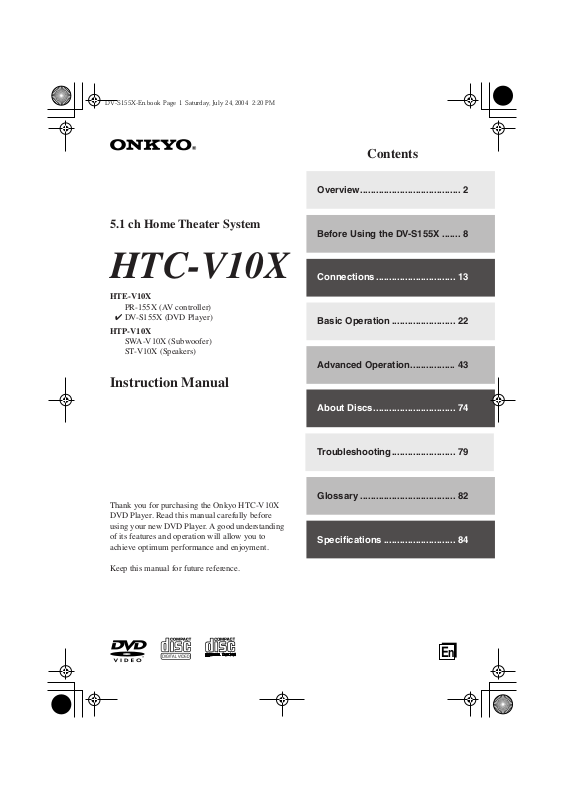

DV-S155X-En.book Page 1 Saturday, July 24,2004 2:20 PM

5.1 ch Home Theater System

HTC-V10X

HTE-V10X

PR-155X (AV controller)DV-S155X (DVD Player)

HTP-V10X

SWA-V10X (Subwoofer)

ST-V10X (Speakers)

Instruction Manual

Thank you for purchasing the Onkyo HTC-V10X DVD Player. Read this manual carefully before using your new DVD Player. A good understanding of its features and operation will allow you to achieve optimum performance and enjoyment.

Keep this manual for future reference.

Contents



Overview......................................

2

Before Using the DV-S155X .......

8

Connections ..............................

13

Basic Operation ........................

22

Advanced Operation.................

43

About Discs...............................

74

Troubleshooting........................

79

Glossary ....................................

82

Specifications ...........................

84

En

DV-S155X-En.book Page 2 Saturday, July 24,2004 2:20 PM

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING



AVIS

RISK OF ELECTRIC SHOCK



RISQUE DE CHOC ELECTRIQUE

DO NOT OPEN



NE PAS OUVRIR

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Important Safety Instructions

1.Read these instructions.

2.Keep these instructions.

3.Heed all warnings.

4.Follow all instructions.

5.Do not use this apparatus near water.

6.Clean only with dry cloth.

7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.Only use attachments/accessories specified by the manufacturer.

12.Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tipover.

PORTABLE CART WARNING

S3125A

13.Unplug this apparatus during lightning storms or when unused for long periods of time.

14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15.Damage Requiring Service

Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A.When the power-supply cord or plug is damaged,

B.If liquid has been spilled, or objects have fallen into the apparatus,

C.If the apparatus has been exposed to rain or water,

D.If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,

E.If the apparatus has been dropped or damaged in any way, and

F.When the apparatus exhibits a distinct change in performance this indicates a need for service.

16.Object and Liquid Entry

Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.

The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus.

Don’t put candles or other burning objects on top of this unit.

17.Batteries

Always consider the environmental issues and follow local regulations when disposing of batteries.

18.If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation.

Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape.

2

DV-S155X-En.book Page 3 Saturday, July 24,2004 2:20 PM

Precautions

For British models

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT

1. Region Numbers

The DVD standard uses region numbers to control how discs can be played around the world, the world being divided into six regions. This unit will only play DVD discs that match its region number, which can be found on its rear panel (e.g., 1 ).

The wires in the mains lead are coloured in accordance with the following code:

Blue: Neutral Brown: Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

2. About this Manual

This manual explains how to use all of this unit’s functions. Although the DVD standard offers many special features, not all discs use them all, so depending on the disc being played, this unit may not respond to certain functions. See the disc’s sleeve notes for supported features.

When you attempt to use a DVD feature that is not available, this logo may appear onscreen, indicating that the feature is not supported by the current disc or this unit.

3. Recording Copyright

Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

IMPORTANT

The plug is fitted with an appropriate fuse. If the fuse needs to be replaced, the replacement fuse must approved by ASTA or BSI to BS1362 and have the same ampere rating as that indicated on the plug. Check for the ASTA mark or the BSI mark on the body of the fuse.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMPERE SOCKET.

If in any doubt, consult a qualified electrician.

For European Models

Declaration of Conformity

We, ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANY

declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3.

GROEBENZELL, GERMANY

I. MORI

ONKYO EUROPE ELECTRONICS GmbH

4.Power

WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.

AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on this unit’s rear panel (e.g., AC 230–240 V, 50 Hz).

Setting the [STANDBY/ON] switch to STANDBY does not fully shutdown the DV-S155X. If you do not intend to use the DV-S155X for an extended period, remove the power cord from the AC outlet.

5.Never Touch this Unit with Wet Hands

Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

6.Installing this Unit

Install this unit in a well-ventilated location. Ensure that there’s adequate ventilation all around this unit, especially if it’s installed in an audio rack. If the ventilation is inadequate, the unit may overheat, leading to malfunction.

Do not expose this unit to direct sunlight or heat sources, because its internal temperature may rise, shortening the life of the optical pickup.

Avoid damp and dusty places, and places subject to vibrations from loudspeakers. Never put the unit on top of, or directly above a loudspeaker.

3

DV-S155X-En.book Page 4 Saturday, July 24,2004 2:20 PM

Precautions—Continued

Install this unit horizontally. Never use it on its side or on a sloping surface, because it may cause a malfunction.

If you install this unit near a TV, radio, or VCR, the picture and sound quality may be affected. If this occurs, move this unit away from the TV, radio, or VCR.

7. Care

Occasionally, you should dust this unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Do not use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

8. Handling Notes

If you need to transport this unit, use the original packaging to pack it how it was when you originally bought it.

Do not use volatile liquids, such as insect sprays, near this unit. Do not leave rubber or plastic items on this unit for a long time, because they may leave marks on the case.

This unit’s top and rear panels may get warm after prolonged use. This is normal.

When you’ve finished using this unit, remove all discs and turn off the power.

If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally.

9. To Obtain a Clear Picture

This unit is a high-tech, precision device. If the lens on the optical pickup, or the disc drive mechanism becomes dirty or worn, the picture quality may be affected. To maintain the best picture quality, we recommend regular inspection and maintenance (cleaning or worn part replacement) every 1,000 hours of use depending on the operating environment. Contact your Onkyo dealer for details.

10. Moisture Condensation

Moisture condensation may damage this unit.

Read the following carefully:

When you take a glass containing a cold drink outside on a summer’s day, drops of water, called condensation, form on the outside of the glass.

Similarly, moisture may condense on the lens of the optical pickup, one of the most important parts inside this unit.

Moisture condensation can occur in the following situations:

The unit is moved from a cold place to a warm place.

A heater is turned on, or cold air from an air conditioner is hitting the unit.

In the summer, when this unit is moved from an air conditioned room to a hot and humid place.

The unit is used in a humid place.

Do not use this unit when there’s the possibility of moisture condensation occurring. Doing so may damage your discs and certain parts inside this unit.

If condensation does occur, remove all discs and leave this unit turned on for two to three hours. By this time, the unit will have warmed up and any condensation will have evaporated. To reduce the risk of condensation, keep this unit connected to a wall outlet.

This unit contains a semiconductor laser system and is classified as a “CLASS 1 LASER PRODUCT”. So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit.

To prevent being exposed to the laser beam, do not try to open the enclosure.

DANGER:

VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK FAILED OR DEFEATED. DO NOT STARE INTO BEAM.

CAUTION:

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

The label on the right is applied on the rear panel.

1.This unit is a CLASS 1 LASER PRODUCT

and employs a laser inside the cabinet.

2.To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualified personnel.

4

DV-S155X-En.book Page 5 Saturday, July 24,2004 2:20 PM

Features

Plays DVD video, DVD-R/DVD-RW (video mode), music CD/CD-R/CD-RW, video CD, MP3 CD, WMA*1, and JPEG

Component video output jacks for high-quality playback images

Progressive scan is supported for smoother video playback (NTSC only)

Program playback lets you store up to 32 steps

Resume function lets you continue playback from where you stopped, and Last Memory function lets you play back the rest of a previously-viewed disc

DLA Link (Digital Rec Level Adjustment) function automatically sets the recording level when recording from CD to MD

Dolby*2 Digital/DTS*3/PCM digital audio output jack

Two digital output jacks that can be individually set to different digital output formats

*1 Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

*2 Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby

Laboratories.

*3 “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

In catalogs and on packaging, the letter added to the end of the product name indicates the color of the DV-S155X. Specifications and operation are the same regardless of color.

5

DV-S155X-En.book Page 6 Saturday, July 24,2004 2:20 PM

Table of Contents



Important Safety Instructions.....................................................................................

2

Precautions ..................................................................................................................



3

Features........................................................................................................................



5

Table of Contents ........................................................................................................

6

Index to Parts and Controls........................................................................................

8

Front panel ....................................................................................................................................



8

Display section ..............................................................................................................................



9

Rear panel ...................................................................................................................................



10

Remote control (RC-522DV) .......................................................................................................

11

Preparing the Remote Controller ............................................................................

12

Inserting the batteries .................................................................................................................

12

Using the remote controller .........................................................................................................

12

Connections ..............................................................................................................



13

Before Making Any Connections ................................................................................................

13

AV Cables & Sockets ..................................................................................................................

14

Connecting your television ..........................................................................................................

15

Connecting your amp .................................................................................................................

17

Connecting the

cable ..........................................................................................................

18

Connecting to the Onkyo Separate Collection Series components ....................

19

System functions .........................................................................................................................



19

Connections and settings when using with the PR-155X ............................................................

20

Connecting the power cord ........................................................................................................

21

Turning on the power ..................................................................................................................

21

Initial DVD setup

.......................................................................................................

22

DVD playback (Basic playback) ..............................................................................

24

Playing a DVD .............................................................................................................................



24

Selecting audio, subtitles, and angles ........................................................................................

27

Finding the location you want to watch or hear ..........................................................................

29

Audio formats and sound effects ................................................................................................

31

Playing a CD or video CD (Basic playback) ...........................................................

32

Playing a CD or video CD ...........................................................................................................

32

Switching the audio

....................................................................................................................

35

Searching for a location ..............................................................................................................

36

Playing MP3, WMA, and JPEG (Basic playback) ...................................................

38

Playing MP3 or WMA ..................................................................................................................

38

Selecting a track .......................................................................................................................



40

Playing a JPEG CD

....................................................................................................................

41

About the included items

The Amplifier and Speaker Section of this Instruction Manual contains a complete list of the included items. Please refer to this list and make sure that no items are missing.

6

DV-S155X-En.book Page 7 Saturday, July 24,2004 2:20 PM

Table of Contents—Continued



Advanced DVD playback ..........................................................................................

43

Memory playback.........................................................................................................................

43

Random playback ........................................................................................................................

45

Repeat playback ..........................................................................................................................

46

Repeatedly playing a selected segment (A-B Repeat Playback)................................................

47

Last Memory.................................................................................................................................

48

Zoom ............................................................................................................................................

49

Advanced CD or video CD playback .......................................................................

50

Memory playback.........................................................................................................................

50

Random playback ........................................................................................................................

52

Repeat playback ..........................................................................................................................

53

Repeatedly playing a selected segment (A-B Repeat Playback)...............................................

54

Last Memory.................................................................................................................................

55

Zoom ............................................................................................................................................

56

Advanced MP3, WMA, or JPEG playback ...............................................................

57

Memory playback.........................................................................................................................

57

Random playback ........................................................................................................................

58

Repeat playback .........................................................................................................................

59

Viewing disc information..........................................................................................

60

Advanced setup.........................................................................................................

61

About Discs ...............................................................................................................

74

Playable discs ..............................................................................................................................

74

Non-playable discs ......................................................................................................................

74

DVD control limitations .................................................................................................................

75

About video CDs ..........................................................................................................................

75

DVD-R/DVD-RW playback ...........................................................................................................

75

Regarding CD-R/CD-RW playback..............................................................................................

76

Regarding MP3/WMA/JPEG playback.........................................................................................

76

Regarding MP3 playback ............................................................................................................

76

Regarding WMA playback ...........................................................................................................

76

Regarding JPEG playback...........................................................................................................

76

Differences in disc composition...................................................................................................

77

Handling discs .............................................................................................................................

78

Cleaning discs .............................................................................................................................

78

Storing discs ................................................................................................................................

78

Copyrights....................................................................................................................................

78

A note regarding condensation ...................................................................................................

78

Troubleshooting ........................................................................................................

79

Glossary .....................................................................................................................

82

Specifications ............................................................................................................

84

7

DV-S155X-En.book Page 8 Saturday, July 24,2004 2:20 PM

Index to Parts and Controls

Front panel



PROGRESSIVE button









Remote control sensor

Switches the video output



/



buttons





to progressive mode.

Find the beginning of

Receives signals from the remote

(NTSC only)

a chapter or song.

control unit.

Operate this while the









Disc tray

player is stopped.



















Insert the disc here.











(Open/Close)

(Play) button

REPEAT button

button

Starts playback.

Starts repeat-



Opens or closes





playback.



the disc tray.



DVD PLAYER







REPEAT

RANDOM PROGRESSIVE DIMMER



STANDBY / ON

STANDBY

DISPLAY

DV-S155X

DISPLAY button

Display section

DIMMER button











Switches the infor-

See the follow-

Switches the









(Stop) button









mation shown in

ing page.

brightness of the







Stops playback.

the display.



display section.











STANDBY indicator















Lights when the unit is in















standby mode, and is















dark when the power is









(Pause) button







turned on.

RANDOM button

Pressing this button during



video or audio playback will

STANDBY/ON button

Switches to random play-

freeze the video and tempo-

Switches the power between

back mode.



rarily stop the audio. Press

standby and on.





this button once again to







resume playback.

8

DV-S155X-En.book Page 9 Saturday, July 24,2004 2:20 PM

Index to Parts and Controls—Continued

Display section

TRACK CHP (Track Chapter) indicator

RANDOM indicator

TITLE indicator

TOTAL indicator

Disc indicator

Indicates the type of disc that REMAIN indicator is inserted in the disc tray.

Repeat indicator

(Dolby Digital)

D indicator A-B repeat indicator

Lights if you’re playing a DVD that was recorded with Dolby Digital sound.

* This will not light if you set the Digital Out/Digital1 setting to PCM.

DVD

V CD

PBC RANDOM MEMORY

A-B

D PRO LOGIC

TITLE

TRACK CHP PROGRAM TOTAL REMAIN



PROGRESSIVE







MP3









indicator







PROGRESSIVE indicator

Angle indicator

Lights if you’re playing

Lights if you’ve selected Progressive



a DVD that was















for the video output.



recorded with DTS















(NTSC only)



sound.



















It will not light if you’re





playing a DTS CD.







MP3 indicator















Lights if you’re playing a disc that















was recorded in MP3 format.

Multi-function display area





























Displays information such as the play-















back mode, title, chapter, track number,

,







(Play/Pause) indicator

and elapsed time.









9

DV-S155X-En.book Page 10 Saturday, July 24, 2004 2:20 PM

Index to Parts and Controls—Continued

Rear panel

jacks

Power cord

These jacks allow you to connect an Onkyo component (cassette deck, etc.) that has jacks, so that its operation will be linked with the DV-S155X player. Connecting only the cable is not enough to make your component work as a system.

You will also need to connect the audio connection cable for audio.

DVD PLAYER

DV-S155X

AUDIO OUTPUT (ANALOG) jacks

These jacks output analog audio. Use the included audio connection cable to connect these jacks to your amp or television.

SYSTEM MODE switch

(see page 20)

AUDIO OUTPUT (DIGITAL COAXIAL) jack

This is a coaxial digital output jack. Use the coaxial digital audio cable to connect this jack to your amp or CD recorder etc. if it has a digital input jack.

AUDIO OUTPUT (DIGITAL OPTICAL) jack

This is an optical digital output jack.

Use the included optical digital audio cable to connect this jack to your PR-155X.

COMPONENT VIDEO OUTPUT jacks

These jacks output the video signal.

If your television has component video input jacks, use commercially-available component video connection cables to connect these jacks to your television.

S VIDEO OUTPUT jack

This connector outputs the video signal. If your television has an S-video jack, use the included S-video connection cable to connect this jack to your television.

VIDEO OUTPUT jack

This connector outputs the video signal. Use the included composite video connection cable to connect this jack to your television.

10

DV-S155X-En.book Page 11 Saturday, July 24, 2004 2:20 PM

Index to Parts and Controls—Continued

Remote control (RC-522DV)

STANDBY button









OPEN/CLOSE button

Turns the power to standby mode.









Opens/closes the disc tray.

ON button











MEMORY button

Turns the power on.









SEARCH button









Stores favorite songs or









scenes for playback in the

Lets you find a desired location on









order you want.

the DVD, video CD, or CD.









DIMMER button

















LAST MEMORY button









Starts the brightness of the









display section.

Memorizes the playback location









REPEAT button

from which you can resume playing

ON STANDBY









OPEN/

the next time you insert a DVD or







CLOSE

Starts repeat playback.

SEARCH LAST MEMORY MEMORY

DIMMER

video CD.



















A-B button















REPEAT

Number buttons

1

2

3



Starts A-B repeat playback







A-B

on a DVD, video CD, or CD.

Use these to specify scenes, audio

4

5

6











RANDOM



options, subtitles, items, or pass-







RANDOM button

7

8

9



words.

















DISPLAY

Selects random playback























+10

0

CLEAR



mode.

















TOP MENU button

TOP MENU





MENU











DISPLAY button

Displays the DVD’s top menu









Switches the displayed

screen.





















ENTER



information.

























RETURN





SETUP



/

/

/

/ENTER buttons









CLEAR button

Use these to move the cursor up/

AUDIO

ANGLE SUBTITLE ZOOM

Cancels a choice you

down/left/right. Press the center









made.

button to confirm your selection.









MENU button

































Displays the menu screen.

RETURN button

PROGRESSIVE



STEP/SLOW

Displays the JPEG thumb-

Returns to the previous item in the



nail or MP3 navigation





-

+

setting screen.











screen.

AUDIO button









SETUP button

Switches the DVD language or the









Displays the setup screen.

video CD audio.



RC-522DV





















ZOOM button

ANGLE button









Zooms (magnifies) the DVD

Switches the DVD angle.









or video CD screen.

PROGRESSIVE button









SUBTITLE button

Switches the video output to pro-









Switches a DVD’s subtitle

gressive mode. (NTSC only)









language.

Operate this button when the DVD











player is stopped.









STEP/SLOW +/– buttons



















(Stop) button: Stops playback.

/

buttons:



Control frame-by-frame or





slow motion playback for a



(Play) button: Starts playback.

Search forward or backward

DVD or video CD.



through scenes or songs.



(Pause) button: Pauses playback.





Zoom (magnify) JPEG images.













11

DV-S155X-En.book Page 12 Saturday, July 24, 2004 2:20 PM

Preparing the Remote Controller

Inserting the batteries

1

2

3

1 Detach the battery cover.

2Insert two size-AA/R6 batteries.

Be sure to match the + and – ends of the batteries with to diagram inside the battery

compartment.

3 Attach the battery cover.

Do not mix new batteries with old batteries or different kinds of batteries.

To avoid corrosion, remove the batteries if you do not intend to use the remote controller for a long time.

Remove dead batteries immediately to avoid damage from corrosion. If the remote controller does not operate smoothly, replace both batteries at the same time.

The batteries should last for about six months, although this will vary with usage.

Using the remote controller

Remote control sensor

Remote control sensor

DV-S155X

Amplifier



(PR-155X, etc.)

30˚ 30˚

RC-522DV







(16

feet)





m





5





About















30˚ 30˚

RC-568S







(16

feet)





m





5





About















DV-S155X

Point the remote controller toward the remote control sensor.

Place the unit away from strong light, such as direct sunlight or inverted fluorescent light, which can prevent proper operation of the remote controller.

Using another remote controller of the same type in the same room or using the unit near equipment that uses infrared rays may cause operational interference.

Do not put any object (such as a book) on the remote controller. The buttons of the remote controller may be pressed by mistake, which drains the batteries.

Make sure the audio rack doors do not have colored glass. Placing the unit behind such doors may prevent proper remote controller operation.

If there is an obstacle between the remote controller and the remote control sensor, the remote controller will not operate.

12

DV-S155X-En.book Page 13 Saturday, July 24, 2004 2:20 PM

Connections

Before Making Any Connections

Read the manuals supplied with your AV components.

Don’t connect the power cord until you’ve completed and double-checked all audio and video connections.

Optical Digital Inputs

The DV-S155X’s optical digital inputs have shutter-type covers that open when an optical plug is inserted and close when it’s removed. Push plugs in all the way.

Caution: To prevent shutter damage, hold the optical plug straight when inserting and removing.

RCA AV Connection Color Coding

RCA-type AV connections are usually color coded: red, white, and yellow. Use red plugs to connect right-channel audio inputs and outputs (typically labeled “R”). Use white plugs to connect left-channel audio inputs and outputs (typically labeled “L”). And use yellow plugs to connect composite video inputs and outputs.

Right (red)

Analog audio

Right (red)



Left (white)



Left (white)

Composite video

(Yellow) (Yellow)

Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).

To prevent interference, keep audio and video connection cables away from power cords and speaker cables.

Right!

Wrong!

13

DV-S155X-En.book Page 14 Saturday, July 24, 2004 2:20 PM

Connections—Continued

AV Cables & Sockets

Video



Cable

Socket

Description







Component video separates the lumi-

Component

Y

Y

nance (Y) and color difference sig-





nals (PR, PB), providing the best

video

PB

PB

connection

picture quality. (Some TV manufac-





cable

PR

PR

turers label their component video













sockets slightly differently.)

S-video





S-Video separates the luminance and

connection





color signals and provides better pic-

cable





ture quality than composite video.

Composite





Composite video is commonly used





on TVs, VCRs, and other video

video





connection





equipment. Use only dedicated com-

cable





posite video connection cables.







Audio









Cable

Socket

Description



Offers the best sound quality and

Optical cable

allows you to enjoy surround sound

(e.g., Dolby Digital, DTS). The audio

OPTICAL



quality is the same as for coaxial.

Offers the best sound quality and

Coaxial cable

allows you to enjoy surround sound (e.g., Dolby Digital, DTS). The audio quality is the same as for optical.

Audio

This cable carries analog audio. It’s

the most common connection format

connection

for analog audio, and can be found

cable



on virtually all AV components.

14

DV-S155X-En.book Page 15 Saturday, July 24, 2004 2:20 PM

Connections—Continued

Connecting your television

Here’s how to connect the DV-S155X to your television so you can view DVD and other images. The connection method depends on the type of connector you use. Depending on the connectors that your television has, connect either the component jacks, the S-video jack, or the composite jack.

If your television has component video input jacks

Use commercially-available component video connection cables to connect the DV-S155X’s component video output jacks to the component video inputs of your television.

Commercially-available component

video connection cables

DV-S155X

DVD PLAYER

DV-S155X

To switch the video output type

If your television supports progressive-scan video, you can use the PROGRESSIVE button on the DV-S155X or on the remote to switch the video output type. Do this while playback is stopped.

Progressive (NTSC only):

This is the higher-quality mode that produces a sharper image. Choose this if you’ve connected a television that supports progressive input. The “PROGRESSIVE” indicator in the display area will light.

Interlaced (default setting):

Choose this if you’ve connected a television that does not support progressive video input.

Note

If you choose Progressive when the DV-S155X is connected to a television that doesn’t support progressive input, the image will not be output correctly. Press the remote’s PROGRESSIVE button to turn off progressive mode.

The image may be garbled when you switch between progressive and interlaced modes.

Regarding the DV-S155X’s compatibility with progressive-scan televisions

At present, some progressive-scan televisions are not completely compatible with the DV-S155X, and can produce garbled images. If you experience problems when using progressive playback, turn off progressive mode on the DV-S155X and use the progressive function provided on your television.

15

DV-S155X-En.book Page 16 Saturday, July 24, 2004 2:20 PM

Connections—Continued

If your television has an S-video jack

Connect the included S-video connection cable to the S-video jack.

S-video connection cable (included)

DV-S155X

DVD PLAYER

DV-S155X

S-video



input jack

S VIDEO IN



If your television has neither component jacks nor a S-video jack

Connect the included yellow composite video connection cable to the video jack.

Composite video connection cable (included)

DV-S155X

DVD PLAYER

DV-S155X

Video

input jack

VIDEO IN

16

DV-S155X-En.book Page 17 Saturday, July 24, 2004 2:20 PM

Connections—Continued

Connecting your amp

Refer to the Instruction Manual of your amp as well as the instructions given here.

Before you make connections, turn off the power of all the equipment you’re going to connect, and disconnect all power cords from electrical outlets. Don’t plug in the DV-S155X’s power cord yet.

When making connections, make sure that the plug is inserted all the way into the jack.

Incomplete connection

Insert all the way in

Note

Since the DV-S155X contains components that are vulnerable to heat, don’t place it on top of an amp or other source of heat. Doing so can cause malfunctions.

1 Connect an amp that supports Dolby Digital or DTS, such as the PR-155X This allows you to enjoy Dolby Digital or DTS audio.

2 Connect the audio inputs of your television

Connecting the PR-155X

Use an optical cable to connect the DV-S155X’s AUDIO OUTPUT DIGITAL OPTICAL jack to the optical digital input jack of your amp.

Use the included audio connection cable to connect the DV-S155X’s AUDIO OUTPUT ANALOG jacks to the audio input jacks of your amp.

Tip

You can enjoy 5.1 ch playback with DVD video simply by connecting the digital jack. However you will need to make the analog connections as well if you want to perform analog recording from the DV-S155X onto an MD recorder or other device connected to the amp, or in order to enable system operation with an Onkyo-manufactured amp.

DV-S155X

PR-155X











AV CONTROLLER











AAC

PCM DIGITAL DTS

PL

DSP STEREO(GRN)

MASTER VOLUME









MULTI IN(RED)





DVD PLAYER













DV-S155X













STANDBY













STANDBY / ON

SW LVL CTRL MEMORY

TIMER

INPUT

MULTI JOG





PHONES

CLEAR





SURROUND











PUSH TO ENTER



PR-155X

DIGITAL

DVD/CD

OPTICAL IN

L



Optical cable (included)

R



Audio connection cable (included)



17

DV-S155X-En.book Page 18 Saturday, July 24, 2004 2:20 PM

Connections—Continued

Connecting to the audio inputs of your television

The audio will be heard from the built-in speakers of your television.

DV-S155X

DVD PLAYER

DV-S155X

AUDIO IN

L R

Audio connection cable

Connecting the cable

If you use the included tuner amp that has an the DV-S155X.

cable to connect the DV-S155X to an Onkyo-manufactured amp or connector, you will be able to use the tuner amp’s remote to control

For details on the system functions that are available, refer to the Instruction Manual for your device.

If your device has two jacks, both have the identical function. You may connect the cable to either jack.

Simply connecting the jacks is not enough to make your component operate as a system. You must also connect the audio connection cable correctly.



AV CONTROLLER











AAC

PCM DIGITAL DTS

PL

DSP STEREO(GRN)

MASTER VOLUME



DV-S155X





MULTI IN(RED)

















STANDBY











DVD PLAYER

STANDBY / ON

SW LVL CTRL MEMORY

TIMER

INPUT

MULTI JOG



DV-S155X















PHONES

CLEAR





SURROUND























PUSH TO ENTER















PR-155X



AUDIO IN











L



R







Audio connection cable (included)

jack



cable (included)



18

DV-S155X-En.book Page 19 Saturday, July 24, 2004 2:20 PM

Connecting to the Onkyo Separate Collection Series components

System functions

If you’re using the DV-S155X together with a PR-155X or an Onkyo separate collection series, connecting the cable and audio connection cable will allow you to perform the following system functions. cables allow Onkyo products to operate as a system.

To make system connections

Refer to the DV-S155X Instruction Manual.

Auto power-on

When you turn on the power of the DV-S155X or begin playback, the PR-155X’s power will automatically turn on. If you don’t want to use the DV-S155X, you can turn off just the DV-S155X.

Direct change

When you press the DV-S155X’s (Play) button, the PR-155X’s input will automatically switch to DVD.

Remote control operation

The PR-155X’s remote can control the DV-S155X.

Timer operation

You can use timer playback (CDs only).

Refer to the PR-155X Instruction Manual for details.

Refer to the PR-155X Instruction Manual for details.

• These functions will not work unless connections are correct. You must connect the audio

connection cable and



cables correctly.



For more about system functions, please also refer to the Instruction Manuals for your other component.

19

DV-S155X-En.book Page 20 Saturday, July 24, 2004 2:20 PM

Connecting to the Onkyo Separate Collection Series compo- nents—Continued

Connections and settings when using with the PR-155X

DVD PLAYER

DV-S155X

SYSTEM MODE switch

1

Make system connections between the DV-S155X and the PR-

155X













Make sure that the DV-S155X’s AUDIO OUTPUT ANALOG jacks are



connected to the PR-155X’s DVD/CD jacks, and that the



jacks are











connected (see pages 17, 18).





2

SYSTEM

Make sure that the DV-S155X’s SYSTEM MODE switch is set to

“1.”



MODE





This is set to “1” when you purchased the unit.

3

Set the PR-155X’s input display name to “DVD.”





For details on how to switch the input display name, refer to the PR-



155X’s Instruction Manual.





20

DV-S155X-En.book Page 21 Saturday, July 24, 2004 2:20 PM

Connections—Continued

Connecting the power cord

Make sure that you’ve completed all connections. When you connect the power cord, the DV-S155X will enter standby mode, and the STANDBY indicator will light.

Example:

DVD PLAYER

REPEAT RANDOM PROGRESSIVE DIMMER

STANDBY / ON

STANDBY

DISPLAY

DV-S155X

Household power outlet

Turning on the power

STANDBY/ON

STANDBY

DVD PLAYER

ON

STANDBY / ON

STANDBY

DISPLAY

REPEAT RANDOM PROGRESSIVE DIMMER

DV-S155X

STANDBY indicator

ON

STANDBY





OPEN/





CLOSE

SEARCH

LAST MEMORY MEMORY DIMMER





REPEAT

1

2

3





A-B

4

5

6





RANDOM

7

8

9





DISPLAY

+10

0

CLEAR

TOP MENU

MENU





ENTER

RETURN



SETUP

The DV-S155X

STANDBY / ON

or

Remote control

ON

Press the DV-S155X’s STANDBY/ON button or the remote control’s ON button

To turn the power off, press the DV-S155X’s STANDBY/ON button or the remote control’s STANDBY button.

21

DV-S155X-En.book Page 22 Saturday, July 24, 2004 2:20 PM

Initial DVD setup

You’ll use your television screen to make basic DVD settings. (You can’t do this during playback.) Turn on the power of your television, and switch it to the input to which you’ve connected the DV-S155X. When you power-on the DV-S155X, the setup screen will appear.

1

ON

STANDBY







OPEN/





CLOSE

SEARCH

LAST MEMORY MEMORY

DIMMER









REPEAT



1

2

3











A-B



4

5

6











RANDOM



7

8

9











DISPLAY



+10

0

CLEAR





TOP MENU



MENU







ENTER





RETURN





SETUP



AUDIO

ANGLE SUBTITLE

ZOOM

2, 3 4

PROGRESSIVE

STEP/SLOW



-

+

RC-522DV

1 ON

Press the ON button to turn on the power.

The Initial Setup screen appears on your television.

If it doesn’t appear, press the SETUP button.

Use the / buttons to select Initial Setup () and press the ENTER button.

Continues to next page

22

DV-S155X-En.book Page 23 Saturday, July 24, 2004 2:20 PM

Initial DVD setup—Continued

2

ENTER

ENTER

Select the shape of the connected television

Use the / buttons to select the shape of your television, and press the ENTER button.

4:3 Letter box

Choose this if you’ve connected a television with a 4 to 3 width-to-height ratio (standard size) television. Wide-screen images will have a black bar displayed at the top and bottom.

4:3 Normal

Choose this if you’ve connected a television with a 4 to 3 width-to-height ratio (standard size) television. The image is displayed using the full area of the screen, and the left and right edges of the image are cut off. If the DVD you’re watching does not support this method, it will be shown in Letterbox format.

16:9 Widescreen

Choose this if you’ve connected a television with a 16 to 9 width-to-height ratio (widescreen).

16:9 Compressed

Choose this if you’ve connected a television with a 16 to 9 width-to-height ratio (widescreen) but video recorded in 4:3 format is “stretched” horizontally (to a 16:9 ratio) and you’re unable to select a 4:3 ratio on your television. Video recorded in 4:3 format will be output as 4:3.

Tip

These settings may not work for some discs. For details refer to the package of the disc you are watching.

3

Select the On-Screen Language





ENTER



ENTER

buttons to select the language that you want to view on



Use the /



screen, and press the ENTER button.



English: The on-screen display appears in English. (Default setting)



Français: The on-screen display appears in French.



Español: The on-screen display appears in Spanish.



Deutsch: The on-screen display appears in German.



Italiano: The on-screen display appears in Italian.



Note





When the DV-S155X is connected to the PR-155X, you don’t need to set



the Digital Out settings. See page 66 for more information.





4

Exit the Initial Setup screen

SETUP



If the Initial Setup screen does not disappear on its own, press the SETUP button.

23

DV-S155X-En.book Page 24 Saturday, July 24, 2004 2:20 PM

DVD playback (Basic playback)

Playing a DVD

To watch DVD video, turn on the power of your television, and switch the input select setting of your television to the input that the DV-S155X is connected to.

1 2

DVD PLAYER

1 1



,

REPEAT

RANDOM PROGRESSIVE DIMMER

STANDBY / ON

2

STANDBY



DISPLAY





DV-S155X

,

ON

STANDBY OPEN/

1 1



CLOSE

OPEN/CLOSE

SEARCH LAST MEMORY MEMORY DIMMER



ENTER

2

RETURN

SETUP

AUDIO

ANGLE SUBTITLE ZOOM





,

PROGRESSIVE

STEP/SLOW

- +

STEP/SLOW +/–

1

2

Loading the DVD

1 Press the (Open/Close) button to open the tray

2Place the DVD on the tray

Place the disc on the tray with the label facing upward.

Tip

When in Standby mode, pressing the DVD’s button will automatically turn on the power.

Press the (Play) button

The tray will close, the player will read the disc, and then playback will begin.

The display shows the type of disc you inserted. It may take some time for the disc to be read.

DVD



TITLE

CHP PROGRAM



Currently-playing track

Elapsed time

To remove the DVD

Press the button.

24

DV-S155X-En.book Page 25 Saturday, July 24, 2004 2:20 PM

DVD playback (Basic playback)—Continued

Stopping playback

Press the button.

This activates the “Resume”

function.

When you press the button, playback will resume from the point where the disc stopped.

If you press the button once again, the disc will stop. (The Resume function will be cleared.)

Pausing playback



An

indicator appears in the



display area. Press the button



once again to resume play-

back from where the disc was paused.

Skipping to a chapter



To advance to a chapter



Player

Remote

During playback,





press the

button





on the player or





remote



To return to a chapter



Player

Remote

During playback,





press the

button





on the player or





remote



Searching forward/backward

To search forward

During playback, press the button on the remote

You can press the button repeatedly to cycle through five different speeds.

To search backward

During playback, press the button on the remote

You can press the button repeatedly to cycle through five different speeds.

To resume normal playback

Press the button

Frame advance playback

STEP/SLOW

While paused, press the

-+ STEP/SLOW+ button on the

remote

The picture will advance one frame each time you press the button.

Frame advance backward playback

STEP/SLOW While paused, press the

-+ STEP/SLOW– button on the

remote

The picture will move backward one frame each time you press the button.

To resume normal playback

Press the button.

Tip

No sound will be heard during frame advance playback.

For some discs, frame advance playback may cause the picture to be unstable.

If the still image is jittery, you can adjust the image in the setup screen (see page 72).

Slow motion playback

During playback, press the STEP/SLOW+ button on the remote

STEP/SLOW

The screen will indicate

-+ “Slow 1” and the video will

play in slow motion. You can press the button

repeatedly to cycle through four different slow-motion speeds.

To play backward in slow motion

STEP/SLOW During playback, press the

-+ STEP/SLOW– button

You can press the button repeatedly to cycle through

four different slow-motion speeds.

To resume normal playback

Press the button.

Tip

No sound will be heard during slow motion playback.

25

DV-S155X-En.book Page 26 Saturday, July 24, 2004 2:20 PM

DVD playback (Basic playback)—Continued

About the disc menu

Many DVDs provide a menu that lets you choose the language of the soundtrack or subtitles, to select titles or chapters, or to view special disc features. The way in which to operate the menu will depend on the disc, so please refer to the operation guide included with the disc.

To access the menu

Press the MENU button or the TOP MENU button.

Some discs may not provide a menu.

If the menu appears on your television screen when you play a DVD

Use the /// buttons or the number buttons to choose the desired language, audio format, title, or chapter, and press the ENTER button to confirm your choice.

Number

buttons

ON

STANDBY







OPEN/





CLOSE

SEARCH

LAST MEMORY MEMORY DIMMER





REPEAT

1

2

3





A-B

4

5

6





RANDOM

7

8

9





DISPLAY

+10 0 CLEAR

TOP MENU

MENU

TOP

MENU

MENU

ENTER

RETURN

SETUP

AUDIO ANGLE SUBTITLE ZOOM

// /,

ENTER

PROGRESSIVE

STEP/SLOW



-

+

RC-522DV

26

DV-S155X-En.book Page 27 Saturday, July 24, 2004 2:20 PM

DVD playback (Basic playback)—Continued

Selecting audio, subtitles, and angles

AUDIO

ANGLE

ON

STANDBY





OPEN/





CLOSE

SEARCH

LAST MEMORY MEMORY DIMMER





REPEAT

1

2

3





A-B

4

5

6





RANDOM

7

8

9





DISPLAY

+10

0

CLEAR

TOP MENU

MENU





ENTER

RETURN



SETUP

AUDIO

ANGLE SUBTITLE ZOOM





SUBTITLE

PROGRESSIVE

STEP/SLOW



-

+

RC-522DV

Switching the audio during playback

If the DVD contains soundtracks in more than one language, you can switch the soundtrack.

During playback, press the AUDIO button

AUDIO

The current audio selection is displayed. The audio selection will switch





each time you press the button.

Tip

The audio selection you choose here will revert to the original setting when you defeat the Resume function (see page 33).

On some discs, switching the audio selection during playback will cause the video to freeze for a moment.

To hear only the accompaniment on a karaoke DVD, choose the appropriate audio selection as listed on the disc package.

Some DVDs do not allow you to use the remote AUDIO button to switch the audio selection during playback. If so, use the disc menu screen to make the desired selection (see page 26).

27

DV-S155X-En.book Page 28 Saturday, July 24, 2004 2:20 PM

DVD playback (Basic playback)—Continued

Switching the subtitles during playback

If the DVD contains subtitles in more than one language, you can switch the subtitle language.



During playback, press the SUBTITLE button

SUBTITLE

The currently selected subtitle language is shown.



Press the button repeatedly to switch the subtitle selection.

To hide the subtitles

Press the SUBTITLE button repeatedly to choose “no subtitles.”

Tip

The subtitle setting you choose here will revert to the original setting when you defeat the Resume function (see page 33).

Some DVDs do not allow you to use the remote SUBTITLE button to switch the subtitles during playback. If so, use the disc menu screen to make the desired selection.

Switching the camera angle

Some DVD contain multiple angles (perspectives) of the same scene, and allow you to switch angles during playback. Such DVDs carry a logo on their packaging.

When the icon appears, press the ANGLE button

ANGLE

When you come to a point where multiple angles have been recorded, the





icon appears in the display section of the player. The angle will switch



each time you press the button.

Tip

On some discs, you may be unable to switch the angle even though the

logo is displayed.

On some discs you can use the disc menu screen to switch angles.

Some discs prohibit you from switching angles while paused.

28

DV-S155X-En.book Page 29 Saturday, July 24, 2004 2:20 PM

DVD playback (Basic playback)—Continued

Finding the location you want to watch or hear

SEARCH LAST MEMORY MEMORY DIMMER

SEARCH



REPEAT





1

2

3





A-B

4

5

6

Number buttons



RANDOM

7

8

9





DISPLAY

+10

0

CLEAR

TOP MENU



MENU

ENTER

ENTER

RETURN

SETUP

AUDIO ANGLE SUBTITLE ZOOM

Selecting a title/chapter for playback

Here’s how to play a specific title/chapter on the DVD.

1

SEARCH



During playback, press the





SEARCH button

















The Disc Navigator screen









appears.



2





Choose the desired title/chapter or track













To select a title on the DVD, press the

button and use the number but-



ENTER



tons to specify a number









Examples:









• To specify 3, press “3”.



1

2

3

• To specify 10, press “1” and then “0”.





• To specify 37, press “3” and then “7”.

4

5

6

7

8

9

If you decide to cancel, press the CLEAR button.

+10 0

3

ENTER

Press the ENTER button

Playback will begin.

Tip

You can also use the number buttons to select a chapter or track directly, without displaying the Disc Navigator screen. (To select 10, press “+10” and the “0”.)

If the DVD has only one title or chapter, you can’t select the title or chapter.

On some DVDs you can select titles and chapters from a menu on the DVD.

Some DVDs may allow you to select only titles, or may not allow you to select titles.

Note

You can’t select titles/chapters while using Random Playback.

29

DV-S155X-En.book Page 30 Saturday, July 24, 2004 2:20 PM

DVD playback (Basic playback)—Continued

Selecting a specific time location for playback

Here’s how to specify a time from which playback will start (the Time Search function).

1 SEARCH

During playback, press the SEARCH button twice

The Disc Navigator screen appears.

2

1

2

3

4

5

6

7

8

9



0



Use the numeric keys to specify the time location you want to play

Examples:

To specify 21 minutes 43 seconds, press “2,” “1,” “4,” and “3”.

To specify one hour 14 minutes (= 74 minutes 00 seconds), press “7,” “4,” “0,” “0”.

3

ENTER

Press the ENTER button

Playback will begin.

Tip

On some discs you can search from the menu. Access the menu screen and choose the desired location.

On some discs, playback may begin from a location that is slightly different than the time you specified.

Some DVDs disable the search function.

You can’t use the Time Search function while using Random Playback.

This function specifies the time within the title.

30

DV-S155X-En.book Page 31 Saturday, July 24, 2004 2:20 PM

DVD playback (Basic playback)—Continued

Audio formats and sound effects

5.1 channel digital surround formats such as DTS and Dolby Digital store five channels and a low-frequency effects channel, and play each of these channels back independently to replicate the auditory experience of a movie theater or concert hall.

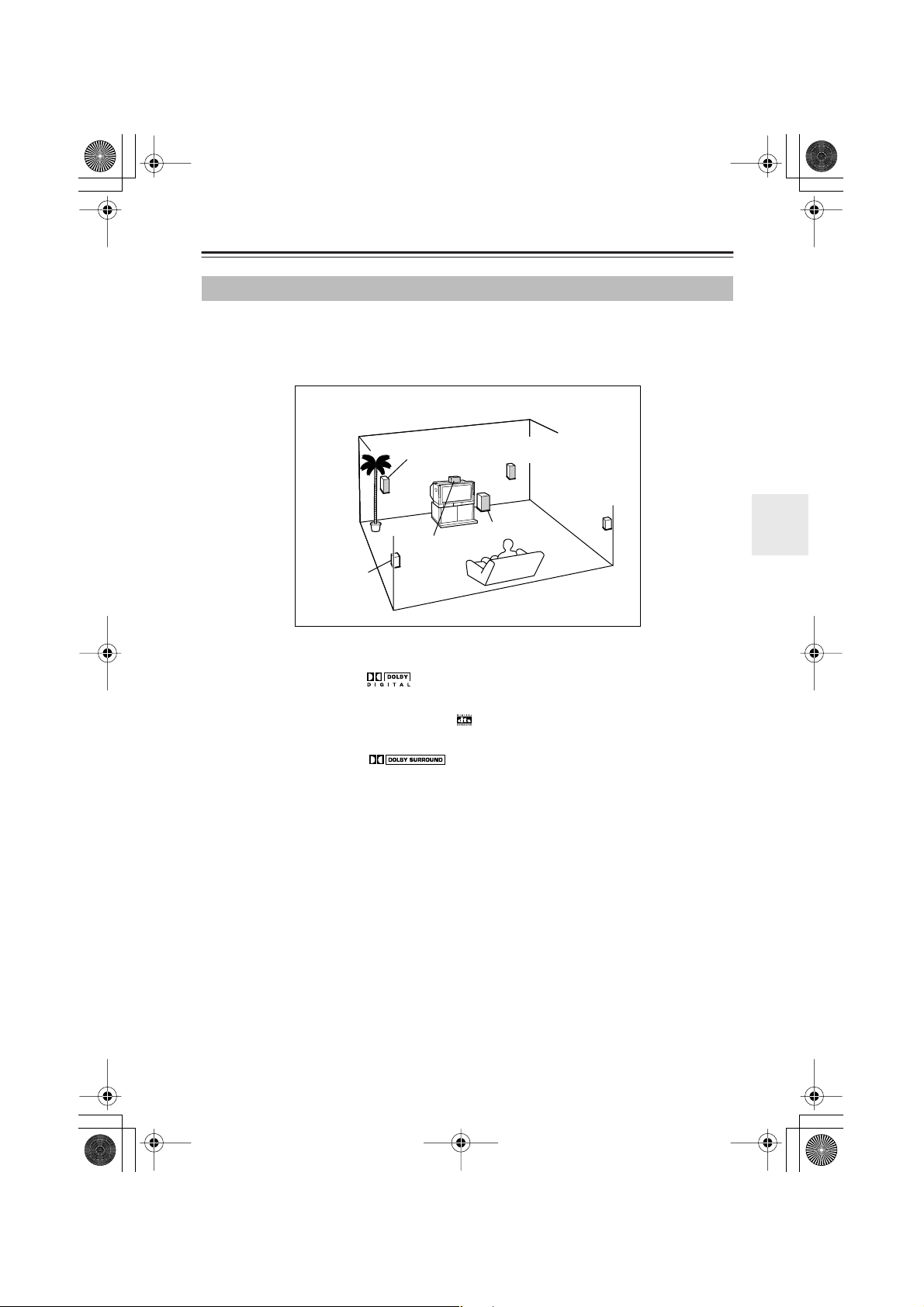

Speaker configuration required for surround playback

Left front

Right

front

speaker

speaker





Right surround speaker

Subwoofer

Center speaker

Left surround speaker

Dolby Digital

DVD video titles bearing the logo are encoded in this format.

DTS

DVD video titles and music CDs bearing the logo are encoded in this format.

Dolby Pro Logic

DVD video titles bearing the







logo are encoded in this format.

31

DV-S155X-En.book Page 32 Saturday, July 24, 2004 2:20 PM

Playing a CD or video CD (Basic playback)

Playing a CD or video CD

To watch a video CD, turn on your television and switch it to the input to which you connected the DV-S155X.

1 2

DVD PLAYER

1 1



,

REPEAT

RANDOM PROGRESSIVE DIMMER

STANDBY / ON

2

STANDBY



DISPLAY





DV-S155X

,

ON

STANDBY

1 1



OPEN/



CLOSE

OPEN/CLOSE

SEARCH LAST MEMORY MEMORY DIMMER



ENTER

2

RETURN

SETUP

AUDIO

ANGLE SUBTITLE ZOOM





,

PROGRESSIVE

STEP/SLOW

- +

STEP/SLOW +/–

1

2

Loading a disc

1 Press the (Open/Close) button to open the tray

2Place the disc on the tray

Place the disc on the tray with the label facing upward.

If you’re playing a CD single, place it in the center depression of the tray.

Tip

In standby mode, pressing the button automatically turns the power on.

Press the (Play) button

The tray will close, the disc will be read, and playback will begin.

The display area shows the type of disc you inserted. It may take some time for the player to read the disc.

CD

GUI



Currently-playing chapter



TRACK

PROGRAM



















Elapsed time



















To remove the disc

Press the button.

32

DV-S155X-En.book Page 33 Saturday, July 24, 2004 2:20 PM

Playing a CD or video CD (Basic playback)—Continued

Stopping playback CD

Press the (Stop) button

Stopping playback VCD

Press the button

The “Resume” function will activate. When you press the (Play) button, playback will resume from the point where the disc stopped.

If you press the button once again, the disc will stop.

(The Resume function will be cleared.)

Pausing playback

VCD

CD

Press the

(Pause) button.

An

indicator appears in the

display area. Press the button once again to resume playback from where the disc was paused.

Skipping to a track VCD CD

To advance to a track





Player

Remote

During playback,





press the

button





on the player or





remote.



To return to a track





Player

Remote

During playback,





press the

button





on the player or





remote.



Searching forward/backward

VCD CD

To search forward

During playback, press the button on the remote

You can press the button repeatedly to cycle through

three different forward-search speeds. (The setting is shown on the television screen.)

To search backward

During playback, press the button on the remote

You can press the button repeatedly to cycle through

three different forward-search speeds. (The setting is shown on the television screen.)

Tip

No sound will be heard while searching forward or backward on a video CD.

To resume normal playback

Press the button

Frame advance playback VCD

While paused, press the STEP/SLOW+ button on the remote.

STEP/SLOW

The picture will advance one

-+ frame each time you press

the button.

Note

Frame advance backward playback is not available.

To resume normal playback

Press the button

Tip

No sound will be heard during frame advance playback.

For some discs, frame advance playback may cause the picture to be unstable.

If the still image is jittery, you can adjust the image in the setup screen (see page 72).

33

DV-S155X-En.book Page 34 Saturday, July 24, 2004 2:20 PM

Playing a CD or video CD (Basic playback)—Continued

Slow motion playback VCD

STEP/SLOW

During playback, press the

-+ STEP/SLOW+ button on the

remote

The screen will indicate “Slow1” and the video will

play in slow motion.

You can press the button repeatedly to cycle through three different slow-motion speeds.

Note

Backward slow motion playback is not available.

To resume normal playback

Press the button

Tip

No sound will be heard during slow motion playback.

Menus VCD

If a video CD has PBC (Playback Control) functionality (see “About video CDs” on page 75), you can use the menu to select tracks.

If a menu appears on your television screen while playing a video CD

Use the number buttons to select items or settings.

To play without seeing a menu screen (i.e., to defeat PBC playback)

Press the TOP MENU button while stopped. Use the number buttons to select the track you want to play.

To return to the menu during PBC

Press the RETURN button.

You’ll need to turn PBC on in the Operation

Setting (see page 73).

34

DV-S155X-En.book Page 35 Saturday, July 24, 2004 2:20 PM

Playing a CD or video CD (Basic playback)—Continued

Switching the audio VCD

ON

STANDBY









OPEN/







CLOSE

SEARCH

LAST MEMORY MEMORY

DIMMER









REPEAT

1



2

3











A-B

4



5

6











RANDOM

7



8

9











DISPLAY

+10



0

CLEAR



TOP MENU





MENU







ENTER



RETURN







SETUP

AUDIO



ANGLE SUBTITLE

ZOOM

AUDIO









PROGRESSIVE



STEP/SLOW

- +

RC-522DV

Switching the audio during playback VCD

You can switch between Stereo, Mono L, and Mono R.

During playback, press the AUDIO button

AUDIO

The currently selected audio setting is displayed. The setting will switch





each time you press the button.

Tip

Depending on the disc that is playing, the video may freeze for a moment when you switch the audio.

If you are playing a karaoke title and want to hear only the accompaniment, select the audio setting as directed on the disc packaging.

35

DV-S155X-En.book Page 36 Saturday, July 24, 2004 2:20 PM

Playing a CD or video CD (Basic playback)—Continued

Searching for a location

CLOSE

SEARCH LAST MEMORY MEMORY DIMMER

SEARCH



REPEAT





1

2

3





A-B

4

5

6

Number buttons



RANDOM

7

8

9





DISPLAY

+10

0

CLEAR

TOP MENU



MENU

ENTER

ENTER

RETURN

SETUP

AUDIO ANGLE SUBTITLE ZOOM

Searching for a track VCD CD

Here’s how you can play back a specific track of a video CD or CD.

1 SEARCH

During playback, press the SEARCH button

The Disc Navigator screen appears.

2

1

2

3

4

5

6

7

8

9

+10

0



Specify the desired track

Examples:

To specify 3, press “3”.

To specify 10, press “1” and then “0”.

To specify 37, press “3” and then “7”.

If you decide to cancel, press the CLEAR button.

3

ENTER

Press the ENTER button.

Playback will begin.

Tip

You can also use the number buttons to select a chapter or track directly, without displaying the Disc Navigator screen. (To select 10, press “+10” and the “0”.)

On some video CDs you can select titles and chapters from a menu on the disc.

You can’t specify a playback track or use the number buttons to select a track during PBC playback of a video CD.

Note

You can’t specify playback tracks while using Random Playback.

36

DV-S155X-En.book Page 37 Saturday, July 24, 2004 2:20 PM

Playing a CD or video CD (Basic playback)—Continued

Selecting a specific time location for playback VCD CD

Here’s how to specify a time from which playback will start (the Time Search function).

1 SEARCH

During playback, press the SEARCH button twice

The Disc Navigator screen appears.

2

1

2

3

4

5

6

7

8

9



0



Use the number buttons to specify the time location you want to play.

Examples:

To specify 21 minutes 43 seconds, press “2,” “1,” “4,” and “3”.

To specify one hour 14 minutes (= 74 minutes 00 seconds), press “7,” “4,” “0,” “0”.

3

ENTER

Press the ENTER button

Playback will begin.

Tip

On some discs you can search from the menu. Access the menu screen and choose the desired location.

On some discs, playback may begin from a location that is slightly different than the time you specified.

You can’t perform Time Search during PBC playback on a video CD. You’ll need to defeat PBC playback first.

Some discs disable the search function.

You can’t use the Time Search function while using Random Playback.

This function specifies the time within the track.

37

DV-S155X-En.book Page 38 Saturday, July 24, 2004 2:20 PM

Playing MP3, WMA, and JPEG (Basic playback)

Playing MP3 or WMA

Here’s how to play MP3 or WMA music files. MP3 and WMA are audio compression formats. Some types of recording or data may not be playable (see page 76).

4

5

6





RANDOM

7

8

9





DISPLAY

+10

0

CLEAR

TOP MENU



MENU

2,3 ENTER

RETURN

SETUP

AUDIO ANGLE SUBTITLE ZOOM

1

2

Loading a disc

The Disc Navigator screen appears automatically.

Use the / buttons to select a folder, and press the ENTER button

ENTER

The folder will open, and the Track column will show the contents of the folder.

ENTER

To close the folder and return to the previous step

Press the RETURN button.

3

ENTER

ENTER

Use the / buttons to select the desired track, and press the ENTER button

Playback will begin.









During playback, the folder number,

Assigned numbers

track number, and elapsed time are

Numbers are shown automat-

shown in the upper right.





ically.













Tip



001





If you use the Disc Navigator during





Folders



Tracks

random playback, the

/ / /



buttons will not be available.

002.MP3



MP3 001











MP3 002









MP3 003

003.MP3



MP3 001









38

DV-S155X-En.book Page 39 Saturday, July 24, 2004 2:20 PM

Playing MP3, WMA, and JPEG (Basic playback)—Continued

Skipping to the desired track

MP3 WMA

To advance to a track





Player

Remote

During playback,





press the

button





on the player or





remote



To return to a previous track



Player

Remote

During playback,





press the

button





on the player or





remote



Searching forward/backward

MP3 WMA

To search forward

During playback, press the button on the remote

You can press the button repeatedly to cycle through

three different speeds. (The television screen indicates the current search speed.)

To search backward

During playback, press the button on the remote

You can press the button repeatedly to cycle through

three different speeds. (The television screen indicates the current search speed.)

Tip

You can’t search backward in a WMA song.

To resume normal playback

Press the (Play) button

39

DV-S155X-En.book Page 40 Saturday, July 24, 2004 2:20 PM

Playing MP3, WMA, and JPEG (Basic playback)—Continued

Selecting a track MP3 WMA

1

2

ON

STANDBY







OPEN/





CLOSE

SEARCH

LAST MEMORY MEMORY DIMMER





REPEAT

1

2

3





A-B

4

5

6





RANDOM

7

8

9





DISPLAY

+10 0 CLEAR

TOP MENU



MENU



ENTER

3

RETURN





SETUP

AUDIO

ANGLE SUBTITLE

ZOOM

PROGRESSIVE

STEP/SLOW



-

+

1 SEARCH

During playback, press the SEARCH button

The Disc Navigator screen appears.

2

1

2

3

4

5

6

7

8

9

+10

0



Use the number buttons to specify a track number within the folder

Examples:

To specify 003, press “3”.

To specify 010, press “1” and then “0”.

To specify 037, press “3” and then “7”.

3

ENTER

Press the ENTER button

Playback will begin.

Tip

You can also use the number buttons to select a track directly, without displaying the Disc Navigator screen. (To select 10, press “+10” and the “0”.)

You can’t use the search functions while using Random Playback.

40

DV-S155X-En.book Page 41 Saturday, July 24, 2004 2:20 PM

Playing MP3, WMA, and JPEG (Basic playback)—Continued

Playing a JPEG CD JPEG

You can view JPEG images on your television screen. JPEG is a compression format for still images. Depending on the recording method or on the data, there may be some images that cannot be played, or for which certain operations are unavailable.

DISPLAY

+10 0 CLEAR

TOP MENU

MENU

ENTER



ENTER

RETURN

SETUP

AUDIO

ANGLE SUBTITLE ZOOM

MENU

// /

,



,

PROGRESSIVE

STEP/SLOW



-

+

Insert a disc containing JPEG (image) data

When you insert the disc, the Disc Navigator screen will appear automatically. Depending on the disc, thumbnail images may also be shown.

Thumbnail

Tip

Thumbnails are shown only if the JPEG resolution is 640/480 pixels or lower.

If the resolution is higher than 640/480, thumbnails will be shown only if thumbnail data exists.

If the television screen is set to 16:9 Compressed, thumbnails are not shown in the Disc Navigator.

To view a list of thumbnails

Press the MENU button.

A list of thumbnails appears.

001

002

003

004

005

006

007

008

009

To view the Disc Navigator

Use the / // buttons to select a folder icon, and press the ENTER button.

To view a slide show

You can automatically switch the images and view them as a slide show.

Select the screen at which you want to start, and press the ENTER button. When all images have been shown, the slide show will stop automatically.

41

DV-S155X-En.book Page 42 Saturday, July 24, 2004 2:20 PM

Playing MP3, WMA, and JPEG (Basic playback)—Continued

Functions available during a slide show

To view the next page

Press the button.

To view the previous page

Press the button.

To rotate the image

Press the /// buttons on the remote.

Tip

You can’t do this while zooming.

To zoom (magnify)

Press the button or button.

You can use the /// buttons to adjust the position. The slide show will pause when you zoom.

To cancel zoom

Press the (Play) button.

To pause the slide show

Press the button.

Press the button once again to resume playback from where you paused.

To stop the slide show

Press the (Stop) button or the MENU button.

Tip

Depending on their data format or file size, some images cannot be zoomed.

Zoom is not possible if the video output is set to Progressive. You’ll have to switch to Interlaced output.

42

DV-S155X-En.book Page 43 Saturday, July 24, 2004 2:20 PM

Advanced DVD playback

You can use a variety of playback and repeat functions in addition to basic DVD playback.

Memory playback

This function plays back DVD titles and chapters in the order you specify. You can memorize up to 32 steps. Memory will be cleared if you put the player in standby mode.

ON

STANDBY





OPEN/





CLOSE

SEARCH

LAST MEMORY MEMORY DIMMER





REPEAT

1

2

3





A-B

4

5

6





RANDOM

7

8

9





DISPLAY

+10

0

CLEAR

TOP MENU

MENU





ENTER

RETURN



SETUP

1

2,3

AUDIO ANGLE SUBTITLE ZOOM













4









PROGRESSIVE

STEP/SLOW











-

+

1

Press the MEMORY button







MEMORY

The

Memory

Play Setup

Memory input area



screen will appear.







Use

the

/

buttons

to





select the chapter or title





area.











2 Use the / buttons to specify the chapter or track you want to memorize

If you select “All,” all titles and chapters on the disc will be memorized.

ENTER

Tip

You can also use the number buttons for input.

Examples:

To specify 10, press “1” and then “0”.

To specify 37, press “3” and then “7”.

To cancel, press the CLEAR button.

To select all items, press “0”.

Continues to next page

43

DV-S155X-En.book Page 44 Saturday, July 24, 2004 2:20 PM

Advanced DVD playback—Continued

3

ENTER

Press the ENTER button

If you want to continue specifying additional items, repeat steps 2 and 3.

4

Press the (Play) button



Memory playback will begin.

To stop memory playback

Press the (Stop) button twice.

To insert an item into memory

1 Access the Memory Play Setup screen

2 The memory input area is selected, but press the button to move to the list below

3 Use the / buttons to select the location at which you want to insert an item, and press the ENTER button

4 Specify the title or chapter you want to memorize, and press the ENTER button

To remove an item from memory

1 Access the Memory Play Setup screen

2 The memory input area is selected, but press the button to move to the list below

3 Use the / buttons to select the item you want to remove, and press the CLEAR button

To exit the memory setup screen

Press the MEMORY button.

MEMORY

Tip

Some discs prohibit memory playback.

When the chapter changes, you may see an image from a chapter that was not memorized. This is not a malfunction.

The search functions are not available during memory playback.

44

DV-S155X-En.book Page 45 Saturday, July 24, 2004 2:20 PM

Advanced DVD playback—Continued

Random playback

This function plays back titles or chapters in random order. It will be cleared when the player enters standby mode.

ON

STANDBY









OPEN/







CLOSE



SEARCH

LAST MEMORY MEMORY

DIMMER









REPEAT



1

2

3











A-B



4

5

6











RANDOM

1

7

8

9









DISPLAY

+10

0

CLEAR





TOP MENU



MENU







ENTER





RETURN





SETUP



AUDIO

ANGLE SUBTITLE

ZOOM



2

1 RANDOM

Press the RANDOM button several times to select the desired type of random playback

You can choose Title Random or Disc Random playback. Title Random (Randomly plays the chapters within a title.)

Disc Random (Randomly plays the titles and chapters within a disc.)

Tip

The Title Random options can be selected only during playback.

2

Press the (Play) button



Random playback will begin.

Tip

During random playback, you can press the button to select and play the next song or scene in the random order.

Some discs prohibit random playback.

On some discs, playback may begin at a slightly different location than specified.

You can’t use random playback during Memory Playback.

To return to normal playback

Press the RANDOM button several times until the screen indicates “Random Off”.

45

DV-S155X-En.book Page 46 Saturday, July 24, 2004 2:20 PM

Advanced DVD playback—Continued

Repeat playback

This function repeatedly plays the selected title or chapter, or the entire disc. This function will be cleared when the player enters standby mode.

You can use this in conjunction with memory playback, random playback, or normal playback.

ON

STANDBY









OPEN/







CLOSE



SEARCH

LAST MEMORY MEMORY

DIMMER









REPEAT

1

1

2

3









A-B

4

5

6











RANDOM



7

8

9











DISPLAY



+10

0

CLEAR





TOP MENU



MENU







ENTER





RETURN





SETUP



AUDIO

ANGLE SUBTITLE

ZOOM



2









1

Press the REPEAT button several times to select the desired



REPEAT

type of repeat playback.



You can choose Chapter Repeat, Title Repeat, or Disc Repeat playback.



Chapter Repeat (Repeatedly plays the selected chapter.)



Title Repeat (Repeatedly plays the chapters within the title.)



Disc Repeat (Repeatedly plays the disc.)



Tip



The Chapter Repeat and Title Repeat options can be selected only during



playback.





2

Press the (Play) button



Playback will begin.

Tip

Some discs prohibit repeat playback.

If you press the REPEAT button during memory playback, the memorized sequence will play repeatedly.

To return to normal playback

Press the REPEAT button several times until the screen indicates “Random Off” or the “REPEAT” indication disappears from the display area.

46

DV-S155X-En.book Page 47 Saturday, July 24, 2004 2:20 PM

Advanced DVD playback—Continued

Repeatedly playing a selected segment (A-B Repeat Playback)

This function repeatedly plays the segment between the A and B points you specify.

ON

STANDBY









OPEN/







CLOSE



SEARCH

LAST MEMORY MEMORY

DIMMER









REPEAT



1

2

3











A-B

1,2

4

5

6

RANDOM

7

8

9











DISPLAY



+10

0

CLEAR





TOP MENU



MENU







ENTER





RETURN





SETUP



AUDIO

ANGLE SUBTITLE

ZOOM



1 A-B

During playback, press the A-B button at the beginning (point A) of the segment you want to repeat

2 A-B

Press the A-B button at the end (point B) of the segment you want to repeat

The segment between points A and B will play repeatedly.

Tip

On some discs, playback may begin at a slightly different location than specified.

Some discs prohibit A-B repeat playback.

If you switch the angle (see page 28) during A-B repeat playback, you will return to the original angle when playback begins from point A.

To return to normal playback

Press the CLEAR button

You can also return to normal playback by pressing the REPEAT button several times until the screen indicates “Repeat Off”.

47

DV-S155X-En.book Page 48 Saturday, July 24, 2004 2:20 PM

Advanced DVD playback—Continued

Last Memory

You can memorize the current location and settings for up to six discs so that the next time you insert that disc, you can resume playing from that location with those settings.

ON

STANDBY







OPEN/





CLOSE

SEARCH

LAST MEMORY MEMORY DIMMER





REPEAT

1

2

3





A-B

4

5

6





RANDOM

7

8

9





DISPLAY

+10 0 CLEAR

LAST MEMROY

TOP MENU

MENU



ENTER

LAST MEMORY During playback, press the LAST MEMORY button

The display section indicates “LAST MEM,” and the location and settings will be memorized.

The memorized location will change each time you press the button.

To continue viewing

1Insert the disc for which you memorized a location for con-

tinued viewing

Some DVDs will automatically begin playing when the disc is inserted.

2Press the (Play) button

3Using the / buttons, select “No” if you simply want to play the disc, or “Yes” if you want to continue viewing from the memorized location.

4Press the ENTER button

The disc will continue playing from

the memorized location.

If the Resume function is active, playback will begin from the location at which you last stopped. Press the (Stop) button once again if you want to use the Last Memory function.

To clear the last memory

Choose “Memory Clear” in step 3, and press the ENTER button.

Tip

Last Memory may not work with some discs.

The Last Memory function can’t be used while the menu screen is displayed.

If you store memories for more than six discs, the oldest memory will be erased.

This function may not work correctly for DVD-R/DVD-RW discs.

48

DV-S155X-En.book Page 49 Saturday, July 24, 2004 2:20 PM

Advanced DVD playback—Continued

Zoom DVD

You can zoom-in (magnify) a desired portion of the image.

ON

STANDBY









OPEN/







CLOSE



SEARCH

LAST MEMORY MEMORY

DIMMER









REPEAT



1

2

3











A-B



4

5

6











RANDOM



7

8

9











DISPLAY



+10

0

CLEAR





TOP MENU



MENU







ENTER



2

RETURN





SETUP

AUDIO

ANGLE SUBTITLE

ZOOM

1









1 ZOOM

During playback or while paused, press the ZOOM button.

If you press the ZOOM button during playback, the playback will be paused.

Each time you press the button, the zoom setting will switch as follows. x1 (normal) x2 (double) x4 (four times) back to normal playback

2

Use the / / / buttons to move the cursor to the desired



position

ENTER

Note

You can’t zoom if the video output is set to Progressive mode. You’ll need to switch the video output to Interlaced (see page 64).

49

DV-S155X-En.book Page 50 Saturday, July 24, 2004 2:20 PM

Advanced CD or video CD playback

You can use a variety of playback and repeat functions in addition to basic playback.

Memory playback VCD CD

This function plays video CD or CD tracks in the order you specify. You can memorize up to 32 steps. Memory will be cleared if you put the player in standby mode.

ON

STANDBY





OPEN/





CLOSE

SEARCH

LAST MEMORY MEMORY DIMMER





REPEAT

1

2

3





A-B

4

5

6





RANDOM

7

8

9





DISPLAY

+10

0

CLEAR

TOP MENU

MENU





ENTER

RETURN



SETUP

1

2,3

AUDIO ANGLE SUBTITLE ZOOM

4

PROGRESSIVE

STEP/SLOW



-

+

1

Press the MEMORY button



MEMORY

The Memory Play Setup



screen will appear.

Memory input area

2

ENTER

Use the / buttons to specify the track you want to memorize

If you select “All,” all tracks on the disc will be memorized.

Tip

You can also use the number buttons for input.

Examples:

To specify 10, press “1” and then “0”.

To specify 37, press “3” and then “7”.

To cancel, press the CLEAR button.

To select all items, press “0”.

50

DV-S155X-En.book Page 51 Saturday, July 24, 2004 2:20 PM

Advanced CD or video CD playback—Continued

3 ENTER

Press the ENTER button

If you want to continue specifying additional items, repeat steps 2 and 3.

4

Press the (Play) button



Memory playback will begin

To stop memory playback

Press the (Stop) button twice.

To insert an item into memory

1 Access the Memory Play Setup screen

2 The memory input area is selected, but press the button to move to the list below

3 Use the / buttons to select the location at which you want to insert an item, and press the ENTER button

4 Specify the track you want to memorize, and press the ENTER button

To remove an item from memory

1 Access the Memory Play Setup screen

2 The memory input area is selected, but press the button to move to the list below

3 Use the / buttons to select the item you want to remove, and press the CLEAR button

To exit the memory setup screen

Press the MEMORY button.

MEMORY

Tip

Some discs prohibit memory playback.

The search functions are not available during memory playback.

51

DV-S155X-En.book Page 52 Saturday, July 24, 2004 2:20 PM

Advanced CD or video CD playback—Continued

Random playback VCD CD

This function plays back tracks in random order. It will be cleared when the player enters standby mode.

ON

STANDBY









OPEN/







CLOSE



SEARCH

LAST MEMORY MEMORY

DIMMER









REPEAT



1

2

3











A-B



4

5

6











RANDOM

1

7

8

9









DISPLAY

+10

0

CLEAR





TOP MENU



MENU







ENTER





RETURN





SETUP



AUDIO

ANGLE SUBTITLE

ZOOM



2

1 RANDOM

Press the RANDOM button several times

Disc Random (Randomly plays the tracks within a disc.)

2

Press the (Play) button



Random playback will begin.

Tip

During random playback, you can press the button to select and play the next song or scene in the random order.

Some discs prohibit random playback.

On some discs, playback may begin at a slightly different location than specified.

You can’t use random playback during memory playback.

You can’t use the search function during random playback.

You can’t use random playback during PBC playback on a video CD. Turn off PBC playback before pressing the RANDOM button (see page 34).

To return to normal playback

Press the RANDOM button several times until the screen indicates “Random Off”.

52

DV-S155X-En.book Page 53 Saturday, July 24, 2004 2:20 PM

Advanced CD or video CD playback—Continued

Repeat playback VCD CD

This function repeatedly plays the selected track or the entire disc. This function will be cleared when the player enters standby mode.

You can use this in conjunction with memory playback, random playback, or normal playback.

ON

STANDBY









OPEN/







CLOSE



SEARCH

LAST MEMORY MEMORY

DIMMER









REPEAT

1

1

2

3









A-B

4

5

6











RANDOM



7

8

9











DISPLAY



+10

0

CLEAR





TOP MENU



MENU







ENTER





RETURN





SETUP



AUDIO

ANGLE SUBTITLE

ZOOM



2

1

Press the REPEAT button several times



REPEAT

You can choose Track Repeat or Disc Repeat playback.



Track Repeat (Repeatedly plays the selected track.)



Disc Repeat (Repeatedly plays the disc.)

Tip

The Track Repeat options can be selected only during playback.

2

Press the (Play) button



Playback will begin.

Tip

You can’t use repeat playback during PBC playback on a video CD. Turn off PBC playback before pressing the REPEAT button (see page 34).

Some discs prohibit repeat playback.

If you press the REPEAT button during memory playback, the memorized sequence will play repeatedly.

To return to normal playback

Press the REPEAT button several times until the screen indicates “Repeat Off” or the “REPEAT” indication disappears from the display area.

53

DV-S155X-En.book Page 54 Saturday, July 24, 2004 2:20 PM

Advanced CD or video CD playback—Continued

Repeatedly playing a selected segment (A-B Repeat Playback)

VCD CD

This function repeatedly plays the segment between the A and B points you specify.

ON

STANDBY









OPEN/







CLOSE



SEARCH

LAST MEMORY MEMORY

DIMMER









REPEAT



1

2

3











A-B

1,2

4

5

6

RANDOM

7

8

9











DISPLAY



+10

0

CLEAR





TOP MENU



MENU







ENTER





RETURN





SETUP



AUDIO

ANGLE SUBTITLE

ZOOM



1 A-B

During playback, press the A-B button at the beginning (point A) of the segment you want to repeat

2 A-B

Press the A-B button at the end (point B) of the segment you want to repeat

The segment between points A and B will play repeatedly.

Tip

On some discs, playback may begin at a slightly different location than specified.

Some discs prohibit A-B repeat playback.

To return to normal playback

Press the CLEAR button

You can also return to normal playback by pressing the REPEAT button several times until the screen indicates “Repeat Off”.

54

DV-S155X-En.book Page 55 Saturday, July 24, 2004 2:20 PM

Advanced CD or video CD playback—Continued

Last Memory VCD

You can memorize the current location and settings for a disc so that the next time you insert that disc, you can resume playing from that location with those settings.

ON

STANDBY







OPEN/





CLOSE

SEARCH

LAST MEMORY MEMORY DIMMER





REPEAT

1

2

3





A-B

4

5

6





RANDOM

7

8

9





DISPLAY

+10

0

CLEAR

LAST MEMROY

TOP MENU

MENU

ENTER



RETURN

SETUP

AUDIO ANGLE SUBTITLE

ZOOM

LAST MEMORY During playback, press the LAST MEMORY button

The display section indicates “LAST MEM,” and the location and settings will be memorized.

The memorized location will change each time you press the button.

To continue viewing

1 Insert the disc for which you memorized a location for continued viewing 2 Press the (Play) button

3 Using the / buttons, select “No” if you simply want to play the disc, or “Yes” if you want to continue viewing from the memorized location.

4 Press the ENTER button

The disc will continue playing from the memorized location.

If the Resume function is active, playback will begin from the location at which you last stopped. Press the (Stop) button once again if you want to use the Last Memory function.

To clear the last memory

Choose “Memory Clear” in step 3, and press the ENTER button.

Tip

The Last Memory function can’t be used while the menu screen is displayed.

The Last Memory function can’t be used for some locations if you’re using PBC playback on a video CD. Turn off PBC playback (see page 34).

55

DV-S155X-En.book Page 56 Saturday, July 24, 2004 2:20 PM

Advanced CD or video CD playback—Continued

Zoom VCD

You can zoom-in (magnify) a desired portion of the image.

ON

STANDBY







OPEN/







CLOSE



SEARCH

LAST MEMORY MEMORY DIMMER







REPEAT



1

2

3







A-B



4

5

6







RANDOM



7

8

9







DISPLAY



+10

0

CLEAR



TOP MENU

MENU







ENTER

2

RETURN



SETUP

AUDIO ANGLE SUBTITLE ZOOM

1

1 ZOOM

During playback or while paused, press the ZOOM button.

If you press the ZOOM button during playback, the playback will be paused.

Each time you press the button, the zoom setting will switch as follows. x1 (normal) x2 (double) x4 (four times) back to normal playback

2

Use the / / / buttons to move the cursor to the desired



position

ENTER

Note

You can’t zoom if the video output is set to Progressive mode. You’ll need to switch the video output to Interlaced (see page 64).

56

DV-S155X-En.book Page 57 Saturday, July 24, 2004 2:20 PM

Advanced MP3, WMA, or JPEG playback

You can use a variety of playback and repeat functions in addition to basic playback.

Memory playback MP3 WMA JPEG

ON

STANDBY









OPEN/







CLOSE

1

SEARCH

LAST MEMORY MEMORY

DIMMER







REPEAT

1

2

3











A-B



4

5

6











RANDOM



7

8

9











DISPLAY



+10

0

CLEAR





TOP MENU



MENU



2



ENTER





RETURN





SETUP



AUDIO

ANGLE SUBTITLE

ZOOM



3

1 MEMORY

Press the MEMORY button

The Play List will appear.



Folder column Track column

2

Use the / / / buttons to specify the track you want to



memorize, and press the ENTER button

ENTER

Tip

If you select a folder icon in the track column, the Play List will indicate “All” and all tracks in the folder will be memorized.



ENTER

3

Press the (Play) button.



Playback will begin.

57

DV-S155X-En.book Page 58 Saturday, July 24, 2004 2:20 PM

Advanced MP3, WMA, or JPEG playback—Continued

Random playback MP3 WMA JPEG

This function plays back tracks or folders in random order. It will be cleared when the player enters standby mode.

ON

STANDBY









OPEN/







CLOSE



SEARCH

LAST MEMORY MEMORY

DIMMER









REPEAT



1

2

3











A-B



4

5

6











RANDOM

1

7

8

9









DISPLAY

+10

0

CLEAR





TOP MENU



MENU







ENTER





RETURN





SETUP



AUDIO

ANGLE SUBTITLE

ZOOM



2

1 RANDOM

Press the RANDOM button several times to select the desired type of random playback

You can choose either Folder Random or Disc Random playback. Folder Random (Randomly plays the tracks within a folder.) Disc Random (Randomly plays the tracks within a disc.) However, the contents of sub-folders will not be played.

2

Press the (Play) button



Random playback will begin.

Tip

During random playback, you can press the button to select and play the next song or scene in the random order.

Some discs prohibit random playback.

On some discs, playback may begin at a slightly different location than specified.

You can’t use random playback during memory playback.

You can’t use the search functions during random playback.

You can’t use the /// buttons in the Disc Navigator screen during random playback.

To return to normal playback

Press the RANDOM button several times until the screen no longer indicates “Folder Random” or “Disc Random”.

58

DV-S155X-En.book Page 59 Saturday, July 24, 2004 2:20 PM

Advanced MP3, WMA, or JPEG playback—Continued

Repeat playback MP3 WMA

This function repeatedly plays the selected folder or track. This function will be cleared when the player enters standby mode.

You can use this in conjunction with memory playback or random playback.

ON

STANDBY









OPEN/







CLOSE



SEARCH

LAST MEMORY MEMORY

DIMMER









REPEAT

1

1

2

3









A-B

4

5

6











RANDOM



7

8

9











DISPLAY



+10

0

CLEAR





TOP MENU



MENU







ENTER





RETURN





SETUP



AUDIO

ANGLE SUBTITLE

ZOOM



2

1

Press the REPEAT button several times



REPEAT

You can choose Track Repeat, Folder Repeat, or Disc Repeat playback.



Track Repeat (Repeatedly plays the selected track.)



Folder Repeat (Repeatedly plays the selected folder.)



Disc Repeat (Repeatedly plays the disc.)

2

Press the (Play) button



Playback will begin.

Tip

Some discs prohibit repeat playback.

If you press the REPEAT button during memory playback, the memorized sequence will play repeatedly.

To return to normal playback

Press the REPEAT button several times until the screen no longer indicates “Track Repeat”, “Folder Repeat” or “Disc Repeat”.

59

DV-S155X-En.book Page 60 Saturday, July 24, 2004 2:20 PM

Viewing disc information

Here’s how to view information such as a DVD’s chapter/title data, a video CD or CD’s track data, and MP3 folder/track data. The information that is displayed will depend on the type of disc.

ON

STANDBY







OPEN/





CLOSE

SEARCH

LAST MEMORY MEMORY DIMMER





REPEAT

1

2

3





A-B

4

5

6





RANDOM

7

8

9





DISPLAY

+10

0

CLEAR

TOP MENU

MENU

DISPLAY

ENTER

RETURN

SETUP

AUDIO ANGLE SUBTITLE ZOOM

During playback, press the DISPLAY button

DISPLAY

Press it once again, and the following information will appear.

DVD

MP3

The Bit-rate indicates the amount of information recorded on the DVD. Higher bit rates mean a greater amount of information, but this does not always mean better image quality.

CD/Video CD

To hide the disc information

Press the DISPLAY button.

Note

When the PBC setting on the Operation Setting menu is set to On, the DISPLAY button doesn’t work with video CDs with PBC.

60

DV-S155X-En.book Page 61 Saturday, July 24, 2004 2:20 PM

Advanced setup

Here you can make advanced settings that are not included in the initial setup. Make these settings when necessary or desired.

Setup icon

Setup items

Contents

Page


















TV Shape

Select the aspect ratio (vertical/horizontal propor-

23







tion) appropriate for the connected television.





























Interlaced Setting

Adjust the interlaced output image.

64



















Progressive Setting

Adjust the progressive output image.

65



















PAL Output Setting

Specify how the DV-S155X outputs video signals

66







when playing NTSC discs.



























Audio

Digital Out/Digital1

Make settings for the digital signal output from the









DIGITAL OPTICAL jack.































Dolby Digital Out

Specify whether Dolby Digital audio will be con-









verted.































MPEG Out

Specify whether MPEG audio will be converted.





















Digital Out

Specify whether digital audio will be sent from the









digital jack.











66

















Digital Out/Digital2

Make settings for the digital signal output from the















DIGITAL COAXIAL jack.































Dolby Digital Out

Specify whether Dolby Digital audio will be con-









verted.































MPEG Out

Specify whether MPEG audio will be converted.





























Digital Out

Specify whether digital audio will be sent from the









digital jack.































Linear PCM Out

Specify whether linear PCM audio will be con-

67







verted.





























Dynamic Range Control

Make dynamic range settings.

67

















Language

On-Screen Language

Select the language used for on-screen display.

68



















Disc Menu Language

Select the language of menus displayed from the

68







disc.





























Audio Language

Select the language of the soundtrack.

69



















Subtitle Language

Select the language of the subtitles.

69

















Diaplay

On-Screen Display

Specify whether operation status is shown on the

71







screen.





























On-Screen Display Color

Specify the background color of the on-screen

71







setup menus.





























Background

Specify the color or graphic of the setup menu and

71







navigator screens.





























Screen Saver

Make screen saver settings to prevent image burn-

71







in.



























61

DV-S155X-En.book Page 62 Saturday, July 24, 2004 2:20 PM

Advanced setup—Continued

Setup icon

Setup items

Contents

Page









Operation Set-

Pause/Still

Adjust the image when video is paused.

72

ting







Parental Lock

Make rating control settings to block playback of

72





certain DVDs.

















PBC

Make settings for menu playback on video CDs

73



with PBC.



















Specify whether the player will enter standby mode





Auto power off

if no operation is performed for twenty minutes

73





after playback stops.











Initial Setup

TV Shape













On-Screen Language

This is the group of settings that you make when

22



Digital Out/Digital1

turning on the power for the first time.







Digital Out/Digital2













You’ll use your television screen to make advanced DVD settings. Turn on the power of your television, and switch it to the input to which you’ve connected the DV-S155X.

ON

STANDBY







OPEN/





CLOSE

SEARCH

LAST MEMORY MEMORY DIMMER





REPEAT

1

2

3





A-B

4

5

6





RANDOM

7

8

9





DISPLAY

+10

0

CLEAR

TOP MENU

MENU

2–5

ENTER







RETURN



SETUP





1,6

AUDIO

ANGLE SUBTITLE

ZOOM

PROGRESSIVE

STEP/SLOW



-

+

1 SETUP

Press the SETUP button

The Picture screen appears.

62

DV-S155X-En.book Page 63 Saturday, July 24, 2004 2:20 PM

Advanced setup—Continued

2

ENTER

Use the / buttons to select the icon for the settings you want to make

Choose from Picture, Audio, Language, Diaplay, Operation Setting, and Initial Setup.

3

ENTER

Use the / buttons and / buttons to select the item you want to set

When you’ve selected the desired item, press the ENTER button.



ENTER

4

Use the / buttons to move the cursor to the desired choice



ENTER

5

Press the ENTER button





ENTER

6 SETUP

Press the SETUP button

You will exit the setup, and the advanced setup screen will disappear.

Note

Some items cannot be set while a disc is playing. Such items are grayed-out.

63

DV-S155X-En.book Page 64 Saturday, July 24, 2004 2:20 PM

Advanced setup—Continued

Video settings

Here you can make video-related settings such as television size and image adjustments. For both interlaced output and progressive output, you can memorize three separate sets of videorelated settings. For example you might memorize one set of settings for use during the day when the sun is coming in through the windows, another for use at night when the curtains are closed, and another for use with room lighting.

Interlaced video settings

Here you can make video settings for when interlaced output is used.

1Use the / buttons to select either Interlaced Setting “1, 2 or 3” and press the ENTER button

The Interlaced Setting menu will appear.

2Use the / buttons to select the setting you want to adjust, and press the ENTER button

3Use the / buttons to adjust the setting, and press the ENTER button

Repeat steps 2 and 3 to adjust the desired settings.

Contrast:

Adjusts the brightness ratio between the lightest and darkest portions of the image. The default setting is 0, but you can adjust this in a range of –7 – +7.

Brightness:

Adjusts the brightness. The default setting is 0, but you can adjust this in a range of –7 –

+7.

Color:

Adjusts the color depth. The default setting is 0, but you can adjust this in a range of –7

– +7.

Tint:

Adjusts the hue. The default setting is 0, but you can adjust this in a range of –7 – +7.

Sharpness:

Adjusts the sharpness. The default setting is 0, but you can adjust this in a range of –7 – +8.

Skin Tone Correction:

Adjusts the skin tones. The default setting is 0, but you can adjust this in a range of 0 – +7.

Video Black Level:

Adjusts the brightness of black images. The default setting is “Normal,” but you can change this to “Light” if desired.

Tip

These settings are effective when using interlaced output.

4Press the SETUP button

The setup will be completed, and the video setup screen will disappear.

64

DV-S155X-En.book Page 65 Saturday, July 24, 2004 2:20 PM

Advanced setup—Continued

Progressive video settings

Here you can make video settings for when progressive output is used (NTSC only).

1Use the / buttons to select either Progressive Setting “1, 2 or 3” and press the ENTER button

The Progressive Setting menu will appear.

2Use the / buttons to select the setting you want to adjust, and press the ENTER button

3Use the / buttons to adjust the setting, and press the ENTER button

Repeat steps 2 and 3 to adjust the desired settings.

Contrast:

Adjusts the brightness ratio between the lightest and darkest portions of the image. The default setting is 0, but you can adjust this in a range of –7 – +7.

Brightness:

Adjusts the brightness. The default setting is 0, but you can adjust this in a range of –7 – +7.

Color:

Adjusts the color depth. The default setting is 0, but you can adjust this in a range of –7

– +7.

Tint:

Adjusts the hue. The default setting is 0, but you can adjust this in a range of –7 – +7.

Sharpness:

Adjusts the sharpness. The default setting is 0, but you can adjust this in a range of 0 – +8.

Skin Tone Correction:

Adjusts the skin tones. The default setting is 0, but you can adjust this in a range of –7 – +7.

Tip

These settings are effective when using progressive output.

4Press the SETUP button.

The setup will be completed, and the video setup screen will disappear.

65

DV-S155X-En.book Page 66 Saturday, July 24, 2004 2:20 PM

Advanced setup—Continued

PAL Output Setting

With this setting you can specify how the DV-S155X outputs video signals when playing NTSC format discs.

Auto (default):

Use this option if your TV or projector supports PAL and NTSC. When you play a PAL disc, the video output will be PAL. When you play an NTSC disc, it’ll be NTSC. The DV-S155X does not convert the format.

PAL:

Use this option if your TV doesn’t support NTSC playback, or the picture is distorted when watching NTSC discs. The DV-S155X will convert NTSC format video to a PAL-compatible format known as Mod PAL or 60 Hz PAL.

Note

This setting can be changed only when playback is stopped.

Audio Settings

Digital Out/Digital1

Digital Out/Digital2

You’ll need to perform this procedure if you’ve connected the DV-S155X to an amp that does not support digital signals, or to an MD recorder. The signal you specify for Digital Out/ Digital1 will be output from the DIGITAL OPTICAL jack. The signal you specify for Digital Out/Digital2 will be output from the DIGITAL COAXIAL jack.

• Dolby Digital output Dolby Digital:

Choose this setting if you’ve connected the DV-S155X to an AV amp or decoder that supports Dolby Digital. (This is the default setting.)

Dolby Digital > PCM:

Dolby Digital signals will be converted to linear PCM signals for output. Choose this setting if you’ve connected the DV-S155X to an AV amp that doesn’t support Dolby Digital.

Tip

If you’ve connected the DV-S155X to an MD recorder, choosing the “Dolby Digital > PCM” setting for the digital jack (Digital 1 or 2) to which the recorder is connected will allow you to convert the Dolby Digital signal into PCM and record it on your MD recorder.

• MPEG output MPEG:

Choose this if you’ve connected the DV-S155X to an AV amp that supports MPEG.

MPEG>PCM:

MPEG signals will be converted to linear PCM for output. Choose this if you’ve connected the DV-S155X to an AV amp that doesn’t support MPEG. (This is the default setting.)

66

DV-S155X-En.book Page 67 Saturday, July 24, 2004 2:20 PM

Advanced setup—Continued

• Digital output

This specifies whether digital audio will be output from the DV-S155X’s digital output jack. On: The digital jack will output digital audio signals.

Off: The digital jack will not output digital audio signals.

Linear PCM Out setting

Down Sample On:

Choose this setting if you’ve connected the DV-S155X to an AV amp that does not support 96 kHz audio. (This is the default setting.)

Down Sample Off:

Choose this setting if you’ve connected the DV-S155X to an AV amp that supports 96 kHz audio.

Note

Some discs will forcibly convert to 48/44.1 kHz even if you choose “Down Sample Off,” or may not produce digital output.

96 kHz linear PCM audio from a copy-protected DVD video is automatically converted to 48 kHz for output, or is output as analog audio.

This setting applies to both “Digital Out/Digital1” and “Digital Out/Digital2.”

Dynamic Range Control setting

The Dynamic Range Control setting lets you compress the audio so that loud sounds will be softer and soft sounds will be louder. This is convenient when you find it difficult to hear the dialog of a movie, or when watching a movie late at night.

Off (default):

Dynamic Range Control will be off.

On:

Dynamic Range Control will be on. Loud sounds such as explosions will be softer, and dialog will be easier to hear.

Note

Dynamic Range Control only works for Dolby Digital sound.

This setting automatically reverts to Off when the DV-S155X is turned on.

67

DV-S155X-En.book Page 68 Saturday, July 24, 2004 2:20 PM

Advanced setup—Continued

Language settings

Some DVDs contain subtitles or soundtracks in more than one language, allowing you to choose the desired language. Here’s how to make language-related settings. For the procedure of using the setup menu, refer to page 62.

Tip

On some discs, you use the disc menu to select the language.

Some discs do not provide a choice of languages. If so, the language with which the disc was produced will be used.

Some discs may not operate as you specify even though they contain more than one languages.

On-Screen Language

This selects the language used for on-screen display.

English (default): The on-screen display will be in English.

Français: The on-screen display will be in French Español: The on-screen display will be in Spanish Deutsch: The on-screen display will be in German Italiano: The on-screen display will be in Italian

Disc Menu Language

This selects the language of the menus shown by the disc when you play a DVD that contains disc menus in multiple languages.

English (default) French

Spanish

German

Italian

Others: Choose the desired language from the language code table on page 70.

68

DV-S155X-En.book Page 69 Saturday, July 24, 2004 2:20 PM

Advanced setup—Continued

Audio Language

This selects the language of the soundtrack that will play automatically when you play a DVD that contains soundtracks in multiple languages.

English

French

Spanish

German

Italian

Others: Choose the desired language from the language code list on page 70.

Subtitle Language

This selects the language of the subtitles that will be displayed automatically when you play a DVD that contains subtitles in multiple languages.

English

French

Spanish

German

Italian

No Subtitle: Subtitles will not be displayed.

Others: Choose the desired language from the language code list on page 70.

If you select “Others”

1Select "Others" and press the ENTER button.

A list of language codes will appear.

2Use the / buttons to select the input field.

3Use the / buttons to input the desired language code.

Refer to the language code list on page 70.

4Press the ENTER button.

69

DV-S155X-En.book Page 70 Saturday, July 24, 2004 2:20 PM

Advanced setup—Continued

Language Code List

Use this list when specifying other languages.

Language

Code



Language

Code



Language

Code

Japanese

JA



Kirghiz

KY



Gujarati

GU

















English

EN



Latin

LA



Hausa

HA

















French

FR



Lingala

LN



Hindi

HI

















German

DE



Laothian

LO



Croatian

HR

















Italian

IT



Lithuanian

LT



Hungarian

HU

















Spanish

ES



Latvian

LV



Armenian

HY

















Chinese

ZH



Malagasy

MG



Interlingua

IA

















Dutch

NL



Maori

MI



Interlingue

IE

















Portuguese

PT



Macedonian

MK



Inupiak

IK

















Swedish

SV



Malayalam

ML



Indonesian

IN

















Russian

RU



Mongolian

MN



Icelandic

IS

















Korean

KO



Moldavian

MO



Hebrew

IW

















Greek

EL



Marathi

MR



Yiddish

JI

















Afar

AA



Malay

MS



Javanese

JW

















Abkhazian

AB



Maltese

MT



Georgian

KA

















Afrikaans

AF



Burmese

MY



Kazakh

KK

















Amharic

AM



Nauru

NA



Greenlandic

KL

















Arabic

AR



Nepali

NE



Cambodian

KM

















Assamese

AS



Norwegian

NO



Kannada

KN

















Aymara

AY



Occitan

OC



Kashmiri

KS

















Azerbaijani

AZ



Oromo

OM



Kurdish

KU

















Bashkir

BA



Oriya

OR



Telugu

TE

















Byelorussian

BE



Panjabi

PA



Tajik

TG

















Bulgarian

BG



Polish

PL



Thai

TH

















Bihari

BH



Pashto, Pushto

PS



Tigrinya

TI

















Bislama

BI



Quechua

QU



Turkmen

TK

















Bengali

BN



Rhaeto-Romance

RM



Tagalog

TL

















Tibetan

BO



Kirundi

RN



Setswana

TN

















Breton

BR



Romanian

RO



Tonga

TO

















Catalan

CA



Kinyarwanda

RW



Turkish

TR

















Corsican

CO



Sanskrit

SA



Tsonga

TS

















Czech

CS



Sindhi

SD



Tatar

TT

















Welsh

CY



Sangho

SG



Twi

TW

















Danish

DA



Serbo-Croatian

SH



Ukrainian

UK

















Bhutani

DZ



Sinhalese

SI



Urdu

UR

















Esperanto

EO



Slovak

SK



Uzbek

UZ

















Estonian

ET



Slovenian

SL



Vietnamese

VI

















Basque

EU



Samoan

SM



Volapük

VO

















Persian

FA



Shona

SN



Wolof

WO

















Finnish

FI



Somali

SO



Xhosa

XH

















Fiji

FJ



Albanian

SQ



Yoruba

YO

















Faroese

FO



Serbian

SR



Zulu

ZU

















Frisian

FY



Siswati

SS























Irish

GA



Sesotho

ST























Scots-Gaelic

GD



Sundanese

SU























Galician

GL



Swahili

SW























Guarani

GN



Tamil

TA























70

DV-S155X-En.book Page 71 Saturday, July 24, 2004 2:20 PM

Advanced setup—Continued

Diaplay

Here you can make display-related settings.

On-Screen Display

This specifies whether the operating status such as “Stop” or “Play” will be shown on the screen when you play a DVD.

Off:

Operating status is not displayed.

On (Default setting):

Operating status is displayed.

On-Screen Display Color

This specifies the color or graphic of the setup menu and navigator screens.

Sapphire (Default setting) Pearl

Amethyst Garnet

Background

This specifies the background color of the on-screen setup menus.

Blue

Gray

Graphic (Default setting)

Screen Saver

This enables the screen saver function which prevents image burn-in on the television screen.

Off:

The screen saver will not operate.

On:

The screen saver will operate. (Default setting)

71

DV-S155X-En.book Page 72 Saturday, July 24, 2004 2:20 PM

Advanced setup—Continued

Operation Setting

Here you can make settings for various functions of the DV-S155X.

Pause/Still

This setting specifies how the image will be frozen when you pause playback. The “Frame” setting generally provides higher quality, but may be blurry in some cases. The “Field” setting is not as high quality as “Frame,” but will not be blurred.

Auto:

The “Field” or “Frame” setting will be chosen automatically depending on the disc. (Default setting)

Frame:

This is the normal mode.

Parental Lock

Some DVDs containing violence or other potentially inappropriate material utilize a viewer rating system. (The rating level is indicated on the packaging of the disc.) By setting the DV-S155X’s rating level lower than the level indicated on the package of a DVD, you can prevent children from watching that DVD.

1Choose Parental Lock “On,” and press the ENTER button

A password entry screen will appear.

2Use the number buttons to input a four-digit password, and press the ENTER button

The rating level setting screen will appear.

3Use the / buttons to select a level, and press the ENTER button

The rating level will be set.

4Press the SETUP button

This completes the setting; the setting screen will disappear.

Tip

You can change this setting only while the player is stopped.

If you make a mistake while entering the password, press the CLEAR button.

If you forget the password, press the (Stop) button four times instead of entering the password in the procedure described above.

You’ll need to input the password in order to defeat the viewing restriction or change the level.

The packaging of the disc will indicate whether a disc supports viewing restriction levels.

72

DV-S155X-En.book Page 73 Saturday, July 24, 2004 2:20 PM

Advanced setup—Continued

PBC

This setting enables menu playback for video CDs with PBC.

Off:

PBC playback is disabled.

On (Default setting):

PBC playback is enabled. (Default setting)

Tip

PBC playback functionality differs between discs; please refer to the packaging of the disc.

The DV-S155X may not support PBC playback of some video CD discs.

Auto power off

Auto power-off is a function that automatically puts the DV-S155X in standby mode if no operation is performed for twenty minutes after playback stops.

Off (Default setting):

Auto power-off is disabled.

On:

Auto power-off is enabled.

73

DV-S155X-En.book Page 74 Saturday, July 24, 2004 2:20 PM

About Discs

Playable discs

The DV-S155X can only play back discs with the following marks on the disc labels, packaging, or jackets.

Disc mark

DVD videos

DVD-R DVD-RW































































VIDEO CDs









CD*1



















































































































































































































CD-R*2

CD-RW*2

*1 About playing copy-controlled CDs

Some copy-controlled CDs may not conform to official CD standards. They are special discs and may not play on the DV-S155X.

*2 The DV-S155X supports CD-R and CD-RW discs recorded in Video CD format, audio CD format, or ISO9660 Level 2 format with MP3, WMA and JPEG files. It also supports DVD-R and DVD-RW discs recorded in DVD-Video format. However, some CD-R/RW and DVD-R/RW discs may not work properly for any of the following reasons: incomplete disc finalization, disc burner characteristics, disc characteristics, the disc is damaged or dirty. See the manual supplied with your disc burner for more

information. Condensation or dirt on the optical pickup lens can also affect playback.

Non-playable discs

You cannot play back discs other than those listed above.

You cannot play discs such as Super Audio CD, DVD-Audio, DVD-ROM, DVD+R, DVD+RW, DVD-RAM, Photo CD, CD-G etc., even if the marks in the above table are labeled on those discs.

The DV-S155X uses the PAL/NTSC color system, and cannot play back DVD videos recorded in any other color system (SECAM, etc.).

Avoid using heart-shaped or octagonal discs. Playing irregularly-shaped discs may damage the internal mechanism of the DV-S155X.

Do not use discs that have residue from adhesive tape, rental discs that have peeling labels, or discs that have custom labels or stickers. Otherwise, you may not be able to eject the discs, or the DV-S155X may become inoperative.

74

DV-S155X-En.book Page 75 Saturday, July 24, 2004 2:20 PM

About Discs—Continued

DVD control limitations

The controls on certain DVD discs may be prohibited or disabled. The DV-S155X will display an icon () that means a function is “prohibited by the disc” if you try to execute such a function.

On discs that enable interactive controls from the menu or during playback, certain functions (such as repeat play or programming) may not be available. In these cases, the DV-S155X will display an icon () that means the function is “prohibited by the player.”

About video CDs

The DV-S155X supports Video CDs with or without PBC (Version 2.0). (PBC is an abbreviation for Playback Control.)

Video CDs without PBC (Version 1.1)

Video CDs that do not utilize PBC allow you to play sound and movies on the DV-S155X using the same operations you would use to play an audio CD.

Video CDs with PBC (Version 2.0)

Video CDs that utilize PBC also allow you to play sound and movies on the DV-S155X. In addition, these discs enable you to use interactive software and search functions from a menu displayed on the TV screen (Menu Playback). Some of the functions described in this Instruction Manual may not work with some discs.

DVD-R/DVD-RW playback

The DV-S155X supports DVD-R and DVDRW discs recorded in DVD Video format.

DVD-R/DVD-RW discs recorded in DVDVR format cannot be played.

Unfinalized DVD-R/DVD-RW discs cannot be played.

The DV-S155X is a playback only component, the DV-S155X cannot record onto DVD-R/DVD-RW discs.

* Refer to a manual comes with DVD video recorder for DVD video recording format (VR mode) and DVD video format (video mode).

75

DV-S155X-En.book Page 76 Saturday, July 24, 2004 2:20 PM

About Discs—Continued

Regarding CD-R/CD-RW playback

The DV-S155X can play back CD-R/CD-RW discs containing music CD data, music data in formats such as MP3, and image data in formats such as JPEG. However depending on the disc, you may occasionally experience problems such as inability to play back, audible noise, or distorted sound.

For details, refer to the owner’s manual for your recorder.

Regarding MP3/WMA/JPEG playback

Use discs that are recorded according in compliance with the ISO9660 level 2 CDROM file system. (However, only eight levels of folder hierarchy are supported, as in ISO9660 level 1.)

Up to 999 folders and 671 tracks can be recognized and played.

When displayed on the screen, a three-digit number is added to each folder and track.

In the case of a multi-session disc, only the first session is played.

If you attempt to play back a disc that the DV-S155X does not support, a message of “This format cannot be played” will appear.

The disc must be finalized.

Caution

In some cases, a DVD-R/DVD-RW or CD-R/ CD-RW recorded on a recorder or computer may not be playable. (Possible causes: the characteristics of the disc, scratches, dirt on the disc, dirt on the lens of the player, condensation, etc.)

Regarding MP3 playback

Only MP3 files with a filename extension of “.mp3” or “.MP3” can be played back.

MPEG1 audio layer 3 (64--384 kbps) files recorded with a sampling frequency of 44.1/48 kHz are supported.

Variable bit rate (VBR) files from 64 kbps through 384 kbps are supported. The time indication in the display area may not be shown correctly during VBR playback.

Regarding WMA playback

WMA stands for “Windows Media Audio,” and is an audio compression technology developed by Microsoft Corporation USA.

Only WMA files with a filename extension of “.wma”, “.WMA” or “.ASF” can be played back.

Files recorded with a sampling frequency of 44.1/48 kHz are supported.

Variable bit rate (VBR) files from 16 kbps through 192 kbps are supported. The time indication in the display area may not be shown correctly during VBR playback.

Defeat WMA content protection when recorded the WMA data to disc.

Regarding JPEG playback

JPEG is a graphic format used for saving image files such as photos and illustrations. JPEG still images with a filename extension of “.jpg,” “.JPG” or “.JPEG“ can be displayed.

The following JPEG files of 5 Mbytes or less are supported.

Brightness/color difference ratios of 4:4:4, 4:2:2, and 4:1:1 are supported.

Progressive JPEG is not supported.

76

DV-S155X-En.book Page 77 Saturday, July 24, 2004 2:20 PM

About Discs—Continued

Differences in disc composition

DVDs

All discs are divided into smaller, more manageable sections so that you can find specific content more easily.

More specifically, discs are divided into one or more titles. Each title may be further divided into several chapters. Occasionally, a chapter may contain index points, effectively dividing the chapter into several parts as well.





Title 1













Title 2





























Chapter 1

Chapter 2







Chapter 1



Chapter 2

















































DVD

Video CDs and audio CDs

Video CDs and audio CDs are divided into a number of tracks. In rare cases, a track may contain a number of index points, effectively dividing the track into several parts.

Track 1

Track 2

Track 3

Track 4

MP3/WMA and JPEG Files

WMA/MP3 folder/track names and JPEG folder/track names are shown in the screen.

ROOT 1

CD-ROM containing MP3/WMA/

JPEG files

002

001.mp3 (001.wma)

010.mp3

(010.wma)

(subfolder) 005

011.mp3

(011.wma)

003

001.mp3

(001.wma)

020.mp3

(020.wma)

004

“ ”

Video CD

Track 1

Track 2

Track 3

Track 4

Track 5



















CD

77

DV-S155X-En.book Page 78 Saturday, July 24, 2004 2:20 PM

About Discs—Continued

Handling discs

• Do not touch the playback side of a disc.

Playback side

• Do not attach paper or tape to discs.

Cleaning discs

Fingerprints and dust on a disc can cause picture and sound deterioration. Wipe the disc from the center outwards with a soft cloth. Always keep discs clean.

If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.

Do not use any type of solvent, such as thinner, benzene, commercial cleaners or antistatic spray for vinyl LPs. These solvents may damage discs.

Storing discs

Do not store discs in locations subject to direct sunlight or near heat sources.

Do not store discs in locations subject to moisture or dust, such as a bathroom or near a humidifier.

Store discs in cases. Store each case vertically. Stacking or placing objects directly on a disc may cause it to warp.

Copyrights

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, or rent copyrighted material without permission. DVD videos are copy-protected, and any recordings made from these discs will be distorted.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright-protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

A note regarding condensation

If you move this DVD player from a cold place into a warm room, or use a heater to rapidly warm a cold room, small droplets of water (“condensation”) may form inside the player. Condensation will prevent the player from working properly, and will also damage the disc or parts inside. If condensation occurs, leave the power turned on for one or two hours before you use the player. When not using the player, we recommend that you remove the disc.

78

DV-S155X-En.book Page 79 Saturday, July 24, 2004 2:20 PM

Troubleshooting

Please check the following points first. It is possible that the cause may lie with other connected equipment, so refer to the Instruction Manual of your other equipment as well.

The numbers shown at the end of a line indicate pages for reference.

Power-related problems

Power does not turn on

Make sure that the power cord has not fallen out of the outlet.

Unplug the power cord from the outlet, wait at least five seconds, and plug it back in again.

Sound-related problems

No sound

Could the power cord have fallen out of the outlet?

Make sure that the connecting cables are firmly connected. (page 13)

Insert RCA-type plugs all the way into the jack.

It is possible that the player is being affected by a strong magnetic field, such as produced by a television. Move the player away from the television.

About the sound quality

Changing the polarity of the power plug will sometimes improve the sound. The sound quality will stabilize ten to thirty minutes after the power is turned on. Please note that the sound quality will deteriorate if you bundle the audio connection cable together with speaker cables.

Video-related problems

Playback image is occasionally distorted

Check whether the disc is dirty.

The image may be somewhat distorted while searching forward or backward. This is not a malfunction of the player.

Frozen image is blurred

• Use the Operation Setting to adjust the Pause/Still. (page 72)

Brightness of the playback image is unsteady. Or, noise is present in the playback image

If you’ve connected the DV-S155X via a video deck or a television with built-in video recorder, copyprotection is being applied. Connect the DV-S155X directly to your television.

On some televisions or monitors, the color level may become slightly lighter or the tint may change during playback. Also, some discs may produce noise in the image because of their high resolution. In such cases, adjust your television or monitor to get the optimal picture.

Picture does not appear on the television screen

Make sure that the correct input is selected on the television to which the DV-S155X is connected.

If the same image is displayed for an extended time while the player is stopped or paused, the screen saver function will operate. In this case, press the button to defeat the screen saver. Press the button once again to begin playback. The screen saver will operate even if a television is not connected, such as when playing a CD.

If you’ve connected the DV-S155X to the component jacks of your television, select the “Interlaced” setting. (page 64)

Picture is stretched vertically or horizontally

The TV Shape setting is not appropriate for your television. Make settings as explained in “Initial setup” or “Advanced setup.” (pages 23, 64)

Mesh-like noise appears on the television screen

• Keep the television antenna cable at a distance from the DV-S155X’s power cord and connection cables.

79

DV-S155X-En.book Page 80 Saturday, July 24, 2004 2:20 PM

Troubleshooting—Continued

Problems with disc playback

Disc won’t play

When playing a disc recorded in DTS format, you must connect the digital output jack to a DTS-compat- ible decoder. If a DTS-compatible decoder is not connected to the digital output jack when you play back, an extreme level of noise will be output from the DV-S155X’s analog audio output jacks.

Make sure that the disc is a type that the DV-S155X is able to play. (page 74)

Check the region number. (page 3)

If the Parental Lock function is active, defeat it or change the level. (page 72)

There’s a time lag before playback begins

For DVDs and for CDs that contain a large number of songs, a certain amount of time is required for the disc to be read.

Skips occur in the sound

The sound may skip if the player is subjected to vibration, if the disc has a large scratch, or if the disc is dirty.

Can’t memorize songs or scenes

Make sure that a disc is inserted in the player, and that the song or scene you are attempting to memorize is on that disc. Some DVDs prohibit memory operations.

Disc is inserted, but won’t play

Make sure that the correct side of the disc is facing upward.

Make sure that the disc is not badly soiled or scratched.

If you suspect that condensation has occurred, leave the player for approximately one hour before attempting to operate it. (page 78)

Disc doesn’t play in the correct order

Defeat special playback modes such as Repeat Play, Memory Playback, and Random Playback. (pages 57–59)

The specified language, subtitle, or soundtrack is not output

• The disc does not contain the language you specified.

When you play back a DVD or video CD, playback begins from the middle

The Resume function is active. If you want to play the disc from the beginning, press the (Stop) button twice and then play back.

If you press the (Open/Close) button to open the tray while a DVD or video CD is playing, the

DV-S155X will remember that location. The next time you play back that disc, it will begin playing from

the location at which you pressed the button. A DVD-R/DVD-RW disc will play back from the location at which you pressed the button, whether it is the same disc or another DVD-R/DVD-RW disc. If you want to play the disc from the beginning, press the (Stop) button twice and then play back.

“Prohibited by the disc” symbol appears on the television screen

• The operation you selected is prohibited by the disc. (page 75)

“Prohibited by the player” symbol appears on the television screen

• The operation you selected is prohibited by the DV-S155X. (page 75)

Playing a Copy Control music CD

Noise or skips occur during playback / Player fails to recognize disc (“NO DISC” indication) / First song is not played / Finding the beginning of a song takes longer than normal / Plays from the middle of a song / Some portions won’t play / Stops mid-way through playback / Indicator display is wrong

The disc you are attempting to play is a music CD with Copy Control technology. Some music CDs with Copy Control do not comply with the CD specification. These are non-standard discs, and may not be playable on the DV-S155X.

80

DV-S155X-En.book Page 81 Saturday, July 24, 2004 2:20 PM

Troubleshooting—Continued

Problems with MP3/WMA/JPEG playback

Can’t play back a disc that contains MP3/WMA/JPEG files

Make sure that the recorded disc is ISO 9660 compliant. (page 76)

Make sure that the disc containing the files has been finalized.

Can’t select a track (file) recorded on the disc

Files will not be recognized if they have a non-standard filename extension. Change the filename extension. (page 76)

The DV-S155X cannot recognize more than 999 folders or 671 tracks. (page 76)

The DV-S155X does not support multi-session discs. Only the first session of a multi-session disc will be played. (page 76)

Problems with the remote control

The remote control doesn’t work

Are the batteries inserted with the correct polarity (+, –) as indicated? (page 12)

Try replacing both batteries with fresh batteries. (Avoid mixing batteries of differing types, or old and new batteries.)

Could the remote control be too far from the DV-S155X?

Is there an obstruction between the remote control and the DV-S155X?

Is strong light (fluorescent light or direct sunlight) shining on the DV-S155X’s remote control optical sensor?

If the door of your audio rack is made of colored glass, the remote control may not operate correctly.

Problems with connections to external devices

System functions don’t work with other connected Onkyo products

Make sure that both the cable and the audio connection cable are connected correctly. The system will not work if only the cable is connected. (page 18)

Problems with settings

Your settings have disappeared

Your settings will be lost if there is a power failure or the power cord is disconnected while the player is powered-on.

Can’t change the settings

Some settings can’t be changed during playback. In this case, stop playback before you change the settings.

Sound is output in monaural

While playing a video CD, the output will be monaural if you pressed the remote control’s AUDIO button to select Mono L or Mono R. To return to stereo, press the remote control’s AUDIO button once again to select stereo. (page 27)

*The status of this setting is shown in the video output, so you’ll need to connect a television to check the current status.

81

DV-S155X-En.book Page 82 Saturday, July 24, 2004 2:20 PM

Troubleshooting—Continued

The manufacturer expressly disclaims any responsibility for damages (including but not limited to CD rental fees) incurred because of your inability to make a satisfactory recording due to a malfunction of this device. Before making an important recording, you should verify that recording occurs correctly.

This device contains sophisticated microcomputer functionality that in rare cases may malfunction due to interference, noise, or static electricity from an external source.

If this occurs, unplug the power cord, wait at least five seconds, and then connect the power cord once again.

To return DVD-related settings to their default state (the factory settings)

1 Remove the disc so that the display section indicates “No Disc”

2 While holding down the (Stop) button, press the STANDBY/ON button

The display will indicate “INITIALIZE” for approximately seven seconds, and will then indicate “COMPLETE.”

DVD-related settings have now been set to their default state (the factory settings).

Glossary

Analog audio

An electrical signal that directly represents sound. Compare this to digital audio which can be an electrical signal, but is an indirect representation of sound. See also “Digital audio”.

Aspect ratio

The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the screen is almost square); widescreen models are 16:9 (the screen is almost twice as wide as it is high).

Digital audio

An indirect representation of sound by numbers. During recording, the sound is measured at discrete intervals (44,100 times a second for CD audio) by an analog-to-digital converter, generating a stream of numbers.

On playback, a digital-to-analog converter generates an analog signal based on these numbers. See also “Sampling frequency” and “Analog audio”.

Dolby Digital

Using a maximum of 5.1 channels of audio, this high quality surround system is used in many of the finer movie theaters around the world.

The on-screen display shows which channels are active, for example showing 3/2.1. The 3 being the two front channels and the center channel; the 2 being the surround channels, and the .1 being the LFE channel.

DRM

DRM (digital rights management) is a type of server software developed to enable secure distribution of paid content over the web, recently incorporated by WMA (Windows Media Audio).

DTS

DTS stands for Digital Theater Sys-

tems. DTS is a surround system different from Dolby Digital that has become a popular surround sound format for movies.

82

DV-S155X-En.book Page 83 Saturday, July 24, 2004 2:20 PM

Glossary—Continued

Dynamic range

The difference between the quietest and loudest sounds possible in an audio signal (without distorting or getting lost in noise).

Dolby Digital and DTS soundtracks are capable of a very wide dynamic range, delivering dramatic cinema-like effects.

EXIF (Exchangeable Image File)

A file format developed by Fuji Photo Film for digital still cameras. Digital cameras from various manufacturers use this compressed file format which carries date, time and thumbnail information, as well as the picture data.

File extension

A tag added to the end of a filename to indicate the type of file. For example, “.mp3” indicates an MP3 file.

ISO 9660 format

International standard for the volume and file structure of CD-ROM discs.

JPEG

A file format used for still images, such as photographs and illustrations. JPEG files are identified by the file extension “.jpg” or “.JPG”. Most digital cameras use this format.

MP3

MP3 (MPEG1 audio layer 3) is a compressed audio file format. Files are recognized by their file extension “.mp3” or “.MP3”.

MPEG audio

An audio format used on Video CDs and some DVD discs. This unit can convert MPEG audio to PCM format for wider compatibility with digital recorders and AV amplifiers. See also “PCM (Pulse Code Modulation)”.

MPEG video

The video format used for Video CDs and DVDs. Video CD uses the older MPEG-1 standard, while DVD uses the newer and much better quality MPEG-2 standard.

PBC (PlayBack Control) (Video CD only)

A system of navigating a Video CD through on-screen menus recorded onto the disc. Especially good for discs that you would nor-

mally not watch from beginning to end all at once—karaoke discs, for example.

PCM (Pulse Code Modulation)

The most common system of encoding digital audio, found on CDs and DAT. Excellent quality, but requires a lot of data compared to formats such as Dolby Digital and MPEG audio. For compatibility with digital audio recorders (CD, MD and DAT) and AV amplifiers with digital inputs, this unit can convert Dolby Digital, DTS and MPEG audio to PCM. See also “Digital audio”.

Regions (DVD-Video only)

These associate discs and players with particular areas of the world. This unit will only play discs that have compatible region codes. You can find the region code of your unit by looking on the rear panel. Some discs are compatible with more than one region (or all regions).

Sampling frequency

The rate at which sound is measured to be turned into digital audio data. The higher the rate, the better the sound quality, but the more digital information is generated. Standard CD audio has a sampling frequency of 44.1kHz, which means 44,100 samples (measurements) per second. See also “Digital audio”.

WMA

WMA is short for Windows Media Audio and refers to an audio compression technology developed by Microsoft Corporation. WMA data can be encoded by using Windows Media Player version 8 or Windows Media Player for Windows XP.

83

DV-S155X-En.book Page 84 Saturday, July 24, 2004 2:20 PM

Specifications

Signal System



PAL/AUTO





Composite Video Output/Impedance

1.0 V (p-p)/75 Ω negative sync, RCA/phono

S-Video Output/Impedance

Y: 0.7 V (p-p)/75 Ω negative sync, 4-pin mini DIN

C: 0.286 V (p-p)/75 Ω





Component Video Output/Impedance

Y: 1.0 V (p-p)/75 Ω, PB/PR: 0.7 V (p-p)/75 Ω RCA/ phono

AV Connector (European model only)

1.0 V (p-p)/75 Ω, Scart

Component Video Frequency Response

5 Hz–50 MHz







Frequency

DVD Linear Sound

4 Hz–44 kHz (96kHz), 4 Hz–22 kHz (48kHz)

response

Audio CD

4 Hz–20 kHz (44.1kHz)







S/N Ratio



106 dB





Audio Dynamic Range

96 dB





THD (Total Harmonic Distortion)

0.001 % (1kHz)







Wow and Flutter



Below threshold of measurability





Audio Output (Digital/Optical)

–22.5 dBm





Audio Output/Impedance (Digital/Coaxial)

0.5 p-p/75 Ω

Audio Output/Impedance (Analog)

2.0 V (rms)/320 Ω

General

Power Supply

AC 230–240V, 50 Hz

Power Consumption

11 W





Stand-by Power Consumption

0.65 W





Dimensions (W x H x D)

155 W x 94 H x 297 D mm





Weight

1.9 kg





Operation Condition Temperature

5˚ C–35˚ C





Disc Compatibility

DVD-video, DVD-R/RW, Audio CD, CD-R/RW, Video CD, MP3, WMA, JPEG

Disc that have not been property finalized may only be partially play-



able or not playable at all





Specifications and features subject to change without notice.

Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8023 Fax: 072-831-8124

ONKYO U.S.A. CORPORATION

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.

Tel: 201-785-2600 Fax: 201-785-2650 http://www.onkyousa.com

ONKYO EUROPE ELECTRONICS GmbH

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY

Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.onkyo.net

ONKYO EUROPE UK Office





















































































Suite 1, Gregories Court, Gregories Road, Beaconsfield, Buckinghamshire, HP9 1HQ

UNITED KINGDOM Tel: +44-(0)1494-681515 Fax: +44(0)-1494-680452









































HOMEPAGE































http://www.onkyo.com/

ONKYO CHINA LIMITED





















































































Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung,







































Printed in Japan

N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039































































I0407-1















































































































SN 29343862

















































































































(C) Copyright 2004 ONKYO CORPORATION Japan. All rights reserved.



















































































































































































































84
