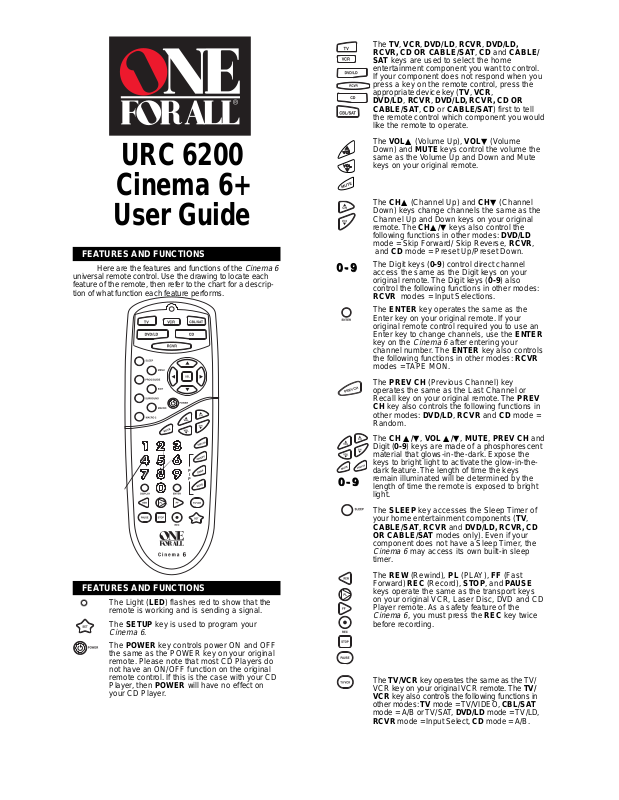

One for all URC-6200 User manual
URC 6200
Cinema 6+
User Guide
FEATURES AND FUNCTIONS
Here are the features and functions of the
universal remote control. Use the drawing to locate each
feature of the remote, then refer to the chart for a description of what function each feature performs.
FEATURES AND FUNCTIONS
The Light (LED) flashes red to show that the
remote is working and is sending a signal.
The SETUP key is used to program your
Cinema 6
The POWER key controls power ON and OFF
the same as the POWER key on your original
remote. Please note that most CD Players do
not have an ON/OFF function on the original
remote control. If this is the case with your CD
Player, then POWER will have no effect on
your CD Player.
.
Cinema 6
0 - 9
0 - 9
0 - 9
0 - 9
The TV, VCR, DVD/LD, RCVR, DVD/LD,
RCVR, CD OR CABLE/SAT, CD and CABLE/
SAT keys are used to select the home
entertainment component you want to control.
If your component does not respond when you
press a key on the remote control, press the
appropriate device key (TV, VCR,
DVD/LD, RCVR, DVD/LD, RCVR, CD OR
CABLE/SAT, CD or CABLE/SAT) first to tell
the remote control which component you would
like the remote to operate.
The VOL▲ (Volume Up), VOL▼ (Volume
Down) and MUTE keys control the volume the
same as the Volume Up and Down and Mute
keys on your original remote.
The CH▲ (Channel Up) and CH▼ (Channel
Down) keys change channels the same as the
Channel Up and Down keys on your original
remote. The CH▲/▼ keys also control the
following functions in other modes: DVD/LD
mode = Skip Forward/ Skip Reverse, RCVR,
and CD mode = Preset Up/Preset Down.
The Digit keys (0-9) control direct channel
access the same as the Digit keys on your
original remote. The Digit keys (0-9) also
control the following functions in other modes:
RCVR modes = Input Selections.
The ENTER key operates the same as the
Enter key on your original remote. If your
original remote control required you to use an
Enter key to change channels, use the ENTER
key on the
channel number. The ENTER key also controls
the following functions in other modes: RCVR
modes = TAPE MON.
The PREV CH (Previous Channel) key
operates the same as the Last Channel or
Recall key on your original remote. The PREV
CH key also controls the following functions in
other modes: DVD/LD, RCVR and CD mode =
Random.
The CH ▲/▼, VOL ▲/▼, MUTE, PREV CH and
Digit (0-9) keys are made of a phosphorescent
material that glows-in-the-dark. Expose the
keys to bright light to activate the glow-in-thedark feature. The length of time the keys
remain illuminated will be determined by the
length of time the remote is exposed to bright
light.
The SLEEP key accesses the Sleep Timer of
your home entertainment components (TV,
CABLE/SAT, RCVR and DVD/LD, RCVR, CD
OR CABLE/SAT modes only). Even if your
component does not have a Sleep Timer, the
Cinema 6
timer.
The REW (Rewind), PL (PLAY), FF (Fast
Forward) REC (Record), STOP, and PAUSE
keys operate the same as the transport keys
on your original VCR, Laser Disc, DVD and CD
Player remote. As a safety feature of the
Cinema 6
before recording.
The TV/VCR key operates the same as the TV/
VCR key on your original VCR remote . The TV/
VCR key also controls the follo wing functions in
other modes: TV mode = TV/VIDEO, CBL/SAT
mode = A/B or TV/SAT, DVD/LD mode = TV/LD,
RCVR mode = Input Select, CD mode = A/B.
Cinema 6
may access its own built-in sleep
, you must press the REC key twice
after entering your
The MENU key operates the same as the
MENU or OSD (On Screen Display) key on
your original remote. Use ▲, ▼,
(Menu Up, Down, Left and Right) to navigate
your menus. If your original remote control had
a SELECT key to select options in your menus,
use SEL. Use the EXIT key to exit/clear your
On-Screen menus. Please consult your home
entertainment component’s original owner’s
manual for more detailed instructions on
accessing and navigating your On-Screen
menus.
The , , ▲ , and ▼ (Menu Up, Do wn, Left
and Right) keys are used to navigate your OnScreen menus. The , , ▲, and ▼ keys also
control the following functions in other modes:
RCVR and DVD/LD, RCVR, CD OR CABLE/SAT
mode = Rear Level +/- and Balance Left/Right,
CD mode = Track+/- and Disc +/-.
The SEL (Select) key selects options in your
On-Screen menus. The SEL key also controls
the following functions in other modes: RCVR
and DVD/LD, RCVR, CD OR CABLE/SAT
mode = Surround Mode, CD mode = Disc
Select, DVD/LD mode = Chapter.
The EXIT key exits or clears your on-screen
menus. The EXIT key also controls the
following functions in other modes: RCVR,
DVD/LD, RCVR, CD OR CABLE/SAT and CD
mode = Open/Close.
The PROG/GUIDE key operates your components secondary menus as well as your DBS
system’s and Cable Converter’s Guide
function. Use the , , ▲ , and ▼ (Menu Up,
Down, Left and Right) keys to navigate your
menus. If your original remote control had a
SELECT key to select options in your menus,
use SEL. Use the EXIT key to exit/clear your
On-Screen menus. Please consult your home
entertainment component’s original owner’s
manual for more detailed instructions on
accessing and navigating your On-Screen
menus.
The DISPLAY key operates the Display
function of your home entertainment components.
The PIP On/Off key accesses your TV’s
Picture-in-Picture feature. The PIP On/Off key
also controls the following functions in other
modes: CD mode =Disk Skip, DVD/LD mode =
Subtitle On/Off, CBL/SAT mode = View.
The SWAP key swaps the Picture-in-Picture
window and the TV’s main picture. The SWAP
key also controls the following functions in
other modes: CBL/SAT mode = SAT.
The MOVE PIP key moves the Picture-inPicture window around your TV screen. The
MOVE PIP key also controls the following
functions in other modes: DVD/LD mode =
Angle, CBL/SAT mode = Next.
The SURROUND key operates the same as the
Surround On/Off key on your original remote. The
SURROUND key also controls the f ollowing
functions in other modes: VCR mode = A uto
Tracking, DVD/LD mode = Disc, CBL/SAT mode
= Favorite Channel, CD mode = 10+.
The MACRO and MACRO2 keys can memo-
rize up to 15 keystrokes per key that can be
accessed in sequence with a single key press.
These keys are not mode specific.
, and
INST ALLING THE BA TTERIES
Your
Cinema 6
batteries. To install the batteries:
1. On the back of the
2. Match the + and - marks on the
3. Press the battery cover back into
4. Test the unit by pressing POWER. I f
NOTE: Removing the batteries will not require you to
reprogram your remote control because the Cinema 6 has
requires four (4) new AAA alkaline
Cinema 6
back on the tab and lift the battery
cover off.
batteries to the + and - marks in the
battery case, then insert the
batteries.
place.
the batteries are inserted correctly,
the red light will blink.
, pull
unlimited min. memory backup : Allows you time to replace
batteries without having to re-program the remote.
SETTING UP Y OUR COMPONENTS
Programming the
Locate the brand name of your TV and then write it in the
space below.
TV Brand:
Locate the brand name of your TV in the “Setup Codes
For TVs” section. The brands are listed in alphabetical
order with the most popular codes listed first. You will use
one of these codes to program your
your TV .
To program the
1. Turn on your TV.
2. Press TV and release. Press and hold SETUP
3. Enter the first four-digit TV code listed for your
4. Aim the
5. Your
Remember, if you want to use your Cinema 6 to operate
your TV, press the TV key first.
until the
release SETUP.
brand in the “Setup Codes For TVs” section. If
you perform this procedure correctly, the red
light will blink twice when you enter the final
digit of your code.
POWER. Your TV should turn off. If
your TV does not respond, repeat steps 2-4,
trying each code listed for your
brand until you find the one that operates your
TV.
your TV. Write your TV code in
the boxes to the left for future reference.
Cinema 6
Cinema 6
Cinema 6
Cinema 6
Cinema 6
to operate your TV:
Cinema 6
to operate your TV:
’s red light blinks twice, then
at your TV and press
is now programmed to operate
to operate
Setup Codes For TVs
Abex 0032
Admiral 0093, 0179, 0180, 0016, 0047
Adventura 0046
Aiko 0092
Akai 0030
Alaron 0179
A-Mark 0003
Ambassador0177
Anam
National 0055
Anam 0180
AOC 0030, 0019, 0185, 0003, 0052
Archer 0003
Audiovo x 0451, 0092, 0180, 0003
Baysonic 0180
Belcor 0019
Bell &
Howell 0154, 0016
Bradford 0180
Brockwood 0019
Broksonic 0003
Candle 0056, 0030, 0186, 0046
Carnivale 0030
Carver 0054
Celebrity 0000
Cineral 0451, 0092
Citizen 0060, 0092, 0030, 0056, 0186, 0280, 0039,
0046
Clairtone 0185
Concerto 0056
Contec 0180, 0185
Craig 0180
Crown 0180, 0039
Curtis
Mathes 0030, 0060, 0154, 0039
CXC 0180
Daewoo 0451, 0092, 0019, 0039
Daytron 0019
Denon 0145
Dumont 0017, 0019
Electroband 0000, 0185
Emerson 0463, 0236, 0180, 0019, 0154, 0177, 0178,
0179, 0185, 0280, 0282, 0038,0039
Envision 0030
Fisher 0154, 0159
Fujitsu 0179
Funai 0171, 0179, 0180
Futuretech 0180
GE 0047, 0051, 0451, 0021, 0027, 0055, 0178,
0282, 0135
Gibralter 0019, 0030, 0017
Goldstar 0019, 0030, 0178, 0032, 0039
Gradiente 0053, 0056
Grunpy 0179, 0180
Hallmark 0178
Harvard 0180
Hitachi 0145, 0151, 0038, 0056, 0032
Infinity 0054
Janeil 0046
JBL 0054
JCB 0000
JVC 0053
Kaypani 0052
KEC 0180
Kenwood 0019, 0030
Kloss 0024, 0046
KTV 0030, 0180, 0185, 0280, 0032
LG 0056
Logik 0016
Luxman 0056
LXI 0047, 0054, 0154, 0156, 0178
Magnavox 0054, 0096, 0186, 0187, 0020, 0024, 0030,
0386
Majestic 0016
Marantz 0054, 0030
Matsushita 0250
Megatron 0145, 0003, 0178
MEI 0185
Memorex 0056, 0150, 0154, 0016, 0178
MGA 0150, 0019, 0030, 0178
Midland 0017, 0047, 0051, 0135, 0032, 0039
Minutz 0021
Mitsubishi 0150, 0093, 0019, 0178
Motorola 0093, 0055
MTC 0060, 0019, 0030, 0056, 0185
Multitech 0180
NAD 0156, 0166, 0178
NEC 0019, 0030, 0056
Nikko 0030, 0092, 0178
Noshi 0018
NTC 0092
Onwa 0180
Optimus 0250, 0154, 0166
Optonica 0093, 0165
Orion 0236, 0436
Panasonic 0250, 0051, 0055
Penney 0047, 0156, 0051, 0030, 0019, 0003, 0018,
0021, 0027, 0060, 0135, 0178, 0032, 0039
Philco 0054, 0145, 0096, 0019, 0020, 0030
Philips 0054
Pilot 0019, 0030, 0039
Pioneer 0166, 0038
Portland 0092, 0019, 0039
Prism 0051
Proscan 0047
Proton 0003, 0052, 0178
Pulsar 0017, 0019
Quasar 0250, 0051, 0055, 0165
RadioShack 0047, 0056, 0154, 0019, 0030, 0165, 0178,
0180, 0032, 0039
RCA 0047, 0018, 0019, 0038, 0090, 0135
Realistic 0056, 0154, 0019, 0030, 0165, 0178, 0180,
0032, 0039
Rhapsody 0185
Runco 0017, 0030
Sampo 0030, 0052, 0032, 0039
Samsung 0060, 0019, 0030, 0056, 0178, 0032, 0039
Samsux 0039
Sansei 0451
Sanyo 0154, 0159
Scimitsu 0019
Scotch 0178
Scott 0236, 0019, 0178, 0179, 0180
Sears 0047, 0054, 0056, 0154, 0156, 0171, 0178,
0159, 0179
Semivox 0180
Semp 0156
Sharp 0093, 0165, 0039, 0386
Shogun 0019
Signature 0016
Simpson 0186, 0187
Sony 0000, 0080
Soundesign 0178, 0179, 0180, 0186
Spectricon 0003
Squareview 0171
SSS 0019, 0180
Starlite 0180
Supre-Macy 0046
Supreme 0000
Sylvania 0054, 0096, 0020, 0030
Symphonic 0171
Tandy 0093
Tatung 0055, 0003
Technics 0250, 0051
Technol Ace 0179
Techwood 0051, 0056, 0003
Teknika 0054, 0056, 0060, 0092, 0150, 0016, 0019,
0179, 0180, 0186, 0039
Telefunken 0056
TMK 0056, 0177, 0178
Toshiba 0156, 0060, 0154
Tosonic 0185
Totevision 0039
Universal 0027
V ector
Research 0030
Victor 0053
Vidikron 0054
Vidtech 0019, 0178
Viking 0046
Wards 0016, 0019, 0030, 0054, 0056, 0080, 0096,
0165, 0178, 0179, 0020, 0021, 0027
White
Westinghouse 0451, 0463, 0236, 0180
Yamaha 0019, 0030
Zenith 0017, 0092, 0016
Programming the
Locate the brand name of your VCR and then write it in
the space below.
VCR Brand:
Locate the brand name of your VCR in the “Setup Codes
For VCRs” section. The brands are listed in alphabetical
order with the most popular codes listed first. You will use
one of these codes to program your
your VCR.
To program the
1. Turn on your VCR and insert a tape.
2. Press VCR and release. Press and hold
3. Enter the first four-digit VCR code listed for
4. Aim the
5. Your
Remember, if you want to use your Cinema 6 to operate
your VCR, press the VCR key first.
Zonda 0003
Setup Codes For VCRs
Admiral 0048, 0121, 0184, 0039, 0060, 0202
Adventura 0000
Aiko 0278
Aiwa 0037, 0000
Akai 0041, 0061, 0106
American
High 0035
Asha 0240
Audiovo x 0037
Beaumark 0240
Bell &
Howell 0104
Broksonic 0184, 0209, 0479, 0002, 0121, 0295, 0361
Calix 0037
Canon 0035
Capehart 0020
Carver 0081
CCE 0072, 0278
Cineral 0278
Citizen 0037, 0278
Colt 0072
Craig 0072, 0240, 0037, 0047, 0271
Curtis
Mathes 0035, 0041, 0060, 0202
Cybernex 0240
Daewoo 0278, 0020, 0045
Daytron 0020
Denon 0042
Dynatech 0000
Electrohome0037
Electrophonic
Emerex 0032
Emerson 0209, 0184, 0479, 0278, 0000, 0002, 0036,
Fisher 0104, 0047, 0054, 0066
Fuji 0033, 0035
Funai 0000
Garrard 0000
GE 0060, 0202, 0035, 0048, 0240
Goldstar 0037, 0038
Go-Video 0432, 0526
Gradiente 0000, 0008
Harley
SETUP until the
blinks twice, then release SETUP.
your brand in the “Setup Codes For VCRs”
section. If you perform this procedure correctly,
the red light will blink twice when you enter the
final digit of your code.
POWER. Your VCR should turn off. If your original
VCR remote control did not have a POWER key,
press PL (Play). Your VCR should start to play. If
your VCR does not respond, repeat steps 2-4,
trying each code listed for your brand until you
find the one that operates your VCR.
your VCR. Write your VCR code in the boxes to
the left for future reference.
Cinema 6
Cinema 6
Cinema 6
Cinema 6
0037
0037, 0043, 0061, 0068, 0121, 0184, 0208,
0212, 0295, 0361
to operate your VCR:
Cinema 6
to operate your VCR:
Cinema 6
at your VCR and press
is now programmed to operate
’s red light
to operate
Davidson 0000
Harman/Kardon 0038
Harwood 0072, 0068, 0072
Headquarter0046
HI-Q 0047
Hitachi 0041, 0105, 0000, 0042
Jensen 0041
JVC 0008, 0041, 0067
KEC 0037, 0278
Kenwood 0038, 0041, 0067
KLH 0072
Kodak 0035, 0037
Lloyd’s 0000, 0208
Logik 0072
LXI 0037
Magnasonic 0278
Magnavox 0035, 0081, 0000, 0039, 0110, 0149
Magnin 0240
Marantz 0035, 0081
Marta 0037
Matsushita 0162, 0035, 0454
MEI 0035
Memorex 0162, 0240, 0035, 0037, 0104, 0000, 0039,
MGA 0043, 0061, 0240
MGN
Technology
Minolta 0042, 0105
Mitsubishi 0043, 0048, 0061, 0067
Motorola 0035, 0048
MTC 0240, 0000
Multitech 0000, 0072
NEC 0038, 0040, 0041, 0067, 0104
Nikko 0037
Nikon 0034, 0253
Noblex 0240
Olympus 0035
Optimus 0162, 0048, 0037, 0104, 0454
Optonica 0062
Orion 0209, 0184, 0479, 0002, 0295
Panasonic 0162, 0035, 0077, 0225, 0454
Penney 0035, 0037, 0038, 0040, 0042, 0054, 0240
Pentax 0042, 0105
Philco 0035, 0209, 0479
Philips 0035, 0081, 0062, 0110
Pilot 0037
Pioneer 0067, 0162
Portland 0020
Proscan 0060, 0202
Protec 0072
Pulsar 0039
Quarter 0046
Quartz 0046
Quasar 0162, 0035, 0077, 0454
RadioShack 0000, 0037
Radix 0037
Randex 0037
RCA 0060, 0202, 0240, 0042, 0035, 0048, 0077,
Realistic 0000, 0035, 0037, 0046, 0047, 0048, 0062,
Ricoh 0034, 0253
Runco 0039
Samsung 0240, 0045
Sanky 0048, 0039
Sansui 0000, 0041, 0067, 0271, 0479
Sanyo 0104, 0046, 0047, 0054, 0240
Scott 0043, 0045, 0121, 0184, 0210, 0212
Sears 0000, 0035, 0037, 0042, 0046, 0047, 0054,
Semp 0045
Sharp 0048, 0062
Shintom 0072
Shogun 0240
Singer 0072
Sony 0032, 0033, 0034, 0000, 0035, 0253
STS 0042
Sunpak 0253
Sylvania 0035, 0081, 0043, 0000, 0110
Symphonic 0000
Tatung 0041
TEAC 0000, 0041
Technics 0162, 0035
Teknika 0000, 0035, 0037
Thomas 0000
0046, 0047, 0048
0240
0105, 0106, 0149
0066, 0104
0066, 0104, 0105
Loading...
