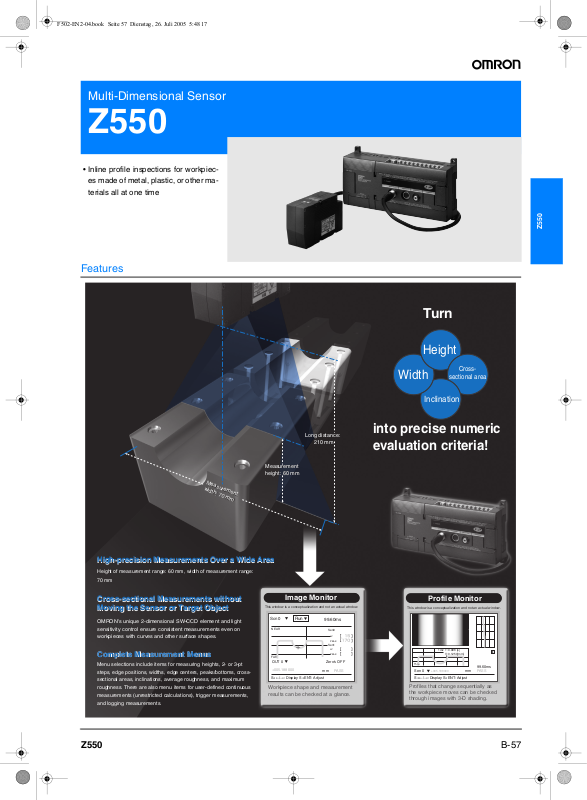

Omron Z550 DATASHEET
Multi-Dimensional Sensor
Z550
• Inline profile inspections for workpieces made of metal, plastic, or other materials all at one time
Features
Z550
Turn
Measurement
Measurement
height: 60 mm
Measurement
Measurement
width: 70 m
width: 70 mm
m
High-precision Measurements Over a Wide Area
High-precision Measurements Over a Wide Area
Height of measurement range: 60 mm, width of measurement range:
70 mm
Cross-sectional Measurements without
Cross-sectional Measurements without
Moving the Sensor or Target Object
Moving the Sensor or Target Object
OMRON's unique 2-dimensional SW-CCD element and light
sensitivity control ensure consistent measurements even on
workpieces with curves and other surface shapes.
Complete Measurement Menus
Complete Measurement Menus
Menu selections include items for measuring heights, 2- or 3-pt
steps, edge positions, widths, edge centers, peaks/bottoms, crosssectional areas, inclinations, average roughness, and maximum
roughness. There are also menu items for user-defined continuous
measurements (unrestricted calculations), trigger measurements,
and logging measurements.
height: 60 mm
This window is a conceptualization and not an actual window.
Long distance:
210 mm
Image Monitor
Scn 0 Run
NEAR
FAR
OUT 0
+005.188000
S+←/→: Display S+ENT: Adjust
Workpiece shape and measurement
results can be checked at a glance.
99.60ms
Sen0
LV
PEAK
Sen1
LV
PEAK
Zero's OFF
mm
PAS S
Height
Cross-
Width
sectional area
Inclination
into precise numeric
evaluation criteria!
Profile Monitor
This window is a conceptualization and not an actual window.
1div
T: 0.996 [s]
V: 0.1250[mm]
Thru
+005.188000
Sen 0
S+←/→: Display S+ENT: Adjust
Profiles that change sequentially as
the workpiece moves can be checked
through images with 3-D shading.
99.60ms
mm
PAS S
B-57Z550
Specifications
Z550-MC10/MC15 Controller
Model Z550-MC10 Z550-MC15
I/O type NPN PNP
Power supply voltage 21.6 to 26.4 V DC
Current consumption 1 A max. (with 2 sensors connected)
Insulation resistance Between the group of external DC terminals and the ground terminal: 20 MΩ max. (at
100 V DC ) (when the built-in surge absorber is removed)
Dielectric strength Between the group of external DC terminals and the ground terminal: 1000 V AC at 50/60 Hz
Leakage current 10 mA max.
Noise resistance 1,500 Vp-p; Pulse width: 0.1 ms/1 ms; Rising edge: 1-ns pulse
Vibration resistance 10 to 150 Hz (at a double amplitude of 0.1 mm) for 8 minutes each in the X, Y, and Z directions
Shock resistance 200 m/s²; 3 times each in 6 directions
Ambient temperature 0 to +50 °C at operation, -15 to +60 °C at storage (no icing or condensation)
Ambient humidity Operating and storage: 35% to 85% (no condensation)
Ambient environment No corrosive gases
Ground D-type ground (ground resistance of 100 W or less) * conventional class 3 ground
Degree of protection IEC60529 IP20 (in-panel)
Materials Console: ABS
Weight Approx. 0.7 kg
Number of connectable sensors Up to two Z550-SW70 sensors can be connected.
Number of scenes 16
Averagin number 9 levels (1 to 256 times)
Sensor control 6 levels (varies depending on the sensor)
Area specification function Available
Control of quantity of light Multi-sensitivity adjustment (dynamic range or sampling interval takes precedence)
Measurement time
*1
Run Mode Continuous measurement or trigger measurement
Image pre-processing Noise removal
Measurement pre-processing Interpolation processing, filter processing, Inclination compensation processing, Height and
Detection method Height position method, Reflectance method
Measurement item Height, Step: 2 pts, Step: 3 pts, Edge position, Width, Edge center, Peak/Bottom, Cross-sec-
Logging function The measurement results of up to 3,000 measurements can be stored. (It is possible to select
Output pre-processing Forced zero, Offset/span adjustment
Profile data output Up to 1024 height profiles can be output in one batch.
Results output Terminal block: Judgment result
Screen display Image monitor, Trend monitor, Digital monitor, Profile monitor
Tool function Peripheral image display function, test measurement function
Terminal blocks 11 input points: TRIGGER, LD-OFF, RESET, DI0 to DI7
RS-232C (Baud rate) Up to 115 kbps (at XMODEM transmission, external trigger measurement) Normally 38.4 kbps
Monitor interface 1 channel (for pin jack or overscan monitor)
Analog output resolution The full output scale can be divided into a maximum of 40,000 divisions.
*1.
The sampling interval varies depending on the measurement settings. Check the actual sampling interval on the image monitor.
*2.
When performing measurement taking the average of every 64 measurements with an OMRON K3AS linear sensor controller connected.
(when the built-in surge absorber is removed)
fixed sensitivity, automatic sensitivity adjustment
100 ms (at fixed sensitivity)
120 ms (at automatic sensitivity)
100 ms to 250 ms (when sampling interval takes precedence)
100 ms to 620 ms (when dynamic range takes precedence)
position compensation processing
tional area, Inclination, Roughness, User-defined
the number ofmeasurements after which the measurement results will be stored.)
The output format may be either ASCII code or binary format (when sending via XMODEM)
Analog: Measurement result
RS-232C: Measurement result, judgment result, profile data
21 output points: DO0 to DO19 and GATE
*2
Resolution
: 0.25 mV (±5 V), 0.4 mA (4 to 20 mA)
B-58 Displacement sensors / Width-measuring Sensors
