Omron KaradaScan HBF-375 Instruction Manual

Instruction manual
Illustration in the book is for reference only.
Contents
How to use HBF-375 ........................ 1
Model HBF-375
Foreword
Notes on Safety ..................................................3
Know Your Unit ................................................... 7
Before Measuring (various settings)
Installing the Battery ...........................................8
 Battery Life and Replacement ........................................... 8
Setting Date and Time ........................................ 9
Setting Personal Data (Date of Birth, Gender, Height) ....11
 Changing Personal Data ................................................. 13
 Deleting Personal Data ................................................... 14
Measuring Methods and Measuring Results
Measuring Weight, Body Composition
(with Personal Profile Number Button / GUEST Button)
.... 15
Using the Memory Function ............................ 22
Progress Chart .................................................24
Location of Display Unit .................................... 25
Measuring Weight only .....................................26
In Case of Doubt and Warranty
In Case of Doubt ............................................... 27
 Error Displays .................................................................27
 Troubleshooting ............................................................... 27
 Automatic Switch-off of the Power ..................................28
Technical Data .................................................. 29
Appendix – Application Guide
Information on Body Composition ....................30
Same Age Comparison ....................................35
Feature and Measuring Principle of Body
Composition Monitor ......................................... 36
Things to Take Note .......................................... 37
Q&A of body composition monitor ....................38
Thank you for purchasing OMRON Body Composition
Monitor.
Before using this unit for the first time, please be sure
to read this Instruction Manual carefully and use the unit safely and properly.
Please keep this Instruction Manual at hand all the time
for future reference.
1
Do not take out display unit before "0.0 kg" is displayed.
Please make the following
preparation before using
for correct measuring.

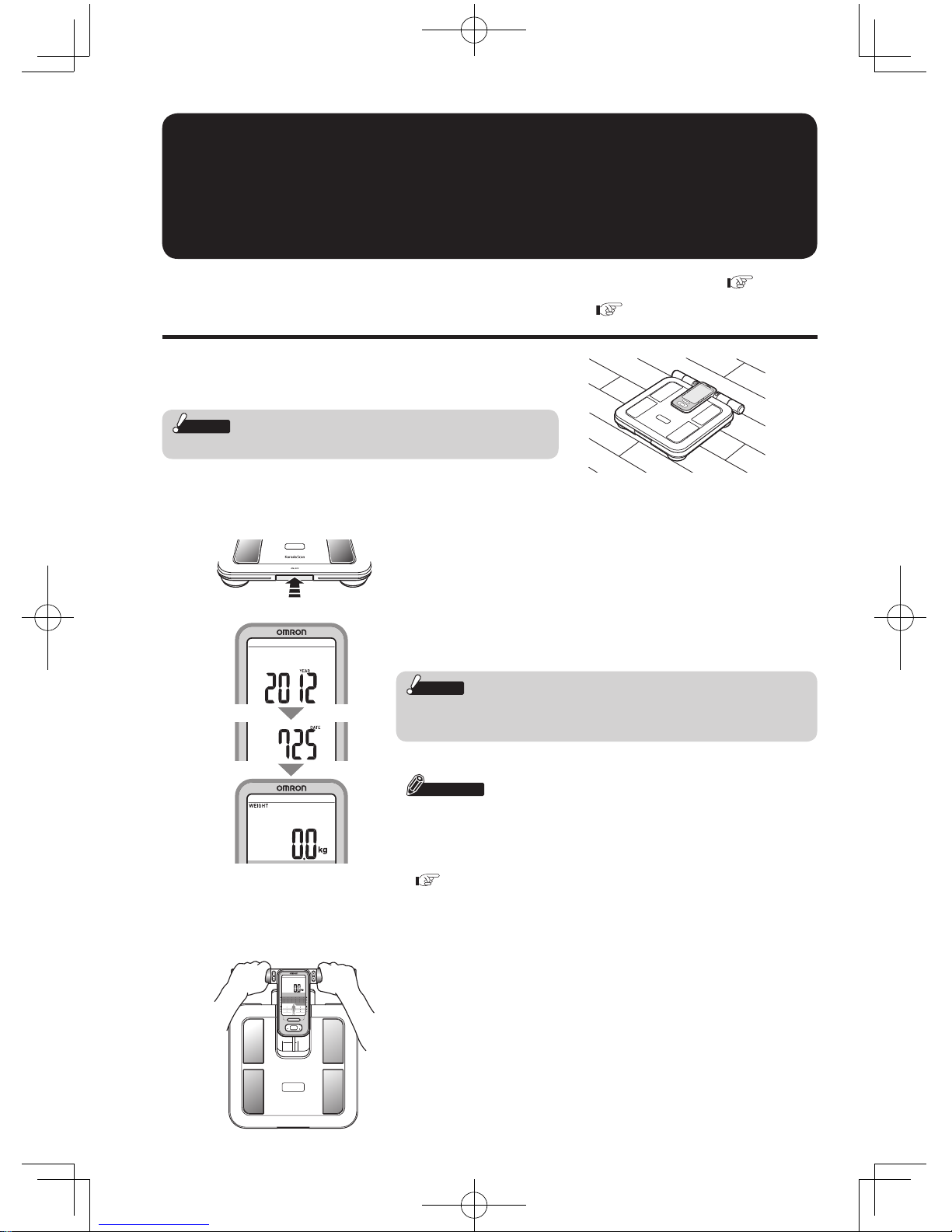

How to use HBF-375
In addition to setting personal data, GUEST mode may also be used to measure weight, body fat and skeletal muscle , etc. ( page 16)
( page 15)
Installing the battery
( page 8)
1
Setting date and time
( page 9)
2
Before measuring
(various settings)
Measuring methods and measuring results
Setting personal data
( page 11)
3
Date of birth
Gender
Height
Connecting the power
1
Stepping on the main unit
3
Display and confirmation of weight (flash)
Measuring...
Measuring completed
Arm and body should be kept at 90°
Please set personal data before initial use.
( page 11)
Selecting personal profile number
2
Take a measurement bare-footed.
Use correct posture for measurement. (
page 17 and 18)
Press Personal Profile Number button to select "personal profile number".
Turn on the power.
90°
2
Measure on flat and hard ground
Measuring Weight only
………………
( page 26)
Body composition means
Tissue and water content composing body muscle, fat and bone. The following description
will help you understand your body fat and other index and conduct health management.
Refer to attached "application guide" for specific description. ( page 30)
Press the button to view the desired measurement results. ( page 19)
View measurement results
4
Weight
Progress Chart
( page 24)
Body fat
Body fat classification
Visceral fat
Level
Visceral fat level classification
Body age BMI
Resting
metabolism
Display viewing method of different parts ( page 20)
Viewing past measurement results ( page 22)
3
Danger
Warning
Notes on Safety
The following is intended to prevent personal injury or property damage of the user or other people
caused by the product.
Symbols and definitions are as follows.
Please read carefully before use.
Caution
Meanings
Improper use may result in possible death or serious injury.
Improper use may result in injury or property damage*.
* Property damage includes damage to house, property, livestock and pet.
Meaning of danger, warning and caution
Improper use may cause danger resulting in death or serious injury.
Warning
Compulsory
Never start weight reduction or exercise therapy without the
instructions of a doctor or specialist, and do not judge by yourself.
If you judge by yourself, it might cause damage to your health.
When using
Danger
Forbidden
Never use this unit in combination with the following medical electronic devices.
Medical electronic implants such as pacemakers. Electronic life support systems such as an artificial heart.
Portable electronic medical devices such as an electro-cardiograph.
This unit could cause these devices to malfunction, posing a
considerable health risk to users of these devices.
When using
Compulsory
Compulsory item (which must be observed).
Forbidden
Forbidden item (which is not permitted).
4
Notes on Safety
Warning
To next page
Forbidden
Do not use the unit on slippery surfaces, such as ceramic tile
or wet floor.
Otherwise, measured person might slip and be injured.
Installation and usage
Compulsory
People with disabilities should always be assisted by another person when using this unit.
Otherwise, they might slip. Care is required when measuring.
Measurement
Do not jump onto the unit, or hop up and down on the unit.
Otherwise, it might cause slip and injury. Additionally, impact exceeding
allowed range will cause damage.
Do not use this unit when your body and / or hands are wet,
such as after taking a bath.
Otherwise, measured person might slip and be injured.
Otherwise, water will come into the machine to cause fault and affect
correct body fat measuring.
Do not step on the edge or display area of the main unit.
Otherwise, it might cause slip and injury and affect correct measuring.
Forbidden
Forbidden
Forbidden
Caution
Forbidden
This unit is not intended for professional use (for example, hospitals or other medical facilities).
This unit is intended for home use only, it does not support
the standards required for professional use.
Forbidden
Do not use a cellular phone near the display unit or the
main unit.
Otherwise, it might cause abnormality.
When using
Application scope
The unit is designed to measure weight and resistance and obtain BMI, body fat and skeletal
muscle, etc. through analysis of weight and resistance.
BMI, also known as body weight index, is a physique indicate index. BMI = weight (kg) /
square of height (m).
5
Notes on Safety
Caution
Battery usages
Compulsory
Do not insert the batteries with the polarities in the wrong direction.
Otherwise, it might leak, heat or break and cause person injury.
Do not use new and worn batteries and different types of batteries together.
Otherwise, it might leak, heat or break and cause person injury.
Compulsory
Keep the unit out of the reach of young children.
Otherwise it might cause injury due to winding wire or
falling down.
Storage
Remove the batteries from this unit when you are not going to use it for a long period
of time (approximately three months or more).
Use batteries specified for this unit.
Otherwise it might leak, damage the main unit or cause person injury.
Compulsory
Compulsory
Measurement
Taking a measurement barefooted.
Otherwise, measured person might slip and be injured.
And it will affect correct measuring of body fat and other index.
Compulsory
Remove the display unit from main unit before stepping on the main unit.
If you try to remove the display unit while stepping on to the main unit, you might slip and
injury due to lost balance.
Installation and usage
Forbidden
Do not stand by the wall.
Otherwise, it might cause slip, injury or fault.
Do not disassemble, repair, or remodel the display unit or the main unit.
Otherwise, it might cause injury or fault.
Forbidden
When inserting display unit into the main unit, do not touch inside part of grip
electrodes metal.
Otherwise, it might hurt your finger.
Forbidden
Forbidden
6
Notes on Installation
Keep the unit away from wet or watery place, direct sunlight, direct air conditioner wind and fire.
Otherwise, it might cause fault.
Do not use the unit on grass mat, carpet or other soft ground.
Otherwise, when stepping on the main unit, it will
sunken and measurement will be affected.
Notes on use
Clean the unit before use if it is used by people whose hand or foot sicken for skin disease or other infective disease.
Otherwise, it will cause infection. If use the unit
together,use a cloth moistened with water or neutral detergent to squeeze it well before wiping the unit, then wipe dry with a dry cloth.
Do not use the unit for purpose other than measuring weight and body composition.
Do not draw the cord between the main unit and display unit with strength.
Otherwise, the cord might come off and cause fault.
Since the product is precise instrument, please do not drop, violate or shock it.
• Otherwise, it might cause fault.
Do not move the unit by holding the display unit.
• Otherwise, the main unit might drop and be damaged or cause injury to personnel.
Notes on daily maintenance
Always keep the unit clean before use.
• Wipe the main unit with a soft dry cloth.
• If necessary, use a cloth moistened with water or neutral detergent and squeeze it well before wiping the unit, then wipe dry with a dry cloth.
Do not wash display unit or the main unit.
• Otherwise, it might cause fault.
Do not use volatile detergent or thinner, to clean the unit
• Otherwise it might cause color change or fault.
Notes on storage
Do not keep the product in the following places.
• Watery place
• Place subject to high temperature, humidity, direct sunlight, dust or saliferous air.
• Places with the risk of inclination, vibration or sudden shock
• Places where chemicals are stored or where corrosive gas is present.
Benzene ThinnerBenzene Thinner
Notes
The unit might not correctly measure body composition for the following personnel.
Children in growth age / people of high age / women of amenorrhea / patients having fever due to cold / pregnant women / patients having osteoporosis / patients having edema / patients receiving hemodialysis / professional sportsmen.
Water content in their body and body composition might be very different from average value.
For users below 10 years old, the unit displays only weight and BMI.
This unit cannot display visceral fat level, body age and same age comparison of users below 18 years old.
This unit may measure body composition of users above 81 years old but only provide reference value.
This unit is intended for home use only.
Never use this unit in combination with the following medical electronic devices:
Medical electronic implants such as pacemakers.
Electronic life support systems such as an artificial heart.
Portable electronic medical devices such as an electrocar-diagraph.
Never start weight reduction or exercise therapy without the instructions of a doctor or specialistand do
not judge by yourself.
Notes on use
Notes on Safety
7
Know Your Unit
Display
The figure shows all display content. (All contents cannot be displayed during use)
Foot Electrodes Foot Electrodes
Power switch
Display Unit
Low Battery Indicator
Personal Profile Number Button
Buttons
Main Unit
Cord
Display Unit Holder
Grip Electrodes Grip Electrodes
8
1
Press the tab of the battery cover along arrow direction
Installing the Battery
Install four supplied four AA batteries.
1
2
Turn over the main unit
Open battery cover
Install the batteries in correct polarity as marked inside the battery compartment
The side with spring is .
Close the battery cover
3
Pull up the tab of the battery cover and open battery cover
2
Main Unit Back
Tab
1
2
Setting date and time ( page 9)
Reset date and time after replacing the battery.
Four AA batteries will last approximately 1 year. (At room
temperature 23°C, when measured 4 times per day.)
Because the supplied batteries are for trial use only, they may have a shorter life.
When the low battery indicator flashes, it indicates running out
of the battery.
Replace all four batteries with new ones (same type) at the same time.
Replace the batteries after turning off the main unit power.
• Personal data stored in memory are retained even if the batteries are removed.
• Disposal of used batteries should be carried out in accordance with the city environment protection regulations for the disposal of batteries.
Low battery indicator
Battery Life and Replacement
9
Turn on the power
1
When the power is turned on for the first time after changing the battery, it is necessary to set the
date and time. The unit will calculate age according to current date, the registered personal data and
date of birth. If not set correctly, measurement results would not be correctly displayed. The previous
measurement results might be lost.
Set "year"
Press " "
button to select "year" and press
" " button to set.
Setting range is 2012 ~ 2030.
Press continuously to rapidly shift up or down.
After setting "year", "month" flashes.
2
Set "month" and "date"
Press " " button to select "month" and press " " button to set.
After setting "month", date flashes.
Press " " button to select "date" and press " " button to set.
After setting "date", "hour" flashes.
3
1
2
Setting Date and Time
10
When error occurs during setting...
Turn on the power. If "year" flashed, please start from step 2 of "setting date and time" (
page 9).
The power is automatically turned off during setting...
Turn on the power to reset. If no operation for 3 minutes during setting, the power will be automatically turned off.
If you want to modify date and time which have already been set...
Turn on the power. After "0.0 kg" is displayed, hold " " button more than 2 seconds. If "year" flashes, start from step 2 of "setting date and time".
( page 9)
Setting date and time
Set "hour" and "minute"
Press " " button to select "hour" and press
" "
button to set.
Time is of 24-hour system.
After setting "hour", "minute" flashes.
Press " " button to select "minute" and press " " button to set.
After the settings for year, month, day, hour and minute
are displayed in that sequence, the power is automatically
turned off.
4
Setting is now completed.
1
2
Loading...
+ 28 hidden pages
