INSTRUCTION MANUAL
Heart Rate Monitor
Model HR-100C
SET
MODE
ST/SP
TIME
TABLE OF CONTENTS
2
Before Using the Monitor
Introduction ..........................................................3
Components and Functions..................................4
Your Personal Data
Maximum Heart Rate ......................................5
Training Zones.................................................6
Operating Instructions
Control Buttons....................................................7
Selecting the Operating Mode .............................7
Basic Setting Instructions ....................................8
Setting the Time and Date ...................................8
Displaying the Date .............................................9
Setting the Alarm.................................................9
Setting the Heart Rate Limits ............................10
Using the Backlight Feature ..............................10
Using the Stopwatch Feature.............................11
The Transmitter..................................................11
The Receiver ......................................................12
Water Resistance................................................12
Effective Range..................................................12
Troubleshooting .................................................12
Care and Maintenance
Battery Installation .............................................13
Caring for your Monitor.....................................13
Specifications .....................................................14
Warranty Information.........................................15
INTRODUCTION
3
Thank you for purchasing the Omron HR-100C
Heart Rate Monitor.
Fill-in for future reference
DATE PURCHASED: ______________
SERIAL NUMBER: ________________
Staple your purchase receipt here.
The heart rate monitor can help ensure you receive
the maximum benefit from your exercise program.
You can increase the effectiveness of your exercise
program by monitoring and quantifying your results
every step of the way.
Your HR-100C comes with the following components:
• Receiver Wrist Monitor
• Receiver Mounting Bracket
• Transmitter
• Transmitter Strap
• 2 Lithium CR2032 Batteries
(1 Receiver, 1 Transmitter - installed)
• Storage Case
• Instruction Manual
Read all the information in the instruction book before
using the unit.
WARNING
The signals used by this monitor may interfere with
a pacemaker or other implanted devices. Consult the
manufacturer of the implant device and your physician
before using this monitor.
SAVE THESE INSTRUCTIONS
COMPONENTS
4
RECEIVER WRIST MONITOR
Sets the operating modes and heart rate limits.
RECEIVER MOUNTING BRACKET
Attaches the monitor to your bike or exercise machine.
TRANSMITTER
Counts your heartbeat and sends the data to the receiver.
TRANSMITTER STRAP
Adjustable strap attaches to the transmitter for a
comfortable fit.
STORAGE CASE
Compact case holds all components.
P
/S
T
S
E
T
M
S
E
M
I
O
T
D
E
YOUR PERSONAL DATA
5
MAXIMUM HEART RATE
It is important you know your maximum heart rate
(MHR) training zone, upper heart rate limit and
lower heart rate limit before you begin. They help
you achieve the maximum health benefits out of
your workout. MHR is expressed in beats per minute.
Use the following formula to estimate your MHR:
Men 220 - age = MHR
Women 230 - age = MHR
There are several training zones that produce specific
results in your fitness program. The most common
zones range between 50% to 80% of your MHR.
This is where you achieve cardiovascular benefits,
burn fat, and become more physically fit. When
setting your watch, the lowest % of the zone you
choose becomes your lower heart rate limit and the
highest % becomes the upper heart rate limit.
Moderate Activity
Weight Management Zone
Aerobic Zone
Anaerobic Threshold Zone
Red Line Zone (maximum capacity)
50%
60%
70%
80%
90%
100%
Calculate the lower and upper heart rate limits by
multiplying your MHR by the percentages for the
selected training zone.
For example:
40-year-old man training for Weight Management.
His Lower Heart Rate Limit (220-40) x 60% = 108
His Upper Heart Rate Limit (220-40) x 70% = 126
30-year-old woman training for Aerobic Zone.
Her Lower Heart Rate Limit (230-30) x 70% = 140
Her Upper Heart Rate Limit (230-30) x 80% = 160
PERSONAL DATA
6
Determining your individual training zone is a critical
step in the process toward a safe and efficient training.
Start slowly. Select the training zone most suitable for
your needs. Exercise regularly for 20 to 30 minutes,
three to four times a week for a healthier cardiovascular
system. Gradually step up your training zone as you
become more physically fit.
TRAINING ZONES
• The Weight Management zone has the
lowest training intensity. This zone is good for
beginners and those who want to strengthen their
cardiovascular systems.
• The Aerobic zone increases strength and endurance.
It works within the body’s oxygen intake capability,
burns more calories and can last longer.
• The Anaerobic Threshold zone generates speed
and power. It works at or above the body’s oxygen
intake capability, builds more muscle and cannot
be maintained for a long time.
WARNING
Consult your physician or healthcare provider to help
you determine your maximum heart rate, upper and
lower limits, the exercise frequency and duration
appropriate for you and your specific goals.
CONTROL BUTTONS
7
USE IN THE WATER
Press the MODE button to toggle between the
following operating modes:
Time of Day
Alarm
Stopwatch
Press the TIME/❤ button to toggle between the
operating modes and the Heart Rate Display.
1. Backlight Button
2. MODE Button
3. SET Button
4. ST/SP Stopwatch Button
5. Time/❤ Heart Rate Button
The Control Buttons on the Receiver Wrist Monitor
are used to select and set the operating modes, add
your personal data, and use the features of the
heart rate monitor.
SELECTING THE
OPERATING MODE
Press MODE Button
TIME OF DAY
Press MODE Button
ALARM
Press MODE Button
STOP
WATCH
Heart Rate
Display
Press TIME/❤
Button
BASIC SETTING
INSTRUCTIONS
8
1. Press and hold the MODE button to enter the
setting mode.
2. Pr
ess the SET button to adjust the blinking digits.
Press and hold the SET button to increase the
digits faster.
3. Pr
ess the MODE button to go to the next setting
option or exit the setting mode.
NOTE: If no button is pressed the monitor will
automatically exit the setting mode after 60 seconds.
SETTING THE TIME
AND DATE
Press the MODE button to select the
Time of Day operating mode.
1. Press and hold the MODE button.
12/24 hr blinking
2. Press the SET button to choose the
12-hour AM/PM or 24-hour universal
clock. Press the MODE button.
Hour blinking
3. Press the SET button to adjust the
hour. Press the MODE button.
Minutes blinking
4. Press the SET button to adjust the
minutes. Press the MODE button.
Month blinking
5. Press the SET button to change the
month. Press the MODE button.
Date
blinking
6. Press the SET button to change the
date. Press the MODE button.
Day blinking
7. Press the SET button to change the
day. Press the MODE button to exit
the setting mode. The date and
time is set.
DISPLAYING THE DATE
9
1. Press the MODE button to select the Time of Day
operating mode.
2. Press the SET button to display the date.
3. Press the MODE button to return to the
Time of Day.
NOTE: If no button is pressed the monitor will
return to the Time of Day after 10 seconds.
SETTING THE ALARM
Press the MODE button to select the
Alarm operating mode.
1. Press and hold the MODE button.
Hour blinking
2. Press the SET button to adjust the
hour. Press the MODE button.
Minutes
blinking
3. Press the SET button to adjust the minutes. Press
the MODE button to exit the setting mode. The
Alarm time is set.
ACTIVATING THE ALARM
1. Press the SET button to turn the alarm on or off.
When the alarm is activated, the alarm will go off at
the set time every day. Press any button to stop the
alarm signal.
ON
OFF
SETTING THE
HEART RATE LIMITS
10
The Heart Rate Limits help you determine if you are
exercising within your training zone. When you go
above or below your limits, an indicator will flash
to warn you.
Press the TIME/
❤ button to select the
Heart Rate display.
SETTING THE HEART RATE LIMITS
1. Press and hold the MODE button.
Lo
wer Limit blinking
2. Press the SET button to enter your training zone
lower limit. Press the MODE button.
Upper Limit
blinking
NOTE: The upper limit must be greater than the
lower limit. The monitor will automatically adjust
the upper limit range based on the data entered.
3. Press the SET button to enter your training zone
upper limit. Press the MODE button to exit the
setting mode. The training zone limits are set.
SETTING THE HEART RATE ALERT
1. Press and hold the TIME/
❤ button to turn the alert
indicator on or off.
2. Press the TIME/
❤ button. The alert indicator is set.
ON
OFF
USING THE BACKLIGHT FEATURE
Press the Backlight button.
The screen will illuminate for approximately
5 seconds.
11
USING THE
STOPWATCH FEATURE
1. Press the MODE button to select
the Stopwatch operating mode.
2. Press the ST/SP button to start the stopwatch.
3. Press the ST/SP button to stop the stopwatch.
4. Press and hold the SET button to reset
the stopwatch.
THE TRANSMITTER
The transmitter counts your heartbeat and sends the
data to the receiver.
ATTACHING THE TRANSMITTER
Attach the strap to the transmitter by inserting the
strap clip through the backside of the corresponding
shaped hole on the transmitter. Gently push down
to secure.

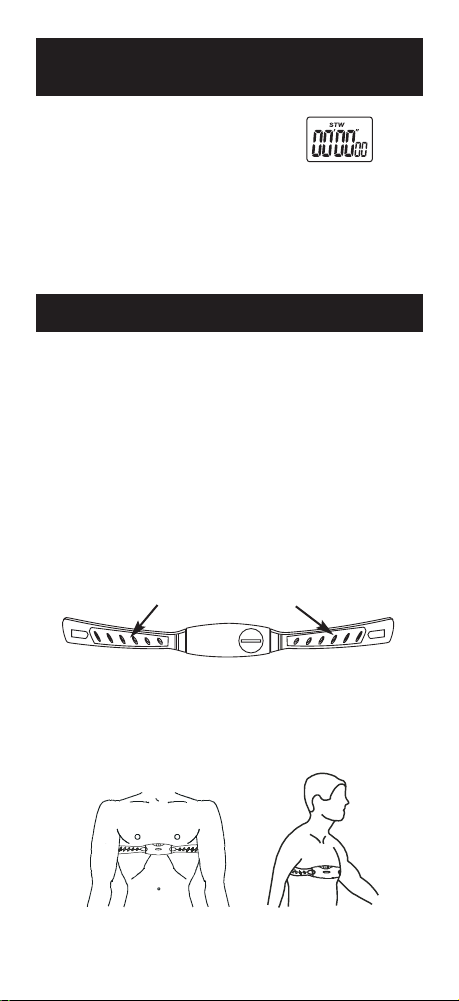

1. Moisten the conductive pads on the backside of
the transmitter with water or a conductive gel to
ensure a solid contact.
2. Strap the transmitter across your chest. Adjust the
strap until the transmitter sits snugly below your
pectoral muscles for an accurate heart rate signal.
CONDUCTIVE PADS
EFFECTIVE RANGE
12
THE RECEIVER
The receiver wrist monitor can be worn on your
left or right wrist. You can also choose to attach the
monitor to your bike or exercise machine by using
the mounting bracket.
The HR-100C is water-resistant and can be worn
swimming or diving up to approximately 30 meters.
Note: Set the unit prior to using in the water or
exposing to excessive water. Activating or changing
the settings while in water or exposed to heavy
rainstorms may damage the unit.
The Transmitter and Receiver Wrist Monitor should
be worn or mounted within 50 centimeters (20 inches)
from each other.
Note: If no signal is sent from the transmitter to the
receiver for 15 minutes the monitor will display the
previous mode.
WATER RESISTANCE
TROUBLESHOOTING
If the signals become unsteady re-adjust the position
of the transmitter strap and make sure the distance
between the transmitter and receiver is within the
effective range.
Make sure the low battery indicator light is not
displayed on the receiver.
The transmitter battery may need to be replaced.
13
BATTERY INSTALLATION
The Receiver Wrist Monitor uses a CR2032, 3V
Lithium battery. When the battery is running low the
low-battery indicator will light up. To guarantee the
water resistance take the monitor to a local jewelry
store for battery replacement. Improper replacement
will void the warranty.
The Transmitter uses a CR2032, 3V Lithium battery.
If the heart rate signals become unsteady or stop
your transmitter battery may need replacing.
To change the Transmitter battery:
1. Open the transmitter battery lid with a coin by
turning counterclockwise.
2. Remove the old battery.
3. Insert the new battery with the positive side
facing up. DO NOT touch the contacts.
4. Replace the battery lid.
CARING FOR YOUR MONITOR
To k eep your heart rate monitor in the best condition
and protect the unit from damage follow these directions:
• Clean the monitor with a soft dry cloth. Do not use
any abrasive or volatile cleaners.
• Always thoroughly dry off any moisture on the
components before storing.
• Store your monitor in the original carrying case.
• Do not subject the monitor to extreme hot or cold
temperatures, humidity and direct sunlight.
• Do not excessively twist or bend the conductive
pads on the transmitter belt.
• Do not subject the transmitter or receiver to strong
shocks, such as dropping on the floor.
• Use the unit consistent with the instruction provided
in this manual.
SPECIFICATIONS
14
Model: HR-100C
Real Time Clock: 12/24 hour with
hour/minute/second
Stopwatch: 00:00:00 to 29:59:59
(hrs:min:sec)
Heart Rate
Measurement: 30 - 240bpm
Upper Limit: 80 - 240bpm
Lower Limit: 30 - 220bpm
Transmitter Strap: 12 inches to 44 inches
Weight: Watch (Receiver) -
approx. 40 g (included battery)
Chestbelt (Transmitter) -
approx. 68 g (included battery)
Power: Watch-1 ps CR 2032 3V battery
Chestbelt-1 pc CR 2032
3V battery
Operating
Temperature: -10ºC to +50ºC (14ºF to 122ºF)
Storage Temperature: -20ºC to +60ºC (-4ºF to 140ºF)
Water Resistance: not actuating keys to 30 meters
15
WARRANTY INFORMATION
LIMITED WARRANTIES
Your HR-100C Heart Rate Monitor, excluding the
batteries is warranted to be free from defects in
materials and workmanship appearing within 1 year,
when used in accordance with the instructions
provided with the monitor. The above warranties
extend only to the original retail purchaser.
We will, at our option, repair or replace without charge
the monitor covered by the above warranties. Repair or
replacement is our only responsibility and your only
remedy under the above warranties.
To obtain warranty service, ship the monitor and all
of the components, together with proof of purchase
and a note explaining the problem with $5.00 for
return shipping and insurance to:
Omron Healthcare, Inc.
Attn: Repair Department
300 Lakeview Parkway
Vernon Hills, IL 60061
Be sure to include the model number, your name
and your phone number on the enclosed note and
any other correspondence.
ALL IMPLIED WARRANTIES, INCLUDING
BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR PARTICULAR PURPOSE,
ARE LIMITED TO THE DURATION OF THE
APPLICABLE WRITTEN WARRANTY
ABOVE. Some states do not allow limitations on
how long an implied warranty lasts, so the above
limitation may not apply to you.
OMRON SHALL NOT BE LIABLE FOR
LOSS OF USE OR ANY OTHER INCIDENTAL,
CONSEQUENTIAL OR INDIRECT COSTS,
EXPENSES OR DAMAGES. Some states do not
allow the exclusion or limitation of incidental or
consequential damages, so the above exclusions
may not apply to you.
This warranty gives you specific legal rights, and you may
also have other rights which may vary from state to state.
FOR CUSTOMER SERVICE
Visit our website at: www.omronhealthcare.com
Call toll free: 1-800-634-4350
Distributed by:
Omron Healthcare, Inc.
300 Lakeview Parkway
Vernon Hills, IL 60061
www.omronhealthcare.com
© 8/2003 Omron Healthcare, Inc.
HR100CINST Rev A
Loading...
