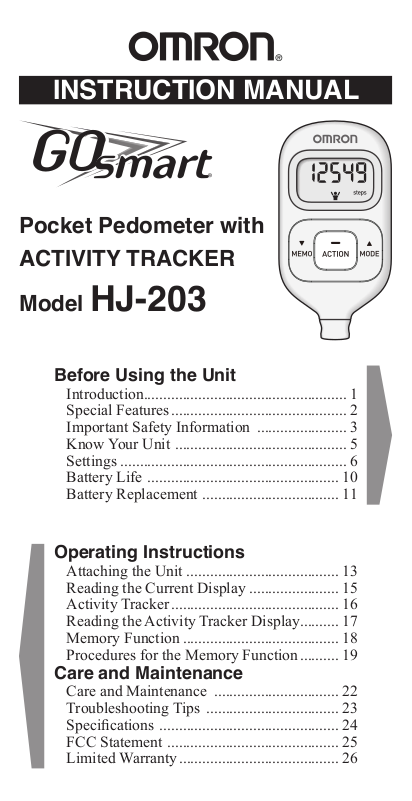

INSTRUCTION MANUAL
Pocket Pedometer with
ACTIVITY TRACKER
Model HJ-203
Before Using the Unit
Introduction.................................................... 1
Special Features ............................................. 2
Important Safety Information .......................3
Know Your Unit ............................................ 5
Settings .......................................................... 6
Battery Life ................................................. 10
Battery Replacement ................................... 11
Operating Instructions
Attaching the Unit ....................................... 13
Reading the Current Display ....................... 15
Activity Tracker ........................................... 16
Reading the Activity Tracker Display.......... 17
Memory Function ........................................ 18
Procedures for the Memory Function .......... 19
Care and Maintenance
Care and Maintenance ................................ 22
Troubleshooting Tips .................................. 23
Specications .............................................. 24
FCC Statement ............................................ 25
Limited Warranty ......................................... 26
Before Using the Unit
INTRODUCTION
Thank you for purchasing the HJ-203 OMRON
GOsmart Pocket Pedometer with Activity Tracker.
Fill-in for future reference:
DATE PURCHASED:
• Staple your purchase receipt here
• Register your product on-line at
www.register-omron.com
This Pocket Pedometer with Activity Tracker
features advanced 2D Smart Sensor technology so it knows exactly when you’re taking a step. It’s
more accurate than other pedometers which use the
simple pendulum design. Use this in your pocket,
back or hip for added convenience. The seven-day
memory helps you keep track of your daily activity
to help you reach your tness goals. Plus, this unit
features Activity Tracker so you can separately
track your exercise output. Use this unit everyday to
monitor your tness achievements!
Your Pocket Pedometer with Activity Tracker
comes with the following components:
Pedometer
Strap
Clip
Battery (CR2032 installed)
Screwdriver
Instruction Manual
SPECIAL FEATURES
Activity Tracker (Activity measurement mode)
This unique setting separately tracks and stores
steps/distance/calories burned/fat burned during
your Activity or Exercise time.
This stores the measurement values for a specied
period or session. These measurement values are
separate from the measurement values stored for
each day. Refer to page 16 for more information.
symbol at 10,000 steps
Congratulations! The unit displays the symbol
when you reach 10,000 steps for that day.
Based on that day’s data only. Not displayed in the
activity measurement mode.
Automatic stride length
Your stride length will be automatically
recommended after you input your height. You
can accept or override the original number. You
can manually adjust based on your walking stride
lengths.
SAVE THESE INSTRUCTIONS
21
IMPORTANT SAFETY
INFORMATION
To assure the correct use of the product, basic safety
measures should always be followed including the
warnings and cautions listed in this instruction manual.
SAFETY SYMBOLS USED IN THIS
INSTRUCTION MANUAL
Indicates a potentially hazardous
WARNING
CAUTION
OPERATING THE DEVICE
Please use care in checking pedometer readings and
do not check readings while walking in any situation
which presents hazards, such as on roads, sidewalks
or trails which have vehicles, congestion, obstacles,
uneven terrain or other hazards.
Contact your physician or healthcare provider before
beginning a weight reduction or exercise program.
Keep the unit out of the reach of young children. The
unit contains small pieces that may be swallowed.
Immediately contact your physician if any piece is
swallowed.
If used hanging around neck, the string can cause
strangulation. Do not place the unit with string around
a child’s neck.
If battery uid gets in your eyes, immediately rinse
with plenty of clean water. Contact a physician
immediately.
Read all information in the instruction manual and
any other literature included in the box before using
the unit.
situation which, if not avoided, could
result in death or serious injury.
Indicates a potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury to
the user or patient or damage to the
equipment or other property.
IMPORTANT SAFETY
INFORMATION
Operate the unit only as intended. Do not use for any
other purpose.
Do not swing the unit by the strap. Swinging the unit
while holding the strap may cause an injury.
Do not put the unit in the back pocket of your shorts
or trousers. It could be damaged if you sit down while
the unit is still in your pocket.
If battery uid gets on your skin or clothing,
immediately rinse with plenty of clean water.
Do not insert the battery with the polarities in the
wrong direction.
Replace a worn battery with a new one immediately.
Remove the battery from this unit when you
are not going to use it for a long period of time
(approximately three months or longer).
Do not throw the battery into re. The battery may
explode.
Dispose of the device, battery, and components
according to applicable local regulations. Unlawful
disposal may cause environmental pollution.
CARE AND MAINTENANCE
Do not disassemble or modify the unit. Changes or
modications not approved by Omron Healthcare will
void the user warranty.
Do not subject the unit to strong shocks, such as
dropping the unit on the oor.
Do not submerge the unit or any of the components in
water.
Do not press the SET button with a sharp point. This
could cause damage.
43
KNOW YOUR UNIT
Front of unit
Display
▼/MEMO (memory)
button
Back of unit
Components
How to
attach the
strap to the
main unit
Create a
loop to
attach
the strap
SET button
How to
connect the
strap and
the clip
Low battery
indicator
▲/MODE button
/ACTION button
Strap
Clip
Battery cover
Battery cover
screw
Strap attachment
How to release
and fasten with a
clip
To release
To fasten
SETTINGS
The unit comes with the battery installed. When you
use the unit for the rst time or you want to change
settings, follow the steps below. For setting range
details refer to “Specications” on page 24.
1. Press the SET button on the
back of the unit with a thin,
sturdy, stick that will not
break easily.
Do not press the SET button
with a sharp point. This could cause damage.
The following display (HELLO) will appear.
NOTE:
The display will turn off if no buttons are
pressed after 5 minutes while setting the unit
for the rst time or after resetting the unit.
When resetting the unit, the display will show
the current step count.
2. Setting the hour.
Press or to select the
desired value for a setting.
Press to conrm the setting.
• Press
( ) to advance (go back) one.
NOTE:
Clothing may be damaged if you pull the unit off
without opening the clip.
65
SETTINGS
3. Setting the minute.
Press or to select the
desired value for a setting.
Press to conrm the setting.
• Press
• Press and hold ( ) to advance or go back
4. Setting the weight.
• Press
• Press and hold ( ) to advance or go back
5. Setting the height.
• Press
• Press and hold ( ) to advance or go back
( ) to advance (go back) one.
in increments of 10.
Press or to select the
desired value for a setting.
Press to conrm the setting.
( ) to advance (go back) one.
in increments of 10.
Press or to select the
desired value for a setting.
Press to conrm the setting.
( ) to advance (go back) one.
in increments of 4.
SETTINGS
6. Setting the stride length.
The initial stride length value that blinks on the display
is anestimated stride length calculated from your
height setting.
Press or to select the
desired value for a setting.
Press to conrm the setting.
• Press ( ) to advance (go back) one.
• Press and hold ( ) to advance or go back
in increments of 4.
NOTE:
To get a more accurate stride length, walk about 10
steps, then measure the length for one step (from the
tip of one foot to the tip of the other). Refer to “Stride
length measurement” on page 9.
All the settings are completed.
Adjust the Settings
1 Press the SET button on the
back of the unit with a thin,
sturdy, stick that will not
break easily.
The hour ashes on the display.
2 Follow the procedure from
step 2 on page 6 “Settings”.
NOTES:
•
This does not delete measurement values stored on
the unit, including any stored today.
•
If no settings are made for more than 5 minutes, the
display will revert to the current step count display.
87
SETTINGS BATTERY LIFE
Stride length measurement
Even though this unit can automatically set your
stride length based on your height, you can measure
and change as you like. Just follow these directions.
Measure your stride length before setting the unit.
How to measure your stride length
1. Walk 10 steps with your normal stride as
illustrated below.
2. Measure the distance from START to END
in inches.
3. Calculate your stride length by dividing
the total distance by 10.
Example:
Total distance = 320''
320 ÷ 10 = 32 inches (2 feet 8 inches)
If the symbol blinks or appears on the display,
replace the battery with a new (CR2032) battery.
If the battery is removed, the settings and all
measurement values will be deleted. Please reset
the settings (refer to page 8).
NOTES:
• If you want to keep any of the measurement
values, make a note of them before removing
the battery.
• The supplied battery is for trial use. The battery
life may be shorter.
109
BATTERY REPLACEMENT
1. Loosen the screw of the battery cover
on the back of the unit, and remove
the battery cover by pulling it off in the
direction of the arrow.
Use the supplied screwdriver or use a small
screwdriver to loosen the screw on the battery cover.
2. Remove the battery with a thin, sturdy,
stick that will not break easily.
Take the battery out with a thin stick that will not
break easily.
NOTE:
DO NOT use a pair of metal tweezers or a
screwdriver.
CAUTION
Dispose of the device, battery, and
components according to applicable local
regulations. Unlawful disposal may cause
environmental pollution.
CAUTION
Do not throw the battery into re. The
battery may explode.
BATTERY REPLACEMENT
3. Insert the battery (CR2032) with the
positive (+) side face up.
4. Replace the battery cover by sliding the
catch in rst, then tighten the screw.
1211
Distributed by:
Omron Healthcare, Inc.
1200 Lakeside Drive
Bannockburn, Illinois 60015
www.omronhealthcare.com
GOsmart® is a registered trademark of
Omron Healthcare, Inc.
Copyright © 2010 Omron Healthcare, Inc.
Made in China
9061467-8A
Operating Instructions
ATTACHING THE UNIT
This unit can easily be placed in a pocket
or bag for convenience. Follow these
guidelines to ensure the most accurate
results.
1. Place the unit in your pocket.
•
Do not place the unit in the back
pocket of your pants, to prevent
sitting on it.
•
Attach the clip on the edge of your pocket to
prevent the unit from dropping.
2. Place the unit in your bag.
•
Place the unit in a secure section
or partition of your bag.
•
Make sure the unit is placed
horizontal or vertical in a pocket in the bag.
3. Hanging the unit from
your neck.
•
Attach a secure string or cord
to the unit.
•
Place the string around your
neck and hang the unit as illustrated.
NOTE:
Make sure the string is correctly sized to easily
remove the unit from around your neck.
If used hanging around neck, the string can
cause strangulation. Do not place the unit
with string around a child’s neck.
NOTE:
The display will begin counting after four
seconds of activity. All steps taken during those
four seconds will be added onto to display.
ATTACHING THE UNIT
The unit may not count steps correctly in
the following conditions:
1. The memory is
displayed or the unit
is being set.
2. The unit is not
positioned
correctly.
• When the front of the main unit is placed in the angle
of less than 60° (shown to the right) or horizontal to
the ground.
NOTE:
The unit can count steps even if it is slanted or placed
upside-down, or if the main unit is perpendicular to the
ground.
3. The unit moves loosely.
• When the unit is loose or at in your
pocket or bag (not in a horizontal or vertical position).
• When the unit swings from your belt, the top of your
pants or a bag.
4. Walking at an inconsistent pace.
• When you shufe or wear sandals.
• Starting and stopping or other forms of inconsistent
walking.
5. Up and down movement.
•
Standing up and/or sitting down movement.
• Playing sports other than walking.
• Ascending or descending movement at
stairs or in a steep slope.
6. Vibrations from a moving
vehicle.
• Such as riding a bicycle, automobile, train or bus.
7. Walking extremely slowly.
1413
READING THE CURRENT DISPLAY
Press to change the display.
Step count display
Displays the symbol
when you reach 10,000
steps for a day.
Distance display
Calories display
ACTIVITY TRACKER
NOTE:
You cannot check the current display or memory
function when using activity measurement mode.
1. Press
activity measurement mode.
left side on display when
the activity measurement
mode is on.
2. Start exercising.
The display changes with each press of
to display the step count, distance, calories
burned, fat burned, and the time, in that order.
for two seconds to start the
rotates on the bottom
Fat burned display
Time display
About the battery saving mode (sleep mode)
After 5 minutes with no button being pressed, the
message “sleep” appears, then the display will
automatically turn off. However, the unit continues
counting steps. This mode extends the battery life.
Press , or to activate the display again.
3. Press
Press to view the measurement results after
activity measurement mode has nished (refer to
page 18).
NOTE:
for two seconds to nish.
Only one session can be stored in memory for
activity measurement mode. The measurement
values for the previous session will be deleted.
Make a note of them before starting the new
session if necessary.
1615
READING THE ACTIVITY
TRACKER DISPLAY
Press to change the display.
Step count display
Distance display
Calories display
MEMORY FUNCTION
This unit automatically stores 7 days of measurements
for steps, distance, calories burned and fat burned.
The clock automatically resets itself at midnight to
begin measuring the next day’s activity level.
1 Press to select the type of
measurement you want to see (steps,
distance, etc).
2 Press
memory.
The display changes with each press of as
shown below.
• Keep pressed to automatically change the
• Press to return to the current display.
to view the results (days 1-7) in
display until the current display is displayed.
Fat burned display
Time display
Current display
NOTES:
• Only one session of information from the
Activity Tracker/Activity Measurement Mode
is stored in memory (refer to page 16).
• You cannot use the memory function when
using activity measurement mode (refer to
page 16).
•
If no buttons are pressed for more than 1 minute,
the display returns to the current display.
Make sure the time is correctly set in the unit.
Activity measurement
mode memory
1817
Memory for 1 to
7 days ago
PROCEDURES FOR THE
MEMORY FUNCTION
Step count display
Distance display
Calories display
Fat burned display
Time display
Current display
Press to change the
display.
Activity measurement
mode memory
Press to change the
display.
Press to return to the
current display.
2019 21
Memory for 1 to 7days ago
Press to switch
from 1 to 7 previous
measurements to
today.
Press to change the
display.
Care and Maintenance
CARE AND MAINTENANCE
To keep the unit in the best condition and protect
the unit from damage follow the directions listed
below:
CAUTION
Do not disassemble or modify the unit.
Changes or modications not approved by
Omron Healthcare will void the user warranty.
Clean the unit with a soft dry
cloth.
Do not use any abrasive or volatile
cleaners.
Do not immerse the unit or any
of the components in water.
The unit is not waterproof. Do not wash it or touch
it with wet hands. Be careful that water does not get
into the unit.
Store the unit in a safe and dry location.
Avoid the unit being exposed to direct sunlight,
high temperatures, high humidity, water and/or
dust.
Do not subject the unit to strong shock,
drop, or step on it.
Remove the battery if the unit will not be
used for three months or longer.
Use of the unit must be consistent with the
instructions provided in this manual.
22
TROUBLESHOOTING TIPS
Problem
The low battery
indicator blinks
or appears
continuously.
Nothing is displayed.
The displayed values
are incorrect.
The display is unusual or the buttons do not
operate normally.
NOTE:
If a malfunction has occurred and you need to repair
your unit, all settings and measurement results are
deleted. We recommend that you record measurement
results.
Probable Cause
The battery is low or
worn.
Replace the battery with a
new one (CR2032), refer
to page11.
Press either of ,
Battery saving mode
active.
or , refer to
“About the battery saving
mode (sleep mode)” on
page 15.
The polarities of the
battery (+ and -) are
aligned in the wrong
directions.
The battery is worn.
Insert the battery in
correct alignment, refer to
page 11.
Replace the battery with a
new one (CR2032), refer
to page 11.
The unit is positioned
incorrectly.
Irregular movement.
Inconsistent pace. Up
and down movement.
The set values are
wrong.
Refer to “The unit
may not count steps
correctly in the following
conditions:” on page 14.
Check the settings, refer
to page 8.
Replace the battery with a
new one (CR2032), refer
to page 11.
How to Correct
SPECIFICATIONS
Model:
Power Supply:
Measurement
Range:
Memory:
Setting Range:
Operating
Temperature/
Humidity:
Battery Life:
External
Dimensions:
Weight:
Contents:
• Specications are subject to change without notice.
* New battery life based on OMRON testing.
HJ-203(HJ-203-Z)
3VDC (1 lithium battery CR2032)
Steps: 0 to 99,999 steps
Distance: 0.0 to 9,999.9 miles
Calories burned: 0 to 99,999 kcal
Fat burned: 0.0 to 9,999.9 g
Time:
Previous 7 days on display
1 activity measurement mode results on
display
Time:
Weight: 70 to 300lb
Height: 3'4'' to 6'6''
Stride length: 12" to 48"
14°F to 104°F (-10°C to +40°C) /
30% to 85% RH
Approx. 1.5 years* (When used for 4 hours
a day)
NOTE:
The supplied battery is for trial use. This
battery can run out within 1.5 years.
Approx. 1 3/8''(w) × 2 3/4''(h) × 3/8''(d)
(35.5 mm × 68.5 mm × 11.0 mm)
Approx. 0.7 oz (battery included)
Pedometer, Strap, Clip, Battery (CR2032
installed), Screwdriver, and Instruction
manual
12:00AM to 11:59PM
12:00AM to 11:59PM
(in increments of 1 lb)
(in increments of 1'')
(in increments of 1'')
2423
FCC STATEMENT
NOTE:
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE
(for U.S.A. only)
This product has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. The
product generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur
in a particular installation. If the product does cause harmful
interference to radio or television reception, which can be
determined by turning the product on and off, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the product and the receiver.
• Connect the product into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
POTENTIAL FOR RADIO/TELEVISION INTERFERENCE
(for Canada only)
This digital apparatus does not exceed the Class B limits for
radio noise emissions from digital apparatus as set out in the
interference-causing equipment standard entitled “Digital
Apparatus”, ICES-003 of the Canadian Department of
Communications.
Cet appareil numérique respecte les limites de bruits
radioeléctriques applicables aux appareils numériques de
Clase B prescrites dans la norme sur le materiel brouilleur:
“Appareils Numériques”, ICES-003 édictée par le minister des
communications.
Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
LIMITED WARRANTY
Your HJ-203, OMRON GOsmart Pocket Pedometer with Activity
Tracker, excluding the battery, is warranted to be free from defects in
materials and workmanship appearing within 1 year from the date of
purchase, when used in accordance with the instructions provided with
the unit. The above warranties extend only to the original retail purchaser.
We will, at our option, repair or replace without charge any
Pedometer with Activity Tracker
Repair or replacement is our only responsibility and your only remedy
under the above warranties.
To obtain warranty service contact Omron Healthcare’s Customer
Service by calling 1-800-634-4350 for the address of the repair
location and the return shipping and handling fee. Information for
warranty service is available on our website at
www.omronhealthcare.com.
Enclose the Proof of Purchase. Include a letter, with your name,
address, phone number, and description of the specic problem. Pack
the product carefully to prevent damage in transit. Because of possible
loss in transit, we recommend insuring the product with return receipt
requested.
THE FOREGOING IS THE SOLE WARRANTY PROVIDED
BY OMRON IN CONNECTION WITH THIS PRODUCT, AND
OMRON HEREBY DISCLAIMS ANY OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE. IMPLIED WARRANTIES AND
OTHER TERMS THAT MAY BE IMPOSED BY LAW, IF ANY,
ARE LIMITED IN DURATION TO THE PERIOD OF THE
ABOVE EXPRESS WARRANTY.
OMRON SHALL NOT BE LIABLE FOR LOSS OF USE OR
ANY OTHER SPECIAL, INCIDENTAL, CONSEQUENTIAL OR
INDIRECT COSTS, EXPENSES OR DAMAGES.
This warranty provides you with specic legal rights, and you may
have other rights that vary by jurisdiction. Because of special local
requirements, some of the above limitations and exclusions may not
apply to you.
Visit our web site at: www.omronhealthcare.com
Call toll free: 1-800-634-4350
FOR CUSTOMER SERVICE
covered by the above warranties.
Pocket
2625
Loading...
