Omron HEM-711AC User Manual

INSTRUCTION MANUAL

Automatic Blood Pressure Monitor

with Arm Cuff

Model HEM-711AC

ESPAÑOL

ENGLISH

CONTENTS

Before Using the Monitor

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Important Safety Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Before Taking a Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Operating Instructions

Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Unit Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Irregular Heartbeat Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Using the AC Adaptor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Applying the Arm Cuff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Taking a Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Using the Memory Function . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Care and Maintenance

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

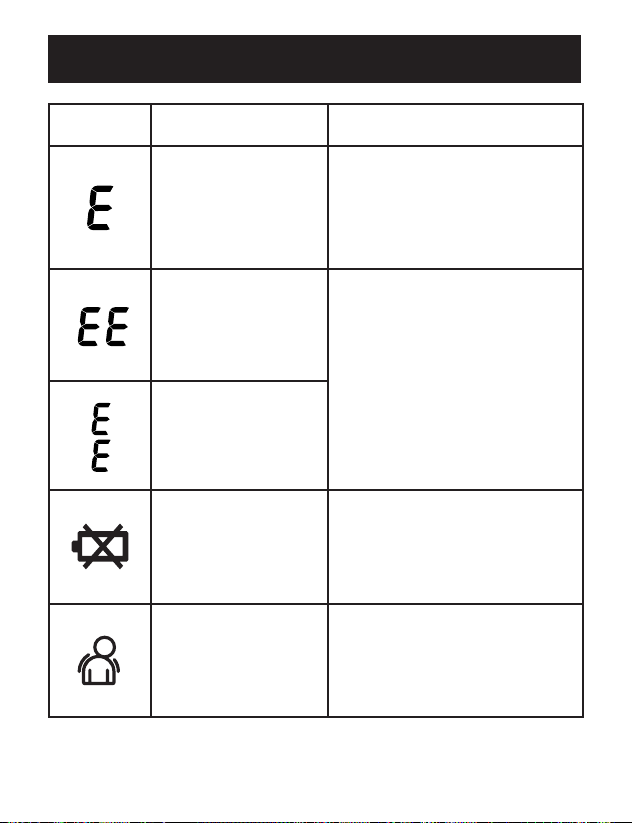

Error Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Quick Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

INTRODUCTION

Thank you for purchasing the Omron HEM-711AC IntelliSense Automatic Blood Pressure Monitor.

Fill in for future reference.

DATE PURCHASED: __________________

SERIAL NUMBER: ____________________

Staple your purchase receipt here

Your new digital blood pressure monitor uses the oscillometric method of blood pressure measurement. This means the monitor detects your bloods movement through your brachial artery and converts the movements into a digital reading. An oscillometric monitor does not need a stethoscope so the monitor is simple to use.

The HEM-711AC comes with the following components:

• Monitor • Standard Adult Arm Cuff

• AC Adapter • Instruction Manual printed in English and Spanish

• Storage Case

The HEM-711AC IntelliSense Monitor is intended for home use.

Automatic Inflation Blood Pressure

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY NOTES

To assure the correct use of the product basic safety measures should always be followed including the precautions listed below:

þ Read all information in the instruction book and any other literature

included in the box before using the unit.

þ Contact your physician for specific information about your blood

pressure. Follow the instructions of your healthcare provider.

þ Operate the unit only as intended. Do not use for any other purpose.

þ The unit is intended for use in measuring blood pressure and pulse

rate in adult patient population. Do not use on infants or persons who cannot express their intentions.

þ Do not use a cellular phone near the unit. It may result in

operational failure.

þ Do not plug or unplug the adapter power cord with wet hands.

þ Changes or modifications not approved by Omron Healthcare will

void the user warranty. Do not disassemble or attempt to repair the unit or components.

BEFORE TAKING A MEASUREMENT

To ensure a reliable reading follow these recommendations:

1. Avoid eating, smoking, and exercising for 30 minutes before taking a measurement. Rest for at least 15 minutes before taking the measurement.

2. Stress raises blood pressure. Avoid taking measurements during stressful times.

3. Measurements should be taken in a quiet place.

4. Remove tight-fitting clothing from your left arm.

5. Sit in a chair with your feet flat on the floor. Rest your left arm on a table so that the cuff is at the same level as your heart.

6. Remain still and do not talk during the measurement.

7. Keep a record of your blood pressure and pulse readings for your physician. A single measurement does not provide an accurate indication of your true blood pressure. You need to take and record several readings over a period of time. Try to measure your blood pressure at the same time each day for consistency.

8. Wait 2-3 minutes between measurements. The wait time allows the arteries to return to the condition prior to taking the blood pressure measurement. You may need to increase the wait time depending on your individual physiological characteristics.

KNOW YOUR UNIT

Main Unit:

MEMORY Button

Date/Time Setting Button

Display

START/STOP Button

Components:

Arm Cuff

Air Plug (Connects to Air Jack)

Battery Compartment

Air Jack

AC Adapter Jack

Air Tube

Storage Case

AC Adapter

UNIT DISPLAY

Systolic Blood Pressure

Diastolic Blood Pressure

Memory Symbol

Average Value Symbol

Movement Error Symbol

Battery Low Symbol

Irregular Heartbeat Symbol

Heartbeat Symbol Pulse Display Deflation Symbol

Date/Time Display

IRREGULAR HEARTBEAT SYMBOL

When the monitor detects an irregular rhythm two or more times during the measurement, the Irregular Heartbeat Symbol ( ) will appear on the display with the measurement values.

The irregular heartbeat rhythm is defined as a rhythm that varies by more than or less than 25% from the average rhythm detected while the monitor is measuring the systolic and diastolic blood pressure.

If the irregular heartbeat symbol ( ) displays with your measurement results we recommend you consult your physician. Follow the directions of your doctor.

Pulse

Blood

pressure

Pulse

Blood

pressure

Normal Heartbeat

Irregular Heartbeat

Short Long

BATTERY INSTALLATION

1. Press the ▼ indicator on the battery cover and slide the cover off in the direction of the arrow.

2. Install 4 “AA” size batteries so the + (positive) and - (negative) polarities match the polarities of the battery compartment as indicated.

3. Replace the battery cover.

BATTERY REPLACEMENT

Low Battery Indicator

When the Low Battery Indicator appears on the display screen remove all the batteries. Replace with four new batteries at the same time. Long-life alkaline batteries are recommended.

NOTE: Measurement values stored in the memory will not be deleted

during battery replacement. After replacing the batteries, reset the date and time. Refer to page 10, Setting the Date and Time.

USING THE AC ADAPTER

Use only the authorized Omron AC Adapter, Model Number HEM-ADPT1, with this monitor. Use of any other adapter may cause damage to the monitor and will void the user warranty.

To connect the AC Adapter

① Insert the AC Adapter Plug into the AC Adapter Jack on the back side

of the monitor as illustrated.

② Plug the AC Adapter into a 120V AC outlet (60 cycles).

To disconnect the AC Adapter remove the AC Adapter from the electrical outlet first and then remove the AC Adapter Plug from the monitor.

NOTE: The monitor is designed not to draw power from the batteries

when the AC Adapter is used.

SETTING THE DATE AND TIME

TOP

STOP

The Blood Pressure Monitor automatically stores up to 60 measurement values with the date and time. The monitor also calculates an average reading based on the last three measurement values.

Set the monitor to the current date and time before taking a measurement for the first time. If the current date and time is not set, a default date and time will display.

1. TO START THE SETTING

Press the Date/Time Setting button to adjust the date and time.

The year flashes on the display.

2. SETTING THE YEAR The year can be set between 2004 and 2030.

When the display reaches 2030, it will return to 2004. Press the MEMORY button to advance the digits one at a time. Press the Date/Time Setting button to set the current year.

The month flashes on the display.

SETTING THE DATE AND TIME

STOP

3. SETTING THE MONTH

Press the MEMORY button to advance by increments of one month.

Press the Date/Time Setting button to set the current month.

The day flashes on the display.

4. SETTING THE DAY

Press the MEMORY button to advance by increments of one day.

Press the Date/Time Setting button to set the current day.

The hour flashes on the display.

5. SETTING THE HOUR

The time is set using AM or PM. Press the MEMORY button to advance by increments

of one hour. Press the Date/Time Setting button to set

the current hour.

The minutes flash on the display.

SETTING THE DATE AND TIME

STOP

6. SETTING THE MINUTE

Press the MEMORY button to advance by increments of one minute.

Press the Date/Time Setting button to set the current minute.

The year flashes on the display.

7. Press the START/STOP button to turn the display off.

APPLYING THE ARM CUFF

1. Make sure the air plug is securely inserted in the main unit.

2. Remove tight-fitting clothing from your upper arm.

3. Sit in a chair with your feet flat on the floor. Place your arm on a table so the cuff is level with your heart.

APPLYING THE ARM CUFF

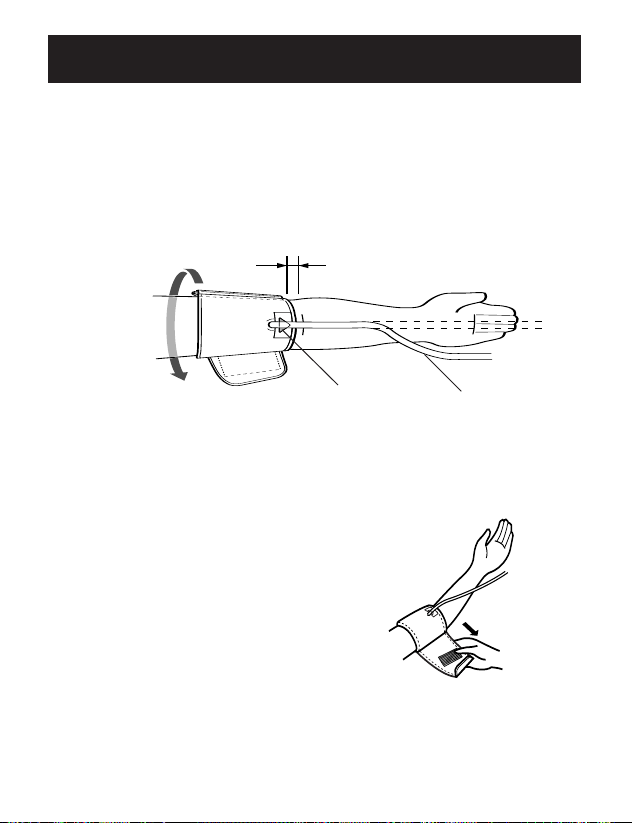

4. Apply the cuff to your left upper arm so the blue arrow is centered on the inside of your arm and aligned with your middle finger. The air tube runs down the inside of your arm. The bottom of the cuff should be approximately 1/2" above your elbow.

1/2 inch (1 - 2 cm)

Marker

Air Tube

5. Wrap the cuff firmly in place around your arm using the closure strip.

APPLYING THE ARM CUFF

APPLYING THE CUFF ON THE RIGHT ARM

When taking a measurement using the right arm use this instruction for Step 5.

Apply the cuff to your right upper arm so the blue arrow and the air tube runs along the inside of your elbow. The bottom of the cuff should be approximately 1/2'' above your elbow.

NOTE: Be careful not to rest your arm on the air tube. This will restrict

the flow of air to the cuff

TAKING A MEASUREMENT

START

STOP

The monitor automatically determines your ideal inflation level. In rare circumstances when a higher inflation may be necessary, the monitor automatically re-inflates the cuff up to 30 mmHg higher than the initial inflation and restarts the measurement.

1. Press the START/STOP button. All display symbols appear on the screen. The cuff starts to inflate

automatically. As the cuff begins to inflate, the monitor automatically determines

your ideal inflation level. Because this monitor detects the pulse even during inflation, do not move your arm and remain still until the entire measurement process has been completed.

NOTE: To stop the inflation or measurement, push the

START/STOP button. The monitor will stop inflating, start deflating, and will turn off.

2. Inflation stops automatically and the measurement is started. As the cuff deflates, decreasing

numbers appear on the display. The Heart Symbol ( ) flashes at every heartbeat.

TAKING A MEASUREMENT

START

STOP

START

STOP

You3blood pressure and pulse rate are displayed.

3. When the measurement is complete, the arm

cuff completely deflates. Your blood pressure and pulse rate are displayed.

4. Press the START/STOP button to turn the monitor off.

NOTE: The monitor will automatically

turn off after five minutes.

INSTRUCTIONS FOR SPECIAL CONDITIONS

If your systolic pressure is known to be more than 220 mmHg, press and hold the START/STOP button until the monitor inflates 30 to 40 mmHg higher than your suspected systolic pressure.

NOTES: • Do not apply more pressure than necessary.

• The monitor will not inflate above 299 mmHg.
