INSTRUCTION MANUAL

Automatic Inflation

Blood Pressure Monitor

Model HEM-741CREL

ENGLISH ESPAÑOL

CONTENTS

Before Using the Monitor



Introduction ........................................................................

3

Important Safety Notes ........................................................

4

Before Taking a Measurement ............................................

5

Operating Instructions



Know Your Unit ..................................................................

6

Unit Display ........................................................................

7

Irregular Heartbeat Symbol ................................................

7

Battery Installation ..............................................................

8

Using the AC Adapter ..........................................................

9

Setting the Date and Time ................................................

10

Applying the Arm Cuff ......................................................

13

Taking a Measurement ......................................................

15

Using the Memory Function:



Averaging Function ....................................................

17

Measurement Values ..................................................

17

Care and Maintenance



Care and Maintenance ......................................................

20

Error Indicators and Troubleshooting Tips ......................

21

Quick Reference Guide ....................................................

22

FCC Statement ................................................................

24

Warranty Information ........................................................

25

Specifications ....................................................................

26

Notes ..................................................................................

27

2

Before Using the Monitor

INTRODUCTION

Thank you for purchasing the ReliOn® HEM-741CREL Automatic Blood Pressure Monitor.

Fill in for future reference.

DATE PURCHASED: __________________

SERIAL NUMBER: ____________________

Staple your purchase receipt here

Your new digital blood pressure monitor uses the oscillometric method of blood pressure measurement. This means the monitor detects your blood’s movement through your brachial artery and converts the movements into a digital reading. An oscillometric monitor does not need a stethoscope so the monitor is simple to use.

The HEM-741CREL comes with the following components:

• Monitor

• Arm Cuff

AC Adapter

Instruction Manual printed in English and Spanish

The HEM-741CREL Automatic Blood Pressure Monitor is intended for home use.

SAVE THESE INSTRUCTIONS

3

IMPORTANT SAFETY NOTES

To assure the correct use of the product basic safety measures should always be followed including the precautions listed below:

Read all information in the instruction book and any other literature included in the box before using the unit.

Contact your physician for specific information about your blood pressure. Follow the instructions of your healthcare provider.

Operate the unit only as intended. Do not use for any other purpose.

The unit is intended for use in measuring blood pressure and pulse rate in adult patient population. Do not use on infants.

Do not use a cellular phone near the unit. It may result in operational failure.

Do not plug or unplug the adapter power cord with wet hands.

Changes or modifications not approved by the manufacturer will void the user warranty. Do not disassemble or attempt to repair the unit or components.

4

BEFORE TAKING A MEASUREMENT

To ensure a reliable reading follow these recommendations:

1.Avoid eating, drinking alcohol, smoking, exercising, and bathing for 30 minutes before taking a measurement. Rest for at least 15 minutes before taking the measurement.

2.Stress raises blood pressure. Avoid taking measurements during stressful times.

3.Measurements should be taken in a quiet place.

4.Remove tight-fitting clothing from your left arm.

5.Sit in a chair with your feet flat on the floor. Rest your left arm on a table so that the cuff is at the same level as your heart.

6.Remain still and do not talk during the measurement.

7.Keep a record of your blood pressure and pulse readings for your physician. A single measurement does not provide an accurate indication of your true blood pressure. You need to take and record several readings over a period of time. Try to measure your blood pressure at the same time each day for consistency.

8.Wait 2-3 minutes between measurements. The wait time allows the arteries to return to the condition prior to taking the blood pressure measurement. You may need to increase the wait time depending on your individual physiological characteristics.

5

Operating Instructions

KNOW YOUR UNIT

Main Unit:

Display

Battery Compartment

Date / Time

Setting Button

ON/OFF START

User ID Button



Button



Air Jack



MEMORY Button





AC Adapter Jack

Components:

Air Tube

Air Plug

Arm Cuff

AC Adapter

6

UNIT DISPLAY

Systolic Blood Pressure



Diastolic Blood Pressure



Memory Symbol

Heartbeat Symbol

Average Value Symbol

Pulse Display

Deflation Symbol



Low Battery Symbol

Date/Time Display

User ID Symbols





(User A / User B)



Irregular Heartbeat Symbol

IRREGULAR HEARTBEAT SYMBOL

When the monitor detects an irregular rhythm two or more times during the measurement, the Irregular Heartbeat Symbol ( )

will appear on the display with the measurement values.

The irregular heartbeat rhythm is defined as a rhythm that varies by less than 25% from the average rhythm or 25% more than the average rhythm detected while the monitor is measuring the systolic

and diastolic blood pressure.

If the irregular heartbeat symbol () displays with your measurement results we recommend you consult your physician. Follow the directions of your doctor.

7

Normal Heartbeat

Pulse

Blood pressure

Irregular Heartbeat

Short Long

Pulse

Blood pressure

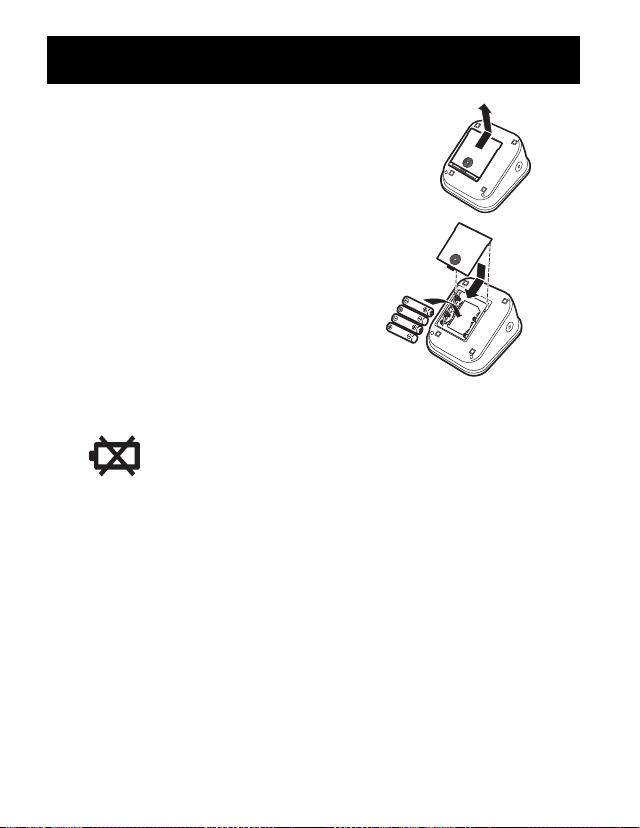

BATTERY INSTALLATION

1. Press the indicator on the battery cover and slide the cover off in the direction of the arrow.

2. Install 4 “AA” size batteries so the + (positive) and - (negative) polarities match the polarities of the battery compartment as indicated.

3. Replace the battery cover.

BATTERY REPLACEMENT

Low Battery Symbol

When the Low Battery Symbol appears on the display screen remove all the batteries. Replace with four new batteries at the same time. When the Low Battery Symbol blinks a brief period of usage remains. Long-life alkaline batteries are recommended.

NOTE:

Measurement values stored in the memory will not be deleted during battery replacement.

After replacing the batteries, reset the date and time.

Refer to page 10, Setting the Date and Time.

• Dispose of batteries according to applicable local regulations.

8

USING THE AC ADAPTER

Use only the authorized Omron AC Adapter, (Model Number HEM-ADPT1) with this monitor. Use of any other adapter

may cause damage to the monitor and will void the user warranty.

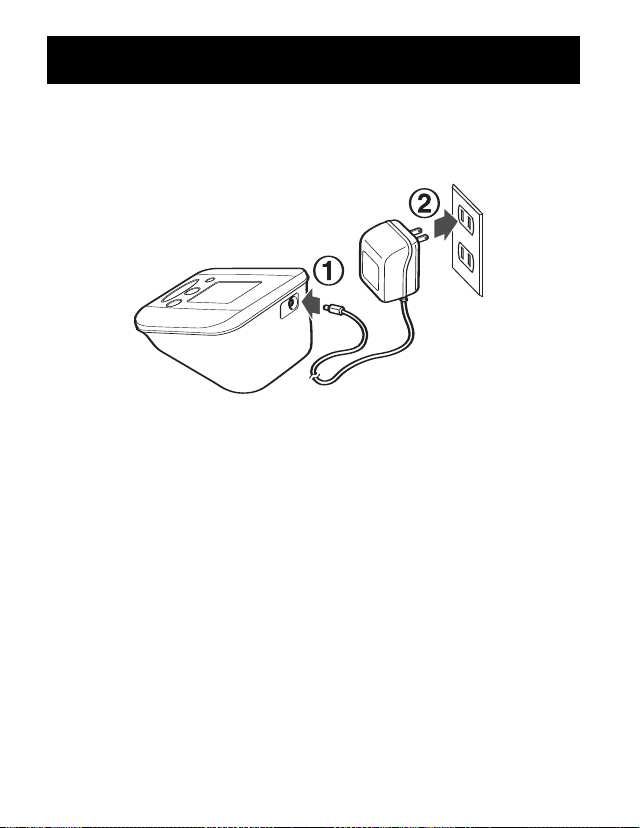

To connect the AC Adapter

Insert the AC Adapter Plug into the AC Adapter Jack on the back side of the monitor as illustrated.

Plug the AC Adapter into a 120V AC outlet (60 cycles).

To disconnect the AC Adapter remove the AC Adapter from the electrical outlet first and then remove the AC Adapter Plug from the monitor.

NOTE:

We recommend batteries are installed and used with the AC Adapter. If batteries are not installed the Date and Time must be set each time the AC Adapter is disconnected from

the electrical outlet.

When the AC Adapter is used, the battery life is extended.

9

SETTING THE DATE AND TIME

Set the monitor to the current date and time before taking a measurement for the first time. If the correct date and time are not set, the measurement values stored in the memory and the average value will not be correct.

The Blood Pressure Monitor automatically stores up to 30 measurement values. The monitor also calculates an average reading based on the three most recent measurements taken within 10 minutes of the last reading.

NOTE:

If only two readings are stored in the memory for the 10-minute period, the average is based on the two readings.

If one reading is stored in the memory for the 10-minute period, this reading is displayed as the average.

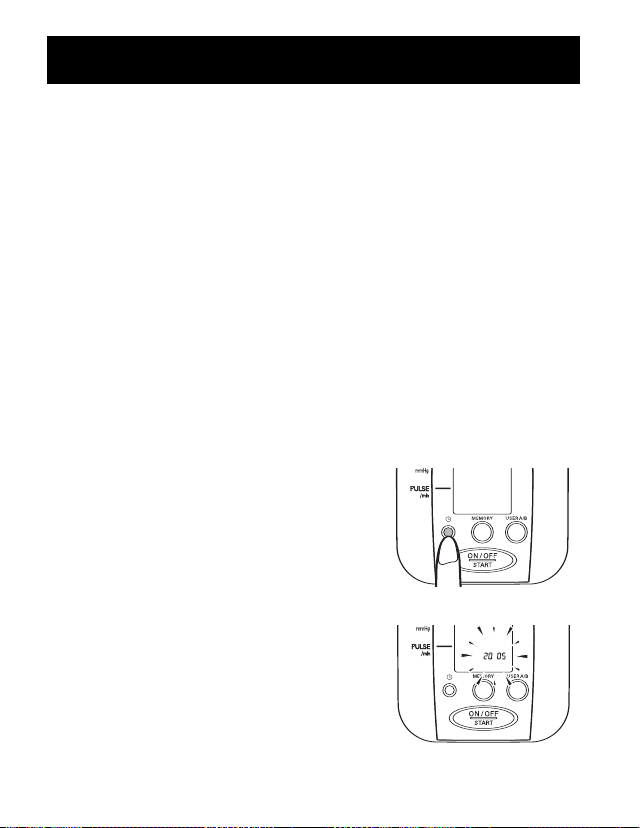

1. TO START THE SETTING

Press the Date/Time Setting button to adjust the date and time.

The year flashes on the display.

10

SETTING THE DATE AND TIME

2. SETTING THE YEAR

The year can be set between 2005 and 2030. When the display reaches 2030, it will return to 2005.

Press the MEMORY button to advance by increments of one year.

Press the Date/Time Setting button to set the current year.

The month flashes on the display.

NOTE:

• Press and hold the MEMORY button to advance the date and time values faster.

3.SETTING THE MONTH

Press the MEMORY button to advance by increments of one month.

Press the Date/Time Setting button to set the current month.

The day flashes on the display.

4. SETTING THE DAY

Press the MEMORY button to advance by increments of one day.

Press the Date/Time Setting button to set the current day.

The hour flashes on the display.

11

SETTING THE DATE AND TIME

5.SETTING THE HOUR

The time is set using AM or PM.

Press the MEMORY button to advance by increments of one hour.

Press the Date/Time Setting button to set the current hour.

The minutes flash on the display.

6. SETTING THE MINUTE

Press the MEMORY button to advance by increments of one minute.

Press the Date/Time Setting button to set the current minute.

The year flashes on the display.

Press the ON/OFF START button to turn the display off.

12

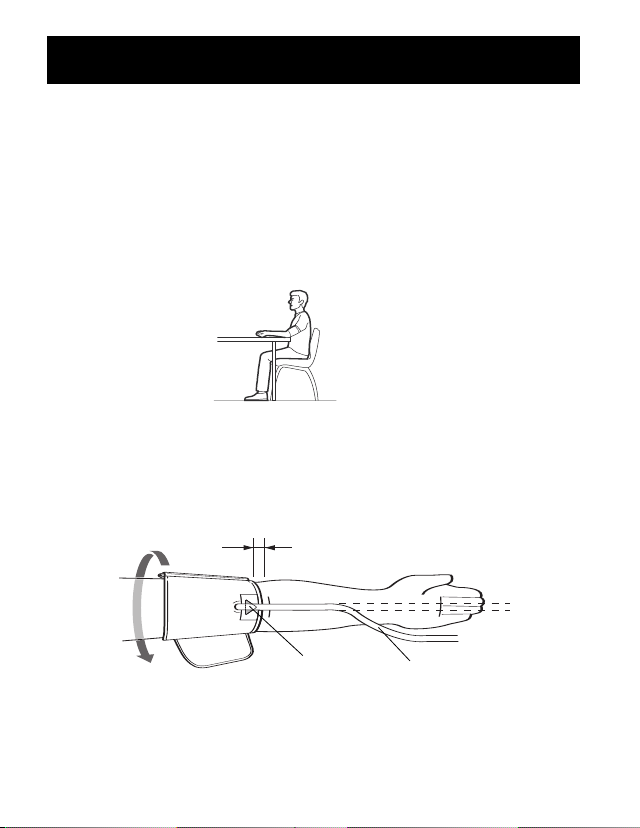

APPLYING THE ARM CUFF

1. Make sure the air plug is securely inserted in the main unit.

2. Remove tight-fitting clothing from your upper arm.

3. Sit in a chair with your feet flat on the floor.

Place your arm on a table so the cuff is level with your heart.

4.Apply the cuff to your left upper arm so the blue arrow is centered on the inside of your arm and aligned with your middle finger. The air tube runs down the inside of your arm. The bottom of the cuff should be approximately 1/2 " above your elbow.

1/2 inch (1 - 2 cm)

Arrow

Air Tube



13

APPLYING THE ARM CUFF

5.Wrap the cuff firmly in place around your arm using the closure strip.

APPLYING THE CUFF ON THE RIGHT ARM

When taking a measurement using the right arm use the instruction below.

Apply the cuff to your right upper arm so the blue arrow and the air tube runs along the inside of your arm. The bottom of the cuff should be approximately 1/2 “ above your elbow.

NOTE:

Be carefulnot to rest your arm on the air tube.

This will restrict the flow of air to the cuff.

14

TAKING A MEASUREMENT

The monitor automatically determines your ideal inflation level.

In rare circumstances when a higher inflation may be necessary, the monitor automatically re-inflates the cuff up to 30 mmHg higher than the initial inflation and restarts the measurement.

The monitor detects the pulse during inflation. Do not move your arm and remain still during the measurement.

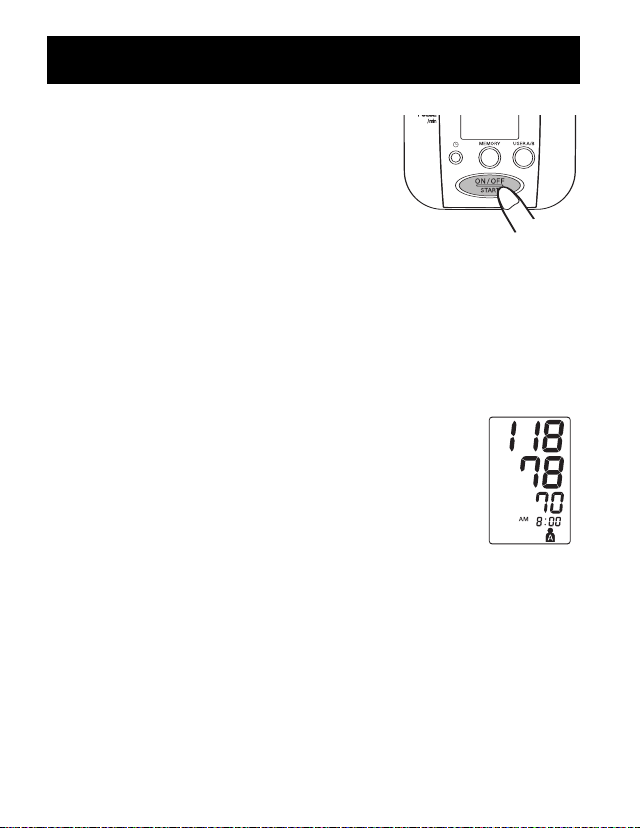

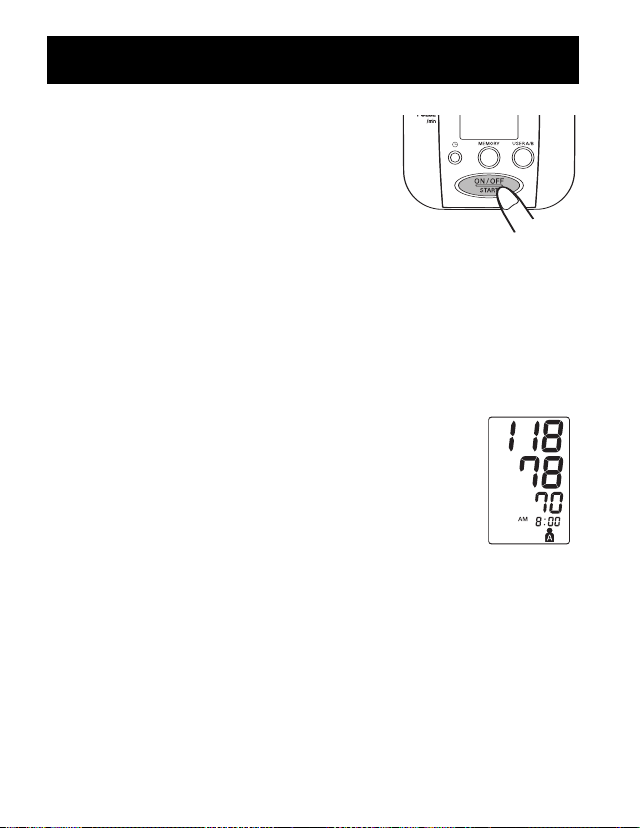

1.Press the ON/OFF START button

All display symbols appear on the screen. The screen changes to display the User ID symbol with the current time.

NOTE:

The screen will display the User ID last used.

The default setting is A.

2. Press the USER ID button

Select the desired user. The display alternates between A and B. You do not need to press this button if no change is needed.

3.Press the ON/OFF START button

The cuff starts to inflate automatically.

NOTE: To stop the inflation or measurement, push the ON/OFF START button. The monitor will stop inflating, start deflating, and will turn off.

15

TAKING A MEASUREMENT

4.Inflation stops automatically and the measurement is started. As the cuff deflates, decreasing numbers appear on the display. The Heartbeat Symbol () flashes at every heartbeat.

5. When the measurement is complete, the arm cuff completely deflates. Your blood pressure and pulse rate are displayed.

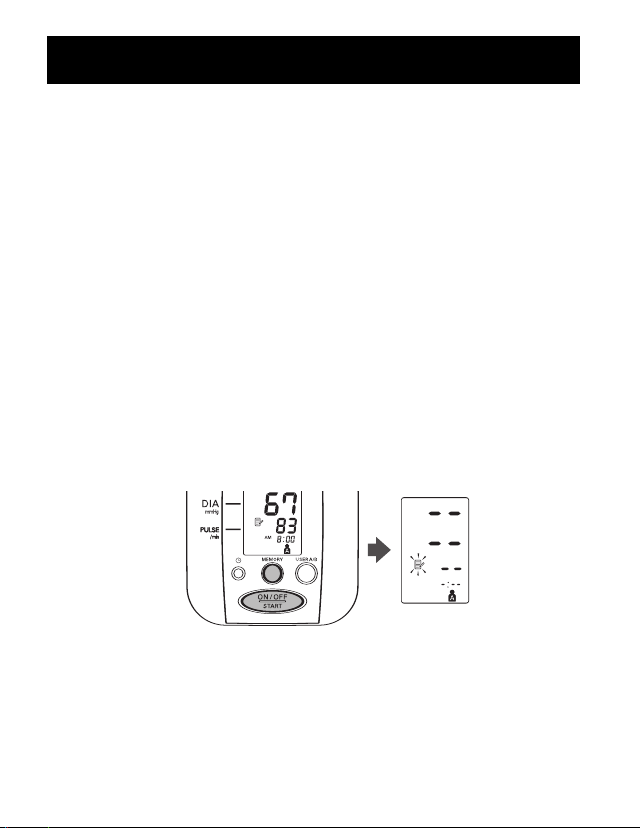

6. Press the ON/OFF START Button

The monitor turns off.

NOTE: The monitor will automatically turn off after five minutes.

INSTRUCTIONS FOR SPECIAL CONDITIONS

If your systolic pressure is known to be more than 220 mmHg, press and hold the ON/OFF START button until the monitor inflates 30 to 40 mmHg higher than your suspected systolic pressure.

NOTE:

Do not apply more pressure than necessary.

The monitor will not inflate above 299 mmHg.

16

USING THE MEMORY FUNCTION

Every time you complete a measurement the monitor stores the blood pressure and pulse rate in the memory. The Blood Pressure Monitor automatically stores up to 30 measurement values for both User A and User B. When 30 sets of measurement values are stored in the memory for the user, the oldest record is deleted to save the most recent measurement values.

AVERAGING FUNCTION

The monitor also calculates an average reading for each user based on the values of the three most recent measurements that were taken within 10 minutes of the most recent reading.

NOTE:

If only two readings are stored in the memory for the 10-minute period, the average is based on the two readings.

If one reading is stored in the memory for the 10-minute period, this reading is displayed as the average.

If the date and time is not set, the measurement values and the average value will not be stored in the memory correctly.

1. Press the ON/OFF START button to turn the power on.

17
