Omron Healthcare HEM-650 User Manual
Instruction Manual
Automatic Blood Pressure Monitor
with A.P.S.
Model HEM-650
650
ESPAñOL
ENGLISH
TABLE OF CONTENTS
Before Using the Monitor
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Important Safety Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Before Taking a Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operating Instructions
Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Unit Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Irregular Heartbeat Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Advanced Positioning Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Position Sensor Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Wrist Measurement Selection . . . . . . . . . . . . . . . . . . . . . . . . . . .10

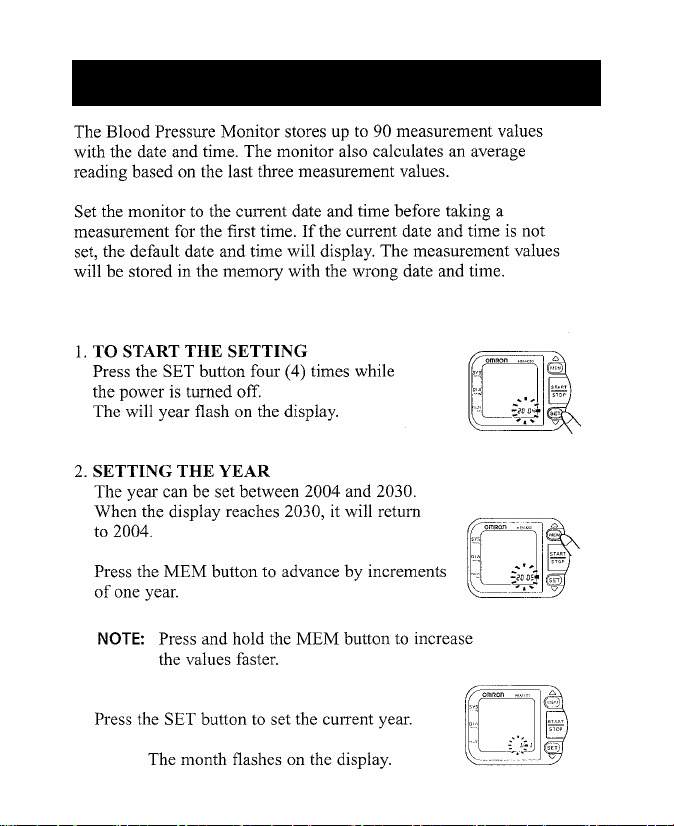

Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Applying the Wrist Cuff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Taking a Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Using the Memory Function . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Care and Maintenance
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Error Indicators and Troubleshooting Tips. . . . . . . . . . . . . . . . . 19
FCC Statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Warranty Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Specications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
2
INTRODUCTION
Thank you for purchasing the OMRON® HEM-650 Automatic Wrist
Blood Pressure Monitor with A.P.S.®.
The monitor is compact and easy-to-use at home, at work, and during
travel. Perfect for people who frequently monitor their own blood
pressure.
OMRON® digital blood pressure monitors use the oscillometric method
of blood pressure measurement. This means the monitor detects your
blood’s movement through your artery and converts the movements into
a digital reading. An oscillometric monitor does not need a stethoscope
so the monitor is simple to use.
Clinical research has proven a direct relationship between blood pressure
in the wrist and blood pressure in the arm. Changes in wrist blood
pressure reect changes in arm blood pressure because the arteries in
the wrist arm are close to each other. Frequently measuring the blood
pressure in your wrist will provide your physician with an accurate
indication of changes in your blood pressure.
The OMRON® HEM-650 Automatic Wrist Blood Pressure Monitor with
A.P.S.®. is intended for home use.
SAVE THESE INSTRUCTIONS
3
SAFETY INFORMATION
To assure the correct use of the product basic safety measures should
always be followed including the precautions listed below:
Consult your physician before measuring blood pressure at the wrist
if you have any of the following conditions:
severe hypertension, severe diabetes, severe arteriosclerosis,
severe kidney disease, or vascular disease that may compromise
circulation.
Read all information in the instruction book and any other
literature in the box before operating the unit.
Contact your physician for specic information about your blood
pressure. Follow the instructions of your healthcare provider.
Operate the unit only as intended. Do not use for any other purpose.
The unit is intended for use in measuring blood pressure and pulse
rate in adult patient population. Do not use on infants.
Do not use a cellular phone near the unit. It may result in
operational failure.
Changes or medications not approved by Omron Healthcare will
void the user warranty. Do not disassemble or attempt to repair the
unit or components.
4
BEFORE TAKING A MEASUREMENT
1. Avoid eating, drinking alcohol, smoking, exercising and bathing for at
30 minutes before taking measurement. Rest for at least 15
minutes before taking a measurement.
2. Stress raises blood pressure. Avoid taking measurements during
stressful times.
3. The cuff can be applied to your left or right wrist. Always measure
your blood pressure on the same wrist.
4. Measurements should be taken in a quiet place.
5. Position the unit at heart level throughout the measurement.
6. Remain still and do not talk during the measurement.
7. Keep a record of your blood pressure and pulse reading for your
physician. A single measurement does not provide an accurate indication
of your true blood pressure. You need to take and record several readings
over a period of time. Try to measure your blood pressure at the same
time each day for consistency.
8. Wait 2-3 minutes between measurements. The wait time allows the
arteries to return to the condition prior to taking the blood pressure
measurement. You may need to increase the wait time depending on
your individual physiological characteristics.
5
KNOW YOUR UNIT
Main Unit:
Wrist Cu
Display
6
5
0
Battery
Compartment
Accessories
Two “AAA” Alkaline Batteries Storage Case
MEM (Memory)
Button
START/STOP Button
SET Button
6
UNIT DISPLAY
7
