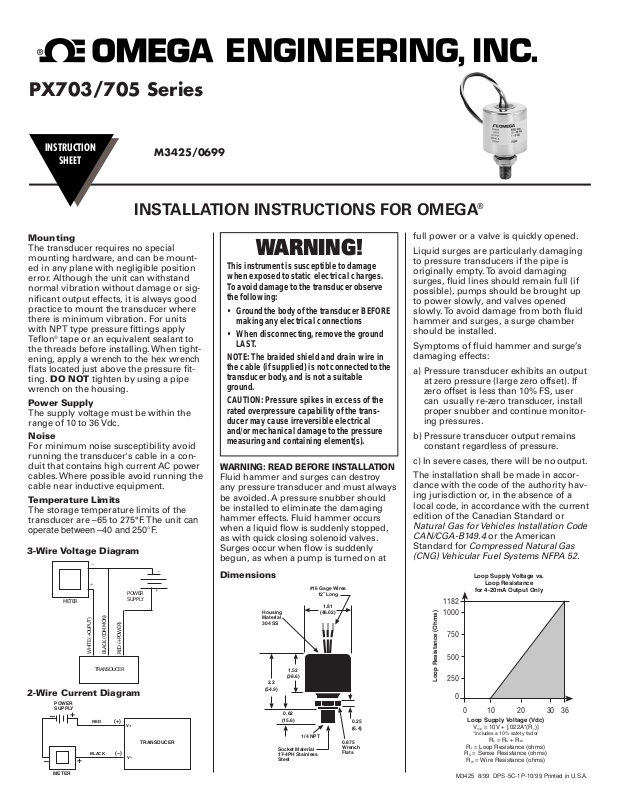

Omega Products PX705 Installation Manual

ENGINEERING, INC.

®

PX703/705 Series

INSTRUCTION

SHEET

M3425/0699

M3425 8/99 DPS-5C-1P-10/99 Printed in U.S.A.

INSTALLATION INSTRUCTIONS FOR OMEGA

®

Mounting

The transducer requires no special
mounting hardware, and can be mount­ed in any plane with negligible position
error. Although the unit can withstand
normal vibration without damage or sig­nificant output effects, it is always good
practice to mount the transducer where
there is minimum vibration. For units
with NPT type pressure fittings apply
Te flon

®

tape or an equivalent sealant to
the threads before installing. When tight­ening, apply a wrench to the hex wrench
flats located just above the pressure fit­ting.

DO NOT tighten by using a pipe

wrench on the housing.

Power Supply

The supply voltage must be within the
range of 10 to 36 Vdc.

Noise

For minimum noise susceptibility avoid
running the transducer's cable in a con­duit that contains high current AC power
cables. Where possible avoid running the
cable near inductive equipment.

Temperature Limits

The storage temperature limits of the
transducer are –65 to 275°F. The unit

can

operate between –40 and 250°F.

WARNING!

This instrument is susceptible to damage
when exposed to static electrical charges.
To avoid damage to the transducer observe
the following:

• Ground the body of the transducer BEFORE
making any electrical connections

• When disconnecting, remove the ground
LAST.

NOTE: The braided shield and drain wire in
the cable (if supplied) is not connected to the
transducer body, and is not a suitable
ground.

CAUTION: Pressure spikes in excess of the
rated overpressure capability of the trans­ducer may cause irreversible electrical
and/or mechanical damage to the pressure
measuring and containing element(s).

WARNING: READ BEFORE INSTALLATION

Fluid hammer and surges can destroy
any pressure transducer and must always
be avoided. A pressure snubber should
be installed to eliminate the damaging
hammer effects. Fluid hammer occurs
when a liquid flow is suddenly stopped,
as with quick closing solenoid valves.
Surges occur when flow is suddenly
begun, as when a pump is turned on at

full power or a valve is quickly opened.

Liquid surges are particularly damaging
to pressure transducers if the pipe is
originally empty. To avoid damaging
surges, fluid lines should remain full (if
possible), pumps should be brought up
to power slowly, and valves opened
slowly. To avoid damage from both fluid
hammer and surges, a surge chamber
should be installed.

Symptoms of fluid hammer and surge’s
damaging effects:

a) Pressure transducer exhibits an output

at zero pressure (large zero offset). If
zero offset is less than 10% FS, user
can usually re-zero transducer, install
proper snubber and continue monitor­ing pressures.

b) Pressure transducer output remains

constant regardless of pressure.

c) In severe cases, there will be no output.

The installation shall be made in accor­dance with the code of the authority hav­ing jurisdiction or, in the absence of a
local code, in accordance with the current
edition of the Canadian Standard or

Natural Gas for Vehicles Installation Code
CAN/CGA-B149.4

or the American

Standard for

Compressed Natural Gas

(CNG) Vehicular Fuel Systems NFPA 52.

TRANSDUCER

METER

POWER
SUPPLY

WHITE (+ OUPUT)

RED (+ POWER)

BLACK (COMMON)

+

–

–

+

Dimensions

3-Wire Voltage Diagram

2-Wire Current Diagram

–

POWER
SUPPLY

–

METER

+

+

RED

BLACK

(+)

V+

(–)

V–

TRANSDUCER

#16 Gage Wires

12˝ Long

1/4 NPT

1.81

(46.02)

0.875
Wrench
Flats

0.25
(6.4)

Housing
Material
304 SS

2.2

(54.9)

Socket Material
17-4PH Stainless
Steel

(38.6)

0.62

(15.6)

1.52

Loop Supply Voltage vs.

Loop Resistance

for 4-20mA Output Only

1182

1000

750

500

250

Loop Resistance (Ohms)

0

0362010

Loop Supply Voltage (Vdc)

V

= 10V + [.022A*(RL)]

min

*includes a 10% safety factor

RL = RS + R

RL = Loop Resistance (ohms)

RS = Sense Resistance (ohms)

RW = Wire Resistance (ohms)

30

W
