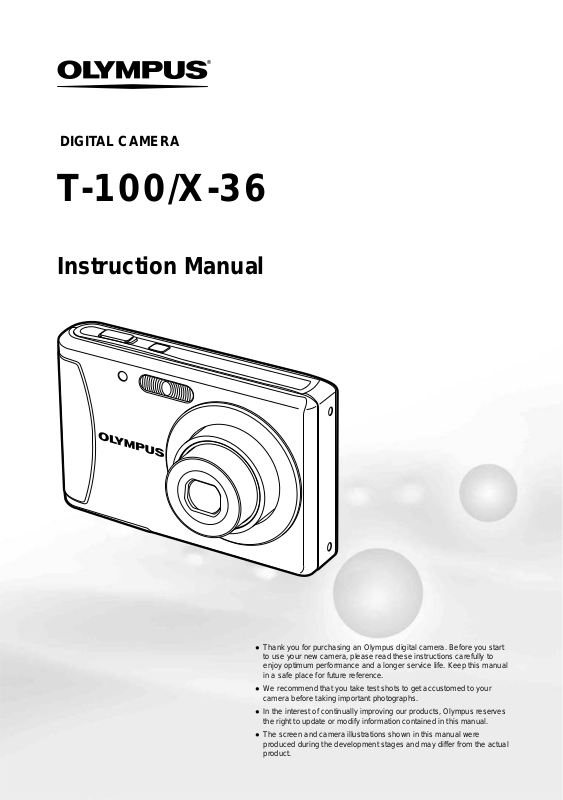

Olympus X-36 Instruction Manual

DIGITAL CAMERA

T-100/X-36

Instruction Manual

 Thank you for purchasing an Olympus digital camera. Before you start

to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference.

 We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

 In the interest of continually improving our products, Olympus reserves

the right to update or modify information contained in this manual.

 The screen and camera illustrations shown in this manual were

produced during the development stages and may differ from the actual product.

ContentsContents

Step

Printing

“Direct printing (PictBridge)” (p. 37) “Print Reservations (DPOF)” (p. 40)

Step

How to Use the Camera

“Camera Settings” (p. 3)

Step

Shooting and Playing Back Images

“Shooting, Viewing, and Erasing” (p. 14)

Step

Preparing the Camera

“Preparing the Camera” (p. 10)

Names of Parts ..............................6

Preparing the Camera .................10

Shooting, Viewing, and Erasing

...14

Using Shooting Modes ................ 20

Using Shooting Functions ..........23

Menus for Shooting Functions ... 27

Menus for Playback, Editing, and

Printing Functions .......................30

Menus for Other Camera

Settings ........................................32

Printing .........................................37

Usage Tips ...................................42

Appendix ......................................46

Step

Checking the contents of the box

Other accessories not shown: Instruction Manual (this manual), warranty card. Contents may vary depending on purchase location.

ib CD-ROM

Strap LI-80B Lithium Ion Battery

Digital camera

USB cable

F-2AC USB-AC adapter

Camera Settings

Using the Direct Buttons Using the Direct Buttons

Frequently used functions can be accessed using the direct buttons.

Arrow pad

The symbols FGHI displayed for image selections and settings indicate that the arrow pad is to be used.

H (left)

F (up) /

INFO button (change information display) (p. 16, 19)

I (right)

H button

G (down) / D button (erase) (p. 18)

(p. 12)

Shutter button (p. 14)

Zoom buttons (p. 16)

q button (switch between shooting and playback) (p. 15)

m button (p. 4)

E button (menu guide) (p. 19)

YMDTIME

Y/M/DY/M/D

SET

SINGLE PRINT

02 26 12 30:..2010

CANCEL

’10/02/26 12:30’10/02/26 12:30

FILE

PRINT MORE

ORM

100 0004100 0004

4/30

Using the MenuUsing the Menu

Use the menu to change camera settings such as the shooting mode.

Press the m button to display the function menu. The function menu can be used to set frequently used shooting and playback functions such as shooting mode.

Shooting Playback

PROGRAM AUTOPROGRAM AUTO

To select the shooting mode

Use HI to select a shooting mode and press the H button.

To select the function menu

Use FG to select a menu and use HI to select a menu option. Press the H button to set the function menu.

Selected option

0.00.0

AUTOWBAUTO

ISO

AUTO

Shooting

mode

SLIDESHOWSLIDESHOW

PERFECT FIX EDIT

Function

o [SETUP]

In the [SETUP] menu, various camera functions can be set, including shooting and playback functions not displayed in the function menu, and other settings such as date, time and screen display.

Use FG to select a menu and press the H button.

ERASE

SETUP

1 Select [SETUP] and then press the H

button.

The [SETUP] menu is displayed.



COMPRESSIONCOMPRESSION NORMALNORMAL

AF MODE FACE/iESP FINE ZOOM OFF

R OFF

ICON GUIDE ON

2 Press H to highlight the page tabs. Use

FG to select the desired page tab and press I.

Page tab

NTSC

SETEXIT

BEEP PIXEL MAPPING s NORMAL

WORLD TIME

VIDEO OUT POWER SAVE OFF

3 Use FG to select the desired submenu 1

and then press the H button.

BEEP PIXEL MAPPING s NORMAL

WORLD TIME

VIDEO OUT POWER SAVEPOWER SAVE OFFOFF

Submenu 1

BEEPBEEP ONON

PIXEL MAPPING s NORMAL

WORLD TIME

VIDEO OUT POWER SAVE OFF

BEEP PIXEL MAPPING

WORLD TIME VIDEO OUT

POWER SAVEPOWER SAVE OFFOFF

BACK

Submenu 2

POWER SAVE

NORMAL

OFFOFF ON

4 Use FG to select the desired submenu 2

and then press the H button.

Once a setting is selected, the display returns



to the previous screen.

There may be additional operations.

“Menu Settings” (p. 27 to 36)

SETEXIT

5 Press the m button to complete the

setting.

Some functions cannot be used in some

shooting modes. In such cases, the

NTSC

SETEXIT

SET

following message is displayed after setting.

BEEP PIXEL MAPPING s NORMAL

WORLD TIME

VIDEO OUT POWER SAVEPOWER SAVE ONON

COMPRESSIONCOMPRESSION NORMALNORMAL AF MODE FACE/iESP FINE ZOOM OFF

CONFLICTING SETTINGS

R OFF

ICON GUIDE ON

NTSC

SETEXIT

Menu Index

Menus for Shooting Functions

1 Shooting mode

P (PROGRAM AUTO) .......p. 14

(iAUTO) ....................p. 20

N (DIS MODE) ...............p. 20

s (SCENE MODE) ......p. 20

P (MAGIC FILTER) .....p. 21

~ (PANORAMA) ...............p. 22

A (MOVIE) .......................p. 15

2 Flash ..................................p. 23

3 Macro ................................p. 23

4 Self-timer ...........................p. 24

5 Exposure compensation ....p. 24

6 White balance ....................p. 25

7 ISO ....................................p. 25

8 Image size (Still images) ...p. 26 9 o (SETUP) w

(Shooting) / A (Movie)

IMAGE SIZE (Movies) .......p. 27

COMPRESSION (Still images)

.......................................p. 27

1 SLIDESHOW .....................p. 30

2 PERFECT FIX ...................p. 30

3 EDIT ..................................p. 30

4 ERASE ..............................p. 30

Menus for Playback, Editing, and Printing Functions

5 o (SETUP) w q (Playback)

PRINT ORDER ..................p. 31

0 (Protect) .....................p. 31

y (Rotate).........................p. 31

R (Add sound to still images)

.......................................p. 31

PROGRAM AUTOPROGRAM AUTO

0.00.0

WB AUTOWBAUTO

ISO

ISO AUTO

AUTO

2 3 4 5 6 7 8

COMPRESSION NORMAL AF MODE FACE/iESP FINE ZOOM OFF

R OFF

ICON GUIDE ON

SLIDESHOWSLIDESHOW

PERFECT FIX EDIT ERASE

SETUP

Menus for Other Camera Settings

FORMAT BACKUP

RESET

USB CONNECTION

q POWER ON NO SAVE SETTINGS

ENGLISH

STORAGE

2 3 4

1 r (Settings 1)

MEMORY FORMAT/

FORMAT ............................p. 32

BACKUP ............................p. 32

W (Language) .................p. 32

RESET...............................p. 32

USB CONNECTION ..........p. 33

SETEXIT

q POWER ON ................p. 33

SAVE SETTINGS ..............p. 33

PRINT ORDER

SETEXIT

IMAGE SIZE VGA FRAME RATE 30fps IS MOVIE MODE

FRAME RATE (Movies) .....p. 27

AF MODE ..........................p. 28

FINE ZOOM ......................p. 28

IS MOVIE MODE ...............p. 28

R (Still images) ..................p. 29

R (Movies) .........................p. 29

ICON GUIDE .....................p. 29

2 s (Settings 2)

BEEP .................................p. 34

PIXEL MAPPING ...............p. 34

s (Monitor) .....................p. 34

X (Date/time) ..................p. 34

WORLD TIME....................p. 35

VIDEO OUT .......................p. 35

POWER SAVE...................p. 36

OFF

SETEXIT

Names of Parts

Camera unit

3 4

6 7

1 Strap eyelet 2 Battery/card compartment cover ...p. 10

3 Self-timer lamp ..............................p. 24

4 Flash .............................................p. 23

Attaching the camera strap

Pull the strap tight so that it does not come loose.

5 Lens ........................................p. 46, 59

6 Microphone .............................p. 29, 31

7 Tripod socket

8 Multi-connector ...........p. 11, 12, 35, 37

5 6

2 3

1 n button ........................p. 12, 14

2 q button (switch between shooting

and playback) ................................p. 15

3 Monitor ....................................p. 14, 42

4 m button ...................................p. 4

5 Shutter button ...............................p. 14

6 Zoom buttons ................................p. 16

7 8

9 10

7 Indicator lamp .........................p. 11, 12

8 H button (OK) ..........................p. 3, 12

9 Arrow pad ........................................p. 3

INFO button (change information

display) .............................p. 16, 19

D button (erase) ....................p. 18

10 E button (menu guide) .................p. 19

Monitor

Shooting mode display

1 2 1 2

AUTOWBAUTO AUTO

AUTO

3 4 5

0.00.0

ISO

9 10

0:340:34

VGA

ONON

1213915

Movie

ORM

121415

1/1001/100 F3.1F3.1

1920

Still image

4 5

0.00.0

AUTOWBAUTO

1 Battery check ................................p. 11

2 Shooting mode ........................p. 14, 20

3 Flash .............................................p. 23

Flash standby/ﬂ ash charge ...........p. 42

4 Macro ............................................p. 23

5 Self-timer .......................................p. 24

6 Exposure compensation ...............p. 24

7 White balance ...............................p. 25

8 ISO ................................................p. 25

9 Image size ...............................p. 26, 27

10 [SETUP] menu ............................p. 4, 5

11 Recording with sound (movies)

........... .........................................p. 29

12 World time .....................................p. 35

13 Digital image stabilization ........... .p. 28

14 Compression (still images) ............p. 27

15 Number of storable pictures (still

images) .........................................p. 14

Continuous recording length (movies)

....................................................p. 15

16 Current memory ............................p. 48

17 AF target mark ..............................p. 14

18 Camera shake warning ....................... -

19 Aperture value ...............................p. 14

20 Shutter speed ................................p. 14

Playback mode display

Normal display



1 65432 1 4

1010

4/30



Detailed display

’10/02/26 12:30’10/02/26 12:30

Still image Movie

1 6 87 9 11105432

1010

1/1000 F3.1 2.0

4/304/30

ISO

ORM

FILE

100 0004

’10/02/26 12:30

18 17

AUTOWBAUTO

1 Battery check ................................p. 11

2 Print reservation/

number of prints ...................p. 40/p. 39

3 Protect ...........................................p. 31

4 Adding sound ..........................p. 29, 31

5 Current memory ............................p. 48

6 Frame number/total number of images

(still images) ..................................p. 16

Elapsed time/total recording time

(movies) ........................................p. 17

7 Shooting mode ........................p. 14, 20

8 Shutter speed ................................p. 14

00:12/00:3400:12/00:34

1/1000 F3.1 2.0

FILE

100 0004

ISO

AUTO

ORM

’10/02/26 12:30

AUTO

12 13

14 15

9 Aperture value ...............................p. 14

10 ISO ................................................p. 25

11 Exposure compensation ...............p. 24

12 White balance ...............................p. 25

13 Image size ...............................p. 26, 27

14 File number ......................................... -

15 Date and time ................................p. 12

16 Compression (still images) ............p. 27

Frame rate (movies) ......................p. 27

17 Macro ............................................ p. 23

18 Flash .............................................p. 23

Preparing the Camera

Inserting the battery and the SD/SDHC memory card (sold separately)

Always use SD/SDHC memory cards with

this camera. Do not insert any other types of memory card.

Battery/card compartment cover

Battery lock knob

Write-protect switch

Insert the battery while sliding the battery

lock knob in the direction of the arrow.

Slide the battery lock knob in the direction

of the arrow to unlock, and then remove the battery.

Turn off the camera before opening the

battery/card compartment cover.

When using the camera, be sure to close

the battery/card compartment cover.

Insert the card straight until it clicks into

place.

Do not touch the contact area directly.

This camera allows the user to take pictures

using the internal memory even when no SD/SDHC memory card (sold separately) is inserted. “Using an SD/SDHC memory card” (p. 47)

“Number of storable pictures (still images)/

Continuous recording length (movies) in the internal memory and SD/SDHC memory cards” (p. 49)

To remove the SD/SDHC memory card

Press the card in until it clicks and comes

out slightly, then grab the card and pull it out.

Insert the battery by putting in the  marked

side ﬁ rst, with the C mark toward the battery lock knob. Damage to the battery exterior (scratches, etc.) may produce heat or an explosion.

Charging the battery with the supplied USB-AC adapter

The included F-2AC USB-AC adapter

(with an AC cable or plug-in type; hereafter referred to as AC adapter) differs depending on the region where you purchased the camera. If you received a plug-in type AC adapter, plug it directly into an AC outlet.

The included AC adapter has been designed

to be used only for charging. Make sure that operations such as shooting, viewing images and so on are not being used while the AC adapter is connected to the camera.

Example: AC adapter with an AC cable

Multi-connector

USB cable (supplied)

The battery is not fully charged at the time

of purchase. Before use, be sure to charge the battery until the indicator lamp turns off (up to 4 hours).

If the indicator lamp does not light, the

camera is not correctly connected or the battery, camera, or AC adapter may be damaged.

For details on the battery and the AC

adapter, see “Battery and AC adapter (included)” (p. 46).

When to charge the batteries

Charge the battery when the error message shown below appears.

Flashes in red

BATTERY EMPTY

Monitor top left Error message

AC outlet

Indicator lamp On: Charging Off: Charged

Installing the supplied computer software (ib)

After checking the system requirements, follow the instructions below to connect the camera to a computer and install the supplied computer software (ib).

System requirements

Windows XP (Service Pack 2 or later)/ Windows Vista/Windows 7

Connecting the camera

Multi-connector

Indicator lamp

Connect the camera to the

computer.

Follow the on-screen instructions

on your computer.

Operation guide

Operation guides displayed at the bottom of the screen indicate that the m button, H button, or zoom buttons should be used.

COMPRESSION NORMAL AF MODE FACE/iESP FINE ZOOM OFF

R OFF

ICON GUIDE ON

SEL. IMAGE

SETEXIT

SET

USB cable (supplied)

ERASE/CANCEL

Operation guide

Setting the date, time and time zone

The date and time set here are saved to image ﬁ le names, date prints, and other data.

Press the n button to turn on

Computer (on and running)

For information on using the computer

software (ib), see the software’s online help.

Insert the supplied CD in a CD-ROM

drive.



A setup screen will appear on the computer monitor.

If the setup window is not displayed,

select “My Computer” (Windows XP) or “Computer” (Windows Vista/Windows 7) from the start menu. Double-click the icon for the CD-ROM drive to open the setup CD window and then double-click “CameraInitialSetup.exe”.

the camera.



The date and time setting screen is displayed when the date and time are not set.

Y M D TIME

-- -- -- --

--------

CANCEL

Date and time setting screen

:..

Y/M/D

Use FG to select the year for [Y].

Y M D TIME

-- -- -- --

20102010

CANCEL

:..

Y/M/D

Changing the display language

The language for the menu and error messages displayed on the monitor is adjustable.

Display the [SETUP] menu.

“Using the Menu” (p. 4)

Use FG to select the r (Settings

1) tab and then press I.

Press I to save the setting for [Y].

Y M D TIME

-- -- ------

:..2010

CANCEL

As in Steps 2 and 3, use FGHI

and the H button to set [M] (month), [D] (day), [TIME] (hours and minutes), and [Y/M/D] (date order).

For a more accurate setting, press the

H button when the time signal hits 00 seconds while setting the minutes.

To change the date and time, adjust the

setting from the menu. [X] (Date/time) (p. 34)

Use HI to select your home time

zone and press the H button.

Use FG to turn daylight saving time ([SUMMER])



on or off.

’10.02.26.12:30

Seoul

Seoul Tokyo

Tokyo

Y/M/D

FORMATFORMAT

BACKUP W ENGLISH

RESET

USB CONNECTION q POWER ON NO SAVE SETTINGS

Use FG to select [W] and press

STORAGE

the H button.

Use FGHI to select your

language and press the H button.

Press the m button.

SETEXIT

SUMMER

The menus can be used to change the

selected time zone. [WORLD TIME] (p. 35)

SET

Shooting, Viewing, and Erasing

Shooting with the optimum aperture value and shutter speed [PROGRAM AUTO]

In this mode, automatic shooting settings are activated while also allowing changes to a wide range of other shooting menu functions, such as exposure compensation, white balance, etc. as needed.

Press the n button to turn on

the camera.

[PROGRAM AUTO] indicator

Number of storable still pictures (p. 49)

Monitor

(standby mode screen)

If the [PROGRAM AUTO] indicator is not

displayed, press the m button to display the function menu and then set the shooting mode to P. “Using the Menu” (p. 4)

Current shooting mode display

PROGRAM AUTOPROGRAM AUTO

Hold the camera and compose the

shot.

Monitor

Horizontal grip

Vertical grip

0.00.0

AUTOWBAUTO

ISO

AUTO

When holding the camera, take care not to

cover the ﬂ ash with your ﬁ ngers, etc.

Press the shutter button halfway

down to focus on the subject.



When the camera focuses on the subject, the exposure is locked (shutter speed and aperture value are displayed), and the AF target mark changes to green.



The camera was unable to focus if the AF target mark ﬂ ashes red. Try focusing again.

AF target mark

Press halfway

0.00.0

AUTOWBAUTO

ISO

AUTO

Press the n button again to turn off

the camera.

“Focusing” (p. 44)

1/4001/400 F3.1F3.1

Shutter speed Aperture value

To take the picture, gently press

the shutter button all the way down while being careful not to shake the camera.

0:00

RECREC

0:34

0:00

0:34

Press fully

1/4001/400 F3.1F3.1

Image review screen

To view images during shooting

Pressing the q button enables playback of images. To return to shooting, either press the q button or press the shutter button halfway down.

Shooting movies [MOVIE]

Press the m button to display

the function menu screen.

PROGRAM AUTOPROGRAM AUTO

Press the shutter button halfway

down to focus on the subject, and gently press the button all the way down to start recording.

Press halfway

0:34

RECREC

0:00

Press fully

Gently press the shutter button all

the way down to stop recording.

Sound will also be recorded.

0.00.0

AUTOWBAUTO

ISO

AUTO

During sound recording, only the digital zoom can be used. To record a movie with optical zoom, set [R] (movies) (p. 29) to [OFF].

0:00

Continuous recording length (p. 49)

Current length

Lights up red when recording

Use HI to set the shooting mode

to A and then press the H button.

VGA

0:340:34

[MOVIE] indicator

0.00.0

AUTOWBAUTO

Using the zoom

Pressing the zoom buttons adjusts the shooting range.

Pressing the wide

(W) button

Pressing the telephoto (T) button

Zoom bar

Optical zoom: 3x

Digital zoom: 4x

Select [DIS MODE] for the shooting mode

(p. 20) when shooting with the telephoto zoom.

To take larger images without reducing image quality [FINE ZOOM] (p. 28)

The zoom bar appearance identiﬁ es the

status of the ﬁ ne zoom/digital zoom.

When using optical zoom and digital zoom

When using ﬁ ne zoom

0.00.0

WB AUTOWBAUTO ISO

ISO AUTO

AUTO

Optical zoom range

Fine zoom range

Digital zoom

range

Changing the shooting information display

The display of the screen information can be changed to best match the situation, for example, the need for a clear view of the screen or for making a precise composition by using the grid display.

Press F (INFO).



The displayed shooting information changes in

0.00.0

AUTOWBAUTO

ISO

AUTO

the order shown below each time the button is pressed. “Shooting mode display” (p. 8)

Normal

0.00.0

WB AUTOWBAUTO

No information

ISO

ISO AUTO

AUTO

12M

Detailed

0.00.0

WB AUTOWBAUTO ISO

ISO AUTO

AUTO

ORM

12M

Viewing images

Press the q button.

Number of frames/

Total number of images

4/30

’10/02/26 12:30’10/02/26 12:30

Playback image

Operations during movie playback

Use HI to select an image.

Displays previous


Hold I to fast forward and hold H to

reverse.

The display size of the images can be

changed. “Index view and close-up view” (p. 18)

To play back movies

Select a movie, and press the H button.

Displays next image

4/30

Elapsed time/

Total recording

time

Pausing and

resuming

playback

Fast forward

Rewind

Press the H button to pause playback. To resume playback during pause, fast forward, or rewind, press the H button.

Press I to fast forward. Press I again to increase the fast forward speed.

Press H to rewind. The rewinding speed increases each time H is pressed.

00:12/00:3400:12/00:34

During playback

MOVIE PLAYMOVIE PLAY

The sound recorded in movie mode cannot

be played back with this camera. To listen to the sound, connect to a TV or PC.

Movie

’10/02/26 12:30’10/02/26 12:30

Operations during pausing playback

00:14/00:3400:14/00:34

During pause

Cueing

Advancing

and rewinding

one frame at

a time

Resuming

playback

Press F to display the ﬁ rst frame and press G to display the last frame.

Press I or H to advance or rewind one frame at a time. Hold I or H pressed for continuous advance or rewind.

Press the H button to resume playback.

To stop movie playback

Press the m button.

Erasing ima ges during playback (Single image erase)

Display the image you want to erase

and press G (D).

ERASE

ALL ERASE SEL. IMAGE

ERASE

CANCEL

BACK

SET

Index view and close-up view

Index view enables quick selection of a desired image. Close-up view (up to 10x magniﬁ cation) allows checking of image details.

Press the zoom buttons.

Single-image view Close-up view

4/30

Press FG to select [ERASE], and

press the H button.

[ALL ERASE] (p. 30) and [SEL. IMAGE]

(p. 30) can be used to erase multiple images at the same time.

’10/02/26 12:30’10/02/26 12:30

’10/02/26

12:30’10/02/26 12:30

Index view

’10/02/26

To select an image in index view

Use FGHI to select an image, and press the H button to display the selected image in single-image view.

To scroll an image in close-up view

Use FGHI to move the viewing area.

Changing the image information display

Shooting information settings displayed on the screen can be changed.

Press F (INFO).

The displayed image information changes in the order shown below each time the button is pressed.



Normal

1010

4/30

No information

’10/02/26 12:30’10/02/26 12:30

Detailed

1010

4/304/30

1/1000 F3.1 2.0

ISO

AUTOWBAUTO

ORM

FILE

100 0004

’10/02/26 12:30

Using the menu guide

If the E button is pressed while settings are being made in the playback function or [SETUP] menu, a description of the selected option is displayed.

“Using the Menu” (p. 4)

Using Shooting Modes

The shooting mode can be selected from

the function menu in the following order: P, M, N, s, P, ~, and A.

“Using the Menu” (p. 4)

Shooting with automatic settings [iAUTO]

According to the scene, the camera automatically selects the optimal shooting mode from [PORTRAIT]/[LANDSCAPE]/ [NIGHT+PORTRAIT]/[SPORT]/[MACRO]. This is a fully automatic mode that allows the user to take pictures using the best mode for the shooting scene simply by pressing the shutter button.

Set the shooting mode to M.

The icon changes depending on the scene that the camera automatically selects.

In some cases, the camera may not select

the desired shooting mode.

When the camera cannot identify which is

the optimal mode, [PROGRAM AUTO] will be selected.

Reducing blur on shooting [DIS MODE]

This mode enables the user to reduce blur that is caused by camera shake and subject movement.

Set the shooting mode to N.

Using the best mode for the shooting scene [SCENE MODE]

Set the shooting mode to s.

Press G to go to the submenu.

SCENE MODESCENE MODE

[DIS MODE] indicator

AUTOWBAUTO

0.00.0

PORTRAITPORTRAIT

0.00.0

AUTOWBAUTO

Use HI to select the best shooting

mode for the scene, and press the H button.

Icon indicating [SCENE MODE] that is set

In [SCENE MODE], the optimum shooting

settings are pre-programmed for speciﬁ c shooting scenes. For this reason, some settings cannot be changed in some modes.

Option Application

B PORTRAIT/F LANDSCAPE/ G NIGHT SCENE M NIGHT+PORTRAIT/ C SPORT/N INDOOR/ W CANDLE/R SELF PORTRAIT/ S SUNSET V CUISINE/d DOCUMENTS/

 PET

When the subject is dark, noise reduction is

automatically activated. This approximately doubles the shooting time during which no other pictures can be taken.

/X FIREWORKS*1/

The camera takes a picture using the optimum settings for the scene conditions.

To take pictures of a moving subject like a pet ([ PET])

1 Use HI to select [ PET], and press

the H button to set.

2 Hold the camera to align the AF target

mark on the subject and press the H button.

When the camera recognizes the subject,



the AF target mark automatically tracks the subject movement to focus on it continuously. “To focus on a moving subject continuously (AF Tracking)” (p. 28).

Shooting with special effects [MAGIC FILTER]

Add an artistic effect to your photo by selecting the desired magic ﬁ lter.

Set the shooting mode to P.

0.00.0

AUTOWBAUTO

Press G to go to the submenu.

Use HI to select the desired effect

and then press the H button to set.

Shooting mode Option

MAGIC FILTER

In [MAGIC FILTER], the optimum shooting

settings are pre-programmed for each scene effect. For this reason, some settings cannot be changed in some modes.

MAGIC FILTERMAGIC FILTER

POP ART

Icon indicating [MAGIC FILTER] that is set

[ POP ART \ PIN HOLE ] FISH EYE @ DRAWING

0.00.0

AUTOWBAUTO

0.00.0

AUTOWBAUTO

0.00.0

AUTOWBAUTO

Creating panoramic images [PANORAMA]

Take pictures that can be joined to form a panorama using the ib computer software.

The focus, exposure (p. 24), zoom position

(p. 16), and white balance (p. 25) are locked at the ﬁ rst frame.

The ﬂ ash (p. 23) is ﬁ xed to $ (FLASH OFF)

mode.

Set the shooting mode to ~.

PANORAMAPANORAMA

Use FGHI to select the pan

direction.

Press the shutter button to take the

ﬁ rst frame, and then compose the second shot.

Before ﬁ rst shot

1 212

BACK

0.00.0

AUTOWBAUTO

ISO

AUTO

After ﬁ rst shot

1 212

EXIT

After the ﬁ rst shot, the area shown in the



white frame reappears on the side of the display opposite the pan direction. Frame subsequent photographs so that they overlap with the image on the monitor.

Repeat Step 3 until the number

of desired frames is taken, and then press the m button when ﬁ nished.

Panorama shooting is possible for up to

10 frames.

For information on making panoramas,

refer to the online help for the ib computer software.

Using Shooting Functions

“Using the Menu” (p. 4)

Using the ﬂ ash

The ﬂ ash functions can be selected to best match the shooting conditions.

Select the ﬂ ash option in the

shooting function menu.

FLASH AUTOFLASH AUTO

Use HI to select the setting

option, and press the H button to set.

Option Description

FLASH AUTO

REDEYE

FILL IN FLASH OFF The ﬂ ash does not ﬁ re.

The ﬂ ash ﬁ res automatically in low-light or backlight conditions.

Pre-ﬂ ashes are emitted to reduce the occurrence of red eye in your photos.

The ﬂ ash ﬁ res regardless of the available light.

Shooting closeups (Macro shooting)

This function enables the camera to focus and shoot subjects at close distances.

Select the macro option in the

shooting function menu.

0.00.0

AUTOWBAUTO

ISO

AUTO

Use HI to select the setting

option, and press the H button to set.

Option Description

OFF Macro mode is deactivated.

MACRO

SUPER MACRO

When the zoom is at the widest (W) position.

When the zoom is at the most telephoto (T) position.

The zoom is automatically ﬁ xed.

The ﬂ ash (p. 23) and zoom (p. 16) cannot

be set during super macro shooting.

This enables shooting as close as 20 cm/7.9 in. the subject.

This enables shooting as close as

5 cm/2.0 in. to the subject.

OFFOFF

(60 cm/23.6 in.*2) to

0.00.0

AUTOWBAUTO

ISO

AUTO

Using the self-timer

After the shutter button is pressed all the way down, the picture is taken after a short delay.

Select the self-timer option in the

shooting function menu.

OFFY OFF

Use HI to select the setting

option, and press the H button to set.

Option Description

Y OFF

Y 12 SEC

Y 2 SEC

Self-timer shooting is automatically canceled

To cancel the self-timer after it starts

Press the m button.

The self-timer is deactivated. The self-timer lamp turns on for

approx. 10 seconds, then blinks for approx. 2 seconds, and then the picture is taken.

The self-timer lamp blinks for approx. 2 seconds, and then the picture is taken.

after one shot.

Adjusting the brightness (Exposure compensation)

The standard brightness (appropriate exposure) set by the camera based on the shooting mode (except for [iAUTO]) can be adjusted brighter or darker to obtain a desired shot.

Select the exposure compensation

1212

0.00.0

AUTOWBAUTO

ISO

AUTO

option in the shooting function menu.

Use HI to select the desired

brightness, and press the H button.

0.0

0.30.30.00.00.30.3

AUTOWBAUTO

ISO

AUTO

Adjusting to a natural color scheme (White balance)

For more natural coloring, choose a white balance option suited to the scene.

Select the white balance option in

the shooting function menu.

WB AUTO

Use HI to select the setting

option, and press the H button to set.

Option Description

WB AUTO

The camera automatically adjusts the white balance according to the shooting scene.

For shooting outdoors under a clear sky

For shooting outdoors under a cloudy sky

For shooting under tungsten lighting

For shooting under daylight ﬂ uorescent lighting (household lighting, etc.)

For shooting under neutral ﬂ uorescent lighting (desk lamps, etc.)

For shooting under white ﬂ uorescent lighting (ofﬁ ces, etc.)

Selecting the ISO sensitivity

Abbreviation for the International

Organization for Standardization. ISO standards specify the sensitivity for digital cameras and ﬁ lm, thus codes such as “ISO 100” are used to represent sensitivity.

In the ISO setting, although smaller values

result in less sensitivity, sharp images can

0.00.0

AUTOWBAUTO

ISO

AUTO

be taken under fully lit conditions. Larger values result in higher sensitivity, and images can be taken at fast shutter speeds even under low light conditions. However, high sensitivity introduces noise into the resulting picture, which may give it a grainy appearance.

Select the ISO setting option in the

shooting function menu.

0.00.0

AUTOWBAUTO

ISOISO

ISO 200

1/4001/400 F3.1F3.1

Use HI to select the setting

option, and press the H button to set.

Option Description

ISO AUTO

100/200/400/ 800/1600

The camera automatically adjusts the sensitivity according to the shooting scene.

The ISO sensitivity is ﬁ xed to the selected value.

400

200

100

400200100

Selecting the size of still images

Select the image size option in the

shooting function menu.

16:9S

Use HI to select the setting

option, and press the H button to set.

Option Description

12M (3968×2976)

8M (3264×2448)

5M (2560×1920)

3M (2048×1536)

2M (1600×1200)

1M (1280×960)

VGA (640×480)

16:9S (1920×1080)

Image size for movies can be selected from

the [SETUP] menu. [IMAGE SIZE/FRAME RATE] (p. 27)

“Number of storable pictures (still images)/

Continuous recording length (movies) in the internal memory and SD/SDHC memory cards” (p. 49)

12M12M

Suitable for printing A3

(11×17 in.)pictures.

Suitable for printing pictures up to A3 (11×17 in.).

Suitable for printing A4

(8.5×11 in.)pictures.

Suitable for printing pictures up to A4 (8.5×11 in.).

Suitable for printing A5 (5×7 in.) pictures.

Suitable for printing pictures at postcard size.

Suitable for viewing pictures on a TV or using pictures in emails and on websites.

Suitable for playing pictures on a wide screen TV.

0.00.0

AUTOWBAUTO

ISO

AUTO

M12M

For information on using the menus, see “Using the Menu” (p. 4).

Menus for Shooting Functions

NORMAL Shooting at normal quality.

The default settings of the function are highlighted in .

Selecting a compression mode for still images [COMPRESSION]

(Shooting menu) w COMPRESSION

Available shooting modes: P M N s P ~

Submenu 2 Application

FINE Shooting at high quality.

“Number of storable pictures (still images)/Continuous recording length (movies) in the internal

memory and SD/SDHC memory cards” (p. 49)

Selecting the image quality for movies [IMAGE SIZE/FRAME RATE]

A (Movie menu) w IMAGE SIZE/FRAME RATE

Available shooting modes: A

Submenu 1 Submenu 2 Application

IMAGE SIZE

FRAME RATE

frames per second

“Number of storable pictures (still images)/Continuous recording length (movies) in the internal

VGA (640×480)/ QVGA (320×240)

N 30fps*1/

O 15fps

memory and SD/SDHC memory cards” (p. 49)

Select the image quality based on the image size and frame rate. Higher frame rates provide smoother movie images.

Selecting the focusing area [AF MODE]

(Shooting menu) w AF MODE

Available shooting modes: P M N s

P ~

Submenu 2 Application

FACE/iESP

The camera focuses automatically. (If a face is detected, it is shown by a white frame

; when the shutter button is pressed halfway and the camera is able to focus, the frame color is changed to green

if the camera is able to focus. If no face is detected, the camera chooses a subject in the frame and focuses automatically.)

SPOT

The camera focuses on the subject located within the AF target mark.

AF TRACKING

The camera tracks the subject movement automatically to focus on it continuously.

For some subjects, the frame may not appear or

may take some time to appear.

If the frame blinks in red, the camera is unable to

focus. Try again to press the shutter button halfway.

To focus on a moving subject continuously (AF Tracking)

1 Hold the camera to align the AF target

mark on the subject and press the H button.

2 When the camera recognizes the subject,

the AF target mark automatically tracks the subject movement to focus on it continuously.

3 To cancel the tracking, press the

H button.

Depending on the subjects or the shooting

conditions, the camera may be unable to lock the focus or fail to track the subject movement.

When the camera fails to track the subject

movement, the AF target mark changes to red.

Shooting at higher magniﬁ cations than optical zoom without reducing the image quality [FINE ZOOM]

(Shooting menu) w FINE ZOOM

Available shooting modes: P M N s

Submenu 2 Application

OFF

Optical zoom and digital zoom are used to zoom in for shooting.

Optical zoom and image cropping are combined to zoom in for shooting (up to 18.6x).

This function will not reduce the image

quality since it does not convert the data with fewer pixels into the data with larger pixels.

When set to [ON], [IMAGE SIZE] is limited

to [4] or lower.

When set to [ON], digital zoom is canceled

automatically.

[FINE ZOOM] is not available when

[% SUPER MACRO] (p. 23) is selected.

P ~

Reducing blur due to camera shake during movie shooting [IS MOVIE MODE]

A (Movie menu) w IS MOVIE MODE

Available shooting modes: A

Submenu 2 Application

OFF

Shoots without using the image stabilizing function.

Shoots using the image stabilizing function.

Image stabilization may not prevent motion

blur caused by movement of the subject or by extreme movement of the camera.

When set to [ON], shooting is slightly

zoomed in.

For information on using the menus, see “Using the Menu” (p. 4).

Recording sound when shooting still images [R]

(Shooting menu) w R

Available shooting modes: P M N s

Submenu 2 Application

OFF No sound is recorded.

The camera automatically starts recording sound for approx. 4 seconds after a picture is taken. This is useful for recording notes or comments about the picture.

ON Sound is recorded.

When recording, aim the microphone (p. 6)

The sound recorded in still REC cannot be

at the source of the sound you want to record.

played back with this camera. To listen to the sound, connect to a TV or PC.

Recording sound when shooting movies [R]

A (Movie menu) w R

Available shooting modes: A

Submenu 2 Application

OFF No sound is recorded.

When set to [ON], only the digital zoom can

be used during movie recording. To record the movie with the optical zoom, set [R] (movies) to [OFF].

The sound recorded in movie mode cannot

be played back with this camera. To listen to the sound, connect to a TV or PC.

Displaying icon guides [ICON GUIDE]

(Shooting menu) w ICON GUIDE

Available shooting modes: P M N s

Submenu 2 Application

OFF No icon guide is displayed.

The explanation of the selected icon will be displayed when a shooting mode or shooting function menu icon is selected (position the cursor on the icon for a while to display the explanation).

PROGRAM AUTOPROGRAM AUTO

Functions can be changed

Icon guide

manually.

P ~ A

0.00.0

AUTOWBAUTO

ISO

AUTO

Menus for Playback, Editing, and Printing Functions

Playing back pictures automatically [SLIDESHOW]

SLIDESHOW

To start a slideshow

After pressing the H button, the slideshow starts. To stop the slideshow, press the H button or the m button.

Single-frame advance/rewind: During a slideshow, press I to advance one frame or press H to rewind one frame.

The sound recorded when shooting cannot

be played back during slideshow. To listen to the sound, connect to a TV or PC.

Retouching images [PERFECT FIX]

PERFECT FIX

Depending on the picture, the editing may

not be effective.

The retouching process may lower the

image resolution.

Submenu 1 Application

ALL

LIGHTING FIX

REDEYE FIX

1 Use FG to select a correction method,

2 Use HI to select an image for

[LIGHTING FIX] and [REDEYE FIX] are applied together.

Only sections darkened by backlighting and dim lighting are brightened.

Eyes that are reddened by the ﬂ ash are corrected.

and press the H button.

retouching, and press the H button.

The retouched image is saved as a separate



image.

Changing the image size [Q]

EDIT w Q

Submenu 2 Application

8 640 × 480

9 320 × 240

This saves a high-resolution image as a separate image with a smaller size for use in e-mail attachments and other applications.

1 Use HI to select an image. 2 Use FG to select the size, and press

the H button.

Cropping images [P]

EDIT w P

1 Use HI to select an image, and press

the H button.

2 Use the zoom buttons to select the size of

the cropping frame, and use FGHI to move the frame.

Cropping frame

3 Press the H button.

The edited image will be saved as a separate



image.

Erasing images [ERASE]

ERASE

Submenu 1 Application

ALL ERASE

SEL. IMAGE ERASE Deletes the image displayed.

CANCEL Cancels erasing.

All images in the internal memory or card will be erased.

Images are individually selected and erased.

SET

For information on using the menus, see “Using the Menu” (p. 4).

When erasing pictures in the internal

memory, do not insert a card into the camera.

When erasing pictures from the card, insert

a card into the camera in advance.

To erase all images [ALL ERASE]

1 Use FG to select [ALL ERASE], and

press the H button.

2 Use FG to select [YES], and press the

H button.

To individually select and erase images [SEL. IMAGE]

1 Use FG to select [SEL. IMAGE], and

press the H button.

2 Use HI to select the image to be

erased, and press the H button to add a R mark to the image.

Press the W zoom button to display an index



view. Images can be quickly selected using FGHI. Press the T button to return to the single frame display.

SEL. IMAGE

R mark

ERASE/CANCEL

3 Repeat Step 2 to select the images to be

erased, and then press the m button to erase the selected images.

4 Use FG to select [YES], and press the

H button.

The images with a R mark are erased.



Protecting images [0]

q (Playback menu) w 0

Protected images cannot be erased by

[ERASE] (p. 18, 30), [SEL. IMAGE], or [ALL ERASE] (p. 30), but all images are erased by [MEMORY FORMAT]/[FORMAT] (p. 32).

1 Use HI to select an image. 2 Press the H button.



Press the H button again to cancel the settings.

3 If necessary, repeat Steps 1 and 2

to protect other images, and press the m button.

Rotating images [y]

q (Playback menu) w y

1 Use HI to select an image. 2 Press the H button to rotate the image. 3 If necessary, repeat Steps 1 and 2 to

make settings for other images, and press the m button.

The new picture orientations will be saved

even after the power is turned off.

Adding sound to still images [R]

q (Playback menu) w R

1 Use HI to select an image. 2 Aim the microphone toward the sound

source.

Saving print settings to the image data [PRINT ORDER]

q (Playback menu) w PRINT ORDER

“Print Reservations (DPOF)” (p. 40) Print reservation can be set only for still

images that are recorded to the card.

3 Press the H button.



Recording starts.

Microphone

Erasing data completely [MEMORY FORMAT]/[FORMAT]

r (Settings 1) w MEMORY FORMAT/ FORMAT

Menus for Other Camera Settings

Before formatting, check that no important

data is left in the internal memory or card.

Cards must be formatted with this camera

before ﬁ rst use or after being used with other cameras or computers.

Submenu 2 Application

YES

NO Cancels formatting.

Be sure to remove the card before formatting the internal memory.

Completely erases the image data in the internal memory*1 or card (including protected images).

Copying images in the internal memory to the card [BACKUP]

r (Settings 1) w BACKUP

Submenu 2 Application

YES NO Cancels the backup.

It takes some time to back up data. Check

Backs up image data in the internal memory to the card.

that the battery has sufﬁ cient power before starting the backup.

Changing the display language [W]

r (Settings 1) w W

Submenu 2 Application

Languages

The language for the menus and error messages displayed on the monitor is selected.

“Changing the display language” (p. 13)

Restoring the shooting functions to the default settings [RESET]

r (Settings 1) w RESET

Submenu 2 Application

YES

Restores the following menu functions to the default settings.

Flash (p. 23)

• Macro (p. 23)

• Self-timer (p. 24)

• Exposure compensation (p. 24)

• White balance (p. 25)

• ISO (p. 25)

• Image size (p. 26)

• Menu functions in z (Shooting

• menu)/A (Movie menu) (p. 27 to 29)

The current settings will not be changed.

For information on using the menus, see “Using the Menu” (p. 4).

Selecting a method for connecting the camera to other devices [USB CONNECTION]

r (Settings 1) w USB CONNECTION

Submenu 2 Application

AUTO

When the camera is connected to another device, the settings selection screen is displayed.

STORAGE

Select when transferring images to a computer or when using ib computer software with the camera connected to a computer.

MTP

Select when transferring images to a computer running Windows Vista or Windows 7 without using ib computer software.

Select when connecting to a PictBridge-compatible printer.

Copying pictures to a computer without using ib computer software

This camera is compatible with the USB Mass Storage Class. You can transfer and save the image data on your computer while the camera and the computer are connected.

System requirements

Windows 2000 Professional/ Windows XP/Windows Vista/Windows 7/ Mac OS X v10.3 or later

Even if a computer has USB ports, proper

operation is not guaranteed in the following cases.

computers with USB ports installed using an



expansion card, etc.



computers without a factory-installed OS and home-built computers

Turning on the camera with the q button [q POWER ON]

r (Settings 1) w q POWER ON

Submenu 2 Application

YES

Pressing the q button turns on and starts the camera in the playback mode.

The camera is not turned on. To turn on the camera, press the n button.

Saving the mode when the camera is turned off [SAVE SETTINGS]

r (Settings 1) w SAVE SETTINGS

Submenu 2 Application

The shooting mode is saved

YES

when the camera is turned off and is reactivated the next time the camera is turned on.

The shooting mode is set to P mode when the camera is turned on.

Setting the operation sound [BEEP]

s (Settings 2) w BEEP

Submenu 2 Application

OFF/ON

Turns off or on the operating sound/warning sound of the camera buttons.

Adjusting the CCD and the image processing function [PIXEL MAPPING]

s (Settings 2) w PIXEL MAPPING

Adjusting the brightness of the monitor [s]

s (Settings 2) w s

Submenu 2 Application

BRIGHT/ NORMAL

Selects the monitor brightness depending on the surrounding brightness.

This function has already been adjusted

at factory shipping, and no adjustment is needed right after purchase. Approximately once a year is recommended.

For best results, wait at least one minute

after taking or viewing pictures before performing pixel mapping. If the camera is turned off during pixel mapping, be sure to perform it again.

To adjust the CCD and the image processing function

Press the H button when [START] (Submenu 2) is displayed.

The camera checks and adjusts the CCD and the



image processing function at the same time.

Setting the date and time [X]

s (Settings 2) w X

“Setting the date, time and time zone”

(p. 12)

To select the date display order

1 Press I after setting Minute, and use

FG to select the date display order.

Y M D TIME

02 26 12 30:..2010

Date order

CANCEL

Y/M/DY/M/D

SET

For information on using the menus, see “Using the Menu” (p. 4).

Switching between home and travel destination time zones [WORLD TIME]

s (Settings 2) w WORLD TIME

You will not be able to select a time zone using [WORLD TIME] if the camera clock has not ﬁ rst been

set using [X].

Submenu 2 Submenu 3 Application

HOME/ALTERNATE

*1, 2

In areas where daylight saving time is in effect, use FG to turn daylight saving time ([SUMMER]) on.

When you select a time zone, the camera automatically calculates the time difference between the selected

zone and the home time zone (x) to display the time in the travel destination time zone (y).

— Select the home time zone (x). — Select the travel destination time zone (y).

The time in the home time zone (the time zone selected for x in submenu 2).

The time in the travel destination time zone (the time selected for y in submenu 2).

Selecting a video signal system to match your TV [VIDEO OUT]

s (Settings 2) w VIDEO OUT

The TV video signal system varies depending on the countries and regions. Before viewing camera

images on your TV, select the video output according to your TV’s video signal type.

Submenu 2 Application

NTSC Connecting the camera to a TV in North America, Taiwan, Korea, Japan, and so on. PAL Connecting the camera to a TV in European countries, China, and so on.

The factory default settings differ according to the region where the camera is sold.

To play back camera images on a TV

1 Use the camera to select the same video signal system as the one of connected TV

([NTSC]/[PAL]).

2 Connect the TV and camera.

Multi-connector

Connect to the TV video input jack (yellow) and audio input jack (white).

AV cable (CB-AVC5: sold separately)

3 Turn on the TV, and change “INPUT” to “VIDEO (an input jack connected to the camera).”

For details on changing the input source of the TV, refer to the TV’s instruction manual.

4 Press the q button, and use HI to select the image for playback.

Depending on the TV’s settings, the displayed images and information may become cropped.

Saving battery power between shots [POWER SAVE]

s (Settings 2) w POWER SAVE

Submenu 2 Application

OFF Cancels [POWER SAVE]. ON

To resume standby mode

Press any button.

When the camera is not being used for approx. 10 seconds, the monitor automatically turns off to save battery power.

Printing

Turn on the printer, and then

connect the printer and camera.

Direct printing (PictBridge*1)

By connecting the camera to a PictBridgecompatible printer, you can print images directly without using a computer. To ﬁ nd out if your printer supports PictBridge, refer to the printer’s instruction manual.

PictBridge is a standard for connecting digital

cameras and printers of different makers and printing out pictures directly.

The printing modes, paper sizes, and other

parameters that can be set with the camera vary depending on the printer that is used. For details, refer to the printer’s instruction manual.

For details on the available paper types,

loading paper, and installing ink cassettes, refer to the printer’s instruction manual.

Printing images at the printer’s standard settings [EASY PRINT]

In the [SETUP] menu, set [USB

CONNECTION] to [AUTO] or [PRINT]. “Using the Menu” (p. 4)

Display the image to be printed on

the monitor.

“Viewing images” (p. 16)

Multi-connector

Press I to start printing.

To print another image, use HI

I button

USB cable

(supplied)

EASY PRINT START CUSTOM PRINT

to select an image, and press the H button.

To exit printing

After a selected image is displayed on the screen, disconnect the USB cable from the camera and printer.

PRINTEXIT

Changing the printer’s settings for printing [CUSTOM PRINT]

Follow Steps 1 and 2 in [EASY

PRINT] (p. 37).

Press the H button to start

printing.

Use FG to select the print mode,

and press the H button.

PRINT MODE SELECT

MULTI PRINT

PRINT ORDER

ALL INDEX

PRINTPRINT

ALL PRINT

Submenu 2 Application

ALL PRINT

MULTI PRINT

ALL INDEX

PRINT ORDER

[PRINT ORDER] is available only when print

reservations have been made. “Print Reservations (DPOF)” (p. 40)

Use FG to select [SIZE] (Submenu

This prints the image selected in Step 6.

This prints all images stored in the internal memory or card.

This prints one image in a multiple layout format.

This prints an index of all images stored in the internal memory or card.

This prints images based on the

print reservation data on the card.

3), and press I.

If the [PRINTPAPER] screen is not

displayed, the [SIZE], [BORDERLESS], and [PICS/SHEET] are set to the printer’s standard.

PRINTPAPER

SIZE BORDERLESS

STANDARDSTANDARD

SETEXIT

STANDARD

Use FG to select the

[BORDERLESS] or [PICS/SHEET] settings, and press the H button.

Submenu 4 Application

OFF/ON

(The number of images per sheet varies depending on the printer.)

The available settings for [BORDERLESS] vary depending on the printer.

Use HI to select an image.

Press F to make a print reservation

The image is printed with a border around it ([OFF]).

The image is printed to ﬁ ll the entire paper ([ON]).

The number of images per sheet ([PICS/SHEET]) is selectable only when [MULTI PRINT] is selected in Step 3.

If [STANDARD] is selected in Steps 4 and 5,

the image is printed at the printer’s standard settings.

SINGLE PRINT

for the current image. Press G to make the detailed printer settings for the current image.

To make the detailed printer settings

1 Use FGHI to select the setting, and

press the H button.

PRINT INFO

<x<x 11

DATE FILE NAME

4/30

ORM

FILE

100 0004100 0004

’10/02/26 12:30’10/02/26 12:30

PRINT MORE

WITHOUT WITHOUT

SETEXIT

BACK

SET

Submenu 5Submenu

Application

<×

0 to 10

This selects the number of prints.

DATE

WITH/ WITHOUT

Selecting [WITH] prints the images with the date. Selecting [WITHOUT] prints the images without the date.

FILE NAME

WITH/ WITHOUT

Selecting [WITH] prints the ﬁ le name on the image. Selecting [WITHOUT] does not print any ﬁ le name on the image.

(Proceeds to the setting screen.)

This selects a portion of the image for printing.

To crop an image [P]

1 Use the zoom buttons to select the size

of the cropping frame, use FGHI to move the frame, and then press the H button.

Cropping frame

2 Use FG to select [OK], and press the

H button.

SET

Press the H button.

PRINTPRINT

CANCEL

Use FG to select [PRINT], and

press the H button.



Printing starts. When [OPTION SET] is selected in [ALL PRINT]



mode, [PRINT INFO] screen is displayed. When printing is ﬁ nished, the [PRINT MODE



SELECT] screen is displayed.

PRINT MODE SELECT

PRINTPRINT

ALL PRINT MULTI PRINT ALL INDEX PRINT ORDER

To cancel printing

1 When [DO NOT REMOVE USB CABLE]

is displayed, press the m button, use FG to select [CANCEL], and then press the H button.

SETBACK

SETEXIT

CANCEL

If necessary, repeat Steps 6 and 7

to select the image to be printed, make the detailed settings, and set [SINGLE PRINT].

OKOK

SETBACK

DO NOT REMOVE USB CABLE

CANCEL

CONTINUE

CANCEL

SET

Press the m button.

When the message [REMOVE USB

CABLE] is displayed, disconnect the USB cable from the camera and printer.

Print Reservations (DPOF *1)

In print reservations, the number of prints and date imprint option are saved in the image on the card. This enables easy printing at a printer or print shop supporting DPOF by using only the print reservations on the card without a computer or a camera.

DPOF is a standard for storing automatic printout

information from digital cameras.

Print reservations can be set only for the

images stored on the card. Insert a card with recorded images before making print reservations.

DPOF reservations set by another DPOF

device cannot be changed by this camera. Make changes using the original device. Making new DPOF reservations with this camera will erase the reservations made by the other device.

DPOF print reservations can be made for up

to 999 images per card.

Single-frame print reservations [<]

Display the [SETUP] menu.

“Using the Menu” (p. 4)

From the playback menu q, select

[PRINT ORDER] and then press the H button.

PRINT ORDER

SETEXIT

Use FG to select [<], and press

the H button.

FILE

100 0004100 0004

’10/02/26

Use HI to select the image for

print reservation. Use FG to select the quantity. Press the H button.

NONO

DATE

TIME

Use FG to select the [X] (date

print) screen option, and press the H button.

Submenu 2 Application

NO This prints the image only. DATE

TIME

Use FG to select [SET], and press

This prints the image with the shooting date.

This prints the image with the shooting time.

PRINT ORDER

)

1( 1

SETSET

CANCEL

the H button.

SET

SETBACK

ORM

12:30’10/02/26 12:30

4/304/30

Reserving one print each of all images on the card [U]

Follow Steps 1 and 2 in [<] (p. 40).

Use FG to select [U], and press

the H button.

Follow Steps 5 and 6 in [<].

Resetting all print reservation data

Follow Steps 1 and 2 in [<] (p. 40).

Use FG to select either [<] or

[U], and press the H button.

PRINT ORDER SETTING

Resetting the print reservation data for selected images

PRINT ORDERED

RESET

RESET KEEP

Use FG to select [RESET], and

press the H button.

Follow Steps 1 and 2 in [<] (p. 40).

Use FG to select [<], and press

the H button.

Use FG to select [KEEP] and

press the H button.

Use HI to select the image with

the print reservation you want to cancel. Use FG to set the print quantity to “0”.

If necessary, repeat Step 4, and then

press the H button when ﬁ nished.

Use FG to select the [X] (date

print) screen option, and press the H button.

The settings are applied to the remaining images



with the print reservation data.

SETBACK

Use FG to select [SET], and press

the H button.

Usage Tips

If the camera does not work as intended, or if an error message is displayed on the screen, and you are unsure of what to do, refer to the information below to ﬁ x the problem(s).

Troubleshooting

Battery

“The camera does not work even when batteries are installed”.



Insert recharged batteries in the correct direction. “Inserting the battery and the SD/SDHC memory

card (sold separately)” (p. 10), “Charging the battery with the supplied USB-AC adapter” (p. 11)



Battery performance may have been reduced temporarily due to low temperature. Take the batteries out of the camera, and warm them by putting them in your pocket for a while.

Card/Internal memory

“An error message is displayed”.

“Error message” (p. 43)

Shutter button

“No picture is taken when the shutter button is pressed”.



Cancel sleep mode. To save battery power, the camera automatically goes into sleep mode and the monitor turns off if there is no operation for 3 minutes when the camera is turned on. No picture is taken even if the shutter button is fully pressed in this mode. Operate the zoom buttons or other buttons to restore the camera from sleep mode before taking a picture. If the camera is left for another 12 minutes, it automatically turns off. Press the n button to turn the camera on.



Press the q button to switch to the shooting mode.



Wait until #(ﬂ ash charge) stops blinking before taking pictures.

Monitor

“Difﬁ cult to see”.

Condensation*1 may have occurred. Turn off the



power, and wait for the camera body to become acclimated to the surrounding temperature and dry out before taking pictures.

Dew drops can form in the camera when it is

suddenly taken from a cold location into a warm, humid room.

“Vertical lines appear on the screen”.



This condition may occur when the camera is pointed at an extremely bright subject under a clear sky and so on. The lines do not appear, however, in the ﬁ nal image.

“The light is caught in the picture”.



Shooting with ﬂ ash in dark situations results in an image with many ﬂ ash reﬂ ections on dust in the air.

Date and time function

“Date and time settings return to the default setting”.



If the batteries are removed and left out of the camera for about a day settings return to the default setting, and must be reset.

The time until the date and time settings return

to the default setting varies depending on how long the batteries have been loaded.

“Setting the date, time and time zone” (p. 12)

, the date and time

Miscellaneous

“The camera makes a noise when taking pictures”.



The camera may activate the lens and make a noise even if no operation is performed. This is because the camera automatically performs actions of auto focus as far as it is ready to shoot.

Error message

When one of the messages below is

displayed on the monitor, check the corrective action.

Error message Corrective action

Card problem

CARD ERROR

WRITE

PROTECT

MEMORY FULL

CARD FULL

CARD SETUP

POWER OFFPOWER OFF

FORMAT

MEMORY SETUP

POWER OFFPOWER OFF MEMORY FORMAT

NO PICTURE


ERROR

Insert a new card.

Card problem

The card write-protect switch is set to the “LOCK” side. Release the switch.

Internal memory problem

•

Insert a card.

•

Erase unwanted images.

Card problem

•

Replace the card.

•

Erase unwanted images.

Card problem

Use FG to select [FORMAT], and press the H button. Next, use FG to select [YES], and

SET

press the H button.

Internal memory problem

Use FG to select [MEMORY FORMAT], and press the H button. Next, use FG to select [YES], and press the

SET

H button.

Internal memory/Card problem

Take pictures before viewing them.

Problem with selected image

Use photo retouch software, etc. to view the image on a computer. If the image still cannot be viewed, the image ﬁ le is corrupted.

Printer problem

NO INK

JAMMED

SETTINGS

CHANGED

PRINT ERROR

CANNOT PRINT

Before erasing important images, download them to

a computer.

All data will be erased.

This is displayed, for instance, when the printer’s

paper tray has been removed. Do not operate the printer while making the print settings on the camera.

This camera may be unable to print images taken by

other cameras.

Reﬁ ll the ink in the printer.

Printer problem

Remove the jammed paper.

Printer problem

Return to the status where the

printer can be used.

Printer problem

Turn off the camera and printer, check the printer for any problems, and then turn the power on again.

Problem with selected image

Use a computer to print.

THE IMAGE

CANNOT

BE EDITED

BATTERY

EMPTY

CONNECTION

NO PAPER

Problem with selected image

Use photo retouch software, etc. to edit the image on a computer.

Battery problem

Charge the battery.

Connection problem

Connect the camera and computer or printer correctly.

Printer problem

Load paper into the printer.

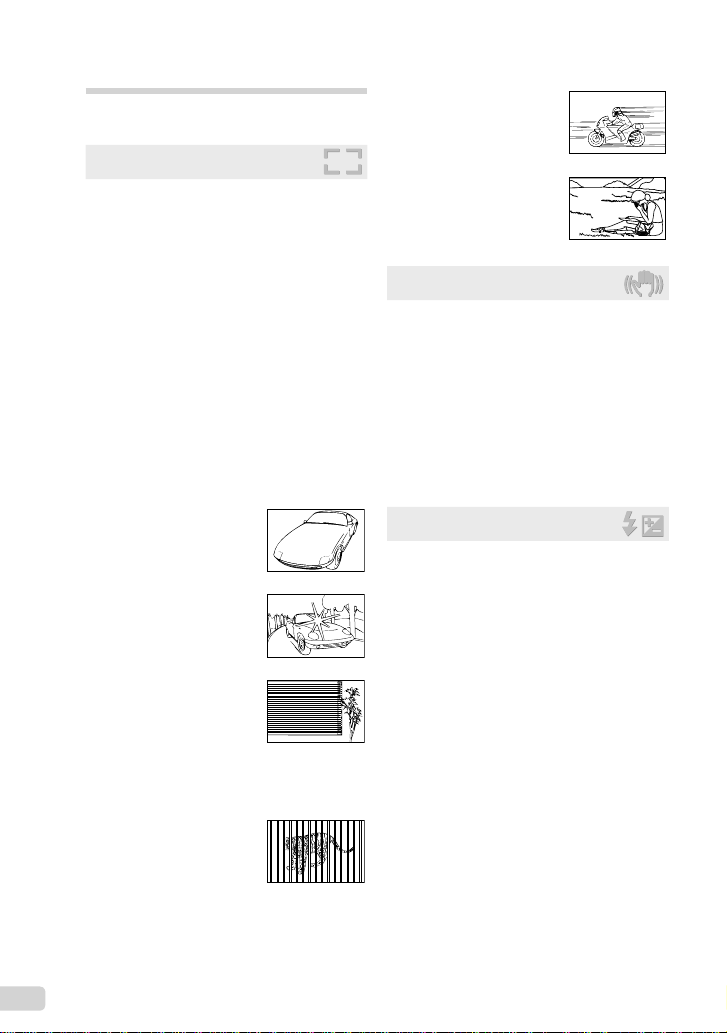

Shooting tips

When you are unsure of how to take a picture that you envision, refer to the information below.

Focusing

“Focusing on the subject”

Taking a picture of a subject not in the center of the screen

After focusing on an object at the same distance as the subject, compose the shot, and take the picture.

Pressing the shutter button halfway (p. 14)

Set [AF MODE] (p. 28) to [FACE/iESP] Taking a picture in [AF TRACKING] mode

(p. 28)

The camera tracks the subject movement automatically to focus on it continuously.

Taking a picture of subjects where autofocus is difﬁ cult

In the following cases, after focusing on an object (by pressing the shutter button halfway down) with high contrast at the same distance as the subject, compose the shot, and take the picture.

Subjects with low contrast



Fast-moving object

The subject is not in the center

of the frame

Camera shake

“Taking pictures without camera shake”

Taking pictures using N mode (p. 20)



Select C (SPORT) in s mode (p. 20)



The C (SPORT) mode uses a fast shutter speed and can reduce the blur incurred by a moving subject.

Taking pictures at a high ISO sensitivity



If a high ISO sensitivity is selected, pictures can be taken at a high shutter speed even at locations where a ﬂ ash cannot be used.

“Selecting the ISO sensitivity” (p. 25)

When extremely bright objects

appear in the center of the

Object with no vertical lines

It is also effective to compose the shot by holding the

camera vertically to focus, and then returning to the horizontal position to take the picture.

When objects are at different

screen

distances

Exposure (brightness)

“Taking pictures with the right brightness”

Taking pictures using [FILL IN] (p. 23) ﬂ ash



A subject against backlight is brightened.

Taking pictures using exposure compensation



(p. 24)

Adjust the brightness while viewing the screen for taking the picture. Normally, taking pictures of white subjects (such as snow) results in images that are darker than the actual subject. Use the exposure compensation to adjust in the positive (+) direction to express whites as they appear. When taking pictures of black subjects, on the other hand, it is effective to adjust in the negative (-) direction.

Color hue

“Taking pictures with colors at the same shade as they appear”

Taking pictures by selecting white balance (p. 25)

Best results in most environments can normally be obtained with the [WB AUTO] setting, but for some subjects, you should try experimenting with different settings. (This is especially true for sunshade under a clear sky, mixed natural and artiﬁ cial light settings, and so on.)

Image quality

“Taking sharper pictures”

Taking pictures with the optical zoom

Avoid using digital zoom (p. 16) to take pictures.

Taking pictures at a low ISO sensitivity

If the picture is taken with a high ISO sensitivity, noise (small colored spots and color unevenness that were not in the original image) can occur, and the image can appear grainy. The resulting image is grainier than with low ISO sensitivity as well.

“Selecting the ISO sensitivity” (p. 25)

Batteries

“Making batteries last longer”

Avoid any of the following operations when not actually taking pictures because they deplete the battery power

Repeatedly pressing the shutter button halfway

Repeatedly using the zoom

Set [POWER SAVE] (p. 36) to [ON]



Playback/Editing tips

Playback

“Playing images in the internal memory and card”

Remove the card when playing pictures in the internal memory

“Inserting the battery and the SD/SDHC memory card (sold separately)” (p. 10)

Editing



“Erasing the sound recorded to a still image”



Record over the sound with silence when playing back the image

“Adding sound to still images [R]” (p. 31)

Appendix

Camera care

Exterior

Wipe gently with a soft cloth. If the camera is

•

very dirty, soak the cloth in mild soapy water and wring well. Wipe the camera with the damp cloth and then dry it with a dry cloth. If you have used the camera at the beach, use a cloth soaked in clean water and wrung well.

Monitor

Wipe gently with a soft cloth.

• Lens

Blow dust off the lens with a commercial

•

blower, then wipe gently with a lens cleaner.

Battery/AC adapter

Wipe gently with a soft, dry cloth.

•

Do not use strong solvents such as benzene

or alcohol, or chemically treated cloth.

Mold may form on the lens surface if the

lens is left dirty.

Storage

•

When storing the camera for extended periods, remove the battery, AC adapter and card, and keep in a cool, dry place that is well ventilated.

•

Periodically insert the battery and test the camera functions.

Avoid leaving the camera in places where

chemical products are handled since this may result in corrosion.

Battery and AC adapter (included)

This camera uses one Olympus lithium ion

•

battery (LI-80B). No other type of batteries can be used.

Caution:

There is a risk of explosion if the battery is replaced with the incorrect battery type. Dispose of the used battery following the instructions. (p. 52)

•

Power consumption by the camera varies depending on which functions are used.

•

During the conditions described below, power is consumed continuously and the battery becomes exhausted quickly.

•

The zoom is used repeatedly.

•

The shutter button is pressed halfway repeatedly in shooting mode, activating the auto focus.

•

A picture is displayed on the monitor for an extended period of time.

•

The camera is connected to a computer or printer.

•

Using an exhausted battery may cause the camera to turn off without displaying the battery level warning.

•

The rechargeable battery is not fully charged at the time of purchase. Before use, charge the battery fully with the supplied F-2AC USB-AC adapter (hereafter referred to as AC adapter).

•

When the included AC adapter is used, charging usually takes approximately 4 hours (varies on usage).

•

The included AC adapter has been designed to be used only for charging. Make sure that operations such as shooting, viewing images and so on are not being used while the AC adapter is connected to the camera.

•

The included AC adapter is designed to be used only with this camera. Other cameras cannot be charged with this AC adapter. Do not use with other devices.

•

For plug-in type AC adapter: The included AC adapter is intended to be correctly orientated in a vertical or ﬂ oor mount position.

Using your AC adapter abroad

The AC adapter can be used in most home electrical sources within the range of 100 V to 240 V AC (50/60Hz) around the world. However, depending on the country or area you are in, the AC wall outlet may be shaped differently and the AC adapter may require a plug adapter to match the wall outlet. For details, ask at your local electrical shop or travel agent. Do not use travel voltage converters as they could damage your AC adapter.

•

Using an SD/SDHC memory card

A card (and internal memory) also corresponds to the ﬁ lm that records images in a ﬁ lm camera. Otherwise, the recorded images (data) can be erased, and retouching is also available with the use of a computer. Cards can be removed from the camera and exchanged, but this is not possible with the internal memory. Use of larger capacity cards enables you to take more pictures.

SD/SDHC card write-protect switch

The SD/SDHC card body has a write-protect switch. If you set the switch to the “LOCK” side, you will not be able to write to the card, delete data or format. Release the switch to enable writing.

LOCK

Cards compatible with this camera

SD/SDHC memory cards (for more information, visit the Olympus website)

Using a new card

Cards must be formatted with this camera before ﬁ rst use or after being used with other cameras or computers. [MEMORY FORMAT]/[FORMAT] (p. 32)

Checking the image saving location

The memory indicator shows whether the internal memory or card is being used during shooting and playback.

Current memory indicator

v: Internal memory is being used w: Card is being used

Current memory

indicator

Playback mode

Shooting mode

0.00.0

AUTOWBAUTO

ISO

AUTO

Even if [MEMORY FORMAT]/[FORMAT],

[ERASE], [SEL. IMAGE], or [ALL ERASE] is performed, the data in the card is not completely erased. When disposing of the card, damage the card to prevent the disclosure of personal data.

’10/02/26 12:30’10/02/26 12:30

4/30

Readout/recording process of the card

During shooting, the current memory indicator lights in red while the camera is writing data. Never open the battery/card compartment cover or unplug the USB cable. This can not only damage the image data but also render the internal memory or card unusable.

Lights in red

0.00.0

AUTOWBAUTO

ISO

AUTO

Number of storable pictures (still images)/Continuous recording length (movies) in the internal memory and SD/SDHC memory cards

The ﬁ gures for the number of storable still pictures and continuous recording length are approximate.

The actual capacity varies with shooting conditions and the card used.

Still images

IMAGE SIZE COMPRES SION

5 3968×2976

4 3264×2448

n 2560×1920

3 2048×1536

2 1600×1200

1 1280×960

7 640×480

0 1920×1080

L M L M L M L M L M L M L M L M

With sound Without sound With sound Without sound

Number of storable still pictures

Internal memory SD/SDHC memory card (1 GB)

1 1 142 143 2 2 279 283 1 1 208 210 3 3 405 413 2 2 333 339 6 6 636 657 5 5 535 544

10 11 1,043 1,080

8 9 864 889 17 19 1,636 1,780 13 14 1,315 1,375 26 30 2,421 2,752 48 61 4,325 5,505 85 113 7,570 10,094

8 8 796 828 16 17 1,552 1,636

Movies

IMAGE SIZE FRAME RATE

8 640×480

9 320×240

The maximum ﬁ le size of a single movie is 2 GB, regardless of the capacity of the card.

Increasing the number of pictures that can be taken

Either erase unwanted images, or connect the camera to a computer or other device to save the images, and then erase the images in the internal memory or card. [ERASE] (p. 18, 30), [SEL. IMAGE] (p. 30), [ALL ERASE] (p. 30), [MEMORY FORMAT]/[FORMAT] (p. 32)

N O N O

With sound Without sound With sound Without sound

5 sec. 5 sec. 8 min. 31 sec. 8 min. 36 sec. 11 sec. 11 sec. 16 min. 52 sec. 17 min. 13 sec. 15 sec. 16 sec. 23 min. 25 sec. 24 min. 7 sec. 30 sec. 32 sec. 45 min. 31 sec. 48 min. 14 sec.

Continuous recording length

Internal memory SD/SDHC memory card (1 GB)

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRICAL

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED OLYMPUS

SERVICE PERSONNEL.

An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the

DANGER If the product is used without observing

WARNING If the product is used without observing the

CAUTION If the product is used without observing the

WARNING! TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

General Precautions

Read All Instructions — Before you use the

product, read all operating instructions. Save all manuals and documentation for future reference.

Cleaning — Always unplug this product from the

wall outlet before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product.

Attachments — For your safety, and to avoid

damaging the product, use only accessories recommended by Olympus.

Water and Moisture — For precautions on

products with weatherproof designs, read the weatherprooﬁ ng sections.

Location — To avoid damage to the product, mount

the product securely on a stable tripod, stand, or bracket.

Power Source — Connect this product only to the

power source described on the product label.

Lightning — If a lightning storm occurs while using

an AC adapter, remove it from the wall outlet immediately.

Foreign Objects — To avoid personal injury, never

insert a metal object into the product.

Heat — Never use or store this product near any

heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo ampliﬁ ers.

documentation provided with the product.

the information given under this symbol, serious injury or death may result.

information given under this symbol, injury or death may result.

information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result.

Handling the Camera

WARNING

Do not use the camera near ﬂ ammable or

• explosive gases. Do not use the ﬂ ash and LED on people

• (infants, small children, etc.) at close range.

You must be at least 1 m (3 ft.) away from the

•

faces of your subjects. Firing the ﬂ ash too close to the subject’s eyes could cause a momentary loss of vision.

Keep young children and infants away from

• the camera.

Always use and store the camera out of the

•

reach of young children and infants to prevent the following dangerous situations which could cause serious injury:

Becoming entangled in the camera strap,

•

causing strangulation. Accidentally swallowing the battery, cards or

•

other small parts. Accidentally ﬁ ring the ﬂ ash into their own eyes

•

or those of another child. Accidentally being injured by the moving parts

•

of the camera.

Do not look at the sun or strong lights with the

• camera. Do not use or store the camera in dusty or

• humid places. Do not cover the ﬂ ash with a hand while ﬁ ring.

• Use SD/SDHC memory cards only. Never use

• other types of cards.

If you accidently insert another type of card into the camera, contact an authorized distributor or service center. Do not try to remove the card by force.

CAUTION

•

Stop using the camera immediately if you notice any unusual odors, noise, or smoke around it.

•

Never remove the batteries with bare hands, which may cause a ﬁ re or burn your hands.

•

Never hold or operate the camera with wet hands.

•

Do not leave the camera in places where it may be subject to extremely high temperatures.

•

Doing so may cause parts to deteriorate and, in some circumstances, cause the camera to catch ﬁ re. Do not use the AC adapter if it is covered (such as a blanket). This could cause overheating, resulting in ﬁ re.

Handle the camera with care to avoid getting a low-temperature burn.

When the camera contains metal parts, overheating can result in a low-temperature burn. Pay attention to the following:

When used for a long period, the camera will get hot. If you hold on to the camera in this state, a low-temperature burn may be caused. In places subject to extremely cold temperatures, the temperature of the camera’s body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures.

Be careful with the strap.

Be careful with the strap when you carry the camera. It could easily catch on strPay objects and cause serious damage.

Battery Handling Precautions

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns.

•

DANGER

•

The camera uses a lithium ion battery speciﬁ ed by Olympus. Charge the battery with the speciﬁ ed AC adapter. Do not use any other AC adapters.

•

Never heat or incinerate batteries.

•

Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc.

•

Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc.

•

To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, solder, etc.

•

If battery ﬂ uid gets into your eyes, ﬂ ush your eyes immediately with clear, cold running water and seek medical attention immediately.

•

Always store batteries out of the reach of small children. If a child accidentally swallows a battery, seek medical attention immediately.

WARNING

•

Keep batteries dry at all times.

•

To prevent batteries from leaking, overheating, or causing a ﬁ re or explosion, use only batteries recommended for use with this product.

•

Insert the battery carefully as described in the operating instructions.

•

If rechargeable batteries have not been recharged within the speciﬁ ed time, stop charging them and do not use them.

•

Do not use a battery if it is cracked or broken.

If a battery leaks, becomes discolored or

•

deformed, or becomes abnormal in any other way during operation, stop using the camera. If a battery leaks ﬂ uid onto your clothing or skin,

•

remove the clothing and ﬂ ush the affected area with clean, running cold water immediately. If the ﬂ uid burns your skin, seek medical attention immediately. Never subject batteries to strong shocks or

•

continuous vibration.

CAUTION

•

Before loading, always inspect the battery carefully for leaks, discoloration, warping, or any other abnormality.

•

The battery may become hot during prolonged use. To avoid minor burns, do not remove it immediately after using the camera.

•

Always unload the battery from the camera before storing the camera for a long period.

Caution for Usage Environment

To protect the high-precision technology contained

•

in this product, never leave the camera in the places listed below, no matter if in use or storage:

Places where temperatures and/or humidity

•

are high or go through extreme changes. Direct sunlight, beaches, locked cars, or near other heat sources (stove, radiator, etc.) or humidiﬁ ers. In sandy or dusty environments.

•

Near ﬂ ammable items or explosives.

•

In wet places, such as bathrooms or in the rain.

•

When using products with weatherproof designs, read their manuals as well. In places prone to strong vibrations.

•

Never drop the camera or subject it to severe

•

shocks or vibrations. When mounted on a tripod, adjust the position of

•

the camera with the tripod head. Do not twist the camera. Do not touch electric contacts on cameras.

•

Do not leave the camera pointed directly at the

•

sun. This may cause lens or shutter curtain damage, color failure, ghosting on the CCD, or may possibly cause ﬁ res. Do not push or pull severely on the lens.

•

Before storing the camera for a long period,

•

remove the batteries. Select a cool, dry location for storage to prevent condensation or mold from forming inside the camera. After storage, test the camera by turning it on and pressing the shutter button to make sure that it is operating normally. Always observe the operating environment

•

restrictions described in the camera’s manual.

Battery Handling Precautions

This camera uses a lithium ion battery speciﬁ ed by Olympus. Do not use any other type of battery. If the battery’s terminals get wet or greasy, camera contact failure may result. Wipe the battery well with a dry cloth before use. Always charge a battery when using it for the ﬁ rst time, or if it has not been used for a long period. When operating the camera with battery power at low temperatures, try to keep the camera and spare battery as warm as possible. A battery that has run down at low temperatures may be restored after it is warmed at room temperature. The number of pictures you can take may vary depending on the shooting conditions or battery. Please recycle batteries to help save our planet’s resources. When you throw away dead batteries, be sure to cover their terminals and always observe local laws and regulations.

LCD Monitor

Do not push the monitor forcibly; otherwise the image may become vague, resulting in a playback mode failure or damage to the monitor. A strip of light may appear on the top/bottom of the monitor, but this is not a malfunction. When a subject is viewed diagonally in the camera, the edges may appear zigzagged on the monitor. This is not a malfunction; it will be less noticeable in playback mode. In places subject to low temperatures, the LCD monitor may take a long time to turn on or its color may change temporarily. When using the camera in extremely cold places, it is a good idea to occasionally place it in a warm place. An LCD monitor exhibiting poor performance due to low temperatures will recover in normal temperatures. The LCD used for the monitor is made with high-precision technology. However, black spots or bright spots of light may appear constantly on the LCD Monitor. Due to its characteristics or the angle at which you are viewing the monitor, the spot may not be uniform in color and brightness. This is not a malfunction.

Legal and Other Notices

Olympus makes no representations or warranties regarding any damages, or beneﬁ t expected by using this unit lawfully, or any request from a third person, which are caused by the inappropriate use of this product. Olympus makes no representations or warranties regarding any damages or any beneﬁ t expected by using this unit lawfully which are caused by erasing picture data.

•

Disclaimer of Warranty

Olympus makes no representations or warranties, either expressed or implied, by or concerning any content of these written materials or software, and in no event shall be liable for any implied warranty of merchantability or ﬁ tness for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business proﬁ ts, business interruption and loss of business information) arising from the use or inability to use these written materials or software or equipment. Some countries do not allow the exclusion or limitation of liability for consequential or incidental damages or of the implied warranty, so the above limitations may not apply to you. Olympus reserves all rights to this manual.

Warning

Unauthorized photographing or use of copyrighted material may violate applicable copyright laws. Olympus assumes no responsibility for unauthorized photographing, use or other acts that infringe upon the rights of copyright owners.

All rights reserved. No part of these written materials or this software may be reproduced or used in any form or by any means, electronic or mechanical, including photocopying and recording or the use of any type of information storage and retrieval system, without the prior written permission of Olympus. No liability is assumed with respect to the use of the information contained in these written materials or software, or for damages resulting from the use of the information contained therein. Olympus reserves the right to alter the features and contents of this publication or software without obligation or advance notice.

•

FCC Notice

Radio and Television Interference Changes or modiﬁ cations not expressly approved by the manufacturer may void the user’s authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Adjust or relocate the receiving antenna. Increase the distance between the camera and receiver. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. Consult your dealer or an experienced radio/TV technician for help. Only the OLYMPUS-supplied USB cable should be used to connect the camera to USB enabled personal computers (PC).

Any unauthorized changes or modiﬁ cations to this equipment would void the user’s authority to operate it.

Use Only Dedicated Rechargeable Battery and AC adapter

We strongly recommend that you use only the genuine Olympus dedicated rechargeable battery and AC adapter with this camera. Using a non-Olympus rechargeable battery and/or AC adapter may result in ﬁ re or personal injury due to leakage, heating, ignition or damage to the battery. Olympus does not assume any liability for accidents or damage that may result from the use of a battery and/or AC adapter that are not genuine Olympus accessories.

•

Representative plug of power supply cord of countries/regions around the world

A Type

(American Type)

The representative supply voltage and plug type are described in this chart. Depending on the area, different types of plugs and supply voltages are used.

Attention: Power cord meeting demands from each country shall be used.

- For only the United States Use a UL Listed, 1.5 - 4.5 m (5 - 15 ft), Type SPT-2 or NISPT-2, AWG no. 18 power supply cord, rated for 125 V 7 A, with a non-polarized NEMA 1-15P plug rated for 125 V 15 A”.

Europe Countries/Regions Voltage Austria 230 50 C Belgium 230 50 C Czech Denmark 230 50 C Finland 230 50 C France 230 50 C Germany 230 50 C Greece 220 50 C Hungary 220 50 C Iceland 230 50 C Ireland 230 50 C/BF Italy 220 50 C Luxemburg 230 50 C Netherlands 230 50 C Norway 230 50 C Poland 220 50 C Portugal 230 50 C Romania 220 50 C Russia 220 50 C Slovak 220 50 C Spain 127/230 50 C Sweden 230 50 C Switzerland 230 50 C UK 240 50 BF

Asia Countries/Regions Voltage China 220 50 A Hong Kong 200/220 50 BF India 230/240 50 C Indonesia 127/230 50 C Japan 100 50/60 A Korea (rep) 220 60 C Malaysia 240 50 BF Philippines 220/230 60 A/C Singapore 230 50 BF Taiwan 110 60 A Thailand 220 50 C/BF Vietnam 220 50 A/C

Oceania Countries/Regions Voltage Australia 240 50 O New Zealand 230/240 50 O

B Type

(British Type)

Frequency (Hz)

220 50 C

Frequency (Hz)

BF Type

(British Type)

Plug type

B3 Type

C Type

(CEE Type)

North America Countries/Regions Voltage Canada 120 60 A USA 120 60 A

Central America Countries/Regions Voltage Bahamas 120/240 60 A Costa Rica 110 60 A Cuba 110/220 60 A/C Dominican (rep) 110 60 A El Salvador 110 60 A Guatemala 120 60 A Honduras 110 60 A Jamaica 110 50 A Mexico 120/127 60 A Nicaragua 120/240 60 A Panama 110/220 60 A

South America Countries/Regions Voltage Argentina 220 50 C/BF/O Brazil 127/220 60 A/C Chile 220 50 C Colombia 120 60 A Peru 220 60 A/C Venezuela 120 60 A

Middle East Countries/Regions Voltage Iran 220 50 C/BF Iraq 220 50 C/BF Israel 230 50 C Saudi Arabia 127/220 50 A/C/BF Turkey 220 50 C UAE 240 50 C/BF

Africa Countries/Regions Voltage Algeria 127/220 50 C Congo (dem) 220 50 C Egypt 220 50 C Ethiopia 220 50 C Kenya 240 50 C/BF Nigeria 230 50 C/BF South Africa 220/230 50 C/BF Tanzania 230 50 C/BF Tunisia 220 50 C

SE Type

(CEE Type)

Frequency (Hz)

O Type

(Oceania Type)

Plug type

For customers in North and South America

For customers in USA

Declaration of Conformity Model Number : T-100/X-36 Trade Name : OLYMPUS Responsible Party :

Address : 3500 Corporate

Parkway, P.O. Box 610, Center Valley, PA 18034-0610, U.S.A.

Telephone Number : 484-896-5000 Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference. (2) This device must accept any interference

received, including interference that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian InterferenceCausing Equipment Regulations.

OLYMPUS WORLDWIDE LIMITED WARRANTY - IMAGING PRODUCTS

Olympus warrants that the enclosed Olympus® imaging product(s) and related Olympus® accessories (individually a “Product” and collectively the “Products”) will be free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of purchase. If any Product proves to be defective within the one-year warranty period, the customer must return the defective Product to any of Olympus Service Centers, following the procedure set forth below (See “WHAT TO DO WHEN SERVICE IS NEEDED”). Olympus, at its sole discretion, will repair, replace, or adjust the defective Product, provided that Olympus investigation and factory inspection disclose that (a) such defect developed under normal and proper use and (b) the Product is covered under this limited warranty. Repair, replacement, or adjustment of defective Products shall be Olympus’s sole obligation and the customer’s sole remedy hereunder. The customer is liable and shall pay for shipment of the Products to the Olympus Service Center. Olympus shall not be obligated to perform

preventive maintenance, installation, deinstallation, or maintenance. Olympus reserves the right to (i) use reconditioned, refurbished, and/or serviceable used parts (that meet Olympus’s quality assurance standards) for warranty or any other repairs and (ii) make any internal or external design and/or feature changes on or to its products without any liability to incorporate such changes on or to the Products.

WHAT IS NOT COVERED BY THIS LIMITED WARRANTY

Excluded from this limited warranty and not warranted by Olympus in any fashion, either express, implied, or by statute, are:

(a)

products and accessories not manufactured by Olympus and/or not bearing the “OLYMPUS” brand label (the warranty coverage for products and accessories of other manufacturers, which may be distributed by Olympus, is the responsibility of the manufacturers of such products and accessories in accordance with the terms and duration of such manufacturers’ warranties);

(b)

any Product which has been disassembled, repaired, tampered with, altered, changed, or modiﬁ ed by persons other than Olympus’s own authorized service personnel unless repair by others is made with the written consent of Olympus;

from wear, tear, misuse, abuse, negligence, sand, liquids, impact, improper storage, nonperformance of scheduled operator and maintenance items, battery leakage, use of non“OLYMPUS” brand accessories, consumables, or supplies, or use of the Products in combination

with non-compatible devices; (d) software programs; (e) supplies and consumables (including but not

limited to lamps, ink, paper, ﬁ lm, prints, negatives,

cables and batteries); and/or (f) Products which do not contain a validly placed

and recorded Olympus serial number, unless they

are a model on which Olympus does not place

and record serial numbers.

EXCEPT FOR THE LIMITED WARRANTY SET FORTH ABOVE, OLYMPUS MAKES NO AND DISCLAIMS ALL OTHER REPRESENTATIONS, GUARANTIES, CONDITIONS, AND WARRANTIES CONCERNING THE PRODUCTS, WHETHER DIRECT OR INDIRECT, EXPRESS OR IMPLIED, OR ARISING UNDER ANY STATUTE, ORDINANCE, COMMERCIAL USAGE OR OTHERWISE, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OR REPRESENTATION AS TO THE SUITABILITY, DURABILITY, DESIGN, OPERATION, OR

CONDITON OF THE PRODUCTS (OR ANY PART THEREOF) OR THE MERCHANTABILITY OF THE PRODUCTS OR THEIR FITNESS FOR A PARTICULAR PURPOSE, OR RELATING TO THE INFRINGEMENT OF ANY PATENT, COPYRIGHT, OR OTHER PROPRIETARY RIGHT USED OR INCLUDED THEREIN. IF ANY IMPLIED WARRANTIES APPLY AS A MATTER OF LAW, THEY ARE LIMITED IN DURATION TO THE LENGTH OF THIS LIMITED WARRANTY. SOME STATES MAY NOT RECOGNIZE A DISCLAIMER OR LIMITATION OF WARRANTIES AND/OR LIMITATION OF LIABILITY SO THE ABOVE DISCLAIMERS AND EXCLUSIONS MAY NOT APPLY. THE CUSTOMER MAY ALSO HAVE DIFFERENT AND/OR ADDITIONAL RIGHTS AND REMEDIES THAT VARY FROM STATE TO STATE. THE CUSTOMER ACKNOWLEDGES AND AGREES THAT OLYMPUS SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES THAT THE CUSTOMER MAY INCUR FROM DELAYED SHIPMENT, PRODUCT FAILURE, PRODUCT DESIGN, SELECTION, OR PRODUCTION, IMAGE OR DATA LOSS OR IMPAIRMENT OR FROM ANY OTHER CAUSE, WHETHER LIABILITY IS ASSERTED IN CONTRACT, TORT (INCLUDING NEGLIGENCE AND STRICT PRODUCT LIABILITY) OR OTHERWISE. IN NO EVENT SHALL OLYMPUS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY KIND (INCLUDING WITHOUT LIMITATION LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR DAMAGE.

Representations and warranties made by any person, including but not limited to dealers, representatives, salespersons, or agents of Olympus, which are inconsistent or in conﬂ ict with or in addition to the terms of this limited warranty, shall not be binding upon Olympus unless reduced to writing and approved by an expressly authorized ofﬁ cer of Olympus. This limited warranty is the complete and exclusive statement of warranty which Olympus agrees to provide with respect to the Products and it shall supersede all prior and contemporaneous oral or written agreements, understandings, proposals, and communications pertaining to the subject matter hereof. This limited warranty is exclusively for the beneﬁ t of the original customer and cannot be transferred or assigned.

WHAT TO DO WHEN SERVICE IS NEEDED

The customer must transfer any image or other data saved on a Product to another image or data storage medium and/or remove any ﬁ lm from the Product prior to sending the Product to Olympus for service.

IN NO EVENT SHALL OLYMPUS BE RESPONSIBLE FOR SAVING, KEEPING OR MAINTAINING ANY IMAGE OR DATA SAVED ON A PRODUCT RECEIVED BY IT FOR SERVICE, OR ON ANY FILM CONTAINED WITHIN A PRODUCT RECEIVED BY IT FOR SERVICE, NOR SHALL OLYMPUS BE RESPONSIBLE FOR ANY DAMAGES IN THE EVENT ANY IMAGE OR DATA IS LOST OR IMPAIRED WHILE SERVICE IS BEING PERFORMED (INCLUDING, WITHOUT LIMITATION, DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR IMPAIRMENT.

Package the Product carefully using ample padding material to prevent damage in transit and either deliver it to the Authorized Olympus Dealer that sold you the Product or ship it postage prepaid and insured to any of our Olympus Service Centers. When returning Products for service, your package should include the following:

1 Sales receipt showing date and place of

purchase.

2 Copy of this limited warranty bearing the

Product serial number corresponding to the serial number on the Product (unless it is a

model on which Olympus does not place and record serial numbers).

3 A detailed description of the problem. 4 Sample prints, negatives, digital prints (or ﬁ les on

disk) if available and related to the problem.

When service is completed, the Product will be returned to you postage prepaid.

WHERE TO SEND PRODUCT FOR SERVICE

See “WORLDWIDE WARRANTY” for the nearest service center.

INTERNATIONAL WARRANTY SERVICE

International warranty service is available under this warranty.

For customers in Europe

“CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. “CE” mark cameras are intended for sales in Europe.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product.

This symbol [crossed-out wheeled bin Directive 2006/66/EC Annex II] indicates separate collection of waste batteries in the EU countries. Please do not throw the batteries into the domestic refuse. Please use the return and collection systems available in your country for the disposal of the waste batteries.

Provisions of warranty

1 If this product proves to be defective, although it

has been used properly (in accordance with the written Handling Care and Operating instructions supplied with it), during the applicable national warranty period and has been purchased from an authorized Olympus distributor within the business area of Olympus Europa Holding GmbH as stipulated on the website: http://www.olympus. com this product will be repaired, or at Olympus’s option replaced, free of charge. To claim under this warranty the customer must take the product before the end of the applicable national warranty period to the dealer where the product was purchased or any other Olympus service station within the business area of Olympus Europa Holding GmbH as stipulated on the website: http://www.olympus.com. During the one year period of the World Wide Guarantee the customer may turn the product in at any Olympus service station. Please notice that not in all countries such Olympus service station exists.

2 The customer shall transport the product to the

dealer or Olympus authorized service station at his own risk and shall be responsible for any costs incurred in transporting the product.

Provisions of Guarantee

1 “OLYMPUS IMAGING CORP., Shinjuku

Monolith, 2-3-1 Nishi-Shinjuku, Shinjuku-ku, Tokyo 163-0914, Japan grants a one year World Wide Guarantee. This worldwide Guarantee must be presented at an Olympus authorized repair service station before any repair can be made under conditions of this Guarantee. This Guarantee is valid only if the Guarantee Certiﬁ cate and proof of purchase are presented at the Olympus repair service station. Please note that this Guarantee is in addition to and does not

affect the customer’s legal warranty rights under

the applicable national legislation governing the

sale of consumer goods mentioned above. 2 This Guarantee does not cover the following

and the customer will be required to pay repair

charge, even for defects occurring within the

Guarantee period referred to above.

Any defect that occurs due to mishandling

(such as an operation performed that is not mentioned in the Handling Care or other sections of the instructions, etc.) Any defect that occurs due to repair,

modiﬁ cation, cleaning, etc. performed by anyone other than Olympus or an Olympus authorized service station. Any defect or damage that occurs due to

transport, a fall, shock, etc. after purchase of the product. Any defect or damage that occurs due to ﬁ re,

earthquake, ﬂ ood damage, thunderbolt, other natural disasters, environmental pollution and irregular voltage sources. Any defect that occurs due to careless or

improper storage (such as keeping the product under conditions of high temperature and humidity, near insect repellents such as naphthalene or harmful drugs, etc.), improper maintenance, etc. Any defect that occurs due to exhausted

batteries, etc. Any defect that occurs due to sand, mud, etc.

entering the inside of the product casing. When the Guarantee Certiﬁ cate is not

returned with the product. When any alterations whatsoever are made to

the Guarantee Certiﬁ cate regarding the year, month and date of purchase, the customer’s name, the dealer’s name, and the serial number. When proof of purchase is not presented with

this Guarantee Certiﬁ cate.

3 This Guarantee applies to the product only; the

Guarantee does not apply to any other accessory

equipment, such as the case, strap, lens cap and

batteries. 4 Olympus’s sole liability under this Guarantee shall

be limited to repairing or replacing the product.

Any liability under the Guarantee for indirect

or consequential loss or damage of any kind

incurred or suffered by the customer due to a

defect of the product, and in particular any loss

or damage caused to any lenses, ﬁ lms, other

equipment or accessories used with the product

or for any loss resulting from a delay in repair or

loss of data, is excluded. Compelling regulations

by law remain unaffected by this.

Notes regarding Guarantee maintenance

1 This Guarantee will only be valid if the Guarantee

Certiﬁ cate is duly completed by Olympus or an authorized dealer or other documents contain sufﬁ cient proof. Therefore, please make sure that your name, the name of the dealer, the serial number and the year, month and date of purchase are all completed or the original invoice or the sales receipt (indicating the dealer’s name, the date of purchase and product type) is attached to this Guarantee Certiﬁ cate. Olympus reserves the right to refuse free-of-charge service if neither Guarantee Certiﬁ cate is completed nor the above document is attached or if the information contained in it is incomplete or illegible.

2 Since this Guarantee Certiﬁ cate will not be re-

issued, keep it in a safe place.

* Please refer to the list on the web site: http://

www.olympus.com for the authorized international Olympus service network.

Trademarks

IBM is a registered trademark of International Business Machines Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. Macintosh is a trademark of Apple Inc. SDHC logo is a trademark. All other company and product names are registered trademarks and/or trademarks of their respective owners. The standards for camera ﬁ le systems referred to in this manual are the “Design rule for Camera File system/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

•

SPECIFICATIONS

Camera

Product type : Digital camera (for shooting and displaying) Recording system

Still pictures : Digital recording, JPEG (in accordance with Design rule for Camera File

system (DCF))

Applicable standards : Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching III,

PictBridge

Sound with still pictures : Wave format Movie : AVI Motion JPEG

Memory : Internal memory

SD memory card SDHC memory card

No. of effective pixels : 12,000,000 pixels Image pickup device : 1/2.33” CCD (primary color ﬁ lter), 12,200,000 pixels (gross) Lens : Olympus lens 6.3 to 18.9 mm, f3.1 to 5.9

(equivalent to 36 to 108 mm on a 35 mm camera)

Photometric system : Digital ESP metering system Shutter speed : 4 to 1/2000 sec. Shooting range : 0.6 m (2.0 ft.) to

(W), 1.0 m (3.3 ft.) to (T) (normal)

0.2 m (0.5 ft.) to (W), 0.6 m (2.0 ft.) to (T) (macro mode)

0.05 m (0.13 ft.) to (super macro mode)

Monitor : 2.4” TFT color LCD display, 112,320 dots Connector : Multi-connector (USB connector, A/V OUT jack) Automatic calendar system : 2000 up to 2099 Operating environment

Temperature : 0 °C to 40 °C (32 °F to 104 °F) (operation)/

-20 °C to 60 °C (-4 °F to 140 °F) (storage)

Humidity : 30 % to 90 % (operation)/10 % to 90 % (storage) Power supply : One Olympus lithium ion battery (LI-80B) Dimensions : 93.0 mm (W) × 60.0 mm (H) × 23.3 mm (D)

(3.7 × 2.4 × 0.9 in.) (excluding protrusions)

Weight : 174.2 g (6.1 oz) (including battery and card)

Lithium ion battery (LI-80B)

Product type : Lithium ion rechargeable battery Standard voltage : DC 3.7 V Standard capacity : 650 mAh Battery life : Approx. 300 full charges (varies on usage) Operating environment

Temperature : 0°C to 40°C (32°F to 104°F) (charging)/

-10°C to 60°C (14°F to 140°F) (operation)/

-20°C to 35°C (-4°F to 95°F) (storage)

Dimensions : 31.3 mm (W) × 43.8 mm (H) × 6.9 mm (D) (1.2 × 1.7 × 0.3 in.) Weight : Approx. 18 g (0.6 oz)

USB-AC adapter (F-2AC)

Model No. : F-2AC-1A/F-2AC-2A/F-2AC-1B/F-2AC-2B Power requirements : AC 100 to 240 V (50/60 Hz) Output : DC 5 V, 500 mA Charging time : Approx. 4 hours Operating environment

Temperature : 0 °C to 40 °C (32 °F to 104 °F) (operation)/

-20 °C to 60 °C (-4 °F to 140 °F) (storage)

Dimensions : 50.0 mm (W) × 54.0 mm (H) × 22.0 mm (D) (2.0 × 2.1 × 0.9 in.) Weight : Approx. 46 g (1.6 oz) (F-2AC-1A)/Approx. 42 g (1.5 oz) (F-2AC-2A)/

Approx. 44 g (1.6 oz) (F-2AC-1B)/Approx. 40 g (1.4 oz) (F-2AC-2B)

Design and speciﬁ cations subject to change without notice.

VN702802

Olympus X-36 Instruction Manual

Specifications and Main Features
