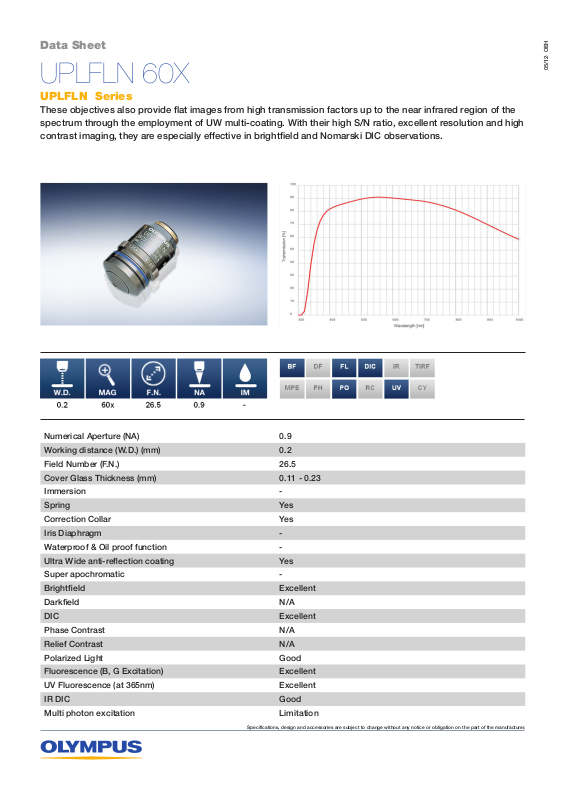

Data Sheet
UPLFLN 60X
UPLFLN Series
These objectives also provide at images from high transmission factors up to the near infrared region of the
spectrum through the employment of UW multi-coating. With their high S/N ratio, excellent resolution and high
contrast imaging, they are especially effective in brighteld and Nomarski DIC observations.
No image available!
Please contact your local Olympus sales
representative for this transmission curve.
05/12· OEH
Numerical Aperture (NA) 0.9
Working distance (W.D.) (mm) 0.2
Field Number (F.N.) 26.5
Cover Glass Thickness (mm) 0.11 - 0.23
Immersion -
Spring Yes
Correction Collar Yes
Iris Diaphragm -
Waterproof & Oil proof function -
Ultra Wide anti-reection coating Yes
Super apochromatic -
Brighteld Excellent
Darkeld N/A
DIC Excellent
Phase Contrast N/A
Relief Contrast N/A
Polarized Light Good
Fluorescence (B, G Excitation) Excellent
UV Fluorescence (at 365nm) Excellent
IR DIC Good
Multi photon excitation Limitation
Specifications, design and accessories are subject to change without any notice or obligation on the part of the manufacturer.
Data Sheet
UPLFLN 60X
UPLFLN Series
05/12· OEH
Specifications, design and accessories are subject to change without any notice or obligation on the part of the manufacturer.
