Olympus NY-SP800 User Manual

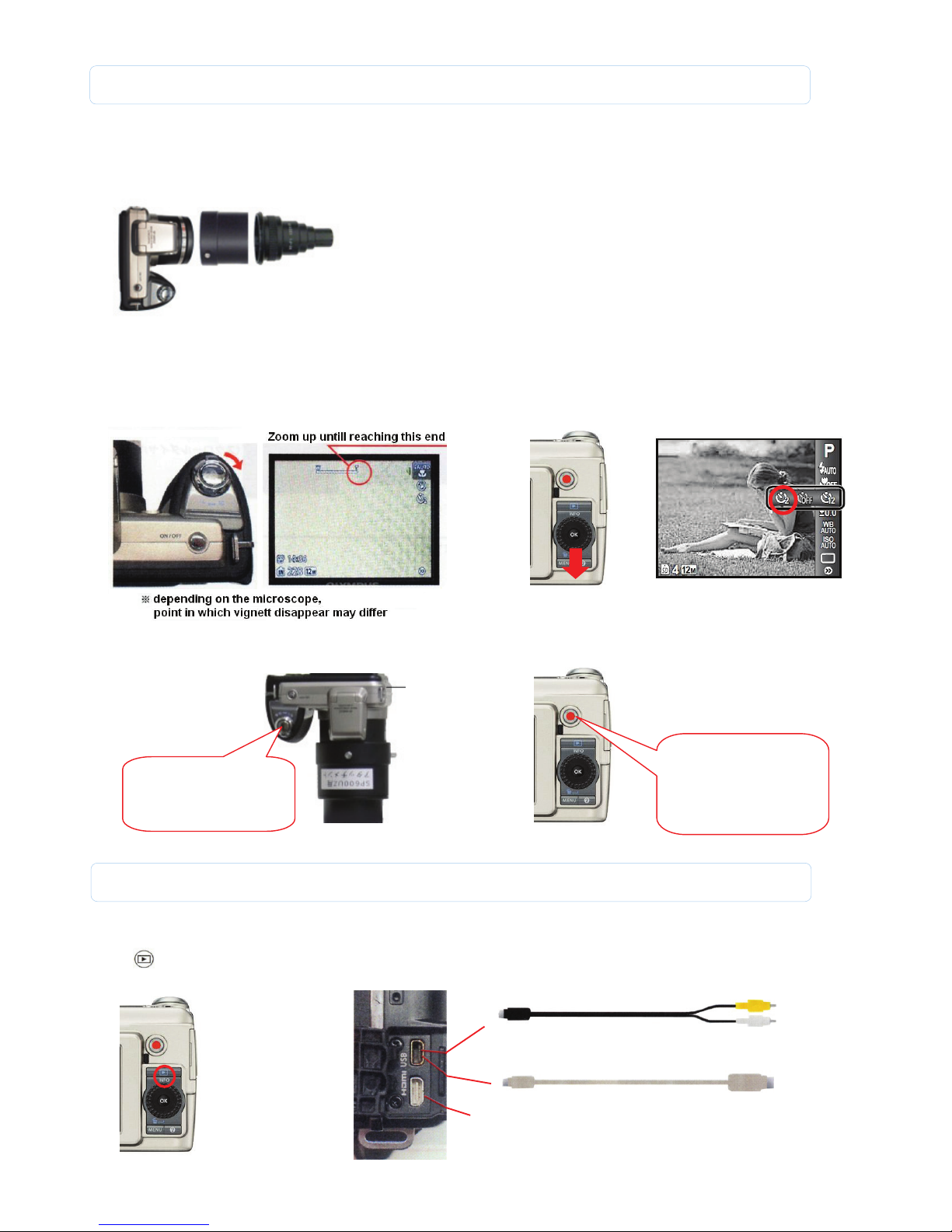

＊First, remove lens cap as shown below.. ＊ Next

★

Installation to microscope is next page

■ φ30ｍｍ conversion ring,

Insert adapter all the way down the ring.

It should be fit tight.

■ C-mount adapter,

First, screw C-mount adapter into microscope’s C-mount.

Second, insert main unit (with φ30mm conversion ring)

into C-mount adapter and secure with screw on the side.

Main Unit

Built-in

Relay lens.

SP800 attachment

C-mount

adapter

Connect to

C-mount

Conversion

Ring

Fit with

eyepieceφ30m

SP800 Attachment

BODY

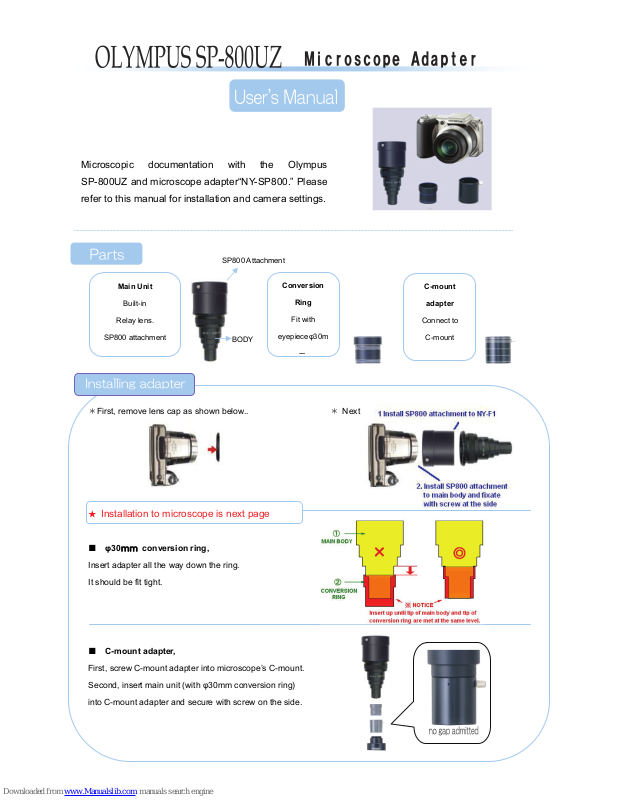

Microscopic documentation with the Olympus

SP-800UZ and microscope adapter“NY-SP800.” Please

refer to this manual for installation and camera settings.

JIS phototube

JIS standard of outer diameter φ25mm, and inner diameter

Φ23.2mm. Old models of Olympus microscope usually

employed this standard. It requires fixation sleeve

[NY-JIS (option)] to secure adapter to microscope

*Able to connect without NY-JIS, however the image may come out blurry.

Installing to Eyepiece

Insert adapter to eyepiece tube. (remove eyepiece first).

If tube’s inside diameter is φ30mm, first install conversion ring to main unit,

then slide it into eyepiece. If tube’s inside diameter is φ23.2mm, insert the main unit

directly to eyepiece. * Adapter would start rotate when diopter adjusting ring is attached to

eyepiece. In such case, please insert the adapter after turning diopter adjusting ring to either end.

Nikon F phototube

Insert only main unit to Nikon F phototube. Recent Nikon trinocular microscope is usually

equipped with V-T phototube for F-phototube. In old model, Optiphot, Biophot, SMZ-2T

trinocular are applicable. If microscope is equipped with 35mm camera or Polaroid

system, it is usually same as old model.

※SMZ-10 require optional sleeve. ※Adapter would start rotate when diopter adjusting ring is attached to

eyepiece. In such case, please insert the adapter after turning diopter adjusting ring to either end.

C-mount

C-mount usually is for installing CCD camera which has become trendy

nowadays. C-mount has male screw of outer diameter 25.4mm. First, install

C-mount adapter into microscope’s C-mount. Second, insert main unit (with

φ30mm conversion ring) into C-mount adapter and secure with screw on the side..

*only direct (1.0x) C-mount is compatible. C-mount with lens inside should not be used.

Olympus PT phototube

PT phototube has outer diameter of φ38mm with curving thread

at the top. U-SPT, SZ-PT phototubes are these standards.

When 35mm camera or Polaroid systems are already installed,

it is usually PT phototube. It requires fixation sleeve [NY-BH

(option)] to secure adapter to microscope
