User Manual
MX 43
Analog and Digital
Controller
Part Number: NPM43GB
Revision: H.1
The Fixed Gas Detection Experts
Table of contents
II
Copyright 2013 by Oldham S.A.S.
All rights reserved. The reproduction of all or any section of this document in
any form whatsoever without the written permission of Oldham S.A.S. is
forbidden.
The information contained in this manual is accurate to our knowledge.
As a result of continuous research and development, the specifications of this
product may be modified at any time without prior notice.
Oldham S.A.S.
Rue Orfila
Z.I. Est – CS 20417
62027 ARRAS Cedex
Tel.: +33 (0)3 21 60 80 80
Fax: +33 (0)3 21 60 80 00
E-mail: info@oldhamgas.com
Website: http://www.oldhamgas .c om
Table of Contents
iii
Table of contents
Chapter 1 │General Information ..................................................... 1
User Manual ................................................................................................ 1
Symbols used .............................................................................................. 1
Safety Instructions ....................................................................................... 2
Important Information .................................................................................. 2
Liability Limits .............................................................................................. 2
Chapter 2 │General Introduction .................................................... 3
Purpose of the MX 43 controller .................................................................. 3
The MX 43 Controller .................................................................................. 5
The COM 43 Application .............................................................................. 5
Chapter 3 │Mechanical Installation ................................................ 7
MX 43 Controller .......................................................................................... 7
Digital Modules ............................................................................................ 9
Chapter 4 │ The MX 43 Controller ................................................ 11
Overview of the Unit .................................................................................. 11
Front Plate ................................................................................................. 15
Alarm and Relay Thresholds ..................................................................... 18
Firmplate ................................................................................................... 20
USB Key Operation ................................................................................... 20
Chapter 5 │Digital Modules .......................................................... 23
Addressable Digital Modules ..................................................................... 23
RS485 Transmission ................................................................................. 24
Configuration of Communication ................................................................ 24
Relay modules ........................................................................................... 26
16-Logic Input Module ................................ ............................................... 28
8-Analog Input Module............................................................................... 29
4-Analog Output Module ............................................................................ 31
iv
MX 43
User Manual
Chapter 6 │Wiring and Electrical Connections ............................ 33
Controller Connection ................................................................................ 33
4- or 8-Relay Modules ............................................................................... 38
16-Logic Input Module ................................ ............................................... 38
8-Analog Input Module............................................................................... 39
4-Analog Output Module ............................................................................ 40
Chapter 7 │Menus ......................................................................... 41
General Menu Tree ................................................................ ................... 41
Navigation Key Functions .......................................................................... 41
Display in normal mode ............................................................................. 42
Main Menu ................................................................................................. 43
1. System .................................................................................................. 44
2. Program ................................................................................................. 45
3. Calibration ............................................................................................. 45
4. Maintenance .......................................................................................... 48
5. Information ............................................................................................ 49
6. USB Key ................................................................................................ 52
Chapter 8 │Main Part Numbers .................................................... 55
Chapter 9 │Certificate of Compliance .......................................... 57
Chapter 10 │Technical Specifications ........................................... 63
MX 43 Controller ........................................................................................ 63
Relay Module............................................................................................. 65
16-Logic Input Module ................................ ............................................... 66
8-Analog Input Module............................................................................... 66
4-Analog Output Module ............................................................................ 67
Chapter 11 | RS485 Digital Output .................................................. 69
Card description ........................................................................................ 69
Transfer Table ........................................................................................... 70
Address Table ........................................................................................... 71
1 – General Introduction
1
Icon
Significance
This symbol indicates useful additional information.
This symbol indicates:
This equipment must be connected to ground.
This symbol denotes:
Protective earth terminal. A cable of the adequate diameter must
be connected to ground and to the terminal having this symbol.
This symbol denotes:
Attention! In the present mode of use, failure to adhere to the
instructions preceded by this symbol can result in a risk of
electric shock and/or death.
This symbol indicates:
You must refer to the instructions.
Chapter 1 │General Information
User Manual
The instructions given in this manual must be read thoroughly before
installation and start-up, particularly those concerning the points related to the
safety of the end-user. This user manual must be made available to every
person involved in the activation, use, maintenance, and repair of the unit.
The information, technical data, and diagrams contained in this manual are
based on the information that is available at a given time. In case of doubt,
contact Oldham for additional information.
The aim of this manual is to supply simple and accurate information to the
user. Oldham cannot be held liable for any misinterpretations in the reading of
this manual. In spite of our efforts to produce an error-free manual, it may
nonetheless contain some unintentional technical inaccuracies.
In the client’s interest, Oldham reserves the right to modify the technical
characteristics of its equipment to increase their performance without prior
notice.
The present instructions and their content are the inalienable property of
Oldham.
Symbols used
2
MX 43
User Manual
European Union (and EEA) only. This symbol indicates that this
product must not be discarded with household waste, as per the
EEA directive (2002/96/EC ) and your own national regulations.
This product must be disposed of at a collection point that is
reserved for this purpose, for example, an official site for the
collection of electrical and electronic equipment (EEE) in view of
their recycling, or a point of exchange for authorized products that
is accessible when you acquire a new product of the same type.
Any deviation as regards these recommendations for the disposal
of this type of waste can have negative effects on the environment
and public health, as these electric and electronic products
generally contain substances that can be dangerous. Your f ull
cooperation in the proper disposal of this product promotes a
better use of natural resources.
The installation and electrical connections must be carried out by
qualified personnel according to the instructions of the manufacturer
and the standards of the competent authorities.
Failure to adhere to the instructions can have serious consequences
on the safety of persons. Please be extremely rigorous as regards
electricity and assembly (coupling, network connections).
Safety Instructions
Labels intended to remind you of the principal precautions of use have been
placed on the unit in the form of pictograms. These labels are considered an
integral part of the unit. If a label falls off or becomes illegible, please ensure it
is replaced. The significance of the labels is detailed below.
Important Information
The modification of the material and the use of parts of an unspecified origin
shall entail the cancellation of any form of warranty.
The use of the unit has been projected for the applications specified in the
technical characteristics. Exceeding the indicated values cannot in any case
be authorized.
Liability Limits
Neither Oldham nor any other associated company under any circumstances
can be held liable for any damage, including, without limitations, damages for
loss or interruption of manufacture, loss of information, defect of the MX 43
controller, injuries, loss of time, financial or material loss, or any direct or
indirect consequence of loss occurring in the context of the use or
impossibility of use of the product, even in the event that Oldham has been
informed of such damage.
1 – General Introduction
3
Wall-mounted MX 43
Rack-mounted MX 43
8-relay modules and 4 4-20
mA output modules
Chapter 2 │General Introduction
Purpose of the MX 43 controller
This controller is intended for the continuous measurement and control of the
gases present in the atmosphere.
Figure 1: Wall-mounted MX 43 and examples of the modules.
The system primarily comprises:
■ a wall-mounted MX 43 (4 or 8 lines) or rack-mounted MX 43 (8 lines);
■ different modules (detector with digital or analog output, logic inputs,
analog inputs, relay outputs, and analog outputs).
The MX 43 instantly handles the measurements of detectors and input
modules. As soon as the measurements reach the programmed limit, a sound
and visual alarm are given. At the same time, the corresponding relay or
relays are activated, in turn controlling the additional internal or external
actions envisaged by the user.
The MX 43 controller is programmed by using the COM 43 application.
Figure 2 presents a configuration example.
4
MX 43
User Manual
MX 43
Configuring PC with the
COM 43 application
Analog
detectors
Digital detectors
2 logic
inputs
Analog recorders
Module
4 * 4-20 mA outputs
Module 8 relays
Module
logic input
Module 4 relays
16 logic
inputs
8 analog
inputs
External
power supply
USB
link
Figure 2: Example of an MX 43 configuration using different analog and digital detectors
as well as digital modules.
2 – General Introduction 5
Maximum number of
Versions
Modules (1)
Detectors
External
relays
Logic in puts
Analog
ouputs
4 lines 16
16 8 16
16
8 lines 32
32
24
32
32
The MX 43 Controller
Versions
The MX 43 controller is available in 3 versions:
■ Wall-mounted version 4 lines.
■ Wall-mounted version 8 lines.
■ Rack-mounted version 8 lines.
Figure 3: Wall-mounted version MX 43 (left illustration) or rack- mounted version (right
illustration).
The following table details the different configurations that are possible,
depending on the type of unit. On each line, it is possible to connect a 4-20mA
analog detector or one, or several, digitally addressable modules.
(1) Gas detectors, 4 or 8-analog output modules, and 16-logic input modules.
Table 1: Summary of the maximum capacity as per the controller type.
The COM 43 Application
This is intended for setting the MX 43 parameters from a Windows®-operated
PC. The operation and use of this application is covered in a special training
course.
6
MX 43
User Manual
3 - Mechanical Installation
7
Chapter 3 │Mechanical Installation
This chapter details the mechanical installation of MX 43 and the digital
modules.
MX 43 Controller
Location
The MX 43 shall be installed in premises without explosive atmospheres,
away from direct exposure to sunlight, and protected from humidity, dust, and
temperature variations. It shall preferably be located in a monitored
environment (guardhouse, control room, or instrument room, for example).
Attachment of the wall enclosure
Access to the controller must be ensured in the front in order to facilitate
adjustments, monitoring, and cabling. A space of 400 mm is necessary in front
of the MX 43 for opening the door.
(*) rear fixing legs included.
Figure 4: Size of the wall-mounted version.
8
MX 43
User Manual
Use 2 fixing screws 4x25 mm for fixing the case support.
Figure 5: Fixing of the wall- mounted version MX 43 with a support plate.
Setting-up of a 19” Rack – 4 U
Access to the unit must be ensured in order to facilitate adjustments and
monitoring, and likewise in the back in order to allow easy access to the
different connectors at the rear.
This rack is built into a bay or a standard 19” cabinet. You should leave ½ U
(22 mm) of space above and below the rack so as to assure the proper
ventilation of the MX 43.
Figure 6: Size of the rack-mounted version.
3 – Mechanical installation 9
The cabling is the subject of the paragraph Wiring and Electrical
Connections on page 33.
Refer to the manual supplied with each detector.
These modules shall be mounted on
a DIN rail in a c abinet or in an
electrical cabinet.
For relay modules connected to low
voltage electrical parts, the
installation is carried out according to
the standards in force.
Figure 7: Fixing of a module (relay, logic
outputs, or analog outputs or inputs) on a
DIN rail.
Digital Modules
Gas detectors
Location
Each detector shall be positioned at ground level, on the ceiling, at the height
of the respiratory tract, or near air extraction ducts, depending on the density
of the gas to be detected or applied. Heavy gases are detected close to the
ground, while lighter gases are present along the ceiling. If necessary, contact
Oldham for any questions regarding proper detector positioning.
Fixing
The detectors shall preferably be positioned in an accessible place so that
inspections and maintenance can be carried out as well as to ensure the
absolute safety of the operators. The detectors must not be obstructed by
anything that will prevent them from measuring the ambient environment to be
checked.
If mounting an OLCT 10N on a vertical surface, position the cable gland
downwards.
Other models
Location
The relay modules, logic outputs, analog outputs, and analog inputs are
positioned depending on the installation layout, mandatorily in places free
from explosive atmospheres, protected from humidity, dust, and temperature
variations; for example in technical cabinets.
Fixing
10
MX 43
User Manual
4 – The MX 43 Controller
11
Rep. Function
Rep. Function
A. Monochromatic, back-lit graphic
LCD display
H. Failure/maintenance indicator
B. Zone 1 status indicator
J. Contextual soft keys
C. Zone 2 status indicator
K. Alarm release key
D. Integrated siren (option)
L. Free identification of zones
E. Integrated flash (optional)
M. Strip for locating zones
F. Lock
N. Handle
G. Start/Stop indicator
Chapter 4 │ The MX 43 Controller
Overview of the Unit
External view
Figure 8: External view of the wall-mounted and rack-mounted versions.
12
MX 43
User Manual
Rep.
Function
A.
LED digital communication status indicators. The information displayed by each red-green
diode pair of a line is interpreted as follows:
LED Status
Significance
Red
Green
Fast blinking
Fast blinking
Normal functioning of the line
- Tx communication request
- Rx: response of digital module(s).
Irregular
blinking
Irregular
blinking
Bad communication quality with at least one module.
Blinks 1X/sec
Off Communication failure. Absence or failure of line
modules. A communication failure is signaled by the
activation of the internal buzzer, the presence of the
orange failure indicator and via the default relay.
Off Off No digital module active on the line.
B.
Optional 24 VDX NiMH battery pack.
Internal view
Figure 9: Internal view of the wall-mounted version (top) and rack- mounted version
(bottom).
4 – The MX 43 Controller
13
Rep.
Function
C.
Terminal block for the analog card power supply.
D.
Connector for the direct current external supply.
E.
Battery fuse (4A) and external power supply (21 to 28 VDC, 3.2 to 4 A max.).
F.
Connector for
- Internal siren 24 VDC – 19mA max. Sounder+ and Sounder- terminals
- Internal flash 24 VDC – 40 mA max. Flash+ and Flash-terminals
G.
Relays of alarms, from high to low Failure, R5, R4, R3, R2, R1.
- Failure: Non-configurable failure relay
- R1 to R5: Configurable alarm relays
- Corresponding LED indicator: Lit when relay is under voltage.
Configuration of Alarm Thresholds
The alarm thresholds for relays R1 to R5 can only be configured using the COM 43
software. The silkscreen image displays relays off line.
Relays R1 to R5 can be configured in either positive or negative security mode. COM 43
programming in:
- Normal mode: Operation of the relay as per the normal alarm management (the relay is
released only if the event exceeds the duration of the time delay).
- Buzzer mode: The same as in normal operation, with, in addition, the possibility of
releasing the buzzer relay even if the event is still present. The time delays are:
. Duration of maintenance: Minimum time of activation, adjustable from 0 to 900
seconds.
. Automatic release: Time adjustable between 15 and 900 seconds, beyond which the
buzzer relay is automatically released.
. Reactivation: Time adjustable between 15 and 900 seconds, beyond which the buzzer
relay is reactivated.
Alarm Relay Controls
- Logic equations of up to 4 levels of parentheses by the logic operators OR, AND, NOR,
NAND. The result of the equation controls the relay.
- Polling Operations (x over y): There must be at least “x” events over the total of “y” to
activate the relay. Optionally, the user may define whether a failure is considered an
event in the same category as an alarm.
H.
Alarm relay terminal block. CRT contacts, 250 V AC – 2A or 30 V DC – 2 A.
J.
Integrated siren (optional).
K.
Power supply sector block.
L.
Integrated flash (optional).
M.
Microcontroller PCB.
N.
Area of 12 + 6 cable glands (connections towards the exterior).
P.
Ground rod and bundle of shielded cables for digital and analog connections.
Q.
Terminal block for lines 1 to 8 (or 1 to 4 as per version). Refer to the Digital lines
paragraph on page 35.
R.
Connector for the connection of a remote release (dry contact NO.)
S.
Power supply sector input.
T.
Protective secondary ground connection.
U.
USB programming port.
V.
Programming switch.
14
MX 43
User Manual
Rep.
Function
W.
CR2032 lithium battery.
X.
RS485 Digital Output Module. See Chapter 11.
Rep. Function
A. USB key connector.
B. LCD graphic display card.
C.
USB programming port.
D. Programming (or mode) selector.
0. MX 43 in normal operation.
1. Transferring configuration from a PC to the MX 43.
2. Transferring configuration from a USB key to the MX 43.
3. Updating the MX 43 internal software via PC.
4. Updating the MX 43 internal software via USB key.
Once the unit configuration or update is complete, always set the selector in
the "0" position.
Microprocessor card view
Figure 10: internal view, wall-mounted and rack-mounted versions – microprocessor cards
and display.
4 – The MX 43 Controller
15
E. CR2032 lithium battery. Safeguards the preservation of the records and real time clock
in case of total power failure. Autonomy of approx. 450 days with the power off. At each
battery change, power the MX 43.
F. Microcontroller PCB.
G. Regulating LCD contrast.
H. Microcontroller zero reset button. Press this button to reset the controller.
J.
Optional USB key. Allows you to save MX 43 input (measurements, alarms, etc.) or to
transfer files from the USB key to the MX 43 (transferring configuration or updates to
the MX 43's onboard software). In order to avoid data loss, Oldham recommends using
keys offered through its own commercial services. A 4Go key can record approximately
18 months of information from an MX 43 comprised of 32 detectors with a sampling
frequency of 2 seconds and up to 100 events per day and per detector.
K.
USB collection module.
Front Plate
This has the following aspect:
Figure 11: Front plate of the MX 43 in wall-mounted and rack-mounted versions.
LCD
The display shows the measurements or the menus of the parameter setting,
and an inverse video display indicates that the module that is currently
displayed has an active alarm.
The details of the displays are the subject of the chapter Menus, on page 41.
Figure 12: Example of a measurement display (screen) or parameter setting display (menu
on the left).
Refer to the paragraph Display in normal mode on page 42 for information
about what may be displayed on the screen.
16
MX 43
User Manual
Each bar represents a geographic area of the complete installation
and not the 4 or 8 lines of the MX 43.
Icon Function
Orange indicator of high-range excess (OVS: overscale, high-range excess). This
value is adjustable up to 110% of the range.
- Off: The measurement is lower than the OVS value programmed.
- Lit: The measurement is higher than the OVS value programmed. The alarm
relays are activated in accordance with the program. In parallel, the display
indicates « > ».
OVS resetting is done manually and is only possible if the value measured drops
below the programmed value.
Management of “Clear doubt”
The Clear doubt alarm is only applicable to the detection of explosive gases in a
range of 0-100%LEL, and is subject to the decision of the operator. Upon the
detection of a concentration of gas higher than 100% LEL, the LCD indicates a
measurement blocked at 100% LEL and the message > 100% LEL. The message
Strong concentaration. Resetting by an authorized person in the maintenance
menu is displayed. The OVS and FAILURE indicators are activated. The alarm can
only be deactivated by stopping the detector via the maintenance menu once the
gas level decreases below this limit.
ALARM 3
ALARM 2
ALARM 1
Red indicators of alarm status:
- Off: Measurement lower than the threshold defined.
- Solid light: at least one of the gas detectors is in alarm mode. Acknowledgment
is programmed in automatic mode or has already been requested through use of
the Alarm reset button on the front panel.
- Flashing light: at least one of the gas detectors is in alarm mode. Acknowledg-
ment is programmed in manual mode.
The alarm relays will be activated in accordance with the programming.
Orange indicator of low- range excess (UDS: Under scale, low-range excess). This
value is adjustable from 0-10% of the range.
- Off: The measurement is higher than the UDS value programmed.
- Lit: The measurement is lower than the UDS value programmed. The alarms of
the relays are activated in accordance with the programming. In parallel, the
display indicates « < ».
UDS resetting is automatic once the failure disappears.
FAULT
Orange failure indicator
- Off: No failing module or detector.
- Fixed light: Communication problem with one of the modules or invalid detector
measurement, that is to say either below -10% of the range or above 110% of
Contextual Keys (B)
The function of each of the 5 keys indicated in the lower part of the display
changes depending on the page displayed.
Zone Status Indicators (C)
Eight bars of 7 indicators each are displayed on the controller.
The 4 bars to the right are not operative on a 4-line MX 43.
Each bar displays the status of the group of detectors of the pertinent zone as
follows:
4 – The MX 43 Controller
17
Icon Function
the range.
- Blinking light: Controller in maintenance mode (test, calibration).
The Failure reset is automatic once the failure disappears.
POWER
Green start/stop indicator for the detectors/modules of the zone.
- Off: All the detectors of the zone are stopped.
- Fixed light: At least one of the detectors of the zone is working.
- Blinking: The information details of one of the detectors/modules of the zone are
actually displayed on the LCD screen.
Icon Function
Green general start/stop indicator denoting the power supply status
- Fixed: Correct power supply.
- Off: No power supply.
- Blinking: Power supply problem (absence of power in the sector or problems in the
internal battery pack.
Failure/maintenance orange indicator
- Off: No failure detected.
- Fixed light: Presence of some failure (controller, detector, communication, memory).
The alarm goes off automatically once the failure is cleared.
- Blinking light: MX 43 in maintenance mode (test, calibration).
Flash and siren (D and E)
Siren (D)
Located in the upper portion of the box, the siren is optionally available solely
in the wall-mounted version. It is always discontinuous and is configured via
the COM 43 application.
Flash (E)
Located in the upper portion of the box, the flash is optionally available solely
in the wall-mounted version. It is configured via the COM 43 application.
Status indicators (F and G)
These two indicators reflect the status of the MX 43.
Alarm reset Key (H)
Pressing this key has the effect of releasing the internal buzzer and the
alarms that it enables. This key has the same function as the remote release
key that may be connected; see paragraph on the Remote Acknowledgement
connector on page 37.
Zone Identification (J and K)
Pull the tab to write in the zone labels.
18
MX 43
User Manual
Figure 13: Pulling the tab.
Alarm and Relay Thresholds
Alarm thresholds, relay programming, the management of time delays, and
methods of release are controlled over the COM 43 application.
Note: It is possible to modify an alarm limit via the Programming menu of MX
43.
Parameters of Detector alarms
It is possible to program the following for each detector:
■ 3 alarm thresholds.
■ Each value is configurable in increasing or decreasing values.
■ Each alarm is configurable as an instantaneous and/or average alarm of
15 to 480 minutes.
■ Each alarm has an adjustable lag of 0 to +3% (or -3% for a negative alarm)
for the value of the range of measurement, by pitch steps of 1%.
■ A high-range excess alarm (OVS: over scale).
■ A UDS low-range excess alarm (UDS: underscale).
■ A “clear doubt” alarm (in the case of explosive gas detectors).
The alarms may be programmed for automatic or manual release (except
OVS, UDS, and clear doubt).
Automatic deletion of alarms
The release (resetting) of alarms does not require any intervention. The
management of alarms (relays, indicators, buzzer) is carried out according to
the following table:
4 – The MX 43 Controller
19
Event
Message
screen
Alarm relay
(normal)
Alarm Relay
(buzzer)
LED alarm
Internal
buzzer
Appearance
AL (1,2,3)
and inverse
video of the
detector
Activated
Activated
Fixed light:
Activated
Press alarm
reset
AL (1,2,3)
and inverse
video of the
detector
Activated
Deactivated
Fixed light:
Deactivated
Disappearan
ce
Normal
display
Deactivated
Deactivated
Off: (a)
Event
Message
screen
Alarm relay
(normal)
Alarm relay
(buzzer)
LED alarm
Internal
buzzer
Appearance
AL(1,2,3)
and inverse
video of
detector
Activated
Activated
Blinking light
Activated
Release
activated
AL(1,2,3)
and inverse
video of the
detector
Activated in
the presence
of an event
Deactivated
Fixed light if
an event is
present
Deactivated
AL(1,2,3)
and inverse
video of the
detector
Deactivated
if the event
disappears
Deactivated
Off if an
event
disapears
Disappearan
ce
Normal
display
Deactivated
(1)
Deactivated
Off (1)
Deactivated
(1)
(a): Manual release compulsory to stop the internal buzzer.
(b): Automatic deactivation upon alarm disappearance, even if no release has been requested
before the alarm disappearance.
(c): If programmed
Table 2: Automatic deletion of alarms.
Manual deletion of alarms
Release (resetting) by the operator is compulsory. The management of alarms
(relay, indicator, buzzer) is carried out according to the following table:
(1): compulsory after manual release.
Table 3: Manual alarm deletion.
Internal relays and buzzers
The operating mode of relays and optional visual and sound alarms (Figure
11, F and G) is configured over the COM 43 application.
■ Relays: 5 alarm relays (R1 to R5) are common to all the lines.
■ The internal buzzer is common to all the alarms of all the lines: it is
activated on the appearance of an event (failure or alarm). The common
failure relay is active in parallel. The sound frequency of the internal buzzer
differs in accordance with the alarm threshold. High alarm thresholds have
20
MX 43
User Manual
The files found on the USB key must not be modified. For
example, if a "firmware", "data" or "events" file is modified on a
computer it will no longer appear on the MX 43 when the key is
read. Only files labeled "configxxxxx" can be modified for ease of
recognition. When changing a file name, the name can contain no
more than 19 characters and no spaces. Only the letters A(a) to
Z(z), the numbers 0 to 9 and special characters $ % ‘ - _ @ ~ ` ! ( )
{ } ^ # & may be used. If other characters are added, the MX 43
will not be able to read the file.
a faster sound frequency, thus making it possible to distinguish the alarm
level. The internal buzzer can be deactivated by the internal programming
menu or the COM 43 application.
Note: The failure relay cannot be programmed via the COM 43 application,
but is activated on the occurence of a failure.
Firmplate
The firmplate is attached on the right side of the MX 43. It contains the
following information:
■ Function and type of equipment.
■ Precautions of use.
■ Alternative voltage supply, frequency, rating of protective fuse, nominal
power.
■ Continuous voltage supply, frequency, rating of protective fuse, nominal
power.
■ Symbol of destruction and danger.
■ Product reference and serial number, manufacturer logo.
■ Version: 4 or 8 lines.
USB Key Operation
Transferring configuration to the MX 43
A copy of the MX 43 configuration is automatically saved on the USB key
(Figure 10, ref. A) when it is plugged in. The configuration file contains all of
the input needed to completely configure the MX 43. It can be copied and
transferred to another MX 43 for identical configuration if needed. Follow the
steps below
■ Set the programming selector (Figure 10, ref. D) to 2.
■ Press the Reset button (Figure 10, ref. H).
■ After restarting the MX 43, the screen will show the configuration files
present on the USB key.
■ Select the file to be transferred from the USB key and press Upload.
■ When the confirmation message appears, press Enter to confirm the
transfer. Pressing on Escape will exit the screen without transferring the
configuration.
4 – The MX 43 Controller
21
■ The Programming in progress message will appear, followed by Transfer
successful. Position the programming selector (Figure 10, rep. D) to 0. The
MX 43 will then restart using the new uploaded configuration file.
Transferring internal software to the MX 43
A copy of the internal software is automatically saved on the key (Figure 10,
ref. A) when it is plugged in. The internal software file contains the application
which permits MX 43 operation. To upload the file to the MX 43. Follow the
steps below:
■ Set the programming selector (Figure 10, ref. D) to 4.
■ Press the Reset button (Figure 10, ref. H).
■ After restarting the MX 43, the screen will show the application versions
present on the USB key.
■ Select the file to be transferred from the USB key and press Upload.
■ When the confirmation message appears, press Enter to confirm the
transfer. Pressing on Escape will exit the screen without modifying the
application.
■ The Programming in progress message will appear, followed by Program
updated successfully and Transfer successful. Position the programming
selector (Figure 10, ref. D) to 0. The MX 43 will then restart using the new
uploaded application.
Using the MX 43 input files on a PC
Ejecting the USB key
Never remove the USB without following the procedure below: You could lose
all of the data on the USB key, and your files will not be transferred. Follow
the steps below:
■ On the home screen, select Menu > 6 USB key. Enter the password, select
1. Configuration >Saving and select Stop. Press Enter.
■ The message Do not remove the USB key will be displayed. Wait for the
menu to appear before removing the key.
Using the data (data files)
■ On a computer, open a .csv file data in Excel
are separated by commas (see the following example).
■ Click on column A and then from the menu bar, select Data > Convert.
Click on Delimiter > Next > Separator– Comma > Next > Data format –
Standard > Finish.
TM
and convert the data that
■ The first 10 lines of the table contain information about the MX 43.
■ Lines Detector name to Last sensor replacement contain information about
the configuration of the first sensor. The following blocks contain
information about each of the individual sensors connected to the MX 43.
■ Further down, there is a table grouped together. Each line contains data
pertaining to the sensors connected to the MX 43. The data are:
- Table headings: name of the line, type of gas, unit of measurement.
22
MX 43
User Manual
- On every line of the table: timestamp and average values for the
timestamp indicated. The time increment is determined by the defined
sampling frequency. See Sampling Rate on page 52.
Figure 14: excerpt of a data file.
Using data (events file)
■ On a computer, open the .csv file events in Excel
TM
and convert the data
that is separated by commas (see the following example).
■ Click on column A and then from the menu bar, select Data > Convert.
Click on Delimiter > Next > Separator– Comma > Next > Data format –
Standard > Finish. Maximize column A.
■ The first 10 lines of the table contain information about the MX 43.
■ Lines Detector name to Last sensor replacement contain information about
the configuration of the first sensor. The following blocks contain
information about each of the individual sensors connected to the MX 43.
■ Further down, there is a table grouped together. Each line contains data
pertaining to the sensors connected to the MX 43. The data are:
- Table headings (Name of detector, Alarm, Type of alarm, Time, Date).
- For each line of the table, the corresponding event is listed.
Figure 15: excerpt of the events file.
5 – Digital Modules
23
The details of module connection are given on page 33.
Digital modules are configured via the COM 43 application.
Type of module
Illustration
Page
Digital gas detector (OLCT 10N, OLCT 80, iTrans 2).
-
Output module, 4 relays with 2 additional logic inputs
26
Output module, 8 relays with 2 additional logic inputs
26
Module with 8 analog inputs
29
Module with 16 logic inputs
28
Module with 4 analog 4-20mA outputs and 2 additional logic
inputs
30
Chapter 5 │Digital Modules

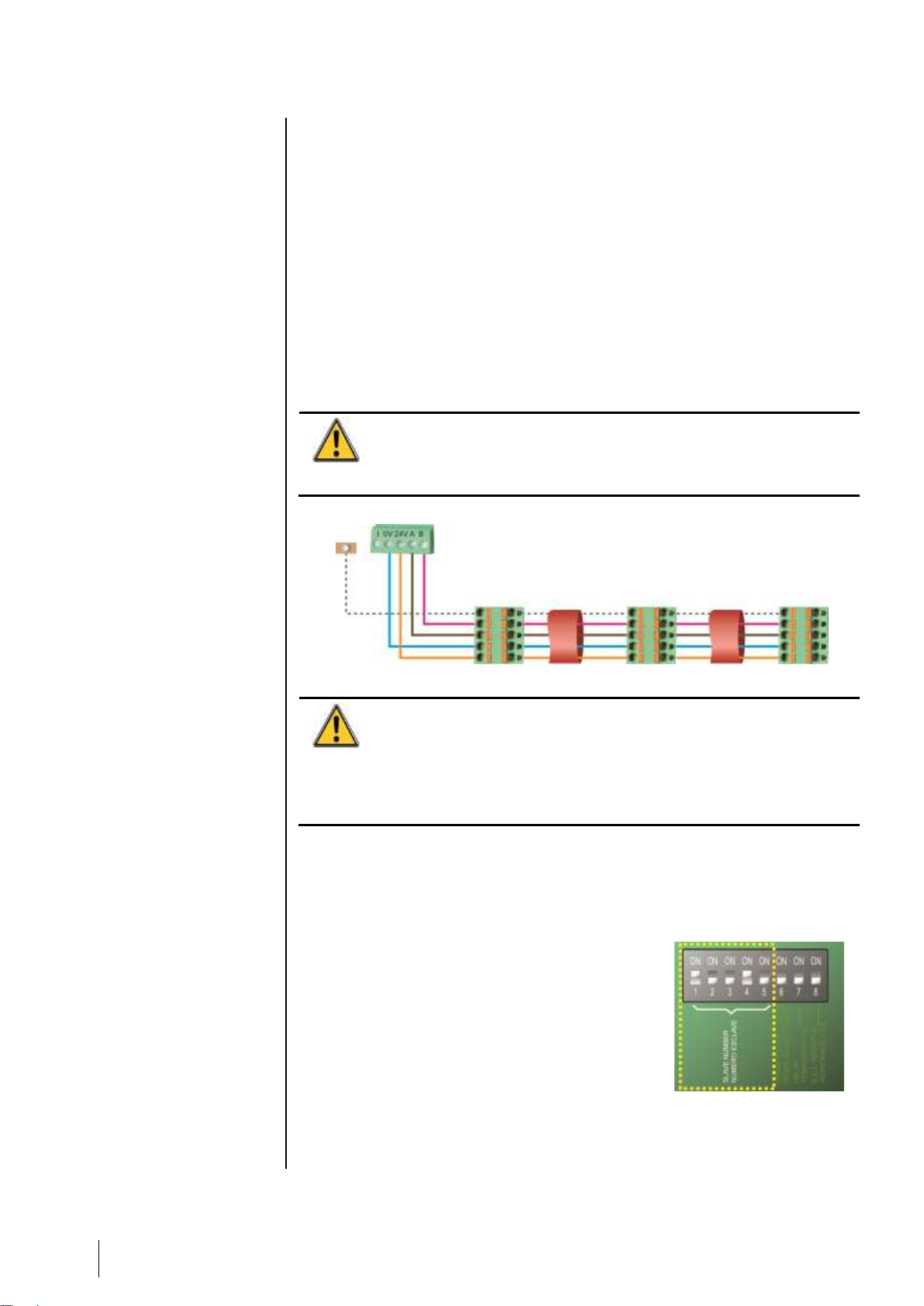

This chapter presents the digital modules that may be installed on the MX 43
lines.
Addressable Digital Modules
These modules are connected on each of the available 4 or 8 lines of the MX
43, up to a limit of 32 modules on a version of 8-lines or 16 modules on a 4line version. The following table regroups the available modules:
Table 4: Addressable digital modules.
24
MX 43
User Manual
No portion of the bare end of the terminal wires should be visible.
For protection against any electromagnetic disturbances, the data
as well as screen wires (or braids) must be cut as short as
possible.
The incorrect installation of the cables or cable glands can cause
measurement errors or a malfunctioning of the system.
Do not lay the cables close to equipment such as engines,
transformers, or lines generating important magnetic fields.
It is recommended to always ensure a distinct separation between
these cables and the cables of other circuits.
All the digital modules on a line must be
identified by a unique address.
Switches 1 to 5 of the configuration block of
each module make it possible to establish an
address number (1 to 32) in binary mode.
In the illustration to the right, the address 9
(10010) has been defined.
The Addressing Table below lists the possible
combinations.
Figure 17: Switches of
address configuration.
MX 43 line terminal
Terminal (detector,
module)
Earthing
terminal
MX 43
RS485 Transmission
General Topology of RS 485 Network
The digital modules are linked by 2 twisted cable pairs of 4 x 0.22 m²
minimum, type MPI-22A, nominal resistance of 120 Ohms. This cable carries
the RS485 (A and B) signal on one p air and the po we r supply of the modules
(0–24 VDC) connected to the line on the other pair. Shielding necessarily links
all the modules to the terminal block of MX 43.
The + 24 VDC, 0V, A, B terminals are respectively connected to +24VDC, 0V,
A, B terminals of the other modules on the line and then to the connector of
the corresponding line on the controller. The cable shielding must be
connected to the grounding rod of the MX 43.
At the end of the busbar, the 120-Ohm end of line resistor (EOL
RESISTOR/RESISTANCE F.D.L) must be activated (whatever the last module).
Figure 16: Principle of connecting modules to a MX 43 line.
Configuration of Communication
Module Address
5 – Digital Modules
25
Module
address
Switches
(On: 1; OFF: 0)
M odule
Address
Switches
(ON = 1; OFF = 0)
1 2 3 4 5 1 2 3 4 5
1
1 0 0 0 0
17
1 0 0 0 1
2
0 1 0 0 0
18
0 1 0 0 1 3 1 1 0 0 0
19
1 1 0 0 1
4
0 0 1 0 0
20
0 0 1 0 1
5
1 0 1 0 0
21
1 0 1 0 1 6 0 1 1 0 0
22
0 1 1 0 1
7
1 1 1 0 0
23
1 1 1 0 1
8
0 0 0 1 0
24
0 0 0 1 1 9 1 0 0 1 0
25
1 0 0 1 1
10
0 1 0 1 0
26
0 1 0 1 1
11
1 1 0 1 0
27
1 1 0 1 1
12
0 0 1 1 0
28
0 0 1 1 1
13
1 0 1 1 0
29
1 0 1 1 1
14
0 1 1 1 0
30
0 1 1 1 1
15
1 1 1 1 0
31
1 1 1 1 1
16
0 0 0 0 1
32
0 0 0 0 0
Solely for the last module of each line,
set switch no.8
(EOL RESISTOR/RESISTANCE F.D.L.) to ON
or set the jumper of the analog input
PCB to Closed.
Figure 18: End of line resistor switch in
position “ON”.
Table 5: Addressing table (address depends on switch positions).
Remarks:
■ The physical address of a module (1 to 32) must be identical to the
address stated on the configuration program COM 43 in the controller.
■ During module replacement, all the configuration switches of a new module
must be positioned in the same configuration as those of the previous
module.
■ The 6 switch (FRAME FILLING/REMPLISS TRAME) must be set to OFF and the 7
switch (DELAY/TEMPORISATION) must be set to ON (options unused).
■ An analog-input module systematically takes 8 addresses.
End of line Resistor
26
MX 43
User Manual
This digital module, available in two
versions, allows for the management
of:
■ 1 to 4 relay out puts;
■ Or 1 to 8 relays.
In addition, it has 2 logic inputs.
Figure 19: 8-relay module.
Ref.. Description
Figure 20: 8-relay module.
A. Connector for 2 logic inputs.
B.
Configuration switches of the module
(digital address, delay, and end of line
resistor).
C.
Switches for relay configuration.
D.
Power supply and digital network
connector.
E. Programmable relay (4 or 8).
F. Relay status indicator.
G. Connection terminal.
Term
Symbol
Slave number
Numéro esclave
See details in the paragraph Module Address on page 24.
Frame filling
Remplissage de trame
Factory settings. Do not modify.
Delay
Temporisation
Factory settings. Do not modify.
E.O.L Resistor
Résistance F.D.L.
See details in paragraph End of line Resistor, on page 25.
Digital line
4 wires
2 logic inputs
4 or 8 output relays
(CRT 250 VAC – 2A)
Relay modules
Function
Introduction
A – Logic input connectors
Each of these two terminals (Figure 20, A) may be connected to a voltage-free
contact as per Figure 38. There is no alarm when the contact is open.
B – Module configuration switches
These switches are set according to the following table.
Table 6: Relay module configuration switches.
5 – Digital Modules
27
C: Relay configuration switches
The output status of each relay depends on the configuration of the switch
block (Figure 20, ref. C). Set the switch to ON (energized) or OFF (deenergized) according to the safety type desired; each switch acts on the relay
having the same number (switch 1 acts on relay 1). The contacts are
represented when no power and no alarm apply.
For the 4-relay module, only switches 1 to 4 are active.
E – Programmable relays
In its maximum configuration, the MX 43 can manage 24 external relays (or
24 modules with 1 stated relay or 3 modules of 8, all stated relays). The relays
are individually programmable. The operation of each relay depends on its
configuration.
Each of the 6 detector events [AL1 - AL2 - AL3 – High-range excess – Lowrange excess – Failure] can control one or several external or internal relays.
Several events can be assigned to the same relay.
Setting of relay parameters
The alarm limits governing the relays can only be set by the COM 43
application.
■ Normal: Relay operation as per the normal management of an alarm. (The
relay is launched only if the event exceeds the duration of the time lapse).
■ Buzzer function (releasable relays): The same as in normal operation,
with, in addition, the release of the relay even if the event is still present.
The time lapses are:
. Duration of maintenance: Minimum time of activation, adjustable from 0
to 900 seconds.
. Automatic release: If activated, the time is adjustable between 15 and
900 seconds, beyond which the buzzer relay is automatically released.
. Reactivation: If checked, time is adjustable between 15 and 900 seconds,
beyond which the buzzer relay is reactivated.
Controls of the alarm relay.
■ Logic equations of up to 4 levels of parentheses by the logic operators OR,
AND, NOR, and NAND. The result of the equation controls the relay.
■ Polling operations (x over y). There must be at least “x” events over the
total of “y” to activate the relay. Optionally, the user may define whether a
failure is considered an event in the same category as an alarm.
F – Relay status indicator
The status of each relay is visualized by a red LED (Figure 20, F):
■ LED off: Coil not powered.
■ LED lit: Coil powered.
G – Relay output connectors
The normal resistive load of each contact is 2A / 250 V AC or 2 A / 30 V DC.
Connection
Refer to Chapter 6, on page 33.
28
MX 43
User Manual
This digital module allows the
monitoring of 1 to 16 logic inputs by the
MX 43.
In the 8-line version, the controller can
manage a maximum of 32 logic inputs
distributed, for example, either on 32
logic input modules with one input
declared per module, or on 2 modules
with 16 logic inputs each.
In the 4-line version, the controller can
manage a maximum of 16 logic inputs.
Figure 21: Module with 16 logic inputs.
Ref. Description
A.
Module configuration switches (digital
address, delay, and end of line
resistor).
B.
Power supply and digital network
connector.
C. Logic inputs 1 to 16.
Figure 22: Module of 16 logic inputs.
Term
Symbol
Slave number
Numéro esclave
See details in the paragraph Module Address on page 24.
Frame filling
Remplissage de trame
Factory settings. Do not modify.
Delay
Temporisation
Factory settings. Do not modify.
E.O.L Resistor
Résistance F.D.L.
See details in paragraph End of line Resistor, on page 25.
16 logic inputs
Digital line
4 wires
Configuration
Configured via the COM 43 application.
16-Logic Input Module
Function
Introduction
A – Module configuration switches
These switches are set according to the following table:
Table 7: Configuration switches of the Logic input module.
5 – Digital Modules
29
This digital module enables the
monitoring of 8 analog (4-20 mA or
Wheatstone bridge) inputs.
Figure 23: 8-analog inputs.
Ref.. Description
Figure 24: Module of 8-analog inputs.
A.
Jumper of configuration 4-20mA or a
Wheatstone bridge.
B. Sensitivity calibration.
C. Zero calibration.
D. Measuring point of each line.
E. Reference 1.2 V for bridge calibration.
F.
Start/stop input switches not used,
always in ON position.
G. Lug 0V for 4-20mA calibration.
H.
PCB configuration switches (digital
address, delay).
J.
Inputs no.1 to 8 (4-20mA or Wheatstone
bridge as per. A.
K.
Filament current calibration (factory
setting).
L.
4-20mA division strap in case of parallel
operation of several analog detectors on
the same line (application parking).
M.
Power supply and digital network
connector.
N.
End of line resistor jumper. (raised
position, EOL resistor connected).
Digital line
4 wires
8 analog inputs
C –Logic input connectors
Each of these 16 inputs can be connected to a voltage-free contact as per
Figure 39. Input status is transmitted by the digital line to the MX 43. There is
no alarm when the contact is closed.
Connection
Refer to Chapter 6, on page 33.
Configuration
Configured via the COM 43 application.
8-Analog Input Module
Function
Introduction
30
MX 43
User Manual
Term
Symbol
Slave number
Numéro esclave
See details in the paragraph Module Address on page 24.
Frame filling
Remplissage de trame
Factory settings. Do not modify.
Delay
Temporisation
Factory settings. Do not modify.
E.O.L. Resistor
Résistance F.D.L.
See details in paragraph End of line Resistor, on page 25.
E – Module configuration switches
These switches are set according to the following table:
Table 8: Analog input module configuration switches.
Connection
Refer to Chapter 6, on page 33.
Configuration
Configured via the COM 43 application.
Note related to manual calibration of the detectors connected to
an 8-analog input module.
1. Zero calibration
Inject standard gas to obtain 4 mA. Place the multimeter between points E
and D (Figure 24). If the value measured is different from 0 V, adjust C.
2. Sensitivity calibration
After injecting the gas, place the multimeter between points E and D
(Figure 24). If the value measured is different from 1.6 V, adjust B.
Should the adjustment value be different, calculate:
V= I (mA) x 0.10 (V/mA)
Example: If the current is 12 mA, “V” must be equal to 0.8 V.
If point E is not on the module use point G and add 1.2V to the measurement
5 – Digital Modules
31
This digital module delivers 1 to 4
independent analog values (4-20 mA
outputs) opto-isolated from the values
given by the MX 43, capable of being
independently activated or deactivated:
■ Activated: The 4-20mA signal varies
depending on the input.
■ Deactivated: The 4-20mA signal is
blocked at 0 mA, whatever the input
signal.
Figure 25: Principle 4-analog output
module.
Several analog values may be associated to the same 4-20mA output
authorizing the management of minimums, maximums, or averages from a
group of detectors This module likewise has 2 logic inputs.
Ref. Description
A. Connector for 2 logic inputs.
B.
Power supply and digital network
connector.
C.
Module configuration switches (digital
address, delay, and end of line
resistor).
D.
Push-button. Pressing this button
generates 20mA current in the output
of each line.
E.
(E1 to E4) opto-isolated independent
4-20mA analog outputs.
F.
(F1 to F4) 20mA calibration in line
output.
Figure 26: 4-analog output module.
4 analog outputs
4-20 mA
2 logic inputs
4-Analog Output Module
Function
Introduction
A –Logic input connectors
Each of these two terminal jacks (Figure 26, A) may be connected to a
voltage-free contact in accordance with Figure 38. Input status is transmitted
by the digital line to the MX 43.
C – Module configuration switches
These switches are set according to the following table:
32
MX 43
User Manual
Term
Symbol
Slave number
Numéro esclave
See details in the paragraph Module Address on page 24.
Frame filling
Remplissage de trame
Factory settings. Do not modify.
Delay
Temporisation
Factory settings. Do not modify.
E.O.L. Resistor
Résistance F.D.L.
See details in paragraph End of line Resistor, on page 25.
Table 9: Analog output module configuration switches.
Connection
Refer to Chapter 6, on page 33.
Configuration
Configured via the COM 43 application.
6 – Wiring and Electrical Connections
33
The MX 43 does not have a start/stop switch.
Certain voltage levels are capable of causing serious injuries or even
death. It is advised to install the material and cabling before applying
live voltage.
Since an incorrect or poor installation may cause measurement
errors or system failures, it is necessary to strictly follow all the
instructions in this manual in order to guarantee the proper operation
of the system.
Chapter 6 │Wiring and Electrical Connections
This chapter details the electrical connections of all the system components
(MX 43, modules, additional equipment).
Controller Connection
The electrical connections must be carried out by qualified personnel in
compliance with the different directives in force in the country of installation.
Access to terminal blocks
■ In wall-mounted version: After unblocking the two locks, swing the front
cover towards the left in order to access the cabling terminal blocks (A).
■ In rack version: The terminal blocks are cabled from behind the controller
(B).
Figure 27: Access in wall-mounted version (left) and rack-mounted version (right).
34
MX 43
User Manual
Sector Power Supply
The MX 43 can be powered from a 110-240 V AC source at 50/60 Hz, 1.5 A
max.
Check the nature of the current and the network voltage prior to any
connection. The electrical connections must be carried out with the equipment
disconnected.
The MX 43 must be protected upstream by a differential bipolar circuit breaker
with a type D response curve, size 4A. This circuit breaker must be included in
the electrical installation of the building, in the immediate proximity of the MX
43, and be easily accessible to operators. It shall be marked as the cut-off
device of the MX 43.
The sector power shall be connected to the terminal block as indicated in
Figure 28. The ground conductor shall be connected to the ground terminal
(B).
Figure 28: Connection of sector power in wall-mounted and rack-mounted versions.
External 24V DC Power Supply
The MX 43 can be powered from a 22 to 28 V AC source at 50/3.2 A, 1.5 A
max. In this case, connect the 24VDC source to the corresponding terminal
jack (Figure 29, A) respecting polarities. This jack is protected by Fuse F1.
Figure 29: Connection of 24VDC external power supply (A).
The main power supply charges the internal pack. The external 110-240 VAC,
24 VDC and battery pack sources can be used simultaneously, as there is
internal protection installed.
Integrated Backup Power Supply
The MX 43 can be equipped with a 24-VDC NiMh battery pack that maintains
power to the controller in the absence of the sector current or external 24VDC.
The batteries are charged by the mains supply (110-240 VAC).
The battery pack requires continuous charging for 7 days before reaching its
maximum capacity. Its autonomy depends on the MX 43 configuration.
6 – Wiring and Electrical Connections
35
If the battery pack is not installed at delivery, proceed as follows:
1. Position and fix the battery pack (A) at the place indicated using the 4
screws supplied.
2. Connect the battery pack connector to the connector (B) of the PCB. A
failsafe slot impedes any connection error.
Figure 30: Positioning the battery pack.
Earthing
The MX 43 is intended to be used in the parts of installations corresponding to
the category of overvoltage II and pollution degree 2 as per EN/IEC 60947-1.
In order to comply with this category of protection, it is absolutely necessary to
connect the ground terminal (Figure 31, A). Moreover, the cable braids of the
digital lines shall also be connected to this ground rod (Figure 31, A).
Figure 31: Ground connection through the ground rod.
Digital lines
The cabling of the digital lines connecting the controller to the different
modules deployed along the lines are the subject of the paragraphs
OLCT1ON Modules, 4- or 8-relay modules, 16-logic input modules, 8-analog
input modules and 4-analog output modules of this same chapter. It should be
remembered that this c able comes in 2 twisted pairs of 4 x 0.22 m² minimum,
type MPI-22A, nominal resistance of 120 Ohms.
Analog channels
For an analog 4-20mA detector connected directly on the MX 43 channels,
please connect the detector as shown below.
“I” is the 4-20mA signal, 0 and 24V correspond to the power supply.
36
MX 43
User Manual
Output
Function
R1 Relay of freely programmable function
R2 Relay of freely programmable function
R3 Relay of freely programmable function
R4 Relay of freely programmable function
R5 Relay of freely programmable function
Failure :
(Default)
Non-programmable common relay, energized, activated upon the presence of a
failure in the MX 43 (detector and/or module, increased internal temperature,
transition to power supply from the backup battery pack, system anomaly, etc.).
The deletion of this relay is automatic.
MX 43
terminal
block for
channel
connexion
Figure 32: 4-20mA detector connected directly on the MX 43 channels.
Please see below the figure for the motherboard with position for channel
connection and relays.
Figure 33: MX 43 Motherboard.
Internal alarm relays
The MX 43 has 6 relays of the following internal alarms:
Table 10: Internal alarm relays.
6 – Wiring and Electrical Connections
37
The relay contacts are represented when no power applies to the MX 43.
The position of the contacts (no alarm) once the MX 43 is powered will
depend on the relay configuration (energized or de-energized). The relays
are programmed via the COM 43 application.
This connector, powered at 24VDC by the MX 43,
allows power supply for a rotating light and a siren
optionally available for the MX 43 in wall-mounted
version. In the rack version, these connectors may
be taken over to power a sound alarm (24VDC,
19mA max.) and a visual alarm (24 VDC, 40 mA
max.). Ensure that the polarities are matched.
Figure 36: Flash and siren
connector (A).
The dry contacts (nominal resistive load of 2 A at 250 VAC, and 2 A at 30 V
DC) of the 6 internal relays R1, R2, R3, R4, R5 and Default are deployed on
the MX 43 motherboard on the R1, R2, R3, R4, R5 and Default connectors
(Figure 34).
Figure 34: Internal alarm relay connectors (A).
Connect the external equipment to the control on terminal jacks R1 to R5.
Remote Acknowledgement Connector
If necessary, connect the ACQUIT (dry contact NO) terminal to a remote
acknowledgement system.
Figure 35: Remote acknowledgement connection (A).
Flash and Siren Control Connector
Figure 37: Location of the flash and siren connector (A).
38
MX 43
User Manual
If this module is the last on the line, do not forget to set the switch
marked EOL resistor/resistance FDL to ON.
If this module is the last on the line, do not forget to set the switch
marked EOL resistor/resistance FDL to ON.
4- or 8-output contacts
RTC (250VAC or 30 V
DC – 2A)
Supervised contact
To next module
To MX 43
or previous module
To next module
To MX 43
or previous module
Supervised contact
Supervised contacts
Supervised
contact
4- or 8-Relay Modules
Figure 38: 4- or 8-relay module connections
16-Logic Input Module
Figure 39: 16-logic input module connections.
6 – Wiring and Electrical Connections
39
If this module is the last of the line, do not forget to set the jumper
marked EOL Resistor to Closed position.
To next module
To MX 43
or previous module
Wheatstone bridge type
detector
To next module
To MX 43
or previous module
8-Analog Input Module
Figure 40: Connections of 8-analog input modules for 1 4-20mA detector with 3 wires
(explosive gas, toxicity detection).
Figure 41: 8-analog input module connections for an explosive gas detection detector of
the Wheatstone Bridge CEX 300 or OLC type.
40
MX 43
User Manual
If this module is the last of the line, do not forget to set the jumper
switch marked EOL Resistor/FDL resistance to the ON position.
Positioned contact
Positioned contacts
To the next module
To MX 43
or the previous module
Output
4-20 mA n°1
Output
4-20 mA n°2
Output
4-20 mA n°4
Output
4-20 mA n°3
4-Analog Output Module
Figure 42: 4-analog output module connections.
8 – Main Part Numbers
41
See page 42
↓
See page 43
↓ ↓ ↓
1 SYSTEM
2 PROGRAM
3 CALIBRATION
See page 44
See page 45
See page 45
↓ ↓
↓
4 MAINTENANCE
5 INFORMATION
6. USB KEY
See page 47
See page 48
See page 52
Key Function
Vertical displacement in the selected menu block.
Horizontal displacement between two menu blocks.
Enter Validation of the selected line.
Escape
Return to previous screen.
Chapter 7 │Menus
General Menu Tree
The following figure shows the general tree of the group of menus.
Figure 43: General menu tree of the MX 43.
Navigation Key Functions
Table 11: Function of the navigation keys.
42
MX 43
User Manual
Ref. Significance
A. Barograph with an indication of alarm limits.
B. Measurement range, gas detected, and detector language.
C. Value of the current measurement with the unit and gas detected.
D. Value of the average measurement if this function has been activated via
the COM 43 application and depending on the display settings (see
Display Settings, on page 44).
E.
USB Key symbol; see paragraph 6. USB key on page 52:
■ Absent when the USB key is absent, and/or data recording has not
started (menu 6. USB Key > 1. Configuration > Data Logging: OFF).
■ Solid when the USB key is present and data recording has started
(menu 6. USB Key > 1. Configuration > Data Logging: ON).
■ Flashing when the key is absent and Data Logging option is set to ON.
F.
Indicator of measurement trend
Ascending tendency
Descending tendency
G. Address of digital detector on a digital line or channel number for a analog
detector
Display in normal mode
Measurement Display
Figure 44: Example of the measurement display in normal mode and in inverse video.
8 – Main Part Numbers
43
H. Function keys.
■ Previous detector: Display of measurements of previous detector;
scanning of all the detectors on all the lines.
■ Next detector: Display of measurements of next detector; scanning of
all the detectors on all the lines.
■ Menu: Display of main menu See paragraph "Main menu" on page 43.
■ See 4 Detectors: Display of a group of 4 detectors (detector tag,
barograph with indication of alarms, value of current measurement with
unit and gas detected). Use the Page down or Page up keys to display
all of the next 4 detectors; passage to the next zone is automatic.
■ See 8 Detectors: Display of a group of 8 detectors (detector tag, value
of current measurement with unit and gas detected). Other buttons
similar to the selection. See 4 detectors.
■ See 16 Detectors: Display of a group of 16 detectors (detector tag,
value of current measurement with unit and gas detected). Other buttons
similar to the selection. See 4 detectors.
■ See 1 detector: Display in normal mode (Figure 44).
■ Curve: Display of the measurement curves of the last 4 hours (Figure
45). The and keys allow cursor displacement through the time
scale. The vertical dotted line displays the concentration and time stamp
of the point being considered. Escape: return to display of values.
J. Information on the detector status.
K.
Information on the MX 43 status.
L. Zone of indication of activated alarms with blinking threshold display. The
screen changes to inverse video (Figure 44, screen on the right).
Figure 45: Example of a curve display screen.
Main Menu
This displays all the management menus of MX 43.
Figure 46: Main menu.
44
MX 43
User Manual
■ 1. System Info
Displays the version of the program, the bootloader
(internal micro-software for loading the program), and
the configuration, as well as software application
verifications.
■ 2. Passwords
The controller is protected by two access codes, both
set at 1000 by def ault upon leaving the factory. You
can change the passwords in this menu via COM 43.
The passwords are required each time you enter one
of the menus that they protect.
First-level password: Authorizes access to the
Calibration menu.
Second–level password: Authorizes access to the
Programming, Calibration, and Maintenance menus.
This password is also required before menu data are
deleted.
■ 3. Date and time
Time stamp settings (year, month, day, hour, minute,
second).
■ 4. Display
settings
Scrolling display
■ OFF: the display is frozen on a selected detector.
■ ON: scrolls through detectors every two seconds.
By zone
■ ON: displays all detectors assigned to the same
zone (same bar of leds).
■ OFF: displays all connected detectors regardless
the zone they are assigned to.
Screen saver
■ OFF: no screen saver.
■ ON: turns into the screen saver mode (displays
Oldham logo) if no key is pressed for a certain
period of time.
Averaged value
■ OFF: averaged gas measurement value is not
displayed.
■ ON: displays the averaged gas measurement
values over the last fifteen minutes or eight hours
depending on the settings done with COM 43.
Typically used when toxic gas detectors.
■ 5. Language
Selection of the display menu language.
1. System
8 – Main Part Numbers
45
■ 1. Buzzer On/Off
Activates or deactivat es the internal buzzer of the MX
43.
■ 2. Tag set
Allows for the modification of detector tags previously
programmed via COM 43.
■ 3. Alarm
settings
Allows for the modification of detector alarms
previously programmed via COM 43.
■ 4. Port RS485
Configuration of Port RS485 (speed, parity, stop bits,
slave number). This configuration is only useful if the
MX 43 is equipped with the RS485 communication
card.
If the measurement cell has changed, it is important to declare this
through a menu no. 5 C ell change.
A. Display of information described by the COM 43 application: i.e.,
measurement range, gas detected, current detector ID and its type.
B. Display for the current detector:
■ Last passed calibration: Date and time of the last calibration
carried out and completed.
■ Last sensor replacement: Date and time of last cell change.
■ Wear rate: Relation between the value of the standard gas and the
value read (sensitivity measurement). A wear rate in excess of 100%
entails a sensor replacement.
C. Display of the address (digital detector) or line number (analog detector)
to which the detector is connected.
D. Selecting the detectors to be calibrated:
■ Select one or several detectors using the previous detector or next
detector keys.
■ On pressing the Select key, press Cal gas to enter its value by
means of the ↑↓ keys. Validate by pressing Enter.
Note: Only analog detectors that are not equipped with a local
display can be calibrated from the MX 43 controller. For the other
detectors, the menu “Sel. Detector” only makes it possible to put
them in calibration mode so that they do not activate alarms during
their manual calibration.
■ Press Escape to launch the procedure of recording the
measurements on the detectors to be calibrated. Proceed to
paragraph “2 Recording”.
E. Display the calibration gas.
2. Program
3. Calibration
1. Detector select.
This menu enables the selection of detectors to be calibrated (calibration from
MX 43 or on the detector).
46
MX 43
User Manual
Figure 47: Example of the “Select detectors” screen.
2. Start Recording
■ Yes: Launches the recording of calibration measurements for the selected
detectors. From this moment onwards, all the calibration measurements
are recorded for these detectors. “Start recording” is then displayed. The
calibration of the detectors with the help of the standard gas can begin.
For a detector in which the cell has been changed, it is important to adjust
the detector locally to obtain a 4-20mA output corresponding to the
detector range.
For detectors connected to the analog input module, perform the
adjustments directly on the module (see page 31).
Attention: During calibration, the standard gas must be injected for at
least thirty seconds.
■ No: Exits the recording procedure.
3. Stop recording
■ Yes: Detector calibration having finished, this validates the end of
calibration measurement recording for the detectors previously selected.
From this moment onward, no calibration measurement is recorded. “Stop
recording” is then displayed.
■ No: Exits the end of the recording procedure.
4. Validation
This allows the adjustment and validation of zero and detector sensitivity once
calibration is completed.
Figure 48: Adjustment of zero (left) and sensitivity (right).
Operating mode
Detector selection
1. Select the detector to be calibrated with the help of the Previous detector
and Next detector keys and press Validate.
8 – Main Part Numbers
47
Zero calibration
1. The Zoom command is active.
2. Select the area of interest of the curve with the and keys. Press
Zoom + up to the activation of the Zero command. Adjust the position of
the cursor so as to make the “OK” appear, in turn indicating that the range
selected is sufficiently stable.
3. Press to select the term Zero.
4. Confirm the zero calibration by pressing Validate zero.
5. The term Sens (for sensitivity) is active from now on.
If sensitivity is not to be calibrated, press and END; until you see the
message “Do you only want to calibrate zero for the detector?”, then press
Validate calibration. Only the zero calibration of the detector will have
been carried out.
If sensitivity is to be calibrated, proceed directly to the following paragraph.
Sensitivity calibration
1. The Sens command is active.
2. Select the area of interest of the curve with the and keys. Press
Zoom + up to the activation of the command Sens. If applicable, adjust the
position of the cursor so as to make the “OK” appear, in turn indicating that
the range that has been selected is sufficiently stable.
3. Confirm the sensitivity calibration by pressing Validate Sens.
Record the calibration
1. The message “Do you want to validate zero and detector sensitivity?” is
displayed. Press Validate calibration to confirm the adjustment of zero
and sensitivity or Esc to exit the procedure.
2. The detector is calibrated.
5. Sensor exchange
This function reboots the parameters (rate of wear, calibration date, internal
parameters corresponding to the 4-20mA range, etc.) from the selected
detector(s) following or in view of a change of cell.
Detector Selection
1. Select the detector(s) to be rebooted with the help of the Previous
detector, and Next detector keys and press Select.
Detector Rebooting
1. Press Escape to launch the reboot of the selected cells.
2. Proceed next to the changing of the cell and then to a calibration of the
corresponding detectors via the menus “1 Sel detectors”, “2 recording”,
"End recording” and “4 validation”.
48
MX 43
User Manual
4. Maintenance
Access
Successively press the keys Menus and Maintenance.
1. Line On/Off
Sets the line to stop (the line is not powered and the detectors are at stop; no
event can be generated from then on).
2. Detector On/Off
Sets the detector to stop (no event can be generated from then on) if it was
not issuing an alarm or failure.
3. Test On/Off
This allows for the verification of the proper operation of a detector. In this
mode, recordings and alarm relays are suppressed.
4. Simulation
Upon its selection, the message “The controller no longer ensures detection”
is displayed.
■ The controller no longer keeps account of inputs (detectors, logic inputs).
■ The simulation measurements/status are initialized to the current
measurement/status values. The relays, the internal buzzer, and the
analog outputs remain in their current status.
■ The screens, management of relays, outputs, etc. are those of Normal
operation.
■ The internal relay and the common default LED are activated.
■ To change the value of a detector, use the keys to increase or
decrease the measurement value simulated from –15% to 115%. For a
logic input, use the keys to select the input, to select Alarm or
Alarm Off.
■ The banner of alarms does not appear.
■ The events log indicates Begin Simulation and End Simulation.
■ Exit the simulation mode by pressing the End simul key. Automatic
release then occurs and resets the average values to zero. The current
measurements are displayed once more.
8 – Main Part Numbers
49
Message
Significance
AL1 Detector in level 1 alarm
AL2 Detector in level 2 alarm
AL3 Detector in level 3 alarm
OVS Detector in OVS alarm
AL1 M
Detector in alarm set to level 1 mean value
AL2 M
Detector in alarm set to level 2 mean value
AL3 M
Detector in alarm set to level 3 mean value
Message
Significance
UDS The measurement is lower or equal to the value of the UDS programmed.
DEF Detector failure (out of range, line cut, defective cell, etc.).
RANGE
Measurement out of range.
>> LEL
Concentaration higher than 100% of LEL.
5. Information
1. Detectors
This displays the main information on the detector (type, range, detected gas).
2. Events
Figure 49: Example of gas alarm files.
1. Alarm events
This displays, for each of the detectors concerned: detector ID, alarm type (Al1,
Al2, Al3, Al1mean, Al2mean, Al3mean, OVS), status (activated = ON or
deactivated = OFF) as well as the date and time of occurrence or of the release.
The letter “S” appears on the line if the events were obtained when the MX 43
was in simulation mode
Delete deletes all the data. Up to 512 events can be memorized. Beyond that,
the most recent event deletes the oldest.
Previous page, Next page, and Last page access the corresponding pages
of the file.
Table 12: Gas alarm file messages.
2. Fault records
This displays, for each detector concerned: event type (UDS = Under-scale),
RANGE = measurement out of range, DEF =Failure, DOUBT = clear doubt),
status (activated = ON or deactivated = OFF) as well as the date and time of
appearance or release. This file cannot be deleted.
Table 13: Failure file messages.
50
MX 43
User Manual
Message
Significance
RELAY
Status change of the designated relay.
INPUT
Status change of the designated input.
Message
Significance
Lines On/Off
Start or stop the line
Detectors On/Off
Start or stop the detector
External ack.
Press the external acknowledgement button
MX 43 ack
Acknowledgement by the acknowledgement button on the front plate of
MX 43
Simulation
Switch to simulation mode
Calibration
At least one of the detectors is selected in calibration mode.
Test detectors
Switch to test mode
Program
Programming done on MX 43
Time settings
Time settings on MX 43
Line 1 On/Off
Start or stop line 1
Line 2 On/Off
Start or stop line 2
Line 3 On/Off
Start or stop line 3
Line 4 On/Off
Start or stop line 4
Line 5 On/Off
Start or stop line 5
Line 6 On/Off
Start or stop line 6
Line 7 On/Off
Start or stop line 7
Line 8 On/Off
Start or stop line 8
3. Inputs and relays records
This displays, for each relay and logic input concerned: activated relay/input
ID, type (REL = relay, EL = Logic input), its status (activated = ON,
Deactivated = OFF) as well as the date and time of occurrence or release.
Delete allows for the deletion of this entire file. Up to 512 events can be
memorized. Beyond that, the most recent event deletes the oldest.
Previous page, Next page, and Last page access the corresponding pages
of the file.
Table 14: Relay and logic input file messages.
4. Working conditions records
This displays the actions carried out on the MX 43 (simulation mode,
calibration mode, programming mode, release request, operation on internal
battery), as well as the date and time of beginning and end of the event.
Delete allows for the deletion of this entire monitoring file. Up to 512 events
can be memorized. Beyond that, the most recent event deletes the oldest.
Previous page, Next page, and Last page allow access to the corresponding
pages of the file; each page can display a maximum of 8 lines.
Table 15: Operation monitoring file messages.
8 – Main Part Numbers
51
Message
Significance
DEAD
Digital module no longer responding (line cut, module failure, wrong address,
module absent).
MODUL
Configuration or module address error.
TEMP+
Internal temperature of the MX 43 higher than maximum tolerated value.
TEMP-
Internal temperature of the MX 43 lower than maximum tolerated value.
BAT Switching to external power supply.
LINE 1
Incident on line 1 (short-circuit).
LINE 2
Incident on line 2 (short-circuit).
LINE3
Incident on line 3 (short-circuit)
LINE4
Incident on line 4 (short-circuit).
LINE 5
Incident on line 5 (short-circuit).
LINE 6
Incident on line 6 (short-circuit).
LINE7
Incident on line 7 (short-circuit).
LINE 8
Incident on line 8 (short-circuit).
CAL O
Calibration defect (zero shifted).
CAL S
Calibration defect (used cell).
CAL F
Calibration defect (cell oversensitive).
CAL D
Calibration defect (measurement unstable).
Message
Significance
ON MX 43 on live voltage
OFF MX 43 off voltage
Self-testing failure
Failure of internal tests
Other messages
Contact Post-Sales Service
5. Hardware troubles records
This displays, for each material incident detected: incident ID, status
(activated = ON or deactivated = OFF) as well as the date and time of
occurrence or release of the event.
Previous page, Next page, and Last page allow access to the corresponding
pages of the file: each page can display a maximum of 8 lines.
Table 16: Material incidents file messages.
6. System troubles records
This displays the events relative to MX 43 operation (power failure/fluctuation,
On/Off, etc.).
Previous page, Next page, and Last page allow access to the corresponding
pages of the file; each page can display a maximum of 8 lines.
Table 17: System incidents file messages.
3. Slave info
These data enable maintenance technicians to visualize the communication
framework between MX 43 and the digital modules.
52
MX 43
User Manual
The USB Key feature is only available in firmware (internal
software) versions 4.0 and higher.
4. Controller info
These data allow technicians to visualize MX 43 counters set to zero since the
last zero setting.
6. USB Key
1. Configuration
Define the recording parameters on the USB key and view the storage
capacity remaining.
A 4G key can record approximately 18 months of information from an MX 43
comprised of 32 detectors with a sampling frequency of 2 seconds and up to
100 events per day and per detector.
■ Data Logging:
- Stop: stop recording measurements on the USB key. Stop the USB key
from recording before removing it in order to transfer the measurements
recorded that day from the MX 43 memory.
- Begins recording measurements on the USB key at the frequency
defined by the Sampling Rate configuration (see below). The USB key
icon appears at the top of the main screen (see Figure 44) when the USB
key is present and the unit has begun recording measurements.
■ Sampling Rate: selection of the frequency of recorded measurements –
2 sec, 16 sec, 30 sec, 1 min, 2 min or 15 min. At any frequency setting, the
MX 43 unit saves the measurements in the internal memory every 2
seconds. For example, if the recording frequency is set at 30 seconds, the
unit will record on the USB key an average value from the previous 15
measurements.
■ FIFO (First In, First Out): defines the action to be taken when the USB key
is full.
- Yes: the oldest recordings (measurements and events) present on the
USB key will be automatically erased.
- No: when the storage capacity in use reaches 80%, the MX 43 will
display the message Replace the key as soon as possible. Once the USB
key is almost full (98% of the storage capacity used) the alert message
USB key is full will appear. The message Recording impossible will
appear.
■ Fault Relay Activation: defines the state of the default relay once the USB
key is at 98%, absent when recording is activated, unformatted or in writing
error mode.
- Yes: the default relay is activated.
- No: the default relay is not activated.
■ Bargraph / Message: when the USB key is present, a bargraph is
displayed, showing the storage capacity in use. 100% indicates that the
key is full. When the key is not present but the measurement recording has
8 – Main Part Numbers
53
been set to Start, the message USB Flash is not present, is displayed in
place of the bargraph.
Figure 50: USB key configuration screen example.
2. USB files
Display the files present on the USB key, in chronological order of creation from
newest to oldest. Two types of files are present:
■ Events: files containing events saved on the USB key. Events include
alarms, errors or an acknowledgment request.
■ Data: files containing measurements saved on the USB key.
Figure 51: example of an event file and data from a USB key.
The window displays the following information:
■ Log Files xx of xx (ref. A): the number of Data and Event files that can be
opened on the MX 43 screen over the maximum number of files currently
saved on the key.
st
■ 1
column (ref. B): recording order number.
nd
■ 2
column (ref. C): name of the recording composed as follows:
- For an event file: events_JJMMAA_HH_MM.
- For a data file: data_JJMMAA_HH_MM.
Events and Data files are created automatically:
- At the beginning of the day (12:00AM);
- Every time the MX 43 is restarted.
■ Delete All: erase all of the files of the type s elected (data or events)
present on the key.
■ Delete: erase the file selected.
NB: every time the USB key is plugged in, two hidden files are automatically
created (Figure 51):
54
MX 43
User Manual
■ The first file saves the complete configuration of the MX 43 and is called
config_JJMMAA_HH_MM.cfg. To view or download this file, set the switch
(Figure 10, ref. D) at position 2. See paragraph Transferring configuration
to the MX 43 on page 20.
■ A second file saves the MX 43 firmware and is called firmware_MX
43_X_xx.bin. To view or download this file, set the switch (Figure 10, ref.
D) on position 4. See paragraph Firmware Upload on page 21.
8 – Main Part Numbers
55
Description
Reference
MX 43 4-line controller, wall-mounted version
6 514 886
MX 43 8-line controller, wall-mounted version
6 514 884
MX 43 8-line controller, rack-mounted version
6 514 885
Module with 8 analog inputs
6 314 061
Module with 8 analog inputs for Wheatstone bridge or
4-20mA detector
6 314 063
4-analog input PCB
6 314 085
Module with 4 analog outputs
6 313 980
Module with 16 logic inputs
6 313 964
Battery pack
6 311 104
4-relay module
6 313 962
8-relay module
6 313 963
Chapter 8 │Main Part Numbers
56
MX 43
User Manual
Description
Reference
Red Flash and buzzer kit
6 314 066
Blue flash and buzzer kit
6 314 152
RS485 kit
6 314 114
USB Acquisition module with 4G USB Key for wallmounted MX 43
6 314 173
USB Acquisition module with 4G USB Key for rackmount MX 43
6 314 174
9 – Certificate of Compliance
57
Chapter 9 │Certificate of Compliance
The document hereafter (1 page) reproduces the EC declaration of
conformity.
58
MX 43
User Manual
9 – Certificate of Compliance
59
The document below (1 page) reproduces the 96/98/EC Marine Directive
declaration of conformity (followed by the certificate, 2 pages)
60
MX 43
User Manual
9 – Certificate of Compliance
61
62
MX 43
User Manual
10 – Technical Specifications
63
Function
Function:
Gas Detection Controller.
Number of lines:
4 or 8 as per model.
Display and indicators
Display:
Back-lit graphic LCD
Status indicators:
- 7 LEDs for each of the 8 lines, or 56 LEDs.
- 1 live voltage indicator for the controller.
- 1 general failure indicator.
Keys
Selection:
5 multifunction soft-touch keys.
Alarm release:
Dedicated soft-touch key.
Alarms
Limits:
Parameter setting by COM 43 application.
Indicators:
6 status LEDs per line (high- and low-range
excess , Alarm 3, Alarm 2, Alarm 1, failure).
Internal relay:
■ 5 fully programmable relays (configuration over
COM 43).
■ 1 failure relay (non-modifiable).
■ RCT contact on each relay. Nominal load of
contacts: 250 V AC – 2A or 30 V DC – 2 A,
resistive load.
■ Output at screwed terminals Maximum
admissible cable diameter 2.5 mm².
Chapter 10 │Technical Specifications
MX 43 Controller
64
MX 43
User Manual
Measurement Lines
Digital lines:
■ 8 maximum.
■ RS485 Modbus, 9600 Bauds.
■ Industrial computer cable, 2 shielded twisted
pairs (1 for the line and 1 for communication),
adapted to 120 Ohms.
Analog lines:
■ 8 maximum.
■ Input range 4 to 20 mA.
■ Load resistance 120 Ohms.
■ Analog transmitter cable 2 or 3 shielded wires.
Nominal voltage:
21 to 28 V on external DC.
Maximum current
available per line:
■ 1.2 A (peak 1.5 A) with Rev. C mother board
starting from 01 August 2013.
■ 500 mA with Rev. A and Rev. B mother boards.
Total maximum current
for lines:
2.4 A CC or 3.2 A per peak.
Total power available as
per temperature:
Room T° ≤ 20°C = 68 W.
Room T° 20 to 30°C = 55 W.
Room T° 30 to 40°C = 41 W.
Room T° 40 to 50°C = 27 W.
Cables outputs:
(only for wall-mounted version)
■ 12 PE M16 for cables of 4 to 8 mm².
■ 6 PE M20 for cables of 6 to 12 mm².
Insulation:
1500 V AC (power–digital network).
Output
On screwed terminals. Maximum admissible
conductor section 2.5 mm².
Electrical characteristics
AC power supply:
■ 100 to 240 V AC, 50/ 60 H z.
■ Maximum input current 1.5 A.
■ Maximum consumption: 230 VA.
DC power supply:
■ 21 to 28 V DC.
■ Maximum input current 3.2 A.
■ Maximum consumption: 112 VA.
Mechanical characteristics
Installation:
■ Wall-mounted version: on special screwed
support.
■ Rack-mounted version: Cut-out of 177 x 437
mm.
Dimensions:
■ Wall-mounted version: 370 x 299 x 109 mm.
■ Rack-mounted version: 482.8 x 177 x 192.5
mm (19’’, 4 U).
See Figure 4 and Figure 6.
Weight:
■ Wall-mounted version: 4.0 kg.
■ Rack-mounted version: 2.0 kg.
10 – Technical Specifications
65
Protection level:
■ Wall-mounted version: IP55.
■ Rack-mounted version: IP 31.
Locking:
■ Wall-mounted version: by 2 locks with a key.
■ Rack-mounted version: none.
Environmental characteristics
Conditions of use
Temperature of use:
-20 to +50°C. (as per power used; cf. preceding
page).
Storage temperature:
-20 to +50°C.
Humidity:
5 to 95% relative humidity.
Standards
Electromagnetic
compatibility:
as per EN50270, industrial type 2.
ATEX:
as per 60079-29-1 and EN50271.
Low voltage directive:
as per EN61010.
CSA:
as per C22.2 no.152 (pending).
Function
Function
Management of 4 or 8 relays from the digital
signals issued by the MX 43.
Number of relays:
■ 4 or 8 relays.
■CRT outputs
Relay type:
■ Bistable.
■ Energized or de-energized configuration by
mini-switches.
■ Setting of relay parameters by COM 43
application.
Nominal load of contacts:
250 V AC – 2 A or 30 V DC – 2A, resistive load.
Consumption:
3.5 mA in normal operation.
Connections:
■ Screwed terminals.
■ Connector detachable without cutting the line.
■ Tightening torque: 0.5-0.6 Nm.
■ Cable: 2.5 mm² maximum.
Logic inputs:
2 additional logic inputs (dry contacts).
Assembly:
Snap-on on DIN rail.
Dimensions:
125 x 165 x 60 mm.
Relay Module
66
MX 43
User Manual
Function
Function
Logic input monitoring.
Capacity:
1 to 16 logic inputs (dry contacts).
Connections:
■ Screwed terminals.
■ Connector detachable without cutting the line
■ Tightening torque: 0.5-0.6 Nm.
■ Cable: 2.5 mm² maximum.
Consumption:
2 mA in normal operation.
Assembly:
Snap-on on DIN rail.
Dimensions:
125 x 165 x 60 mm.
Function
Function:
4-20mA detector or Wheatstone bridge
connections.
Capacity:
1 to 8 independent inputs.
Connections:
■ Screwed terminals.
■ Connector detachable without cutting the line.
■ Tightening torque: 0.5-0.6 Nm.
■ Cable: 2.5 mm² maximum.
Consumption:
53 mA max (detector excluded).
Operating temperature:
8 bridges
-30°C (8 bridges up to 1 km).
-40°C (8 bridges up to 500 m).
4 bridges
-45°C (4 bridges up to 1 km).
-50°C (4 bridges up to 500 m).
Assembly:
Snap-on on DIN rail or mounted on the inside of
MX 43.
Dimensions:
125 x 165 x 60 mm.
16-Logic Input Module
8-Analog Input Module
10 – Technical Specifications
67
Function
Function:
Generation of 1 to 4 analog values.
Capacity:
■ 4 independent opto-isolated outputs 4-20mA
(recopy detector, minimum, maximum, or
average of a detector group).
■ Resistance of maximum load 500 .
Logic inputs:
2 additional logic inputs (dry contacts).
Connections:
■ Screwed terminals.
■ Connector detachable without cutting the line
■ Tightening torque: 0.5-0.6 Nm.
■ Cable: 2.5 mm² maximum.
Consumption:
■ < 5 mA with the 4 lines at stop.
■ < 36 mA for an activated line.
■ < 130 mA for the 4 activated lines.
Assembly:
Snap-on on DIN rail.
Dimensions:
125 x 165 x 60 mm.
4-Analog Output Module
68
MX 43
User Manual
11 – RS485 Digital Output
69
Rep.
Function
A.
Operating LEDs. The Rx LED lights up when a data thread is received.
The Tx LED indicates that the card has power and turns off when data
is being transmitted out.
B.
Unused switch.
C.
Unused output.
D.
Connection terminal for output n° 1.
A = Tx or +RS485.
B = Rx or –RS485.
E.
End Of Line (EOL) resistance for output No. 1. Set the switch to the
EOL position for the unit that is the last module in the RS485 network.
For other units, set the switch to NO EOL.
Chapter 11 | RS485 Digital Output
The MX 43 units using the RS485 Modbus option are equipped with a
communication card (code 6314114), which is affixed to the motherboard.
This card generates a RS485 output in Modbus RTU format.
Card description
Figure 52: the RS485 card.
The RS485 output can be configured using the COM 43 software, or using
unit menu 2.4 Program >RS485 Port (see page 45).
70
MX 43
User Manual
Transfer Table
Two types of information can be retrieved via the RS485 output:
■ Information about sensor configuration;
■ Real-time sensor information (measurements, alarms, etc.).
1. Access to configuration information
It is possible to access the installation configuration (for example, to access
the alarm thresholds or the names of the sensors).
This configuration information is listed in the transfer table from address 0 to
address 1999.
The address of the detectors is determined as follows:
■ For a digital sensor:
Sensor address = (line number – 1) x 32 + slave number
■ For an analog sensor:
Sensor address = 256 + line number
Once the sensor address is known, the desired request can be executed by
following the transfer table below. For example, to find the instantaneous
alarm threshold number 1 for a sensor, read register number 52.
All of the information at addresses 1 to 52 will be accessed. The 52nd word
corresponds to the expected value.
Example
Access instantaneous alarm 1 for the sensor located on line 8 at address 2 of
unit 2.
A. Determination of the sensor address: (8 – 1) x 32 + 2 = 226.
B. Structure of the Modbus request:
- Slave number for the unit (defined by COM 43) 02 = 0x02
- Operating type (03 = read) 03 = 0x03
- Sensor address 226 = 0x00E2
- Number of words to read (see Excel document) 52 = 0x3A
- CRC
Thread: 0x02 0x03 0x00 0xE2 0x00 0x3A 0x65 0xDC
2. Access to real-time information
Measurement and alarm information from the detectors is listed in the transfer
table from address 2000 to 65535. The sensor measurements are available at
addresses 2001 to 2264, the sensor statuses are available at addresses 2301
to 2564 (alarm 1, alarm 2, etc.).
Example
Access to measurements from the sensor located at line 3 and address 32 of
unit n° 2.
A. Determination of the sensor address: (3 – 1) x 32 + 32 = 96.
B. Structure of the Modbus request:
11 – RS485 Digital Output
71
0
Slave address
management
From addresses 0 to 1999, the Modbus
request address serves to select a slave.
The response consists of a data structure
corresponding to the slave configuration
outlined below.
2000
65535
Standard address
management.
From addresses 2000 to 65535 the
address management is typical Modbus
address management.
- Slave number for the unit (defined by COM 43) 02 = 0x02
- Operating type (03 = read) 03 = 0x03
- Address of the 1st word 2000+96 = 0x0830
- Number of words to read 01 = 0x0001
- CRC
Thread: 0x02 0x03 0x08 0x30 0x00 0x01 0x86 0x56
Example
Access the status of the sensor located at analog input 5 of unit n° 2.
A. Calculation of the table index: 256 + 5 = 261
B. Request script:
- Slave number for the unit (defined by COM 43) 02 = 0x02
- Operating type (03 = read) 03 = 0x03
- Address of the 1st word 2300 + 261 = 0x0A01
- Number of words to read 01 = 0x0001
- CRC
Thread: 0x01 0x03 0x0A 0x01 0x00 0x01 0xD6 0x21
Address Table
Supervision of the MX 43 sensors
All reading requests for the Modbus are done via function 3. The cartography
is shown below:
72
MX 43
User Manual
1
Line 1 Sensor 1
32
Line 1 Sensor 32
33
Line 2 Sensor 1
64
Line 2 Sensor 32
65
Line 3 Sensor 1
96
Line 3 Sensor 32
97
Line 4 Sensor 1
128
Line 4 Sensor 32
129
Line 5 Sensor 1
160
Line 5 Sensor 32
161
Line 6 Sensor 1
192
Line 6 Sensor 32
193
Line 7 Sensor 1
224
Line 7 Sensor 32
225
Line 8 Sensor 1
256
Line 8 Sensor 32
257
Analog line unit number 1
264
Analog line unit number 8
Configuring sensors
Downloading the configuration
The MX 43 uses 256 external addresses (line #1 channel #1, to line #8
channel #32) and 8 analog channels for which the addresses are located from
257 to 264.
With the automated system, it is possible to send 264 (256 + 8) Modbus
requests, where the address field is numbered from 1 to 264 in order to
download the configuration of each sensor into the internal memory.
As a result of the operating functionality, it is only possible to repatriate the
data of a single sensor for interrogation.
If a sensor is stated at the address mentioned, the MX 43 sends the number
of data words requested; always from data #1: NAME OF ANALOG SENSOR,
at data #x.
If there is no information at the address mentioned, the MX 43 sends back 0.
Sensor addresses
11 – RS485 Digital Output
73
Address
SENSORS
[256 + 8]
Nb
bytes
Data type
1
Com sensor
2 X 16
Unicode text (16 bits) 16
characters including the
final /0.
17
Status
2
Start / Stop: if in
operation, variable = 1. If
stopped, variable = 0.
18
Gas name
2 x 20
Unicode text (16 bits) 20
characters including the
final /0.
38
Range
2
Value The range is from 1
to 5000.
Range X 10 display
format.
The display format is
given in another box.
39
Display
format
2
Coded value.
40
Unit
2 X 5
Unicode text (16 bits) 5
characters including the
final /0.
45
Abbreviated
gas name
2 x 6
Unicode text (16 bits) 6
characters including the
final /0.
CAUTION, if the first 2
letters = O2: special
treatment.
51
Zone 2 Value
1 to 8
52
Instantaneou
s alarm
threshold 1
2
Value
-999 to 9999 (real value to
be multiplied like the range)
53
Instantaneou
s alarm
threshold 2
2
Value
-999 to 9999 (real value to
be multiplied like the range)
54
Instantaneou
s alarm
threshold 3
2
Value
-999 to 9999 (real value to
be multiplied like the range)
55
Average
alarm
threshold 1
2
Value
-999 to 9999 (real value to
be multiplied like the range)
56
Average
alarm
threshold 2
2
Value
-999 to 9999 (real value to
be multiplied like the range)
57
Average
alarm
threshold 3
2
Value
-999 to 9999 (real value to
be multiplied like the range)
58
Underscale
threshold
2
Value
-999 to 9999 (real value to
be multiplied like the range)
59
Overscale
threshold
2
Value
-999 to 9999 (real value to
be multiplied like the range)
60
Default low
threshold
2
Value
-999 to 9999 (real value to
be multiplied like the range)
61
Out of range
threshold
2
Value
-999 to 9999 (real value to
be multiplied like the range)
62
Integration
time alarm 1
2
Value
15 - 480 min per 1min step
(if not used, put 15 min)
63
Integration
time alarm 2
2
Value..
15 - 480 min per 1min step
(if not used, put 15 min)
64
Integration
time alarm 3
2
Value
15 - 480 min per 1min step
(if not used, put 15 min)
65
Hysteresis
2
Value
Caution, max = 5% of the
range. Always use a positive
value and not a percentage.
Table of registers
74
MX 43
User Manual
66
Alarm
active?
2
Configuration per bit
Al active inst, avg: 1, 2, 3.
bit6
bit5
bit4
bit3
bit2
bit1
bit0
0 = inactive
1 = active
Alarm avg 3
Alarm avg 2
Alarm avg 1
Alarm inst 3
Alarm inst 2
Alarm inst 1
67
Acknowl
alarm?
(Auto/manu)
2
Configuration per bit
Manual acknowl Al 1, 2, 3,
verification
bit7
bit6
bit5
bit4
bit3
bit2
bit1
bit 0
Verification
1 = Manual acknowl and 0 =
Automatic Acknowl.
When the Verification is at 1,
the Verification alarm, once
activated, is deactivated by
stopping the sensor.
If the acknowledgment is
manual, alarms 1, 2 or 3,
once activated, are
deactivated using the
acknowl button +
measurement < alarm.
1 = verification
put 0 mandatory
put 0 mandatory
put 1 mandatory
put 0 mandatory
1=Al3 ackmanu
1=Al2 ackmanu
1=Al1 ackmanu
68
Increasing or
decreasing
alarm?
2
Configuration per bit
Al 1, 2, 3 instantaneous or
average increasing or
decreasing
1: increasing
0: decreasing
Alarm avg 3
Alarm avg 2
Alarm avg 1
Alarm inst 3
Alarm inst 2
Alarm inst 1
Table of registers (below)
11 – RS485 Digital Output
75
Real address
SENSOR
MEASUREMENTS
[256 + 8]
Nb
bytes
Data type
Start: 2001
end : 2264
Sensor measurement
2
Table with 264 total 16 bit symbols
where the measurements are listed
at their address. The measurement
being whole, the automatic system
uses the Display format field to
determine where to position the
comma.
Real address
ALARMS [256 + 8]
Nb
bytes
Data type
Start: 2301
end : 2564
Table of activated
alarms
2
Table with 264 total 16 bit non
symbols where the alarms bits are
listed at their address.
ALARM_1 (bit 0)
ALARM_2 (bit 1)
ALARM_3 (bit 2)
UNDERSCALE (bit 3)
OVERSCALE (bit 4)
AL_DEFAULT (bit 5)
AL_OUT_OF_RANGE (bit 6)
L_VERIFICATION (bit 7)
Bits 8 to 16 not in use
Real address
INFO
Nb
bytes
Data type
2600
CRC32 of the general
configuration
2
32 most significant bits option.
Note: CRC32 of the entire
configuration except the relays
(from 0x78000 to 0x7AFFC). If
different, re-upload the
configuration.
2601
2 32 least significant bits option.
2602
Second counter
2
32 most significant bits option;
Note: this counter increases every
second and verifies that the unit is
active.
2603
2 32 least significant bits option.
Acquisitions retrieved cyclically
The Fixed Gas Detection Experts
EUROPEAN PLANT AND OFFICES
Z.I. Est – rue Orfila CS 20417 – 62027 Arras Cedex FRANCE
Tél: +33 (0)3 21 60 80 80 – Fax: +33 (0)3 21 60 80 00
Website: http://www.oldhamgas.com
AMERICAS
Tel: +1-713-559-9280
Fax: +1-281-292-2860
americas@oldhamgas.com
ASIA PACIFIC
Tel: +86-21-3127-6373
Fax: +86-21-3127-6365
sales@oldhamgas.com
EUROPE
Tel: +33-321-608-080
Fax: +33-321-608-000
info@oldhamgas.com
Loading...
