Odys MP3-Player S8 User manual

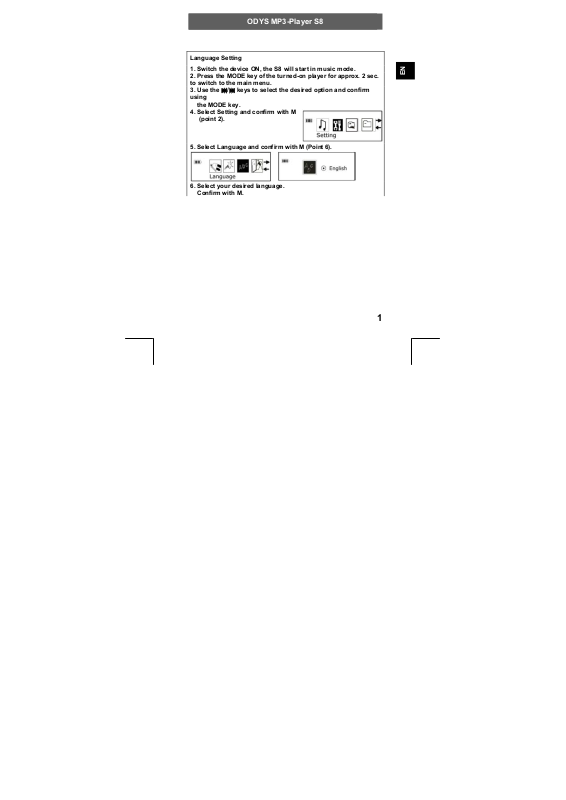

Language Setting
1. Switch the device ON, the S8 will start in music mode.
2. Press the MODE key of the turned-on player for approx. 2 sec.
to switch to the main menu.
3. Use the / keys to select the desired option and confirm
using
the MODE key.
4. Select Setting and confirm with M
(point 2).
5. Select Language and confirm with M (Point 6).
ODYS MP3-Player S8
EN
6. Select your desired language.
Confirm with M.
1
ODYS MP3-Player S8
Table of contents
Language Setting .....................................................................................1
1 Contents of package ............................................................... 3
EN
2 Introduction ............................................................................. 4
3 Getting started ........................................................................5
3.1 Controls.........................................................................................5
3.2 Inserting the battery ......................................................................5
3.3 LCD and symbols..........................................................................6
3.4 Battery status................................................................................ 6
3.5 Installing the driver........................................................................ 7
3.6 Installing the driver using Win 98 ..................................................7
3.7 Transferring files MP3 player - PC................................................ 9
3.8 Disable the MP3 Player from the PC ..........................................10
4 Operation .............................................................................. 11
4.1 Switching the MP3 player on and off...........................................11
4.2 Music mode (Play Music)............................................................ 12
4.3 Mode Switch in the Main Menu................................................... 13
4.4 System settings (Setting) ............................................................14
4.5 Searching files (Folder)............................................................... 16
5 Troubleshooting .................................................................... 17
6 Specifications........................................................................ 18
7 Safety instructions................................................................. 19
8 Warranty conditions EN ........................................................20
2
ODYS MP3-Player S8
1 Contents of package
Please ensure that the following items are included in the box. If the
package is not complete, please contact your dealer:
ODYS MP3 player S8
USB cable
Headphones
EN
AAA battery
CD-ROM
User manual
3
ODYS MP3-Player S8
2 Introduction
Thank you for choosing our product. Please read this manual carefully
before use to make best use of all functions of the product and to
guarantee that it has a long service life. Please store the manual in a
EN
safe place for later reference.
This product is a portable digital audio player which allows you to play
your MP3 and WMA tracks (multi-codec player). The modern, selfilluminating LCD (Organic Light Emitting Display) displays information
on the current digital music file via the ID3 tag.
Caution
Please read the general safety instructions in chapter 7
before using the MP3 player. Pay particular attention to the
instructions on safely concluding the digital transfer between
the MP3 player and computer in chap. 3.8.
Support
URL: http://www.odys.de
See our website for the latest information on this MP3 player, on other
products by our company and on our company itself. Any firmware
updates for this MP3 player are also made available on our website. If
you have questions or problems, please read the FAQs on our website
or contact our customer support service support@odys.de.
4
r
ODYS MP3-Player S8
3 Getting started
3.1 Controls
Familiarise yourself with the controls of your MP3 player before use.
USB
USB-
protective cap
connector
PLAY
Cover of the battery
compartment
3.2 Inserting the battery
Use one AAA (micro) battery.
• Remove the USB cover and open the battery compartment.
• Insert the battery into the battery compartment and ensure that the
polarity is correct.
• Close the battery compartment replace the USB cover.
HOLD
PREV
LCD
MODE
NEXT
VOL +
M
+
Loop fo
VOL −
carrying
Headphone
connection
strap
EN
5
ODYS MP3-Player S8
A
3.3 LCD and symbols
Overview of the LCD
The LCD shows a variety of information on the current track, the
running time and the system settings. The symbols are explained
EN
below.
format
File
Track number /
number of tracks
Playback
Playback
time
EQ
sound
Bit rate
Repeat mode
repeat
Volume
/B
3.4 Battery status
The service life of the battery is approximately 8 hours. The service life
of the battery may vary depending on the battery manufacturer, the
age of the battery, and the conditions under which the MP3 player is
operated.
The charge state of the battery is indicated by various symbols to
enable you to estimate how long the player will operate:
Battery
status
File name /
ID3 tag
full 66% 33% empty
Please replace the battery if an empty battery symbol is displayed.
Use rechargeable batteries with at least 800 mAh or alkaline batteries.
6
ODYS MP3-Player S8
3.5 Installing the driver
When using Windows 98SE, you must first install the
correspondding driver found on the CD-ROM before
connecting the MP3 player to your computer. This is not
required when using Windows ME, 2000, XP and Vista.
• Connect the MP3 player to your PC using the USB cable.
• The driver installation starts.
When using Windows ME, 2000,
XP and Vista, the PC recognizes
a new hardware device (mass
storage device / MSC mode) and
automatically installs the
corresponding driver.
• If an error occurs during installation, remove the USB cable, restart
the operating system and reconnect the USB cable to the PC.

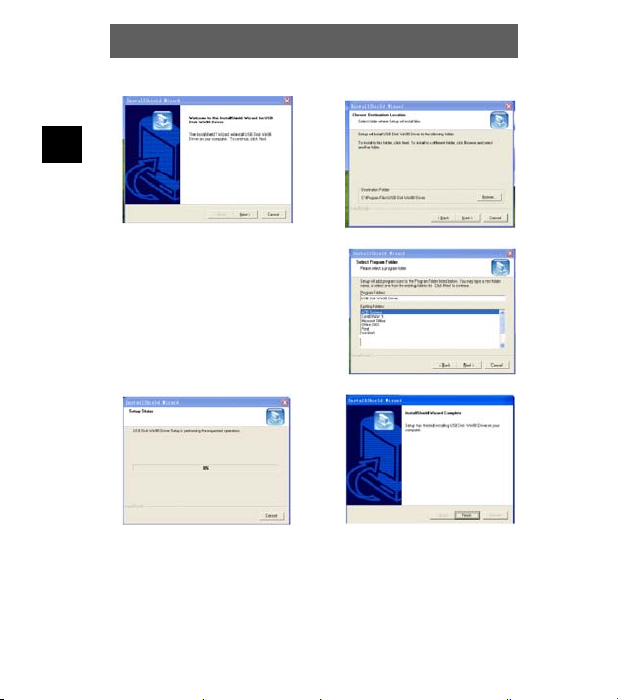

3.6 Installing the driver using Win 98
• Place the driver CD which is
included into your CD-ROM
drive and run "Setup.exe".
• Select your preferred setup
language, then click OK to run
the installation wizard.
EN
• In the next window, click "Next" and select a different directory for
7
