TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the
address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel. Lock or tag service panel to prevent power from being
switched on accidentally.
3. Installation work and electrical wiring (including switch loca-
tion) must be done by a qualied person(s) in accordance
with all applicable codes and standards, including re-rated
construction.
4. Provide sufcient air for proper combustion and exhausting
of gases through the ue (chimney) of fuel burning equip-
ment to prevent backdrafting. Follow the combustion equipment standards such as those published by the National
Fire Protection Association (NFPA), the American Society
for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and local codes.
5. This product may have sharp edges. Be careful to avoid cuts
and abrasions during installation and cleaning.
6. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
7. Ducted fans must always be vented to the outdoors.
8. Use only metal ductwork.
9. Do not use this fan with any solid-state speed control device.
10. As an alternative, this product may be installed with the ULapproved cord kit designated for the product, following instructions packed with the cord kit.
11. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
1. Never leave greasy cooking unattended. Oil, butter, lard, etc.
can ignite in a few minutes.
2. Always turn hood ON when cooking at high heat or when
cooking aming foods.
3. Always use cookware appropriate for the size of the surface
element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:*
1. SMOTHER FLAMES with a close-tting lid, cookie sheet,
or metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. If the ames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned or
spread the re.
3. DO NOT USE WATER, including wet dishcloths or towels
- violent steam explosion will result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you
already know how to operate it.
B. The re is small and contained in the area where it started.
C. The re department is being called.
D. You can ght the re with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
CAUTION
1. For general ventilating use only. Do not use to exhaust haz-
ardous or explosive materials and vapors.
2. For best capture of cooking impurities, range hood should be
mounted so that the top of the hood is 24”-30” [or applicable
dimension depending on hood height and test height] above
the cooking surface.
3. Read specication label on product for information and re-
quirements.
NOTE If hood is to be installed non-ducted:
Purchase a set of (2) non-ducted lters from your
local distributor or retailer and attach them to the
aluminum mesh lters.
Installer: Leave this manual with the homeowner.
Homeowner: Cleaning, Maintenance and Operating
instructions on page 2.
MODELS NS130BL • NS130SS • NS130WW
SOFFIT
24" - 30" ABOVE
COOKING SURFACE
CABINET
3¼" X 10" DUCT
(For horizontal discharge)
WALL CAP
ROOF CAP
3¼" X 10" or
7" ROUND DUCT
(For vertical
discharge)
HOUSE WIRING
(Top or Back of hood)
HOODHOOD
VERTICAL DUCT
ACCESS HOLE
¾"
10
3
/
4"
5¼"
5¼"
CENTER
LINE
HOOD MOUNTING SCREWS (5)
ELECTRICAL
ACCESS HOLE
(in cabinet bottom)
WOOD SHIMS
(recessed-bottom
cabinets only)
CABINET FRONT
CABINET
BOTTOM
15¼" (36" hood)
4½"
1
7
/
8"
15¼" (36" hood)
12¼" (30" hood)
12¼" (30" hood)
1
7
/
8"
2
3
/
8"
*
10
7
/
8"
NS136BL • NS136SS • NS136WW
Page 2

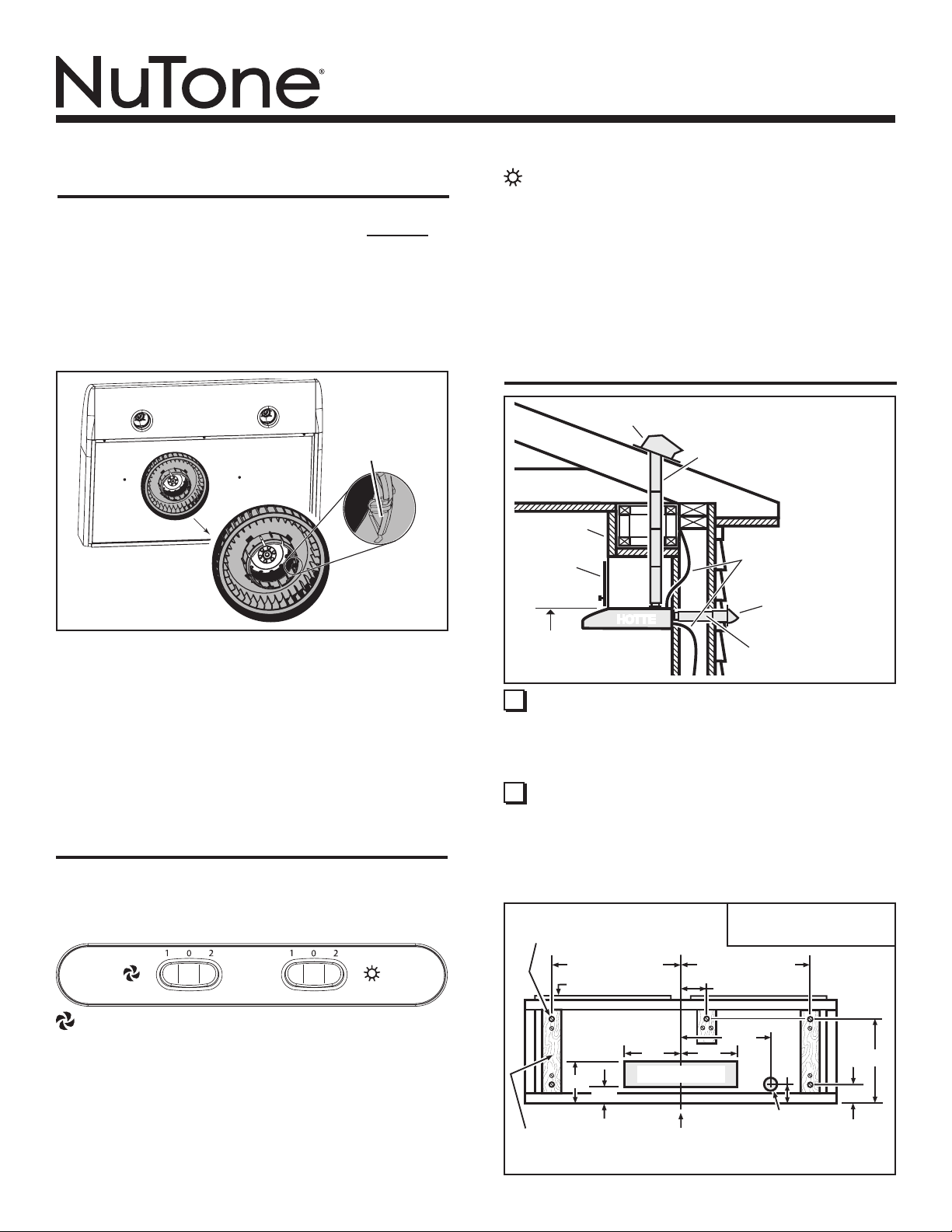

CLEANING & MAINTENANCE
For performance, appearance, and health reasons, clean lter,
fan and grease-laden surfaces. Use only a clean cloth and mild
detergent solution on stainless and painted surfaces. Clean all-
metal lters in the dishwasher.
The motor is permanently lubricated and never needs oiling. If
the motor bearings make excessive or unusual noise, replace
the motor with the exact service motor. The impeller should also
be replaced.
Use 120 V, 50 W, shielded halogen bulbs - MR16 with GU10
base. Purchase bulbs separately.
TAB
LIGHT SWITCH
This 3-position rocker switch turns lights ON and OFF and controls
their intensity.
Press left side of rocker (1) to turn lights ON to low intensity.
Press right side of rocker (2) to turn lights ON to high intensity.
Set rocker to middle position (0) to turn lights OFF.
PREPARE HOOD LOCATION
The grease lters, bottom panel, and blower wheel should be
cleaned frequently. Use a warm detergent solution. The grease
lters and blower wheel are dishwasher safe.
Note: Some minerals, when in contact with dishwasher soap
additives, may cause lters to discolor. This discoloration
is not covered by the warranty.
To remove blower wheel: Pull wheel straight down and off of
motor.
When reinstalling blower wheel, make sure TAB on wheel ts
into one hole on motor.
OPERATION
Always turn the hood ON before cooking in order to establish an
air ow in the kitchen. After turning off the range, let the hood run
for a few minutes to clear the air.
Operate the hood as follows:
BLOWER SWITCH
This 3-position rocker switch turns blower ON and OFF and
controls blower speed.
Press left side of rocker (1) to turn blower ON to low speed.
Press right side of rocker (2) to turn blower ON to high speed.
Set rocker to middle position (0) to turn blower OFF.
1 Determine whether hood will discharge vertically (3¼” x
10” or 7” Round), or horizontally (3¼” x 10” only). For ver-
tical or horizontal discharge, run ductwork between the
hood location and a roof cap or wall cap. For best results,
use a minimum number of transitons and elbows.
2 Use the proper diagram below, for placement of ductwork
and electrical cutout in cabinet or wall. For a non-ducted
installation, DO NOT cut a duct access hole.
Note the extra wood shim and mounting screw near
*
the cabinet front, 2-3/8” to the right of the cabinet
center line.
3¼” X 10”
VERTICAL DUCTING
3¼” X 10”
CABINET
BOTTOM
CABINET FRONT
HORIZONTAL DUCT
ACCESS HOLE
5¼"
5¼"
3
/
4"
HOOD
MOUNTING
SCREWS (5)
ELECTRICAL
ACCESS HOLE
(in wall)
3½"
CENTER
LINE
WOOD SHIMS
(recessed-bottom
cabinets only)
15¼" (36" hood)
12¼"
(30" hood)
15¼" (36" hood)
12¼" (30" hood)
2
3
/
8
"
*
10
7
/
8"
ELECTRICAL
ACCESS HOLE
(in cabinet bottom)
15¼" (36" hood)
1
7
/
8"
15¼" (36" hood)
12¼" (30" hood)
12¼" (30" hood)
10
7
/
8"
2
3
/
8"
*
10
3
/
4"
1
7
/
8"
HOOD MOUNTING SCREWS (5)
7-IN. ROUND
DUCT ACCESS
HOLE
**
3
/
4"
7
3
/
4"
5"5"
HORIZONTAL DUCTING
7-IN. ROUND
DUCTING
MODELS NS130BL • NS130SS • NS130WW
NS136BL • NS136SS • NS136WW
Page 3
↑
↑
↑
↑
4 Remove Bottom Cover held in place with ve (5)
screws.
↑
Note that the 7-in. round duct will need to be squeezed into an
**
oval shape to connect to the 7-in. oval duct plate on the hood.
PREPARE THE HOOD
3 Remove the Aluminum Filters from the hood.
↑
(2)
LIFT
OUT
(1)
PULL
DOWN
ALUMINUM
FILTERS
↑
DAMPER /
DUCT CONNECTOR
5 Remove Damper / Duct Connector and parts bag from
inside the hood.
FOR DUCTED INSTALLATIONS - Skip to Step 10.
MODELS NS130BL • NS130SS • NS130WW
NS136BL • NS136SS • NS136WW
Page 4
RECIRCULATION
SCROLL WALL
6 NON-DUCTED INSTALLATION ONLY:
Remove Recirculation Scroll Wall from inside the hood.
TABS
▼
▼
THUMB
SCREW
9 NON-DUCTED INSTALLATION ONLY:
Remove Recirculation Plate and Thumb Screw from
plastic bag. Slide plate down onto Recirculation Grille
so that Slots in plate t into Tabs on grille. Secure plate
with thumb screw.
CONNECTOR
RECIRCULATION
3¼” x 10”
DAMPER /
DUCT
PLATE
SLOTS & TABS
RECIRCULATION
GRILLE
DUCT PLATE
7” OVAL
**
RECIRCULATION
COVER
7 NON-DUCTED INSTALLATION ONLY:
Depress the Tabs on the Recirculation Cover and
push cover out through top of hood to remove it.
RECIRCULATION
GRILLE
8 NON-DUCTED INSTALLATION ONLY:
Remove Recirculation Grille from plastic bag and snap
it into the opening in the top of the hood.
KNOCKOUT
OPENINGS
10 DUCTED INSTALLATION ONLY:
Remove vertical or horizontal duct knockout. Attach 3¼”
x 10” Damper/Duct Connector (if using 3¼” x 10” duct)
or 7” Oval Duct Plate ** (if using 7-inch round duct)
over the knockout opening.
Note that the 7-in. round duct will need to be squeezed into an
**
oval shape to connect to the 7-in. oval duct plate on the hood.
MODELS NS130BL • NS130SS • NS130WW
HO0059
HO0060
HE0059
HD0154
NS136BL • NS136SS • NS136WW
Page 5
INSTALL THE HOOD
WARNING
To reduce the risk of electrical shock, switch power off
at service panel. Lock or tag service panel to prevent
power from being switched on accidentally.
HOUSE
POWER CABLE
11 Run House Power Cable between service panel and
hood location. Attach power cable to hood using appropriate connector.
12 Hold the hood in position under the cabinet.
For ducted installations: Make sure the damper / duct
connector enters the ductwork and that the damper opens
and closes freely.
13 Tighten all 5 mounting screws completely to secure the
gen bulbs - MR16 with GU10 base. Purchase bulbs separately.
CONNECT THE WIRING
GREEN
GROUND
SCREW
HOUSE
POWER
CABLE
14 Connect House Power Cable to range hood wiring
- BLACK to BLACK, WHITE to WHITE, and GREEN or
BARE WIRE to GREEN Ground Screw.

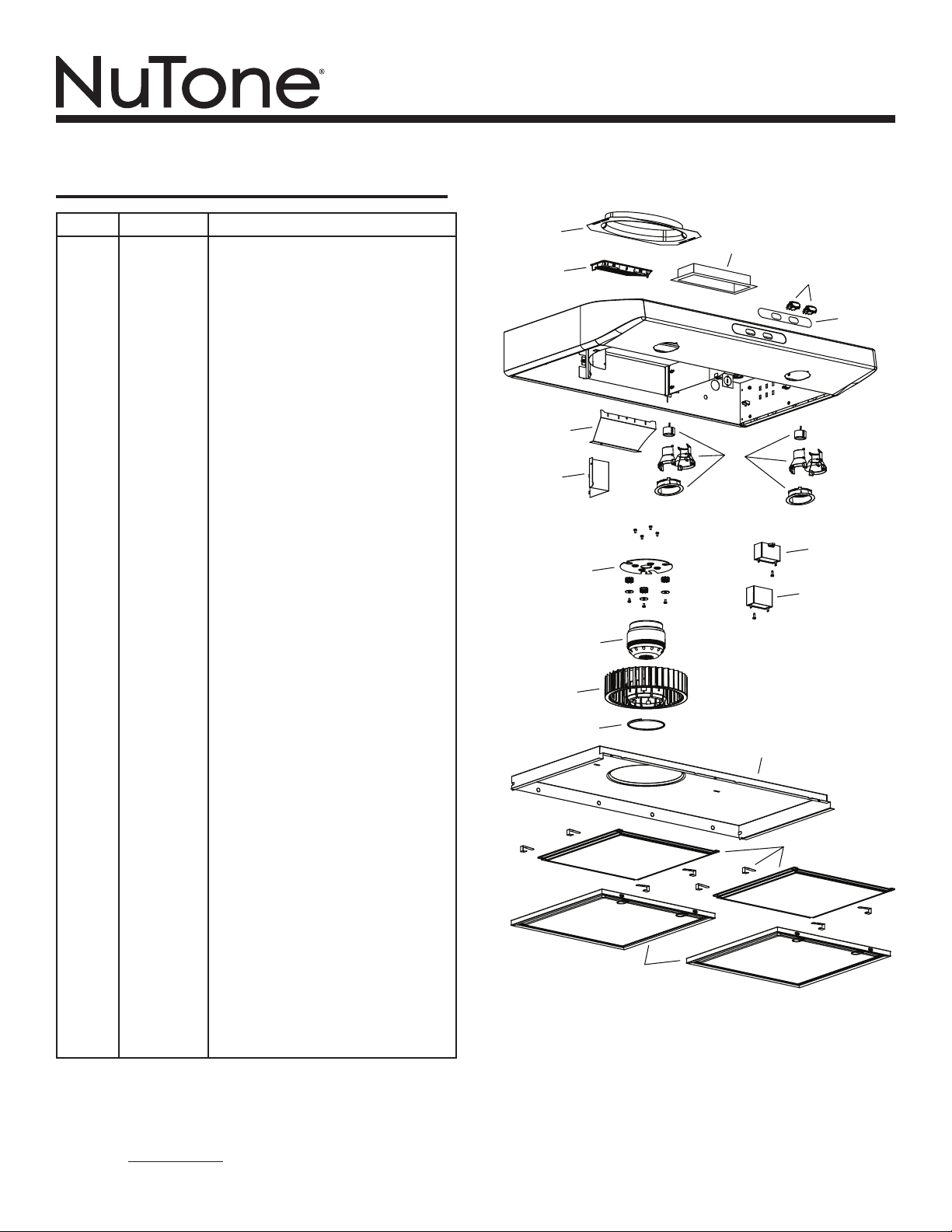

SERVICE PARTS
2
3
4
5
6
7
8
9
10
13
14
11
12
15
16
17
1
KEY NO. PART NO. DESCRIPTION
1 97017397 3¼” x 10” Damper/Duct Connector,
Black
97017618 3¼” x 10” Damper/Duct Connector,
White *
2 97017398 7” Oval Duct Plate, Black *
97017619 7” Oval Duct Plate, White *
3 99526174 Recirculation Cap, Black
99526175 Recirculation Cap, White
99526146 Recirculation Grille, Black
99526147 Recirculation Grille, White
4 97017399 Rocker Switch, Black (2 Switches)
97017400 Rocker Switch, White (2 Switches)
5 99526148 Nameplate, Black
99526149 Nameplate, White
6 97017434 Recirculation Deector for 30” Hood,
Black *
97017435 Recirculation Deector for 30” Hood,
White *
97017436 Recirculation Deector for 36” Hood,
Black *
97017437 Recirculation Deector for 36” Hood,
White *
7 99526509 Recirculation Scroll Wall, Black
99526510 Recirculation Scroll Wall, White
8 97017403 Lamp Socket Holder Kit, Black
97017616 Lamp Socket Holder Kit, White
97017617 Lamp Socket Holder Kit, Silver
(Lamp Socket Holder Kit Includes
RH & LH Socket Holder, Trim Ring,
Socket, & Splice Connectors)
9 97017404 Motor Mounting Bracket, Black *
97017620 Motor Mounting Bracket, White *
10 97017405 Motor *
11 97017406 High Speed Motor Capacitor *
12 97017407 Low Speed Motor Capacitor *
13 97017408 Blower Wheel (Includes Mounting Ring)
14 99526154 Blower Wheel Mounting Ring
15 97017409 Bottom Cover, Black, for 30” Hood *
97017410 Bottom Cover, White, for 30” Hood *
97017411 Bottom Cover, Black, for 36” Hood *
97017412 Bottom Cover, White, for 36” Hood *
16 97017413 Non-duct Filter Kit for 30” Hood
(2 Filters & 8 Filter Clips)
97017414 Non-duct Filter Kit for 36” Hood
(2 Filters & 8 Filter Clips)
17 97017415 Filter Kit for 30” Hood (2 Filters)
97017416 Filter Kit for 36” Hood (2 Filters)
** 97017417 Parts Bag
* Includes hardware
** Not illustrated
Order replacement parts by PART NO. - not by KEY NO.
MODELS NS130BL • NS130SS • NS130WW
NS136BL • NS136SS • NS136WW
Page 6
Replacement parts can now be ordered on our website. Please
visit us at www.nutone.com.
MODELS NS130BL • NS130SS • NS130WW
NS136BL • NS136SS • NS136WW
Page 7
WARRANTY
One Year Limited Warranty
WARRANTY OWNER: Broan-NuTone warrants to the original consumer purchaser of its products that such products will be free from defects in
materials or workmanship for a period of one (1) year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
During this one year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective
under normal use and service. THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS OR TUBES, FILTERS, DUCT,
ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service or
(b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone),
faulty installation or installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one year period as specied for the express warranty. Some states do not allow limitation on
how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE PURCHASER’S SOLE AND
EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR
SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you
specic legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes all prior warranties.
WARRANTY SERVICE: To qualify for warranty service, you must (a) notify Broan-NuTone at the address or telephone number below, (b)
give the model number and part identication and (c) describe the nature of any defect in the product or part. At the time of requesting
warranty service, you must present evidence of the original purchase date.
