NuTone NP60000 User Manual

NP60000 SERIES

INTENDED FOR DOMESTIC COOKING ONLY

INSTALLER: LEAVE THIS MANUAL TO HOMEOWNER.

HOMEOWNER: USE AND CARE INFORMATION ON PAGE 11.

NuTone Inc., 4820 Red Bank Road, Cincinnati, OH 45227 (1-800-543-8687)

www.nutone.com

V7450 rev. A

HB0026

INSTALLATION INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

!

!

WARNING WARNING

- 2 -

TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:

1. Use this unit only in the manner intended by the

manufacturer. If you have questions, contact the
manufacturer at the address or telephone number
listed in the warranty.

2. Before servicing or cleaning unit, switch power

off at service panel and lock service disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be

done by qualified personnel in accordance with all
applicable codes and standards, including fire-rated
construction codes and standards.

4. Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent backdrafting.
Follow the heating equipment manufacturer’s
guidelines and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not

damage electrical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Do not use this unit with any additional solid-state

speed control device.

8. To reduce the risk of fire, use only steel ductwork.

9. This unit must be grounded.

TO REDUCE THE RISK OF A RANGE TOP
GREASE FIRE:

a) Never leave surface units unattended at high settings.

Boilovers cause smoking and greasy spillovers
that may ignite. Heat oils slowly on low or medium
settings.

b) Always turn hood ON when cooking at high heat or

when flambeing food (Crêpes Suzette, Cherries
Jubilee, Peppercorn Beef Flambé).

c) Clean ventilating fans frequently. Grease should

not be allowed to accumulate on fan or filter.

d) Use proper pan size. Always use cookware appropriate

for the size of the surface element.

TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING*:

1. SMOTHER FLAMES with a close-fitting lid, cookie

sheet or metal tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS. IF THE
FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE
AND CALL THE FIRE DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN—You may be

burned.

3. DO NOT USE WATER, including wet dishcloths or

towels—This could cause a violent steam explosion.

4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you

know how to operate it.

B. The fire is small and contained in the area

where it started.

C. The fire department has been called.
D. You can fight the fire with your back to an exit.

* Based on “Kitchen Fire Safety Tips” published by NFPA.

CAUTION

1. For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and vapors.

2. To avoid motor bearing damage and noisy and/or
unbalanced impellers, keep drywall spray,
construction dust, etc. off power unit.

3. Your hood motor has a thermal overload which will
automatically shut off the motor if it becomes
overheated. The motor will restart when it will be
cooled down. If the motor continues to shut off and
restart, have the hood serviced.

4. For best capture of cooking impurities, the bottom
of the hood should be at a minimum of 24” and at
a maximum of 30” above the cooking surface.

5. Two installers are recommended because of the
large size and weight of this hood.

6. To reduce the risk of fire and to properly exhaust
air, be sure to duct air outside—Do not exhaust air
into spaces within walls or ceiling or into attics,
crawl space or garage.

7. This product is equipped with a thermostat which
may start blower automatically. To reduce the risk
of injury and to prevent power from being switched
on accidentally, switch power off at service panel
and lock or tag service panel.

8. Because of the high exhausting capacity of this
hood, you should make sure enough air is entering
the house to replace exhausted air by opening a
window close to or in the kitchen.

9. To reduce the risk of fire and electric shock, the
NuTone Premier NP60000 Series hood must be
installed with NuTone interior blower models
RM325H or RM326H; NuTone exterior blower models
331H, 332H, 335 or 336; NuTone in-line blowers
models HLB3, HLB6, HLB9, HLB11. Other blowers
cannot be substituted. (Blowers sold separately.)

10. Use with approved cord-connection kit only.

11. Please read specification label on product for

further information and requirements.

!

!

- 3 -

TABLE OF CONTENTS

1. SELECT BLOWER OPTION AND INSTALL DUCTWORK............................................................................6

2. MEASURE INSTALLATION...................................................................................................................7

3. PREPARE THE INSTALLATION .............................................................................................................7

4. INSTALL BACKSPLASH......................................................................................................................8

5. I

NSTALL WOOD MOUNTING STRIP .....................................................................................................8

6. INSTALL THE HOOD .........................................................................................................................8

7. SELECT BLOWER OPTION (EXTERIOR OR INTERIOR)............................................................................8

8. INSTALL TRANSITION TO ROUGH-IN PLATE..........................................................................................8

9. INSTALL THE ROUGH-IN PLATE TO THE HOOD .....................................................................................9

10. CONNECT THE WIRING ....................................................................................................................9

11. I

NSTALL THE OPTIONAL SOFFIT CHIMNEY ..........................................................................................9

12. I

NSTALL THE BLOWER ......................................................................................................................9

13. INSTALL LIGHT BULBS AND WARMING LAMPS .....................................................................................10

14. INSTALL FILTERS .............................................................................................................................10

15. USE AND CARE ..............................................................................................................................11

16. OPERATION ....................................................................................................................................11

17. SERVICE PARTS..............................................................................................................................12

WARRANTY

NUTONE ONE-YEAR LIMITED WARRANTY

NuTone warrants to the original consumer purchaser of its products that such products will be free from defects
in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

During this one-year period, NuTone will, at its option, repair or replace, without charge, any product or part which
is found to be defective under normal use and service.

This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been
subject to misuse, negligence, accident, improper maintenance or repair (other than by NuTone), faulty
installation or installation contrary to recommended installation instructions.

The duration of any implied warranty is limited to the one-year period as specified for the express warranty.
Some states or provinces do not allow limitation on how long an implied warranty lasts, so the above limitation
may not apply to you.

NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT NUTONE’S OPTION, SHALL BE THE
PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. NUTONE SHALL NOT BE
LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN
CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states or provinces do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you.

This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state
or province to another. This warranty supersedes all prior warranties.

To qualify for warranty service, you must (a) notify NuTone at the address or telephone number below,
(b) give the model number and part identification and (c) describe the nature of any defect in the product or part.
At the time of requesting warranty service, you must present evidence of the original purchase date.

NuTone Inc., 4820 Red Bank Road, Cincinnati, OH 45227 (1-800-543-8687)

- 4 -

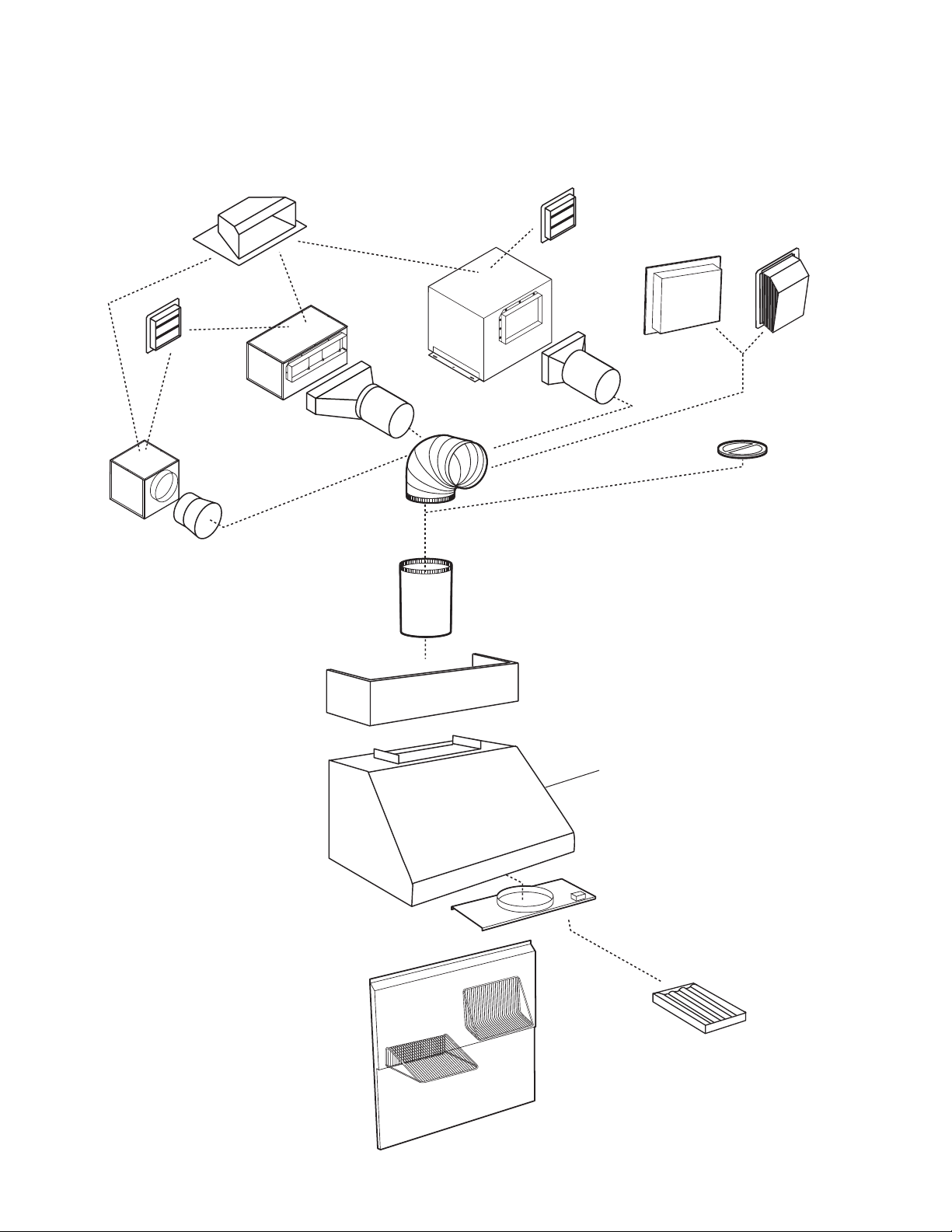

RMP SERIES BACKSPLASH

(Stainless steel wall covering

with warming shelves. Optional)

Model 415

(7” round adjustable elbow)

Model 427
(4 1/2” x 18 1/2”
to 10” round,

6” high - lateral

Model 423

(4 1/2” x 18 1/2” to

10” round - vertical

Model 424

(4 1/2” x 18 1/2” to

10” round - horiz.

front/rear

Model 454

(4 1/2” x 18 1/2”

to 10” round -

horiz. /right

Model 453

(4 1/2” x 18 1/2”

to 10” round -

horiz. /left

NP60000

SERIES HOOD

(Canopy with

blower controls

& lighting.

Required for all

installations.)

OPTIONAL
SOFFIT CHIMNEY
RMN SERIES

- NP60000 SERIES RANGE HOOD SYSTEM -

INTERIOR BLOWERS

Model 437

(High capacity roof cap)

Model 441

(10’’ round wall cap)

Model 634 or 644

(roof cap)

Model 647

(7” round wall cap)

Model 407

(7” round duct—2 ft. sections)

Model 410

(10” round duct—2 ft. sections)

MODEL RM325H
BLOWER/ROUGH-IN KIT

(600 cfm interior blower &
rough-in plate)

MODEL RM326H
BLOWER/ROUGH-IN KIT

(1200 cfm interior blower
& rough-in plate)

Model 418

(10” round adjustable elbow)

OPTIONAL
BAFFLE FILTERS
RBF SERIES
