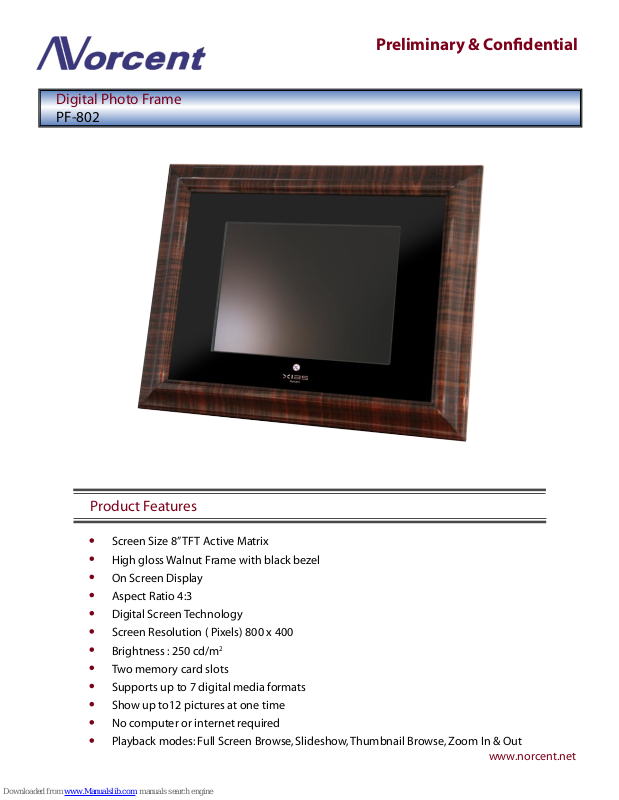

Norcent PF-802 Specifications

Digital Photo Frame

PF-802

Preliminary & Confidential

Product Features

•

Screen Size 8” TFT Active Matrix

•

High gloss Walnut Frame with black bezel

•

On Screen Display

•

Aspect Ratio 4:3

•

Digital Screen Technology

•

Screen Resolution ( Pixels) 800 x 400

•

Brightness : 250 cd/m2

•

Two memory card slots

•

Supports up to 7 digital media formats

•

Show up to12 pictures at one time

•

No computer or internet required

•

Playback modes: Full Screen Browse, Slideshow, Thumbnail Browse, Zoom In & Out

www.norcent.net

Digital Photo Frame

PF-802

Product Specifications

Special Features

Screen Size I 8” TFT
Aspect Ratio I 4:3
Screen Technology I Digital
Screen Resolution (Pixels) I 800 x 680
Brightness I 250 cd/m
Contrast Ratio I 250:1
Viewing Angle (H/V) I 65/70

Compatible Memory Cards

Compact Flash Type l/ll (CF) I Yes
Secure Digital (SD) Card I Yes
MemoryStick (MS) I Yes
MemoryStick Pro (MS Pro) I Yes
Multi Media Card (MMC) I Yes
SmartMedia (SM) Card I Yes
XD Card I Yes
Micro Drive I Yes
USB Drive I Yes

2

Preliminary & Confidential

Compatible File Formats

JPEG I Yes
Photo format supported I Up to 12 Mega Pixels

Connectivity

USB Ports I 1
USB 1.1 I Yes
USB 2.0 I Yes

Accessories & Other

USB Cable I Yes, X1
AC adaptor I Yes
Input power I 100 - 240V
Output power I 12V 1.5A
Plug & Play compatibility I Linux
Regulatory approvals I CE, FCC

General

Language Support I English/ Spanish/ French/ German, Italian/ Simplified Chinese/

Russian/ Japanese

Playback mode I Full-screen browse, Slideshow, Thumbnail browse, Zoom In & out
Controls I 10 buttons
Memory Card Slots I 2 Slots

UPC# TBD

Norcent is a registered trademark of Norcent Technology Inc. (2005)
550 Cliffside Drive, San Dimas, CA 91773
All rights reserved.
All product information is accurate to the best of our knowledge at the time of publication.
Features and specifications are subject to change without notice.

www.norcent.net
