LM960
LCD MONITOR
MANUAL
Thank you very much for choosing the Norcent Product.
We recommend that you take a few minutes to read carefully through this manual
before installing and switching on the product. Please keep this manual in a safe
place for your future reference.
Page 2
Operation Instructions
Thank you for purchasing this monitor, a high-resolution multi-scan
color monitor.
Please read this guide thoroughly before installation.
FCC RADIO FREQUENCY INTERFERENCE STATEMENT
WARNING: (FOR FCC CERTIFIED MODELS)
This monitor has been tested and found compliant with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide proper protection against harmful
interference to a residential installation. This monitor generates, uses,
and can radiate radio frequency energy. Harmful interference to radio
communication may be led as a result if it‘s not properly installed and
used. However, there is no guarantee that interference will not occur
in a particular installation. If this monitor does cause serious
interference to radio or television reception, resetting the monitor may
determine it. Moreover, users are encouraged to correct interference
by doing one or more of the following:
Reorient or relocate the receiving antenna.
Move the monitor and the receiver further away from each other.
Connect the monitor into an outlet on a circuit different from that
to which the receiver is connected.
Consult your local dealer or an qualified technician
FCC Warning:
To assure a continued FCC compliance, a user must use a grounded
power supply cord and the provided shielded video interface cable
with bonded ferrite cores. Also, any unauthorized changes or
modifications to this monitor would void the user‘s authority to
operate this device.
Note: If necessary, shielded interface cables and AC power cord must
be used to meet the emission level limits.
EMI Certification
The Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulation.
Cet appareil numerique de class B respecte toutes les exigences du
Reglement sur le materiel brouilleur du Canada.
.
Page 3
Content
Safety Precautions...........................................................................1
First Setup.........................................................................................2
Installation .......................................................................................3
Using OSD Functions ......................................................................4
Technical Information.....................................................................13
Care and Maintenance....................................................................14
Troubleshooting .............................................................................14
Page 4
Safety Precautions
This monitor is manufactured and tested on a ground principle
that a user’s safety comes first. However, improper use or
installation may result danger to the monitor as well as to the
user. Carefully go over the following WARNINGS before
installation and keep this guide handy.
WARNINGS:
This monitor should be operated only at the correct power
sources indicated on the label on the rear end of the monitor.
If you’re unsure of the power supply in your residence,
consult your local dealer or power company.
Do not try to repair the monitor yourself as it contains no
user-serviceable parts. The monitor should only be repaired
by a qualified technician.
Do not remove the monitor cabinet. There is high-voltage
parts inside that may cause electric shock to human bodies,
even when the power cord is disconnected .
Stop using the monitor if the cabinet is damaged. Have it
checked by a service technician.
Put your monitor only in a clean, dry environment. Unplug
the monitor immediately if it gets wet and consult
your service technician.
Always unplug the monitor before cleaning it. Clean the
cabinet with a clean, dry cloth. Apply non-ammonia based
cleaner onto the cloth, not directly onto the glass screen.
Keep the monitor away from magnetic objects, motors, TV
sets, and transformer.
Do not place heavy objects on the cable or power cord.
For PLUG CABLE EQUIPMENT, the Socket-outlet shall
be installed near the equipment and shall be easily
accessible.
1
Page 5
First Setup
Congratulation for purchasing this monitor of high performance!
This monitor comes with the following accessories :
Video cable with 15 pin D-SUB connector.
Power cable.
Audio Cable.
User guide book.
Quick Installation
1. Connect video cable
Make sure both the monitor
and computer are powered
OFF. Connect the video cable
to the computer, then to the
monitor.
2. Connect power cord
Connect the power cord to a
properly grounded AC outlet,
then to the monitor.
3. Power-ON computer and
monitor
Power-ON the computer, then
Power-ON the monitor.
4.
Windows users : Setting the
Timing Mode (Resolution and
Refresh Rate)
Example: 1280 x 1024 @ 60 Hz
Resolution Right-click on the
Windows desktop > Properties >
Settings > “Desktop Area”. Set
the resolution.
Refresh Rate (vertical frequency)
See your graphic card’s user
guide for instructions.
2
Page 6
Front Panel Control
ACTIVATE/EXIT OSD SELECT DESIRED FUNCTION
SCROLL DOWN/DECREASE POWER ON/OFF
SCROLL UP/INCREASE LED INDICATOR
Installation
¡ ¢
POWER INPUT AUDIO INPUT
¡ DVI INPUT ¢ VGA INPUT
3
Page 7
Using OSD Functions
1. Press the { button to display the main menu shown below.
2. Press the V or W button to scroll to the desired menu option.
3. Press the | button to select the menu option.
4. Press the V or W button to select submenu option.
5. After making adjustment, press { button to save changes and exit the
screen.

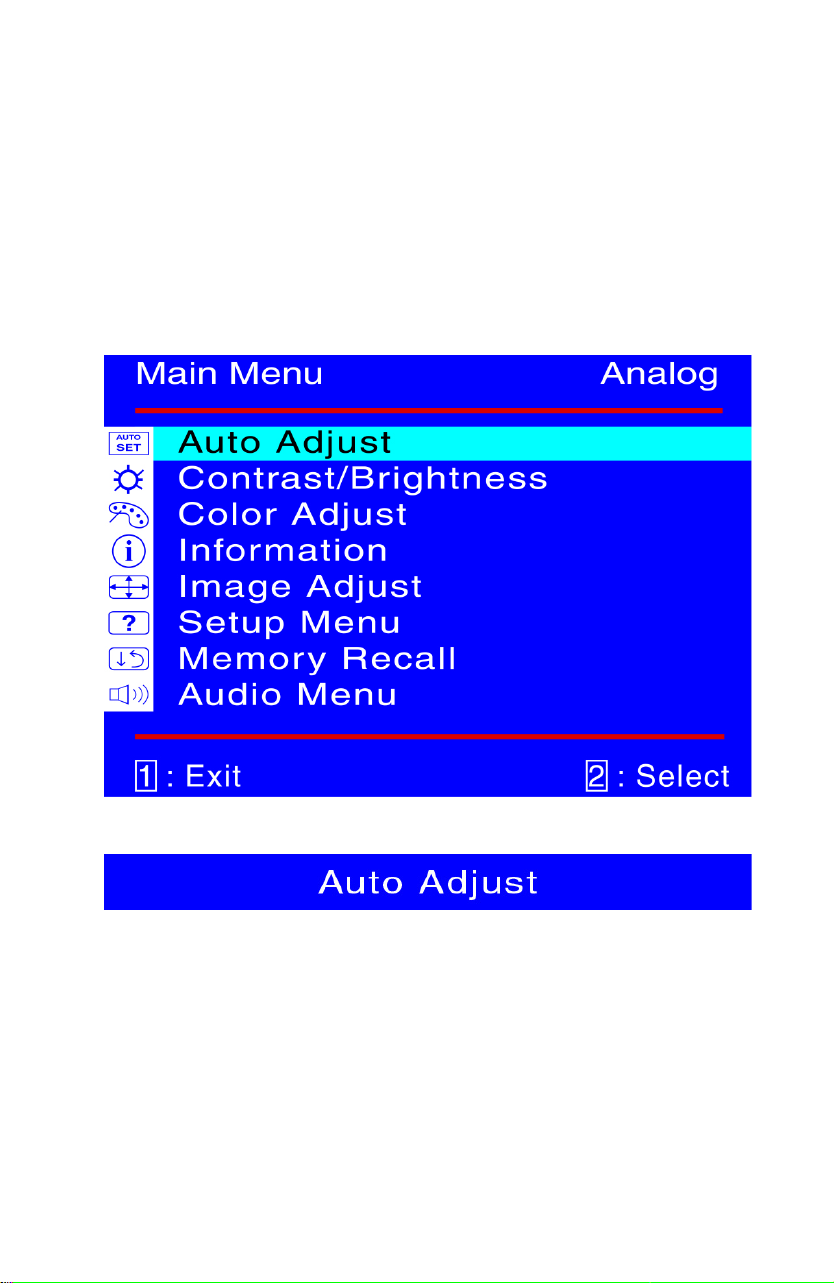

Main Menu
Auto Adjust：To auto adjust the Horizontal Position, Vertical Position,
phase (Fine Tune) and Clock (H. Size), please select Auto Adjust from
the Main Menu
4
Page 8

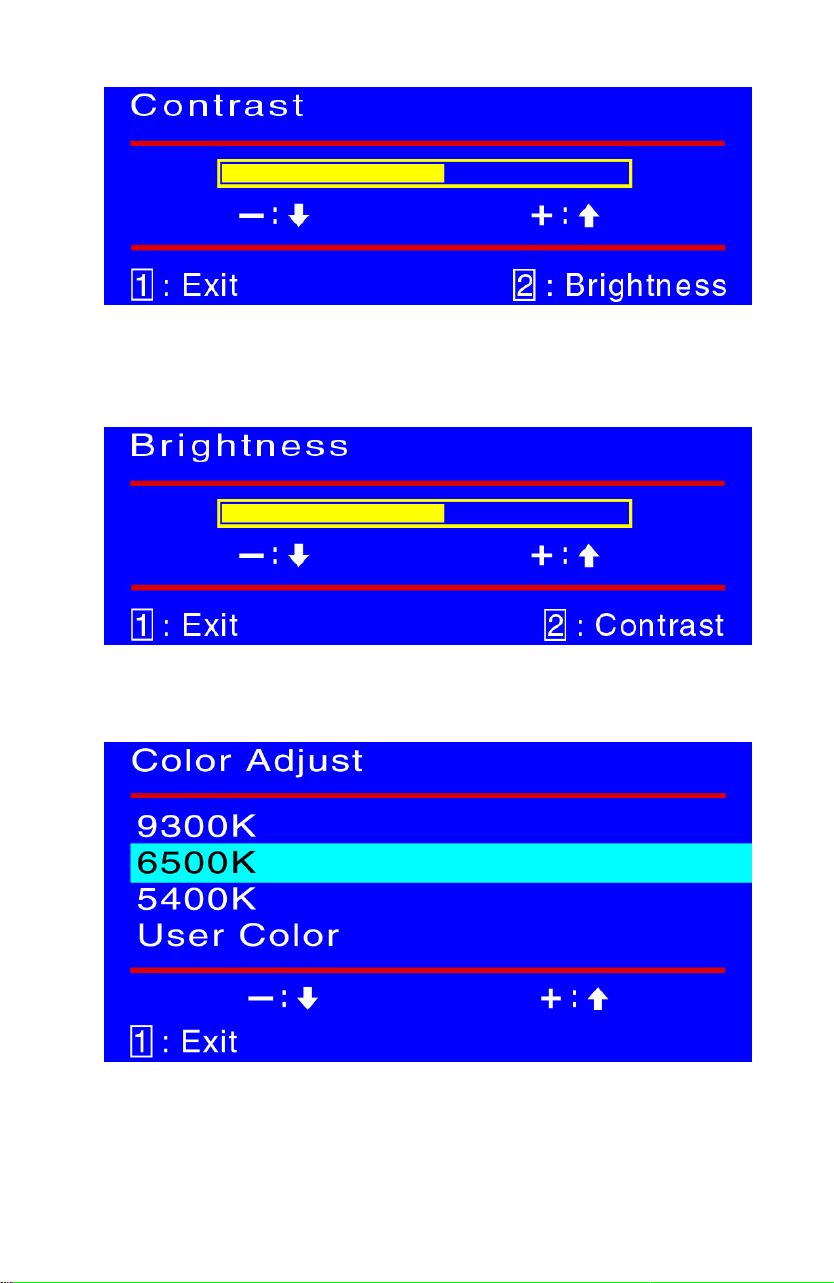

Contrast : To adjust the foreground white level of screen image.
Press W or V button to adjust selected contrast.
Brightness : To adjust the background black level of screen image.
Press W or V button to adjust selected brightness.
Color Adjust : To provide four preset color adjustments for improving
brightness and color saturation: 9300K, 6500K, 5400K, and User Color.
Press button | to select the preset color.
5
Page 9
9300K--Adds blue to screen image for cooler white.
6500K--Adds red to screen image for warmer white and richer red.
5400K--Adds green to screen image for a darker color.

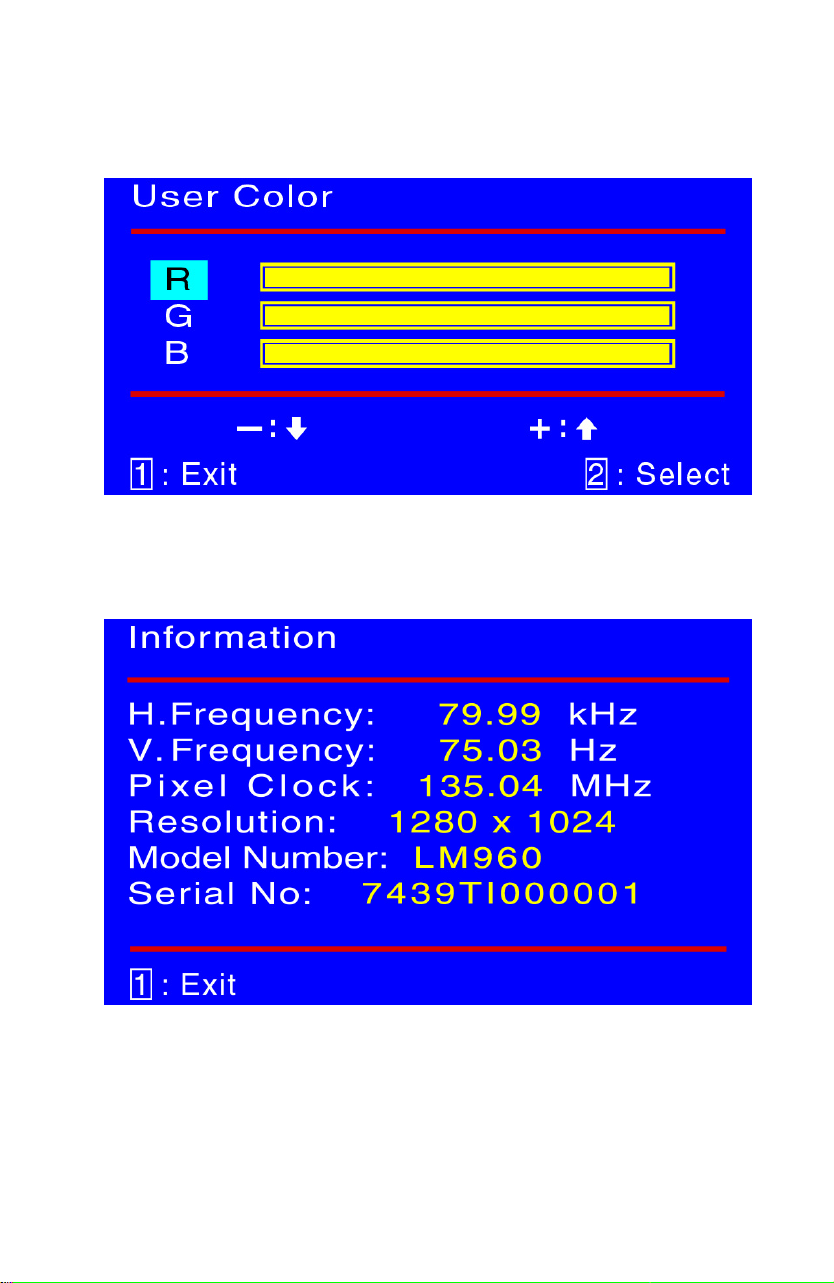

User Color : Individual adjustments for red (R), green (G), blue (B).
1. Press button | to select the desired color.
2. Press W or V button to adjust selected color.
Information : To display the information, regarding the current input
signal coming from the graphic card in your computer.
Note: See your graphic card user guide for more information about
changing the resolution and refresh rate.
6
Page 10

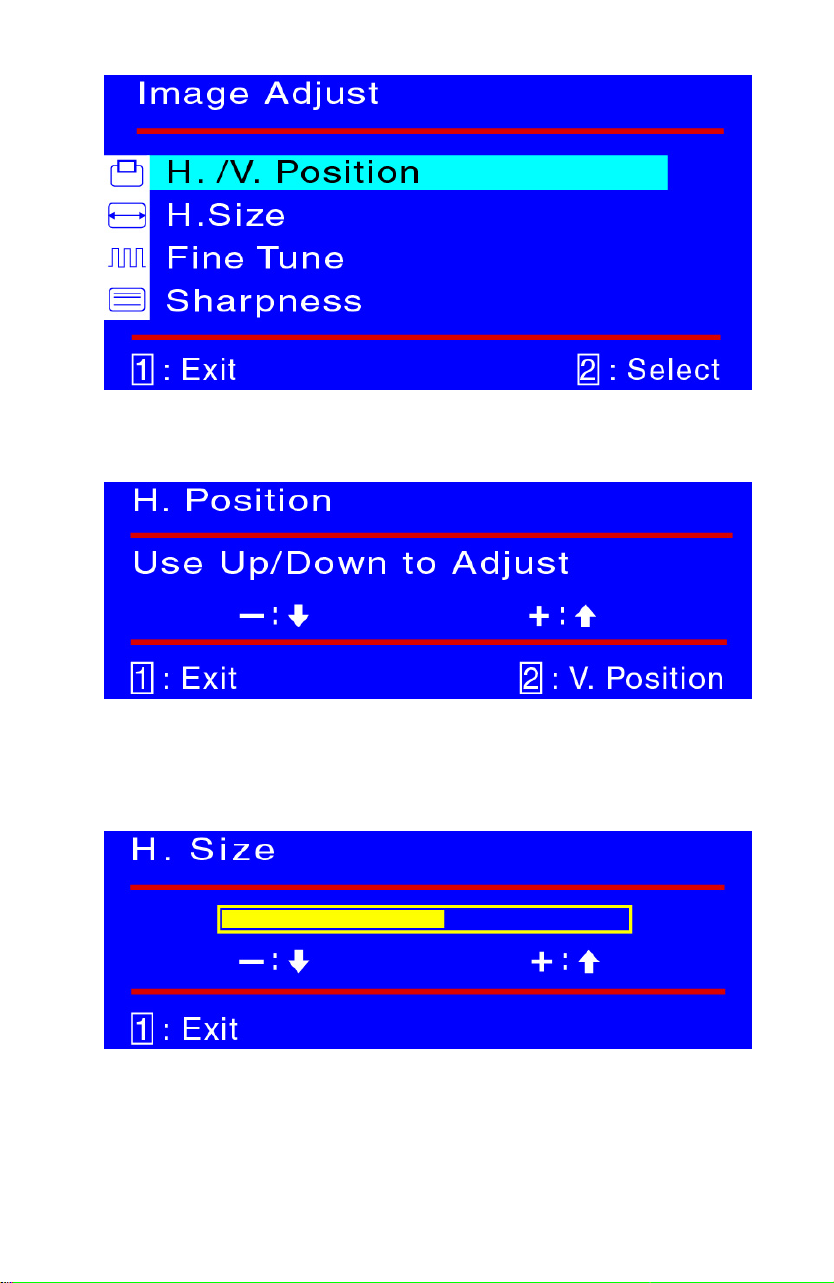

Image Adjust : To manually adjust the Horizontal /Vertical position ,H.
Size, Fine Tune and Sharpness.
H./V. Position : To adjust the horizontal and vertical position of the video.
H. PositionV : move screen to the right, W : move screen to the left.
V. Position V : move screen up, W : move screen down.
H. Size : To adjust the width of the screen image.
Press W or V button to adjust selected H. Size.
7
Page 11

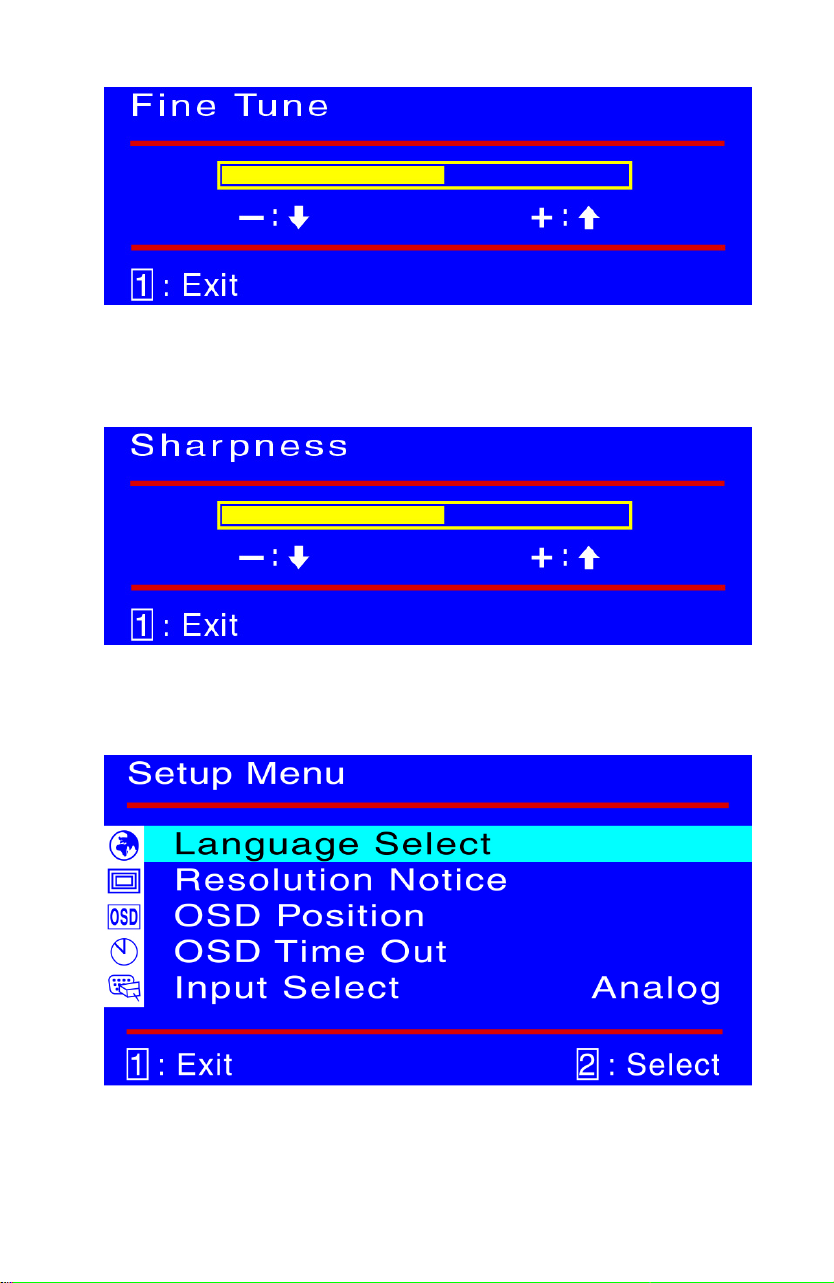

Fine Tune : To adjust the delay time of data and clock.
Press W or V to adjust to user preference.
Sharpness : To adjust the clarity of a non-SXGA (1280x1024) signal.
Press W or V button to adjust sharpness.

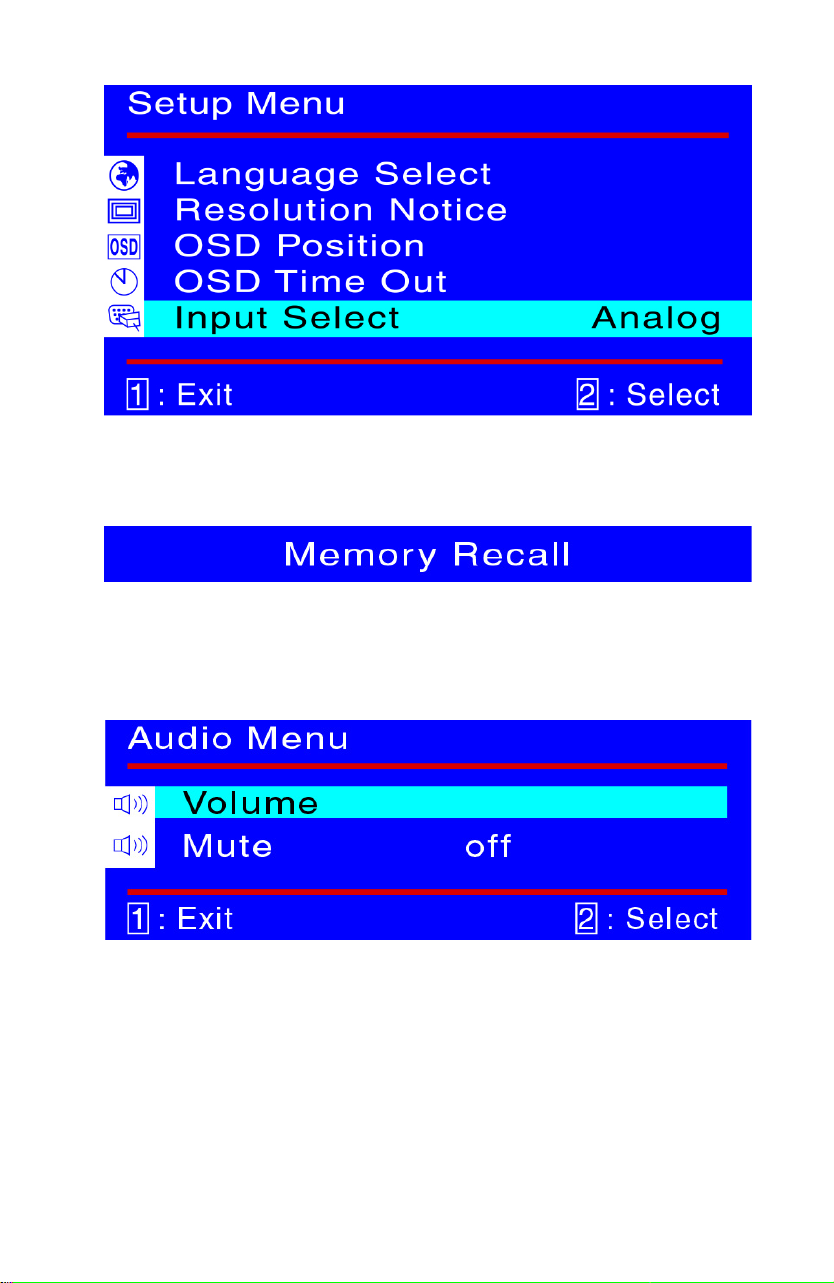

Setup Menu : To set language Select, Resolution Notice, OSD position,
OSD Time Out and Input Select (Analog).
8
Page 12

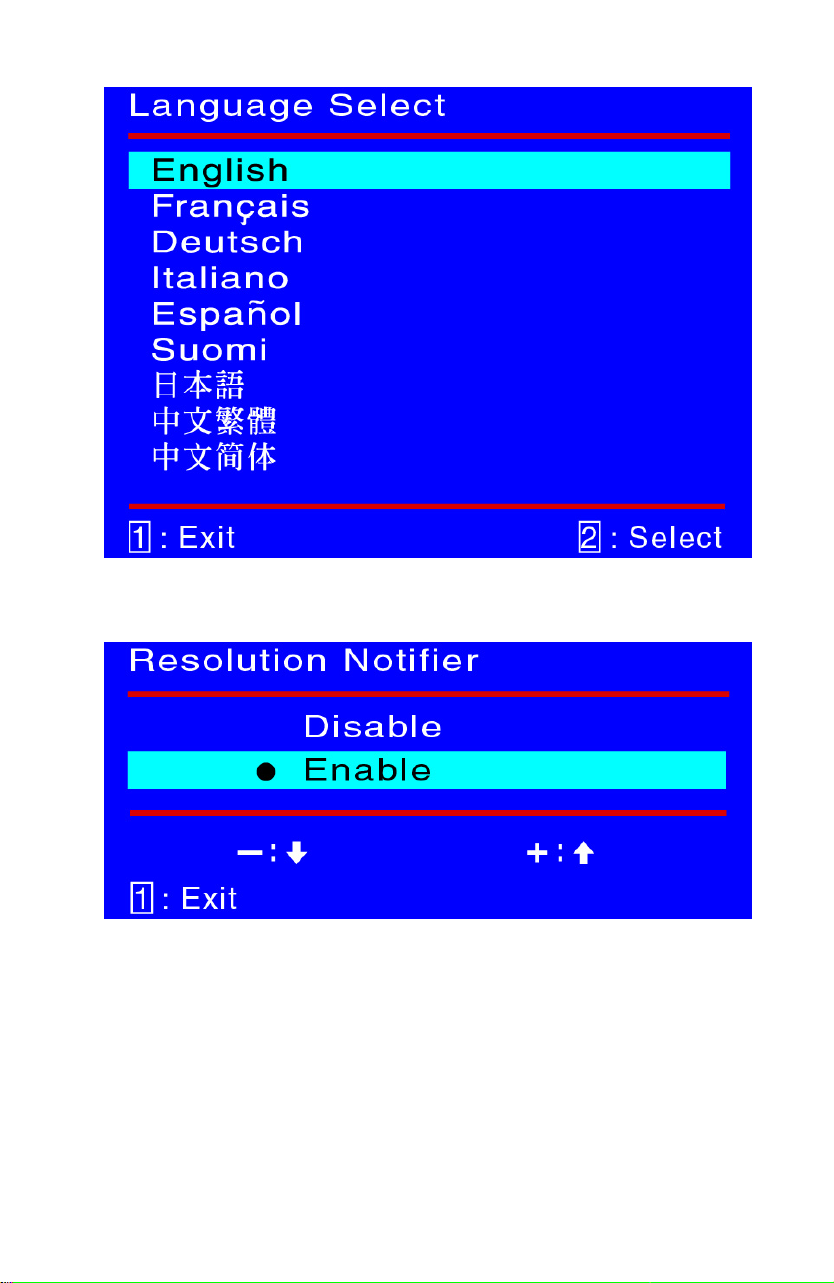

Language Select : To allow the user to choose from available language.
Resolution Notice : There is a OSD message of "For best picture quality
change resolution to 1280 x 1024" displayed on the screen after 30 seconds
Powering ON or changing mode to lower resolutions (640 x 480/ 720 x 400
/ 800 x 600/ 1024 x 768), if the function was "enable". Above message
would not display on screen if it was "disable".
9
Page 13

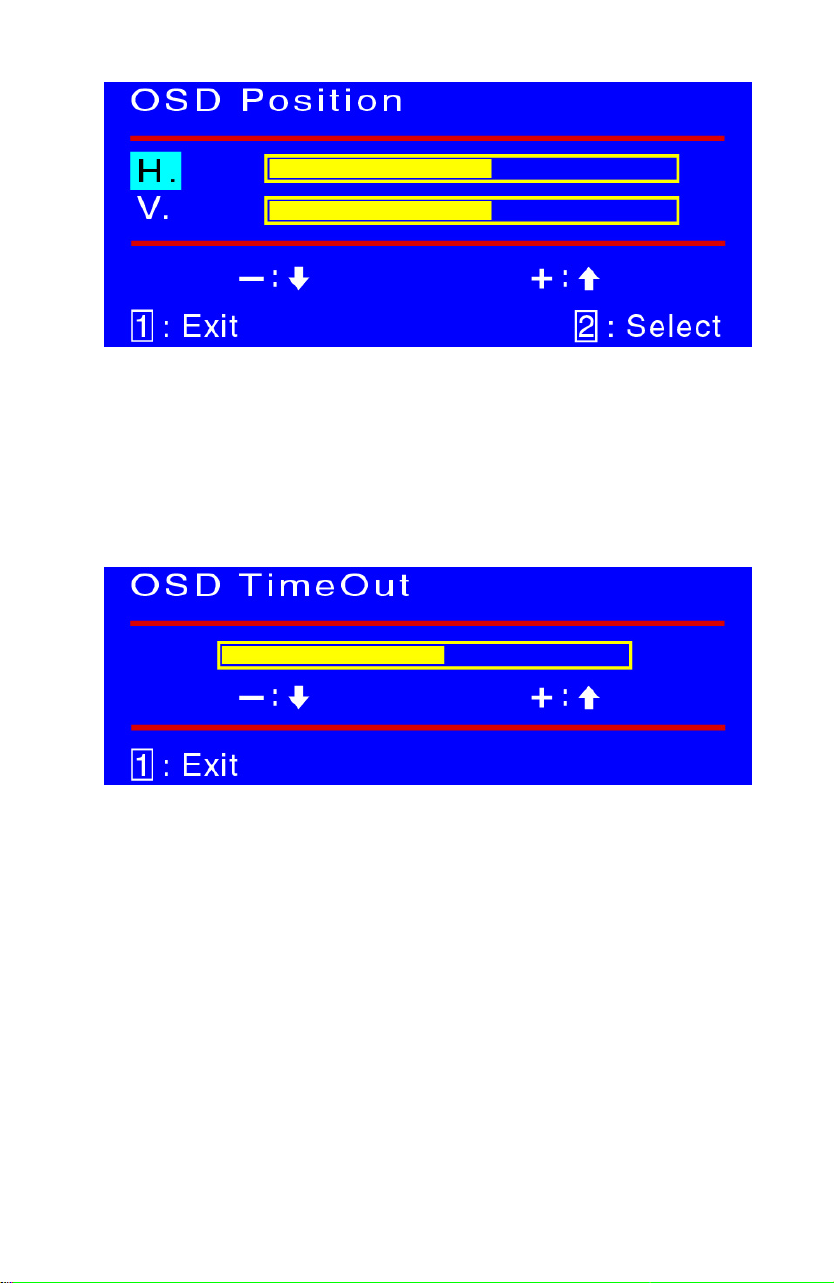

OSD Position : Press the button to select the horizontal or vertical
OSD position.
Horizontal OSD Position：To horizontally replace the OSD position.
V：move OSD to the right, W：move OSD to the left.
Vertical OSD Position：To vertically replace the OSD position.
V：move OSD up, W：move OSD down.
OSD Time Out : Sets the length of time the OSD screen is displayed
before exiting.
10
Page 14
Input Select : Press Input Select to change Input signal to Analog or
Digital.
Memory Recall : To return to the factory setting condition, about
Picture＆Audio setting.
Press the button | to select the Memory Recall menu option.
Audio Menu:
Volume: To adjust the volume of speaker output.
Mute: To select the Mute ON/OFF.
11
Page 15
Supporting Timing modes
VESA 640 x 480 @ 60Hz
MAC 640 x 480 @ 67Hz
VESA 640 x 480 @75Hz
VESA 800 x 600 @ 56Hz
VESA 800 x 600 @ 60Hz
VESA 800 x 600 @ 72Hz
VESA 800 x 600 @ 75Hz
VESA 1024 x 768 @ 60Hz
VESA 1024 x 768 @ 70Hz
VESA 1024 x 768 @ 75 Hz
VESA 1280 x 1024 @ 60Hz
VESA 1280 x 1024 @ 75Hz
Warning : Do not set the graphic card in your computer to exceed
these maximum refresh rates. Doing so may result in permanent
damage to your monitor.
12
Page 16
Technical Information
Technical Specification
LCD Panel 19.0” TFT
Power Management Energy Star compliant VESA
DPMS compatible
< 2 W
Displayable Resolution SXGA 1280 x 1024 max. Vertical Frequency 75Hz max.
Pixel Dimension 0.294 x 0.294 mm
LCD Display Color 16.7M (8 bits/color)
Viewing Angle 85/85/85/85, CR 10
Tilt +25°, -0°
Contrast Ratio 500 : 1 (typical)
Brightness 250 cd /m2 (typical)
Response Time 25 ms.
Active Display Area
Temperature
Compliance
Power Input Voltage AC100-240 V 60/50Hz 1.5A
Speaker 2W x 2
376.32 mm x 301.056 mm
Operating: 0°C ~ +40°C
Storage: -20°C ~ + 60°C
UL, CUL, FCC-B, Energy Star.
≧
13
Page 17
Care and Maintenance
Care
Please avoid exposing your LCD monitor from direct sunlight or other heat
sources.
Put your monitor in a well ventilated area. Do not place any heavy things
on top of your monitor.
Make sure your monitor is installed in a clean and moisture-free area.
Keep your monitor away from magnets, motors, transformers, speakers,
and TV sets.
Note:
1.
Remove the LCD monitor from its package and remember to take off the
plastic bag and Polystyrene Foam.
2.
Pull the base from Parallel versus Panel to Vertical.
3.
Adjustable screen angle is 0 degree leaning forward and 25 degree
leaning backward. For packing, please bend harder to exceed 20 degree
backward in order to reduce storage size. Caution: Panel exceeding 0 to
+25 degree is considered unsuitable and harm will be unpredictable.
Safety Tips:
If you see any smoke, hear any abnormal noise or smell any odor coming out
from your monitor, be very cautious to remove the power cord immediately
and call your service center.
Never remove the rear cover of your monitor cabinet. The display unit inside
contains high-voltage parts and may cause electric shock to human bodies.
Never try to repair your monitor yourself. Always call your service center or
a qualified technician to fix it.
Troubleshooting
No power
Make sure A/C power cord is securely connected to the power outlet and the
power cord is firmly connected to the monitor.
Plug another electrical device into the power outlet to verify that the outlet is
supplying proper voltage.
Power on but no screen image
Make sure all signal cables are installed.
Make sure the video cable supplied with the monitor is tightly secured to the
video output port on back of the computer. If not, tightly secure it.
Adjust brightness.
14
Page 18
Wrong or abnormal colors
If any colors (red, green, blue) are missing, check the video cable to make
sure it is securely connected. Loose or broken pins in the cable connector
could cause an improper connection.
Connect the monitor to another computer to verify if it is monitor problem
or computer problem.
15
Page 19
Norcent Technology, Inc.
550 Cliffside Drive,
San Dimas, CA91773
www.norcent.net
[email protected]
[email protected]
Customer support 909-305-2121
Loading...
