Norcent LT2021 SUPPLEMENTARY GUIDE

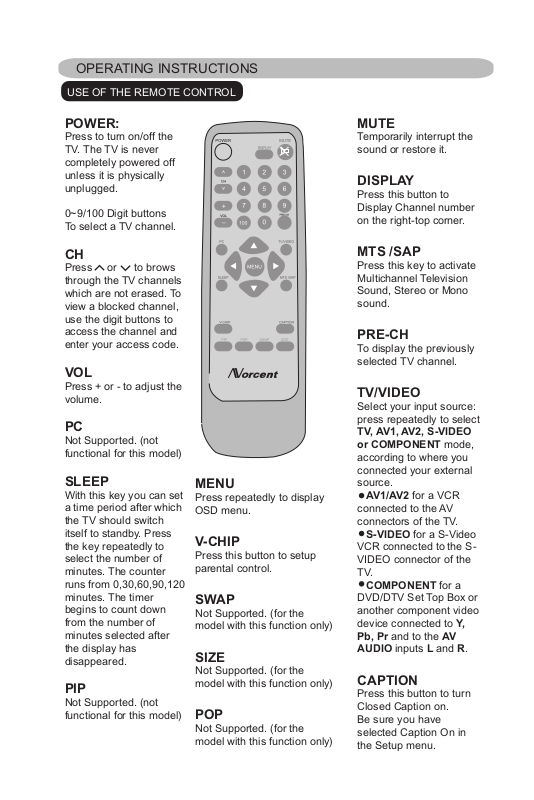

OPERATING INSTRUCTIONS
USE OF THE REMOTE CONTROL
POWER:
Press to turn on/off the
TV. The TV is never
completely powered off
unless it is physically
unplugged.
0~9/100 Digit buttons
To select a TV channel.
CH
Press or to brows
through the TV channels
which are not erased. To
view a blocked channel,
use the digit buttons to
access the channel and
enter your access code.
VOL
Press + or - to adjust the
volume.
PC
Not Supported. (not
functional for this model)
SLEEP
With this key you can set
a time period after which
the TV should switch
itself to standby. Press
the key repeatedly to
select the number of
minutes. The counter
runs from 0,30,60,90,120
minutes. The timer
begins to count down
from the number of
minutes selected after
the display has
disappeared.
PIP
Not Supported. (not
functional for this model)
MENU
Press repeatedly to display
OSD menu.
V-CHIP
Press this button to setup
parental control.
SWAP
Not Supported. (for the
model with this function only)
SIZE
Not Supported. (for the
model with this function only)
POP
Not Supported. (for the
model with this function only)
MUTE
Temporarily interrupt the
sound or restore it.
DISPLAY
Press this button to
Display Channel number
on the right-top corner.
MTS /SAP
Press this key to activate
Multichannel Television
Sound, Stereo or Mono
sound.
PRE-CH
To display the previously
selected TV channel.
TV/VIDEO
Select your input source:
press repeatedly to select
TV, AV1, AV2, S-VIDEO
or COMPONENT mode,
according to where you
connected your external
source.
AV1/AV2 for a VCR
connected to the AV
connectors of the TV.
S-VIDEO for a S-Video
VCR connected to the SVIDEO connector of the
TV.
COMPONENT for a
DVD/DTV Set Top Box or
another component video
device connected to Y,
Pb, Pr and to the AV
AUDIO inputs L and R.
CAPTION
Press this button to turn
Closed Caption on.
Be sure you have
selected Caption On in
the Setup menu.
