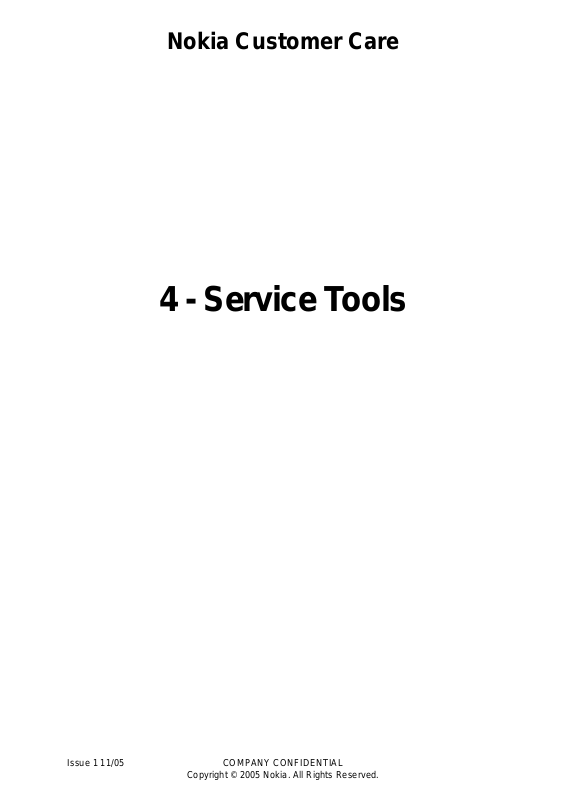

Nokia 9300i, RA-8 Service tools
Nokia Customer Care
4 - Service Tools
Issue 1 11/05 COMPANY CONFIDENTIAL
Copyright © 2005 Nokia. All Rights Reserved.
RA-8
Nokia Customer Care 4 - Service Tools
[This page intentionally blank]
2 COMPANY CONFIDENTIAL Issue 1 11/05
Copyright © 2005 Nokia. All Rights Reserved.
RA-8
4 - Service Tools Nokia Customer Care
Table of Contents
Page No
List of Recommended Service Tools ................................................................5
New service tools for RA-8 ................................................................................ 5
Service tools reused from other products .......................................................... 5
Standard and generic service tools for RA-8..................................................... 6
New Service Tools for RA-8 ............................................................................... 7
Module jig MJ-83................................................................................................ 7
Re-used Service Tools...................................................................................... 11
ACF-8 universal power supply......................................................................... 11
ACP-12E charger (Europe).............................................................................. 11
ACP-12U charger (US) .................................................................................... 12
AXP-8 parallel printer cable ............................................................................. 12
AXS-4 service cable......................................................................................... 13
CA-5S DC cable............................................................................................... 13
CA-28DS service data cable............................................................................ 14
DA-21 docking station adapter......................................................................... 14
DAU-9S serial data cable................................................................................. 15
DKU-2 connectivity cable................................................................................. 15
FLC-2 power supply cable............................................................................... 16
FLS-4S POS flash prommer............................................................................ 16
FPS-8 flash prommer....................................................................................... 17
FPS-10 flash prommer..................................................................................... 17
FPS-11 flash prommer..................................................................................... 18
JBT-9 test box.................................................................................................. 19
JBV-1 docking station...................................................................................... 19
PCS-1 power cable.......................................................................................... 20
PKD-1 SW security device............................................................................... 20
RJ-21 rework jig............................................................................................... 21
RJ-28 soldering jig........................................................................................... 21
RJ-46 rework jig............................................................................................... 22
RJ-71 rework jig............................................................................................... 22
RJ-72 rework jig............................................................................................... 23
SA-61 RF coupler ............................................................................................ 23
SB-07 WLAN test box...................................................................................... 24
SF-24 POS flash adapter................................................................................. 25
SPS-1 soldering paste spreader...................................................................... 26
SPS-2 soldering paste spreader...................................................................... 26
SRT-6 opening tool.......................................................................................... 26
SS-56 display alignment jig.............................................................................. 27
ST-13 rework stencil........................................................................................ 27
ST-26 rework stencil........................................................................................ 28
ST-27 rework stencil........................................................................................ 28
ST-33 rework stencil........................................................................................ 29
SX-4 smart card............................................................................................... 29
Issue 1 11/05 COMPANY CONFIDENTIAL 3
Copyright © 2005 Nokia. All Rights Reserved.
RA-8
4 - Service Tools Nokia Customer Care
XCS-4 modular cable....................................................................................... 30
XRF-1 RF cable............................................................................................... 30
Issue 1 11/05 COMPANY CONFIDENTIAL 4
Copyright © 2005 Nokia. All Rights Reserved.
RA-8
Nokia Customer Care 4 - Service Tools
List of Recommended Service Tools
■ New service tools for RA-8
Description Note
MJ-83, Module jig
The following spare parts are available for the tools.
Description Note
MJ-83: 100GSS193.8G TEST PIN PACK OF 10 TEST PINS
MJ-83: DE-50-T45-2.0-G TEST PIN PACK OF 10 TEST PINS
MJ-83: 100 GSS 3 3.8G TEST PIN PACK OF 10 TEST PINS
MJ-83: IHF speaker: 100GSS103.8G PACK OF 10 TEST PINS
MJ-83: spare flex cables One of each = 2 flex cables.
MJ-83: Spare fuse, 2A PACK OF 10 fuses
SF-24, DA-21: TEST PIN SS-75-J-2.4-G (IDI) PACK OF 10 TEST PINS
■ Service tools reused from other products
The following tools are developed for other products, and also used in RA-8.
Description Note
CA-28DS, service data cable Mod10 – mod10/dc-jack, used in RA-2/3
DA-21, docking station adapter Used in RAE-6
RJ-21, rework jig for N7700 Used in RH-37
RJ-28, soldering jig Used in RAE-6
RJ-46, rework jig for Z7600 Used in RH-37
RJ-71, rework jig for N4200 Used in RA-2/3
RJ-72, rework jig for D4400 Used in RAE-6
SA-61, RF-coupler Used in RAE-6
SB-07 WLAN test box Used in RA-2/3
SF-24, point of sales flash adapter Used in RAE-6
SS-56, display alignment jig Used in RAE-6
ST-13, stencil for N7700 Used in RH-37
5 COMPANY CONFIDENTIAL Issue 1 11/05
Copyright © 2005 Nokia. All Rights Reserved.
RA-8
4 - Service Tools Nokia Customer Care
Description Note
ST-26, stencil for N4200 Used in RA-2/3
ST-27, stencil for Z7600 Used in RAE-6
ST-33, stencil for D4400 Used in RAE-6
■ Standard and generic servic e tools for RA-8
RA-8 is a DCT-4 base d product. The following stan dard and generic service tools are used fo r
RA-8.
• FPS-8 flash prommer
• FPS-10 flash prommer
• FLS-4S POS flash device, sales pack EMEA, APAC and US
• PKD-1 SW security dongle
• JBV-1 docking station
• ACF-8 universal power supply
• XCS-1 service cable, Mod10 to Mod10 cable with DC plug
• XCS-4 modular cable for e.g. connection between FPS-8 and SF-24
• PCS-1 power cable banana connectors to 5.5 mm DC plug
• FLC-2 DC cable, banana connectors to 3.5 mm DC plug. 1,2 meters
• CA-5S DC cable, Charger plug - Charger plug
• AXS-4 service cable, serial cable 9 pol. Sub-D (part of FPS-8 sales package)
• CA-10DS parallel cable, new version, BI-DI PAR CABLE
• DAU-9S MBUS cable, 9 pole Sub-D f <=> 8 pole modular connector
• SF-12 SRAM module for FPS-8
• XRF-1 RF cable, double screen 50+/-1ohm straight male SMA-N flexible cable
• SX-2 smart card for FPS-10/11
• DKU-2 USB cable
• SPI-1 PB-FREE SOLDER PASTE, 96SCLF300AGS85
• SRT-6 opening tool
• SPS-1 soldering paste spreader
• SPS-2 soldering paste spreader
• Standard USB A-B cable (not available from Nokia)
Issue 1 11/05 COMPANY CONFIDENTIAL 6
Copyright © 2005 Nokia. All Rights Reserved.
RA-8
Nokia Customer Care 4 - Service Tools
New Service Tools for RA-8
■ Module jig MJ-83
Module jig MJ-83 is designed for module level testing. It can be used for testing at engine level
for the following:
• flashing
•RF
• WLAN RF
• battery
• system
• display
• keyboard
•USB
• SIM/MMC reader
View of MJ-83
7 COMPANY CONFIDENTIAL Issue 1 11/05
Copyright © 2005 Nokia. All Rights Reserved.
RA-8
4 - Service Tools Nokia Customer Care
Test patterns of MJ-83
Table 1: Signal description of the UI flex test pattern
Pin Signal Pin Signal
n.c. n.c. n.c. n.c.
n.c. n.c. 1 GND (Ground)
2 GND (Ground) 3 V18 (Supply voltage 1.8V)
4 V28 (Supply voltage 2.8V) 5 APE_GPIO(12) (RESX for CMT display)
6 EARN (Audio signal for earpiece) 7 EARP (Audio signal for earpiece)
8 PWRONX (Power-on-signal) 9 ROW0 (Row-line of keyboard matrix)
10 UWIRE(4) (CS for PDA display) 11 UWIRE(3) (CSX for CMT display)
12 ROW2 13 ROW1
14 UWIRE(2) (SCL for CMT and PDA display) 15 UWIRE(1) (SDA for CMT and SDIN for PDA
display)
16 UWIRE(0) (DOUT for PDA display) 17 ROW3
18 ROW4 19 GND (Ground)
20 GND (Ground) 21 GND (Ground)
22 GND (Ground) 23 COL5 (Column-line of keyboard matrix)
24 COL4 25 COL3
26 COL2 27 COL1
28 KLIGHT (control signal for CMT LEDs) 29 DRVEN (LED driver enable)
30 DLIGHT (control signal for PDA display
LEDs)
32 VBAT (supply voltage) 33 APE_GPIO(13) RESET for PDA display
34 V28 (Supply voltage 2.8V) 35 LCD(10) (Green5)
36 LCD(0) (Blue0 RGB data for PDA display) 37 LCD(1) (Blue1 RGB data for PDA display)
38 LCD(2) (Blue2 RGB data for PDA display) 39 LCD(3) (Blue3 RGB data for PDA display)
31 VBAT (supply voltage)
40 LCD(19) (DE for PDA display) 41 GND (Ground)
42 GND (Ground) 43 GND (Ground)
44 GND (Ground) 45 LCD(18) (VSYNCH for PDA display)
46 LCD(17) (HSYNCH for PDA display) 47 LCD(4) (Blue4 RGB data for PDA display)
48 LCD(9) (Green4 RGB data for PDA display) 49 LCD(8) (Green3 RGB data for PDA display)
50 LCD(11) (Red0 RGB data for PDA display) 51 LCD(16) (PCLK for PDA display)
Issue 1 11/05 COMPANY CONFIDENTIAL 8
Copyright © 2005 Nokia. All Rights Reserved.
RA-8
Nokia Customer Care 4 - Service Tools
Pin Signal Pin Signal
52 LCD(7) (Green2 RGB data for PDA display) 53 LCD(6) (Green1 RGB data for PDA display)
54 LCD(12) (Red1 RGB data for PDA display) 55 LCD(13) (Red2 RGB data for PDA display)
56 LCD(14) Red3 RGB data for PDA display) 57 LCD(15) (Red4 RGB data for PDA display)
58 LCD(5) (Green0 RGB data for PDA display) 59 GND (Ground)
60 GND (Ground) 61 GND (Ground)
Figure 1: Pin order of UP module connector X100
9 COMPANY CONFIDENTIAL Issue 1 11/05
Copyright © 2005 Nokia. All Rights Reserved.
