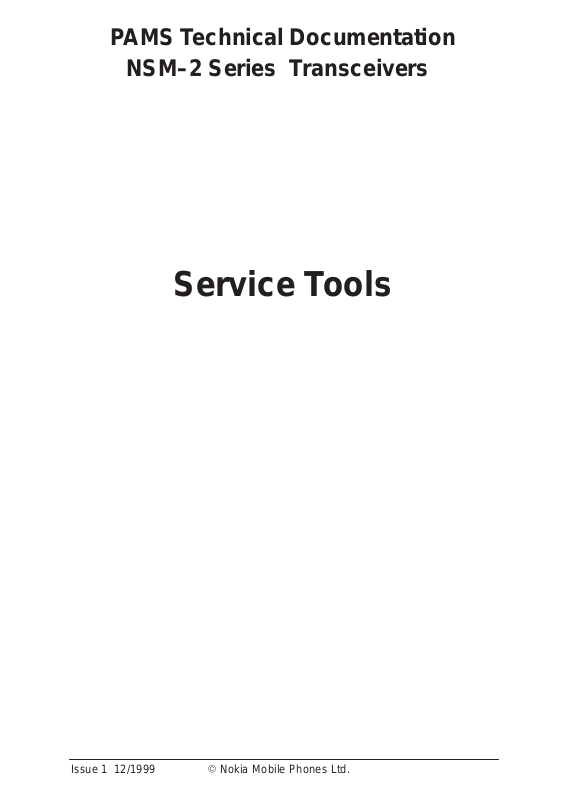

PAMS Technical Documentation
NSM–2 Series Transceivers
Service Tools
Issue 1 12/1999 Nokia Mobile Phones Ltd.
NSM–2
Service Tools
CONTENTS
Service Box JBU–6 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of JBU–6 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RF Adapter RA6 for Service Box JBU–6 4. . . . . . . . . . . . . . . . . . . . . . .
Test Jig MJS–9 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of MJS–9 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Soldering Jig MJS–21 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of MJS–21 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RF Test Adapter AAT–8 (Service Antenna) 7. . . . . . . . . . . . . . . . . . . . . . .
Product Code 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of AAT–8 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PAMS Technical Documentation
Flash Battery BBF–1 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of BBF–1 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flash Loading Adapter FLA–10 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sales package code 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of FLA–10 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery Connector Extractor Tool SRT–3 10. . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of SRT–3 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flash Loading Adapter FLA–7 (Sales Pack) 11. . . . . . . . . . . . . . . . . . . . . .
Sales package code 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of FLA–7 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flash Prommer FPS–4S (Sales Pack) 12. . . . . . . . . . . . . . . . . . . . . . . . . . .
Sales package code 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of FPS–4 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security Box TDF–4 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 2
View of TDF–4 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
D15–D15 Cable AXS–5 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of AXS–5 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DC Charging Cable PCC–1 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of PCC–1 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DC Cable SCB–3 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Nokia Mobile Phones Ltd.
Issue 1 12/1999
PAMS Technical Documentation
Product Code 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of SCB–3 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MBUS Cable DAU–9S 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of DAU–9S 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Cable PCS–1 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of PCS–1 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RF Cable XRF–1 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product code 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of XRF–1 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RF Cable XRS–3 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product code 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of XRS–3 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NSM–2
Service Tools
Service Cable XMS–3 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product code 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of XMS–3 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modular T–adapter 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of Modular T–adapter 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modular Cable Jack Connector 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of Modular Cable Jack Connector 23. . . . . . . . . . . . . . . . . . . . . . .
SW Security Device PKD–1 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Code 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of SW Security Device 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dongle/Flash Device FLS–2D (Sales Pack) 25. . . . . . . . . . . . . . . . . . . . . .
Product Code 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
View of FLS–2D 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sales Pack Contents 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Issue 1 12/1999
Nokia Mobile Phones Ltd.
Page 3
NSM–2
Service Tools
Service Box JBU–6
The Service Box JBU–6 is used:
– to make connection between transceiver and FLA–5/7 for flashing
– to help functional tests
– to enable connection to test/measurument devices
– to generate accurate 4.1 and 8.4 voltage for Vbatt and Vin/Vchar lines
– to generate accurate 500mA current for charging calibration Vin line
– to generate 10 ms IBI–pulse to BTMP–line
NOTE: JBU–6 cover should be closed during measurements.
Product Code
Service Box JBU–6: 0770153
View of JBU–6
PAMS Technical Documentation
SCD–6:
Sales Package code: 0080329
Product code: 9780263.
RF Adapter RA6 for Service Box JBU–6
RF Adapter RA6: 0770174
Page 4
Nokia Mobile Phones Ltd.
Pinset Cable SCD–6:
Spare part for JBU–6.
Issue 1 12/1999
PAMS Technical Documentation
Test Jig MJS–9
The Test Jig MJS–9 is used for repair of system/RF module*. The zoom in
picture contains two changeable over voltage protection components:
SM Fuse F2.0 A 32V 1206 F 001 T 5119002 (larger of the two)
VWM 5.6V VC15.5 R 008 T 1825019
See next page for additional info.
Product Code
Module Jig MJS–9: 0770154
View of MJS–9
NSM–2
Service Tools
*Note: The nominal supply voltage for MJS–9 is +8.0 V.
Issue 1 12/1999
The supply voltage must not exceed +15.0 V.
(MJS–9 has overvoltage protection).
Nokia Mobile Phones Ltd.
Page 5
NSM–2
Service Tools
Soldering Jig MJS–21
The Soldering Jig MJS–21 is used for soldering (in soldering machines)
and repairing of system module.
Product Code
Module Jig MJS–21: 0770225
View of MJS–21
PAMS Technical Documentation
Page 6
Nokia Mobile Phones Ltd.
Issue 1 12/1999
PAMS Technical Documentation
RF Test Adapter AAT–8 (Service Antenna)
The Service Antenna AAT–8 is used in place of the phone’s normal
antenna during RF measurements. Use RF Cable XRF–1 (0730085).
Product Code
Service Antenna AAT–8: 0770173
View of AAT–8
NSM–2
Service Tools
Issue 1 12/1999
Nokia Mobile Phones Ltd.
Page 7
NSM–2
Service Tools
Flash Battery BBF–1
The Flash Battery BBF–1 is used in place of the phone’s normal battery
during flashing.
The zoom in picture contains two changeable over voltage protection
components:
SM Fuse F2.0 A 32V 1206 F 001 T 5119002 (larger of the two)
VWM 5.6V VC15.5 R 008 T 1825019
Product Code
Flash Battery BBF–1: 0775206
View of BBF–1
PAMS Technical Documentation
Page 8
*Note: The nominal supply voltage for BBF–1 is +8.0 V.
The supply voltage must not exceed +15.0 V.
(BBF–1 has overvoltage protection).
Nokia Mobile Phones Ltd.
Issue 1 12/1999
PAMS Technical Documentation
Flash Loading Adapter FLA–10
The Falsh Loading Adapter FLA–10 is used in place of the phone’s normal
battery during service, to supply a controlled operating voltage.
Sales package code
Falsh Loading Adapter FLA–10: 0081346
Sales package contains:
Falsh Loading Adapter FLA–10 (bulk) 0770229
DC Cable FLC–2 0730174
View of FLA–10
NSM–2
Service Tools
Issue 1 12/1999
Nokia Mobile Phones Ltd.
Page 9
NSM–2
Service Tools
Battery Connector Extractor Tool SRT–3
The Battery Connector Extractor Tool is used to remove the antenna or
battery connector from the frame.
Product Code
Battery Connector Extractor Tool SRT–3: 0770226
View of SRT–3
PAMS Technical Documentation
Page 10
Nokia Mobile Phones Ltd.
Issue 1 12/1999
PAMS Technical Documentation
Flash Loading Adapter FLA–7 (Sales Pack)
The Flash Loading Adapter FLA–7 is used with the Service Battery BBD–3
and Service Cable SCH–5. Power is supplied to FLA–7 from the Flash
Security Box TDF–4 via the DC cable PCC–1, (The PCC–1 cable can be
replaced with a Travel Charger ACH–6), and is connected to the Flash
Prommer FPS–4S with the cable AXS–5.
The sales pack includes:
– Flash Loading Adapter FLA–7 0770119
– Service Cable XCM–5 0730142
– Power Cable SCF–7 0730141
– Service Cable assy AXS–5 0730091
Sales package code
Flash Loading Adapter FLA–7: 0080326
NSM–2
Service Tools
View of FLA–7
Issue 1 12/1999
Nokia Mobile Phones Ltd.
Page 11
NSM–2
Service Tools
Flash Prommer FPS–4S (Sales Pack)
The Flash Prommer FPS–4S is used to update the main software of the
phone. Updating is done by first loading the new MCU software from the
PC to the flash prommer, and then loading the new SW from the prommer
to the phone. When updating more than one phone in succession, the
MCU software only needs to be loaded to the prommer once.
The sales pack includes:
– Flash Prommer FPS–4 0750090
– Charger ACL–3E 0680015
– Printer cable IBM DB25F/57–30360 0730029
– D9 – D9 Cable AXS–4 0730090
– Flash Prommer software 3” disk 0774043
Sales package code
Flash Prommer FPS–4S: 0085095
PAMS Technical Documentation
View of FPS–4
Page 12
Nokia Mobile Phones Ltd.
Issue 1 12/1999
PAMS Technical Documentation
Security Box TDF–4
The Security Box TDF–4 is required for updating MCU software, and infra
red testing.
Note 1: TDF–4 is delivered in de–activated mode. Fill in the enclosed
Activation Request Form, and fax to NMP Salo to get the
activation code
Note 2: The infra red module JLP–1 (P/N 0750079) is not included in
the TDF–4 sales package
Product Code
Security Box TDF–4: 0770106
View of TDF–4
NSM–2
Service Tools
Issue 1 12/1999
Nokia Mobile Phones Ltd.
Page 13
NSM–2
Service Tools
D15–D15 Cable AXS–5
The D15–D15 Cable AXS–5 is used to connect two 15 pin D connectors.
e.g. between FLA–5/7 and FPS–4S.
Product Code
D15–D15 Cable AXS–5: 0730091
View of AXS–5
PAMS Technical Documentation
Page 14
Nokia Mobile Phones Ltd.
Issue 1 12/1999
PAMS Technical Documentation
DC Charging Cable PCC–1
The DC Cable PCC–1 is used e.g. to connect FLA–5/7 and TDF–4.
Product Code
DC Cable PCC–1 (with modular RJ connector): 0730053
DC Cable PCC–1B (with banana connectors): 0770050
View of PCC–1
NSM–2
Service Tools
Issue 1 12/1999
Nokia Mobile Phones Ltd.
Page 15
NSM–2
Service Tools
DC Cable SCB–3
The DC Cable SCB–3 is used to connect the Service Battery to the
charger connection Vin of the phone when doing the charger calibration
service procedure.
Product Code
DC Cable SCB–3: 0730114
View of SCB–3
PAMS Technical Documentation
Page 16
Nokia Mobile Phones Ltd.
Issue 1 12/1999
PAMS Technical Documentation
MBUS Cable DAU–9S
The MBUS Cable DAU–9S has a modular connector, and is used with the
service Audio Box JBA–4, or a modular T–adapter.
Product Code
MBUS Cable DAU–9S: 0730108
View of DAU–9S
NSM–2
Service Tools
Issue 1 12/1999
Nokia Mobile Phones Ltd.
Page 17
NSM–2
Service Tools
Power Cable PCS–1
The Power Cable PCS–1 is used to connect the module jigs MJS–9 and
JBU–6 to an external power supply. Can be used with FPS–4 also.
Product Code
Power Cable PCS–1: 0730012
View of PCS–1
PAMS Technical Documentation
Page 18
Nokia Mobile Phones Ltd.
Issue 1 12/1999
PAMS Technical Documentation
RF Cable XRF–1
RF cable XRF–1 is used to connect RF Test adapter AAT–8 or Test frame
MJS–9 to RF measurement equipment..
Product code
RF Cable XRF–1: 0730085
View of XRF–1
NSM–2
Service Tools
Issue 1 12/1999
Nokia Mobile Phones Ltd.
Page 19
NSM–2
Service Tools
RF Cable XRS–3
RF cable XRS–3 is used to connect RF Test adapter AAT–8 or Test frame
MJS–9 to RF measurement equipment.
Product code
RF Cable XRS–3: 0730184
View of XRS–3
PAMS Technical Documentation
Page 20
Nokia Mobile Phones Ltd.
Issue 1 12/1999
PAMS Technical Documentation
Service Cable XMS–3
XMS–3 is a modular cable for flashing.
Product code
Service Cable XMS–3: 0730174
View of XMS–3
NSM–2
Service Tools
Issue 1 12/1999
Nokia Mobile Phones Ltd.
Page 21
NSM–2
Service Tools
Modular T–adapter
The modular T–adapter is a suitable branching unit to provide the needed
parallel modular connections.
Product Code
Modular T–adapter: 4626134
View of Modular T–adapter
PAMS Technical Documentation
Page 22
Nokia Mobile Phones Ltd.
Issue 1 12/1999
PAMS Technical Documentation
Modular Cable Jack Connector
The Modular Cable Jack Connector is a suitable for connecting two
Service Flash Batteries (BBF–1) together in Warranty Transfer.
Product Code
Modular Cable Jack Connector
(available eg. as AMP code: P/N 555052–1)
View of Modular Cable Jack Connector
NSM–2
Service Tools
Issue 1 12/1999
Nokia Mobile Phones Ltd.
Page 23
NSM–2
Service Tools
SW Security Device PKD–1
SW security device is a piece of hardware enabling the use of the service
software when connected to the parallel (LPT) port of the PC. Whithout
the dongle present it is not possible to use the service software. Printer or
any such device can be connected to the PC through the dongle if
needed.
Caution: Make sure thet you have switched off the PC and the printer
before making connections!
Caution: Do not connected the PKD–1 to the serial port. You may
damage your PKD–1!
Product Code
SW Security Device PKD–1: 0750018
View of SW Security Device
PAMS Technical Documentation
Page 24
Nokia Mobile Phones Ltd.
Issue 1 12/1999
PAMS Technical Documentation
Dongle/Flash Device FLS–2D (Sales Pack)
FLS-2D is a dongle and flash device incorporated into one package,
developed specifically for POS use. Use Flash Loading Adapter FLA–10
(0081346) with FLS–2D.
Product Code
Sales Pack - Europe/Africa 0081291
Sales Pack -APAC 0081290
Sales Pack -US 0081289
View of FLS–2D
NSM–2
Service Tools
Sales Pack Contents
Part No. Description
0750142 FLS-2D Flash Device.
0730163
0770177
0770176
0774120
0774123
0275405
0275404
Note: in addition to this Sales Pack, a Service Cable will be required to connect the
FLS-2D to the Product/Phone to be flashed, e.g. XMS-3, and a software package to run
the flashing process.
Issue 1 12/1999
AXS-4U Cable.
Disk- Installation package,16bit Dongle Drivers.
Disk - Installation package, 32bit Dongle Drivers.
Disk - Installation package for the FLE-5 Drivers.
Disk - Remote Update Application Installation Package.
Installation and User Guide
Registration Request Form
Nokia Mobile Phones Ltd.
Page 25
NSM–2
Service Tools
PAMS Technical Documentation
This page intentionally left blank.
Page 26
Nokia Mobile Phones Ltd.
Issue 1 12/1999
Loading...
