Nokia 8800 Service Manual Level 1-2

Download

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

nokia

PAGE 1 (23) Approved 1.0

MGR

8800

RM-13

Transceiver characteristics:

• Band: Tri-band phone for GSM 900/1800/1900MHz

• Camera: Integrated SVGA camera 0,5 Megapixel

• Display: Active matrix color display with 262.144 colors,

resolution 208 x 208 pixel

• Bluetooth

• FM radio

• Vibra Alert: Small round Vibra motor

• Connector: Easy Flash connector

Transceiver with BL-5X 600mAh Li-Ion battery pack

Talk time Standby Note

Depends on

1,5 h –3 h Up to 8 days

Environmental characteristics:

• Lead-free soldered

network

parameters

SERVICE MANUAL

Service Level 1&2

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

TABLE OF CONTENT

1. INTRODUCTION...................................................................................................................................................................................3

2. GENERAL REPAIR INFORMATION .....................................................................................................................................................4

3. PATHFINDER FOR WORKSHOP STAFF.............................................................................................................................................5

4. EXPLODED VIEW AND COMPONENT DISPOSAL.............................................................................................................................6

5. SPARE PARTS OVERVIEW ..................................................................................................................................................................7

6. SPARE PARTS LIST..............................................................................................................................................................................8

7. SERVICE TOOLS....................................................................................................................................................................................9

8. SW-UPDATE...................................................................................................................................................................................... 11

PAGE 2 (23) Approved 1.0

MGR

Page

9. DISASSEMBLY INSTRUCTIONS ....................................................................................................................................................... 12

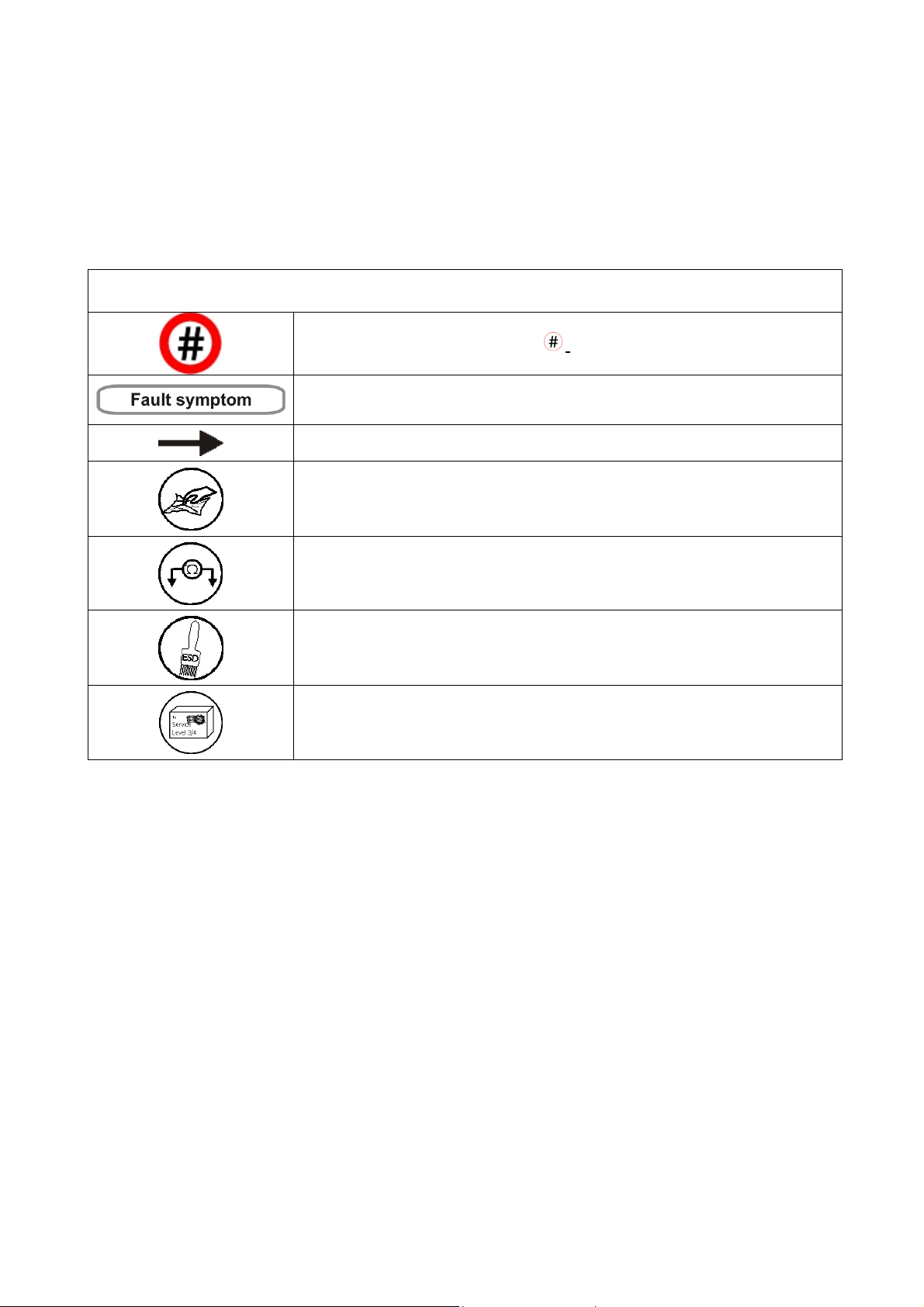

10. LEGEND FOR QUICK TROUBLE SHOOTER................................................................................................................................. 16

11. QUICK TROUBLE SHOOTER PART 1.......................................................................................................................................... 17

12. QUICK TROUBLE SHOOTER PART 2.......................................................................................................................................... 18

13. CAMERA GONOGO TEST ............................................................................................................................................................. 19

14. BLUETOOTH ................................................................................................................................................................................. 20

15. GONOGO TEST ............................................................................................................................................................................. 21

16. BATTERY TEST............................................................................................................................................................................. 21

17. FORWARDING OF REPAIRS ....................................................................................................................................................... 22

18. ESD PROTECTION REQUIREMENTS........................................................................................................................................... 23

CHANGE HISTORY

Status Version No. Date Comments

Draft 0.1 07.04.2005 Initial draft

Approved 1.0 09.05.2005 Approval

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

1. INTRODUCTION

The purpose of this document is to help NOKIA service levels 1 and 2 workshop technicians to carry out service to NOKIA products. This Service Manual is to be used only by authorized NOKIA service suppliers, and the content of it is confidential. Please note that NOKIA provides also other guidance documents (e.g. Service Bulletins) for service suppliers, follow these regularly and comply with the given instructions.

While every endeavor has been made to ensure the accuracy of this document, some errors may exist. If you find any errors or if you have further suggestions, please notify NOKIA using the address below:

mailto:cc-ts-rc.documentation@NOKIA.com

Please keep in mind also that this documentation is continuously being updated and modified, so watch always out for the newest version.

Warnings and Cautions

Please refer to the phone’s user guide for instructions relating to operation, care and maintenance including important safety information. Note also the following:

Warnings:

CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE

1. MANAGEMENT SYSTEMS AND ANTI–SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY. THE HANDPORTABLE TELEPHONE MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN

2. POTENTIALLY EXPLOSIVE ATMOSPHERES EG PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC. OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE

3. WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.

PAGE 3 (23) Approved 1.0

MGR

Cautions:

1. Servicing and alignment must be undertaken by qualified personnel only.

2. Ensure all work is carried out at an anti–static workstation and that an anti–static wrist strap is worn.

3. Use only approved components as specified in the parts list.

4. Ensure all components, modules screws and insulators are correctly re–fitted after servicing and alignment.

5. Ensure all cables and wires are repositioned correctly.

Electrostatic discharge can easily damage the sensitive components of electronic products. Therefore every Service Supplier has to take care of all precautions, which are mentioned in the service level related “Service Partner Requirements”, available on NOKIA Online. Also see ESD Protection Requirements in this Service Manual.

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

2. GENERAL REPAIR INFORMATION

In this section the technician will get some general hints how to carry out repairs:

To familiarize oneself with NOKIA product read the tutorials or user guide on www.NOKIA.com -->Support--> Phones, by selecting the Phone Model.

Before starting the repair you must take care of ESD precautions like being in your ESD Protected Area and connecting your wristband.

Use gloves to avoid corrosion and fingerprints.

o Protect windows and displays with a film to avoid dust and scratches. o When cleaning the LCD Module any lint-free cloth can be used (e.g. Micro-Fibre cloth). o When cleaning the pads you have to use a soft cloth/ESD brush and Isopropanol. It is not allowed to use a

glass fiber pencil because it scratches the surface and will lead later on to corrosion.

o Mechanical parts (except shielding lids and bent parts), which didn’t repair the failure, can be reused, if they

are not soldered.

o When removing the shielding lids make sure to replace them with new ones, otherwise the high-frequency

leakage can have an influence on the device.

o Always use original NOKIA spare parts. o Check the soldering joints of the parts, which are concerned regarding the indicated error (e.g. soldered

connectors or switches) and resolder them if necessary (Level 2 only).

o Remove redundant soldering flux after repair. o Meet the torque requirements when assembling the unit (see also the document “torques for transceiver

assembly” on NOKIA Partner Web Site/NOKIA Online).

o Always use your own equipment for testing where you are sure that it works. E.g. if the customer complains

about charger function, please test the phone with your own charger to be sure if phone or charger causes the malfunction.

o A SIM card is needed for all GoNoGo tests. o When doing the fault log entries, always note the Item code, which caused the malfunction. Also, fill in the

appropriate part code from the assembly, if needed.

o Please be aware that some malfunctions could be software related and solved by an update.

o There are several documents available on NOL, which have to be followed:

o First, take care for the latest content pages of Service Bulletins, which are always available for each folder on

NOKIA Online. This is also important to recognize, if existing documents have become invalid.

o The service level indicator at the bottom of each document tells the appropriate destination.

Downloads > Support Library >

1. Instructions

2. General Service Bulletins

3. Product related documents

4. Spare Part Service Bulletins

5. Service Tools Service Bulletins

6. Common Software Service Bulletins etc,…

Use General SB-217 as a reference or overview.

Please also check NOKIA Online (NOL) for latest news and files on a regular basis.

PAGE 4 (23) Approved 1.0

MGR

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

3. PATHFINDER FOR WORKSHOP STAFF

In addition to the information in this Service Manual, there are several instructions and information, which have to be followed. Main documentation database is content, like video clips or interactive tutorials.

It is mandatory to watch for newest technical and organizational information on a daily basis to be updated as required (see “Latest files in Support Library”). Every new information has to be processed and implemented as soon as possible. When logged into NOL you can also find needed information in different folder like:

Support Library

Phones

Level 1&2 e-learning (former NOKIA CarePoint) on NOKIA Online

Former NOKIA CarePoint content, such as

• Online Troubleshooting

• Product informations

• Videos – Disassembly/Assembly

PAGE 5 (23) Approved 1.0

NOKIA Online with the purpose of serving different multimedia

Service Manuals Service Bulletins Software Repair Information

can be found on

NOKIA Online

MGR

NOKIA Online

Care Services

Training

Phone Models

Level 1&2 e-learning courses offer a quick overview of the NOKIA phone and support for how to repair and use the phone:

Overview & Guides

Basic information about the

phone, features and technologies

To reduce the server traffic it is recommended to download newest version of huge files like videos, Phoenix packages or Service Manuals only once and distribute it internally for further use.

Disassembly & Assembly

Instructions to disassemble and

assemble the phone

Step-by-step instructions on how to locate and repair the most common

Troubleshooting

problems with the phone

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

4. EXPLODED VIEW AND COMPONENT DISPOSAL

Recommendation for the ecologically friendly disposal of components. Colorized components show the different categories. See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.

PAGE 6 (23) Approved 1.0

MGR

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

5. SPARE PARTS OVERVIEW

PAGE 7 (23) Approved 1.0

MGR

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

6. SPARE PARTS LIST

Please exchange this page (placeholder) with latest corresponding Service

Bulletins (spare parts, SWAP units and service tools) from NOL!

This will ensure, that you are using up-to-date order codes only.

Therefore Service Bulletins have to be checked from NOL on daily basis.

PAGE 8 (23) Approved 1.0

MGR

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

7. SERVICE TOOLS

PAGE 9 (23) Approved 1.0

FLS-4S incl. ACF-8, Driver and User Guide Dongle and flash device incorporated into one package, developed specifically for POS use.

MGR

ACF-8 Universal Power Supply is used to power FLS-4S.

Internal Battery BL-5X Inserted under the back cover, this Li-Ion 600 mAh battery provides power in a lightweight package.

Travel Charger ACP-12 Small and lightweight charger for fast charging of your phone battery.

Headset HDC-5 Small and lightweight mono headset for handsfree functionality and listening to FM radio.

XCS-1 Service Cable is used to connect FLS-4S to SF-29 .

SF-29 POS Flash Adapter is used in POS (Point of Sales) environment for software updating. It provides controlled supply voltage and necessary connections between the phone and the Flash Device. It substitutes for the phone’s standard battery during the

software update.

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

PAGE 10 (23) Approved 1.0

MGR

Test Pins for Flash Adapter SF-29

RJ-87 Soldering Jig

Lead-free Solder Wire Mandatory for lead-free products (Level 2 only).

0772040 NMP Standard Toolkit

 NOKIA opening tool SRT-6 NOKIA No. 0770431  Tonichi torque driver NOKIA No. 6901525 

Hoya micro fibre cloth MX304



Dastex gloves S, M, XL



Artilux goggles AH166



Wera bit T5 867/4TX 5x50

 Wera 867/4 6IP; 50mm (Torx 6 PLUS®)  Wera bit T6 867/4TX 6x50  Wera 867/1 5IP; 25mm (Torx 5 PLUS®)  Wera bit T6 PLUS® 867/4TX 6IP 

Facom side cutter 416E

 Facom T5 driver SP.14032  Facom T6 driver SP.14033  Facom slot screwdriver AEF. 2x35.E 

Wetec tweezers 7abb SA-ESD

 Wetec tweezers 22 SA-ESD  Wetec tweezers 13 SA-SMD ESD  Wetec tweezers PSF SA-ESD  Wetec ESD brush E1211 

Kaiser Fototechnik airbrush 6315

 Wetec dental tool DEM83266/0 

RS Components Scissors 323-5732

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

8. SW-UPDATE

Flash Concept – (Point of Sales)

To use FLS-4S Flash Dongle you have to follow the user guide inside the sales package. Please check always for the latest version of flash software, which is available on

NOKIA Online.

PAGE 11 (23) Approved 1.0

MGR

It is very important to follow this insertion and removal procedure, otherwise the contact pins of Flash Adapter

will be damaged.

Insert the Flash Adapter SF-29 like a battery, start at the Battery Connector side.

Now, push down the bottom side of the phone and close the locking mechanic. Do not use too much force.

When removing the phone, always start from the bottom side of the unit. First unlock the locking mechanic.

Now, take the unit away.

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

9. DISASSEMBLY INSTRUCTIONS

PAGE 12 (23) Approved 1.0

MGR

1.) You need the following tools.

3.) Remove the Battery Cover.

2.) Always protect the window with a plastic film.

4.) Unscrew the four Torx size 6 plus screws in the shown order. Mind the different screw lengths. For

Assembly use the reverse order and the following torques: For M1.6x4.1: 17Ncm, for 1.6x7.5: 25Ncm. Always use new screws.

5.) Remove the D-Cover by shifting it as shown in the picture carefully. Mind the sharp contact springs.

7.) Use the DC Plug to remove the System Connector. Ensure that no adhesive remains.

6.) Unlock the Antenna Assy, beginning from the left side.

8.) Lever out the Vibra Motor with a slotted screwdriver. Ensure that no adhesive remains.

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

PAGE 13 (23) Approved 1.0

MGR

9.) Once removed, the Microphone can’t be reused again.

11.) Pull up the A-Cover. Mind the Flex foil’s components.

10.) Unlock and remove the SIM Retainer.

12.) Open the first flex connector of the Engine Module with the SRT-6.

13.) Open the second flex connector and remove the Engine Module.

15.) Shift the Slider to the end position before continuing.

14.) Peel of the Bottom Flex carefully.

16.) Once released, the Backplate can’t be reused again.

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

PAGE 14 (23) Approved 1.0

MGR

17.) Peel of the Backplate slowly.

19.) Remove the UI Cover.

18.) Unscrew four Torx size 4 Plus screws in the shown order. For Assembly use the reverse order and a torque

of 17 Ncm. Always use new screws.

20.) Protect the inner side window and the LCD with a plastic film.

21.) Carefully lever out the Camera Module with the SRT-6.

23.) Pull up the Camera Housing.

22.) Remove the Earpiece with tweezers.

24.) Lever out the Keymat with the SRT-6.

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

PAGE 15 (23) Approved 1.0

MGR

25.) Carefully lift up the Main Flex.

27.) Release the Springs from the middle pin first.

For assembly only !

26.) Peel of the Main Flex.

28.) Release the end loop of the Springs.

For assembly only !

29.) Mind the correct positioning of the Springs. Place the lower Spring first.

For assembly only !

31.) Check the correct functionality of the Springs.

30.) Now place the upper Spring.

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

10. LEGEND FOR QUICK TROUBLE SHOOTER

This legend is valid for all parts of the Quick Trouble Shooter

Follow the steps until the problem is solved. If this doesn’t help, you are not authorized to go forward.

PAGE 16 (23) Approved 1.0

MGR

Only marked components ( e.g. I002

The start point of repair activities regarding the appeared fault symptoms.

Follow the arrows step by step

Pads or contacts: Check optical and mechanical condition particularly regarding to corrosion. Clean if necessary.

Measure component for electrical functionality and change, if needed. (Level 2 only)

Pads or contacts: Check optical and mechanical condition particularly regarding to corrosion. Clean with ESD brush only, if necessary.

No more actions possible send product to the appropriate service supplier with higher service level.

) can be changed.

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

11. QUICK TROUBLE SHOOTER PART 1

PAGE 17 (23) Approved 1.0

MGR

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

12. QUICK TROUBLE SHOOTER PART 2

PAGE 18 (23) Approved 1.0

MGR

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

13. CAMERA GONOGO TEST

Before starting the GoNoGo test, check that camera window is clean. If not, clean the window with cloth.

PAGE 19 (23) Approved 1.0

MGR

• Open the Slide Cover

• Press the

• From Home Menu, press the up button

• Press Capture to take a photo

This Image will be saved to Gallery into the Photos folder automatically.

Test was successful, if the Image appears on your Display. The camera is ok.

• Select Options

• Select Delete

• Select Yes

• Close the Slide Cover

button to reach the Home Menu

If the test is failed see Quick Trouble Shooter.

nokia

20 (23) Approved 1.0

EOPLE CONNECTING P

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

14. BLUETOOTH

Bluetooth test You need another Bluetooth device (e.g. 6230) to do a GoNoGo test. Make sure that Bluetooth is activated in the reference unit. The distance of the devices should be not more than 5m from each other.

PAGE

MGR

Reference unit, Bluetooth activated Test unit

Settings on the test unit:

• Open the Slide Cover.

• Press the

• Select Names

If phone and SIM memory is empty, create one new entry.

• Select an entry and select Details

• Select Options

• Select Send business card

• Select Via Bluetooth

If needed (for e.g. after a sw-update), enter a name for this device

Search window appears, if all Bluetooth devices in range will be displayed, the test is successful!

button to reach the Home Menu.

• Press

Note: If the Bluetooth is activated, switch it off!

button to reach the Home Menu.

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

15. GONOGO TEST

After the optical check, a GoNoGo test has to be carried out if the unit has been unscrewed to guarantee the functionality of the phone.

Please refer to the actual information on NOKIA Online. When using delivered tester support files, take care of the right setup according to the tester type and product type. Please refer to “Recommended Service Equipment” on NOKIA Online.

PAGE 21 (23) Approved 1.0

MGR

Mobile Phone Tester

16. BATTERY TEST

A battery tester lets you test the capacity of NOKIA batteries.

Please refer to the actual information on NOKIA Online.

http://www.astratec.co.uk/

http://www.cadex.com/

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

17. FORWARDING OF REPAIRS

When it is necessary to forward of repairs to appropriate service supplier with higher service level we recommend using the offered swap phone cartons as described in Spare Parts SB-004.

Always Protect the window with a protection film.

PAGE 22 (23) Approved 1.0

Put the unit under the stretch film.

MGR

Add repair documentation e.g. filled-in service note into the swap carton.

There are two different sizes of swap cartons for common mobile phones.

Fold the swap carton as shown in Spare Parts SB-004.

nokia

CONNECTING PEOPLE

CMO Operations & Logistics WW Service Solutions & Development Bochum / Germany CONFIDENTIAL 9.5.2005

18. ESD PROTECTION REQUIREMENTS

Please refer to the NOKIA Online document Service Supplier Requirements in folder General instructions.

PAGE 23 (23) Approved 1.0

MGR

USE Conductive bags and boxes USE ESD compatible service tools USE Conductive wastebaskets USE ESD gloves when handling PWBs/PCBs USE Cleaning material without changing el. Characteristics USE Grounded service equipment, i.e. soldering station USE ESD clothes such as coat or frock

The video covers general issues concerning Electro-Static Discharge (ESD)

NO Smoking NO Drinking NO Eating NO Dust NO Useless Items NO Normal pressured air for cleaning

modules/displays

Nokia 8800 Service Manual Level 1-2

Specifications and Main Features

Frequently Asked Questions

User Manual
