Nokia 6126, 6131, 6133 Service Manual

Download

Nokia Customer Care

Service Manual

RM-115; RM-126 (Nokia 6126; Nokia 6126h;

Nokia 6131; Nokia 6133; Nokia 6133b; Nokia

6133h)

Mobile Terminal

Part No: 9249151 (Issue 1)

COMPANY CONFIDENTIAL

RM-115; RM-126

Nokia Customer Care Amendment Record Sheet

Amendment Record Sheet

Amendment No Date Inserted By Comments

Original issue 04/2006 J Bryman

Page ii COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Copyright Nokia Customer Care

Copyright

without the prior written permission of Nokia is prohibited. Nokia, Nokia Connecting People, and Nokia X and Y are trademarks or registered trademarks of Nokia

Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners.

Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused.

The contents of this document are provided ”as is“. Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice.

The availability of particular products may vary by region.

IMPORTANT

This document is intended for use by qualified service personnel only.

Issue 1 COMPANY CONFIDENTIAL Page iii

RM-115; RM-126

Nokia Customer Care Warnings and cautions

Warnings and cautions

Warnings

• IF THE DEVICE CAN BE INSTALLED IN A VEHICLE, CARE MUST BE TAKEN ON INSTALLATION IN VEHICLES FITTED WITH ELECTRONIC ENGINE MANAGEMENT SYSTEMS AND ANTI-SKID BRAKING SYSTEMS. UNDER CERTAIN FAULT CONDITIONS, EMITTED RF ENERGY CAN AFFECT THEIR OPERATION. IF NECESSARY, CONSULT THE VEHICLE DEALER/ MANUFACTURER TO DETERMINE THE IMMUNITY OF VEHICLE ELECTRONIC SYSTEMS TO RF ENERGY.

• THE PRODUCT MUST NOT BE OPERATED IN AREAS LIKELY TO CONTAIN POTENTIALLY EXPLOSIVE ATMOSPHERES, FOR EXAMPLE, PETROL STATIONS (SERVICE STATIONS), BLASTING AREAS ETC.

• OPERATION OF ANY RADIO TRANSMITTING EQUIPMENT, INCLUDING CELLULAR TELEPHONES, MAY INTERFERE WITH THE FUNCTIONALITY OF INADEQUATELY PROTECTED MEDICAL DEVICES. CONSULT A PHYSICIAN OR THE MANUFACTURER OF THE MEDICAL DEVICE IF YOU HAVE ANY QUESTIONS. OTHER ELECTRONIC EQUIPMENT MAY ALSO BE SUBJECT TO INTERFERENCE.

• BEFORE MAKING ANY TEST CONNECTIONS, MAKE SURE YOU HAVE SWITCHED OFF ALL EQUIPMENT.

Cautions

• Servicing and alignment must be undertaken by qualified personnel only.

• Ensure all work is carried out at an anti-static workstation and that an anti-static wrist strap is worn.

• Ensure solder, wire, or foreign matter does not enter the telephone as damage may result.

• Use only approved components as specified in the parts list.

• Ensure all components, modules, screws and insulators are correctly re-fitted after servicing and alignment.

• Ensure all cables and wires are repositioned correctly.

• Never test a mobile phone WCDMA transmitter with full Tx power, if there is no possibility to perform the measurements in a good performance RF-shielded room. Even low power WCDMA transmitters may disturb nearby WCDMA networks and cause problems to 3G cellular phone communication in a wide area.

• During testing never activate the GSM or WCDMA transmitter without a proper antenna load, otherwise GSM or WCDMA PA may be damaged.

Page iv COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 For your safety Nokia Customer Care

For your safety

QUALIFIED SERVICE

Only qualified personnel may install or repair phone equipment.

ACCESSORIES AND BATTERIES

Use only approved accessories and batteries. Do not connect incompatible products.

CONNECTING TO OTHER DEVICES

When connecting to any other device, read its user’s guide for detailed safety instructions. Do not connect incompatible products.

Issue 1 COMPANY CONFIDENTIAL Page v

RM-115; RM-126

Nokia Customer Care Care and maintenance

Care and maintenance

This product is of superior design and craftsmanship and should be treated with care. The suggestions below will help you to fulfil any warranty obligations and to enjoy this product for many years.

• Keep the phone and all its parts and accessories out of the reach of small children.

• Keep the phone dry. Precipitation, humidity and all types of liquids or moisture can contain minerals that will corrode electronic circuits.

• Do not use or store the phone in dusty, dirty areas. Its moving parts can be damaged.

• Do not store the phone in hot areas. High temperatures can shorten the life of electronic devices, damage batteries, and warp or melt certain plastics.

• Do not store the phone in cold areas. When it warms up (to its normal temperature), moisture can form inside, which may damage electronic circuit boards.

• Do not drop, knock or shake the phone. Rough handling can break internal circuit boards.

• Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the phone.

• Do not paint the phone. Paint can clog the moving parts and prevent proper operation.

• Use only the supplied or an approved replacement antenna. Unauthorised antennas, modifications or attachments could damage the phone and may violate regulations governing radio devices.

All of the above suggestions apply equally to the product, battery, charger or any accessory.

Page vi COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 ESD protection Nokia Customer Care

ESD protection

Nokia requires that service points have sufficient ESD protection (against static electricity) when servicing the phone.

Any product of which the covers are removed must be handled with ESD protection. The SIM card can be replaced without ESD protection if the product is otherwise ready for use.

To replace the covers ESD protection must be applied. All electronic parts of the product are susceptible to ESD. Resistors, too, can be damaged by static electricity

discharge. All ESD sensitive parts must be packed in metallized protective bags during shipping and handling outside

any ESD Protected Area (EPA). Every repair action involving opening the product or handling the product components must be done under

ESD protection. ESD protected spare part packages MUST NOT be opened/closed out of an ESD Protected Area. For more information and local requirements about ESD protection and ESD Protected Area, contact your local

Nokia After Market Services representative.

Issue 1 COMPANY CONFIDENTIAL Page vii

RM-115; RM-126

Nokia Customer Care Battery information

Battery information

Note: A new battery's full performance is achieved only after two or three complete charge and

discharge cycles!

The battery can be charged and discharged hundreds of times but it will eventually wear out. When the operating time (talk-time and standby time) is noticeably shorter than normal, it is time to buy a new battery.

Use only batteries approved by the phone manufacturer and recharge the battery only with the chargers approved by the manufacturer. Unplug the charger when not in use. Do not leave the battery connected to a charger for longer than a week, since overcharging may shorten its lifetime. If left unused a fully charged battery will discharge itself over time.

Temperature extremes can affect the ability of your battery to charge. For good operation times with Ni-Cd/NiMh batteries, discharge the battery from time to time by leaving the

product switched on until it turns itself off (or by using the battery discharge facility of any approved accessory available for the product). Do not attempt to discharge the battery by any other means.

Use the battery only for its intended purpose. Never use any charger or battery which is damaged. Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic object (coin, clip or

pen) causes direct connection of the + and - terminals of the battery (metal strips on the battery) for example when you carry a spare battery in your pocket or purse. Short-circuiting the terminals may damage the battery or the connecting object.

Leaving the battery in hot or cold places, such as in a closed car in summer or winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77° F). A phone with a hot or cold battery may temporarily not work, even when the battery is fully charged. Batteries' performance is particularly limited in temperatures well below freezing.

Do not dispose of batteries in a fire! Dispose of batteries according to local regulations (e.g. recycling). Do not dispose as household waste.

Page viii COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Company Policy Nokia Customer Care

Company Policy

Our policy is of continuous development; details of all technical modifications will be included with service bulletins.

While every endeavour has been made to ensure the accuracy of this document, some errors may exist. If any errors are found by the reader, NOKIA MOBILE PHONES Business Group should be notified in writing/email.

Please state:

• Title of the Document + Issue Number/Date of publication

• Latest Amendment Number (if applicable)

• Page(s) and/or Figure(s) in error

Please send to:

NOKIA CORPORATION Nokia Mobile Phones Business Group Nokia Customer Care PO Box 86 FIN-24101 SALO Finland E-mail: Service.Manuals@nokia.com

Issue 1 COMPANY CONFIDENTIAL Page ix

RM-115; RM-126

Nokia Customer Care Company Policy

(This page left intentionally blank.)

Page x COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Nokia 6126; Nokia 6126h; Nokia 6131; Nokia 6133; Nokia 6133b; Nokia 6133h Service Manual Structure

Nokia Customer Care

Nokia 6126; Nokia 6126h; Nokia 6131; Nokia 6133; Nokia 6133b; Nokia 6133h Service Manual Structure

1 General information 2 Parts and layouts 3 Service Software Instructions 4 Service Tools and Service Concepts 5 Disassembly and reassembly instructions 6 BB Troubleshooting and Manual Tuning Guide 7 RF Troubleshooting and Manual Tuning Guide 8 System module 9 Schematics Glossary

Issue 1 COMPANY CONFIDENTIAL Page xi

RM-115; RM-126

Nokia Customer Care Nokia 6126; Nokia 6126h; Nokia 6131; Nokia 6133;

Nokia 6133b; Nokia 6133h Service Manual Structure

(This page left intentionally blank.)

Page xii COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

1 — General information

Issue 1 COMPANY CONFIDENTIAL Page 1 –1

RM-115; RM-126

Nokia Customer Care General information

(This page left intentionally blank.)

Page 1 –2 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 General information Nokia Customer Care

Table of Contents

Product selection....................................................................................................................................................1–5

Features...................................................................................................................................................................1–5

Phone features..................................................................................................................................................1–5

Software and User interface features..............................................................................................................1–6

Accessories..............................................................................................................................................................1–8

List of Tables

Table 1 Battery and chargers................................................................................................................................1–8

Table 2 Car accessories..........................................................................................................................................1–8

Table 3 Audio..........................................................................................................................................................1–9

Table 4 Data............................................................................................................................................................1–9

Table 5 Music........................................................................................................................................................1–10

Issue 1 COMPANY CONFIDENTIAL Page 1 –3

RM-115; RM-126

Nokia Customer Care General information

(This page left intentionally blank.)

Page 1 –4 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 General information Nokia Customer Care

Product selection

The RM-115/126 phones are all quadband transceiver units designed for the GSM850/900/1800/1900 networks, including EGSM. Please refer to the table below for an overview of the variants.

Design Model Type BT FM IrDA HAC

Nokia 6131 RM-115 X X X Nokia 6126 RM-126 X Nokia 6126h RM-126 X X

Features

Phone features

General features

• Demo mode (phone demo without SIM card)

Nokia 6133 RM-115 X X X Nokia 6133b RM-126 X X Nokia 6133h RM-126 X X X

• One-hand push-to-open operation

Display and keypad features

• Main display: Active TFT QVGA display supports up to 16,777,216 colors (320 x 240 pixels, 2.2 inches)

• Outer display: Active TFT display supports up to 262,144 colors (128 x 160 pixels, 1.36 inches)

• Dedicated camera key and volume keys

Issue 1 COMPANY CONFIDENTIAL Page 1 –5

RM-115; RM-126

Nokia Customer Care General information

Hardware features

• Fold phone

• 1.3-megapixel camera with full-screen viewfinder for both main and outer display

• Bluetooth

• PopPortTM™

• 2 mm charger plug interface

• Internal vibrator

• Plug-in SIM (1.8 V and 3.0 V)

• Real time clock

• µSD card

• USB

• FM radio (not all variants)

• IrDA (not all variants)

• HAC (not all variants)

RF features

• Quad-band GSM/EDGE (GSM 850/900/1800/1900)

• Automatic switching between bands

• EDGE (EGPRS): Class 10, download up to 236.8 kbps

• GPRS: (General Packet Radio Service): Class 10, download up to 85.6 kbps

Software and User interface features

Software features

• ISA OS 8.0s Platform

• Nokia Series 40 User interface (UI): Java MIDP 2.0

UI features

Note: These features may vary between the variants.

Imaging • 1.3-megapixel camera with 8x digital zoom (1280 x 960 pixel resolution)

• Full-screen viewfinder for both main and outer display

• Camera key for taking pictures

• PictBridge printing via USB cable

Multimedia • MP3 player supporting formats including MP3, MP4, AAC, AAC+, eAAC+,

WMA, H.263, H.264 (eAAC+ only playback no streaming)

• FM stereo radio with Visual Radio

• Video streaming (3GPP)

• Video ringing tones

• MIDI ringing tones up to 64 polyphonies

Page 1 –6 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 General information Nokia Customer Care

Memory functions • Combo memory with 32 MB flash and 16 MB RAM - about 10 MB user data

(10 MB user memory: 9 MB for gallery and applications, 1 MB for contacts, notes, calendar entries)

• Hotswap microSD memory card slot supporting up to 2GB microSD memory cards (available as enhancements)

Messaging • Simplified messaging with recently used contacts log and groups

• Email: Access your work and private email accounts; supports SMTP, POP3, and IMAP4 protocols. Support for attachments (Java version)

• Xpress audio messaging: Record your own voice message and send to compatible devices

• MMS OMA 1.2: Combine image, video, text, and voice clips and send as an MMS to a compatible phone or PC; use MMS to tell your story with a multislide presentation. The MMS OMA 1.2 specification allows you to send/ receive messages up to 300 kB in size.

• Text messaging: Supports concatenated SMS, picture messaging, SMS distribution list

• Predictive text input: Support for all major languages in Europe and AsiaPacific

• Instant Messaging

Applications • Java™ MIDP 2.0 with over-the-air download of

• Java-based applications and games

• Wireless presenter (PC application on webpage)

• Nokia Sensor application for improved networking

• Games: 3D Soccer and Snake

Connectivity • Nokia PC Suite with USB, Bluetooth and IrDa connectivity

• Bluetooth wireless connectivity (SIM access, headset, and handsfree profiles) incl. stereo support for headsets

• Pop-Port™ interface with USB

• FOTA (Flashing over the air) - dependent on variant

• Local/remote SyncML data synchronization

Browsing • Integrated XHTML browser

• Smart content download - OMA Digital rights management 1.0

Data transfer • EDGE (EGPRS): Class 10, download up to 236.8 kbps

• GPRS: (General Packet Radio Service): Class 10, download up to 85.6 kbps

Note: Actual achieved speeds may vary depending on network support

Issue 1 COMPANY CONFIDENTIAL Page 1 –7

RM-115; RM-126

Nokia Customer Care General information

Voice features • Push to talk: Select the person or group you want to talk to and press the

Push to talk key (long press of volume up key) to communicate

• Enhanced voice dialing with SIND: Speaker-independent name dialing on long press volume down key

• Integrated handsfree speaker with new high quality speaker for better audio experience (mono)

• Voice commands

• Voice recorder

Digital services • User Interface (UI) themes including e.g. animated wallpapers and

screensavers, ringing tones

• Ringing tones: Video, MP3 ringing tones, True Tones and MIDI ringing, alert, and gaming tones with support of 64 polyphony

• OTA download possibility for: Themes, True Tones, MP3 ringing tones, MIDI ringing tones, screensavers, wallpapers, 3GPP streaming, images and videos, Series 40 Java games and applications/li>

Personal information management (PIM)

• Manage your time and information with the enhanced calendar, and view your notes on the new active standby mode

• Organizer with calendar, to-do list, notes and calculator/li>

• Alarm clock, Countdown timer (normal and interval timer)

Call management • Speed dialing

• Logs: Keeps lists of your dialed, received, and missed calls

• Automatic answer (works with headset or car kit only)

• Call waiting, call hold, call divert, call timer

Accessories

Table 1 Battery and chargers

Type Name

Note: This phone is charged through the smaller Nokia standard interface (2.0 mm plug). The 3.5 mm

standard charger can be used together with the CA-44 charger adapter. AC-3 Compact charger AC-4 Travel performance charger BL-4C Battery 820 mAh Li-Ion CA-44 Charger adapter (from 3.5 mm -> 2 mm)

Table 2 Car accessories

Type Name

CK-1W Wireless car kit CK-7W Advanced car kit DC-4 Mobile charger HF-6W Wireless plug-in handsfree

Page 1 –8 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 General information Nokia Customer Care

Type Name

N616 Car kit

Table 3 Audio

Type Name

AD-15 Audio adapter AD-42W Wireless audio gateway AD-46 Audio adapter HDA-10 TTY adapter HDB-4 Boom headset (mono) HDW-3 Wireless headset HS-5 Headset HS-6 Display headset HS-23 Stereo headset HS-4W Wireless boom headset HS-11W Wireless headset HS-12W Wireless stereo headet HS-21W Wireless clip-on headet HS-25W Bluetooth headset (= BH-900) HS-26W Wireless headset HS-24W Bluetooth headset (= BH-200) HS-36W Wireless headset HS-37W Wireless headset HS-58W Wireless headset LPS-4 Loopset

Table 4 Data

Type Name

CA-53 USB cable MU-22 1 GB µSD card MU-26 128 MB µSD card MU-27 256 MB µSD card MU-28 512 MB µSD card

Issue 1 COMPANY CONFIDENTIAL Page 1 –9

RM-115; RM-126

Nokia Customer Care General information

Table 5 Music

Type Name

MD-1 Music stand

Page 1 –10 COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

2 — Parts and layouts

Issue 1 COMPANY CONFIDENTIAL Page 2 –1

RM-115; RM-126

Nokia Customer Care Parts and layouts

(This page left intentionally blank.)

Page 2 –2 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Parts and layouts Nokia Customer Care

Table of Contents

Exploded view.........................................................................................................................................................2–5

Mechanical parts list...............................................................................................................................................2–6

SWAP units..............................................................................................................................................................2–8

Parts list...................................................................................................................................................................2–9

Non replaceable parts..........................................................................................................................................2–20

Component layouts..............................................................................................................................................2–21

List of Tables

Table 6 Mechanical parts list, all variants............................................................................................................2–6

Table 7 SWAP phones.............................................................................................................................................2–8

Table 8 Replaceable component parts, all variants............................................................................................2–9

List of Figures

Figure 1 Main board layout, top side (1oaa_50a/1oaa_51a)...........................................................................2–22

Figure 2 Main board layout, bottom side (1oaa_50a/1oaa_51a)....................................................................2–22

Issue 1 COMPANY CONFIDENTIAL Page 2 –3

RM-115; RM-126

Nokia Customer Care Parts and layouts

(This page left intentionally blank.)

Page 2 –4 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Parts and layouts Nokia Customer Care

Exploded view

Issue 1 COMPANY CONFIDENTIAL Page 2 –5

RM-115; RM-126

Nokia Customer Care Parts and layouts

Mechanical parts list

Table 6 Mechanical parts list, all variants

ITEM/

CIRCUIT

QTY PART NAME

REF.

* = Not available as spare part

I001 1 DISPLAY BEZEL

A1 1 B-C COVER HINGE ASSY (I002-I009;I101-I104;I106;I201-I203) I002 1 RUBBER STOPPER LEFT I003 1 RUBBER STOPPER RIGHT

A2 1 B-COVER ASSY(I004-I009) I004* 1 HINGE MODULE I005* 1 B-COVER I006* 1 MAGNET I007* 1 CAMERA/HINGE GROUNDING CLIP

I008 1 EARPIECE GASKET

COMMENTS

Must be replaced after disassembly

I009 1 EARPIECE INCL. ADHESIVE I101 1 HINGE CAP LEFT I102 1 HINGE CAP RIGHT I103 1 PUSH TO OPEN BUTTON I104 1 FLEX CABLE

I106 1 L-Adhesive-Foam I201 1 C-COVER MIC RUBBER

I202 1 GROUND PAD HINGE (stuck on C-COVER) I203 1 C-COVER ASSEMBLY

I010 1 CAMERA ASSEMBLY I105 2 SCREW M1.4 x 7 T5P

A3 1 NAPA DISPLAY ASSY (I011-I012) I011* 1 NAPA DISPLAY MAIN

Must be replaced after disassembly

I012* 1 NAPA DISPLAY SMALL

A4 1 LCD PWB ASSY (I013-I014)

Page 2 –6 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Parts and layouts Nokia Customer Care

ITEM/

CIRCUIT

REF.

I013* 1 LCD PWB

I014 1 HWA DRIVER LID

A5 1 A-COVER ASSY (I015-I017) I015* 1 A-COVER I016 1 CAMERA GASKET I017 1 FRONT DISPLAY GASKET

I204 1 KEYMAT I205 1 SCREW M1.6 x 5.5 T6P

A6* 1 1OA ENGINE MODULE ASSY(I206-I212)

I206 1 SHIELDING LID BT/FM RADIO

I207 1 DOMESHEET

QTY PART NAME

COMMENTS

Must be replaced after disassembly

I208* 1 ENGINE BOARD

I209 1 SHIELDING LID RAP GSM

I210 1 SHIELDING LID RETU/Tahvo

I211 1 SHIELDING LID RF

I212 1 SIM SUPPORT LID

I213 1 TYPE LABEL

A7 1 D-COVER ASSY (I214-I223) I214* 1 D-COVER ASSY I215* 1 SIM CARD FLAP I216* 1 IRDA WINDOW I217 1 VOLUME KEY I218 1 VOLUME BUTTON (COSMETIC PART)

Must be replaced after disassembly

I219 1 FUNCTION KEY /POWER KEY I220 1 FUNCTION BUTTON (COSMETIC PART) I221 1 POWER BUTTON (COSMETIC PART)

Issue 1 COMPANY CONFIDENTIAL Page 2 –7

RM-115; RM-126

Nokia Customer Care Parts and layouts

ITEM/

CIRCUIT

QTY PART NAME

REF.

I222 1 DC JACK I223 1 BATTERY SPRING

A8 1 BLUETOOTH ANTENNA ASSEMBLY (I224-I225) I224* 1 BLUETOOTH ANTENNA I225 1 MICROPHONE

A9 1 ANTENNA MODULE ASSY (I226-I227) I226* 1 ANTENNA MODULE I227* 1 IHF SPEAKER

A10 1 E-COVER ASSY (I228-I229) I228* 1 E-COVER I229* 1 FLAP ASSY AND PLATE

SWAP units

COMMENTS

Table 7 SWAP phones

SWAP phones

N6131 SWAP TRX RM-115 EURO-I UKR WHITE/RED/SA N6131 SWAP TRX RM-115 EURO-I RUSS WHITE/RED/SA N6131 SWAP TRX RM-115 EURO-C SA WHITE/RED/SA N6131 SWAP TRX RM-115 EURO-C TURK WHITE/RED/SA N6131 SWAP TRX RM-115 EURO-C FR WHITE/RED/SAND N6131 SWAP TRX RM-115 EURO-I UKRAINE BLACK N6131 SWAP TRX RM-115 EURO-I RUSSIA BLACK N6131 SWAP TRX RM-115 EURO-C SA BLACK N6131 SWAP TRX RM-115 EURO-C TURKEY BLACK N6131 SWAP TRX RM-115 EURO-C FRANCE BLACK N6131 SWAP TRX RM-115 EURO-C BLACK N6131 SWAP TRX RM-115 EURO-C WHITE/RED/SAND

N6133 RM-115 SWAP E&A silver (Generic) N6133 RM-115 SWAP FR silver (France) N6133 RM-115 SWAP TR silver (Turkey) N6133 RM-115 SWAP RU silver (Russia) N6133 RM-115 SWAP UA silver (Ukraine)

Page 2 –8 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Parts and layouts Nokia Customer Care

SWAP phones

N6133 RM-115 SWAP SA silver (South Africa)

Parts list

Table 8 Replaceable component parts, all variants

Item ref Side X Y Description

B2200 Top K 8 CRYSTAL 32.768KHZ +/-30PPM 12.5PF C2000 Top O 9 CHIPCAP NP0 27P J 50V 0402 C2001 Top O 9 CHIPCAP X7R 1N0 K 50V 0402 C2002 Top N 6 CHIPCAP X5R 2U2 K 6V3 0603 C2003 Top N 6 CHIPCAP X7R 33N K 10V 0402 C2004 Top N 6 CHIPCAP X7R 33N K 10V 0402 C2005 Top P 6 CHIPCAP X7R 10N K 16V 0402 C2006 Top P 6 CHIPCAP X7R 10N K 16V 0402 C2007 Top N 5 CHIPCAP X7R 10N K 16V 0402 C2008 Top N 5 CHIPCAP X7R 10N K 16V 0402 C2009 Top N 6 CHIPCAP X7R 10N K 16V 0402 C2010 Top N 6 CHIPCAP X7R 10N K 16V 0402 C2011 Top P 5 CHIPCAP NP0 10P J 50V 0402 C2012 Top P 5 CHIPCAP NP0 10P J 50V 0402 C2013 Top P 5 CHIPCAP NP0 10P J 50V 0402 C2014 Top P 5 CHIPCAP NP0 10P J 50V 0402 C2015 Top O 6 CHIPCAP X5R 100N K 10V 0402 C2016 Top O 7 CHIPCAP NP0 270P J 50V 0402 C2017 Top O 9 CHIPCAP X5R 470N K 25V 0603 C2018 Top O 7 CHIPCAP X7R 10N K 16V 0402 C2019 Top P 6 CHIPCAP X7R 10N K 16V 0402 C2070 Top C 7 CHIPTCAP 150U M 10V 6X3.2X1.5 C2071 Bottom B 3 CHIPCAP NP0 27P J 50V 0402 C2072 Top M 9 CHIPCAP NP0 27P J 50V 0402 C2073 Top D 2 CHIPCAP X5R 1U K 6V3 0603 C2074 Top D 3 CHIPCAP X7R 10N K 16V 0402 C2075 Top D 3 CHIPCAP NP0 27P J 50V 0402 C2076 Top D 7 CHIPCAP X7R 10N K 16V 0402 C2077 Bottom B 4 CHIPCAP X7R 10N K 16V 0402 C2080 Top D 5 CHIPCAP NP0 27P J 50V 0402

Issue 1 COMPANY CONFIDENTIAL Page 2 –9

RM-115; RM-126

Nokia Customer Care Parts and layouts

Item ref Side X Y Description

C2100 Top N 6 CHIPCAP X7R 33N K 10V 0402 C2101 Top N 6 CHIPCAP X7R 33N K 10V 0402 C2102 Top N 7 CHIPCAP X5R 2U2 K 6V3 0603 C2103 Top M 6 CHIPCAP X7R 1N0 K 50V 0402 C2104 Top M 6 CHIPCAP X7R 1N0 K 50V 0402 C2108 Top C 7 CHIPCAP X7R 1N0 K 50V 0402 C2200 Top J 6 CHIPCAP X5R 1U K 6V3 0603 C2201 Top K 8 CHIPCAP X5R 1U K 6V3 0603 C2203 Top K 7 CHIPCAP X7R 1N0 K 50V 0402 C2204 Top K 7 CHIPCAP X7R 1N0 K 50V 0402 C2205 Top K 7 CHIPCAP X7R 1N0 K 50V 0402 C2206 Top K 7 CHIPCAP X7R 1N0 K 50V 0402 C2207 Top L 8 CHIPCAP X7R 1N0 K 50V 0402 C2208 Top L 7 CHIPCAP NP0 27P J 50V 0402 C2209 Top L 8 CHIPCAP NP0 22P J 50V 0402 C2210 Top I 8 CHIPCAP X5R 1U K 16V 0603 C2211 Top I 8 CHIPCAP X5R 4U7 K 10V 0805 C2212 Top I 7 CHIPCAP X5R 1U5 K 4V 0402 C2213 Top J 8 CHIPCAP X5R 1U5 K 4V 0402 C2214 Top J 8 CHIPCAP X5R 1U5 K 4V 0402 C2215 Top J 9 CHIPCAP X5R 1U5 K 4V 0402 C2216 Top J 9 CHIPCAP X5R 1U5 K 4V 0402 C2217 Top K 8 CHIPCAP X5R 1U5 K 4V 0402 C2218 Top K 7 CHIPCAP X7R 1N0 K 50V 0402 C2219 Top K 8 CHIPCAP X5R 1U5 K 4V 0402 C2220 Top I 7 CHIPCAP X5R 1U5 K 4V 0402 C2221 Top I 9 CHIPCAP X5R 1U K 6V3 0603 C2222 Top I 8 CHIPCAP X5R 1U K 6V3 0603 C2223 Top J 6 CHIPCAP X7R 10N K 16V 0402 C2224 Top K 6 CHIPCAP X7R 10N K 16V 0402 C2225 Top K 8 CHIPCAP X5R 1U K 6V3 0603 C2226 Top J 8 CHIPCAP X5R 1U K 6V3 0603 C2227 Top I 8 CHIPCAP X5R 1U K 6V3 0603 C2228 Top J 8 CHIPCAP X5R 1U K 6V3 0603 C2229 Top I 7 CHIPCAP X7R 1N0 K 50V 0402

Page 2 –10 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Parts and layouts Nokia Customer Care

Item ref Side X Y Description

C2230 Top K 8 CHIPCAP X5R 1U K 6V3 0603 C2231 Top I 6 CHIPCAP X5R 10U M 6V3 0805 C2232 Top J 8 CHIPCAP X5R 1U K 6V3 0603 C2270 Top J 6 CHIPCAP X7R 1N0 K 50V 0402 C2271 Top J 6 CHIPCAP X7R 1N0 K 50V 0402 C2272 Top J 6 CHIPCAP X7R 1N0 K 50V 0402 C2273 Top I 7 CHIPCAP X7R 1N0 K 50V 0402 C2274 Top I 7 CHIPCAP X7R 1N0 K 50V 0402 C2275 Top I 6 CHIPCAP X7R 1N0 K 50V 0402 C2281 Top J 9 CHIPCAP X5R 1U K 6V3 0603 C2300 Top H 7 CHIPCAP X7R 10N K 16V 0402 C2301 Top G 6 CHIPCAP X5R 22U M 6V3 0805 C2302 Top I 6 CHIPCAP X5R 22U M 6V3 0805 C2303 Top G 8 CHIPCAP X5R 1U K 6V3 0603 C2304 Top I 7 CHIPCAP X7R 10N K 16V 0402 C2305 Top G 9 CHIPCAP X5R 1U K 6V3 0603 C2306 Top G 9 CHIPCAP X5R 1U K 6V3 0603 C2307 Top G 7 CHIPCAP X5R 1U K 6V3 0603 C2309 Top G 6 CHIPCAP X5R 22U M 6V3 0805 C2312 Top G 7 CHIPCAP X5R 1U K 6V3 0603 C2313 Top G 8 CHIPCAP X5R 1U K 6V3 0603 C2314 Top H 8 CHIPCAP X5R 4U7 K 25V 0805 C2315 Top I 9 CHIPCAP X5R 4U7 K 25V 0805 C2316 Top G 9 CHIPCAP NP0 27P J 50V 0402 C2401 Bottom N 2 CHIPCAP NP0 27P J 50V 0402 C2402 Bottom P 2 CHIPCAP NP0 27P J 50V 0402 C2403 Bottom O 4 CHIPCAP NP0 27P J 50V 0402 C2404 Bottom P 2 CHIPCAP X7R 4N7 K 25V 0402 C2405 Bottom N 5 CHIPCAP X5R 4U7 K 10V 0805 C2406 Bottom N 4 CHIPCAP NP0 27P J 50V 0402 C2407 Bottom N 3 CHIPCAP NP0 27P J 50V 0402 C2408 Bottom N 4 CHIPCAP X5R 100N K 10V 0402 C2409 Top D 8 CHIPCAP X7R 4N7 K 25V 0402 C2410 Bottom N 3 CHIPCAP NP0 27P J 50V 0402 C2420 Bottom O 3 CHIPCAP X7R 10N K 16V 0402

Issue 1 COMPANY CONFIDENTIAL Page 2 –11

RM-115; RM-126

Nokia Customer Care Parts and layouts

Item ref Side X Y Description

C2421 Bottom O 3 CHIPCAP NP0 27P J 50V 0402 C2422 Bottom O 5 CHIPCAP NP0 22P J 50V 0402 C2423 Bottom N 2 CHIPCAP NP0 27P J 50V 0402 C2424 Bottom O 4 CHIPCAP X5R 100N K 10V 0402 C2431 Bottom O 5 CHIPCAP NP0 22P J 50V 0402 C2600 Top E 2 CHIPCAP X5R 4U7 K 6V3 0805 C2601 Top F 2 CHIPCAP NP0 22P J 50V 0402 C2602 Top E 2 CHIPCAP X5R 100N K 10V 0402 C2603 Top E 2 CHIPCAP X5R 100N K 10V 0402 C2604 Top C 2 CHIPCAP NP0 27P J 50V 0402 C2700 Top M 9 CHIPCAP X5R 100N K 10V 0402 C2701 Top M 9 CHIPCAP NP0 27P J 50V 0402 C2800 Top I 5 CHIPCAP X5R 100N M 16V 0402 C2801 Top G 5 CHIPCAP X5R 100N M 16V 0402 C2802 Top H 5 CHIPCAP X5R 100N M 16V 0402 C2803 Top I 5 CHIPCAP X5R 100N M 16V 0402 C2804 Top G 5 CHIPCAP X5R 100N M 16V 0402 C2805 Top J 2 CHIPCAP X5R 100N M 16V 0402 C2807 Top G 5 CHIPCAP X5R 1U K 6V3 0603 C2808 Top H 5 CHIPCAP X5R 100N M 16V 0402 C2809 Top H 5 CHIPCAP X5R 100N M 16V 0402 C2810 Top I 5 CHIPCAP X5R 100N M 16V 0402 C2811 Top J 3 CHIPCAP X5R 100N M 16V 0402 C2812 Top H 5 CHIPCAP X5R 100N M 16V 0402 C2813 Top G 2 CHIPCAP X5R 100N M 16V 0402 C2814 Top G 5 CHIPCAP X5R 100N M 16V 0402 C2815 Top J 5 CHIPCAP X5R 100N M 16V 0402 C2816 Top J 5 CHIPCAP NP0 27P J 50V 0402 C2818 Top J 3 CHIPCAP X5R 100N M 16V 0402 C2819 Top J 4 CHIPCAP X5R 100N M 16V 0402 C2820 Top G 3 CHIPCAP X5R 100N M 16V 0402 C2821 Top G 3 CHIPCAP NP0 27P J 50V 0402 C2830 Top G 4 CHIPCAP X7R 1N0 K 50V 0402 C2831 Top G 4 CHIPCAP NP0 4P7 C 50V 0402 C3000 Top L 2 CHIPCAP X5R 100N M 16V 0402

Page 2 –12 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Parts and layouts Nokia Customer Care

Item ref Side X Y Description

C3001 Top K 2 CHIPCAP X7R 10N K 16V 0402 C3002 Top K 2 CHIPCAP X5R 100N M 16V 0402 C3003 Top J 5 CHIPCAP X7R 10N K 16V 0402 C3004 Top J 5 CHIPCAP X5R 100N M 16V 0402 C3005 Top K 5 CHIPCAP X5R 100N M 16V 0402 C3006 Top L 5 CHIPCAP X5R 100N M 16V 0402 C3007 Top K 5 CHIPCAP X7R 10N K 16V 0402 C3008 Top J 5 CHIPCAP X5R 100N M 16V 0402 C3009 Top L 5 CHIPCAP X5R 100N M 16V 0402 C3100 Top L 7 CHIPCAP NP0 27P J 50V 0402 C3200 Top M 5 CHIPCAP X5R 100N K 10V 0402 C3201 Top M 5 CHIPCAP X5R 1U K 6V3 0402 C3202 Top M 6 CHIPCAP X7R 10N K 16V 0402 C3210 Top M 5 CHIPCAP NP0 27P J 50V 0402 C3242 Top L 6 CHIPCAP X7R 33N K 10V 0402 C3303 Top M 5 CHIPCAP X5R 1U K 6V3 0402 C6010 Top O 8 CHIPCAP NP0 27P J 50V 0402 C6011 Top O 8 CHIPCAP X7R 10N K 16V 0402 C6012 Top O 8 CHIPCAP X7R 10N K 16V 0402 C6031 Bottom N 6 CHIPCAP NP0 18P J 50V 0402 C6032 Bottom O 7 CHIPCAP NP0 100P J 50V 0402 C6033 Bottom O 7 CHIPCAP X7R 10N K 16V 0402 C6034 Bottom O 7 CHIPCAP X7R 10N K 16V 0402 C6035 Bottom N 7 CHIPCAP X7R 10N K 16V 0402 C6036 Bottom O 7 CHIPCAP X7R 10N K 16V 0402 C6037 Bottom O 7 CHIPCAP X5R 1U5 K 4V 0402 C6039 Bottom O 6 CHIPCAP NP0 18P J 50V 0402 C6040 Bottom N 7 CHIPCAP X5R 1U K 6V3 0402 C6042 Bottom N 6 CHIPCAP X7R 10N K 16V 0402 C6051 Bottom O 6 CHIPCAP NP0 2P7 C 50V 0402 C6052 Bottom O 6 CHIPCAP NP0 2P7 C 50V 0402 C6055 Bottom O 6 CHIPCAP X5R 1U K 6V3 0402 C6056 Bottom O 5 CHIPCAP X5R 4U7 K 6V3 0805 C6157 Bottom O 9 CHIPCAP X7R 10N K 16V 0402 C6158 Bottom O 9 CHIPCAP X5R 100N K 10V 0402

Issue 1 COMPANY CONFIDENTIAL Page 2 –13

RM-115; RM-126

Nokia Customer Care Parts and layouts

Item ref Side X Y Description

C6162 Bottom O 9 CHIPCAP X7R 33N K 10V 0402 C6163 Bottom O 9 CHIPCAP X7R 33N K 10V 0402 C6164 Bottom N 8 CHIPCAP X5R 100N K 10V 0402 C6165 Bottom N 8 CHIPCAP X7R 33N K 10V 0402 C6167 Bottom O 9 CHIPCAP X7R 10N K 16V 0402 C6170 Bottom O 9 CHIPCAP X7R 10N K 16V 0402 C6176 Bottom O 8 CHIPCAP NP0 100P J 50V 0402 C6178 Bottom O 8 CHIPCAP NP0 27P J 50V 0402 C6179 Bottom O 8 CHIPCAP NP0 47P J 50V 0402 C6188 Bottom O 8 CHIPCAP X5R 100N K 10V 0402 C6189 Bottom N 8 CHIPCAP X5R 100N K 10V 0402 C6190 Bottom N 9 CHIPCAP X5R 100N K 10V 0402 C6191 Bottom N 9 CHIPCAP X5R 100N K 10V 0402 C7000 Top C 5 CHIPCAP NP0 10P J 50V 0402 C7001 Top C 5 CHIPCAP NP0 10P J 50V 0402 C7011 Top D 5 CHIPCAP NP0 12P J 50V 0402 C7501 Top F 6 CHIPCAP NP0 2P7 C 50V 0402 C7503 Top D 7 CHIPCAP X5R 1U K 6V3 0603 C7504 Top F 6 CHIPCAP X5R 1U K 6V3 0603 C7505 Top E 7 CHIPCAP X5R 1U K 6V3 0402 C7506 Top D 7 CHIPCAP X5R 1U K 6V3 0603 C7507 Top D 7 CHIPCAP X7R 10N K 16V 0402 C7508 Top D 7 CHIPCAP NP0 18P J 50V 0402 C7509 Top E 7 CHIPCAP X7R 15N K 16V 0402 C7513 Top D 7 CHIPCAP X7R 10N K 16V 0402 C7518 Top D 6 CHIPCAP X5R 100N K 10V 0402 C7520 Top F 3 CHIPCAP NP0 3P3 C 50V 0402 C7521 Top F 3 CHIPCAP NP0 1P5 C 50V 0402 C7523 Top F 3 CHIPCAP X5R 1U K 6V3 0402 C7561 Top E 7 CHIPCAP X7R 33N K 10V 0402 C7562 Top D 6 CHIPCAP NP0 39P J 50V 0402 D2200 Top J 7 RETU 3.02 LF TSA1GJWE TFBGA108 D3000 Top K 4 COMBO 256M NOR + 128M DDR DRAM FBGA133 F2000 Top O 9 SM FUSE F 2.0A 32V 0603 G2200 Top C 8 RTC BACKUP CAPAC 311 SIZE FOR 2.6V 4UAH

Page 2 –14 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Parts and layouts Nokia Customer Care

Item ref Side X Y Description

G7501 Top D 8 VCTCXO 38.4MHZ 2.5V 2MA L2000 Top O 9 FERR.BEAD 220R/100M 2A 0R05 0603 L2001 Top P 5 CHIP BEAD ARRAY 2X1000R 0405 L2002 Top N 5 CHIP BEAD ARRAY 2X1000R 0405 L2003 Top N 5 CHIP BEAD ARRAY 2X1000R 0405 L2004 Top O 6 CHIP COIL 68NH J Q12/100MHZ 0603 L2108 Top C 6 CHIP COIL 56N J Q38/200MHZ 0603 L2109 Top C 7 CHIP COIL 56N J Q38/200MHZ 0603 L2202 Top K 9 FERR.BEAD 220R/100M 2A 0R05 0603 L2203 Top J 9 FERRITE BEAD 0.6R 600R/100MZ 0402 L2204 Top K 9 FERRITE BEAD 0.6R 600R/100MZ 0402 L2205 Top K 9 FERR.BEAD 220R/100M 2A 0R05 0603 L2206 Top J 9 FERRITE BEAD 0.6R 600R/100MZ 0402 L2270 Top J 6 FERR.BEAD 220R/100M 2A 0R05 0603 L2271 Top J 6 FERR.BEAD 220R/100M 2A 0R05 0603 L2272 Top I 7 FERR.BEAD 220R/100M 2A 0R05 0603 L2273 Top I 6 FERR.BEAD 220R/100M 2A 0R05 0603 L2301 Top G 7 FERR.BEAD 220R/100M 2A 0R05 0603 L2302 Top H 6 INDUCT WW 10U 0A65 0R35 4X4X1.2 L2304 Top H 8 CHOKE 22U M 0R7 0.35A 3.0X3.0X1.5 L2305 Top G 8 FERRITE BEAD 0R5 600R/100MHZ 0603 L2306 Top G 7 FERRITE BEAD 0R5 600R/100MHZ 0603 L2307 Top H 9 FERR.BEAD 240R/100M 0.4A 0R4 0402 L2400 Bottom O 5 FERRITE BEAD 0.6R 600R/100MZ 0402 L2403 Bottom N 5 FERR.BEAD 220R/100M 2A 0R05 0603 L2423 Bottom O 4 CHIP BEAD ARRAY 2X1000R 0405 L2431 Bottom N 2 FERR.BEAD 240R/100M 0.4A 0R4 0402 L2432 Bottom N 3 FERR.BEAD 240R/100M 0.4A 0R4 0402 L2433 Bottom N 3 FERR.BEAD 240R/100M 0.4A 0R4 0402 L3200 Top M 5 FERR.BEAD 240R/100M 0.4A 0R4 0402 L3201 Top M 6 FERR.BEAD 240R/100M 0.4A 0R4 0402 L3202 Top M 6 FERR.BEAD 240R/100M 0.4A 0R4 0402 L6002 Top P 2 CHIP COIL 1N8 +-0N3 Q31/800M 0402 L6030 Bottom O 6 CHIP COIL 2N7 +-0N3 Q29/800M 0402 L6031 Bottom N 6 CHIP COIL 2N7 +-0N3 Q29/800M 0402

Issue 1 COMPANY CONFIDENTIAL Page 2 –15

RM-115; RM-126

Nokia Customer Care Parts and layouts

Item ref Side X Y Description

L6032 Bottom N 7 CHIP COIL 22N J Q28/800MHZ 0402 L6055 Bottom O 6 FERR.BEAD 240R/100M 0.4A 0R4 0402 L6156 Bottom O 9 CHIP COIL 47N G Q38/200MHz 0603 L6176 Bottom O 8 CHIP COIL 120N J Q32/150MHZ 0603 L7000 Top D 4 CHIP COIL 18N J Q29/800MHZ 0402 L7001 Top C 5 CHIP COIL 18N J Q29/800MHZ 0402 L7002 Top C 5 CHIP COIL 18N J Q29/800MHZ 0402 L7010 Top F 5 FERR.BEAD 240R/100M 0.4A 0R4 0402 L7011 Top D 5 FERR.BEAD 240R/100M 0.4A 0R4 0402 L7500 Top F 5 CHIP COIL 12N J Q31/800MHZ 0402 L7501 Top F 5 CHIP COIL 12N J Q31/800MHZ 0402 L7502 Top D 6 FERRITE BEAD 0.6R 600R/100MZ 0402 L7504 Top E 5 CHIP COIL 22N J Q28/800MHZ 0402 L7505 Top E 5 CHIP COIL 22N J Q28/800MHZ 0402 M2100 Top E 9 SMD VIBRA MOTOR 1.3V 90MA 9000RPM N2300 Top H 7 TAHVO v5.2 LF TFBGA84 N2301 Top H 9 WHITE LED DRIVER 4LEDS 500mW 8bump USMD8 N2400 Bottom O 3 HALL IC SWITCH SH248CSP VCC N2600 Top D 2 IRDA CIM-51M5-T 1.152MB/S >2.4V N3200 Top M 5 VREG & LEVELSHIFT(LP3928)USMD16 N6030 Bottom O 7 BC4-ROM1.0RDL N6156 Bottom O 8 FM RECEIVER TEA5761UK N4B (Ti) CSP N7505 Top E 6 RFIC AHNE400A TRANSCEIVER TFBGA144 N7520 Top E 3 PA RF9282E6.3 GSM/EDGE 850/900/1800/1900 R2000 Top O 6 CHIPRES 0W06 220R J 0402 R2001 Top O 6 ASIP MIC W/ESD RES+CAP+ZDI BGA11 R2002 Top N 6 CHIPRES 0W06 10R J 0402 R2003 Top N 5 CHIPRES 0W06 10R J 0402 R2004 Top N 5 CHIPRES 0W06 10R J 0402 R2005 Top N 5 CHIPRES 0W06 10R J 0402 R2006 Top N 5 ASIP 4XESD *** PB-FREE *** BGA5 R2007 Top O 6 ASIP SILIC USB OTG / ESD BGA11 R2008 Top O 7 CHIPRES 0W06 220K J 0402 R2009 Top O 6 CHIPRES 0W06 10K J 0402 R2010 Top O 7 CHIPRES 0W06 100R J 0402

Page 2 –16 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Parts and layouts Nokia Customer Care

Item ref Side X Y Description

R2011 Top M 7 CHIPRES 0W06 120K J 0402 R2070 Bottom B 3 CHIP VARISTOR VWM14V VC50V 0402 R2100 Top N 6 ASIP SINGLE ENDED MICROPHONE INTERF BGA8 R2101 Top N 6 CHIPRES 0W06 220R J 0402 R2102 Top M 6 CHIPRES JUMPER 0R0 0402 R2103 Top M 6 CHIPRES JUMPER 0R0 0402 R2104 Top F 9 CHIPRES JUMPER 0R0 0402 R2105 Top F 9 CHIPRES JUMPER 0R0 0402 R2108 Top F 8 CHIP VARISTOR VWM14V VC50V 0402 R2109 Top F 8 CHIP VARISTOR VWM14V VC50V 0402 R2114 Top C 7 CHIP VARISTOR VWM14V VC50V 0402 R2115 Top C 8 CHIP VARISTOR VWM14V VC50V 0402 R2200 Top K 9 CHIPRES 0W06 100K J 0402 R2201 Top L 8 CHIPRES 0W06 120K J 0402 R2202 Top K 6 CHIPRES 0W06 1K0 J 0402 R2203 Top K 6 CHIPRES 0W06 1K0 J 0402 R2204 Top K 6 CHIPRES 0W06 1K0 J 0402 R2205 Top K 6 CHIPRES 0W06 1K0 J 0402 R2206 Top K 6 CHIPRES 0W06 1K0 J 0402 R2207 Top K 6 CHIPRES 0W06 1K0 J 0402 R2208 Top K 6 CHIPRES 0W06 1K0 J 0402 R2209 Top K 6 CHIPRES 0W06 1K0 J 0402 R2210 Top C 8 CHIP VARISTOR VWM14V VC50V 0402 R2212 Top J 6 CHIPRES 0W06 470R J 0402 R2213 Top L 8 CHIPRES 0W06 4K7 J 0402 R2214 Top L 9 CHIPRES 0W06 4K7 J 0402 R2216 Top L 8 CHIPRES 0W06 2M2 J 0402 R2250 Top M 9 CHIPRES 0W06 100K J 0402 R2251 Top M 9 CHIPRES 0W06 100K J 0402 R2307 Top F 8 CHIPRES 0W06 100R J 0402 R2400 Bottom I 4 CHIPRES 0W06 470R J 0402 R2401 Bottom P 2 CHIPRES 0W06 100K J 0402 R2402 Top D 8 CHIPRES 0W06 33R J 0402 R2403 Bottom O 2 CHIPRES JUMPER 0R0 0402 R2405 Top H 2 ASIP SIM INTERFACE **low cap** BGA8

Issue 1 COMPANY CONFIDENTIAL Page 2 –17

RM-115; RM-126

Nokia Customer Care Parts and layouts

Item ref Side X Y Description

R2407 Top D 8 CHIPRES 0W06 47R J 0402 R2408 Top E 8 CHIPRES 0W06 10K J 0402 R2409 Top L 9 ASIP SIM INTERFACE **low cap** BGA8 R2410 Bottom N 3 CHIPRES JUMPER 0R0 0402 R2411 Bottom O 2 RES NETWORK 0W06 4X33R J 0804 R2412 Bottom N 3 RES NETWORK 0W06 4X33R J 0804 R2413 Bottom O 4 RES NETWORK 0W03 4X100R J 0804 R2414 Bottom P 2 RES NETWORK 0W03 4X100R J 0804 R2417 Top M 9 NTC RES 0W1 47K J B 4050+-3% 0402 R2420 Bottom N 2 CHIPRES JUMPER 0R0 0402 R2421 Bottom P 2 CHIP VARISTOR VWM14V VC50V 0402 R2422 Bottom O 2 CHIP VARISTOR VWM14V VC50V 0402 R2424 Bottom I 7 CHIPRES 0W06 470R J 0402 R2425 Top I 9 CHIPRES 0W06 27R J 0402 R2430 Bottom N 2 CHIPRES JUMPER 0R0 0402 R2435 Top L 2 CHIPRES JUMPER 0R0 0402 R2440 Top L 10 CHIPRES JUMPER 0R0 0402 R2441 Top L 9 CHIPRES JUMPER 0R0 0402 R2600 Top F 2 CHIPRES 0W125 4R7 J 0805 R2700 Top M 8 ASIP SIM INTERFACE **low cap** BGA8 R2801 Top H 5 CHIPRES 0W06 10R J 0402 R2803 Top I 5 CHIPRES 0W06 100R J 0402 R2804 Top I 5 CHIPRES 0W06 100R J 0402 R3000 Top K 2 CHIPRES 0W06 4K7 J 0402 R3002 Top I 5 CHIPRES 0W06 10R J 0402 R3003 Top J 3 CHIPRES 0W06 4K7 J 0402 R3004 Top J 4 CHIPRES 0W06 4K7 J 0402 R3200 Top M 5 ASIP MMC FILTER *** PB-FREE *** R3201 Top M 6 CHIPRES 0W06 22K J 0402 R3202 Top M 6 CHIPRES 0W06 22K J 0402 R3242 Top L 6 CHIPRES 0W06 100K J 0402 R3243 Top L 6 CHIPRES 0W06 4K7 J 0402 R3312 Top L 5 CHIPRES 0W06 1K0 J 0402 R3313 Top L 5 CHIPRES 0W06 1K0 J 0402 R3314 Bottom N 3 CHIPRES JUMPER 0R0 0402

Page 2 –18 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Parts and layouts Nokia Customer Care

Item ref Side X Y Description

R6010 Top O 8 CHIPRES 0W06 330R J 0402 R6011 Top O 7 CHIPRES 0W06 27K J 0402 R6013 Top O 7 CHIPRES 0W06 1K2 J 0402 R6014 Top O 8 CHIPRES 0W06 2K2 J 0402 R6015 Top O 7 CHIPRES JUMPER 0R0 0402 R6030 Bottom O 7 CHIPRES 0W06 10K J 0402 R6031 Bottom N 6 CHIPRES 0W06 10K J 0402 R6032 Bottom N 7 CHIPRES 0W06 2R2 J 0402 R6034 Bottom O 6 CHIPRES 0W06 10K J 0402 R6036 Bottom O 5 CHIPRES JUMPER 0R0 0402 R6040 Bottom O 5 CHIPRES 0W06 100K J 0402 R6156 Bottom N 9 CHIPRES JUMPER 0R0 0402 R6159 Bottom O 9 CHIPRES 0W06 10K J 0402 R6160 Bottom O 9 CHIPRES 0W06 100K J 0402 R6161 Bottom O 8 CHIPRES JUMPER 0R0 0402 R7502 Top F 6 CHIPRES 0W06 10K F 0402 R7503 Top D 6 CHIPRES 0W06 4K7 J 0402 R7506 Top E 7 CHIPRES 0W06 15R J 0402 R7507 Top F 6 CHIPRES 0W06 10R J 0402 R7508 Top E 7 CHIPRES 0W06 10R J 0402 R7509 Top D 7 CHIPRES 0W06 22K J 0402 R7510 Top D 3 CHIPRES 0W06 15R J 0402 R7522 Top D 3 CHIPRES 0W06 27K J 0402 R7523 Top F 3 CHIPRES JUMPER 0R0 0402 T7520 Top F 3 TRANSF BALUN 1800+-100MHZ 2X1.25 V2000 Top O 9 ASIP TVS BGA4 V2302 Top F 9 SCH DI 20V 2A SOD323F V2400 Bottom C 7 LED WHITE 140MCD 5MA 0603 V2401 Top E 9 TRX2 BIPOLAR 2XPNP 40V 0A1 0W12 SOT666 V2402 Top E 9 TR NPN RBE4K7/47K 50V 0A08 VMT3 V2405 Bottom I 7 LED WHITE 140MCD 5MA 0603 V2411 Bottom C 4 LED WHITE 140MCD 5MA 0603 V2412 Bottom I 4 LED WHITE 140MCD 5MA 0603 V6010 Top O 8 TR BFR93AW N 12V 35MA 5GHZ SOT323 X2001 Top P 6 CONN SYST SM 14POL

Issue 1 COMPANY CONFIDENTIAL Page 2 –19

RM-115; RM-126

Nokia Customer Care Parts and layouts

Item ref Side X Y Description

X2070 Top C 3 SM LYNX BATT.CONN 3POL HEIGHT 7.3 X2402 Bottom O 3 CONN BTB 2X25F P0.4 30V 0.3A X2700 Top N 8 SM SIM CONN 6POL P2.54 H1.5 X3200 Top N 3 CONN SMC TRANSFLASH MMC Z2000 Top P 6 FERRITE BEAD 0.6R 600R/100MZ 0402 Z2001 Top P 6 FERRITE BEAD 0.6R 600R/100MZ 0402 Z2003 Top P 7 FERRITE BEAD 0.6R 600R/100MZ 0402 Z2400 Bottom N 4 ASIP 10-CH ESD EMI FILTER BGA25 Z2401 Bottom N 2 ASIP 10-CH ESD EMI FILTER BGA25 Z6030 Bottom O 6 LTCC FILT 2441.75+-41.75MHZ 2.5X2 Z7501 Top F 4 DUAL RX SAW FILTER 1800/1900 MHz 2016 Z7503 Top E 5 TX SAW MODULE GSM 850/900MHz 4.5x3.2 Z7504 Top E 4 DUAL RX SAW FILTER 850/900 MHz 2016 Z7520 Top F 4 FERRITE BEAD 0R01 28R/100MHZ 0603

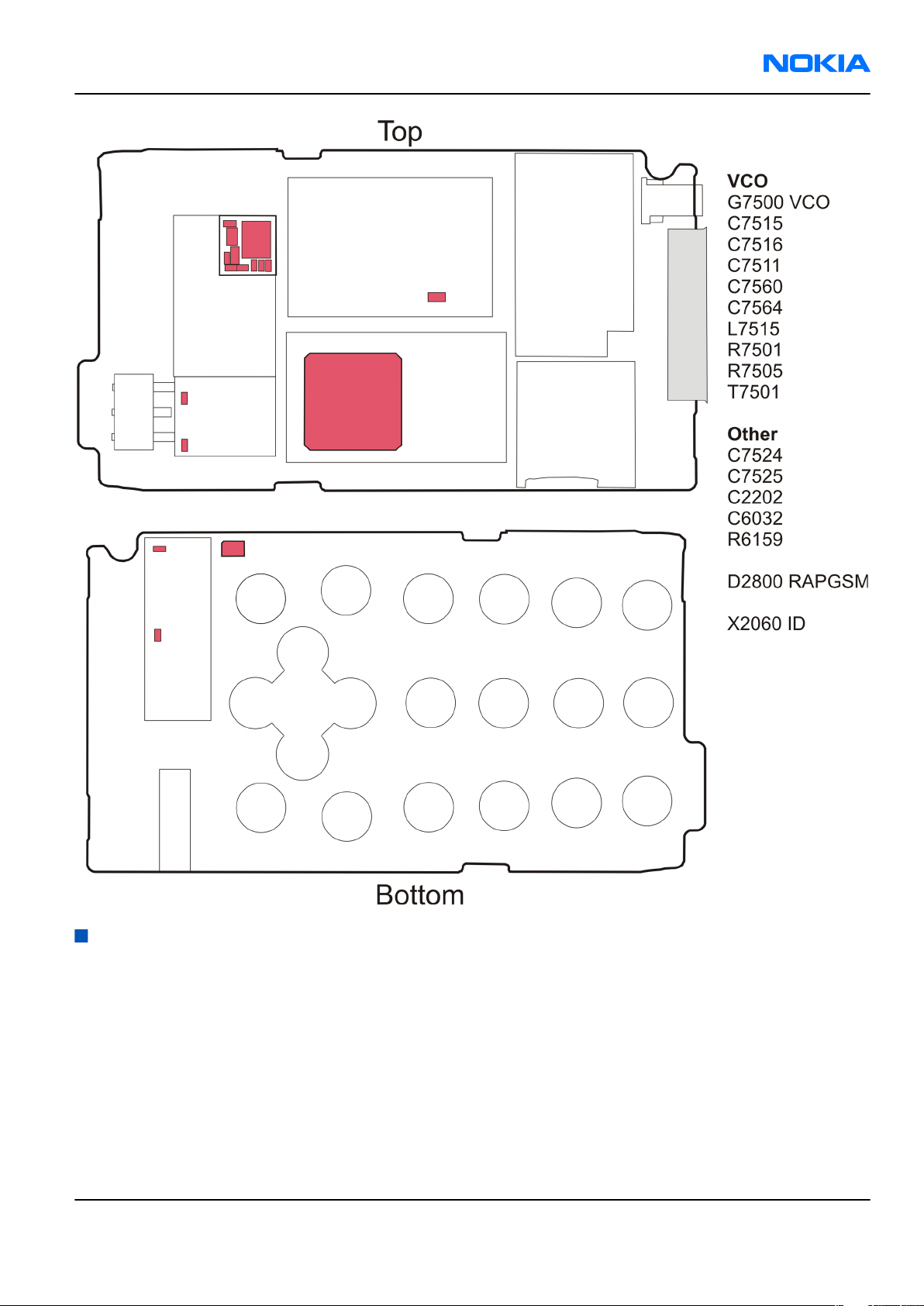

Non replaceable parts

The parts marked in the picture below must not be replaced. If the problem is located to one of these components, please swap the PWB.

Page 2 –20 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Parts and layouts Nokia Customer Care

Component layouts

Note: See also large scale layouts in the Schematics section.

Issue 1 COMPANY CONFIDENTIAL Page 2 –21

RM-115; RM-126

Nokia Customer Care Parts and layouts

Figure 1 Main board layout, top side (1oaa_50a/1oaa_51a)

Figure 2 Main board layout, bottom side (1oaa_50a/1oaa_51a)

Page 2 –22 COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

3 — Service Software

Instructions

Issue 1 COMPANY CONFIDENTIAL Page 3 –1

RM-115; RM-126

Nokia Customer Care Service Software Instructions

(This page left intentionally blank.)

Page 3 –2 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Software Instructions Nokia Customer Care

Table of Contents

Phoenix installation steps in brief........................................................................................................................3–5

Installing Phoenix...................................................................................................................................................3–6

Updating Phoenix installation..............................................................................................................................3–8

Uninstalling Phoenix..............................................................................................................................................3–9

Repairing Phoenix installation...........................................................................................................................3–11

Phone data package overview............................................................................................................................3–11

Installing phone data package...........................................................................................................................3–12

Uninstalling phone data package.......................................................................................................................3–15

Configuring users in Phoenix..............................................................................................................................3–17

Managing connections in Phoenix......................................................................................................................3–17

Installing flash support files for FPS-8 and FPS-10...........................................................................................3–19

Updating FPS-8 and FPS-10 flash prommer software.......................................................................................3–22

Activating FPS-8....................................................................................................................................................3–23

Deactivating FPS-8................................................................................................................................................3–24

List of Figures

Figure 3 Dongle not found.....................................................................................................................................3–6

Figure 4 Disclaimer text.........................................................................................................................................3–7

Figure 5 InstallShield Wizard Complete...............................................................................................................3–8

Figure 6 Installation interrupted..........................................................................................................................3–9

Figure 7 Remove program...................................................................................................................................3–10

Figure 8 Finish uninstallation.............................................................................................................................3–10

Figure 9 Repair program.....................................................................................................................................3–11

Figure 10 Data package setup information.......................................................................................................3–13

Figure 11 Data package destination folder.......................................................................................................3–14

Figure 12 InstallShield Wizard Complete...........................................................................................................3–15

Figure 13 Uninstalling phone data package......................................................................................................3–16

Figure 14 Finishing data package uninstallation..............................................................................................3–16

Figure 15 Phoenix login.......................................................................................................................................3–17

Figure 16 New user configured..........................................................................................................................3–17

Figure 17 Select mode: Manual...........................................................................................................................3–18

Figure 18 Connections list...................................................................................................................................3–19

Figure 19 Connection information.....................................................................................................................3–19

Figure 20 Product support module information (example from RM-1)..........................................................3–19

Figure 21 Flash update welcome dialog............................................................................................................3–20

Figure 22 Flash installation interrupted............................................................................................................3–20

Figure 23 Flash destination folder......................................................................................................................3–21

Figure 24 Finish flash update..............................................................................................................................3–22

Figure 25 Flash directory window......................................................................................................................3–22

Figure 26 Prommer software update finished..................................................................................................3–23

Figure 27 Prommer Maintenance window........................................................................................................3–23

Figure 28 Box activation......................................................................................................................................3–24

Figure 29 Deactivation warning.........................................................................................................................3–24

Issue 1 COMPANY CONFIDENTIAL Page 3 –3

RM-115; RM-126

Nokia Customer Care Service Software Instructions

(This page left intentionally blank.)

Page 3 –4 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Software Instructions Nokia Customer Care

Phoenix

installation steps in brief

Before you begin

Recommended hardware requirements:

• Computer processor: Pentium 700 MHz or higher

• RAM 256 MB

• Disk space 100-300 MB Supported operating systems:

•

Windows 2000

•

Windows XP

Service Pack 3 or higher

Service Pack 1 or higher

Context

Phoenix

is a service software for reprogramming, testing and tuning phones.

Phoenix

• Service software support for all phone models included in the package

• Flash update package files for programming devices

• All needed drivers for:

The phone model specific data package includes all changing product specific data:

• Product software binary files

• Files for type label printing

• Validation file for the faultlog repair data reporting system

• All product specific configuration files for

To use

installation contains:

• PKD-1 (DK2) dongle

• DKU-2 USB cable

Note: Separate installation packages for flash update files and drivers are also available, but it is

not necessary to use them unless there are updates between separate update packages are used, they should be used after installed.

Note:

Uninstallation should be made from the

Phoenix

, you need to:

and phone data packages should only be used as complete installation packages.

Phoenix

software components

Windows

Control Panel.

Phoenix

service software releases. If

and data packages have been

Steps

1. Connect a PKD-1 (DK2) dongle to the computer parallel port.

2. Install

3. Install the phone-specific data package.

4. Configure users.

5. Manage connection settings (depends on the tools you are using).

Issue 1 COMPANY CONFIDENTIAL Page 3 –5

Phoenix

If you use FPS-8: • Update FPS-8 software

• Activate FPS-8

RM-115; RM-126

Nokia Customer Care Service Software Instructions

If you use FPS-10: • Update FPS-10 software

Note: There is no need to activate FPS-10.

• Activate SX-4 smart card, if you need tuning and testing functions.

Note: When FPS-10 is used only for

product software updates, SX-4 smart card is not needed.

Results

Phoenix

is ready to be used with FPS-8 or FPS-10 flash prommers and other service tools.

Installing

Phoenix

Before you begin

• Check that a dongle is attached to the parallel port of your computer.

• Download the computer (in

• Close all other programs.

• Depending on your operating system, administrator rights may be required to install

• If uninstalling or rebooting is needed at any point, you will be prompted by the InstallShield program.

Phoenix

C:\TEMP

installation package (for example,

, for instance).

phoenix_service_sw_2004_39_x_xx.exe

Phoenix

) to your

Context

At some point during the installation procedure, you may get the following message:

Figure 3 Dongle not found

This may be a result of a defective or too old PKD-1 dongle. Check the COM/parallel ports used. After correcting the problem, you can restart the installation. For more detailed information, please refer to

Tip: Each feature in

program. Press the F1 key or the feature’s Help button to activate a Help file.

Phoenix

has its own Help function, which can be activated while running the

Phoenix

Help files.

Steps

1. To start the installation, run the application file (for example,

2. In the

Page 3 –6 COMPANY CONFIDENTIAL Issue 1

Welcome

dialogue, click Next.

phoenix_service_sw_2004_39_x_xx.exe

RM-115; RM-126 Service Software Instructions Nokia Customer Care

3. Read the disclaimer text carefully and click Yes.

Figure 4 Disclaimer text

4. Choose the destination folder. The default folder

C:\ProgramFiles\Nokia\Phoenix

is recommended.

5. To continue, click Next. To choose another location, click Browse (not recommended).

6. Wait for the components to be copied. The progress of the installation is shown in the

Setup Status

window.

7. Wait for the drivers to be installed and updated. The process may take several minutes to complete. If the operating system does not require rebooting, the PC components are registered right away. If the operating system requires restarting your computer, the Install Shield Wizard will notifies about it. Select Yes... to reboot the PC immediately or No... to reboot the PC manually afterwards. After the reboot, all components are registered.

Note:

Phoenix

does not work, if the components have not been registered.

Issue 1 COMPANY CONFIDENTIAL Page 3 –7

RM-115; RM-126

Nokia Customer Care Service Software Instructions

8. To end the installation, click Finish.

Figure 5 InstallShield Wizard Complete

Next action

After the installation,

• installing phone model specific data package for

• configuring users and connections FPS-8 and FPS-10 flash prommers can be used after updating their flash update package files.

Updating

Phoenix

can be used after:

Phoenix

installation

Context

• If you already have the software when new versions are released.

• To update

• When you are updating, for example, from version a14_2004_16_4_47 to a15_2004_24_7_55, the update will take place automatically without uninstallation.

• Always use the latest available versions of both can be found in the phone model specific Technical Bulletins and phone data package (shown during installation).

• If you try to update to a15_2004_24_7_55), you are asked if you want to uninstall the existing version. In this case you can choose between a total uninstallation or a repair installation in a similar way when choosing to uninstall the application from the

Phoenix

, you need to follow the same steps as when installing it for the first time.

Phoenix

Windows

service software installed on your computer, you need to update the

Phoenix

with the same version you already have (for example, a15_2004_24_7_55

Control Panel.

and the phone-specific data package. Instructions

readme.txt

files

• If you try to install an older version (for example, downgrade from a15_2004_24_7_55 to a14_2004_16_4_47), installation will be interrupted.

Page 3 –8 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Software Instructions Nokia Customer Care

Figure 6 Installation interrupted

• Always follow the instructions on the screen.

Steps

1. Download the installation package to your computer hard disk.

2. Close all other programs.

3. Run the application file (for example,

phoenix_service_sw_2004_39_x_xx.exe

Results

A new

Phoenix

version is installed and driver versions are checked and updated.

Uninstalling

Phoenix

Context

You can uninstall

Phoenix

service software manually from the

Windows

Control Panel.

Steps

1. Open the Windows Control Panel, and choose Add/Remove Programs.

Issue 1 COMPANY CONFIDENTIAL Page 3 –9

RM-115; RM-126

Nokia Customer Care Service Software Instructions

2. To uninstall

Phoenix

, choose Phoenix Service Software→Change/Remove→Remove .

Figure 7 Remove program

The progress of the uninstallation is shown.

3. If the operating system does not require rebooting, click Finish to complete.

Figure 8 Finish uninstallation

Page 3 –10 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Software Instructions Nokia Customer Care

If the operating system requires rebooting, InstallShield Wizard will notify you. Select Yes... to reboot the PC immediately and No... to reboot the PC manually afterwards.

Repairing

Phoenix

installation

Context

If you experience any problems with the service software or suspect that files have been lost, use the repair function before completely reinstalling

Note: The original installation package (for example,

must be found on your PC when you run the repair setup.

Phoenix

phoenix_service_sw_a15_2004_24_7_55.exe

Steps

1. Open Windows Control Panel→Add/Remove Programs .

2. Choose Phoenix Service Software→Change/Remove .

3. In the following view, select Repair.

)

Figure 9 Repair program

Phoenix

The procedure is the same as when updating

4. To complete the repair, click Finish.

reinstalls components and registers them.

Phoenix

Phone data package overview

Each product has its own data package (DP). The product data package contains all product-specific data files to make the Phoenix service software and tools usable with a certain phone model.

The phone data package contains the following:

• Product software binary files

Issue 1 COMPANY CONFIDENTIAL Page 3 –11

RM-115; RM-126

Nokia Customer Care Service Software Instructions

• Files for type label printing

• Validation file for the fault log repair data reporting system

• All product-specific configuration files for Phoenix software components

Data files are stored in C:\Program Files\Nokia\Phoenix (default).

Installing phone data package

Before you begin

• A phone-specific data package contains all data required for the to be used with a certain phone model.

• Check that a dongle is attached to the parallel port of your computer.

• Install

Phoenix

service software.

Phoenix

service software and service tools

• Download the installation package (for example, in C:\TEMP).

• Close all other programs.

(XX-XX = type designator of the product) If you already have

released.

Note: Often

version of available versions of both. Instructions can be found in phone-specific Technical Bulletins and

readme.txt

Phoenix

files of data packages.

installed on your computer, you will need to update it when a new version is

and the phone-specific data package come in pairs, meaning that a certain

can only be used with a certain version of a data package. Always use the latest

XX-XX_dp_EA_v_1_0.exe

Steps

1. To start the installation, run the application file (for example,

Wait for the installation files to be extracted.

) to your computer (for example,

XX-XX_dp_EA_ v_1_0.exe

Page 3 –12 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Software Instructions Nokia Customer Care

2. Click Next.

3. In the following view you can see the contents of the data package. Read the text carefully. There is information about the

Phoenix

version required with this data package.

Figure 10 Data package setup information

4. To continue, click Next.

Issue 1 COMPANY CONFIDENTIAL Page 3 –13

RM-115; RM-126

Nokia Customer Care Service Software Instructions

5. Choose the destination folder, and click Next to continue.

Figure 11 Data package destination folder

The InstallShield Wizard checks where

6. To start copying the files, click Next.

Phoenix

is installed, and the directory is shown.

Page 3 –14 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Software Instructions Nokia Customer Care

Phone model specific files are installed. Please wait.

7. To complete the installation, click Finish.

Figure 12 InstallShield Wizard Complete

Next action

Phoenix

• Configuring users

• Managing connections

FPS-8 and FPS-10 can be used after updating their flash update package files.

can be used for flashing phones and printing type labels after:

Uninstalling phone data package

Context

There is no need to uninstall an older version of a data package, unless instructions to do so are given in the

readme.txt

Please read all related documents carefully.

file of the data package and bulletins related to the release.

Steps

1. Locate the data package installation file (e.g.

2. To start the uninstallation procedure, double-click the data package installation file.

XX-XX_dp_EA_v_1_0.exe

) from your computer.

Issue 1 COMPANY CONFIDENTIAL Page 3 –15

RM-115; RM-126

Nokia Customer Care Service Software Instructions

3. To uninstall the data package, click OK or to interrupt the uninstallation, click Cancel.

Figure 13 Uninstalling phone data package

4. When the data package is uninstalled, click Finish.

Figure 14 Finishing data package uninstallation

Alternative steps

• You can also uninstall the data package manually from

Control Panel→Add/Remove Programs→xx-xx* Phone Data Package . (*= type designator of the phone).

Page 3 –16 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Software Instructions Nokia Customer Care

Configuring users in

Phoenix

Steps

1. Start

2. To add a new user, or to edit existing ones, click Maintain.

3. To add a new user, click New.

4. Type in the name and initials of the user, and click OK.

5. Select the desired user from the

Phoenix

If the user ID is already configured, select s/he from the

The user is added to the user name list.

service software, and log in.

Figure 15 Phoenix login

User name

drop-down list, and click OK.

User name

drop-down list, and click OK.

Figure 16 New user configured

Managing connections in

Phoenix

Context

With the Manage Connections feature you can edit and delete existing connections or create new ones.

Note: After choosing the desired connection, and connecting the phone to a PC for the first time,

allow the PC to install the USB device drivers first. Please note that this may take some time to complete.

If there are problems after the driver installation, check that the USB connection is active from the Windows Control Panel. If the problem persists, contact the local PC support.

Steps

1. Start

2. Choose File→Manage Connections... .

Issue 1 COMPANY CONFIDENTIAL Page 3 –17

Phoenix

, and log in.

RM-115; RM-126

Nokia Customer Care Service Software Instructions

3. To add a new connection, click Add.

4. Select Manual mode, and click Next to continue.

If you want to create the connection using the Connection Wizard, connect the tools and a phone to your PC. The wizard will automatically try to configure the correct connection.

Figure 17 Select mode: Manual

i For an FPS-10 flash prommer with a USB Connection, choose the following connection settings:

• Media: FPS-10 USB

• DEVICE_INDEX: 0

• SERIAL_NUM: See Serial No from the label attached to the bottom of FPS-10

• ACTIVE_MEDIA: USB

ii For an FPS-10 flash prommer with a LAN connection, choose the following connection settings:

• Media: FPS-10 TCP/IP

• NET_SERV_NAME: Click Scan.... Choose your own FPS-10 device based on the correct MAC address.

See Serial No from the label attached to the bottom of your FPS-10.

• PORT_NUM: Use the default value, and click Next.

• PROTOCOL_FAMILY: Use the default value, and click Next.

• SOCKET TYPE: Use the default value, and click Next.

• TX_BUFFER_SIZE: Use the default value, and click Next.

• RX_BUFFER_SIZE: Use the default value, and click Next.

iii For an FPS-8 flash prommer, choose the following connection settings:

• Media: FPS-8

• PORT_NUM: COM Port where FPS-8 is connected

• COMBOX_DEF_MEDIA: FBUS

Page 3 –18 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Software Instructions Nokia Customer Care

iv For a plain USB connection, choose the following connection settings:

Note: First connect the DKU-2 USB cable between the PC USB port and phone.

• Media: USB

5. To complete the configuration, click Finish.

6. Click the connection you want to activate. Use the up/down arrows located on the right hand side to move it on top of the list, then click Apply.

Figure 18 Connections list

The connection is activated, and it can be used after closing the The connection information is shown at the right hand bottom corner of the screen.

Figure 19 Connection information

7. To use the connection, connect the phone to your PC with correct service tools. Make sure the phone is switched on, and then choose File→Scan Product .

Manage Connection

window.

Results

The product support module information appears in the status bar:

Figure 20 Product support module information (example from RM-1)

Installing flash support files for FPS-8 and FPS-10

Before you begin

• Install

• Install phone model specific data package for

• If you want to update the flash support files, they are delivered in the same installation package with

Phoenix

or newer

service software.

Phoenix

packages beginning from December 2004.

Phoenix

In case you want to update the MCU files, install the latest data package (see Technical Bulletins for information on the latest one).

Normally, it is enough to install always includes the latest flash update package files for FPS-8 and FPS-10.

• A separate installation package for flash support files is available. The files can be updated according to

these instructions, if updates appear between

Issue 1 COMPANY CONFIDENTIAL Page 3 –19

Phoenix

and the phone-specific data package because the installation

Phoenix

data package releases.

RM-115; RM-126

Nokia Customer Care Service Software Instructions

Context

If you are not using a separate installation package, you can skip this section and continue with ”Updating

FPS-8 and FPS-10 flash prommer software“ (page 3–22) after installing a new phone data package.

Steps

1. To begin the installation, double-click the flash update file (for example,

flash_update_03_183_0014.exe

Figure 21 Flash update welcome dialog

If the same version of the flash update package already exists, and you want to reinstall it, the previous package is first uninstalled.

Restart installation again after the uninstallation.

2. If you try to downgrade the existing version to older ones, the setup will be aborted. If there is a need to

downgrade the version, uninstall newer files manually from the Windows Control Panel, and then rerun the installation.

Figure 22 Flash installation interrupted

If an older version exists on your PC and it needs to be updated, click Next to continue installation.

Page 3 –20 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Software Instructions Nokia Customer Care

3. It is recommended to install the files to the default destination folder To continue, click Next.

C:\Program Files\Nokia\Phoenix

Figure 23 Flash destination folder

When installing the flash update files for the first time, you may choose another location by selecting Browse (not recommended).

Issue 1 COMPANY CONFIDENTIAL Page 3 –21

RM-115; RM-126

Nokia Customer Care Service Software Instructions

4. To complete the installation procedure, click Finish .

Figure 24 Finish flash update

Next action

FPS-8 and FPS-10 flash prommers must be updated using

Updating FPS-8 and FPS-10 flash prommer software

Phoenix

Steps

1. Start

2. Choose the correct connection for your flash prommer: File→Manage Connections...

3. Choose Flashing→Prommer maintenance .

4. To update the FPS-8/FPS-10 software, click Update, and select the appropriate file

Phoenix

fpsxupd.ini

service software, and log in.

(for FPS-10) from

C:\Program Files\Nokia\Phoenix\Flash

fps8upd.ini

(for FPS-8)

Figure 25 Flash directory window

Page 3 –22 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Software Instructions Nokia Customer Care

Tip: All files can be loaded separately to the prommer used. To do this, click the right mouse button

in the

Flash Box Files

pane and select the file type(s) to be loaded.

5. Click OK.

Figure 26 Prommer software update finished

6. To close the

Prommer Maintenance

window, click Close.

Figure 27

Prommer Maintenance

window

Activating FPS-8

Context

Before FPS-8 can be successfully used for phone programming, it must first be activated. First fill in the When activation file is received (for example,

\BoxActivation

Issue 1 COMPANY CONFIDENTIAL Page 3 –23

FPS-8 activation request

sheet in the FPS-8 sales package, and follow the instructions given.

00000.in

), copy it to the

C:\ProgramFiles\Nokia\Phoenix

directory on your computer (this directory is created when

Phoenix

is installed).

RM-115; RM-126

Nokia Customer Care Service Software Instructions

Steps

1. Start

2. Choose Flashing→Prommer Maintenance .

Phoenix

service software.

3. In the

4. To find the activation file, click Browse.

5. To activate the prommer, select the activation file and click Open.

6. To complete the activation, restart FPS-8.

Prommer Maintenance

window, click Activate.

Figure 28 Box activation

Deactivating FPS-8

Context

If there is, for example, a need to send the FPS-8 box for repair, it must be deactivated first.

Steps

1. Start

2. Choose Flashing→Prommer Maintenance .

3. In the

4. To confirm the deactivation, click Yes.

Phoenix

service software.

Prommer Maintenance

window, click Deactivate.

Figure 29 Deactivation warning

Page 3 –24 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Software Instructions Nokia Customer Care

The box is deactivated.

5. To complete the deactivation, restart FPS-8.

Issue 1 COMPANY CONFIDENTIAL Page 3 –25

RM-115; RM-126

Nokia Customer Care Service Software Instructions

(This page left intentionally blank.)

Page 3 –26 COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

4 — Service Tools and Service

Concepts

Issue 1 COMPANY CONFIDENTIAL Page 4 –1

RM-115; RM-126

Nokia Customer Care Service Tools and Service Concepts

(This page left intentionally blank.)

Page 4 –2 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Tools and Service Concepts Nokia Customer Care

Table of Contents

Service tools............................................................................................................................................................4–5

CA-35S.................................................................................................................................................................4–5

CA-53...................................................................................................................................................................4–5

CU-4.....................................................................................................................................................................4–6

DKU-2..................................................................................................................................................................4–7

FPS-10.................................................................................................................................................................4–7

FS-8.....................................................................................................................................................................4–8

JBT-9....................................................................................................................................................................4–8

MJ-82...................................................................................................................................................................4–9

PCS-1...................................................................................................................................................................4–9

PKD-1................................................................................................................................................................4–10

RJ-92 ................................................................................................................................................................4–10

RJ-93.................................................................................................................................................................4–10

SA-93.................................................................................................................................................................4–11

SPS-1.................................................................................................................................................................4–12

SRT-6.................................................................................................................................................................4–12

SS-46.................................................................................................................................................................4–12

SS-62.................................................................................................................................................................4–12

SS-72.................................................................................................................................................................4–13

ST-40.................................................................................................................................................................4–13

XCS-4.................................................................................................................................................................4–13

XRE-2.................................................................................................................................................................4–13

XRF-1.................................................................................................................................................................4–14

Service concepts...................................................................................................................................................4–14

Service concepts..............................................................................................................................................4–14

List of Tables

Table 9 Attenuation values for RM-115/RM-126...............................................................................................4–11

List of Figures

Figure 30 POS flash concept................................................................................................................................4–14

Figure 31 FPS-10 flash concept...........................................................................................................................4–15

Figure 32 FPS-10 flashing and BB tuning concept............................................................................................4–16

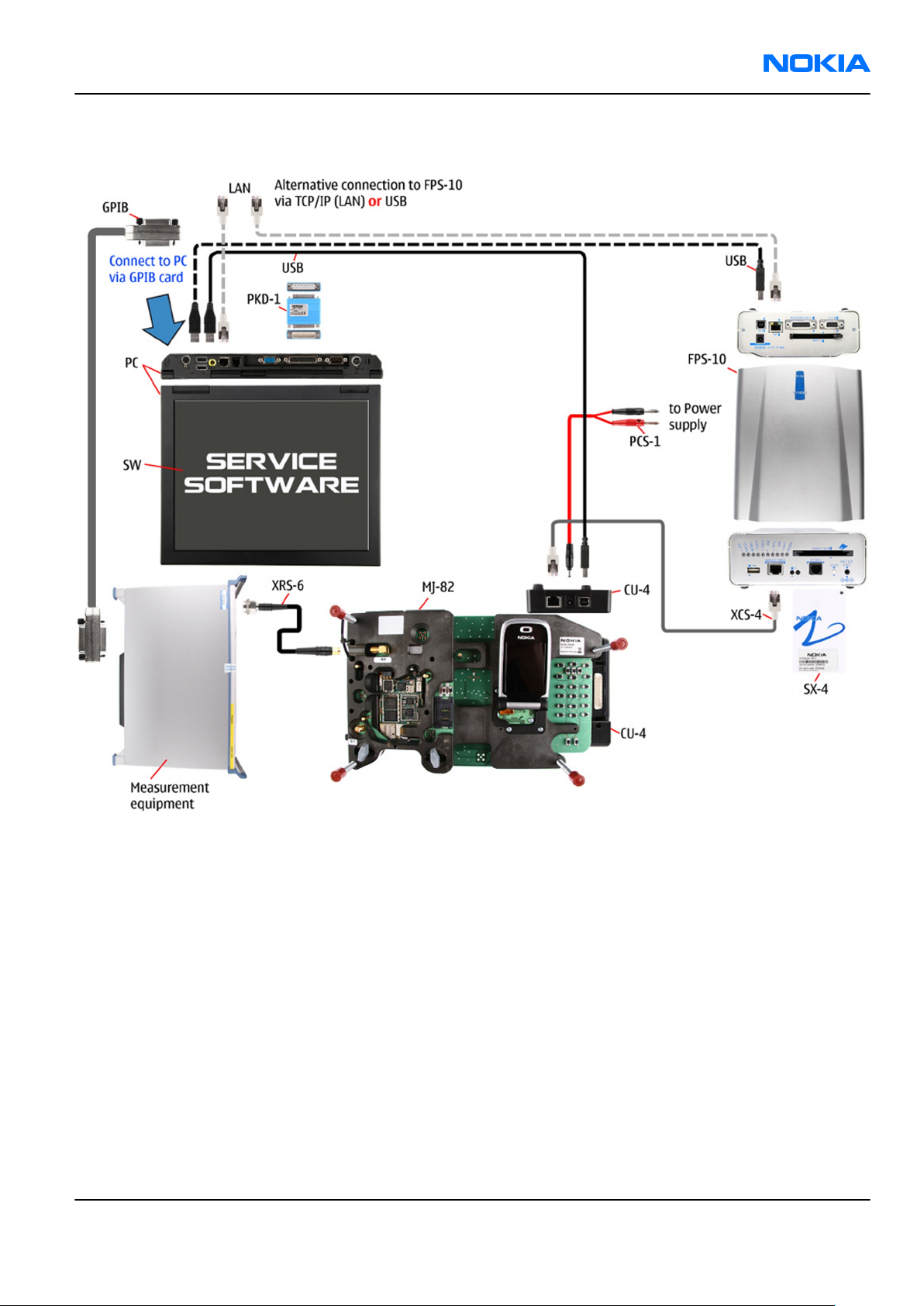

Figure 33 FPS-10 flashing and RF testing/BB tuning concept..........................................................................4–17

Figure 34 Module jig tuning concept.................................................................................................................4–18

Figure 35 Module jig tuning and FPS-10 flash concept....................................................................................4–19

Issue 1 COMPANY CONFIDENTIAL Page 4 –3

RM-115; RM-126

Nokia Customer Care Service Tools and Service Concepts

(This page left intentionally blank.)

Page 4 –4 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Tools and Service Concepts Nokia Customer Care

Service tools

The table below gives a short overview of service tools that can be used for testing, error analysis and repair of product RM-115; RM-126, refer to various concepts.

CA-35S Power cable CA-35S is a power cable for connecting, for example, the FPS-10 flash

prommer to the Point-Of-Sales (POS) flash adapter.

CA-53 USB connectivity

cable

USB to system connector cable.

Issue 1 COMPANY CONFIDENTIAL Page 4 –5

RM-115; RM-126

Nokia Customer Care Service Tools and Service Concepts

CU-4 Control unit CU-4 is a general service tool used with a module jig and/or a flash

adapter. It requires an external 12 V power supply. The unit has the following features:

• software controlled via USB

• EM calibration function

• Forwards FBUS/Flashbus traffic to/from terminal

• Forwards USB traffic to/from terminal

• software controlled BSI values

• regulated VBATT voltage

• 2 x USB2.0 connector (Hub)

• FBUS and USB connections supported When using CU-4, note the special order of connecting cables and

other service equipment:

Instructions

1 Connect a service tool (jig, flash adapter) to CU-4. 2 Connect CU-4 to your PC with a USB cable. 3 Connect supply voltage (12 V) 4 Connect an FBUS cable (if necessary). 5 Start Phoenix service software.

Note: Phoenix enables CU-4 regulators via USB when it is

started. Reconnecting the power supply requires a Phoenix restart.

Page 4 –6 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Tools and Service Concepts Nokia Customer Care

DKU-2 USB connectivity

cable

USB to system connector cable.

FPS-10 Flash prommer FPS-10 interfaces with:

• PC

• Control unit

• Flash adapter

• Smart card FPS-10 flash prommer features:

• Flash functionality for BB5 and DCT-4 terminals

• Smart Card reader for SX-2 or SX-4

• USB traffic forwarding

• USB to FBUS/Flashbus conversion

• LAN to FBUS/Flashbus and USB conversion

• Vusb output switchable by PC command FPS-10 sales package includes:

• FPS-10 prommer

• Power Supply with 5 country specific cords

• USB cable

Issue 1 COMPANY CONFIDENTIAL Page 4 –7

RM-115; RM-126

Nokia Customer Care Service Tools and Service Concepts

FS-8 Product specific

adapter

The product specific adapter can be used for assembled phones. FS-8 is an interface between a phone and the concerning SS-46 or

SS-62 device. It is needed in case the assembled phone needs to be contacted, except the DKU-2 or the CA-53 cable can be used (over USB).

Features include:

• Compatible to SS-46 (similar to DCT-4 flash adapter), supports flashing

• Compatible to SS-62 (similar to DCT-4 docking station adapter), a PC can be connected by using SS-46 or CU-4

• Using SS-46: flashing is supported

• Using CU-4: supports flashing, management calibration is

supported.

• SA-93 coupler can be attached for RF go/no-go tests

• Easy phone attachment and detachment

• Reliable phone locking

• Replaceable test pins

JBT-9 Bluetooth test and

interface box (sales package)

The JBT-9 test box is a generic service device used to perform Bluetooth bit error rate (BER) testing, and establishing cordless FBUS connection via Bluetooth. An ACP-8x charger is needed for BER testing and an AXS-4 cable in case of cordless interface usage testing .

Sales package includes:

• JBT-9 test box

• Installation and warranty information

Page 4 –8 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Tools and Service Concepts Nokia Customer Care

MJ-82 Module repair jig MJ-82 is meant for component level trouble shooting The jig includes

RF interface for GSM and Bluetooth. General features include:

• Provides mechanical interface for engine module

• Provides galvanic connection to all needed test pads in module

• UI test interface

• Audio components MIC, earpiece, IHF

• Unlimited operation of a disassembled RM-115/126 phone module

• Power supply via CU-4

Note: CU-4 is needed to operate MJ-82. CU-4 is not part of the

MJ-82 sales package and has to be ordered separately.

• Attenuation values for MJ-82

Frequency (Hz) Loss (dB)

836600000 0.14 881600000 0.14 897400000 0.14 942400000 0.14 1747800000 0.38 1842800000 0.34 1880000000 0.34 1950000000 0.31 1960000000 0.31 2140000000 0.44

The UI module is not installed because of logistic issues. The following parts must be installed (please refer to the Mechanical parts list): A2, I002, I003. I101, I102, I103, I104, I010, I105, A3, A4 and A5.

PCS-1 Power cable The PCS-1 power cable (DC) is used with a docking station, a module

jig or a control unit to supply a controlled operating voltage.

Issue 1 COMPANY CONFIDENTIAL Page 4 –9

RM-115; RM-126

Nokia Customer Care Service Tools and Service Concepts

PKD-1 SW security device SW security device is a piece of hardware enabling the use of the

service software when connected to the parallel (LPT) port of the PC. Without the device, it is not possible to use the service software. Printer or any such device can be connected to the PC through the

device if needed.

RJ-92 Soldering jig This soldering jig is used for module level repair, either as fixation

in μBGA rework places or when there is a need to hold a module on the work bench for any other repair.

Features include:

• Convenient locking mechanism

• Four (optional mount) rubber feet allow usage also on repair benches

• Fixation of phone module in both ways possible (bottom or top side up)

• ESD proof material

• Standard uBGA jig thickness and outer dimensions

RJ-93 Rework jig RJ-93 is used as a rework jig for the engine module.

This stencil takes the front end module (FEM) or power amplifier (PA) module for spreading the soldering paste to the component. Must be used together with the ST-40 stencil.

Page 4 –10 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Tools and Service Concepts Nokia Customer Care

SA-93 RF coupler The SA-93 coupler is for GSM RF testing.

The RF antenna coupler for use with FS-8 and SS-62 interface adapter extends CU-4/SS-62/FS-8 set-up to allow RF function tests in GSM bands 850, 900, 1800 and 1900 MHz.

SA-93 is not suitable for RF tuning.

Note: When using the coupler the phone shall be used in open

mode.

To reduce noise, place the ferrite like shown in the picture below. (The ferrite is NOT a Nokia specific part, and can therefore not be ordered through the Nokia channel, but from any regular electronic vendor)

•

Table 9 Attenuation values for RM-115/RM-126

System Channel TX att [dB] RX att [dB]

EGSM850 128 7.9 6

190 7.6 7 251 7.5 8

EGSM900 975 8 8

38 8.3 8 124 8.7 8

GSM1800 512 7.7 7

698 7.2 6 885 7.5 6

GSM1900 512 6.7 6

700 6.4 6 810 6.0 6

TX attenuation tolerance is +/- 1.0 dB RX attenuation tolerance is +/- 1.0 dB

Issue 1 COMPANY CONFIDENTIAL Page 4 –11

RM-115; RM-126

Nokia Customer Care Service Tools and Service Concepts

SPS-1 Soldering Paste

Spreader

SRT-6 Opening tool SRT-6 is used to open phone covers and B-to-B connectors.

SS-46 Interface adapter SS-46 acts as an interface adapter between the flash adapter and

FPS-10.

SS-62 Generic flash adapter

base for BB5

• generic base for flash adapters and couplers

• SS-62 equipped with a clip interlock system

• provides standardised interface towards Control Unit

• provides RF connection using galvanic connector or coupler

• multiplexing between USB and FBUS media, controlled by VUSB

Page 4 –12 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Tools and Service Concepts Nokia Customer Care

SS-72 Domesheet

alignment jig

The purpose of this tool is to simplify the attachment process of the domesheet to the keymat PWB and the display bezel the B-cover.

ST-40 PA rework stencil This stencil is to be used together with RJ-93 and covering FEM module.

XCS-4 Modular cable XCS-4 is a shielded (one specially shielded conductor) modular cable

for flashing and service purposes.

XRE-2 Bluetooth cable The bluetooth cable connects the bluetooth connector of the module

jig to the bluetooth test box JBT-9.

Issue 1 COMPANY CONFIDENTIAL Page 4 –13

RM-115; RM-126

Nokia Customer Care Service Tools and Service Concepts

XRF-1 RF cable The RF cable is used to connect, for example, a module repair jig to

the RF measurement equipment. SMA to N-Connector ca. 610mm. Attenuation for:

• GSM850/900: 0.3+-0.1 dB

• GSM1800/1900: 0.5+-0.1 dB

• WLAN: 0.6+-0.1dB

Service concepts

POS flash concept

Note: Do not connect an ACP-charger to the phone! This may damage the FEM module.

Figure 30 POS flash concept

FPS-10 flash concept

Note: Do not connect an ACP-charger to the phone! This may damage the FEM module.

Page 4 –14 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Tools and Service Concepts Nokia Customer Care

Figure 31 FPS-10 flash concept

Issue 1 COMPANY CONFIDENTIAL Page 4 –15

RM-115; RM-126

Nokia Customer Care Service Tools and Service Concepts

FPS-10 flashing and BB tuning concept

Figure 32 FPS-10 flashing and BB tuning concept

FPS-10 flashing and RF testing/BB tuning concept

Note: Do not connect an ACP-charger to the phone! This may damage the FEM module.

Page 4 –16 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Tools and Service Concepts Nokia Customer Care

Figure 33 FPS-10 flashing and RF testing/BB tuning concept

Issue 1 COMPANY CONFIDENTIAL Page 4 –17

RM-115; RM-126

Nokia Customer Care Service Tools and Service Concepts

Module jig tuning concept

Figure 34 Module jig tuning concept

Page 4 –18 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Service Tools and Service Concepts Nokia Customer Care

Module jig tuning and FPS-10 flash concept

Figure 35 Module jig tuning and FPS-10 flash concept

Issue 1 COMPANY CONFIDENTIAL Page 4 –19

RM-115; RM-126

Nokia Customer Care Service Tools and Service Concepts

(This page left intentionally blank.)

Page 4 –20 COMPANY CONFIDENTIAL Issue 1

Nokia Customer Care

5 — Disassembly and

reassembly instructions

Issue 1 COMPANY CONFIDENTIAL Page 5 –1

RM-115; RM-126

Nokia Customer Care Disassembly and reassembly instructions

(This page left intentionally blank.)

Page 5 –2 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Disassembly and reassembly instructions Nokia Customer Care

Table of Contents

Disassembly instructions (upper block)...............................................................................................................5–5

Reassembly instructions (upper block)................................................................................................................5–9

Disassembly instructions (lower block).............................................................................................................5–12

Reassembly instructions (lower block)..............................................................................................................5–17

Issue 1 COMPANY CONFIDENTIAL Page 5 –3

RM-115; RM-126

Nokia Customer Care Disassembly and reassembly instructions

(This page left intentionally blank.)

Page 5 –4 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Disassembly and reassembly instructions Nokia Customer Care

Disassembly instructions (upper block)

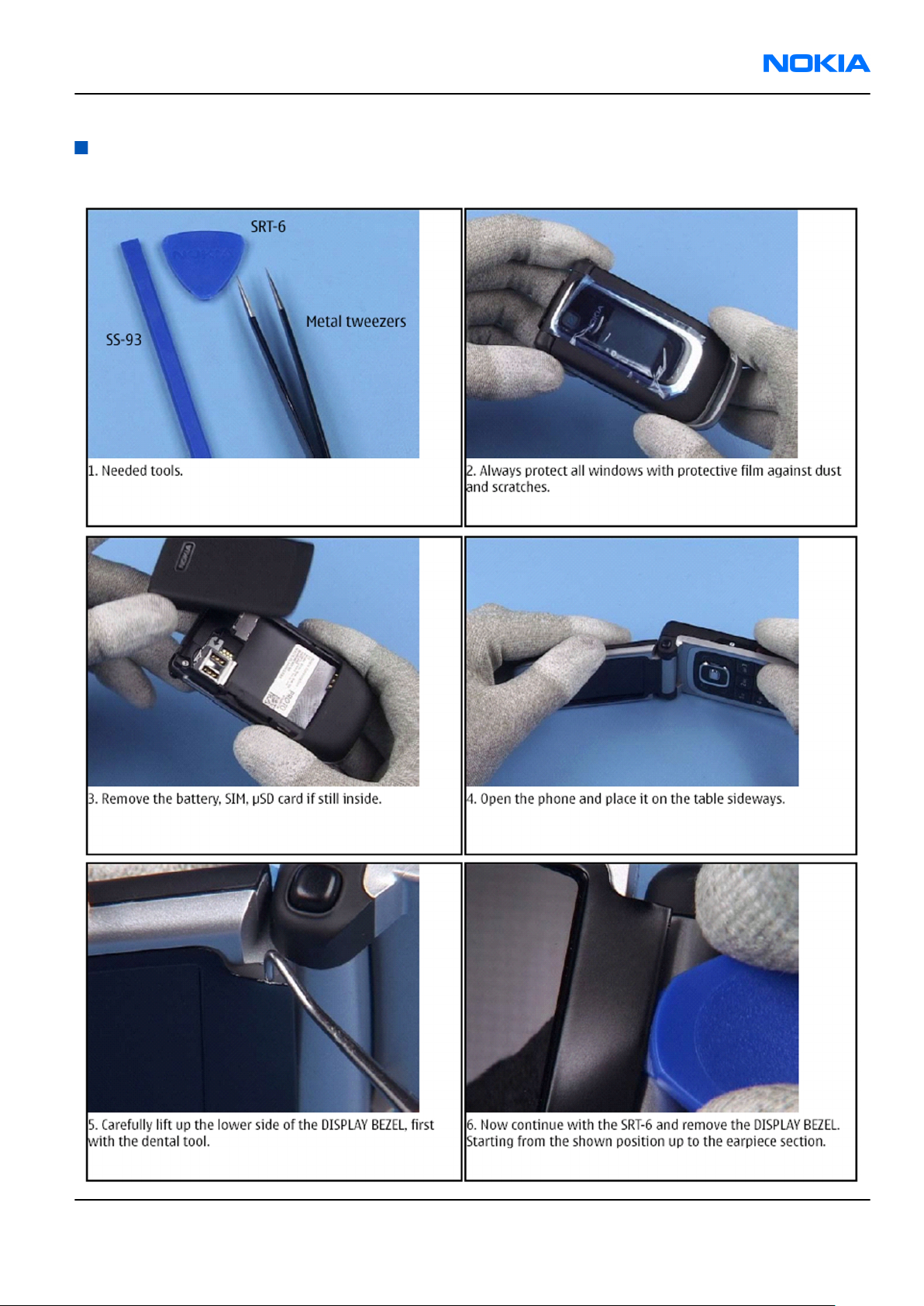

Steps

Issue 1 COMPANY CONFIDENTIAL Page 5 –5

RM-115; RM-126

Nokia Customer Care Disassembly and reassembly instructions

Page 5 –6 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Disassembly and reassembly instructions Nokia Customer Care

Issue 1 COMPANY CONFIDENTIAL Page 5 –7

RM-115; RM-126

Nokia Customer Care Disassembly and reassembly instructions

Page 5 –8 COMPANY CONFIDENTIAL Issue 1

RM-115; RM-126 Disassembly and reassembly instructions Nokia Customer Care

Reassembly instructions (upper block)

Steps

Issue 1 COMPANY CONFIDENTIAL Page 5 –9

RM-115; RM-126

Nokia Customer Care Disassembly and reassembly instructions

Page 5 –10 COMPANY CONFIDENTIAL Issue 1

Nokia 6126, 6131, 6133 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Amendment Record Sheet

Copyright

Warnings and cautions

For your safety

Care and maintenance

ESD protection

Battery information

Company Policy

Nokia 6126; Nokia 6126h; Nokia 6131; Nokia 6133; Nokia 6133b; Nokia 6133h Service Manual Structure

Product selection

Features

Phone features

Software and User interface features

Accessories

Exploded view

Mechanical parts list

SWAP units

Parts list

Non replaceable parts

Component layouts

Phone data package overview

Installing phone data package

Uninstalling phone data package

Installing flash support files for FPS-8 and FPS-10

Updating FPS-8 and FPS-10 flash prommer software

Activating FPS-8

Deactivating FPS-8

Service tools

CA-35S Power cable CA-35S is a power cable for connecting, for example, the FPS-10 flash

CA-53 USB connectivity

CU-4 Control unit CU-4 is a general service tool used with a module jig and/or a flash

DKU-2 USB connectivity

FPS-10 Flash prommer FPS-10 interfaces with:

FS-8 Product specific

JBT-9 Bluetooth test and

MJ-82 Module repair jig MJ-82 is meant for component level trouble shooting The jig includes

PCS-1 Power cable The PCS-1 power cable (DC) is used with a docking station, a module

PKD-1 SW security device SW security device is a piece of hardware enabling the use of the

RJ-92 Soldering jig This soldering jig is used for module level repair, either as fixation

RJ-93 Rework jig RJ-93 is used as a rework jig for the engine module.

SA-93 RF coupler The SA-93 coupler is for GSM RF testing.

SPS-1 Soldering Paste

SRT-6 Opening tool SRT-6 is used to open phone covers and B-to-B connectors.

SS-46 Interface adapter SS-46 acts as an interface adapter between the flash adapter and

SS-62 Generic flash adapter

SS-72 Domesheet

ST-40 PA rework stencil This stencil is to be used together with RJ-93 and covering FEM module.

XCS-4 Modular cable XCS-4 is a shielded (one specially shielded conductor) modular cable

XRE-2 Bluetooth cable The bluetooth cable connects the bluetooth connector of the module

XRF-1 RF cable The RF cable is used to connect, for example, a module repair jig to

Service concepts

Service concepts

Disassembly instructions (upper block)

Reassembly instructions (upper block)
