Nokia Customer Care
NPL-4/5 Series Transceivers
General Information
Issue 1 05/04 Copyright©2004 Nokia Corporation . All rights reserved
NPL-4/5
Nokia Customer Care
Table of Contents
Page No
NPL-4/5 Product Selection ................................................................................................................... 3
NPL-4/5 Product and Modules ............................................................................................................ 3
Accessories List......................................................................................................................................... 4
Technical Specifications ........................................................................................................................ 6
General specifications of transceiver NPL-4/5 ............................................................................6
Battery endurance............................................................................................................................. 7
Environmental conditions ............................................................................................................... 7
Transceiver features ............................................................................................................................. 8
Hardware characteristics................................................................................................................. 8
UI features ........................................................................................................................................... 8
Data accessories................................................................................................................................. 8
Electrical characteristics .................................................................................................................10
List of Figures
Page No
Fig 1 NPL-4/5 transceiver......................................................................................................................... 1
Fig 2 NPL-4/5 transceiver............................................................................................................................ 3
Page 2 Copyright ©Nokia. All rights reserved Issue 1 05/04
Nokia Customer Care
NPL-4/5 Product Selection
The NPL-4/5 is a triple band transceiver unit designed for the GSM 850/1800/1900 (NPL4, US) and EGSM900 , GSM1800/1900 (NPL-5, EU) networks . It is both GSM850/
EGSM900 phase 2 power class 4 transceiver (2W) and GSM1800 / GSM1900 power class
1 (1W) transceiver.
NPL-4/5 Product and Modules
NPL-4/5
Name Type code
Basic transceiver (US Variant) NPL-4 0507659
Basic transceiver (EU Variant) NPL-5 0511274
Radio module NPL-4
Radio module NPL-5
UI board NPL-4/5
Mechanics module NPL-4 0262797
Mechanics module NPL-5 0263083

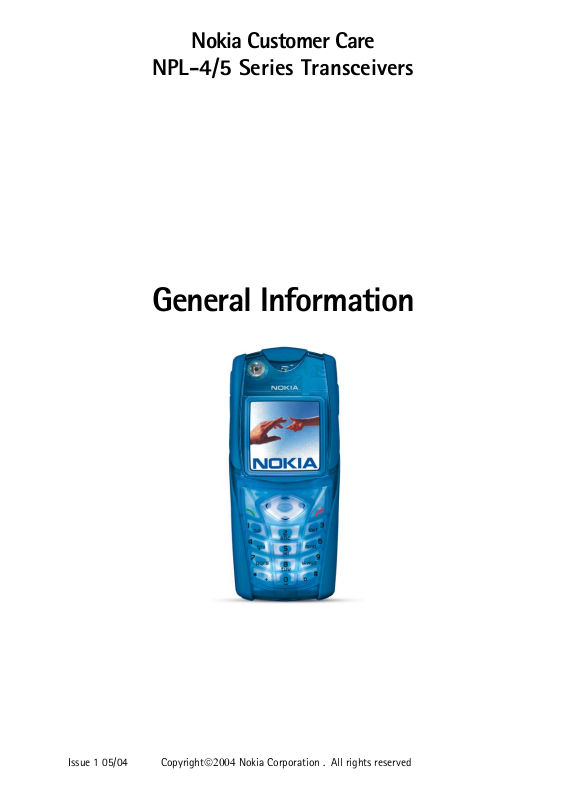

Figure 1: NPL-4/5 transceiver
Material code/
module type
Module code
Issue 1 05/04 Copyright©Nokia. All rights reserved Page 3
NPL-4/5
Nokia Customer Care
Accessories List
Batteries Product code:
Battery BL-5B 760mAH Li-ion 0670455
Chargers Product code:
Standard Charger ACP-7E (EUR) 230 Vac (Made in country) 0675144
Standard Charger ACP-7E (EUR) 230 Vac (Made by ‘manufacturer’) 0675171
Standard Travel Charger ACP-7U (US) 120 Vac (Made in country) 0675143
Standard Travel Charger ACP-7U (US)120 Vac (Made by ‘manufacturer’) 0675172
Standard Charger ACP-7X (UK) 230 Vac (Made in country) 0675145
Standard Charger ACP-7X (UK) 230 Vac (Made by ‘manufacturer’) 0675173
Standard Charger ACP-7H (Hong Kong) 200 Vac 0675146
Standard Charger ACP-7C (China) 220 Vac 0675212
Standard Charger ACP-7C (Philippines) 220 Vac 0675158
Standard Charger ACP-7A (Australia) 240 Vac 0675148
Standard Travel Charger ACP-7AR (Argentina) 220 Vac 0675244
Travel Charger ACP-8E (EUR) 0675195
Rapid Travel Charger ACP-8U (US) 90-264 Vac 0675196
Rapid Travel Charger ACP-8U (US) 90-264 Vac (Made by ‘manuf.’) 0675269
Travel Charger ACP-8X (UK) 90-264 Vac 0675197
Travel Charger ACP-8J 0675198
Travel Charger ACP-8K 0675199
Fast & Light Charger ACP-8A (Australia) 90-264 Vac 0675214
Fast & Light Charger ACP-8C (China) 90-264 Vac 0675211
Travel Charger ACP-8UB 0675236
Travel Charger ACP-8G 0675237
RapidTravel Charger ACP-8AR (Argentina) 0675248
Travel Charger ACP-12E (Eur) 0675294
Travel Charger ACP-12X 0675296
Travel Charger ACP-12U 0675303
Travel Charger ACP-12UB 0675293
Travel Charger ACP-12G 0675295
Travel Charger ACP-12C 0675297
Travel Charger ACP-12A 0675300
Page 4 Copyright ©Nokia. All rights reserved Issue 1 05/04
NPL-4/5
Nokia Customer Care
Travel Charger ACP-12AR 0675298
Retractable Charger AC-1E 0675349
Portable and Office Accessories Product code:
Activity Headset HS-8 0694170
Fashion Stereo Headset HS-3 0694156
Boom Headset HDB-4 0694094
Stereo Headset HDS-3 0694093
Basic Headset HS-5 0694121
Inductive Loopset LPS-4 0630443
Connectivity Adapter Cable DKU-5 0730235
Carrying Strap CP-12 (Eur/Afr inbox only) 0720391
Activity Handsfree HF-2 0700097
Music Stand DT-3 0694203
Wireless Audio Adapter AD-5B 0694149
Xpress -On shells:
Blue SKR-337 0262919
Red SKR-338 0262920
Orange SKR-339 0262921
Dark Grey SKR-343 0262993
Green SKR-344 0262994
Dark Green SKR-340 0262922
Mobile Accessories Product code:
Headrest Handsfree BHF-3 0694158
Mobile Charger LCH-9 0675120
Mobile Charger LCH-12 0675328
Other Accessories Product code:
Fitness Monitor LS-2 xxxxxxx
Image Viewer SU-5 0710116
Image Album PD-1 xxxxxxx
Image Frame SU-4 0710004
Image Frame SU-7 0710011
Issue 1 05/04 Copyright©Nokia. All rights reserved Page 5
NPL-4/5
Technical Specifications
General specifications of transceiver NPL-4/5
Nokia Customer Care
Unit
Transceiver with BL-4C 720mAh Li-Ion
battery pack
Parameter Unit and value
Cellular System GSM850/900, GSM1800 and GSM1900
Modulation schemes GMSK, 8-PSK
RX Frequency Band GSM850: 824...849 MHz
TX Frequency Band GSM850: 869...894 MHz
Output Power GMSK GSM850: +5...+33 dBm / 3.2 mW... 2 W
Dimensions (mm)
(W x H x D)
103 x 43 x 20 <93 86
GSM900: 925 - 960 MHz
GSM1800: 1805 - 1880 MHz
GSM1900: 1930 - 1990 MHz
GSM900: 880 - 915 MHz
GSM1800: 1710 - 1785 MHz
GSM1900: 1850 - 1910 MHz
GSM900: +5...+33 dBm / 3.2 mW... 2 W
GSM1800: +0...+30 dBm / 1.0 mW... 1 W
GSM1900: +0...+30 dBm / 1.0 mW... 1 W
Weight
(g)
Volume
3
(cm
)
Output Power 8-PSK GSM850: +5...+27 dBm / 3.2 mW... 0.5 W
GSM900: +5...+27 dBm / 3.2 mW... 0.5 W
GSM1800: +0...+26 dBm / 1.0 mW... 0.4 W
GSM1900: +0...+26 dBm / 1.0 mW... 0.4 W
Duplex Spacing GSM850: 45MHz
GSM900: 45MHz
GSM1800: 95MHz
GSM1900:: 80MHz
Number of RF Channels GSM850: 124
GSM900: 174
GSM1800: 374
GSM1900: 300
Channel Spacing 200 kHz (each band)
Number of TX Power Levels GMSK GSM850: 15
GSM900 : 15
GSM1800: 16
GSM1900: 16
Page 6 Copyright ©Nokia. All rights reserved Issue 1 05/04
Nokia Customer Care
Number of TX Power Levels GMSK GSM850: 12
GSM900 : 12
GSM1800: 14
GSM1900: 14
NPL-4/5
Sensitivity, static channel (+25°C)
Frequency Error, static channel < 0.1 ppm
RMS Phase Error
Peak Phase Error
EGSM: -102dBm
GSM900: -102dBm
GSM1800: -102dBm
GSM1900: -102dBm
< 5.0°
< 20.0°
Battery endurance
Parameter Hours Note
talk time (hours) up to 2-5
standby (hours) up to 150-300 Depends on network parameters
standby time: radio +
HDS-3
standby time: radio +
IHF
up to 20 hours
up to 8 hours
Environmental conditions
Table 1: Allowed Ambient Temperatures
Environmental condition Ambient temperature Notes
Normal operation
Reduced performance
Intermittent operation
No operation
No operation or storage
Charging allowed
Long term storage conditions
-10 oC ... +55 oC
+55 oC ... +65 oC
-20 oC ... -10 oC and
o
+65
C ... +85 oC
-40 oC ... -20 oC
< -40 oC and > +85 oC
-25 oC ... +60 oC
0 oC ... +40 oC
Specifications fulfilled
Operational only for short periods
Operation not guaranteed but an attempt to
operate will not damage the phone
Operation not possible but an attempt to
operate will not damage the phone
No storage; an operation attempt may cause
permanent damage
Issue 1 05/04 Copyright©Nokia. All rights reserved Page 7
NPL-4/5
Transceiver features
Hardware characteristics
• EDGE 850/1800/1900 and EDGE 900/1800/1900
• Codecs AMR, EFR, FR, HR
• Passive matrix color display (128 x 128 pixels, 4096k colors).
• 4-way navigation key, 3 soft keys , volume keys, PTT-key, power on/off
on top
• Internal antenna.
• User changeable X’press On Shells
• Ringing volume: 105 dB from 5cm distance
Nokia Customer Care
UI features
• Integrated Handsfree
• Integrated Camera
•FM Radio
• Charger plug
• Headset connector Pop-port ™
• Flashlight
• Push to talk
• MDO Persona Client
• Wireless Village
•Compass
• FCI (Functional Cover Interface)
Data accessories
- Circuit switched (CS) data features
- 9600, 14400 bps, non-transparent data
- 43200 bps with HSCSD, non-transparent data
Page 8 Copyright ©Nokia. All rights reserved Issue 1 05/04
Nokia Customer Care
- HSCSD Multislot class 6 (max 2+2, 3+1 (rx time slots + tx time slots))
- Packet switched (PS) data features
- Class B Mobile
- GPRS Multislot class 10 (max 4+1, 3+2 (rx time slots + tx time slots))
- EDGE Multislot class 6 (max 2+2, 3+1 (rx time slots + tx time slots))
- Connectivity features
- IR Link (IrDA compliant IrComm interface) up to 1.152 Mbit/s
NPL-4/5
- IR link between two phones
- PC Dial-up connectivity
- PC Suite connectivity
- DKU-5 USB cable (connectivity via Pop-Port <tm>) up to 230.4 kbit/s
- PC Dial-up connectivity
- PC Suite connectivity
Issue 1 05/04 Copyright©Nokia. All rights reserved Page 9
NPL-4/5
Nokia Customer Care
Electrical characteristics
Table 2: Absolute Maximum Ratings
Parameter Min. Typical Max. Unit
Battery Voltage, Idle -0.3 5.5 V
Battery Voltage, Call -0.3 4.8 V
Charger Input Voltage -0.3 16 V
Charging Current 1A mA
Table 3: Supply Voltages
Parameter Min. Typical Max. Unit / Notes
Battery Voltage 3.1 3.7 4.2 V / SW cut-off 3.1 V
Table 4: Current Consumption
Condition Min. Typical Max. Unit
Call (MoU)
GSM 850
EGSM900
GSM1800
GSM1900
Idle (MoU) 3-4 mA
Power off 80 µA
290
221
210
mA
Page 10 Copyright ©Nokia. All rights reserved Issue 1 05/04
