NHE/K–5/6

SERVICE SOFTWARE

INSTRUCTIONS

Original 03/97

NMP Part No. 0275074

NHE/K–5/6 Service Software Instructions

AMENDMENT RECORD SHEET

After Sales

Technical Documentation

Amendment Number

Date Inserted By Comments

Page 2

Original 03/97

After Sales Technical Documentation

NHE/K–5/6 Service Software Instructions

NHE/K–5/6 SERVICE SOFTWARE INSTRUCTIONS Contents

Introduction Page 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Page 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Minimum Required Servicing Equipment Page 6. . . . . . . . . . . . . . . . .

Mechanical Connections Page 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Start Up Procedure Page 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction to Service Software Package User Interface Page 9. . . . .

Service Software/Hardware Enviroment Page 9. . . . . . . . . . . . . . . . .

Service Software Enviroment Page 9. . . . . . . . . . . . . . . . . . . . . . . . . .

Service Software Executables Page 10. . . . . . . . . . . . . . . . . . . . . . .

Command Line Parameters Page 10. . . . . . . . . . . . . . . . . . . . . . . . .

Common Properties of the User Interface Page 11. . . . . . . . . . . . . . . . . .

Main Window Page 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Menu Bar Page 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Product Page 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Configure Page 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tuning Page 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Testing Page 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Software Page 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dealer Page 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

View Page 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Phone Identity Window Page 18. . . . . . . . . . . . . . . . . . . . . . . . . . .

Help Page 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Mouse Cursors Page 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Reserved Keys Page 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Short Cut Function Keys Page 19. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Alt Hot Keys Page 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Ctrl Hot Keys Page 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Shift Hot Keys Page 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Key Strokes Page 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Help Functions Page 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dialog boxes Page 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Common Dialog boxes Page 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Note Message Box Page 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Query Message Box Page 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Error Message Box Page 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Custom Dialog boxes Page 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Buttons Page 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Reporting Status Page 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Original 03/97

Page 3

NHE/K–5/6 Service Software Instructions

NHE/K–5 & NHE/K–6 Specific Features Page 26. . . . . . . . . . . . . . . . . . . .

Menu Bar Page 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Product Page 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

New command Page 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Open... command Page 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Close command Page 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initialize command Page 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Normal Mode Page 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Local Mode Page 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Faultlog Page 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Exit command Page 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Configure Page 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Options... command Page 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Directories... command Page 29. . . . . . . . . . . . . . . . . . . . . . . . . . .

Faultlog... command Page 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

After Sales

Technical Documentation

Tuning Page 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

AFC... command Page 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RSSI (AGC)... command Page 32. . . . . . . . . . . . . . . . . . . . . . . . . .

TX Power... command Page 35. . . . . . . . . . . . . . . . . . . . . . . . . . . .

TX I/Q... command Page 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Battery A/D... command Page 39. . . . . . . . . . . . . . . . . . . . . . . . . .

Charger A/D... command Page 40. . . . . . . . . . . . . . . . . . . . . . . . .

LCD A/D... command Page 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LCD Display... command Page 40. . . . . . . . . . . . . . . . . . . . . . . . . .

Testing Page 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Quick Testing (RF)... command Page 42. . . . . . . . . . . . . . . . . . . .

RSSI Reading... command Page 47. . . . . . . . . . . . . . . . . . . . . . . .

Self Tests... command Page 48. . . . . . . . . . . . . . . . . . . . . . . . . . . .

ADC Readings... command Page 50. . . . . . . . . . . . . . . . . . . . . . .

Audio... command Page 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Display... command Page 52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Call Simulation.. command Page 53. . . . . . . . . . . . . . . . . . . . . . . .

Noise Sensitivity... command Page 54. . . . . . . . . . . . . . . . . . . . . .

Page 4

Original 03/97

After Sales Technical Documentation

Software Page 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Phone Identity... command Page 56. . . . . . . . . . . . . . . . . . . . . . . .

Product Profile... command Page 57. . . . . . . . . . . . . . . . . . . . . . .

NHE/K–5 Product Profile Settings Page 58. . . . . . . . . . . . . . . . . .

NHE/K–6 Product Profile Settings Page 58. . . . . . . . . . . . . . . . . .

Start Up Self–tests... command Page 59. . . . . . . . . . . . . . . . . . . .

Set Default Values... command Page 60. . . . . . . . . . . . . . . . . . . .

Network Settings... command Page 61. . . . . . . . . . . . . . . . . . . . .

HW Settings... command Page 62. . . . . . . . . . . . . . . . . . . . . . . . .

NHE/K–5 Settings: Page 63. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Warranty State... command Page 64. . . . . . . . . . . . . . . . . . . . . . .

Service Numbers... command Page 65. . . . . . . . . . . . . . . . . . . . .

Dealer Page 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Short Code Memory... command Page 66. . . . . . . . . . . . . . . . . . .

User Settings... command Page 67. . . . . . . . . . . . . . . . . . . . . . . . .

SCM & User Settings... command Page 69. . . . . . . . . . . . . . . . . .

Set UI/DEV Default Values... command Page 70. . . . . . . . . . . . .

NHE/K–5/6 Service Software Instructions

View Page 71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Quick/RF Info... command Page 71. . . . . . . . . . . . . . . . . . . . . . . .

Phone Identity... command Page 72. . . . . . . . . . . . . . . . . . . . . . . .

Help Page 73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Index command Page 73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General help command Page 73. . . . . . . . . . . . . . . . . . . . . . . . . . .

Using Help command Page 73. . . . . . . . . . . . . . . . . . . . . . . . . . . .

About... command Page 73. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Initialization File Page 74. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Appendix 1, Vocabulary Page 75. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Original 03/97

Page 5

NHE/K–5/6 Service Software Instructions

Introduction

General

The NHE/K–5 NHE/K–6 Service Software is specially designed to facilitate the servicing of sixth generation cellular telephones.

The software can be used to control the phone according to the user’s requirements merely by entering commands via the keyboard or mouse of a PC connected to the phone.

This section refers to the Service Software Version 2.3. NMP After Sales will notify service personnel about future upgrades via Technical Bulletins. Software upgrades will be available from your local NMP outlet.

Minimum Required Servicing Equipment

– Computer: Intel 386/33 MHz or compatible with one unused serial port

(COM1 or COM2*), one parallel port (LPT1), hard disk recommended.

After Sales

Technical Documentation

– Memory: 4 MB or more – Operating System: DOS Version 5 & Microsoft Windows 3.11 or later – Display: VGA based display (640 x 480) – PC Locals program: for 3.5” disk (product code: 0774034) – Software Protection Key PKD–1 (product code 0750018) – M2BUS interface cable DAU–4S (product code 0730057)

Page 6

Note: A number of PC’s of an older generation use the Intel, National Semiconductor, or

United Microelectronics IC 8250 as the serial port UART. This is a comparatively inefficient circuit for current purposes and does not necessarily support the M2BUS adapter at 9600 baud. The newer UART’s NS16450 and NS16550AF of National Semiconductor offer solutions for these problems.

Original 03/97

After Sales Technical Documentation

Mechanical Connections

Caution: Ensure that you have switched off the PC and the printer before

making connections !

Caution: Do not connect the PKD–1 to the serial port. This could damage

the PKD–1 !

The software controls the phone via a separate adapter connected to the serial port of the PC and to the telephone’s M2BUS (DAU–4S and XCM–1).

Attach the protection key PKD–1 to parallel port one (25–pin female D–connector) of the PC. When connecting the PKD–1 to the parallel port be sure that you insert the PC end of the PKD–1 to the PC (male side). If you use a printer on parallel port one, place the PKD–1 between the PC and your printer cable.

The PKD–1 should not effect devices working with it. If some errors occur (errors in printing are possible) please try printing without the PKD–1. If printing is OK without the PKD–1 please contact your dealer. We will offer you a new PKD–1 in exchange for your old one.

NHE/K–5/6 Service Software Instructions

Original 03/97

Page 7

NHE/K–5/6 Service Software Instructions

Attach one end of the M2BUS interface cable, DAU–4S (2), to the PC serial port and the other end to the bottom connector of the phone.

After Sales

Technical Documentation

Start Up Procedure

Start the phone by pressing the power–on button of the handset. Switch PC power on.

To installing software, proceed as follows:

1. Insert Service Software disk into drive A of your PC

2. Start Windows: type

3. Start Installing program: select

4. Follow Installation Software instructions

WIN

and press

File –> Run

menu, then type

press

button

Enter

from Program Manager

A:INSTALL

and

Page 8

Original 03/97

After Sales Technical Documentation

NHE/K–5/6 Service Software Instructions

Introduction to Service Software Package User Interface

This chapter gives a short description of the Service Software properties.

Service Software/Hardware Enviroment

To run the Service Software, a parallel port software protection device (PKD–1) has to be connected. The user can use the Service Software functions for testing all supported Phone Types. The functions send messages from the PC to the phone, receives results and show them on the PC display. The messages are sent via a low level NMP proprietary bus protocol. An example bus is an M2BUS interface, which needs M2BUS adapter (DAU–2) connected to the PC RS–232 port and special M2BUS cable.

The recommended minimum hardware standard to run the Service Software package is any computer which is 386 33Mhz or greater with at least 4 MB of memory and VGA type display (640x480). This assumes that only the Service Software package is active, i.e. other Windows packages are not running in the background.

Note: if the Service Software is to be run on a laptop, the power saving feature MUST be switched off.

Service Software Enviroment

Service Software user interface is intended for Microsoft Windows 3.1x environment running in enhanced mode. For those who are familiar with Windows environment this application will be easy to use. Detailed information about Windows and application usage can be found from Ref 3– Microsoft Windows Version 3.1 Users Guide chapter one (Windows Basics) and chapter two (Application Basics).

As an ordinary Windows application, the main idea in the user interface is that selections are made with menus, push buttons and shortcut keys. Selections can be done by using keyboard and/or mouse. When messages from phone

Original 03/97

Page 9

NHE/K–5/6 Service Software Instructions

are received, they cause display updating in special display windows. There is always a status bar displayed at the bottom of the main window which contains information about current actions.

Service Software Executables

Only one executable is needed – WinTesla. For NHE/K–5/6 there are two DLL’s: – Functionality DLL is NHEK56.DLL – User Interface DLL is NHEK56EN.DLL or NHK5EN.DLL

Command Line Parameters

There are NO command line parameters.

After Sales

Technical Documentation

Page 10

Original 03/97

After Sales Technical Documentation

NHE/K–5/6 Service Software Instructions

Common Properties of the User Interface

This chapter describes how the User Interface CLF must appear to the user. The User Interface MUST be capable of being driven without the use of a

mouse, as the service engineer rarely has space on the bench to use a mouse.

Login Dialog

When the Service Software application is invoked, by checking on the Service Software icon, the Login dialog box will be displayed on the screen.

Nokia logo and application name

Nokia logo and application name bitmap (–)

Displays Nokia logo and name of the application.

Application version static text (–)

Contains the name and version of the application.

Application version

OK button (default key)

Original 03/97

The user Login ID edit box, where the user enters his faultlog user name. (See Faultlog User Guide)

Page 11

NHE/K–5/6 Service Software Instructions

The user name is stored in memory and the dialog box is closed. When the dialog box is closed, the application starts.

Cancel button (ESC)

The Dialog box is closed and application is started, but the Faultlog feature is disabled.

Help button (F1)

Activates the Windows Help application and displays context sensitive Help.

Main Window

After Sales

Technical Documentation

The application supports a service software interface will present a pearance.

Note: MDI is to allow for future expansion, e.g. R&D features.

Multiple Document Interface (MDI).

Single Document Interface (SDI)

However, the

ap-

Page 12

Title bar

The

title bar

A title bar contains the following elements:

• Application Control–menu button

• Maximise button

• Minimise button

• Name of the application

• Restore button

The properties of these elements and their usage is described in Ref 3– Microsoft Windows Version 3.1 Users Guide chapter one (Windows Basics) and chapter two (Application Basics).

is located at the top of the window.

Original 03/97

After Sales Technical Documentation

Menu bar

The

menu bar

The menu bar is a dynamic element and is dependent on the dongle type fitted, and whether a phone is connected.

Underlined characters in menu names and options indicates that the menu selection can be done by pressing be selected by activating menu bar with row–keys to highlight the desired menu. In that case, selection is done by pressing

Menus can also be selected by using the mouse as described in Ref 3–Microsoft Windows Version 3.1 Users Guide

Status bar

The The status bar contains information about the menu selections and events.

Enter

status bar

NHE/K–5/6 Service Software Instructions

is below the title bar and contains all available menu selections.

Alt+ underlined character

Alt

– key ( or

is displayed at the bottom of the Service Software main window.

F10

. Options can also

key ) and using ar-

The left area of the status bar describes the actions of menu items as the user uses the arrow keys to navigate through menus.

The status bar texts are explained in detailed in each of command’s description.

The right areas of the status bar indicate which of the following keys are latched down:

Indicator Description

USER Entered Login ID. CAP The Caps Lock key is latched down. NUM The Num Lock key is latched down. SCRL The Scroll Lock key is latched down.

Tool bar

The

tool bar

document.

is NOT defined and will not be implemented until specified by this

Original 03/97

Page 13

NHE/K–5/6 Service Software Instructions

Menu Bar

The Service Software package will have two menu bar configurations. The first, is an abbreviated version that contains the minimum number of menus that allows package configurations when a phone is NOT connected. The second is described below:

The menu bar MUST only contain the follow menus for the Service Software package when a phone is connected:

roduct*

• P

• C

onfigure*

• T

uning

• Te

sting

• S

oftware

• D

ealer

After Sales

Technical Documentation

Product

• V

iew

• H

elp* * – always displayed, even if no phone is connected. A menu is broken down into sections that are indicated with menu separators.

Each sections identifies a logical difference from itself and other sections, i.e. between transmitter and receiver. Any items that are required to be added to a menu lists will be added on the bottom of the appropriate menu section list. If a new item is to be added which is common to two or more phone types, then that menu item will become a common menu item.

The menu lists will use the Microsoft [...] symbol after an item name to indicate that selecting that item will NOT initiate an operation immediately, i.e. a dialog box will be displayed for the user to select options or type in data and press the OK button before the operation is performed.

The Product menu contains the following menu items:

• N

ew Ctrl+R

• O

pen...

Page 14

lose

• C

• I

nitialize

• Normal Mode F5

• Local Mode Shift+F5

aultlog

•F

• Activate Faultlog... F9

• Edit Faultlog...

• Ex

it Alt+F4

Original 03/97

After Sales Technical Documentation

Configure

The Configure menu contains the following menu items:

• O

ptions...

• D

irectories...

• F

aultlog...

• Phone Type Specific configuration items (where applicable)

Tuning

The Tuning menu contains the following menu sections:

• Receiver

• Transmitter

• Voltages

NHE/K–5/6 Service Software Instructions

Testing

• Phone Type Specific tuning items (where applicable) An example T

• AFC...

• R

SSI (AGC)...

• Tx

Power...

• Tx I/Q

• B

attery A/D

• Charger A/D...

• LCD

• L

Additional menu items may be added within the sections according to the phone type being tuned, e.g. a Charger tuning menu item will be added after the Battery tuning item, but not in the Transmitter tuning section.

The Testing menu contains the following menu sections:

A/D...

CD Display...

uning menu is shown below:

...

• Quick Tests

• Digital

• User Interface Flexi

• Transmitter

• Receiver

• Automatic Tests

• Phone Type Specific testing items (where applicable)

Original 03/97

Page 15

NHE/K–5/6 Service Software Instructions

After Sales

Technical Documentation

An example Te

• Q

uick Testing (RF)...

• R

SSI Reading ...

• S

elf Tests

• A

DC Readings

• Au

dio

• D

isplay

• C

all Simulation...

• N

oise Sensitivity...

Additional menu items may be added within the sections according to the phone type being tested.

Where a menu item consists of more than one test, a pop–up menu may be added to identify the appropriate sub–tests, e.g. there may be two receiver tests required for a particular phone type (Bit Error Rate and RSSI Monitoring). These will be shown as a popup from the Receiver menu item.

sting menu is shown below:

Software

The Software menu contains the following menu sections:

• Phone Identity/Numbers

• Flashing

• Phone Type Specific software items (where applicable)

An example S

• Phone I

• P

roduct Profile...

• S

tart Up Self–tests...

• Set Default V

• N

etwork Settings...

• H

W Settings...

• W

arranty State...

oftware menu is shown below:

dentity

alues

Page 16

• Service Numb

ers...

Original 03/97

After Sales Technical Documentation

Dealer

The Dealer menu contains the following menu sections:

• Phone UI Data Editors

• Phone UI Data Transfer

• Phone Re–Initialization Functions

• Subscriber Data

• Phone Type Specific dealer items (where applicable)

NHE/K–5/6 Service Software Instructions

View

An example D

• Short C

• U

ser Settings

• SCM

• Set UI/DEV Default V

The View menu contains the following sections:

• Service Windows

• Production Windows (where applicable)

• R&D Windows (where applicable)

An example V

• Q

& User settings ...

uick/RF Info...

ealer menu is shown below:

ode Memory

alues ...

iew menu is shown below:

• P

Original 03/97

hone Identity...

Page 17

NHE/K–5/6 Service Software Instructions

hone Identity Window

The Phone Identity window should contain, as a minimum, the following data:

• Software Version(s)

• Hardware Version(s)

• Serial Number(s)

• Product Code

This window will only be used as a display window and therefore will not allow editing of the displayed data. This window will not contain any controls other than a scroll bar.

Help

The Help menu contains the following menu items:

After Sales

Technical Documentation

• I

ndex

• G

eneral Help

• U

sing Help

• A

bout WinTesla

Page 18

Original 03/97

After Sales Technical Documentation

Mouse Cursors

The standards Windows pointer will be used as the mouse cursor. During time consuming tasks e.g. communication to phone, an hour glass will

be shown informing the user that a task is in progress. The application uses the hour glass cursor to inform user that the application has taken the control and any actions from user will be ignored.

When a function is initiated, the hour glass will be displayed and when the function has finished the mouse pointer will return to normal.

Reserved Keys

The following Hot keys and Short Cut keys are reserved either as Microsoft standard keys or as part of the Common Look and Feel specified by this document.

NHE/K–5/6 Service Software Instructions

Short Cut Function Keys

Key Description Defined by F1 Context Sensitive Help Microsoft

F5 Normal Mode NMP Shift+F5 Local Mode NMP F9 Activate Faultlog NMP F10 Goto Menu Bar Microsoft Ctrl+F4 Close Active Window Microsoft

Alt Hot Keys

Key Description Defined by Alt+F4 Exit Active Application Microsoft

Alt+H Help Microsoft

Ctrl Hot Keys

Key Description Defined by Ctrl+N File – New Microsoft

Ctrl+O F Ctrl+P F Ctrl+R P

Original 03/97

ile – Open Microsoft ile – Print Microsoft roduct – New NMP

Page 19

NHE/K–5/6 Service Software Instructions

Shift Hot Keys

Key Description Defined by Shift+F5 Local Mode NMP

Key Strokes

Key Description Defined by Alt+P Product Menu NMP

After Sales

Technical Documentation

Alt+P,N N Alt+P,O O Alt+P,C C Alt+P,I I Alt+P,I,N N Alt+P,I,L L Alt+P,F F Alt+P,F,A A Alt+P,F,E E Alt+P,E E Alt+C C Alt+C,O O Alt+C,D D Alt+C,F F Alt+T T

ew NMP

pen NMP

lose NMP

nitialize Pop–up NMP

ormal Mode NMP

ocal Mode NMP

aultlog Pop–up NMP ctivate Faultlog NMP dit Faultlog NMP xit Application NMP

onfigure NMP

ption NMP

irectories NMP

aultlog NMP

uning Menu NMP

Page 20

Alt+T,A A Alt+T,R R Alt+T,X Tx Alt+T,Q Tx I/Q Alt+T,B B Alt+T,C C Alt+T,D LCD Alt+T,L L Alt+E Te Alt+E,Q Q Alt+E,R R

FC NMP

SSI(AGC) NMP

Power NMP

attery NMP

harger NMP

A/D NMP

CD Display NMP

sting Menu NMP

uick Testing RF NMP

SSI Reading NMP

NMP

Original 03/97

After Sales Technical Documentation

Alt+E,S Self Tests NMP

NHE/K–5/6 Service Software Instructions

Alt+E,A A Alt+E,U Au Alt+E,D D Alt+E,C C Alt+E,N N Alt+S S Alt+S,I Phone I Alt+S,P P Alt+S,S S Alt+S,V Set Default V Alt+S,N N Alt+S,H H Alt+S,W W Alt+S,B Service Numb Alt+D D

DC Readings NMP

dio NMP isplay NMP all Simulation NMP oise Sensitivity NMP

oftware Menu NMP

dentity NMP roduct Profile NMP tart–up Self Tests NMP

etwork Settings NMP W Settings NMP

arranty State NMP

ealer Menu NMP

alues NMP

ers NMP

Alt+D,C Short C Alt+D,U U Alt+D,V Set UI Default V Alt+V V Alt+V,Q Q Alt+V,P P Alt+H H Alt+H,I I Alt+H,G G Alt+H,U U Alt+H,A A

Help Functions

The Help User Interface will be the standard Windows help tool called WinHelp. The context sensitive help is activated with F1–key. Help contains also Using

Help which describes how to use help facility. Refer to the Windows manual for detailed description on the Windows Help.

ode Memory NMP

ser Settings NMP

alues NMP

iew Menu NMP

uick/RF Info NMP

hone Identity NMP

elp Menu Microsoft

ndex Microsoft

eneral Help Microsoft

sing Help Microsoft

bout WinTesla Microsoft

Original 03/97

Page 21

NHE/K–5/6 Service Software Instructions

Dialog boxes

The Service Software application uses many different dialog boxes. Dialog boxes are used to display data and prompt the user for input.

Dialog boxes are opened from menus or with shortcut keys. Dialog boxes have different properties but some features are common.

All service dialog boxes must be modal, that is, the user will not be able to start another operation without first closing the present dialog box.

All dialog boxes will contain the following entities: – Help button – Title bar – At least one button other than Help – Application Control–menu Button

Common Dialog boxes

After Sales

Technical Documentation

This sections describes the common dialog boxes used in the Service Software package, and the context in which they will be used.

Note Message Box

When the user has made an illegal selection, a opened and message text is displayed. The message box is also opened when the program has some information for the user. The size of the dialog box may vary. An information dialog box is recognized by the !–icon.

The dialog box will also contain an OK button and a Help button.

OK button (default key):

Help button (Alt+H):

Query Message Box

note message box

Acknowledge displayed information and continue. The dialog box is closed after selection.

Opens context sensitive help as F1–key does.

dialog will be

Page 22

Confirmations and questions are asked in box is recognized by the ?–icon.

The dialog box will also contain a Yes button, a No button, and a Help button.

a query message box

. A query dialog

Original 03/97

After Sales Technical Documentation

Yes button (Alt+Y or Y) (default key):

Accepts confirmation or question.

No button (Alt+N or N):

Denies confirmation or question.

Help button (Alt+H):

Opens context sensitive help as F1–key does.

The buttons may also be OK and Cancel. The operation of these buttons are the same as in the Note dialog box.

Error Message Box

Error message dialog boxes use the Stop–icon. When a “Stop”–dialog box is shown, the current operation is terminated.

The dialog box has a description about the failed operation and reason. Pressing F1 (Help) application opens the appropriate help topic that gives information about recommended actions.

NHE/K–5/6 Service Software Instructions

The dialog box will also contain an OK button and a Help button. OK button (default key):

Acknowledges displayed information and terminate current operation. The dialog box is closed after selection.

Help button (Alt+H):

Open context sensitive help as F1–key does.

Original 03/97

Page 23

NHE/K–5/6 Service Software Instructions

Custom Dialog boxes

All custom dialog boxes will contain the predefined buttons as defined below in the section – tional button types, but the addition of these non–standard buttons should be carefully considered to minimise any inconsistencies between implementations.

The buttons will be positioned down the right–hand side of the dialog boxes. The default action will be OK, except where that default action could result in an irretrievable failure.

All tuning dialogs that contain tuning results, will display the old tuned data read from the phone before the tuning was performed, as well as the newly tuned data.

List boxes will be used to display lists of data, such as tuning data, test results etc.

The use of Radio buttons should be limited and carefully considered. The use of radio buttons defines the number of possible choices available to the user, which may be acceptable for one project, but not for another.

Buttons.

However, it is recognised that features may require addi-

After Sales

Technical Documentation

Buttons

All buttons must be the Microsoft style of buttons. In general, the default button will be the OK button, the Close button or the Yes

button, but this will depend on the context of the dialog box that the button is associated with.

OK button:

Accepts and validates entered settings and values and closes the dialog. If the values have not been changed, then no action will be taken. The status bar will reflect the status. The user should only be queried, if the settings or values accepted will over–write data that CAN NOT be reproduced.

A greyed OK button indicates that settings selected by the user are not acceptable.

Close button:

Closes the current dialog box. Does not send or store anything and closes the dialog. The Close button is only used for dialogs that do not set or change any data.

Cancel button (Esc):

Page 24

Cancel operation. Does not send or store anything and closes the dialog box.

A greyed Cancel button indicates that it is not possible to quit from this dialog box.

Original 03/97

After Sales Technical Documentation

Yes button (ALT+Y or Y):

Replies Yes to a question asked of the user.

No button (ALT+N or N):

Replies No to a question asked of the user.

Help button (ALT+H):

Opens context sensitive help as F1–key does.

Reporting Status

The status bar will be used to report the present status to the user. When a feature is initiated, the status bar will be updated with a brief description of the function. The status bar will also be updated at key points in a time consuming function.

If an error is to be reported to the user, it will be displayed in the status bar as well as displayed in a common error dialog box. This will mean the user is not delayed from progressing on to the next operation unless an error occurs, in which case, the user will have to acknowledge the error by pressing the OK button.

NHE/K–5/6 Service Software Instructions

Original 03/97

Page 25

NHE/K–5/6 Service Software Instructions

NHE/K–5 & NHE/K–6 Specific Features

Menu Bar

The Service Software’s menus adopts the menu structure specified by CLF.

Product

New command

Activation Status Bar Text Alt, P, N Rescan a new phone

Ctrl+R This command scans a new product. When phone is found a product specific

functionality module is loaded. If no phone or wrong phone/cellular type is detected, functionality is unloaded and user is informed.

After Sales

Technical Documentation

This function is also started automatically when the application is started. The user can also specify a regular poll which enables the WinTesla application to scan the new phone periodically. If the phone is still the same, no changes are done. If the phone is changed (with same phone type only the serial number is changed), the phone will be initialized to a normal mode. If the phone is changed to a different phone type, the current dlls are unloaded and new ones are loaded for that phone.

The initialization routine checks the phone’s cellular type (GSM/PCN), and if an unsupported phone is detected, the WinTesla application does not load the dlls.

If quick info view is open, the window will be automatically updated. If phone identification view is open, the window will be automatically updated.

pen... command

Activation Status Bar Text Alt, P, O Force load phone specific functionality

Enables the user to force load specific phone’s WinTesla dll’s.

Close command

Page 26

Activation Status Bar Text Alt, P, C Close loaded functionality

Closes loaded functionality and sends reset to phone if dlls are loaded by Open command.

Original 03/97

After Sales Technical Documentation

Initialize command

Activation Status Bar Text Alt, P, I –

Opens a submenu which contains the following options:

Normal Mode

Activation Status Bar Text Alt, P, I, N Initializes phone to normal mode

F5 When normal mode has been activated or program has been started, self–test

results will be asked from MCU. If any fault was found in the tests, an error message is shown. If normal mode has been set successfully (no self test error has been found), and paging listening has been started, the used AFC value is requested from MS.

NHE/K–5/6 Service Software Instructions

ocal Mode

aultlog

The Initialization routine checks the phone’s cellular type (GSM/PCN) and if an unsupported phone is detected, the application unloads the dlls.

If phone identification view is open, the window will be automatically updated. Also if RF Information Window is open it will be updated to quick info view.

Activation Status Bar Text Alt, P, I, L Initialises phone to local mode

Shift+F5 Selection will change the MS state to

phone is controlled to the local mode so that special actions can be made (for example RF tunings).

Activation Status Bar Text Alt, P, F –

local

. When local mode is selected the

Opens a submenu which contains following options:

ctivate Faultlog...

Activation Status Bar Text Alt, P, F, A Activates faultlogging

Original 03/97

Page 27

NHE/K–5/6 Service Software Instructions

dit Faultlog...

Activation Status Bar Text Alt, P, F, E Activates faultlog editing

Note! This documentation will be updated as soon as WinTesla integration is ready.

Exit command

Activation Status Bar Text Alt, P, X Exit application

Alt + F4 Double click the application’s Control menu button:

After Sales

Technical Documentation

This command ends the Service Software session.

Page 28

Original 03/97

After Sales Technical Documentation

Configure

Options... command

Activation Status Bar Text Alt, C, O Edit Service Software options

The Options dialog box contains the following items:

Language drop down list. Current password edit box: New Password edit box: Retype Password edit box: User ID edit box. M2BUS Com Port drop down list.

NHE/K–5/6 Service Software Instructions

Automatic Rescan edit box.

Note! This documentation will be updated as soon as WinTesla integration is ready.

irectories... command

Activation Status Bar Text Alt, C, D Edit directory settings

The Directories dialog box contains the following items:

ID D

ata edit box:

ogs edit box:

Fault log file(s) edit box: Data V Flash i B

alidation file(s) edit box:

mages edit box:

low failures edit box:

Note! This documentation will be updated as soon as WinTesla integration is ready.

Original 03/97

Page 29

NHE/K–5/6 Service Software Instructions

aultlog... command

Activation Status Bar Text Alt, C, F Edit faultlog settings

The Faultlog dialog box contains the following items: Fault log enabled/disabled radio buttons:

After Sales

Technical Documentation

Allow M A

utomatic fault log prompting enabled 1/Disabled 2 radio buttons:

tation identity edit box:

Country of R W

arranty period months edit box / drop down list:

Maximum T

Note! This documentation will be updated as soon as WinTesla integration is ready.

anual Entry enabled/disabled radio buttons:

epair edit box:

ime to repair edit box:

Page 30

Original 03/97

After Sales Technical Documentation

Tuning

The tuning menu offers functions for ME adjustments.

FC... command

Activation Status Bar Text Alt, T, A Open an AFC diagram dialog box

Starts AFC tuning. The following are automatically selected when this tuning function is activated:

Active Unit = RX Operation mode = Continuous Update RF Information window

Before tuning is stared, the user is requested to set signal generator to specified input level (read from .INI file).

NHE/K–5/6 Service Software Instructions

The AFC Diagram dialog box will open when user accepts request:

The AFC Diagram dialog box contains the following items:

epeat button (Alt+R):

The measurement can be started again by pressing Repeat button.

K button (Alt+O):

The dialog box is closed, and tuning

is saved

to phone.

Original 03/97

Page 31

NHE/K–5/6 Service Software Instructions

Cancel button (Esc):

After Sales

Technical Documentation

The D/A converter range (DAC) is from +1023 to –1024 and voltage range is from 0.3 V to 3.9 V (voltage precision is 0.01 V).

The frequency error range is from –134 kHz to +134 kHz with the precision 0.1 kHz. The rounding is made to the closest value.

After exiting with the Cancel button, the following are reset to the values which were selected before this adjustment.

The AFC is also reset to its previous value after exiting with the Cancel button.

SSI (AGC)... command

Activation Status Bar Text Alt, T, R Open RSSI Calibration dialog box

Starts RSSI calibration.

Dialog is closed and tuning

Active Unit Operation mode Update RF Information window

is not saved

to phone.

The following are automatically selected when this tuning function is activated:

Active Unit = RX Operation Mode = Continuous Update RF Information window

The measurement is started automatically when RSSI calibration is entered. The measurement is done in five steps:

1. The user is requested to set signal generator to low input level (read from .INI file).

Page 32

2. Measurement with low input level is executed.

Original 03/97

After Sales Technical Documentation

3. The user is requested to set signal generator to high input level (read from .INI file).

4. Measurement with high input level is executed.

5. The RSSI Calibration dialog box will be updated when previous steps are done.

NHE/K–5/6 Service Software Instructions

The RSSI Calibration dialog box contains the following items:

Original 03/97

Page 33

NHE/K–5/6 Service Software Instructions

GC List box (Alt+A):

Gain code DAC can have values from 0 to 1023 and voltage from

0.26 V to 3.86 V (voltage precision is 0.01 V). Note that the needed input signal level is also shown.

The difference column shows the difference between tuned DAC values and mean straight line calculated from part slopes in dBs (see /1/). This can be calculated when all measurement results have been received from phone.

epeat button (Alt+R):

The measurement can be started again by pressing this button.

K button (Alt+O):

After Sales

Technical Documentation

The dialog box is closed, and tuning

Cancel button (Esc):

The dialog box is closed and tuning

When calibration is ended, the DAC value check is made, and if it is unsuccessful, an error message is shown. The test checks if all DAC values are in the same order as AGC values in the table.

After exiting with the Cancel button, the following are reset to the values which were selected before this adjustment.

Active Unit Operation Mode Update RF Information window

The exit and the use of AGC–control values is done the same way as exit from power level tuning and power coefficient use:

is saved

to phone.

is not saved

to phone.

Page 34

Original 03/97

After Sales Technical Documentation

TX Power... command

Activation Status Bar Text Alt, T, X Open TX Power Tuning dialog box

Starts TX power tuning. The user is first requested to select with which values tuning is started in the

Start Tuning dialog box.

NHE/K–5/6 Service Software Instructions

The Start Tuning dialog box contains the following items:

Start Tuning With list box (Alt+S): Current Values in PC memory

Tuning values are loaded from the program’s internal memory.

EEPROM Values

Tuning values are loaded from ME’s EEPROM.

Factory Default Values

Tuning values are loaded from ME’s flash.

The following are automatically selected when this tuning function is activated:

– Active Unit = TX – the BASE power level is selected – Operation mode = Burst

Original 03/97

Page 35

NHE/K–5/6 Service Software Instructions

The TX Power Tuning dialog box will be activated automatically after value selection.

After Sales

Technical Documentation

The TX Power Tuning dialog box contains the following items:

ower Level & Coefficients list box (Alt+P):

The power is presented in GSM values (5..15) or PCN values (0...10). The base power is selected automatically when the dialog box is opened. The test value is reset to 0.035 when the program is started. The test value is not saved to the EEPROM. The test value can be changed during tuning as other power coefficients and the program remembers its value when tuning function is activated later again.

If there are more power levels in the phone than can fit into the window, the window is scrollable. When the phone is initialized, the program asks the number of power levels used in the phone.

Only four power coefficients (Base, biggest, third smallest and smallest) are needed to tune and the rest of them are calculated.

The tuning position is highlighted and can be tuned with +/– keys or left/right cursor keys.

NHE/K–6 Specific: If the application detects a phase 2 phone, the list box will also contain phase 2 power levels.

alculate button (Alt+C):

Page 36

The calculation is activated with this button. The power coefficients which are calculated from the tuned coefficients are displayed on the different columns than the others. All values can be tuned if needed.

Original 03/97

After Sales Technical Documentation

+/– buttons (+/–):

The + and – buttons will cause power changing by 0.25dB steps (D/A converter control value ratio is 1.0292). When these keys are used, the coefficient value is updated on the tuning window.

OK button (Enter):

NHE/K–5/6 Service Software Instructions

The dialog box is closed, and tuning

Cancel button (Esc):

The dialog box is closed, and tuning

When selections are used, the power value checking is made and if it is unsuccessful, an error message is shown. The test checks that all power coefficients are in descending order (same order as power levels).

If the power tuning function is ended and EEPROM values are not received or EEPROM fault is noticed, an error message is shown.

When all power coefficients have such values that they don’t cause any error messages, the dialog box will close. The last selected tuning power will be used after exit.

Because the stored power level range is larger than the number of used power levels, the unused levels should be set to nearest possible power level. (For example in GSM the levels 2–4 are not used, so they are set to same value as level 5).

When this tuning function is ended, the following is automatically selected:

Active Unit = RX

is saved

is not saved

to phone.

TX I/Q

... command

Activation Status Bar Text Alt, T, Q Open the TX I/Q Tuning dialog box

This function is used for tuning TX I and Q branch DC offset, amplitude difference and phase difference.

The function opens the same Start Tuning dialog box as with TX Power Tun- ing.

When this function is activated the following are automatically selected:

Active Unit = TX Operation Mode = Burst TX Power Level = 10(GSM); 5(PCN) If TX Data Type = RANDOM => TX Data Type = 1 Update RF Information window

Original 03/97

Page 37

NHE/K–5/6 Service Software Instructions

The TX I/Q Tuning dialog box is opened.

The TX I/Q Tuning dialog box contains the following items:

After Sales

Technical Documentation

Tune TX I

Tune TX Q

Tune A

Tune P

OK button (Enter):

DC Offset scroll bar (Alt+I):

The DC Offset is shown in percent (%) from the ± maximum value. 0% means that there is no DC. The value range is –100%...100%. The value is rounded to the nearest integer value.

DC Offset scroll bar (Alt+Q):

The operation of this function is the same as one above, except with this selection the Q branch DC Offset is tuned. The value range is –100%...100%. The value is rounded to the nearest integer value.

mplitude Difference scroll bar (Alt+A):

When this selection is made, the user can increase or decrease the amplitude difference in 0.1 dB steps. The value range is –1...1.

hase Difference scroll bar (Alt+P):

When this selection is made, the user can increase or decrease the phase difference in 0.5° steps. The current phase difference is shown in the tuning window with numbers and bar figure. The value range is –85...95.

The dialog box is closed, and tuning

is saved

to phone.

Page 38

Cancel button (Esc):

The dialog box is closed, and tuning After each value change, the new value is sent to the phone. The following will be automatically selected when the TX I / Q tuning function is

ended:

Active Unit = RX

Update RF Information window

is not saved

to phone.

Original 03/97

After Sales Technical Documentation

Battery A/D... command

Activation Status Bar Text Alt, T, B Calibrate battery voltage

This function is for battery a/d tuning. Before battery a/d tuning is started, a voltage setting request is shown to the

user:

NHE/K–5/6 Service Software Instructions

When an external power is connected, and the user selects OK to continue, the application measures a/d converter and displays the Battery A/D Calibration dialog box.

The Battery A/D Calibration dialog box contains the following items:

epeat button (Alt+R):

Makes measurement again. OK button (Enter):

The dialog box is closed, and tuning Cancel button (Esc):

is saved

to phone.

Original 03/97

The dialog box is closed, and tuning

is not saved

to phone.

Page 39

NHE/K–5/6 Service Software Instructions

harger A/D... command

Activation Status Bar Text Alt, T, C Calibrate charger voltage

Works in the same way as the previous Battery A/D calibration.

LCD A/D... command

Activation Status Bar Text Alt, T, T, D Calibrate LCD temperature A/D

This function is for LCD ADC Calibration. Function opens the following dialog box.

After Sales

Technical Documentation

The LCD ADC Calibration dialog box contains the following items: Environment Temperature [°C]: edit box:

The user can change the environment temperature in the

range 0 – 80°C. OK button (ENTER):

Closes the dialog box and saves the measured value to EEPROM. Cancel button (ESC):

Closes the dialog box and

LCD Display... command

Activation Status Bar Text Alt, T, T, L Tune LCD display contrast

This function is used for quick LCD display contrast tuning. The command opens the LCD Display Tuning dialog box, which contains tools

for tuning.

does not

do any calibrations.

Page 40

Original 03/97

After Sales Technical Documentation

The LCD Display Tuning dialog box contains the following items:

CD Contrast scrollbar (ALT+L):

Enables user to tune display contrast between 1 and 31. OK button (ENTER):

The dialog box is closed and tuning is saved to phone. Cancel button (ESC):

NHE/K–5/6 Service Software Instructions

The dialog box is closed and tuning

is not saved

to phone.

Original 03/97

Page 41

NHE/K–5/6 Service Software Instructions

Testing

The Testing sub menu offers functions for ME testing.

uick Testing (RF)... command

Activation Status Bar Text Alt, E, Q Open the Quick Testing dialog box

This function is used for quick RF testing. The command opens the Quick Testing dialog box, which contains data for

testing and adjustments.

After Sales

Technical Documentation

Page 42

The Quick Testing dialog box contains the following items:

Original 03/97

After Sales Technical Documentation

Active Unit group: RX radio button (Alt+R):

NHE/K–5/6 Service Software Instructions

When

The RX value is always given as default. Note! The function is activated immediately, Apply is not needed.

TX radio button (Alt+T): When

is selected, the next functions are made:

Data transmission is deactivated

TX power is deactivated

If operation mode is continuous,

– AGC is controlled

– RX continuous mode channel is activated

RF Information window is updated

is selected, the next functions are made:

Data transmission is activated

If operation mode is continuous, TX continuous mode channel is ac-

tivated

If operation mode is burst, TX power is activated

RF Information window is updated Note! the function is activated immediately, Apply is not needed.

Operation Mode group: C

ontinuous radio button (Alt+C):

When

Note! The function is activated immediately, Apply is not needed.

continuous

Synthesiser is set to constant frequency

Synthesiser channel number is as given with Continuous Mode

Channel selection

If Active Unit is TX, data (selected with TX Data Type) is sent

transmitter power is not connected

If Active Unit is RX, AGC is controlled

selection is used,

Original 03/97

Page 43

NHE/K–5/6 Service Software Instructions

urst radio button (Alt+B):

After Sales

Technical Documentation

When

GSM/PCN receiving/transmission/measuring synthesiser. Control se-

quence synthesiser channel numbers are as given with Channel/

Monitoring Channel selections if Active Unit is TX, data (selected

with TX Data Type) is sent, and the TX power is connected Note! The function is activated immediately, Apply is not needed.

ata Type drop list (Alt+D):

TX D

This list changes the transmission data type. The list consists of the

following options: 0, 1, and Random. After Random, data selection 0

is used. If Operating Mode is

causes different data sending than in burst mode.

X Power Level edit box (Alt+T):

With this value it is possible to change the transmission power. The

user can give the needed GSM/PCN power value (5..15/0...10) or

select the test value, which is tuned with TX power tuning function.

The test value is found at the end of the list.

TX Power has the value

tive unit is RX or TX power as GSM or PCN value. When the TX

power is tuned with test value (smallest value), the TX Power has

the value

burst

selection is used, the synthesiser is controlled by using

TEST

continuous

OFF

and is disabled (

, TX Data Type Random

greyed

) when the ac-

annel edit box (Alt+H):

The user can enter here the channel number that is used for both

transmission and receiving. The frequency of the selected channel is

shown after selection.

onitoring Channel edit box (Alt+M):

This field selects neighbouring monitoring channel. The frequency of

the selected channel is shown after selection.

ontinuous Mode Channel edit box (Alt+C):

To this edit box the user can type the continuous mode channel

which may have all GSM channel numbers (1..124) or PCN channel

numbers (512...885).

The used frequency depends on the Active Unit. If the Active Unit is

RX, then RX frequency is used, else TX frequency. The frequency of

the selected channel is shown after selection.

Page 44

Original 03/97

After Sales Technical Documentation

AGC edit box (Alt+G):

This selection allows user to edit the AGC absolute value (value from

A/D converter). The AGC can have values from 0dB to 93dB in 3dB

steps in GSM, and from 0dB to 81dB in PCN. The AGC value is shown only when its value is controlled by the PC. When the

Active Unit has value RX and Operation Mode is continuous, AGC is controlled by the PC except when next adjustment functions are activated:

RSSI Calibration

AFC Diagram

C edit box (Alt+F):

This selection allows the user to edit the AFC D/A converter value.

The AFC can have values from –1024 to 1023. The AFC value is the last measured AFC D/A converter value (11 bit 2–comple-

ment value is used with decimal digits). If the AFC results are not received, no text is shown. The AFC value is neither shown in the next situations i.e. when AFC is not controlled by PC:

NHE/K–5/6 Service Software Instructions

AFC Diagram

pply button (Alt+A):

Accepts entered values and validates them. After validation, the ap-

plication sends corresponding messages to ME. Closes the dialog

box, and updates Info Window. Note: Active Unit and Operation mode command do not use the Apply button,

as they are activated immediately. Set Defaults button (ALT+S):

Sets current values as default Quick Test values.

t Defaults button (ALT+E):

Gets default Quick Test values as current values.

NHE/K–6 Specific: Antenna P

ath drop list (ALT+P)

Enables switching for antenna path between normal antenna and

system cable.

The following are automatically done when the Quick testing function is ended:

Original 03/97

Active Unit = RX

Update RF Information window

Page 45

NHE/K–5/6 Service Software Instructions

The next table shows the dialog box’s properties in different situations: ACTIVE UNIT = TX:

TX Data Type: Updated

AGC values: Greyed

Monitoring Channel: Greyed

OPERATION MODE = BURST:

TX Power Level: Updated Continuous Mode Channel: Greyed Channel: Updated

OPERATION MODE = CONT.:

TX Power Level: OFF, Greyed

After Sales

Technical Documentation

ACTIVE UNIT = RX:

TX Data Type: Greyed

TX Power Level: OFF, Greyed

OPERATION MODE = BURST:

OPERATION MODE = CONT:

Continuous Mode Channel: Updated Channel: Greyed

AGC values: Greyed Continuous Mode Channel: Greyed Channel: Updated Monitoring Channel: Updated

AGC values: Updated Continuous Mode Channel: Updated Channel: Greyed Monitoring Channel: Greyed

Page 46

Original 03/97

After Sales Technical Documentation

RSSI Reading... command

Activation Status Bar Text Alt, E, R Open RSSI Reading dialog box

The command is used for reading RSSI values. When the selection is made, the test result will be shown to the user in the

RSSI Reading dialog box:

NHE/K–5/6 Service Software Instructions

Original 03/97

Page 47

NHE/K–5/6 Service Software Instructions

elf Tests... command

Activation Status Bar Text Alt, E, S Open MCU Self–tests dialog box

The command is used for reading self test results and running self tests. When the selection is made, the test result is read from ME. The test result will

be shown to the user within the MCU Self–test dialog box.

After Sales

Technical Documentation

Page 48

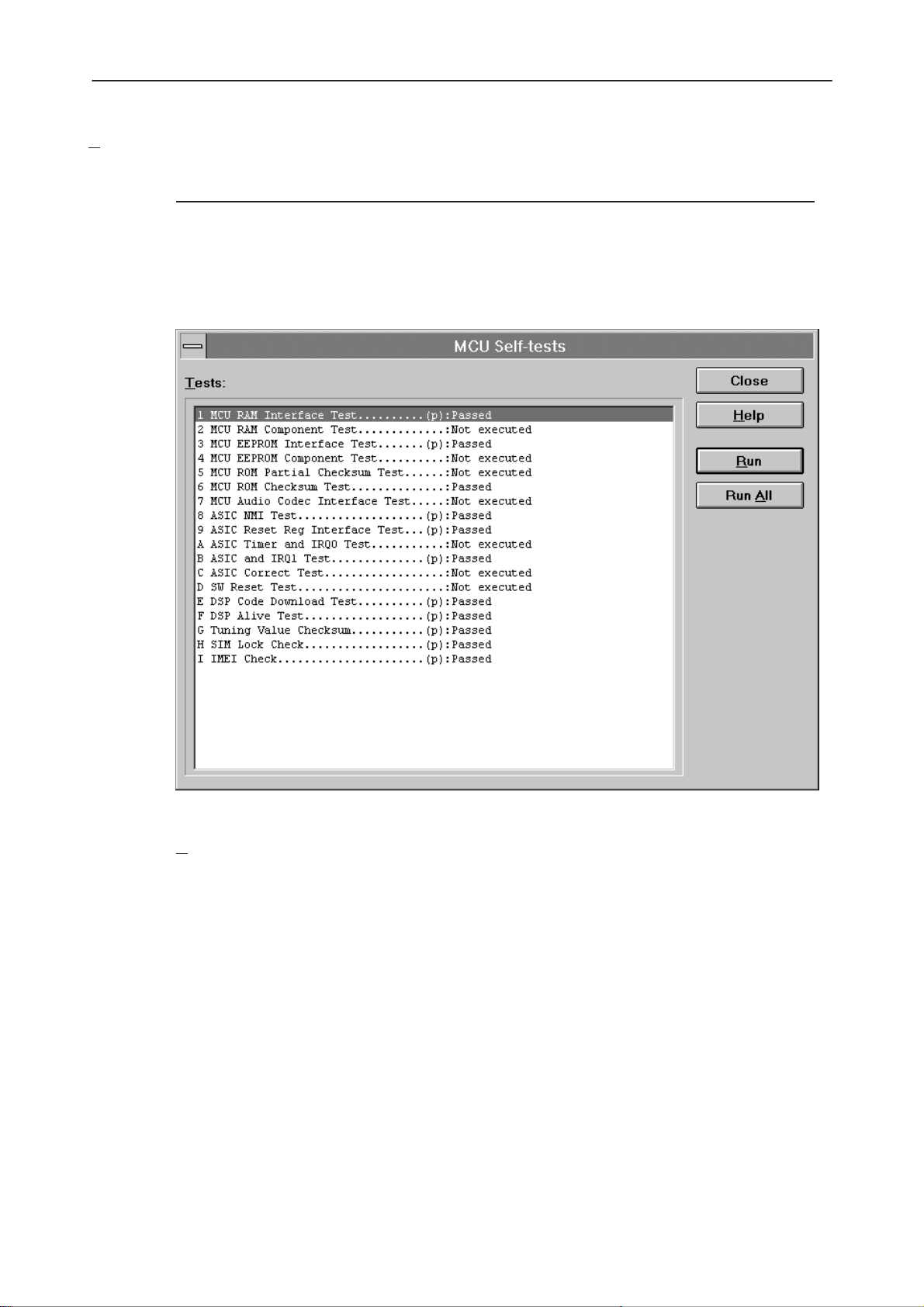

The MCU Self–test dialog box contains the following items:

ests list box (Alt+T):

The field ”(p)” in the screen example means that the test is also run

in power up.

The field “/s)” means that this test is selectable one.

Test states are updated according to results received from the

phone. Possible test states will be one of the following:

Passed

Failed

No response

Not executed

RUNNING....

Original 03/97

After Sales Technical Documentation

Run button (Alt+R):

The user can select desired test from list and hit Run button. When

user selects test to be run, the text

state field, and test is run. When results are received, the test state

field is updated according to the result.

NHE/K–5/6 Service Software Instructions

RUNNING...

is shown in the test

Run A

Supported Self Tests

1 MCU RAM Interface Test..........:

2 MCU RAM Component Test..........:

3 MCU EEPROM Interface Test.......:

4 MCU EEPROM Component Test.......:

5 MCU ROM Partial Checksum Test...:

6 MCU ROM Checksum Test...........:

7 MCU Audio Codec Interface Test..:

8 ASIC NMI Test...................:

ll button (Alt+A):

If no response was received in the defined time, a

box

will be shown and the test state is changed to

The user can run all listed tests. The text

the test state field, and test is run. When results are received, the

test state field is updated according to the result. When the state

field is updated, the application moves to the next test and repeats

previous cycle.

RUNNING...

error message No response

is shown in

9 ASIC Reset Reg Interface Test...:

A ASIC Timer and IRQ0 Test........:

B ASIC and IRQ1 Test..............:

C ASIC Correct Test...............:

D SW Reset Test...................:

E DSP Code Download Test..........:

F DSP Alive Test..................:

G Tuning Value Checksum...........:

H SIM Lock Check..................:

I IMEI Check......................:

Original 03/97

Page 49

NHE/K–5/6 Service Software Instructions

DC Readings... command

Activation Status Bar Text Alt, E, A Open the ADC Readings dialog box

The command is used to read and show A/D values from phone. The command opens the ADC Readings dialog box:

After Sales

Technical Documentation

The ADC Readings dialog box has static text fields where measurements are updated to the window every one second.

A/D Readings

The following a/d readings are measured:

Battery Voltage :. . . . . . . . . . . . .

Charge Voltage :. . . . . . . . . . . . .

Battery Temperature :. . . . . . . .

Battery Size :. . . . . . . . . . . . . . . .

A/D Reference. . . . . . . . . . . . . . :

Accessory Detection. . . . . . . . . .:

LCD Temperature . . . . . . . . . . :

Hook Info . . . . . . . . . . . . . . . . . . :

Page 50

Original 03/97

After Sales Technical Documentation

Audio... command

Activation Status Bar Text Alt, E, U Open Audio Tests dialog box

The command is used for making audio tests in the Audio Tests dialog box.

NHE/K–5/6 Service Software Instructions

The Audio Tests dialog box contains following items: Buzzer group: The next two different values can be selected for Buzzer volume:

olume On radio button (ALT+V):

Turns buzzer on.

Volume O

Internal Audio Loop group: Input group:

The next two different values can be selected for input:

nternal radio button (Alt+I):

xternal radio button (Alt+I):

ff radio button (ALT+O):

Turns buzzer off.

Switches to internal input.

Switches to external input.

Original 03/97

Page 51

NHE/K–5/6 Service Software Instructions

Output group: The next two different values can be selected for output:

ernal radio button (Alt+T):

Int

Switches to internal output.

ternal radio button (Alt+X):

Switches to external output. Loop group: The next two different values can be selected for loop:

Off

radio button (Alt+F):

Turns audio loop off.

radio button (Alt+N):

Turns audio loop on. When the dialog box is closed, the Buzzer Volume is always switched off. The

internal audio loop is also turned off.

After Sales

Technical Documentation

isplay... command

Activation Status Bar Text Alt, E, D Open Display Tests dialog box

This command is used for making display tests in the Display Tests dialog box.

The Display Tests dialog box contains the following items:

. Test Pattern radio button (Alt+1):

. Test Pattern radio button (Alt+2):

In test display 1 half of the indicators are displayed, and the display is filled with chessboard letters.

In test display 2 the remainder (from test 1) of the indicators are displayed, and the display is filled with inverse chessboard letters.

Page 52

When the dialog box is closed, the phone LCD display is cleared.

Original 03/97

After Sales Technical Documentation

Call Simulation.. command

Activation Status Bar Text Alt, E, C Open Call Simulation dialog box

The command is used for making call simulation. The function opens the Call Simulation dialog box.

NHE/K–5/6 Service Software Instructions

The Call Simulation dialog box contains the following items:

X Power Level edit box (Alt+T):

All power levels can be selected. This updates same parameter as TX Power Level in the RF–Controls dialog box. Note that TEST value cannot be selected. If TEST value was in use when Call simulation menu selected, power level is changed to smallest value.

hannel edit box (Alt+C):

This tells the normal operating RF channel number. Normal GSM/ PCN channel numbers can be selected. Same channel is used both for transmission and receiving. This updates same parameter as

Channel in the RF–Controls dialog box. Monitoring Channels group: Channel 1,2,3,4,5,6 edit box (Alt+1,2,...):

Channels for monitoring are specified with these six selections. All

GSM/PCN channel numbers can be used. If more than one selection

has same number, the monitoring channel list (neighbour list) will

have less than 6 selected channels. The minimum number of moni-

toring channels is one (all channels have same value). The monitor-

ing channel can also have same value as normal operating channel.

Original 03/97

The first monitoring channel updates the same parameters as Moni-

toring Channel in the RF–Controls dialog box.

Page 53

NHE/K–5/6 Service Software Instructions

pply button (Alt+A):

Validates and sends entered data to ME.

et Defaults button (ALT+S):

Sets current values as default Call Simulation values.

t Defaults button (ALT+E):

Gets default Call Simulation values as current values.

Noise Sensitivity... command

Activation Status Bar Text Alt, E, N Opens Noise Sensitivity dialog box

The command is used for noise sensitivity measurement. The following are automatically selected when this tuning function is activated:

After Sales

Technical Documentation

– Active Unit = RX – Operation mode = Continuous – AGC = 81 dB Function opens next a Noise Sensitivity dialog box.

The application then opens the Noise Sensitivity dialog box:

Page 54

Original 03/97

After Sales Technical Documentation

The Noise Sensitivity dialog box contains the following items: Measurements group:

Clipping distance is the difference to the signal clipping value. SNR

is measured in the AD converter.

Clipping distance = clipping level (66) – signal value + comp_factor1

SNR = signal value – noise value + comp_factor1

Sensitivity = –92 dBm + 8 dB + comp_factor2 – SNR (for GSM)

Sensitivity = –90 dBm + 8 dB + comp_factor2 – SNR (for PCN)

The last value on the display is signal power difference between I

and Q branch. The numbers are shown in 0.1dB accuracy. The error

messages, ”OUT OF RANGE”, are shown only if the SNR and/or

amplitude difference values are not acceptable (SNR <= 18 dB +

comp_factor2 – 0.5 dB(= accuracy) ; Sensitivity >= –100 dBm + 0.5

dB ; |Si – Sq| > 1 dB).

ignal/Noise button (Alt+S/Alt+N):

NHE/K–5/6 Service Software Instructions

When the buttons are pressed, the RX I and Q burst data is asked,

text ”SIGNAL MEASURING...” or ”NOISE MEASURING...” will apear

in the measurement group window. The power level value should be

–92 dBm during signal measurement.

When signal data is received, distance to clipping signal level is

shown as dBs on the display. When either signal or noise measure-

ment results are received ”MEASURING” text is removed and mea-

surements are updated to screen. When both measurements (signal

and noise) are done at least once, the signal to noise relation and

difference are also shown on the display.

After exiting the dialog box, the following are set to the values which were selected before this adjustment.

– Active Unit

– Operation mode

– AGC value Compensation factors: comp_factor1 = 4.64 dB (Compensation factor for 67.71 kHz signal, because

ASIC filter attenuates 67.71 kHz signal 4.64 dB) comp_factor2 = 2.27 dB (Compensation factor for real and calculated noise

bandwidth difference. Real noise bandwidth is 80 kHz and calculated bandwidth is 135 kHz)

Original 03/97

Page 55

NHE/K–5/6 Service Software Instructions

Software

The settings sub menu offers functions for Mobile Equipment mode and memory settings.

After Sales

Technical Documentation

Phone I

dentity... command

Activation Status Bar Text Alt, S, I Opens the Phone Identity dialog box for editing

The function is used to edit phone identity. The function opens the Phone Iden- tity dialog box:

The Phone Identity dialog box contains the following items:

MEI edit box (Alt+I):

Field where the user can enter current IMEI value. Field can contain

up to 40 digits.

HW V

OK button (Enter):

Cancel button (Esc):

ersion edit box (Alt+V):

Field where user can enter current HW version. Field can contain

four digits and one dot. Dot is not sent to ME.

Checks if some values are changed and if IMEI was modified, asks

for confirmation. After confirmation, it writes values to phone.

Cancels all edits and does not save values to phone.

Page 56

Original 03/97

After Sales Technical Documentation

Product Profile... command

Activation Status Bar Text Alt, S, P Open Product Profile Settings dialog box

The function is used for making product profile settings. When the command is activated, the product profile information is read from

the EEPROM and the Product Profile dialog box is opened.

NHE/K–5/6 Service Software Instructions

The Product Profile dialog box contains the following items:

ttings list box (Alt+E):

A list where the user can select desired setting.

The user can toggle settings with following Options drop list, or by

double clicking the desired setting in list box.

ptions drop list (Alt+O):

List allows user to set options to each setting listed in the Settings

list box. Possible options per setting are: OK button (ENTER)

Selections are accepted and saved to EEPROM. Cancel button (ESC)

Selections are ignored and control is returned back to main menu.

Original 03/97

Page 57

NHE/K–5/6 Service Software Instructions

ave File... button

Allows the user to save settings to file. Opens a standard windows

File Save dialog box.

oad File... button

Allows the user to load the settings from a file. Opens a standard

windows File Open dialog box.

NHE/K–5 Product Profile Settings

The following settings are available: Russian Language On/Off Italian Language On/Off Greek Language On/Off Turkish Language On/Off Keypad Type Nokia Design 1/2/OEM

After Sales

Technical Documentation

Redial Type GSM, Non GSM CO SMS Appearance Normal/Enhanced Service Numbers Available/Not Available Forced SIM Clock stop On/Off See the NHE–5/NHK–5 Product Profile Specification for more info. Note! When forced SIM Clock Stop is switched ON, stand–by time is increased

consideraby

NHE/K–6 Product Profile Settings

The following settings are available: Redial Type GSM, Non GSM Italian Language On/Off Greek Language On/Off Turkish Language On/Off Russian Language On/Off Hungarian Language On/Off

Page 58

Ringing Tone Set Default Set/Set 1 Forced SIM Clock stop On/Off See the NHE–6/NHK–6 Product Profile Specification for more info. Note! When forced SIM Clock Stop is switched ON, stand–by time is increased

consideraby

Original 03/97

After Sales Technical Documentation

Start Up Self–tests... command

Activation Status Bar Text Alt, S, S Open MCU Start Up Self–tests dialog box

The function is used for changing the state of the EEPROM selectable tests in the MCU Start Up Self–tests dialog box.

NHE/K–5/6 Service Software Instructions

The MCU Start Up Self–tests dialog box contains the following items:

ests list box (Alt+T):

When dialog box is opened, the previous values will be read from the

MCU EEPROM and shown on the list box. Status group:

When radio button On is selected, the test will be run every time

when automatic start up self–tests are activated (e.g. in power up). OK button (Enter)

Selections are accepted and saved to EEPROM. A power up routine

is made to phone. Cancel button (Esc)

Selections are ignored and control is returned back to main menu.

Original 03/97

Page 59

NHE/K–5/6 Service Software Instructions

After Sales

Technical Documentation

Set Default V

Activation Status Bar Text Alt, S, V Set factory default values

The command is used for resetting default values to phone’s EEPROM. After selection, the following Default Settings dialog box is opened:

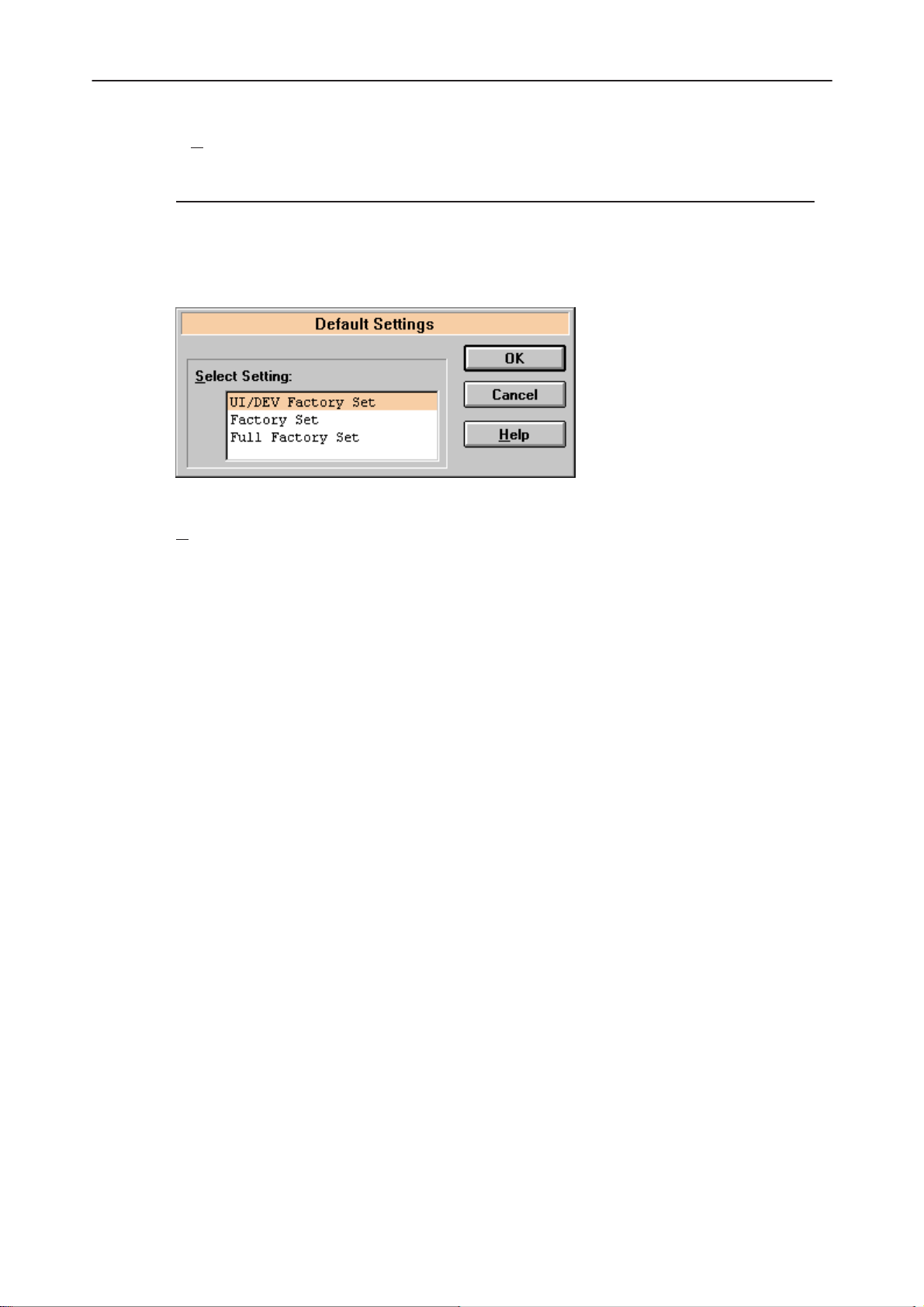

The Default Settings dialog box contains the following items:

elect Settings list box (Alt+S):

alues... command

Enables user to select set to be reset: UI/DEV Factory Set, Factory

Set or Full Factory Set. OK button (Enter)

Closes the dialog box and writes the selected set to the EEPROM of

the phone. Cancel button (Esc)

Closes the dialog box and

does not

write settings to the phone.

Page 60

Original 03/97

After Sales Technical Documentation

Network Settings... command

Activation Status Bar Text Alt, S, N Open Network Settings dialog box

After selection the following Network Settings dialog is opened:

NHE/K–5/6 Service Software Instructions

The Network Settings dialog contains the following items:

NSPS Settings group: M

in Time edit box (ALT+M):

Max

ontrol drop list (ALT+C):

Original 03/97

Minimum time for NSPS.

Time edit box (ALT+X):

Maximum time for NSPS.

NSPS Control values:

– Stop by send key

– Stop by any key

– No key control

– NSPS not supported

Page 61

NHE/K–5/6 Service Software Instructions

Custom Operator Name group:

untry Code:

Specified country code

Netw

ork Code:

Specified network code

ame:

Name of the operator matching with country and network code.

Length for operator name is 8 characters for NHE/K–5, and 10 char-

acters for NHE/K–6.

W Settings... command

Activation Status Bar Text Alt, S, H Opens the HW Settings dialog box.

After Sales

Technical Documentation

This command is used for toggling HW settings. The function opens the following HW Settings dialog box.

Page 62

The HW Settings dialog box contains the following items:

ttings text area (ALT+E):

Displays current HW Settings and their state.

ptions drop down list (ALT+O):

Enables user to toggle settings state.

Original 03/97

After Sales Technical Documentation

Save File... button (ALT+S):

Opens the default Windows File Save As dialog box and asks as

filename where to save HW Settings values.

oad File... button (ALT+L):

Opens the default Windows File Open dialog box and asks a file-

name where from to load HW Settings values. OK button (ENTER):

Closes the dialog box and saves the HW Settings to the phone. Cancel button (ESC):

NHE/K–5/6 Service Software Instructions

NHE/K–5 Settings:

The following settings are available:

Closes the dialog box and

Display Driver . . . . . . . : New/Old

does not

save the settings to the phone.

Original 03/97

Page 63

NHE/K–5/6 Service Software Instructions

arranty State... command

Activation Status Bar Text Alt, S, W Opens the Warranty State dialog box.

This command is used for setting the Phone’s Warranty State. The function opens the following Warranty State dialog box.

After Sales

Technical Documentation

The Warranty State dialog box contains the following items:

State: static text:

USE

For normal phones.

DEFECTIVE

For phones which are being swapped. Warranty and other information is transferred to the working phone.

EXCHANGE

For phones which are already repaired from DEFECTIVE ones.

Repair Date edit box (Alt+R):

Format is MMYY (Where MM is month and YY two last digits of the

year). The date is read from PC’s clock. This is enabled only if state

is DEFECTIVE. OK button (ENTER):

Closes the dialog box, and saves the Warranty State to the phone.

This button should be enabled only when phone is DEFECTIVE and

repair date is entered.

Page 64

Cancel button (ESC):

Closes the dialog box, and does not save the Warranty State to the

phone.

Original 03/97

After Sales Technical Documentation

Service Numbers... command

Activation Status Bar Text Alt, S, B Opens the Service Numbers dialog box.

This command is used for setting the phone’s Service Numbers. This feature is available only in few countries. The function opens the following Service Num- bers dialog box.

NHE/K–5/6 Service Software Instructions

The Service Numbers dialog box contains the following items:

Number 1,2,3

OK button (ENTER):

Cancel button (ESC):

edit fields:

Contains Service Numbers which can be called by pressing 1,2 and

3 numbers in keypad for prolonged time period. Service numbers are

3 digits long.

Closes the dialog box, and saves the numbers to the phone.

Closes the dialog box, and

does not

save the numbers to the phone.

Original 03/97

Page 65

NHE/K–5/6 Service Software Instructions

Dealer

The dealer sub menu offers functions for Mobile Equipment settings for dealers.

After Sales

Technical Documentation

Short C

ode Memory... command

Activation Status Bar Text Alt, D, C Opens the Edit SCM dialog box.

This command is used for reading, storing and modifying the SCM values. The function opens the following Edit SCM dialog box:

Page 66

The Edit SCM dialog box contains the following items: Loc static text:

Displays current location.

me edit box (ALT+A):

Edit the Name.

umber edit box (ALT+N):

Edit the number.

M list box (ALT+C):

List for available names and numbers.

Original 03/97

After Sales Technical Documentation

Write Phone... button (ALT+W):

Write SCM values to phone and checks the validity of names and

numbers.

ead Phone... button (ALT+R):

Read SCM values from phone.

ave File... button (ALT+S):

Opens a default Windows File Save As dialog box, and asks for a

filename where to save SCM values.

oad File... button (ALT+L):

Opens a default Windows File Open dialog and asks for a filename

where from to load SCM values. Checks the validity of names and

numbers.

User Settings... command

NHE/K–5/6 Service Software Instructions

Activation Status Bar Text Alt, D, U Open User Settings and Values dialog box

This command is used to read, store, and modify the user settings and values. After menu selection, the program responds with a

user settings from phone?”. If user answers Yes, all needed user settings will be read from the ME, including menu settings. If a reading error happens, an

error

dialog box is shown. If reading is successful, the User Settings and Val-

ues dialog box is opened: For NHE/K–5:

query

dialog box: “Read

Original 03/97

Page 67

NHE/K–5/6 Service Software Instructions

For NHE/K–6:

After Sales

Technical Documentation

The User Settings and Values dialog box contains the following items:

curity ID edit box (Alt+E):

Edit the security code which is saved to the ME memory together

with other user settings and values. Only digits are accepted for Se-

curity code. Length must be 5 digits. Master Code static:

Code is 10 digits length and it is read only.

Wake up M

ave File... button (Alt+S):

oad File... button (Alt+L):

essage edit box (Alt+M):

Edit Wake up message. The wake up message name can have up to

16 characters.

Opens a default Windows File Save As dialog box and asks file-

name where to save user settings and values.

Opens a default Windows File Open dialog box and asks filename

where from load user settings and values.

Page 68

Original 03/97

After Sales Technical Documentation

For NHE/K–6: Preview image:

This image area shows the current wake up message graphics bit-

map.

dit button (ALT+E):

The user can launch the MS Windows Paint Brush application with

current bmp file and edit it. Data entered in the dialog box is checked for validity before it is sent to the

phone. If the application finds wrong characters from the Wake up message, the application will inform the user, and request correction. The information window is shown during writing. The window tells how much time it will approximately take to write values.

When all values are sent and responses received, waiting window is removed and User Settings and Values is back in control. The waiting state can be bro- ken with Cancel (Esc) button. If writing to the ME is broken, only part of the values in the ME may be changed.

NHE/K–5/6 Service Software Instructions

Both save file and load file function has default name which is previously used name. For instance if user data was saved to file USERA.USR and read function is activated the default value is USERA.USR.

& User Settings... command

SCM

Activation Status Bar Text Alt, D, M Open SCM & User Setttings dialog box.

This command is used to get SCM and user settings from phone to file and vice versa. When settings are read from the phone, all user settings are read from the phone and saved to file, in NHE/K–6 phones the graphical wake up message and SCM are also saved. When settings are written to the phone, all user settings except master code are loaded from file, in NHE/K–6 phones graphical wake up message and SCM are also loaded.

When data is written to or read from the phone, a waiting dialog box is shown.

Original 03/97

Page 69

NHE/K–5/6 Service Software Instructions

The SCM & User Setttings dialog box contains the following items:

ile Name edit box (ALT+F):

The user can edit the file name or select another file with the Open

File dialog box. When the dialog box is opened, it contains the name

of the previously saved or loaded file. Note that for NHE/K–6 phones

the graphical wake up message is saved in its own file. If for exam-

ple other settings iare saved to the file c:\tmp\default.suc, then the

grapical wake up message is saved to file c:\tmp\default.bmp. Close... button (ESC):

Closes the dialog box.

rite Phone... button (ALT+W):

Loads settings from file and writes them to phone.

ead Phone... button (ALT+R):

Reads settings from phone and writes them to file.

After Sales

Technical Documentation

elect File... button (ALT+S):

Set UI/DEV Default V

Activation Status Bar Text Alt, D, V Reset phone to UI and DEV factory settings

After selection, the application asks for confirmation: “Are you sure you want to reset UI and DEV to factory settings?”. If Yes is answered, default settings are reset to the phone.

Opens the Open File dialog box, with which the user can select the

file that contains the data to be loaded to ME, or the file to which

data is saved from ME. If the user selects OK button, the name of

the selected file is copied to the File Name edit field.

alues... command

Page 70

Original 03/97

After Sales Technical Documentation

View

Quick/RF Info... command

Activation Status Bar Text Alt, V, Q View Quick/RF information

NHE/K–5/6 Service Software Instructions

If phone is in

Note! Special conditions (For example, if the phone’s SIM lock is ON) cause this dialog box to change color to make this special condition clear to the user.

If the phone is in local mode, the following RF Information is shown. Information is shown in a modeless dialog box which may be left open during other operations. It is also updated when ever needed.

normal

mode, the following Quick Info is shown:

Original 03/97

Page 71

NHE/K–5/6 Service Software Instructions

hone Identity... command

Activation Status Bar Text Alt, V, P View phone identity

The command opens the Phone Identity Information dialog box, which shows identification information. Information is shown in a modeless dialog box, which may be left open during other operations. It is also updated when ever needed.

After Sales

Technical Documentation

Page 72

Original 03/97

After Sales Technical Documentation

Help

The Help menu offers commands which provide assistance with this application:.

ndex command

Activation Status Bar Text Alt, H, I Provide general instructions on using help

The command displays the opening screen of Help. From the opening screen, the user can jump to step–by–step instructions for using Service Software and various types of reference information.

Once Help is opened, the user can click the Contents button whenever he wants to return to the opening screen.

eneral help command

NHE/K–5/6 Service Software Instructions

Activation Status Bar Text Alt, H, G General help

sing Help command

Item Activation Status Bar Text Using Help Alt, H, U Display using help system

bout... command

Activation Status Bar Text Alt, H, A Displays the version number of this application

See Login Dialog.

information

SHIFT F1

Original 03/97

Page 73

NHE/K–5/6 Service Software Instructions

Initialization File

The service software has its own initialization file which has the extension .INI. The Initialization file is TESLA.INI and includes all the following selections (in mentioned menus or dialog boxes) and parameters:

RF Controls dialog box ([NHE/K–5 RF ])

Channel (Channel =)

Continuous Mode Channel (Cont Mode Channel =)

Monitoring Channel (Monitoring Channel =)

AFC (AFC =)

AGC (AGC =)

Data Type (DataType=)

Power Level (PowerLevel =) DLL Filenames (NHE–5 and identical NHE–6)

After Sales

Technical Documentation

User Interface (UserInterface=)

Functionality (Functionality=) RSSI Dialog box (NHE–5LEVELS and identical NHE–6LEVELS)

AFC Level (AfcLevel=)

RSSI Low (RssiLow=)

RSSI High (RssiHigh=)

AFC Level (AfcLevel=)

Page 74

Original 03/97

After Sales Technical Documentation

Appendix 1, Vocabulary

Appreviation Description API Application Programming Interface

ASIC Custom circuit which for instance controls communication

between MCU and DSP CLF Common Look and Field DATA DATA interface module DAU–4S M2BUS – RS–232 adapter DCT2 Digital Core Technology Second Generation DLL Dynamic Link Library DSP Digital signal processor which controls radio interface and

speech coding/decoding

NHE/K–5/6 Service Software Instructions

EEPROM Memory for adjustment parameters (Electrically Erasable

and Programmable Read Only Memory) IMEI International Mobile Equipment Identification code M2BUS Serial communication bus which can be connected to

accessory devices and test PC MCU Master Control Unit processor MDI MCU DSP Interface; message interface via ASIC registers ME Mobile Equipment MFC Microsoft Foundation Class library MS Mobile Station MTI Message Transfer Interface PC IBM PS/AT or compatible personal computer PCBOX Local Net driver SW for PC PCI Phone Controlling Interface SW for PC PKD Parallel Port Software Protection Device RF Radio Frequency parts RFI Radio Frequency Interface circuit SW Software UI User Interface

Original 03/97

Page 75

NHE/K–5/6 Service Software Instructions

After Sales

Technical Documentation

This page intentionally left blank.

Page 76

Original 03/97

Nokia 1610 SERVICE SOFTWARE INSTRUCTIONS

Specifications and Main Features

Frequently Asked Questions

User Manual

After Sales Technical Documentation

AMENDMENT RECORD SHEET

Introduction

General

Minimum Required Servicing Equipment

Mechanical Connections

Start Up Procedure

Introduction to Service Software Package User Interface

Service Software/Hardware Enviroment

Service Software Enviroment

Service Software Executables

Command Line Parameters

Common Properties of the User Interface

Login Dialog

Main Window

Menu Bar

Product

Configure

Tuning

Testing

Software

Dealer

View

Help

Mouse Cursors

Reserved Keys

Short Cut Function Keys

Alt Hot Keys

Ctrl Hot Keys

Shift Hot Keys

Key Strokes

Help Functions

Dialog boxes

Common Dialog boxes

Custom Dialog boxes

Buttons

Reporting Status

Menu Bar

Product

Configure

Tuning

Testing

Software

Dealer

Help

Initialization File

Appendix 1, Vocabulary
