Customer Care Solutions
RH-18/36/38 Series Transceivers
Nokia11 00 Variants
Issue 1 10/03 Nokia Corporation
RH-18/36/38 Company confidential
Nokia1100 Variants CCS Technical Documentation
[This page left intentionally blank]
Page 2 Nokia Corporation. Issue 1 10/03
Company confidential RH-18/36/38
CCS Technical Documentation Nokia1100 Variants
Table of Contents
Page No
General information about Nokia RH-18/36/38 ............................................................ 5
Nokia 1100 exploded diagram .....................................................................................6
Assembly parts for Nokia 1100 ...................................................................................7
LCD module variants.............................................................................................. 10
Basic transceiver Nokia 1100 and variants ................................................................11
Nokia 1100 Eur/Afr/APAC..................................................................................... 11
Nokia 1100 USA..................................................................................................... 11
Nokia 1100 CN........................................................................................................ 12
Issue 1 10/03 Nokia Corporation. Page 3
RH-18/36/38 Company confidential
Nokia1100 Variants CCS Technical Documentation
[This page left intentionally blank]
Page 4 Nokia Corporation. Issue 1 10/03
Company confidential RH-18/36/38
CCS Technical Documentation Nokia1100 Variants
General information about Nokia RH-18/36/38
Nokia RH-18/36/38 (Nokia 1100) are a based on a common phone platform with a b/w
display. The Nokia 1100 operates on dual-band GSM (900/1800 MHz or 850/1900 MHz)
networks,
The phone is delivered in several versions which are listed on the pages below.
Issue 1 10/03 Nokia Corporation. Page 5
RH-18/36/38 Company confidential
Nokia1100 Variants CCS Technical Documentation
Nokia 1100 exploded diagram
Page 6 Nokia Corporation. Issue 1 10/03
Company confidential RH-18/36/38
CCS Technical Documentation Nokia1100 Variants
Assembly parts for Nokia 1100
Item Part code Part name Note
I001 9491765 A-cover blue E/A & APAC & US
I001 9491766 A-cover terra E/A
I001 9491767 A-cover light grey APAC & US
I001 9491791 A-cover jet black E/A & APAC & US
I001 9459954 A-cover navy China
I001 9459956 A-cover apple silver China
I001 9491791 A-cover fuchsia China
I001 A.-cover pic:
I002 9491422 Keymat Latin DMC06477
I002 9491421 Keymat Hebrew DMC06469
I002 9491429 Keymat Arabic DMC06470
I002 9491427 Keymat Cyrillic DMC06478
I002 9491428 Keymat Greek DMC06479
I002 9491429 Keymat BOPOMOFO DMC06468
I002 9791423 Keymat Farsi DMC07295
I002 9791120 Keymat Thai DMC06472
I002 9791122 Keymat Stroke DMC06467
I002 9791123 Keymat Hindi DMC06471
I002 9791232 Keymat Vietnamese DMC07297
I002 9791273 Keymat Urdu DMC06467
I002 Sample keymat pic:
Issue 1 10/03 Nokia Corporation. Page 7
RH-18/36/38 Company confidential
Nokia1100 Variants CCS Technical Documentation

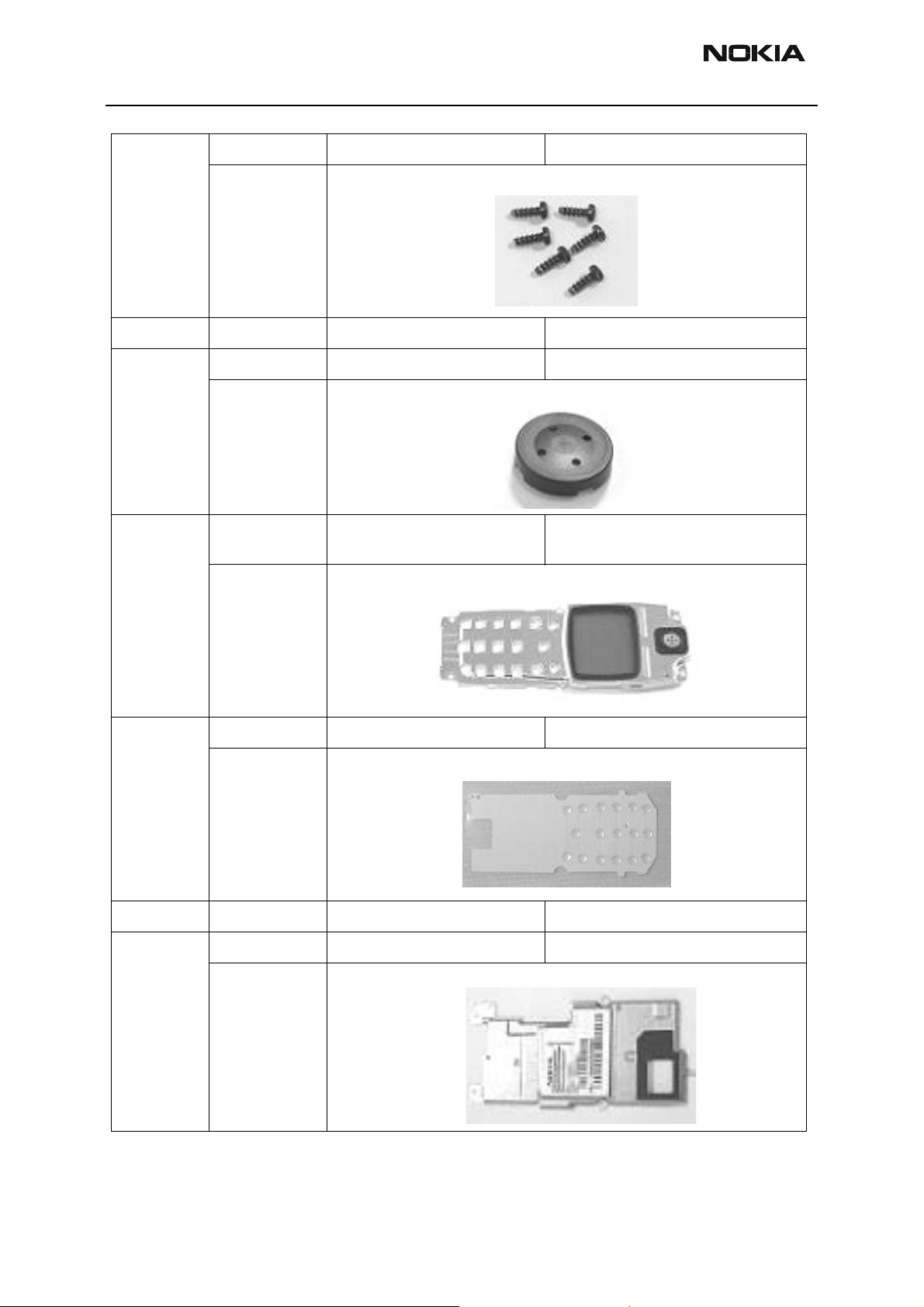

I003 6290083 Screw 6 pcs 1.8x5.3 Remform T6+
Screw set pic:
I004 9590237 C-cover
I005 5140233 Speaker + spring
Speaker +spring pic:
I006 4850341 Display assembly incl. C-cover assembly, Speaker & Light
guide assembly
Display assembly pic:
I007 9705200 Key dome sheet DMC06317
Key dome sheet pic:
I008 0201947 Engine module HL9
I009 9517314 Shielding DMC06292
Shield assembly pic:
Page 8 Nokia Corporation. Issue 1 10/03
Company confidential RH-18/36/38
CCS Technical Documentation Nokia1100 Variants
I010 5140201 Microphone assembly mic+boot
Microphone pic:
I011 5460111 System connector 9 pol
System connector pic:
I012 6800049 Vibra motor assembly
Vibra motor pic:
I013 5140287 Buzzer assembly
Buzzer pic:
I014 9491624 Repair D-cover E/A & APAC
9491904 Repair D-cover US
D-cover pic:
I015 9511234 Antenna
I016 9511237 SIM lid
I017 9430477 Logo badge Nokia
I018 9381382 Type label sheet
I019 9491756 Battery cover light grey APAC & US
I019 9491757 Battery cover terra E/A ,
Issue 1 10/03 Nokia Corporation. Page 9
RH-18/36/38 Company confidential
Nokia1100 Variants CCS Technical Documentation
I019 9491758 Battery cover blue E/A & APAC & US
I019 9491793 Battery cover jet black E/A & APAC & US
I019 9491843 Battery cover navy China
I019 9491842 Battery cover apple silver China
I019 9491719 Battery cover fuchsia China
I019 Battery cover sample pic:
LCD module variants
The LCD module producer is indicated by the raised surface at the bottom end of the
module:
Plain: Philips
Information is requested when you are reporting replaced parts.
single groove: Samsung
2 grooves: Windex
Page 10 Nokia Corporation. Issue 1 10/03
Company confidential RH-18/36/38
CCS Technical Documentation Nokia1100 Variants
Basic transceiver Nokia 1100 and variants
Name Type code
Basic transceiver Nokia 1100 RH-18/RH-36/RH-38
Material code/
module type
Nokia 1100 Eur/Afr/APAC
Technical type RH-18 for Europe/Africa and APAC
Name Type code
Basic transceiver RH-18 Nokia 1100 0510226
Engine module 1AW 0201973
Mechanics assembly parts RH-18 0263013
Material code/
module type
Module code
Swap phones
Nokia 1100 Area/Country
0050388 swap Euro&Africa
Module code
0050389 swap Poland
0050390 swap Turkey
0050391 swap France
0050392 swap Czech
0050393 swap South Africa
0050394 swap Russia
0050395 swap Ukraine
Nokia 1100 USA
Technical type RH-36 for the USA
Name Type code
Basic transceiver RH-36 Nokia 1100 0510296
Engine module 1AW 0202130
Mechanics assembly parts RH-36 0263140
Material code/
module type
Module code
Issue 1 10/03 Nokia Corporation. Page 11
RH-18/36/38 Company confidential
Nokia1100 Variants CCS Technical Documentation
Nokia 1100 CN
Technical type RH-38 for China
Name Type code
Basic transceiver RH-38 Nokia 1100 0510680
Engine module 1AW 0201973
Mechanics assembly parts RH-38 0263013
Material code/
module type
Module code
Page 12 Nokia Corporation. Issue 1 10/03
