Nissan Xterra 2000 2WD 3.3L Workshop Manual

nissan :: Nissan-Datsun Truck Xterra XE 2WD V6

-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Horn Relay > Component Information > Locations

Alarm Horn Relay: Locations

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Horn Relay > Component Information > Locations > Page 7

Xterra XE 2WD V6-3.3L (VG33E) (2000)

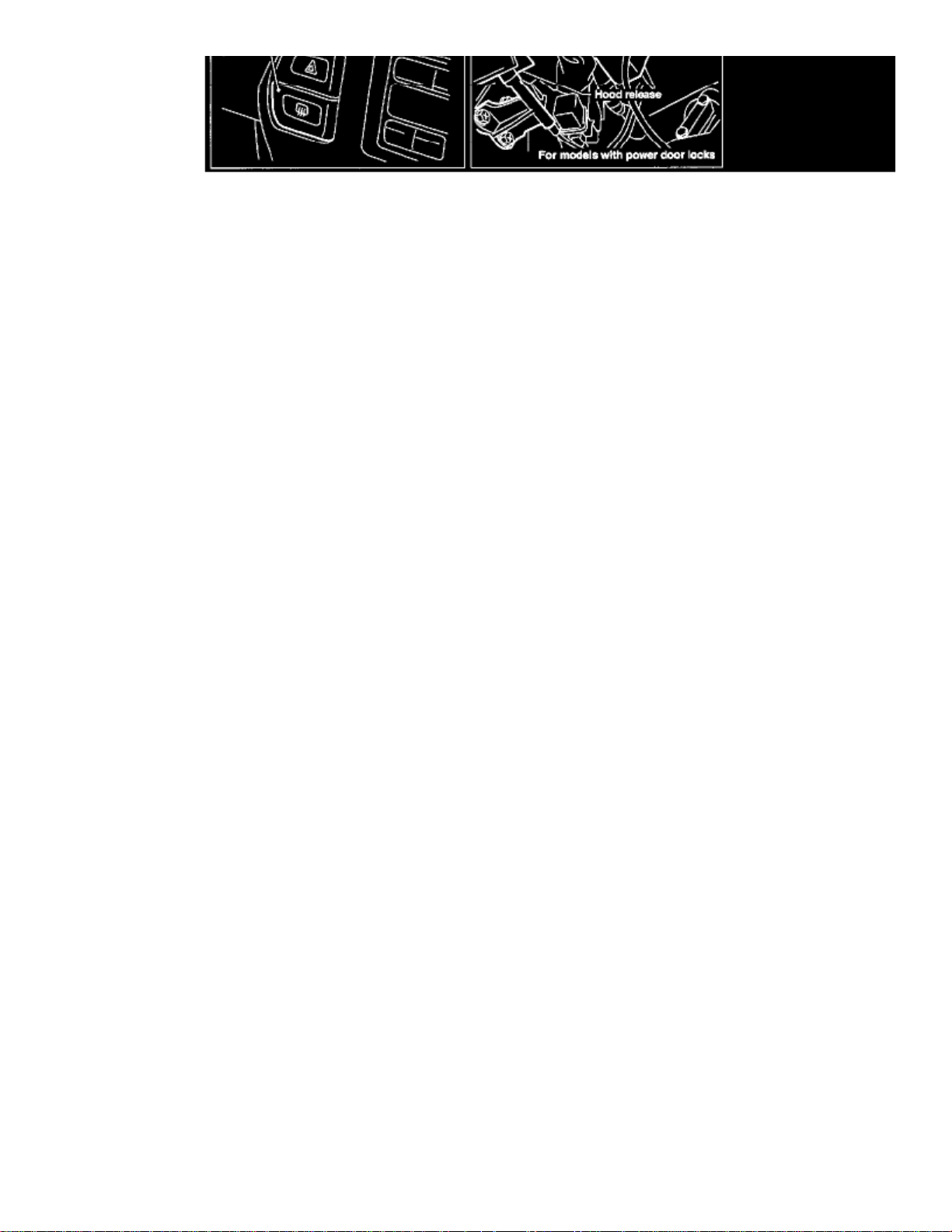

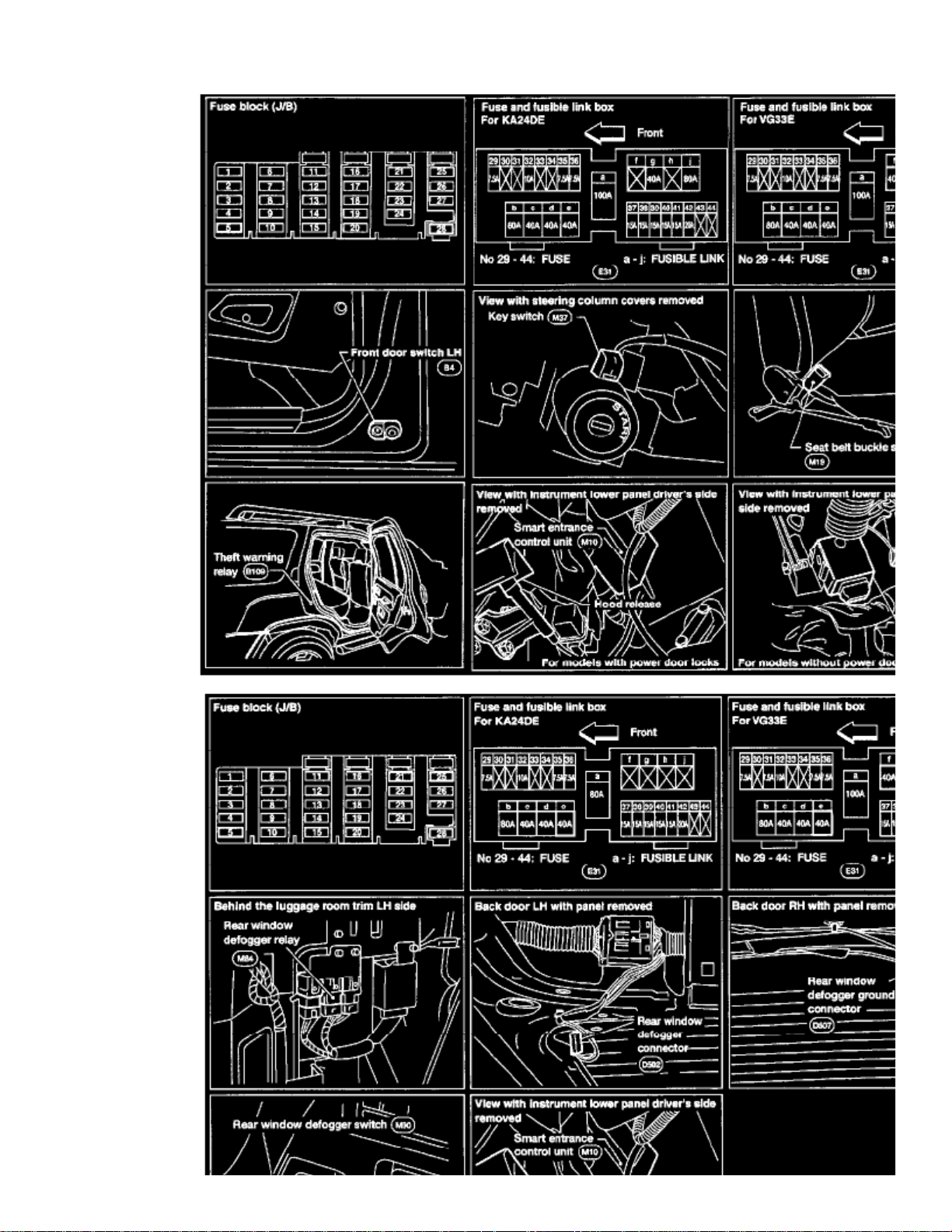

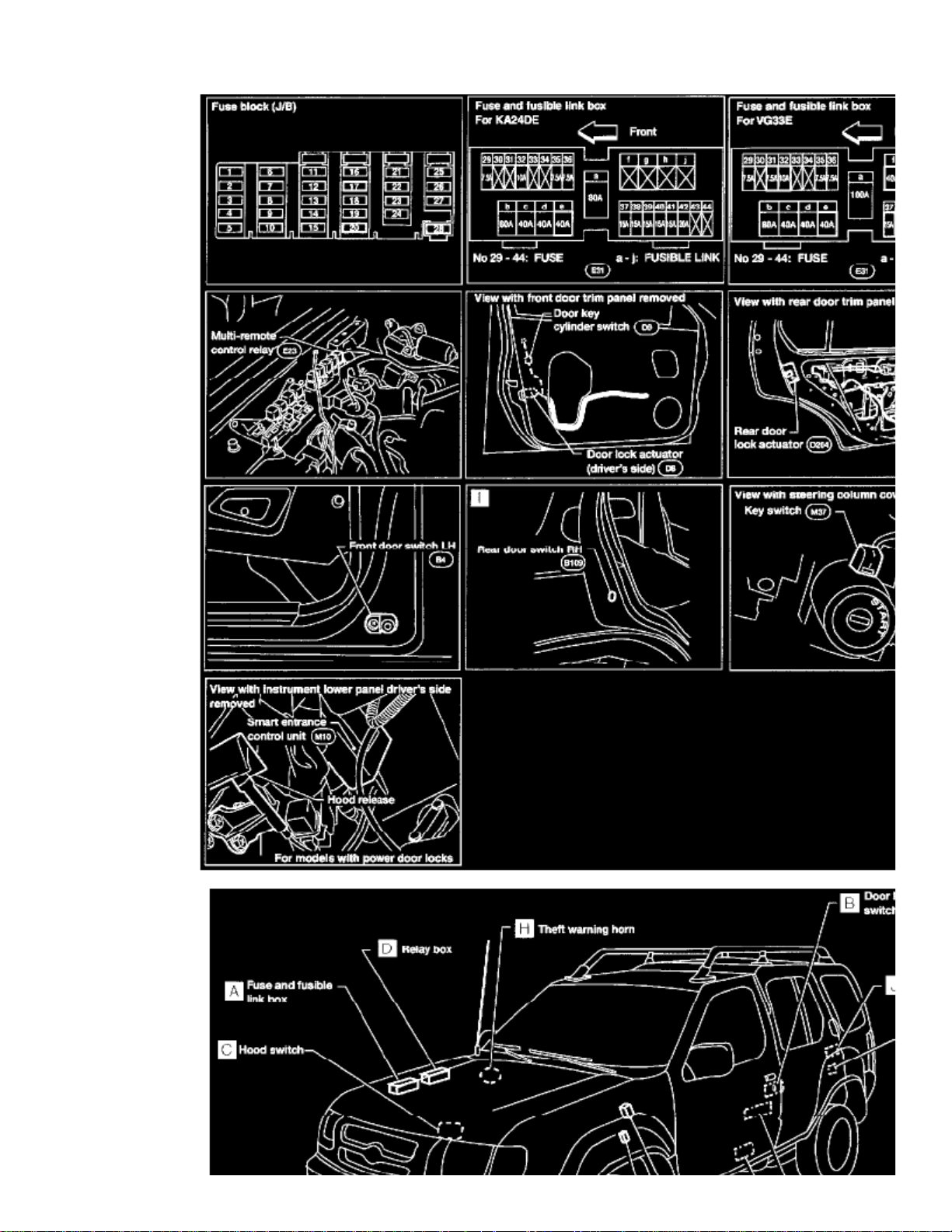

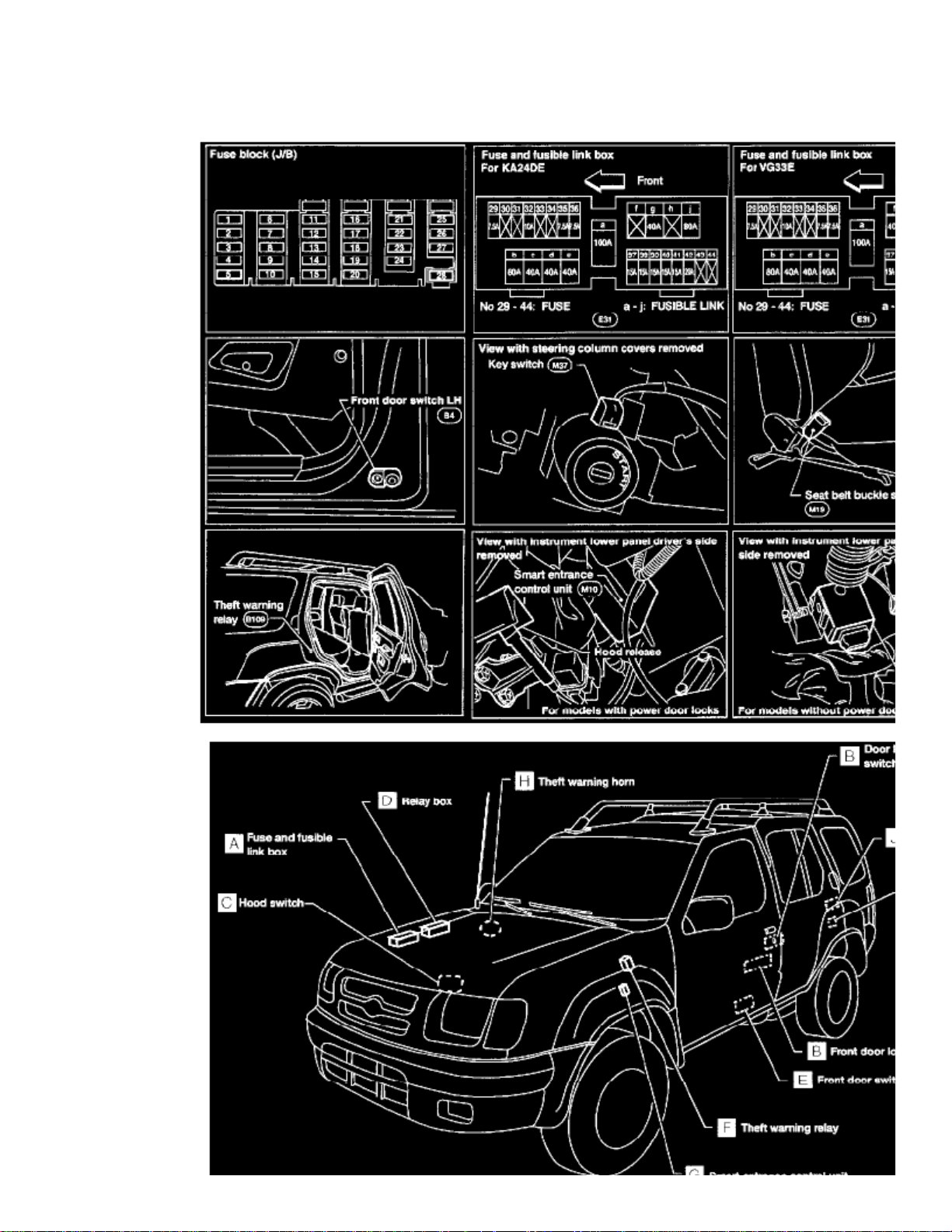

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Horn Relay > Component Information > Locations > Page 8

Xterra XE 2WD V6-3.3L (VG33E) (2000)

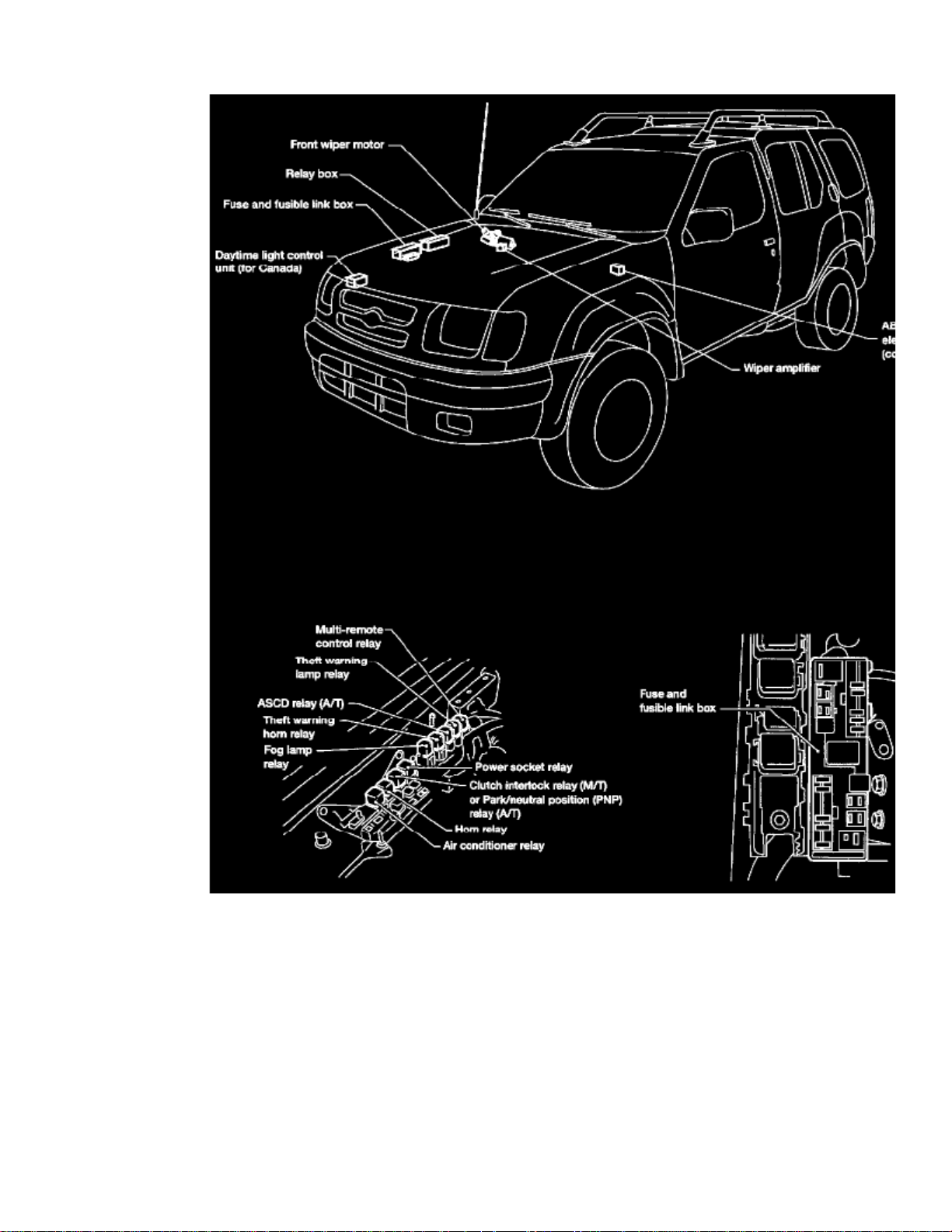

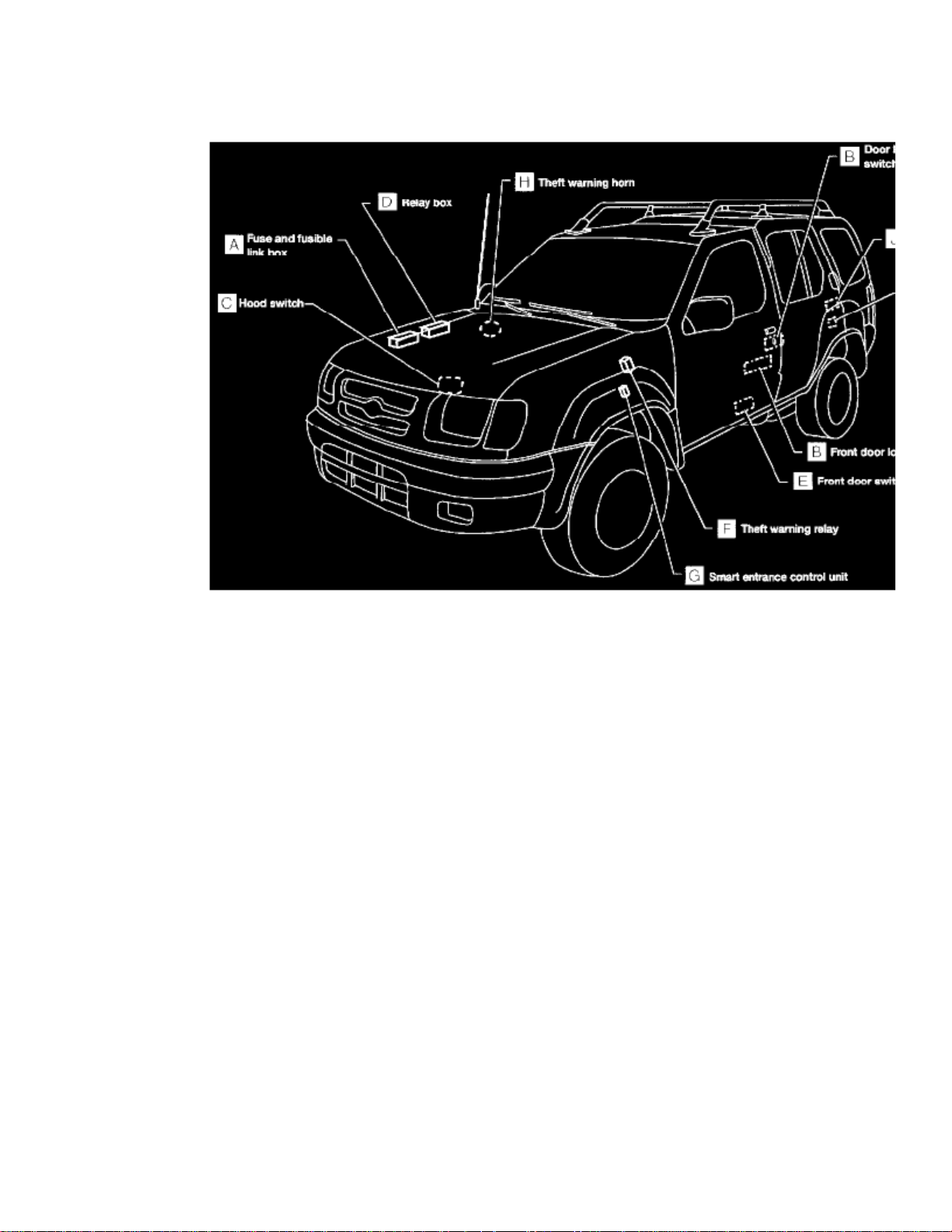

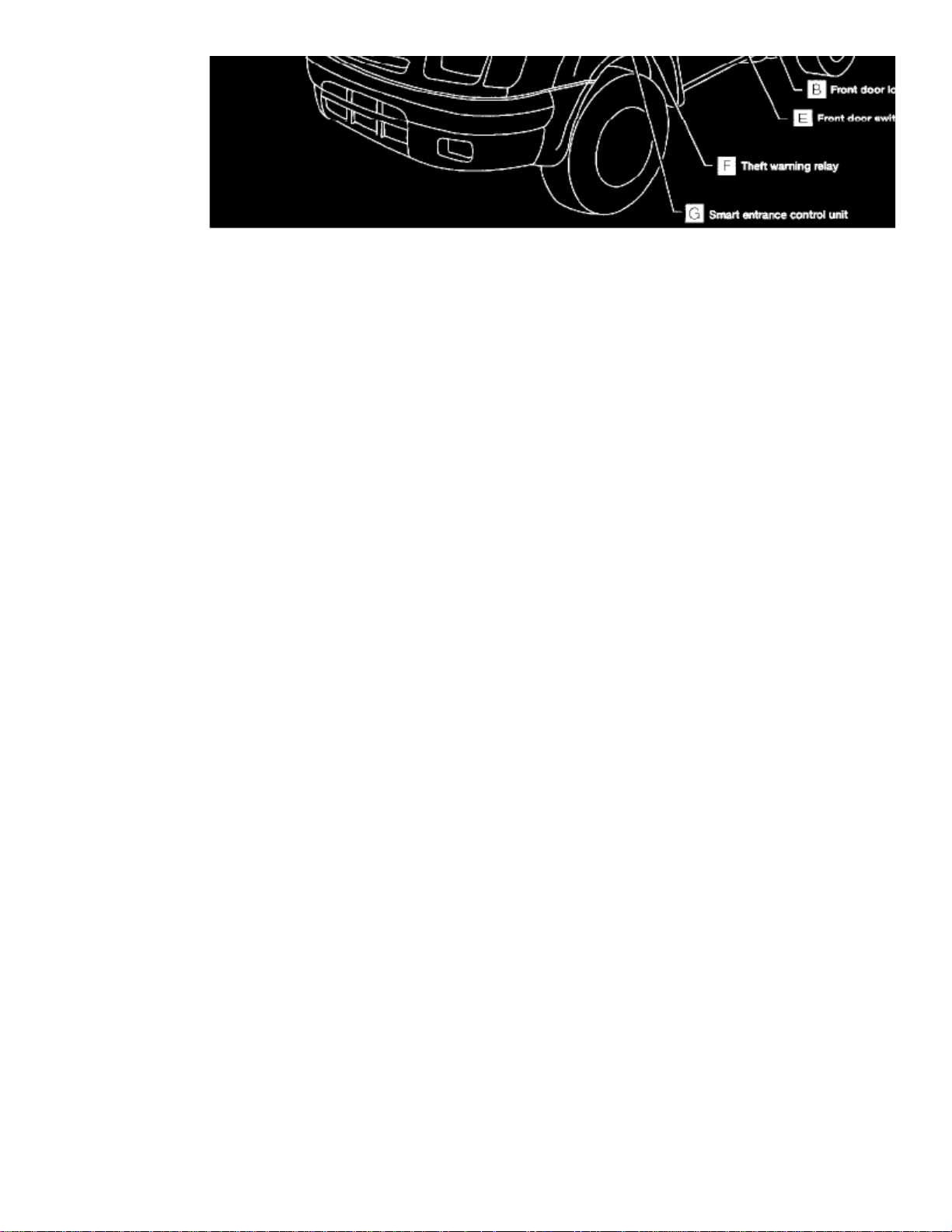

Engine Compartment

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Locations

Alarm Module: Locations

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Locations > Page 12

Xterra XE 2WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Locations > Page 13

Xterra XE 2WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Locations > Page 14

Xterra XE 2WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Locations > Page 15

Xterra XE 2WD V6-3.3L (VG33E) (2000)

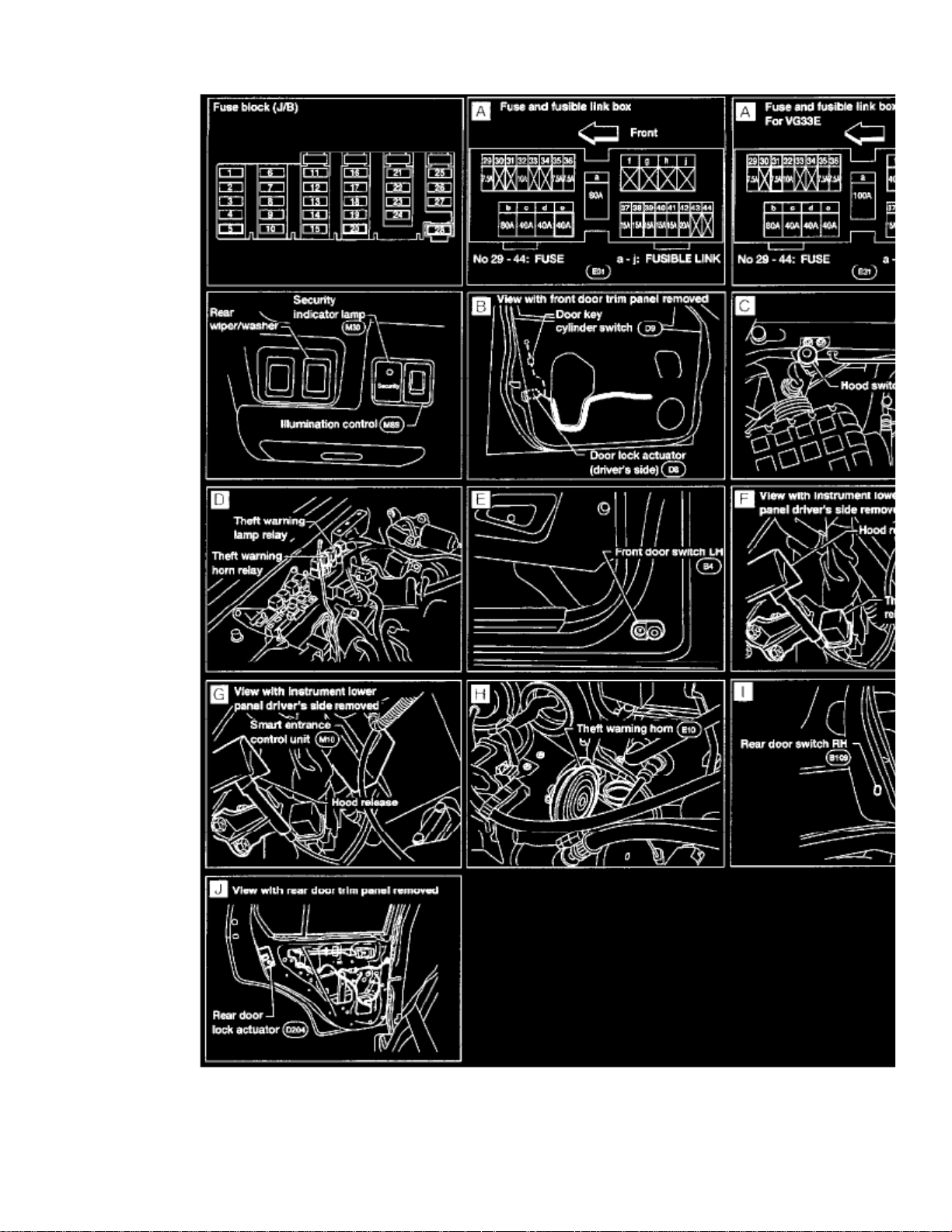

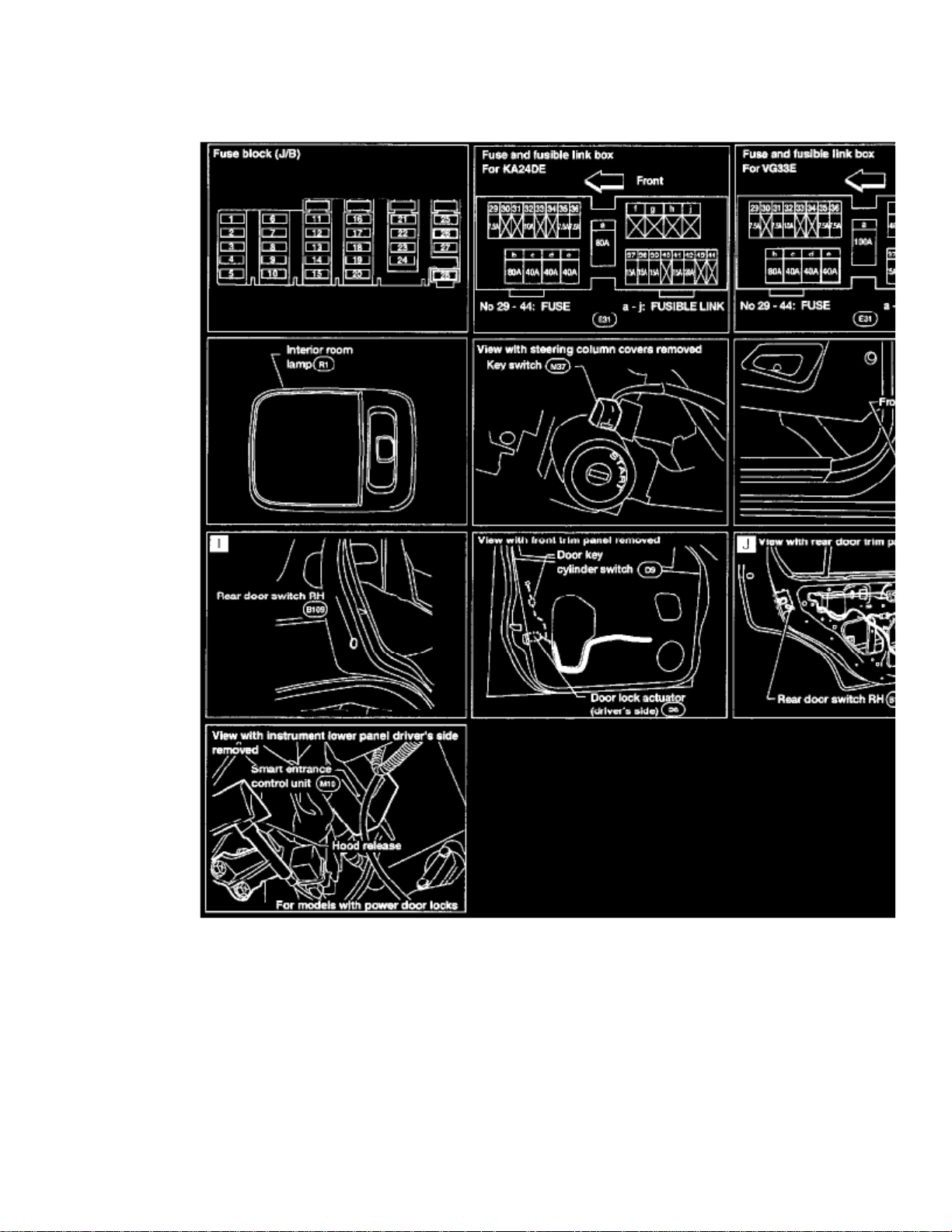

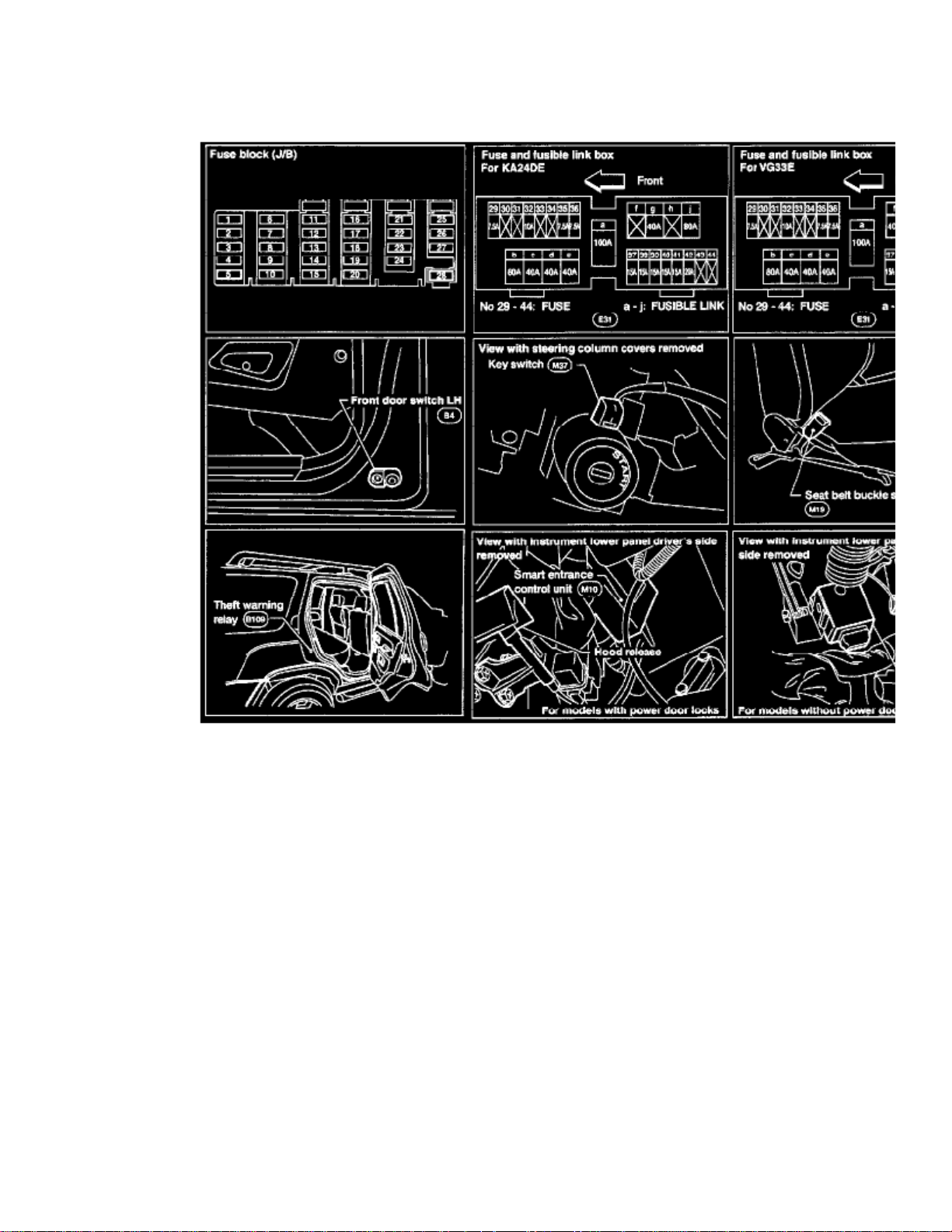

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Locations > Page 16

Xterra XE 2WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Alarm Module, (Vehicle Antitheft) > Component Information > Locations > Page 17

Xterra XE 2WD V6-3.3L (VG33E) (2000)

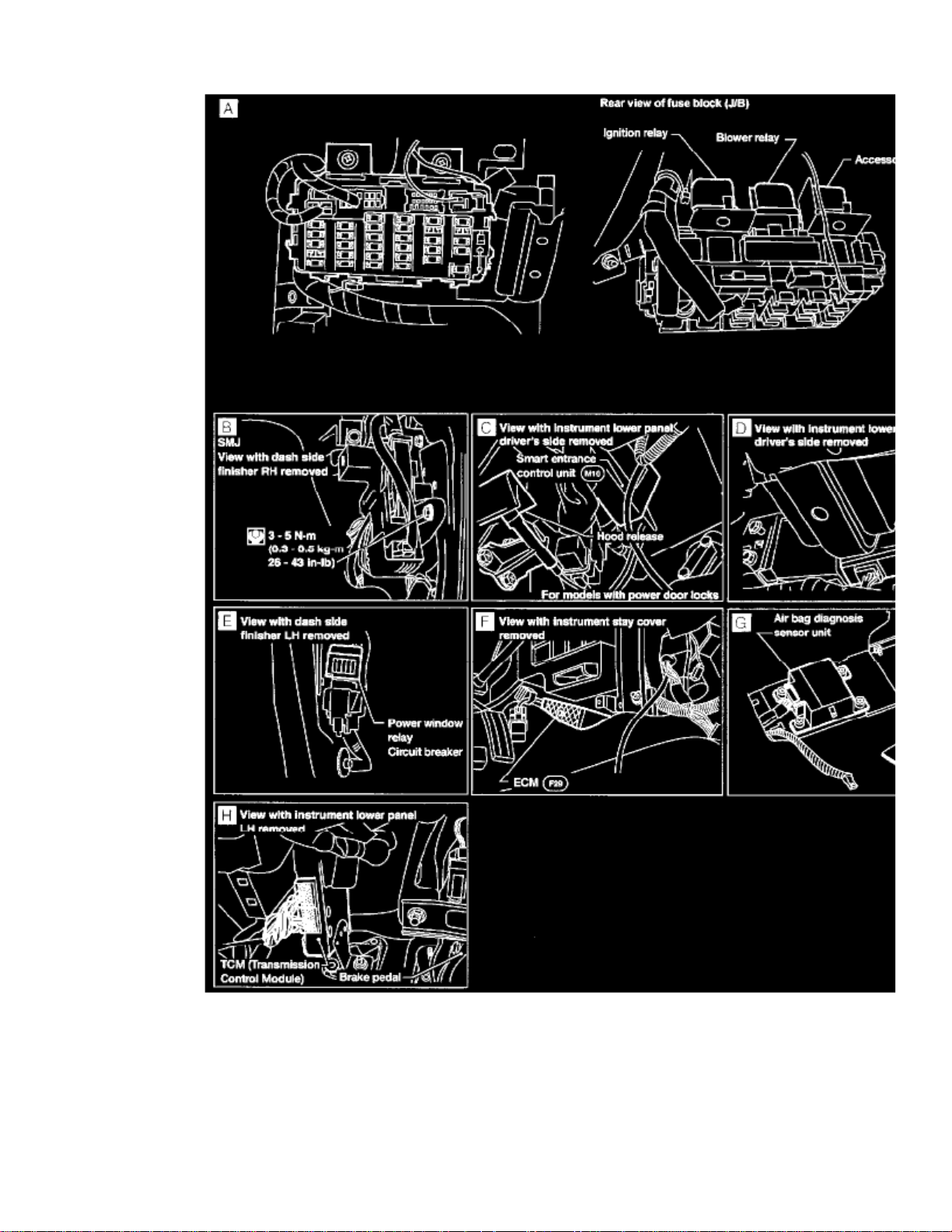

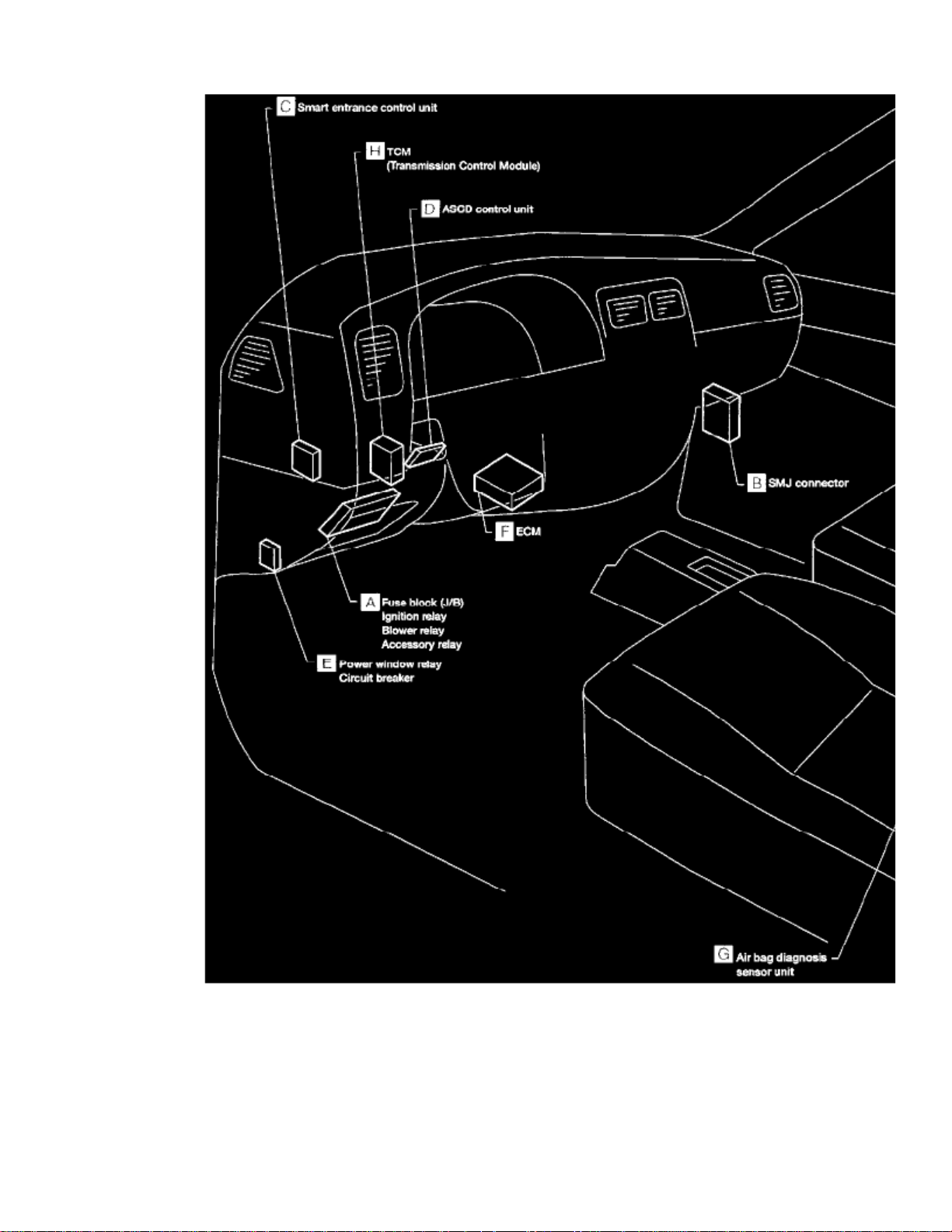

Passenger Compartment

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Antitheft Relay > Component Information > Locations

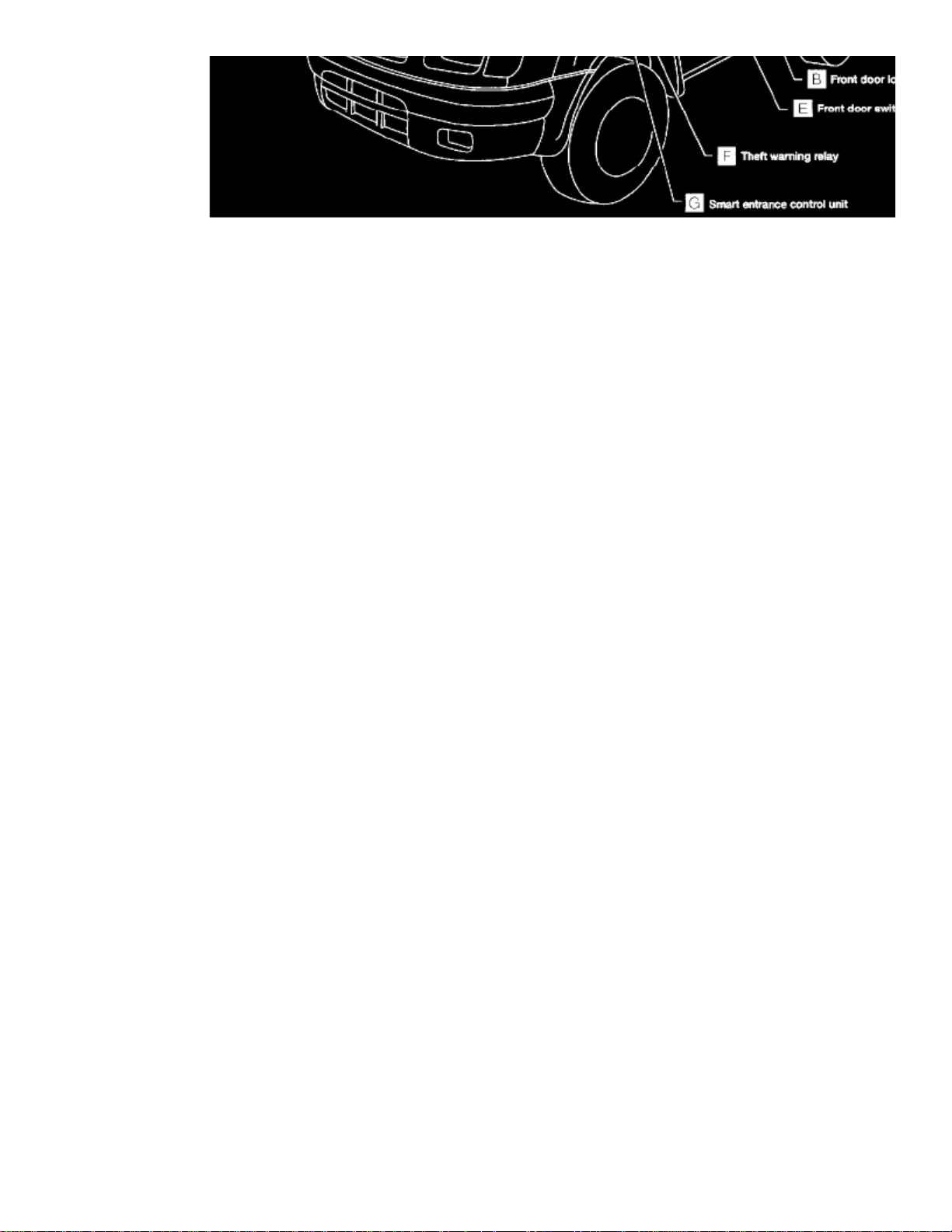

Antitheft Relay: Locations

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Antitheft Relay > Component Information > Locations > Page 21

Xterra XE 2WD V6-3.3L (VG33E) (2000)

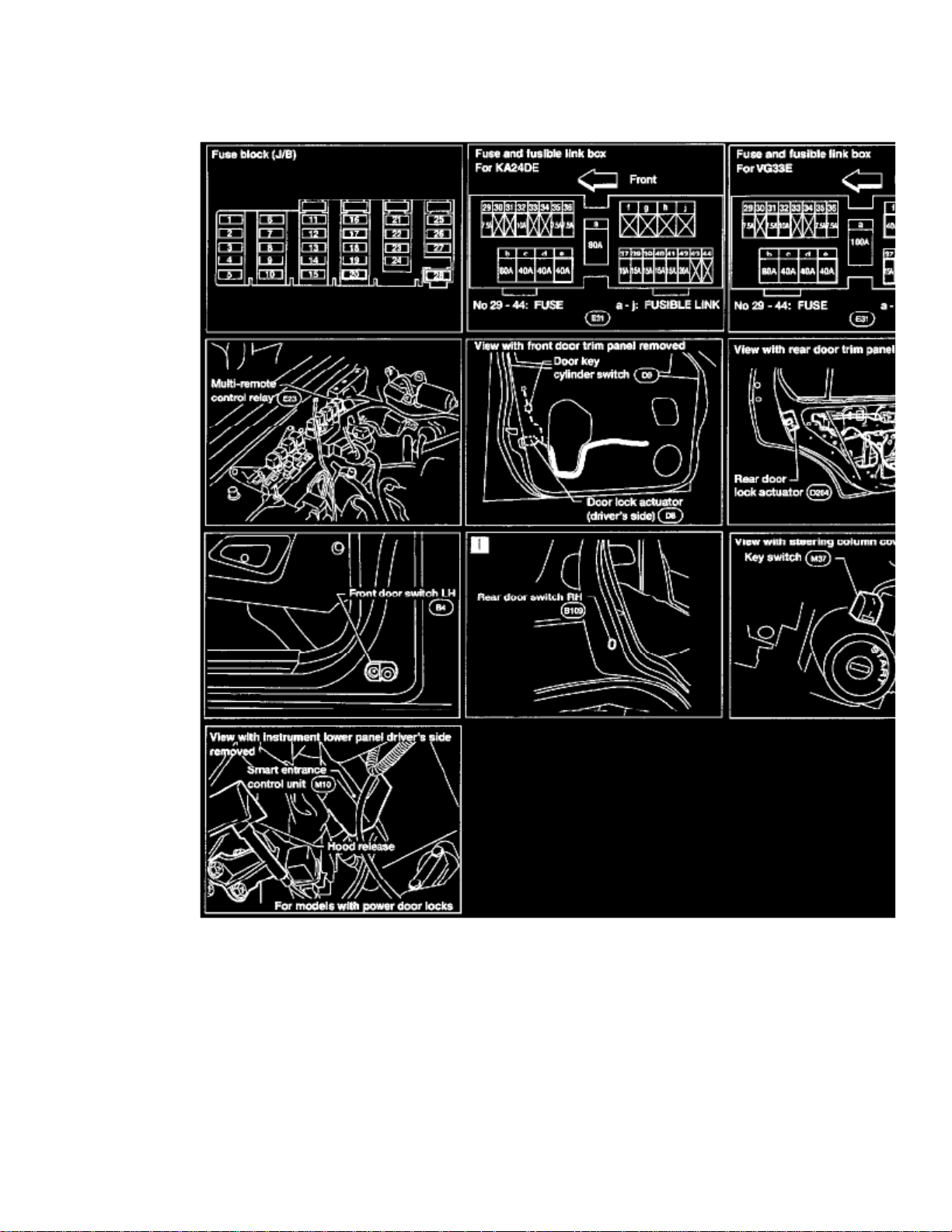

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multi-Remote Control Relay <--> [Keyless Entry Relay] > Component Information > Locations

Multi-Remote Control Relay: Locations

Component Parts and Harness Connection Location

> Relays and Modules > Relays and Modules - Accessories and Optional Equipment > Multi-Remote Control Relay <--> [Keyless Entry Relay] > Component Information >

Locations > Page 25

Xterra XE 2WD V6-3.3L (VG33E) (2000)

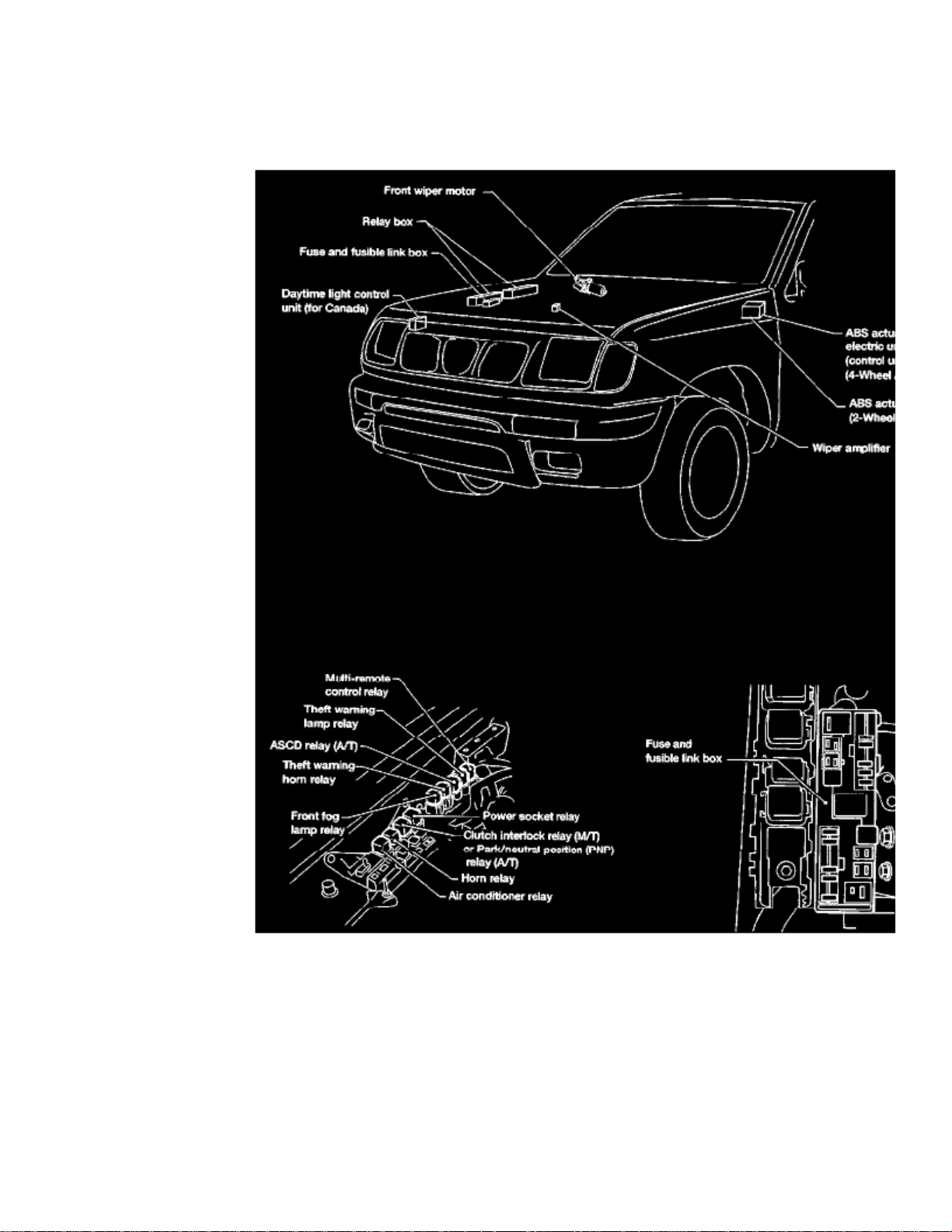

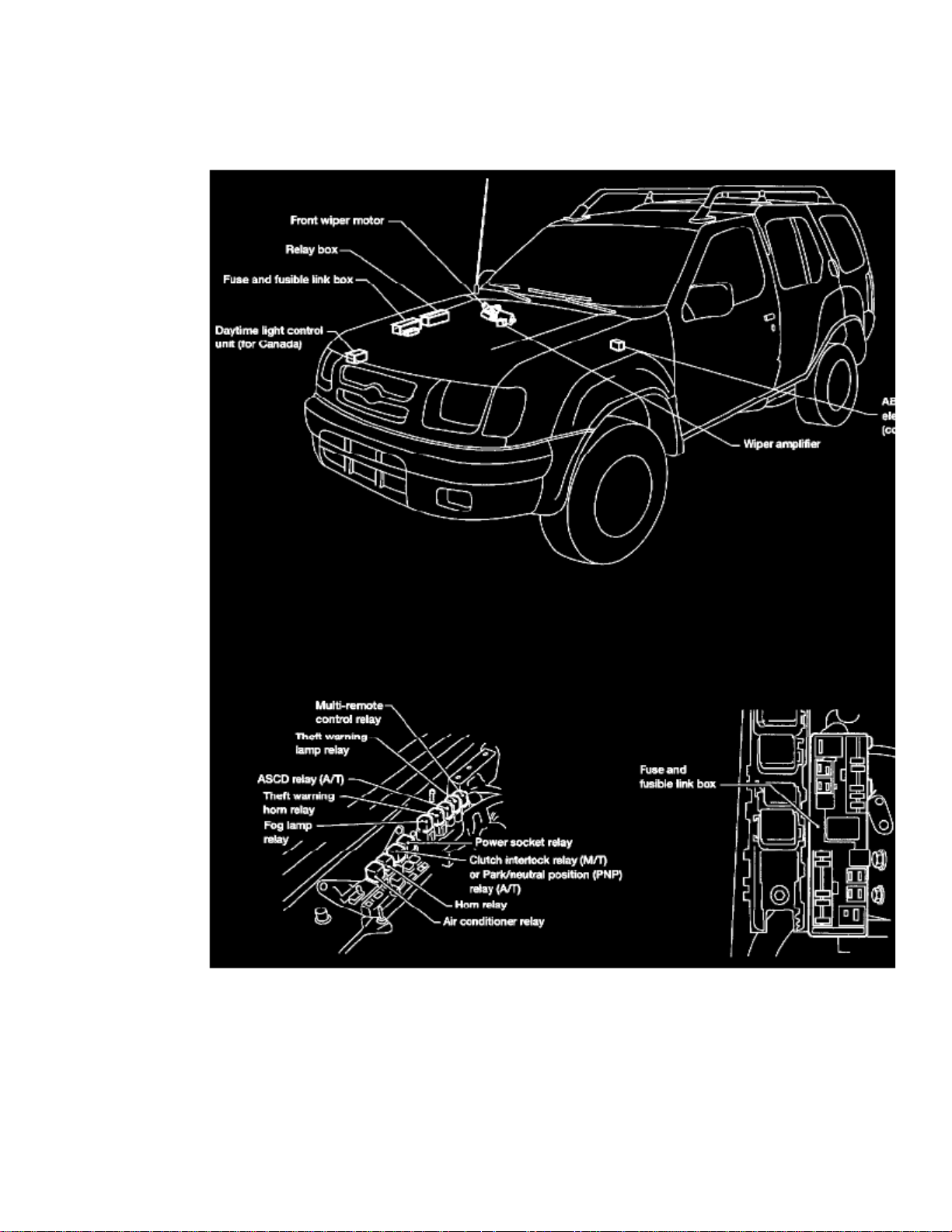

Engine Compartment

> Relays and Modules > Relays and Modules - Body and Frame > Multi-Remote Control Relay <--> [Keyless Entry Relay] > Component Information > Locations

Multi-Remote Control Relay: Locations

Component Parts and Harness Connection Location

> Relays and Modules > Relays and Modules - Body and Frame > Multi-Remote Control Relay <--> [Keyless Entry Relay] > Component Information > Locations > Page 30

Xterra XE 2WD V6-3.3L (VG33E) (2000)

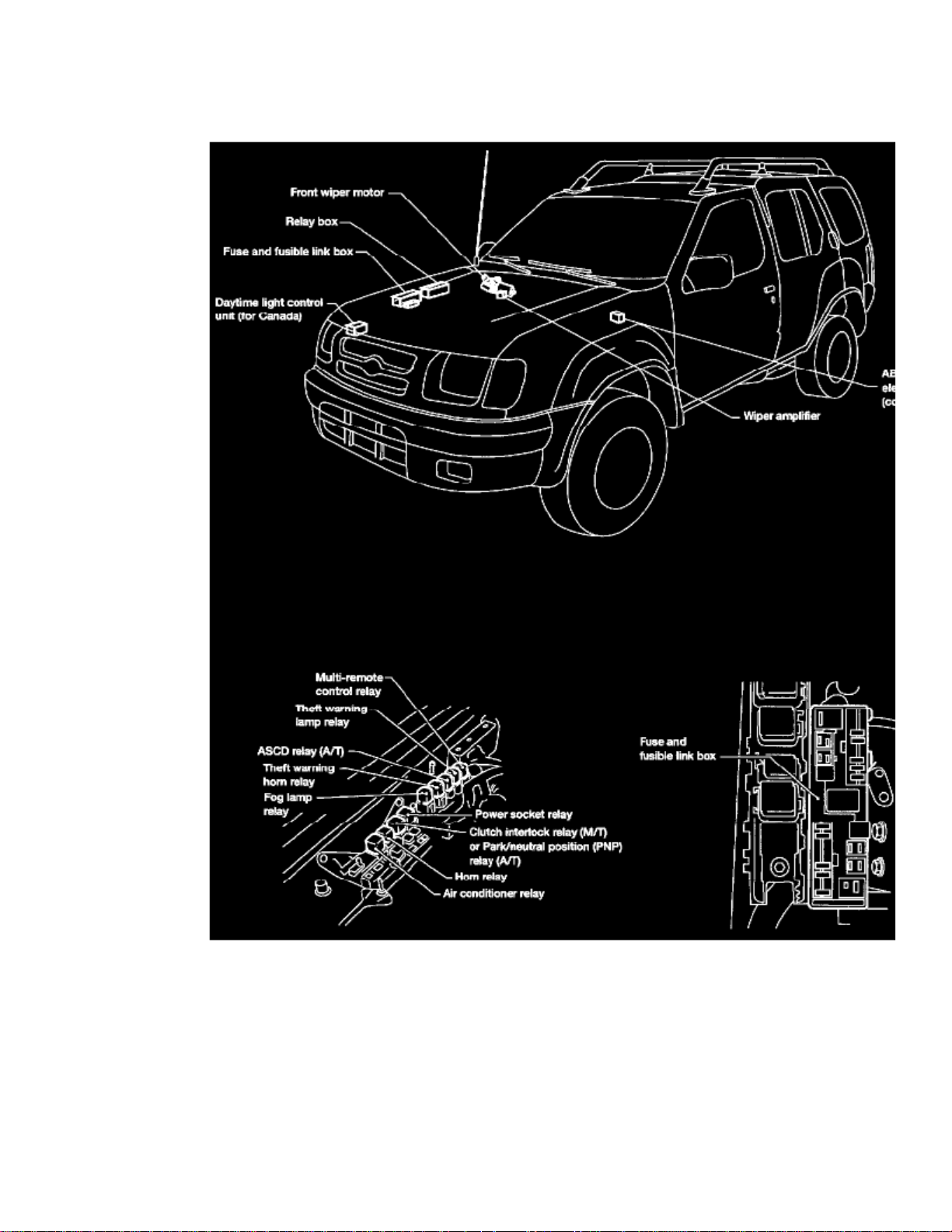

Engine Compartment

> Relays and Modules > Relays and Modules - Brakes and Traction Control > Electronic Brake Control Module > Component Information > Description and Operation

Electronic Brake Control Module: Description and Operation

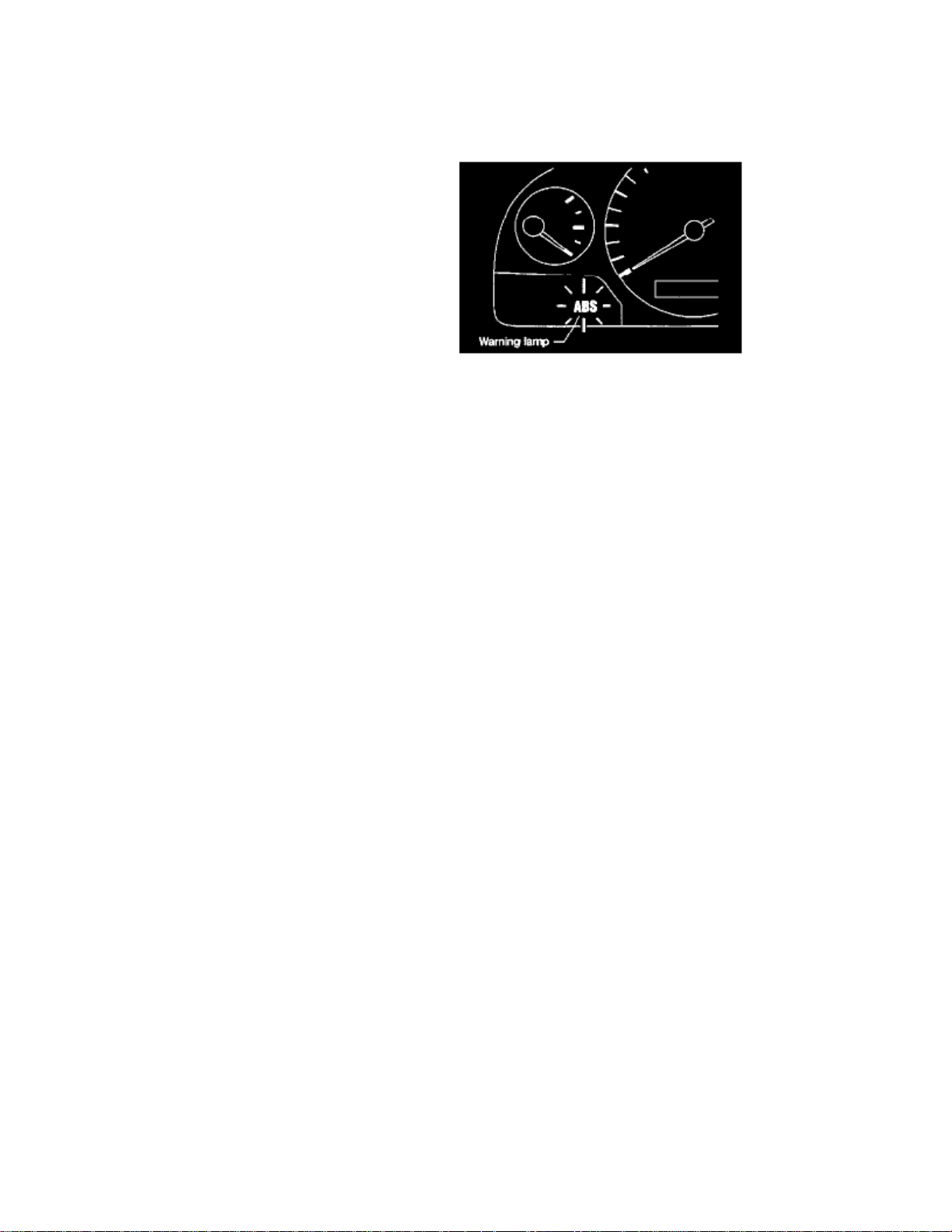

CONTROL UNIT (BUILT-IN ABS ACTUATOR AND ELECTRIC UNIT)

The control unit computes the wheel rotating speed by the signal current sent from the sensor. Then it supplies a DC current to the actuator solenoidvalve. It also controls ON-OFF operation of the valve relay and motor relay. If any electrical malfunction should be detected in the system, the controlunit causes the warning lamp to light up. In this condition, the ABS will be deactivated by the control unit, and the vehicle's brake system reverts tonormal operation.

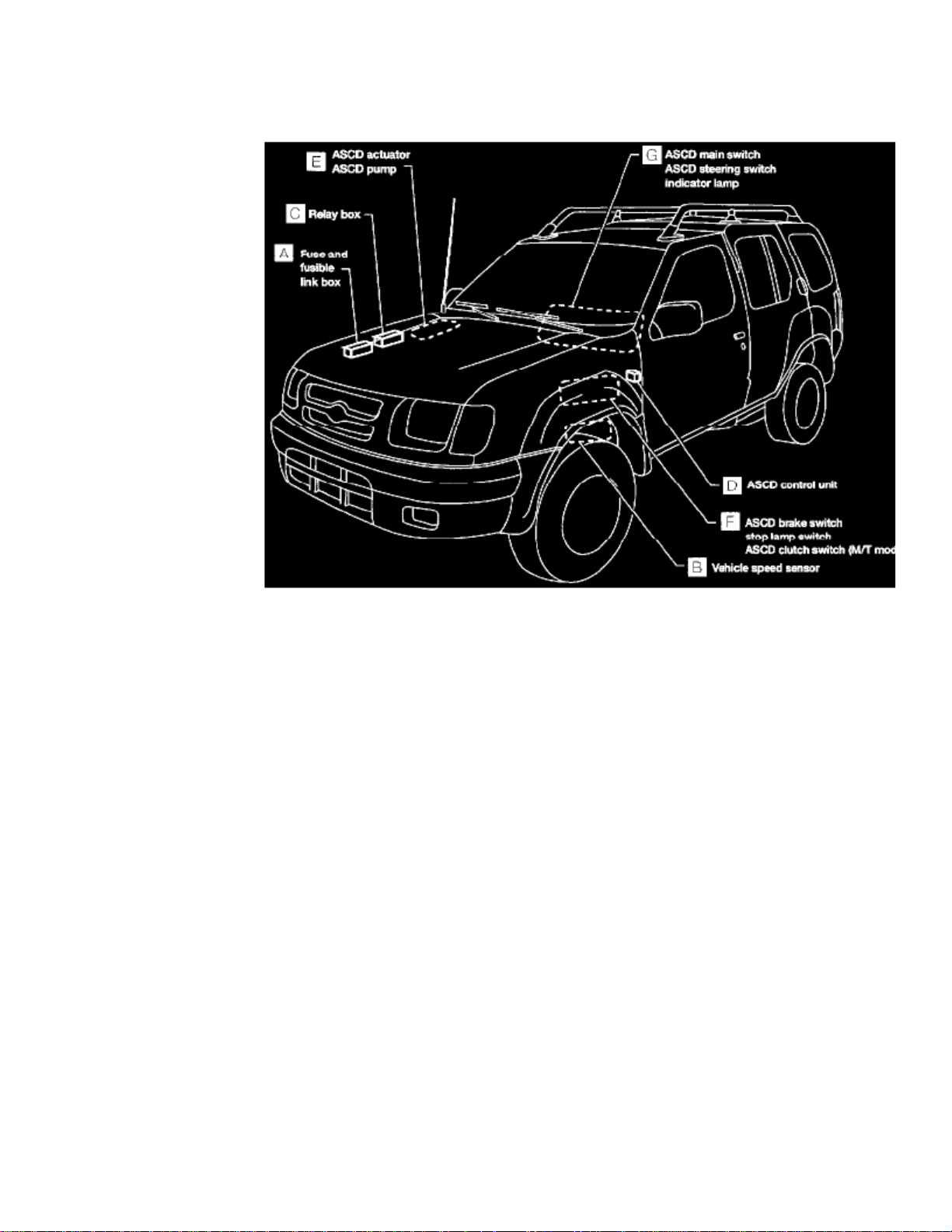

> Relays and Modules > Relays and Modules - Cruise Control > ASCD Control Unit <--> [Cruise Control Module] > Component Information > Locations

ASCD Control Unit: Locations

> Relays and Modules > Relays and Modules - Cruise Control > ASCD Control Unit <--> [Cruise Control Module] > Component Information > Locations > Page 39

Xterra XE 2WD V6-3.3L (VG33E) (2000)

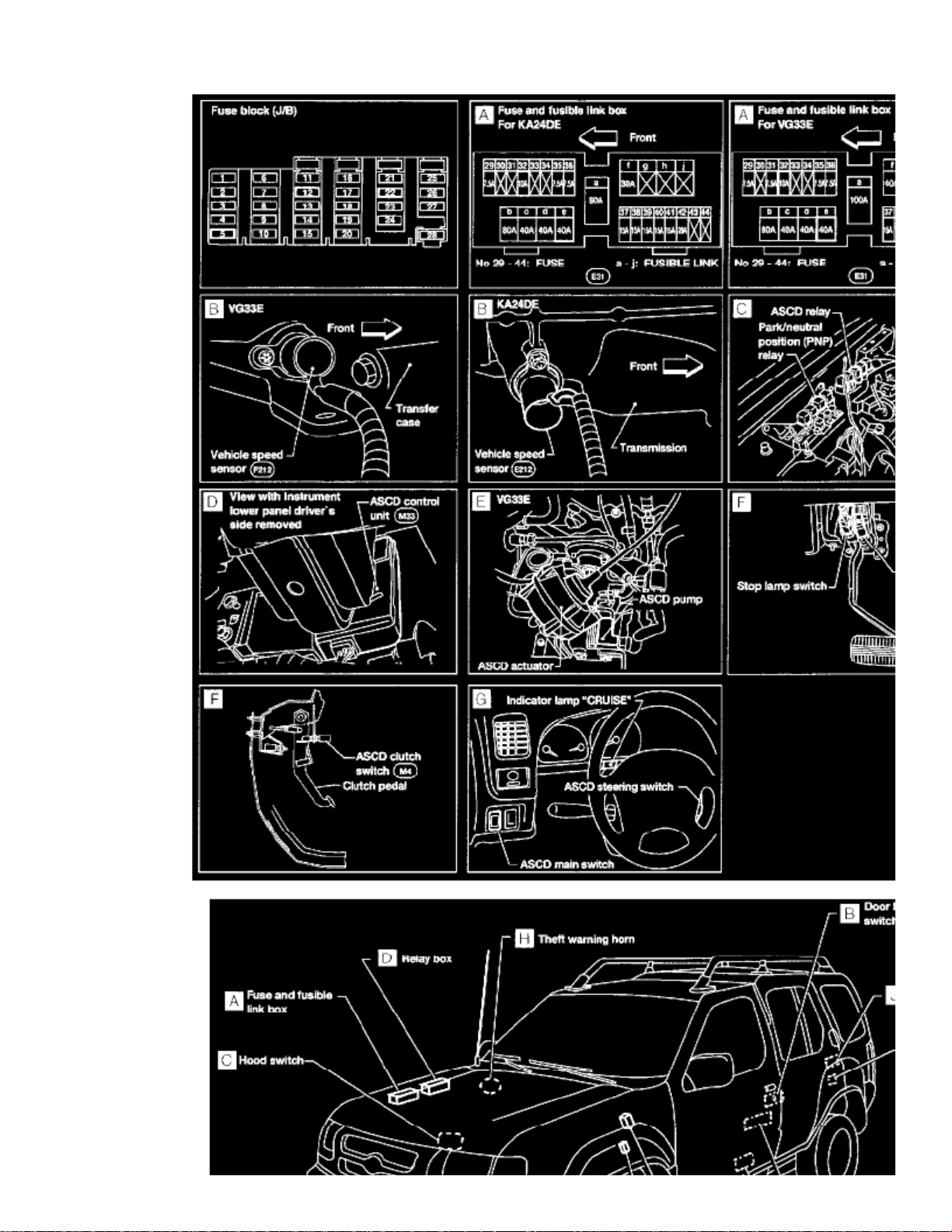

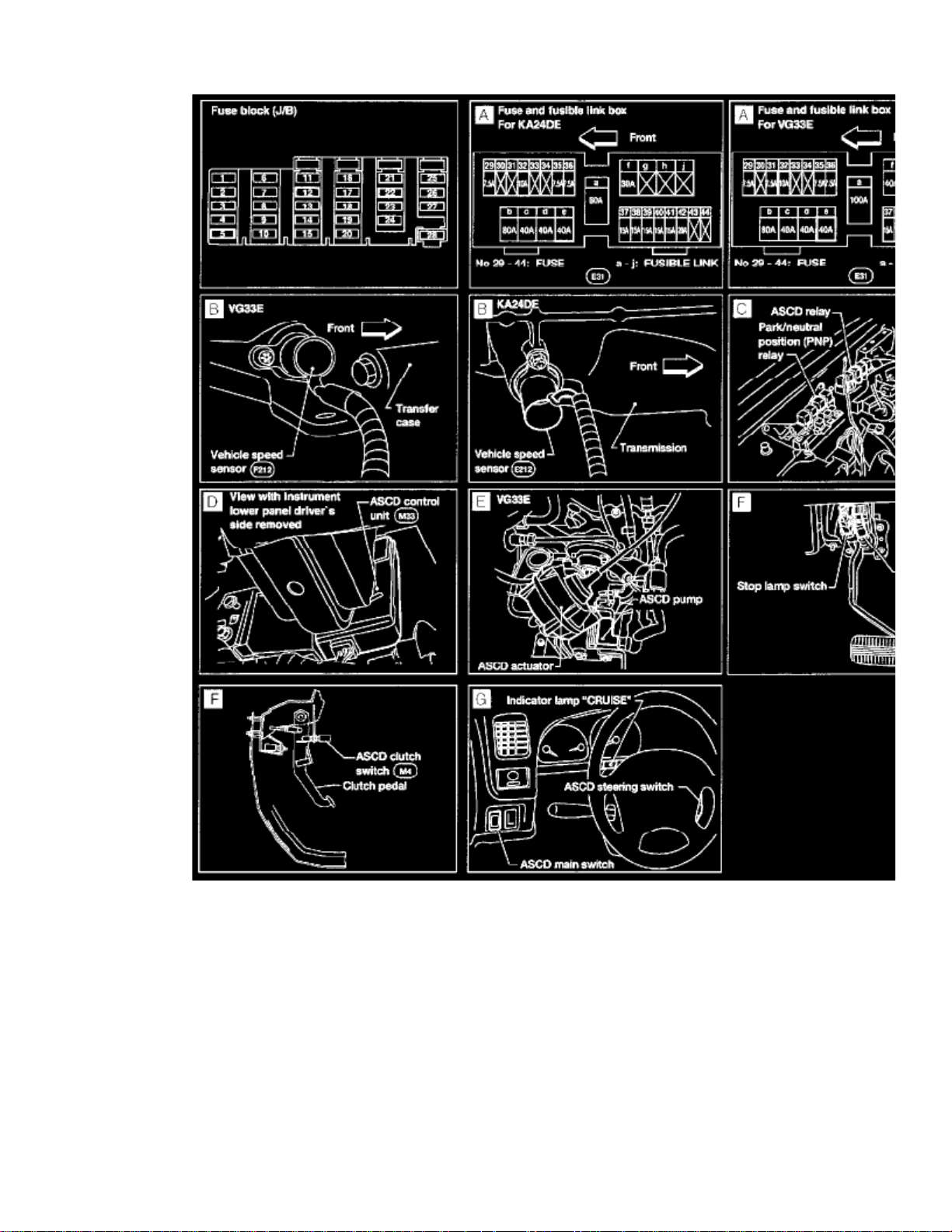

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Cruise Control > ASCD Control Unit <--> [Cruise Control Module] > Component Information > Locations > Page 40

Xterra XE 2WD V6-3.3L (VG33E) (2000)

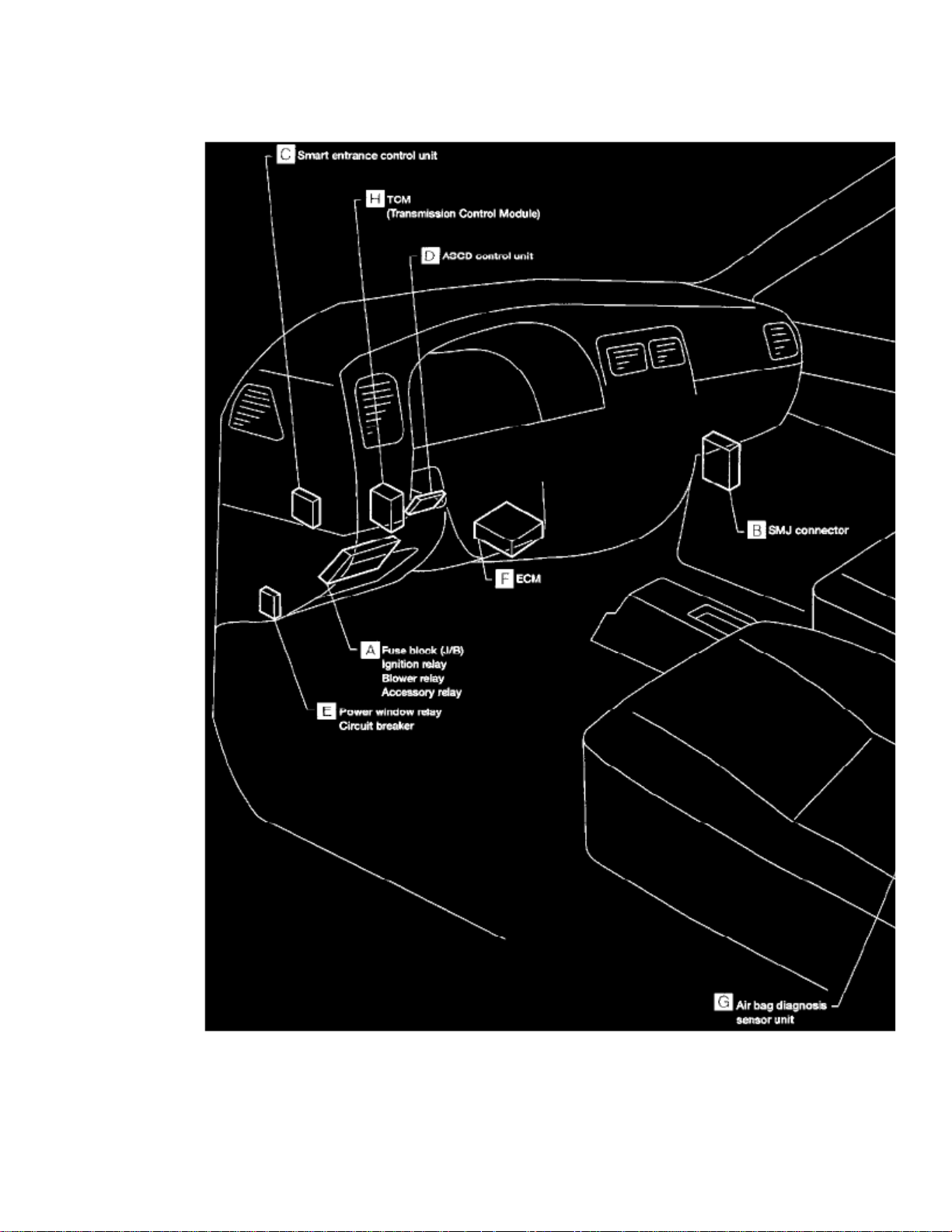

> Relays and Modules > Relays and Modules - Cruise Control > ASCD Control Unit <--> [Cruise Control Module] > Component Information > Locations > Page 41

Xterra XE 2WD V6-3.3L (VG33E) (2000)

Passenger Compartment

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Relay > Component Information > Locations > ASCD Relay

Cruise Control Relay: LocationsASCD Relay

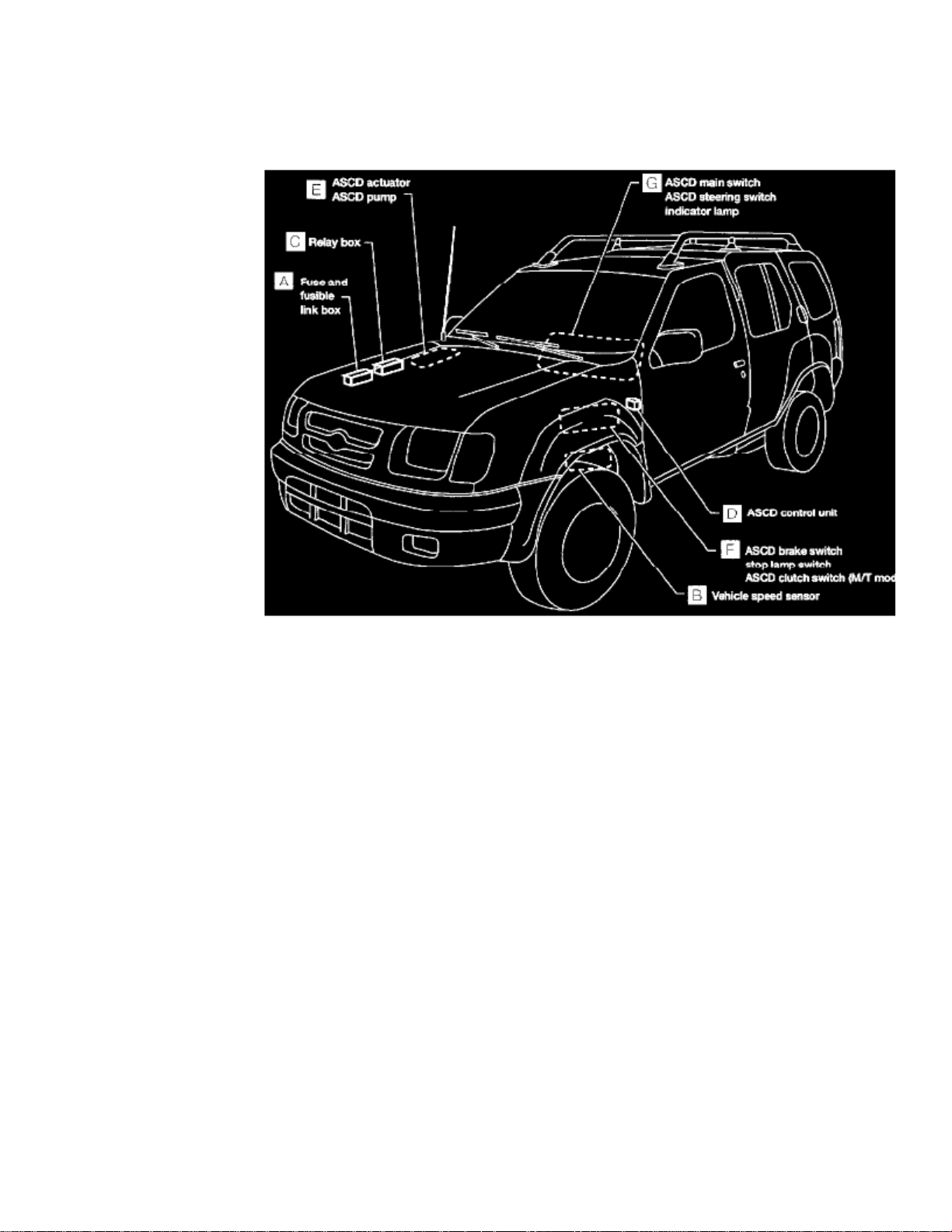

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Relay > Component Information > Locations > ASCD Relay > Page 46

Xterra XE 2WD V6-3.3L (VG33E) (2000)

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Relay > Component Information > Locations > ASCD Relay > Page 47

Xterra XE 2WD V6-3.3L (VG33E) (2000)

Engine Compartment

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Relay > Component Information > Locations > ASCD Relay > Page 48

Cruise Control Relay: LocationsPark / Neutral Position Relay

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Relay > Component Information > Locations > ASCD Relay > Page 49

Xterra XE 2WD V6-3.3L (VG33E) (2000)

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Cruise Control > Cruise Control Relay > Component Information > Locations > ASCD Relay > Page 50

Xterra XE 2WD V6-3.3L (VG33E) (2000)

Engine Compartment

> Relays and Modules > Relays and Modules - HVAC > Blower Motor Relay > Component Information > Locations

Blower Motor Relay: Locations

> Relays and Modules > Relays and Modules - HVAC > Blower Motor Relay > Component Information > Locations > Page 55

Xterra XE 2WD V6-3.3L (VG33E) (2000)

Passenger Compartment

> Relays and Modules > Relays and Modules - HVAC > Compressor Clutch Relay > Component Information > Locations > Compressor Clutch Relay

Compressor Clutch Relay: LocationsCompressor Clutch Relay

Engine Compartment

> Relays and Modules > Relays and Modules - HVAC > Compressor Clutch Relay > Component Information > Locations > Compressor Clutch Relay > Page 60

Compressor Clutch Relay: LocationsCompressor Cut-Off Relay

Engine Compartment

> Relays and Modules > Relays and Modules - HVAC > Compressor Clutch Relay > Component Information > Locations > Page 61

Compressor Clutch Relay: Description and Operation
Compressor Cut-Off Relay

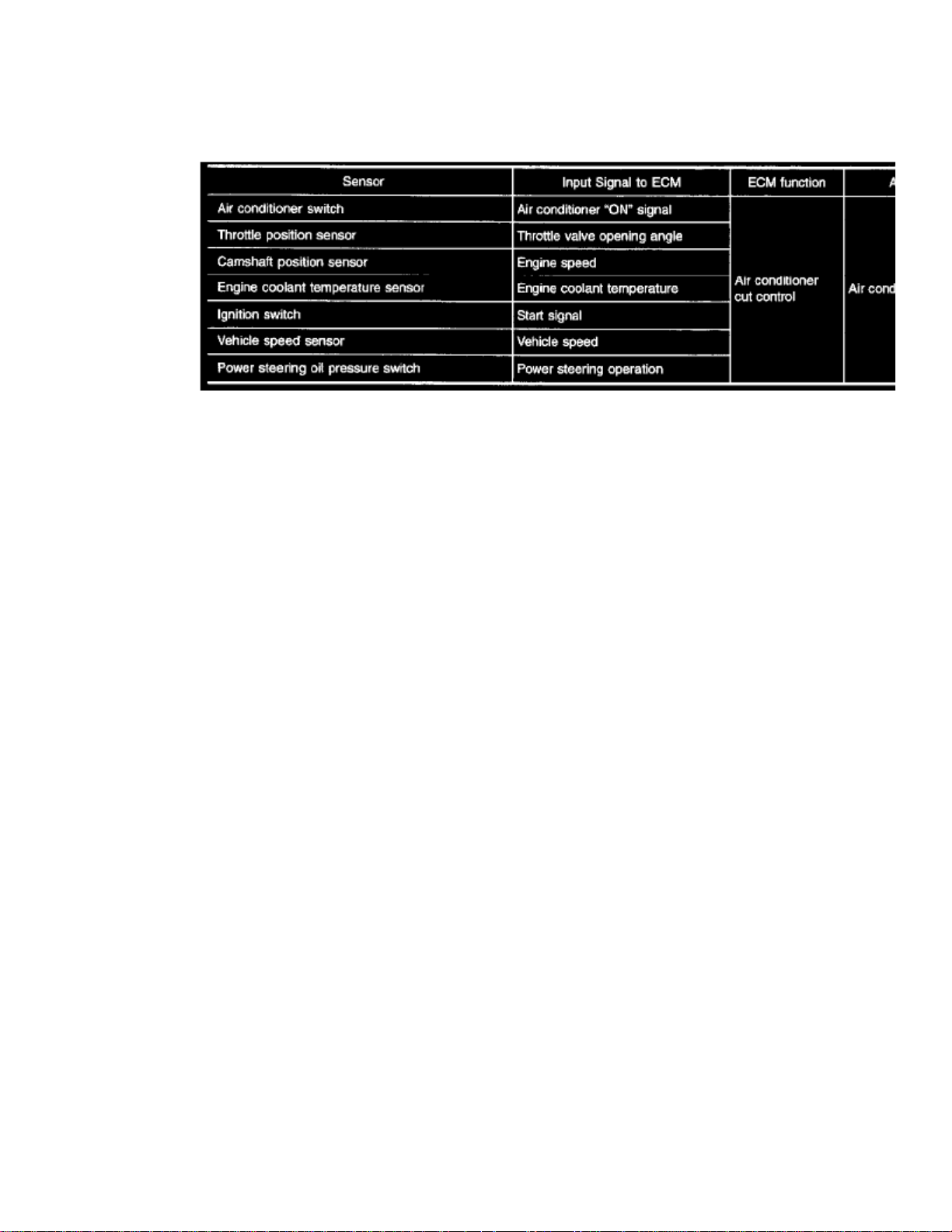

Input/Output Signal Line

System Description

This system improves engine operation when the air conditioner is used.Under the following conditions, the air conditioner is turned off.

- When the accelerator pedal is fully depressed.

- When cranking the engine.

- At high engine speeds.

- When the engine coolant temperature becomes excessively high.

- When operating power steering during low engine speed or low vehicle speed.

- When engine speed is excessively low.

> Relays and Modules > Relays and Modules - Instrument Panel > Audible Warning Device Control Module > Component Information > Locations

Audible Warning Device Control Module: Locations

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Instrument Panel > Fuel Gauge Module > Component Information > Locations

Fuel Gauge Module: Locations

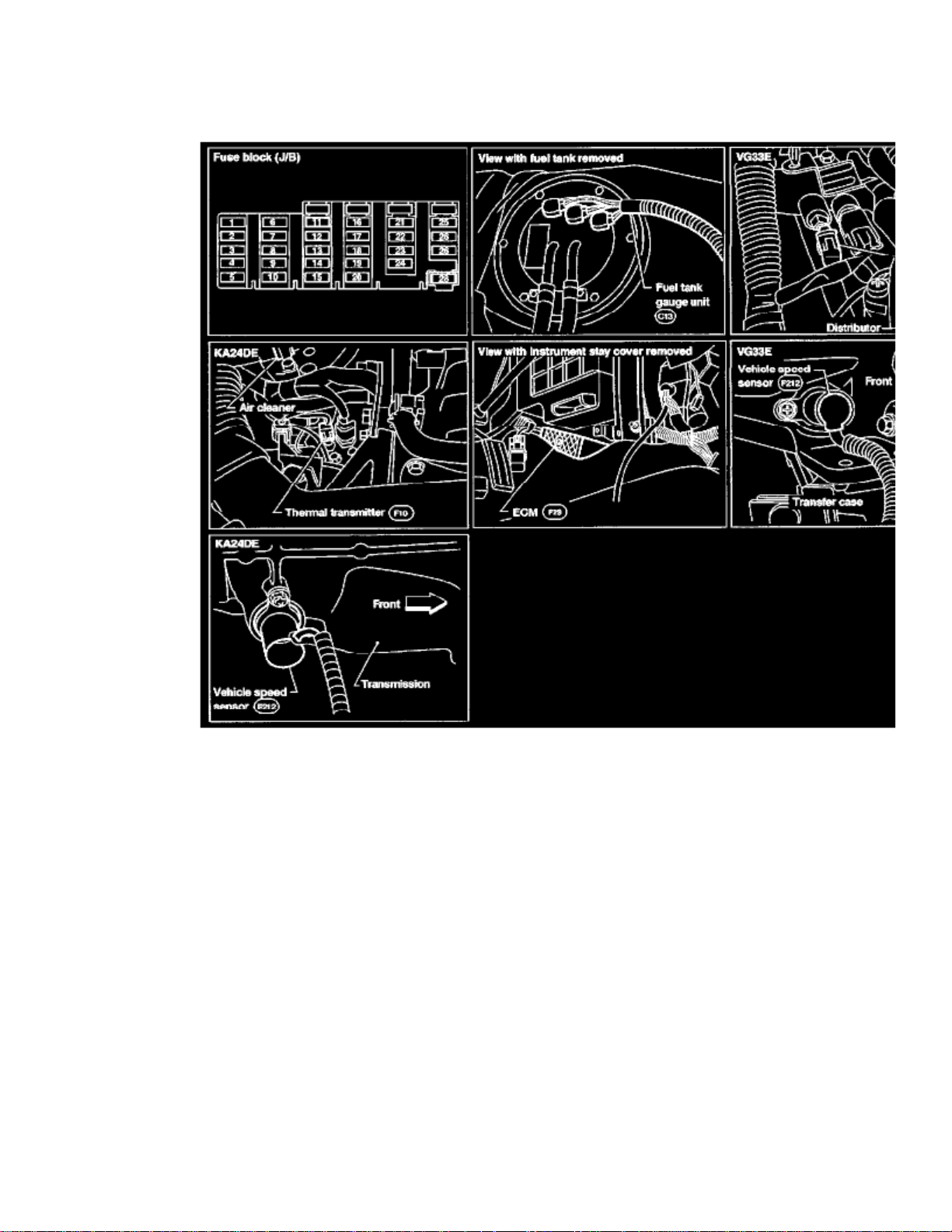

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Lighting and Horns > Exterior Lighting Module > Component Information > Locations

Exterior Lighting Module: Locations

Engine Compartment

> Relays and Modules > Relays and Modules - Lighting and Horns > Fog/Driving Lamp Relay > Component Information > Locations

Fog/Driving Lamp Relay: Locations

Engine Compartment

> Relays and Modules > Relays and Modules - Lighting and Horns > Horn Relay > Component Information > Locations

Horn Relay: Locations

Engine Compartment

> Relays and Modules > Relays and Modules - Power and Ground Distribution > Relay Box > Component Information > Locations

Relay Box: Locations

> Relays and Modules > Relays and Modules - Power and Ground Distribution > Relay Box > Component Information > Locations > Page 83

Xterra XE 2WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Power and Ground Distribution > Relay Box > Component Information > Locations > Page 84

Xterra XE 2WD V6-3.3L (VG33E) (2000)

Component Parts and Harness Connector Location

> Relays and Modules > Relays and Modules - Power and Ground Distribution > Relay Box > Component Information > Locations > Page 85

Xterra XE 2WD V6-3.3L (VG33E) (2000)

Engine Compartment

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component Information > Technical Service Bulletins > Customer

Interest: > 00-007 > Jan > 00 > ECM - Idle Fluctuation

Engine Control Module: Customer InterestECM - Idle Fluctuation

Classification:EC99-015

Reference:NTB00-007

Date:January 25, 2000
1999-2000 FRONTIER & 2000 XTERRA WITH VG33E ENGINE & M/T; IDLE FLUCTUATION

APPLIED VEHICLE(S): 1999 Frontier (D22)2000 Frontier (D22), early production only2000 Xterra (WD22), early production only

APPLIED VIN(S): Frontier:

1N6ED2*T3YC312889

Xterra: 5N1ED28Y9YC504150

APPLIED DATE: Manufactured before 5-17-99

APPLIED ENGINE: VG33E only

APPLIED TRANSMISSION: Manual only

SERVICE INFORMATIONIf an applied vehicle has an idle fluctuation when coasting to a stop with the clutch depressed and the transmission in gear, the cause may be the ECMprogram. The idle fluctuation may continue until the vehicle comes to a complete stop.

There is an updated ECM program available to address this incident if it should occur. Use the Service Procedure outlined in this bulletin to correct thiscondition.
For an introduction to and description of ECM Reprogramming, please refer to NTB00-006.

SERVICE PROCEDUREThe service procedure involves three steps:
^ Check/adjust idle speed as outlined.

^ Download the ECM Reprogramming data from ASIST to CONSULT-II.
^ Install the ECM Reprogramming data into the vehicle ECM.

Check/Adjust the Idle Setting.

1. Warm engine to normal operating temperature.

2. Confirm all electrical loads are turned OFF: Headlamps, A/C, Rear Window Defogger, P/S.

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Technical Service Bulletins > Customer Interest: > 00-007 > Jan > 00 > ECM - Idle Fluctuation > Page 96

Xterra XE 2WD V6-3.3L (VG33E) (2000)

3.

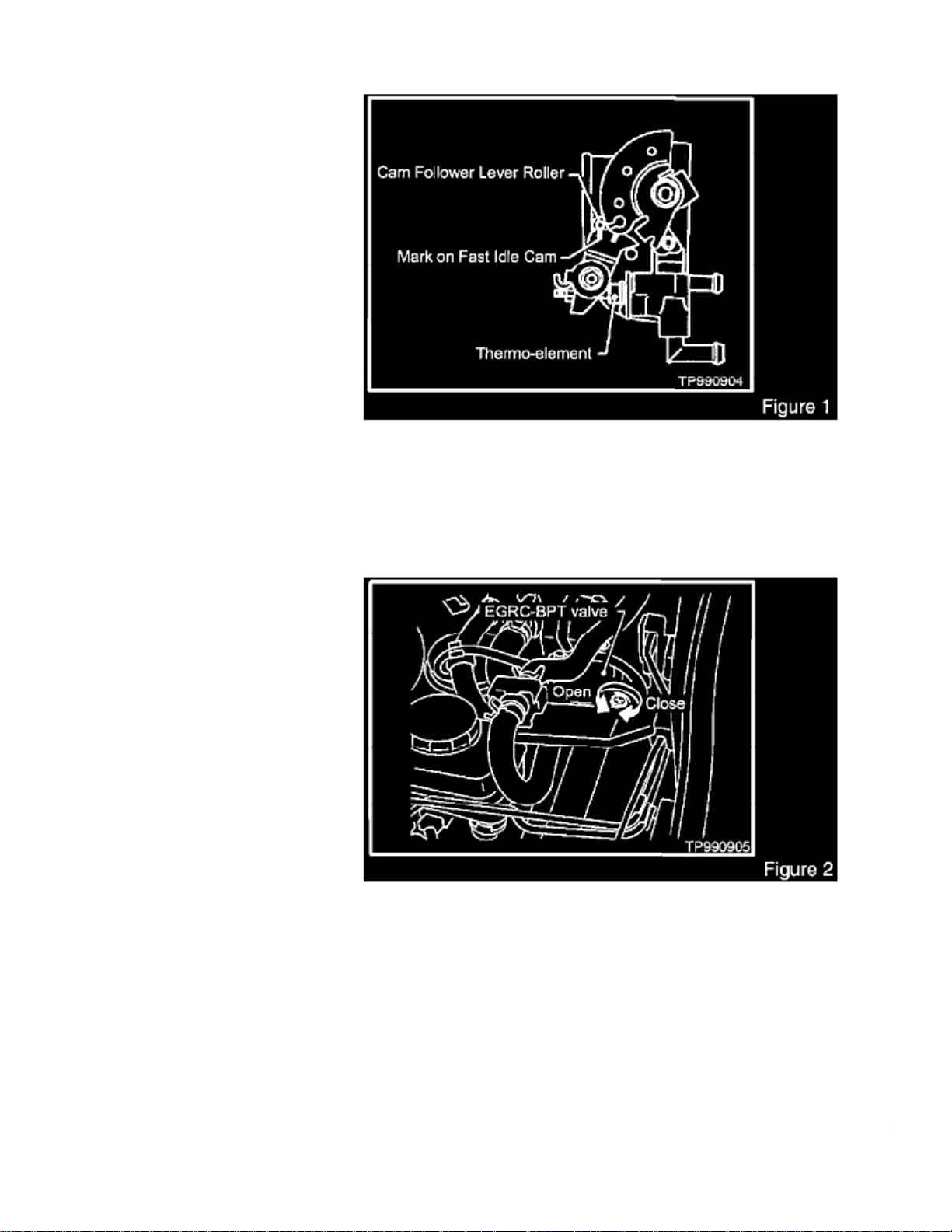

Confirm the Mark on Fast Idle Cam is aligned with the Cam Follower Lever Roller (see Figure 1) and the Cam Follower Lever roller is nottouching the Fast Idle Cam. Engine operating temperature and Fast Idle Cam/Cam Follower Lever roller position need to be maintained for step 4.

4. Check and adjust BASE IDLE SPEED: Perform steps a and b.
a. Use CONSULT-II, select IACV-AAC/V ADJ in WORK SUPPORT, press START.

b. Verify base idle speed is 700 50 RPM in P or N position. If it is not refer to Figure 2 and adjust it.

5. Using the "Back" button, return to the main menu in CONSULT-II. Turn it and the vehicle ignition "OFF".

Download the ECM Reprogramming data from ASIST to CONSULT-II and Install the ECM Reprogramming data into the vehicle ECM.

: NOTE

The ECM can be permanently damaged if the reprogramming procedure is not performed correctly.

6.
The detailed instructions for this part of the procedure can be found by clicking here or refer to Attachment "A" for the print version of thisbulletin. In the instructions you will be directed:

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Technical Service Bulletins > Customer Interest: > 00-007 > Jan > 00 > ECM - Idle Fluctuation > Page 97

Xterra XE 2WD V6-3.3L (VG33E) (2000)

a. Go to ASIST, Into Tool Box, then CONSULT-II utilities, then ECM Data.

b.

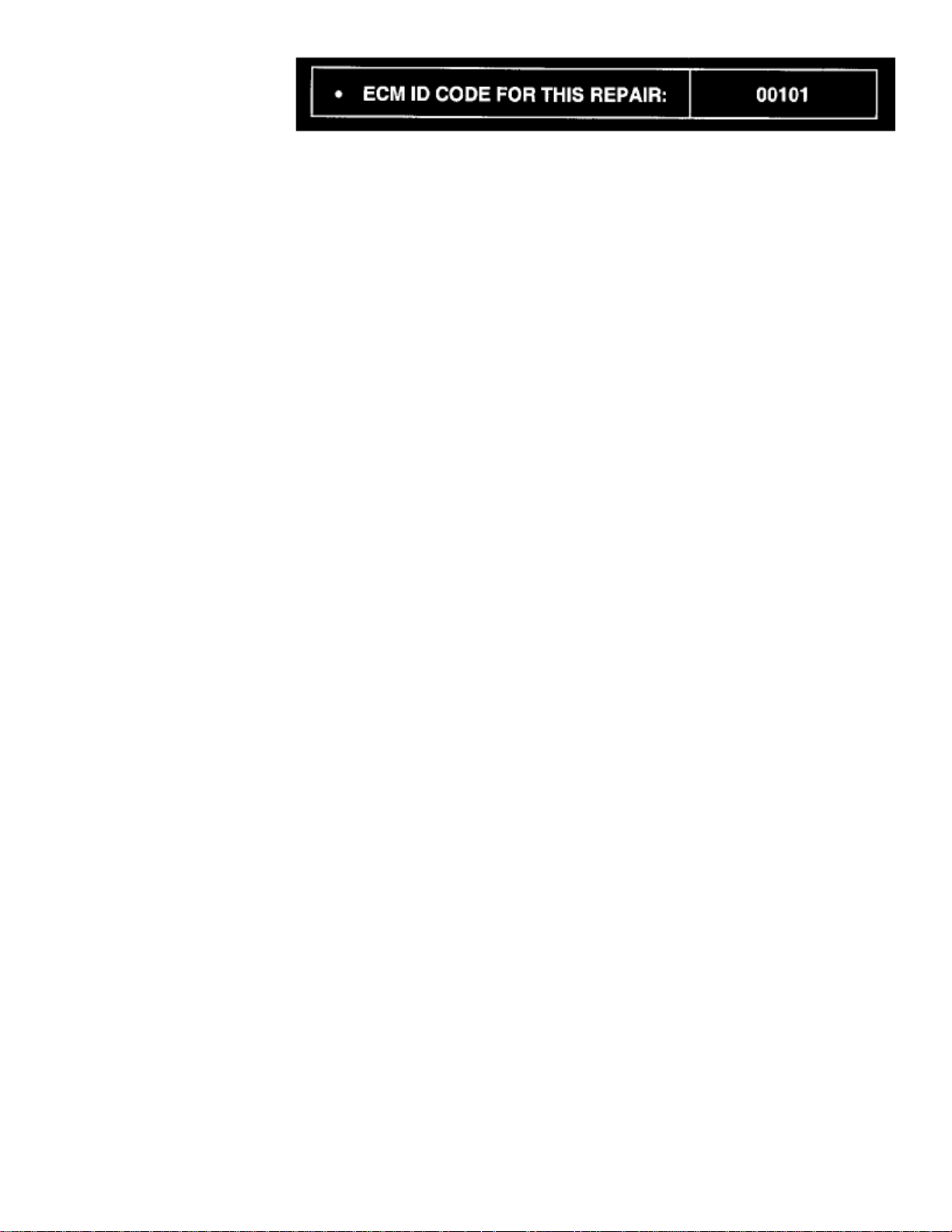

Using the keypad in ECM Data Reprogramming, enter the ECM ID code for the repair outlined in this bulletin (as shown). This willdownload the new data from ASIST into CONSULT-II.

c. Select the correct ECM program to install from the CONSULT-II screen. Then download the data from CONSULT-II into the ECM.

: NOTE

You must determine whether the vehicle has Federal or California emissions. The ECM programs are different. Refer to the under hood emissioncontrol information label.

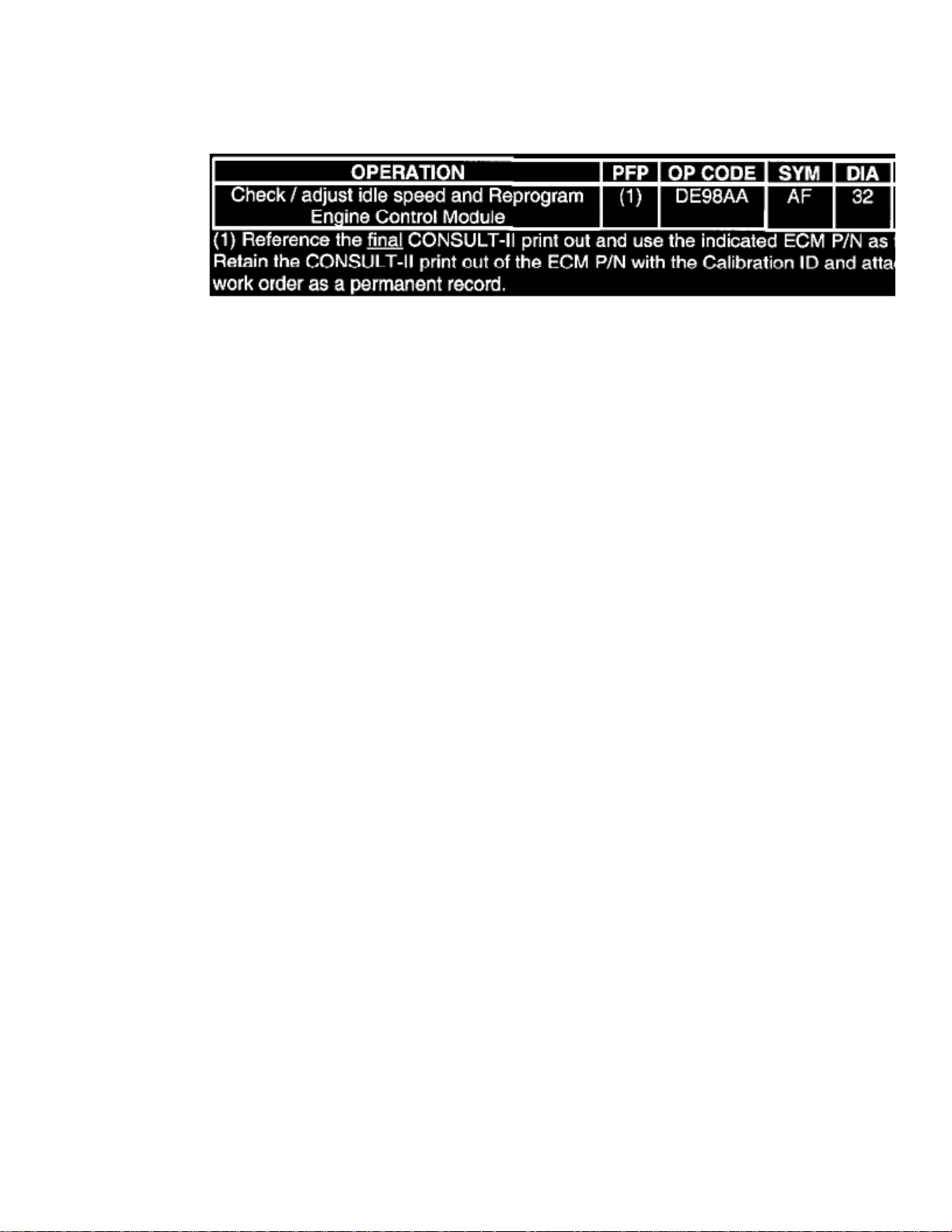

CLAIMS INFORMATIONSubmit a Primary Failed Part (PP) line using the claims coding a shown.

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component Information > Technical Service Bulletins > All

Technical Service Bulletins for Engine Control Module: > 10-078 > Jun > 10 > Engine Controls - ECM Programming Interruption Recovery

Engine Control Module: All Technical Service BulletinsEngine Controls - ECM Programming Interruption Recovery

Classification: EC10-015
Reference: NTB10-078
Date: June 21, 2010

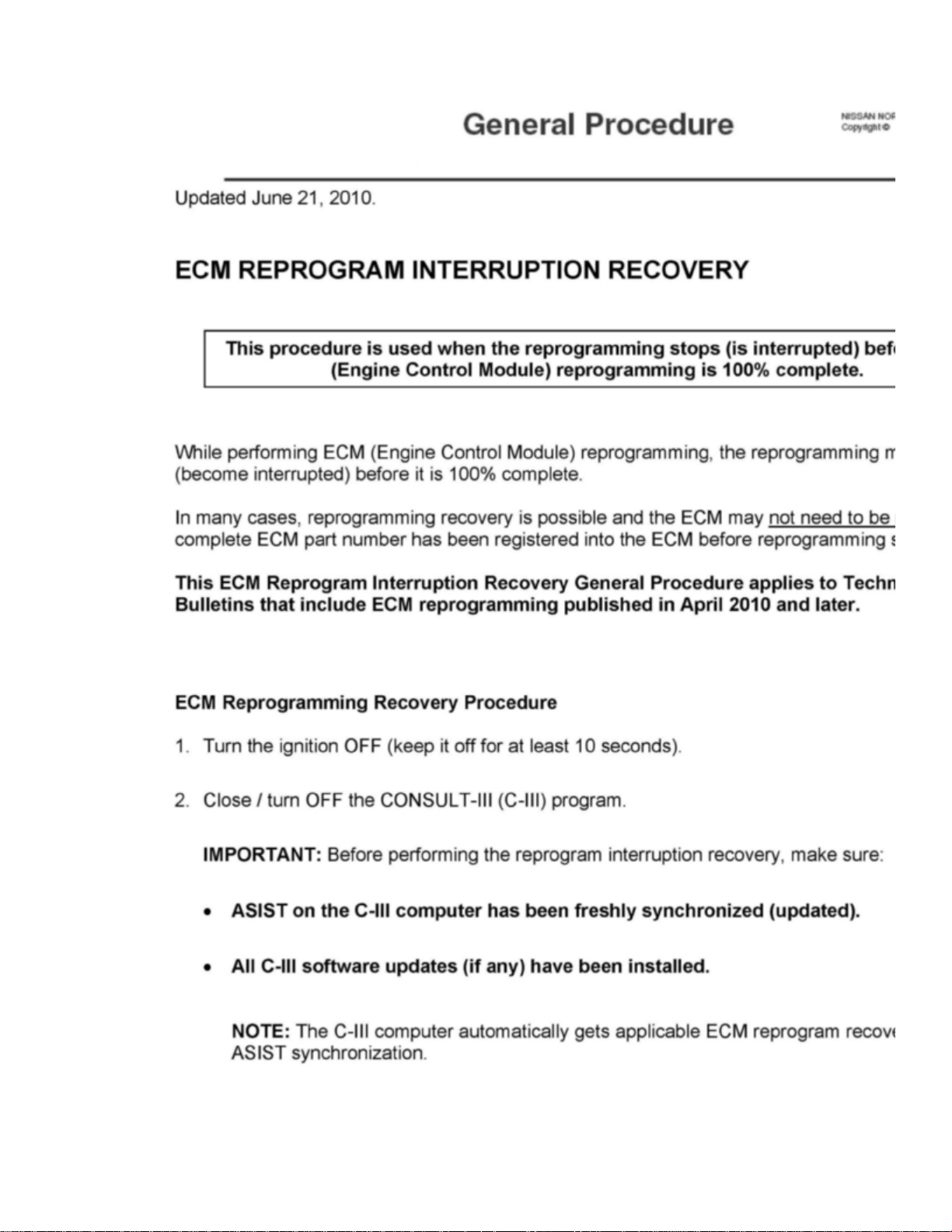

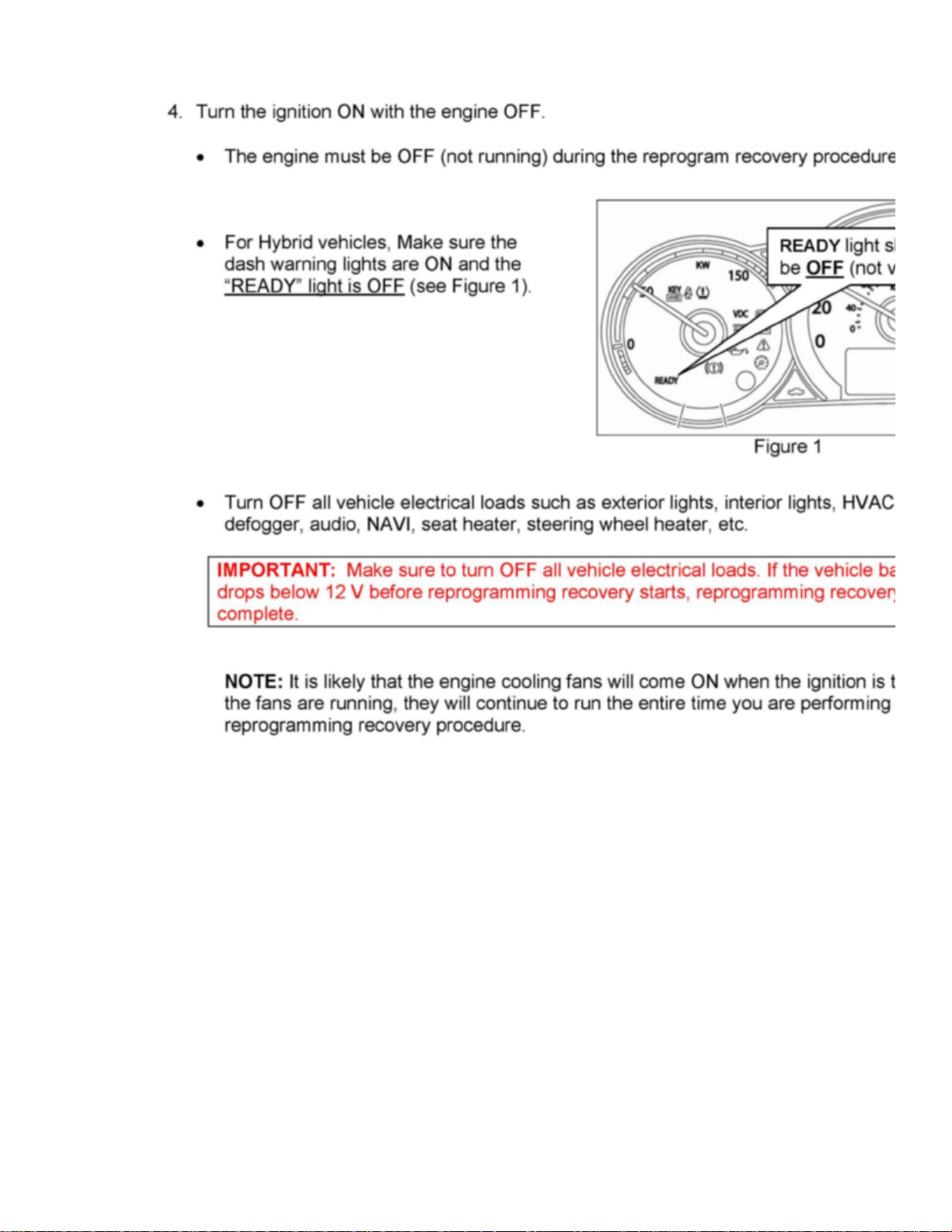

REPROGRAM INTERRUPTION RECOVERY PROCEDURE
SERVICE INFORMATION

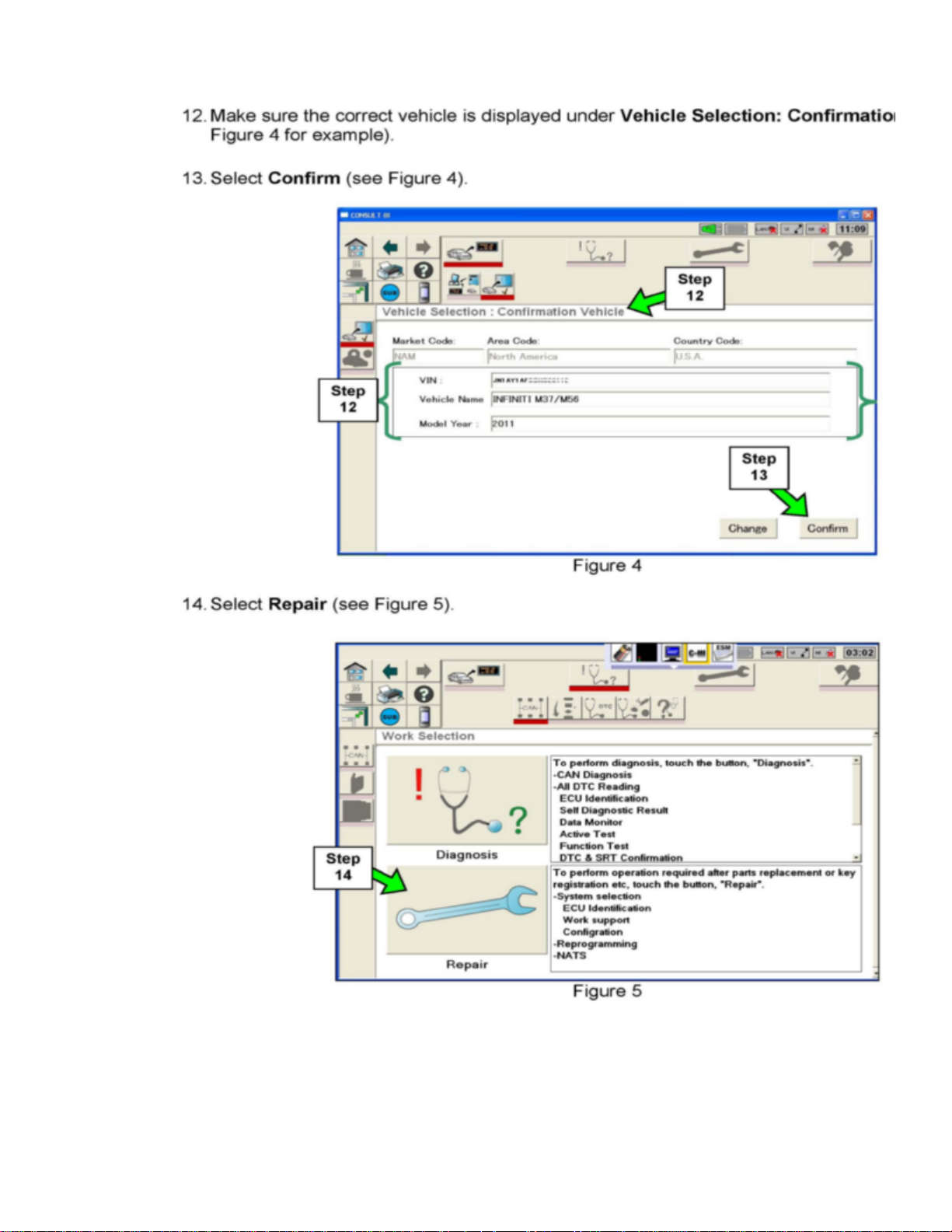

A complete step-by-step General Procedure for CONSULT-III (C-III) ECM Reprogram Interruption Recovery is now available by attachment in thisbulletin.
While performing ECM (Engine Control Module) reprogramming, the reprogramming may stop (become interrupted) before it is 100% complete.
One of two messages may appear:
^ The VI probe is disconnected on USB, please check the connection of the probe.
^ Reprogramming fail, "Error code 0".

In many cases, reprogramming recovery is possible and the ECM may not need to be replaced if the complete ECM part number has been registered intothe ECM before reprogramming stopped.

NOTE:

ECM is referred to as ECU in C-III.

The ECM Reprogram Interruption Recovery General Procedure applies to Technical Service Bulletins that include ECM reprogramming published inApril 2010 and later.

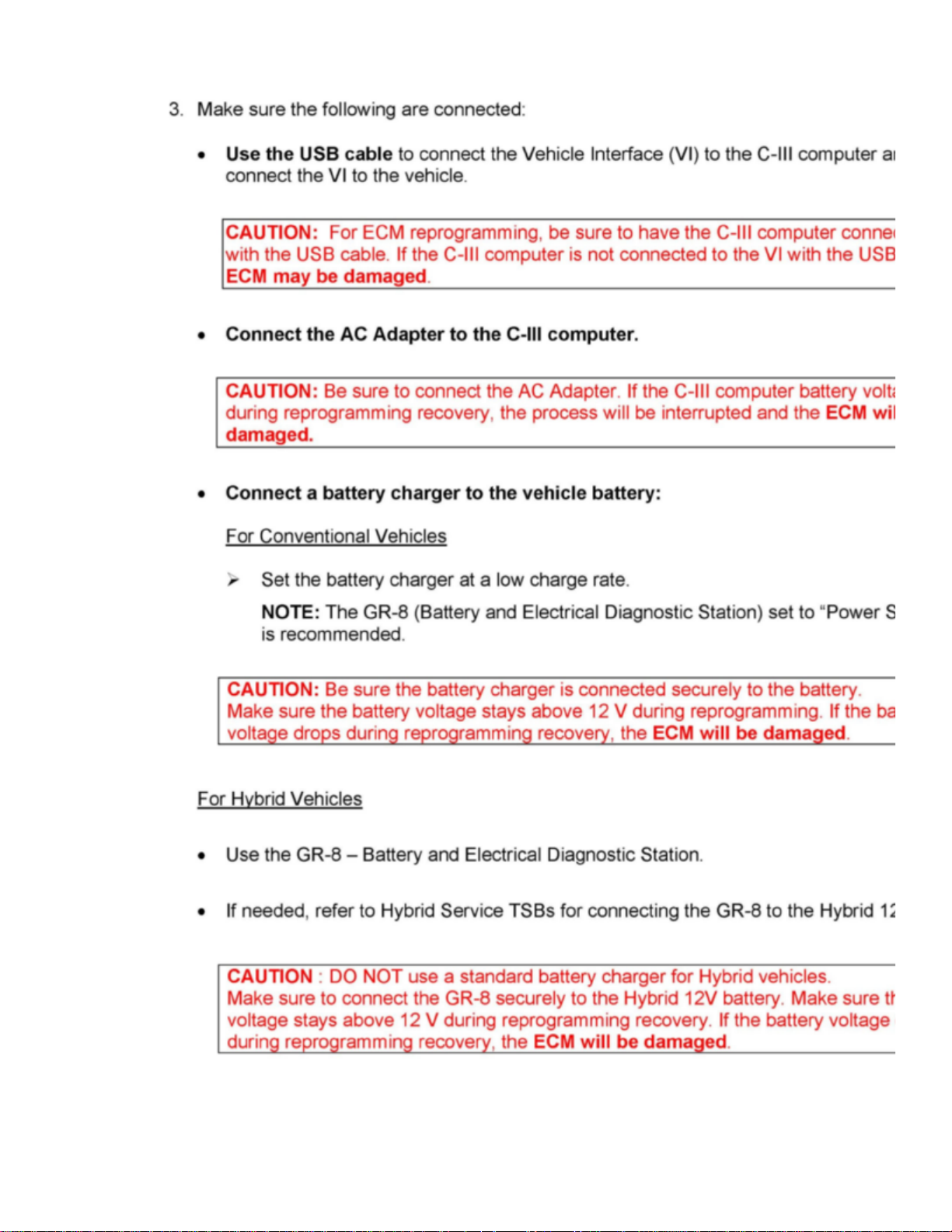

IMPORTANT: BEFORE STARTING REPROGRAMMING

^ Connect a battery charger to the vehicle battery.
^ Be sure to turn OFF all vehicle electrical loads.
^ For ECM reprogramming, the C-III MUST be connected to the VI using the USB cable.
^ Be sure to connect the AC Adapter.

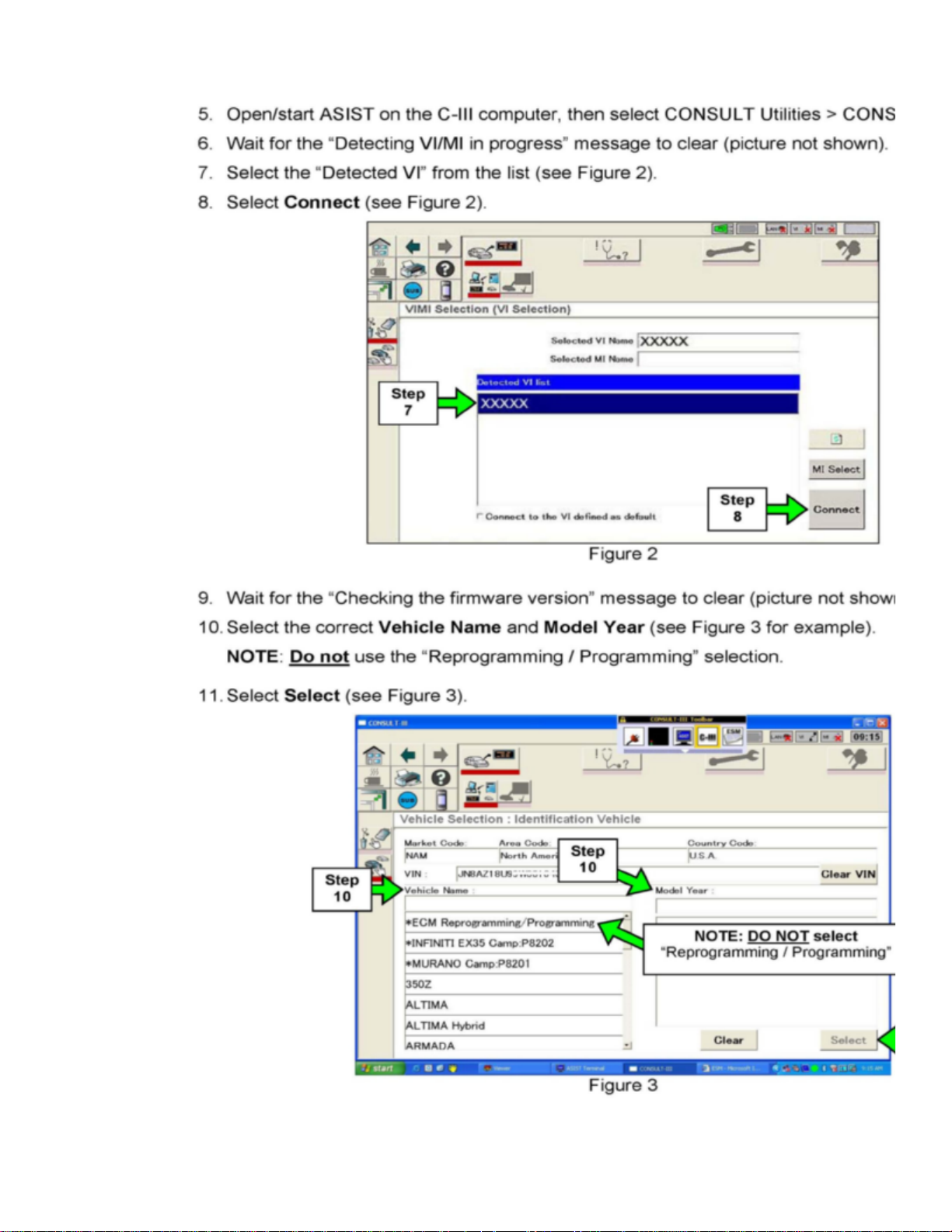

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Technical Service Bulletins > All Technical Service Bulletins for Engine Control Module: > 10-078 > Jun > 10 > Engine Controls - ECM Programming

Interruption Recovery > Page 103

Xterra XE 2WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Technical Service Bulletins > All Technical Service Bulletins for Engine Control Module: > 10-078 > Jun > 10 > Engine Controls - ECM Programming

Interruption Recovery > Page 104

Xterra XE 2WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Technical Service Bulletins > All Technical Service Bulletins for Engine Control Module: > 10-078 > Jun > 10 > Engine Controls - ECM Programming

Interruption Recovery > Page 105

Xterra XE 2WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Technical Service Bulletins > All Technical Service Bulletins for Engine Control Module: > 10-078 > Jun > 10 > Engine Controls - ECM Programming

Interruption Recovery > Page 106

Xterra XE 2WD V6-3.3L (VG33E) (2000)

> Relays and Modules > Relays and Modules - Powertrain Management > Relays and Modules - Computers and Control Systems > Engine Control Module > Component

Information > Technical Service Bulletins > All Technical Service Bulletins for Engine Control Module: > 10-078 > Jun > 10 > Engine Controls - ECM Programming

Interruption Recovery > Page 107

Xterra XE 2WD V6-3.3L (VG33E) (2000)
