Nissan Maxima 2010 User Manual

2010 MAXIMA

OWNER’S MANUAL

For your safety, read carefully and keep in this vehicle.

FOREWORD READ FIRST—THEN DRIVE SAFELY

Welcome to the growing family of new NISSAN owners. This vehicle is delivered to you with confidence. It was produced using the latest techniques and strict quality control.

This manual was prepared to help you understand the operation and maintenance of your vehicle sothat you may enjoy many miles (kilometers) of driving pleasure. Please read through this manual before operating your vehicle.

A separate Warranty Information Booklet explains details about the warranties covering your vehicle. The “NISSAN Service and Maintenance Guide” explains details about maintaining and servicing your vehicle. Additionally, a separate Customer Care/Lemon Law Booklet (U.S. only) will explain how to resolve any concerns you may have with your vehicle, as well as clarify your rights under your state’s lemon law.

Your NISSAN dealership knows your vehicle best. When you require any service or have any questions, they will be glad to assist you with the extensive resources available to them.

Before driving your vehicle, please read this Owner’s Manual carefully. This will ensure familiarity with controls and maintenance requirements, assisting you in the safe operation of your vehicle.

WARNING

IMPORTANT SAFETY INFORMATION REMINDERS FOR SAFETY!

Follow these important driving rules to help ensure a safe and comfortable trip for you and your passengers!

● NEVER drive under the influence of alcohol or drugs.

● ALWAYS observe posted speed limits and never drive too fast for conditions.

ALWAYS give your full attention to driving

●

and avoid using vehicle features or taking other actions that could distract you.

●

ALWAYS use your seat belts and appropriate child restraint systems. Preteen children should be seated in the rear seat.

● ALWAYS provide information about the proper use of vehicle safety features to all occupants of the vehicle.

● ALWAYS review this Owner’s Manual for important safety information.

MODIFICATION OF YOUR VEHICLE This vehicle should not be modified.

Modification could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from modifications may not be covered under NISSAN warranties.

WHEN READING THE MANUAL

This manual includes information for all options available on this model. Therefore, you may find some information that does not apply to your vehicle.

All information, specifications and illustrations in this manual are those in effect at the time of printing. NISSAN reserves the right to change specifications or design without notice and without obligation.

IMPORTANT INFORMATION ABOUT THIS MANUAL

You will see various symbols in this manual. They are used in the following ways:

WARNING

This is used to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.

CAUTION

This is used to indicate the presence of a hazard that could cause minor or moderate personal injury or damage to your vehicle. To avoid or reduce the risk, the procedures must be followed carefully.

APD1005

If yousee this symbol, it means “Do not do this” or “Do not let this happen.”

If you see a symbol similar to these in an illustration, it means the arrow points to the front of the vehicle.

Arrows in an illustration that are similar to these indicate movement or action.

Arrows in an illustration that are similar to these call attention to an item in the illustration.

CALIFORNIA PROPOSITION 65 WARNING

WARNING

Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CALIFORNIA PERCHLORATE ADVISORY

Some vehicle parts, such as lithium batteries, may contain perchlorate material. The following advisory is provided: “Perchlorate Material – special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”

BLUETOOTH威 is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Visteon and Clarion.

Gracenote威 is a registered trademark of Gracenote, Inc. The Gracenote logo and logo type, and the “Powered by Gracenote” logo are trademarks of Gracenote.

XM Radio威 requires subscription, sold separately after first 90 days. Not available in Alaska, Hawaii or Guam. For more information, visit www.xmradio.com.

All rights reserved. No part of this Owner’s Manual may be reproduced or stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Nissan North America, Inc.

NISSAN CUSTOMER CARE PROGRAM

NISSAN CARES...

Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.

However, if there is something that your NISSAN dealer cannot assist you with or you would like to provide NISSAN directly with comments or questions, please contact the NISSAN Consumer Affairs Department using our toll-free number:

For U.S. customers

1-800-NISSAN-1 (1-800-647-7261)

For Canadian customers

1-800-387-0122

We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.

The Consumer Affairs Department will ask for the following information:

– Your name, address, and telephone number

– Vehicle identification number (attached to the

top of the instrument panel on the driver’s side)

– Date of purchase

– Current odometer reading

– Your NISSAN dealer’s name

– Your comments or questions

You can write to NISSAN with the information at:

For U.S. customers

Nissan North America, Inc. Consumer Affairs Department P.O. Box 685003 Franklin, TN 37068-5003

For Canadian customers

Nissan Canada Inc. 5290 Orbitor Drive Mississauga, Ontario L4W 4Z5

or via e-mail at:

For U.S. customers

nnaconsumeraffairs@nissan-usa.com

For Canadian customers

information.centre@nissancanada.com

Table of

Illustrated table of contents

Contents

Safety—Seats, seat belts and supplemental restraint system

Instruments and controls

Pre-driving checks and adjustments

Monitor, climate, audio, phone and voice recognition systems

Starting and driving

In case of emergency

Appearance and care

Maintenance and do-it-yourself

Technical and consumer information

Index

0 Illustrated table of contents

Air bags, seat belts and child restraints ..............0-2

Exterior front ......................................0-3

Exterior rear.......................................0-4

Passenger compartment ...........................0-5

Instrument panel...................................0-6

Engine compartment check locations . . . .............0-8

Warning/indicator lights ............................0-9

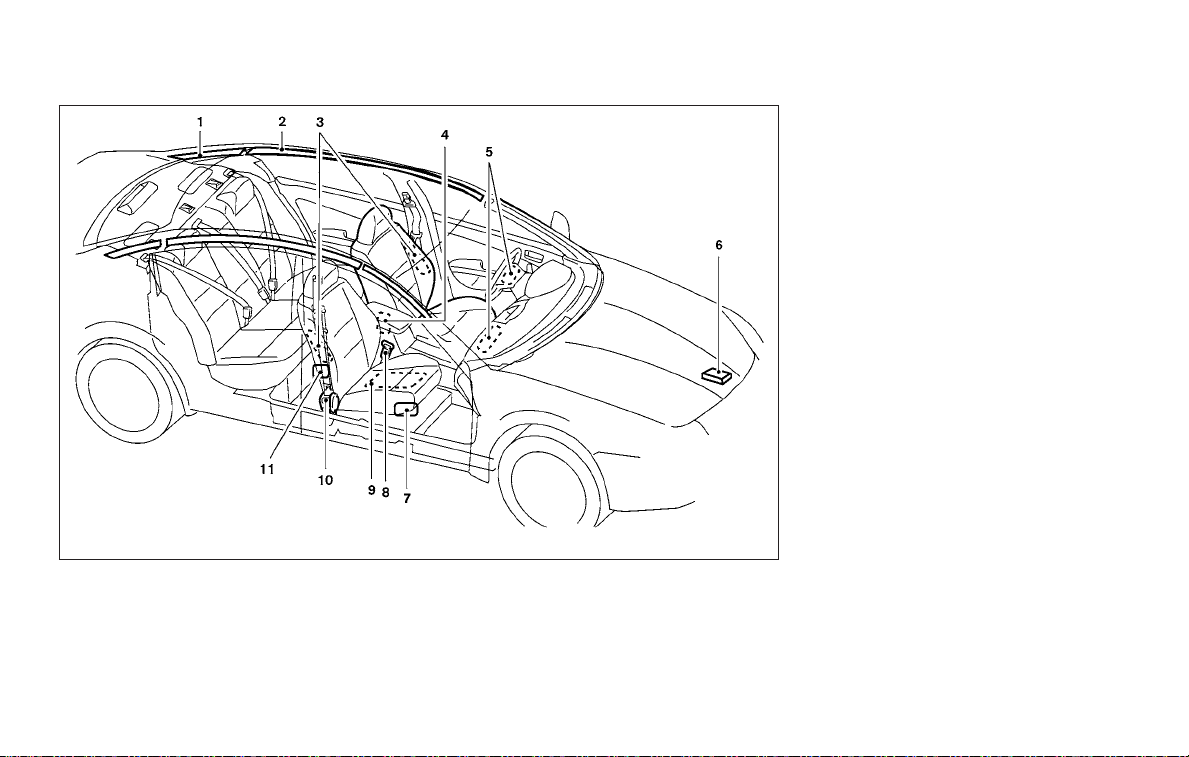

AIR BAGS, SEAT BELTS AND CHILD RESTRAINTS

1. Top tether strap anchor (P. 1-35)

2. Adjustable headrest (P. 1-10)

3. Rear seat belts (P. 1-13)

4. Roof-mounted curtain side-impact supplemental air bag (P. 1-39)

5. Front seat-mounted side-impact supplemental air bags (P. 1-39)

6. Head Restraints (P. 1-7)

7. Front seat belts (P. 1-13)

8. Supplemental front-impact air bags (P. 1-39)

9. Seats (P. 1-2)

10. Occupant classification sensor (pattern sensor) (P. 1-46)

11. Seat belts with pretensioners (P. 1-52)

12. LATCH (Lower Anchors and Tethers for CHildren) system (P. 1-23)

See the page number indicated in parentheses for operating details.

0-2 Illustrated table of contents

LII0065

EXTERIOR FRONT

1. Engine hood (P. 3-18)

2. Windshield wiper and washer switch (P. 2-26)

3. Windshield (P. 8-19)

4. Moonroof (if so equipped) (P. 2-45)

5. Power windows (P. 2-42)

6. Door locks, NISSAN Intelligent Key™, keys, request button (P. 3-4, 3-2, 3-2, 3-2)

7. Mirrors (P. 3-25)

8. Tire pressure (P. 8-31)

9. Flat tire (P. 6-2)

10. Tire chains (P. 8-39)

11. Headlight and turn signal switch (P. 2-28)

12. Replacing bulbs (P. 8-29)

13. Fog light switch (if so equipped) (P. 8-26)

See the page number indicated in parentheses for operating details.

WII0155

Illustrated table of contents 0-3

EXTERIOR REAR

1. Rear window defroster switch (P. 2-27)

2. Interior trunk lid release (P. 3-20)

3. Trunk lid (P. 3-18)

4. Vehicle loading (P. 9-12)

5. Exterior trunk lid release/request button (P. 3-13)

6. Replacing bulbs (P. 8-29)

7. Fuel-filler cap, fuel recommendation (P. 3-21, P. 9-3)

8. Fuel-filler door (P. 3-21)

9. Child safety rear door locks (P. 3-6)

See the page number indicated in parentheses for operating details.

0-4 Illustrated table of contents

WII0156

PASSENGER COMPARTMENT

1. Interior trunk access (P. 1-5)

2. Moonroof (if so equipped) (P. 2-45)

3. Sun visors (P. 3-24)

4. Interior lights, illuminated entry (P. 2-50)

5. HomeLink姞 universal transceiver (if so equipped) (P. 2-53)

6. Interior mirrors (P. 3-25)

7. Glove box (P. 2-39)

8. Cup holders (P. 2-38)

9. Console box (P. 2-40)

10. Front seat (P. 1-2)

11. Rear seat (P. 1-5)

See the page number indicated in parentheses for operating details.

WII0126

Illustrated table of contents 0-5

INSTRUMENT PANEL

1. Side and center vents (P. 4-40)

2. Headlight/fog light (if so equipped)/turn signal switch (P. 2-28)

3. Steering wheel switch for audio control and Bluetooth姞 Hands-Free Phone System (P. 4-114, 4-118)

0-6 Illustrated table of contents

4. Meters and gauges (P. 2-3)

5. Driver supplemental air bag/horn (P. 1-39, P. 2-33)

6. Security indicator light (P. 2-24)

7. Cruise control main/set switches (P. 5-18)

WIC1535

8. Shift paddles (if so equipped) (P. 5-15)

9. Windshield wiper/washer switch (P. 2-26)

10. Display screen/Navigation system* (if so equipped) (P. 4-16)

11. Display screen/Navigation system* controls (if so equipped) (P. 4-16)

12. Front passenger supplemental air bag (P. 1-53)

13. Glove box (P. 2-39)

14. Display screen (models without Navigation system) (P. 4-4)

15. Climate controls (models without Navigation system) (P. 4-41)

16. Audio system controls (models without Navigation system) (P. 4-48)

17. Passenger air bag status light (P. 1-50)

18. Audio system controls (P. 4-48)

19. Climate controls (models with Navigation system) (P. 4-44)

20. Shift selector (P. 5-11)

21. Hazard warning flasher switch (P. 2-33)

22. Ignition switch (behind the steering wheel) (P. 5-7)

23. Tilt/telescopic steering wheel controls (if so equipped) (P. 3-23)

24. Vehicle Dynamic Control (VDC) OFF switch (P. 2-36) Outside mirror controls (P. 3-27) Heated steering wheel switch (if so equipped) (P. 2-35) Trunk lid release switch (P. 3-20) Rear control cancel switch (if so equipped) (P. 2-49)

* Refer to the separate Navigation System Owner’s Manual (if so equipped).

See the page number indicated in parentheses for operating details.

Illustrated table of contents 0-7

ENGINE COMPARTMENT CHECK LOCATIONS

1. Power steering fluid reservoir (P. 8-12)

2. Engine oil filler cap (P. 8-9)

3. Brake fluid reservoir (P. 8-13)

4. Air cleaner (P. 8-17)

5. Fuse block (P. 8-21)

6. Battery (P. 8-14)

7. Fuse/fusible link box (P. 8-21)

8. Engine oil dipstick (P. 8-9)

9. Radiator cap (P. 8-7)

10. Drive belt location (P. 8-16)

11. Engine coolant reservoir * (P. 8-7)

12. Windshield-washer fluid reservoir * (P. 8-13)

NOTE:

* Side covers removed for clarity.

See the page number indicated in parentheses for operating details.

0-8 Illustrated table of contents

WDI0662

WARNING/INDICATOR LIGHTS

Warning

light

Name Page

Anti-lock Braking System (ABS) warning light

Brake warning light 2-11

Charge warning light

Engine oil pressure warning light

Low tire pressure warning light

Master warning light 2-13

2-11

2-12

Warning

light

Indicator

light

Name Page

NISSAN Intelligent Key™ warning light

Seat belt warning light and chime

Supplemental air bag warning light

Name Page

Continuously Variable Transmission (CVT) indicator light

Continuously Variable Transmission (CVT) position indicator light

CRUISE main switch indicator light

2-13

2-14

2-10

2-14

Indicator

light

Name Page

Fog light indicator light (if so equipped)

Front passenger air bag status light

High beam indicator light (blue)

Malfunction indicator light (MIL)

Security indicator light

Slip indicator light 2-16

Turn signal/hazard indicator lights

Vehicle Dynamic Control OFF indicator light

2-14

2-15

2-16

Illustrated table of contents 0-9

MEMO

0-10 Illustrated table of contents

1 Safety—Seats, seat belts and supplemental restraint system

Seats ............................................1-2

Front power seat adjustment.....................1-3

Folding rear seat (if so equipped).................1-5

Head restraints.................................1-7

Adjustable headrest (if so equipped) .............1-10

Seat belts .......................................1-13

Precautions on seat belt usage..................1-13

Pregnant women ..............................1-16

Injured persons................................1-16

Three-point type seat belt with retractor ..........1-16

Seat belt extenders ............................1-19

Seat belt maintenance .........................1-19

Child safety ......................................1-20

Infants........................................1-20

Small children .................................1-20

Larger children ................................1-21

Child restraints ...................................1-21

Precautions on child restraints ..................1-21

LATCH (Lower Anchors and Tethers for

CHildren) System .............................1-23

Rear-facing child restraint installation using

LATCH.......................................1-25

Rear-facing child restraint installation using

the seat belts .................................1-27

Forward-facing child restraint installation

using LATCH..................................1-30

Forward-facing child restraint installation

using the seat belts ............................1-32

Installing top tether strap .......................1-35

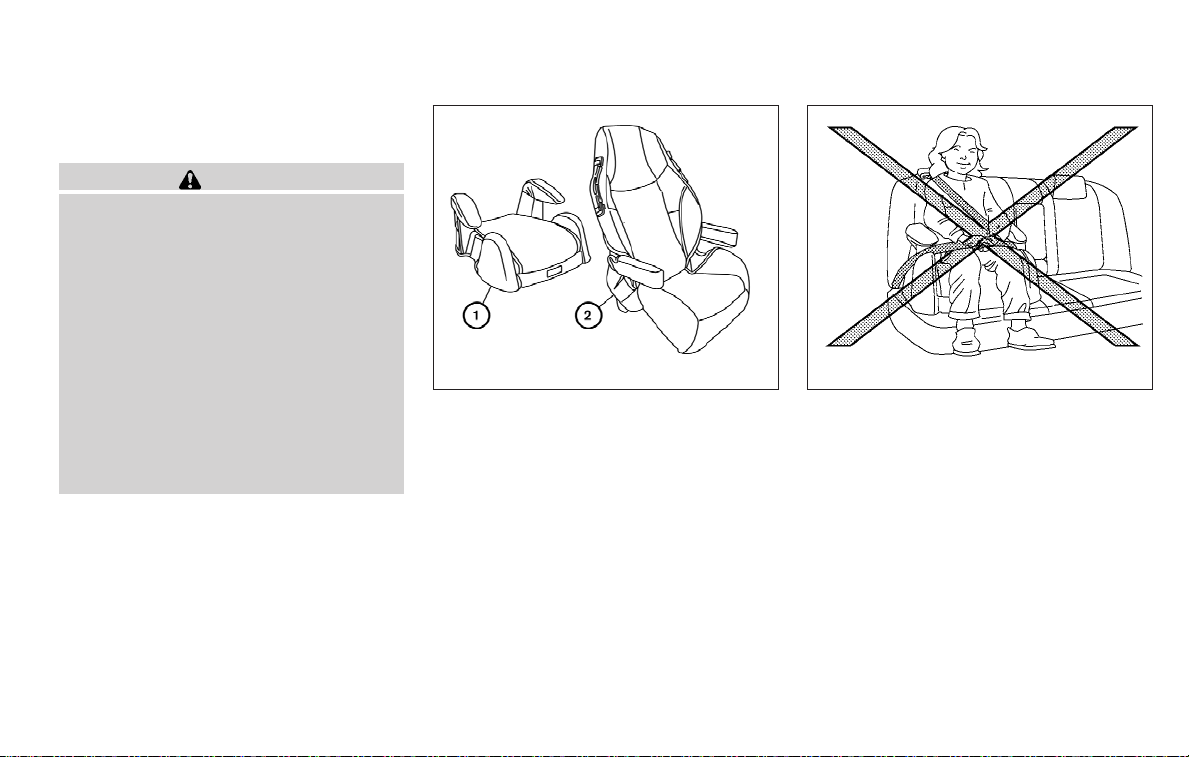

Booster seats .................................1-36

Supplemental restraint system .....................1-39

Precautions on supplemental restraint

system .......................................1-39

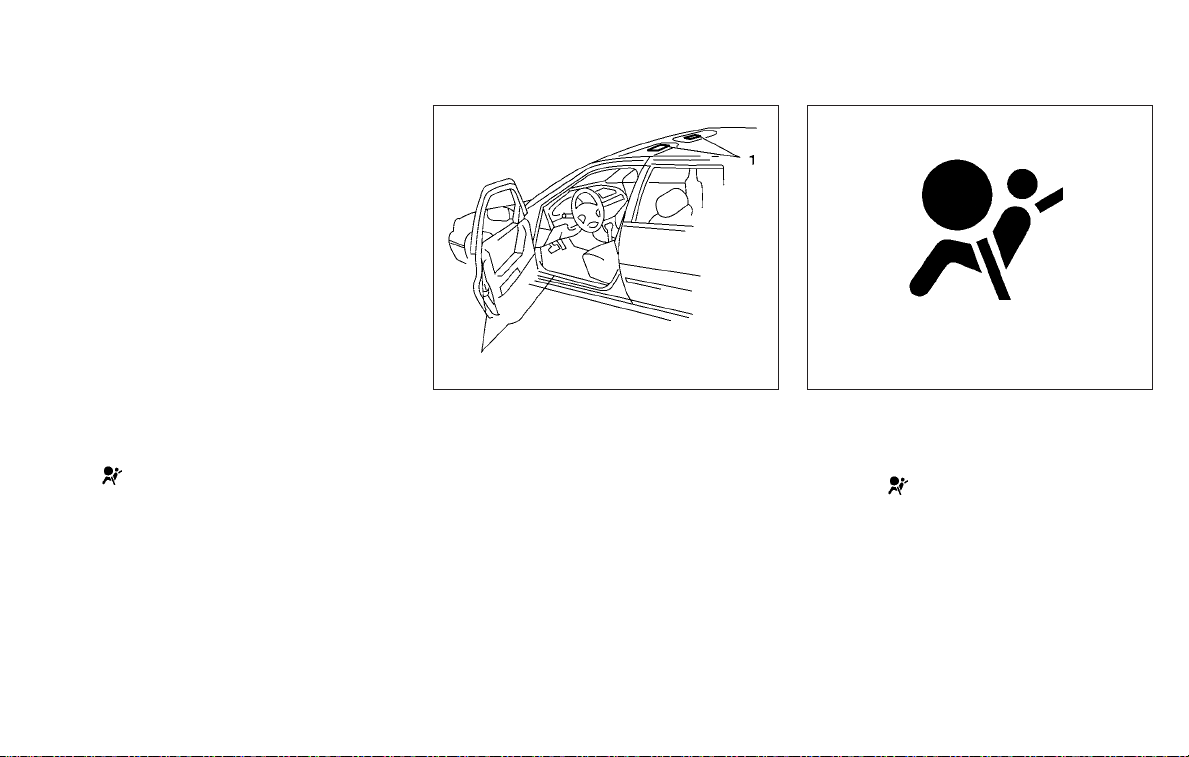

Supplemental air bag warning labels .............1-53

Supplemental air bag warning light ..............1-53

SEATS

WARNING

● Do not ride in a moving vehicle when the seatback is reclined. This can be dangerous. The shoulder belt will not be against your body. In an accident, you could be thrown into it and receive neck or other serious injuries. You could also slide under the lap belt and receive serious internal injuries.

● The seatback should not be reclined any more than needed for comfort. Seat belts are most effective when the passenger sits well back and straight up in the seat. If the seatback is reclined, the risk of sliding under the lap belt and being injured is increased.

CAUTION

When adjusting the seat positions, be sure not to contact any moving parts to avoid possible injuries and/or damage.

ARS1152

● For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat with both feet on the floor and adjust the seat properly. See “Precautions on seat belt usage” later in this section.

● After adjustment, gently rock in the seat to make sure it is securely locked.

● Do not leave children unattended inside the vehicle. They could unknowingly activate switches or controls. Unattended children could become involved in serious accidents.

1-2 Safety—Seats, seat belts and supplemental restraint system

FRONT POWER SEAT ADJUSTMENT

Operating tips

● The power seat motor has an auto-reset overload protection circuit. If the motor stops during operation, wait 30 seconds, then reactivate the switch.

● Do not operate the power seat switch for a long period of time when the engine is off. This will discharge the battery.

See “Automatic drive positioner ” in “Pre-driving checks and adjustments” for automatic drive positioner operation.

The reclining feature allows adjustment of the seatback for occupants of different sizes for added comfort and to help obtain proper seat belt fit (see “Precautions on seat belt usage” later in this section). Also, the seatback can be reclined to allow occupants to rest when the vehicle is stopped and the shift selector is in P (Park).

WRS0860

Forward and backward

Moving the switch forward or backward will slide the seat forward or backward to the desired position.

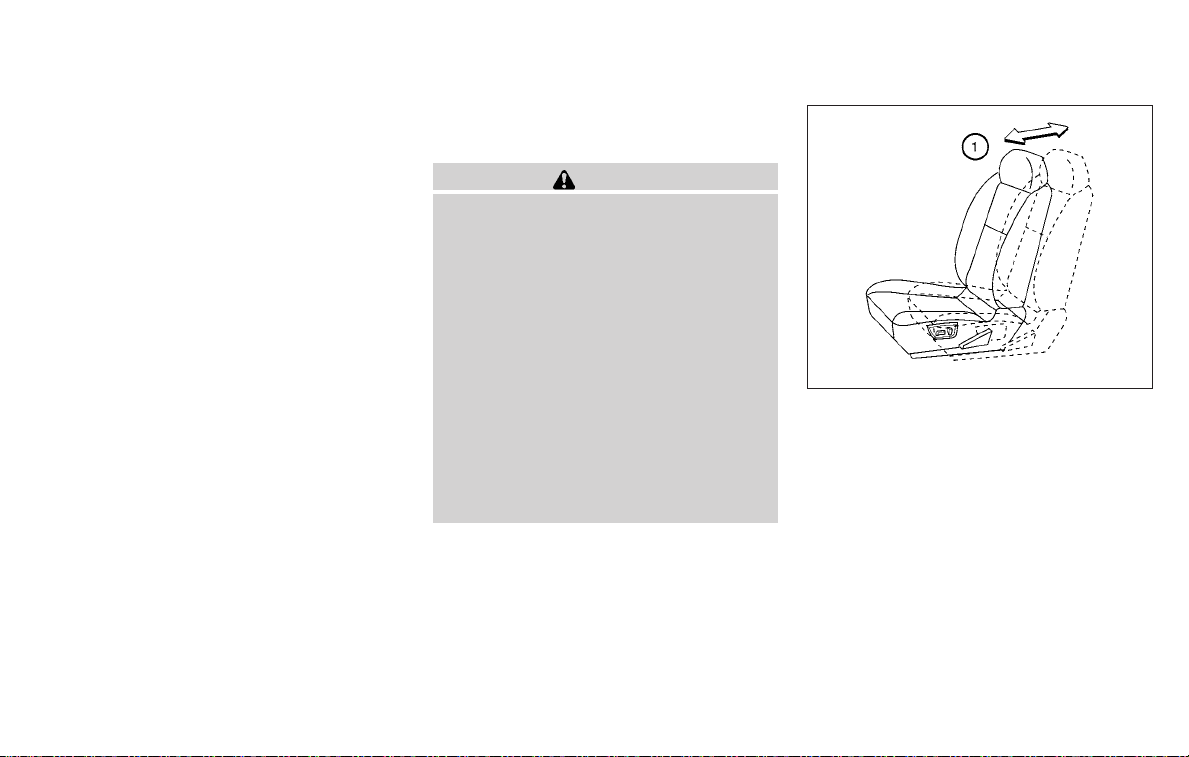

Reclining

Move the recline switch backward until the desired angle is obtained. To bring the seatback forward again, move the switch forward and move your body forward. The seatback will move forward.

Safety—Seats, seat belts and supplemental restraint system 1-3

WRS0861

Seat lifter (driver’s seat)

Push the front or rear end of the switch up or down to adjust the angle and height of the seat cushion.

Lumbar support (driver’s seat)

The lumbar support feature provides lower back support to the driver. Move the lever up or down (manual) or move the switch forwardor backward (power) to adjust the seat lumbar area.

Manual (if so equipped)

1-4 Safety—Seats, seat belts and supplemental restraint system

LRS0862

LRS0238

Power (if so equipped)

LRS0863

Thigh extension (driver’s side only, if so equipped)

Pull up and hold the lever to extend the front portion to the desired position.

FOLDING REAR SEAT (if so equipped)

WRS0866

Interior trunk access

For models without a rear center console, the trunk can be accessed from the passenger side of the rear seat for loading and unloading, as shown.

Push down on the button on the rear parcel

䊊

shelf.

Fold down the passenger side seatback.

䊊

WARNING

● Never allow anyone to ride in the cargo area or on the rear seat when it is in the fold-down position. Use of these areas by passengers without proper restraints could result in serious injury in an accident or sudden stop.

● Properly secure all cargo with ropes or straps to help prevent it from sliding or shifting. Do not place cargo higher than the seatbacks. In a sudden stop or collision, unsecured cargo could cause personal injury.

Safety—Seats, seat belts and supplemental restraint system 1-5

● When returning the seatbacks to the upright position, be certain they are completely secured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.

● Closely supervise children when they are around cars to prevent them from playing and becoming locked in the trunk where they could be seriously injured. Keep the car locked, with the rear seatback and trunk lid securely latched when not in use, and prevent children’s access to car keys.

Tofold down the driver side of the rear seat, reach through the opening and pull on the strap located behind the seat.

The rear seats can be locked using the mechanical key to prevent unauthorized access.

1-6 Safety—Seats, seat belts and supplemental restraint system

WRS0867 LPD0459

Secondary trunk lid release (if so

䊊

equipped)

For models with a rear center console, the trunk can be accessed through the access panel between the rear seats, as shown.

● Fold down the center arm rest.

● Insert the mechanicalkey into the trunk com-

partment access lid lock. Fold down the trunk compartment access lid. For more information on the mechanical key, see “NISSAN Intelligent Key™” in the Pre-driving checks and adjustments chapter.

● Pull the rear seat trunk release handle

䊊

WRS0868 LRS0893

Center armrest

Pull the armrest down until it is horizontal.

HEAD RESTRAINTS

WARNING

Head restraints supplement the other vehicle safety systems. They may provide additional protection against injury in certain rear end collisions. Adjust the head restraints properly, as specified in this section. Check the adjustment after someone else uses the seat. Do not attach anything to the head restraint stalks or remove the head restraint. Do not use the seat if the head restraint has been removed. If the head restraint was removed, reinstall and properly adjust the head restraint before an occupant uses the seating position. Failure to follow these instructions can reduce the effectiveness of the head restraints. This may increase the risk of serious injury or death in a collision.

The illustration shows the seating positions equipped with head restraints. All of the head restraints are adjustable.

䉱 Indicates the seating position is equipped with a head restraint.

Safety—Seats, seat belts and supplemental restraint system 1-7

LRS0887 WRS0134 LRS0888

Components

1. Head restraint

2. Adjustment notches

3. Lock knob

4. Stalks

Adjustment

Adjust the head restraint so the center is level with the center of the seat occupant’s ears.

1-8 Safety—Seats, seat belts and supplemental restraint system

To raise the head restraint, pull it up.

LRS0889 LRS0890 LRS0891

To lower, push and hold the lock knob and push the head restraint down.

Removal

Use the following procedure to remove the adjustable head restraints.

1. Pull the head restraint up to the highest position.

2. Push and hold the lock knob.

3. Remove the head restraint from the seat.

4. Store the head restraint properly so it is not loose in the vehicle.

5. Reinstall and properly adjust the head restraint before an occupant uses the seating position.

Safety—Seats, seat belts and supplemental restraint system 1-9

Install

1. Align the head restraint stalks with the holes in the seat. Make sure the head restraint is facing the correct direction. The stalk with the adjustmentnotches in the hole with the lock knob

2. Push and hold the lock knob and push the head restraint down.

3. Properly adjust the head restraint before an occupant uses the seating position.

must beinstalled

䊊

Adjust the Active Head Restraints properly as described in this section.

ADJUSTABLE HEADREST (if so equipped)

WARNING

The adjustable headrests supplement the other vehicle safety systems. They may provide additional protection against injury in certain rear end collisions. Adjust the headrests properly, as specified in this section. Check the adjustment after

SPA1025 LRS0898

Front-seat Active Head Restraints

The Active Head Restraint moves forward utilizing the force that the seatback receives from the occupant in a rear-end collision. The movement of the head restraint helps support the occupant’s head by reducing its backward movement and helping absorb some of the forces that may lead to whiplash-type injuries.

Active Head Restraints are effective for collisions at low to medium speeds in which it is said that whiplash injury occurs most.

Active Head Restraints operate only in certain rear-end collisions. After the collision, the head restraints return to their original position.

someone else uses the seat. Do not attach anything to the adjustable headrest stalks or remove the adjustable headrests. Do not use the seat if the adjustable headrests have been removed. If the headrest was removed, reinstall and properly adjust the headrest before an occupant uses the seating position. Failure to follow these instructions can reduce the effectiveness of the adjustable headrests. This may increase the risk of serious injury or death in a collision.

1-10 Safety—Seats, seat belts and supplemental restraint system

The illustration shows the seating positions equipped with adjustable headrests. All of the headrests are adjustable.

䡲 Indicates the seating position is equipped with an adjustable headrest.

+ Indicates the seating position is not equipped with a head restraint or adjustable headrest.

Components

1. Adjustable headrest

2. Adjustment notches

3. Lock knob

4. Stalks

LRS0887 WRS0134 LRS0888

Adjustment

Adjust the headrest so the center is level with the center of the seat occupant’s ears.

To raise the headrest, pull it up.

Safety—Seats, seat belts and supplemental restraint system 1-11

LRS0889 LRS0890 LRS0891

To lower, push and hold the lock knob and push the headrest down.

Removal

Use the following procedure to remove the adjustable headrests.

1. Pull the headrest up to the highest position.

2. Push and hold the lock knob.

3. Remove the headrest from the seat.

4. Store the headrest properly so it is not loose in the vehicle.

5. Reinstall and properly adjust the headrest before an occupant uses the seating position.

1-12 Safety—Seats, seat belts and supplemental restraint system

Install

1. Align the headrest stalks with the holes in the seat. Make sure the headrest is facing the correct direction. The stalk with the adjustment notches hole with the lock knob

2. Push and hold the lock knob and push the headrest down.

3. Properly adjust the headrest before an occupant uses the seating position.

must be installed in the

䊊

SEAT BELTS

PRECAUTIONS ON SEAT BELT USAGE

If you are wearing your seat belt properly adjusted and you are sitting upright and well back in your seat with both feet on the floor, your chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. NISSAN strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position includes a supplemental air bag.

Most U.S. states and Canadian provinces or territories specify that seat belts be worn at all times when a vehicle is being driven.

SSS0136

Safety—Seats, seat belts and supplemental restraint system 1-13

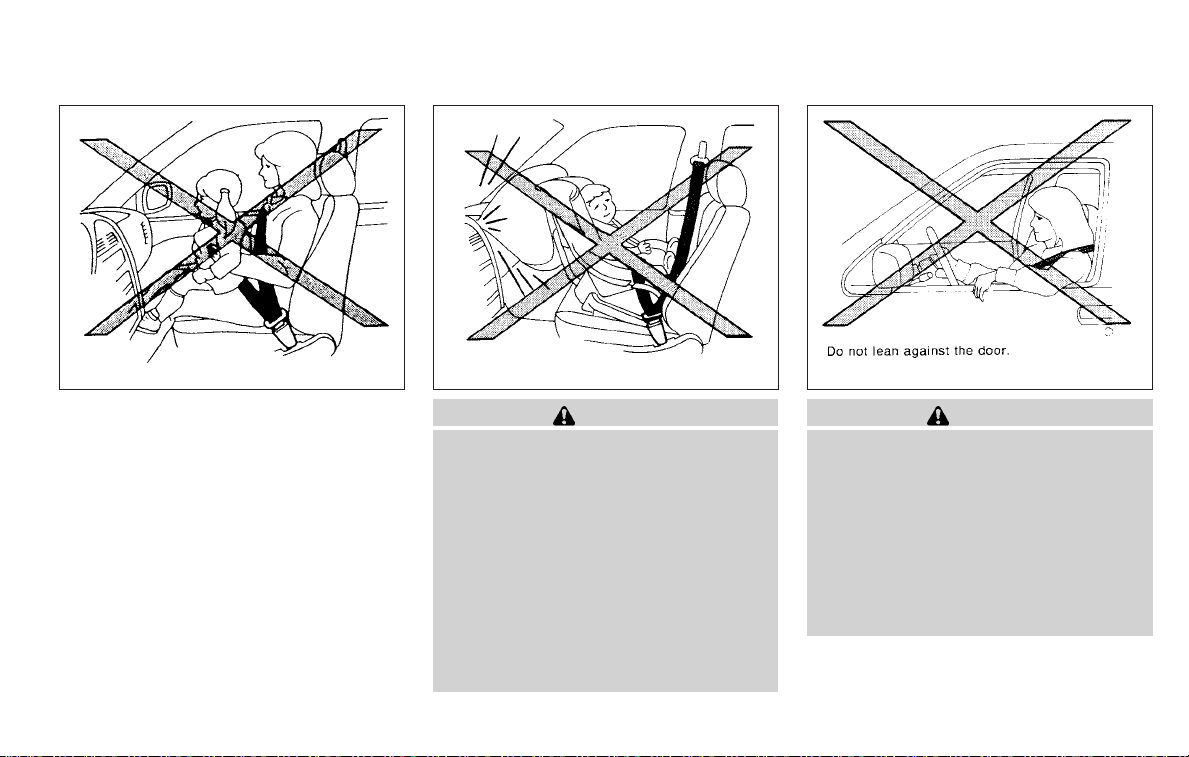

WARNING

● Every person who drives or rides in this vehicle should use a seat belt at all times. Children should be properly restrained in the rear seat and, if appropriate, in a child restraint.

1-14 Safety—Seats, seat belts and supplemental restraint system

SSS0134 SSS0016

WARNING

● The seat belt should be properly adjusted to a snug fit. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an accident. Serious injury or death can occur if the seat belt is not worn properly.

SSS0014

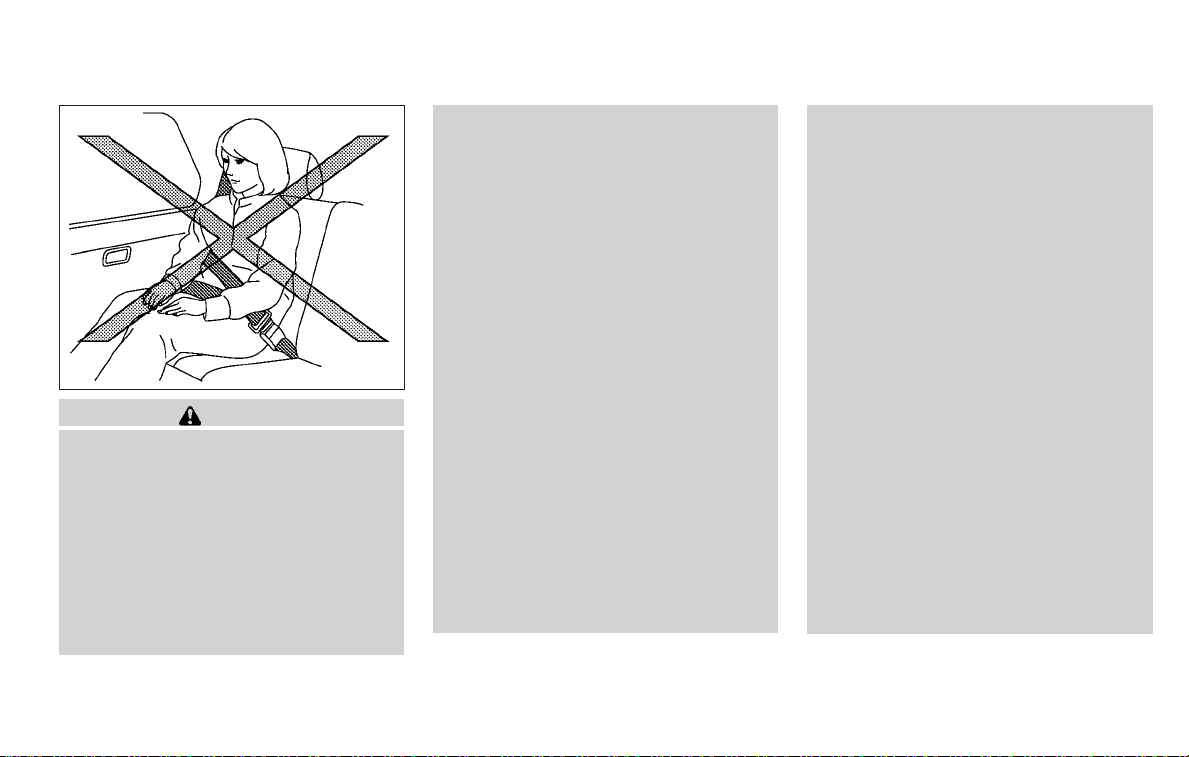

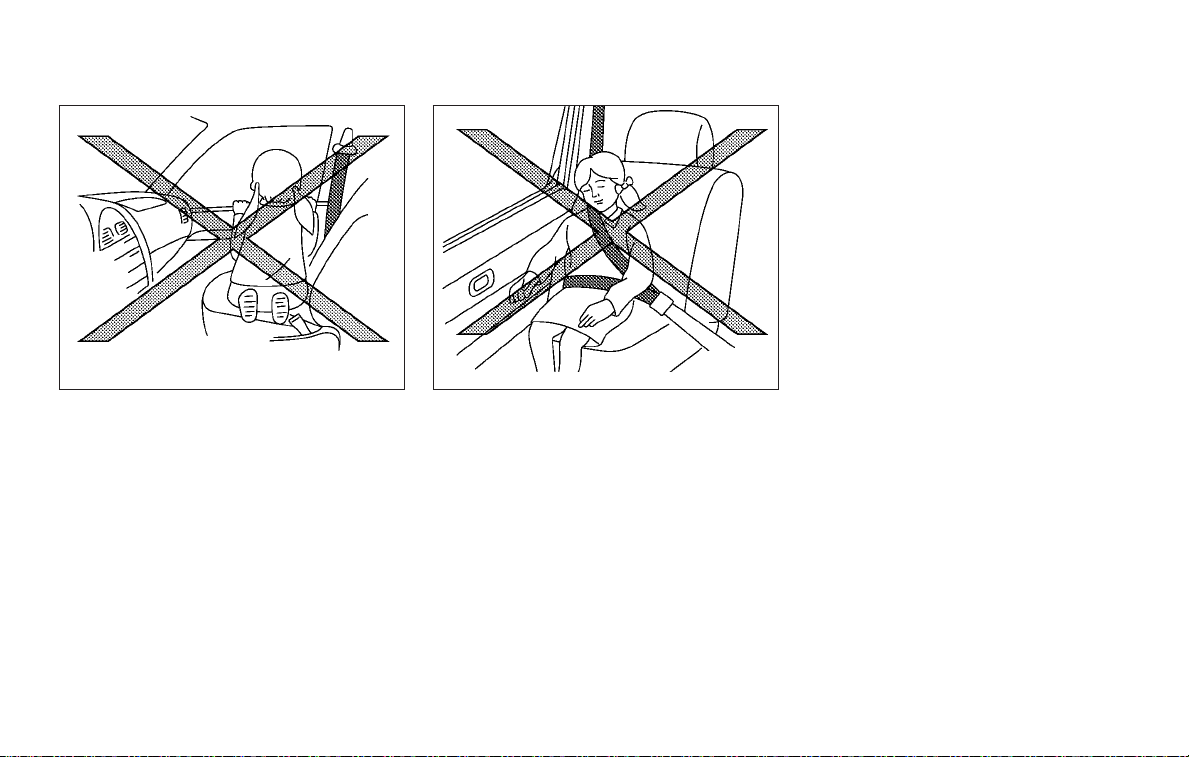

WARNING

● Always route the shoulder belt over your shoulder and across your chest. Never put the belt behind your back, under your arm or across your neck. The belt should be away from your face and neck, but not falling off your shoulder.

● Position the lap belt as low and snug as possible AROUND THE HIPS, NOT THE WAIST. A lap belt worn too high could increase the risk of internal injuries in an accident.

● Be sure the seat belt tongue is securely fastened to the proper buckle.

● Do not wear the seat belt inside out or twisted. Doing so may reduce its effectiveness.

● Do not allow more than one person to use the same seat belt.

● Never carry more people in the vehicle than there are seat belts.

● If the seat belt warning light glows continuously while the ignition is placed in the ON position with all doors closed and all seat belts fastened, it may indicate a malfunction in the system. Have the system checked by a NISSAN dealer.

● No changes should be made to the seat belt system. For example, do not modify the seat belt, add material, or install devices that may change the seat belt routing or tension. Doing so may affect the operation of the seat belt system. Modifying or tampering with the seat belt system may result in serious personal injury.

● Once a seat belt pretensioner has activated, it cannot be reused and must be replaced together with the retractor. See your NISSAN dealer.

● Removal and installation of pretensioner system components should be done by a NISSAN dealer.

● All seat belt assemblies, including retractors and attaching hardware, should be inspected after any collision by a NISSAN dealer. NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the collision was minor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.

● All child restraints and attaching hardware should be inspected after any collision. Always follow the restraint manufacturer’s inspection instructions and replacement recommendations. The child restraints should be replaced if they are damaged.

Safety—Seats, seat belts and supplemental restraint system 1-15

PREGNANT WOMEN

NISSAN recommends that pregnant women use seat belts. The seat belt shouldbe wornsnug and always position the lap belt as low as possible around the hips, not the waist. Place the shoulder belt over your shoulder and across your chest. Never run the lap/shoulder belt over your abdominal area. Contact your doctor for specific recommendations.

INJURED PERSONS

NISSAN recommends that injured persons use seat belts. Check with your doctor for specific recommendations.

THREE-POINT TYPE SEAT BELT WITH RETRACTOR

WARNING

● Every person who drives or rides in this vehicle should use a seat belt at all times.

● For the most effective protection when the vehicle is in motion, the seat should be upright. Always sit well back in the seat with both feet on the floor and adjust the seat belt properly.

Front seat shown

Fastening the seat belts

Adjust the seat. See “Seats” earlier in this

䊊

section.

WRS0864

1-16 Safety—Seats, seat belts and supplemental restraint system

Slowly pull the seat belt out of the retractor

䊊

and insert the tongue into the buckle until you hear and feel the latch engage.

● The retractor is designed to lock during a sudden stop or on impact. A slow pulling motion permits the seat belt to move, and allows you some freedom of movement in the seat.

● If the seat belt cannot be pulled from its fully retracted position, firmly pull the belt and release it. Then smoothly pull the belt out of the retractor.

WRS0137 WRS0138

Position the lap belt portion low and snug

䊊

on the hips as shown.

Pull the shoulder belt portion toward the

䊊

retractor to take up extra slack. Be sure the shoulder belt is routed over your shoulder and across your chest.

The front passenger seat and the rear seating positions three-point seat belts have two modes of operation:

● Emergency Locking Retractor (ELR)

● Automatic Locking Retractor (ALR)

The Emergency Locking Retractor (ELR) mode allows the seat belt to extend and retract to allow the driver and passengers some freedom of movement in the seat. The ELR locks the seat belt when the vehicle slows down rapidly or during certain impacts.

The Automatic Locking Retractor (ALR) mode (child restraint mode) locks the seat belt for child restraint installation.

When the ALR mode is activated, the seat belt cannot be extended again until the seat belt tongue is detached from the buckle and fully retracted. The seat belt returns to the ELR mode after the seat belt fully retracts. See “Child restraints” later in this section for more information.

The ALR mode should be used only for child restraint installation. During normal seat belt use by an occupant, the ALR mode should not be activated. If it is activated, it may cause uncomfortable seat belt tension.

WARNING

When fastening the seat belts, be certain that the seatbacks are completely secured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.

Safety—Seats, seat belts and supplemental restraint system 1-17

WRS0139 LRS0242

Unfastening the seat belts

Tounfasten the seat belt, press the button on

䊊

the buckle. The seat belt automatically retracts.

Checking seat belt operation

Seat beltretractors are designed to lock seat belt movement by two separate methods:

● When the seat belt is pulled quickly from the retractor.

● When the vehicle slows down rapidly.

To increase your confidence in the seat belts, check the operation as follows:

● Grasp the shoulder belt and pull forward quickly. The retractor should lock and restrict further belt movement.

If the retractor does not lock during this check or if you have any questions about seat belt operation, see a NISSAN dealer.

Shoulder belt height adjustment (front seats)

The shoulder belt anchor height should be adjusted to the position best for you. See “Precautions on seat belt usage”earlier in this section. To adjust, pull out the adjustment button move the shoulder belt anchor to the desired position the shoulder. The belt should be away from your face and neck, but not falling off your shoulder. Release the adjustment button to lock the shoulder belt anchor into position.

, so the belt passes over the center of

䊊

and

1-18 Safety—Seats, seat belts and supplemental restraint system

WARNING

● After adjustment, release the adjustment button and try to move the shoulder belt anchor up and down to make sure it is securely fixed in position.

● The shoulder belt anchor height should be adjusted to the position best for you. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an accident.

SEAT BELT EXTENDERS

If, because of body size or driving position, it is not possible to properly fit the lap/shoulder belt and fasten it, an extender that is compatible with the installed seat belts is available that can be purchased. The extender adds approximately 8 in (200 mm) of length and may be used for either the driver or front passenger seating position. See a NISSAN dealer for assistance with purchasing an extender if an extender is required.

WARNING

● Only NISSAN seat belt extenders, made by the same company which made the original equipment seat belts, should be used with NISSAN seat belts.

● Adults and children who can use the standard seat belt should not use an extender. Such unnecessary use could result in serious personal injury in the event of an accident.

● Never use seat belt extenders to install child restraints. If the child restraint is not secured properly, the child could be seriously injured in a collision or a sudden stop.

SEAT BELT MAINTENANCE

● To clean the seat belt webbing, apply a mild soap solution or any solution recommended for cleaning upholstery or carpet. Then wipe with a cloth and allow the seat belts to dry in the shade. Do not allow the seat belts to retract until they are completely dry.

● If dirt builds up in the shoulder belt guide of the seat belt anchors, the seat

belts may retract slowly. Wipe the shoulder belt guide with a clean, dry cloth.

● Periodically check to see that the seat belt and the metal components, such as

buckles, tongues, retractors, flexible wires and anchors work properly. If loose parts, deterioration, cuts or other damage on the webbing is found, the entire seat belt assembly should be replaced.

Safety—Seats, seat belts and supplemental restraint system 1-19

CHILD SAFETY

Children need adults to help protect them. They need to be properly restrained.

In addition to the general information in this manual, child safety information is available from many other sources, including doctors, teachers, government traffic safety offices, and community organizations. Every child is different, so be sure to learn the best way to transport your child.

There are three basic types of child restraint systems:

● Rear-facing child restraint

● Forward-facing child restraint

● Booster seat

The proper restraint depends on the child’s size. Generally, infants up to about 1 year and less than 20 lbs (9 kg) should be placed in rear-facing child restraints. Forward-facing child restraints are available for children who outgrow rearfacing child restraints and are at least 1 year old. Booster seats are used to help position a vehicle lap/shoulder belt on a child who can no longer use a forward-facing child restraint.

WARNING

Infants and children need special protection. The vehicle’s seat belts may not fit them properly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hip bones. In an accident, an improperly fitting seat belt could cause serious or fatal injury. Always use appropriate child restraints.

All U.S. states and Canadian provinces or territories require the use of approved child restraints for infants and small children. See “Child Restraints” later in this section.

A child restraint may be secured in the vehicle by using either the LATCH (Lower Anchor and Tethers for CHildren) system or with the vehicle seat belt. See “Child Restraints” section for more information.

NISSAN recommends that all pre-teens and children be restrained in the rear seat. Studies show that children are safer when properly restrained in the rear seat than in the front seat.

This is especially important because your vehicle has a supplemental restraint system (Air bag system) for the front passenger. See “Supplemental restraint system” later in this section.

INFANTS

Infants up to at least 1 year old should be placed in a rear-facing child restraint. NISSAN recommends that infants be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manufacturer’s instructions for installation and use.

SMALL CHILDREN

Children that are over one year old and weigh at least 20 lbs (9 kg) can be placed in a forwardfacing child restraint. Refer to the manufacturer’s instructions for minimum and maximum weight and height recommendations. NISSAN recommends that small children be placed in child restraints that comply with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. You should choose a child restraint that fits your vehicle and always follow the manufacturer’s instructions for installation and use.

1-20 Safety—Seats, seat belts and supplemental restraint system

CHILD RESTRAINTS

LARGER CHILDREN

Children who are too large for child restraints should be seated and restrained by the seat belts which are provided. The seat belt may not fit properly if the child is less than 4 ft 9 in (142.5 cm) tall and weighs between 40 lbs (18 kg) and 80 lbs (36 kg) . A booster seat should be used to obtain proper seat belt fit.

NISSAN recommends that a child be placed in a commercially available booster seat if the shoulder belt fits close to the face or neck or if the lap portion of the seat belt goes across the abdomen. The booster seat should raise the child so that the shoulder belt is properly positioned across the top, middle portion of the shoulder and the lap belt is low on the hips. A booster seat can only be used in seating positions that have a three-point type seat belt. The booster seat should fit the vehicle seat and have a label certifying that it complies with Federal Motor Vehicle Safety Standards or Canadian Motor Vehicle Safety Standards. Once the child has grown so the shoulder belt is no longer on or near the face and neck, use the shoulder belt without the booster seat.

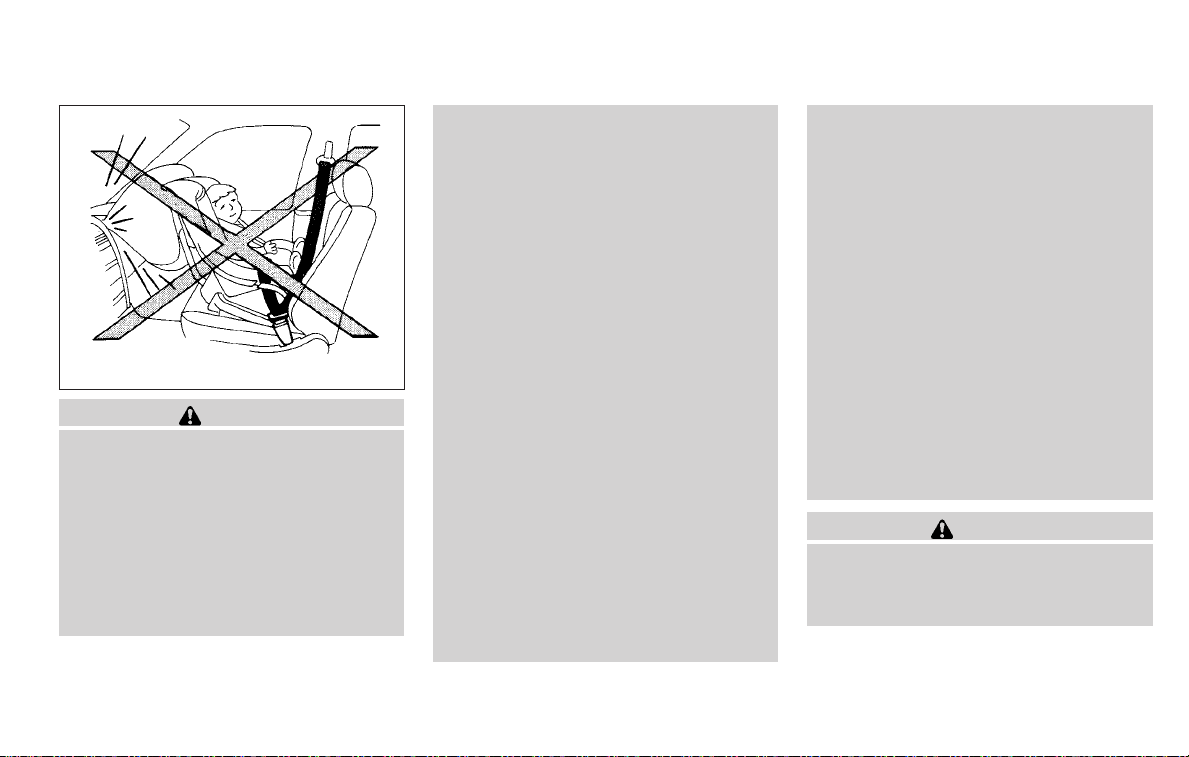

WARNING

Never let a child stand or kneel on any seat and do not allow a child in the cargo area. The child could be seriously injured or killed in a sudden stop or collision.

ARS1098

PRECAUTIONS ON CHILD RESTRAINTS

Safety—Seats, seat belts and supplemental restraint system 1-21

WRS0256

WARNING

● Failure to follow the warnings and instructions for proper use and installation of child restraints could result in serious injury or death of a child or other passengers in a sudden stop or collision:

– The child restraint must be used and

installed properly. Always follow all of the child restraint manufacturer’s instructions for installation and use.

– Infants and children should never be

held on anyone’s lap. Even the strongest adult cannot resist the forces of a collision.

– Do not put a seat belt around both a

child and another passenger.

– NISSAN recommends that all child

restraints be installed in the rear seat. Studies show that children are safer when properly restrained in the rear seat than in the front seat. If you must install a forward-facing child restraint in the front seat, see “Forward-facing child restraint installation using the seat belts” later in this section.

– Even with the NISSAN Advanced Air

Bag System, never install a rearfacing child restraint in the front seat. An inflating air bag could seriously injure or kill a child. A rearfacing child restraint must only be used in the rear seat.

– Be sure to purchase a child restraint

that will fit the child and vehicle. Some child restraints may not fit properly in your vehicle.

– Child restraint anchor points are de-

signed to withstand loads from child restraints that are properly fitted.

– Never use the anchor points for adult

seat belts or harnesses.

– A child restraint with a top tether

strap should not be used in the front passenger seat.

– Keep seatbacks as upright as pos-

sible after fitting the child restraint.

– Infants and children should always

be placed in an appropriate child restraint while in the vehicle.

● When the child restraint is not in use, keep it secured with the LATCH system or a seat belt. In a sudden stop or collision, loose objects can injure occupants or damage the vehicle.

CAUTION

A child restraint in a closed vehicle can become very hot. Check the seating surface and buckles before placing a child in the child restraint.

1-22 Safety—Seats, seat belts and supplemental restraint system

This vehicle is equipped with a universal child restraint anchor system, referred to as the LATCH (Lower Anchors and Tethers for CHildren) system. Some child restraints include rigid or webbing-mounted attachments that can be connected to these anchors. For details, see “LATCH (Lower Anchors and Tethers for CHildren) system” later in this section.

If you do not have a LATCH compatible child restraint, the vehicle seat belts can be used.

Several manufacturers offer child restraints for infants and children of various sizes. When selecting any child restraint, keep the following points in mind:

● Choose only a restraint witha labelcertifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.

● Check the child restraint in your vehicle to be sure it is compatible with the vehicle’s seat and seat belt system.

● If the child restraint is compatible with your vehicle, place your child in the child restraint and check the various adjustments to be sure the child restraint is compatible with your child. Choose a child restraint that is designed for your child’s height and weight. Always follow all recommended procedures.

All U.S. states and Canadian provinces or territories require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being operated. Canadian law requires the top tether strap on forward-facing child restraints be secured to the designated anchor point on the vehicle.

WRS0718

LATCH system lower anchor locations

LATCH (Lower Anchors and Tethers

for CHildren) SYSTEM

Your vehicle is equipped with special anchor points that are used with LATCH (Lower Anchors and Tethers for CHildren) system compatible child restraints. This system may also be referred to as the ISOFIX or ISOFIX compatible system. With thissystem, you do not have to use a vehicle seat belt to secure the child restraint.

Safety—Seats, seat belts and supplemental restraint system 1-23

LATCH lower anchor

WARNING

Failure to follow the warnings and instructions for proper use and installation of child restraints could result in serious injury or death of a child or other passengers in a sudden stop or collision:

– Attach LATCH system compatible

child restraints only at the locations shown in the illustration.

– Do not secure a child restraint in the

center rear seating position using the LATCH lower anchors. The child restraint will not be secured properly.

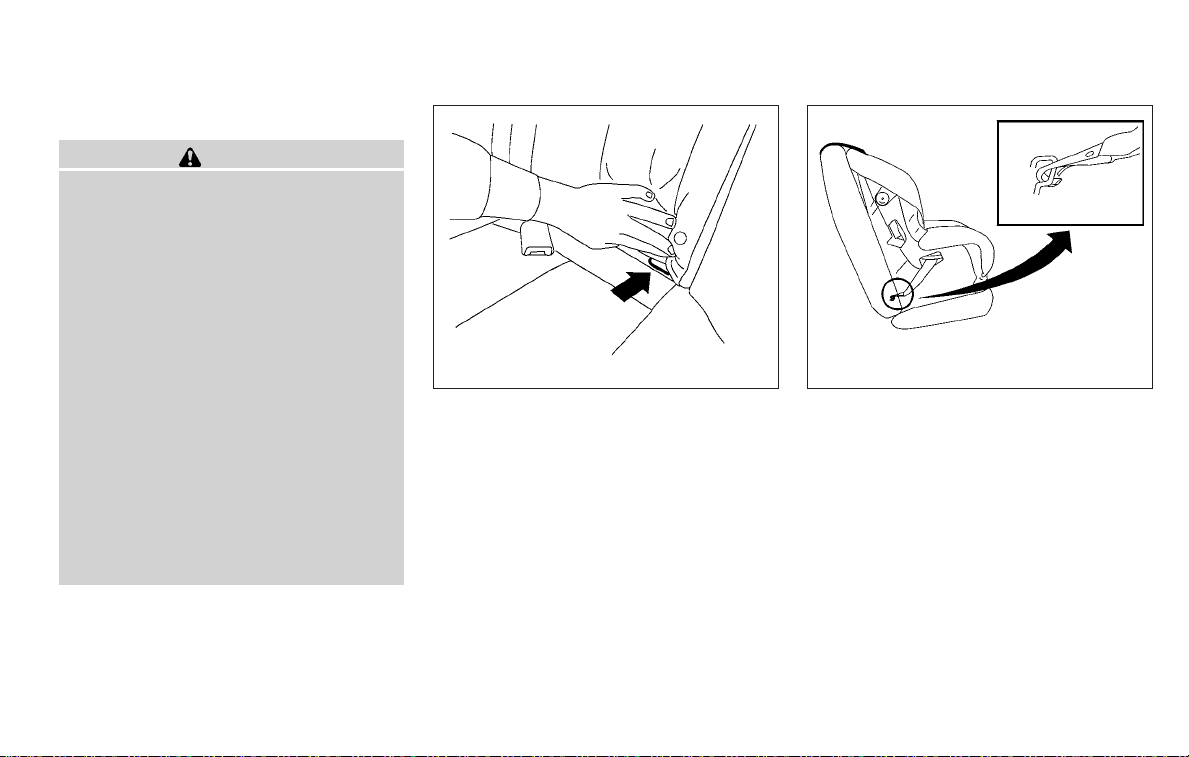

– Inspect the lower anchors by insert-

ing your fingers into the lower anchor area. Feel to make sure there are no obstructions over the anchors such as seat belt webbing or seat cushion material. The child restraint will not be secured properly if the lower anchors are obstructed.

WRS0700

LATCH lower anchor location

The LATCH lower anchors are located at the rear of the seat cushion near the seatback. A label is attached to the seatback to help you locate the LATCH lower anchors.

LRS0661

LATCH webbing-mounted attachment

Installing child restraint LATCH lower anchor attachments

LATCH compatible child restraints include two rigid or webbing-mounted attachments that can be connected to two anchors located at certain seating positions in your vehicle. With this system, you do not have to use a vehicle seat belt to secure the child restraint. Check your child restraint for a label stating that it is compatible with LATCH. This information may also be in the instructions provided by the child restraint manufacturer.

1-24 Safety—Seats, seat belts and supplemental restraint system

REAR-FACING CHILD RESTRAINT INSTALLATION USING LATCH

Refer to all Warnings and Cautions in the “Child safety” and “Child restraints” sections before installing a child restraint.

Follow these steps to install a rear-facing child restraint using the LATCH system:

1. Position the child restraint on the seat. Always follow the child restraint manufacturer’s instructions.

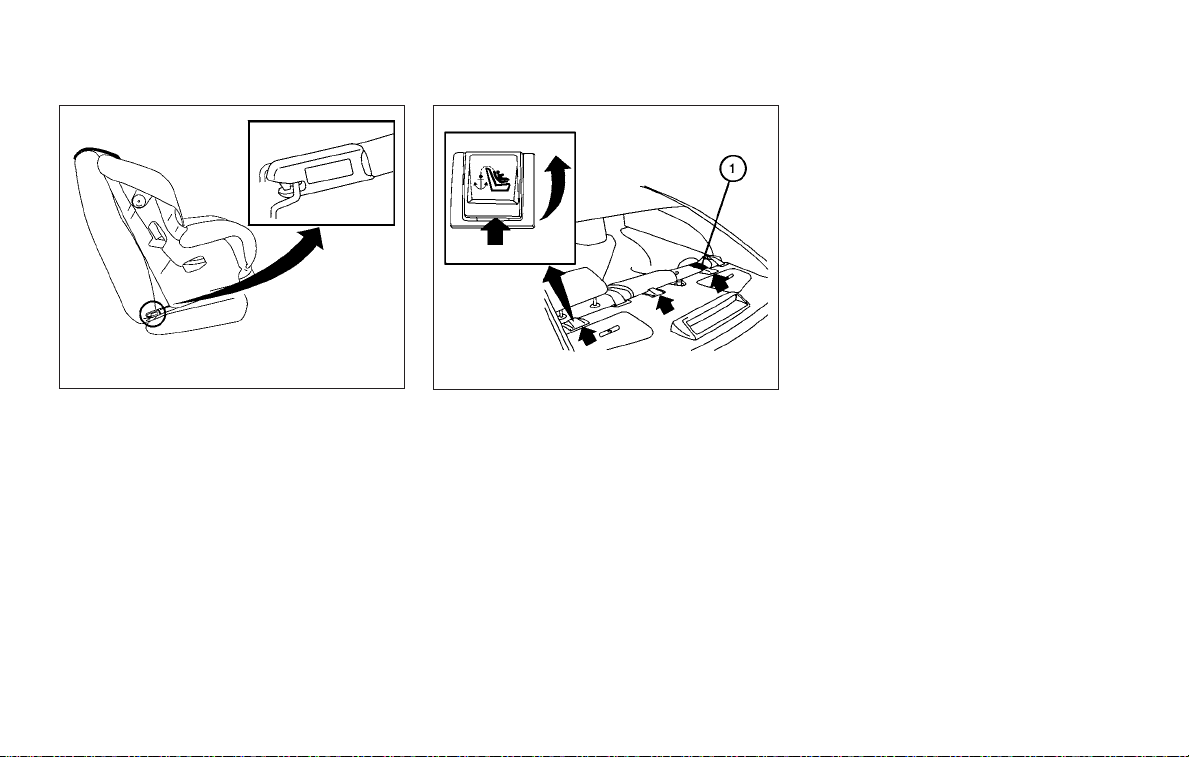

LRS0662

LATCH rigid-mounted attachment

When installing a child restraint, carefully read and follow the instructions in this manual and those supplied with the child restraint.

LRS0243

Top tether anchor point locations

The child restraint top tether strap must be used when installing the child restraint with the LATCH lower anchor attachments or seat belts. See “Installing top tether strap” later in this section.

If you have any questions when installing a top tether strap child restraint on the rear seat, consult your NISSAN dealer for details.

Anchor points shelf.

are located on the rear parcel

䊊

Safety—Seats, seat belts and supplemental restraint system 1-25

WRS0801

Rear-facing web-mounted – step 2

Rear-facing rigid-mounted – step 2

2. Secure the child restraint anchor attachments to the LATCH lower anchors. Check to makesure theLATCH attachment is properly attached to the lower anchors.

1-26 Safety—Seats, seat belts and supplemental restraint system

WRS0802

LRS0673

Rear-facing – step 3

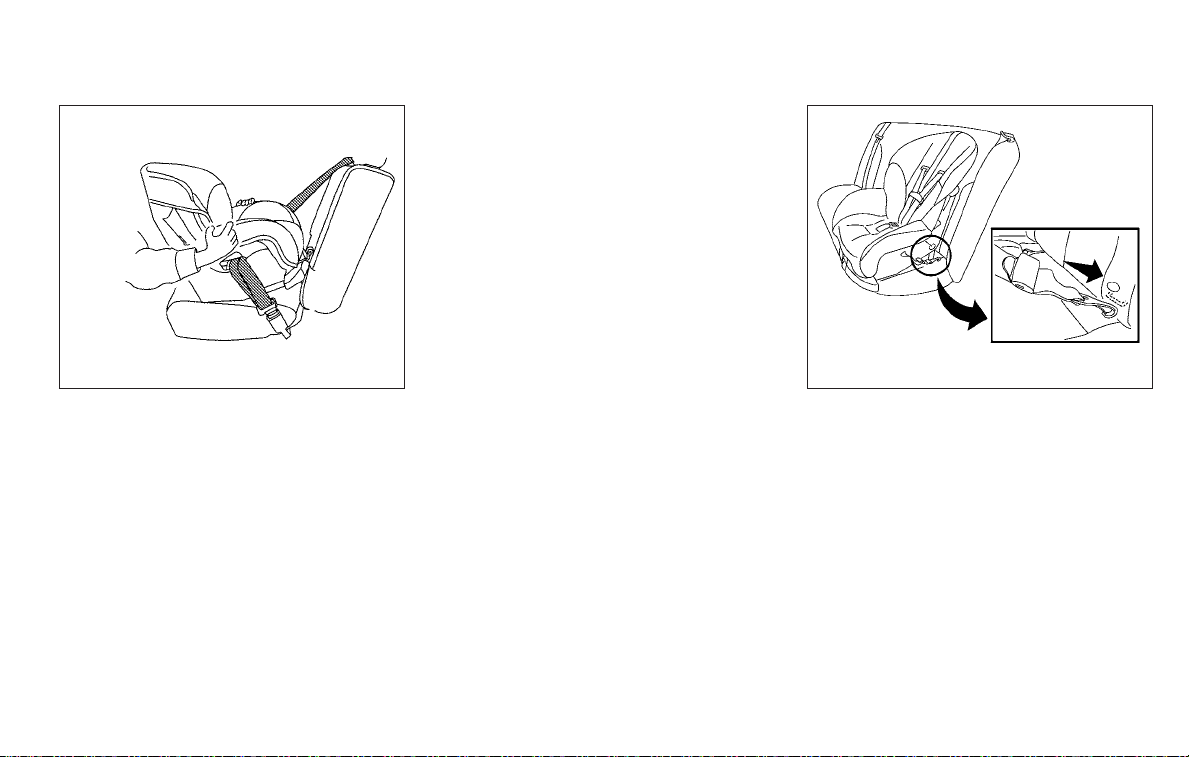

3. For child restraints that are equipped with webbing-mounted attachments, remove any additional slack from the anchor attachments. Press downward and rearward firmly in the center of the child restraint with your hand to compress the vehicle seat cushion and seatback while tightening the webbing of the anchor attachments.

5. Check to make sure the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 1 through 4.

LRS0674

Rear-facing – step 4

4. After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the child restraint near the LATCH attachment path. The child restraint shouldnot move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the LATCH attachment holds the restraint in place. If the restraint is not secure, tighten the LATCH attachment as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint or try installing by using the vehicle seat belt (if applicable). Not all child restraints fit in all types of vehicles.

WRS0256

REAR-FACING CHILD RESTRAINT INSTALLATION USING THE SEAT BELTS

Safety—Seats, seat belts and supplemental restraint system 1-27

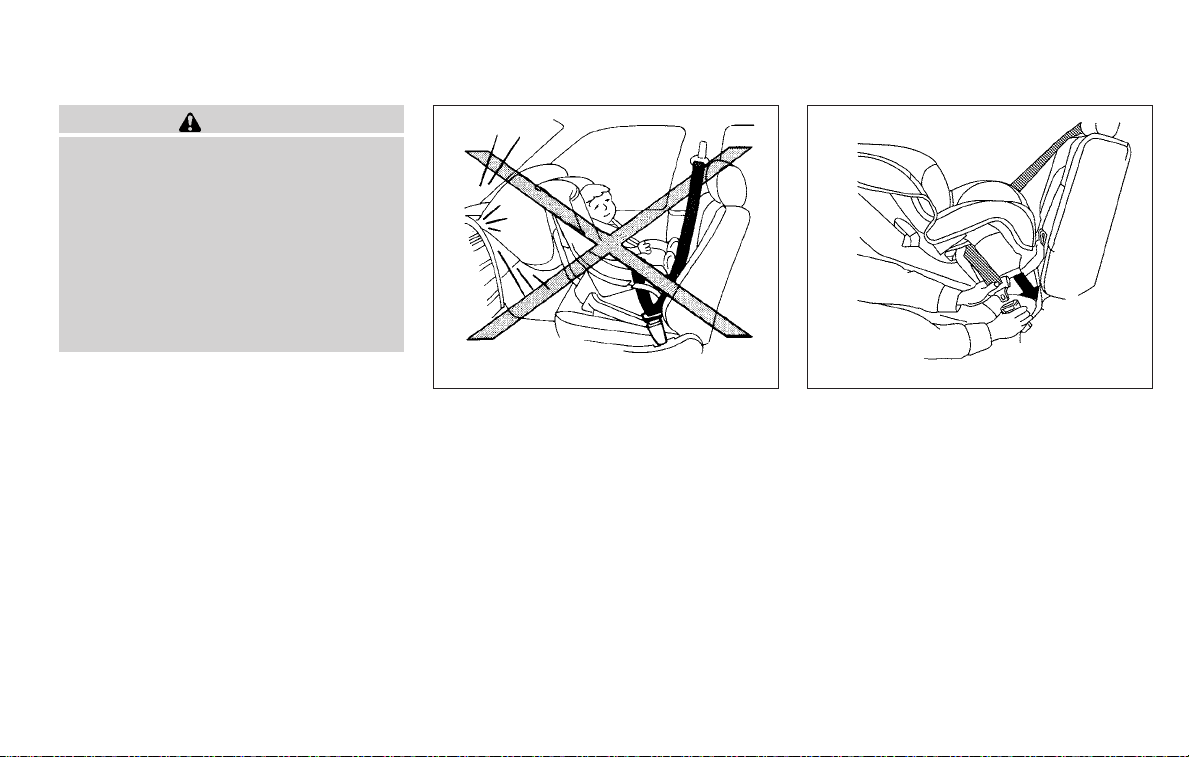

WARNING

The three-point seat belt with Automatic Locking Retractor (ALR) must be used when installing a child restraint. Failure to use the ALR mode will result in the child restraint not being properly secured. The restraint could tip over or be loose and cause injury to a child in a sudden stop or collision. Also, it can change the operation of the front passenger air bag. See “Front passenger air bag and status light” later in this section.

Rear-facing – step 1

Refer to all Warnings and Cautions in the “Child safety” and “Child restraints” sections before installing a child restraint.

Follow these steps to install a rear-facing child restraint using the vehicle seat belts in the rear seats:

1. Child restraints for infants must be

used in the rear-facing direction and therefore must not be used in the front seat. Position the child restraint on the seat.

Always follow the restraint manufacturer’s instructions.

1-28 Safety—Seats, seat belts and supplemental restraint system

WRS0256

WRS0761

Rear-facing – step 2

2. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manufacturer’s instructions for belt routing.

LRS0669

Rear-facing – step 3

3. Pull the shoulder belt until the belt is fully extended. At this time, the seat belt retractor is in the Automatic Locking Retractor (ALR) mode (child restraint mode). It reverts to the Emergency Locking Retractor (ELR) mode when the seat belt is fully retracted.

LRS0670

Rear-facing – step 4

4. Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in the belt.

Safety—Seats, seat belts and supplemental restraint system 1-29

WRS0762

Rear-facing – step 5

5. Remove any additional slack from the seat belt; press downward and rearward firmly in the center of the child restraint to compress the vehicle seat cushion and seatback while pulling up on the seat belt.

WRS0763

Rear-facing – step 6

6. After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the child restraint near the seat belt path. The child restraint should not move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the belt holds the restraint in place. If the restraint is not secure, tighten the seat belt as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

7. Check to make sure that the child restraint is properly secured prior to each use. If the seat belt is not locked, repeat steps 1 through 6.

After the child restraint is removed and the seat belt fully retracted, the ALR mode (child restraint mode) is canceled.

FORWARD-FACING CHILD RESTRAINT INSTALLATION USING LATCH

Refer to all Warnings and Cautions in the “Child safety” and “Child restraints” sections before installing a child restraint.

Follow these steps to install a forward-facing child restraint using the LATCH system:

1. Position the child restraint on the seat. Always follow the child restraint manufacturer’s instructions.

WRS0799

Forward-facing web-mounted – step 2

2. Secure the child restraint anchor attachments to the LATCH lower anchors. Check to makesure theLATCH attachment is properly attached to the lower anchors.

If the child restraint is equipped with a top tether strap, route the top tether strap and secure the tether strap to the tether anchor point. See “Installing top tether strap” in this section. Do not install child restraints that require the use of a top tether strap in seating positions that do not have a top tether anchor.

1-30 Safety—Seats, seat belts and supplemental restraint system

WRS0800

Forward-facing rigid-mounted – step 2

3. The back of the child restraint should be secured against the vehicle seatback.

If necessary, adjust or remove the headrest to obtain the correct child restraint fit. If the headrest is removed, store it in a secure place. Be sure to reinstall the headrest

when the child restraint is removed.

See “Adjustable headrest” in this section for headrest adjustment information.

If the seating position does not have an adjustable headrest and it is interfering with the proper child restraint fit, try another seating position or a different child restraint.

LRS0671

Forward-facing – step 4

4. For child restraints that are equipped with webbing-mounted attachments, remove any additional slack from the anchor attachments. Press downward and rearward firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while tightening the webbing of the anchor attachments.

5. Tighten the tether strap according to the manufacturer’s instructions to remove any slack.

Safety—Seats, seat belts and supplemental restraint system 1-31

WRS0697

Forward-facing – step 6

6. After attaching the child restraint, test it before you place the child in it. Push it from side to side while holding the child restraint near the LATCH attachment path. The child restraint shouldnot move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the LATCH attachment holds the restraint in place. If the restraint is not secure, tighten the LATCH attachment as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

7. Check to make sure the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 1 through 6.

FORWARD-FACING CHILD RESTRAINT INSTALLATION USING THE SEAT BELTS

WARNING

WRS0699

Forward-facing (front passenger seat) –

step 1

Refer to all Warnings and Cautions in the “Child Safety” and “Child Restraints” sections before installing a child restraint.

Follow these steps to install a forward-facing child restraint using the vehicle seat belt in the rear seats or in the front passenger seat:

1. If you must install a child restraint in

the front seat, it should be placed in a forward-facing direction only. Move the seat to the rearmost position. Child restraints for infants must be used in

the rear-facing direction and therefore must not be used in the front seat.

2. Position the child restraint on the seat. Always follow the child restraint manufacturer’s instructions.

The back of the child restraint should be secured against the vehicle seatback.

If necessary, adjust or remove the head restraint or headrest to obtain the correct child restraint fit. If the head restraint or headrest is removed, store it in a secure place. Be

sure to reinstall the head restraint or headrest when the child restraint is removed. See “Head restraints” or “Adjust-

able headrest” in this section for head restraint or headrest adjustment, removal and installation information.

If the seating position does not have an adjustable head restraint or headrest and it is interfering with the proper child restraint fit, try another seating position or a different child restraint.

1-32 Safety—Seats, seat belts and supplemental restraint system

WRS0680

Forward-facing – step 3

3. Route the seat belt tongue through the child restraint and insert it into the buckle until you hear and feel the latch engage. Be sure to follow the child restraint manufacturer’s instructions for belt routing.

If the child restraint is equipped with a top tether strap, route the top tether strap and secure the tether strap to the tether anchor point (rear seat installation only). See “Installing top tether strap” in this section. Do not install child restraints that require the use of a top tether strap in seating positions that do not have a top tether anchor.

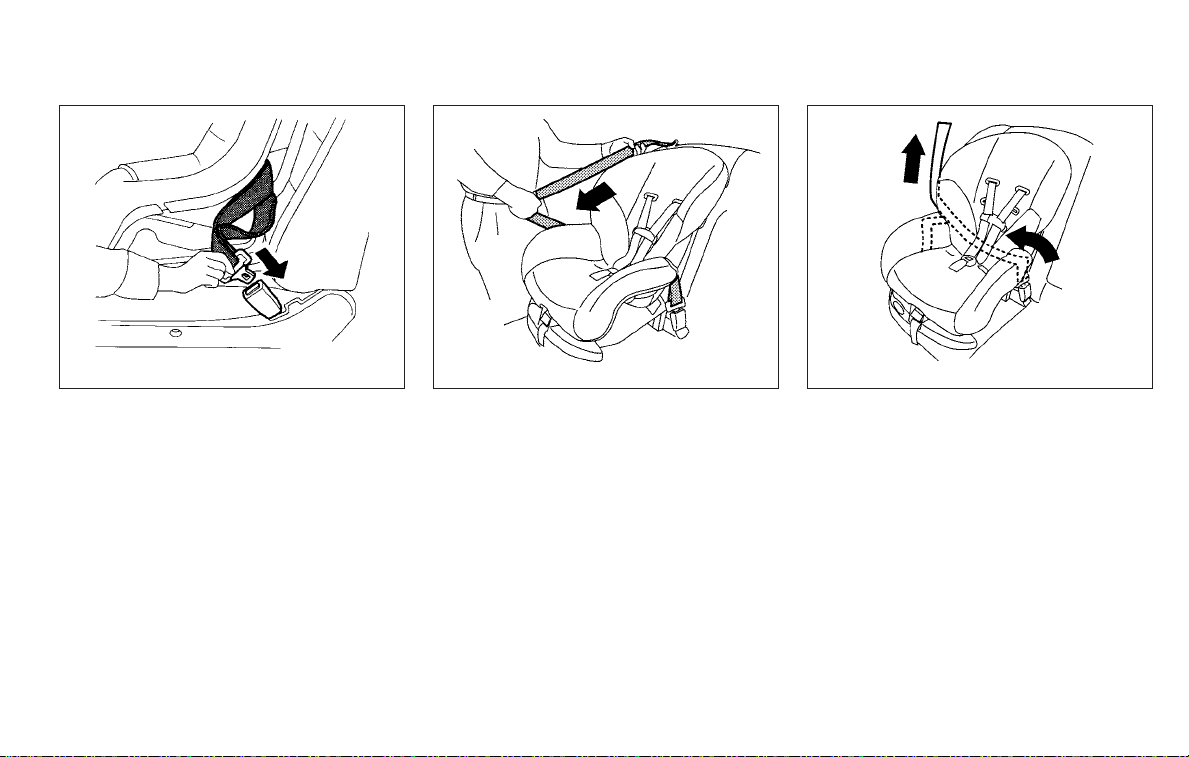

LRS0667

Forward-facing – step 4

4. Pull the shoulder belt until the belt is fully extended. At this time, the seat belt retractor is in the Automatic Locking Retractor (ALR) mode (child restraint mode) . It reverts to Emergency Locking Retractor (ELR) mode when the seat belt is fully retracted.

Safety—Seats, seat belts and supplemental restraint system 1-33

LRS0668

Forward-facing – step 5

5. Allow the seat belt to retract. Pull up on the shoulder belt to remove any slack in the belt.

9. Check to make sure the child restraint is properly secured prior to each use. If the seat belt is not locked, repeat steps 3 through 8.

WRS0681

Forward-facing – step 6

6. Remove any additional slack from the seat belt; press downward and rearward firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while pulling up on the seat belt.

7. Tighten the tether strap according to the manufacturer’s instructions to remove any slack.

8. After attaching the child restraint, test it be-

Forward-facing – step 8

fore you place the child in it. Push it from side to side while holding the child restraint near the seat belt path. The child restraint should not move more than 1 inch (25 mm), from side to side. Try to tug it forward and check to see if the belt holds the restraint in place. If the restraint is not secure, tighten the seat belt as necessary, or put the restraint in another seat and test it again. You may need to try a different child restraint. Not all child restraints fit in all types of vehicles.

1-34 Safety—Seats, seat belts and supplemental restraint system

WRS0698

LRS0865

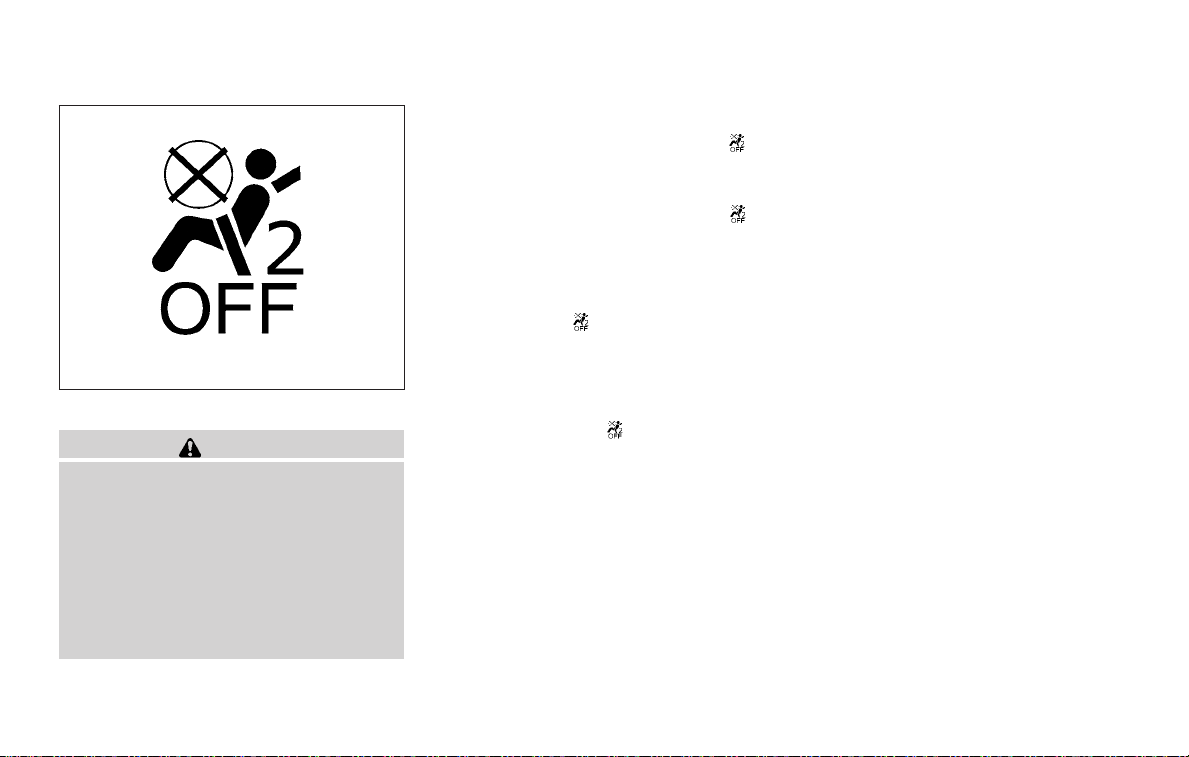

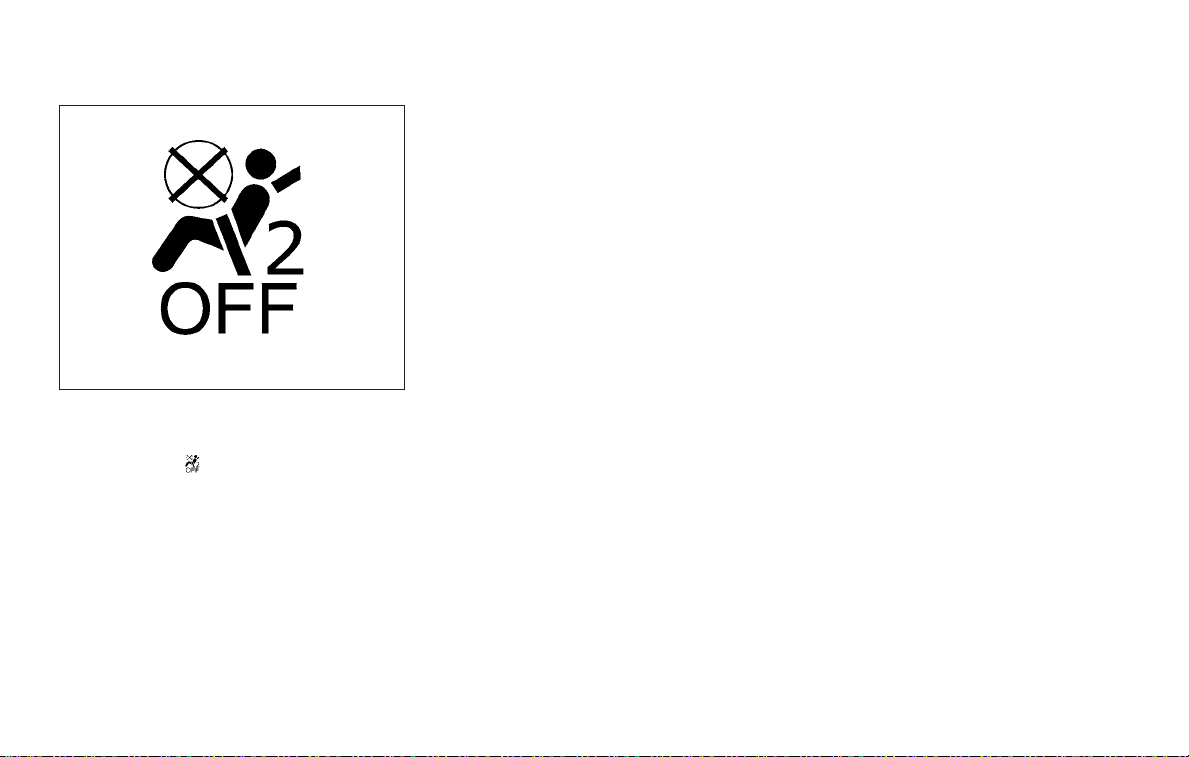

Forward-facing – step 10

10. If the child restraint is installed in the front passenger seat, place the ignition switch in the ONposition. The front passenger air bag

status light light is not illuminated see ⬙Front passenger air bag and status light⬙ in this section.

Move the child restraint to another seating position. Have the system

checked by a NISSAN dealer.

After the child restraint is removed and the seat belt is fully retracted, the ALR mode (child restraint mode) is canceled.

should illuminate. If this

LRS0243

INSTALLING TOP TETHER STRAP

First, secure the child restraint with the LATCH lower anchors (rear outboard seat positions only) or the seat belt, as applicable.

1. Flip up the anchor cover point which is located directly behind the child seat.

from the anchor

䊊

2. If necessary, raise or remove the headrest to position the top tether strap over the top of the seatback. If the headrest is removed, store it in a secure place. Be sure to reinstall the headrest when the child restraint is removed. See “Adjustable headrest” in

this section for headrest adjustment, removal and installation information.

3. Secure the tether strap to the tether anchor point on the rear parcel shelf.

4. Refer to the appropriate child restraint installation procedure steps in this section before tightening the tether strap.

If you have any questions when installing a top tether strap, consult your NISSAN dealer for details.

Safety—Seats, seat belts and supplemental restraint system 1-35

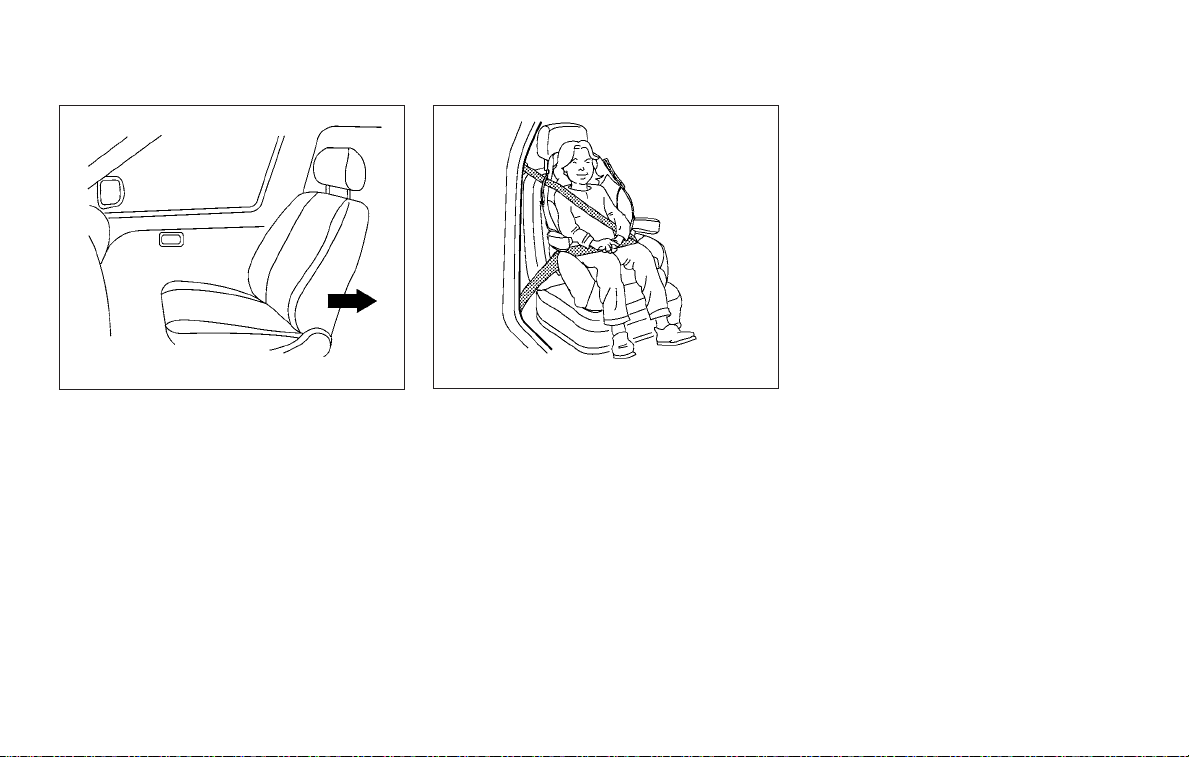

BOOSTER SEATS Precautions on booster seats

WARNING

If a booster seat and seat belt are not used properly, the risk of a child being injured in a sudden stop or collision greatly increases:

– Make sure the shoulder portion of

the belt is away from the child’s face and neck and the lap portion of the belt does not cross the stomach.

– Make sure the shoulder belt is not

behind the child or under the child’s arm.

– A booster seat must only be installed

in a seating position that has a lap/shoulder belt.

LRS0455 LRS0453

1-36 Safety—Seats, seat belts and supplemental restraint system

LRS0464

Booster seats of various sizes are offered by several manufacturers. When selecting any booster seat, keep the following points in mind:

● Choose only a booster seat with a label certifying that it complies with Federal Motor Vehicle Safety Standard 213 or Canadian Motor Vehicle Safety Standard 213.

● Check the booster seat in your vehicle to be sure it is compatible with the vehicle’s seat and seat belt system.

● Make sure the child’s head will be properly supported by the booster seat or vehicle seat. The seatback must be at or above the center of the child’s ears. For example, if a low back booster seat vehicle seatback must be at or above the center of the child’s ears. If the seatback is lower than the center of the child’s ears, a high back booster seat

● If the booster seat is compatible with your vehicle, place the child in the booster seat and check the various adjustments to be sure the booster seat is compatible with the child. Always follow all recommended procedures.

All U.S. states and Canadian provinces or territories require that infants and small children be restrained in an approved child restraint at all times while the vehicle is being operated.

The instructions in this section apply to booster seat installation in the rear seats or the front passenger seat.

is chosen, the

䊊

should be used.

䊊

Booster seat installation

CAUTION

Do not use the lap/shoulder belt in the Automatic Locking Retractor mode when using a booster seat with the seat belts.

Refer to all Warnings and Cautions in the “Child Safety”, “Child Restraint” and “Booster Seats” sections before installing a child restraint.

Follow these steps to install a booster seat in the rear seat or in the front passenger seat:

Safety—Seats, seat belts and supplemental restraint system 1-37

WRS0699

1. If you must install a booster seat in the front seat, move the seat to the rearmost position.

2. Position the booster seat on the seat. Only place it in a front-facing direction. Always follow the booster seat manufacturer’s instructions.

LRS0454

Front passenger position

3. The booster seat should be positioned on the vehicle seat so that it is stable.

If necessary, adjust or remove the head restraint or headrest to obtain the correct booster seat fit. If the head restraint or headrest is removed, store it in a secure place. Be

sure to reinstall the head restraint or headrest when the booster seat is removed. See “Head restraints” or “Adjust-

able headrests” in this section for head restraint or headrest adjustment, removal and installation information.

If the seating position does not have an adjustable head restraint or headrest and it is interfering with the proper booster seat fit, try another seating position or a different booster seat.

4. Position the lap portion of the seat belt low and snug on the child’s hips. Be sure to follow the booster seat manufacturer’s instructions for adjusting the seat belt routing.

5. Pull the shoulder belt portion of the seat belt toward the retractor to take up extra slack. Be sure the shoulder belt is positioned across the top, middle portion of the child’s shoulder. Be sure to follow the booster seat manufacturer’s instructions for adjusting the seat belt routing.

6. Follow the warnings, cautions and instructions for properly fastening a seat belt shown in “Three-point type seat belt with retractor” earlier in this section.

1-38 Safety—Seats, seat belts and supplemental restraint system

SUPPLEMENTAL RESTRAINT SYSTEM

LRS0865

7. If the booster seat is installed in the front passenger seat, place the ignition switch in the ONposition. The front passenger air bag

status light depending on the size of the child and the type of booster seat being used. See “Front passenger air bag and status light” later in this section.

may or may not illuminate,

PRECAUTIONS ON SUPPLEMENTAL RESTRAINT SYSTEM

This Supplemental Restraint System (SRS) section contains important information concerning the following systems:

● Driver and passenger supplemental frontimpact air bag (NISSAN Advanced Air Bag System)

● Front seat-mounted side-impact supplemental air bag

● Roof-mounted curtain side-impact supplemental air bag

● Seat belt with pretensioner

Supplemental front-impact air bag system:

The NISSAN Advanced Air Bag System can help cushion theimpact force to the head and chest of the driver and front passenger in certain frontal collisions.

Front seat-mounted side-impact supplemental air bag system: This system can help

cushion the impact force to the chest and pelvic area of the driver and front passenger in certain side-impact collisions. The side air bags are designed to inflate on the side where the vehicle is impacted.

Safety—Seats, seat belts and supplemental restraint system 1-39

Roof-mounted curtain side-impact supplemental air bag system: This system can help

cushion the impact force to the head of occupants in front and rear outboard seating positions in certain side-impact collisions. The curtain air bags are designed to inflate on the side where the vehicle is impacted.

These supplemental restraint systems are designed to supplement the crash protection provided by the driver and front passenger seat belts and are not a substitute for them. Seat belts should always be correctly worn and the occupant seated a suitable distance away from the steering wheel, instrument panel and door finishers. (See “Seat belts” earlier in this section for instructions and precautions on seat belt usage.)

The supplemental air bags operate only when the ignition switch is in the ON or START position.

After placing the ignition switch in the ON position, the supplemental air bag warning light illuminates. The supplemental air bag warning light will turn off after about 7 seconds if the system is operational.

WARNING

● The front air bags ordinarily will not inflate in the event of a side impact, rear impact, rollover, or lower severity frontal collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.

● The front passenger air bag will not inflate if the passenger air bag status light is lit or if the front passenger seat is unoccupied. See “Front passenger air bag and status light” later in this section.

WRS0031

● The seat belts and the front air bags are most effective when you are sitting well back and upright in the seat. The front air bags inflate with great force. Even with the NISSAN Advanced Air Bag System, if you are unrestrained, leaning forward, sitting sideways or out of position in any way, you are at greater risk of injury or death in a crash. You may also receive serious or fatal injuries from the front air bag if you are up against it when it inflates. Always sit back against the seatback and as far away as practical from the steering wheel or instrument panel. Always use the seat belts.

● The driver and front passenger seat belt buckles are equipped with sensors that detect if the seat belts are fastened. The Advanced Air Bag System monitors the severity of a collision and seat belt usage then inflates the air bags. Failure to properly wear seat belts can increase the risk or severity of injury in an accident.

● The front passenger seat is equipped with an occupant classification sensor (pattern sensor) that turns the front passenger air bag OFF under some conditions. This sensor is only used in this seat. Failure to be properly seated and wearing the seat belt can increase the risk or severity of injury in an accident. See “Front passenger air bag and status light” later in this section.

● Keep hands on the outside of the steering wheel. Placing them inside the steering wheel rim could increase the risk that they are injured when the front air bag inflates.

1-40 Safety—Seats, seat belts and supplemental restraint system

ARS1133 ARS1041

WARNING

● Never let children ride unrestrained or extend their hands or face out of the window. Do not attempt to hold them in your lap or arms. Some examples of dangerous riding positions are shown in the illustrations.

Safety—Seats, seat belts and supplemental restraint system 1-41

ARS1042 ARS1043 ARS1044

1-42 Safety—Seats, seat belts and supplemental restraint system

ARS1045 WRS0256 SSS0101

WARNING

● Children may be severely injured or killed when the front air bags, side air bags or curtain air bags inflate if they are not properly restrained. Pre-teens and children should be properly restrained in the rear seat, if possible.

● Even with the NISSAN Advanced Air Bag System, never install a rear-facing child restraint in the front seat. An inflating front air bag could seriously in-

Front seat-mounted side-impact supplemental air bags and roof-mounted curtain side-impact supplemental air bags:

● The side air bags and curtain air bags ordinarily will not inflate in the event of a frontal impact, rear impact, rollover or lower severity side collision. Always wear your seat belts to help reduce the risk or severity of injury in various kinds of accidents.

WARNING

jure or kill your child. See “Child restraints” earlier in this section for details.

Safety—Seats, seat belts and supplemental restraint system 1-43

WARNING

● The seat belts, the side air bags and curtain air bags are most effective when you are sitting well back and upright in the seat with both feet on the floor. The side air bag and curtain air bag inflate with great force. Do not allow anyone to place their hand, leg or face near the side air bag on the side of the seatback of the front seat or near the side roof rails. Do not allow anyone sitting in the front seats or rear outboard seats to extend their hand out of the window or

SSS0188 WRS0032

lean against the door. Some examples of dangerous riding positions are shown in the previous illustrations.

WARNING

● When sitting in the rear seat, do not hold onto the seatback of the front seat. If the side air bag inflates, you may be seriously injured. Be especially careful with children, who should always be properly restrained. Some examples of dangerous riding positions are shown in the illustrations.

● Do not use seat covers on the front seatbacks. They may interfere with side air bag inflation.

1-44 Safety—Seats, seat belts and supplemental restraint system

SSS0159 SSS0162

Safety—Seats, seat belts and supplemental restraint system 1-45

1. Roof-mounted curtain side-impact supplemental air bag inflators

2. Roof-mounted curtain side-impact supplemental air bags

3. Front seat-mounted side-impact supplemental air bag modules

4. Air bag Control Unit (ACU)

5. Supplemental front-impact air bag modules

6. Crash zone sensor

7. Occupant classification system control unit

1-46 Safety—Seats, seat belts and supplemental restraint system

WRS0466

8. Seat belt buckle switches for driver’s and passenger’s side

9. Occupant classification sensor (pattern sensor)

10. Seat belt with pretensioner

11. Side satellite sensor

NISSAN Advanced Air Bag System (front seats)

This vehicle is equipped with the NISSAN Advanced Air Bag System for the driver and front passenger seats. This system is designed to meet certification requirements under U.S. regulations. It is also permitted in Canada. However,

all of the information, cautions and warnings in this manual still apply and must be followed.

The driver supplemental front-impact air bag is located in the center of the steering wheel. The passenger supplemental front-impact air bag is mounted in the instrument panel above the glove box. The front air bags are designed to inflate in higher severity frontal collisions, although they may inflateif theforces in another type of collision are similar to those of a higher severity frontal impact. They may not inflate in certain frontal collisions. Vehicle damage (or lack of it) is not always an indication of proper front air bag system operation.

The NISSAN Advanced Air Bag System has dual stage inflators. It also monitors information from the crash zone sensor, the Air Bag Control Unit (ACU), seat belt buckle sensors and the occupant classification sensor (pattern sensor). Inflator operation is based on the severity of a collision and seat belt usage for the driver. For the front passenger, the occupant classification sensor is also monitored. Based on information from the sensors, only one front air bag may inflate in a crash, depending on the crash severity and whether the front occupants are belted or unbelted. Additionally, the front passenger air bag may be automatically turned OFF under some conditions, dependingon the weight detected on the passengerseat and how the seat belt is used. If the front passenger air bag is OFF, the passenger air bag status light will be illuminated (if the seat is unoccupied, the light will not be illuminated, but the air bag will be off). See “Front passenger air bag and status light” later in this section for further details. One front air bag inflating does not indicate improper performance of the system.

If you have any questions about your air bag system, please contact NISSAN or your NISSAN dealer. If you are considering modification of your vehicle due to a disability, you may also contact NISSAN. Contact information is contained in the front of this Owner’s Manual.

When a front air bag inflates, a fairly loud noise may be heard, followed by the release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken to not inhale it, as itmay cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

Front air bags, along with the use of seat belts, help to cushion the impact force on the face and chest of the front occupants. They can help save lives and reduce serious injuries. However, an inflating front air bag may cause facial abrasions or other injuries. Front air bags do not provide restraint to the lower body.

Even with NISSAN advanced air bags, seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the steering wheel or instrument panel. The front air bags inflate quickly in order to help protect the front occupants. Because of this, the force ofthe front air bag inflating can increasethe risk of injury if the occupant is too close to, or is against, the front air bag module during inflation.

The front air bags deflate quickly after a collision.

The front air bags operate only when the ignition switch is in the ON or START position.

Safety—Seats, seat belts and supplemental restraint system 1-47

Status light

The front passenger air bag status light located above the radio. The light operates as follows:

● Unoccupied passenger’s seat: The OFF and the front passenger air bag is OFF and will not inflate in a crash.

● Passenger’s seat occupied by a small adult, child or child restraint as outlined in this

illuminates to indicate

LRS0865

Front passenger air bag and status light

WARNING

The front passenger air bag is designed to automatically turn OFF under some conditions. Read this section carefully to learn how it operates. Proper use of the seat, seat belt and child restraints is necessary for most effective protection. Failure to follow all instructions in this manual concerning the use of seats, seat belts and child restraints can increase the risk or severity of injury in an accident.

section: The that the front passenger air bag is OFF and will not inflate in a crash.

● Occupied passenger seat and the passenger meets the conditions outlined in this

section: The light that the front passenger air bag is operational.

Front passenger air bag

The front passenger air bag is designed to automatically turn OFF when the vehicle is operated under some conditions as described below in accordance with U.S. regulations. If the front passenger air bag is OFF, it will not inflate in a crash. The driver air bag and other air bags in your vehicle are not part of this system.

The purpose of the regulation is to help reduce the risk of injury or death from an inflating air bag

1-48 Safety—Seats, seat belts and supplemental restraint system

is OFF to indicate

to certain front passenger seat occupants, such as children, by requiring the air bag to be auto-

matically turned OFF. Certain sensors are used to meet the requirements.

One sensor used is the occupant classification

sensor (pattern sensor). It is in the bottom of the front passenger seat cushion and is designed to detect an occupant and objects on the seat by weight. It works together with seat belt sensors described later. For example, if a child is in the front passenger seat, the Advanced Air Bag System is designed to turn the passenger air bag OFF in accordance with the regulations. Also, if a child restraint of the type specified in the regulations is on the seat, its weight and the child’s weight can be detected and cause the air bag to turn OFF. Occupant classification sensor operation can vary depending on the front passenger seat belt sensors.

The front passenger seat belt sensors are designed to detect if the seat belt is buckled. Based on the weight on the seat detected by the occupant classification sensor, the Advanced Air Bag System determines whether the front passenger air bag should be automatically turned OFF as required by the regulations.

Front passenger seat adult occupants who are properly seated and using the seat belt as outlined in this manual should not cause the passen-

ger air bag to be automatically turned OFF. For small adults it may be turned OFF, however if the occupant takes his/her weight off the seat cushion (for example, by not sitting upright, by sitting on an edge of the seat, or by otherwise being out of position), this could cause the sensor to turn the air bag OFF. In addition, if the occupant improperly uses the seat belt in the ALR mode (child restraint mode), this could cause the air bag to be turned OFF. Always be sure to be seated and wearing the seat belt properly for the most effective protection by the seat belt and supplemental air bag.

NISSAN recommends that pre-teens and children be properly restrained in a rear seat. NISSAN also recommends that appropriate child restraints and booster seats be properly installed in a rear seat. If this is not possible, the occupant classification sensor and seat belt sensors are designed to operate as described above to turn the front passenger air bag OFF for specified child restraints as required by the regulations. Failing to properly secure child restraints and to use the ALR mode (child restraint mode) may allow the restraint to tip or move in an accident or sudden stop. This can also result in the passenger air bag inflating in a crash instead of being OFF. See “Child restraints” earlier in this section for proper use and installation.

If the front passenger seat is not occupied the passenger air bag is designed not to inflate in a crash. However, heavy objects placed on the seat could result in air bag inflation, because of the object’s weight detected by the occupant classification sensor. Other conditions could also result in air bag inflation, such as if a child is standing on the seat, or if two children are on the seat, contrary to the instructions in this manual. Always be sure that you andall vehicleoccupants are seated and restrained properly.

Using the passenger air bag status light, you can monitor when the front passenger air bag is automatically turned OFF with the seat occupied. The light will not illuminate when the front passenger seat is unoccupied.

If an adult occupant is in the seat but the passenger air bag status light is illuminated (indicating that the air bag is OFF), it could be that the person is a small adult, or is not sitting on the seat properly or not using the seat belt properly.

If a child restraint must be used in the front seat, the passenger air bag status light may or may not be illuminated, depending on the size of the child and the type of child restraintbeing used.If theair bag status light is not illuminated (indicating that the air bag might inflate in a crash), it could be that the child restraint or seat belt is not being used properly. Make sure that the childrestraint is

Safety—Seats, seat belts and supplemental restraint system 1-49

installed properly, the seat belt is used properly and the occupant is positioned properly. If the air bag status light is not illuminated, reposition the occupant or child restraint in a rear seat.

If the passenger air bag status light will not illuminate even though you believe that the child restraint, the seat belts and the occupant are properly positioned, the system may be sensing an unoccupied seat (in which case the air bag is OFF). Your NISSAN dealer can check that the system is OFF by using a special tool. However, until you have confirmed with your dealer that your air bag is working properly, reposition the occupant or child restraint in a rear seat.

The air bag system and passenger air bag status light will take a few seconds to register a change in the passenger seat status. For example, if a large adult who is sitting in the front passenger seat exits the vehicle, the passenger air bag status light will go from OFF to ON for a few seconds and then to OFF. This is normal system operation and does not indicate a malfunction.

If a malfunction occurs in the front passenger air bag system, the supplemental air bag warning

light on the driver’s side of the instrument panel, will blink. Have the system checked by a NISSAN dealer.

, located in the meter and gauges area

Other supplemental front-impact air bag precautions

WARNING

● Do not place any objects on the steering wheel pad or on the instrument panel. Also, do not place any objects between any occupant and the steering wheel or instrument panel. Such objects may become dangerous projectiles and cause injury if the front air bags inflate.

● Immediately after inflation, several front air bag system components will be hot. Do not touch them; you may severely burn yourself.

● No unauthorized changes should be made to any components or wiring of the supplemental air bag system. This is to prevent accidental inflation of the supplemental air bag or damage to the supplemental air bag system.

● Do not make unauthorized changes to your vehicle’s electrical system, suspension system or front end structure. This could affect proper operation of the supplemental front air bag system.

● Tampering with the front air bag system may result in serious personal injury. Tampering includes changes to the steering wheel and the instrument panel assembly by placing material over the steering wheel pad and above the instrument panel or by installing additional trim material around the air bag system.

● Modifying or tampering with the front passenger seat may result in serious personal injury. For example, do not change the front seats by placing material on the seat cushion or by installing additional trim material, such as seat covers, on the seat that are not specifically designed to assure proper air bag operation. Additionally, do not stow any objects under the front passenger seat or the seat cushion and seatback. Such objects may interfere with the proper operation of the occupant classification sensor (pattern sensor).

● No unauthorized changes should be made to any components or wiring of the seat belt system. This may affect the front air bag system. Tampering with the seat belt system may result in serious personal injury.

● Work on and around the front air bag system should be done by a NISSAN dealer. Installation of electrical equipment should also be done by a NISSAN dealer. The Supplemental Restraint System (SRS) wiring should not be modified or disconnected. Unauthorized electrical test equipment and probing devices should not be used on the air bag system.

● A cracked windshield should be replaced immediately by a qualified repair facility. A cracked windshield could affect the function of the supplemental air bag system.

*The SRS wiring harness connectors are yellow and orange for easy identification.

When selling your vehicle, we request that you inform the buyer about the front air bag system and guide the buyer to the appropriate sections in this Owner’s Manual.

1-50 Safety—Seats, seat belts and supplemental restraint system

LRS0259

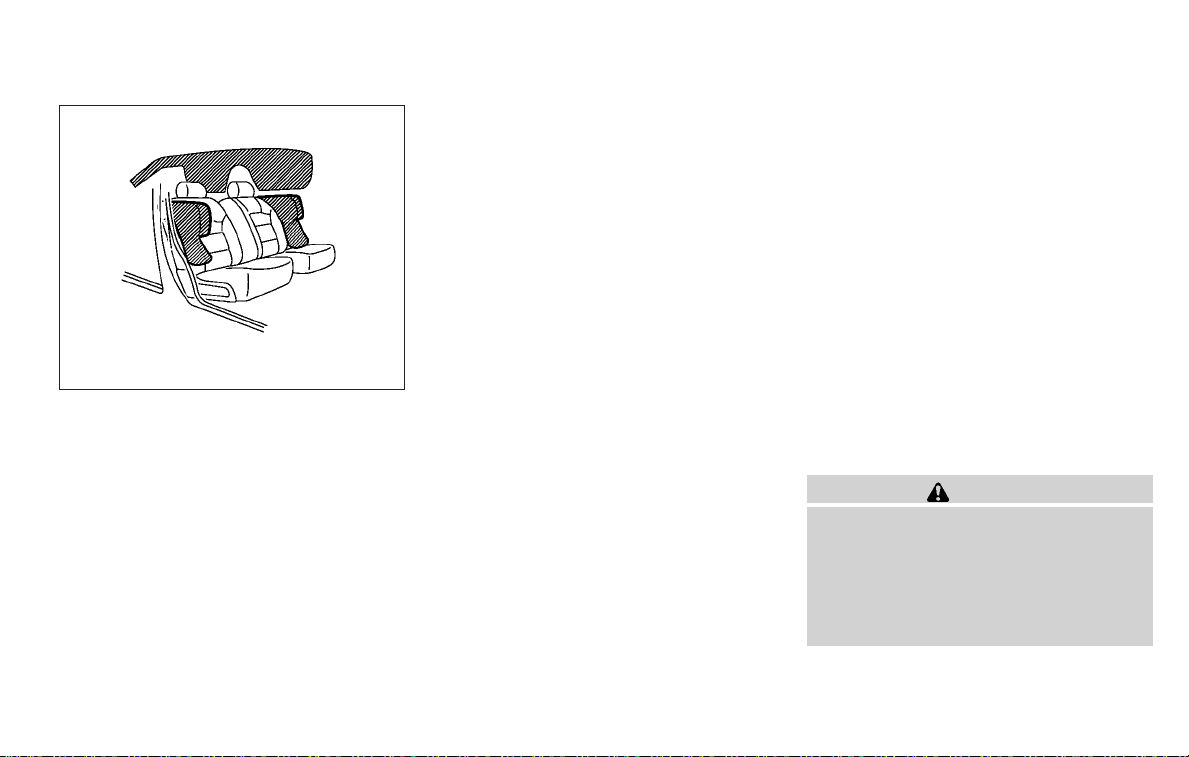

Front seat-mounted side-impact supplemental air bag and roofmounted curtain side-impact supplemental air bag systems

The side air bags are located in the outside of the seatback of the front seats. The curtain air bags are located in the side roof rails. These systems are designed to meet voluntary guidelines to help reduce the risk of injury to out-of-position occupants. However, all of the information, cau-

tions and warnings in this manual still apply and must be followed. The side air bags

and curtain air bags are designed to inflate in higher severity side collisions, although they may

inflate if the forces in another type of collision are similar to those of a higher severity side impact. They are designed to inflate on the side where the vehicle is impacted. They may not inflate in certain side collisions.

Vehicle damage (or lack of it) is not always an indication of proper side air bag and curtain air bag operation.

When the side air bags and curtain air bags inflate, a fairly loud noise may be heard, followed by release of smoke. This smoke is not harmful and does not indicate a fire.Care shouldbe taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

Side air bags, along with the use of seat belts, help to cushion the impact force on the chest and pelvic area of the front occupants. Curtain air bags helpto cushionthe impact force to the head of occupants in the front and rear outboard seating positions. They can help save lives and reduce serious injuries. However, an inflating side air bag and curtain air bags may cause abrasions or other injuries. Side air bags and curtain air bags do not provide restraint to the lower body.

The seat belts should be correctly worn and the driver and passenger seated upright as far as practical away from the side air bag. Rear seat passengers should be seated as far away as

Safety—Seats, seat belts and supplemental restraint system 1-51

practical from the door finishers and side roof rails. The side air bags and curtain air bags inflate quickly in order to help protect the occupants. Because of this, the force of the side air bag and curtain side-impact air bag inflating can increase the risk of injury if the occupant is too close to, or is against, these air bag modules during inflation. The side air bag and curtain air bags will deflate quickly after the collision is over.

The side air bags and curtain air bags operate only when the ignition switch is placed in the ON or START position.

WARNING

● Do not place any objects near the seatback of the front seats. Also, do not place any objects (an umbrella, bag, etc.) between the front door finisher and the front seat. Such objects may become dangerous projectiles and cause injury if a side air bag inflates.

● Right after inflation, several side air bag and curtain air bag system components will be hot. Do not touch them; you may severely burn yourself.

● No unauthorized changes should be made to any components or wiring of the side air bag and curtain air bag systems. This is to prevent damage to or accidental inflation of the side air bag and curtain air bag or damage to the side air bag and curtain air bag systems.

● Do not make unauthorized changes to your vehicle’s electrical system, suspension system or side panel. This could affect proper operation of the side air bag and curtain air bag system.

● Tampering with the side air bag system may result in serious personal injury. For example, do not change the front seats by placing material near the seatbacks or by installing additional trim material, such as seat covers, around the side air bag.

● Work around and on the side air bag and curtain air bag systems should be done by a NISSAN dealer. Installation of electrical equipment should also be done by a NISSAN dealer. The SRS wiring harnesses* should not be modified or disconnected. Unauthorized electrical test equipment and probing devices should not be used on the side air bag or curtain air bag system.

* The SRS wiring harness connectors are yellow and orange for easy identification.

When selling your vehicle, we request that you inform the buyer about the side air bag and curtain air bag systems and guide the buyer to the appropriate sections in this Owner’s Manual.

Seat belts with pretensioners (front seats)

WARNING

● The pretensioners cannot be reused after activation. They must be replaced together with the retractor and buckle as a unit.

● If the vehicle becomes involved in a frontal collision but a pretensioner is not activated, be sure to have the pretensioner system checked and, if necessary, replaced by your NISSAN dealer.

● No unauthorized changes should be made to any components or wiring of the pretensioner system. This is to prevent damage to or accidental activation of the pretensioners. Tampering with the pretensioner system may result in serious personal injury.

● Work around and on the pretensioner system should be done by a NISSAN dealer. Installation of electrical equipment should also be done by a NISSAN dealer. Unauthorized electrical test equipment and probing devices should not be used on the pretensioner system.

● If you need to dispose of a pretensioner or scrap the vehicle, contact a NISSAN dealer. Incorrect disposal procedures could cause personal injury.

The pretensioner system activates in conjunction with the front air bag system. Working with the seat belt retractor, it helps tighten the seat belt

1-52 Safety—Seats, seat belts and supplemental restraint system

when the vehicle becomes involved in certain types of collisions, helping to restrain front seat occupants.

The pretensioner is encased within the seat belt retractor. These seat belts are used the same way as conventional seat belts.

When a pretensioner activates, smoke is released and a loud noise may be heard. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

After pretensioner activation, load limiters allow the seat belt to release webbing (if necessary) to reduce forces against the chest.

If any abnormality occurs in the pretensioner system, the supplemental air bag warning

light tently or will turn on for 7 seconds and remain on after the ignition switch has been placed in the ON or START position. In this case, the pretensioner system may not function properly. It must be checkedand repaired.Take your vehicle to the nearest NISSAN dealer.

When selling your vehicle, we request that you inform the buyer about the pretensioner system and guide the buyer to the appropriate sections in this Owner’s Manual.

will not come on, will flash intermit-

WRS0895 LRS0100

1. SRS Air Bag Warning Labels (located on the sun visors)

SUPPLEMENTAL AIR BAG WARNING LABELS

Warning labels about the supplemental frontimpact airbag system are placed in the vehicle as shown in the illustration.

Safety—Seats, seat belts and supplemental restraint system 1-53

SUPPLEMENTAL AIR BAG WARNING LIGHT

The supplemental air bag warning light, displaying

tors the circuits of the supplemental front-impact air bag, front seat-mounted side-impact supplemental air bag, roof-mounted curtain side-impact supplemental air bag and seat belt pretensioner systems. The monitored circuits include the Air bag Control Unit (ACU), crash zone sensor, satellite sensors, occupant classification system, front air bag modules, side air bag modules, curtain air bag modules, pretensioners and all related wiring.

in the instrument panel, moni-

When the ignition switch is placed in the ON or START position, the supplemental air bag warning light illuminates for about 7 seconds and then turns off. This means the system is operational.

If any of the following conditions occur, the front air bag, side air bag, curtain air bag and pretensioner systems need servicing:

● The supplemental air bag warning light remains on after approximately 7 seconds.

● The supplemental air bag warning light flashes intermittently.

● The supplemental air bag warning light does not come on at all.

Under these conditions, the front air bag, side air bag, curtain air bag or pretensioner systems may not operate properly. They must be checked and repaired. Take your vehicle to the nearest NISSAN dealer.

WARNING

If the supplemental air bag warning light is on, it could mean that the front air bag, side air bag, curtain air bag and/or pretensioner systems will not operate in an accident. To help avoid injury to yourself or others, have your vehicle checked by a NISSAN dealer as soon as possible.

Repair and replacement procedure

The front air bags, side air bags, curtain air bags and pretensioners are designed to inflate on a one-time-only basis. As a reminder, unless it is damaged, the supplemental air bag warning light remains illuminated after inflation has occurred. Repair and replacement of these supplemental air bag systems should be done only by a NISSAN dealer.

When maintenance work is required on the vehicle, the front air bags, side air bags, curtain air bags, pretensioners and related parts should be pointed out to the person performing the maintenance. The ignition switch should always be placed in the LOCK position when working under the hood or inside the vehicle.

WARNING

● Once a front air bag, side air bag, or curtain air bag has inflated, the air bag module will not function again and must be replaced. Additionally, if any of the front air bags inflate, the activated pretensioner must also be replaced. The air bag module and pretensioner should be replaced by a NISSAN dealer. The air bag module and pretensioner cannot be repaired.

● The front air bag, side air bag, curtain air bag systems and the pretensioner system should be inspected by a NISSAN dealer if there is any damage to the front end or side portion of the vehicle.

● If you need to dispose of the supplemental air bag or pretensioner systems or scrap the vehicle, contact a NISSAN dealer. Incorrect disposal procedures could cause personal injury.

1-54 Safety—Seats, seat belts and supplemental restraint system

MEMO

Safety—Seats, seat belts and supplemental restraint system 1-55

2 Instruments and controls

Instrument panel...................................2-2

Meters and gauges ................................2-3

Speedometer and odometer .....................2-4

Tachometer ....................................2-5

Engine coolant temperature gauge ...............2-5

Fuel gauge ....................................2-6

Compass display (if so equipped) ...................2-6

Compass display ...............................2-7

Warning/indicator lights and audible reminders ......2-10

Checking bulbs ...............................2-10

Warning lights ................................2-10

Indicator lights ................................2-14

Audible reminders .............................2-16

Vehicle information display.........................2-17

How to use the vehicle information display .......2-17

Security systems .................................2-24

Vehicle security system.........................2-24

NISSAN vehicle immobilizer system .............2-25

Windshield wiper and washer switch ...............2-26

Switch operation ..............................2-26

Rear window and outside mirror (if so equipped)

defroster switch ..................................2-27

Headlight and turn signal switch....................2-28

Xenon headlights (if so equipped) . . . ............2-28

Headlight control switch........................2-29

Daytime running light system (Canada only) ......2-31

Instrument brightness control ...................2-32

Turn signal switch .............................2-32

Fog light switch (if so equipped) ................2-32

Hazard warning flasher switch .....................2-33

Horn ............................................2-33

Climate control seat switch (if so equipped) .........2-34

Heated seats (if so equipped)......................2-35

Heated steering wheel (if so equipped) .............2-35

Vehicle Dynamic Control (VDC) OFF switch .........2-36

Power outlet .....................................2-36

Storage .........................................2-37

Map pockets ..................................2-37

Seatback

Sunglasses

Cup holders ..................................2-38

Glove box ....................................2-39

Console box ..................................2-40

Grocery hooks ................................2-41

Cargo net (if so equipped)......................2-41

Windows ........................................2-42

pockets .............................2-37

holder (if so equipped) ..............2-38

Power windows ...............................2-42

Moonroof (if so equipped) .........................2-45

Automatic moonroof ...........................2-45

Dual Panel Moonroof (if so equipped) ...............2-46

Automatic moonroof ...........................2-46

Rear Control Cancel Switch (if so equipped) . . . .....2-49

Rear power sun shade (if so equipped) .............2-49

Interior light ......................................2-50

Console light..................................2-51

Personal lights ...................................2-51

Front .........................................2-51

Rear .........................................2-52

Trunk light .......................................2-52

HomeLink姞 universal transceiver (if so equipped).....2-53

Programming HomeLink姞.......................2-53

Programming HomeLink姞 for Canadian

customers ....................................2-54

Operating the HomeLink姞 universal

transceiver....................................2-55

Programming trouble-diagnosis .................2-55

Clearing the programmed information ............2-55

Reprogramming a single HomeLink姞 button ......2-55

If your vehicle is stolen .........................2-55

INSTRUMENT PANEL

1. Side and center vents (P. 4-40)

2. Headlight/fog light (if so equipped)/turn signal switch (P. 2-28)

3. Steering wheel switch for audio control and Bluetooth姞 Hands-Free Phone System (P. 4-114, 4-118)

2-2 Instruments and controls

4. Meters and gauges (P. 2-3)

5. Driver supplemental air bag/horn (P. 1-39, P. 2-33)

6. Security indicator light (P. 2-24)

7. Cruise control main/set switches (P. 5-18)

WIC1535

8. Shift paddles (if so equipped) (P. 5-15)

9. Windshield wiper/washer switch (P. 2-26)

10. Display screen/Navigation system* (if so equipped) (P. 4-16)

11. Display screen/Navigation system* controls (if so equipped) (P. 4-16)

12. Front passenger supplemental air bag (P. 1-53)

13. Glove box (P. 2-39)

14. Display screen (models without Navigation system) (P. 4-4)

15. Climate controls (models without Navigation system) (P. 4-41)

16. Audio system controls (models without Navigation system) (P. 4-48)

17. Passenger air bag status light (P. 1-50)

18. Audio system controls (P. 4-48)

19. Climate controls (models with Navigation system) (P. 4-44)

20. Shift selector (P. 5-11)

21. Hazard warning flasher switch (P. 2-33)

22. Ignition switch (behind the steering wheel) (P. 5-7)

23. Tilt/telescopic steering wheel controls (if so equipped) (P. 3-23)

* Refer to the separate Navigation System Owner’s Manual (if so equipped).

See the page number indicated in parentheses for operating details.

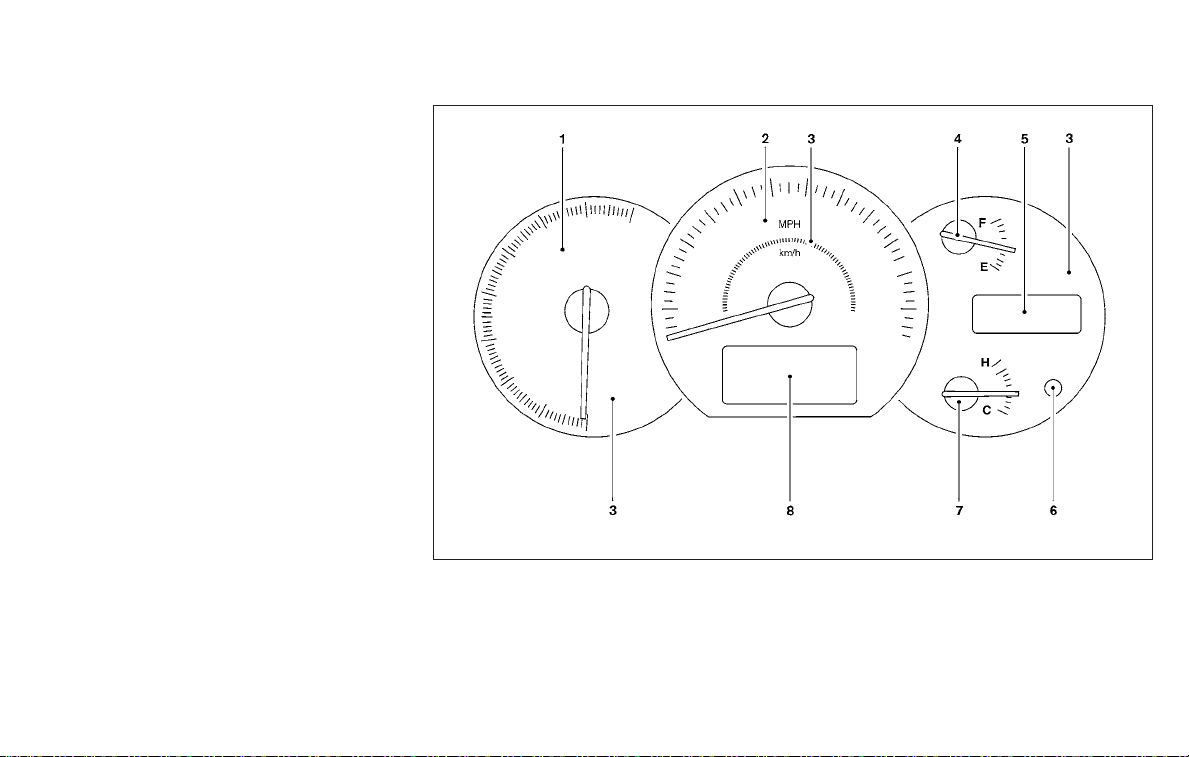

METERS AND GAUGES

1. Tachometer

2. Speedometer

3. Warning/indicator lights

4. Fuel gauge

5. Odometer/twin trip odometer

6. Trip odometer change button

LIC1381

7. Engine coolant temperature gauge

8. Vehicle information display

Instruments and controls 2-3

Changing the display:

Push thechange button as follows:

to changethe display

䊊

LIC1382 LIC1383

SPEEDOMETER AND ODOMETER Speedometer

The speedometer indicates the vehicle speed.

2-4 Instruments and controls

Odometer/Twin trip odometer

The odometer/twin trip odometer is displayed when the ignition switch is placed in the ON position.

The odometer vehicle has been driven.

The twin trip odometer of individual trips.

records the total distance the

䊊

records the distance

䊊

Trip

Resetting the trip odometer:

Push the change button second to reset the currently displayed trip odometer to zero.

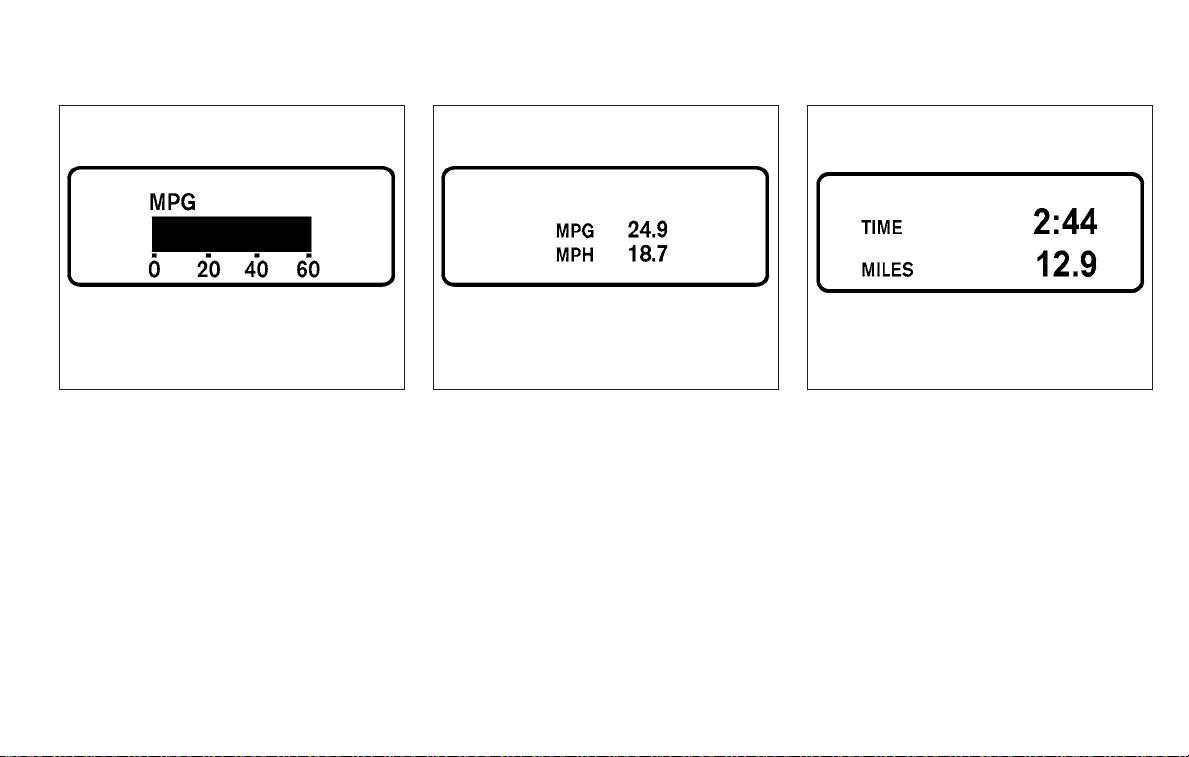

Elapsed time, driving distance and average speed information is also available. Refer to “Control panel buttons” in the “Monitor, climate, audio, phone and voice recognition systems” section in this manual.

→ Trip → Trip

䊊

for more than 1

LIC1384 LIC1386

TACHOMETER

The tachometer indicates engine speed in revolutions per minute (rpm). Do not rev the engine into the red zone

When engine speed approaches the red zone, shift to a higher gear or reduce engine speed. Operating the engine in the red zone may cause serious engine damage.

䊊

CAUTION

ENGINE COOLANT TEMPERATURE GAUGE

The gauge indicates the engine coolant temperature. Theengine coolant temperature is within the normal range within the zone shown in the illustration.

The engine coolant temperature varies with the outside air temperature and driving conditions.

when the gauge needle points

䊊

CAUTION

If the gauge indicates coolant temperature near the hot (H) end of the normal range, reduce vehicle speed to decrease temperature. If the gauge is over the normal range, stop the vehicle as soon as safely possible. If the engine is overheated, continued operation of the vehicle may seriously damage the engine. See “If your vehicle overheats” in the “In case of emergency” section for immediate action required.

Instruments and controls 2-5

COMPASS DISPLAY (if so equipped)

LIC1385

FUEL GAUGE

The gauge indicates the approximate fuel level in the tank.

The gauge may move slightly during braking, turning, acceleration, or going up or down hills.

The gauge needle returns to E (Empty) after the ignition is placed in the OFF position.

The low fuel warning light comes on when the amount of fuel in the tank is getting low.

Refill the fuel tank before the gauge registers E (Empty) .

The

indicates that the fuel-filler door is

located on the driver’s side of the vehicle.

CAUTION

● If the vehicle runs out of fuel, the

Malfunction Indicator Light

(MIL) may come on. Refuel as soon as possible. After a few driving trips,

the

light should turn off. If the

light remains on after a few driving trips, have the vehicle inspected by a NISSAN dealer.

● For additional information, see “Malfunction Indicator Light (MIL)” later in this section.

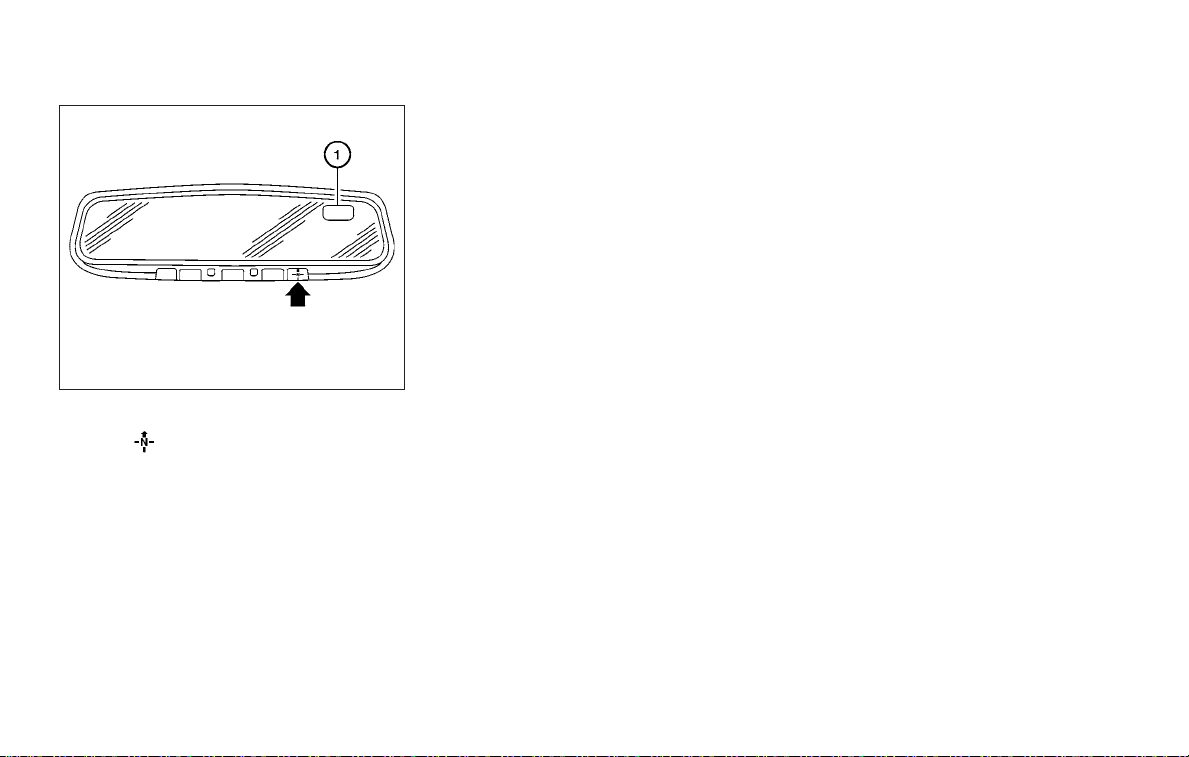

This unit measures terrestrial magnetism and indicates the heading direction of the vehicle.

With the ignition placed in the ON position, press the

button as described in the charts below to activate various features of the automatic anti-glare rearview mirror.

Push and hold

the

button for about: 1 second Compass display toggles on/off

8 seconds

10 seconds Compass enters calibration mode

Feature: (Push button again for about 1 second to change settings)

Compass zone can be changed to correct false compass readings

For information about the automatic anti-glare feature, refer to “Automatic anti-glare rearview mirror” in the “Pre-driving checks and adjustments” section.

2-6 Instruments and controls

LIC1487

COMPASS DISPLAY

Push the button for about 1 second when the ignition switch is placed in the ON position to toggle the outside temperature and compass direction display indicate the direction that the vehicle is heading.

N: North E: East S: South W: West

If the display reads “C”, calibrate the compass by driving the vehicle in three complete circles at less than 5 MPH (8 km/h).

on or off. The display will

䊊

You can also calibrate the compass by driving your vehicle on your everyday route. The compass will be calibrated once it has tracked three complete circles.

Instruments and controls 2-7

2-8 Instruments and controls

WIC0355

Zone variation change procedure

The difference between magnetic north and geographical north is known as variance. In some areas, this difference can sometimes be great enough to cause false compass readings. Follow these instructions to set the variance for your particular location if this happens:

1. Press and hold the seconds. The current zone number will appear in the display. Release the button.

2. Find your current location on the zone map. Refer to the illustration.

3. Press the through the zone numbers until the desired number appears in the display. Once you have selected a zone number, the display will show a compass direction within a few seconds.

NOTE:

Use zone number 5 for Hawaii.

Inaccurate compass direction

The compass display is equipped with automatic correction function. If the correct direction is not shown, follow this procedure.

button repeatedly to toggle

button for about 8

1. With the display turned on, press and hold the

icon in the compass display will illuminate.

2. Calibrate the compass by driving the vehicle in three complete circles at a maximum speed of 5 MPH (8 km/h).

3. After completing the circles, the display should return to normal.

for about 10 seconds. The “C”

CAUTION

● Do not install a ski rack, antenna, etc., which are attached to the vehicle by means of a magnet. They affect the operation of the compass.

● When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as it may cause the liquid cleaner to enter the mirror housing.

Instruments and controls 2-9

WARNING/INDICATOR LIGHTS AND AUDIBLE REMINDERS

or Anti-lock Braking System (ABS)

warning light

or Brake warning light

Charge warning light Continuously Variable Transmission (CVT) indi-

Engine oil pressure warning light Continuously Variable Transmission (CVT) po-

Low tire pressure warning light Cruise main switch indicator light Turn signal/hazard indicator lights

Master warning light Fog light indicator light (if so equipped) Vehicle Dynamic Control OFF indicator light

NISSAN Intelligent Key™ warning light Front passenger air bag status light

CHECKING BULBS

With all doors closed, apply the parking brake and place the ignition switch in the ON position without starting the engine. The following lights will come on:

, or , , ,

2-10 Instruments and controls

Seat belt warning light and chime High beam indicator light (blue)

Supplemental air bag warning light Malfunction Indicator Light (MIL)

cator light

sition indicator light

If equipped, the following lights come on briefly and then go off:

or , , , , , ,

Security indicator light

Slip indicator light

If any light fails to come on, it may indicate a burned-out bulb or an open circuit in the electrical system. Have the system repaired promptly.

WARNING LIGHTS

For additional information on warnings and indicators, see “Vehicle information display” later in this section.

or Anti-lock Braking

System (ABS) warning light

When the ignition switch is placed in the ON position, the Anti-lock Braking System (ABS) warning light illuminates and then turns off. This indicates the ABS is operational.

If the ABS warning light illuminates while the engine is running, or while driving, it may indicate the ABS is not functioning properly. Have the system checked by a NISSAN dealer.

If an ABS malfunction occurs, the anti-lock function is turned off. The brake system then operates normally, but without anti-lock assistance. See “Brake system” in the “Starting and driving” section.

or Brake warning light

This lightfunctions for both the parking brake and the foot brake systems.

Parking brake indicator

When the ignition switch is placed in the ON position, the light comes on when the parking brake is applied.

Low brake fluid warning light

When the ignition switch is placed in the ON position, the light warns of a low brake fluid level. If the light comes on while the engine is running with the parking brake not applied, stop the vehicle and perform the following:

1. Check the brake fluid level. Add brake fluid as necessary. See “Brake fluid” in the “Maintenance and do-it-yourself” section of this manual.

2. If the brake fluid level is correct, have the warning system checked by a NISSAN dealer.

WARNING

● Your brake system may not be working properly if the warning light is on. Driving could be dangerous. If you judge it to be safe, drive carefully to the nearest service station for repairs. Otherwise, have your vehicle towed because driving it could be dangerous.

● Pressing the brake pedal with the engine stopped and/or a low brake fluid level may increase your stopping distance and braking will require greater pedal effort as well as pedal travel.

● If the brake fluid level is below the MINIMUM or MIN mark on the brake fluid reservoir, do not drive until the brake system has been checked at a NISSAN dealer.

Charge warning light

If this light comes on while the engine is running, it may indicate the charging system is not functioning properly. Turn the engine off and check the generator belt. If the belt is loose, broken, missing, or if the light remains on, see a NISSAN dealer immediately.

CAUTION

● Do not ground electrical accessories directly to the battery terminal. Doing so will bypass the variable control system and the vehicle battery may not charge completely. Refer to “Variable voltage control system” in the “Maintenance and do-it-yourself” section later in this manual.

● Do not continue driving if the generator belt is loose, broken or missing.

Instruments and controls 2-11

Engine oil pressure warning

light

This light warns of low engine oil pressure. If the light flickers or comes on during normal driving, pull off the road in a safe area, stop the engine immediately and call a NISSAN dealer or other authorized repair shop.

The engine oil pressure warning light is not designed to indicate a low oil level. Use the

dipstick to check the oil level. See “Engine oil” in the “Maintenance and do-it-yourself” section of this manual.

CAUTION

Running the engine with the engine oil pressure warning light on could cause serious damage to the engine almost immediately. Such damage is not covered by warranty. Turn off the engine as soon as it is safe to do so.

Low tire pressure warning light

Your vehicle is equipped with a Tire Pressure Monitoring System (TPMS) that monitors the tire pressure of all tires except the spare.

2-12 Instruments and controls

The low tire pressure warning light warns of low tire pressure or indicates that the TPMS is not functioning properly.

After the ignition switch is placed in the ON position, this light illuminates for about 1 second and turns off.

Low tire pressure warning:

If the vehicle is being driven with low tire pressure, the warning light will illuminate.

When the low tire pressure warning light illuminates, you should stop and adjust the tire pressure of all 4 tires to the recommended COLD tire pressure shown on the Tire and Loading Information label located in the driver’s door opening. The low tire pressure warning light does not automatically turn off when the tire pressure is adjusted. After the tire is inflated to the recommended pressure, the vehicle must be driven at speeds above 16 MPH (25 km/h) to activate the TPMS and turn off the low tire pressure warning light. Use a tire pressure gauge to check the tire pressure.

For additional information, see “Tire Pressure Monitoring System (TPMS)” in the “Starting and driving” section and in the “In case of emergency” section.

TPMS malfunction:

If the TPMS is not functioning properly, the low tire pressure warning light will flash for approximately 1 minute when the ignition switch is placed inthe ON position. The light will remain on after the 1 minute. Have the system checked by a NISSAN dealer.

For additional information, see “Tire Pressure Monitoring System (TPMS)” in the “Starting and driving” section and “Tire pressure” in the “Maintenance and do-it-yourself” section in this manual.

WARNING

● If the light does not illuminate with the ignition switch in the ON position, have the vehicle checked by a NISSAN dealer as soon as possible.

● If the light illuminates while driving, avoid sudden steering maneuvers or abrupt braking, reduce vehicle speed, pull off the road to a safe location and stop the vehicle as soon as possible. Driving with under-inflated tires may permanently damage the tires and increase the likelihood of tire failure. Serious vehicle damage could occur and may lead to an accident and could result in serious personal injury. Check the tire pressure for all four tires. Adjust the tire pressure to the recommended COLD tire pressure shown on the Tire and Loading Information label located in the driver’s door opening to turn the low tire pressure warning light OFF. If the light still comes on while driving after adjusting the tire pressure, a tire may be flat. If you have a flat tire, replace it with a spare tire as soon as possible.

● When a spare tire is mounted or a wheel is replaced, tire pressure will not be indicated, the TPMS will not function and the low tire pressure warning light will flash for approximately 1 minute. The light will remain on after 1 minute. Contact your NISSAN dealer as soon as possible for tire replacement and/or system resetting.

● Replacing tires with those not originally specified by NISSAN could affect the proper operation of the TPMS.

CAUTION

● The TPMS is not a substitute for the regular tire pressure check. Be sure to check the tire pressure regularly.

● If the vehicle is being driven at speeds of less than 16 MPH (25 km/h), the TPMS may not operate correctly.

● Be sure to install the specified size of tires to the 4 wheels correctly.

Master warning light

This light comes on when various vehicle information display warnings appear.

NISSAN Intelligent Key™

warning light

The Intelligent Key warning light warns of a malfunction with the electrical steering lock system (if so equipped) or the Intelligent Key system.

After the ignition switch is placed in the ON position, this light comes on for about 2 seconds and then turns off.

If the light comes on while the engine is stopped, it may not be possible to free the steering lock or to start the engine. If the light comes on while the engine isrunning, youcan drive the vehicle. However, inthese cases,contact a NISSAN dealer for repair as soon as possible.

See “NISSAN Intelligent Key™ ” in the “Predriving checks and adjustments” section.

Seat belt warning light and chime

The light and chime remind you to fasten your seat belts. The light illuminates whenever the ignition switch is placed in the ON or START position and remains illuminated until the driver’s seat belt is fastened. At the same time, the chime sounds for about 6 seconds unless the driver’s seat belt is securely fastened.

Instruments and controls 2-13

The seat belt warning light may also illuminate if the front passenger’s seat belt is not fastened when the front passenger’s seat is occupied. For 7 seconds after the ignition switch is placed in the ON position, the system does not activate the warning light for the front passenger.

Refer to “Seat belts” in the “Safety—Seats, seat belts and supplemental restraint system” section for precautions on seat belt usage.

Supplemental air bag warning

light

When the ignition switch is placed in the ON or START position, the supplemental air bag warning light illuminates for about 7 seconds and then turns off. This means the system is operational.

If any of the following conditions occur, the front air bag, side air bag, curtain air bag, and pretensioner seat belt systems need servicing and your vehicle must be taken to a NISSAN dealer:

● The supplemental air bag warning light remains on after approximately 7 seconds.

● The supplemental air bag warning light flashes intermittently.

● The supplemental air bag warning light does not come on at all.

Unless checked and repaired, the supplemental restraint system (air bag system) and/or the pretensioners may not function properly. For additional details see “Supplemental restraint system” in the “Safety—Seats, seat belts and supplemental restraint system” section of this manual.

WARNING

If the supplemental air bag warning light is on, it could mean that the front air bag, side air bag, curtain air bag systems and/or pretensioner systems will not operate in an accident. To help avoid injury to yourself or others, have your vehicle checked by a NISSAN dealer as soon as possible.

INDICATOR LIGHTS

Continuously Variable Transmission (CVT) indicator light

When the ignition switch is placed in the ON position, the light comes on for 2 seconds.

Continuously Variable Transmission (CVT) position indicator light

When the ignition switch is placed in the ON position, the indicator light shows the shift selector position. See “Driving the vehicle” in the “Starting and driving” section of this manual.

Cruise main switch indicator light

The light comes on when the cruise control main switch is pushed. The light goes out when the main switch is pushed again. When the cruise main switch indicator light comes on, the cruise control system is operational.

Front fog light indicator light (if so equipped)

The front fog light indicator light illuminates when the frontfog lights are ON. See “Fog lightswitch” later in this section.

2-14 Instruments and controls

Front passenger air bag status light

The front passenger air bag status light will be lit and the passenger front air bag will be OFF depending on how the front passenger seat is being used.

For front passenger air bag status light operation, see “Front passenger air bag and status light” in the “Safety — Seats,seat beltsand supplemental restraint system” section of this manual.

High beam indicator light

(blue)

This blue light comes on when the headlight high beams are on and goes out when the low beams are selected.

The high beam indicator light also comes on when the passing signal is activated.

Malfunction indicator light

(MIL)

If the malfunction indicator light comes on steady or blinks while the engine is running, it may indicate a potential emission control and/or CVT malfunction.

The malfunction indicator light may also come on steady if the fuel-filler cap is loose or missing, or if the vehicle runs out of fuel. Check to make sure the fuel-filler cap is installed and closed tightly, and that the vehicle has at least 3 gallons (11.4 liters) of fuel in the fuel tank.

After a few driving trips, the turn off if no other potential emission control system malfunction exists.

If this indicator light comes on steady for 20 seconds and then blinks for 10 seconds when the engine is not running, it indicates that the vehicle is not ready for an emission control system inspection/maintenance test. See “Readiness for inspection/maintenance (I/M) test” in the “Technical and consumer information” section of this manual.

light should

Operation

The malfunction indicator light will come on in one of two ways:

● Malfunction indicator light on steady — An emission control system and/or CVT malfunction has been detected. Check the fuelfiller cap. If the fuel-filler cap is loose or missing, tighten or install the cap and con-

tinue to drive the vehicle. The should turn off after a few driving trips. If

the driving trips, have the vehicle inspected by a NISSAN dealer. You do not need to have your vehicle towed to the dealer.

● Malfunction indicator light blinking — An engine misfire has been detected which may damage the emission control system. To reduce or avoid emission control system damage:

– do not drive at speeds above 45 MPH

– avoid hard acceleration or deceleration.

– avoid steep uphill grades.

– if possible, reduce the amount of cargo

light does not turn off after a few

(72 km/h).

being hauled or towed.

light

Instruments and controls 2-15

The malfunction indicator light may stop blinking and come on steady. Have the vehicle inspected by a NISSAN dealer. You do not need to have your vehicle towed to the dealer.

CAUTION

Continued vehicle operation without having the emission control system checked and repaired as necessary could lead to poor driveability, reduced fuel economy, and possible damage to the emission control system.

Security indicator light

This light blinks when the ignition switch is placed in the OFF, LOCK or ACC position.

The blinking security indicator light indicates that the security systems equipped on the vehicle are operational.

For additional information, see “Security systems” later in this section.

Slip indicator light

This indicator will blink when the VDC system or the traction control system is operating, thus alerting that the vehicle is nearing its traction limits. The road surface may be slippery.

2-16 Instruments and controls

Turn signal/hazard indicator

lights

The appropriate light flashes when the turn signal switch is activated.

Both lights flash whenthe hazardswitch is turned on.

Vehicle Dynamic Control (VDC) OFF indicator light

This indicator light comes on when the Vehicle Dynamic Control off switch is pushed to OFF. This indicates the Vehicle Dynamic Control has been turned off.

Push the Vehicle Dynamic Control off switch again or restart the engine and the system will operate normally. See “Vehicle Dynamic Control (VDC) system” in the “Starting and driving” section of this manual.

The Vehicle Dynamic Control light also comes on when youpush the push-button ignition switch to the ON position. The light will turn off after about 2 seconds if the system is operational. If the light stays on or comes on along with the SLIP indicator light while you are driving, have the Vehicle Dynamic Control system checked by a NISSAN dealer.

While the Vehicle Dynamic Control system is operating, you might feel slight vibration or hear the system working when starting the vehicle or accelerating, but this is normal.

AUDIBLE REMINDERS

Brake pad wear warning

The disc brake pads have audible wear warnings. When a disc brake pad requires replacement, it makes a high pitched scraping sound when the vehicle is in motion, whether or not the brake pedal is depressed. Have the brakes checked as soon as possible if the warning sound is heard.

Key reminder chime

A chime sounds if the driver’s door is opened while the ignition switch is placed in the ACC or OFF position or placed in the OFF or LOCK position with the Intelligent Key left in the Intelligent Key port. Make sure the ignition switch is placed in the LOCK position, and take the Intelligent Key with you when leaving the vehicle.

Light reminder chime

With the ignition switch placed in the OFF position, a chime sounds when the driver’s door is opened if the headlights or parking lights are on.

Turn the headlight control switch off before leaving the vehicle.

NISSAN Intelligent Key™ door buzzer

The Intelligent Key door buzzer sounds if the Intelligent Key is left inside the vehicle when locking the doors. When the buzzer sounds, be sure to check both the vehicle and the Intelligent Key. See “NISSAN Intelligent Key™” in the “Predriving checks and adjustments” section.

VEHICLE INFORMATION DISPLAY

WIC1102 WIC1406

The vehicle information display the bottom of the speedometer. It displays such items as:

● Intelligent Key operation information

● some indicators and warnings

● other information

For details about the Intelligent Key, see “NISSAN Intelligent Key™” in the “Pre-driving checks and adjustments” section.

is located on

䊊

HOW TO USE THE VEHICLE INFORMATION DISPLAY

Press the button, located on the instrument panel just behind the steering wheel, to display the following modes:

MPG → MPG/MPH → Time/Miles → Range → Exterior Temperature → Setting → Warning

Instruments and controls 2-17

LIC1093 LIC1097 WIC1266

Fuel Economy mode

The fuel economy mode can be selected to display the instant fuel economy since the last reset.

2-18 Instruments and controls

Average speed mode

The average speed mode can be selected to display the average miles per gallon and miles per hour since the last reset.

Time/Miles (km) mode

The time/miles (km) mode can be selected to show the time and distance driven since the last reset.

LIC1095 LIC1096 LIC1541

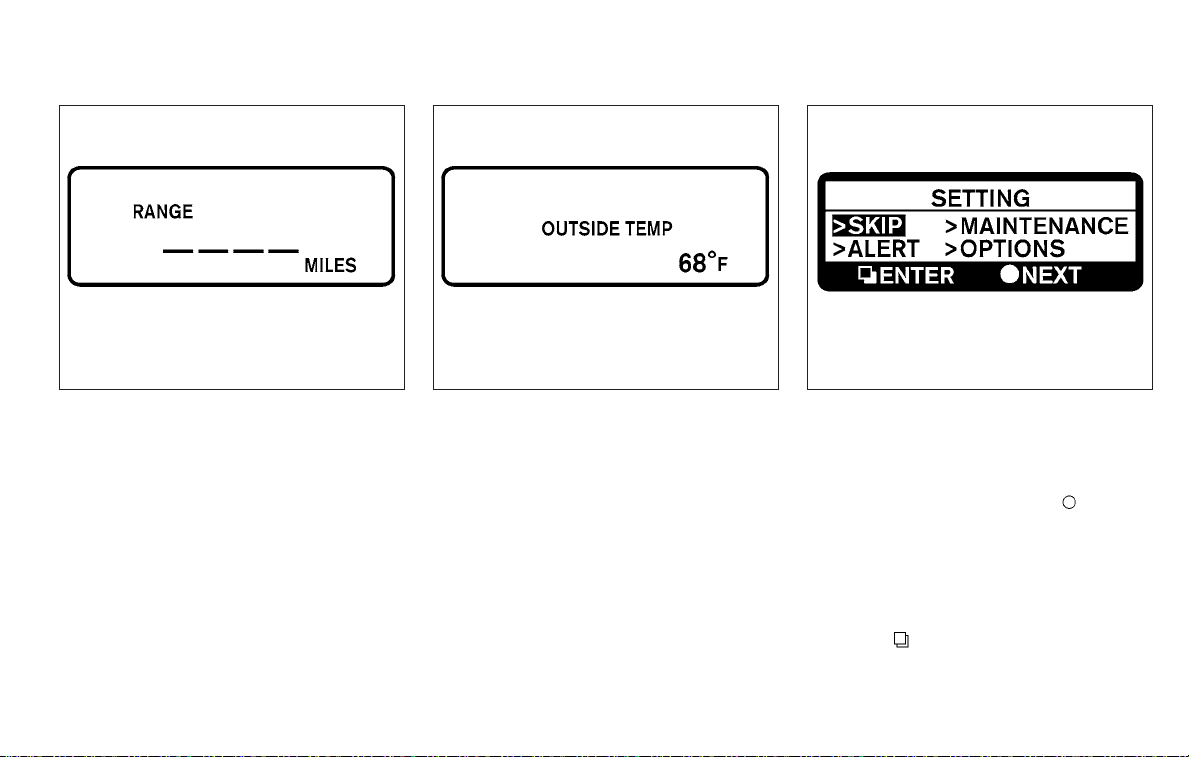

Range mode

The range mode can be selected to give you an estimation of the distance that can be driven before refueling. The range is constantly calculated based on the amount of fuel in the fuel tank and the actual fuel consumption.

Exterior Temperature mode

The exterior temperature mode can be selected to provide you with the temperature outside of your vehicle.

Setting mode

The setting mode allows you to set reminders or preferences for alerts, maintenance intervals or language displays.

In the setting mode screen press

to move

to:

● Alert

● Maintenance

● Options

and press

to select the menu.

Instruments and controls 2-19

LIC1044 LIC1046 LIC1045

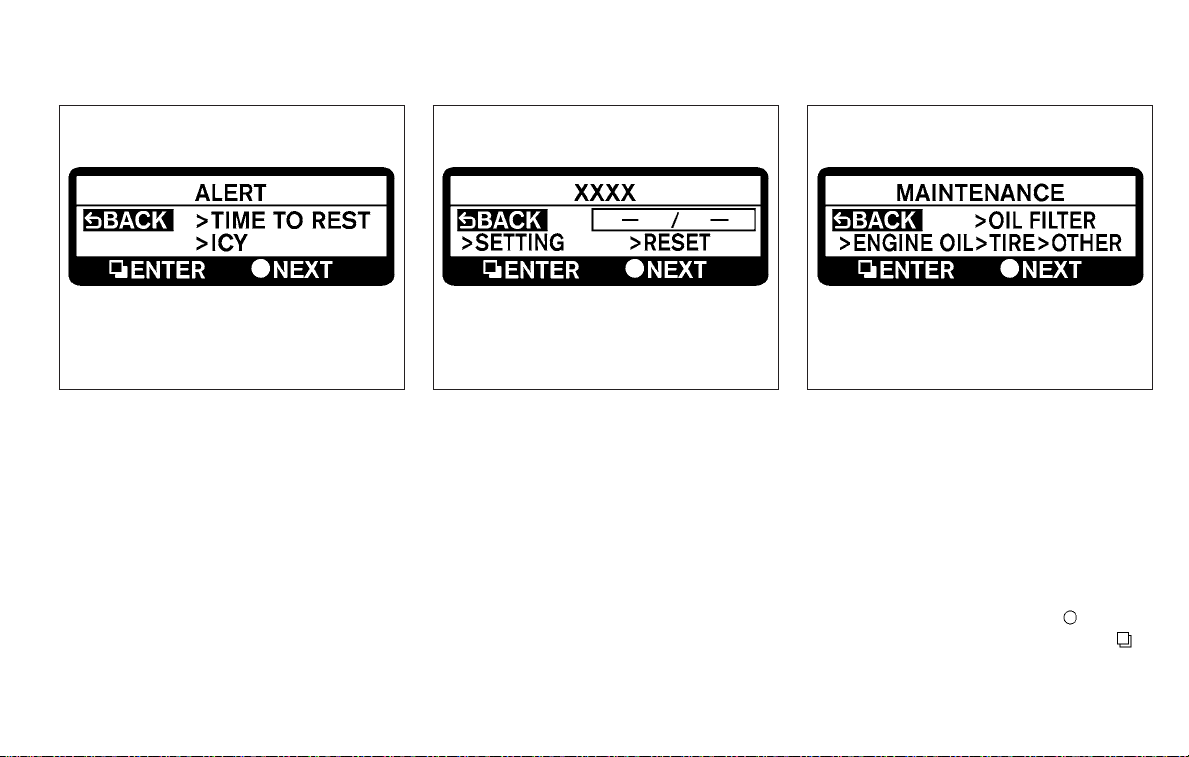

Alert mode

The alert mode allows you to set alerts notifying you of time to rest or icy conditions.

The time to rest alert lets you know when you have been traveling for a long time and may need a break.

The icy alert notifies you that icy driving conditions may exist.

2-20 Instruments and controls

Reset mode

The reset mode can be selected in any screen that allows for preferences to be programmed. Once the screen is selected, you have the option to reset the selected distances or time to a new setting.

Maintenance mode

The maintenance mode allows you to set alerts for the reminding of maintenance intervals for the following:

● engine oil

● oil filter

● tires

● other

Set a desired interval by pushing

to high-

light the maintenance field and pressing The reset mode will open up and allow you to enter the desired distance.

LIC1542 LIC1098

Options mode

The LANGUAGE/UNIT screen will appear when selecting the “Language/Unit” key and

pressing

Language: English or French

Unit: US — mile, °F, MPG

Metric — km, °C, L/100 km

Dial effects: This changes effects of the indicator needles when ON. The needles in the meter sweep andthe ring illumination will be brightened gradually when the engine is started.

You can select the language, unit or change the dial effects by using the pressing

button and

The settings are automatically saved when you exit the menu by pressing the BACK button or any other mode button.

Warning mode

The warning mode can be selected to view any warnings that may be present. Once the screen is selected you have the option of skipping the warning or viewing it in detail.

Warnings can be present for issues such as an open dooror low fuel. For more information about potential warnings see “Vehicle information display warnings and indicators” later in this section.

Instruments and controls 2-21

Vehicle information display warnings and indicators

1. Door and trunk open warning

2. Push warning

3. Low fuel warning

2-22 Instruments and controls

4. Low windshield washer fluid warning

5. No key warning

6. Parking brake warning

7. Shift P warning

8. Engine start operation indicator

WIC1407

9. NISSAN Intelligent Key™ insertion indicator

10. NISSAN Intelligent Key™ removal indicator

11. NISSAN Intelligent Key™ battery discharge indicator

12. Steering lock release malfunction indicator (if so equipped)

Door and trunk open warning

This warning illuminates when a door or the trunk has been opened when the engine is running.

Push warning

After the Shift P warning illuminates, the Push warning will illuminate if the ignition switch is placed in the ACC position when the shift selector is moved to the P (Park) position.

See “ShiftP warning”in this sectionfor additional information.

To turn off the Push warning, place the ignition switch in the ON position and then to the LOCK position.

Low fuel warning

This warning illuminates when the fuel level in the fuel tank is getting low. Refuel as soon as it is convenient, preferably before the fuel gauge reaches E (Empty). There will be a small re-

serve of fuel in the tank when the fuel gauge needle reaches E (Empty).

Low windshield-washer fluid warning

This warning illuminates when the windshieldwasher fluid is at a low level. Add windshieldwasher fluid as necessary. See “Windshieldwasher fluid” in the “Maintenance and do-ityourself” section of this manual.

No key warning

This warning illuminates following two conditions:

1. When the ignition switch is pushed and the Intelligent Key cannot be recognized by the system. If this warning illuminates, you cannot start the engine.

Check for the following causes and perform the assigned remedies:

– The battery of the Intelligent Key carried

with you is discharged completely. Replace the battery with a new one.

– The Intelligent Key carried with you is not

registered to the system. Use the registered Intelligent Key.

– You do not have an Intelligent Key with

you. Carry an Intelligent Key with you.

2. When the door is closed with the Intelligent Key left outside the vehicle and the ignition switch is placed in the ACC or ON position. A chime will also sound.

Parking brake warning

This warning illuminates when the parking brake is set and the vehicle is driven.

SHIFT P warning

This warning illuminates when the ignition switch is pushed to stop the engine with the shift selector in any position except in the P (Park) position.

If this warning illuminates, the ignition switch is in the OFF position. Move the shift selector to the P (Park) position or push the ignition switch to the ON position.

An inside warning chime will also sound.

If the shift selector is moved to the P (Park) position, the Push warning will appear. Refer to “Push warning” in this section.

For additional information about Intelligent Key, see “NISSANIntelligent Key™” in the “Pre-driving checks and adjustments” section.

Engine start operation indicator

This indicator illuminates when the ignition switch is in the LOCK, OFF, ACC or ON position with the shift selector in the P (Park) position.

This indicator means that the engine will start by pushing the push-button ignition switch with the brake pedal depressed.

Instruments and controls 2-23

SECURITY SYSTEMS

NISSAN Intelligent Key™ insertion indicator

This indicator illuminates when the Intelligent Key needs to be inserted into the Intelligent Key port. (For example, the Intelligent Key battery is discharged.)

If this indicator illuminates, insert the Intelligent Key into the Intelligent Key port in the correct direction. See “Push-button ignition switch” in the “Starting and driving” section.

NISSAN Intelligent Key™ removal indicator

This indicator illuminates when the driver’s door is opened with the ignition switch placed in the OFF position and the Intelligent Key placed in the Intelligent Key port. A key reminder chime also sounds.

If this indicator illuminates, remove the Intelligent Key from the Intelligent Key port and take it with you when leaving the vehicle.

NISSAN Intelligent Key™ battery discharge indicator

This indicator illuminates when the Intelligent Key battery is running out of power.

If this indicator illuminates, replace the battery with a new one. See “NISSAN Intelligent Key™” in the “Maintenance and do-it-yourself” section.

2-24 Instruments and controls

Steering lock release malfunction indicator (if so equipped)

This indicator illuminates when the steering wheel cannot be released from the LOCK position.

If this indicator illuminates, push the ignition switch while lightly turning the steering wheel right and left.

LIC0301

Your vehicle has two types of security systems:

● Vehicle security system

● NISSAN Vehicle Immobilizer System

VEHICLE SECURITY SYSTEM

The vehicle security system provides visual and audible alarm signals if someone opens the doors or trunk lid when the system is armed. It is not, however, a motion detection type system that activates when a vehicle is moved or when a vibration occurs.

The system helps deter vehicle theft but cannot prevent it, nor can it prevent the theft of interior or exterior vehicle components in all situations. Al-

ways secure your vehicle even if parking for a brief period. Never leave your Intelligent Key in the vehicle, and always lock the vehicle when unattended. Be aware of your surroundings, and park in secure, well-lit areas whenever possible.

Many devices offering additional protection, such as component locks, identification markers, and tracking systems, are available at auto supply stores and specialty shops. Your NISSAN dealer may also offer such equipment. Check with your insurance company to see if you may be eligible for discountsfor various theft protection features.

How to arm the vehicle security system

1. Close all windows. (The system can be

armed even if the windows are open.)

2. Remove the Intelligent Key from the vehicle.

3. Close all doors, hood and trunk. Lock all doors. The doors can be locked with the Intelligent Key, door handle request switch, power door lock switch or mechanical key.

4. Confirm that the security indicator light comes on. The security light stays on for about 30 seconds. The vehicle security system is now pre-armed. After about 30 seconds the vehicle security system automatically shifts into the armed phase. The

security light begins to flash once every 3 seconds. If, during the 30-second pre-arm time period, the driver’s door is unlocked by the key or the keyfob, or the ignition switch is placed in the ACC or ON position, the system will not arm.

● Even when the driver and/or passengers are in the vehicle, the system will activate with all the doors, hood and trunk lid locked with the ignition switch placed in the LOCK position. When placing the ignition switch in the ACC or ON position, the system will be released.

Vehicle security system activation

The vehicle security system will give the following alarm:

● The headlights blink and the horn sounds intermittently.

● The alarm automatically turns off after approximately 50 seconds. However, the alarm reactivates if the vehicle is tampered with again. The alarm can be shut off by unlocking the driver’s door or trunk lid with the key, or

by pressing the gent Key.

button on the Intelli-

The alarm is activated by:

● opening the door or trunk lid without using the key or Intelligent Key (even if the door is unlocked by releasing the door inside lock switch).

How to stop an activated alarm

The alarm stops only by unlocking the driver’s door or the trunk lid with the key, pressing

the ing the request switch on the driver’s or passenger’s door with the Intelligent Key in range of the door handle.

button on the Intelligent Key, or press-

NISSAN VEHICLE IMMOBILIZER SYSTEM

The NISSAN Vehicle Immobilizer System will not allow the engine to start without the use of a registered key.

If the engine fails to start using a registered key (for example, when interference is caused by another registered key, an automated toll road device or automatic payment device on the key ring), restart the engine using the following procedures:

1. Leave the ignition switch placed in the ON position for approximately 5 seconds.

2. Place the ignition switch in the OFF or LOCK position and wait approximately 10 seconds.

Instruments and controls 2-25

3. Repeat steps 1 and 2.

4. Restart the engine while holding the device (which may have caused the interference) separate from the registered key.

If the no start condition re-occurs, NISSAN recommends placing the registered key on a separate key ring to avoid interference from other devices.

Statement related to Section 15 of FCC Rules for NISSAN Vehicle Immobilizer System (CONT ASSY — IMMOBILIZER, ANT ASSY — IMMOBILIZER)

This device complies with part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions;

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

2-26 Instruments and controls

LIC0474 WIC1434

Security indicator light

The security indicator light blinks whenever the ignition switch is placed in the OFF, LOCK or ACC position. This function indicates the NISSAN Vehicle Immobilizer System is operational.

If the NISSAN Vehicle Immobilizer System is malfunctioning, the light will remain on while the ignition switch is placed in the ON position.

If the light still remains on and/or the engine will not start, see a NISSAN dealer for NISSAN Vehicle Immobilizer System service as soon as possible. Please bring all registered keys that you have when visiting your NISSAN dealer for service.

WINDSHIELD WIPER AND WASHER SWITCH

SWITCH OPERATION

The windshield wiper and washer operates when the ignition switch is in the ON position.

Push the lever down to operate the wiper at the following speed:

Intermittent — intermittent operation can be

䊊

adjusted by turning the knob toward (Slower) or tent operation speed varies in accordance with the vehicle speed. (For example, when the vehicle speed is high, the intermittent operation speed will be faster.)

(Faster). Also, the intermit-

䊊

NOTE:

You can turn on or turn off the driving speed dependent intermittent wiper function for vehicles with navigation system. Refer to “Comfort settings”in the “Monitor, climate, audio, phone and voice recognition systems” section.

Low — continuous low speed operation

䊊

High — continuous high speed operation

䊊

Push the lever up tion of the wiper.

Pull the lever toward you washer. The wiper will also operate several times.

to have one sweep opera-

䊊

to operate the

䊊

WARNING

In freezing temperatures the washer solution may freeze on the windshield and obscure your vision which may lead to an accident. Warm the windshield with the defroster before you wash the windshield.

CAUTION

● Do not operate the washer continuously for more than 30 seconds.

● Do not operate the washer if the reservoir tank is empty.

● Do not fill the windshield-washer fluid reservoir tank with washer fluid concentrates at full strength. Some methyl alcohol based washer fluid concentrates may permanently stain the grille if spilled while filling the windshieldwasher fluid reservoir tank

● Pre-mix washer fluid concentrates with water to the manufacturer’s recommended levels before pouring the fluid into the windshield-washer fluid reservoir tank. Do not use the windshieldwasher fluid reservoir tank to mix the washer fluid and water.

REAR WINDOW AND OUTSIDE MIRROR (if so equipped) DEFROSTER SWITCH

LIC1387

Type A

To defrost the rear window glass and outside mirrors (if so equipped), start the engine and push the rear window defroster switch on. The rear window defroster indicator light on the switch comes on. Push the switch again to turn the defroster off.

The rear window defroster automatically turns off after approximately 15 minutes.

CAUTION

When cleaning the inner side of the rear window, be careful not to scratch or damage the rear window defroster.

Instruments and controls 2-27
