NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
Operating Instructions
107145403 C
NEPTUNE 1
NEPTUNE 2
1
2
3
4
5
6
7
8
9
10
11
12 13 14 15 16 17
0
°F
°C
85
30
105
40
120
50
CUT OUT
60
150
300
100
210
90
195
140
70
160
80
175
1
300
100
210
°F
°C
30
CUT OUT
70
160
90
80
195
175
0
1%
2%
4%
18
19
0
85
105
40
120
50
60
140
3%
0
1%
2%
3%
4%
20
Contents
Symbols used to mark
instructions
1 Important safety
instructions
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
............................................................................................2
............................................................................................2
2 Description
3 Before starting the cleaner
4 Control / Operation
5 Applications and methods
6 After using the cleaner
2.1 Purpose ................................................................................4
2.2 Operating elements ..............................................................5
3.1 Setting up the cleaner ..........................................................5
3.2 Before use ............................................................................5
3.3 Fill up detergent tank ............................................................5
3.4 Antiscale ...............................................................................6
3.5 Fill up fuel tank .....................................................................6
3.6 Connecting the high pressure hose......................................6
3.7 Connecting the water supply ................................................6
3.8 Electrical connection ............................................................7
3.9 Antifreeze - before first use ..................................................7
4.1 Switching on the cleaner ......................................................7
4.2 Connections .........................................................................7
1)
4.3 Pressure regulation (Ergo Vario Press Gun)
......................8
4.4 Using cleaning agents ..........................................................8
5.1 Techniques ...........................................................................9
5.2 Some typical cleaning tasks .................................................9
6.1 Switching off the cleaner and disconnecting the supply
lines .................................................................................... 11
6.2 Rolling up the electrical lead and storing accessories........ 11
6.3 NEPTUNE 1 Storing the cleaner (below 0°C) ....................11
6.4 NEPTUNE 2 Storing the cleaner (below 0°C) ....................12
6.5 Transporting the cleaner ....................................................12
7 Maintenance
8 Troubleshooting
9 Further information
1)
Options / model variants
Original instruction
7.1 Maintenance plan ..............................................................13
7.2 Maintenance work ..............................................................13
8.1 Indications on Display ........................................................14
8.2 Other Faults........................................................................15
9.1 Recycling the cleaner .........................................................16
9.2 Guarantee ..........................................................................16
9.3 EU Declaration of Conformity .............................................16
9.4 Technical data ..................................................................385
1
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
Symbols used to mark
instructions
Safety instructions
in these operating
instructions which
must be observed
to prevent risks
sure safe operation.
to persons are marked with this
danger symbol.
Before using the
high-pressurecleaner, be sure to also
read the enclosed
operating instruc-
tions and keep them within reach
machine and its performance.
at all times.
1 Important safety instructions
This indicates
tips and instructions to simplify
work and to en-
This symbol is used
to mark safety instructions that must
be observed to prevent damage to the
For your own safety
The appliance must
– only be used by persons,
who have been instructed in
its correct usage and explicitly commissioned with the
task of operating it
– only be operated under su-
pervision
– not be used by children
– not be used by mentally or
physically disabled persons
CAUTION!
High-pressure water jets can be
dangerous if misused. The jet
must not be directed at persons,
animals, live electrical equipment or the cleaner itself.
Wear protective clothing, ear
protection and safety goggles.
or footwear. Do not direct the jet
towards live animals.
During operation of the cleaner,
recoil forces are produced at the
spraying device and, when the
spray lance is held at an angle,
a torque is also created. The
spraying device must therefore
be held firmly in both hands.
General
Use of the high-pressure cleaner
is subject to the applicable local
regulations.
Besides the operating instructions and the binding accident
prevention regulations valid in
the country of use, observe recognised regulations for safety
and proper use.
Do not use any unsafe work
techniques.
Do not tie the trigger handle
open.
For transport at temperatures
around or below 0°C, anti-freeze
liquid should be drawn into the
pump and boiler beforehand
(see chapter 6).
Before starting the cleaner
If your machine is a 3 phase
version and has been supplied
without a plug have it fitted with
a suitable 3 phase plugwith an
earth conductor by an electrician.
Each time prior to putting the
appliance into service, always
check the power supply cord
and the other important parts of
the appliance, such as the highpressure hose and the spray
gun. Do not operate the appliance if any of these parts are
damaged.
Set up the appliance such that
the mains connector is readily
accessible.
Do not use the cleaner when
other people without protective
clothing are in the working area.
Do not direct the jet towards
yourself or towards other per-
sons in order to clean clothes
2
Transport
For safe transport in and on vehicles we recommend preventing the equipment from sliding
and tilting. Secure it with belts.
Regularly check whether the
mains lead is damaged or shows
signs of ageing. Use the highpressure cleaner only when the
mains power lead is in a safe
condition.
1)
Options / model variants
Original instruction
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
If the mains power lead is damaged, to avoid hazards, this
must be replaced either by the
manufacturer or through his
customer service or a similarly
qualified person.
CAUTION!
Unsuitable extension leads can
represent a source of danger.
Always unwind lead from the
reels completely to prevent the
mains power lead overheating.
Connectors and couplings of
power supply cords and extension leads must be watertight.
When using an extension lead,
check the minimum cross-sections of the cable:
Cable lengthmCross section
<16 A <25 A
up to 20 m
20 to 50 m
ø1.5mm² ø2.5mm²
ø2.5mm² ø4.0mm²
Check the rated voltage of the
high-pressure cleaner before
connecting it to the mains power supply. Ensure that the voltage shown on the rating plate
corresponds to the voltage of
the local mains power supply.
It is important that the electrical
connection for this appliance
has been installed by an electrician and in compliance with IEC
60364 and the country-specific
regulations.
We recommend that the electrical connection to this appliance
should incorporate
– either a fault current circuit
breaker, which cuts off the
mains voltage if the fault
current exceeds 30 mA for
30 ms,
– or an earth resistance me-
ter.
Check that cleaning will not
result in dangerous substances (e.g. asbestos, oil) being
washed off the object to be
cleaned and harming the environment.
1)
Options / model variants
Original instruction
Do not clean delicate parts
made of rubber, fabric, etc. with
the 0° jet. Keep some distance
between high pressure nozzle
and surface in order to prevent
the surface from damage.
Do not use the high-pressure
hose for lifting loads.
The maximum permissible
working pressure and temperature are printed on the highpressure hose.
Store the cleaner where
it will not be exposed to
frost or use anti-freeze
liquid!
Never operate the cleaner without water. Even brief shortages
of water result in severe damage to the pump seals.
Water connection
This high pressure
washer/cleaner is
only allowed to be
connected with the
drinking watermains, when an appropriate
backflow preventer has been
installed, Type BA according to
EN 1717. If the back flow preventer hasn’t been supplied,
one can be ordered from your
dealer. The length of the hose
between the backflow preventer
and the high pressure washer
must be at least 6 metres (min
diameter 3/4 inch) to absorb
possible pressure peaks. Operation by suction (for example
from a rainwater vessel) is carried out without backflow preventer. Contact your dealer for
suction set recommendations.
As soon as water has flown
through the BA valve, this water
is not considered to be drinking
water any more.
Operation
Keep cabinet closed during operation.
Do not damage the mains power lead (e.g. by driving over it,
pulling or crushing it).
Disconnect the power cord by
pulling the plug only (do not pull
or tug the power cord).
IMPORTANT!
This appliance has been devised for use with cleansing
agents that are supplied and
recommended by the manufacturer. The use of other cleansing
agents or chemicals can impair
the safety of the appliance.
CAUTION!
The appliance is intended to be
used with heating oil EL or diesel
oil. Unsuitable fuels (e.g. petrol)
must not be used as they can
represent a source of danger.
If the machine is to be operated at fuel stations or in other
potentially hazardous areas, the
machine may only be employed
outside the hazard areas defined in the German „Technical
Guidelines for Inflammable Fluids“ applicable at the point of use
due to the potential explosion
hazard posed by the burner.
When setting up the appliance
indoors, always ensure suitable
ventilation and that the exhaust
gases are expelled in a suitable
way. We will be glad to provide
tips for connection systems, on
request.
If the machine is to be connected to a flue gas stack, then
local building regulations must
be observed. We will be glad to
provide tips for connection systems, on request.
CAUTION!
Beware of hot water and
steam discharge up to
150°C when operating in
steam stage.
CAUTION!
Do not touch or cover the
exhaust. Risk of burns
and fire.
Do not touch, cover or place hose
or cord over the chimney. Danger
for persons, risk of overheating
and fire.
3
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
Electrical equipment
CAUTION!
Never spray electrical equipment with water: danger for persons, risk of short-circuiting.
Switching on the cleaner may
cause voltage fl uctuations.
Voltage fluctuations should not
occur if the impedance at the
transfer point is less than 0.15
If in doubt ask your local electricity supplier.
Maintenance and repair
CAUTION!
Always remove the plug from the
mains plug socket before cleaning or carrying out maintenance
work on the cleaner.
Carry out only the maintenance
operations described in the operating instructions. Use only
original Nilfisk-ALTO spare
parts.
Do not make any technical modifications to the high-pressure
cleaner.
Ensure that the machine is regularly serviced by Authorised
Nilfisk-ALTO dealers in accordance with the maintenace plan.
Failure to do so will invalidate
the warranty.
CAUTION!
High-pressure hoses, fittings
and couplings are important for
the safety of the cleaner. Use
only high-pressure parts approved by the manufacturer!
The mains power lead must not
differ from the version specified
by the manufacturer and may
only be changed by an electrician.
Please contact the Nilfisk-ALTO
service department or an authorised specialist work-shop for
all other maintenance or repair
work!
Testing
The cleaner conforms to the
German „Guidelines for Liquid
Spray Jet Devices“. The highpressure cleaner must be subjected to a safety examination
in accordance with the „Accident Prevention Regulations for
Working with Liquid Spray Jet
Devices (BGV D15)“ as required,
but at least every 12 months, by
an authorised inspector.
After all repairs or modifications to electrical equipment,
the protective conductor resistance, the insulation resistance
and the leakage current must
be measured. Furthermore, a
visual inspection of the mains
power lead, a voltage and current measurement and a function test must be carried out.
Our after-sales service technicians are at your disposal as authorised inspectors.
The complete „Accident Prevention Regulations for Working
with Liquid Spray Jet Devices“
are available from the Carl Heymanns Verlag KG, Luxemburger
Strasse 449, 50939 Cologne or
from the appropriate association of employers’ liability insurances.
The pressure-bearing parts of
this high-pressure cleaner have
been manufactured in accordance with § 9 of the German
Pressure Vessels Ordinance
and successfully subjected to a
pressure test.
Safety devices
Unacceptably high pressure is
fed back without residual pressure via a bypass line into the
intake line of the pump when the
safety device is tripped.
If the conveying capacity falls
below a fixed value, the builtin flow monitor automatically
switches off the oil burner. The
oil burner is set to continuous
ignition. As an additional protection mechanism, a thermo-sensor is integrated in the chimney
of the heat exchanger. As such,
the appliance cannot overheat.
The safety devices are factory
set and leaded, and must not be
adjusted.
2 Description
2.1 Purpose This high-pressure cleaner has
been designed for professional
use. It can be used for cleaning agricultural and construction
equipment, stables, vehicles,
rusty surfaces, etc.
The cleaner has not been approved for cleaning surfaces
which comes into contact with
food.
4
Chapter 5 describes the use of
the high-pressure cleaner for
various cleaning jobs.
Always use the cleaner as described in these operating instructions. Any other use may
damage the cleaner or the surface to be cleaned or may result
in severe injury to persons.
1)
Options / model variants
Original instruction
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
2.2 Operating elements 1. High pressure hose reel
2. Top cover release
3. Cannister for detergent
4. Cable hook
5. Spray lance
6. Supply water connection
7. Spray lance storage
See fold-out page at front of these
operating instructions.
8. Hose hook
9. Tank filler for fuel
10. High pressure hose connection
1)
11. Control panel
12. Power ON
13. Fuel low
14. Nilfisk-ALTO AntiStone low
15. Service interval due/expired
16. Boiler overheated
17. Flame sensor is sooted
18. Main switch
19. Temperature controller
20. Detergent metering knob
for machines without hose
reel
3 Before starting the cleaner
3.1 Setting up the cleaner Every fuel-burning appliance,
such as pressure washers, depends upon a proper mix of fuel
and air (by weight) for proper
combustion. Therefore some
adjustment of the air regulation
to the burner may be necessary
to take account of altitude and
the resulting air pressure. This
is true whether your fuel is Kerosene or Diesel.
Your Nilfisk-ALTO hot water
pressure washer was thoroughly tested and adjusted for
optimum performance before
it left our factory. The factory is
located at approximately 140m
(450 ft) above sea level, and the
combustion settings are optimal
for that elevation.
If your location is higher than
1200m (3900 ft) above sea
level, your burner may require
re-adjustment for proper performance and best fuel economy. Contact your Dealer or
Nilfisk-ALTO for assistance.
1)
1)
3.2 Before use 1. Before using the cleaner for
0
the first time, check it care-
°F
°C
85
30
105
40
120
50
CUT OUT
60
1
140
300
100
70
160
210
90
80
195
175
0
1%
2%
3%
4%
fully to detect any faults or
damage.
2. Run the machine only when
it is in perfect condition.
3. The slope on which the high
pressure cleaner is placed
must not exceed more than
o
in any direction.
10
1. Fill up detergent tank with
3.3 Fill up detergent tank
Max 10
°
1)
prediluted detergent.
Capacity see chapter 9.4 Technical Data
1)
Options / model variants
Original instruction
5
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
3.4 Antiscale
The Nilfisk Alto Antiscale dosing
system is set by the factory.
To adjust the water hardness we
recommend that the inlet water
Use the schematic to find the
right dosage of No Scale/anti
stone and water, and add the
mixture to the antiscale tank.
is tested accordingly.
Machine flow L/h Pump size ml/h ˚dH ˚f ˚e Dosage
600 35 0-12 0-21,5 0 - 15 1:2 = 12ml/h
600 35 12-30 21,5 - 53,7 15 - 37,5 Pure = 35ml/h
700 35 0-12 0-21,5 0 - 15 1:1 = 17ml/h
700 35 12-30 21,5 - 53,7 15 - 37,5 Pure = 35ml/h
800 35 0-12 0-21,5 0 - 15 1:1 = 17ml/h
800 35 12-30 21,5 - 53,7 15 - 37,5 Pure = 35ml/h

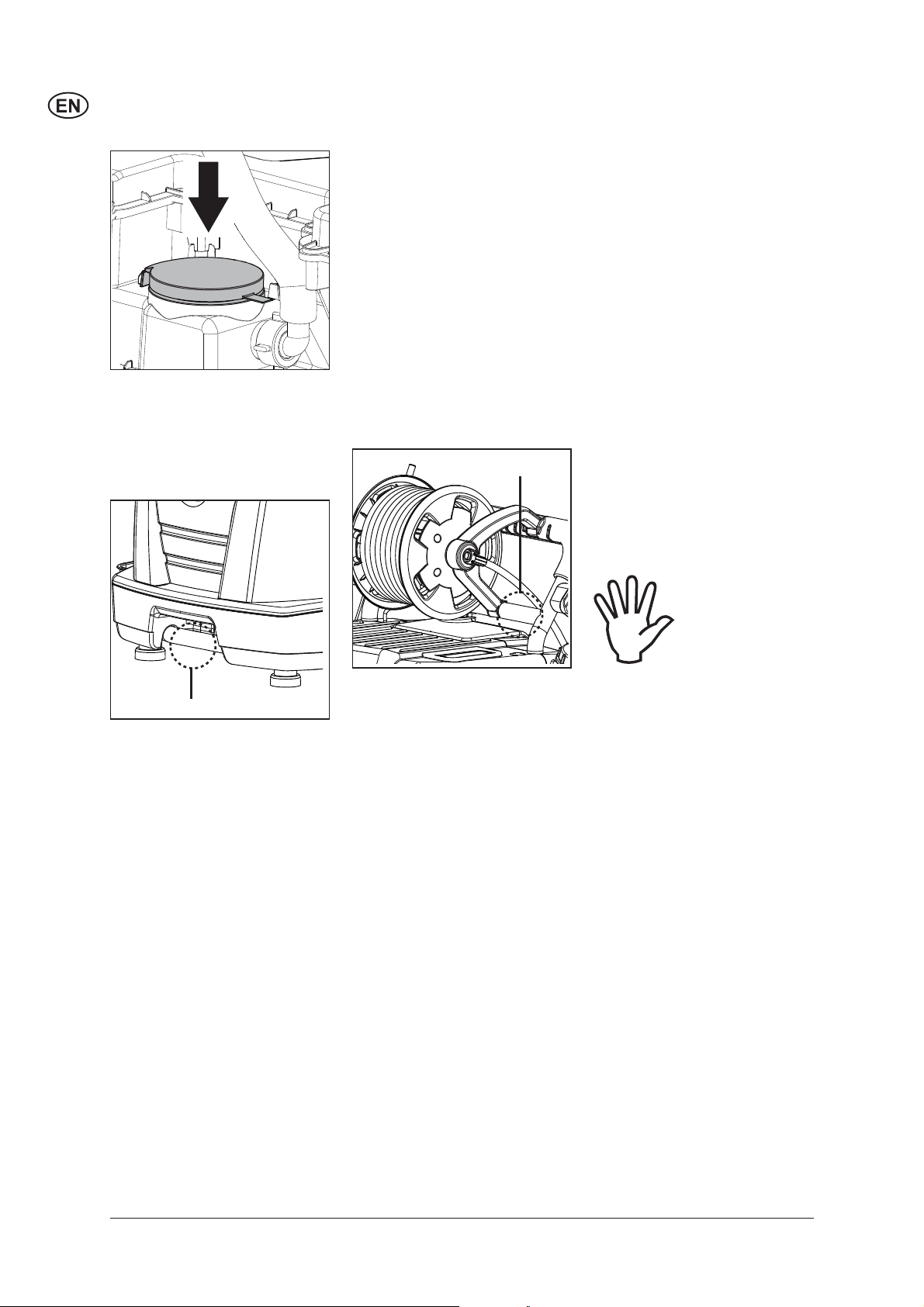

3.5 Fill up fuel tank
NOTE!
At temperatures below 8° C, the fuel
oil begins to solidify (paraffin precipitation). This can lead to difficulties
in starting the burner. Before the
winter period either add a solidification point / flow improver (available
from the fuel oil trade) to the fuel or
use winter diesel fuel.
With the machine cold:
1. Pour fuel (fuel oil EL,
or Diesel oil DIN 51 603)
into the fuel tank.
The fuel must be free from contamination.
Tank capacity see chapter 9.4
Technical data.
3.6 Connecting the high
pressure hose
3.7 Connecting the water
supply
In the case of poor water quality
(sand, etc.), we recommend that a
fine water filter is fitted in the water
inlet.
We recommend the use of a textilereinforced water hose with a nominal diameter of min. 3/4" (19 mm).
Be careful not to damage the
fuel tank filter to avoid dirt entering in the tank
1. Put the quick connector of
the high pressure hose onto
1)
the nipple on the cleaner.
1. Rinse the water supply hose
briefly in order to prevent
sand an other dirt particles
entering into the machine.
2. Connect water supply hose
to the machine.
3. Open water tap.
NOTE!
See chapter 9.4 Technical Data for
required quantity of water and water
pressure.
1)
6
Options / model variants
Original instruction
NEPTUNE 1, NEPTUNE 2
A
C
B
2%
NEPTUNE 2 Special
3.8 Electrical connection
3.9 Antifreeze - before first
use
230V
400V 400V
230V
3%
4%
Before connecting devices with
1)
voltage changeover
: Check that
the pre-selected voltage on the
machine corresponds with the
voltage of the electrical installation. Otherwise the electrical
The machine is protected with
anti-freeze from the factory.
devices of the machine can be
destroyed.
CAUTION!
When using cable reels:
1. Due to the risk of overheating and fire, always unwind
the power supply cord fully.
The cleaner may only be connected to a correctly installed
electrical installation.
1. Observe safety instructions in
chapter 1.
2. Put the plug into the electrical
socket.
Catch the liquid discharging at
first (approx. 5 l) for re-use in a
container.
4 Control / Operation
4.1 Switching on the
cleaner
NOTE!
Always remove any dirt from the
nipple before connecting the spray
lance to the spray gun.
4.2 Connections
4.2.1 Connecting the spray
lance to the spray gun
A
0
B
1. Move the main switch into
position 'Cold Water' (A)
The control electronics system performs a self-test, all the
LEDs light up once.
The motor starts
lights up.
2. Ventilate the machine for air
by activating the spray gun
3. When the water flow is even,
continue with the following
steps
1. Pull the blue quick-release
grip (A) of the spray gun
backwards.
2. Insert the nipple of the spray
lance (B) into the quickrelease connection and release it.
3. Pull the spray lance (or other
accessory) forwards to check
that it is securely attached to
the spray gun.
1)
Original instruction
Options / model variants
7
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
4.2.2 Hot water operation (up
to 100°C)
IMPORTANT!
In the case of appliances with a
hose reel:
In hot water mode, unwind the
high-pressure hose fully from the
hose reel, as otherwise the hose
reel may become warped due to
the effects of the heat.
4.2.3 Steam operation (over
100°C)
Beware of hot water and
steam discharge up to
150°C when operating in
steam stage.
1)
4.3 Pressure regulation (Ergo
Vario Press Gun)
For safety reasons, never tie back or
wedge open the trigger of the spray gun in
open position during operation. The trigger
must be free to close when released, thus
interrupting the flow of the water.
1)
BAR
1. Move main switch into the
position 'Hot Water' (B) and
select the required temperature on the temperature control
2. Unlock the spray gun and actuate it
The burner switches on.
In case of interruptions in work:
Also be sure to insert the safety
catch even during short interruptions in work (see Fig. in section
6.1)
1. Replace the standard noz-
zle with the steam spray
nozzle (See catalogue for
accessories).
2. Open cover.
3. Turn the twist grip on the
safety control block com plete ly to the left (anti clock wise
direction).
4. Turn the main switch into
position ‘Hot Water’.
5. Select temperature (over
100°C).
1. Operate the Vario trigger in
order to vary the water flow
and thereby the pressure.
2. Push the trigger forwards to
obtain full pressure and flow.
4.4 Using cleaning agents
8
0
1%
2%
3%
4%
For special applications (e.g. disinfection)
the exact detergent concentration has to
be determined by measuring cup. For water throughput of the machine see chapter
9.4 technical data.
1. Set the desired concentration of cleansing agent at the
cleansing agent dosing facility.
2. Spray the object to be
cleaned.
3. Allow the cleaning agent to
work, depending on the degree of soiling. Then rinse off
with the high pressure spray
jet.
CAUTION!
Never allow cleaning agent to dry on the
surface to be cleaned. The surface may be
damaged.
1)
Options / model variants
Original instruction
5 Applications and methods
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
5.1 Techniques
Effi cient high pressure cleaning is achieved by following a few
guidelines, combined with your own personal experience of specifi c
cleaning tasks. Accessories and detergents, when correctly chosen,
can increase the effi ciency of your pressure washer. Here is some
basic information about cleaning.
5.1.1 Soaking
Encrusted or thick layers of dirt can be loosened or softened by a
period of soaking. An ideal method within agriculture – for example,
within pig sties. The soaking method can be achieved by use of foam
or simple alkaline detergent. Let the product lie on the dirty surfaces
for around 15 minutes before pressure washing. The result will be a
much quicker high pressure cleaning process.
5.1.2 Detergent and Foam
Foam or detergent should be applied onto dry surfaces (not in direct
sun light) so that the chemical product is in direct contact with the
dirt. Detergents are applied from bottom to top, for example on a car
bodywork, in order to avoid “super clean” areas, where the detergent
collects in higher concentration and streams downwards. Let the
detergent work for several minutes before rinsing but never let it dry
on the surface being cleaned.
5.1.3 Temperature Detergents are more effective at higher temperatures. Greases, oils
and fats can be broken down more easily at higher temperatures also.
Proteins can be cleaned at temperatures of around 60°C. Oils, traffi c
fi lm around 70°C, and grease can be cleaned at 80°C - 90° C.
5.1.4 Mechanical Effect
In order to break down tough layers of dirt, additional mechanical
effect may be required. Special lances and rotary or wash brushes
offer this supplementary effect that cuts through dirt.
5.1.5 High Water Flow or
High Pressure
High pressure is not always the best solution and high pressure may
damage surfaces. The cleaning effect also depends upon water
fl ow. Pressure levels of around 100 bar may be suffi cient for vehicle
cleaning (in association with hot water). Higher fl ow levels give the
possibility to rinse and fl ush away large amounts of dirt easily.
5.2 Some typical cleaning
tasks
5.2.1 Agriculture
Task Accessories Method
Stables
Pig Pens, Sties
Cleaning of walls,
floors and equipment
Disinfectant
Chemical Foam Injectors
Foam lance
Powerspeed lance
Floor Cleaner
Detergents
Universal
Alkafoam
1. Soaking – apply foam to all surfaces (bottom to top)
and wait for approx. 15 minutes.
2. Remove the dirt from surfaces with the high pressure
lance or chosen accessory. Again, clean from bottom
to top on vertical surfaces.
3. To fl ush away large quantities of dirt, change to low
pressure mode and use the higher fl ow to push away
the dirt.
4. Use recommended disinfectant products and methods
to ensure hygiene. Apply DES 3000 disinfectant once
Disinfectant
the surfaces are perfectly clean.
DES 3000
Machinery
Tractors
ploughs etc.
Detergent injection
Powerspeed lances
Curved lances and underchassis washers
Brushes
1. Apply detergent to vehicle or equipment surfaces in
order to soften up dirt and grime. Apply from bottom
to top.
2. Proceed with cleaning using the high pressure lance.
Clean again from bottom to top. Use accessories to
clean in diffi cult to reach places.
3. Clean fragile areas such as motors, rubber at lower
pressure levels to avoid damage.
1)
Options / model variants
Original instruction
9
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
5.2.2 Vehicle
Task Accessories Method
Vehicle bodywork Standard lance
Detergent injection
Curved lances and underchassis washers
brushes
Detergents
Aktive Shampoo
Aktive Foam
Sapphire
Super Plus
Aktive Wax
Allosil
RimTop
1. Apply detergent to vehicle or equipment surfaces in
order to soften up dirt and grime. Apply from bottom
to top. In cases of particularly dirty vehicles, pre-spray
with a product such as Allosil in order to remove traces
of insects etc, then rinse at low pressure and apply
normal car cleaning detergent. Let detergents settle
for 5 minutes before cleaning off. Metallic surfaces
can be cleaned using RimTop.
2. Proceed with cleaning using the high pressure lance.
Clean again from bottom to top. Use accessories to
clean in diffi cult to reach places. Use brushes in order
to add a mechanical cleaning effect. Short lances can
help for cleaning of motors and wheel arches. Curved
lances or undercarriage washers can be valuable for
the cleaning of car underchassis and wheel arches.
3. Clean fragile areas such as motors, rubber at lower
pressure levels to avoid damage.
4. Apply a liquid wax using the pressure washer in order
to protect the bodywork from pollution.
5.2.3 Buildings and Equipment
Task Accessories Method
General surfaces
Metallic equipment
Foam injectors
Standard lance
Curved lances
Tank cleaning
head
1. Apply thick foam over the surfaces to be cleaned.
Apply on dry surfaces. Apply from top to bottom on
vertical surfaces. Let the foam act for up to 30 minutes
for the optimal effect.
2. Proceed with cleaning using the high pressure lance.
Use applicable accessories. Use high pressure to
Detergents
Intensive
J25 Multi
Combi Aktive
Alkafoam
Disinfectant
DES 3000
dislodge large amounts of incrusted dirt or grime.
Use lower pressure and high water volume in order
to rapidly fl ush away loose dirt and rinse surfaces.
3. Apply DES 3000 disinfectant once the surfaces are
perfectly clean.
Areas covered by amounts of loose dirt, such as animal
remains in slaughterho
high water fl ow to fl ush away the dirt to evacuation pits
or drains.
Tank cleaning heads can be used to clean barrels, vats,
mixing tanks etc. Cleaning heads may be hydraulically or
electrically powered and give the possibility for automatic
cleaning without a constant user.
Rusted or damages surfaces prior
to treatment
Wet Sandblasting
equipment
1. Connect the sandblasting lance to the pressure
washer and place the suction tube in the sand.
2. Always wear protective equipment during sandblasting.
3. Spray the surfaces to be treated with the mix of water
and sand. Rust, paint etc will be stripped off.
uses, can be cleaned by using
These are merely several examples of cleaning tasks that can be solved by a pressure washer in association with accessories and detergents. Each cleaning task is different. Please consult your local dealer
or Nilfi sk-ALTO representative in order to discuss the best solution for your own cleaning tasks.
1)
10
Options / model variants
Original instruction
6 After using the cleaner
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
6.1 Switching off
the cleaner and
disconnecting supply
lines
6.2 Rolling up the electrical
lead and storing
accessories
1. Close water tap.
2. Activate spray gun without
lance in order to empty all residual water in the system.
3. Turn the main switch to posi-
tion „OFF“.
4. Pull out the plug from the
electrical socket.
5. Squeeze the spray gun handle until the cleaner is depressurised.
6. Lock the safety catch on the
spray gun.
7. Remove the water hose from
the cleaner.
To prevent accidents, always
carefully roll up the electrical lead and the high pressure
hose.
Place the spray lance into the
storage position.
6.3 NEPTUNE 1
Storing the cleaner
(below 0°C)
Store the cleaner in a dry room
without danger of frost or protect
as below:
1. Remove the water inlet hose
from the water supply.
2. Place the water inlet hose in
a bucket containing an antifreeze.
3. Remove the spray lance.
4. Switch on the cleaner with
the main switch in position
"Cold Water".
5. Operate the spray gun.
6. During suction operate
the spray gun two or three
times.
7. The machine is protected
against frost when antifreeze
solution emerges from the
spray gun.
8. Lock the safety catch on the
spray gun.
9. Remove the water inlet hose
from the bucket
10. Switch off the cleaner and
store it in upright position.
11. When the machine is put into
service again, the antifreeze
solution must be collected
and stored for future or proper disposal.
1)
Options / model variants
Original instruction
11
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
6.4 NEPTUNE 2
Storing the cleaner
(below 0°C)
A
6.5 Transporting the
cleaner
Store the cleaner in a dry room
without danger of frost or protect
as below:
1. Remove the water inlet hose
from the cleaner.
2. Remove the spray lance.
3. Switch on the cleaner with
the main switch in position
"Cold Water".
4. Operate the spray gun.
5. Open the cover (A)
6. Gradually pour antifreeze
(approx. 5 litres) into the water tank.
7. During suction operate
the spray gun two or three
times.
B
8. The machine is protected
against frost when antifreeze
solution emerges from the
spray gun.
9. Lock the safety catch on the
spray gun.
10. Close the cover
11. Switch off the cleaner.
12. To avoid any risks, store the
cleaner temporarily in a heated room in upright position.
13. When the machine is put into
service again, the antifreeze
solution can be collected and
stored for future use.
The machine can be in either
upright position or tilted position
during transportation.
Use the fi xing points (B) when
securing with belts.
B
Notice the risk of leaking water by
sudden heavy movements during
transportation.
12
1)
Options / model variants
Original instruction
7 Maintenance
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
7.1 Maintenance plan
7.2 Maintenance work
7.2.1 Water filters
7.2.2 Maintenance of fuel
filter
Maintain water filters and fuel filters as required.
A water fi lter is fi tted on the water
inlet to prevent large particles of
dirt from entering into the pump.
1. Unscrew quick coupling with
tool.
2. Remove fi lter and clean it.
3. Remount the fi lter and quick
coupling
1. Open hose clips
2. Replace fuel filter
3. Close hose clips
4. Dispose the cleaning solu-
tion/damaged filter in accordance with the disposal
regulations
7.2.3 Emptying the fuel tank
7.2.4 Flame sensor
1)
1. Unscrew the cap
2. Remove the strain
3. Tilt the machine to a
horizontal position
4. Let the fuel pour into an
empty container
1. Dismount the sensor and
clean with a soft cloth.
2. Ensure that the sensor is
correctly seated when installing again - the symbols must
face upwards.
1)
Options / model variants
Original instruction
13
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
8 Troubleshooting
8.1 Indications on Display
Indication lights Cause Remedy
>>The light is constant
- The appliance is ready for
operation
Flashing light
- Flow sensor fault
- Water tap closed or water
shortage
- Detergent tank empty
- Pressure regulation on the
safety control blocks or
the VarioPress
1)
lance is
set to low water volume
- Machine scaled
- Spray gun is leaking
- High pressure hose,
coupling or line system is
leaking
> Refuel detergent or set SDR
value to “0“
- Motor is overheated
> Constant light
- Low fuel level
> Flashing light
- Low Nilfi sk-ALTO Anti-
Stone level
1)
>>Constant light
- Service interval has
expired
Flashing light
- Service interval due in 20
hours
- Microprocessor error
> Constant light
- Boiler overheated.
Exhaust sensor (EXT-H)
has cut off fuel supply
- Insuffi cient water fl ow
- Machine scaled
- Boiler not serviced
> Constant light
- Flame sensor (B7) is
sooted
- Ignition or fuel system
failure
3)
Turn main switch to position
“OFF“ - let the machine cool
down
Remove/disconnect extension cable
>>Top up fuel
Cold water operation is possible
> Top up Nilfi sk-ALTO Anti-
Stone
>
Contact Nilfi sk-ALTO Service
>
Contact Nilfi sk-ALTO Service
>
Machine shutdown
>
Machine shuts down. Cold
water operation is possible.
>
Check water supply
>
Contact Nilfi sk-ALTO Service
>
Clean fl ame sensor (B7) (see
chapter 7.2.4)
>
Contact Nilfi sk-ALTO Service
>
Cold water operation is possible
14
1)
Options / model variants
Original instruction
3)
For NEPTUNE 1 only. For NEPTUNE 2 overheating warning see next page.
Indication lights Cause Remedy
> Flashing light
- Motor is overheated
> Flashing light
- Faulty temperature sensor (B1)
> Flashing light
- Flow sensor fault
> Flashing light
- Overheat error has occurred
> Visual test of lamps
- When switching on,
all LEDs light up for
approximately 1 second
Turn main switch to position
“OFF“ - let the machine cool
down
Remove/disconnect extension
cable
Possible phase failure on 3
phase variants
cal connection checked
Contact Nilfi sk-ALTO Service
>
Cold water operation is possible
>
Check wire to temperature
sensor (B1)
>
Contact Nilfi sk-ALTO Service
>>Cold water operation is pos-
sible
Contact Nilfi sk-ALTO Service
>>Cold water operation is pos-
sible
Contact Nilfi sk-ALTO Service
NEPTUNE 1, NEPTUNE 2
1)
: have electri-
NEPTUNE 2 Special
8.2 Other Faults
Fault Cause Remedy
not ON
Pressure too low
Machine is running with pulsating pressure and makes
knocking noise
No detergent drawn in
Burner soots up
>
Plug not connected to the electrical plug socket
>
High pressure nozzle worn out
>
Pressure regulation set to low
pressure or VarioPress-lance
set to low water volume
>
Pump has drawn in air as the
detergent tank is empty
>
Detergent tank empty
>
Dirt in detergent tank
>
Suction valve at cleaning agent
inlet soiled
>
fuel contamination
>
Burner sooted or adjustment
incorrect
•
Put the plug into the electrical socket.
•
Check fuse (see chapter 9.4 Technical
Data)
•
Replace nozzle
•
Turn the twist grip on safety control
1)
1)
.
block clockwise (+) or set VarioPress-
1)
to higher water volume (see
lance
chapter 4.4)
•
Close detergent valve. Remove lance
from gun. Operate spray gun and let
machine run until air in pump is gone and
the machine is running normally again.
•
Top up detergent tank
•
Clean detergent tank
•
Remove suction valve and clean or
replace
•
Contact Nilfi sk-ALTO Service
1)
Options / model variants
Original instruction
15
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
9 Further information
9.1 Recycling the cleaner If the cleaner is discarded, make
it unusable immediately
1. Unplug the cleaner and cut
the power cord.
9.2 Guarantee
Our general conditions of business are applicable with regard
to the guarantee. Subject to
change as a result of technical
advances.
9.3 EU Declaration of
Conformity
EU Declaration of Conformity
Product: High Pressure Cleaner
Type: NEPTUNE 1
Description: 230 V 1~, 50 Hz / IP X5
Type: NEPTUNE 2
Description: 230 V 1~, 50 Hz / 400 V 3~, 50 Hz / IP X5
Type: NEPTUNE 2 Special
Description: 230 V 1~, 50 Hz / 400 V 3~, 50 Hz / IP X5
The design of the unit corresponds to the
following pertinent regulations:
Applied harmonised standards: EN ISO 12100-1, EN ISO 12100-2, EN
Applied national standards and technical
specifi cations:
The cleaner contains valuable
materials that should be recycled. Therefore, make use of
your local waste disposal site.
Contact your local authorities or
your nearest dealer for further
information.
The guarantee is invalidated if
the machine is not operated in
accordance with these instructions or otherwise abused. The
guarantee is invalidated if the
machine is not serviced as described.
EC Machine Directive 2006/42/EC
EC Low-voltage Directive 2006/95/EC
EC EMC Directive 2004/108/EC
60335-2-79, EN 55014-1(2002), EN 55014-2
(2001), EN 61000-3-2 (2006)
IEC 60335-2-79
Anton Sørensen
General Manager EAPC
Technical Operations Brøndby, 2010
16
1)
Options / model variants
Original instruction
9.4 Technical data
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
Description General 1-22 EU
Data Tol. (±) Nom + T ol/- Tol Nom + Tol/- Tol Nom + Tol/- Tol Nom + Tol/- Tol Nom + Tol/- Tol
Pressure Pwork @ Cylinder
Head(bar)
Flow. Qiec (l/h) 10% 540 +54/-54 540 +54/-54 568 +57/-57 640 +64/-64 640 +64/-64
Flow. Qmax (l/h) 10% 600 +60/-60 600 +60/-60 636 +64/-64 670 +67/-67 670 +67/-67
Temperature t max, hotwater (°C) 80 80 80 80 80
Temperature t max , steam (°C) NA NA 150 150 150
Elec. V/Ph/Hz +/-6% 230/1~/50 230/1~/50 115/1~/60 230/1~/50 230/1~/50
Power Consumption (kW) 2,8 2,8 2,1 2,9 2,9
Fuel tank (l) 17 17 17 17 17
Detergent tank (l) 5 5 5 5 5
Noise level 1m ( dBA) 74 74 77 76 76
Recoil forces with standard lance
(10deg,) (N)
Vibration ISO 5349 (m/s²) ≤2,5 ≤2,5 ≤2,5 ≤2,5 ≤2,5
Weight - Machine alone (kg) 91 91 97 97 99
Size - Machine alone (mm) 607x688x1000 607x688x1000 607x688x1071 607x688x1000 607x688x1071
Fuse size (A) 16 13 20 13 13
Max. inlet pressure (bar) 6 6 10 10 10
Max. Inlet temperature (°C) 40 40 40 40 40
10% 110 +11/-11 110 +11/-11 69 +7/-7 90 +9/-9 90 +9/-9
230/50/16
17,6 17,6 12,9 19 18,5
1-22 GB
230/50/13A
2-20 US
115/1/60/20
2-25 GB
230/1/50/13
2-25X GB
230/1/50/13
Description General 2-26 EU
Data Tol. (±) Nom + Tol/- Tol Nom + Tol/- Tol Nom + Tol/- Tol Nom + Tol/- Tol Nom + Tol/- Tol
Pressure Pwork @ Cylinder
Head(bar)
Flow. Qiec (l/h) 10% 530 +53/-53 530 +53/-53 560 +56/-56 560 +56/-56 600 +60/-60
Flow. Qmax (l/h) 10% 600 +60/-60 600 +60/-60 600 +60/-60 600 +60/-60 660 +66/-66
Temperature t max, hotwater (°C) 80 80 80 80 80
Temperature t max , steam (°C) 150 150 ? ? ?
Elec. V/Ph/Hz +/-6% 230/1~/50 230/1~/50 230/1~/50 230/1~/50 400/3~/50
Power Consumption (kW) 3,4 3,4 3,4 3,4 3,8
Fuel tank (l) 17 17 17 17 17
Detergent tank (l) 5 5 5 5 5
Noise level 1m ( dBA) 77 77 74 74 74
Recoil forces with standard lance
(10deg,) (N)
Vibration ISO 5349 (m/s²) ≤2,5 ≤2,5 ≤2,5 ≤2,5 ≤2,5
Weight - Machine alone (kg) 97 99 97 99 97
Size - Machine alone (mm) 607x688x1000 607x688x1071 607x688x1000 607x688x1071 607x688x1000
Fuse size (A) 16 16 16 16 16
Max. inlet pressure (bar) 10 10 10 10 10
Max. Inlet temperature (°C) 40 40 40 40 40
10% 145 +15/-15 145 +15/-15 140 +14/-14 140 +14/-14 155 +16/-16
230/1/50/16
20,8 20,6 21,8 21,6 24,6
2-26X EU
230/1/50/16
2-26 EU Special
230/1~/50
2-26X EU Special
230/1~/50
2-30 EU Special
400/3~/50
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
Description General 2-30X EU Special
400/3~/50
2-30 US 220-
240/1/60/20
2-33 EU 400/3/50 2-33X EU
400/3/50
2-33 NO 230-
400/3/50
Data Tol. (±) Nom + Tol/- Tol Nom + Tol/- Tol Nom + Tol/- Tol Nom + Tol/- Tol Nom + Tol/- Tol
Pressure Pwork @ Cylinder
10% 155 +16/-16 138 +14/-14 170 +17/-17 170 +17/-17 170 +17/-17
Head(bar)
Flow. Qiec (l/h) 10% 600 +60/-60 681 +68/-68 630 +63/-63 630 +63/-63 630 +63/-63
Flow. Qmax (l/h) 10% 660 +66/-66 750 +75/-75 690 +69/-69 690 +69/-69 690 +69/-69
Temperature t max, hotwater (°C) 80 80 80 80 80
Temperature t max , steam (°C) ? 150 150 150 150
Elec. V/Ph/Hz +/-6% 400/3~/50 220-240/1~/60 400/3~/50 400/3~/50 230-400/3~/50
Power Consumption (kW) 3,8 2,15 4,1 4,1 4,1
Fuel tank (l) 17 17 17 17 17
Detergent tank (l) 5 5 5 5 5
Noise level 1m ( dBA) 74 77 80 80 80
Recoil forces with standard lance
24,8 25,6 27,1 26,3 27,1
(10deg,) (N)
Vibration ISO 5349 (m/s²) ≤2,5 ≤2,5 ≤2,5 ≤2,5 ≤2,5
Weight - Machine alone (kg) 99 97 97 99 97
Size - Machine alone (mm) 607x688x1071 607x688x1000 607x688x1000 607x688x1071 607x688x1000
Fuse size (A) 16 20 16 16 26/16
Max. inlet pressure (bar) 10 10 10 10 10
Max. Inlet temperature (°C) 40 40 40 40 40
Description General 2-33X NO 230-
400/3/50
2-41 EU 400/3/50 2-41X EU
400/3/50
Data Tol. (±) Nom + Tol/- Tol Nom + Tol/- Tol Nom + Tol/- Tol
Pressure Pwork @ Cylinder
10% 170 +17/-17 190 +19/-19 190 +19/-19
Head(bar)
Flow. Qiec (l/h) 10% 630 +63/-63 730 +73/-73 730 +73/-73
Flow. Qmax (l/h) 10% 690 +69/-69 780 +78/-78 780 +78/-78
Temperature t max, hotwater (°C) 80 80 80
Temperature t max , steam (°C) 150 150 150
Elec. V/Ph/Hz +/-6% 230-400/3~/50 400/3~/50 400/3~/50
Power Consumption (kW) 4,1 5,1 5,1
Fuel tank (l) 17 17 17
Detergent tank (l) 5 5 5
Noise level 1m ( dBA) 80 81 81
Recoil forces with standard lance
26,3 32,9 32,0
(10deg,) (N)
Vibration ISO 5349 (m/s²) ≤2,5 ≤2,5 ≤2,5
Weight - Machine alone (kg) 99 97 99
Size - Machine alone (mm) 607x688x1071 607x688x1000 607x688x1071
Fuse size (A) 26/16 16 16
Max. inlet pressure (bar) 10 10 10
Max. Inlet temperature (°C) 40 40 40
NEPTUNE 1, NEPTUNE 2
NEPTUNE 2 Special
Description General 2-16 Gerni
240/1/50/10
2-26 Gerni
240/1/50/15
2-25 KR
220/1/60/15
2-40 EXPT
220,440/3/60
2-40X EXPT
220,440/3/60
Data Tol. (±) Nom + T ol/- Tol Nom + Tol/- Tol Nom + Tol/- Tol Nom + Tol/- Tol Nom + Tol/- Tol
Pressure Pwork @ Cylinder
10% 100 +10/-10 145 +15/-15 125 +13/-13 185 +19/-19 185 +19/-19
Head(bar)
Flow. Qiec (l/h) 10% 400 +40/-40 530 +53/-53 540 +54/-54 730 +73/-73 730 +73/-73
Flow. Qmax (l/h) 10% 450 +45/-45 600 +60/-60 600 +60/-60 780 +78/-78 780 +78/-78
Temperature t max, hotwater (°C) 90 80 80 80 80
Temperature t max , steam (°C) 150 150 150 150 150
Elec. V/Ph/Hz +/-6% 240/1~/50 240/1~/50 220/1~/60 220-440/ 3~/60 220-440 / 3~/60
Power Consumption (kW) 2,2 3,4 3,2 5,7 5,7
Fuel tank (l) 17 17 17 17 17
Detergent tank (l) 5 5 5 5 5
Noise level 1m ( dBA) 77 77 77 81 76/76 81
Recoil forces with standard lance
13,0 20,8 20,0 32,7 31,8
(10deg,) (N)
Vibration ISO 5349 (m/s²) ≤2,5 ≤2,5 ≤2,5 ≤2,5 ≤2,5
Weight - Machine alone (kg) 97 97 97 97 99
Size - Machine alone (mm) 607x688x1000 607x688x1000 607x688x1000 607x688x1000 607x688x1071
Fuse size (A) 10 15 15 20 20
Max. inlet pressure (bar) 10 10 10 10 10
Max. Inlet temperature (°C) 40 40 40 40 40
Nilfisk-ALTO
www.nilfisk-alto.com
Loading...
