Nilfisk MP2D User Manual

MP2D
User's Manual
TWO CHANNELS MICROPHONE /
R
LTO
www.altoproaudio.com
Version 1.1 November 2005
English
SAFETY RELATED SYMBOLS
CAUTION
RISK OFELECTRIC SHOCK
DO NOTOPEN
This symbol, wherever used, alerts you to the pre­sence of un-insulated and dangerous voltages with­in the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death.
This symbol, wherever used, alerts you to impo­rtant operating and maintenance instructions. Please read.
Protective Ground Terminal
AC mains (Alternating Current)
Hazardous Live Terminal
ON: Denotes the product is turned on.
OFF: Denotes the product is turned off.
WARNING
Describes precautions that should be observed to prevent the possibility of death or injury to the user.
Protective Ground
CAUTION
Describes precautions that should be observed to prevent damage to the product.
PREFACE
PREFACE
Thank you for choosing MP2D Two Channels Microphone / Instrument Preamplifier with Stereo Bus and thanks
for
choosing one of the results of LTO AUDIO TEAM job and research.
For our LTO AUDIO TEAM, music and sound are more than a job ... is first of all passion and let us say our obsession!
We have been designing professional audio products for a long time in cooperation with some of the major brands in
LTO
the world in the audio field.
The LTO line presents unparalleled analogue and digital products made by Musicians for Musicians in our R&D centers
in Italy, Netherlands, United Kingdom and Taiwan. The core of our digital audio products is a sophisticated Soft
Team for the last 7 years.
Following this idea we create our products and we will create the new ones! From our side, we guarantee you and we
will guarantee you also in future the best quality, the best fruits of our continuous researches and the best prices.
Nothing else to add, but that we would like to thank all the people that made the MP2D Two Channel Microphone / In
strument Preamplifier with Stereo Bus, and thank our designers and all the LTO staff, people who make possible the
realization of products containing our idea of music and sound and are ready to support you, our customers, in the
best way, conscious that you are our best richness.
Thank you very much
LTO AUDIO TEAM
ware
2
TABLE OF CONTENTS
1. INTRODUC IONT ..................................................................................................................................................4
2. FEATURES...................................................................................................................................... ...................4
3. CONTROL ELEMENTS......................................................................................................................................4
4. INSTALLATION AND CONNECTION....................................................................................................................7
5. BLOCK DIAGRAM..............................................................................................................................................8
6. TECHNICAL SPECIFICATION.............................................................................................................................9
7. WARRANTY.........................................................................................................................................................10
3
1. INTRODUCTION
Congratulation! Now you are the owner of the MP2D Two Channel Microphone / Instrument Preamplifier with Stereo Bus, which is provided with 129dB of signal to noise ratio and 0.007% of THD. Each channel provides an 1/4 inch instrument socket , individual phantom power, phase reverse and high pass filter. It is equipped with a "vintage" function to add warm, tube-like sounds to your mix. The MP2D includes a sophisticated 24 bit digital output interface with external / internal clock and AES / EBU and S/ PDIF connectors. We believe MP2D is your perfect choice for enhancing the performance of any console or digital audio workstation by providing two very high-end microphone preamplifiers.
2. FEATURES
48V Phantom Power 80Hz High Pass Filter Polarity Reverse "Vintage" function for tube simulation Highly accurate12 Segment Level Display
Low Impedance Stereo Mix Bus can be used for Full Control Over Stereo Imaging
Fully Loaded Back Panel Featuring XLR Balanced I/O Connectors as well as Separate Send and Return Jacks for
Inserting
Ultra high impedance 1/4" instrument input Mix Output Connectors are XLR Balanced Providing Connectivity for Professional Recording Systems
3.
CONTROL ELEMENTS
Dynamics Processors
3.1

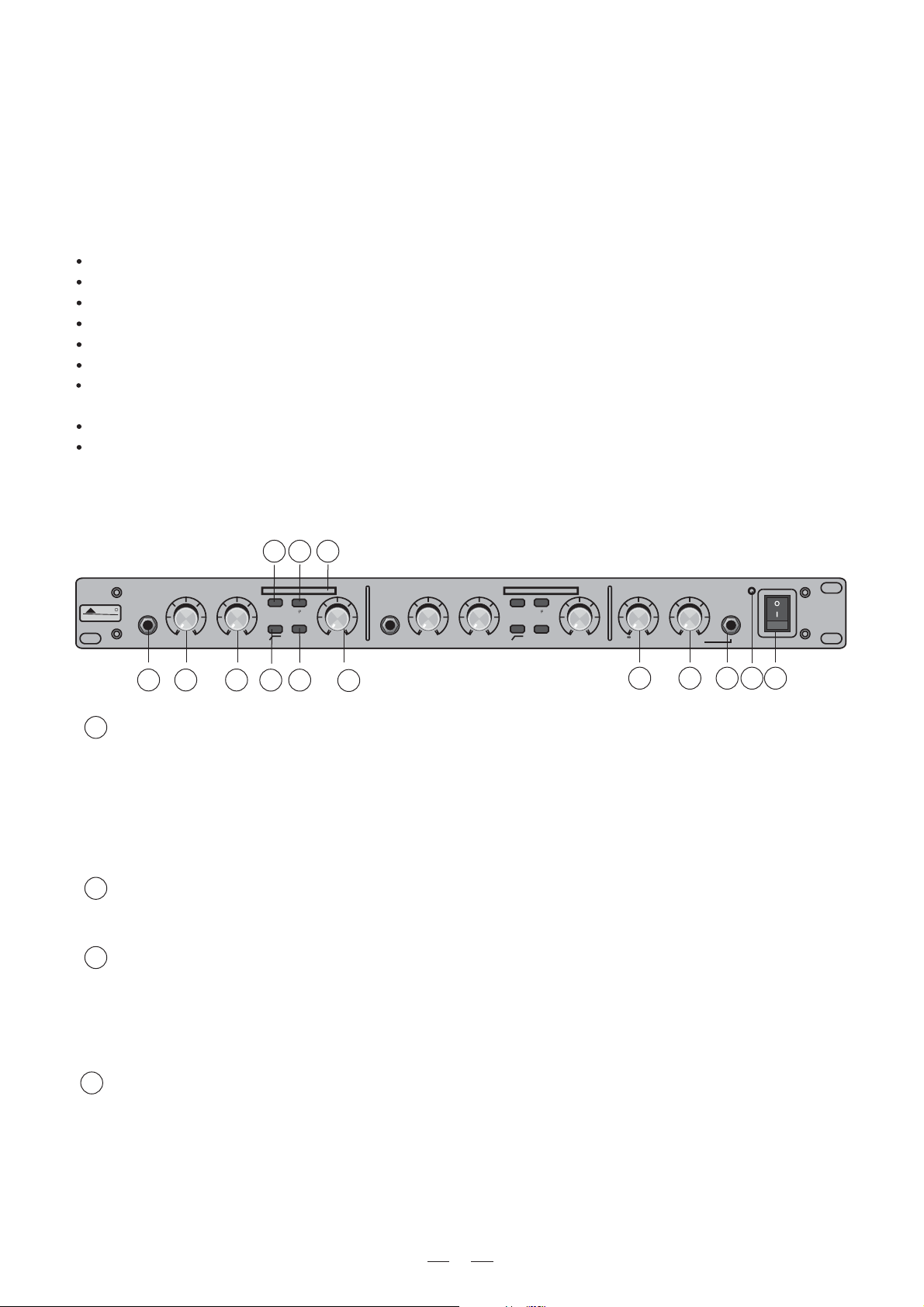

The Front Panel
4
7
9
ON
CHANNEL 1
CHANNEL 1
R
INSTRUMENT INSTRUMENT
INSTRUMENT INSTRUMENT
LTO
ESOTAR
0
0
1
1/4" Instrument Input Socket
1
0% 100%
0% 100%
60dB
60dB
GAIN VINTAGE
GAIN VINTAGE
2
3 5 6 8
16
16
24
24
-2 0 248
-2 0 248
-24-30
-16-8-4
-24-30
48V
48V
LR
LR
L/R
L/R
PAN
PAN
CHANNEL 2
CHANNEL 2
0
0
0% 100%
0% 100%
60dB
60dB
GAIN VINTAGE
GAIN VINTAGE
-16-8-4
-24-30-16-8-4
-16-8-4
-24-30
48V
48V
-2 0 248
-2 0 248
L/R
L/R
16
16
24
24
OUTPUT LEVELOUTPUT LEVEL
OUTPUT LEVELOUTPUT LEVEL
LR
LR
PAN
PAN
MASTER
MASTER
0
0
-
-
10dB
0
10dB
LEVEL PHONES
LEVEL PHONES
0
10
12
10dB
10dB
ON
POWER
POWER
13
11 14
The unit is equipped with two 1/4" instrument inputs, which have been designed to connect some instruments such as electric guitars or basses. They are
of an acoustic or
elec
tric instrument pickup to be fully realized.
ultra high impedance amplifier designed to allow the audio potential
Note: please do not use the pre-amp of the instrument on-board (if possible), in order to avoid distortion caused
by over-driving the input signal.
Input Gain Control
2
This pot can adjust the gain of the input signal. The gain range can be varied from 0dB to +60dB.
Vintage Control
3
This pot can be used to select the amount of boost (0%-100%) applied to the even harmonic series of the signal
Being amplified by a channel of the MP2D. The effect of manipulating the harmonic distortion is of increasing or
decreasing the apparent "warmth" of the signal. This capability is derived from the transformer and its dual servo
gain stage.
MP2D
MP2D
2CHANNEL
2CHANNEL
MICPRE-AMPLIFIER
MICPRE-AMPLIFIER
Phantom Power Switch
4
The unit provides +48V Phantom Power to every channel. Via this lighted switch, you can turn on /off the +48V
phantom Power for condenser microphone.
Note: please do not connect dynamic microphone when the phantom Power is on. Otherwise, It may damage
the device and the microphone.
4
High Pass Filter Switch
5
The unit provides an 80Hz high pass filter for each channel. You will activate the filter by pressing this switch. This filter is useful for eliminating extraneous low-end information from the signal being amplified. Frequencies from eighty hertz and below are cut from the incoming signal. But never press the switch when in music or bass musical instrument application or the plump bass of music, or musical instrument will disappear.
L/R Assign Switch
6
This L/R button assigns the signal coming through the channel to the stereo bus output.
Polarity Reverse Switch
7
This phase reverse switch is provided for each channel. This switch enables the user to invert the phase of a
microphone when phase cancellation is noted. The phase reverse switch allows the operator to avoid phase
cancellation when identical microphones are used in close proximity to one another. The phase reverse switch also
can compensate for different XLR connector hook-ups where pin connections have been inverted.
PAN/BAL Control
8
This pot controls the channel's position between left and right in the stereo bus. Of course you can use it to "move" the channel signal in stereo front to create spatial effects as well as.
Output Level LED Display
9
The highly accurate 12-segments LED meter indicates the level of the output signal. When these two red LEDs
flash, it will warn you that the level of output signal is too high and may cause distortion, please attenuate the level of the input signal or the output signal.
MASTER LEVEL Control
10
This pot adjusts the output level of the Stereo Bus. Channels are assigned to the bus via the L/R assign switch on each of the two preamplifier channels of the MP2D
PHONE Socket
11
This 1/4" socket will send out the signal to a pair of headphones. The signal monitored by the headphones is the same signal provided by the stereo Bus to the Mix output XLR's on the rear panel of the MP2D.
Phone Volume Control
12
It adjusts the headphones volume by rotating the volume control pot.
Power LED
13
This LED lights up when the power is on.
Power switch.
14
It switches on / off MP2D main power.
3.2 The Rear Panel
AC INPUT
210-240V 50Hz Rated Power
Useonly with a 250V fuse
Consumption 20W
FUSE:
250V:T315mAL REPLACE FUSE
jordat uttag nar den ansluts
Apparaten skall anslutas till
till ett natverk
WITH CORRECT TYPE ONLY
AES/ EBU
DIGITAL OUT
SPDIF
SAMPLINGRATE
0.44.1K
1. 48K
2.88.2K
3.96K
4. 176 .4K
5.192K
6.EXT
7.EXT
WCLKIN
2
1
3
4
0
5
7
6
RIGHT
LEFT
MAIN OUT
SEND
RETURN
OUTPUT
CH.2
INPUT
PUSH PUSH
SEND
RETURN
OUTPUT
CH.1
INPUT
15
16
17
18
19
20
21
22
23
5
AC Inlet
15
Standard IEC receptacle, connect your MP2D to mains with the supplied power cord. Before powering up your MP2D for the first time, make certain the stated power requirement of the instrument matches the voltage supplied in the country. Failure to do so could result in injury to the user and the probability of irreparable damage to the unit is highly likely.
Digital output Connector
16
These connectors are professional interfaces for transmitting digital audio signal, which come configured for AES output and SPDIF output.
Sample Rate Selector
17
The unit is provided with 6 different internal sample rates : 44.1k, 48k, 88.2 k, 96k, 176.4k, 192k, you can use this knob to select the sample rate for the unit. Numbers 0-5 stand for internal sample rates. When you EXTuse CLOCK function, you should turn the knob to 6 or 7 position.
18
WCLK IN Connector
The WCLK IN is accessed through separate BNC connectors. The WCLK IN scans the incoming information and automatically synchs to the necessary sample rate. If you need to use EXT CLOCK , please turn the sample rate knob to 6 or 7 position.
MAIN OUTPUT
19
This stereo output is supplied with two XLR connectors for the RIGHT and LEFT output of the stereo main bus. Signals are assigned to these outputs using the L / R assign switches on the individual channels.
20
SEND Connector
This 1/4 inch socket is used to sent out the signal from the MP2D to external devices such as effects or sound processors.
RETURN Connector
21
This 1/4 inch socket is used to return the signal of external unit to the main mix. You can also use it as an extra auxiliary input.
Output Connector
22
This XLR connector provides the analogue signal from the relevant channel to audio equipment.
Input Connector
23
This combo connector is used to input the signal.
6
4. INSTALLATION AND CONNECTION
4.1 Mains Connection
4.2 Audio Connection The MP2D presents with balanced XLR & 1/4" TRS and combo connectors, and it can be interfaced by several ways to support a variety of applications without any signal loss. The MP2D can be used on a single instrument by connecting to a mixing console's main inserts, or on an entire mix "in-line" between a mixing console's outputs and a power amplifier.
- Wiring Configuration Either the 1/4" TRS phone jack or the XLR connector can be wired in balanced and unbalanced modes, which will be determined by the actual application status, please wire your system as the following wiring examples:
- XLR Connector Wiring For Phantom Power
PIN1 GND PIN 2 +48v PIN 3 +48v
7
5. BLOCK DIAGRAM
8
6. TECHNICAL SPECIFICATION
INPUT
Connectors
Type
Impedance
Max input level
CMRR
OUTPUT
Connectors
Connectors XLR and 1/4" TRS (Pin 2 and Tip hot)
Type
Impedance
Max output level
SYSTEM SPECIFICATIONS
Bandwidth
Frequency Response
Signa/Noise
THD
Crosstalk
Stereo Coupling
Digital
XLR and 1/4" TRS (Pin 2 and Tip hot)
Electronically balanced/unbalanced, RF filtered
Balanced >50Kohm, Unbalanced>25Kohm
>+24dBu balanced and unbalanced Typically>60dB at 1KHz
Four balanced XLR
AES/ EBU, SPDIF Electronically balanced/unbalanced, RF filtered
Balanced 120ohm, Unbalanced>60ohm
>+21dBu,+20dBm balanced and unbalanced
20HZ to 20kHz, +0/-0.5dB
10Hz to 200kHz,+0/-3dB
128dBu, weighted, 22Hz to 22kHz
<0.007% (no vintage)
0.5% (vintage max)
<-100dB, 22Hz to 22Khz
True RMS detection
Sampling Rates
Output
44.1k, 48k, 88.2k, 96k, 176.4k, 192k
24-bit
FUNCTION SWITCHES
48 Volt Phantom Power
Polarity Reverse
Rumble Filter
Main L/R bus selection
INDICATORS
INPUT LEVEL
Function switch
POWER SUPPLY
Mains Voltages
Fuse
Power consumption
Mains Connection
Each channel of the MP2D has 48V Phantom power available.
A phase reverse switch is provided on each channel
A Rumble fiter is provided on each channel for eliminating low frequency noise
The MP2D has a stereo summing bus for combining the input signals assigned to the bus using the L/R function switch on the front panel of the MP2D
12 element LED display: -30/-24/-16/-8/-4/-2/0/2/4/8/16/24 dB.
LED indicator for each
USA/Canada
U.K./Australia
Europe
General Export Model
100-120VAC : 400mA (SLOW-BLOW)
200-240VAC : 200mA (SLOW-BLOW)
20 Watts
Standard IEC receptacle
~120VAC, 60Hz
~240VAC, 50Hz
~230VAC, 50Hz
~100-120VAC,
~200-240VAC, 50-60Hz
PHYSICAL
Dimension
Net Weight
W(483.0)*D(288.0)*H(44.2) mm
3.3Kg
9
7. WARRANTY
1. WARRANTY REGISTRATION CARD
To obtain Warranty Service, the buyer should first fill out and return the enclosed Warranty Registration Card within 10 days of the Purchase Date.
All the information presented in this Warranty Registration Card gives the manufacturer a better understanding of the sales status, so as to purport a more effective and efficient after-sales warranty service.
Please fill out all the information carefully and genuinely, miswriting or absence of this card will void your warranty service.
2. RETURN NOTICE
2.1 In case of return for any warranty service, please make sure that the product is well packed in its original shipping carton, and it can protect your unit from any other extra damage.
2.2 Please provide a copy of your sales receipt or other proof of purchase with the returned machine, and give detail information about your return address and contact telephone number.
2.3 A brief description of the defect will be appreciated.
2.4 Please prepay all the costs involved in the return shipping, handling and insurance.
3. TERMS AND CONDITIONS
3.1 warrants that this product will be free from any defects in materials and/or workmanship for a period
LTO
of 1 year from the purchase date if you have completed the Warranty Registration Card in time.
3.2 The warranty service is only available to the original consumer, who purchased this product directly from the retail dealer, and it can not be transferred.
3.3 During the warranty service, may repair or replace this product at its own option at no charge to you for
LTO
parts or for labor in accordance with the right side of this limited warranty.
3.4 This warranty does not apply to the damages to this product that occurred as the following conditions:
Instead of operating in accordance with the user's manual thoroughly, any abuse or misuse of this product.
Normal tear and wear.
The product has been altered or modified in any way.
Damage which may have been caused either directly or indirectly by another product / force / etc.
Abnormal service or repairing by anyone other than the qualified personnel or technician.
And in such cases, all the expenses will be charged to the buyer.
3.5 In no event shall be liable for any incidental or consequential damages. Some states do not allow the exclu-
LTO
sion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you.
3.6 This warranty gives you the specific rights, and these rights are compatible with the state laws, you may also have other statutory rights that may vary from state to state.
10
SE KAKU TECHNICAL GROUP LIMITEDI
No. 1, Lane 17, Sec. 2, Han Shi West Road, Taichung 40151 Taiwan
http://www.altoproaudio.com Tel: 886-4-22313737
email: alto@altoproaudio.com Fax: 886-4-22346757
All rights reserved to ALTO. All features and content might be changed
without prior notice. Any photocopy, translation, or reproduction of part of this
manual without written permission is forbidden. Copyright 2005 SEIKAKU GROUP
c
NF02205-1.1
Loading...
