140ED
User Manual
145 pgs4.51 Mb0

Nikon 140ED User Manual

E
Instruction Manual (Pages 2-49)
Manuel d’utilisation (Pages 50-97)
Bedienungsanleitung (Seiten 98-145)
Manual de instrucciones (Páginas 146-193)
F
G
S
Thank you for purchasing the Nikon Lite Touch Zoom 140ED / Lite Touch Zoom 140ED QD camera.
Be sure to read this manual thoroughly before use, and keep it handy until you feel confident using the camera.
Some of the illustrations show the model with the date function.
Your Nikon camera features:
• Compact, light-weight construction with built-in 3.7X zoom lens from 38 to 140mm focal length range. ( p. 21)
•A Nikon ED (Extra-low Dispersion) lens with low chromatic aberration (popularly used as lenses for Nikon single-lens reflex cameras), as well as a high-contrast, high-resolution aspherical lens.
• The flash automatically fires when there is not enough light, or the subject is backlit. ( p. 32)
•A specially treated viewfinder eyepiece that will not easily become fogged up when shooting in cold or warm, humid enviroments. ( p. 17)

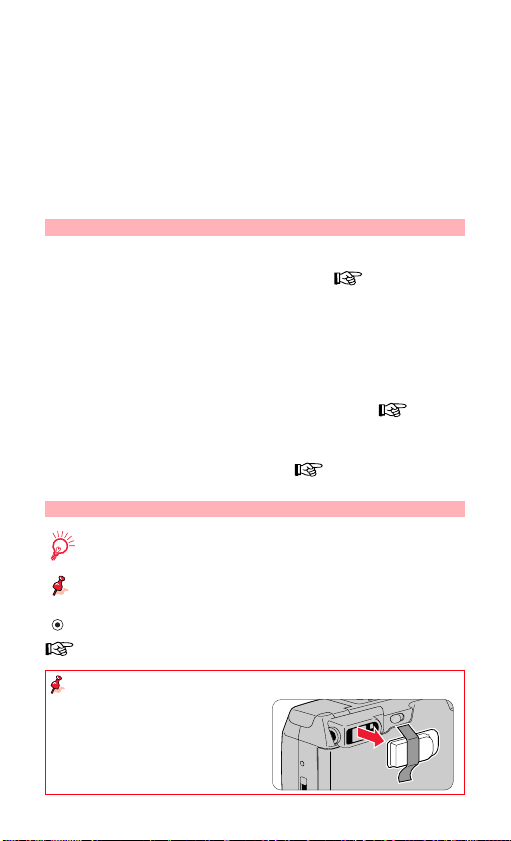

Symbols used in this manual
:Indicates items to be checked, such as requirements and
restrictions. :Indicates notes and cautions you are requested to follow. :Indicates supplementary descriptions. : Indicates pages for reference.
Before using the camera for the first time
To protect the viewfinder eyepiece, a plastic cover is attached to the viewfinder eyepiece. Please remove it before using the camera.
2
Accessories
(The following item is supplied with this camera.)
Strap
Optional accessories
• Camera case CS-L23 (Remote control unit can be stored in the pocket inside.)

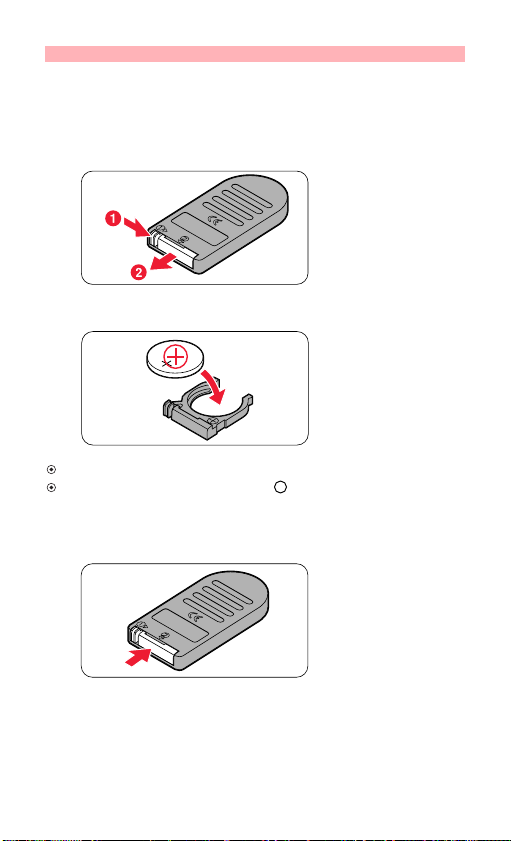

• Remote control unit ML-L3 ( p. 39)

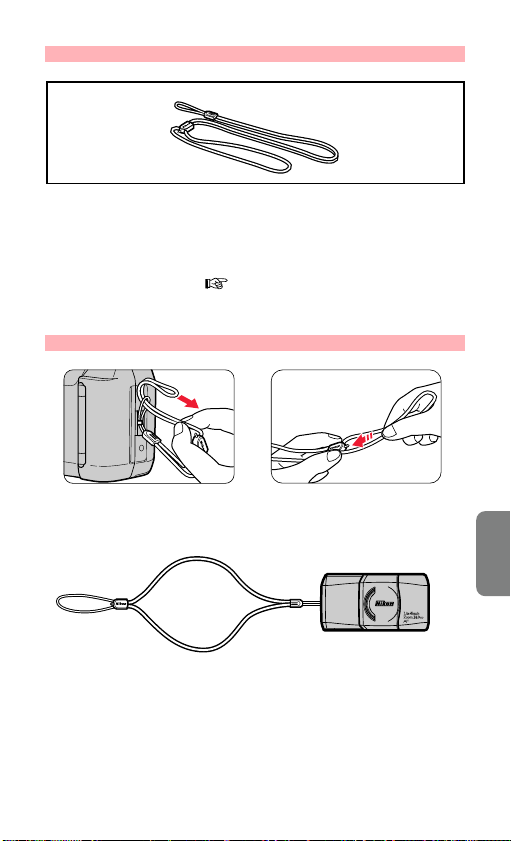

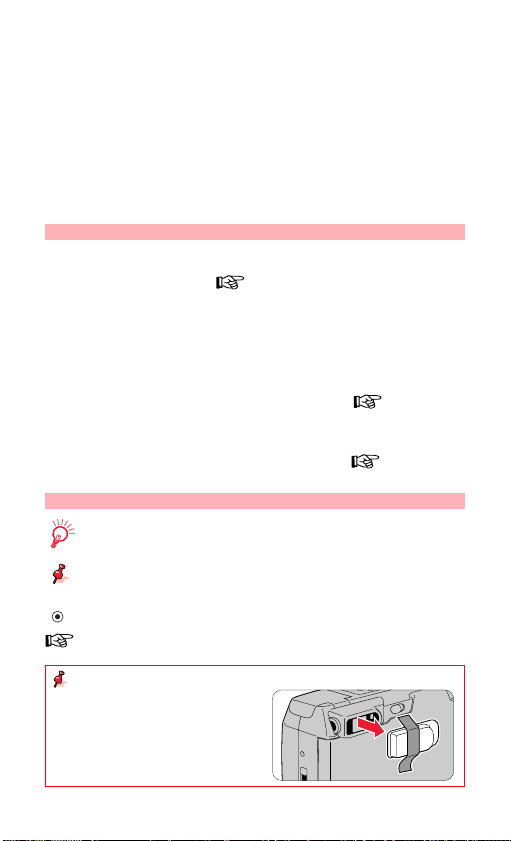

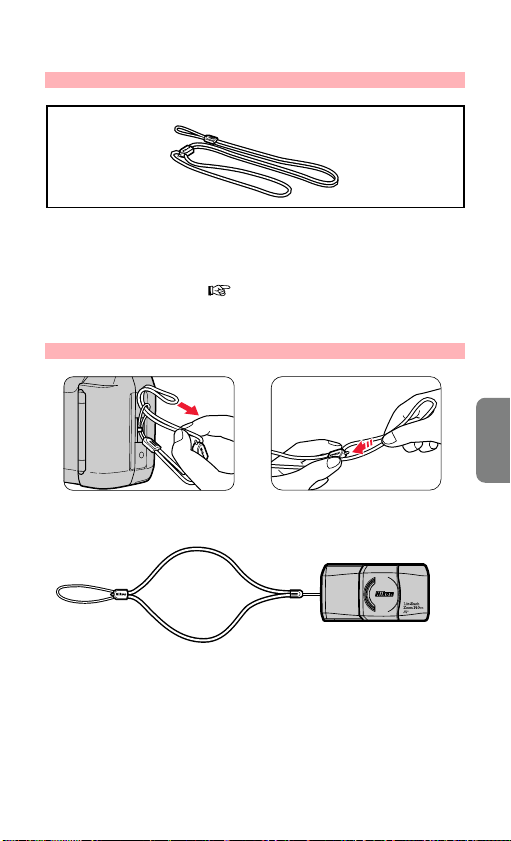

Attaching the strap
Attach the strap as shown in the illustration.
Put your head through this loop.
Adjust the length using the lug on the strap.
E
3
Table of Contents
To take a picture right away ___________________________ 6
Camera parts _____________________________________ 8-10
Body _________________________________________ 8-9 LCD panel _____________________________________ 10
Indications in the viewfinder __________________________ 11
1 Preparations
Installing a battery __________________________________ 12 Tur ning the camera on_______________________________ 13 Checking the battery power ___________________________ 13 Loading the film ___________________________________ 14
2 Basic Operations
Imprinting the date/time on pictures
(Lite Touch Zoom 140ED QD only) __________________ 16 Adjusting diopter ___________________________________ 17 Holding the camera properly __________________________ 18 Operating the Shutter Release button ___________________ 19 Selecting Regular or Panorama mode
(Lite Touch Zoom 140ED QD only) __________________ 20 Zooming _________________________________________ 21 Shooting _________________________________________ 22 Rewinding the film _________________________________ 24 Removing the film __________________________________ 25
4
3 Advanced Operations
When the main subject is not in the center of the picture ____ 26 Difficult-to-focus subjects ____________________________ 28 Close-up photography _______________________________ 29 Flash photography __________________________________ 30

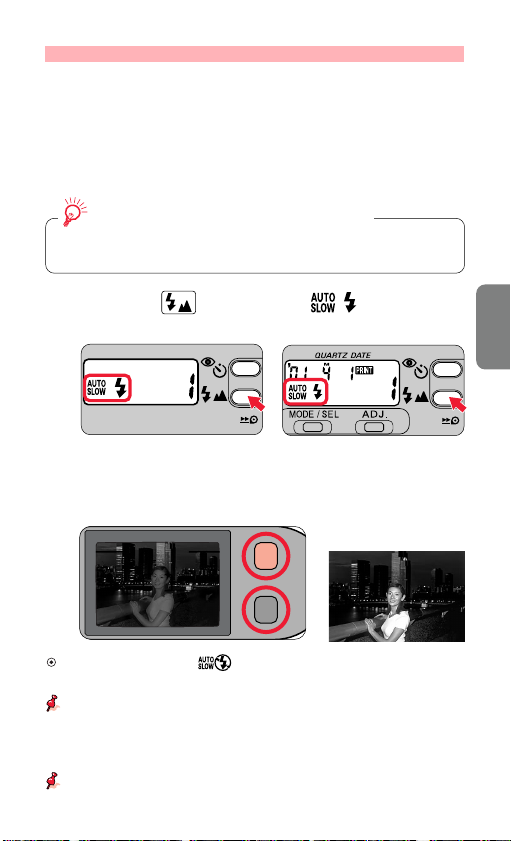

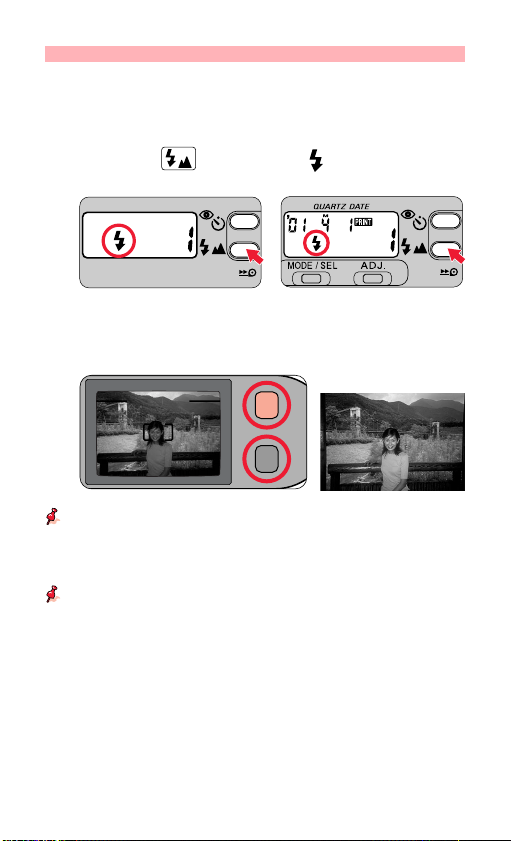

Selecting the flash mode __________________________ 30
To automatically fire the flash ______________________ 32
To cancel flash operation __________________________ 33

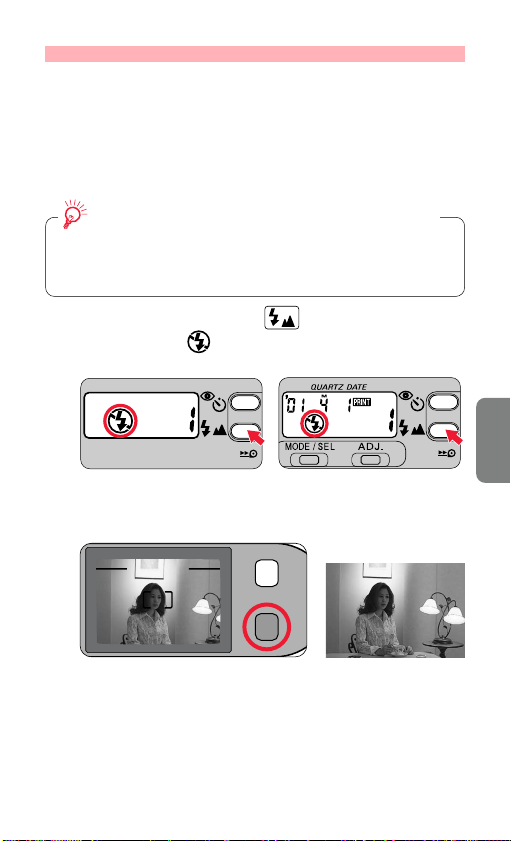

To fire the flash intentionally _______________________ 34
To photograph a person in a night view _______________ 35
To reduce the "Red-eye" effect ______________________ 36 Shooting a distant view or landscape through a window _____ 38 Using the self-timer _________________________________ 38 Using the remote control (optional) ____________________ 39 Replacing the remote control battery ___________________ 40
4 Additional Information
Correcting the date and time
(Lite Touch Zoom 140ED QD only) __________________ 41 Tr oubleshooting____________________________________ 42 Camera care tips ___________________________________ 44 Specifications _____________________________________ 46 For safe handling of the camera _______________________ 48
E
5

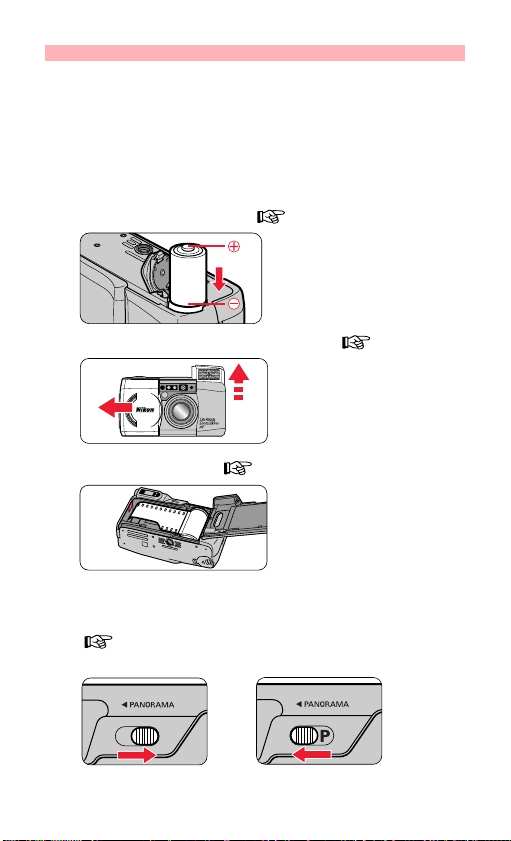

To take a picture right away
Quick operation guide
If you wish to use this camera immediately, proceed as follows: For details see the pages indicated for reference.
Insert a battery. ( p. 12)
1.
Turn the camera on. ( p. 13)
2.
Load film. ( pp. 14, 15)
3.
Select the Regular or Panorama mode (Lite
4.
Touch Zoom 140ED QD only). ( p. 20)
Regular mode Panorama mode
6
or

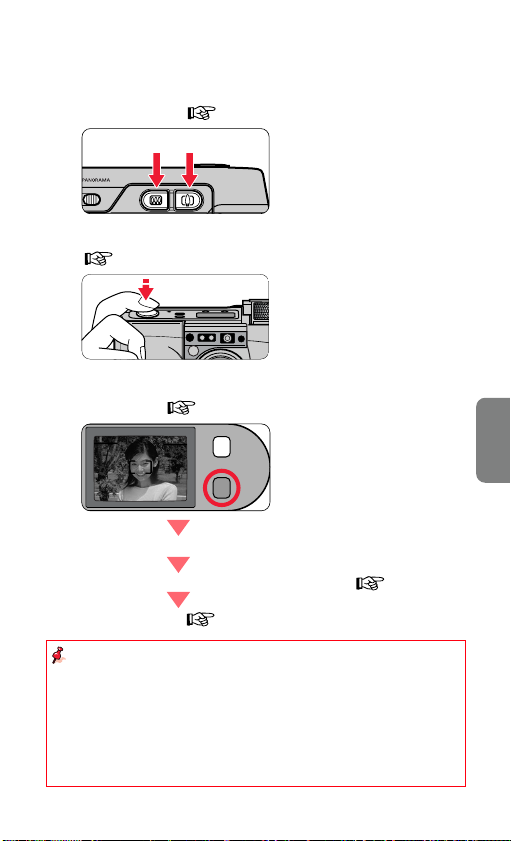

Press the Zoom buttons and compose your
5.
picture. ( p. 21)
for wide-angle for telephoto
Lightly press the Shutter Release button.
6.
( p. 19)
Check the green LED, then shoot.
7.
( p. 23)
When the end of the film roll is reached,
The film is automatically rewound. ( p. 24)
Remove the film. ( p. 25)
Take some trial shots
Before taking important pictures, it is strongly recommended to take a
few trial shots first to familiarize yourself with the camera and all of its
features.
Nikon cannot be held responsible for malfunctions caused by using the
Lite Touch Zoom 140ED / Lite Touch Zoom 140ED QD in ways not
specified in this manual.
E
7

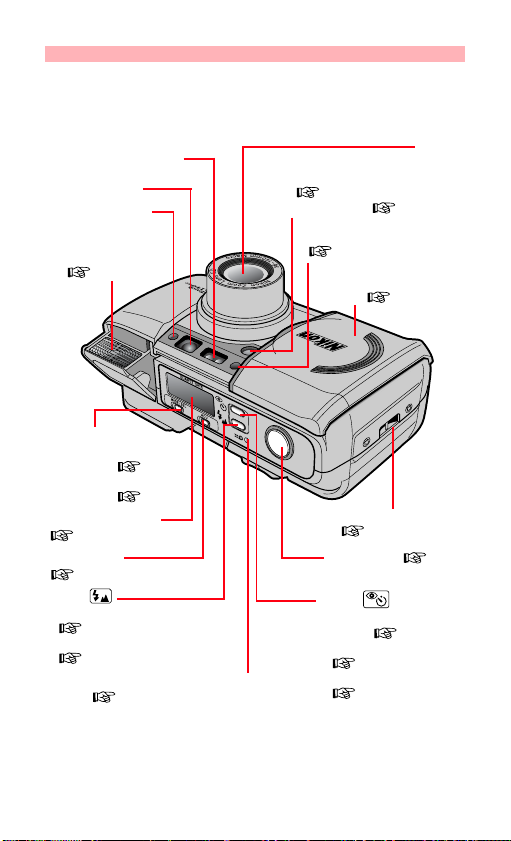

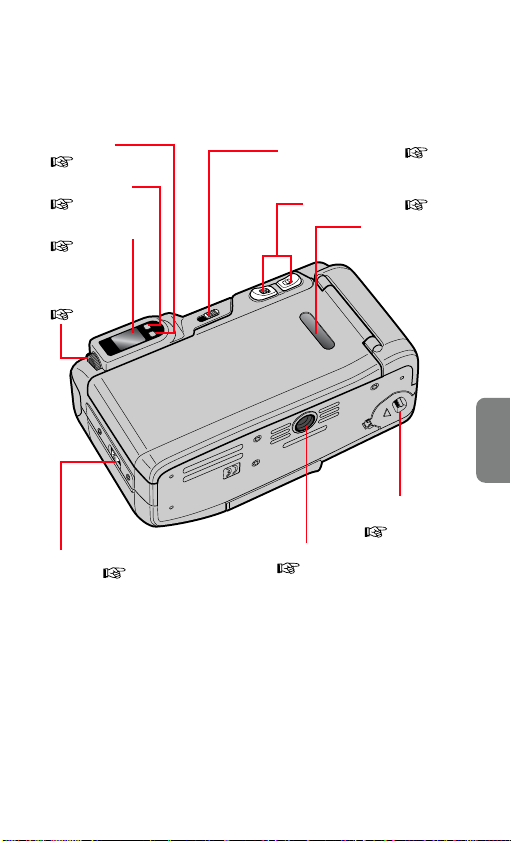

Camera parts (Body)
Autofocus window
Viewfinder window
Auto Exposure metering window
Flash (
MODE/SEL button*
LCD panel (
ADJ. button* (
Mid-roll Rewind button (
pp. 30, 31)
Date/time select mode ( Date/time setting mode (

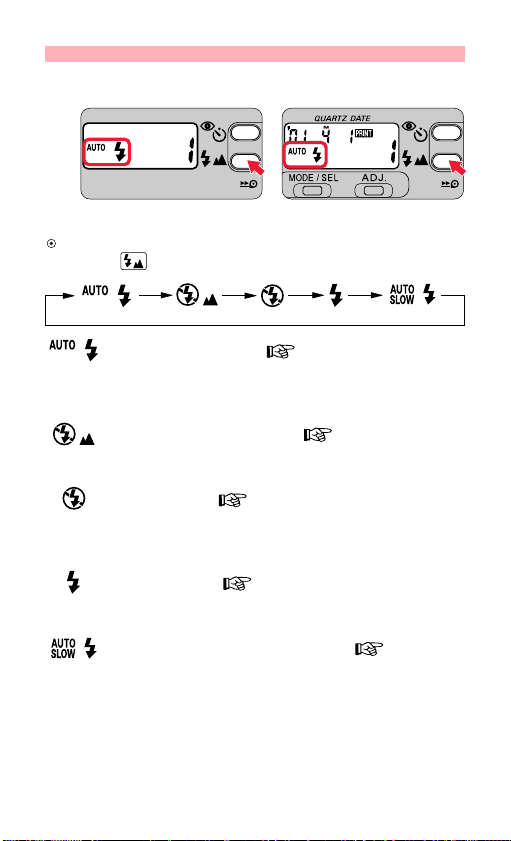

Flash mode ( Infinity Focus mode (
p. 16)
p. 41)
p. 10)
p. 41)
button
p. 24)
pp. 30-35)
p. 38)
AF assist illuminator/Red-eye Reduction lamp ( Self-Timer lamp (
Remote-control reception sensor (

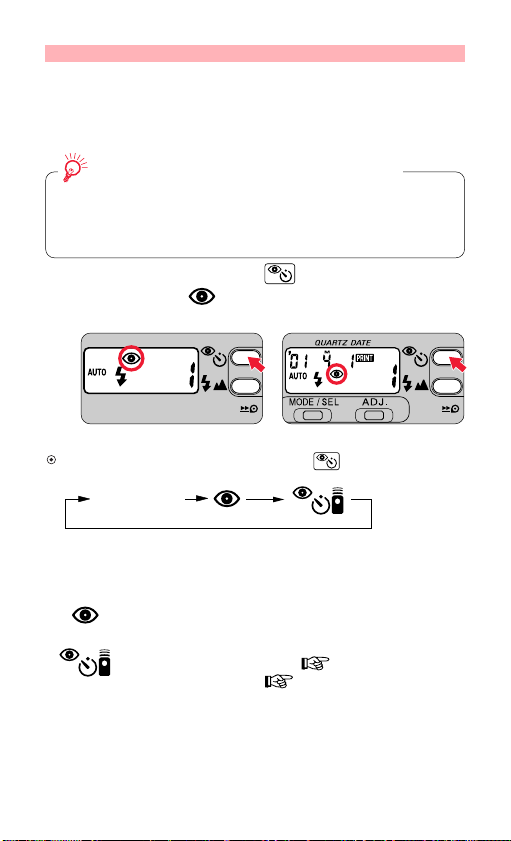

Red-eye Reduction ( pp. 36, 37) Self-Timer ( Remote Control (
pp. 36, 37) p. 38)
p. 39)
Slide cover (power switch)
p. 13)
(
Strap slot (
Shutter Release button ( p. 19)
button
p. 38)
Lens
p. 3)
p. 39)
* Lite Touch Zoom 140ED QD only
8
Green LED
pp. 11, 23)
(
Orange LED
pp. 11, 31)
(
Viewfinder eyepiece ( p. 11)
Diopter adjustment dial ( p. 17)
Camera back lock release lever
p. 14)
(
Panorama switch* (
Zoom buttons ( p. 21)
Film cartridge confirmation window
Tripod socket
pp. 33, 35, 38, 39)
(
p. 20)
Battery chamber lid (
p. 12)
E
9
Camera parts (continued)

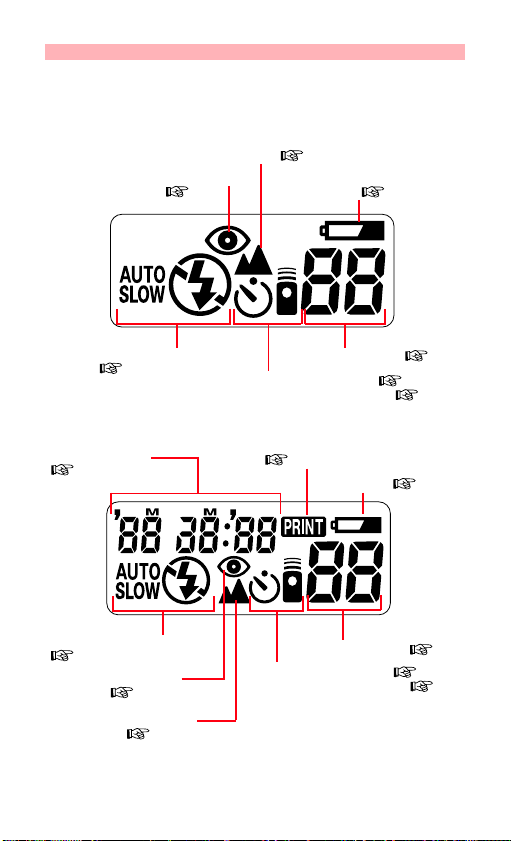

LCD panel
<Lite Touch Zoom 140ED>
Infinity Focus Mode indicator ( p. 38)
Red-eye Reduction indicator ( p. 36)
Low battery power indicator ( p. 13)
Flash Mode indicator ( pp. 30-35)
Self-Timer indicator ( p. 38) Remote Control indicator ( p. 39)
Frame counter ( p. 15)
<Lite Touch Zoom 140ED QD>
Date recording indicator ( p. 16)
Date/time indicator ( pp. 16, 41)
Flash Mode indicator ( pp. 30-35)
Red-eye Reduction indicator ( p. 36)
Infinity Focus Mode indicator ( p. 38)
Self-Timer indicator ( p. 38) Remote Control indicator ( p. 39)
Frame counter ( p. 15)
The illustrations are fully labeled for your reference.
10
Low battery power indicator ( p. 13)

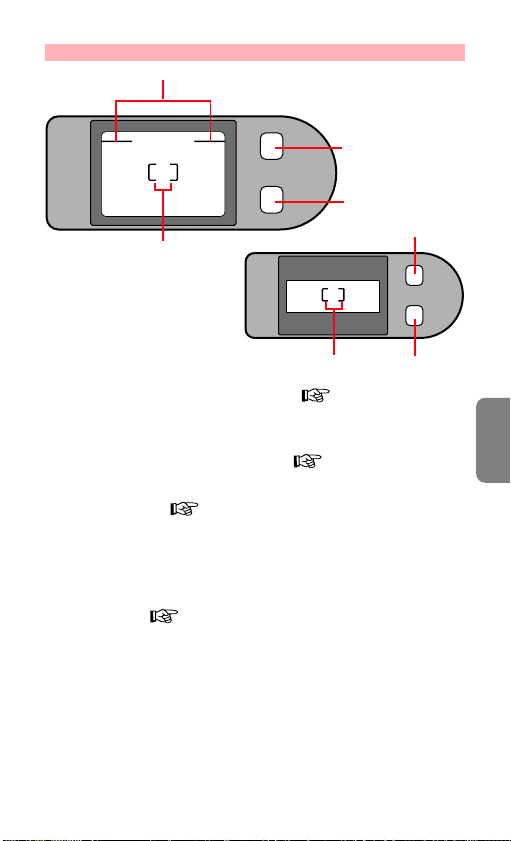

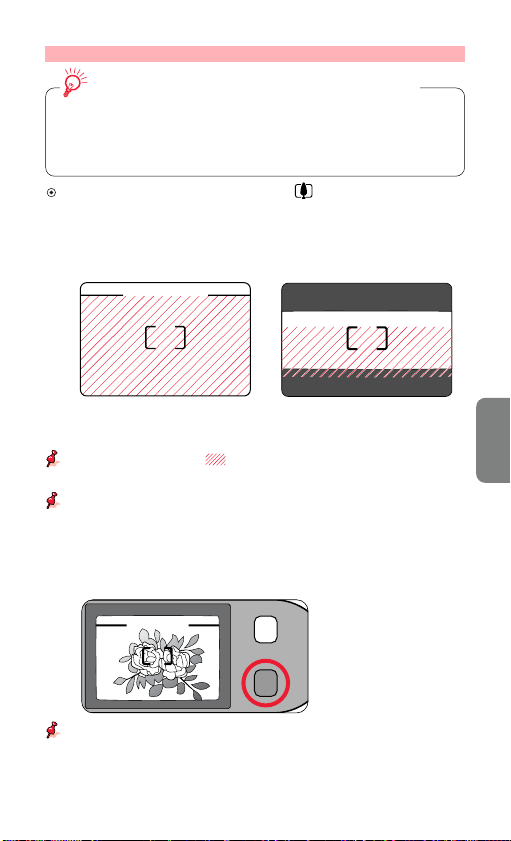

Indications in the viewfinder
1
Regular viewfinder
3
4
2
Panorama viewfinder (Lite Touch Zoom 140ED QD only)
2
1Parallax compensation marks ( p. 29)
For close-up shooting at a distance less than 1m.
2Autofocus frame marks ( p. 22)
Center the main subject to be in focus within this frame.
3Orange LED ( p. 31)
Slowly blinks while the flash is being charged, and lights up when the flash is ready to fire.
If you press down on the popped-up flash unit, the LED blinks rapidly as a warning.
4Green LED ( p. 23)
Lights when focus is achieved. It blinks if correct focus cannot be achieved.
In close-up photography, the LED slowly blinks as a warning if the subject is closer than approx. 0.74m.
3
E
4
11

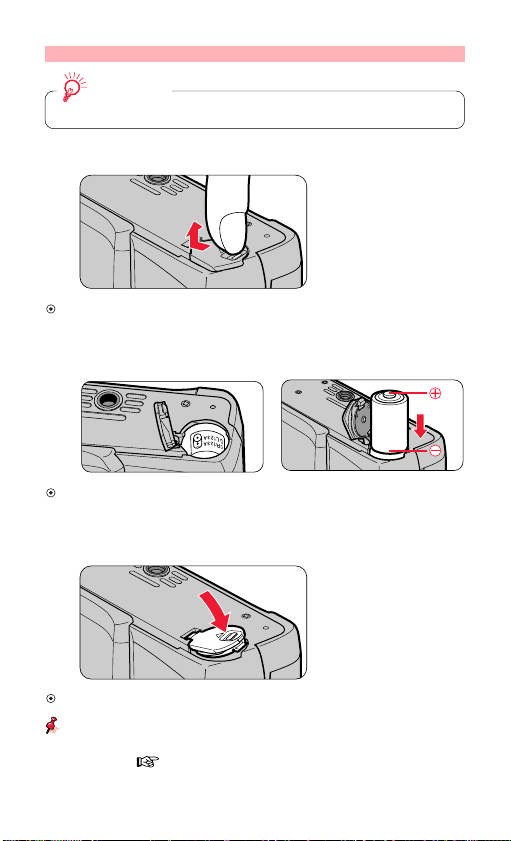

Installing a battery
Battery type
Use one CR123A or DL123A 3 V lithium battery in this camera.
Open the battery chamber lid.
1.
While releasing the lock as indicated by the arrow in the illustration above, open the battery chamber lid.
Install a new battery.
2.
Observe the correct polarities and insert the battery in the direction shown in the illustration above.
Close the battery chamber lid.
3.
Firmly press the battery chamber lid until it clicks shut.
The built-in clock is reset when the battery is removed. Remember to set the time and date. (Lite Touch Zoom 140ED QD only) (
Preparations
12
p. 41)
Turning the camera on

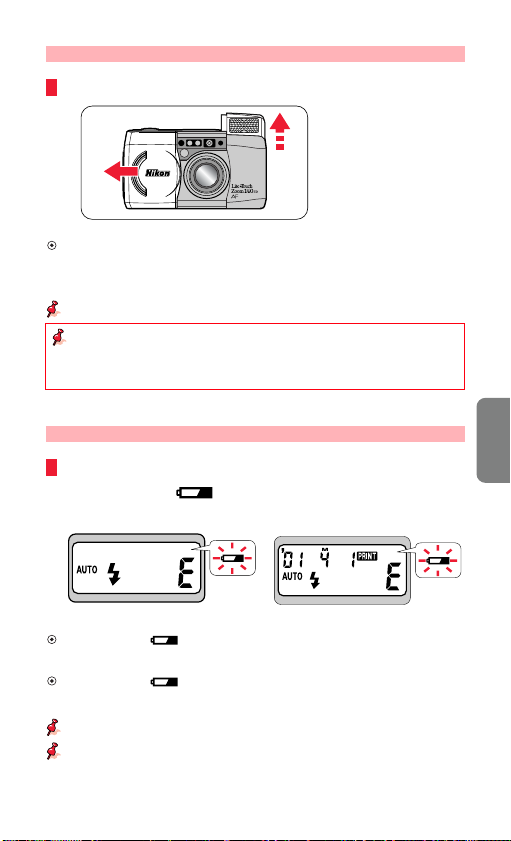

Open the slide cover.
Once you open the cover in the direction of the arrow, the camera is
turned on, the built-in flash automatically pops up, and the lens extends
out to the wide-angle position.
Slide the cover until it clicks.
When closing the cover, first slide it slightly in to start lens retraction.
When the lens is completely retracted, slowly close the cover.
Checking the battery power
Make sure that the Low Battery Power indicator
( ) is not appeared on the LCD panel.
Lite Touch Zoom 140ED Lite Touch Zoom 140ED QD
If “ ” is not appeared, battery power is sufficient.
If “ ” is blinking, or all the indicators on the LCD panel do not appear, the battery is exhausted. Replace it with a new one.
Always check the battery condition before shooting.
It is recommended to carry spare batteries with you. The batteries may
be difficult to obtain in some areas.
E
Preparations
13
Loading the film

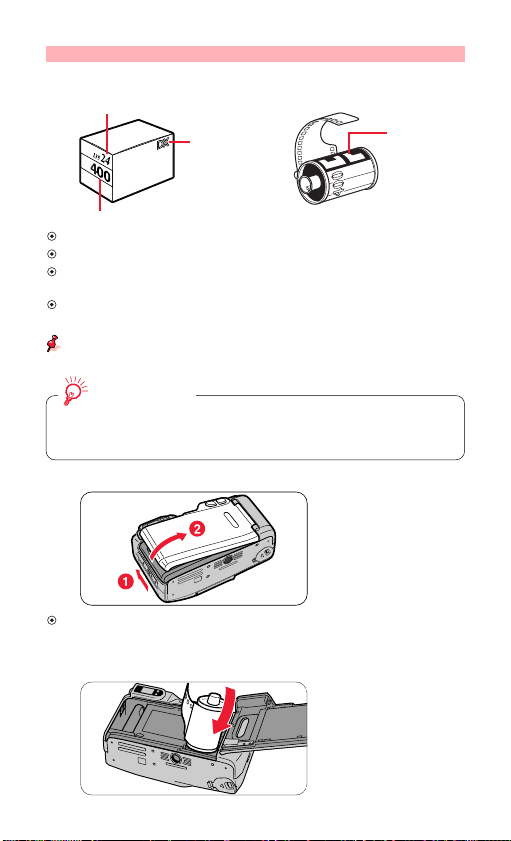

Tips on DX-coded 35mm film
Number of frames
DX mark
DX code
Film speed
Use DX-coded 35mm film with this camera. For DX-coded film, film speed is automatically set. Film speeds valid for automatic setting are ISO50, 100, 200, 400, 800, 1600, and 3200. With a non-DX-coded film, the film speed is automatically set to ISO100.
When loading/unloading film, be sure not to open the camera back cover into direct sunlight.
Film recommended
It is recommended to use ISO400 film, which provides good results in flash photography, and reasonable protection against camera shake.
Open the camera back.
1.
Slide the camera back lock release lever (1), and open the camera
back (2).
Insert a film cartridge.
2.
Film cartridge
14
Preparations
Pull the film leader out to the red index mark.
3.
If the film leader is inserted farther than the red index mark or the end of the film leader is folded, the film may not be wounded up properly.

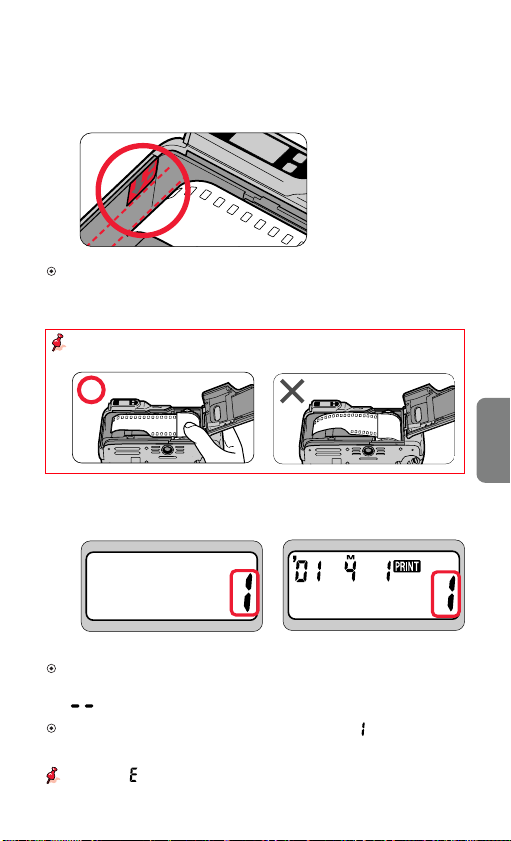

Hold the film cartridge and ensure film is properly positioned with no slack.
Close the camera back, and check that the film
4.
has been correctly loaded.
Lite Touch Zoom 140ED Lite Touch Zoom 140ED QD
Once the camera back is closed, the film automatically advances to the first frame. Until film loading is complete, “ panel.
When the film has been properly set, “ ” is displayed on the LCD panel.
If the letter “ ” blinks on the LCD panel, film is not properly loaded. Open the camera back again and reload film.
” blinks on the LCD
E
Preparations
15
Imprinting the date/time on pictures
(Lite Touch Zoom 140ED QD only)

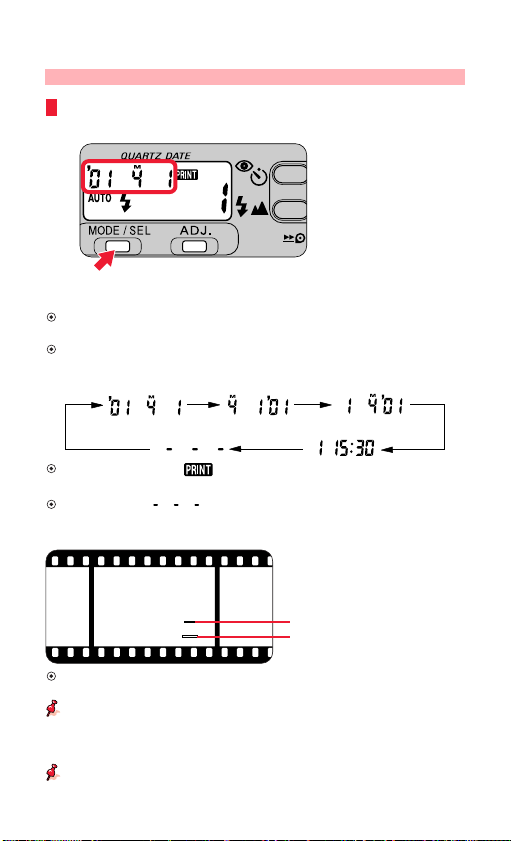

Select the date/time indicator by pressing the
MODE/SEL button.
The year is indicated by the lower two digits, and the time is in the 24-hour cycle. The example in the illustration shows Apr. 1, 2001.
The letter “M” appears to label the month indication, but it is not imprinted on pictures. Each time you press the MODE/SEL button, the indicator changes in the order shown below:
Year/Month/Day Month/Day/Year Day/Month/Year
No printing Day/Hour/Minute
If “ ” is displayed on the LCD panel, the date/time of the shot will be imprinted on the picture. Set to “ ” (No printing) if you prefer the date/time not to be imprinted.
Imprint position of date/time
Imprint position in Panorama shooting
Imprint position in Regular shooting
The imprint positions on film are shown in the illustration. The imprinted date/time may be difficult to recognize if the imprint
position or the subject is:
• White or bright.
• Orange or yellow. If you take a picture exceeding the number of frames on the film, the date/time may not be imprinted correctly on the picture.
Basic Operations
16
Adjusting diopter

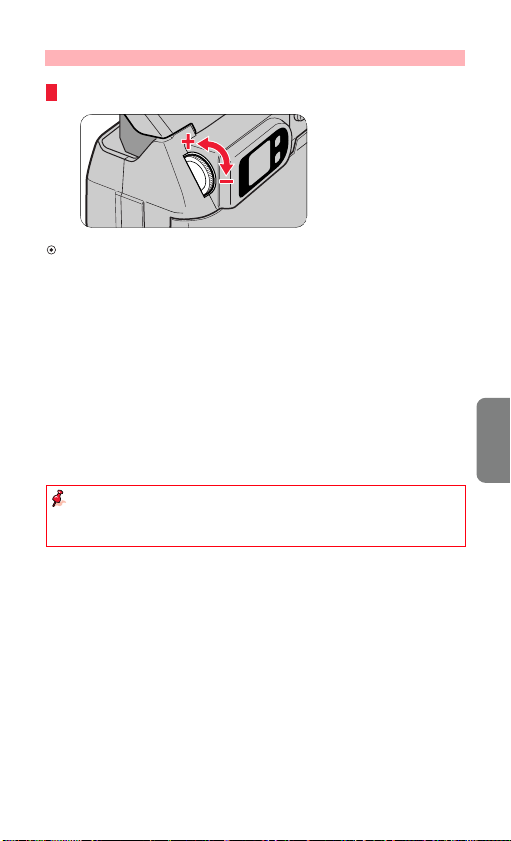

Turn the diopter adjustment dial.
If the image in the viewfinder is unclear, turn and adjust the diopter adjustment lever.
Caution:
As you look into the viewfinder and operate the diopter adjustment dial, make sure not to injure your eye with your finger or fingernail during adjustment.
About the Antifog Viewfinder
A specially treated plastic surface prevents the eyepiece from fogging when shooting in cold or warm, humid environments.
If the antifog viewfinder eyepiece is smeared, gently wipe it with a dry,
soft cloth (e.g. a lens cloth). Avoid wiping with force; otherwise, the
eyepiece may be damaged.
E
Basic Operations
17

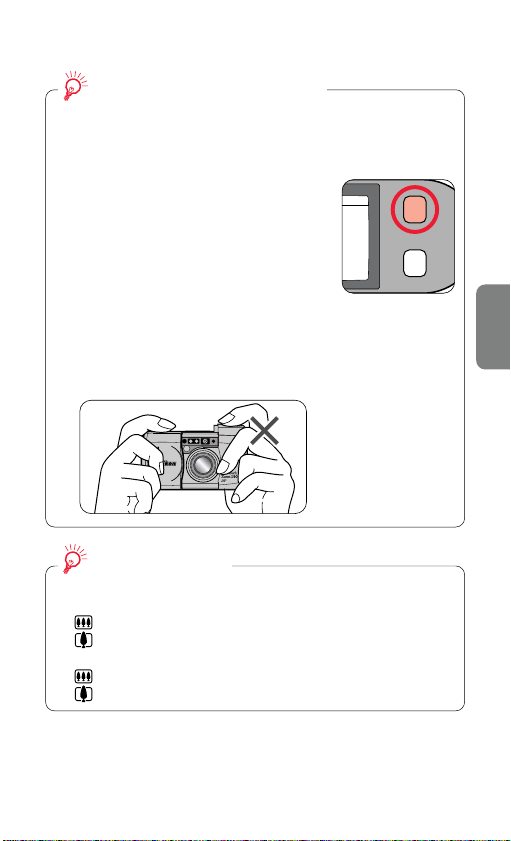

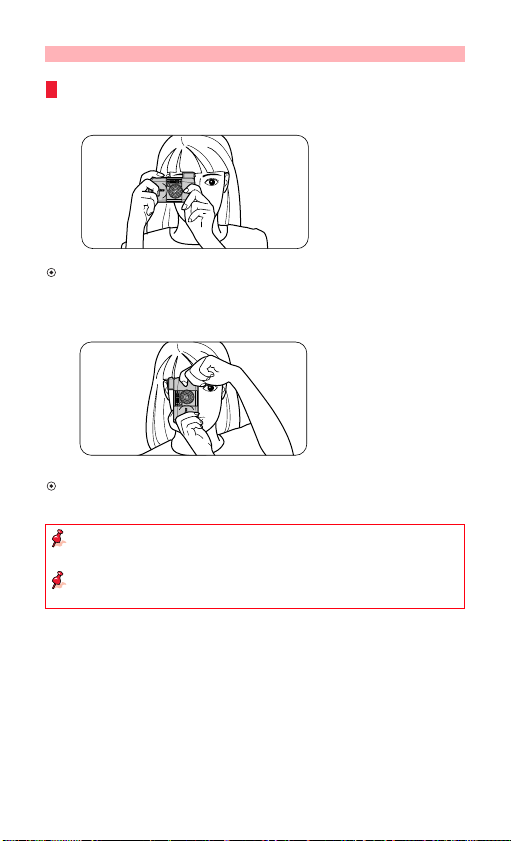

Holding the camera properly

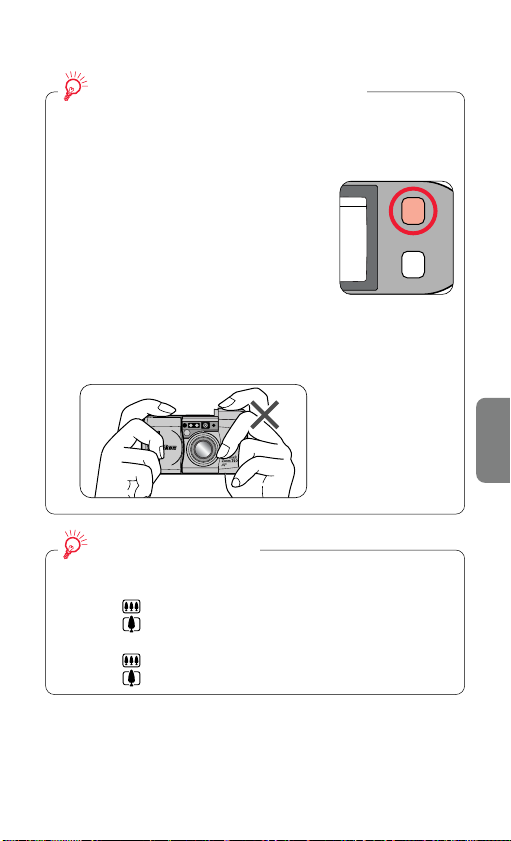

Hold the camera firmly.
<When holding the camera horizontally>
Prop your elbows against your body and hold the camera with both hands.
<When holding the camera vertically>
When holding the camera vertically, make sure that the flash is on top as shown.
Do not block the lens, autofocus window, or flash with your fingers or hair, or the strap.
Be careful not to press down on the flash unit when it is in the popped-up position.
18 Basic Operations

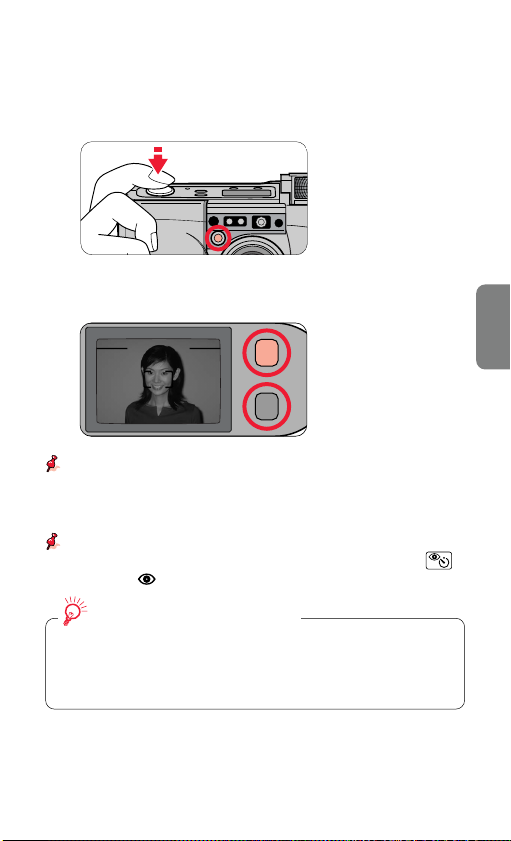

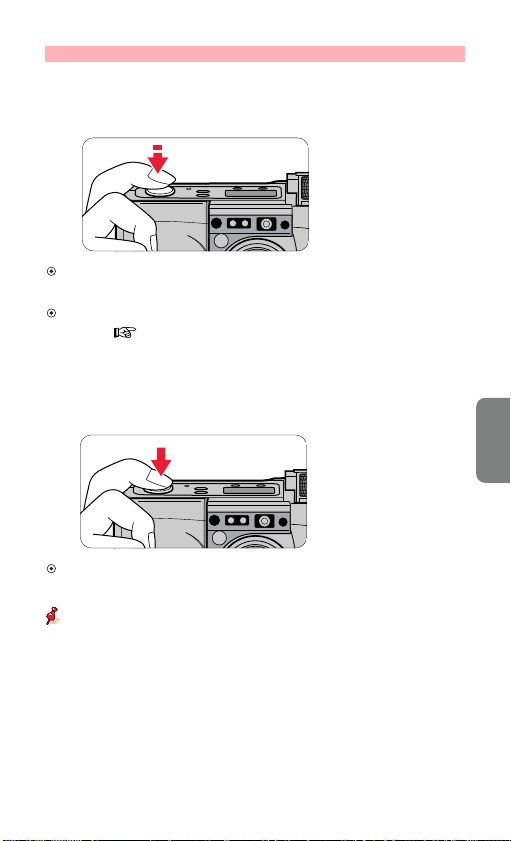

Operating the Shutter Release button

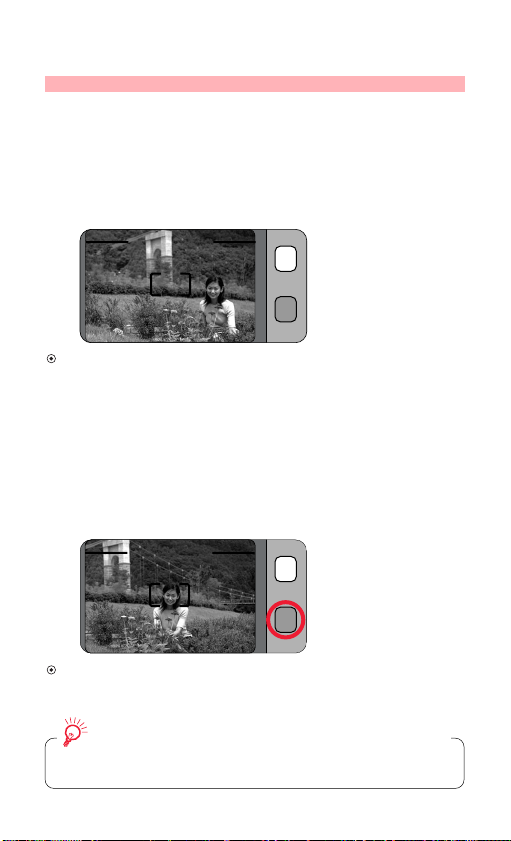

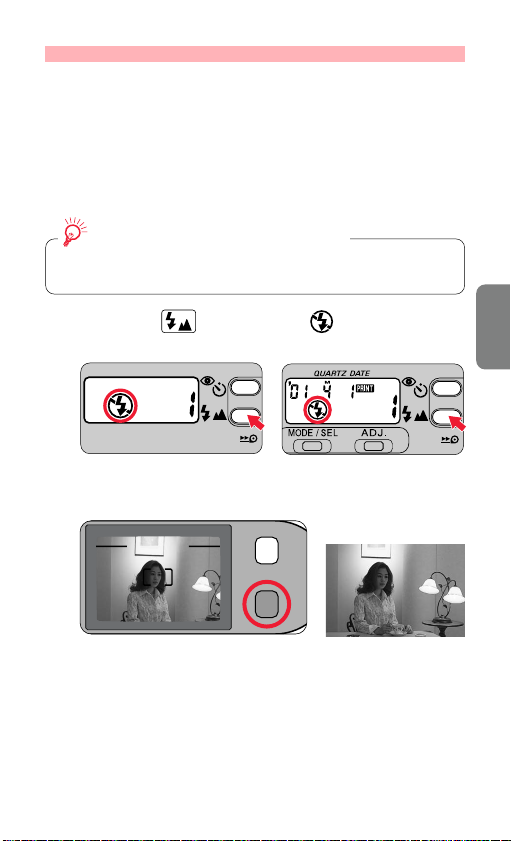

Lightly press the button and confirm the green
1.
LED lights up.
When you press the button lightly, the focus and exposure are achieved, and the green LED lights up.
The focus is locked (Focus lock p. 26) while the Shutter Release button is depressed lightly.

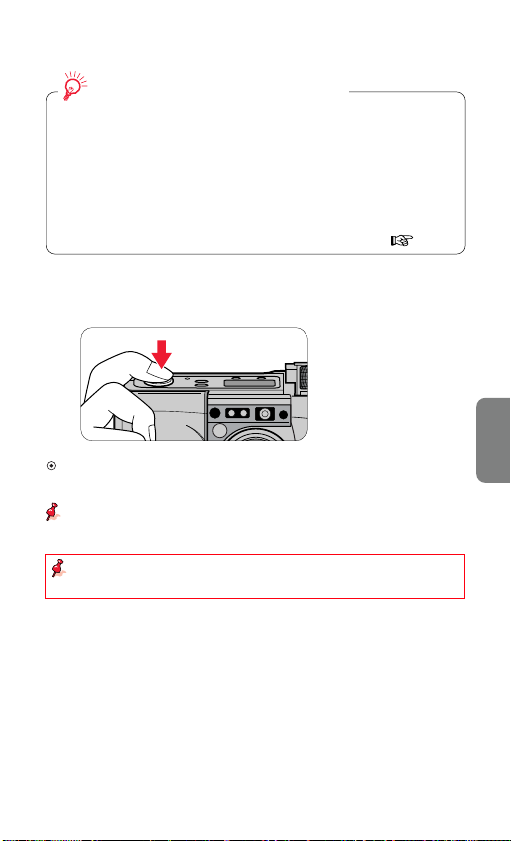

Fully depress the Shutter Release button to
2.
take the picture.

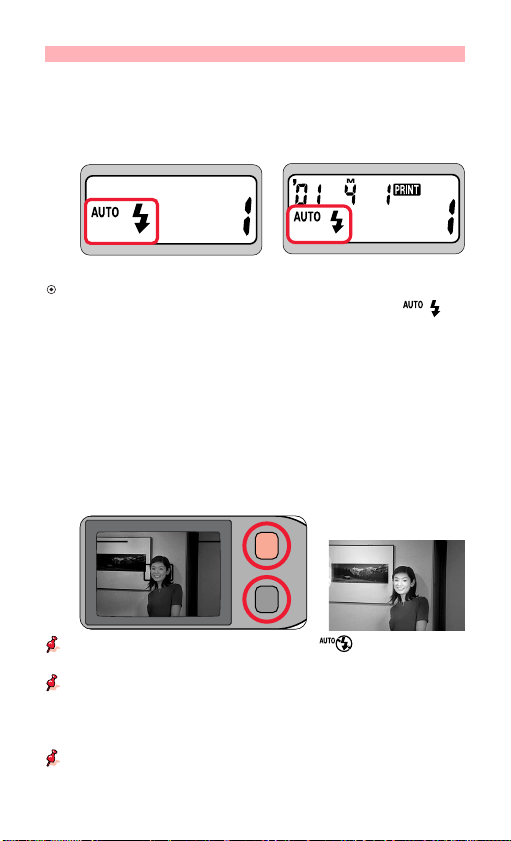

The flash automatically fires when there is not enough light or the subject is backlit.
Pressing the Shutter Release button abruptly in one stroke may result in camera shake. Be sure to slowly press the Shutter Release button.
E
Basic Operations
19
Selecting Regular or Panorama mode
(Lite Touch Zoom 140ED QD only)
What’s Panorama mode?
In panorama mode, a portion of the top and bottom part of the frame is cut exposing an area of approx. 13 × 36mm and is usually printed in approx. 89 × 254mm size.
Select the Regular or Panorama mode.
Regular mode
Panorama mode

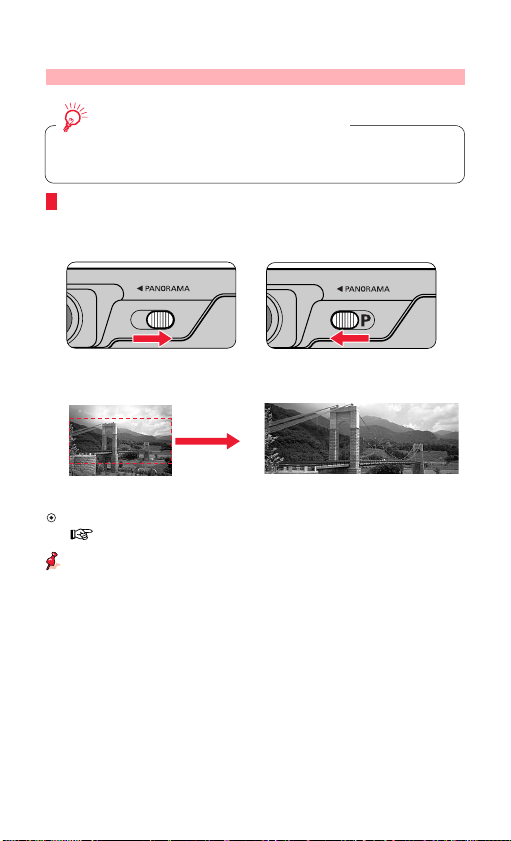

Set the Panorama switch
to the right position.
Regular mode Panorama mode
The date/time can also be printed in the Panorama mode. ( p. 16)
When compared with regular-format pictures, extra time and cost may be
required for developing/printing panorama pictures.
Caution:
To prevent possible injury to your eye, hold the camera away from your face when you operate the Panorama switch.
Set the Panorama switch to the left position.
20 Basic Operations

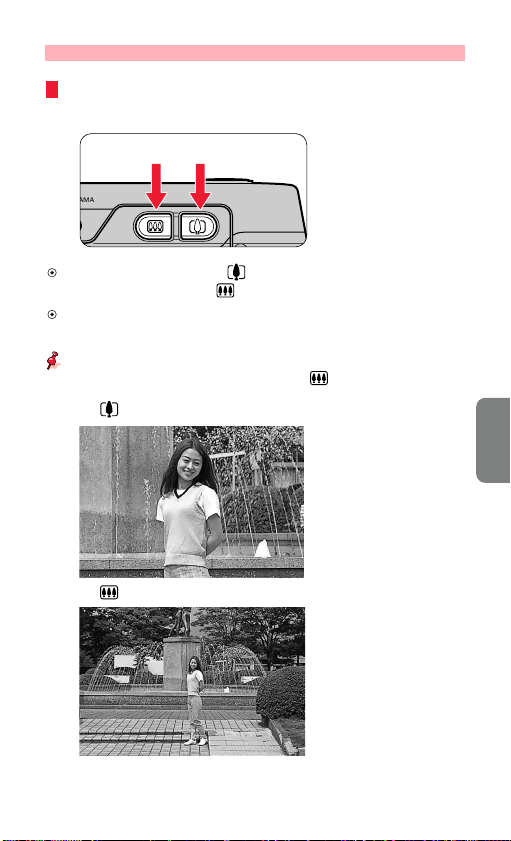

Zooming
Press the Zoom button to compose the picture.
for wide-angle for telephoto
Press the zoom button for telephoto (140mm) photography or the
zoom button for wide-angle (38mm) photography.
Remove your finger from the button when the desired image size is obtained.
When the camera is not operated for more than 2 minutes, the lens automatically retracts to the
Example of a telephoto photograph
Example of a wide-angle photograph
(wide-angle) position.
E
Basic Operations
21
Shooting
This camera employs a highly accurate wide-area passive-type autofocus system, which enables easy focusing and sharp shooting of a distant view or a subject through a window.
Center the autofocus frame mark on the main
1.
subject.
If the main subject is outside the autofocus frame:
Use the focus lock to achieve focus. ( p. 26)
Lightly press the Shutter Release button.
2.
22 Basic Operations
Lighting/blinking of the green LED
When correct focus has been achieved, the green LED lights up. The green LED blinks either slowly or quickly when the subject is out of focus. aSlow blinking indicates the subject is too close.
For correct focus to be achieved, keep the camera away from the subject for more than approx. 0.74m.
aQuick blinking indicates that the subject is difficult to focus.
Use the focus lock. (
Slowly press the Shutter Release button all the
3.
way.
If the subject is dark or backlit in Auto Flash mode, the flash fires automatically.
Pressing the Shutter Release button abruptly in one stroke may result in camera shake.
When not in use, close the slide cover to save battery power.
p. 26)
E
Basic Operations
23

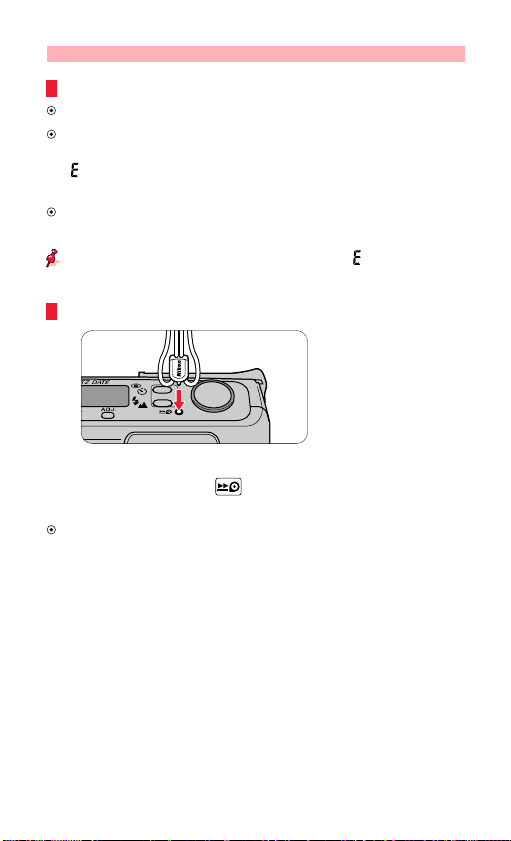

Rewinding the film
Film rewinds automatically.
At the end of the film roll, the film rewinding starts automatically.
While the film is rewinding, the number on the frame counter decreases one by one. When rewinding is complete, the letter “ approx. 20 seconds, then stops blinking and remains lit.
If rewinding stops midway through the roll because of a dead battery, it resumes automatically as soon as the battery is replaced.
Do not open the camera back until the letter “ ” starts blinking.
To rewind the film at mid-roll.
Press the mid-roll rewind ( ) button using the stud on the strap lug or the point of ball-point pen.
Once rewinding starts, there is no need to keep the button pressed.
” blinks for
24 Basic Operations

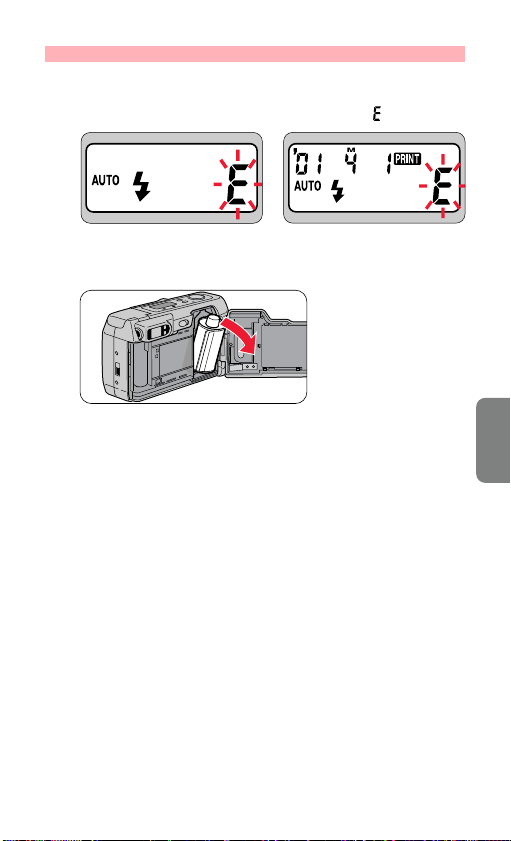

Removing the film
Make sure rewind is complete by checking the
1.
letter “ ” indication.
Lite Touch Zoom 140ED Lite Touch Zoom 140ED QD
Open the camera back and remove the film.
2.
E
Basic Operations
25
When the main subject is not in the center of the picture
Focus lock photography
When the subject to be focused is outside the autofocus frame in the center of the picture, use focus lock, which enables you to change the picture composition while locking the focus.
Compose the picture.
1.

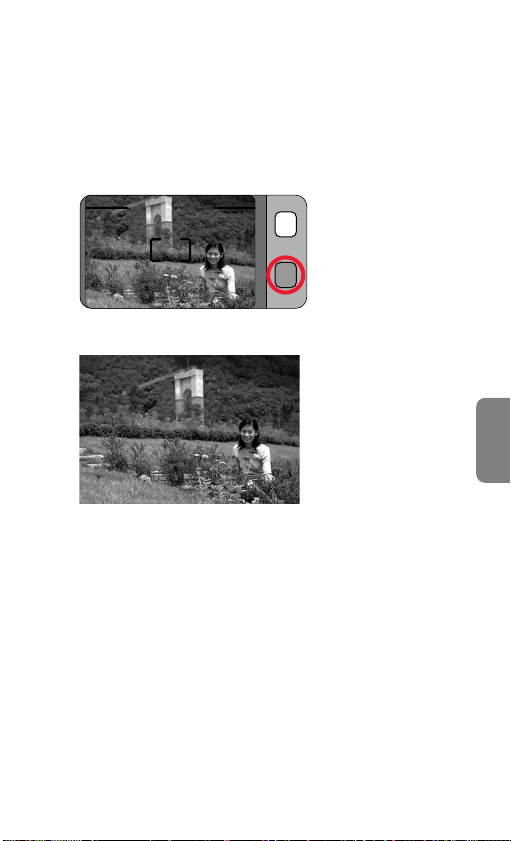

If the shutter is released in a condition like that in the above example where the main subject is outside the autofocus frame, the background is in focus, and the main subject is out of focus. In such situations, use focus lock to change the picture composition while temporarily locking the focus on the main subject.

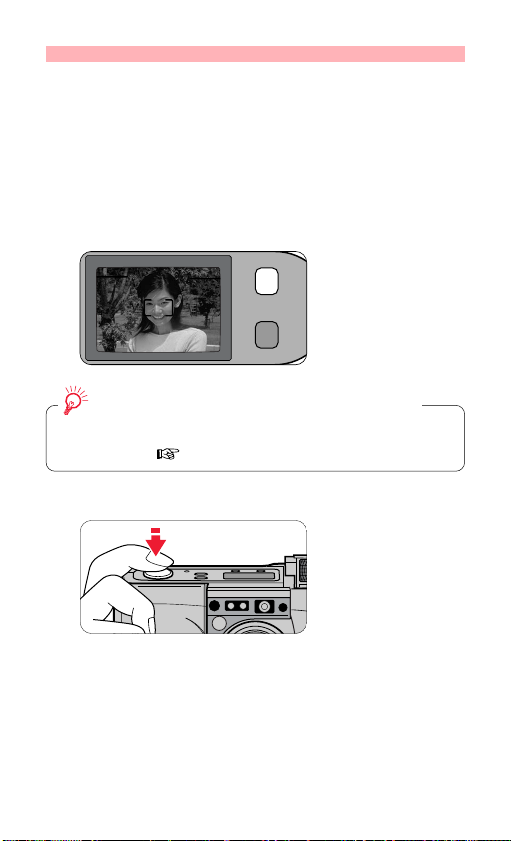

Center the autofocus frame on the main
2.
subject and lightly press the Shutter Release button.
The green LED lights up when correct focus has been achieved, and the focus is locked as long as the Shutter Release button is depressed lightly.
Do not change the camera-to-subject distance
While the green LED lights up, the focus is locked. Do not change the camera-to-subject distance.
Advanced Operations26
While depressing the Shutter Release button
3.
lightly, recompose the picture and depress the Shutter Release button all the way.
Example
E
Advanced Operations
27
Difficult-to-focus subjects
The following subjects may be difficult to focus. Use the focus lock ( p. 26) to focus on another subject equidistant from the camera, then compose the picture to shoot.
L Subjects of low contrast, such as blue sky, or shiny subjects,
such as a shiny car body or water surface.
L Subjects with continuous and repeated patterns such as buildings.
L Scenes with subjects at different distances within the
autofocus frame.
L Strongly back lit subjects or those having a bright shiny
background.
Advanced Operations28
Close-up photography
Minimum camera-to-subject distance is approx. 0.74m
If you wish to shoot a subject such as a flower as large as possible in a picture, you can get as close to the subject as approx. 0.74m.
By setting the Zoom button to the (telephoto) position, a larger image can be obtained.
Compose the picture within the parallax
1.
compensation marks.
E
Regular Panorama (Lite Touch Zoom
The area marked with in the illustration is included in the picture.
Use the parallax compensation marks when the camera-to-subject distance is less than 1m.
Check that the green LED lights up, then shoot.
2.
If the subject is closer than approx. 0.74m, the green LED slowly blinks
as a warning. Move away from the subject until the green LED lights up.
140ED QD only)
Advanced Operations
29
Flash photography
Selecting the flash mode
Lite Touch Zoom 140ED Lite Touch Zoom 140ED QD
You can select any of five flash modes by pressing the button.
: Auto Flash ( p. 32)
The flash automatically fires when there is not enough light, or the subject is backlit.
: Infinity Focus ( p. 38)
For shooting a distant scene or landscape more sharply.

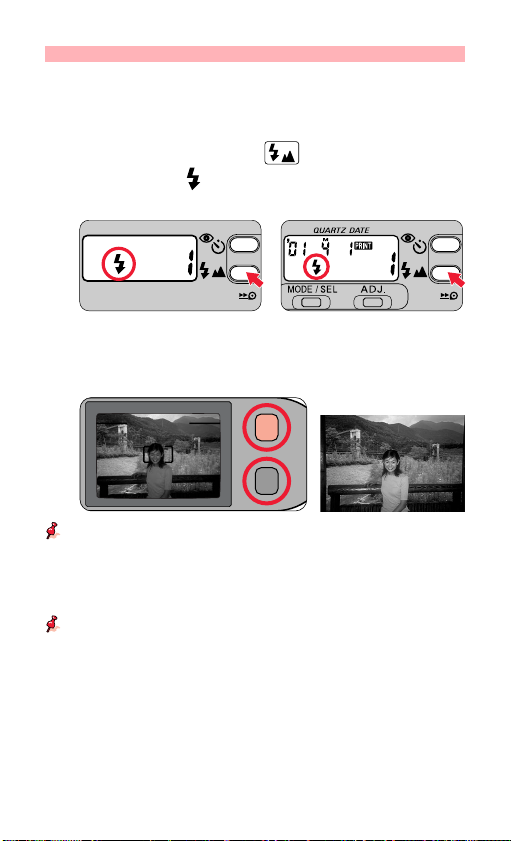

: Flash Cancel ( p. 33)
To cancel flash operation in lighting conditions where normally the flash would automatically fire.
: Anytime Flash ( p. 34)
To fire the flash intentionally regardless of the available light.

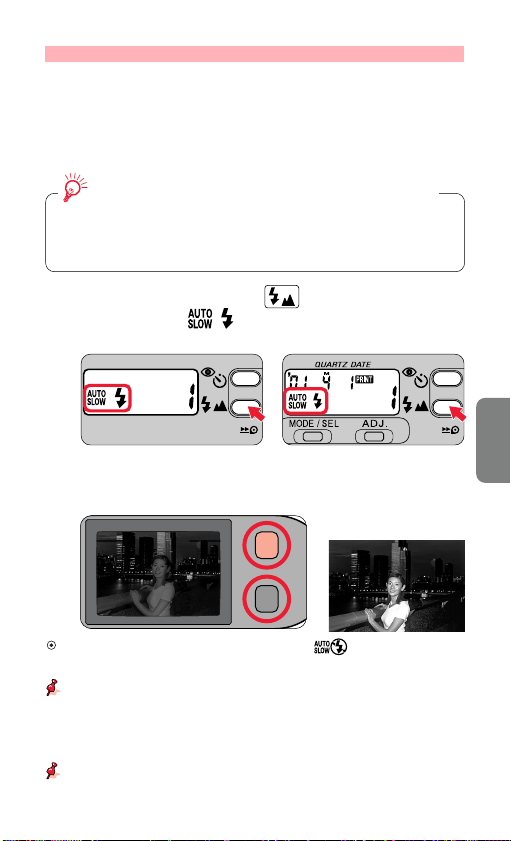

: Slow-Sync Flash ( p. 35)
To brighten both the subject and the background at dusk or in night scenes.
Advanced Operations30
Loading...
+ 115 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
