NEXCOM MPPC 2120T User Manual

NEXCOM International Co., Ltd.

Industrial Computing Solutions

Multi-Media Panel PC MPPC 2120T/3220T

User Manual

NEXCOM International Co., Ltd.

Published September 2012

www.nexcom.com

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer ............................................................................................. iv

Acknowledgements .............................................................................. iv

Regulatory Compliance Statements ....................................................... iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................ ix

Installation Recommendations ................................................................ ix

Safety Precautions ................................................................................... x

Technical Support and Assistance ........................................................... xi

Conventions Used in this Manual ........................................................... xi

Global Service Contact Information ........................................................xii

Package Contents ..................................................................................xv

Ordering Information ............................................................................xvi

Chapter 1: Product Introduction

MPPC 2120T ...........................................................................................1

MPPC 3220T ...........................................................................................2

Specifications .......................................................................................... 3

Getting to Know the MPPC 2120T .......................................................... 5

Getting to Know the MPPC 3220T .......................................................... 8

Mechanical Dimensions .........................................................................11

Chapter 2: Jumpers And Connectors

Before You Begin ..................................................................................13

Precautions ...........................................................................................13

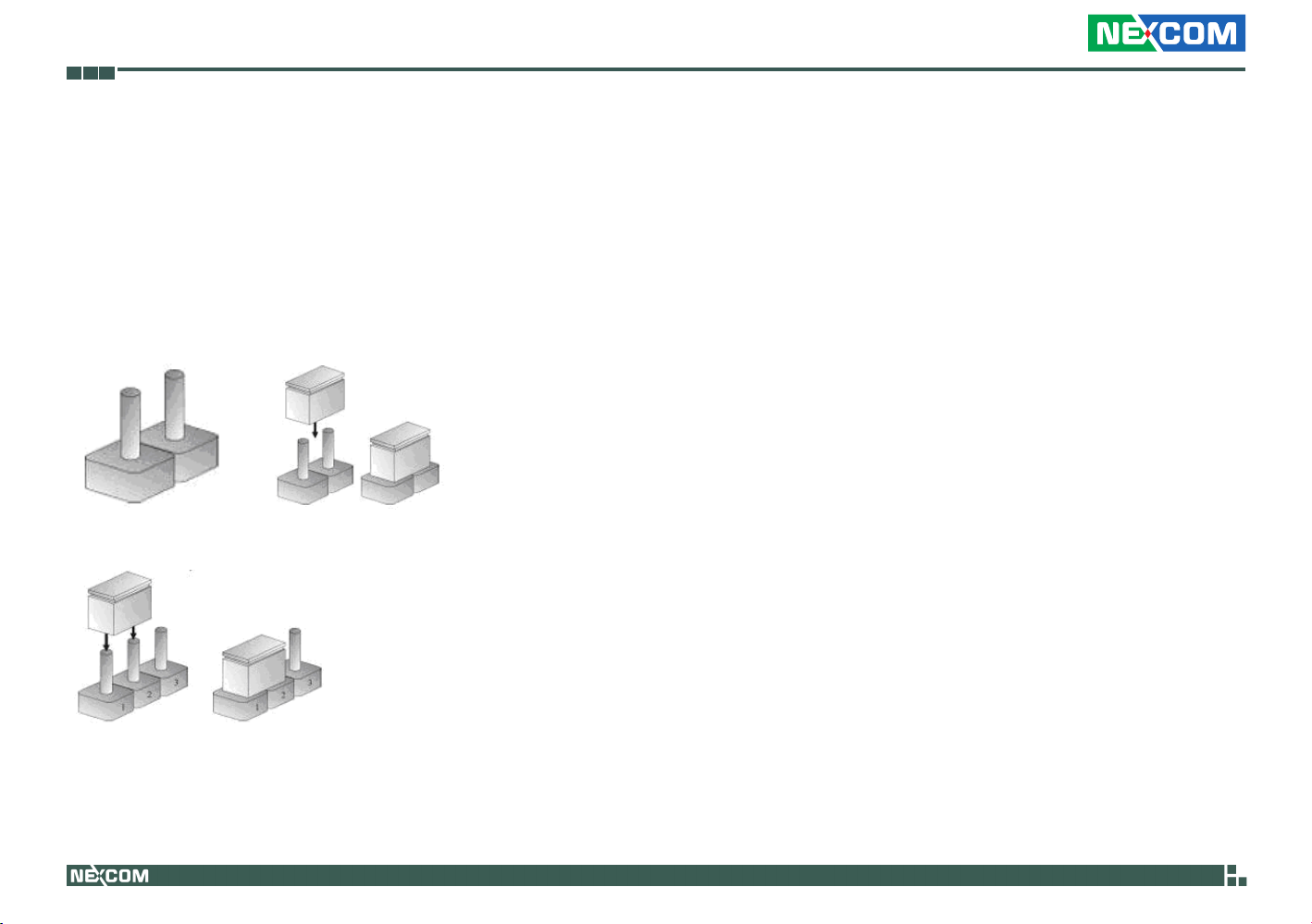

Jumper Settings ....................................................................................14

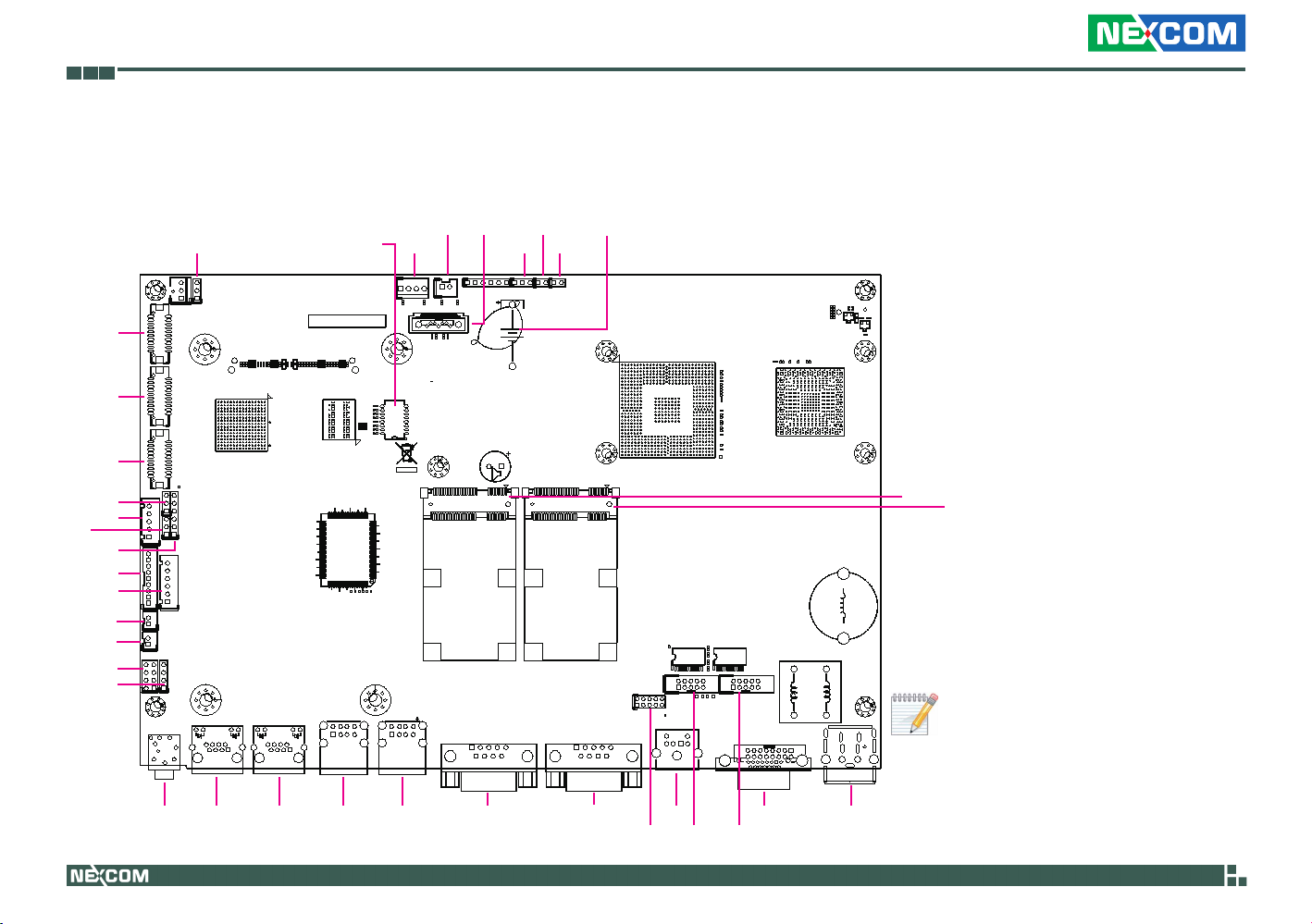

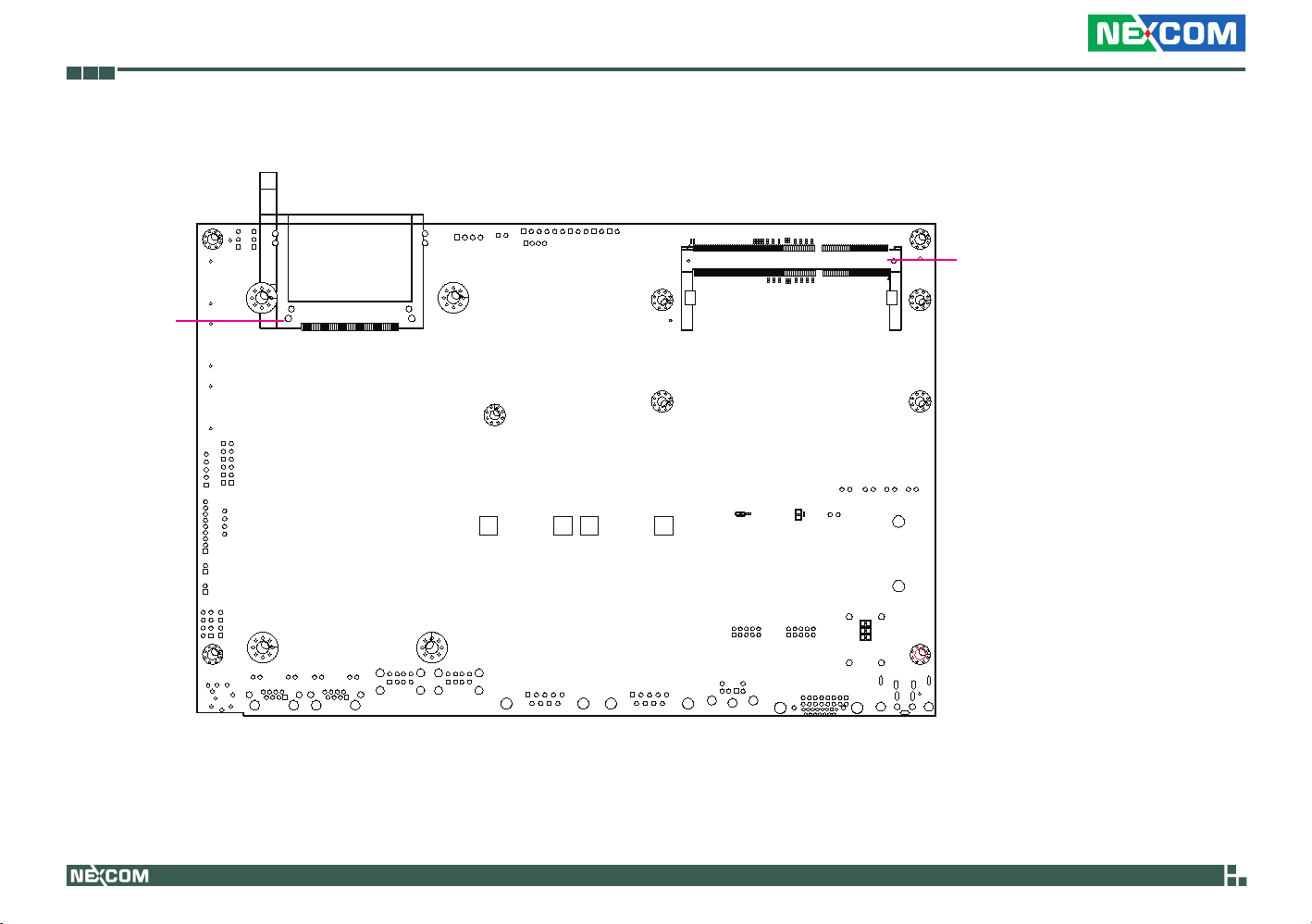

Locations of the Jumpers and Connectors ............................................. 15

Jumpers ................................................................................................ 17

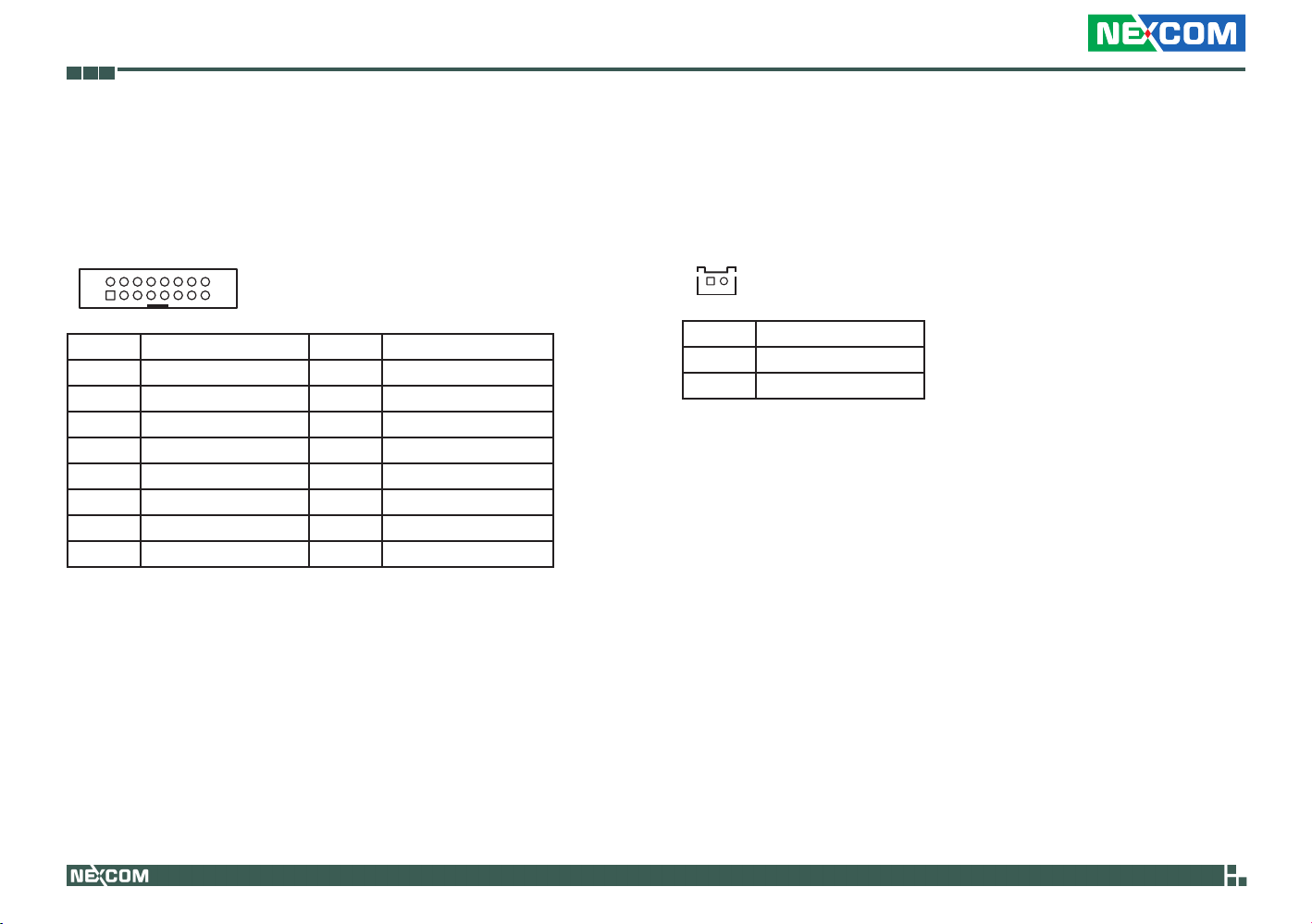

Connectors Pin Definitions .................................................................... 19

External I/O Interface ........................................................................ 19

12V-30V DC Power Input .............................................................19

PS/2 Keyboard/Mouse Port ...........................................................19

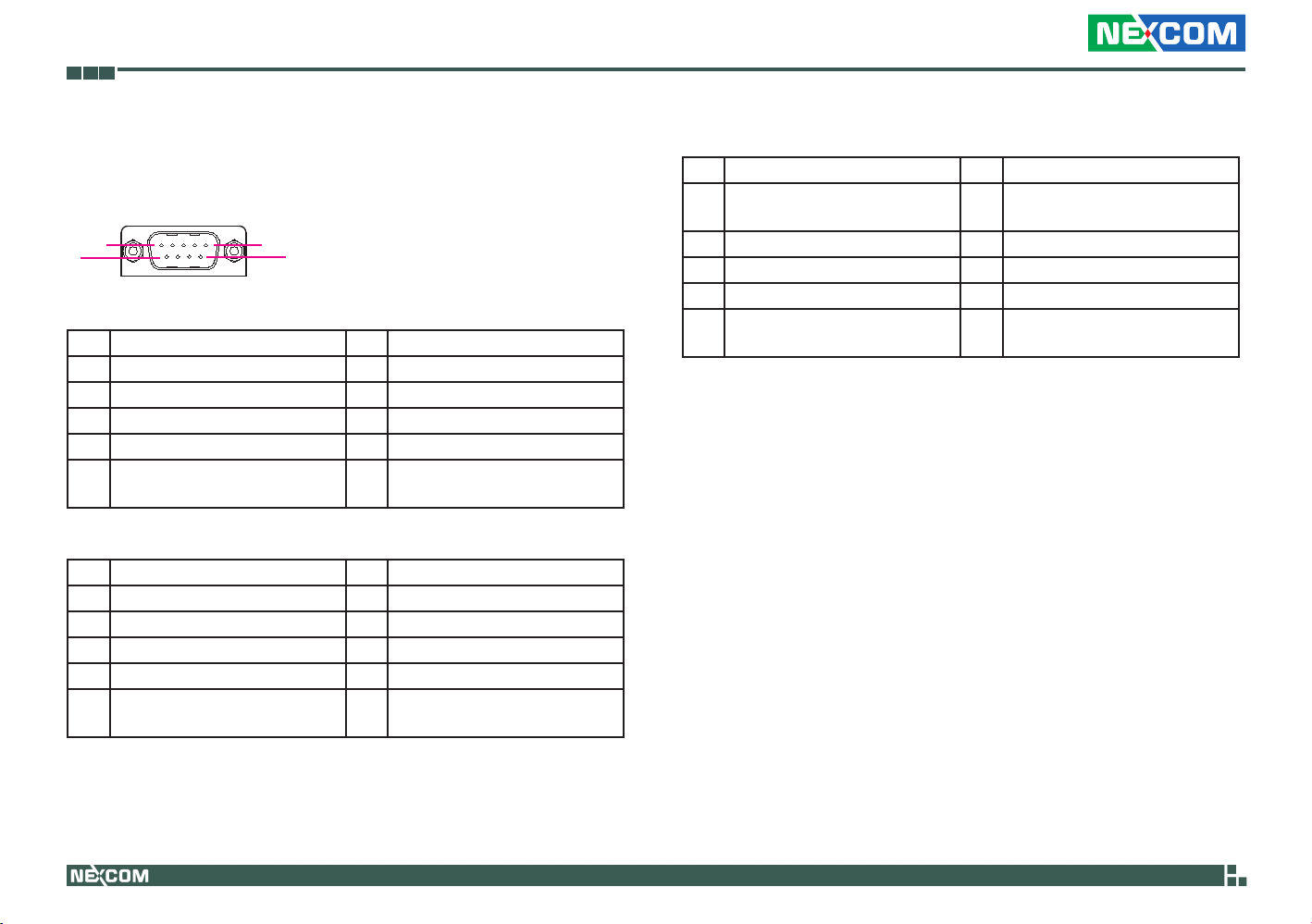

COM1 Port (Isolation with RS422/485) ......................................... 20

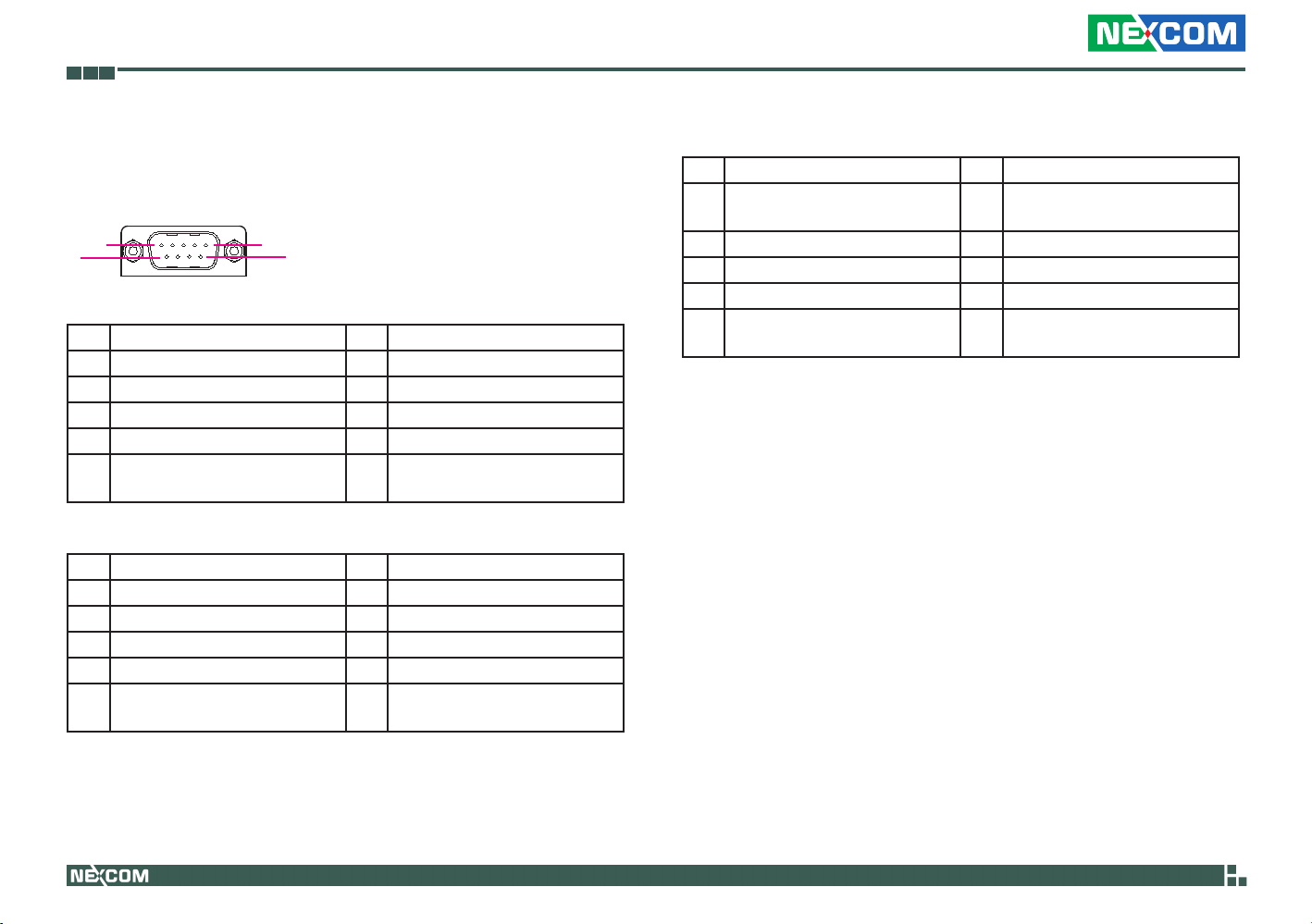

COM2 Port (Isolation with RS422/485) ......................................... 21

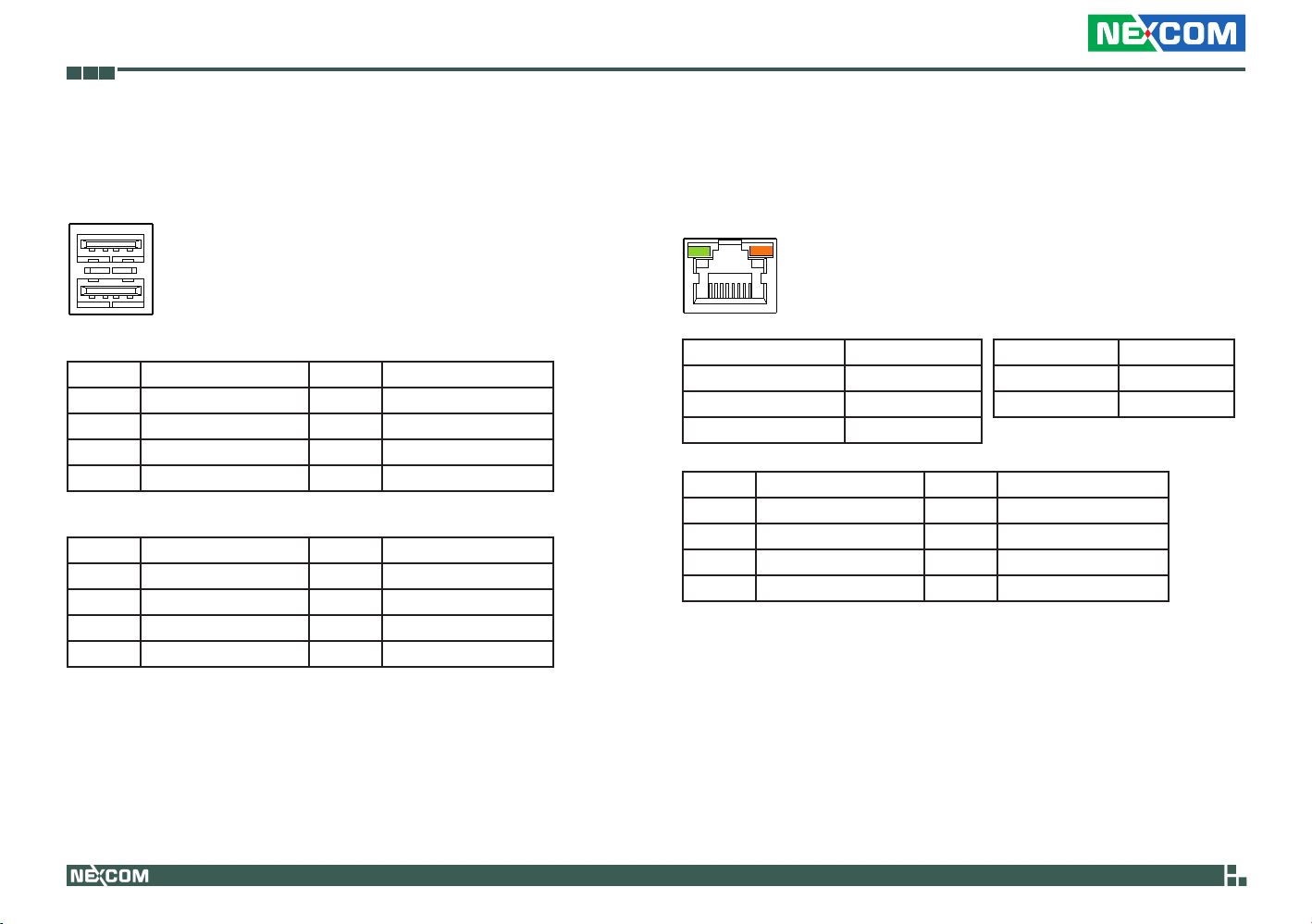

USB Ports ..................................................................................... 22

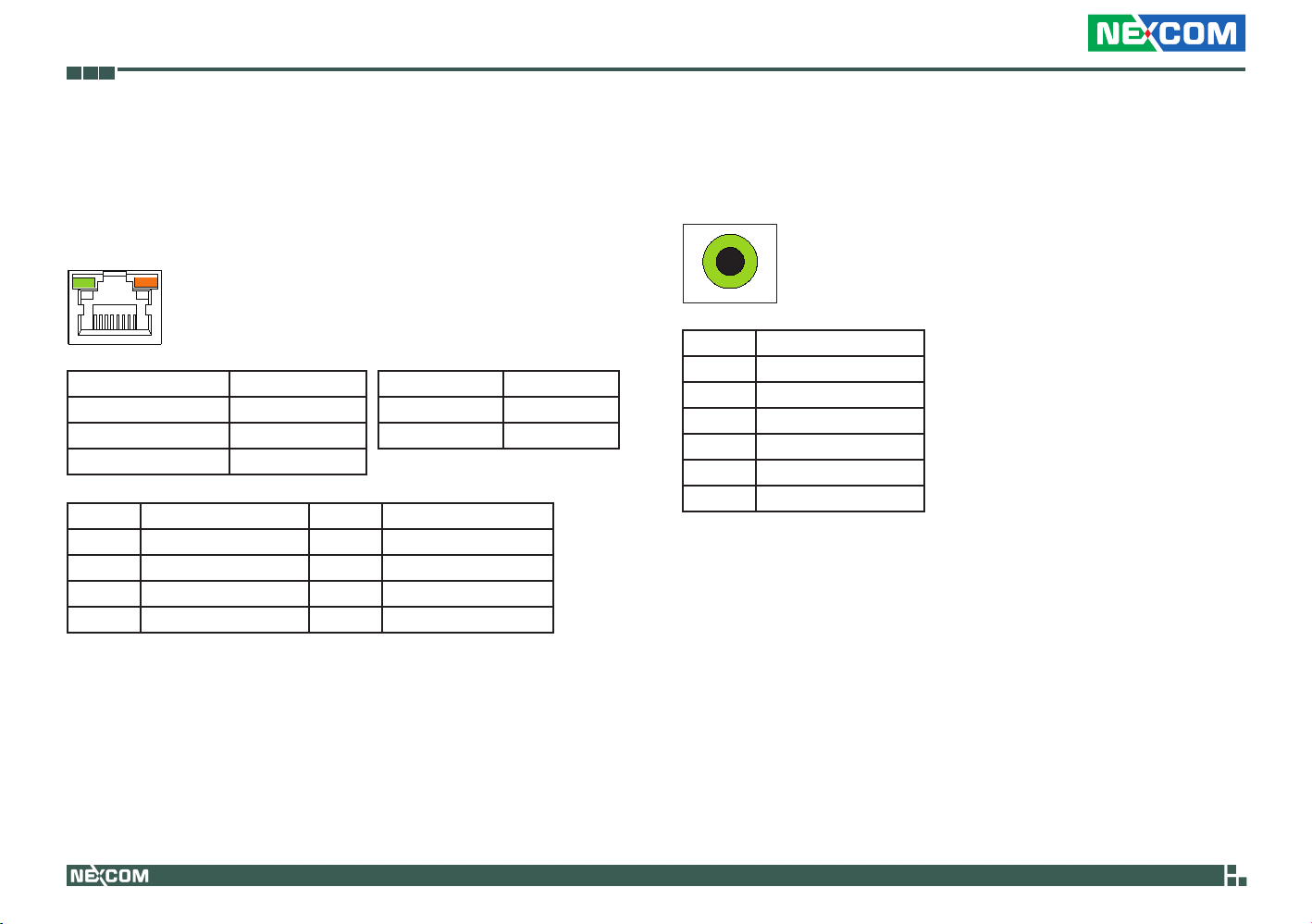

LAN1 Port .................................................................................... 22

LAN2 Port .................................................................................... 23

Line-out Jack ...............................................................................23

Internal Connectors .......................................................................... 24

VGA Connector ........................................................................... 24

Power Button Connector .............................................................24

Reset Button ................................................................................ 25

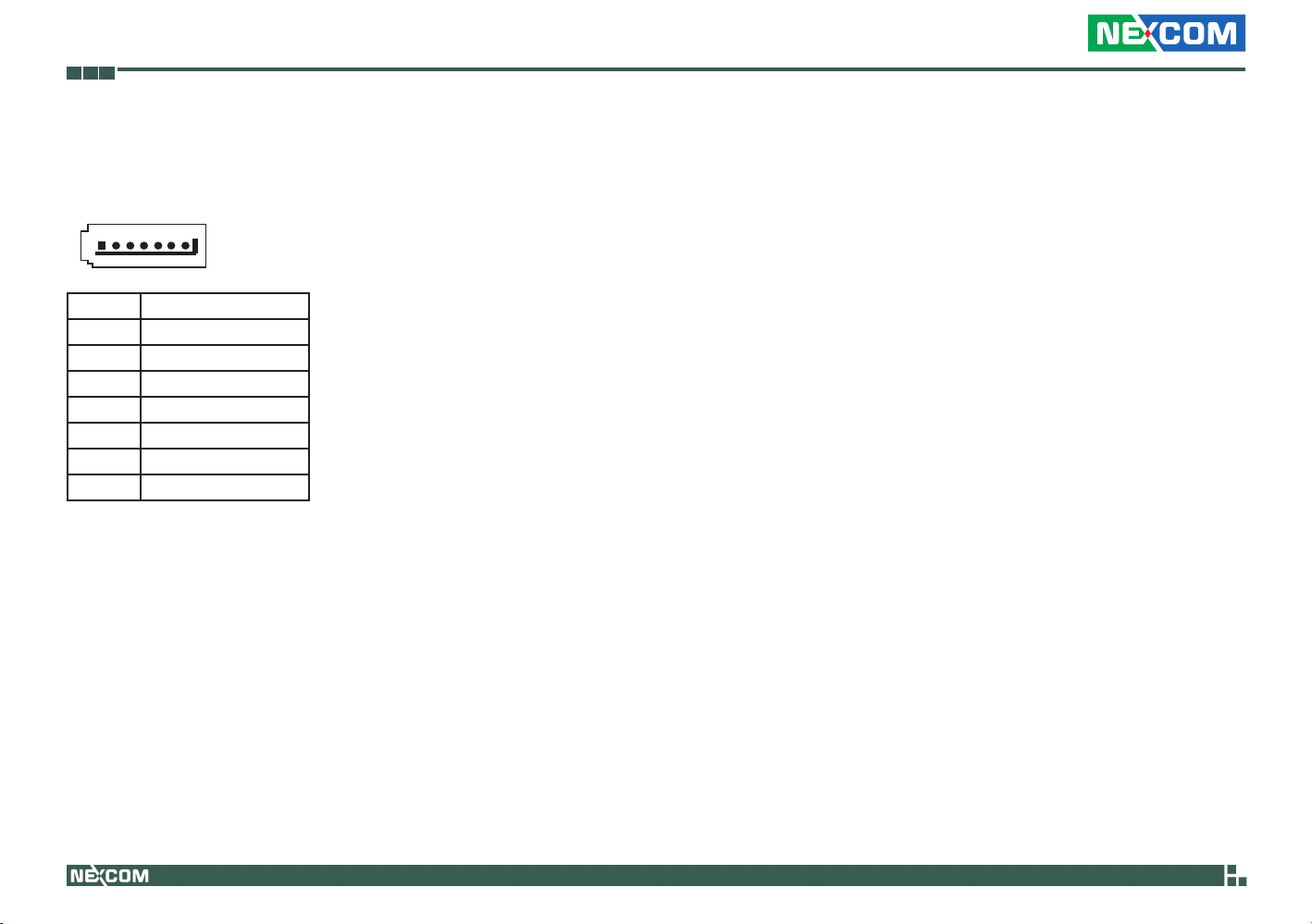

SATA DOM Power Connector .......................................................25

SATA Port ....................................................................................26

Touch Sensor Connector .............................................................. 27

USB Connector ............................................................................ 27

ii

MPPC 2120T/3220T User Manual

Contents

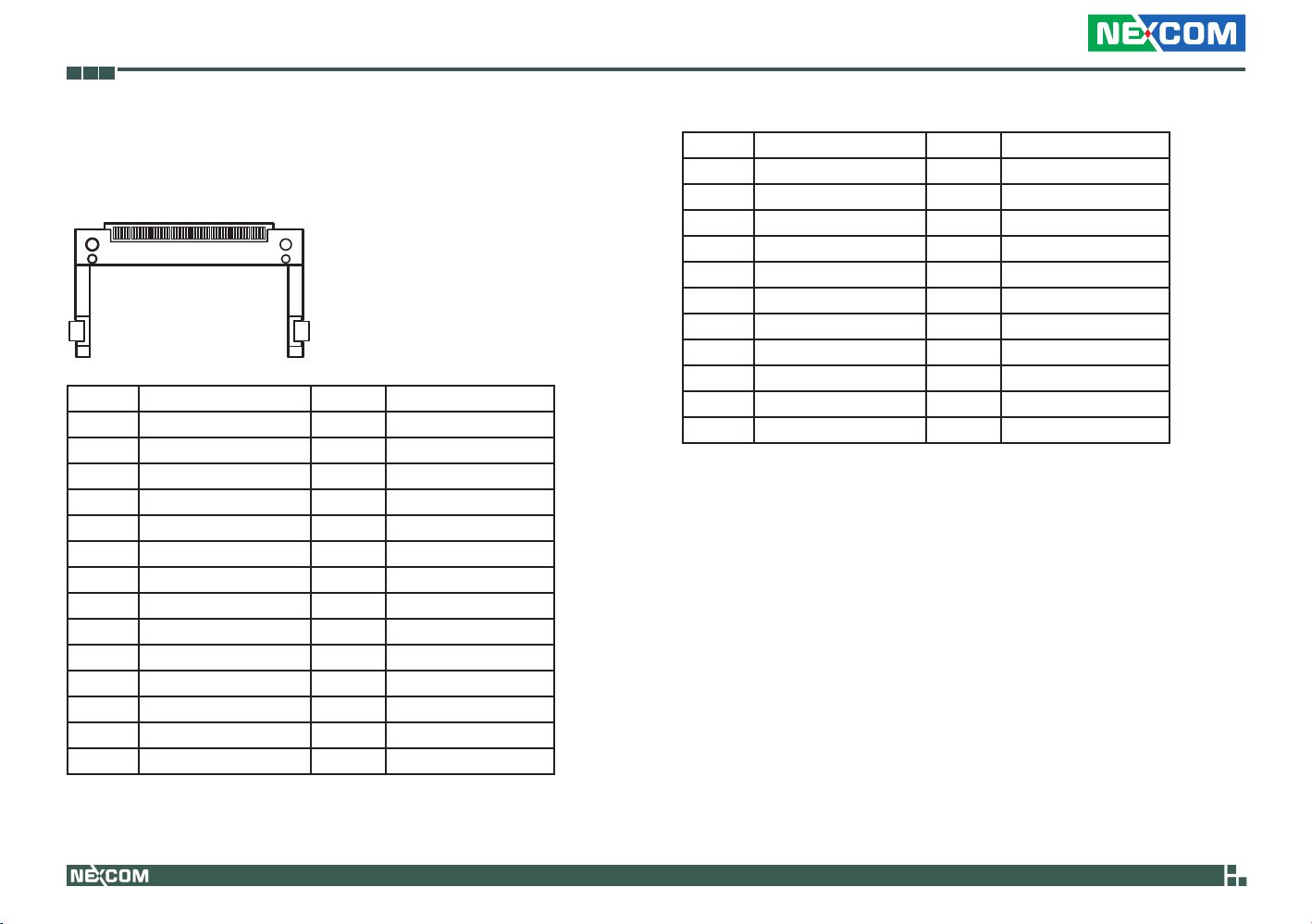

CompactFlash .............................................................................. 28

Power LED Connector .................................................................. 29

HDD Active LED Connector .......................................................... 29

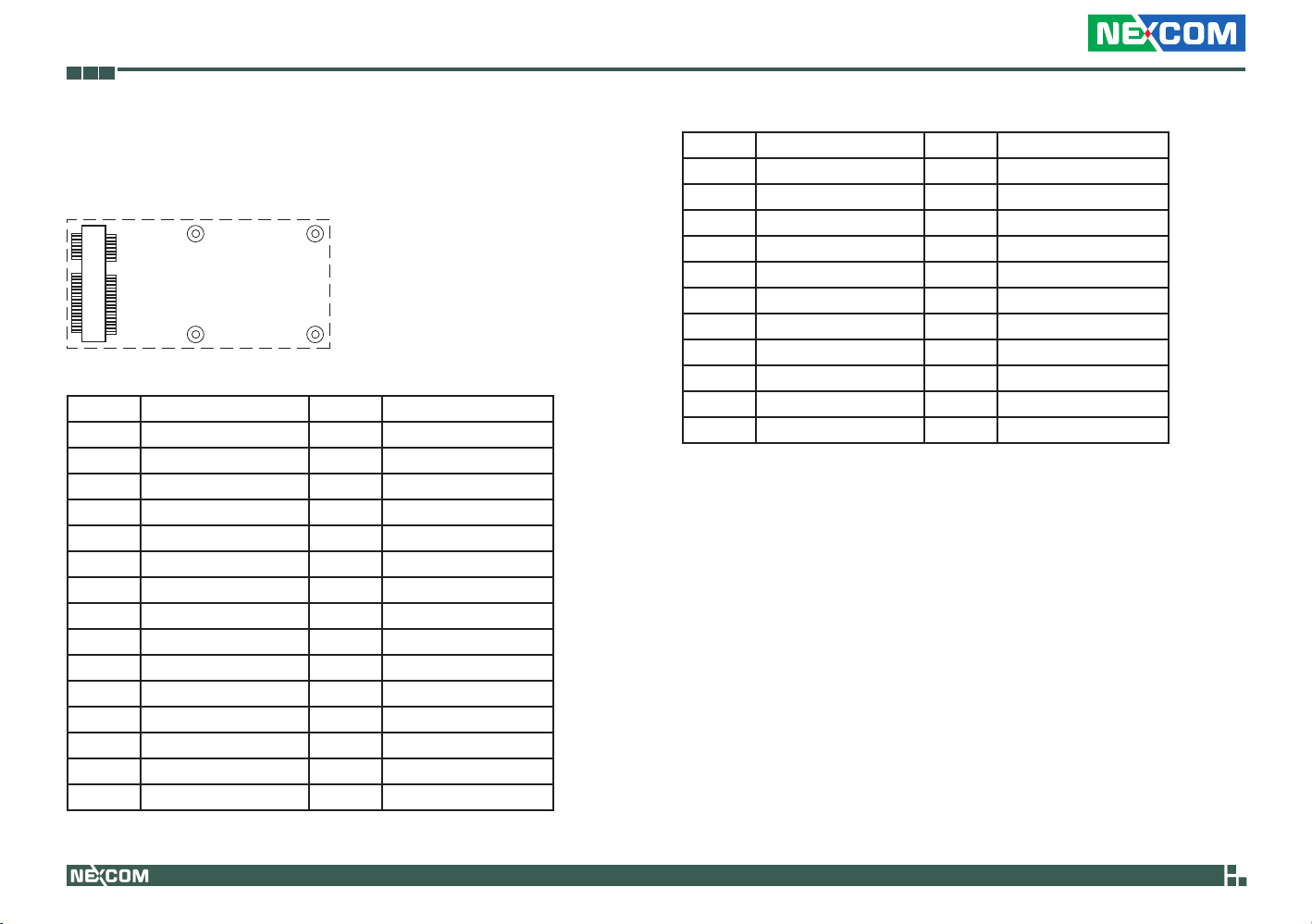

Mini-PCIe Slots ............................................................................30

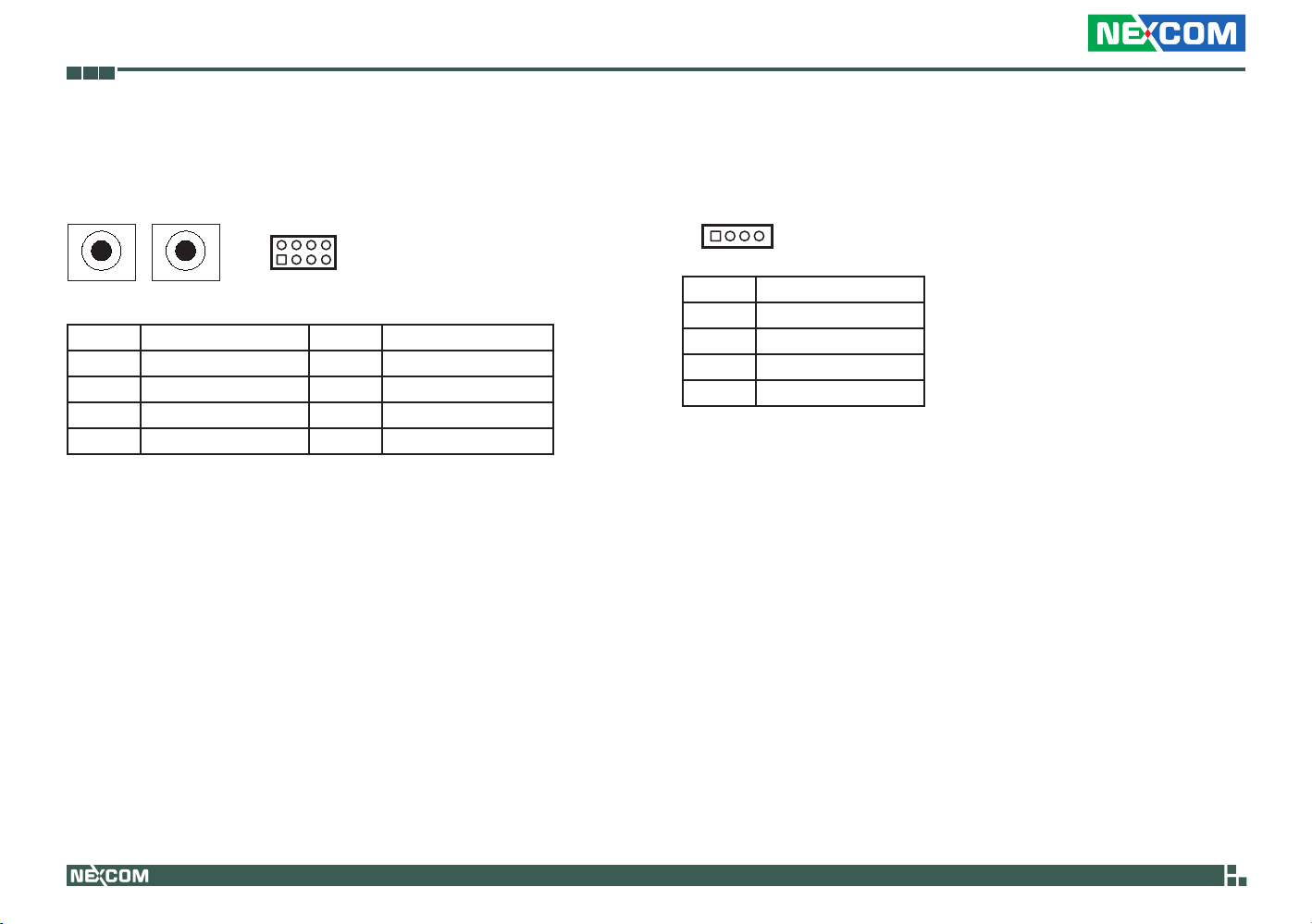

Line-in/Mic-in Connector..............................................................31

Speaker-out Connector ................................................................31

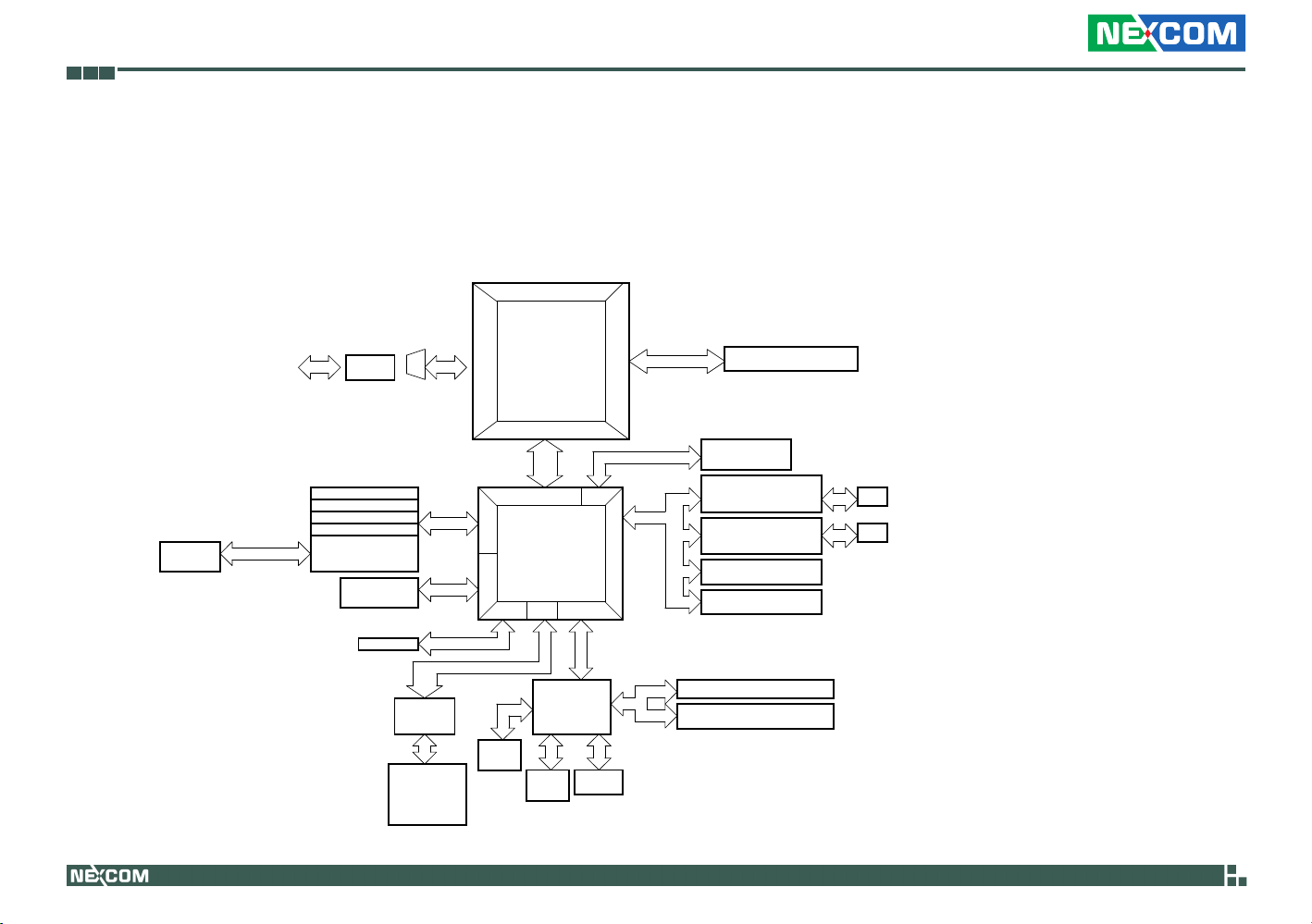

Block Diagram .................................................................................. 32

Chapter 3: System Setup

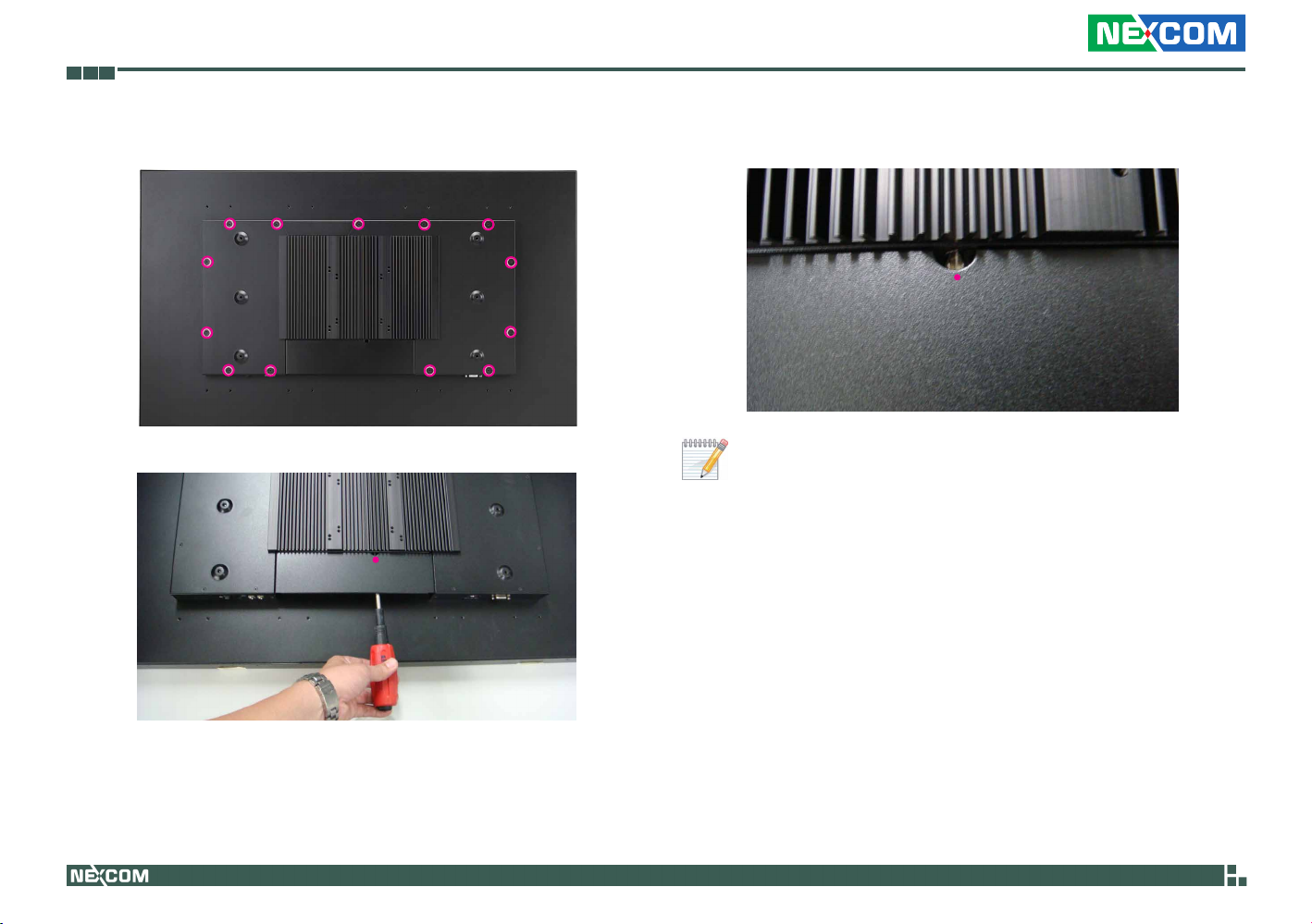

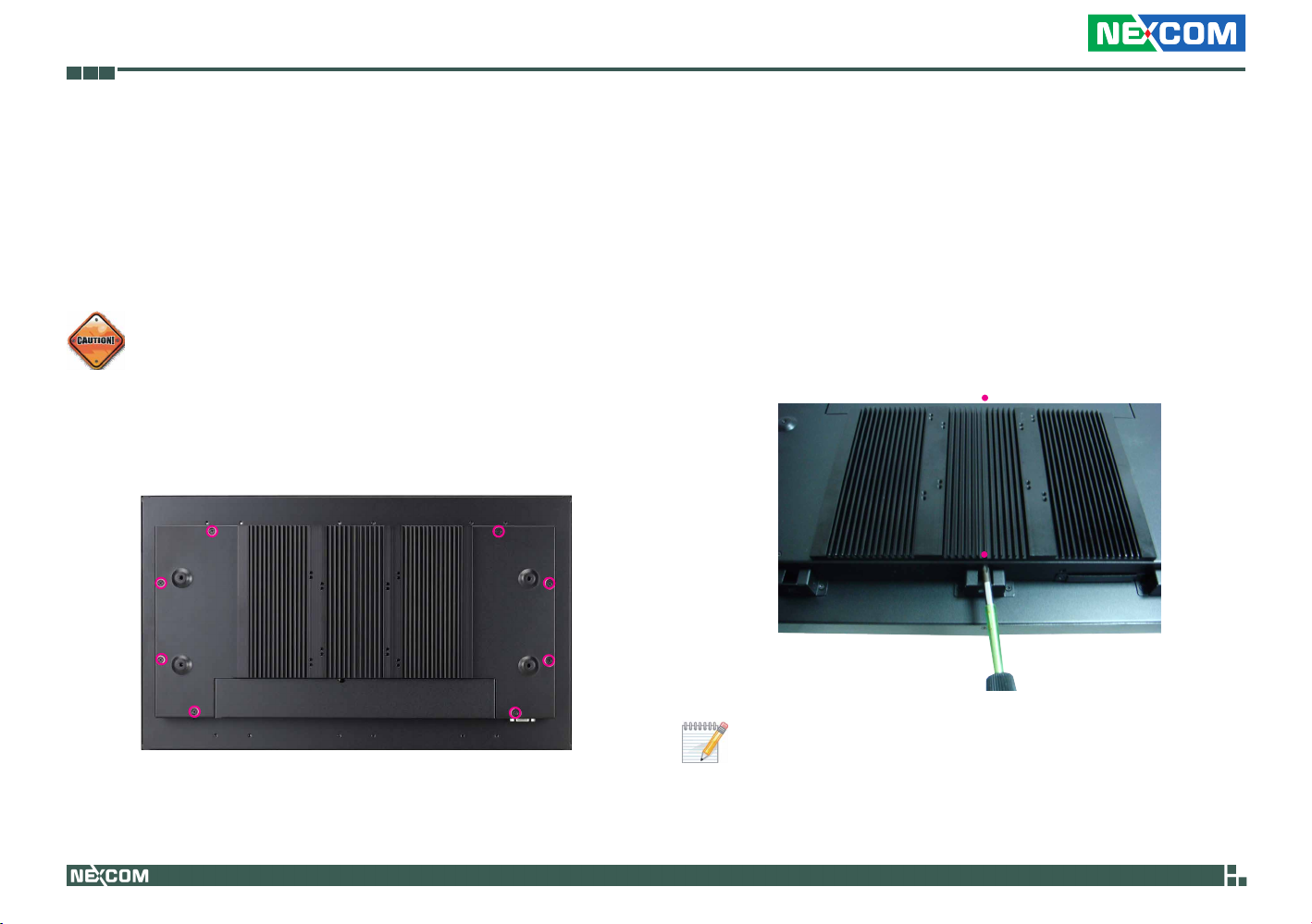

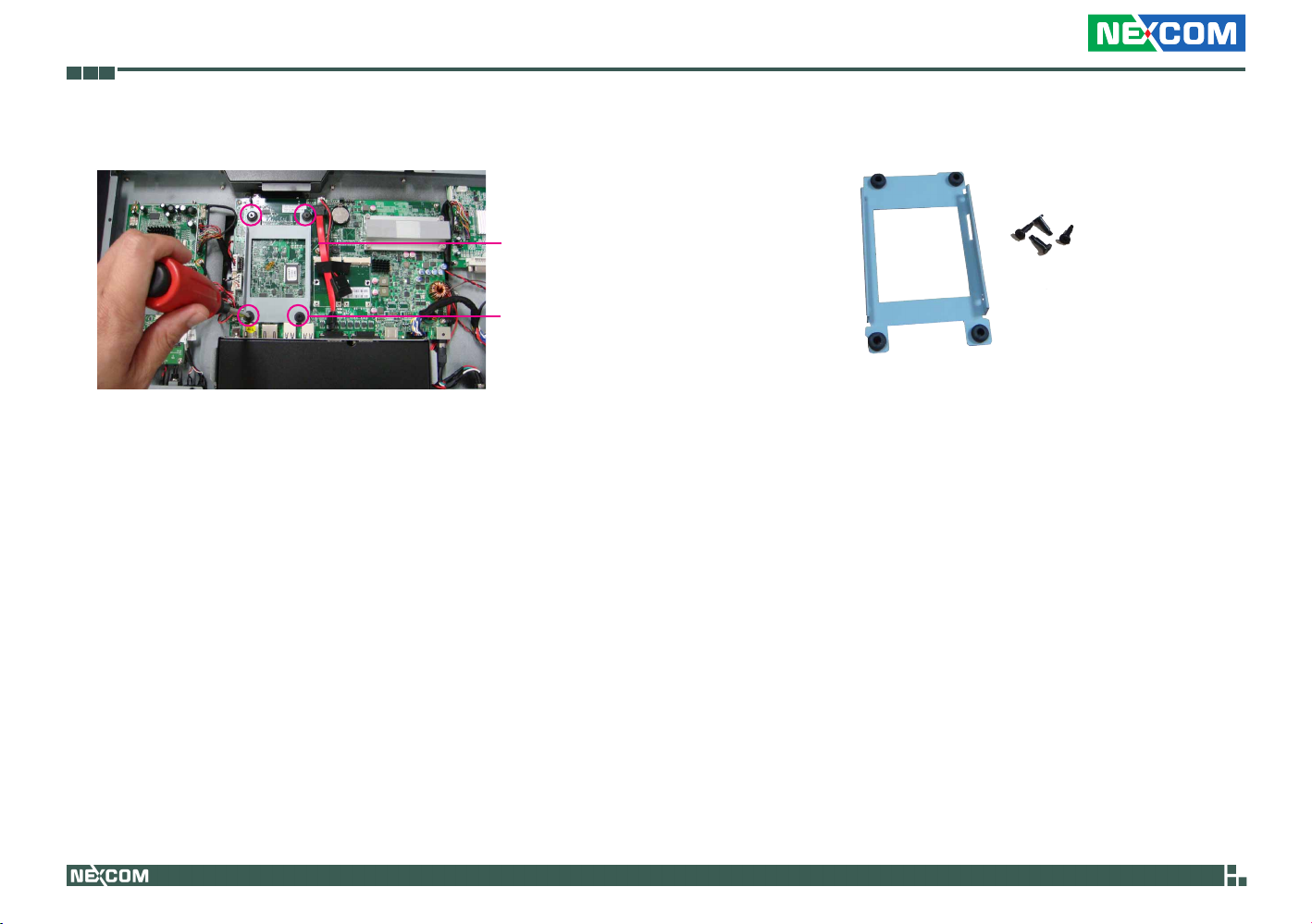

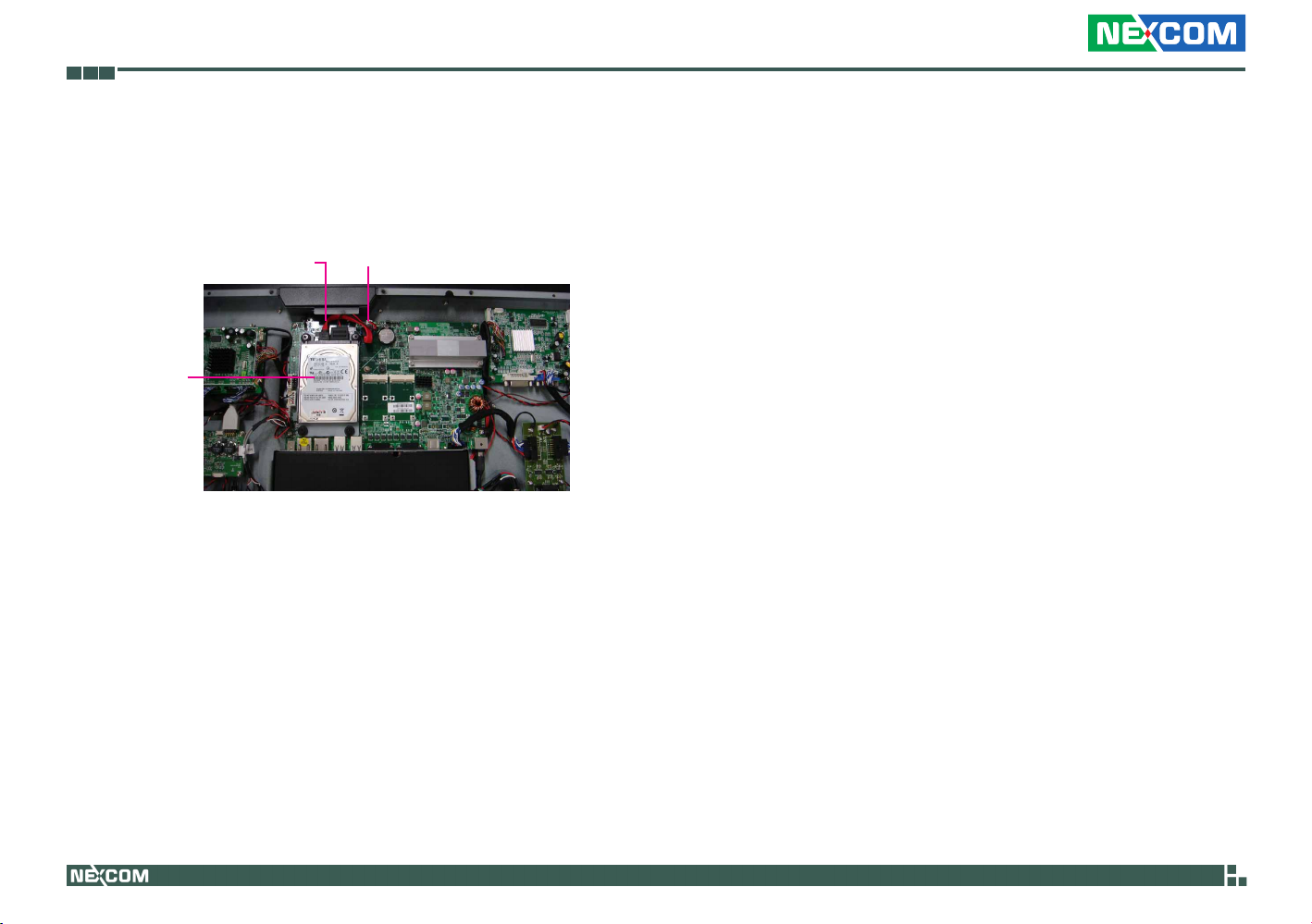

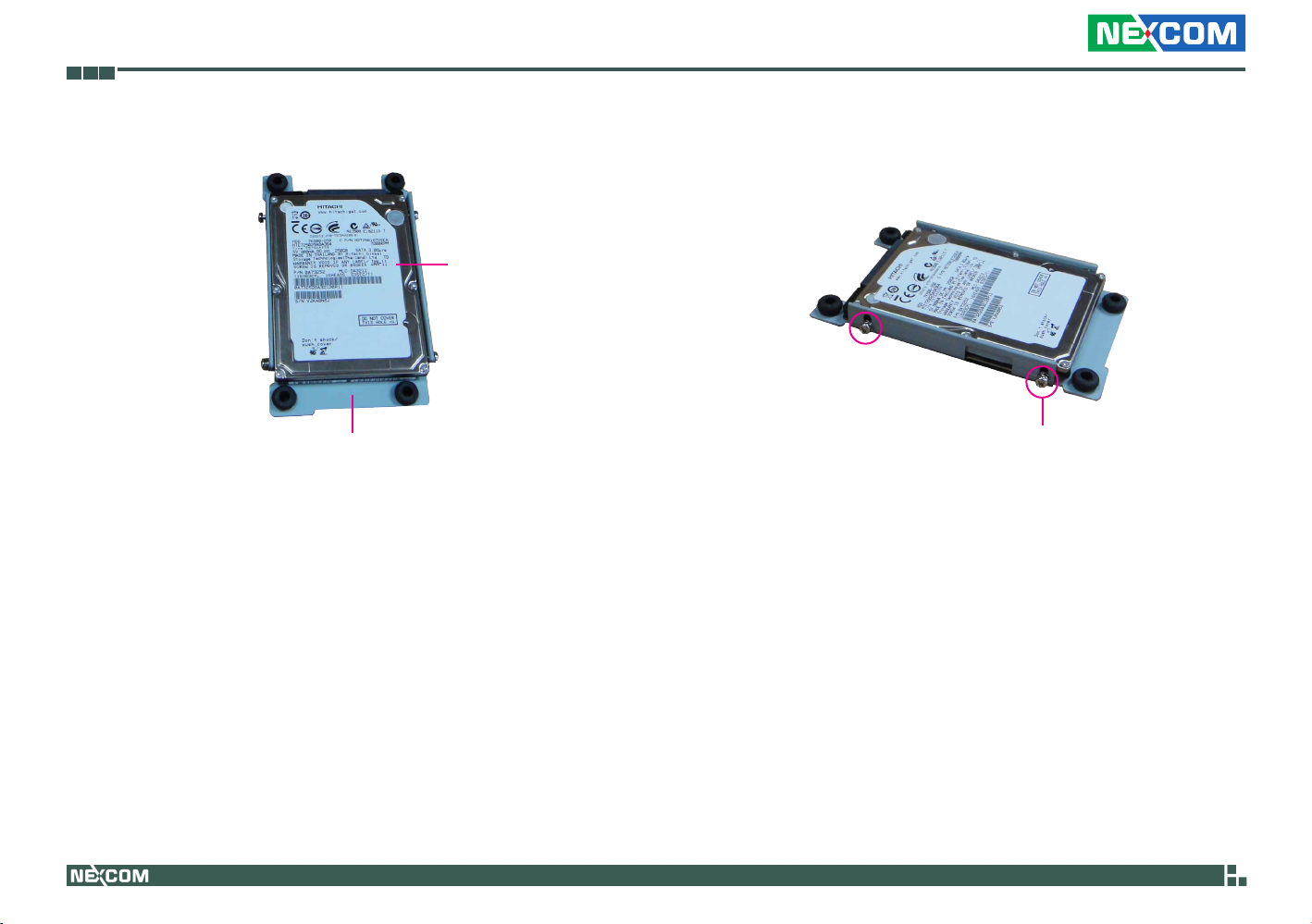

Installing a SATA Hard Drive ..................................................................33

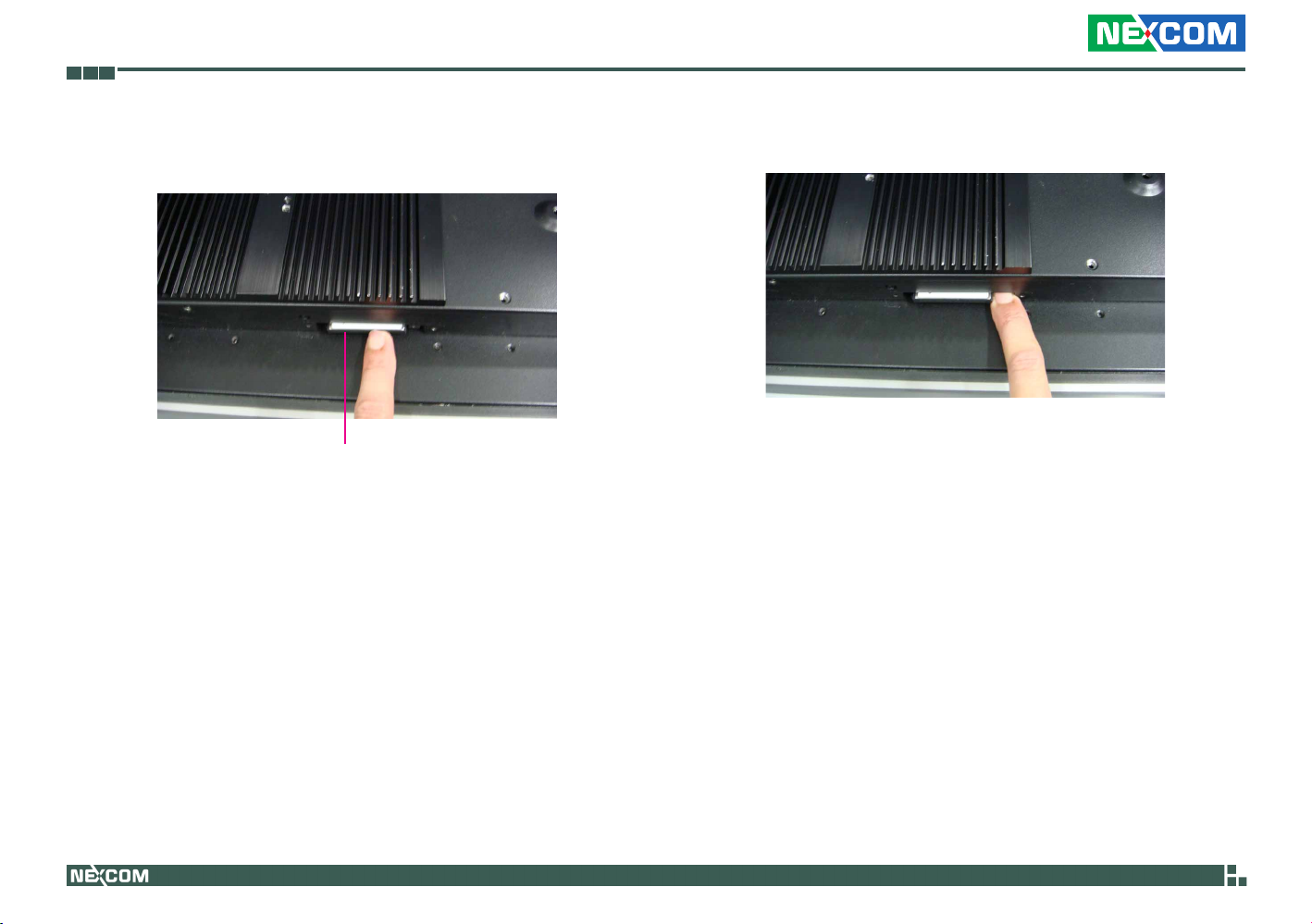

Installing a CompactFlash Card .............................................................38

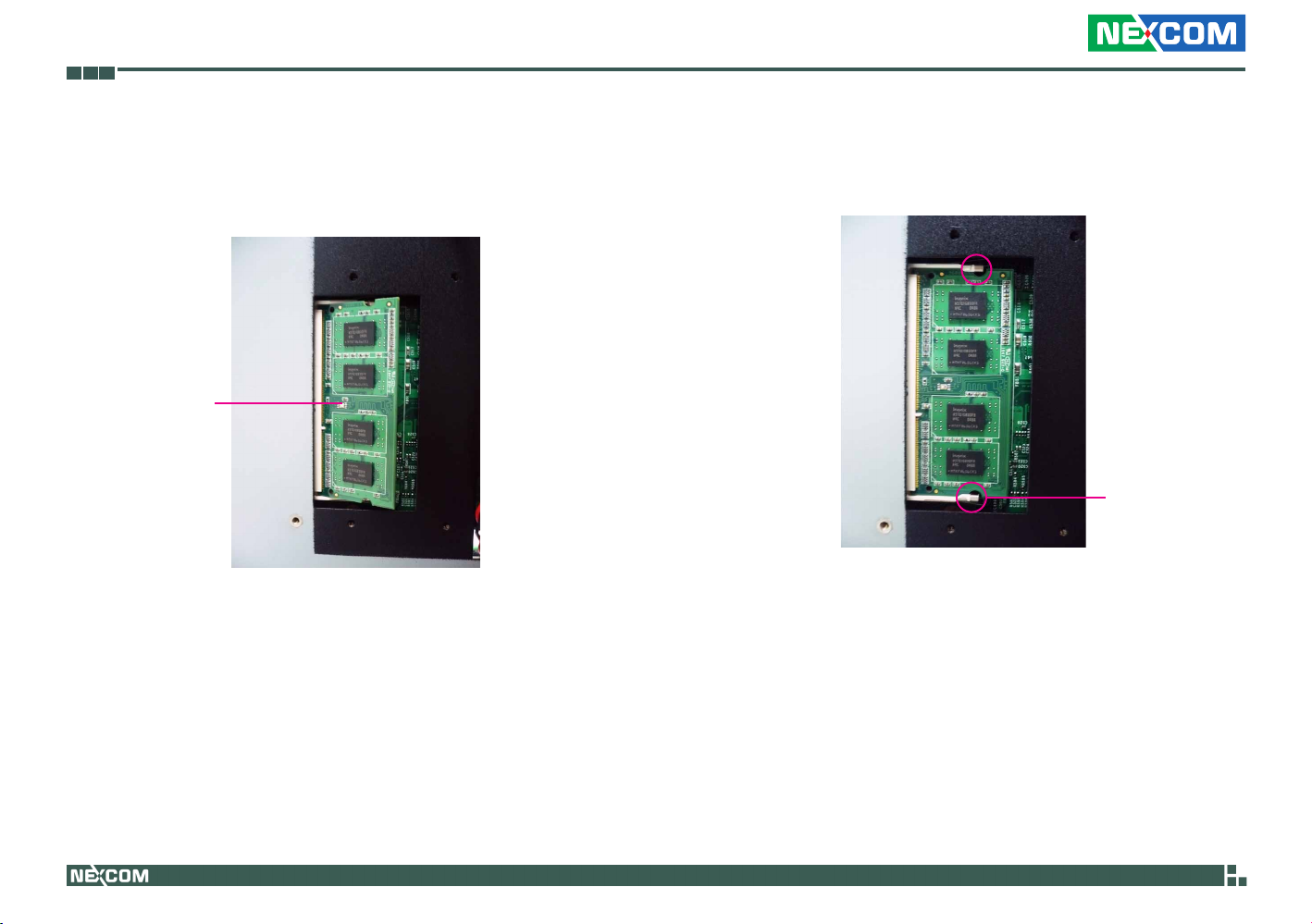

Installing a SODIMM .............................................................................42

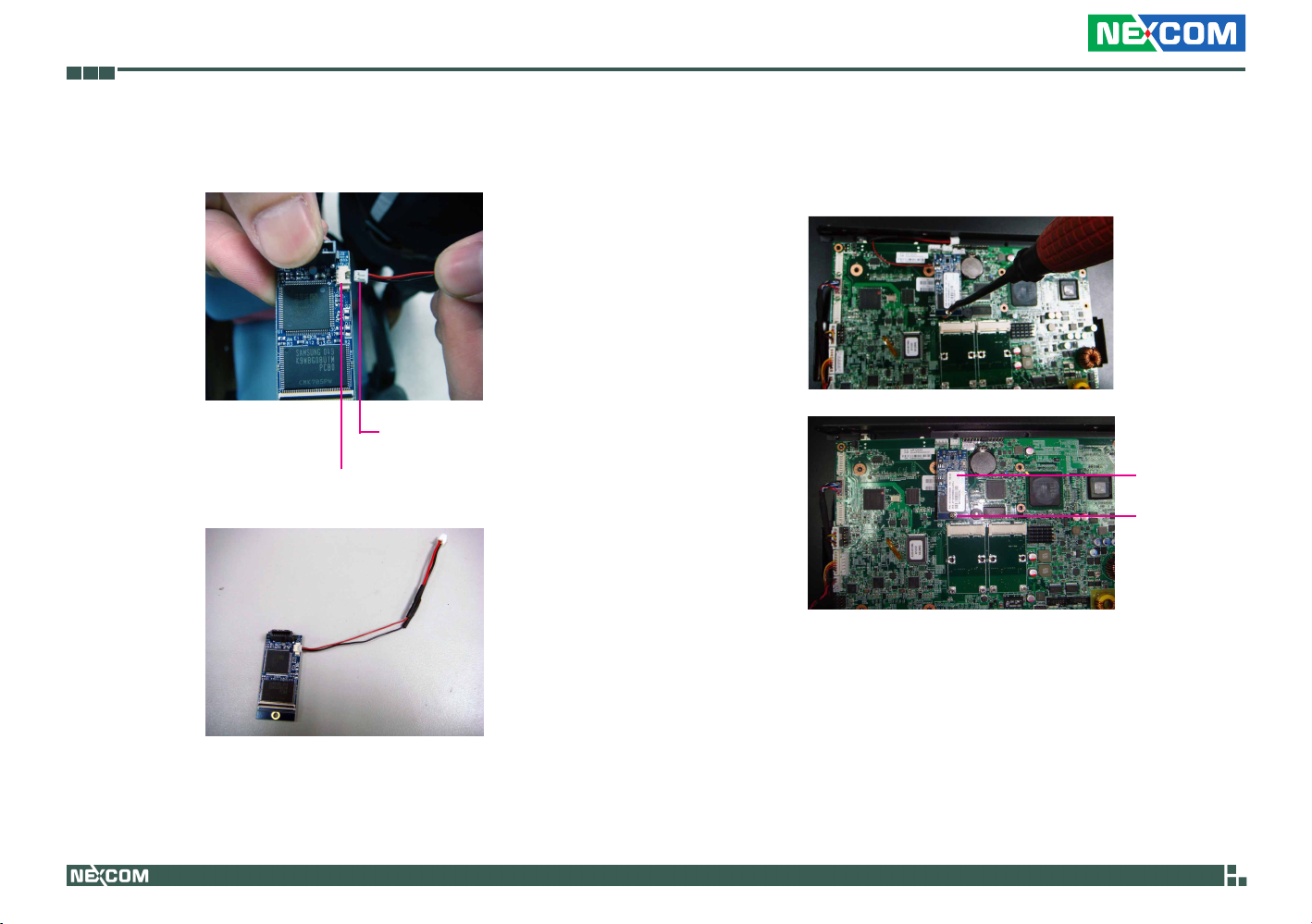

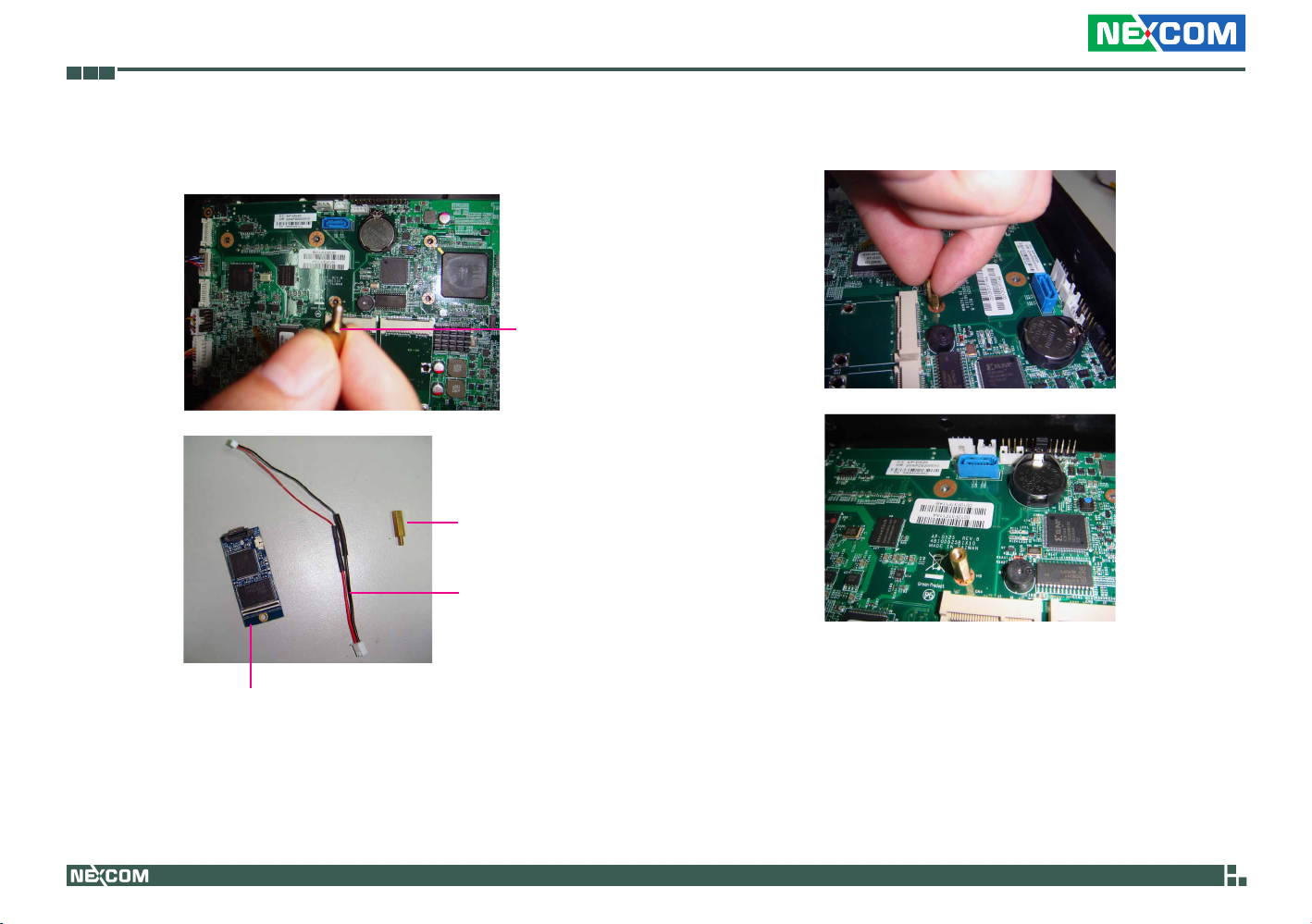

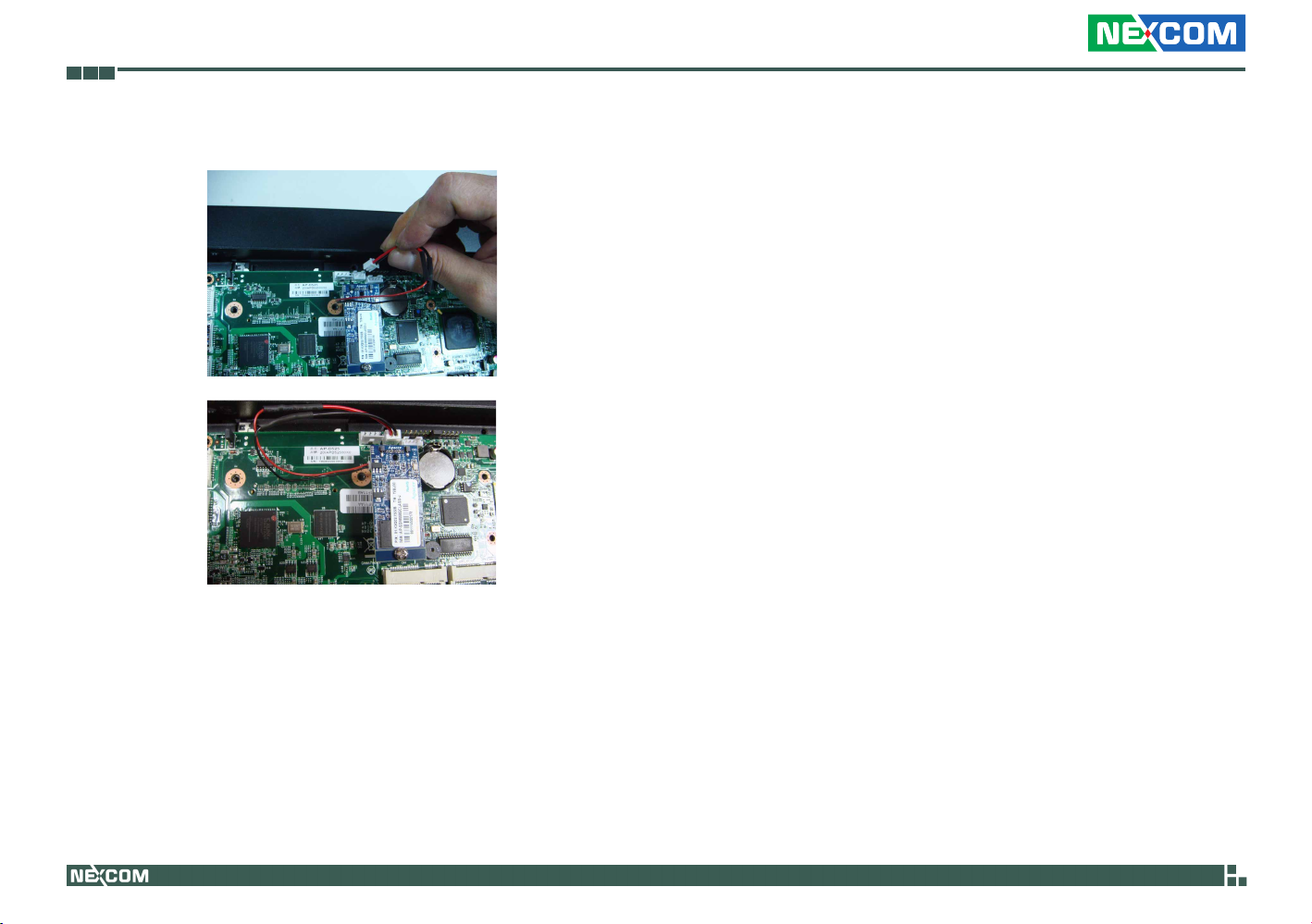

Installing a SATA DOM ..........................................................................45

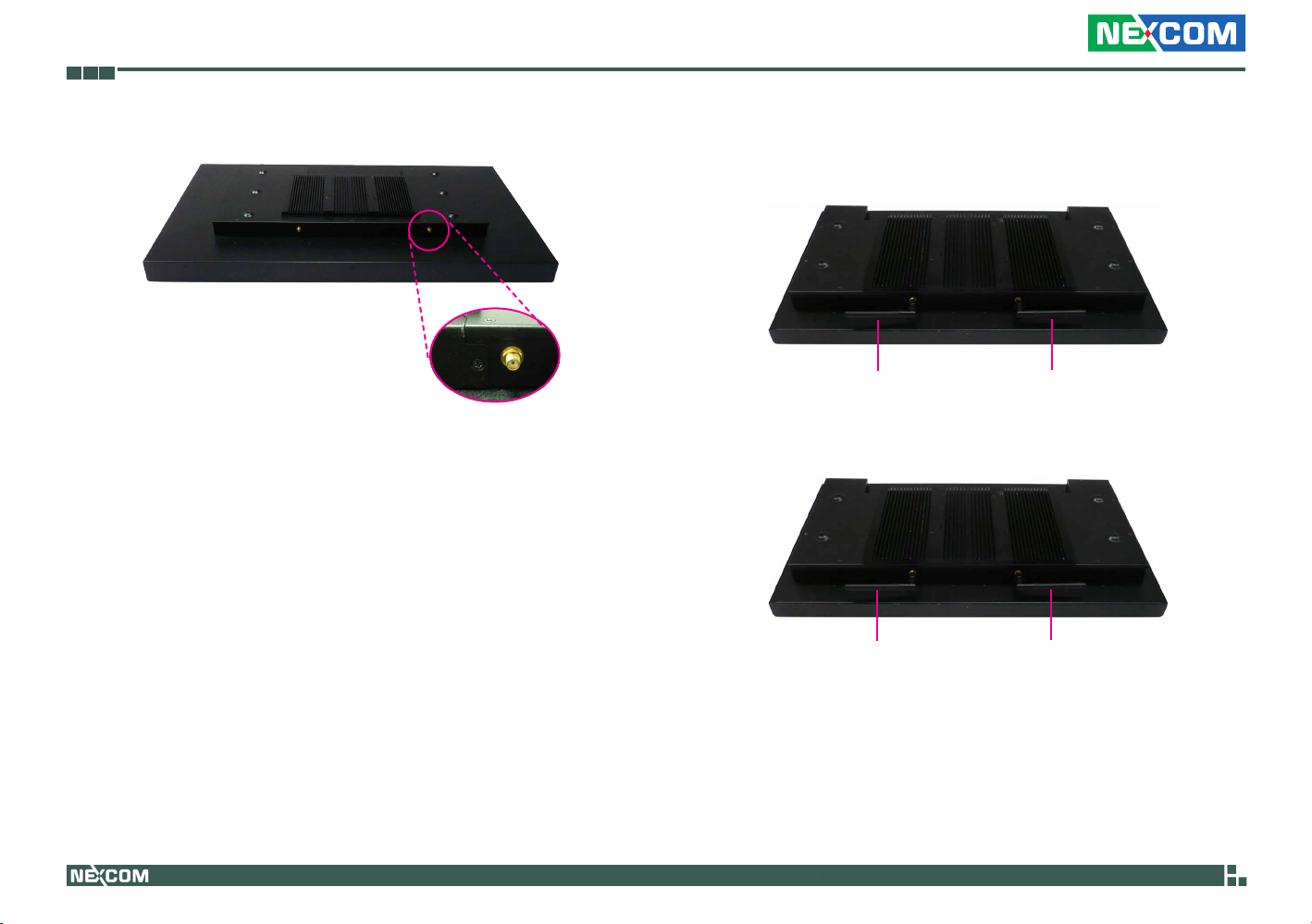

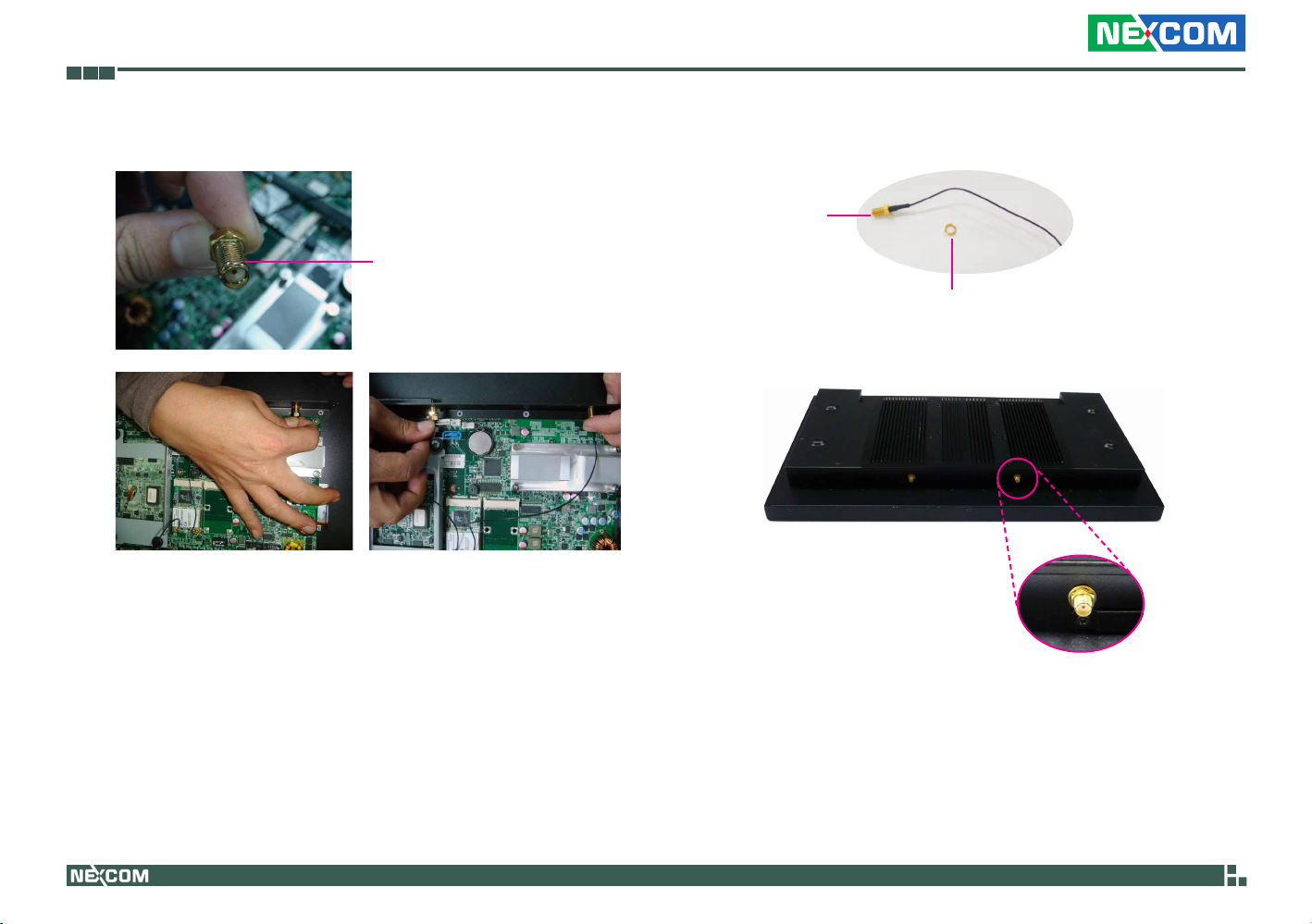

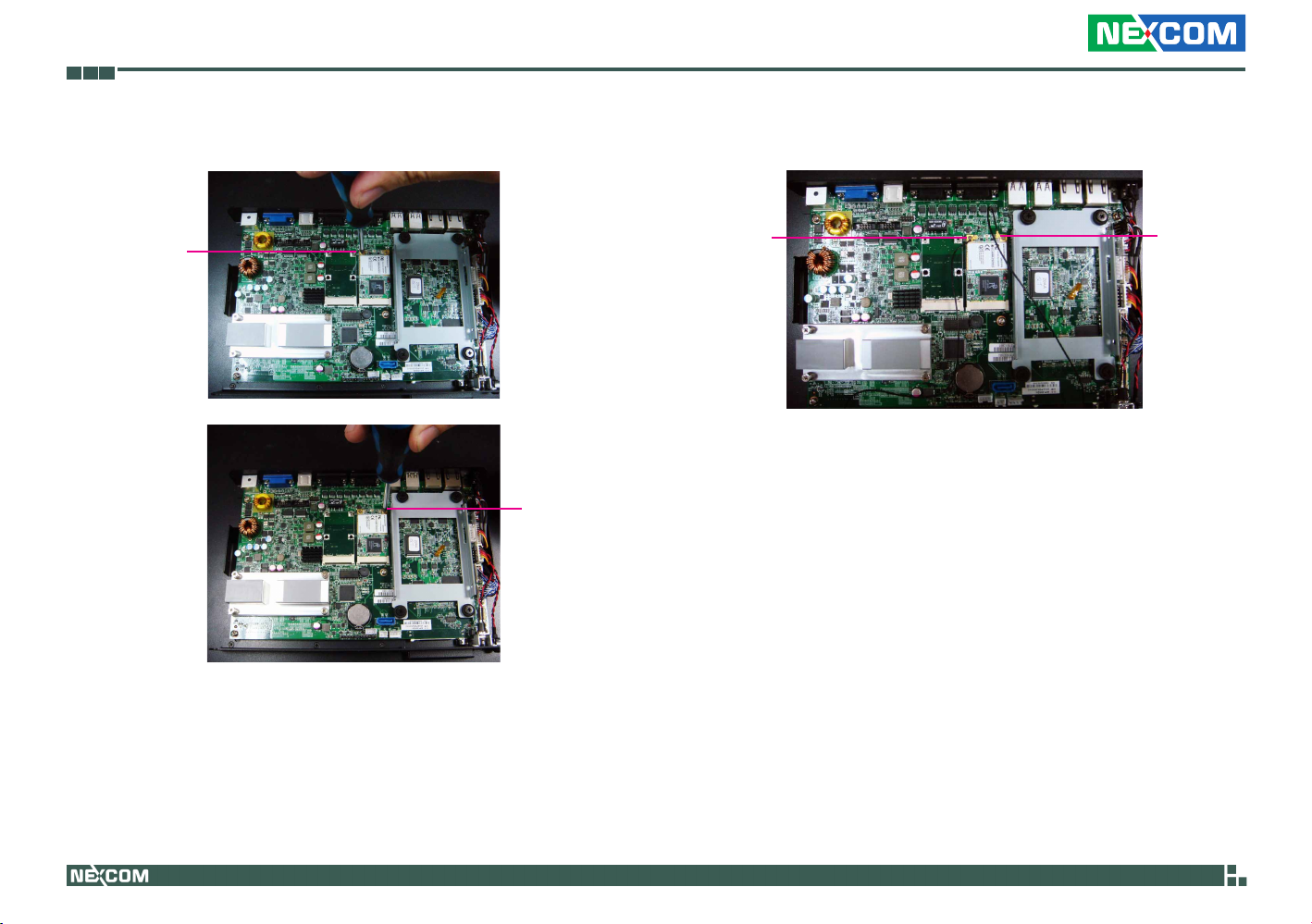

Installing a Mini PCIe Module ................................................................ 49

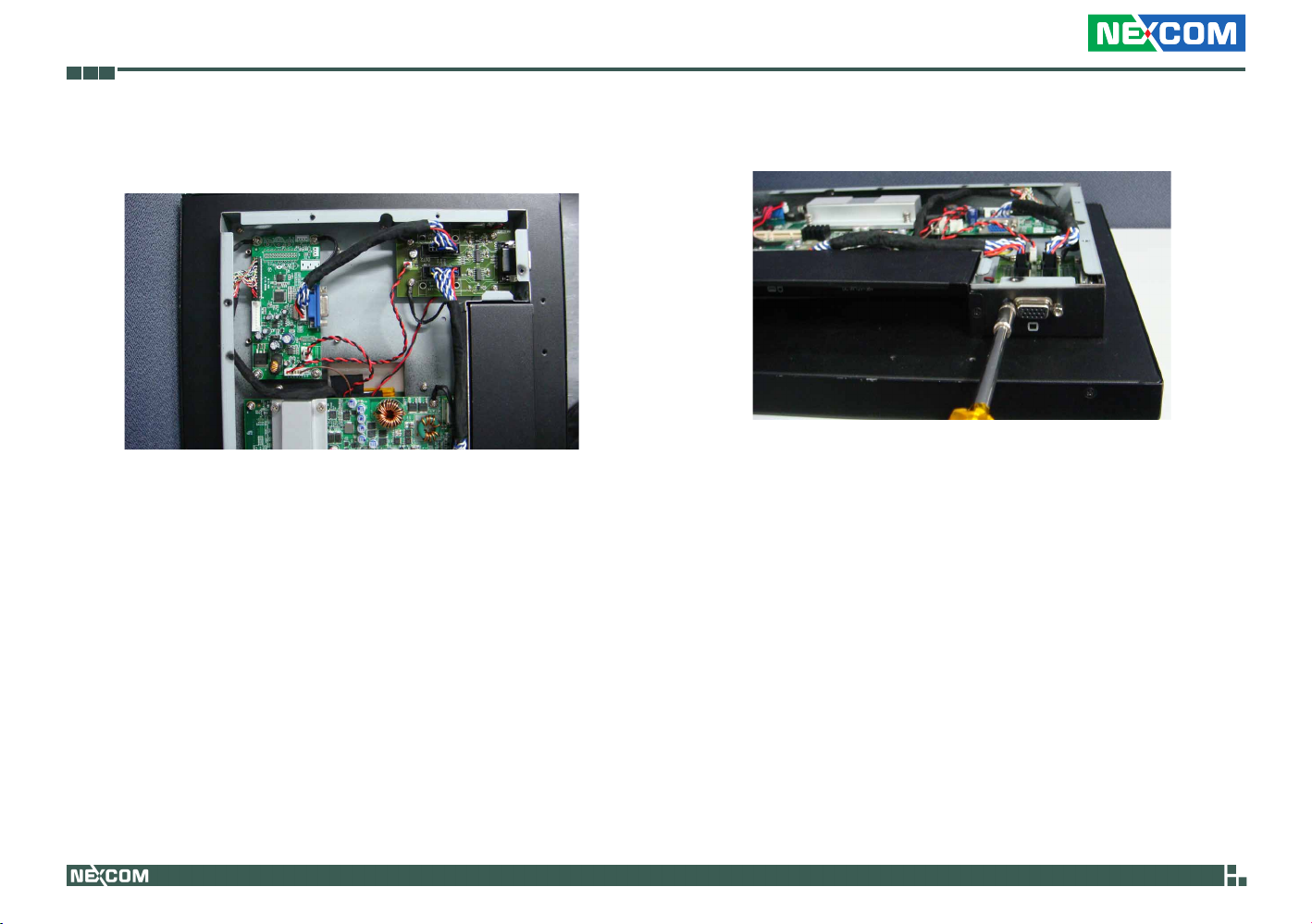

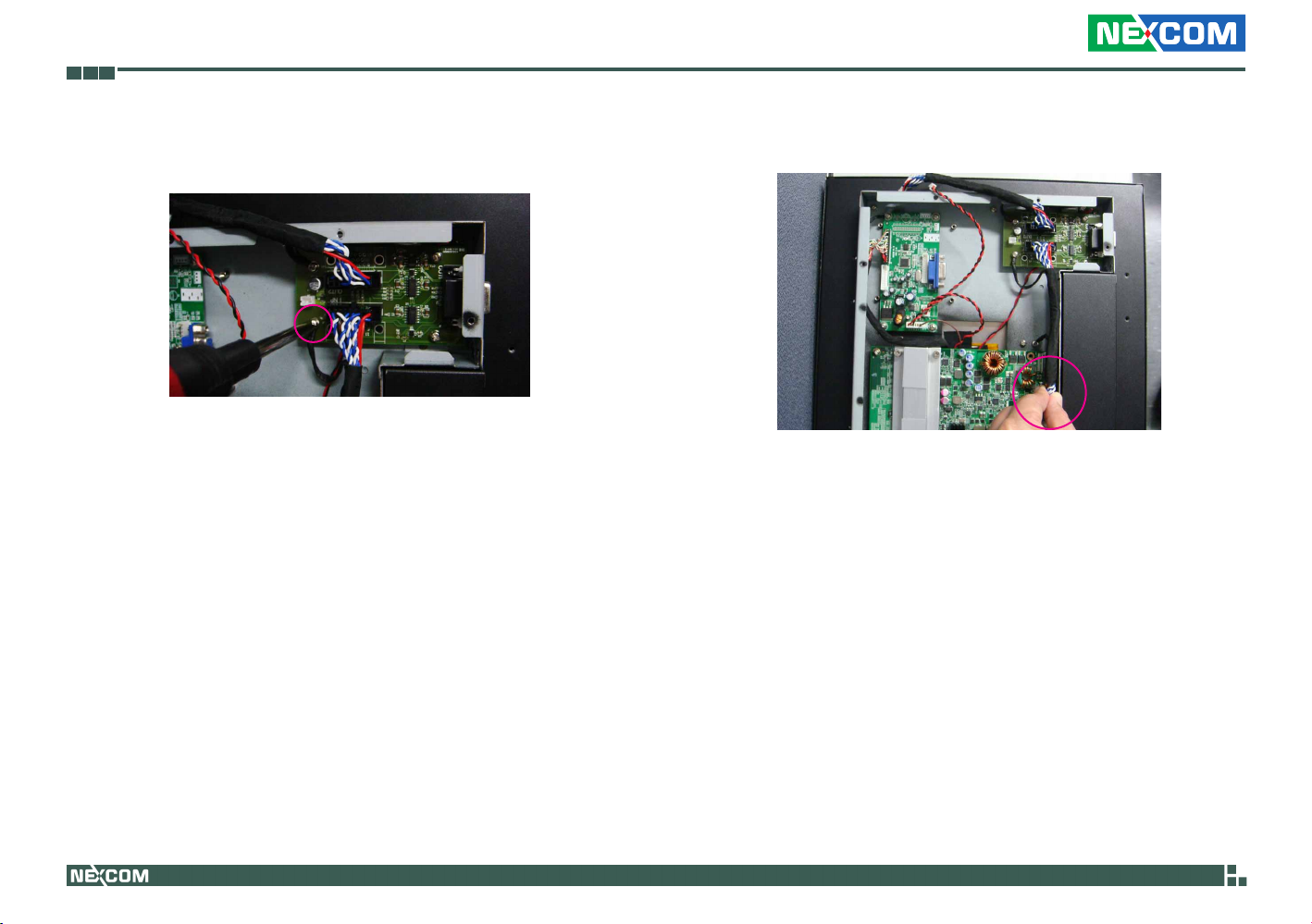

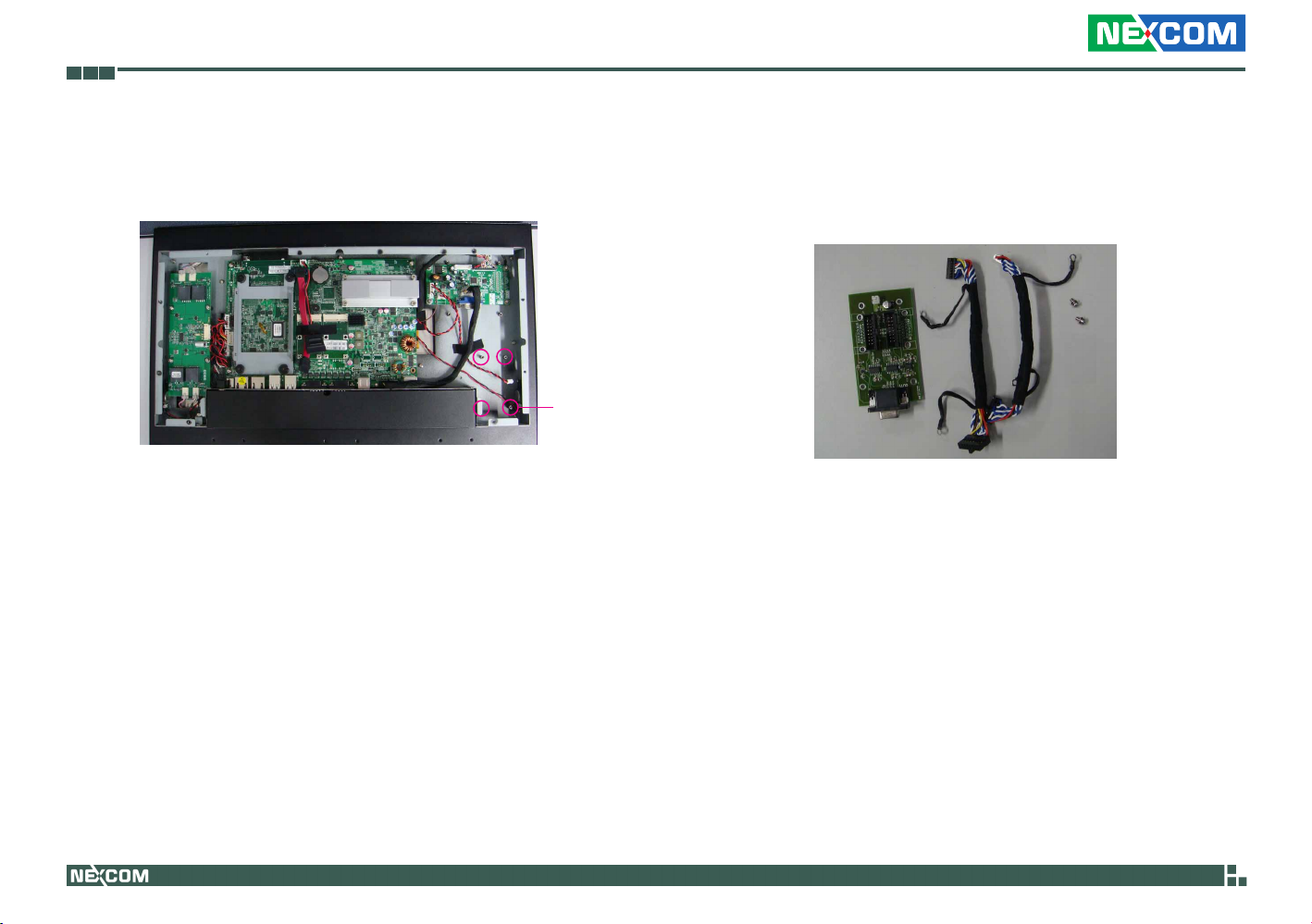

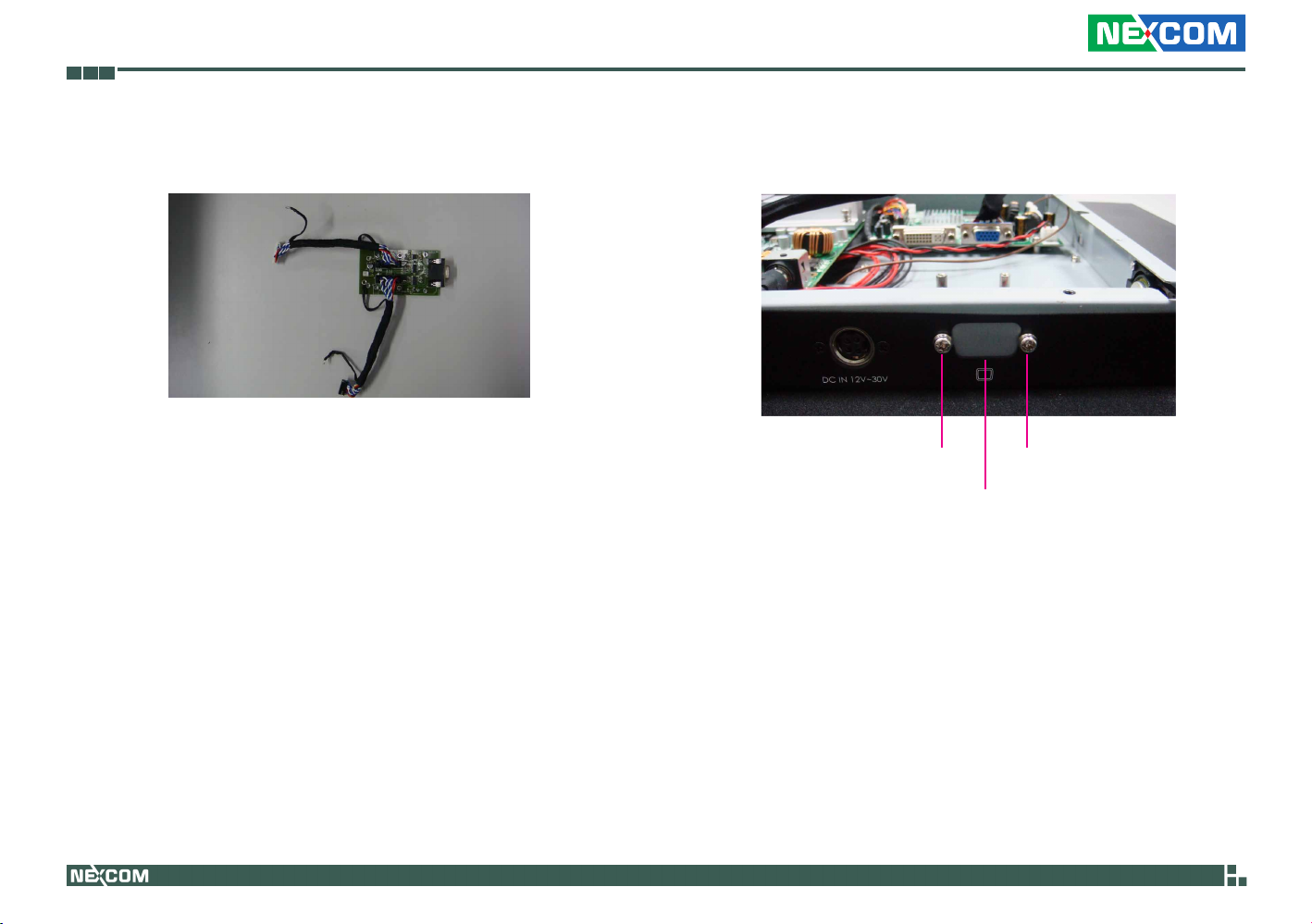

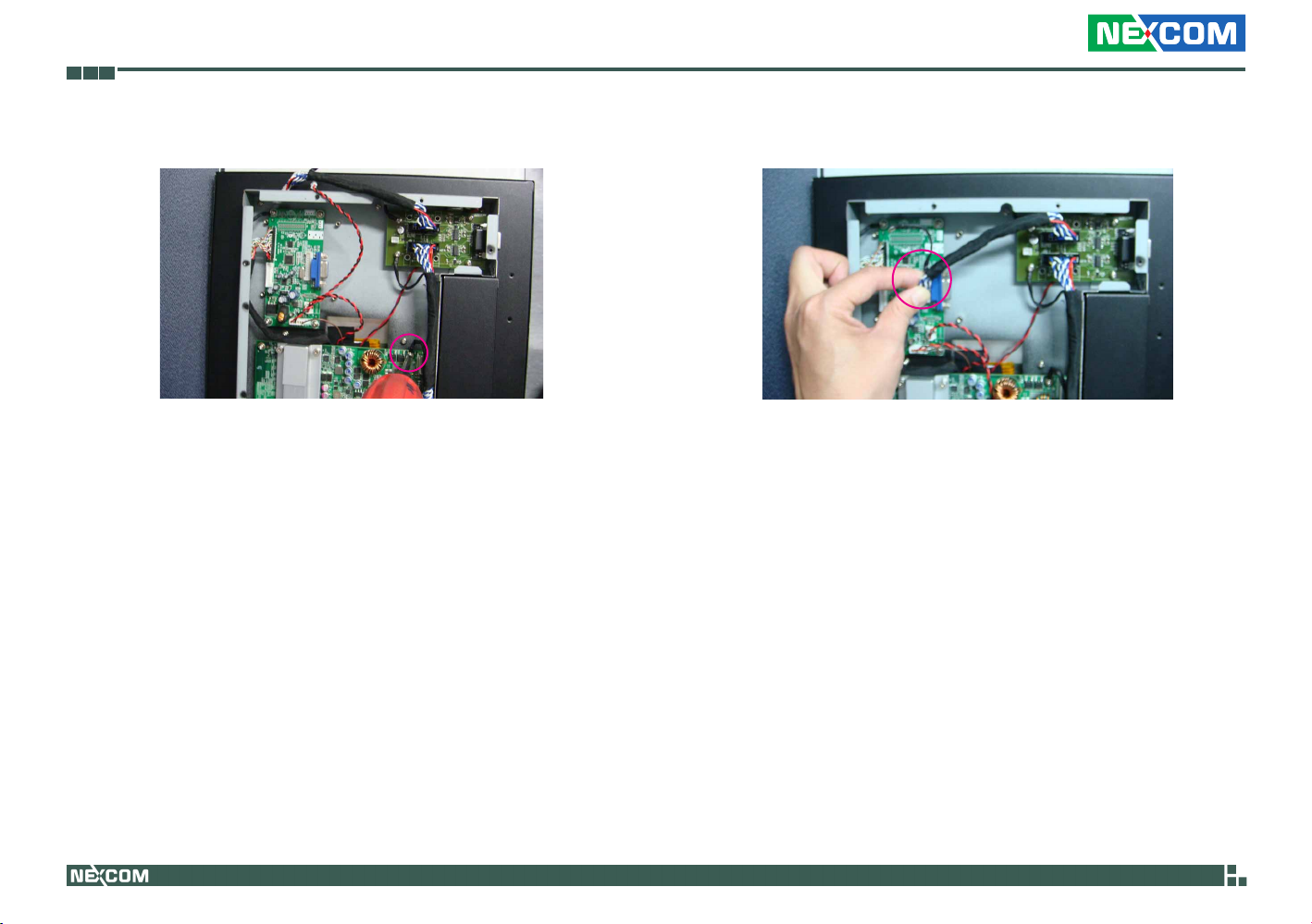

Installing the 1 to 2 VGA Splitter (Optional) ........................................... 54

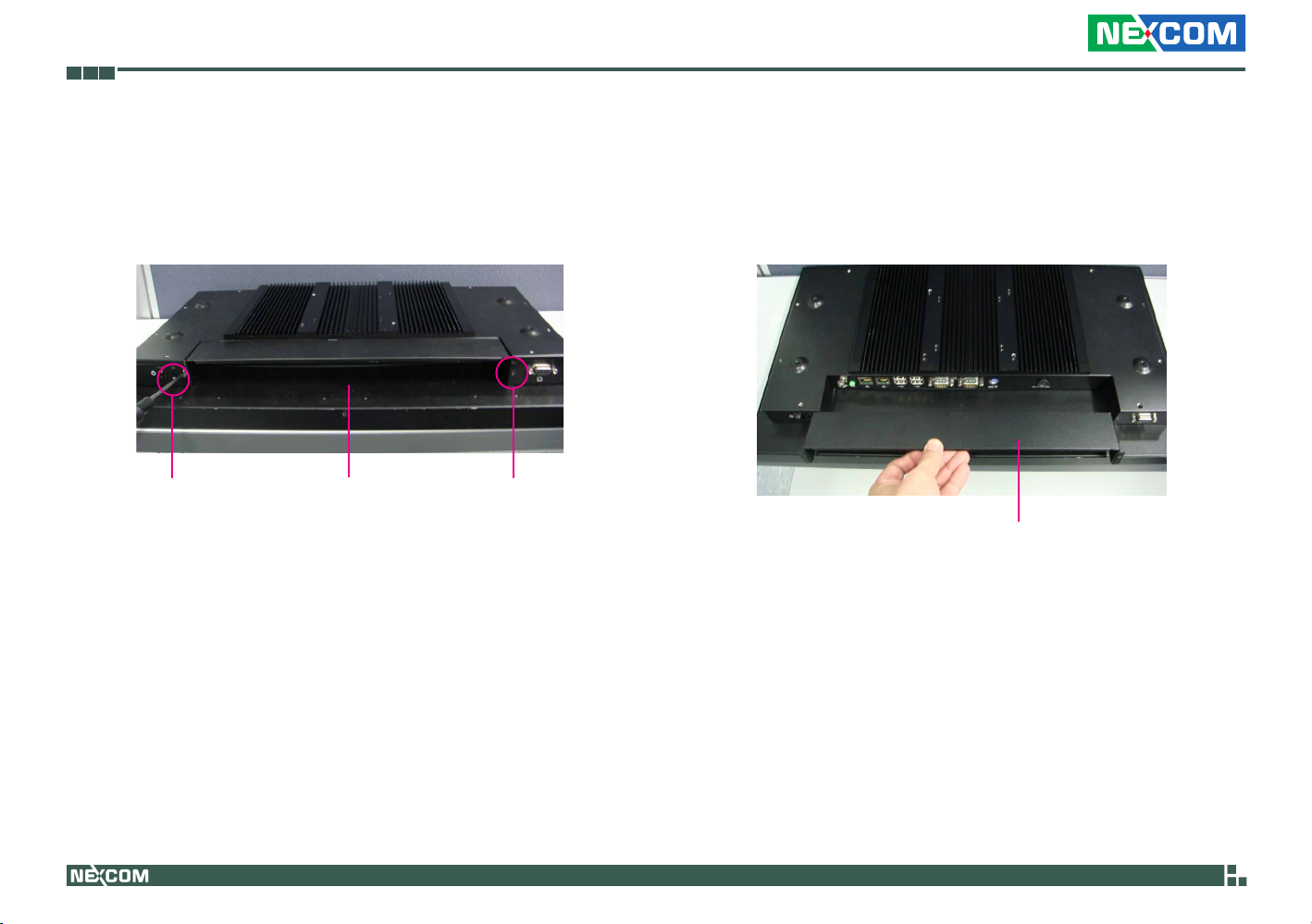

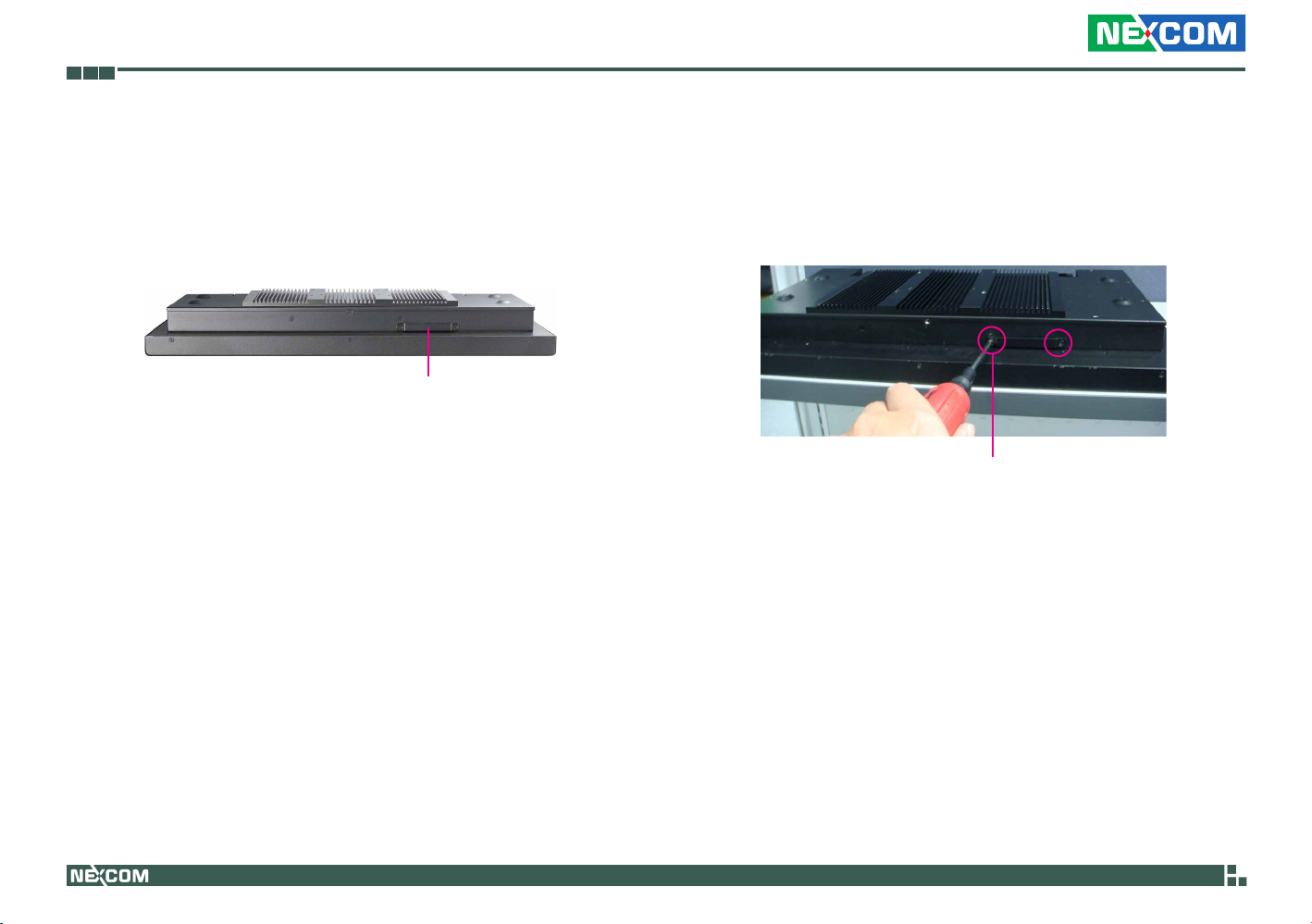

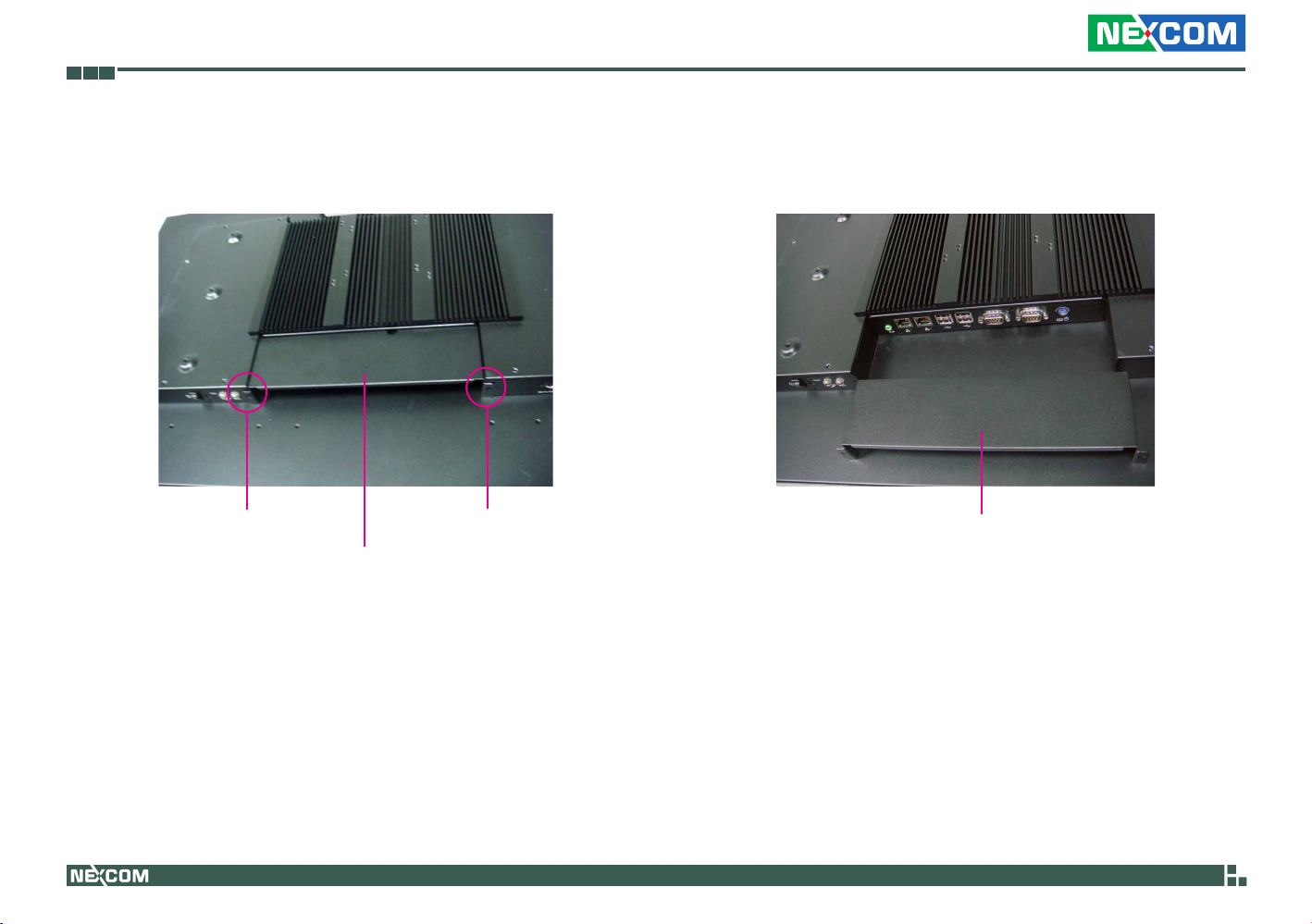

Removing the Rear I/O Ports Cover ........................................................ 61

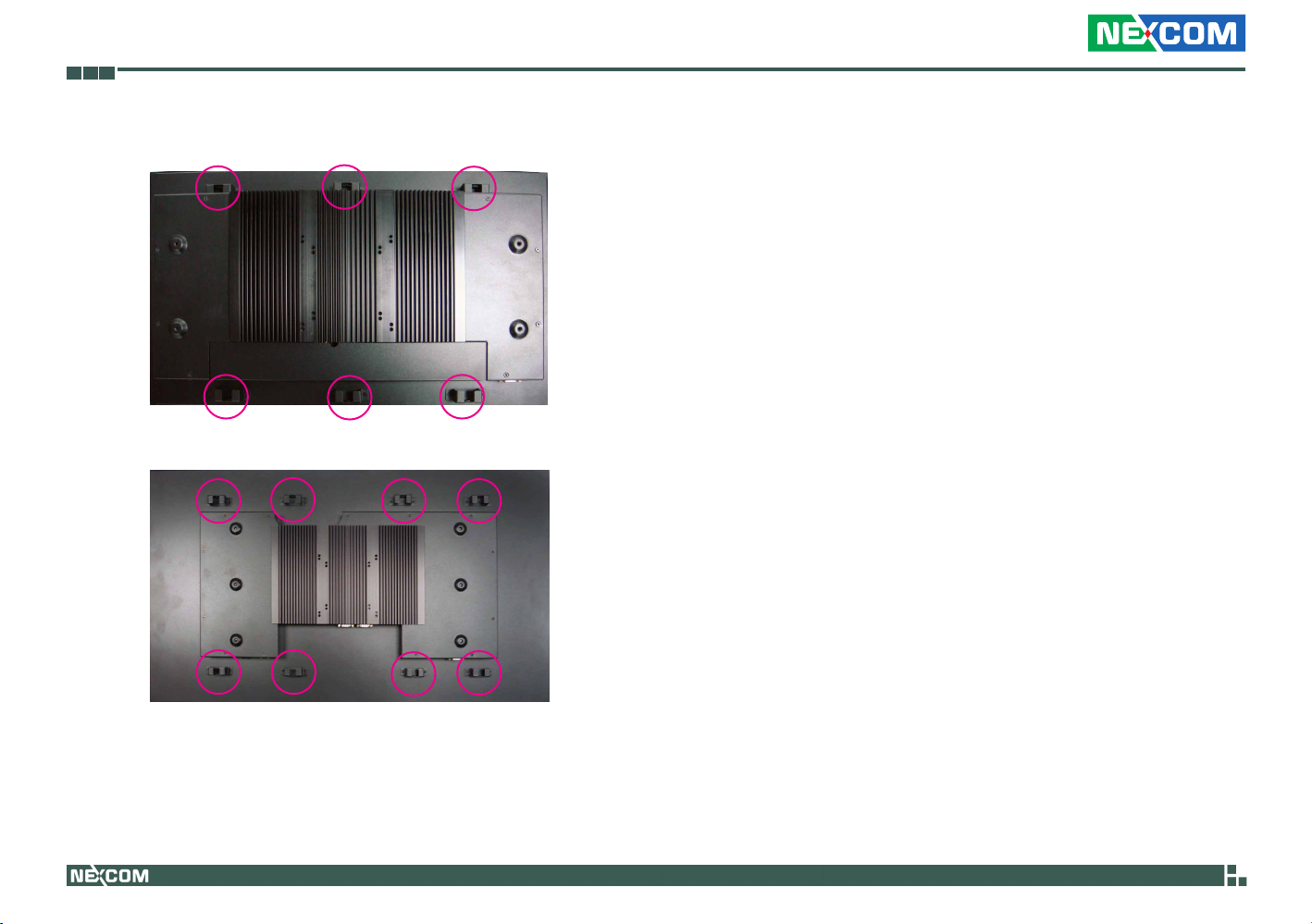

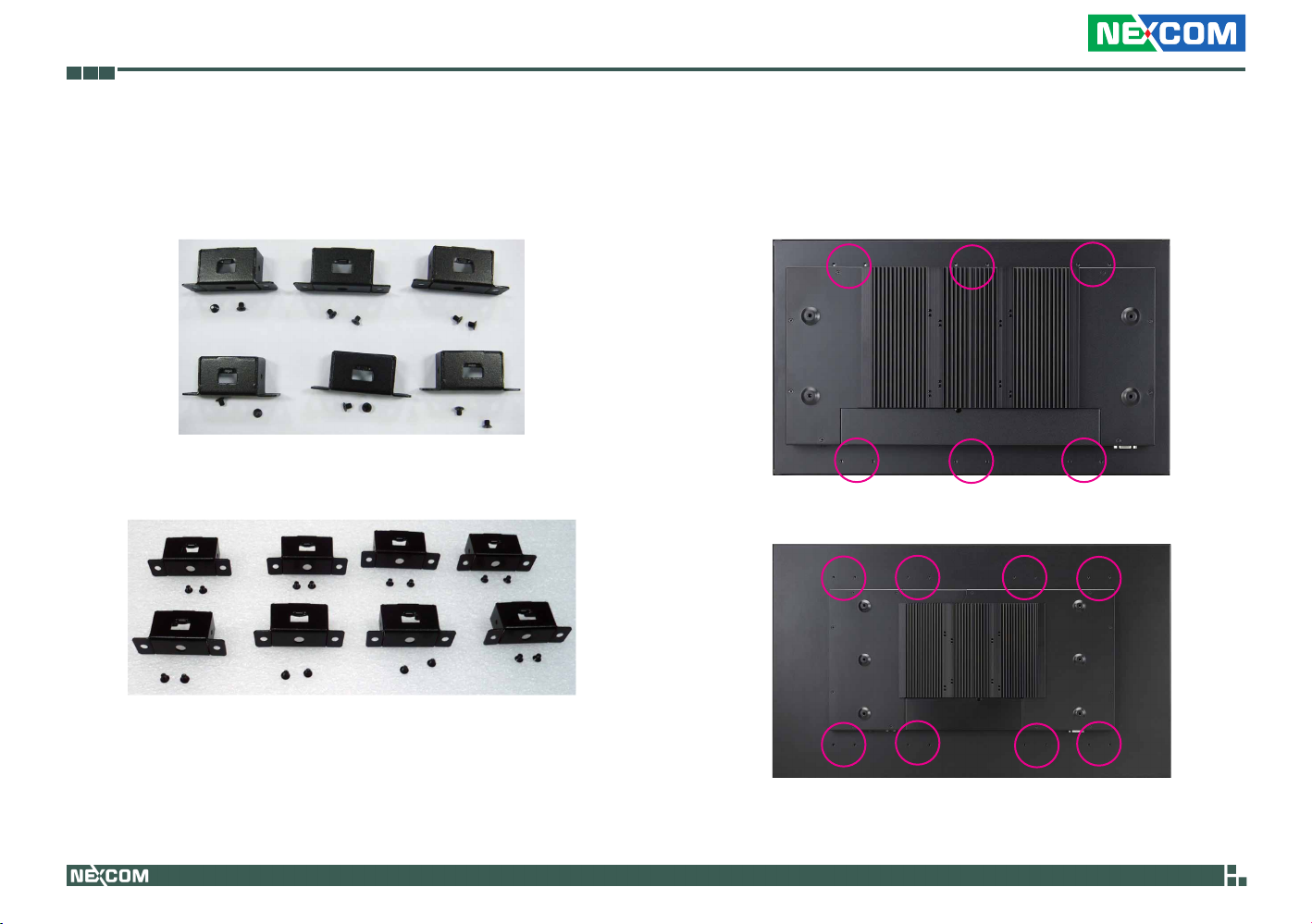

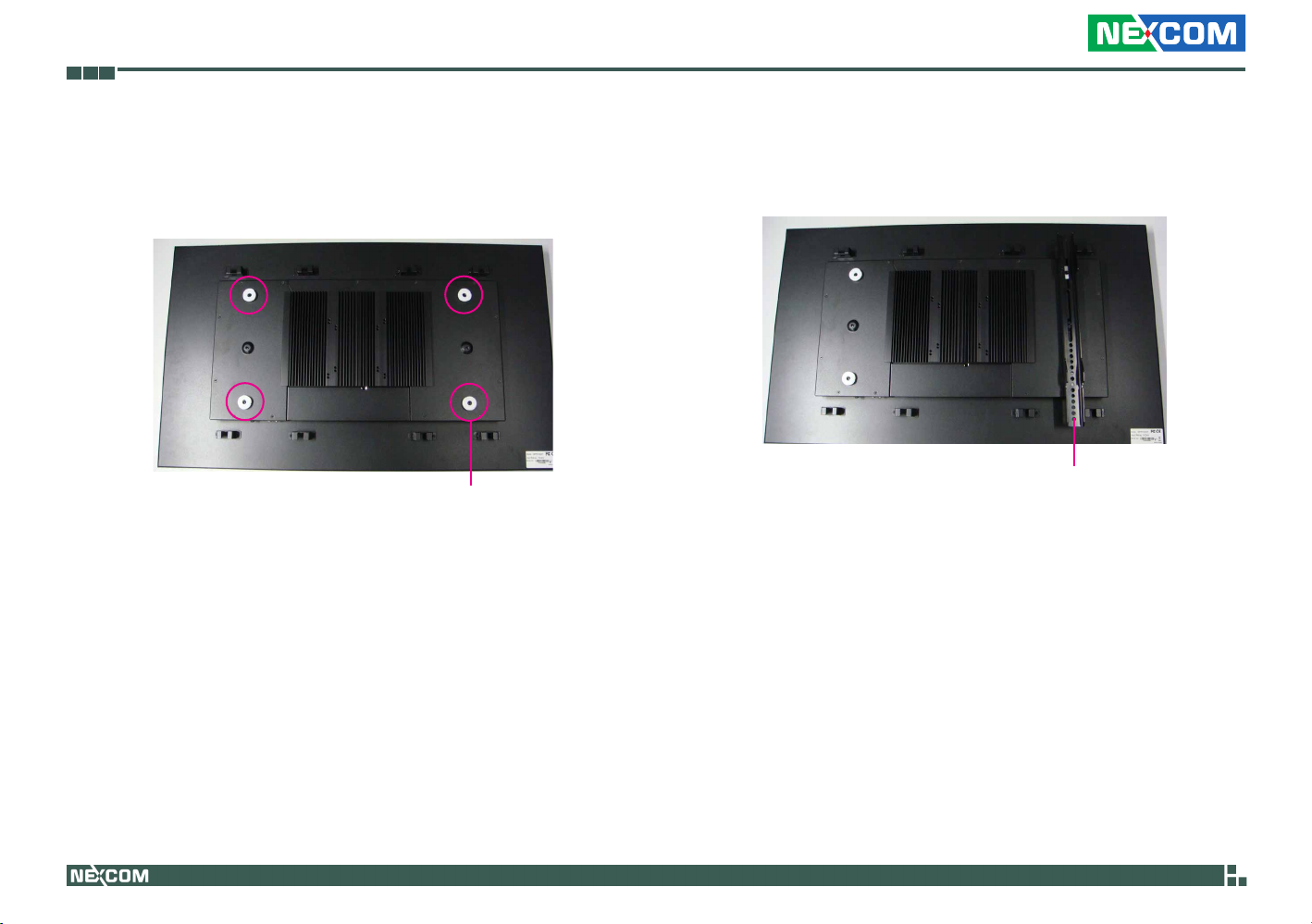

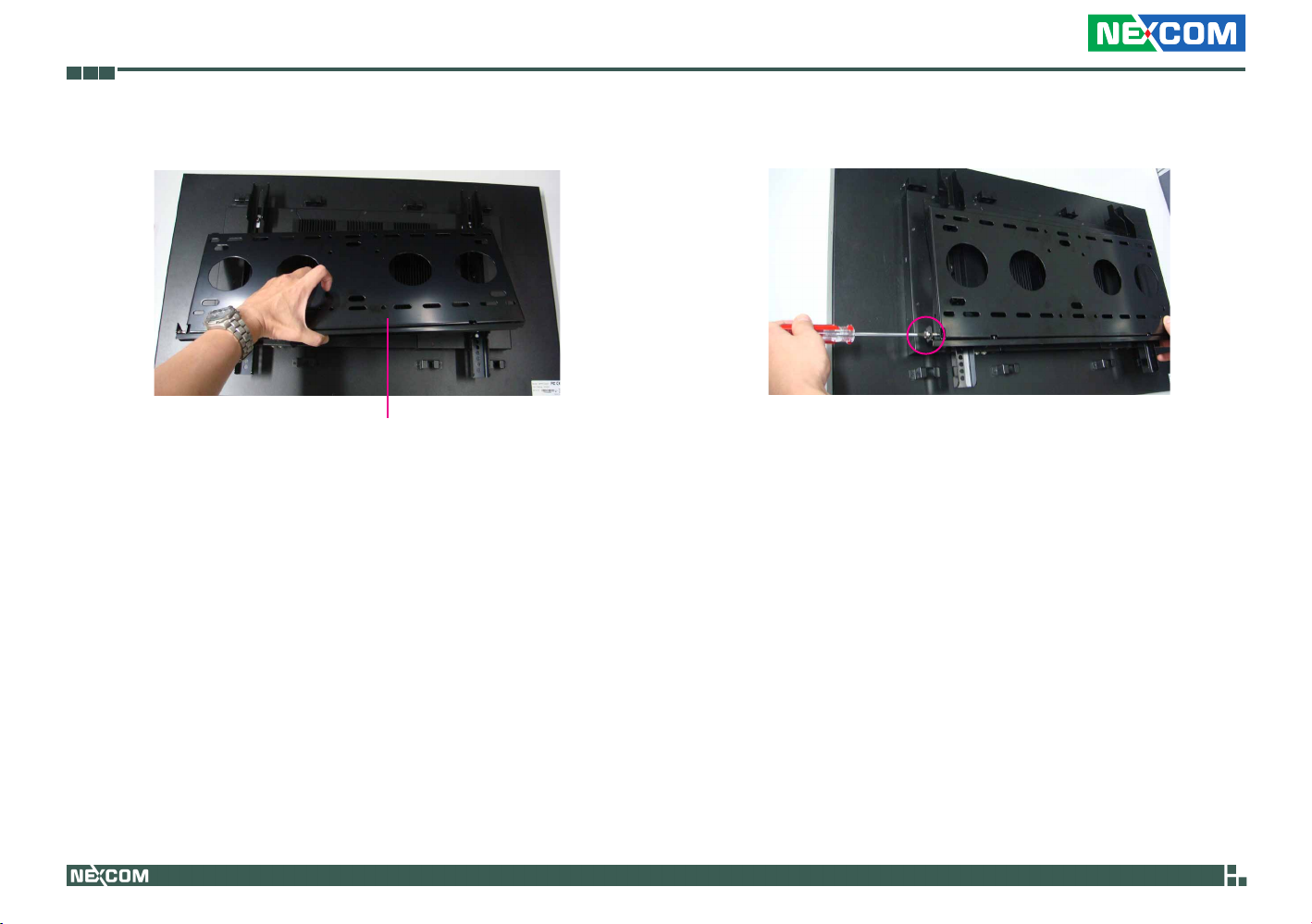

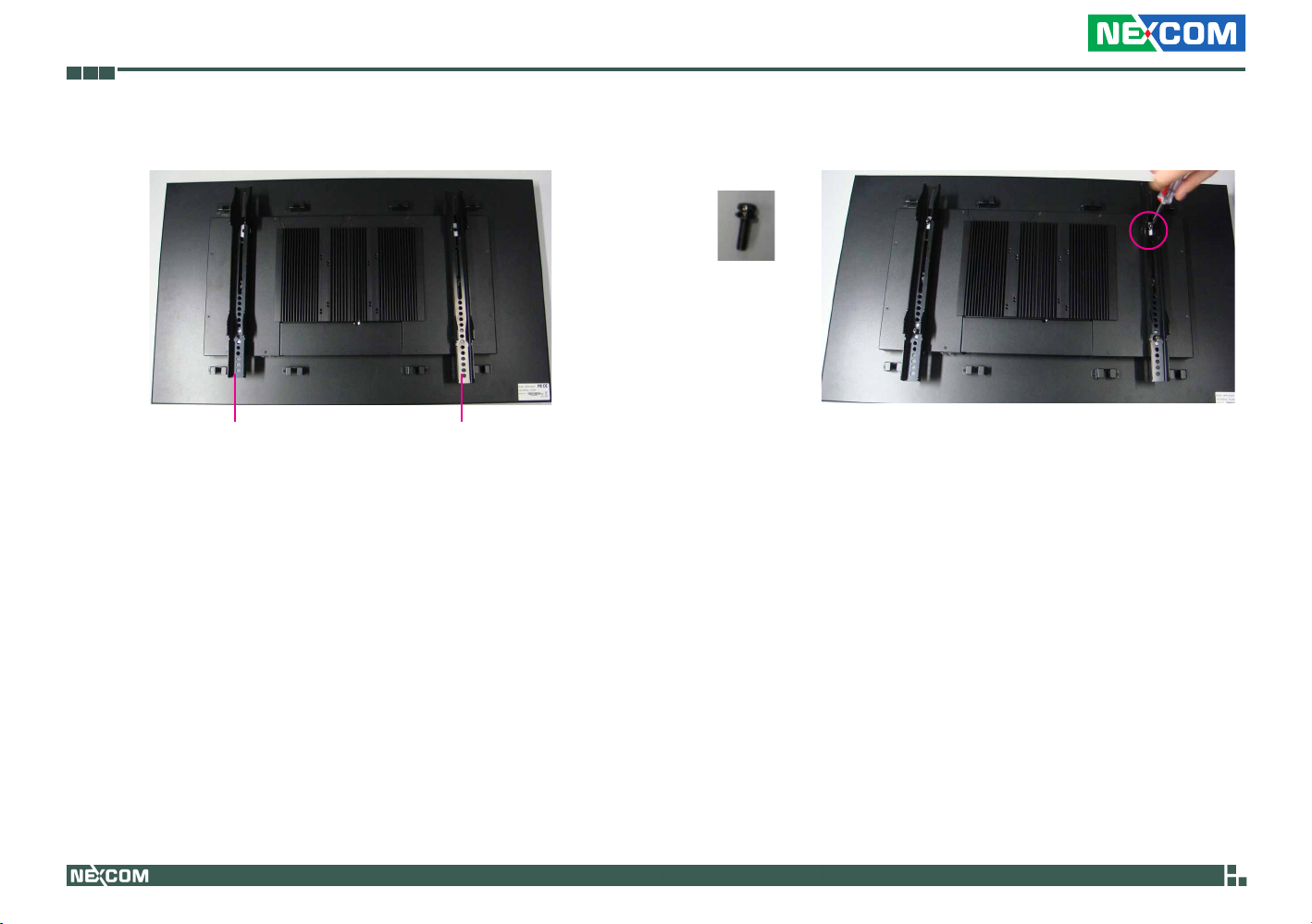

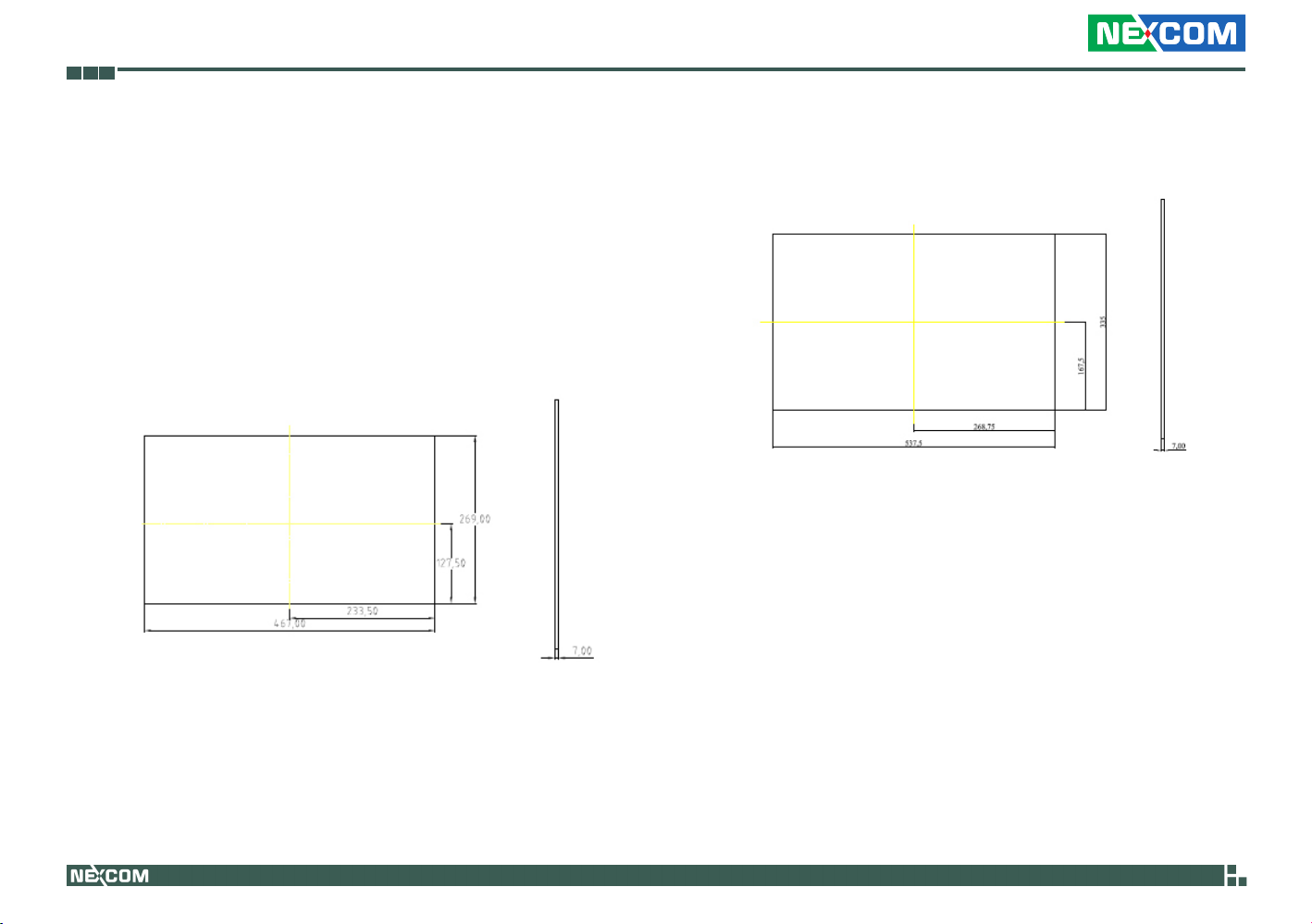

Panel Mounting ....................................................................................63

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................. 72

When to Configure the BIOS .................................................................72

Entering Setup ...................................................................................... 73

BIOS Setup Utility .................................................................................. 74

Main ................................................................................................74

Advanced ......................................................................................... 75

Boot ................................................................................................. 84

Chipset ............................................................................................87

PCIPnP .............................................................................................89

Security ............................................................................................ 90

Exit ................................................................................................... 93

Appendix A: Watchdog Timer

WDT Programming Guide .....................................................................96

Watchdog Sample Code .......................................................................96

Appendix B: Power Consumption

Power Consumption Measurement .......................................................97

iii

MPPC 2120T/3220T User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

MPPC 2120T/3220T is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

MPPC 2120T/3220T User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green products

and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

MPPC 2120T/3220T User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

1. NEXCOM makes products in accordance with the Industry standard and,

NEXCOM warrants that all her Industry-grade IPC and System products will be free from defect in neither material nor workmanship for twentyfour (24) months from the day of invoice issued.

2. For NEXCOM Panel PC product lines (the APPC, MPPC series), they are

also guaranteed against defect in materials and workmanship for the period of twenty-four (24) months in their motherboard design. For 3rd party parts, it follows with original suppliers’ standard: 12 months for battery pack and LCD, 24 months for adaptor / add on modules (including GSM module, RFID module, and antenna).

3. If NEXCOM determines customer’s warranty claim is valid, NEXCOM will

repair or replace product(s) without additional charge for parts and labor. An extended Warranty Program will extend the warranty period of the product accordingly.

Warranty Coverage

The warranty applies only to products manufactured or distributed by NEXCOM and her subsidiaries. This warranty covers all the products/shipments except for:

1. Any claimed defect, products that have been repaired or modified by

persons who have not been authorized by NEXCOM or, products which

have been subjected to misuse, abuse, accident, improper installation, or usage not in accordance with the product instruction. NEXCOM assumes no liability as a consequence of such events under the term of this warranty.

One example is the replacement of Tablet’s or Hand-held’s LCD display

due to scratching stains or other degradation; these will not be covered under this warranty.

2. Damages caused by customers’ delivery/shipping of the product or, product failure resulted from electrical power/voltage shock, or, installation of parts/components which are not supplied/approved by NEXCOM in advance.

3. Third-party products:

a. Software, such as the device drivers,

b. External devices such as HDD, printer, scanner, mouse, LCD panel,

battery, and so on,

c. Accessory/parts that were not approved by NEXCOM and,

d. Accessory/parts were added to products after they were shipped

from NEXCOM.

vi

MPPC 2120T/3220T User Manual

Preface

Product will be treated as “Out of Warranty “ if:

a. It expires the warranted 24 months period from the day it was pur-

chased.

b. It had been altered by persons other than an authorized NEXCOM service

person or, which have been subjected to misuse, abuse, accident, or improper installation.

c. It doesn’t have the original NEXCOM Serial Number labeling for NEX-

COM’s warranty period identification or, tracking.

RMA that NEXCOM has determined not to be covered by the warranty will be charged the NEXCOM Standard Repair Fee for the repairing. If a RMA is determined to be not repairable, customer will be notified and product(s) may be returned to customer at their request; a minimum service fee may be charged however.

NEXCOM Return Merchandise Authorization (RMA) Procedure

For the RMA (Return Merchandise Authorization) shipment, customer is responsible for packaging and shipping the product to the designated NEXCOM service sites, with shipping charges prepaid by the customer. The original NEXCOM shipping box should be used whenever possible. NEXCOM shall pay for the return of the product to the customer’s location. In case of expedited shipping request, an extra service charge shall be assessed and the customer is responsible for this extra return shipping charge.

1. Customers should enclose the “NEXCOM RMA Service Form” with the returned products.

2. Customers need to write down all the information related to the problem on the “ NEXCOM RMA Service Form “ when applying for the RMA service; information will help to understand the problem, including the fault description, on-screen messages, and pictures if possible.

3. Customers could send back the faulty product with or without the accessories and key parts such as the CPU and DIMM. If the key parts are included, please be noted clearly within the return form. NEXCOM takes no responsibility for the parts which are not listed in the return form.

4. Customers hold the responsibility to ensure that the packing of defective products is durable enough to be resistant against further damage due to the transportation; damage caused by transportation is treated as “ Out of Warranty “ under our Warranty specification.

5. RMA product(s) returned by NEXCOM to any location other than the customer registered delivery address will incur an extra shipping charge, the customer is responsible for paying the extra shipping charges, duties, and taxes of this shipment.

Product Repairing

1. NEXCOM will repair defective products covered under this limited warranty that are returned to NEXCOM; if products do prove to be defective, they will be repaired during their warranty period unless other warranty terms have been specified.

2. NEXCOM owns all parts removed from repaired products.

3. NEXCOM will use parts made by various manufacturers in performing the repair.

4. The repaired products will be warranted subjected to the original warranty coverage and period only.

5. For products returned as defective but, proved to be no defect/fault after the RMA process, NEXCOM reserves the right to claim for a NDF (No Defect Found) Service Charge.

vii

MPPC 2120T/3220T User Manual

Preface

6. NEXCOM will issue RMA Report which included Repair Detailed Information to the customer when the defective products were repaired and returned.

7. In addition to the above, NEXCOM may authorize Independent/Thirdparty suppliers to repair the defective products for NEXCOM.

Out Of Warranty Service

There will be a service charge from NEXCOM for the “Out Of Warranty” product service; they are the Basic Diagnostic Service Fee and the Advanced Component Replacement Fee respectively. And, if the product can not be repaired, NEXCOM will either return the product to the customer or, just scrap it, followed by customer’s instruction.

1. Testing and Parts Replacement

NEXCOM will have the following Handling Charges for those OoW prod-

ucts that returned:

a. Basic Labor Cost and Testing Fee: as Table listed.

b. Parts Fee: NEXCOM will charge for main IC chipsets such as the N.B.,

S.B., Super-IO, LAN, Sound, Memory, and so on.

c. 3rd-party Device Fee: products replacement for CPU, DIMM, HDD,

Chassis, and UPS.

3. Out of Warranty “products will not be repaired without a signed PI from the customer, the agreement of the repair process.

Add-on card, 3rd Party Device and board level repair cost higher than

new product prices, customer can abandon to sign PI to repair and, please contact with sales to buy new products.

2. Out of Warranty product will have a three months warranty for the fixed issues. If the product failed with different problem within 3 months, they will still incur the service charge of “Out of Warranty”.

viii

MPPC 2120T/3220T User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufactur-

er. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A grounding strap

• An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

ix

MPPC 2120T/3220T User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near

the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping

it or letting it fall may cause damage.

7. Do not leave this equipment in either an unconditioned environment

or in a above 40 equipment.

8. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

9. Make sure the voltage of the power source is correct before connect-

ing the equipment to the power outlet.

10. Place the power cord in a way so that people will not step on it. Do

not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

o

C storage temperature as this may damage the

12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

13. Never pour any liquid into an opening. This may cause fire or electrical shock.

14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

15. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it to work

according to the user’s manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

16. Do not place heavy objects on the equipment.

17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

19. The computer is provided with CD drives that comply with the appropriate safety standards including IEC 60825.

x

MPPC 2120T/3220T User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:

– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

xi

MPPC 2120T/3220T User Manual

Preface

Global Service Contact Information

Headquarters Taiwan

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 http://www.nexcom.com.tw

USA NEXCOM USA

3758 Spinnaker Court Fremont, CA, 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 http://www.nexcom.com

France NEXCOM France

La Grande Arche-Paroi Nord, 92044 Paris La Défense, France Tel: +33 (0)1 40 90 33 35 Fax: +33 (0)1 40 90 31 01 http://www.nexcom.eu

Germany NEXCOM GmbH

Leopoldstraße Business Centre, Leopoldstraße 244, 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 http://www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9619 8846 http://www.nexcom.eu

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 http://www.nexcom.eu

xii

MPPC 2120T/3220T User Manual

Preface

China NEXCOM China

2F, Block 4, Venus Plaza, Building 21, ZhongGuanCun Software Park, No. 8, Dongbeiwang West Road, Haidian District, Beijing, 100193, China Tel: +86-10-8282-5880 Fax: +86-10-8282-5955 http://www.nexcom.cn

China-Shanghai Office

Room 1505, Greenland He Chuang Building, No. 450 Caoyang Rd., Shanghai, 200062, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 http://www.nexcom.cn

China-Nanjing Office

Hall C, Block 17, Tian Xing Cui Lang Building, No. 49 Yunnan North Rd., Nanjing, 210018, China Tel: +86-25-8315-3486 Fax: +86-25-8315-3489 http://www.nexcom.cn

China-Wuhan Office

1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 http://www.nexcom.cn

China-Chengdu Office

9F, Shuxiangxie,Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061,China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 http://www.nexcom.cn

China-Shenzhen Office

Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, 518040, China TEL: +86-755-833 7203 FAX: +86-755-833 7213 http://www.nexcom.cn

xiii

MPPC 2120T/3220T User Manual

Preface

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 http://www.nexcom-jp.com

xiv

MPPC 2120T/3220T User Manual

Preface

PaCkage Contents

Before continuing, verify that the package you received is complete. Your package should have all the items listed in the table.

MPPC 2120T MPPC 3220T

Item Name Qty

1 PS/2 Y Cable 1

3 Driver CD 1

5 AC/DC Power Adapter 1

6 Flat Head for HDD Installation 4

Item Name Qty

1 PS/2 Y Cable 1

2 Driver CD 1

3 AC/DC Power Adapter 1

4 Flat Head for HDD Installation 4

PS/2 Y Cable Driver CD

AC/DC Power Adapter

for MPPC 2120T

AC/DC Power Adapter

for MPPC 3220T

xv

Flat Head for

HDD Installation

MPPC 2120T/3220T User Manual

Preface

ordering information

The following provides ordering information for the Panel PC series.

• Barebone

MPPC 2120T Ver. B (P/N: 90IM2120T02X0)

- 21.5” LED backlight touch panel PC with Intel® Atom™ D525

1.8GHz, 1GB DDR3, 2x RS232/ 422/ 485, power adapter

MPPC 3220T (P/N: 90IM3220T00X0)

- 32” LED backlight touch panel PC with Intel

®

Atom™ D525 1.8 GHz,

touch screen, 1GB DDR3, 2x RS232/ 422/ 485, power adapter

• Options

1. MPPC 2-port VGA Video Splitter Kit (P/N: 7500VGA006X00)

2. MPPC 2120T Panel Mount Kit (P/N: 5043330466X00)

- 6x Panel Mount Brackets with screws

- 10x Panel Mount Kit with screws

10x Panel Mount Kit With Screws

Panel Mount Brackets With Screws

3. MPPC 3220T Panel Mount Kit (P/N: 5043330465X00)

- 8x Panel Mount Brackets with screws

- 10x Panel Mount Kit with screws

10x Panel Mount Kit With Screws

Panel Mount Brackets With Screws

xvi

MPPC 2120T/3220T User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt introduCtion

MPPC 2120T

Overview

Key Features

• 16:9 21.5” Fanless Panel Computer

®

• Intel

• Dual GbE, Line-in, Line-out, Mic-in, PS2 KB/MS

• 4 x USB, 2 x mini-PCIe sockets, 1 x CF, 2 x RS232/422/485

• DDR3 1GB, 2.5” HDD Bracket, Two Speakers

• Optional Wi-Fi Module, 2.5”HDD, VGA Splitter, Panel Mount Kit

• Panel Mount, VESA Mount Compliance

• Wide Range Power Input 12V~ 30V DC

Atom™ D525, Dual Core, Low Consumption CPU

1

MPPC 2120T/3220T User Manual

Chapter 1: Product Introduction

MPPC 3220T

Overview

Key Features

• 16:9 32” Fanless Panel Computer

®

• Intel

Atom™ D525, Dual Core, Low Consumption CPU

• SAW touch screen

• Dual GbE, Line-in, Line-out, Mic-in, PS2 KB/MS

• 4 x USB, 2 x mini-PCIe sockets, 1 x CF, 2 x RS232/422/485

• DDR3 1GB, 2.5” HDD Bracket, Two Speakers

• Optional Wi-Fi Module, 2.5”HDD, VGA Splitter, Panel Mount Kit

• Panel Mount, VESA Mount Compliance

2

MPPC 2120T/3220T User Manual

Chapter 1: Product Introduction

Specifications

Panel

• MPPC 2120T

LCD size: 21.5”, 16:9 Resolution: full HD, 1920 x 1080 Luminance: 420 cd/m² Contrast ratio: 3000 LCD color: 16.7M Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R) Backlight: LED Touch screen: 5-line Resistive Touch light transmission: 80% Touch interface: USB

• MPPC 3220T

LCD size: 32”, 16:9 Resolution: full HD, 1920 x 1080 Luminance: 400 cd/m² Contrast ratio: 4000 LCD color: 1073.7M Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R) Backlight: LED Touch screen: SAW (Surface Acoustic Wave) Touch light transmission: 92% Touch interface: USB

System

• CPU: Intel

®

Atom™ D525, 1.8Hz

• BIOS: AMI BIOS

• System chipset: Intel

®

ICH8M

• System memory: 1x 204-pin DDR3 SODIMM socket, 1G DDR3 (default), Supports up to 2GB DDR3 800, Non-ECC and Un-buffered

• SSD: one external locked CF socket by IDE supports Type I/II compact Flash card

• Hard drive bay: optional 2.5” SATA HDD or SATA DOM

• Watchdog timer: Watchdog timeout can be programmable by

software from 1 second to 255 seconds and from 1 minute to 255 minutes (Tolerance 15% under room temperature 25°C)

• H/W status monitor: Monitors system temperature, and voltage

• Expansion: 2x Mini-PCIe sockets

3

MPPC 2120T/3220T User Manual

Chapter 1: Product Introduction

Rear I/O

• COM #1: RS232/422/485

• COM #2: RS232/422/485

• Ethernet: 2 x RJ45

• Clone VGA port: 1 x DB15 (VGA Splitter: optional)

• Audio port: 1 x Line-out; 1 x Line-in; 1 x Mic-in

• USB: 4 x USB 2.0

• PS2 keyboard/mouse

• Power switch

• Reset button

Audio

• AC97 codec: Realtek ALC888

• Audio interface: Line-out, Line-in and Mic-in audio jacks

• Two 2W Speakers

Ethernet

• LAN chip: Dual Intel

®

82574L Gigabit LAN

• Ethernet interface: 10/100/1000 Based-Tx Ethernet compatible

Mechanical and Environment

• Color: pantone black

• Mounting:

Panel/Wall/Stand/VESA 75x75; 100x100; 400x100mm (MPPC 2120T); 400x200mm (MPPC 3220T) Panel Mount Kit (optional)

• Power input: 12V~ 30V DC (MPPC 2120T); 24V DC (MPPC 3220T)

• Power adapter: AC to DC power adaptor: +12V, 60W (MPPC 2120T) AC to DC power adaptor: +24V, 180W (MPPC 3220T)

• Vibration: IEC 68 2-64 (w/ HDD)

0.5Grms @ sine, 5~500Hz, 1hr/axis (HDD Operating)

2.2Grms @ random condition, 5~500Hz, 0.5hr/axis (Non-operating)

• Shock: IEC 68 2-27 HDD: 20G @ wall mount, half sine, 11ms

• Operating temperature: 0°C to 45°C

• Storage temperature: -20°C to 75°C

• Operating humidity:

20%~80% relative humidity, non-condensing (MPPC 2120T) 10%~90% relative humidity, non-condensing (MPPC 3220T) Limits to be at 90% RH at max 40°C (MPPC 3220T)

• Dimension:

506.4 x 300.6 x 64.7 mm (MPPC 2120T) 753 x 442.6 x 86.1 mm (MPPC 3220T)

• Weight: 8 Kg (MPPC 2120T)

18.2Kg (MPPC 3220T)

Certifications

• CE approval

• FCC Class B

4

MPPC 2120T/3220T User Manual

Chapter 1: Product Introduction

Getting to Know the MPPC 2120T

Rear Top

Antenna holes for optional WiFi

CF card socket

Antenna Holes for Optional WiFi

The 2 external antenna mounting holes are used to mount and connect optional WiFi antennas.

CF Card Socket

Used to insert a CompactFlash card.

5

MPPC 2120T/3220T User Manual

Chapter 1: Product Introduction

Rear Bottom

Reset

Power switch

Line-in

LANMic-in

Line-out

COM1

COM2

12V-30V DC Input

PS/2 KB/MSUSB

Power Switch

Press to power-on or power-off the system.

Reset Button

Press this button to restart the system.

Line-in

Used to connect an audio device, such as a CD player.

Line-out

Used to connect a headphone or a speaker.

Mic-in

Used to connect an external microphone.

LAN

Used to connect the system to a local area network.

Clone VGA

USB

Used to connect USB 2.0/1.1 devices.

COM1 and COM2

These COM ports support RS232/422/485 compatible serial devices.

PS/2 KB/MS

Used to connect a PS/2 keyboard and a PS/2 mouse via a cable.

12-30V DC Input

Used to plug a DC power cord.

Clone VGA (optional)

Used to connect an analog VGA monitor.

Note: The VGA splitter is purchased separately.

6

MPPC 2120T/3220T User Manual

Chapter 1: Product Introduction

Rear

VESA mounting hole 400 x 100 mm

VESA mounting hole 100 x 100 mm

VESA mounting hole 75 x 75 mm

VESA Mounting Holes

These are mounting holes for VESA mount.

7

MPPC 2120T/3220T User Manual

Chapter 1: Product Introduction

Getting to Know the MPPC 3220T

Rear Top

CF card socket

Antenna holes for optional WiFi

Antenna Holes for Optional WiFi

The 2 external antenna mounting holes are used to mount and connect optional WiFi antennas.

CF Card Socket

Used to insert a CompactFlash card.

8

MPPC 2120T/3220T User Manual

Chapter 1: Product Introduction

Rear Bottom

Reset

Line-out

PS/2 KB/MS

Power switch

Mic-in

Line-in

LAN

USB

COM2

COM1

12V-30V DC Input

Power Switch

Press to power-on or power-off the system.

Reset Button

Press this button to restart the system.

Line-in

Used to connect an audio device, such as a CD player.

Line-out

Used to connect a headphone or a speaker.

Mic-in

Used to connect an external microphone.

LAN

Used to connect the system to a local area network.

Clone VGA

USB

Used to connect USB 2.0/1.1 devices.

COM1 and COM2

These COM ports support RS232/422/485 compatible serial devices.

PS/2 KB/MS

Used to connect a PS/2 keyboard and a PS/2 mouse via a cable.

24V DC Input

Used to plug a DC power cord.

Clone VGA (optional)

Used to connect an analog VGA monitor.

Note: The VGA splitter is purchased separately.

9

MPPC 2120T/3220T User Manual

Chapter 1: Product Introduction

Rear

VESA mounting hole 400 x 200 mm

VESA mounting hole 100 x 100 mm

VESA mounting hole 75 x 75 mm

VESA Mounting Holes

These are mounting holes for VESA mount.

10

MPPC 2120T/3220T User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

MPPC 2120T

11

MPPC 2120T/3220T User Manual

Chapter 1: Product Introduction

MPPC 3220T

12

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes the jumpers and connectors on the motherboard. Note that information in this chapter applies to MPPC 2120T/3220T.

Before You Begin

• Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

• Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A set of jewelers Screwdrivers

• A grounding strap

• An anti-static pad

• Using your fingers can disconnect most of the connections. It is recom-

mended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

• Before working on internal components, make sure that the power

is off. Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environment tend to have less static electric-

ity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

• Always disconnect the unit from the power outlet whenever you are

working inside the case.

• If possible, wear a grounded wrist strap when you are working inside

the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

• Hold electronic circuit boards by the edges only. Do not touch the com-

ponents on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

• Leave all components inside the static-proof packaging that they

shipped with until they are ready for installation.

• Use correct screws and do not over tighten screws.

13

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 Are Short

14

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

Top View

JP8

CN1

CN2

CN3

JP6

JP7

JP9 J10

J1

JP5

FAN1

H2

3

1

20

19

12

R61

R63

R62

R64

R65

19 20

CN2

1

2

20

19

CN3

1

R228

R227

2

M9

G

3

J4

6

JP6

5

1

J4

J5 J6

J7 J8

3

1

J5

9

6

1

R477

1

7

8

J10

JP9

2

1

H12

1

2

FB42

FB43

6

4

CN9

5

LAN1

TRPNMLKJHGFEDCBA

8

7

RN1

R103 R105 R108 R114 R118 R123

R132 R135

C155

2

1

LAN2

SWITCH1

R66

R68

R67

R69

R73

R72

R75

R74

R71

R70

R77

R78

R76

R80

C55

RN2

1

2

3 4

5

6

7

8 9

10

11

12

13

14

16

8

7

R79

C57

C59

C58

C56

RN3

U8

789

64

65

102

103

C418

1

2

1

USB1

RN4

123

R81

R P

N

M L K J

H

G F E D

RN5

C B A

85

4

H3

R765 R766 R767

39

38

1

128

H11

5

14

USB2

CON1

1

C7

J3

SW1

CON1

AP-D525-D

4BI0D525A2X10

MADEIN TAIWAN

8

MH4

MH6

4

7

51

C27C8C30

C28

1

J1

C9

C29

1

C10

1

REV:C

BZ1

H9

CN4

15

69

JP3

BAT1

1517

COM1

JP1J3 BAT1

JP2JP4

6

1

3

JP1

JP4

2

1

51

2161852

MH3

MH4

MH5

MH6

L10

C381

1

JP2

2

11 9

51

COM2

15

6

H1

R9

R8

B

E

R18

R17

C

B

E

Q3

R534

C15

Q4

C

R24

H6

C40

C39

789

4

5

123

6

1011121314

15

16

A

B

C

D

E

F G

H

J

K

L

M

C90

N

P

R

T

U

V

W

Y

AA

AB

AC

AD

AE

AF

AG

AH

AJ

RN8

Q8

C162 C163

2161852

MH5

C380

2

J9

1

9

H

8

9

KM1

C

C351

U39

C359

CN6

U40

C373

2

1

10

12

C374

10

129

9

S

1

2

G

6

35

CN10

15

16

5

15

C37

U5

C48

C49

AL AK AJ AH

AG AE AD AC AB AA Y W V

C84

T P N M L K J H G F E

D C B A

2

1

H8

CN4

CN5

L7

CN7

G

1

2

6

11

3

1 2

3

H13

CN8

4

5

Note: Not all Panel PCs includes the jumpers and connectors shown in this section. The presence of these connectors vary among Panel PCs.

CN9

LAN1 LAN2 USB1 USB2 COM1

COM2

KM1

J9

15

CN6 CN7

VGA1

CN8

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

Bottom View

CF card socket

3

1

50

26

3

6

5

1

3

1

9

6

1

7

8

2

1

3162

12 11 10

872

4

5

12 11 10

9

8

1

7

25

58

9

4

1

2

1

14

58

1

4

1

16

R545 R544

R738

1

6

41

R726

R727 R725 CP8 CP7

13

5

9

C448

R542

C456

R541

C457

C453

C454

121

C459

2

C458

204

C455

R543

C452

C449

C450

C451

DIMM1

74 72

2

DDR3 SODIMM

203

C515

R721

R719

R737

R735

R736

R720

R733

R734

R732

CP6CP5

51

9

6

C470

C612

R657

10

2

1

9

6

8

21

3

5

7173

R550 C471

C467

C464

C465

C466

C468

C469

C613

C614

10

2

1

9

15

16

1281

10314

5

15

4

13

72

9

1

C659

C660

C665

132

1

2

6

11

4

5

16

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

Jumpers

RTC Clear

Connector type: 1x3 3-pin header, 2.54 mm pitch Connector location: JP4

1

Pin Settings

1-2 On Normal

2-3 On CMOS Clear

1-2 On: default

Pin Definition

3

1 NC

2 RTC Power

3 GND

Power Type Select

Connector type: 1x3 3-pin header, 2.54 mm pitch Connector location: JP5

1

1-2 On AT Mode

2-3 On ATX Mode

2-3 On: default

3

Pin Definition

1 AUTO (AT MODE)

2 PWRBT In

3 Manual ( ATX MODE)

17

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

Touch 4/5/8 Wire Select

Connector type: 1x3 3-pin header, 2.54 mm pitch Connector location: JP8

1

Pin Definition

1-2 On 5 wire

2-3 On 4/8 wire

1-2 On: default

3

18

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interface

12V-30V DC Power Input

Connector size: DC 4-pin DIN Power Jack with Shield Connector location: CN8

5

1

3

Pin Definition

1 DC+

2 DC+

3 DC-

4 DC-

5 GND

2 4

PS/2 Keyboard/Mouse Port

Connector type: PS/2, Mini-DIN-6, JST-2.0mm-M-180 Connector location: KM1

8 5

Pin Definition

6 3

2

1

1 KB_DATA

2 MS_DATA

3 GND

4 NC

5 VCC5

6 KB_CLK

7 NC

8 MS_CLK

19

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

COM1 Port (Isolation with RS422/485)

Connector type: DB-9 Connector location: COM1

1 5

6

9

RS232

Pin Definition Pin Definition

1 DCD#: Data Carrier Detect 2 RXD#: Receive Data

3 TXD: Transmit Data 4 DTR#: Data Terminal Ready

5 GND 6 DSR#: Data Set Ready

7 RTS#: Request To Send 8 CTS#: Clear To Send

9 RI#: Ring Indicator (could be a 5V

or 12V power pin)

RS422

Pin Definition Pin Definition

1 TXD-: Transmit Data Negative 2 TXD+: Transmit Data Positive

3 RXD+: Receive Data Positive 4 RXD-: Receive Data Negative

5 GND DCD#: Data Carrier Detect 6 RTS-: Request To Send Negative

7 RTS+: Request To Send Positive 8 CTS+: Clear to Send Positive

9 CTS-: Clear To Send Negative

(could be a 5V or 12V power pin)

RS485

Pin Definition Pin Definition

1 TXD-: Transmit Data Negative

RXD-: Receive Data Negative

3 Reserved 4 Reserved

5 Reserved 6 Reserved

7 Reserved 8 Reserved

9 Reserved (could be a 5V or 12V

power pin)

2 TXD+: Transmit Data Positive

RXD+: Receive Data Positive

20

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

COM2 Port (Isolation with RS422/485)

Connector type: DB-9 Connector location: COM2

1 5

6

9

RS232

Pin Definition Pin Definition

1 DCD#: Data Carrier Detect 2 RXD#: Receive Data

3 TXD: Transmit Data 4 DTR#: Data Terminal Ready

5 GND 6 DSR#: Data Set Ready

7 RTS#: Request To Send 8 CTS#: Clear To Send

9 RI#: Ring Indicator (could be a 5V

or 12V power pin)

RS422

Pin Definition Pin Definition

1 TXD-: Transmit Data Negative 2 TXD+: Transmit Data Positive

3 RXD+: Receive Data Positive 4 RXD-: Receive Data Negative

5 GND DCD#: Data Carrier Detect 6 RTS-: Request To Send Negative

7 RTS+: Request To Send Positive 8 CTS+: Clear to Send Positive

9 CTS-: Clear To Send Negative

(could be a 5V or 12V power pin)

RS485

Pin Definition Pin Definition

1 TXD-: Transmit Data Negative

RXD-: Receive Data Negative

3 Reserved 4 Reserved

5 Reserved 6 Reserved

7 Reserved 8 Reserved

9 Reserved (could be a 5V or 12V

power pin)

2 TXD+: Transmit Data Positive

RXD+: Receive Data Positive

21

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

USB Ports

Connector type: Dual USB port Connector location: USB1 and USB2

USB1

Pin Definition Pin Definition

1 VCC5 5 VCC5

2 USB0- 6 USB1-

3 USB0+ 7 USB1+

4 GND 8 GND

USB2

Pin Definition Pin Definition

1 VCC5 5 VCC5

2 USB2- 6 USB3-

3 USB2+ 7 USB3+

4 GND 8 GND

LAN1 Port

Connector type: RJ45 port with LEDs Connector location: LAN1

ActLink

Link Status

Green Always Lighted 1000M

Orange Always Lighted 100M

Off 10M or No Link

Pin Definition Pin Definition

1 MDI0+ 5 MDI2-

2 MDI0- 6 MDI1-

3 MDI1+ 7 MDI3+

4 MDI2+ 8 MDI3-

Act Status

Orange Blinking Data Activity

Off No Acitivity

22

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

LAN2 Port

Connector type: RJ45 port with LEDs Connector location: LAN2

Note: LAN2 supports Wake On LAN (WOL)

ActLink

Link Status

Green Always Lighted 1000M

Orange Always Lighted 100M

Off 10M or No Link

Pin Definition Pin Definition

1 MDI0+ 5 MDI2-

2 MDI0- 6 MDI1-

3 MDI1+ 7 MDI3+

4 MDI2+ 8 MDI3-

Act Status

Orange Blinking Data Activity

Off No Acitivity

Line-out Jack

Connector type: 1x5 5-pin header, 2.0 mm pitch Connector location: CN9

Pin Definition

1 LOUT_R

2 JD

3 NC

4 LOUT_L

5 GND

6 GND

23

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors

VGA Connector

Connector type: 2x8 16-pin box header, 2.0 mm pitch Connector location: VGA1

2

1

Pin Definition Pin Definition

1 RED 2 GREEN

3 BLUE 4 NC

5 GND 6 GND

7 GND 8 GND

9 VCC5 10 GND

11 NC 12 VGADATA

13 HSYNC 14 VSYNC

15 VGACLK 16 NC

16 15

Power Button Connector

Connector type: 1x2 2-pin header, JST 2.0 mm pitch Connector location: J7

1 2

Pin Definition

1 PWRBT

2 GND

24

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

Reset Button

Connector type: 1x2 2-pin header, 2.0 mm pitch Connector location: J8

1 2

Pin Definition

1 PWRBT

2 GND

SATA DOM Power Connector

Connector type: 1x2 2-pin header, JST 2.0 mm pitch Connector location: J1

1 2

Pin Definition

1 PWRBT

2 GND

25

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

SATA Port

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: J3

1

Pin Definition

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

7

26

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

Touch Sensor Connector

Connector type: 1x9 9-pin boxed header, JST-2.0mm-M-180 Connector location: J5

9

8-Wire 4-Wire 5-Wire

9 Right Sense N/A N/A

8 Left Sense N/A N/A

7 Bottom Sense N/A N/A

6 Top Sense N/A Sense (S)

5 Right Excite Right LR (X)

4 Left Excite Left LL (L)

3 Bottom Excite Bottom UR (H)

2 Top Excite Top UL (Y)

1 GND GND GND

1

Touch Screen Lines

USB Connector

Connector size: 1x6 6-pin JST wafer, 2.54 mm pitch Connector location: J6

6

Pin Definition

1 +5V

2 USB4-

3 USB4+

4 USB5-

5 USB5+

6 GND

1

27

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

CompactFlash

Connector type: 1x50 50-pin with Ejector, CompactFlash Type 2 Connector location: IDE1

Pin Description Pin Description

1 GND 26 CF_DETECT

2 PD Data3 27 PD Data11

3 PD Data4 28 PD Data12

4 PD Data5 29 PD Data13

5 PD Data6 30 PD Data14

6 PD Data7 31 PD Data15

7 -PCS0 32 -PCS1

8 GND 33 N/C

9 GND 34 -PDIOR

10 GND 35 -PDIOW

11 GND 36 +5V

12 GND 37 IRQ14

13 +5V 38 +5V

14 GND 39 GND

Pin Description Pin Description

15 GND 40 N/C

16 GND 41 CF_RESET#

17 GND 42 +3.3V

18 PDAddress2 43 PDDREQ

19 PDAddress1 44 PDDACK

20 PDAddress0 45 IDE_ACT#

21 PDData0 46 N/C

22 PDData1 47 PD Data8

23 PDData2 48 PD Data9

24 N/C 49 PD Data10

25 GND 50 GND

28

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

Power LED Connector

Connector type: 1x2 2-pin header, 2.54 mm pitch Connector location: JP2

1

2

Pin Definition

1 +5V

2 GND

HDD Active LED Connector

Connector type: 1x2 2-pin header, 2.54 mm pitch Connector location: JP1

1

2

Pin Definition

1 +5V

2 HD_LED#

29

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

Mini-PCIe Slots

Connector location: CN4 and CN5

2

51152

Pin Definition Pin Definition

1 WAKE0# 2 +V3.3_MINI

3 NC 4 GND

5 NC 6 +V1.5S_MINI

7 NC 8 NC

9 GND 10 NC

11 GPP_CLK0_N 12 NC

13 GPP_CLK0_P 14 NC

15 GND 16 NC

17 NC 18 GND

19 NC 20 MINICARD1_DIS#

21 GND 22 PCIE_RST#

23 PCIE_RX2N 24 +V3.3A_MINI

25 PCIE_RX2P 26 GND

27 GND 28 +V1.5S_MINI

29 GND 30 SMB_CLK

Pin Definition Pin Definition

31 PCIE_TX2N 32 SMB_DAT

33 PCIE_TX2P 34 GND

35 GND 36 USB_6N

37 GND 38 USB_6P

39 +V3.3A_MINI 40 GND

41 +V3.3A_MINI 42 NC

43 GND 44 NC

45 NC 46 NC

47 NC 48 +V1.5S_MINI

49 NC 50 GND

51 NC 52 +V3.3A_MINI

30

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

Line-in/Mic-in Connector

Connector type: 2x4 8-pin header, 2.54 mm Connector location: JP9

2 1

Line-in

Pin Definition Pin Definition

1 LINE IN-LP 2 MIC1_L3

3 LINE IN -JD 4 MIC_JD

5 GND 6 GND

7 LINE IN-RP 8 MIC1_R3

Mic-in

8 7

Speaker-out Connector

Connector type: 1x4 4-pin header, 2.54 mm pitch Connector location: J10

1

Pin Definition

1 OUT-L+

2 OUT-L-

3 OUT-R+

4 OUT-R-

4

31

MPPC 2120T/3220T User Manual

Chapter 2: Jumpers and Connectors

5

4

3

2

1

Title

Block Diagram

MPPC 2120T/3220T

AUO G170EG01 ( Resolution 1280 x1024)

JST 2.0mm

1 X 9 Pins

32" Panel

21.5" Panel

Touch 4/5/8 wire

Standard SATA & SATA DOM

Co-Layout

AD Board

Resolution 1920 x 1080

Rear Port 0/1

Rear Port 2/3

Pin header Port 4 /5

Mini PCI-E 6 /7

Penmount 6000 /Port 8

Touch Controller

Compact Flash

with enjector

Resolution 2048 x 1036 / 60HZ

SATA PORT 1

HDA

DMI

DDR3 Channel A

DDR3 Ch A

DMI

SPI

DMI

PCIe x1

PCI-E *1(6)

LPC

Block Diagram-AP-D525-D

Pineview-D D525 Microprocessor >1.8GHz / L2:1MB DX9 Graphics: 200 MHz

VGALVDS

VGA

x4 DMI 4 Lanes

2Gb/s

USB 2.0

UltraDMA

ICH8-M

(82801GBM)

USB 2.0 (10)

652 balls

31x31mm

ATA 100 (1)

SATA (3)

LPC BUS

SATA BUS

800MHZ Only

DDR3 800MHz SO-DIMM

2GB Support

SPI

SST25VF080B

Gigabit Ethernet Intel 82574L

MINIPCIe

MDI

RJ45

WOL Support

High Definition Audio Link

RS-232

COM1

COM2

RS-232

18F,No 716, Chung-Cheng Road Chung -Ho City,

18F,No 716, Chung-Cheng Road Chung -Ho City, Taipei County Taiwan 235, R.O.C

Taipei County Taiwan 235, R.O.C

Taipei County Taiwan 235, R.O.C HTTP://WWW.NEXCOM.COM.TW

HTTP://WWW.NEXCOM.COM.TW

HTTP://WWW.NEXCOM.COM.TW TEL:886-2-8228-0606

TEL:886-2-8228-0606

HD Audio

ALC888-GR

APA4880

LINE-OUT

With Amp 330mW/8 omE

200mW/16 omE

P/S

KB/MS

Super I/O

IT8783F/AX-L

GPIO

4IN 4OUT

Thermal Sensor

32

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

ChaPter 3: system setuP

Installing a SATA Hard Drive

Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.

1. Remove the mounting screws around the chassis cover and then remove the cover.

MPPC 2120T

33

The dots denote the locations of the screws.

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

MPPC 3220T

The dots denote the locations of the screws.

34

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

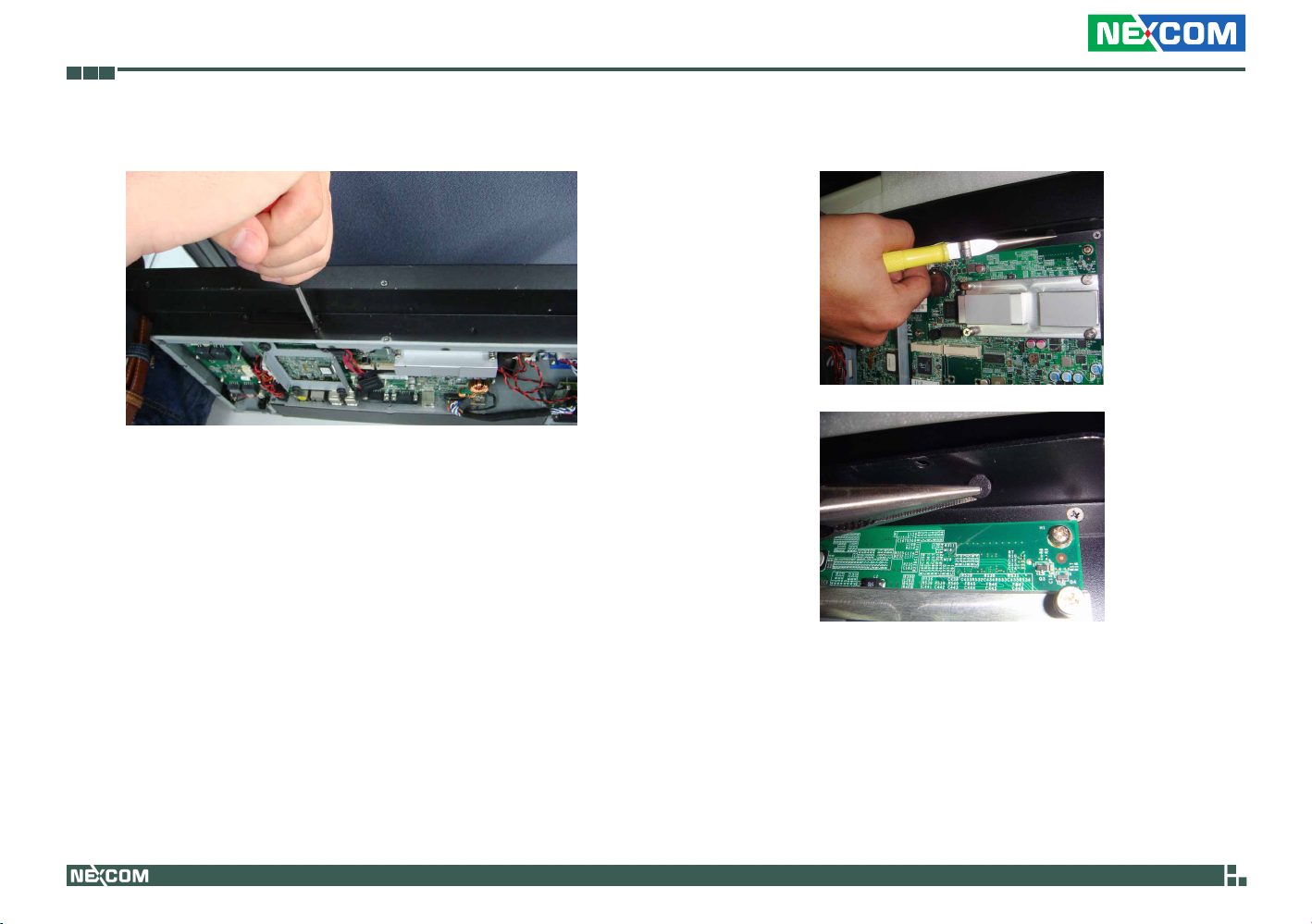

2. Remove the mounting screws of the drive bay. 3. Remove the drive bay. The drive bay is used to hold a SATA hard drive.

SATA power cable and SATA cable

Mounting screw

35

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

4. Place the SATA hard drive on the drive bay.

Drive bay

5. Align the mounting holes that are on the sides of the SATA drive with the mounting holes on the drive bay and then use the provided mounting screws to secure the drive in place.

SATA drive

Mounting screw

36

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

6. Place the SATA drive in the chassis and then use the provided mounting screws to secure the drive in the chassis.

Connect the SATA data cable and SATA power cable to the connectors

on the SATA drive.

SATA drive

SATA data cable

SATA power cable

37

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

Installing a CompactFlash Card

MPPC 2120T

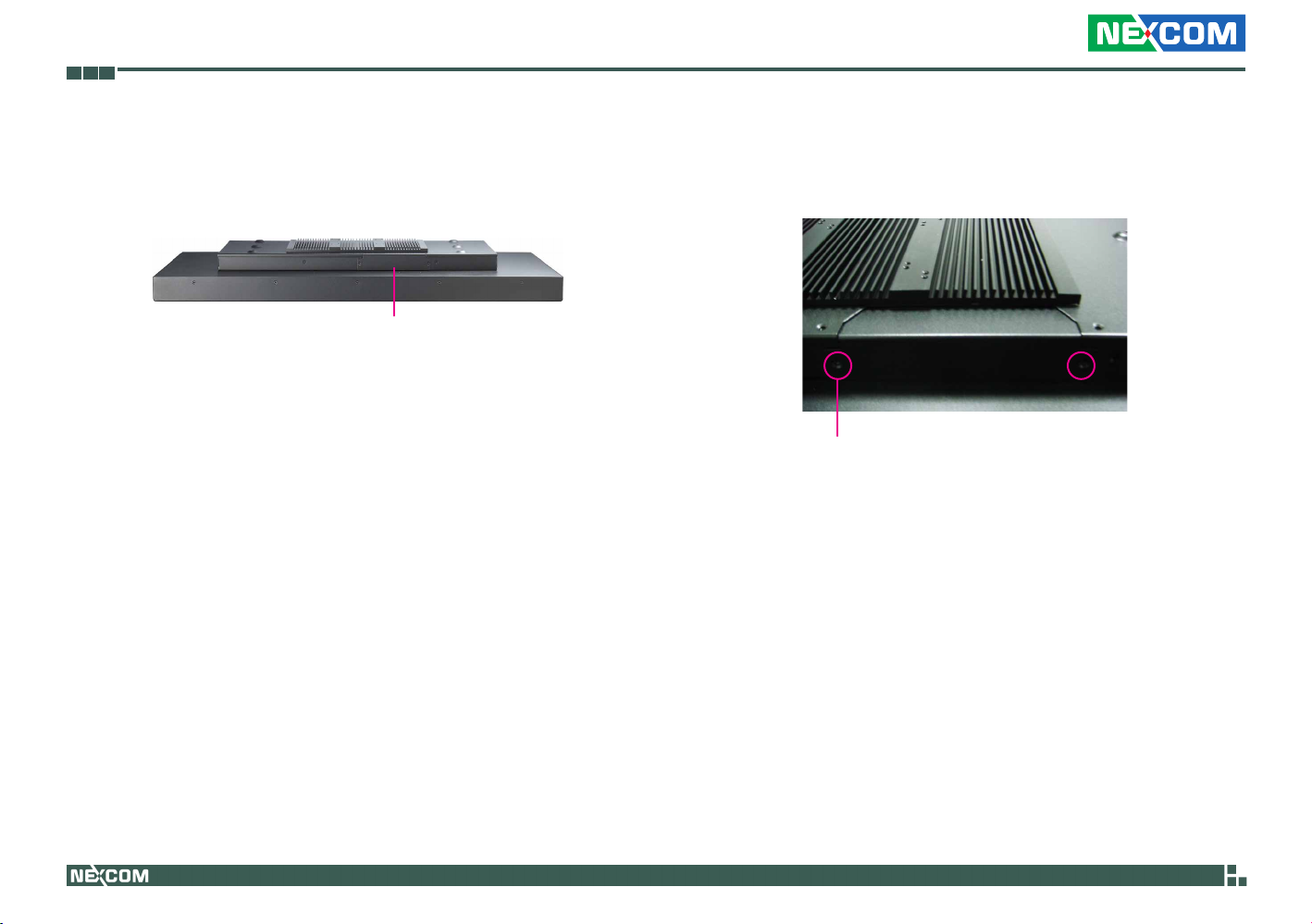

1. The CompactFlash card socket is located on the rear top side of the chassis.

CF card socket

2. Remove the mounting screws of the CompactFlash socket’s cover.

Mounting screw

38

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

3. With the CompactFlash card’s label facing up, insert the card until it is completely seated in the socket.

CompactFlash card

4. Push the Eject button to remove the CompactFlash card.

39

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

MPPC 3220T

1. The CompactFlash card socket is located on the rear top side of the chassis.

CF card socket

2. Remove the mounting screws of the CompactFlash socket’s cover.

Mounting screw

40

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

3. Remove the CompactFlash socket’s cover.

CompactFlash socket cover

4. With the CompactFlash card’s label facing up, insert the card until it is completely seated in the socket and then replace the socket cover.

CompactFlash card

41

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

Installing a SODIMM

MPPC 2120T

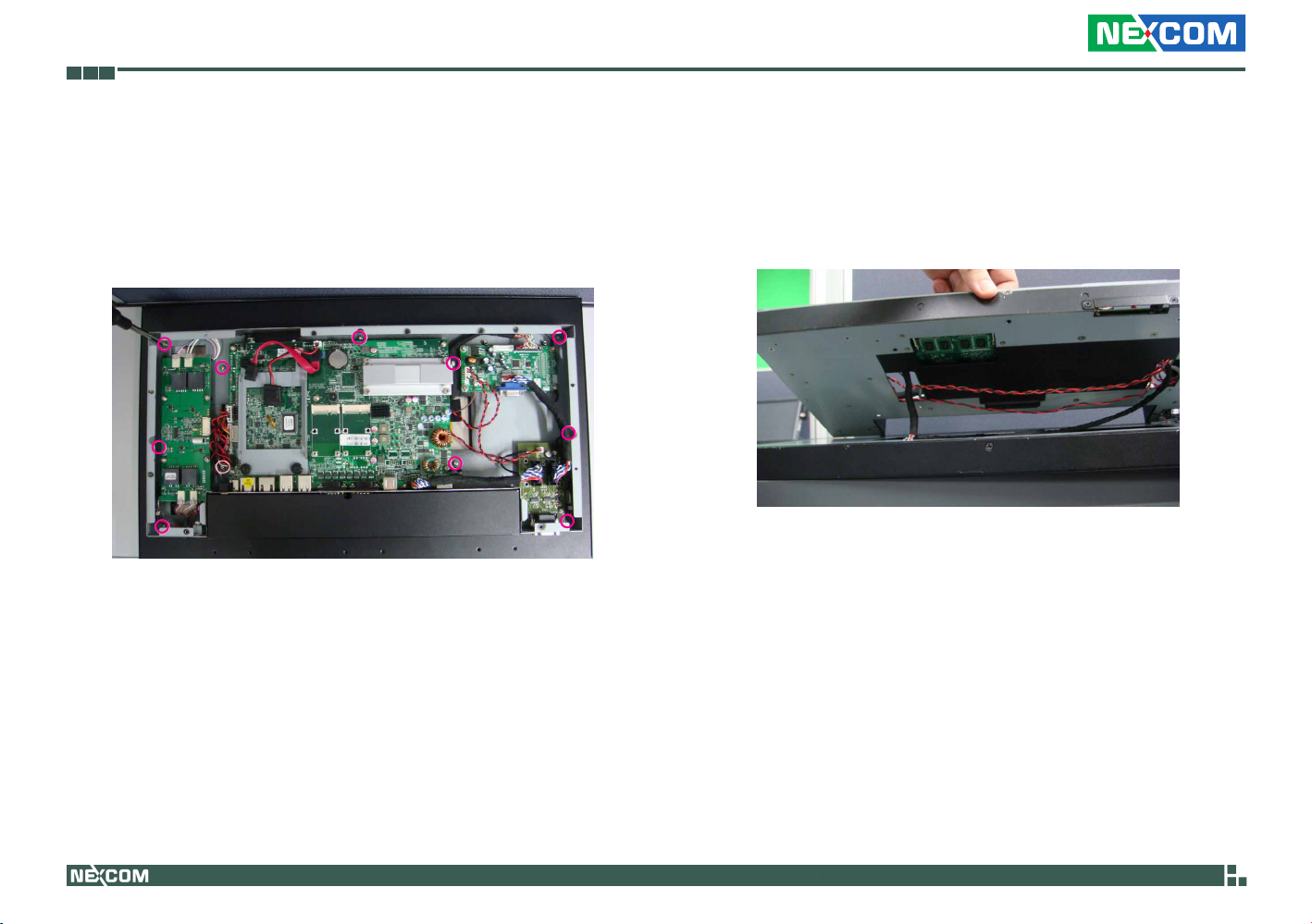

1. Remove the mounting screws around the panel and then remove the panel cover.

2. Lift the panel to access the SODIMM socket.

42

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

MPPC 3220T

1. Remove the mounting screws around the panel and then remove the panel cover.

Mounting screw

2. Lift the panel to access the SODIMM socket.

SODIMM

socket

43

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

3. Insert the module into the socket at an approximately 30 degrees angle. Apply firm even pressure to each end of the module until it slips into the socket. The gold-plated connector on the edge of the module will almost completely disappear inside the socket.

SODIMM

4. Push the module down until the clips on both sides of the socket lock into position. You will hear a distinctive “click”, indicating the module is correctly locked into position.

Clip

44

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

Installing a SATA DOM

1. Remove the drive bay bracket. The SATA connector is readily accessible upon removing the bracket.

SATA connector

2. Remove the screw.

45

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

3. The SATA DOM package includes a supporting stud. The stud is used to stabilize the SATA DOM module.

Supporting stud

Cable

4. Install the supporting stud. Make sure the stud is fastened in place.

SATA DOM

46

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

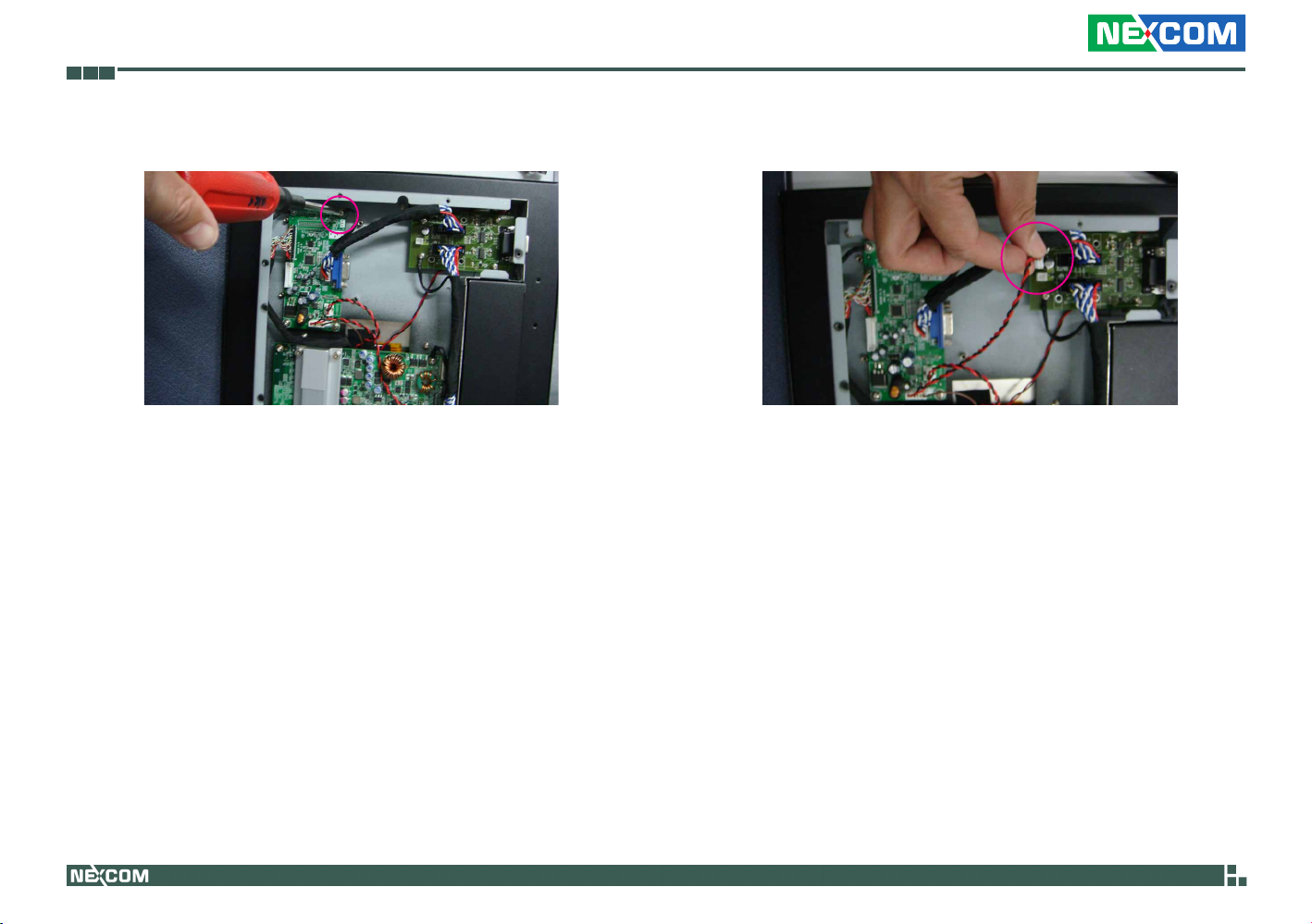

5. Connect one end of the provided cable to the connector on the module.

Cable

Connector on the module

6. Install the module to the SATA port via the connector at the solder side of the module and then secure the module using the mounting screw you removed in step 2.

SATA DOM

Mounting screw

47

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

7. Connect the other end of the cable to the connector on the board.

48

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

Installing a Mini PCIe Module

1. The Mini PCIe module package includes the following items.

Mini PCIe Module

Antennas

2. Insert the Mini PCIe module into the Mini PCIe slot at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

Mini PCIe module

Mini PCIe slot

RF Cables

49

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

3. Secure the module with mounting screws.

Mounting

screw

Mounting screw

4. Attach one end of the RF cables onto the module.

RF cable

50

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

5. Push the antenna hole cover. 6. Remove the antenna hole covers.

51

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

7. Insert the antenna jack end of the cable through the antenna hole.

Antenna jack end of the cable

8. Insert the ring onto the antenna jack end of the cable.

Antenna jack

Ring

MPPC 2120T

52

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

MPPC 3220T

9. Connect external antennas to the antenna jacks.

MPPC 2120T

Antenna

MPPC 3220T

Antenna

53

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

Installing the 1 to 2 VGA Splitter (Optional)

1. The photo below shows the location of the mounting studs. 2. The optional VGA Splitter package comes with a VGA splitter board, 2 cables and 2 mounting screws.

Mounting stud

54

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

3. Using the cable shown below, connect one end of the cable to the

connector on the VGA splitter card.

Cable

VGA splitter card

4. Using the cable shown below, connect one end to the other connector on the VGA splitter card.

Cable

55

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

5. The photo below shows the 2 cables connected to the VGA splitter card.

6. Remove the mounting screws of the VGA port cover and then remove the cover. This space will be used to install the VGA splitter.

Mounting screw

VGA port cover

56

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

7. Install the VGA Splitter into the chassis and then use the provided mounting screws to secure the card in place.

8. Connect the cable shown below to the main board.

57

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

9. Secure the board with mounting screw. 10. Connect the cable shown below to the other card.

58

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

11. Secure the card with mounting screw. 12. Connect the power cable to the VGA splitter card.

59

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

the proper cables connected.

14. Secure the VGA port with screws.13. The photo below shows the VGA splitter card installed in place with

60

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

Removing the Rear I/O Ports Cover

MPPC 2120T

1. Remove the mounting screws of the rear I/O ports cover.

Mounting screw

Rear I/O ports cover

Mounting screw

2. Remove the cover to access the I/O ports.

Rear I/O ports cover

61

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

MPPC 3220T

1. Remove the mounting screws of the rear I/O ports cover.

Mounting screw

Rear I/O ports cover

Mounting screw

2. Remove the cover to access the I/O ports.

Rear I/O ports cover

62

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

Panel Mounting

1. Select a place on the panel where you will mount the Panel PC.

2. Cut out a shape on the panel that corresponds to the Panel PC’s rear dimensions.

The thickness of the panel (e.g. steel board, plank, acrylic board, wall,

etc.) where you will mount the Panel PC must not exceed 7mm. If the distance between the front bezel and panel mount hole is too wide, it will not fit the panel mount kit.

MPPC 3220T

3. Slide the Panel PC through the hole until it is properly fitted against the panel.

MPPC 2120T

63

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

Panel Mount Brackets (Optional)

1. The optional panel mounting brackets must be attached to the rear side of the Panel PC.

MPPC 2120T

6x Panel Mount Brackets With Screws

P/N: 5043330466X00

MPPC 3220T

8x Panel Mount Brackets With Screws

P/N: 5043330465X00

2. The panel mounting holes are used to attach the panel mounting brackets.

MPPC 2120T

64

MPPC 3220T

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

3. Position the holes of the bracket to the mounting holes on the Panel PC.

4. Use the provided mounting screws to secure the bracket.

65

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

5. The photo below shows the brackets mounted in place.

MPPC 2120T

MPPC 3220T

66

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

Panel Mount Kit (Optional)

1. The optional mounting clamps must be attached along the rear edges of the Panel PC.

Note: The mounting clamps are included in the MPPC 2120T Panel

Mount Kit (P/N: 5043330466X00) and MPPC 3220T Panel Mount Kit (P/N: 5043330465X00).

2. Position the mounting clamps along the rear edges of the Panel PC. The first and second clamps must be positioned and secured diagonally prior to mounting the rest of the clamps. Tighten the clamp’s screw until it touches the panel. Do not overtighten the screws to prevent damaging the Panel PC.

3. The photo below shows the rear view of the Panel PC mounted on the panel.

Panel wall

Panel PC

67

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

4. The photo below shows the front view of the Panel PC mounted on the panel.

Panel PC

Panel wall

68

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

VESA Mount (Optional)

1. For VESA mounting, attach the metal plates onto the VESA mounting holes.

Metal plate

2. Attach the mounting rail onto the metal plates of one side.

Mounting rail

69

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

3. Attach the mounting rail onto the metal plates of the other side.

Mounting railMounting rail

4. Secure the mounting rails with the provided mounting screws.

Mounting screw

70

MPPC 2120T/3220T User Manual

Chapter 3: System Setup

5. Hook the VESA mount bracket onto the mounting rails.

VESA mount bracket

6. Secure the VESA mount bracket with the provided mounting screws.

71

MPPC 2120T/3220T User Manual

Chapter 4: BIOS Setup

ChaPter 4: Bios setuP

This chapter describes how to use the BIOS setup program for the MPPC 2120T/3220T. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals ▪ Video display type and display options ▪ Password protection from unauthorized use ▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the Setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

This program should be executed under the following conditions:

▪ When changing the system configuration ▪ When a configuration error is detected by the system and you are

prompted to make changes to the Setup program

▪ When resetting the system clock ▪ When redefining the communication ports to prevent any conflicts ▪ When making changes to the Power Management configuration ▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

72

MPPC 2120T/3220T User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of

beeps will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:

TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> Press the <Del> key to enter Setup:

Legends

Key Function

Right and Left arrows Moves the highlight left or right to select a

menu.

Up and Down arrows Moves the highlight up or down between sub-

menus or fields.

<Esc> Exits to the BIOS Setup Utility.

+ (plus key) Scrolls forward through the values or options of

the highlighted field.

- (minus key) Scrolls backward through the values or options of the highlighted field.

Tab Selects a field.

<F1> Displays General Help.

<F10> Saves and exits the Setup program.

<Enter> Press <Enter> to enter the highlighted sub-

menu.

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “u“ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.

73

MPPC 2120T/3220T User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from six setup functions and one exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Main

System Overview

AMIBIOS

Version : 08.00.15 Build Date : 08/18/11 ID : A525A005

Processor

Intel (R) Atom(TM) CPU D525 @ 1.80GHz Speed :1800MHz

System Memory

Size :1015MB

System Time

System Date

Advanced

BIOS SETUP UTILITY

Chipset

Boot

[14:06:01]

[Tue 08/23/2011]

Security

Use [ENTER], [TAB] or [SHIFT-TAB] to

select a eld.

Use [+] or [-] to

congure system Time.

← → Select Screen ↑↓ Select Item

+- Change Field

Tab Select Field F1 General Help F10 Save and Exit ESC Exit

ExitPCIPnP

Processor

Displays the detected processor information.

System Memory

Displays the detected system memory information.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1980 to 2099.

AMI BIOS

Displays the detected BIOS information.

74

MPPC 2120T/3220T User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Main

Advanced Settings

WARNING: Setting wrong values in below sections may

u

u u u u

Onboard LAN 1 [Enabled] Onboard LAN 2 [Enabled] LAN Boot ROM [Disabled]

cause system to malfunction.

IDE Conguration

USB Conguration ACPI Conguration SuperIO Conguration Hardware Health Conguration

IDE Configuration

This section is used to configure the IDE drives.

BIOS SETUP UTILITY

Chipset

Boot

Security

ExitPCIPnPAdvanced

Congure the IDE devices(s).

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

USB Configuration

This section is used to configure USB devices.

ACPI Configuration

This section is used to configure the ACPI function.

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Hardware Health Configuration

This section is used to configure the hardware monitoring events such as the temperature, fan speed and voltages.

Onboard LAN 1 and Onboard LAN 2

Enables or disables the onboard LAN.

LAN Boot ROM

Enable this field if you want to use the boot ROM (instead of a disk drive) to boot-up the system and access the local area network directly. If you wish to change the boot ROM’s settings, type the <Shift> and <F10> keys simultaneously when prompted during boot-up. Take note: you will be able to access the boot ROM’s program (by typing <Shift> + <F10>) only when this field is enabled.

75

MPPC 2120T/3220T User Manual

Chapter 4: BIOS Setup

IDE Configuration

This section is used to configure the IDE drives.

Advanced

IDE Conguration

ATA/IDE Conguration [Enhanced]

Congure SATA as [IDE]

u

Primary IDE Master : [Not Detected]

u

Secondary IDE Master : [Not Detected]

u

Third IDE Master : [Not Detected]

IDE Detect Time Out (Sec) [35]

BIOS SETUP UTILITY

Options

Disabled Compatible Enhanced

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

ATA/IDE Configuration

Sets the SATA device to Disabled, Compatible or Enhanced mode.

If you selected Compatible, the Legacy IDE Channels field will appear. The options are SATA Only, SATA Pri, PATA Sec, and PATA Only.

Primary IDE Master to Third IDE Master

When you enter the BIOS Setup Utility, the BIOS will auto detect the existing IDE devices then displays the status of the detected devices. To configure an IDE drive, move the cursor to a field then press <Enter>.

Advanced

Primary IDE Master

Device :Not Detected

Type

LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer

BIOS SETUP UTILITY

[Auto]

[Auto] [Auto] [Auto] [Auto] [Auto] [Disabled]

Select the type of device connected to the system.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

If you selected Enhanced, the Configure SATA As field will appear. The option displayed is IDE. This will configure the Serial ATA drives as Parallel ATA physical storage device.

76

MPPC 2120T/3220T User Manual

Chapter 4: BIOS Setup

Type

Selects the type of IDE drive connected to the system.

LBA/Large Mode

Auto The LBA mode will automatically be enabled, that is, if the

LBA mode was not previously disabled.

Disabled Disables the LBA mode.

Block (Multi-Sector Transfer)

Auto Data transfer to and from the device occurs multiple sectors at

a time.

Disabled Data transfer to and from the device occurs one sector at a

time.

PIO Mode

Selects the data transfer mode. PIO means Programmed Input/Output. Rather than have the BIOS issue a series of commands to effect a transfer to or from the disk drive, PIO allows the BIOS to tell the controller what it wants and then let the controller and the CPU perform the complete task by themselves. Your system supports five modes, 0 (default) to 4, which primarily differ in timing. When Auto is selected, the BIOS will select the best available mode after checking your drive.

DMA Mode

Selects the DMA mode.

Auto Automatically detects the DMA mode. SWDMAn SingleWord DMAn. MWDMAn MultiWord DMAn. UDMAn Ultra DMAn.

S.M.A.R.T.

The system board supports SMART (Self-Monitoring, Analysis and Reporting Technology) hard drives. SMART is a reliability prediction technology for ATA/IDE and SCSI drives. The drive will provide sufficient notice to the system or user to backup data prior to the drive’s failure. SMART is supported in ATA/33 or later hard drives. The options are Auto (default), Enabled and Disabled.

32Bit Data Transfer

Enables or disables 32-bit data transfer.

IDE Detect Time Out (Sec)

Selects the time out value for detecting ATA/ATAPI devices.

Auto The BIOS will automatically set the system according to your

hard disk drive’s timing.

Mode 0-4 You can select a mode that matches your hard disk drive’s

timing. Caution: Do not use the wrong setting or you will have drive errors.

77

MPPC 2120T/3220T User Manual

Chapter 4: BIOS Setup

USB Configuration

This section is used to configure USB devices.

Advanced

USB Conguration

Module Version - 2.24.3-13.4

USB Devices Enabled:

None

Legacy USB Support [Enabled]

USB 2.0 Controller Mode [FullSpeed] BIOS EHCI Hand-Off [Enabled] Hotplug USB FDD Support [Auto]

u

USB Mass Storage Device Conguration

BIOS SETUP UTILITY

Enables support for legacy USB. AUTO option disables legacy support if no USB devices are connected.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Legacy USB Support

Due to the limited space of the BIOS ROM, the support for legacy USB keyboard (in DOS mode) is by default set to Disabled. With more BIOS ROM space available, it will be able to support more advanced features as well as provide compatibility to a wide variety of peripheral devices.

USB 2.0 Controller Mode

Sets the USB 2.0 controller mode to HiSpeed (480 Mbps) or FullSpeed (12 Mbps).

BIOS EHCI Hand-Off

Enable this field when using operating systems without the EHCI handoff support.

Hotplug USB FDD Support

Select Auto to create a dummy device only if there is no USB FDD present.

USB Mass Storage Device Configuration

Configures the USB mass storage class devices.

Advanced

USB Mass Storage Device Conguration

USB Mass Storage Reset Delay [20 Sec]

Device #1 USB Hotplug FDD

Emulation Type [Auto]

BIOS SETUP UTILITY

Number of seconds POST waits for the USB mass storage device after start unit command.

If a PS/2 keyboard is not available and you need to use a USB keyboard to install Windows (installation is performed in DOS mode) or run any program under DOS, set this field to Enabled.

78

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

MPPC 2120T/3220T User Manual

Chapter 4: BIOS Setup

USB Mass Storage Reset Delay

Selects the number of seconds POST waits for the USB mass storage device after the start unit command.

Device #1

Displays the connected device.

Emulation Type

Auto USB devices that are less than 530MB will be emulated as

a floppy drive and the remaining as hard drives.

Forced FDD Forces an HDD formatted drive to boot as FDD (e.g. ZIP

drive) Floppy The USB device will be emulated as a floppy drive. CDROM The USB device will be emulated as a CD-ROM drive. Hard Disk The USB device will be emulated as a hard disk drive.

ACPI Configuration

This section is used to configure the ACPI configuration.

Advanced

ACPI Settings

ACPI Aware O/S [Yes]

ACPI APIC Support [Enabled] APIC ACPI SCI IRQ [Disabled]

BIOS SETUP UTILITY

Enable/Disable ACPI support for operating system.

ENABLE: If OS supports ACPI.

DISABLE: If OS does not support ACPI.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

ACPI Aware OS

Enables or disables the ACPI function of the operating system.

ACPI APIC Support

Enables or disables the ACPI APIC function. Include ACPI APIC table pointer to RSDT pointer list.

APIC ACPI SCI IRQ

Enables or disables the APIC ACPI SCI IRQ.

79

MPPC 2120T/3220T User Manual

Chapter 4: BIOS Setup

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Advanced

Congure ITE8783 Super IO Chipset

Serial Port1 Address [3F8]

Serial Port1 IRQ [4] Serial Port1 Frequency Mode [RS232] Serial Port2 Address [2F8] Serial Port2 IRQ [3] Serial Port2 Frequency Mode [RS232]

BIOS SETUP UTILITY

Allows BIOS to select Serial Port1 Base Address.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Serial Port1 Address and Serial Port2 Address

3F8, 3E8, 2E8 Allows you to manually select an I/O address for the on

board serial port.

Disabled Disables the onboard serial port.

Serial Port1 IRQ and Serial Port2 IRQ

These fields are used to select an IRQ for the onboard serial port 3, 4, 10 or 11.

Serial Port1 Frequency Mode

Advanced

Congure ITE8783 Super IO Chipset

Serial Port1 Address [3F8] Serial Port1 IRQ [3]

Serial Port1 Frequency Mode [RS232]

Serial Port2 Address [2F8] Serial Port2 IRQ [4] Serial Port2 Frequency Mode [RS232]

BIOS SETUP UTILITY

Options

RS232

RS422 RS485

Allows BIOS to select Serial Port1 Base Address.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

This field is used to select the frequency mode of serial port 1. The options are RS232, RS422 and RS485.

80

MPPC 2120T/3220T User Manual

Chapter 4: BIOS Setup

If you selected RS485 in the “Serial Port1 Frequency Mode”, the “Serial Port1 Frequency Select” field will appear prompting you to select the frequency setting. The options are 115200 bps and 921600 bps.

Advanced

Congure ITE8783 Super IO Chipset

Serial Port1 Address [3F8] Serial Port1 IRQ [3] Serial Port1 Frequency Mode [RS232]

Serial Port1 Frequency Select [115200 bps]

Serial Port2 Address [2F8] Serial Port2 IRQ [4] Serial Port2 Frequency Mode [RS232] Serial Port2 Frequency Select [

BIOS SETUP UTILITY

Options

115200 bps

921600 bps

Allows BIOS to select Serial Port1 Base Address.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

81

MPPC 2120T/3220T User Manual

Chapter 4: BIOS Setup

Serial Port2 Frequency Mode

Advanced

Congure ITE8783 Super IO Chipset

Serial Port1 Address [3F8] Serial Port1 IRQ [3] Serial Port1 Frequency Mode [RS232] Serial Port2 Address [2F8] Serial Port2 IRQ [4]

Serial Port2 Frequency Mode [RS232]

BIOS SETUP UTILITY

Options

RS232

RS422 RS485

Allows BIOS to select Serial Port1 Base Address.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

This field is used to select the frequency mode of serial port 2. The options are RS232, RS422 and RS485.

If you selected RS422 or RS485 in the “Serial Port1 Frequency Mode” and/or “Serial Port2 Frequency Mode” field, the “Serial Port1 Frequency Select” and/or “Serial Port2 Frequency Select” field will appear prompting you to select the frequency setting. The options are 115200 bps and 921600 bps.

Advanced

Congure ITE8783 Super IO Chipset

Serial Port1 Address [3F8] Serial Port1 IRQ [3] Serial Port1 Frequency Mode [RS232] Serial Port1 Frequency Select [115200 bps] Serial Port2 Address [2F8] Serial Port2 IRQ [4] Serial Port2 Frequency Mode [RS232]

Serial Port2 Frequency Select [

Serial Port3 Address Serial Port3 IRQ Serial Port4 Address Serial Port4 IRQ

BIOS SETUP UTILITY

Options

115200 bps

921600 bps

Allows BIOS to select Serial Port1 Base Address.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

82

MPPC 2120T/3220T User Manual

Chapter 4: BIOS Setup

Hardware Health Configuration

HW Health Function

This field is used to enable or disable the hardware monitoring events such as temperature, fan speed and voltages.

Advanced

Hardware Health Conguration

HW Health Function [Enabled]

CPU Temperature : 47oC/116oF System Temperature : 41oC/105oF

FAN1 Speed : : N/A

CPU Core : 1.152 V +3.3V : 3.224 V +5.00V : 4.878 V +12.0V : 11.704 V

BIOS SETUP UTILITY

Enables Hardware Health Monitoring Device.

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

CPU Temperature and System Temperature

Detects and displays the current temperature of the CPU, chipset and the internal temperature of the system.

CPU Core to +12.0V

Detects and displays the output voltages.

Fan1 Speed

Detects and displays the current fan speed in RPM (Revolutions Per Minute).

83

MPPC 2120T/3220T User Manual

Chapter 4: BIOS Setup

Boot

Main

Boot Settings

u

Boot Settings Conguration

u

Boot Device Priority

u

Removable Drives

Boot Settings Configuration

This section is used to configure settings during system boot.

Boot Device Priority

This section is used to select the boot priority sequence of the devices.

Removable Drives

BIOS SETUP UTILITY

Chipset

Boot

Security

Congure settings during system boot.

ExitPCIPnPAdvanced

← → Select Screen ↑↓ Select Item

Enter Go to Sub Screen F1 General Help F10 Save and Exit ESC Exit

Boot Settings Configuration

This section is used to configure settings during system boot.

BIOS SETUP UTILITY

Boot

Boot Settings Conguration

Quick Boot [Enabled]

Quiet Boot [Disabled] Bootup Num-Lock [On] PS/2 Mouse Support [Enabled] System Keyboard [Present] Hit ‘DEL’ Message Display [Enabled] Interrupt 19 Capture [Disabled]

Allows BIOS to skip certain tests while booting. This will decrease the time needed to boot the system.

← → Select Screen ↑↓ Select Item

+- Change Option

F1 General Help F10 Save and Exit ESC Exit

Quick Boot

When Enabled, the BIOS will shorten or skip some check items during POST. This will decrease the time needed to boot the system.

This section is used to select the boot priority sequence of the hard disk drives.

84
