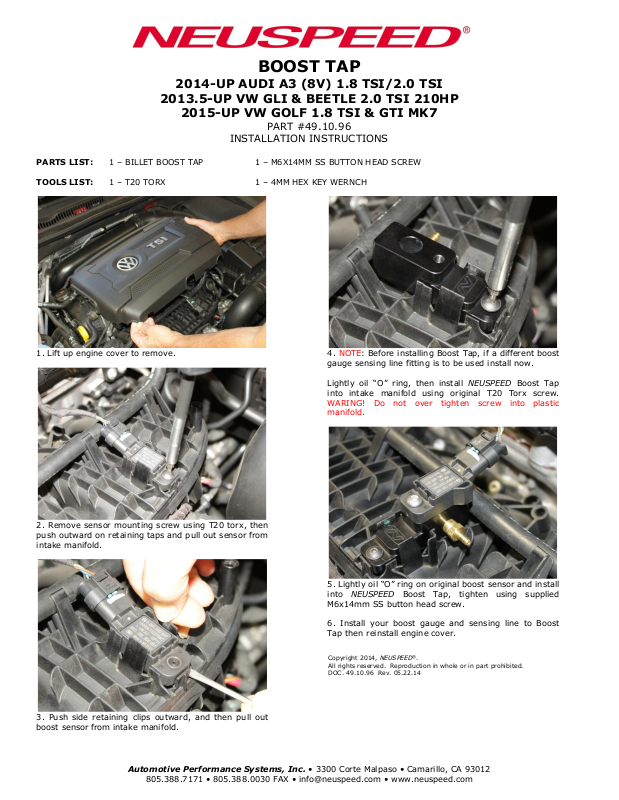

BOOST TAP
2014-UP AUDI A3 (8V) 1.8 TSI/2.0 TSI
2013.5-UP VW GLI & BEETLE 2.0 TSI 210HP
2015-UP VW GOLF 1.8 TSI & GTI MK7
PART #49.10.96
INSTALLATION INSTRUCTIONS
PARTS LIST: 1 – BILLET BOOST TAP 1 – M6X14MM SS BUTTON HEAD SCREW
TOOLS LIST: 1 – T20 TORX 1 – 4MM HEX KEY WERNCH
1. Lift up engine cover to remove.
2. Remove sensor mounting screw using T20 torx, then
push outward on retaining taps and pull out sensor from
intake manifold.
4. NOTE: Before installing Boost Tap, if a different boost
gauge sensing line fitting is to be used install now.
Lightly oil “O” ring, then install NEUSPEED Boost Tap
into intake manifold using original T20 Torx screw.
WARING! Do not over tighten screw into plastic
manifold.
5. Lightly oil “O” ring on original boost sensor and install
into NEUSPEED Boost Tap, tighten using supplied
M6x14mm SS button head screw.
6. Install your boost gauge and sensing line to Boost
Tap then reinstall engine cover.
3. Push side retaining clips outward, and then pull out
boost sensor from intake manifold.
