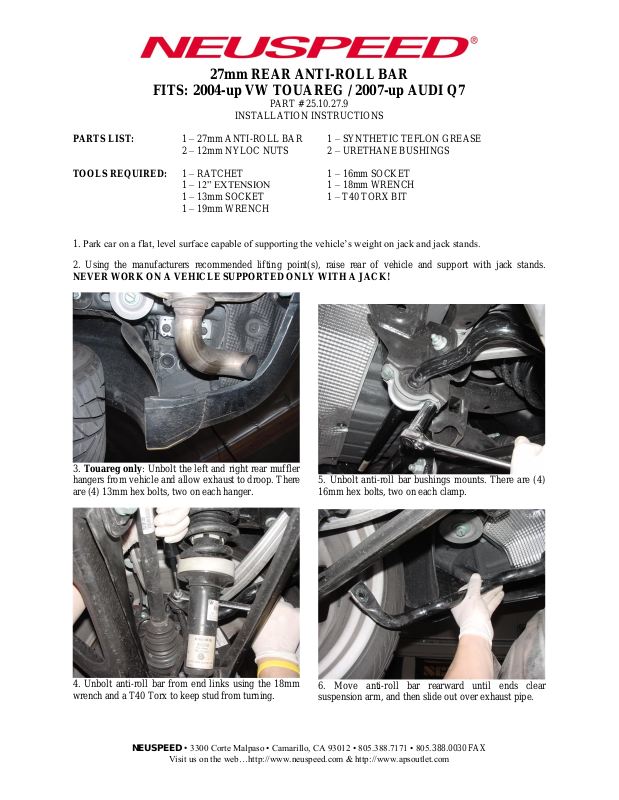

27mm REAR ANTI-ROLL BAR
FITS: 2004-up VW TOUAREG / 2007-up AUDI Q7
PART # 25.10.27.9
INSTALLATION INSTRUCTIONS
PARTS LIST: 1 – 27mm ANTI-ROLL BAR 1 – SYNTHETIC TEFLON GREASE
2 – 12mm NYLOC NUTS 2 – URETHANE BUSHINGS
TOOLS REQUIRED: 1 – RATCHET 1 – 16mm SOCKET
1 – 12” EXTENSION 1 – 18mm WRENCH
1 – 13mm SOCKET 1 – T40 TORX BIT
1 – 19mm WRENCH
1. Park car on a flat, level surface capable of supporting the vehicle’s weight on jack and jack stands.
2. Using the manufacturers recommended lifting point(s), raise rear of vehicle and support with jack stands.
NEVER WORK ON A VEHICLE SUPPORTED ONLY WITH A JACK!
3. Touareg only: Unbolt the left and right rear muffler
hangers from vehicle and allow exhaust to droop. There
are (4) 13mm hex bolts, two on each hanger.
4. Unbolt anti-roll bar from end links using the 18mm
wrench and a T40 Torx to keep stud from turning.
NEUSPEED • 3300 Corte Malpaso • Camarillo, CA 93012 • 805.388.7171 • 805.388.0030 FAX
Visit us on the web…http://www.neuspeed.com & http://www.apsoutlet.com
5. Unbolt anti-roll bar bushings mounts. There are (4)
16mm hex bolts, two on each clamp.
6. Move anti-roll bar rearward until ends clear
suspension arm, and then slide out over exhaust pipe.
Page 2
7. Using grease supplied, lube inside of urethane
bushings, and slip bushings over NEUSPEED anti-roll
bar just inside of thrust washer. The larger diameter
end of the urethane bushing should be against thrust
8. Install NEUSPEED anti-roll bar in reverse of
disassembly. NOTE: Line-up groove on side of
urethane bushing with clamp when tightening.
washer.
9. Double-check complete installation and TEST DRIVE CAREFULLY.
Copyright 2009, NEUSPEED®. All rights reserved. Reproduction in whole or in part prohibited.
DOC.25.10.27.9 Rev. 12.11.09
