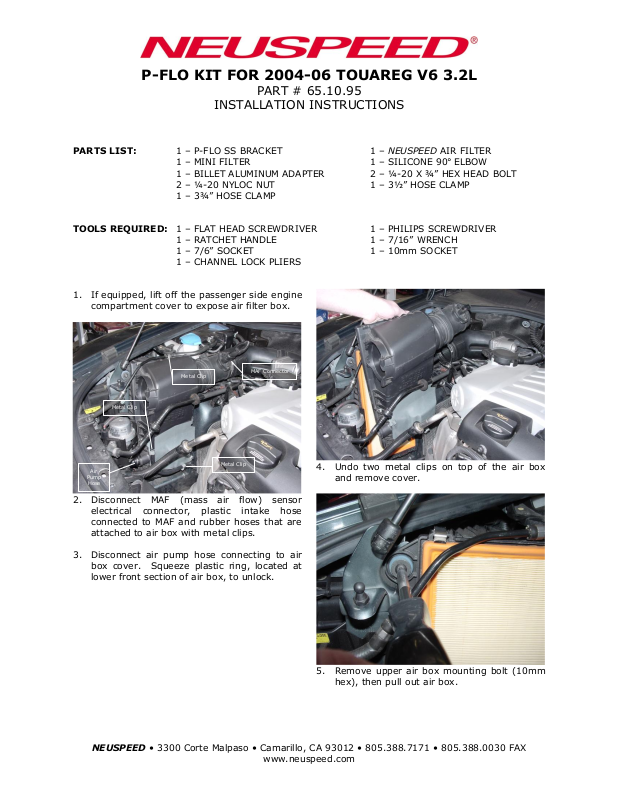

P-FLO KIT FOR 2004-06 TOUAREG V6 3.2L
PART # 65.10.95
INSTALLATION INSTRUCTIONS
PARTS LIST: 1 – P-FLO SS BRACKET 1 – NEUSPEED AIR FILTER
1 – MINI FILTER 1 – SILICONE 90° ELBOW
1 – BILLET ALUMINUM ADAPTER 2 – ¼-20 X ¾” HEX HEAD BOLT
2 – ¼-20 NYLOC NUT 1 – 3½” HOSE CLAMP
1 – 3¾” HOSE CLAMP
TOOLS REQUIRED: 1 – FLAT HEAD SCREWDRIVER 1 – PHILIPS SCREWDRIVER
1 – RATCHET HANDLE 1 – 7/16” WRENCH
1 – 7/6” SOCKET 1 – 10mm SOCKET
1 – CHANNEL LOCK PLIERS

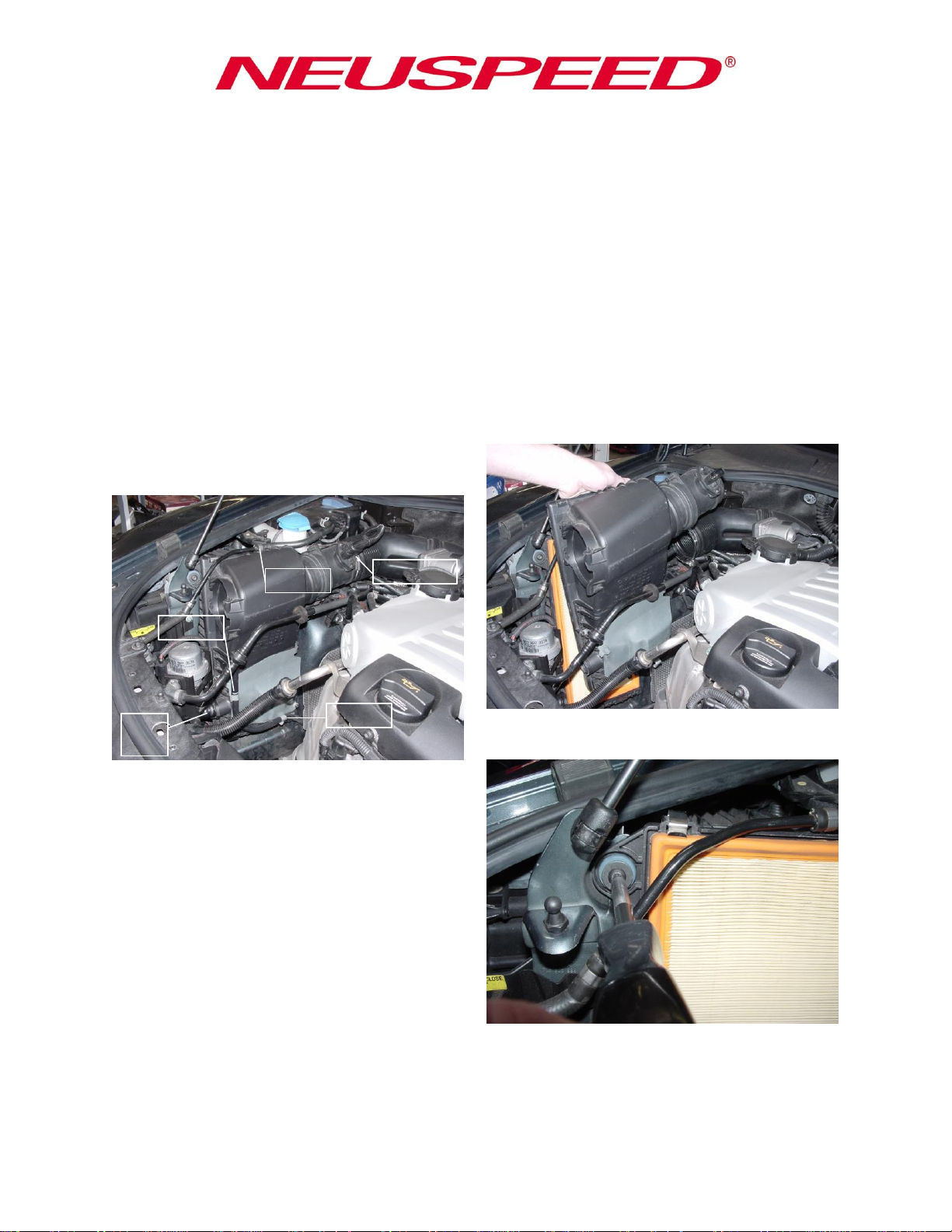

1. If equipped, lift off the passenger side engine
compartment cover to expose air filter box.
4. Undo two metal clips on top of the air box
and remove cover.
2. Disconnect MAF (mass air flow) sensor
electrical connector, plastic intake hose
connected to MAF and rubber hoses that are
attached to air box with metal clips.
3. Disconnect air pump hose connecting to air
box cover. Squeeze plastic ring, located at
lower front section of air box, to unlock.
5. Remove upper air box mounting bolt (10mm
hex), then pull out air box.
NEUSPEED • 3300 Corte Malpaso • Camarillo, CA 93012 • 805.388.7171 • 805.388.0030 FAX
www.neuspeed.com
Page 2
6. Remove from air box cover: MAF, metal clips
for rubber hoses, grommet and sleeve.

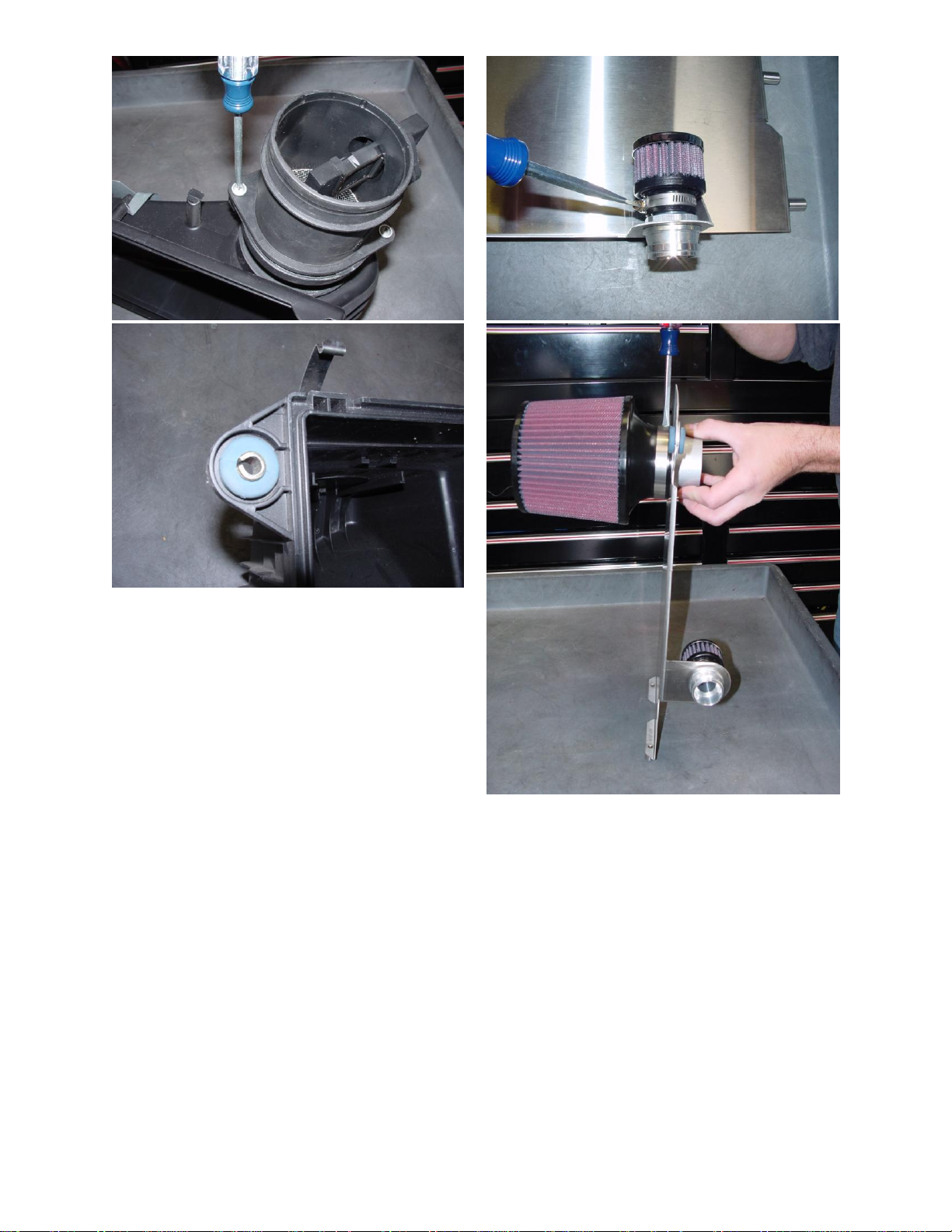

7. Install onto NEUSPEED SS P-Flo bracket:
grommet and sleeve, mini filter on billet air
pump fitting and NEUSPEED air filter onto
tubing opposite side of bracket from air pump
filter as pictured.
NEUSPEED • 3300 Corte Malpaso • Camarillo, CA 93012 • 805.388.7171 • 805.388.0030 FAX
www.neuspeed.com
Page 3

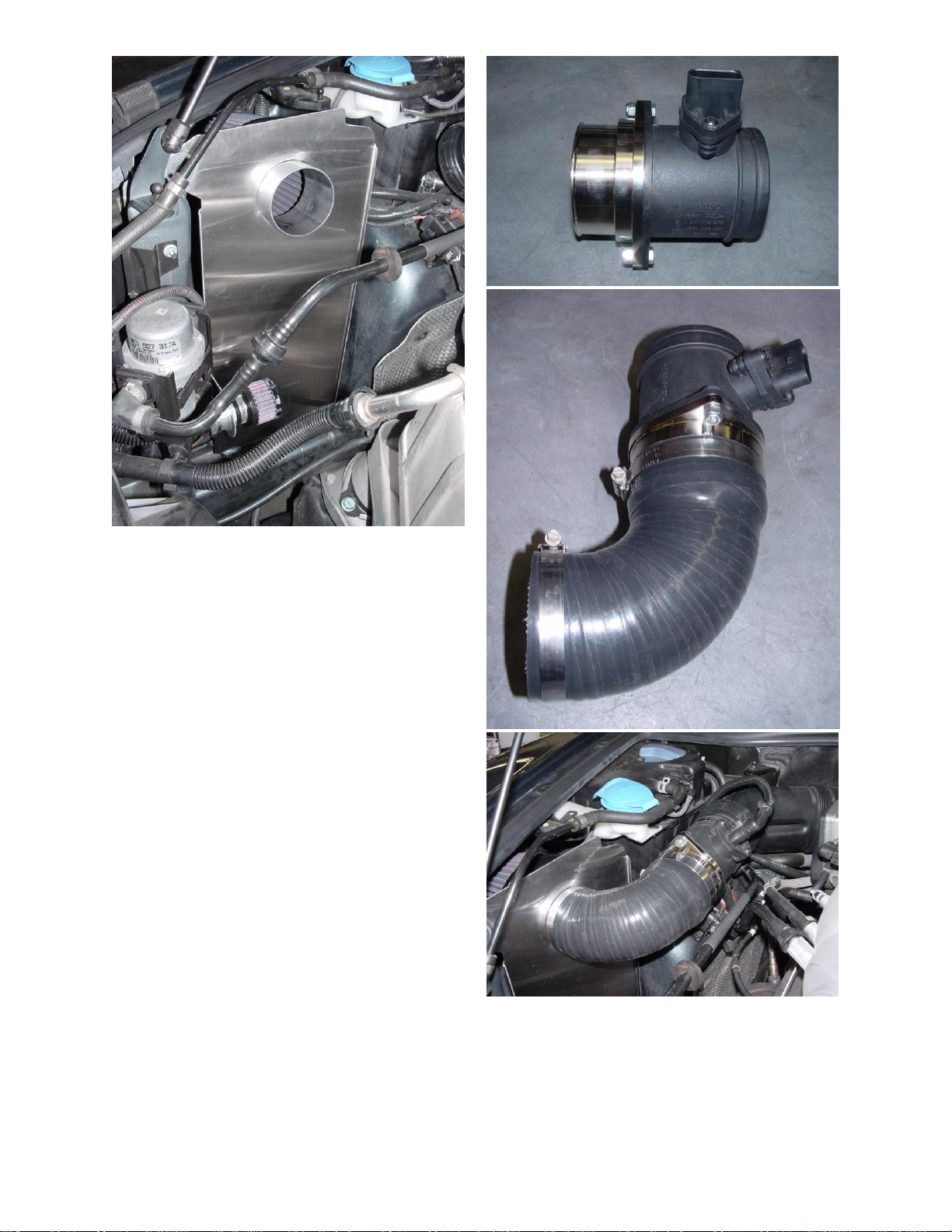

8. Install NEUSPEED SS P-Flo bracket onto
vehicle – aligning lower pins into grommets.
Install original bolt at top of bracket and
tighten.
9. Attach air pump hose to billet fitting.
10. Bolt billet adapter to MAF using bolts and lock
nuts supplied. Attach 90° silicone hose to
MAF with 3¾” clamp supplied. Align hose to
MAF as pictured and tighten clamp. Connect
the silicone hose to NEUSPEED SS P-Flo
bracket with 3½” hose clamp and MAF to
plastic intake hose as pictured.
NEUSPEED • 3300 Corte Malpaso • Camarillo, CA 93012 • 805.388.7171 • 805.388.0030 FAX
www.neuspeed.com
Page 4

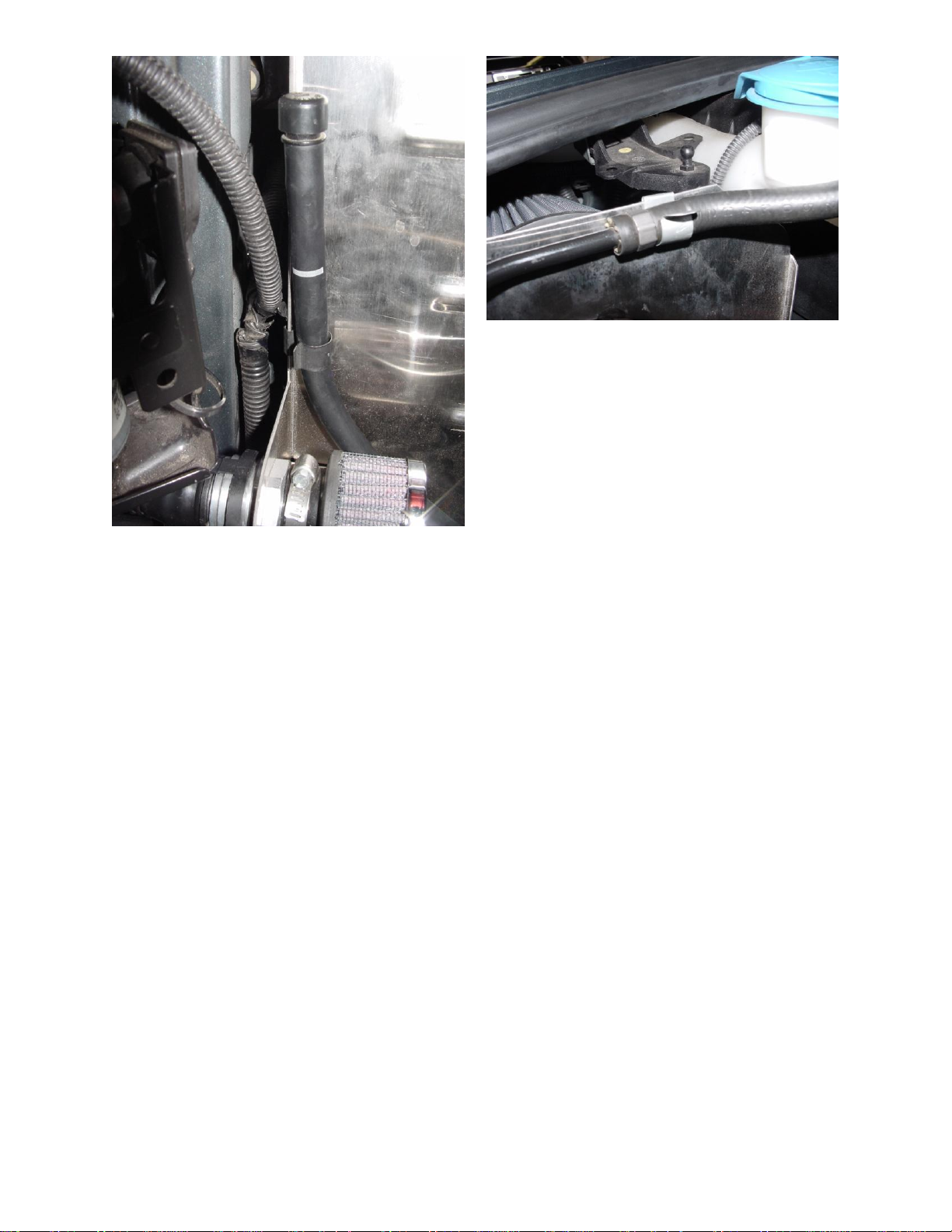

11. Attach original metal clips to NEUSPEED SS
P-Flo bracket for rubber hoses at locations
pictured.
12. Double check installation and tightness of all
bolts and clamps.
