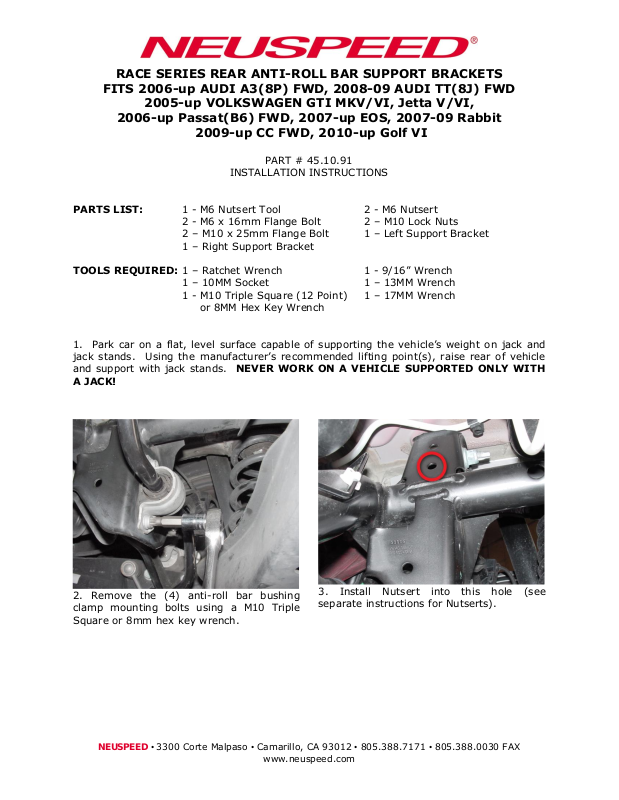

RACE SERIES REAR ANTI-ROLL BAR SUPPORT BRACKETS
FITS 2006-up AUDI A3(8P) FWD, 2008-09 AUDI TT(8J) FWD
2005-up VOLKSWAGEN GTI MKV/VI, Jetta V/VI,
2006-up Passat(B6) FWD, 2007-up EOS, 2007-09 Rabbit
2009-up CC FWD, 2010-up Golf VI
PART # 45.10.91
INSTALLATION INSTRUCTIONS
PARTS LIST: 1 - M6 Nutsert Tool 2 - M6 Nutsert
2 - M6 x 16mm Flange Bolt 2 – M10 Lock Nuts
2 – M10 x 25mm Flange Bolt 1 – Left Support Bracket
1 – Right Support Bracket
TOOLS REQUIRED: 1 – Ratchet Wrench 1 - 9/16” Wrench
1 – 10MM Socket 1 – 13MM Wrench
1 - M10 Triple Square (12 Point) 1 – 17MM Wrench
or 8MM Hex Key Wrench
1. Park car on a flat, level surface capable of supporting the vehicle’s weight on jack and
jack stands. Using the manufacturer’s recommended lifting point(s), raise rear of vehicle
and support with jack stands. NEVER WORK ON A VEHICLE SUPPORTED ONLY WITH
A JACK!
2. Remove the (4) anti-roll bar bushing
clamp mounting bolts using a M10 Triple
Square or 8mm hex key wrench.
3. Install Nutsert into this hole (see
separate instructions for Nutserts).
NEUSPEED • 3300 Corte Malpaso • Camarillo, CA 93012 • 805.388.7171 • 805.388.0030 FAX
www.neuspeed.com
4. Installing Nutsert, hold tool body with
9/16” wrench from turning and push down
on Ratchet while crimping Nutsert into hole.
5. Loosely mount Left and Right Support
Brackets, do not tighten at this time. Now
follow NEUSPEED Anti-Roll Bar installation
instructions. NOTE: Evenly tighten Anti-Roll
Bar bushing clamp bolts and Support
Bracket bolts.
6. Double check complete installation and tightness of all nuts and bolts!
Copyright 2010, NEUSPEED®. All rights reserved. Reproduction in whole or in part prohibited.
DOC.45.10.91 Rev. 05.12.10
