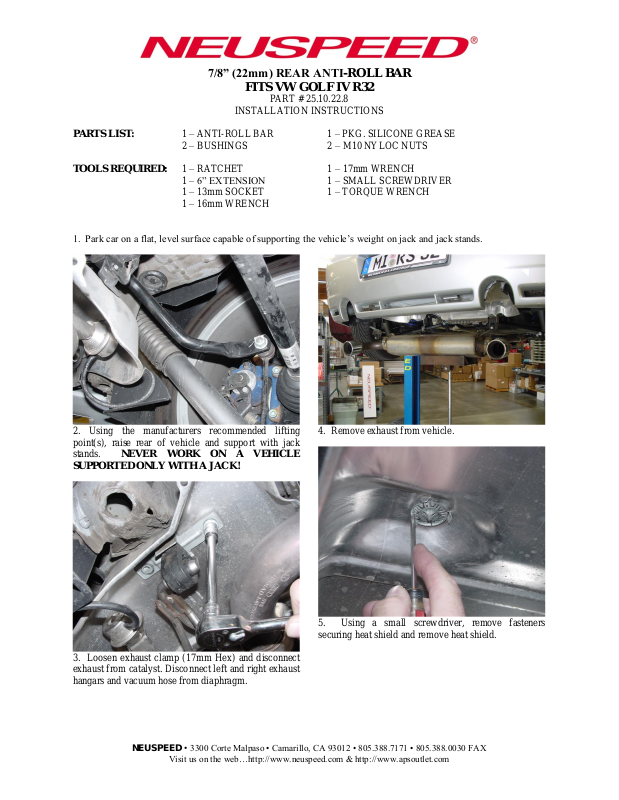

Neuspeed 25.02.19.9 User Manual
7/8” (22mm) REAR ANTI-ROLL BAR
FITS VW GOLF IV R32
PART # 25.10.22.8
INSTALLATION INSTRUCTIONS
PARTS LIST: 1 – ANTI-ROLL BAR 1 – PKG. SILICONE GREASE
2 – BUSHINGS 2 – M10 NYLOC NUTS
TOOLS REQUIRED: 1 – RATCHET 1 – 17mm WRENCH
1 – 6” EXTENSION 1 – SMALL SCREWDRIVER
1 – 13mm SOCKET 1 – TORQUE WRENCH
1 – 16mm WRENCH
1. Park car on a flat, level surface capable of supporting the vehicle’s weight on jack and jack stands.
2. Using the manufacturers recommended lifting
point(s), raise rear of vehicle and support with jack
stands. NEVER WORK ON A VEHICLE
SUPPORTED ONLY WITH A JACK!
3. Loosen exhaust clamp (17mm Hex) and disconnect
exhaust from catalyst. Disconnect left and right exhaust
hangars and vacuum hose from diaphragm.
4. Remove exhaust from vehicle.
5. Using a small screwdriver, remove fasteners
securing heat shield and remove heat shield.
NEUSPEED • 3300 Corte Malpaso • Camarillo, CA 93012 • 805.388.7171 • 805.388.0030 FAX
Visit us on the web…http://www.neuspeed.com & http://www.apsoutlet.com
6. Disconnect end links from anti-roll bar by securing
stud with 17mm wrench and loosening nut with 16mm
wrench. (Left side shown, repeat for right side)
8. Apply supplied grease to inside of supplied bushing
and install bushing onto supplied bar. (Left side shown,
repeat for right side)
9. Position supplied bar on end links and install nuts.
Torque to 30 Nm (22 lbf ft.)
10. Rotate bar up to sub-frame, position mounting
clamps and install bolts (13mm Hex). Torque bolts to
25 Nm (18 lbf ft.)
11. Install heat shield and exhaust in reverse of
removal.
7. Remove four mounting bolts (13mm hex) and
remove anti-roll bar from vehicle.
Copyright 2003, NEUSPEED®. All rights reserved. Reproduction in whole or in part prohibited.
DOC.25.10.22.8 Rev. 03.08.04
9. Installation is complete.
10. Double-check complete installation and TEST
DRIVE CAREFULLY!
