ProSAFE Single Band 802.11n Wireless Access Point WN203

Reference Manual

June 2013 202-11223-01

350 East Plumeria Drive San Jose, CA 95134 USA

ProSAFE Single Band 802.11n Wireless Access Point WN203

Support

Thank you for selecting NETGEAR products. After installing your device, locate the serial number on the label of your product and use it to register your product

at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com.

Phone (US & Canada only): 1-888-NETGEAR. Phone (Other Countries): Check the list of phone numbers at

http://support.netgear.com/general/contact/default.aspx.

Trademarks

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved.

Revision History

Publication Part Number

202-11230-01 June 2013 First publication

Publish Date Comments

Chapter 1 Introduction

Chapter 2 Installation and Basic Configuration

About the ProSAFE Single Band 802.11n Wireless Access Point WN203 .7

What Is in the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Key Features and Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Supported Standards and Conventions . . . . . . . . . . . . . . . . . . . . . . . . . .8

Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

802.11b/g/n Standards–Based Wireless Networking. . . . . . . . . . . . . . .10

Autosensing Ethernet Connections with Auto Uplink . . . . . . . . . . . . . . .11

Hardware Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Bottom Panel with Product Label and Reset to Factory Defaults Button13

What You Need Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Wireless Equipment Placement and Range Guidelines. . . . . . . . . . . . .15

Ethernet Cabling Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

LAN Configuration Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Hardware Requirements for Computers on Your LAN . . . . . . . . . . . . . .16

Requirements for Entering IP Addresses. . . . . . . . . . . . . . . . . . . . . . . .16

Install and Configure the Wireless Access Point . . . . . . . . . . . . . . . . . . . .16

Connect the Wireless Access Point to a Computer . . . . . . . . . . . . . . . .17

Configure Basic General System Settings and Time Settings . . . . . . . .20

Configure the IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Configure the Optional DHCP Server. . . . . . . . . . . . . . . . . . . . . . . . . . .23

Configure the Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . .25

Test Basic Wireless Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Chapter 3 Wireless Configuration and Security

Before You Configure Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . .31

Wireless Data Security Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Security Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Security Profile Concepts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Write Down Your Wireless Network Settings . . . . . . . . . . . . . . . . . . . . .35

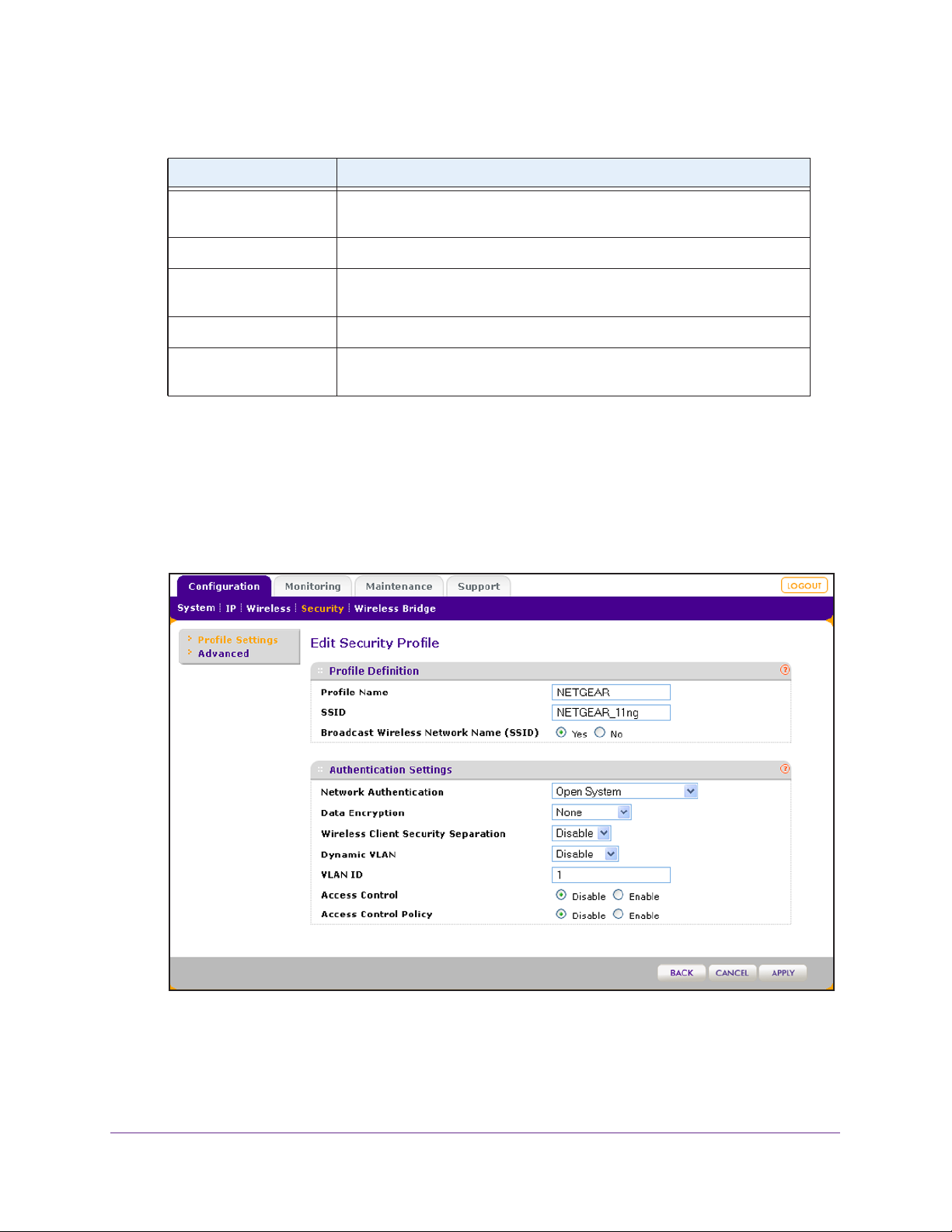

Configure and Enable Security Profiles . . . . . . . . . . . . . . . . . . . . . . . . .36

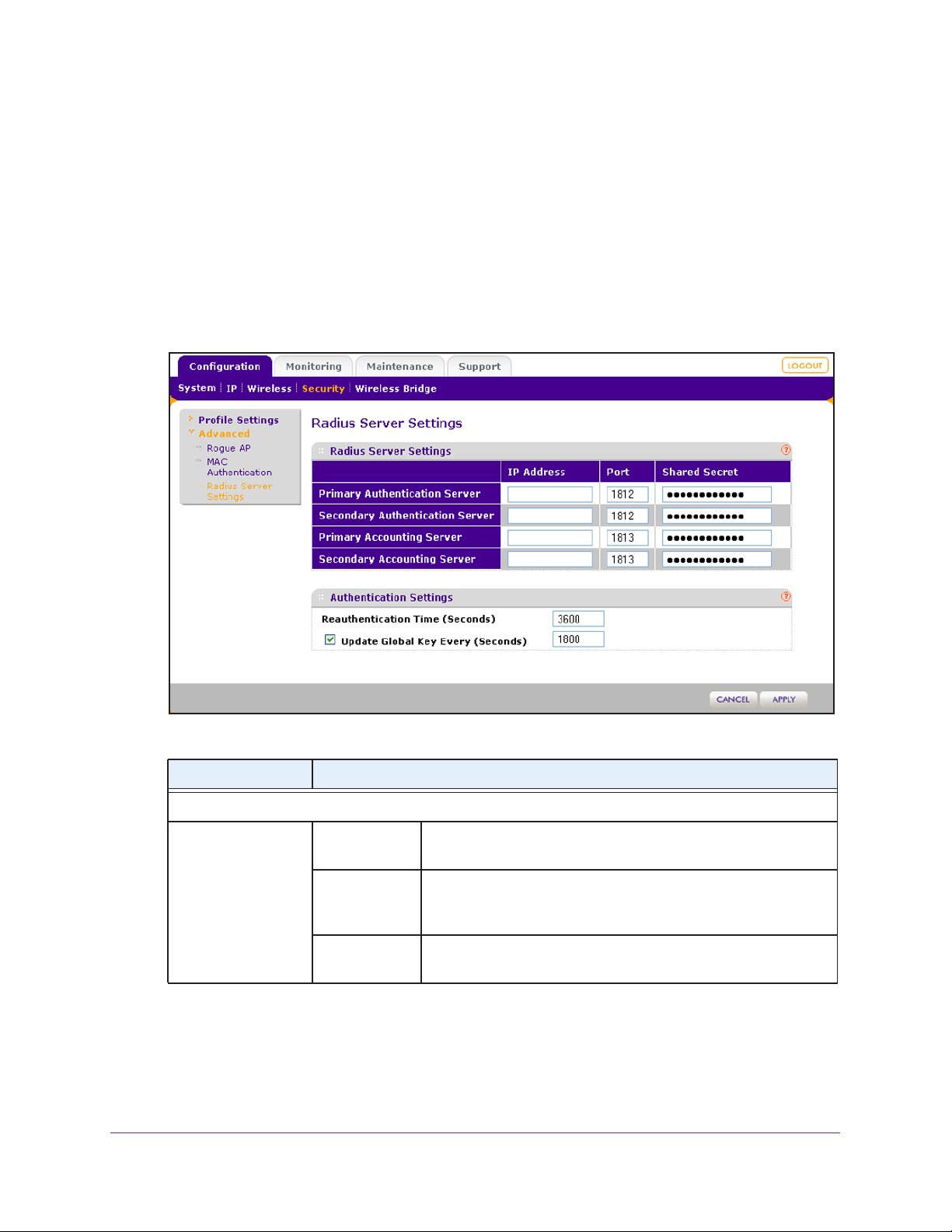

Configure RADIUS Server Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

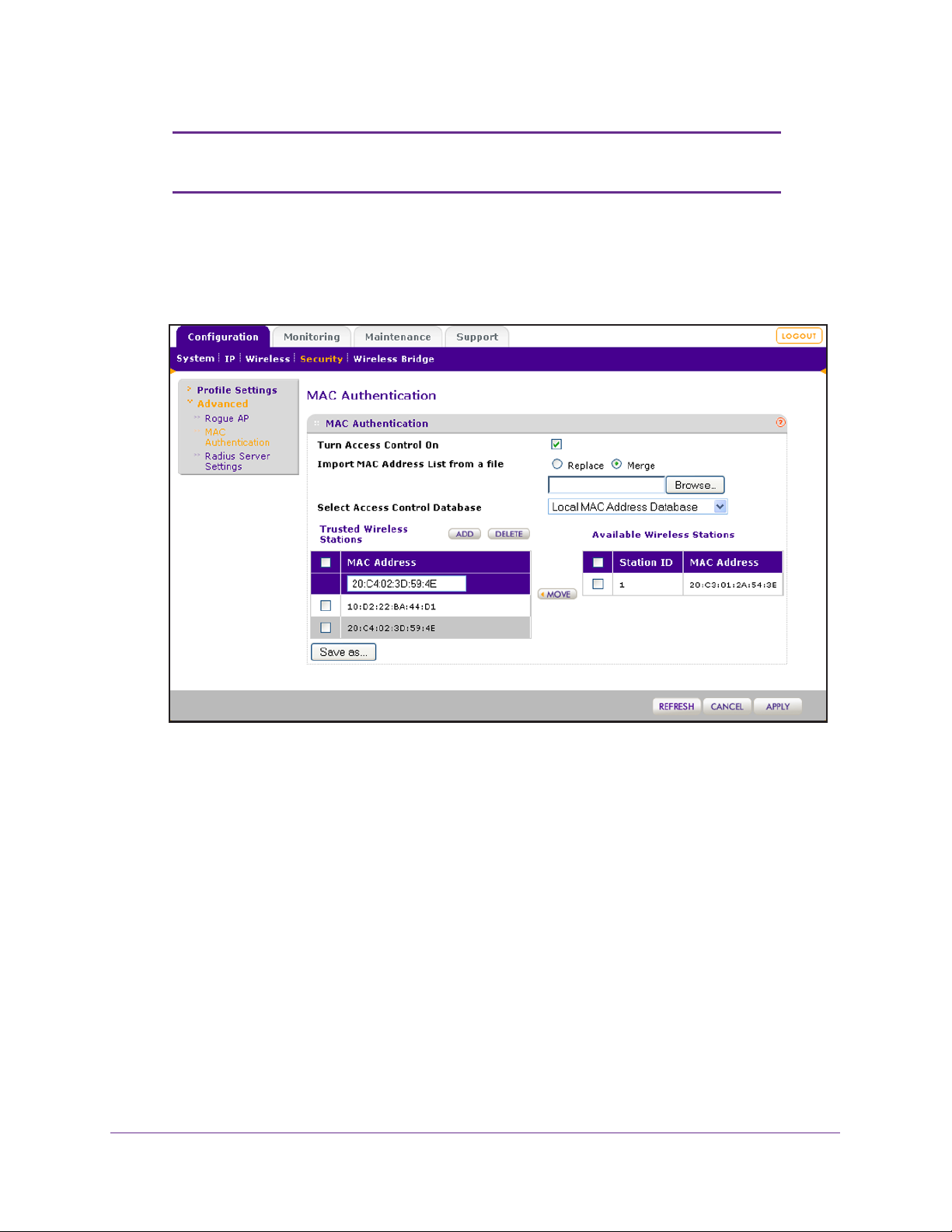

Restrict Wireless Access by MAC Address . . . . . . . . . . . . . . . . . . . . . . . .46

ProSAFE Single Band 802.11n Wireless Access Point WN203

Schedule the Wireless Radios to Be Turned Off . . . . . . . . . . . . . . . . . . . .49

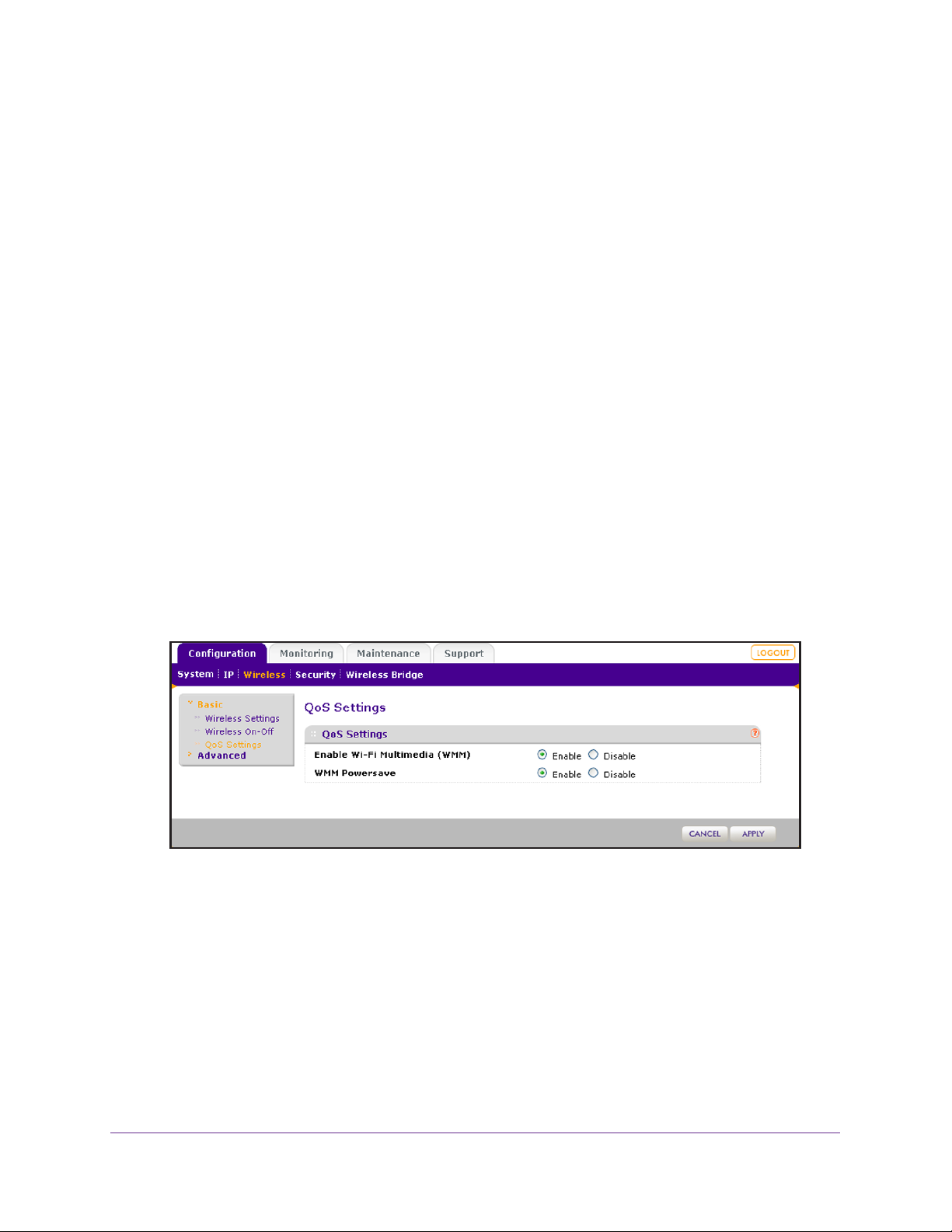

Configure Basic Wireless Quality of Service . . . . . . . . . . . . . . . . . . . . . . .49

Chapter 4 Management

Enable Remote Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

SNMP Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Secure Shell and Telnet Management. . . . . . . . . . . . . . . . . . . . . . . . . .53

Upgrade the Wireless Access Point Software . . . . . . . . . . . . . . . . . . . . . .54

Web Browser Upgrade Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

TFTP Server Upgrade Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Manage the Configuration File or Reset to Factory Default. . . . . . . . . . . .57

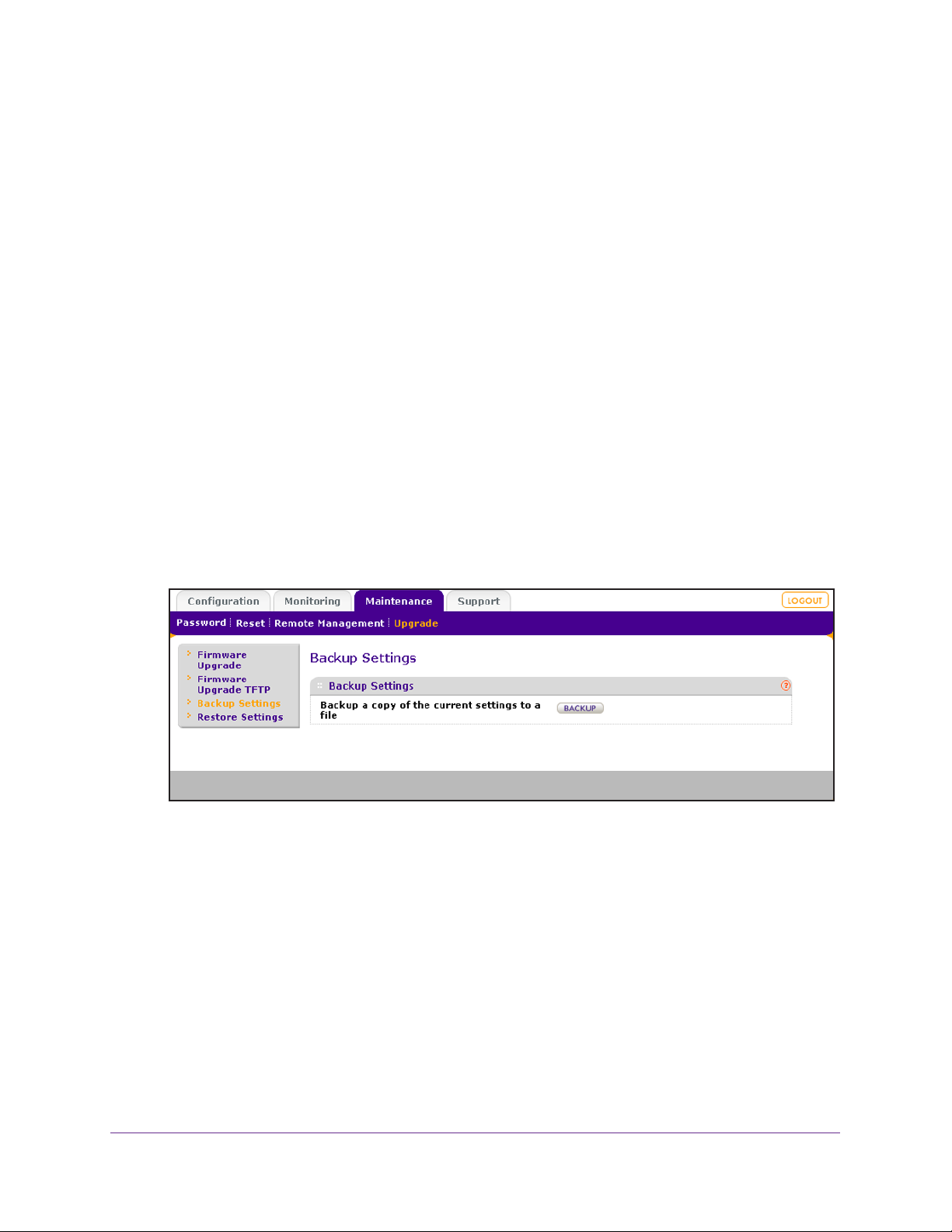

Save the Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Restore the Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Restore the Wireless Access Point to the Factory Default Settings. . . .58

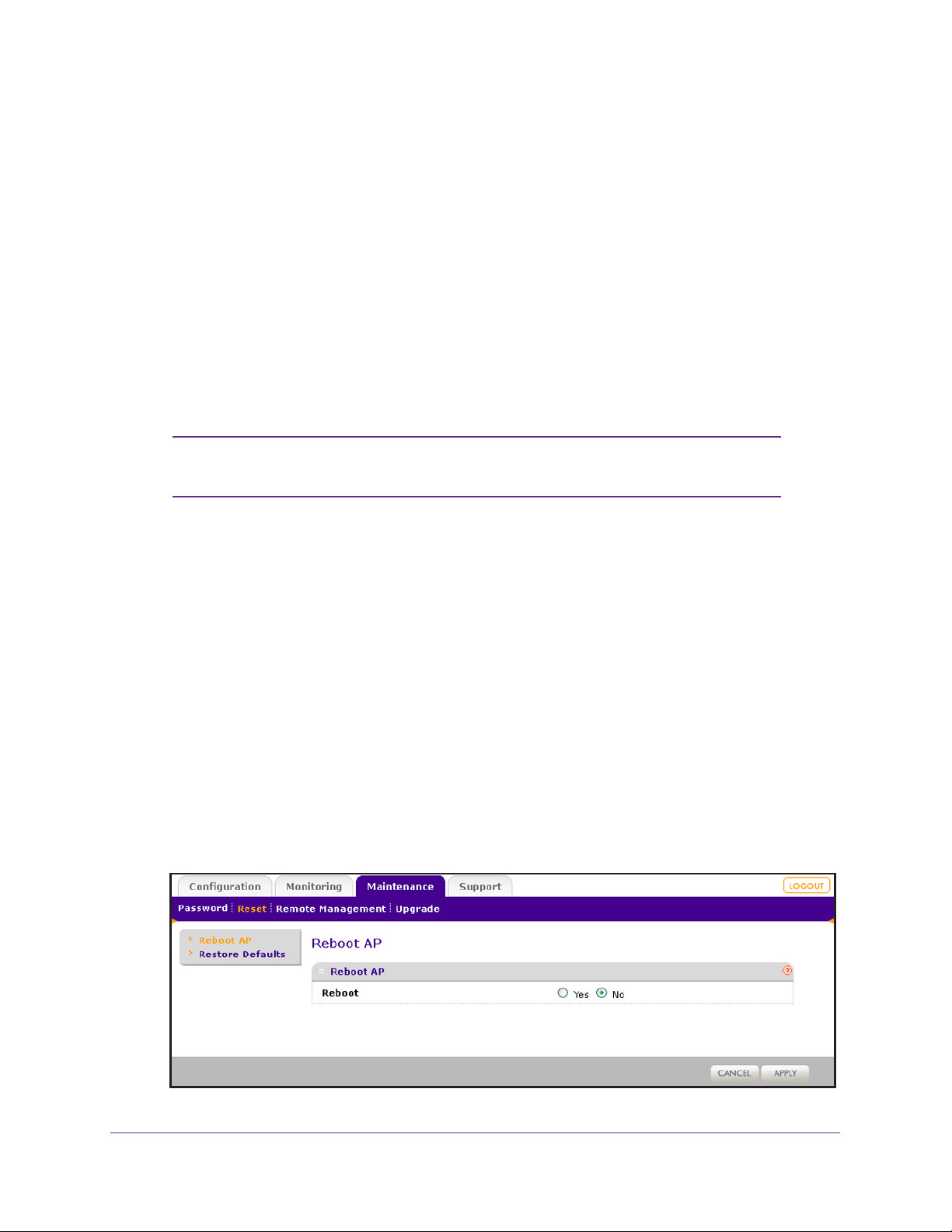

Reboot the Wireless Access Point without Restoring the

Default Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Change the Administrator Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Enable the Syslog Option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

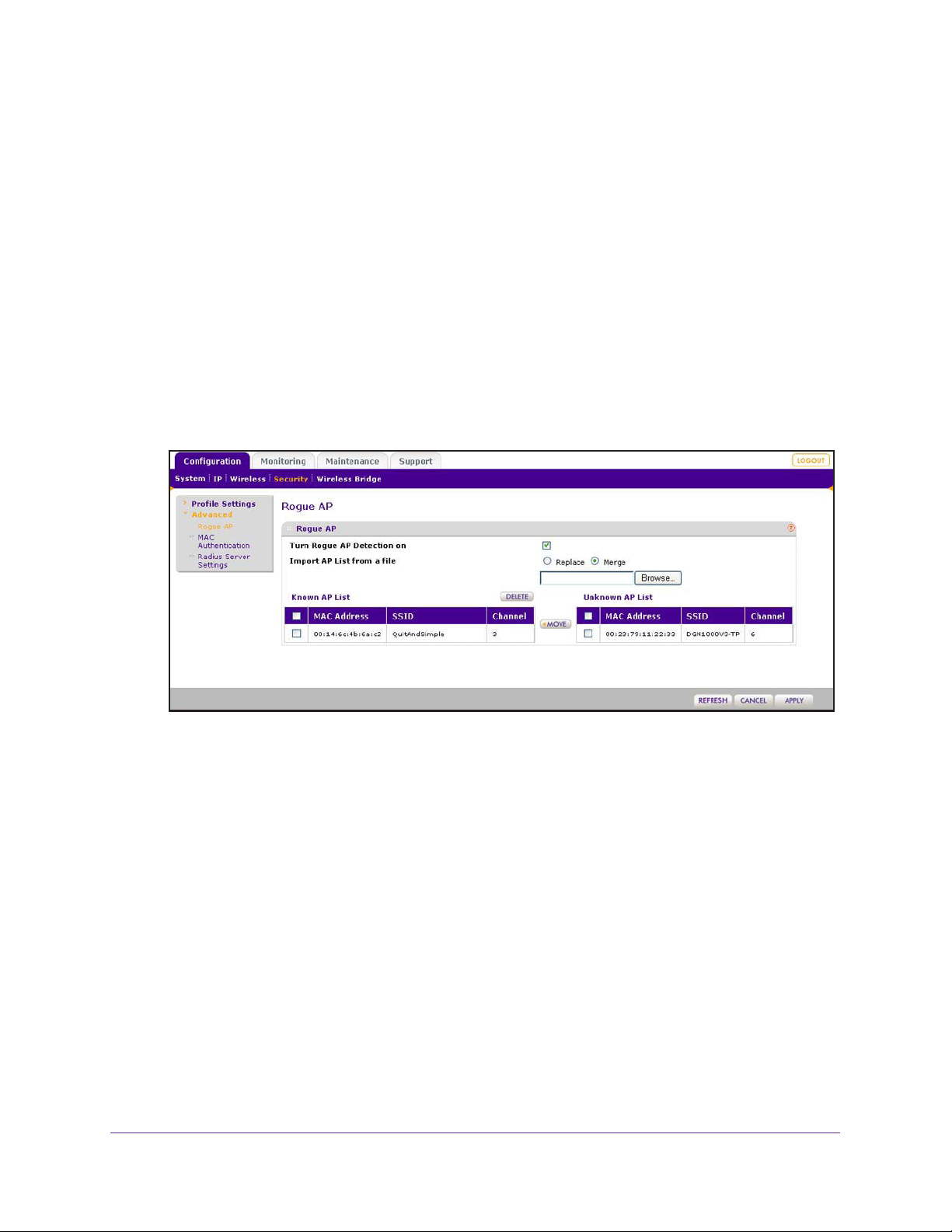

Enable Rogue AP Detection and Monitor Access Points. . . . . . . . . . . . . .62

Enable and Configure Rogue AP Detection. . . . . . . . . . . . . . . . . . . . . .63

View and Save Access Point Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Chapter 5 Advanced Configuration

Configure Spanning Tree Protocol and 802.1Q VLANs. . . . . . . . . . . . . . .68

Configure Hotspot Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Configure Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .70

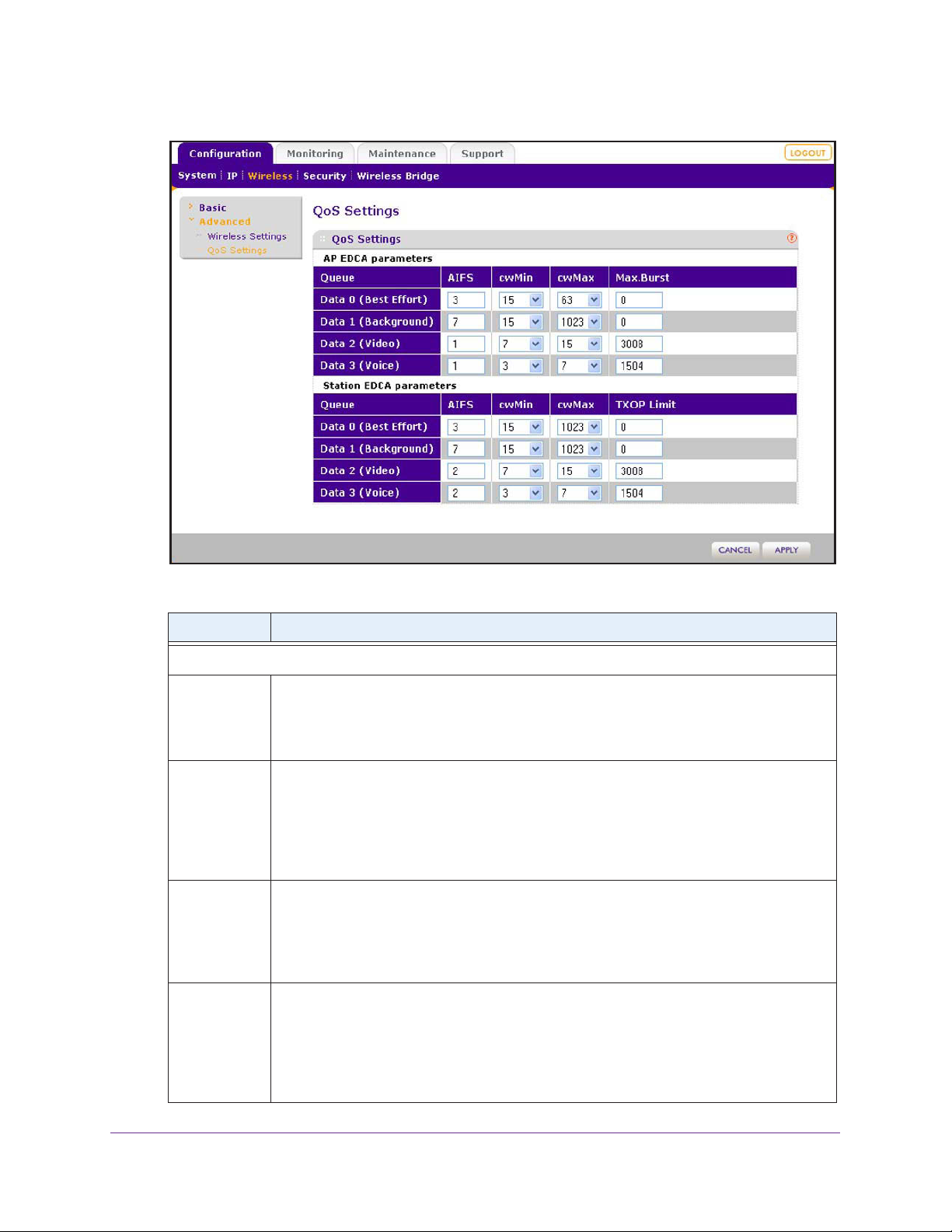

Configure Advanced Quality of Service Settings . . . . . . . . . . . . . . . . . . . .73

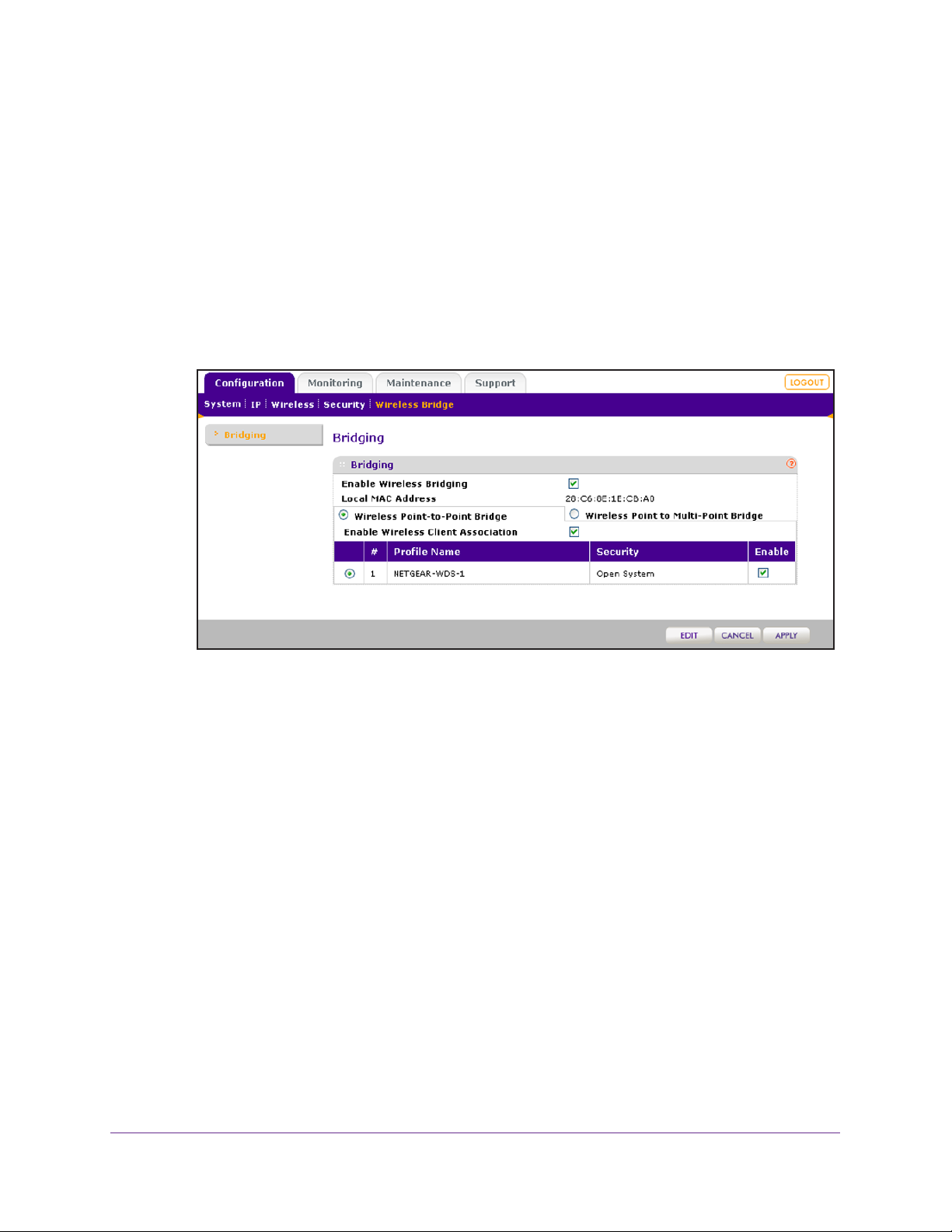

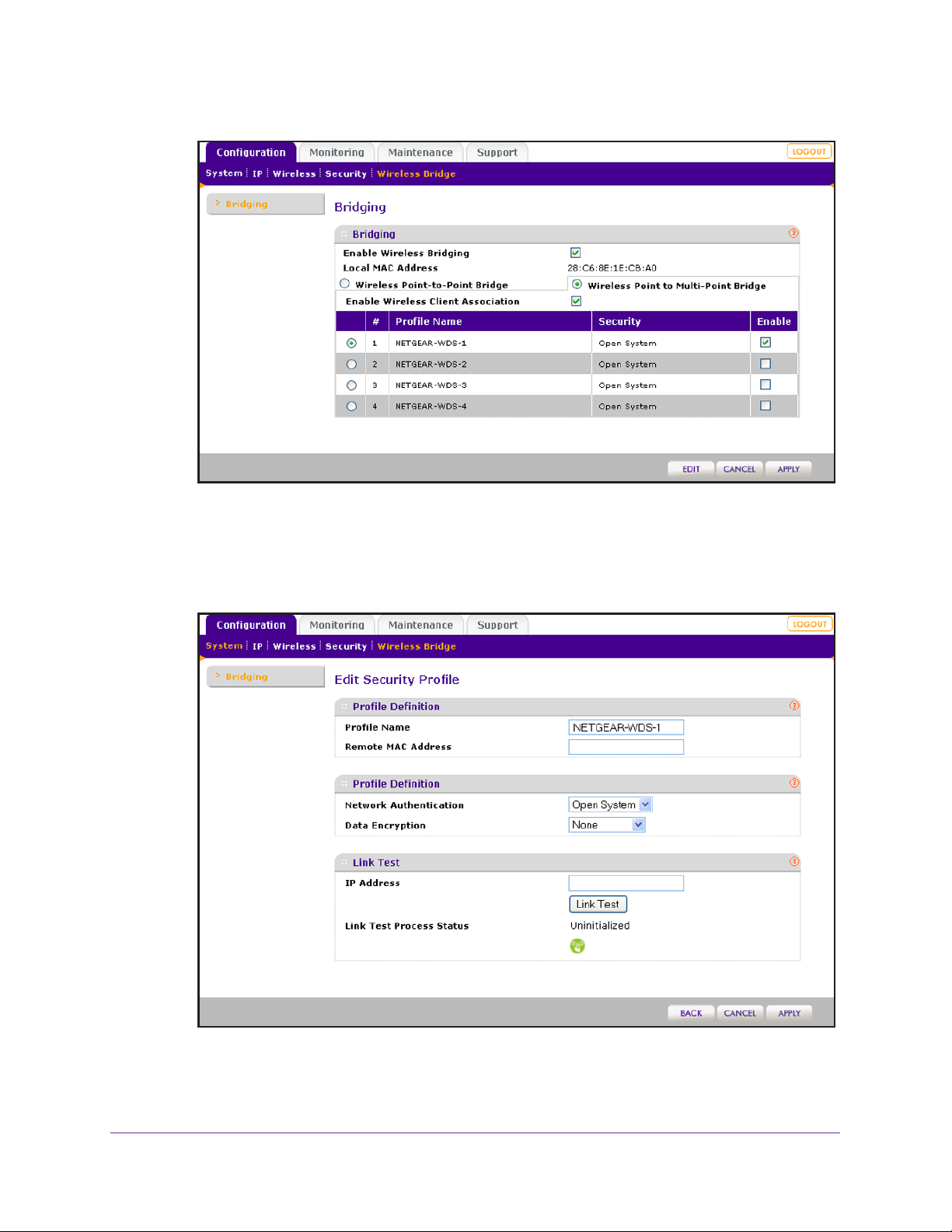

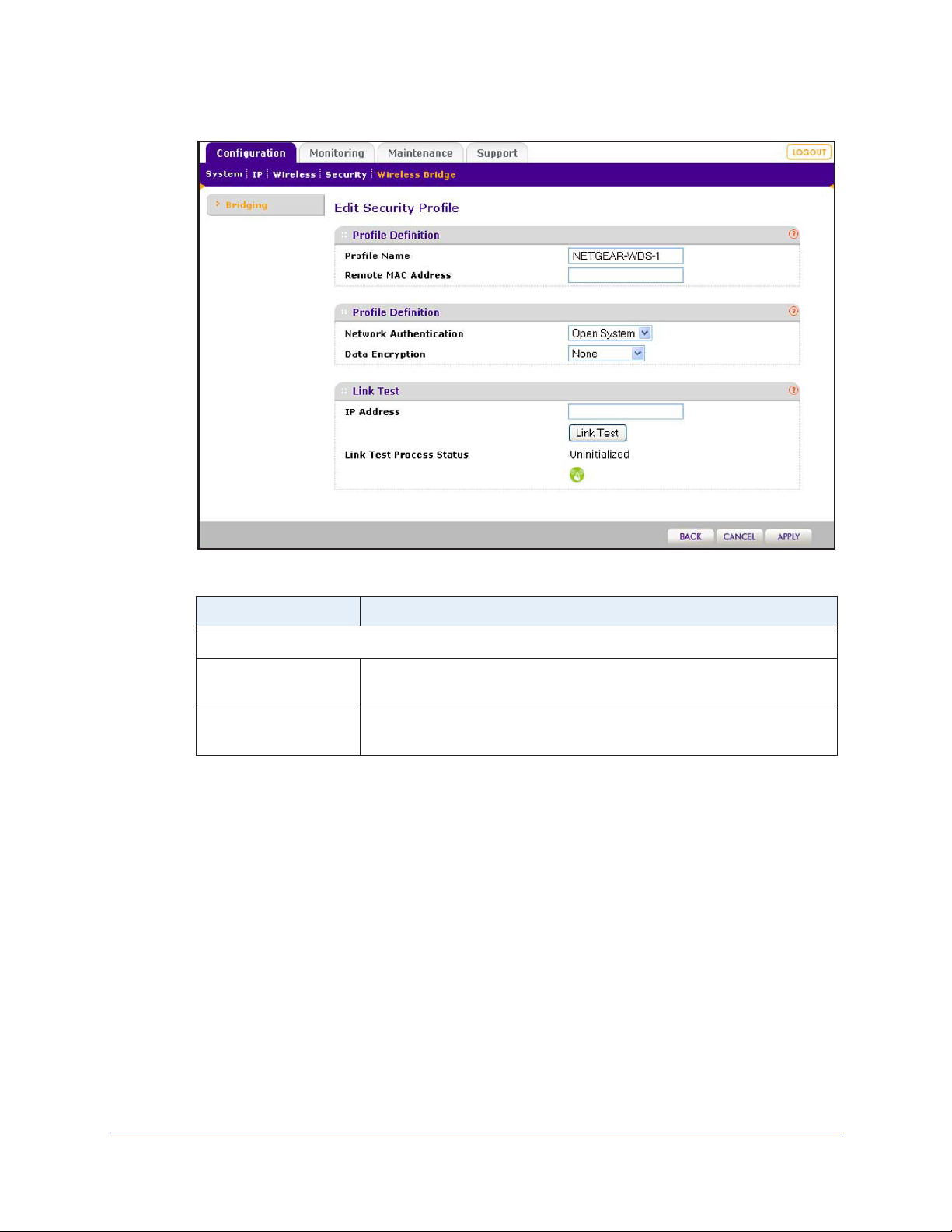

Configure Wireless Bridging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Configure a Point-to-Point Wireless Network. . . . . . . . . . . . . . . . . . . . .76

Configure a Point-to-Multipoint Wireless Network . . . . . . . . . . . . . . . . .81

Configure the Wireless Access Point to Repeat the Wireless

Signal Using Point-to-Multipoint Bridge Mode . . . . . . . . . . . . . . . . . . . .85

Chapter 6 Monitoring

View System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

Monitor Wireless Clients. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

View the Activity Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

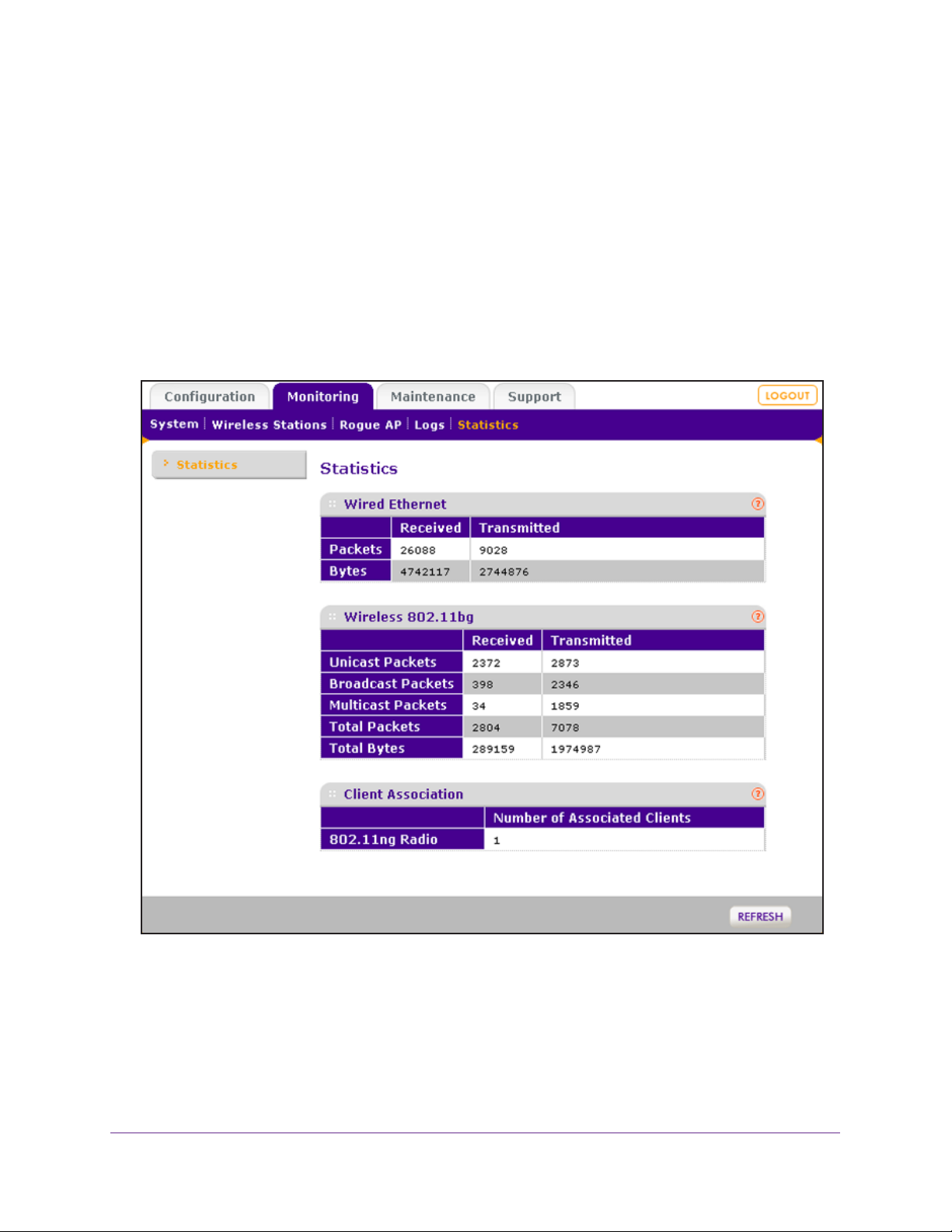

Traffic Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

Chapter 7 Troubleshooting

Basic Functioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

Verify the Correct Sequence of Events at Startup . . . . . . . . . . . . . . . .100

No LEDs Are Lit on the Wireless Access Point . . . . . . . . . . . . . . . . . .100

LAN LED Is Not Lit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

WLAN LED Is Not Lit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

You Cannot Access the Internet or the LAN from a

ProSAFE Single Band 802.11n Wireless Access Point WN203

Wireless-Capable Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

You Cannot Configure the Wireless Access Point from a Browser . . . . .102

When You Enter a URL or IP Address a Time-Out Error Occurs. . . . . . .103

Troubleshoot a TCP/IP Network Using the Ping Utility. . . . . . . . . . . . . . .103

Test the LAN Path to Your Wireless Access Point. . . . . . . . . . . . . . . .103

Test the Path from Your Computer to a Remote Device . . . . . . . . . . .104

Problems with Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105

Appendix A Supplemental Information

Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

Factory Default Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Appendix B Command-Line Reference Appendix C Notification of Compliance Index

1. Introduction

This chapter introduces the NETGEAR® ProSAFE® Single Band 802.11n Wireless Access

Point WN203, and describes some of the key features. The chapter includes the following sections:

• About the ProSAFE Single Band 802.11n Wireless Access Point WN203

• What Is in the Box?

• System Requirements

• Key Features and Standards

• Hardware Description

Note: For more information about the topics covered in this manual, visit

the support website at support.netgear.com.

Note: Firmware updates with new features and bug fixes are made

available from time to time at downloadcenter.netgear.com. Some products can regularly check the site and download new firmware, or you can check for and download new firmware manually features or behavior of your product do not match what is described in this guide, you might need to update your firmware.

. If the

ProSAFE Single Band 802.11n Wireless Access Point WN203

About the ProSAFE Single Band 802.11n Wireless Access Point WN203

The ProSAFE Single Band 802.11n Wireless Access Point WN203, going forward in this manual referred to as the wireless access point, is a solid building block of a wireless LAN infrastructure. It provides 2.4 GHz 802.1 1b/g/n connectivity between wired Ethernet networks and radio-equipped wireless notebook systems, desktop systems, print servers, and other devices. Support for two transmit radio chains and two receive radio chains, also referred to as 2x2 multiple input, multiple output (MIMO), can increase wireless throughput considerably .

The wireless access point provides wireless connectivity to multiple wireless network devices

within a fixed range or area of coverage. point provides a maximum connectivity area with about a 500-foot radius. The wireless access point can support a maximum of 64 clients in a range of several hundred feet. The throughput is shared between all clients. quality of your wireless network, install a sufficient number of wireless access points.

The wireless access point acts as a bridge between the wired LAN and wireless clients. Connecting multiple wireless access points through a wired Ethernet backbone can further increase the wireless network coverage. As a mobile computing device moves out of the range of one wireless access point, it moves into the range of another clients can freely roam from one wireless access point to another and still maintain a seamless connection to the network.

ypically, an individual in-building wireless access

o meet the required coverage, throughput, and

. As a result, wireless

The autosensing capability of the wireless access point allows packet transmission at up to 300 Mbps, or at reduced speeds to compensate for distance or electromagnetic interference.

What Is in the Box?

The product package contains the following items:

• ProSAFE Single Band 802.11n Wireless

• Straight through Category 5 Ethernet cable

• Power adapter and cord (12V

• Stand

• T

wo wall mount screws and anchors

• Resource CD

• Installation guide

If any parts are missing or damaged, contact your reseller or customer support in your area. V

isit the NETGEAR website at

the telephone number of customer support in your area. Keep the installation guide, along with the original packing materials. If you need to return the

wireless access point for repair, use the packing materials to repack the wireless access point.

, 1A)

http://support.netgear.com/general/contact/default.aspx for

Access Point WN203

Introduction

ProSAFE Single Band 802.11n Wireless Access Point WN203

External antennas do not come standard with the wireless access point but can be purchased as an option. If you have purchased external antennas, see Configure Advanced Wireless

Settings on page 70 for information about how to enable the external antennas.

System Requirements

Before installing the wireless access point, make sure that your system meets these requirements:

• A 10/100/1000 Mbps local area network device such as a hub, switch, or router

• The Category 5 UTP straight-through Ethernet cable with RJ-45 connector that is

included in the package, or one like it

• Either a 100–120V

Power over Ethernet (PoE)

• A computer with the TCP/IP protocol installed and a web browser for configuration, such

as Microsoft Internet Explorer 8.0 or later

, 50–60 Hz

AC power source or a hub, switch, or router that provides

, or Mozilla Firefox 18.0 or later

Key Features and Standards

This section includes the following subsections:

• Supported Standards and Conventions

• Key Features

• 802.11b/g/n Standards–Based Wireless Networking

• Autosensing Ethernet Connections with Auto Uplink

The wireless access point is easy to use and provides solid wireless and networking support. It also of

Supported Standards and Conventions

The wireless access point supports the following standards and conventions:

• Standards compliance. The wireless access point complies with the IEEE 802.1

• WPA and WPA2. The wireless access point provides WPA and WPA2 enterprise-class

• Multiple BSSIDs.

fers a wide range of security options.

standards for wireless LANs and is Wi-Fi certified for 802.11n standard.

strong security with RADIUS and certificate authentication as well as dynamic encryption key generation. have the overhead of RADIUS servers but provides the strong security of WPA.

access point is connected to a wired network and a set of wireless clients, it is called a basic service set (BSS). attached to the header of packets sent over a WLAN that differentiates one WLAN from another when a mobile device tries to connect to the network.

The WPA-PSK and WPA2-PSK pre-shared key authentication does not

The wireless access point supports multiple BSSIDs. When a wireless

The basic service set identifier (BSSID) is a unique identifier

1 b/g

Introduction

ProSAFE Single Band 802.11n Wireless Access Point WN203

The multiple BSSID feature allows you to configure up to eight SSIDs on your wireless access point and assign different configuration settings to each SSID. All the configured SSIDs are active, and the network devices can connect to the wireless access point by using any of these SSIDs.

• DHCP server and client. The DHCP server of the wireless access point can provide a

dynamic IP address to wireless clients. and obtain an IP address from a DHCP server on the LAN.

• SNMP. The wireless access point supports Simple Network Management Protocol

(SNMP) for Management Information Base (MIB) management.

• STP. The wireless access point supports Spanning Tree Protocol (STP).

• 802.1Q VLAN

network even though they might actually be physically on dif Virtual LANs (VLANs) are configured through software rather than hardware, which makes them very flexible. VLANs are very useful for user and host management, bandwidth allocation, and resource optimization.

. A network of computers can behave as if they are connected to the same

The wireless access point can also act as a client

ferent segments of a LAN.

Key Features

The wireless access point provides solid functionality, including the following features:

• Multiple operating modes:

- W

ireless access point.

802.11b/g/n access point for clients.

- Point-to-point bridge. The wireless access point communicates with another access

point that functions in bridge mode. association.

- Point-to-multipoint bridge. The wireless access point is the master for a group of

access points that function in bridge mode, that send all traf do not communicate directly with each other. You can use this mode with or without client association.

- Repeating the wireless signal.

access point for clients but functions only in point-to-multi the wireless signal and send all traffic to a remote access point.

• WMM. Wi-Fi Multimedia (WMM) is a subset of the 802.11e standard. WMM allows

wireless traf Time-dependent information, like video or audio, has a higher priority than normal traffic. For WMM to function correctly, wireless clients also need to support WMM.

• QoS. Quality of Service (QoS) support lets you configure parameters that af

flowing from the wireless access point to the client station and traffic flowing from the client station to the wireless access point.

• Hotspot support. Y

redirected to the URL you specify.

• Rogue AP detection

access to any part of the secured wireless and wired LAN.

fic to have a range of priorities, depending on the kind of data.

ou can allow all HTTP (TCP, port 80) requests to be captured and

. Rogue AP filtering ensures that unknown APs are not given

The wireless access point operates as a standard

You can use this mode with or without client

fic to the master, and that

The wireless access point does not function as an

point bridge mode to repeat

fect traf

fic

Introduction

ProSAFE Single Band 802.11n Wireless Access Point WN203

• Access control. MAC address filtering can ensure that only trusted wireless clients can

use the wireless access point to gain access to the wireless and wired LAN.

• Security profiles. When using multiple BSSIDs, you can configure unique security

settings (encryption, SSID, and so on) for each BSSID.

• Hidden mode.

correct SSID can connect.

• Telnet and SSH command-line interface. Using an application such as PuTTY

access the wireless access point over a Telnet or Secure Shell (SSH) connection and use the command-line interface (CLI) to configure the wireless access point.

• Upgradeable firmware. Firmware is stored in flash memory.

using only your web browser, and you can upgrade it remotely. You can also use the command-line interface.

• Configuration backup. Configuration settings can be backed up to a file and restored.

• Secure and economical operation.

economical operation.

• PoE support

end-span sources can supply power to the wireless access point over the Ethernet port. The wireless access point can receive all required power on one Ethernet port from a single PoE source.

• Autosensing Ethernet connection with

10/100/1000 Mbps IEEE 802.3 Ethernet networks.

• LED indicators. Power,

• VLAN security profiles. Each security profile is automatically allocated a VLAN ID when

the security profile is modified.

The SSID is not broadcast, assuring that only clients configured with the

, you can

You can upgrade it easily,

Adjustable power output allows more secure or

. Using Power over Ethernet (PoE), any 802.3af-compliant midspan or

Auto Uplink™ interface. Connects to

Test, LAN, and WLAN LEDs are easily identified.

802.11b/g/n Standards–Based Wireless Networking

The wireless access point provides a bridge between wired Ethernet LANs and

802.11b/g/n-compatible wireless LAN networks. It provides connectivity between wired

Ethernet networks and radio-equipped wireless notebook systems, desktop systems, print servers, RFID tags, and other devices.

In addition, the wireless access point supports the following wireless features:

• Aggregation support

• Reduced InterFrame spacing support

• 2x2 multiple input, multiple output (MIMO) support

• Distributed coordinated function (CSMA/CA, back-of

retransmission of unacknowledged frames)

• RTS/CTS handshake

• Beacon generation

• Packet fragmentation and reassembly

• Auto or long preamble

Introduction

f procedure,

ACK procedure,

ProSAFE Single Band 802.11n Wireless Access Point WN203

• Roaming among wireless access points on the same subnet

Autosensing Ethernet Connections with Auto Uplink

The wireless access point can connect to a standard Ethernet network. The LAN interface is autosensing and capable of full-duplex or half-duplex operation.

The wireless access point incorporates Auto Uplink technology. The Ethernet port automatically senses whether the Ethernet cable plugged into the port should have a “normal” connection such as to a computer or an “uplink” connection such as to a switch or

That port then configures itself correctly. This feature also eliminates any concerns

hub. about crossover cables, because Auto Uplink accommodates either type of cable to make the right connection.

Hardware Description

This section describes the front and back hardware functions of the wireless access point.

• Front Panel

• Back Panel

• Bottom Panel with Product Label and Reset to Factory Defaults Button

Front Panel

The LEDs of the wireless access point are described in the following figure and table:

Figure 1. Front panel with LEDs

Introduction

ProSAFE Single Band 802.11n Wireless Access Point WN203

Table 1. Front panel LEDs

Item LED Description 1

Power Off Power is off.

Test Off The wireless access point functions normally.

LAN Off No link is detected on the LAN port.

WLAN Off The wireless LAN is not ready, or no wireless activity is

Back Panel

Green Power is on.

Amber The wireless access point is starting. After about one

minute, the LED turns off.

Blinking amber New firmware is being loaded.

Amber A 100 Mbps or 10 Mbps link is detected on the LAN port. Green A 1000 Mbps link is detected on the LAN port.

detected. Blue The wireless LAN is ready. Blinking Blue Wireless activity is detected.

Figure 2. Back panel

The back panel components of the wireless access point, from left to right, are described in the following list:

1. Reverse SMA connector for an optional 2.4 GHz antenna.

2. Console port for connecting to an optional console terminal. The port has an RJ-45

connector and supports the following settings: 115200 K default baud rate, (8) data bits, no (N) parity bit, and one (1) stop bit.

3. 10/100/1000BASE-T Gigabit Ethernet RJ-45 LAN port with Auto Uplink (Auto MDI-X) and

IEEE 802.3af Power over Ethernet (PoE) support for connection to a switch or router.

Introduction

ProSAFE Single Band 802.11n Wireless Access Point WN203

4. Power socket for a 12 VDC, 1A power adapter.

5. Reverse SMA connector for an optional 2.4 GHz antenna.

If you have purchased external antennas, see Configure Advanced Wireless Settings on page 70 for information about how to enable the external antennas.

Bottom Panel with Product Label and Reset to Factory Defaults Button

The product label on the bottom of the wireless access point’s enclosure displays factory default settings, regulatory compliance, and other information. The bottom panel also contains the recessed Reset to Factory Defaults button, which is indicated on the product label.

ProSAFE

Single Band 802.11n Wireless Access Point

WN203

This device complies with part 15 of the FCC Rules and Canada ICES-003.

Reset to Factory Defaults

Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: PY312400222 IC: 4054A-12400221

http://192.168.0.100 user name: admin password: password

MAC

SERIAL

Made in China

Power

12V 1.0A

2.4 Ghz2.4 Ghz Console LAN

272-11850-02

Reset to Factory Defaults button

Figure 3. Product label on the bottom

 To reset the wireless access point to factory default settings:

Use a sharp object to press and hold the Reset to Factory Defaults button for about 10 seconds.

All custom configuration settings are lost, and the default password is restored. For more information, see Restore the Wireless Access Point to the Factory Default Settings on page 58.

Introduction

2. Installation and Basic Configuration

This chapter describes how to install and configure the wireless access point for wireless

connectivity to your LAN. This basic configuration enables computers with 2.4 GHz 802.11b/g/n wireless adapters to connect to the Internet or access printers and files on your LAN. In planning your wireless network, consider the level of security required. Chapter 3, Wireless Configuration

and Security, describes how to set up wireless security for your network. This chapter includes

the following sections:

• What You Need Before You Begin

• Install and Configure the Wireless Access Point

• Test Basic Wireless Connectivity

ProSAFE Single Band 802.11n Wireless Access Point WN203

What You Need Before You Begin

You need to consider the guidelines and requirements in the following sections before you can set up your wireless access point.

Wireless Equipment Placement and Range Guidelines

The range of your wireless connection can vary significantly based on the location of the wireless access point. The latency, data throughput performance, and power consumption of wireless adapters also vary depending on your configuration choices.

Note: Failure to follow these guidelines can result in significant

performance degradation or inability to connect wirelessly to the wireless access point. For complete performance specifications, see

Appendix A, Supplemental Information.

For best results, place your wireless access point according to the following general guidelines:

• Near the center of the area in which the wireless devices will operate.

• In an elevated location such as a high shelf where the wirelessly connected devices have

line-of-sight access (even if through walls).

• Away from sources of interference, such as computers, microwaves ovens, and 2.4 GHz

cordless phones.

• Away from large metal surfaces or water.

The time it takes to establish a wireless connection can vary depending on both your security settings and placement. WEP connections can take slightly longer to establish. Also, WEP encryption can consume more battery power on a notebook computer

Installation and Basic Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

Ethernet Cabling Requirements

The wireless access point connects to your LAN using twisted-pair Category 5 Ethernet cable with RJ-45 connectors.

LAN Configuration Requirements

For the initial configuration of your wireless access point, you need to connect a computer to the wireless access point.

Hardware Requirements for Computers on Your LAN

To connect to the wireless access point on your network, each computer needs to have an

802.11b/g/n wireless adapter installed.

Requirements for Entering IP Addresses

The fourth octet of an IP address needs to be between 0 and 255 (both inclusive). This requirement applies to any IP address that you enter on a screen of the web management interface.

Install and Configure the Wireless Access Point

Install and configure your wireless access point in the order of the following sections:

1. Connect the Wireless Access Point to a Computer

2. Log In to the Wireless Access Point

3. Configure Basic General System Settings and Time Settings

4. Configure the IP Settings

5. Configure the Optional DHCP Server

6. Configure the Basic Wireless Settings

Before installing the wireless access point, make sure that your Ethernet network functions.

After you have connected the wireless access point to the Ethernet network, computers with

802.1

1b/g/n wireless adapters are able to communicate with the Ethernet network.

Before you start the installation and configuration process, verify that you have met all the system requirements. See

System Requirements on page 8.

Installation and Basic Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

Connect the Wireless Access Point to a Computer

Tip: Before you place the wireless access point in an elevated position that is

difficult to reach, first set up and test the wireless access point to verify wireless network connectivity.

 To set up the wireless access point:

1. Unpack the box and verify the contents.

2. Prepare a computer with an Ethernet adapter:

a. If this computer is already part of your network, record its

settings.

b. Configure the computer with a static IP address of 192.168.0.210 and 255.255.255.0

as the subnet mask.

3. Connect an Ethernet cable to the Ethernet port (A) of the computer

4. Securely insert the other end of the Ethernet cable into the wireless access point’s LAN

port (B).

TCP/IP configuration

5. Turn on your computer.

6. Connect the power adapter to the wireless access point.

Tip: The wireless access point supports Power over Ethernet (PoE). If you

have a switch that provides PoE, you do not need to use the power adapter to power the wireless access point. Using PoE can be especially convenient when the wireless access point is installed in a high location far away from a power outlet.

erify the following:

7. V

Power LED. The Power LED is green. If the Power LED is off, check the

connections, and check if the power outlet is controlled by a wall switch that is turned off.

Installation and Basic Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

T est LED. The Test LED is amber. After about one minute, the Test LED turns

off. LAN LED. The LAN LED indicates the LAN speed for the LAN port: green for

1000 Mbps or amber for 100 Mbps or 10 Mbps.

WLAN LED. The WLAN LED is blue when the wireless LAN (WLAN) is ready.

Log In to the Wireless Access Point

The default IP address of your wireless access point is 192.168.0.100. By default, the DHCP client on the wireless access point is disabled so you can log in using the default IP address.

 To log in to the wireless access point:

1. Open a web browser such as Microsoft Internet Explorer 8.0 or later, or Mozilla

Firefox 18.0 or later.

2. Connect to the wireless access point by entering its default address of 192.168.0.100

your browser (use http and not https).

into

The Login screen displays:

3. Enter the default user name of admin and the default password of password.

4. Click the Login button.

The web browser displays the basic General system settings screen under the Configuration tab of the main menu:

Installation and Basic Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

The navigation tabs across the top of the web management interface provide access to all the configuration functions of the wireless access point and remain constant. The menu items in the blue bar change according to the navigation tab that is selected.

Figure 4. Navigation tabs and menu items

The bottom right corner on all screens that allow you to make configuration changes show the Apply and Cancel buttons.

Figure 5. Buttons

These buttons have the following functions:

• Cancel. Cancels all configuration changes that you made on the screen.

• Apply. Saves and applies all configuration changes that you made on the screen.

The following buttons can be displayed:

• Edit. Lets you edit the existing configuration.

• Save or Save As. Lets you save the information that is displayed onscreen to a file.

• Details. Provides more details for the information that is displayed in a table onscreen.

• Refresh. Refreshes the information that is displayed onscreen.

• Clear. Clears the information that is displayed onscreen.

• Back. Returns to the previous screen.

• Send. Sends a test command.

Installation and Basic Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

Configure Basic General System Settings and Time Settings

After you have successfully logged in to the wireless access point, the basic General system

settings screen displays.

 To configure basic system settings:

1. Select Configuration > System >

Basic > General.

The basic General system settings screen displays:

2. Configure the settings as described in the following table:

Setting Description

AP Name This unique name is the wireless access point NetBIOS name. The name is printed

on the label of the wireless access point. The default is netgearxxxxxx xxxxxx represents the last six digits of the wireless access point MAC address. You can replace the default name with a unique name up to 15 characters long. The access point name can be retrieved through SNMP.

Country / Region From the Country / Region drop-down menu, select the country where the wireless

access point is installed.

Note: It might not be legal to operate this wireless access point in a region other than

one of the regions that you can select from the drop-down menu.

, in which

3. Click the Apply button.

Installation and Basic Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

 To configure time settings:

1. Select Configuration > System > Basic > Time .

The Time screen displays:

2. Configure the settings as described in the following table:

Setting Description

Time Zone Select the time zone to match your location. Current Time This is a nonconfigurable field that displays the current date and time. NTP Client Enable the Network Time Protocol (NTP) client to synchronize the time of the

wireless access point with an NTP server selected.

Use Custom NTP Server Select this check box if you want to use a custom NTP server.

Note: You need to have an Internet connection to use an NTP server that is

not on your local network.

Hostname / IP Address

Enter the host name or IP address of the custom NTP server The default NTP server depends on the selected time zone. For example, for China the default is time-e.netgear

Note: If you use a host name, make sure that you have

configured a DNS server. For more information, see the next section.

. By default the Enable radio button is

3. Click the Apply button.

.com.

Installation and Basic Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

Configure the IP Settings

WARNING:

If you enable the DHCP client, the IP address of the wireless access point changes when you click the Apply button, causing you to lose your connection to the wireless access point. Y ou then need to use the new IP address to reconnect to the wireless access point.

Tip: If you enable the DHCP client on the wireless access point, you can

discover the new IP address of the wireless access point by accessing the DHCP server on your LAN, or by using a network IP address scanner application.

 To configure the IP settings:

1. Select Configuration > IP > IP Settings.

The IP Settings screen displays:

Installation and Basic Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

2. Configure the IP settings as described in the following table:

Setting Description

DHCP Client By default, the Dynamic Host Configuration Protocol (DHCP) client is disabled. If

you have a DHCP server on your LAN and you select the Enable radio button, the wireless access point receives its IP address, subnet mask, and default gateway settings automatically from the DHCP server on your network when you connect the wireless access point to your LAN.

IP Address If you do not enable the DHCP client, enter the IP address of your wireless

access point. enter an unused IP address from the address range that is used on your LAN.

IP Subnet Mask If you do not enable the DHCP client, enter the network number portion of an IP

address. Unless you are implementing subnetting, enter 255.255.0.0 as the subnet mask.

Default Gateway If you do not enable the DHCP client, enter the IP address of the ISP gateway to

which the wireless access point connects.

The default IP address is 192.168.0.100. T

o change the address,

Primary DNS Server

Secondary DNS Server

Network Integrity Check Select this check box to validate that the upstream link is active before allowing

If you do not enable the DHCP client, enter the IP addresses of the primary and secondary DNS servers. A DNS server is a host on the Internet that translates Internet names (such as www

.netgear.com) to numeric IP addresses. address of one or two DNS servers to your wireless access point during login. If the ISP does not transfer addresses, you need to obtain them from the ISP and enter them manually in these fields.

wireless associations. Ensure that the default gateway is configured.

Typically your ISP transfers the IP

3. Click the Apply button.

Configure the Optional DHCP Server

The wireless access point provides a built-in DHCP server for wireless clients only , which can be especially useful in small networks. By default, the DHCP server is disabled. When the DHCP server is enabled, the wireless access point provides preconfigured TCP/IP configurations to all connected wireless clients.

 To configure DHCP server settings:

1. Select Configuration > IP > DHCP Server Settings.

The DHCP Server Settings screen displays:

Installation and Basic Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

2. Configure the settings as described in the following table:

Setting Description

Select the Enable radio button to enable the DHCP server . Use the default settings or specify the pool of IP addresses to be assigned by setting the starting IP address and ending IP address. These addresses should be part of the same IP address subnet as the wireless access point’

DHCP Server VLAN ID Enter the VLAN ID for the DHCP server. The VLAN ID range is from 1 to 4094.

The default VLAN is 1.

Starting IP Address Enter the first address in the range of IP addresses to be assigned to DHCP

clients.

The default address is 192.168.1.02.

Stopping IP Address Enter the last address in the range of IP addresses to be assigned to DHCP

clients. The default address is 192.168.1.50.

Subnet Mask Enter the subnet mask to be used by DHCP clients. The default mask is

255.255.255.0.

Gateway IP

Primary DNS Server Enter the IP address of the primary Domain Name System (DNS) server

Secondary DNS Server Enter the IP address of the secondary DNS server available to DHCP clients.

Address Enter the IP address of the default routing gateway to be used by DHCP clients.

The default address is 192.168.0.1.

available to DHCP clients.

s LAN IP address.

Primary WINS Server Enter the IP address of the primary WINS server for the network, if there is any.

Installation and Basic Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

Setting Description

Secondary WINS Server Enter the IP address of the secondary WINS server for the network, if there is

any.

Lease

Enter the period that the DHCP server grants to DHCP clients to use the assigned IP addresses. The default time is 1 (one day).

3. Click the Apply button.

Configure the Basic Wireless Settings

For proper compliance and compatibility between similar products in your coverage area, you need to configure the 802.1 1b/g/n wireless adapter settings correctly, including the operating channel and country. You also need to configure the basic wireless network settings for wireless devices to connect to your network. For other wireless features, including wireless security, see Chapter 3, Wireless Configuration and Security.

Operating Frequency (Channel) Guidelines

You do not need to change the operating frequency (channel) unless you notice interference problems or you place the wireless access point near another wireless access point. If you do change the operating frequency, observe the following guidelines:

• Wireless access points use a fixed channel. Y

least interference and best performance. In the United States and Canada, 11 channels are available.

• If you are using multiple wireless access points, it is better if adjacent wireless access

points use different radio frequency channels to reduce interference. channel spacing between adjacent wireless access points is five channels (for example, use Channels 1 and 6, or 6 and 11, or 1 and 11).

ou can select a channel that provides the

The recommended

• In infrastructure mode (which is the default mode for the wireless access point), wireless

clients normally scan all channels, looking for a wireless access point. If more than one wireless access point is available, and the wireless access points use the same SSID, a wireless client uses the wireless access point with the strongest signal.

Configure 802.11b/bg/ng Wireless Settings

The basic Wireless Settings screen lets you configure the wireless mode, SSID, and other wireless settings.

WARNING:

If you configure the wireless access point from a wireless computer and you change the wireless access point’s SSID, channel, or wireless security settings, you lose your wireless connection when you click the Apply button. You then need to change the wireless settings of your computer to match the wireless access point’s new settings.

Installation and Basic Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

 To configure the 802.11b/g/n wireless settings:

1. Select Configuration > Wireless > Basic > Wireless Settings.

The basic Wireless Settings screen displays. The following figure shows the 11ng settings.

Note: The radio wave icon ( ) displays next to the enabled wireless

mode (b, bg, or ng).

2. Select one of the following 2.4 GHz band radio buttons:

• 11b. Both 802.11n- and 802.1

1g-compliant devices can connect to the access point

because they are backward compatible.

•

11bg. 802.11n-compliant devices can connect to the access point because they are

backward compatible.

• 11ng. This is the default setting. 802.11b-compliant devices cannot connect to the

access point. If you keep the default setting, go to Step 5

When you change the wireless mode, the Turn Radio On check box is automatically cleared, and all fields, buttons, and drop-down menus onscreen are masked out.

3. Turn on the radio by selecting the Turn Radio On check box.

A pop-up screen displays.

Installation and Basic Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

Note: Under normal conditions, you want the radio to be turned on. Turning off

the radio disables access through the wireless access point, which can be helpful for configuration, network tuning, or troubleshooting activities.

4. Click the OK button to confirm the change of wireless mode.

The change does not take effect until after you have completed the wireless configuration and have clicked the

Apply button.

5. Specify the remaining wireless settings as described the following table:

Setting Descriptions

Wireless Network Name (SSID)

Wireless On-Off Status This field is not configurable. It shows the status of the wireless scheduler. For

Broadcast Wireless Network Name (SSID)

Channel / Frequency From the drop-down menu, select the channel you wish to use for your wireless

Enter a 32-character (maximum) service set identifier (SSID); the characters are case-sensitive. The default device needs to match the wireless access point’s SSID for the wireless device to communicate with the wireless access point. If the SSIDs do not match, you do not get a wireless connection to the wireless access point.

more information, see Schedule the Wireless Radios to Be Turned Off on page 49.

Select the Ye SSID, allowing wireless clients that have a null (blank) SSID to adopt the wireless access point’ from being broadcast, select the No radio button.

LAN.

The wireless channels and frequencies depend on the country and

wireless mode.

Note: You should not have to change the wireless channel unless you

experience interference (indicated by lost connections or slow data transfers). If this situation occurs, you might want to experiment with different channels to see which is the best. For more information, see Operating Frequency (Channel)

Guidelines on page 25.

Note: For more information about available channels and frequencies, see

Technical Specifications on page 107.

s radio button to enable the wireless access point to broadcast its

The default setting is Auto.

is NETGEAR_11ng. The SSID assigned to a wireless

s SSID. Yes is the default setting. To prevent the SSID

Installation and Basic Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

Setting Descriptions

MCS Index / Data Rate 11ng mode only

Note: For most

networks, the default settings work fine.

Output Power From the drop-down menu, select the transmission power of the wireless access

From the drop-down menu, select a Modulation and Coding Scheme (MCS) index and transmit data rate for the wireless network. For a list of all options that you can select, see Technical Specifications on page 107.

Channel Width From the drop-down menu, select a channel width. The

options are Dynamic 20/40 MHz, 20 MHz, and 40 MHz. default is 20 MHz. performance, but some legacy devices can operate only in either 20 MHz or 40 MHz.

Guard Interval From the drop-down menu, select the guard interval to

protect transmissions from interference. or you can select Long - 800 ns. Some legacy devices can operate only with a long guard interval.

point: Full, Half, Quarter

Note: Increasing the power improves performance, but if two or more wireless

access points are operating in the same area and on the same channel, interference can occur.

Note: Make sure that you comply with the regulatory requirements for total radio

frequency (RF) output power in your country.

, Eighth, Minimum.

A wider channel improves the

The default is Full.

The default setting is Best.

The default is

6. Click the Apply button.

The

Auto,

The selected wireless mode is now enabled.

Note: For information about how to configure advanced wireless settings,

see Configure Advanced Wireless Settings on page 70.

Test Basic Wireless Connectivity

After you have configured the wireless access point as described in the previous sections,

test the computers on your LAN for wireless connectivity before you position the wireless access point at its permanent position.

 To test for wireless connectivity:

1. Configure the 802.11b/g/n wireless adapters of your computers so that they all have the

same SSID and channel that you have configured on the wireless access point.

2. Verify that your computers have a wireless link to the wireless access point. If you have

enabled the DHCP server on the wireless access point, verify that to obtain an IP address through DHCP from the wireless access point.

your computers are able

Installation and Basic Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

3. Verify network connectivity by using a browser such as Microsoft Internet Explorer 8.0 or

later, or Mozilla Firefox 18.0 or later to browse the Internet, or check for file and printer access on your network.

Note: If you have trouble connecting to the wireless access point, see

Chapter 7, Troubleshooting.

NETGEAR recommends that you complete the following tasks before you deploy the wireless access point in your network:

• Configure wireless security and other wireless features. See Chapter 3, Wireless Configuration and Security.

• Configure any additional features that you might need. See Chapter 4, Management, and

Chapter 5, Advanced Configuration.

After you have completed the configuration of the wireless access point, you can reconfigure the computer that you used for this process back to its original TCP/IP settings.

Installation and Basic Configuration

3. Wireless Configuration and Security

This chapter describes how to configure the wireless features of the wireless access point. The

chapter includes the following sections:

• Before You Configure Wireless Security

• Wireless Data Security Options

• Security Profiles

• Configure RADIUS Server Settings

• Restrict Wireless Access by MAC Address

• Schedule the Wireless Radios to Be Turned Off

• Configure Basic Wireless Quality of Service

ProSAFE Single Band 802.11n Wireless Access Point WN203

Before You Configure Wireless Security

Before you set up wireless security and additional wireless features that are described in this chapter, connect the wireless access point, get the Internet connection working, set the country or region correctly, and configure the 802.11b, 11bg, or 11ng wireless settings. See

Chapter 2, Installation and Basic Configuration.

The wireless access point functions with an Ethernet LAN connection. Make sure that you have verified wireless connectivity before you set up wireless security and additional wireless features.

WARNING:

If you are configuring the wireless access point from a wireless computer and you change the wireless access point’s SSID, channel, or wireless security settings, you lose your wireless connection when you click the Apply button. You then need to change the wireless settings of your computer to match the wireless access point’s new settings.

Wireless Data Security Options

Indoors, computers can connect over 802.11n wireless networks at a maximum range of 300 feet. Typically, a wireless access point inside a building works best with devices within a 100-foot radius. Such distances can allow for others outside your immediate area to access your network.

Unlike wired network data, your wireless data transmissions can extend beyond your walls and can be received by anyone with a compatible adapter. For this reason, use the security features of your wireless equipment. The wireless access point provides highly ef security features that are covered in detail in this chapter. Deploy the security features appropriate to your needs.

Wireless data security options

Range: Up to 300 feet radius

1. No security: Easy but no security at all

2. MAC access list: No data security

3. WEP: Secure but vulnerable

4. WPA or WPA-PSK: Strong security

5. WPA2 or WPA2-PSK: Very strong

fective

Figure 6. Wireless data security options

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

There are many ways in which you can enhance the security of your wireless network:

• Use multiple BSSIDs combined with VLANs. Y

ou can configure combinations of VLANS and BSSIDs (security profiles) with stronger or less restrictive access security according to your requirements. For example, visitors could be given wireless Internet access but be excluded from any access to your internal network.

For information about how to configure BSSIDs, see Configure and Enable Security

Profiles on page 36.

• Restrict access based by MAC address. Y ou

can allow only trusted devices to connect so that unknown devices cannot wirelessly connect to the wireless access point. Restricting access by MAC address adds an obstacle against unwanted access to your network, but the data broadcast over the wireless link is fully exposed.

For information about how to restrict access by MAC address, see Restrict Wireless

Access by MAC Address on page 46.

• Turn off the broadcast of the wireless network name (SSID). If you disable broadcast

of the SSID, only devices that have the correct SSID can connect.

This nullifies the wireless network discovery feature of some products, such as Windows XP, but the data is still exposed.

For information about how to turn off broadcast of the SSID, see Configure and Enable

Security Profiles on page 36.

• WEP. Wired Equivalent Privacy (WEP) data encryption provides data security. WEP

shared key authentication and WEP data encryption block all but the most determined eavesdropper

. This data encryption mode has been superseded by WPA-PSK and

WPA2-PSK. For information about how to configure WEP, see the following sections:

- Configure and Enable Security Profiles on page 36

- Configure an Open System with WEP or Shared Key with WEP on page 40

• Legacy 802.1X. Legacy 802.1X uses RADIUS-based 802.1x authentication but no data

encryption. For information about how to configure Legacy 802.1X, see the following sections:

- Configure and Enable Security Profiles on page 36

- Configure Legacy 802.1X on page 42

• WP

A and WPA-PSK (TKIP). Wi-Fi Protected

Access (WPA) data encryption provides strong data security with Temporal Key Integrity Protocol (TKIP) encryption. The very strong authentication along with dynamic per-frame rekeying of WPA makes it virtually impossible to compromise.

WPA uses RADIUS-based 802.1x authentication; for more information, see the following sections:

- Configure and Enable Security Profiles on page 36

- Configure WPA with RADIUS, WPA2 with RADIUS, and WPA & WPA2 with RADIUS

on page 42

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

WPA-PSK uses a pre-shared key (PSK) for authentication; for more information, see the following sections:

- Configure and Enable Security Profiles on page 36

- Configure WPA-PSK, WPA2-PSK, and WPA-PSK & WPA2-PSK on page 43

• WP

A2 and WP A2-PSK (AES). Wi-Fi Protected

provides strong data security with Advanced Encryption Standard (AES) encryption. The very strong authentication along with dynamic per-frame rekeying of WPA2 makes it virtually impossible to compromise.

WPA2 uses RADIUS-based 802.1x authentication; for more information, see the following sections:

- Configure and Enable Security Profiles on page 36

- Configure WPA with RADIUS, WPA2 with RADIUS, and WPA & WPA2 with RADIUS

on page 42

WP A2-PSK uses a pre-shared key (PSK) for authentication; for more information, see the following sections:

- Configure and Enable Security Profiles on page 36

- Configure WPA-PSK, WPA2-PSK, and WPA-PSK & WPA2-PSK on page 43

A & WP A2 and WPA-PSK & WPA2-PSK mixed modes. These modes support data

encryption either with both WP WPA2-PSK clients and provide the most reliable security.

WPA & WPA2 uses RADIUS-based 802.1x authentication; for more information, see the following sections:

A and WPA2 clients or with both WPA-PSK and

Access version 2 (WP A2) data encryption

- Configure and Enable Security Profiles on page 36

- Configure WPA with RADIUS, WPA2 with RADIUS, and WPA & WPA2 with RADIUS

on page 42

WPA-PSK & WPA2-PSK uses a pre-shared key (PSK) for authentication; for more information, see the following sections:

- Configure and Enable Security Profiles on page 36

- Configure WPA-PSK, WPA2-PSK, and WPA-PSK & WPA2-PSK on page 43

Security Profiles

This section describes the main components of security profiles and explains how to configure and enable security profiles.

• Security Profile Concepts

• Write Down Your Wireless Network Settings

• Configure and Enable Security Profiles

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

Security profiles let you configure unique security settings for each SSID on each radio of the wireless access point. For each radio, the wireless access point supports up to eight security profiles (BSSIDs) that you can configure on the individual Edit Wireless Network screens that are accessible from the Edit Security Profile screen (see Configure and Enable Security

Profiles on page 36).

Security Profile Concepts

Security profiles include the following main components:

• Network authentication

The wireless access point is set by default as an open system with no authentication. When you configure network authentication, bear in mind that not all wireless adapters support WP A or WPA2. Consult the product documentation for your wireless adapter and WPA or WPA2 client software for instructions about how to configure WPA or WPA2 settings.

For information about the types of network authentication that the wireless access point supports, see Configure and Enable Security Profiles on page 36.

• Data encryption

The available data encryption options depend on the network authentication setting that you select (the default is no encryption).

Configure and Enable Security Profiles

• Wireless client security separation

If this feature is enabled, the associated wireless clients (using the same SSID) are not able to communicate with each other. access situations. By default, wireless client separation is disabled. For more information, see Configure and Enable Security Profiles on page 36.

• VLAN ID

If this feature is enabled and if the network devices (hubs and switches) on your LAN support the VLAN (802.1Q) standard, the default VLAN ID for the wireless access point is associated with each profile. The default VLAN ID needs to match the IDs that are used by the other network devices. For more information, see

Profiles on page 36.

Some concepts and guidelines regarding the SSID are explained in the following list:

• A basic service set (BSS) consists of a group of wireless clients and a single wireless

access point that use the same security profile or service set identifier (BSSID). The actual identifier in the BSSID is the MAC address of the wireless radio. (A wireless radio can have multiple MAC addresses, one for each security profile.)

• An extended service set (ESS) consists of a group of wireless clients and multiple

wireless access points that use the same identifier (ESSID).

• Dif

• Roaming is the ability of wireless clients to connect wirelessly when they physically move

ferent wireless access points within an ESS can use different channels. To reduce

interference, adjacent wireless access points should use dif

from one BSS to another one within the same ESS. The wireless client automatically changes to the wireless access point with the least interference or best performance.

The data encryption settings are explained in

on page 36.

This feature is useful for hotspots and other public

Configure and Enable Security

ferent channels.

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

Write Down Your Wireless Network Settings

For a new wireless network, print or copy the following form and fill in the settings. For an existing wireless network, the network administrator can provide this information.

Print the form and store the security information in a safe place:

• SSID. The service set identifier (SSID) identifies the wireless local area network. Y

customize it by using up to 32 alphanumeric characters. Write your SSID on the line. SSID: ___________________________________ The SSID in the wireless access point is the SSID you configure on the wireless adapter

card. All wireless nodes in the same network need to be configured with the same SSID.

• WEP key size and authentication

Choose the key size by circling one: 64, 128, or 152 bits. Choose the authentication type by circling one: open system or shared key.

Passphrase: ___________________________________ Note: If you select shared key, the other devices in the network cannot connect unless

they are set to shared key and have the same keys in the same positions as those in the wireless access point.

• WPA-PSK (pre-shared key) and WPA2-PSK

Record the WP WPA-PSK passphrase: ________________________________ Record the WPA2-PSK passphrase: WPA2-PSK passphrase: ________________________________

A-PSK passphrase:

ou can

• WP

A RADIUS settings

For WP Server name or IP address: Primary _______________ Secondary ________________ Port: ___________________________________ Shared secret: ___________________________________

For WP Server name/IP address: Primary ________________ Secondary _________________ Port: ___________________________________ Shared secret: ___________________________________

A, record the following settings for the primary and secondary RADIUS servers:

A2 RADIUS settings

A2, record the following settings for the primary and secondary RADIUS servers:

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

Configure and Enable Security Profiles

The wireless access point is set by default as an open system with no authentication. When you configure network authentication, bear in mind the following:

• If you are using access point mode (which is the default mode if you did not enable

wireless bridging), all options are available. In other modes such as bridge mode, some options might be unavailable.

• Not all wireless adapters support WPA or WPA2. Consult the product documentation for

your wireless adapter and WP configure WPA or WPA2 settings.

WARNING:

If you use a wireless computer to configure wireless security settings, you are disconnected when you click the Apply button. Reconfigure your wireless computer to match the new settings, or access the wireless access point from a wired computer to make further changes.

A or WPA2 client software for instructions about how to

 To configure and enable a security profile:

1. Select Configuration > Security > Profile Settings.

The Profile Settings screen displays eight wireless security profiles. (If the radio is disabled, the Enable column is masked out.)

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

The following table explains the fields of the Profile Settings screen:

Setting Description

Profile Name The unique name of the wireless security profile that makes it easy to

recognize the profile. SSID The wireless network name (SSID) for the wireless security profile. Security The configured wireless authentication method for the wireless security

profile. VLAN The default VLAN ID that is associated with the wireless security profile. Enable The check box that lets you select the wireless security profile so you can

enable it by clicking the Apply button.

2. Select the radio button to the left of the wireless security profile that you want to configure,

and click the Edit button. The Edit Security Profile screen displays for the selected wireless security profile (see the

following figure). The screen has two sections:

• Profile Definition (see Step 3

)

• Authentication Settings (see Step 4)

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

3. Specify the settings of the Profile Definition section of the Edit Security Profile screen as

described in the following table:

Setting Description

Profile Name Enter a unique name of the wireless security profile that makes it easy to

recognize the profile. The default names are NETGEAR, NETGEAR-1,

NETGEAR-2, and so on, through NETGEAR-7. Y

32 alphanumeric characters. SSID The wireless network name (SSID) for the wireless security profile. The default

names are NETGEAR_1

on, through NETGEAR_11ng-7 for the eighth profile.

1ng, NETGEAR_11ng-1, NETGEAR_1

ou can enter a value of up to

1ng-2, and so

Broadcast Wireless Network Name (SSID)

Select the Ye

SSID, allowing wireless clients that have a null (blank) SSID to adopt the

wireless access point’s SSID.

from being broadcast, select the No radio button.

s radio button to enable the wireless access point to broadcast its

Yes is the default setting. To prevent the SSID

4. Specify the settings of the Authentication Settings section of the Edit Security Profile screen

as described in the following table.

Setting Description

Network Authentication and Data Encryption

Note: The data

encryption fields that display onscreen depend on your selection from the Network Authentication drop-down menu.

Open System This is the default setting. Use an open system without any

encryption or with WEP encryption. For more information, see Configure an Open System with

WEP or Shared Key with WEP on page 40.

Shared Key Use WEP encryption and enter at least one shared key.

For more information, see Configure an Open System with

WEP or Shared Key with WEP on page 40.

Legacy 802.1X Configure the RADIUS server settings. Encryption is not

supported. For more information, see Configure Legacy 802.1X on page 42.

WPA with Radius Configure the RADIUS server settings and select TKIP or

TKIP +

AES encryption.

For more information, see Configure WPA with RADIUS,

A2 with RADIUS, and WPA & WPA2 with RADIUS on

page 42.

WPA2 with Radius Configure the RADIUS server settings and select AES or

TKIP +

AES encryption.

For more information, see Configure WP

WPA2 with RADIUS, and WPA & WPA2 with RADIUS on

page 42.

Note: Select this setting only if all clients support WPA2.

A with RADIUS,

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

Setting Description

Network Authentication and Data Encryption (continued)

WP A & WP A2 with Radius

WPA-PSK Enter a WPA passphrase and select TKIP or TKIP + AES

WPA2-PSK Enter a WPA passphrase and select AES or TKIP + AES

WPA-PSK & WP

A2-PSK

Configure the RADIUS server setting. TKIP + AES encryption is the default encryption. For more information, see Configure WPA with RADIUS,

WPA2 with RADIUS, and WPA & WPA2 with RADIUS on

page 42.

Note: This setting allows clients to connect through either

WPA with TKIP or WPA2 with AES.

encryption. For more information, see Configure WPA-PSK,

WPA2-PSK, and WPA-PSK & WPA2-PSK on page 43.

encryption. For more information, see Configure WPA-PSK,

WPA2-PSK, and WPA-PSK & WPA2-PSK on page 43.

Note: Select this setting only if all clients support WPA2.

Enter a WPA passphrase. TKIP + AES encryption is the default encryption. For more information, see Configure WPA-PSK,

WPA2-PSK, and WPA-PSK & WPA2-PSK on page 43.

Note: This setting allows clients to connect through either

WPA with TKIP or WPA2 with AES.

Wireless Client Security Separation

Dynamic VLAN From the drop-down menu, select how VLANs operate by making one of the

If you enable wireless client security separation by selecting Enable from the drop-down menu, the associated wireless clients cannot communicate with each other feature is intended for hotspots and other public access situations.

following selections:

• Disable. Disables dynamic VLANs, and enables static VLANs.

• Optional

• Required. Enables dynamic VLANs. If a RADIUS server does not return a

For dynamic VLANs to operate (that is, the selection is Optional or Required), the following is required:

• The hubs and switches on your LAN need to support the VLAN (802.1Q)

• The authentication is set to any RADIUS type authentication: either the

. By default, Disable is selected from the drop-down menu.

default setting.

. Enables dynamic VLANs, but if a RADIUS server does not return a VLAN ID, the wireless client is still allowed to connect to the wireless access point.

VLAN ID, the wireless client is not authenticated and cannot connect to the wireless access point.

standard.

network authentication in the wireless security profile or the remote MAC address database authentication for the MAC Authentication feature can be used.

This

This is the

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

Setting Description

VLAN ID Enter the VLAN ID to be associated with this wireless security profile. The

default VLAN ID is 1. The VLAN ID needs to match the VLAN ID that is used by the other devices in your network.

Access Control Access control functions only when static VLANs are enabled, that is, you select

Disable from the Dynamic VLAN drop-down menu. The Access Control radio buttons let you enable or disable access control

through a RADIUS server for the wireless security the profile:

• Disable.

• Enable. Access control through a RADIUS server. Either the network authentication in the wireless security profile or the remote MAC address database authentication for the MAC Authentication feature needs to be enabled.

Note: You can use access control even when you do not configure WPA with

RADIUS or WPA2 with RADIUS.

Access Control Policy Access control policy functions only when static VLANs are enabled, that is, you

select Disable from the Dynamic VLAN drop-down menu and you select the Enable

Access Control Policy radio buttons let you enable or disable the access

The control policy for wireless clients:

• Disable. If a RADIUS server does not return a (static) VLAN ID, the wireless client is still allowed to connect to the wireless access point. the default setting.

• Enable. If a RADIUS server does not return a (static) VLAN ID, the wireless client is not authenticated and cannot connect to the wireless access point.

Access control is disabled. This is the default setting.

is enabled, and wireless clients are authenticated

Access Control radio button.

This is

5. Click the Apply button.

Configure an Open System with WEP or Shared Key with WEP

Whether you use an open system with WEP or shared key with WEP, configure the settings that are explained in Table 2 on page 41.

• Open system with WEP

An open system can function without any encryption or with pre-shared WEP key encryption without RADIUS authentication. The security level of static WEP is not very strong.

When you select Open System from the Network any selection other than None from the Data Encryption drop-down menu, the screen expands to display the WEP fields:

Authentication drop-down menu and

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

Figure 7. Open system with WEP

• Shared key with WEP

Shared key provides pre-shared WEP key encryption without RADIUS authentication. The security level of static WEP is not very strong. When you select Shared Key from the Network Authentication drop-down menu, the screen expands to display the WEP fields:

Figure 8. Shared key with WEP

Table 2. WEP encryption settings

Setting Descriptions

Data Encryption Select the encryption key size from the drop-down menu:

• 64-bit WEP. Standard WEP encryption, using 40/64-bit encryption.

• 128-bit WEP. Standard WEP encryption, using 104/128-bit encryption.

• 152-bit WEP. Proprietary WEP encryption mode, using 128+24 bit encryption. mode functions only with other wireless clients that support this mode.

Passphrase Enter a passphrase. The passphrase length needs to be between 8 and 63 characters

(inclusive). The secret passphrase allows you to generate the keys automatically by clicking the Generate Keys button. The default passphrase is sharedsecret.

You can display the actual passphrase by selecting the Show Passphrase in Clear Text

s radio button.

Wireless Configuration and Security

This

ProSAFE Single Band 802.11n Wireless Access Point WN203

Table 2. WEP encryption settings (continued)

Setting Descriptions

Encryption Key (Key1–Key4)

Show Passphrase in Clear T

ext

Specify the active key by selecting one of the four radio buttons. Only one key can be the active key. Either enter a key manually or allow the key to be automatically generated by clicking the Generate Keys button. The length of the key depends on the selected encryption:

• For ASCII format, depending on the key size selected, the manually entered encryption key needs to have a length of 5 (64-bit WEP), 13 (128-bit WEP), or 16 characters (152-bit WEP).

• For HEX format, depending on the key size selected, the manually entered or automatically generated encryption key needs to have a length of 10 (64-bit WEP), 26 (128-bit WEP), or 32 (152-bit WEP) characters.

Note: Wireless clients need to use the key to access the wireless access point.

Select the Yes radio button to display the actual passphrase in the Passphrase field. The default setting is No.

Configure Legacy 802.1X

To use legacy 802.1X security, you need to define RADIUS server settings. For information about RADIUS servers, see Configure RADIUS Server Settings on page 45.

When you select Legacy 802.1X from the Network Authentication drop-down menu, the Data Encryption drop-down menu is automatically set to None. To use legacy 802.1X security, you need to define the RADIUS servers only.

Figure 9. Legacy 802.1X

Configure WP A with RADIUS, WPA2 with RADIUS, and WPA & WPA2 with RADIUS

WPA, WPA2, and WPA & WPA2 security requires RADIUS-based 802.1x authentication, so you also need to define RADIUS server settings. For information about RADIUS servers, see

Configure RADIUS Server Settings on page 45.

The selections that are available from the Data Encryption drop-down menu depend on the type of WP A authentication that you select from the Network Authentication drop-down menu and are shown in the table that follows the figures.

• WPA with RADIUS

Figure 10. WPA with RADIUS

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

• WPA2 with RADIUS

Figure 11. WPA2 with RADIUS

• WPA & WPA2 with RADIUS

Figure 12. WPA & WPA2 with RADIUS

Table 3. Settings for WPA with RADIUS, WPA2 with RADIUS, and WPA & WPA2 with RADIUS

Setting Descriptions

TKIP Temporal Key Integrity Protocol (TKIP) is the standard encryption method used with WPA. You

can also use TKIP with WPA2.

Note: TKIP provides only legacy (slower) rates of operation. If you want to use the 11n rates and

speed, NETGEAR recommends WPA2 authentication with AES encryption.

AES Advanced Encryption Standard (AES) is the standard encryption method used with WP

Note: Although some wireless clients might support AES with WPA, the wireless access point

does not support WPA with AES.

TKIP + AES The TKIP + AES encryption method is supported both for WPA and WPA2. Broadcast packets

use TKIP. For unicast (point-to-point) transmissions, WPA clients use TKIP, and WPA2 clients use AES. For the WPA & WPA2 mixed mode, TKIP + AES is the only supported data encryption method.

A2.

Configure WPA-PSK, WPA2-PSK, and WPA-PSK & WPA2-PSK

WPA-PSK, WPA-PSK, and WPA-PSK & WPA2-PSK authentication uses a pre-shared key (PSK, also called a passphrase or a network key) and does not require authentication from a RADIUS server.

The selections that are available from the Data Encryption drop-down menu depend on the type of WPA-PSK authentication that you select from the Network Authentication drop-down menu and are shown in the table that follows the figures.

• WPA-PSK

Figure 13. WPA-PSK

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

• WPA2-PSK

Figure 14. WPA2-PSK

• WPA-PSK & WPA2-PSK

Figure 15. WPA-PSK & WPA2-PSK

Table 4. Settings for WPA-PSK, WPA2-PSK, and WPA-PSK & WPA2-PSK

Setting Descriptions

Data Encryption TKIP Temporal Key Integrity Protocol (TKIP) is the standard encryption method

used with WPA. Y

Note: TKIP provides only legacy (slower) rates of operation. If you want to

use the 11n rates and speed, NETGEAR recommends WPA2 authentication with AES encryption.

AES Advanced Encryption Standard (AES) is the standard encryption method used

with WPA2.

Note: Although some wireless clients might support AES with WPA, the

WN203 wireless access point does not support WPA with AES.

TKIP + AES TKIP +

Passphrase Enter a passphrase. The passphrase length needs to be between 8 and 63 characters

(inclusive). You can display the actual passphrase by selecting the Show Passphrase in Clear

s radio button.

The default passphrase is sharedsecret.

AES supports both WP A and WPA2. Broadcast packets use TKIP. For unicast (point-to-point) transmissions, WPA clients use TKIP clients use AES.

For the WPA & WPA2 mixed mode, TKIP + AES is the only supported data encryption method.

ou can also use TKIP with WPA2.

, and WPA2

Text

Show Passphrase in Clear Text

Select the Ye default setting is No.

s radio button to display the actual passphrase in the Passphrase field. The

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

Configure RADIUS Server Settings

For authentication, accounting, or both authentication and accounting using RADIUS, you need to configure primary servers and optional secondary servers. These RADIUS server settings can apply to all devices that are connected to the wireless access point.

 To configure the RADIUS server settings:

1. Select Configuration > Security > Advanced > Radius Server Settings.

The Radius Server Settings screen displays.

2. Specify the settings as described in the following table:

Setting Descriptions Radius Server Settings

Primary

Authentication Server

IP Address Enter the IP address of the primary RADIUS server for

authentication.

Port Enter the number of the UDP port on the wireless access point

that is used to access the primary RADIUS server for authentication.

Shared Secret Enter the shared key that is used between the wireless access

point and the primary RADIUS server during authentication.

Wireless Configuration and Security

The default port number is 1812.

ProSAFE Single Band 802.11n Wireless Access Point WN203

Setting Descriptions

Secondary

Authentication Server

Primary

Accounting Server

Secondary

Accounting Server

IP Address Enter the IP address of the secondary RADIUS server for

authentication. The secondary RADIUS server is used when the primary RADIUS server is not available.

Port Enter the number of the UDP port on the wireless access point

that is used to access the secondary RADIUS server for authentication.

Shared Secret Enter the shared key that is used between the wireless access

point and the secondary RADIUS server during authentication.

IP Address Enter the IP address of the primary RADIUS server for

accounting.

Port Enter the number of the UDP port on the wireless access point

that is used to access the primary RADIUS server for accounting. The default port number is 1813.

Shared Secret Enter the shared key that is used between the wireless access

point and the primary RADIUS server during the accounting process.

IP Address Enter the IP address of the secondary RADIUS server for

accounting. primary RADIUS server is not available.

Port Enter the number of the UDP port on the wireless access point

that is used to access the secondary RADIUS server for accounting.

The default port number is 1812.

The secondary RADIUS server is used when the

The default port number is 1813.

Shared Secret Enter the shared key that is used between the wireless access

point and the secondary RADIUS server during the accounting process.

Authentication Settings

Reauthentication

ime (Seconds)

Update Global Key Every (Seconds)

The interval in seconds after which the supplicant is reauthenticated with the RADIUS server. reauthentication.

Select the check box to allow the global key update, and enter the interval in seconds. 1800

seconds (30 minutes). Clear the check box to prevent the global key update.

The default interval is 3600 seconds (one hour). Enter 0 to disable

The check box is selected by default, and the default interval is

3. Click the Apply button.

Restrict Wireless Access by MAC Address

For increased security, you can restrict access to a wireless network by allowing access to only specific computers or wireless clients based on their MAC addresses. You can restrict access to only trusted computers so that unknown computers cannot connect wirelessly to the wireless access point. MAC address filtering adds an obstacle against unwanted access to your network, but the data broadcast over the wireless link is fully exposed.

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

Note: For wireless adapters, you can usually find the MAC address printed

on the wireless adapter label.

 To restrict access based on MAC addresses:

1. Select Configuration > Security > Advanced > MAC Authentication.

The MAC Authentication screen displays. (The following figure shows some examples.)

2. Select the Turn Access Control On check box.

The access control feature is enabled.

3. From the Select Access Control Database drop-down menu, select one of the following

database options:

• Local MAC

Address Database

The wireless access point uses the local MAC

address database for access control. This is the default setting.

• Remote MAC Address Database. The wireless access point uses the MAC address

database on an external RADIUS server on the LAN for access control. If you select this database, you first need to configure the RADIUS server settings (see

Configure

RADIUS Server Settings on page 45).

4. Click the Refresh button.

The Available Wireless Stations table is refreshed. The wireless access point places the MAC addresses of the attached wireless clients in this table.

5. Populate the Trusted Wireless Stations table with MAC addresses.

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

Depending on your network configuration, use one of the following three methods:

• Select MAC addresses from the Available Wireless Stations table:

a. Select check boxes for individual MAC addresses or select the check box in the

heading to select all MAC addresses.

b. Click the

Move button.

The MAC addresses are transferred from the Available Wireless Stations table to the Trusted Wireless Stations table.

• Enter MAC addresses manually:

a. Enter a MAC address directly in the

Trusted Wireless Stations table.

b. Click the Add button.

• Import MAC addresses from a file:

a. Click the Browse button. b. Navigate to the file with MAC addresses.

This file needs to be a simple text file with one MAC address per line.

c. Select the file, and click the Open button. d. Use one of the following methods:

• Select the Replace radio button.

All MAC addresses that are in the Trusted Wireless Stations table are replaced with the MAC addresses that are in the file.

• Select the Merge radio button.

The MAC addresses from the file are added to the MAC addresses that are in the Trusted Wireless Stations table.

6. Click the Apply button.

Now, only devices in the Trusted Wireless Stations table are allowed to connect to the wireless access point over a wireless connection.

WARNING:

When configuring the wireless access point from a wireless computer whose MAC address is not on the access control list, you lose your wireless connection when you click the Apply button. You then need to access the wireless access point from a wired computer or from a wireless computer that is on the access control list to make any further changes.

 To delete selected or all MAC address from the Trusted Wireless Stations table:

1. Select check boxes for individual MAC addresses or select the check box in the heading to

select all MAC addresses.

2. Click the Delete

button.

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

Schedule the Wireless Radios to Be Turned Off

Scheduling the wireless radios to be turned off is a green feature that allows you to turn off the wireless radios during scheduled vacations, office shutdowns, on evenings, or on weekends.

 To schedule the radios to be turned on and off:

1. Select Configuration > Wireless > Basic > Wireless On-Off.

The Wireless On-Of

f screen displays:

2. Specify the settings as described in the following table:

Setting Description

Wireless on-off Select the On radio button to enable the timer. By default, the Off radio button is

selected.

Radio of

f schedule Select check boxes to specify the days when you want to schedule the radios to

be turned off. By default, Saturday and Sunday are selected.

Radio ON T

Radio OFF Time Enter the time that you want the radios to be turned off. Use 24-hour time

ime Enter the time that you want the radios to be turned back on. Use 24-hour time

format.

3. Click the Apply button.

Configure Basic Wireless Quality of Service

Wi-Fi Multimedia (WMM) is a subset of the 802.11e standard. WMM allows wireless traffic to have a range of priorities, depending on the type of data. Time-dependent information, such as video or audio, has a higher priority than normal traffic. For WMM to function correctly, wireless clients also need to support WMM.

Wireless Configuration and Security

ProSAFE Single Band 802.11n Wireless Access Point WN203

By enabling WMM, you allow Quality of Service (QoS) control for upstream traffic flowing from a wireless client to the wireless access point and for downstream traffic flowing from the wireless access point to a wireless client.

WMM defines the following four queues in decreasing order of priority:

• Voice. The highest priority queue with minimum delay, which makes it ideal for

applications like VoIP and streaming media.

• Video. The second highest priority queue with low delay is given to this queue. Video

applications are routed to this queue.

• Best Effort. The medium priority queue with medium delay is given to this queue. Most

standard IP applications use this queue.

• Background. Low priority queue with high throughput. Applications that are not

time-sensitive but require high throughput, such as FTP, can use this queue.

The WMM Powersave feature saves power for battery-powered equipment by increasing the ef

ficiency and flexibility of data transmission.

For information about how to configure advanced wireless QoS, that is, to configure specific Enhanced Distributed Channel Access (EDCA) settings, see Configure Advanced Quality of

Service Settings on page 73.

 To configure basic wireless QoS:

1. Select Configuration > Wireless > Basic > QoS Settings.

The basic QoS Settings screen displays:

2. Enable or disable the WMM features:

• Enable Wi-Fi Multimedia (WMM).

To enable this feature, select the Enable radio

button. By default, this feature is enabled. Select the Disable radio button to disable the

feature.

• WMM Powersave. To enable this feature, select the Enable radio button, which is the

default setting. By default, this feature is enabled. Select the

feature.

3. Click the Apply button.

Disable radio button to disable the

Wireless Configuration and Security

4. Management

This chapter describes how to use the management features of the wireless access point. The

chapter includes the following sections:

• Enable Remote Management

• Upgrade the Wireless Access Point Software

• Manage the Configuration File or Reset to Factory Default

• Change the Administrator Password

• Enable the Syslog Option

• Enable Rogue AP Detection and Monitor Access Points

ProSAFE Single Band 802.11n Wireless Access Point WN203

Enable Remote Management

This section describes the different options for remote management.

• SNMP Management

• Secure Shell and Telnet Management

Both Simple Network Management Protocol (SNMP) and the remote console Secure Shell (SSH) are enabled by default, which allows for remote management of the wireless access point from a client running SNMP management software, as well as from an SSH client. Telnet console is disabled by default.

SNMP Management

The SNMP screen lets you configure the IP address of the SNMP manager, the community names, and the trap information.

 To set up an SNMP management interface:

The

1. Select Maintenance > Remote Management > SNMP.

The SNMP screen displays:

2. Specify the settings as described in the following table:

Setting Description

SNMP Select the Enable radio button to allow the SNMP network management

software, such as HP OpenView, to manage the wireless access point through SNMPv1/v2 protocol. By default, the Disable radio button is selected.

Read-Only Community Name Enter the community string to allow the SNMP manager to read the

wireless access point’ default is public.

Management

s Management Information Base (MIB) objects. The

ProSAFE Single Band 802.11n Wireless Access Point WN203

Setting Description

Read-Write Community Name Enter the community string to allow the SNMP manager to read and write

the wireless access point’s MIB objects. The default is private.

Trap Community Name Enter the community string to allow the SNMP manager to send traps. The

default is trap.

IP Address to Receive Traps Enter the IP address of the SNMP manager to receive traps sent from the

wireless access point.

Trap Port

Enter the number of the SNMP manager port to receive traps sent from the wireless access point. The default is 162.

3. Click the Apply button.

Secure Shell and Telnet Management

By default, Secure Shell (SSH) is enabled and Telnet is disabled.

 To configure remote console features:

1. Select Maintenance > Remote Management > Remote Console.

The Remote Console screen displays:

2. Enable or disable the remote console features:

• Secure Shell (SSH). By default, you can make an SSH connection to the wireless

access point. Select the Disable button to prevent SSH connections from being made.

• Telnet. By default, you cannot make a T

elnet connection to the wireless access point.

Select the Enable radio button to allow Telnet connections to be made.

3. Click the Apply button.

 To manage the wireless access point over an SSH or Telnet connection:

1. Start an SSH or Telnet session to the wireless access point using an application such as

PuTTY

, if such an encryption application is allowed by law in your country.

2. Enter the login name and password (admin and password are the defaults).

Management

ProSAFE Single Band 802.11n Wireless Access Point WN203

After successful login, the > prompt displays, preceded by the name of the wireless access point.

3. Enter the CLI commands that you want to use.

You can enter ? to display the available CLI commands. The CLI commands are also listed in

Appendix B, Command-Line Reference.

Upgrade the Wireless Access Point Software

The software of the wireless access point is stored in flash memory and can be upgraded as NETGEAR releases new software. You can download upgrade files from the NETGEAR website. If the upgrade file is compressed (.zip file or .rar file), you first need to extract the image file (.bin file) before sending it to the wireless access point. You can send the upgrade file using your browser. The following sections describe the two methods that are available to perform a software upgrade:

• Web Browser Upgrade Procedure

• TFTP Server Upgrade Procedure

Note: The web browser that you use to upload new firmware into the

wireless access point needs to support HTTP uploads. Use a browser such as Microsoft Internet Explorer 8.0 or later, or Mozilla Firefox 18.0 or later.

Note: You cannot perform the software upgrade from a computer that is

connected to the wireless access point over a wireless link. You need to use a computer that is connected to the wireless access point over an Ethernet cable.

WARNING:

When uploading software to the wireless access point, do not interrupt the web browser by closing the window, clicking a link, or loading a new page. If the browser is interrupted, the upload might fail, corrupt the software, and render the wireless access point inoperable.

Management

ProSAFE Single Band 802.11n Wireless Access Point WN203

IMPORTANT:

In some cases, such as a major upgrade, you might need to erase the configuration and manually reconfigure your wireless access point after upgrading it. To find out if you need to reconfigure the wireless access point, see the release notes included with the software.

Web Browser Upgrade Procedure

Upgrading firmware through a web browser is the most common upgrade method.

 To use a web browser to upgrade the wireless access point firmware:

1. Download the new software file from the NETGEAR website and save it to your hard

disk.

2. If necessary

, unzip the new software file.

If the file is zipped, it is a .zip or .rar file.

3. If available, read the release notes before upgrading the software.

4. Select Maintenance > Upgrade > Firmware Upgrade

The Firmware Upgrade screen displays:

5. Click the Browse button and locate the image upgrade file (.bin file).

6. Click the Apply button.

The upgrade process is initiated. During the upgrade process, the wireless access point automatically restarts, and the

est LED blinks amber.

The upgrade process typically takes several minutes. When the Test LED turns off, wait a few more seconds before doing anything with the wireless access point.

7. Verify that the new software file has been installed by selecting Monitoring > System.

The System screen displays (see V

iew System Information on page 92). The firmware

version is shown in the Access Point Information section of the screen.

Management

ProSAFE Single Band 802.11n Wireless Access Point WN203

TFTP Server Upgrade Procedure

To use this method, you need to have a TFTP server set up.

 To use a TFTP server to upgrade the wireless access point firmware:

1. Download the new software file from the NETGEAR website and save it to your hard

disk.

2. Place the software file in your

3. If available, read the release notes before upgrading the software.

4. Select Maintenance > Upgrade > Firmware Upgrade TFTP.

TFTP server location. (You do not need to unzip the file.)

The Firmware Upgrade

TFTP screen displays:

5. Specify the following information:

• Firmware File Name. The name of the unzipped software file.

• TFTP Server IP. The IP address of your TFTP server.

6. Click the Apply button.

The upgrade process is initiated. During the upgrade process, the wireless access point automatically restarts, and the

est LED blinks amber.

The upgrade process typically takes several minutes. When the Test LED turns off, wait a few more seconds before doing anything with the wireless access point.

7. Verify that the new software file has been installed by selecting Monitoring > System.

The System screen displays (see V

iew System Information on page 92). The firmware

version is shown in the Access Point Information section of the screen.

Management

ProSAFE Single Band 802.11n Wireless Access Point WN203

Manage the Configuration File or Reset to Factory Default

The wireless access point settings are stored in the configuration file. You can save this file (back it up) to a computer, restore it from a computer, or reset it to factory default settings.

• Save the Configuration

• Restore the Configuration

• Restore the Wireless Access Point to the Factory Default Settings

• Reboot the Wireless Access Point without Restoring the Default Configuration

Save the Configuration

After you change the configuration, NETGEAR recommends that you back up the configuration.

 To save your settings:

1. Select Maintenance > Upgrade > Backup Settings.

The Backup Settings screen displays.

2. Click the Backup button.

Your browser extracts the configuration file (the file name is config) from the wireless access point and prompts you for a location on your computer to store the file.

3. Follow the instructions of your browser to save the file.

Management

ProSAFE Single Band 802.11n Wireless Access Point WN203

Restore the Configuration

IMPORTANT:

During the restoration process, do not try to go online, turn off the wireless access point, shut down the computer, or do anything else to the wireless access point until it finishes restarting!

 To restore your settings from a saved configuration file:

1. Select Maintenance > Upgrade > Restore Settings.

The Restore Settings screen displays:

2. Click the Browse button.

3. Locate the backup configuration file (the file name is config).

4. Click the Apply button.

The restoration process is initiated. During the restoration process, the wireless access point automatically restarts. When the T wireless access point.

est LED turns off, wait a few more seconds before doing anything with the

The restoration process typically takes about one minute.

Restore the Wireless Access Point to the Factory Default Settings

You can restore the wireless access point to the factory default settings by two methods that are described in the following sections:

• Use the Web Management Interface to Restore Factory Default Settings

• Use the Reset to Factory Defaults Button to Restore Factory Default Settings

Management

ProSAFE Single Band 802.11n Wireless Access Point WN203

Note: After you have restored the factory default settings on the wireless

access point:

All custom configurations are lost.

* * The login password is * The default LAN IP address is * The DHCP client is disabled.

Access Point Name field is reset to the name printed on

* The

password.

192.168.0.100.

the label of the unit.

For more information about the factory default settings, see Factory Default Settings on page 108.

Use the Web Management Interface to Restore Factory Default Settings

IMPORTANT:

During the restoration process, do not try to go online, turn off the wireless access point, shut down the computer, or do anything else to the wireless access point until it finishes restarting!

 To restore the factory default settings using the web management interface:

1. Select Maintenance > Reset > Restore Defaults.

The Restore Defaults screen displays:

2. Select the Yes radio button.

By default, the No radio button is selected.

3. Click the Apply button.

The wireless access point resets to the factory default settings.

Management

ProSAFE Single Band 802.11n Wireless Access Point WN203

During the restoration process, the wireless access point automatically restarts. The restoration process typically takes about one minute. When the Test LED turns off, wait a few more seconds before doing anything with the wireless access point.

Use the Reset to Factory Defaults Button to Restore Factory Default Settings

To restore the factory default settings when you do not know the login user name, login password, or IP address, you need to use the Reset to Factory Defaults button on the bottom panel of the wireless access point (see Figure 3 on page 13).

 To restore the factory default settings using the Reset to Factory Defaults button:

1. Using a sharp object, press and hold the Reset to Factory Defaults button for about

10 seconds to reset the wireless access point to factory default settings.

Note: Pressing the Reset to Factory Defaults button for a few seconds

simply causes the wireless access point to reboot.

2. Release the Reset to Factory Defaults button.

During the restoration process, the wireless access point automatically restarts. The restoration process typically takes about one minute. When the Test LED turns of few more seconds before doing anything with the wireless access point.

Reboot the Wireless Access Point without Restoring the Default Configuration

If you do not have physical access to the wireless access point to switch it off and on again, you can use the software to reboot the wireless access point.

 To reboot the wireless access point:

1. Select Maintenance > Reset > Reboot AP.

The Reboot AP screen displays:

f, wait a

Management

ProSAFE Single Band 802.11n Wireless Access Point WN203

2. Select the Yes radio button.

By default, the No radio button is selected.

3. Click the Apply button.

The wireless access point reboots and the Test LED lights amber. The reboot process typically takes about one minute. When the before doing anything with the wireless access point.

Test LED turns of

f, wait a few more seconds

Change the Administrator Password

The default password is password. NETGEAR recommends that you change this password to a more secure password. You cannot change the administrator login name (admin).

The ideal password contains no dictionary words from any language and is a mixture of uppercase and lowercase letters, numbers, and symbols. Your password can be up to 30 characters.

 To change the administrator password:

1. Select Maintenance > Password > Change Password.

The Change Password screen displays:

2. Take one of the following actions:

• Enter a new password twice, once in the New Password field and again in the Repeat

New Password field.

• Next to Restore Default Password, select the Yes radio button to restore the default

password. By default, the No radio button is selected.

3. Click the Apply button.

If you have restored the default password, the login password is configured a new password, write it down in a secure place.

Management

password. If you have

ProSAFE Single Band 802.11n Wireless Access Point WN203

Enable the Syslog Option

If you have a syslog server on your LAN, the Syslog screen allows you to enable the syslog option. If syslog is enabled, the wireless access point sends its syslog files to the syslog server.

 To enable a syslog option:

1. Select Configuration > System > Advanced > Syslog.

The Syslog screen displays:

2. Specify the settings as described in the following table:

Setting Description

Enable Syslog Select the check box to enable the syslog option. By default, the syslog option

is disabled.

Syslog Server IP Address Enter the IP address of the syslog server to which the wireless access point

sends the syslog files.

Port Number Enter the port number that is configured on the syslog server. The default port

number is 514.

3. Click the Apply button.

Enable Rogue AP Detection and Monitor Access Points

This section describes how to use the Rogue AP detection feature to provide more security in your wireless network.

• Enable and Configure Rogue AP Detection

• View and Save Access Point Lists

Management

ProSAFE Single Band 802.11n Wireless Access Point WN203

Enable and Configure Rogue AP Detection

The wireless access point can detect rogue access points and prevent them from connecting to the wireless access point. The wireless access point maintains a list of access points it detects in the area. Initially , all detected access points are displayed in the Unknown AP List. You restrict communication to approved access points by adding them to the Known AP List and enabling the rogue AP detection feature.

If you enable rogue AP detection, the wireless access point continuously scans the wireless network and collects information about all access points on its channel.

 To enable and configure rogue AP detection:

1. Select Configuration > Security > Advanced > Rogue AP.

The Rogue

AP screen displays. The following figure shows examples in the Known AP

List and Unknown AP List.

2. Select the Turn Rogue AP Detection On check box.

3. (Optional) Click the Refresh button.

The wireless access point detects unknown access points and populates the Unknown

AP List.

4. In the Unknown

AP List, select individual check boxes for access points or select the check

box in the column heading to select all access points.

5. Click the Move button.

Access points are transferred from the Unknown

AP List to the Known AP List.

6. Click the Apply button.

 To remove APs from the Known AP List and return them to the Unknown AP List:

1. In the Known AP List, select individual check boxes for access points or select the

check box in the column heading to select all access points.

2. Click the Delete button.

3. Click the

Refresh button.

Management

ProSAFE Single Band 802.11n Wireless Access Point WN203

The wireless access point detects the removed access points and repopulates the Unknown AP List.

 To import a file with a precompiled list of access points into the Known AP List:

1. Take one of the following actions:

• Select the Replace

radio button.

The imported list of access points replaces the existing Known AP List.

• Select the Merge radio button.

The imported list of access points is added to the existing Known AP List.

2. Click the Browse button.

3. Locate the file that contains the list of access points.

This file needs to be a simple text file with one MAC address per line.

4. Select the file, and click the Open button.

5. Click the Apply button.

The list of access points is uploaded to the Known AP List.

View and Save Access Point Lists

The wireless access point detects nearby APs and wireless clients and maintains them in a list. You can use this list to prevent them from connecting to the wireless access point.

 To view the Unknown AP List and save it to a file:

1. Select Monitoring > Rogue AP > Unknown AP List.

The Unknown

AP List screen displays:

2. (Optional) Click the Refresh button.

The wireless access point detects the access points and populates the Unknown AP List for the configured wireless modes.

Management

ProSAFE Single Band 802.11n Wireless Access Point WN203

The following table explains the fields of the Unknown AP List screen:

Setting Description

MAC Address The MAC address of the unknown AP. SSID The SSID that the unknown AP is using. Privacy Indicates whether security is enabled (1 means enabled; 0 means

disabled). Channel The channel that the unknown AP is using. Rate The transmit data rate in Mbps of the unknown the AP. Beacon Int. The interval for each beacon transmission in ms. # of Beacons The number of beacons transmitted by the unknown AP that the wireless

access point has detected. Last Seen The time stamp that indicates the time when the most recent beacon was

detected.

3. Click the Save button.

Export the list of unknown APs to a file. A window opens so you can browse to the location where you want to save the file. The default file name is macList.txt.

4. (Optional) After you have reviewed the list, import the saved list into the Known AP List on

the Rogue

 To view the Known AP Lists and save it to a file:

AP screen (see Enable and Configure Rogue AP Detection on page 63).

1. Select Monitoring > Rogue AP > Known AP List.

The Known

AP List screen displays:

2. (Optional) Click the Refresh button.

The wireless access point detects the access points and populates the Known AP List for the configured wireless modes.

Management

ProSAFE Single Band 802.11n Wireless Access Point WN203

The following table explains the fields of the Known AP List screen:

Setting Description

MAC Address The MAC address of the known AP. SSID The SSID that the known AP is using. Channel The channel that the known AP is using.

3. Click the Save button.

Export the list of known APs to a file. A window opens so you can browse to the location where you want to save the file. The default file name is macList.txt.

Management

5. Advanced Configuration

This chapter describes how to configure the advanced features of the wireless access point. The

chapter includes the following sections:

• Configure Spanning Tree Protocol and 802.1Q VLANs

• Configure Hotspot Settings

• Configure Advanced Wireless Settings

• Configure Advanced Quality of Service Settings

• Configure Wireless Bridging

ProSAFE Single Band 802.11n Wireless Access Point WN203

Configure Spanning Tree Protocol and 802.1Q VLANs

Spanning Tree Protocol (STP) provides network traffic optimization in locations where multiple wireless access points are active by preventing path redundancy. If you have more than one active wireless access point at your location, NETGEAR recommends that you enable STP.

The 802.1Q VLAN protocol on the wireless access point logically separates traffic on the same physical network:

• Untagged VLAN. When the wireless access point sends frames that are associated with

the untagged VLAN from its Ethernet interface, those frames are untagged. When the wireless access point receives untagged frames over its Ethernet interface, those frames are assigned to the untagged VLAN.

Note: Use an untagged VLAN only if the hubs and switches on your LAN

support the 802.1Q VLAN protocol. Likewise, change the untagged VLAN value only if the hubs and switches on your LAN support the

802.1Q VLAN protocol.

• Tagged VLAN. When you clear the Untagged VLAN check box, the wireless access point

tags all frames that are sent from its Ethernet interface. Only incoming frames that are tagged with known VLAN IDs are accepted.

• Management VLAN

access point functions as a point-to-point or point-to-multipoint bridge (see

Wireless Bridging on page 75). The management VLAN is used for managing traffic

(Telnet, SNMP, and HTTP) to and from the wireless access point. Frames belonging to the management VLAN are not given any 802.1Q header when they

are sent over the trunk. If a port is in a single VLAN, it can be untagged. However, if the port is a member of multiple VLANs, it needs to be tagged.

WARNING:

Selecting the Untagged VLAN check box or changing the untagged VLAN value causes loss of IP connectivity if the hubs and switches on your LAN have not yet been configured with the corresponding VLAN.

. The management VLAN can be active only when the wireless

Configure

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

 To configure STP and VLANs:

1. Select Configuration > System > Advanced > General.

The advanced General system settings screen displays:

2. Specify the settings as described in the following table:

Setting Description Spanning Tree Protocol

Spanning Tree Protocol Select the Enable radio button to enable STP to prevent path redundancy. By

default, the Disable radio button is selected.

802.1Q VLAN

Untagged VLAN Select the Untagged VLAN check box to configure one VLAN as an untagged

VLAN. By default, the Untagged VLAN check box is selected. Specify a VLAN ID. The default VLAN ID is 1.

Management VLAN Specify an ID for the VLAN from which the wireless access point can be

managed.

Note: If you configure the management VLAN ID as 0 (zero), the wireless access

point can be managed over any VLAN, and frames that belong to the management VLAN are not tagged with an 802.1Q header when sent over the trunk.

The default VLAN ID is 1.

3. Click the Apply button.

Configure Hotspot Settings

If the wireless access point functions as a public access point and you want it to capture and redirect all HTTP requests (over TCP, port 80), set up a hotspot server to redirect the requests to the specified URL and manage the clients. For example, you can redirect HTTP requests to a web server for authentication, timing control, or advertising. A hotel might want all wireless connections to go to its server to start a billing transaction.

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

Note: The redirection occurs only the first time that a wireless client opens

a web browser.

 To set up a hotspot server:

1. Select Configuration > System > Advanced > Hotspot.

The Hotspot screen displays:

2. To enable HTTP redirection, select the Enable radio button.

By default, HTTP redirection is disabled.

3. In the Redirect URL field, enter the URL of the web server to which you wish to redirect

HTTP requests.

4. Click the Apply button.

All HTTP requests are now redirected to the specified URL.

Configure Advanced Wireless Settings

Use the advanced Wireless Settings screen to configure and enable various WLAN settings for the 802.11b/bg/ng modes.

The default WLAN settings normally work well. However, you can use the advanced settings to fine-tune the overall performance of the wireless access point for your specific environment. If a radio is turned off, you cannot configure the advanced wireless settings. Make sure that the radio is turned on.

 To configure the advanced wireless settings:

1. Select Configuration > Wireless > Advanced > W

The advanced Wireless Settings screen displays. The following figure shows the 11ng settings, as indicated by the radio wave icon (

ireless Settings.

) that is displayed next to ng:

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

2. Specify the settings as described in the following table:

Setting Description

RTS Threshold (0–2347) Enter the Request to Send (RTS) threshold. The default setting is

2347. If the packet size is equal to or less than the RTS threshold, the

wireless access point uses the Carrier Sense Multiple Collision Detection (CSMA/CD) mechanism, and the data frame is transmitted immediately after the silence period.

If the packet size is larger than the RTS threshold, the wireless access point uses the CSMA with Collision Avoidance (CSMA/CA) mechanism. In this situation, the transmitting station sends an RTS packet to the receiving station and waits for the receiving station to return a Clear to Send (CTS) packet before sending the actual packet data.

Fragmentation Length (256–2346) Enter the maximum packet size that is used for the fragmentation of

data packets. Packets that are larger than the specified fragmentation length are broken up into smaller packets before being transmitted.

The fragmentation length needs to be an even number

setting is 2346.

Beacon Interval Enter the interval between 100 ms and 1000 ms for each beacon

transmission, which allows the wireless access point to synchronize the wireless network. The default setting is 100.

Access with

. The default

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

Setting Description

Aggregation Length (1024–65535)

Note: This setting does not apply

to the 802.11b/bg modes.

AMPDU

Note: This setting does not apply

to the 802.11b/bg modes.

RIFS Transmission

Note: This setting does not apply

to the 802.11b/bg modes.

DTIM Interval (1–15) Enter the delivery traf

Antenna Select one of the following radio buttons to specify the antenna:

Preamble Type

Note: This setting applies only to

the 802.11b and 802.11bg modes.

Enter the maximum length of aggregated MAC protocol data unit (A-MPDU) packets. Larger aggregation lengths could lead to better network performance. higher throughput. The default setting is 65535.

Select the Enable radio button to allow the aggregation of several MAC frames into a single large frame to achieve higher throughput. Enabling the aggregated MAC protocol data unit (A-MPDU) could lead to better network performance. By default, the Enable radio button is selected.

Select the Enable radio button to allow transmission of successive frames at dif (RIFS) could lead to better network performance. By default, the Disable radio button is selected.

referred to as the data beacon rate, which indicates the beacon DTIM period in multiples of beacon intervals. 1 and 15.

• Internal. Enables the internal antenna.

• External Select one of the following radio buttons to specify the preamble type

for the 802.1

• Long. connection or a slightly longer range. gives better performance.

• Auto. both long and short preambles.

ferent transmit powers. Enabling reduced interframe space

The default setting is 3.

. Enables the optional external antennas.

1b mode or 802.1

A long transmit preamble might provide a more reliable

The Auto setting enables the wireless access point to handle

Aggregation is a mechanism used to achieve

fic indication message (DTIM) interval, also

This value needs to be between

This is the default setting.

1bg mode:

A short transmit preamble

The default setting is Auto.

802.11d Select this check box to enable support for additional regulatory domains that are not in the current standard; support includes the addition of a country information element to beacons, probe requests, and probe responses.

Client Isolation From the drop-down menu, select one of the following options:

Max. Wireless Clients

• Enable

• Disable. Communication between wireless clients that are

Enter the maximum number of wireless clients that can simultaneously connect to the wireless access point at one time. The default setting is 64 clients.

. Communication between wireless clients that are

associated to different virtual access points (V

associated to dif

This check box is selected by default.

APs) is blocked.

ferent V

APs is allowed. This is the default setting.

3. Click the Apply button.

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

Configure Advanced Quality of Service Settings

For most networks, the default Quality of Service (QoS) queue settings work well. For information about how to configure basic QoS, see Configure Basic Wireless Quality of

Service on page 49.

You can specify the settings on multiple queues for increased throughput and better performance of differentiated wireless traf audio, video, and streaming media, as well as traditional IP data.

The advanced QoS options on the wireless access point are as follows:

• AP EDCA parameters. Specify the access point (AP) Enhanced Distributed Channel

Access (EDCA) settings for different types of data transmitted from the wireless access point to wireless clients.

• Station EDCA parameters. Specify the station EDCA parameters for different types of

data transmitted from the wireless clients to the wireless access point. If WMM is disabled, you cannot configure the Station EDCA parameters. (For information about how to enable WMM, see

Configure Basic Wireless Quality of Service on page 49.)

fic such as voice over IP (VoIP), other types of

When you configure the EDCA settings, the wireless access point can leverage existing information in the IP packet header that is related to the T access point examines the ToS field in the headers of all packets that it processes. Based on the value in a packet’s ToS field, the wireless access point prioritizes the packet for transmission by assigning it to one of the queues. A different type of data is associated with each queue. You can configure how the wireless access point treats each queue.

The queues defined for different types of data transmitted from AP-to-station and station-to-AP are:

• Data 0 (Best Effort). Medium priority queue, medium throughput and delay

traditional IP data is sent to this queue.

• Data 1 (Background)

maximum throughput and is not time-sensitive is sent to this queue (FTP data, for example).

• Data 2 (Video)

automatically sent to this queue.

• Data 3 (Voice). Highest priority queue, minimum delay

and streaming media are automatically sent to this queue.

 To configure advanced QoS:

1. Select Configuration > Wireless >

. Highest priority queue, minimum delay. Time-sensitive video data is

. Lowest priority queue, high throughput. Bulk data that requires

Advanced > QoS Settings.

ype of Service (ToS). The wireless

. Most

. Time-sensitive data such as VoIP

The advanced QoS Settings screen displays:

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

2. Specify the settings as described in the following table:

Setting Description

AP EDCA parameters

AIFS Enter the Arbitration Inter-Frame Spacing (AIFS) interval that specifies the wait time (in

milliseconds) between data frames. A higher AIFS value means a higher priority for a queue. V

The default values are Data 0: 3; Data 1: 7; Data 2: 1; Data 3: 1.

cwMin Enter the minimum contention window (cwMin) value that specifies the upper limit (in

milliseconds) of a range from which the initial random back-of Decreasing this value increases the priority of the queue. The value for cwMin needs to be lower than the value for cwMax. V

1023. The default values are Data 0: 15; Data 1: 15; Data 2: 7; Data 3: 3.

cwMax Enter the maximum contention window (cwMax) value that specifies the upper limit (in

milliseconds) for the doubling of the random back-of increases the priority of the queue. The value for cwMax needs to be higher than the value for cwMin. V

The default values are Data 0: 63; Data 1: 1023; Data 2: 15; Data 3: 7.

Max. Burst Enter the maximum burst value that specifies the maximum burst length (in microseconds)

allowed for packet bursts on the wireless network. A packet burst is a collection of multiple frames transmitted without header information. Decreasing this value increases the priority of the queue. V alid values for maximum burst length are all multiples of 32 between 0 and 8192, inclusive of 0 and 8192.

The default values are Data 0: 0; Data 1: 0; Data 2: 3008; Data 3: 1504.

alid values for AIFS are 0 through 8.

f wait time is determined.

alid values are 0, 1, 3, 7, 15, 31, 63, 127, 255, 511, and

f value. Decreasing this value

alid values are 0, 1, 3, 7, 15, 31, 63, 127, 255, 511, and 1023.

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

Setting Description Station EDCA parameters

AIFS Enter the Arbitration Inter-Frame Spacing (AIFS) interval that specifies the wait time (in

milliseconds) between data frames. A higher queue. Valid values for AIFS are 0 through 8.

The default values are Data 0: 3; Data 1: 7; Data 2: 2; Data 3: 2.

cwMin Enter the minimum contention window (cwMin) value that specifies the upper limit (in

milliseconds) of a range from which the initial random back-of Decreasing this value increases the priority of the queue. lower than the value for cwMax. Valid values are 0, 1, 3, 7, 15, 31, 63, 127, 255, 511, and

1023. The default values are Data 0: 15; Data 1: 15; Data 2: 7; Data 3: 3.

cwMax Enter the maximum contention window (cwMax) value that specifies the upper limit (in

milliseconds) for the doubling of the random back-of increases the priority of the queue. for cwMin. Valid values are 0, 1, 3, 7, 15, 31, 63, 127, 255, 511, and 1023.

The default values are Data 0: 1023; Data 1: 1023; Data 2: 15; Data 3: 7.

The value for cwMax needs to be higher than the value

AIFS value means a higher priority for a

f wait time is determined.

The value for cwMin needs to be

f value. Decreasing this value

TXOP Limit Enter the transmission opportunity (TXOP) value that specifies the time interval (in

microseconds) in which a client station can initiate transmissions on the wireless medium (WM). Decreasing this value increases the priority of the queue. Valid values for Limit are all multiples of 32 between 0 and 8192, inclusive of 0 and 8192.

The default values are Data 0: 0; Data 1: 0; Data 2: 3008; Data 3: 1504.

3. Click the Apply button.

Configure Wireless Bridging

The wireless access point supports a wireless distributing system (WDS) that lets you build large bridged wireless networks. You can select from the following wireless access point modes:

• Wireless point-to-point bridge. In this mode, the wireless access point can

communicate with another access point that also functions in bridge mode. this mode with or without client association. Whether or not you enable client association, use WEP, WPA-PSK, or WPA2-PSK to secure the communication. For information about how to configure this mode, see Configure a Point-to-Point Wireless Network on page 76.

• Wireless point-to-multipoint bridge. In this mode, the wireless access point is the

master for a group of up to four access points that function in bridge-mode. point-to-multipoint bridge mode with or without client association.

You can use

TXOP

The other access points in the group need to be set to point-to-point bridge mode, using the MAC address of the master wireless access point. Rather than communicating directly with each other, all other bridge-mode access points send their traf

fic to the master wireless access point. Whether or not you enable client association, use WEP, WPA-PSK, or WPA2-PSK to secure the communication. For information about how to configure this mode, see Configure a Point-to-Multipoint Wireless Network on page 81.

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

• Repeating the wireless signal. In this mode, this wireless access point repeats the

wireless signal, does not support communication with wireless clients, and sends all traffic to a remote access point. In this mode, wireless clients cannot associate with the wireless access point. Use WEP, WPA-PSK, or WPA2-PSK to secure the communication with the remote access point. For information about how to configure this mode, see

Configure the Wireless Access Point to Repeat the Wireless Signal Using Point-to-Multipoint Bridge Mode on page 85.

For you to set up a wireless network in a WDS,

the following conditions need to be met for all

access points:

• All access points need to use the same SSID, wireless channel, and encryption mode.

• All access points need to be on the same LAN IP subnet. That is, all the access point LAN

IP addresses are in the same network.

• All LAN devices (wired and wireless computers) need to be configured to operate in the

same LAN network address range as the access points.

• The channel selection on the access points cannot be

Auto (see Configure the Basic

Wireless Settings on page 25).

Configure a Point-to-Point Wireless Network

In point-to-point bridge mode, the wireless access point communicates with another bridge-mode wireless station. Use wireless security to protect this communication. The following figure shows an example in which two wireless access points (APs) function in point-to-point bridge mode with client association:

AP1

AP2

Wireless client

Point-to-point bridge mode

Router

Internet

LAN segment 1

Figure 16. Point-to-point wireless network

Advanced Configuration

Point-to-point bridge mode

Hub or switch

LAN segment 2

ProSAFE Single Band 802.11n Wireless Access Point WN203

 To configure a point-to-point wireless network with or without client association:

1. Configure the wireless access point (AP1 on LAN Segment 1 in the previous figure) as

a point-to-point bridge: a. Select Configuration > Wireless Bridge.

The Bridging screen displays (see the following figure).

b. Select the Enable Wireless Bridging check box.

The Local MAC

Address field is a nonconfigurable field that shows the MAC address

of the wireless access point.

c. Select the Wireless Point-to-Point Bridge radio button.

d. Click the Edit button to configure the security profile settings.

The Edit Security Profile screen displays:

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

e. Specify the settings as described in the following table:

Setting Description Profile Definition

Profile Name Enter a profile name that is easy to remember. The default name is

NETGEAR-WDS-1.

Remote MAC Address Enter the MAC address of the remote wireless access point (the MAC

address of

AP2 on LAN Segment 1 in Figure 16 on page 76

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

Setting Description Authentication Settings

Network Authentication and Data Encryption

From the Network Authentication drop-down menu, select Open System,

WPA-PSK

Your selection determines the options that the Data Encryption drop-down menu provides, and whether the WP displays.

Open System Although you can use the bridge communication without

WPA-PSK TKIP (Temporal Key Integrity Protocol) is the standard

, or WPA2-PSK.

A Passphrase (Network Key) field

any authentication and encryption, NETGEAR recommends that you use WEP if you do select an open system. From the Data Encryption drop-down menu, select one of the following:

• None

• 64-bit WEP. Standard WEP encryption, using 40/64-bit

• 128-bit WEP. Standard WEP encryption, using

• 152-bit WEP. Proprietary WEP encryption mode, using

o configure WEP:

1. In the passphrase field, enter a passphrase.

2. Click the Generate Key button.

encryption method used with WPA-PSK and the only selection possible from the Data Encryption drop-down menu.

In the WP passphrase. The passphrase length needs to be between 8 and 63 characters (inclusive).

. No authentication and encryption.

encryption.

104/128-bit encryption.

128+24 bit encryption. other access points that support this mode.

The key is generated and placed in the WEP Key field.

A Passphrase (Network Key) field, enter a

This mode functions only with

A2-PSK AES (Advanced Encryption Standard) is the standard

encryption method used with WP selection possible from the Data Encryption drop-down menu.

In the WP passphrase. The passphrase length needs to be between 8 and 63 characters (inclusive).

Note:

If you want to use the 11n rates and speed,

NETGEAR recommends WPA2-PSK authentication with AES encryption.

Link Test

The link test lets you validate the bridge configuration by testing whether an IP address behind the remote access point is reachable.

A Passphrase (Network Key) field, enter a

A2-PSK and the only

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

Setting Description

IP Address Enter an IP address that can be reached through the remote access point

for which you are setting up a bridge configuration. Click the Link Test button.

Link Test Process Status After one minute or less, the link test returns one of the following results:

• Success. and the IP address behind the remote access point is reachable. can click the Apply button to save the bridge configuration.

• Failure. The link cannot be established using the bridge configuration. Either the remote access point is not configured correctly or the IP address behind the remote access point is not reachable.

The link can be established using the bridge configuration,

f. Click the Apply button.

The bridge configuration is saved. The Bridging screen displays again.

You

g. (Optional) Clear the Enable Wireless Client

Association check box to disable

wireless client association while the wireless access point functions as a point-to-point bridge.

By default, the Enable Wireless Client Association check box is selected and wireless client association is enabled.

h. If the correct profile name and security option are displayed in the table, select the

check box in the Enable column.

i. Click the Apply button.

The point-to-point bridge settings are saved.

2. Configure a second wireless access point (AP2) on LAN Segment 2 (see Figure 16 on

page 76) in point-to-point bridge mode.

AP1 needs to have AP2’ s MAC address in its Remote MAC Address field, and AP2 needs

to have

AP1’

s MAC address in its Remote MAC Address field.

3. Verify the following settings for both wireless access points:

• Both APs are configured to operate in the same LAN network address range as the

LAN devices.

• If you use DHCP, both

APs can obtain an IP address automatically (as a DHCP

client). For more information, see Configure the IP Settings on page 22.

• Both APs use the same channel, authentication mode, and security settings.

4. Verify connectivity across the LANs.

A computer on any LAN segment should be able to connect to the Internet or share files

and printers with any other computers or servers connected to any of the two LAN segments.

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

Configure a Point-to-Multipoint Wireless Network

In a point-to-multipoint bridge, the wireless access point is the master for a group of bridge-mode wireless access points. All traffic is sent to the master rather than to the other wireless access points. Use wireless security to protect this communication.

For each wireless access point that you want the master to be able to connect to, configure a security profile with a unique name and the MAC address of the wireless access point. You can configure up to four such security profiles (NETGEAR-WDS-1, NETGEAR-WDS-2, and so on).

The following figure shows an example in which

AP1 functions in point-to-multipoint bridge

mode and AP2 and AP3 function in point-to-point bridge mode:

AP2

Wireless client

Router

Internet

LAN segment 2

Figure 17. Point-to-multipoint wireless network

 To configure a point-to-multipoint wireless network with or without client association:

Point-to-point bridge mode

Multipoint bridge mode

Hub or switch

LAN segment 1

AP1

(master)

Point-to-point bridge mode

Hub or switch

LAN segment 3

AP3

1. Configure the security profiles on the wireless access point (AP1 on LAN Segment 1 in

the previous figure):

a. Select Configuration > W

ireless Bridge.

The Bridging screen displays (see the following figure).

b. Select the Enable Wireless Bridging check box.

The Local MAC Address field is a nonconfigurable field that shows the MAC address

of the wireless access point.

c. Select the Wireless Point to Multi-Point Bridge radio button.

The screen adjusts. The profile table shows four security profiles.

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

d. Select a security profile to edit by selecting the corresponding radio button to the left

of the profile.

e. Click the Edit button to configure the selected security profile settings.

The Edit Security Profile screen displays for the selected security profile.

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

f. Specify the settings as described in the following table:

Setting Description Profile Definition

Profile Name Enter a profile name that is easy to remember. The default names for the four

security profiles are NETGEAR-WDS-1, NETGEAR-WDS-2, NETGEAR-WDS-3, and NETGEAR-WDS-4.

Remote MAC Address Enter the MAC address of the remote wireless access point (the MAC

address of

Authentication Settings

AP2 or

AP 3 on LAN Segment 1 in Figure 17 on page 81).

Network Authentication and Data Encryption

From the Network Authentication drop-down menu, select Open System,

Your selection determines the options that the Data Encryption drop-down menu provides, and whether the WP displays.

Open System Although you can use the bridge communication without any

WPA-PSK TKIP (Temporal Key Integrity Protocol) is the standard

, or WPA2-PSK.

A-PSK

A Passphrase (Network Key) field

authentication and encryption, NETGEAR recommends that you use WEP if you do select an open system. From the Data Encryption drop-down menu, select one of the following:

• None

• 64-bit WEP. Standard WEP encryption, using 40/64-bit

• 128-bit WEP. Standard WEP encryption, using

• 152-bit WEP. Proprietary WEP encryption mode, using

o configure WEP:

1. In the passphrase field, enter a passphrase.

2. Click the Generate Key button.

encryption method used with WPA-PSK and the only selection possible from the Data Encryption drop-down menu.

In the WP passphrase. The passphrase length needs to be between 8 and 63 characters (inclusive).

. No authentication and encryption.

encryption.

104/128-bit encryption.

128+24 bit encryption. other access points that support this mode.

The key is generated and placed in the WEP Key field.

A Passphrase (Network Key) field, enter a

This mode functions only with

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

Setting Description

Network Authentication and Data Encryption (continued)

Link Test

The link test lets you validate the bridge configuration by testing whether an IP address behind the remote access point is reachable.

IP Address Enter an IP address that can be reached through the remote access point for

Link Test Process Status

WPA2-PSK AES (Advanced Encryption Standard) is the standard

encryption method used with WPA2-PSK and the only selection possible from the Data Encryption drop-down menu.

In the WPA Passphrase (Network Key) field, enter a passphrase. The passphrase length needs to be between 8 and 63 characters (inclusive).

Note:

If you want to use the 11n rates and speed,

NETGEAR recommends WPA2-PSK authentication with AES encryption.

which you are setting up a bridge configuration. Click the Link T After one minute or less, the link test returns one of the following results:

• Success. The the IP address behind the remote access point is reachable. You can click the Apply button to save the bridge configuration.

can be established using the bridge configuration, and

link

est

button.

g. Click the Apply button.

The bridge configuration is saved. The Bridging screen displays again.

h. Repeat Step d through Step g for any other security profile that you want to edit.

For example, first configure security profile NETGEAR-WDS-1 with the MAC address of

AP2, and then configure security profile NETGEAR-WDS-2 with the MAC address

of AP3 (see

Figure 17 on page 81).

2. Activate the wireless access point (AP1 on LAN Segment 1 in Figure 17 on page 81) as

a point-to-multipoint bridge (that is, as the master in the wireless network): a. On the Bridging screen, select the Enable Wireless Bridging

check box.

b. Select the Wireless Point to Multi-Point Bridge radio button.

By default, the Enable Wireless Client

Association is selected. Keep the check box

selected to enable wireless client association.

Note: If you clear the Enable Wireless Client Association check box, the

wireless access point does not function in point-to-multipoint bridge but in repeater mode.

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

c. If the correct profile names and security options are displayed in the table, select the

check boxes in the Enable column for all security profiles that you want to enable.

d. On the Bridging screen, click the Apply button.

The point-to-multipoint bridge settings are activated.

3. Configure AP2

with the remote MAC address of AP1.

4. Configure AP3 on

with the remote MAC address of AP1.

5. Verify the following:

• Only AP1 on LAN Segment 1 is configured in point-to-multipoint bridge mode, and all

others wireless access points are configured in point-to-point bridge mode.

• AP2 and AP3 (the point-to-point

Address field.

• All APs are configured to operate in the same LAN network address range as the LAN

devices.

• If you use DHCP, all

For more information, see Configure the IP Settings on page 22.

• All APs use the same channel, authentication mode, and security settings.

6. Verify connectivity across the LANs.

A computer on any LAN segment should be able to connect to the Internet or share files and printers with any other computers or servers connected to any of the three LAN segments.

LAN Segment 2 (see Figure 17 on page 81) in point-to-point bridge mode

LAN Segment 3 (see Figure 17 on page 81) in point-to-point bridge mode

APs) have AP1’ s MAC address in their Remote MAC

APs can obtain an IP address automatically (as DHCP clients).

Note: You can extend this multipoint bridging configuration by adding more

wireless access points that are configured in point-to-point mode for each additional LAN segment.

Configure the Wireless Access Point to Repeat the Wireless Signal Using Point-to-Multipoint Bridge Mode

You can configure the wireless access point to repeat the wireless signal, without communication with other wireless clients. All traffic is sent to the remote or downstream wireless access point. You can configure up to four security profiles to enable the wireless access point to repeat the wireless signal for four remote wireless access points. Each security profile requires a unique name and needs to include the MAC address of the remote wireless access point. You can configure up to four such security profiles (NETGEAR-WDS-1, NETGEAR-WDS-2, and so on).

The following figure shows an example in which AP1, AP2, and AP3 repeat the wireless signal in point-to-multipoint bridge mode. one for AP3:

AP2 requires a security profile for

AP1 and another

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

AP1

AP2

Multipoint bridge mode repeating only

Router

Internet

LAN segment 1

Figure 18. Repeating the wireless signal in point-to-multipoint bridge mode

 To configure the wireless access point to repeat the wireless signal:

Multipoint bridge mode repeating only

AP3

Multipoint bridge mode repeating only

Hub or switch

LAN segment 2

1. Configure the security profiles on the wireless access point (AP2 on LAN Segment 2 in

the previous figure):

a. Select Configuration > W

ireless Bridge.

The Bridging screen displays (see the following figure).

b. Select the Enable Wireless Bridging check box.

The Local MAC Address field is a nonconfigurable field that shows the MAC address of the wireless access point.

c. Select the Wireless Point to Multi-Point Bridge radio button.

The screen adjusts. The profile table shows four security profiles.

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

d. Select a security profile to edit by selecting the corresponding radio button to the left

of the profile.

e. Click the Edit button to configure the selected security profile settings.

The Edit Security Profile screen displays for the selected security profile.

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

f. Specify the settings as described in the following table:

Setting Description Profile Definition

Profile Name Enter a profile name that is easy to remember. The default names for the four

security profiles are NETGEAR-WDS-1, NETGEAR-WDS-2, NETGEAR-WDS-3, and NETGEAR-WDS-4.

Remote MAC Address Enter the MAC address of the remote wireless access point (the MAC

address of

Authentication Settings

AP1 or

AP3 in Figure 18 on page 86).

Network Authentication and Data Encryption

From the Network Authentication drop-down menu, select Open System,

Your selection determines the options that the Data Encryption drop-down menu provides, and whether the WP displays.

Open System Although you can use the bridge communication without any

WPA-PSK TKIP (Temporal Key Integrity Protocol) is the standard

, or WPA2-PSK.

A-PSK

A Passphrase (Network Key) field

authentication and encryption, NETGEAR recommends that you use WEP if you do select an open system. From the Data Encryption drop-down menu, select one of the following:

• None

• 64-bit WEP. Standard WEP encryption, using 40/64-bit

• 128-bit WEP. Standard WEP encryption, using

• 152-bit WEP. Proprietary WEP encryption mode, using

o configure WEP:

1. In the passphrase field, enter a passphrase.

2. Click the Generate Key button.

encryption method used with WPA-PSK and the only selection possible from the Data Encryption drop-down menu.

In the WP passphrase. The passphrase length needs to be between 8 and 63 characters (inclusive).

. No authentication and encryption.

encryption.

104/128-bit encryption.

128+24 bit encryption. other access points that support this mode.

The key is generated and placed in the WEP Key field.

A Passphrase (Network Key) field, enter a

This mode functions only with

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

Setting Description

Network Authentication and Data Encryption (continued)

Link Test

The link test lets you validate the bridge configuration by testing whether an IP address behind the remote access point is reachable.

IP Address Enter an IP address that can be reached through the remote access point for

Link Test Process Status

WPA2-PSK AES (Advanced Encryption Standard) is the standard

encryption method used with WPA2-PSK and the only selection possible from the Data Encryption drop-down menu.

In the WPA Passphrase (Network Key) field, enter a passphrase. The passphrase length needs to be between 8 and 63 characters (inclusive).

Note:

If you want to use the 11n rates and speed,

NETGEAR recommends WPA2-PSK authentication with AES encryption.

which you are setting up a bridge configuration. Click the Link T After one minute or less, the link test returns one of the following results:

• Success. the IP address behind the remote access point is reachable. click the Apply button to save the bridge configuration.

The link can be established using the bridge configuration, and

est

button.

You can

g. Click the Apply button.

The bridge configuration is saved. The Bridging screen displays again.

h. Repeat Step d through Step g for any other security profile that you want to edit.

For example, first configure security profile NETGEAR-WDS-1 with the MAC address of

AP1, and then configure security profile NETGEAR-WDS-2 with the MAC address

of AP3 (see

Figure 18 on page 86).

2. Activate repeater mode on the wireless access point (AP2 in Figure 18 on page 86):

a. On the Bridging screen, select the Enable Wireless Bridging check box. b. Select the c. Clear the Enable Wireless Client

Wireless Point-to-Multi-Point Bridge radio button.

Association check box.

Wireless client association is disabled. No wireless clients can associate with the wireless access point.

Note: If you do not clear the Enable Wireless Client Association check box,

the wireless access point functions in regular point-to-multipoint bridge mode.

Advanced Configuration

ProSAFE Single Band 802.11n Wireless Access Point WN203

d. If the correct profile names and security options are displayed in the table, select the

check boxes in the Enable column for all security profiles that you want to enable.

e. On the Bridging screen, click the Apply button.

The repeater settings are activated.

3. Configure

AP1 on LAN Segment 1 (see Figure 18

on page 86) in repeater mode with the

remote MAC address of AP2.

4. Configure AP3 on LAN Segment 3 (see Figure 18

on page 86) in repeater mode with the

remote MAC address of AP2.

5. Verify the following:

• AP1 has AP2’

• AP3 has AP2’

s MAC address in its Remote MAC Address field. s MAC address in its Remote MAC Address field.

• All APs are configured to operate in the same LAN network address range as the LAN

devices.

• If you use DHCP, all

APs can obtain an IP address automatically (as DHCP clients).

For more information, see Configure the IP Settings on page 22.

• All APs use the same channel, authentication mode, and security settings.

6. Verify connectivity across the LANs.

A computer on any LAN segment should be able to connect to the Internet or share files

and printers with any other computers or servers connected to any of the two LAN segments.

Note: Between each LAN segment, you can extend repetition of the

wireless signal by adding up to two more wireless access points that are configured in point-to-multipoint bridge mode without client association.

Advanced Configuration

6. Monitoring

This chapter describes how to monitor the wireless access point and its network traffic. The

chapter includes the following sections:

• View System Information

• Monitor Wireless Clients

• View the Activity Log

• Traffic Statistics

Note: For information about monitoring rogue and known access points,

see View and Save Access Point Lists on page 64.

ProSAFE Single Band 802.11n Wireless Access Point WN203

View System Information

The System screen provides a summary of the current wireless access point configuration settings, including current IP settings and current wireless settings. This information is read only, so any changes need to be made on other screens.

 To view the System screen:

Select Monitoring > System.

The following table explains the fields of the System screen:

Setting Description

Access Point Information

Access Point Name The NetBIOS name. For information about how to change the default name, see

Configure Basic General System Settings and Time Settings on page 20.

Ethernet MAC Address The MAC address of the wireless access point’s Ethernet port. Wireless MAC Address

for 2.4GHz

The MAC address of the wireless access point’s 2.4 GHz radio.

Monitoring

ProSAFE Single Band 802.11n Wireless Access Point WN203

Setting Description

Country / Region The country or region for which the wireless access point is licensed for use. For

information about how to change the country or region, see Configure Basic General

System Settings and Time Settings on page 20.

Note: It might not be legal to operate this wireless access point in a country or region

other than one of those identified in this field. Firmware Version The version of the firmware that is installed. Serial Number The serial number of the wireless access point. Current Time The current time. For information about how to change the time settings, see

Configure Basic General System Settings and Time Settings on page 20.

Current IP Settings

For information about how to change any of these IP settings, see Configure the IP Settings on page 22. IP Address The IP address of the wireless access point. Subnet Mask The subnet mask for the address of the wireless access point. Default Gateway The default IP gateway for the wireless access point communication. DHCP Client Enabled indicates that the current IP address was obtained from a DHCP server on

your LAN network. Disabled indicates a static IP configuration.

Current Wireless Settings for 802.11b, 802.1

Note: The section heading depends on the configured wireless mode.

Access Point Mode The operating mode of the wireless access point. One of the following modes is

indicated:

• Access Point

• Point-to-Point Bridge

• Point-to-Point Bridge with Access Point

• Multi-Point Bridge with/without client association For information about how to change the mode, see Configure Wireless Bridging on

page 75.

Channel / Frequency The channel that the wireless port is using. For information about how to change the

channel and frequency

Rogue AP Detection

Enabled indicates that rogue AP detection is enabled. Disabled indicates that it is not.

1g, or 802.11ng

, see Configure 802.1

1b/bg/ng Wireless Settings on page 25.

Monitoring

ProSAFE Single Band 802.11n Wireless Access Point WN203

Monitor Wireless Clients

The Wireless Stations screen contains the A vailable Wireless Stations table. This table shows all IP devices that are associated with the wireless access point in the wireless network that is defined by the wireless network name (SSID). The table headings indicate the wireless modes (802.11b, 802.11bg, or 802.11ng).

Note: A wireless network can include multiple wireless access points, all

using the same network name (SSID). This uniformity extends the reach of the wireless network and allows users to roam from one wireless access point to another, providing seamless network connectivity. Under these circumstances, be aware that the

Available Wireless Stations table includes only the stations

associated with this wireless access point.

 To view the attached wireless clients, and to view details for a wireless client:

1. Select Monitoring > Wireless Stations.

The Wireless Stations screen displays:

2. (Optional) Click the Refresh button to update the list.

If the wireless access point is rebooted, the wireless client data is lost until the wireless access point rediscovers the devices. When you click the Refresh button, the wireless access point attempt to detect associated devices.

The A

vailable Wireless Stations table shows the MAC address, BSSID, SSID, channel, rate, state, type, AID, mode, and status for each device. For information about these and more fields, see the table that follows the next figure.

3. To view details for a wireless client, select the corresponding radio button, and click the

Details button.

The Wireless Stations Details screen displays:

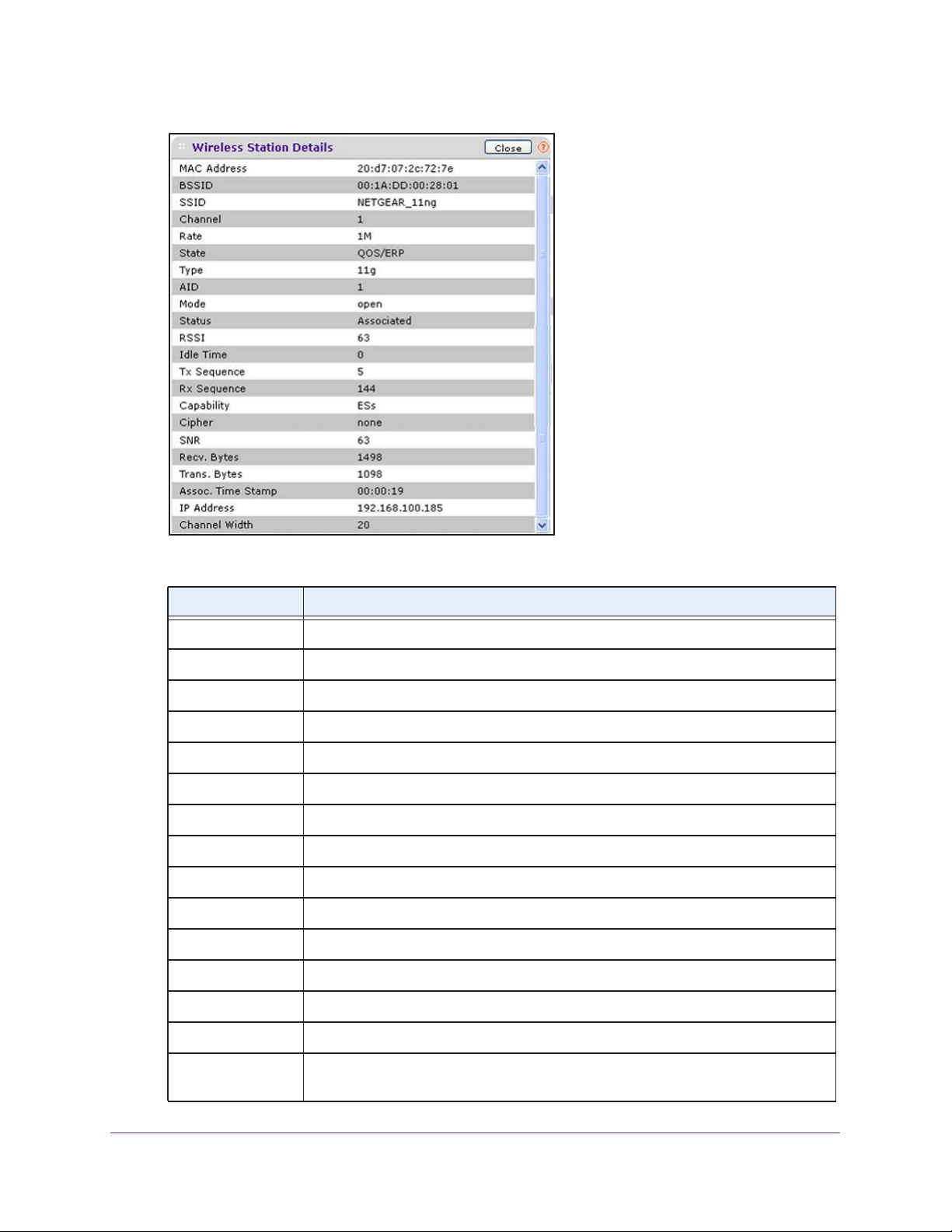

Monitoring

ProSAFE Single Band 802.11n Wireless Access Point WN203

The following table explains the fields of the Wireless Stations Details screen:

Setting Description

MAC Address The MAC address of the wireless client. BSSID The BSSID that the wireless client is using. SSID The SSID that the wireless client is using. Channel The channel that the wireless client is using. Rate The transmit data rate in Mbps of the wireless client. State The features that are enabled on the wireless client. Type The authentication and encryption type that the wireless client is using. AID The associated identifier (AID) of the wireless client. Mode The wireless mode in which the wireless client is operating. Status The wireless status of the wireless client (Associated). RSSI The received signal strength indicator (RSSI) of the wireless client. Idle Time The time since the last frame was received from the wireless client. Tx Sequence The sequence number of the last frame that was transmitted to the wireless client. Rx Sequence The sequence number of the last frame that was received from the wireless client. Capability The summary of the capability of the wireless client that was detected during

association.

Monitoring

ProSAFE Single Band 802.11n Wireless Access Point WN203

Setting Description

Cipher The cipher that the wireless client is using and that defines the type of encryption. SNR The signal-to-noise ratio (SNR) that indicates how much the signal of the wireless

client has been corrupted by noise.

Recv. Bytes The number of bytes received on the wireless client since it last started. Trans. bytes The number of bytes transmitted by the wireless client since it last started. Assoc. Time Stamp The time when these details of the wireless client were retrieved.

IP Address The IP address of the wireless client.

Channel Width

The channel width at which the wireless client operates.

View the Activity Log

You can view the wireless access point’s activity logs onscreen and save the logs.

 To display the activity log and save it:

1. Select Monitoring > Logs.

The Logs screen displays:

2. (Optional) Click the Refresh button.

The information onscreen is updated.

3. (Optional) Click the Save As button.

4. Navigate to the desired location, and save the log contents.

Note: The nature of this step depends on the browser that you are using.

Monitoring

ProSAFE Single Band 802.11n Wireless Access Point WN203

5. (Optional) Click the Clear button.

The log contents are cleared.

Traffic Statistics

The Statistics screen displays information for both wired (LAN) and wireless (WLAN) network traffic.

 To display the Statistics screen:

Select Monitoring > Statistics.

To update the statistics information, click the Refresh button.

Monitoring

ProSAFE Single Band 802.11n Wireless Access Point WN203

The following table explains the fields of the Statistics screen:

Setting Description Wired Ethernet

Packets The number of packets received and transmitted over the Ethernet connection

since the wireless access point was restarted.

Bytes The number of bytes received and transmitted over the Ethernet connection

since the wireless access point was restarted.

Wireless 802.11b, W

Note: The section heading depends on the configured wireless mode.

Unicast Packets The number of unicast packets received and transmitted over the wireless

Broadcast Packets The number of broadcast packets received and transmitted over the wireless

Multicast Packets The number of multicast packets received and transmitted over the wireless

Total Packets The total number of packets received and transmitted over the wireless

Total Bytes The total number of bytes received and transmitted over the wireless connection

Client Association

802.11b Radio,

802.11bg Radio, or

802.11ng Radio

ireless 802.11bg, or W

connection since the wireless access point was restarted.

since the wireless access point was restarted.

The number of associated clients that are connected to the radio in the configured wireless modes.

ireless 801.11ng

Monitoring

7. Troubleshooting

This chapter provides information about troubleshooting the wireless access point. After each

problem description, instructions are given to help you diagnose and solve the problem. For the common problems listed, go to the section indicated.

• Is the wireless access point on?

See Basic Functioning on page 100.

• Did I connect the wireless access point correctly?

See Basic Functioning on page 100.

• I cannot access the Internet or the LAN.

See You Cannot Access the Internet or the LAN from a Wireless-Capable Computer on page 101.

• I cannot access the wireless access point from a browser

ou Cannot Configure the Wireless Access Point from a Browser on page 102.

See Y

• A time-out occurs.

See When You Enter a URL or IP Address a Time-Out Error Occurs on page 103.

• I have problems with the LAN connection.

See Troubleshoot a TCP/IP Network Using the Ping Utility on page 103.

• The date or time is not correct.

See Problems with Date and Time on page 105.

You can find the following troubleshooting information in Chapter 4, Management:

• I cannot remember the wireless access point’

See Change the

• I want to clear the configuration and start over again.

See Restore the Wireless Access Point to the Factory Default Settings on page 58.

Administrator Password on page 61.

s configuration password.

ProSAFE Single Band 802.11n Wireless Access Point WN203

Basic Functioning

This section describes how you can use the LEDs to troubleshoot the wireless access point.

• Verify the Correct Sequence of Events at Startup

• No LEDs

• LAN LED Is Not Lit

• WLAN LED Is Not Lit

Note: For descriptions of the LEDs, see Front Panel on page 11.

Verify the Correct Sequence of Events at Startup

 After you turn on power to the wireless access point, check that the following

sequence of events occurs:

Are Lit on the Wireless Access Point

• The Power LED is green. If the Power LED is off, check the connections, and check if the

power outlet is controlled by a wall switch that is turned off.

• The Test LED is amber. After about one minute, the Test LED turns off.

• The LAN LED indicates the LAN speed for the LAN port: green for 1000 Mbps or amber

for 100 Mbps or 10 Mbps.

• The WLAN LED is blue when the wireless LAN (WLAN) is ready

If any of these conditions does not occur, see the appropriate following section.

No LEDs Are Lit on the Wireless Access Point

It takes a few seconds for the Power LED to light. Wait 15 seconds and check the Power LED status on the wireless access point.

 If the wireless access point has no power and you use a PoE switch to provide power

to the wireless access point:

• Make sure that the Ethernet cable between the wireless access point and the PoE switch

is connected correctly at both ends.

• Make sure that the power cord of the PoE switch is plugged into a working power outlet or

power strip.

• Make sure that the PoE switch is functioning normally

Troubleshooting

100

Netgear WN203v2, WN203 User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

ProSAFE Single Band 802.11n Wireless Access Point WN203

Contents

1. Introduction

About the ProSAFE Single Band 802.11n Wireless Access Point WN203

What Is in the Box?

System Requirements

Key Features and Standards

Supported Standards and Conventions

Key Features

802.11b/g/n Standards–Based Wireless Networking

Autosensing Ethernet Connections with Auto Uplink

Hardware Description

Front Panel

Back Panel

Bottom Panel with Product Label and Reset to Factory Defaults Button

2. Installation and Basic Configuration

What You Need Before You Begin

Wireless Equipment Placement and Range Guidelines

Ethernet Cabling Requirements

LAN Configuration Requirements

Hardware Requirements for Computers on Your LAN

Requirements for Entering IP Addresses

Install and Configure the Wireless Access Point

Connect the Wireless Access Point to a Computer

Log In to the Wireless Access Point

Configure Basic General System Settings and Time Settings

Configure the IP Settings

Configure the Optional DHCP Server

Configure the Basic Wireless Settings

Test Basic Wireless Connectivity

3. Wireless Configuration and Security

Before You Configure Wireless Security

Wireless Data Security Options

Security Profiles

Security Profile Concepts

Write Down Your Wireless Network Settings

Configure and Enable Security Profiles

Configure RADIUS Server Settings

Restrict Wireless Access by MAC Address

Schedule the Wireless Radios to Be Turned Off

Configure Basic Wireless Quality of Service

4. Management

Enable Remote Management

SNMP Management

Secure Shell and Telnet Management

Upgrade the Wireless Access Point Software

Web Browser Upgrade Procedure

TFTP Server Upgrade Procedure

Manage the Configuration File or Reset to Factory Default

Save the Configuration

Restore the Configuration

Restore the Wireless Access Point to the Factory Default Settings

Reboot the Wireless Access Point without Restoring the Default Configuration

Change the Administrator Password

Enable the Syslog Option

Enable Rogue AP Detection and Monitor Access Points

Enable and Configure Rogue AP Detection

View and Save Access Point Lists

5. Advanced Configuration

Configure Spanning Tree Protocol and 802.1Q VLANs

Configure Hotspot Settings

Configure Advanced Wireless Settings

Configure Advanced Quality of Service Settings

Configure Wireless Bridging

Configure a Point-to-Point Wireless Network

Configure a Point-to-Multipoint Wireless Network

Configure the Wireless Access Point to Repeat the Wireless Signal Using Point-to-Multipoint Bridge Mode

6. Monitoring

View System Information

Monitor Wireless Clients

View the Activity Log

Traffic Statistics

7. Troubleshooting

Basic Functioning

Verify the Correct Sequence of Events at Startup

No LEDs Are Lit on the Wireless Access Point
