Netgear PS113 Reference Guide

Download

Installation and Reference for the Model PS104/PS105/ PS110/PS113 Print Server

NETGEAR

4401 Great America Parkway Santa Clara, CA 95054 USA Phone 888-NETGEAR

M-PS100NA-4 May 2000

, Inc.

Declaration of Conformity

FOR HOME OR OFFICE

NETGEAR Model PS104, Model PS105,

Model PS110, and Model PS113

Print Servers tested to comply

with FCC Standards.

Trademarks

NETGEAR and FirstGear are trademarks of NETGEAR, Inc.

Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation.

Other brand and product names are registered trademarks or trademarks of their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice.

NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operation.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

EN 55 022 Declaration of Conformance

This is to certify that the NETGEAR Model PS104 Print Server, Model PS105 Print Server, Model PS110 Print Server, and Model PS113 Print Server are shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22).

Bestätigung des Herstellers/Importeurs

Es wird hiermit bestätigt, daß das NETGEAR Model PS104 Print Server, Model PS105 Print Server, Model PS110 Print Server, und Model PS113 Print Server gemäß der im BMPT-AmtsblVfg 243/1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung.

Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen.

Certiﬁcate of the Manufacturer/Importer

It is hereby certiﬁed that the Model PS104 Print Server, Model PS105 Print Server, Model PS110 Print Server, and Model PS113 Print Server have been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/ 1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions.

Federal Ofﬁce for Telecommunications Approvals has been notiﬁed of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations.

Compliance with the applicable regulations is dependent upon the use of shielded cables. It is the responsibility of the user to procure the appropriate cables.

Voluntary Control Council for Interference (VCCI-B) Statement

This is a Class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

Customer Support

For assistance with installing and conﬁguring your NETGEAR system or with post-installation questions or problems, contact your point-of-purchase representative.

To contact customer support or to purchase additional copies of this document and publications for other NETGEAR products, you can contact NETGEAR at the following numbers:

•

Australia:

•

Austria:

(008000-NETGEAR)

•

Canada:

•

France:

•

Germany:

(008000-NETGEAR)

•

Japan:

1800-142-046 •

00800-06384327

888-NETGEAR •

0800-90-2078 •

00800-06384327

0120-66-5402 •

Korea:

00308-11-0319

•

New Zealand:

Sweden:

Switzerland:

(008000-NETGEAR)

•

United Kingdom:

United States:

0800-444-626

020-790086

00800-06384327

0171-571-5120

888-NETGEAR

Internet/World Wide Web

NETGEAR maintains a World Wide Web Home Page that you can access at the universal resource locator (URL) http://www.NETGEAR.com. A direct connection to the Internet and a Web browser such as Internet Explorer or Netscape are required.

iii

This page intentionally blank.

Contents

Preface

Purpose ..........................................................................................................................xvii

Audience .........................................................................................................................xvii

Conventions ...................................................................................................................xviii

Special Message Formats ....................................................................................... xviii

Use of Enter, Type, and Press .................................................................................xviii

Other Conventions ....................................................................................................xix

Related Publication ..........................................................................................................xix

Chapter 1 Introduction

Features .........................................................................................................................1-1

Front Panel .....................................................................................................................1-2

LEDs ........................................................................................................................1-4

Rear Panel ......................................................................................................................1-5

Normal/Uplink Push Button on the Model PS104/PS105 Print Server ....................1-6

Chapter 2 Installation

Preparing the Site ...........................................................................................................2-1

Verifying Package Contents ............................................................................................2-1

Connecting Devices to the Print Server ..........................................................................2-2

Verifying Power ...............................................................................................................2-3

Chapter 3 Microsoft Windows 95 and Windows 98 Printing

FirstGear for Print Server ...............................................................................................3-1

Installing and Setting Up FirstGear—User Installation ...................................................3-2

Setting Up Your PC to Recognize the Print Server ...................................................3-8

Installing and Setting Up FirstGear—Admin Installation ...............................................3-17

Contents v

Setting Up Your PC to Recognize the Print Server ....................................................... 3-23

Installing and Setting Up FirstGear—Diskette Option ..................................................3-23

Setting up the Print Server Using NetBEUI and TCP/IP ...............................................3-24

Conﬁguring the Print Server Using NetBEUI .........................................................3-24

Conﬁguring the Print Server Using TCP/IP ............................................................3-24

Chapter 4 Microsoft Windows NT and Windows 2000 Printing

FirstGear for Print Server ...............................................................................................4-1

Installing and Setting Up FirstGear—User Installation ...................................................4-2

Setting Up Your PC to Recognize the Print Server ...................................................4-8

Installing and Setting Up FirstGear—Admin Installation ...............................................4-17

Setting Up Your PC to Recognize the Print Server .................................................4-23

Installing and Setting Up FirstGear—Diskette Option ..................................................4-23

Setting up the Print Server Using NetBEUI and TCP/IP ...............................................4-24

Conﬁguring the Print Server Using NetBEUI .........................................................4-24

Conﬁguring the Print Server Using TCP/IP ............................................................4-24

Setting Up Spooled LPR Printing with Windows NT 3.51 ......................................4-28

Setting Up Spooled LPR Printing with Windows NT 4.0 ........................................4-30

Chapter 5 Novell NetWare Printing

Conﬁguration Overview ..................................................................................................5-1

Conﬁguring the NetWare File Server .......................................................................5-2

Conﬁguring Your Print Server ...................................................................................5-3

Determining a Device Name for Your Print Server ...................................................5-3

Using Your Print Server in a NetWare 3.x Network .........................................................5-3

Setting PSERVER Mode in NetWare 3.x (Bindery Mode) ........................................5-4

Setting RPRINTER Mode in NetWare 3.x (Bindery Mode) ......................................5-7

Using Your Print Server in a NetWare 4.x Network .......................................................5-11

Setting PSERVER Mode in a NetWare 4.x NDS Mode Network ...........................5-11

Setting PSERVER Mode in a NetWare 4.x Bindery Emulation Network ................5-14

Setting RPRINTER Mode in a NetWare 4.x NDS Mode Network ..........................5-16

Setting PSERVER Mode in NetWare 5.x NDS Mode Network ..............................5-19

Using Advanced Functions ...........................................................................................5-20

Servicing Multiple NetWare Bindery File Servers ..................................................5-20

vi Contents

Attaching to More Than One NetWare Print Server ...............................................5-21

Using Logical Ports ................................................................................................5-22

Conﬁguring Logical Printers on the Print Server ............................................. 5-22

Conﬁguring NetWare File Server to Connect to Logical Printers ....................5-23

Chapter 6 UNIX Printing Using TCP/IP

Temporary IP Address Resolution ..................................................................................6-3

Assigning an IP Address to the Print Server Using DHCP ......................................6-3

Assigning an IP Address to the Print Server Using BootP .......................................6-3

Assigning an IP Address to the Print Server Using RARP ....................................... 6-4

Assigning an IP Address to the Print Server Using ARP .........................................6-6

Conﬁguring Your Print Server Using FTP .......................................................................6-7

Conﬁguration Example ............................................................................................. 6-7

List of FTP Files and Commands Supported by the Print Server ............................6-8

Setting the Print Method .................................................................................................6-9

LPD Conﬁguration and Printing .............................................................................6-10

Conﬁguring LPD on IBM AIX 4.15 ...................................................................6-10

Conﬁguring LPD on System V .........................................................................6-11

Conﬁguring LPD on BSD .................................................................................6-12

Printing Using LPD ................................................................................................. 6-13

Printing Using FTP .................................................................................................6-14

Printing Using DSI .................................................................................................. 6-14

Chapter 7 Using Advanced Management Tools

Conﬁguring Using the FirstGear Print Server Administration Program ..........................7-1

Advanced Print Server Conﬁguration ....................................................................... 7-4

System Menu Tab ..............................................................................................7-5

NetWare PServer Menu Tab ..............................................................................7-6

NetWare RPrinter Menu Tab ..............................................................................7-9

TCP/IP Menu Tab ............................................................................................7-10

Logical Port Menu Tab .....................................................................................7-12

Advanced Print Server Conﬁguration Menu Bar ....................................................7-13

Control Menu Bar Option .................................................................................7-13

Printer Menu Bar Options ................................................................................7-14

Contents vii

Conﬁguring Using PSCONFIG .....................................................................................7-15

PSCONFIG Fields .................................................................................................. 7-15

Changing Conﬁguration Menu Options ..................................................................7-16

System Conﬁguration ......................................................................................7-16

NetWare Print Server Mode .............................................................................7-17

TCP/IP Conﬁguration .......................................................................................7-18

NetBEUI Conﬁguration ....................................................................................7-19

Logical Printer Conﬁguration ...........................................................................7-20

Conﬁguring Using QUICKSET ......................................................................................7-21

NetWare Print Server (PSERVER) Mode ...............................................................7-21

NetWare Remote Printer (RPRINTER) Mode ........................................................7-23

Appendix A Technical Speciﬁcations

General Speciﬁcations ................................................................................................... A-1

Appendix B Understanding IP Addresses

IP Addresses and the Internet ....................................................................................... B-1

Netmask ........................................................................................................................ B-3

Subnet Addressing ........................................................................................................ B-4

Private IP Addresses ..................................................................................................... B-6

Address Resolution Protocol ......................................................................................... B-7

IP Conﬁguration by DHCP ............................................................................................. B-7

Appendix C CONFIG File

CONFIG File TCP/IP Settings ....................................................................................... C-1

Appendix D Using NetWare 5 NDPS

Overview ........................................................................................................................ D-1

Creating an NDPS Manager Object ........................................................................ D-1

Creating an NDPS Printer Agent ............................................................................ D-3

Workstation Conﬁguration ....................................................................................... D-5

Installing and Conﬁguring the Public Access Printers ...................................... D-5

viii Contents

Appendix E IP Setup

Overview ........................................................................................................................ E-1

Index

Contents ix

This page intentionally blank.

x Contents

Figures

Figure 1-1. Front Panel of the Model PS104 Print Server ..........................................1-2

Figure 1-2. Front Panel of the Model PS105 Print Server ..........................................1-2

Figure 1-3. Front Panel of the Model PS110 Print Server ..........................................1-3

Figure 1-4. Front Panel of the Model PS113 Print Server ..........................................1-3

Figure 1-5. Rear Panel of the Model PS104 Print Server ..........................................1-6

Figure 1-6. Rear Panel of the Model PS105 Print Server ..........................................1-6

Figure 1-7. Rear Panel of the Model PS110 Print Server ..........................................1-7

Figure 1-8. Rear Panel of the Model PS113 Print Server ..........................................1-7

Figure 3-1. FirstGear Introductory Window ................................................................ 3-2

Figure 3-2. User Installation Option Window ..............................................................3-3

Figure 3-3. NETGEAR Print Server Software Installation Window .............................3-4

Figure 3-4. Choose Destination Location Window .....................................................3-5

Figure 3-5. Select Program Folder Window ...............................................................3-6

Figure 3-6. Setup Complete Window ..........................................................................3-7

Figure 3-7. Firstgear for Print Server Icon ..................................................................3-8

Figure 3-8. Setup Icon ................................................................................................3-9

Figure 3-9. Setup Window ..........................................................................................3-9

Figure 3-10. Printer Select Window (Add Port) ..........................................................3-10

Figure 3-11. ADDPORT Window (Epson Connection) ...............................................3-11

Figure 3-12. Epson Spool Manager Queue Setup Window ........................................3-11

Figure 3-13. ADDPORT Window ................................................................................3-12

Figure 3-14. Add Printer Wizard Window (Manufacturer and Model of Printer) .........3-12

Figure 3-15. Add Printer Wizard Window (Driver Installation) ....................................3-13

Figure 3-16. Add Printer Wizard Window (Printer Name) ...........................................3-14

Figure 3-17. Add Printer Wizard Window (Print Test Page) ........................................3-15

Figure 3-18. Add Port Window (Setup Complete) ......................................................3-16

Figure 3-19. FirstGear Introductory Window ..............................................................3-17

Figure 3-20. “Admin Installation” Option Window .......................................................3-18

Figure 3-21. NETGEAR Print Server Software Installation Window ...........................3-19

Figures xi

Figure 3-22. Choose Destination Location Window ...................................................3-20

Figure 3-23. Select Program Folder Window .............................................................3-21

Figure 3-24. Setup Complete Window ........................................................................3-22

Figure 3-25. Install From Disk Window .......................................................................3-23

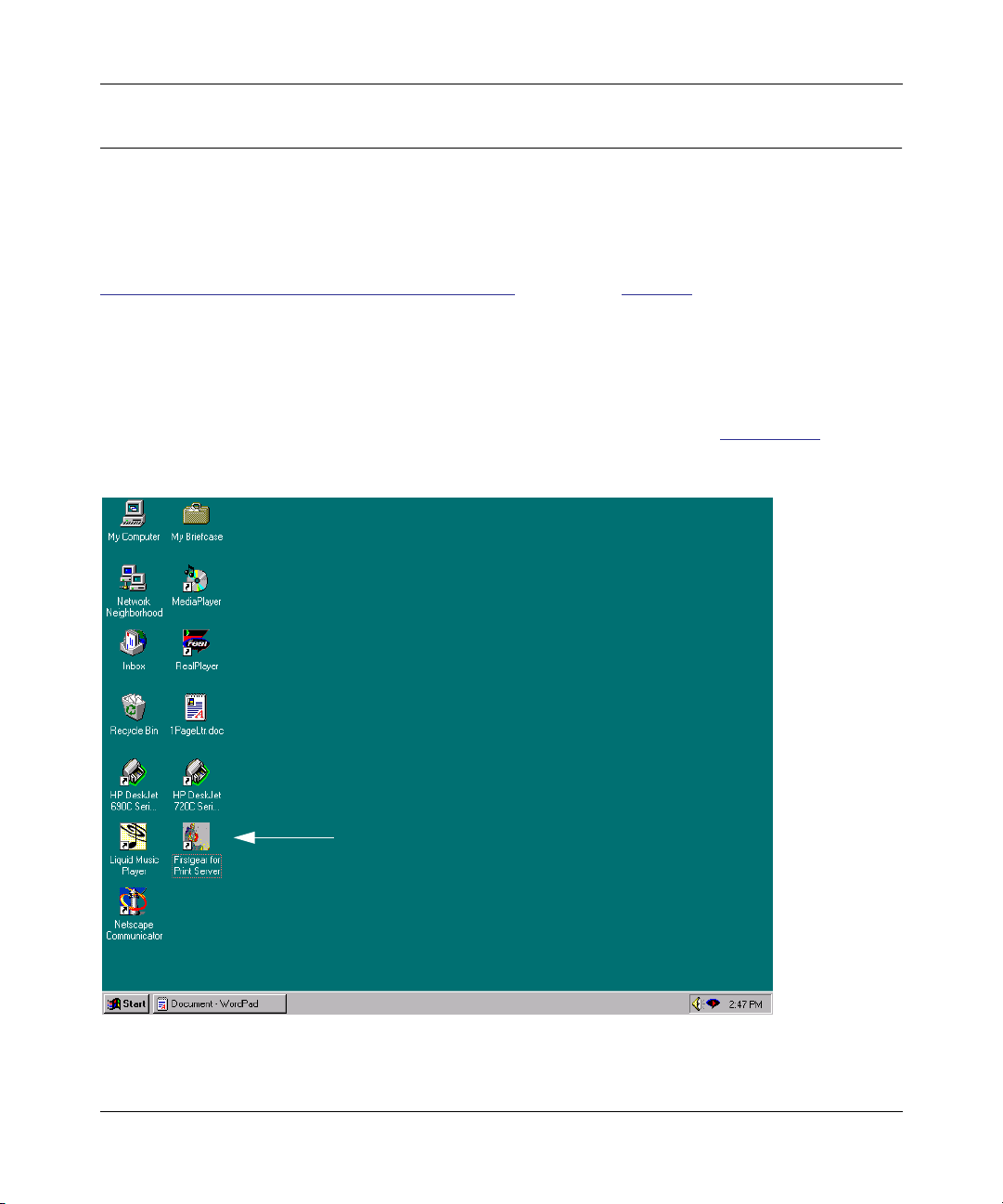

Figure 3-26. Firstgear for Print Server Icon ................................................................ 3-24

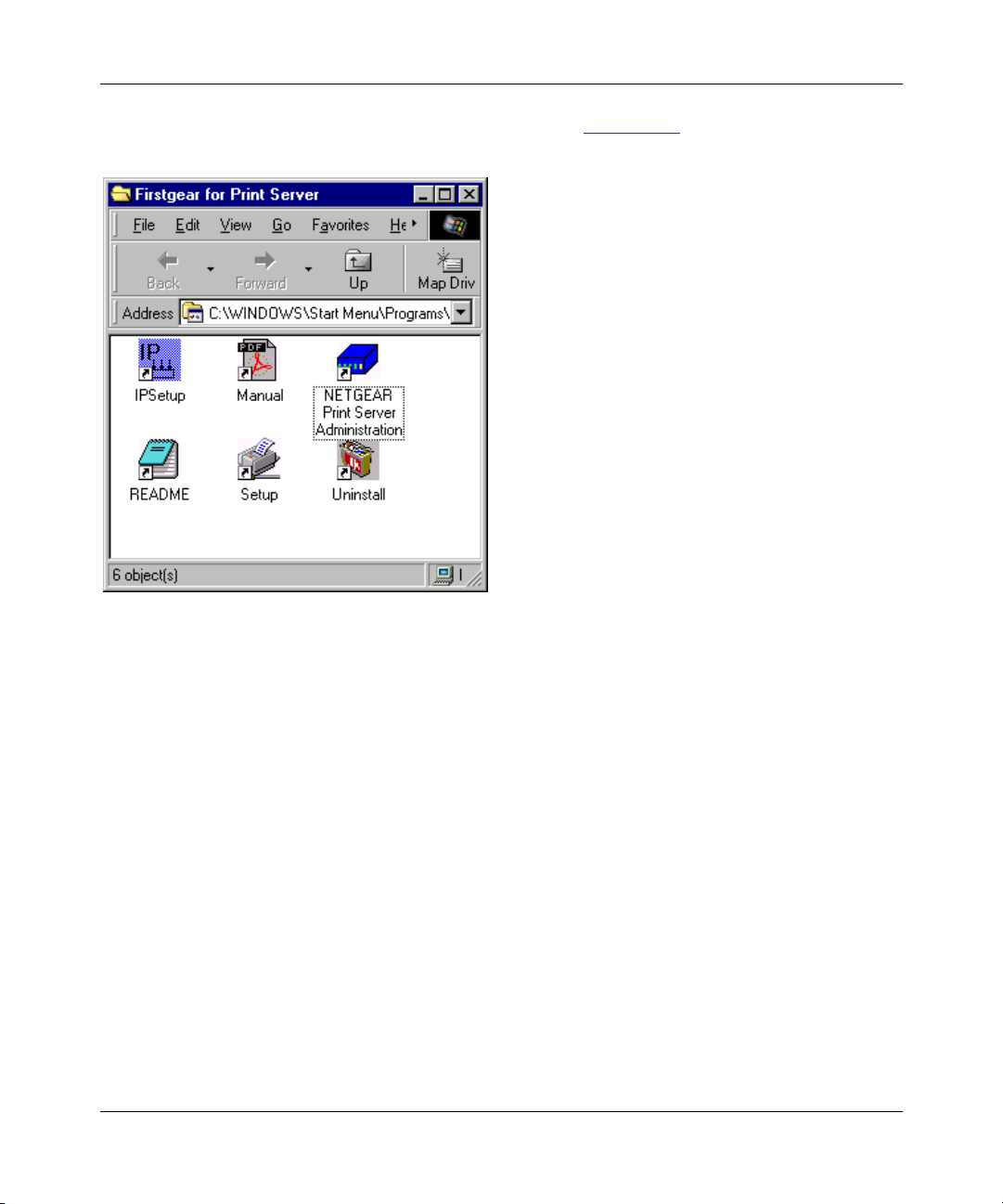

Figure 3-27. Firstgear for Print Server Window .......................................................... 3-25

Figure 3-28. NETGEAR Print Server Administration Program Window .....................3-26

Figure 3-29. TCP/IP Menu .........................................................................................3-27

Figure 4-1. FirstGear Introductory Window ................................................................ 4-2

Figure 4-2. User PC Installation Option Window ........................................................4-3

Figure 4-3. NETGEAR Print Server Software Installation Window .............................4-4

Figure 4-4. Choose Destination Location Window .....................................................4-5

Figure 4-5. Select Program Folder Window ...............................................................4-6

Figure 4-6. Setup Complete Window ..........................................................................4-7

Figure 4-7. Firstgear for Print Server Icon ..................................................................4-8

Figure 4-8. Firstgear for Print Server Setup Icon .......................................................4-9

Figure 4-9. Setup Window ..........................................................................................4-9

Figure 4-10. Printer Select Window (Add Port) ..........................................................4-10

Figure 4-11. ADDPORT Window (Epson Connection) ...............................................4-10

Figure 4-12. Add Port Window (Added port successfully) .......................................... 4-11

Figure 4-13. Add Printer Wizard Window (Add Ports) ................................................4-11

Figure 4-14. Add Printer Wizard Window (Manufacturer and Model of Printer) .........4-12

Figure 4-15. Add Printer Wizard Window (Printer Name) ...........................................4-13

Figure 4-16. Add Printer Wizard Window (Sharing Ports Screen) ..............................4-14

Figure 4-17. Add Printer Wizard Window (Print Test Page) ........................................4-15

Figure 4-18. Printer Select Window (End Setup) .......................................................4-16

Figure 4-19. FirstGear Introductory Window ..............................................................4-17

Figure 4-20. Admin Installation Option Window .........................................................4-18

Figure 4-21. NETGEAR Print Server Software Installation Window ...........................4-19

Figure 4-22. Choose Destination Location Window ...................................................4-20

Figure 4-23. Select Program Folder Window .............................................................4-21

Figure 4-24. Setup Complete Window ........................................................................4-22

Figure 4-25. Install From Disk Window .......................................................................4-23

Figure 4-26. Firstgear for Print Server Icon ................................................................ 4-24

Figure 4-27. Firstgear for Print Server Window .......................................................... 4-25

xii Figures

Figure 4-28. NETGEAR Print Server Administration Program Window .....................4-26

Figure 4-29. TCP/IP Menu .........................................................................................4-27

Figure 7-1. NETGEAR Print Server Administration Program .....................................7-2

Figure 7-2. FirstGear Setup Utility Quick Setup Screen .............................................7-3

Figure 7-3. System Menu Tab Window ....................................................................... 7-5

Figure 7-4. NetWare PServer Tab Window .................................................................7-7

Figure 7-5. NetWare RPrinter Tab Window ................................................................7-9

Figure 7-6. TCP/IP Menu Tab Window .....................................................................7-10

Figure 7-7. Logical Port Menu Tab Window .............................................................. 7-12

Figure B-1. Three Main Address Classes .................................................................. B-2

Figure B-2. Example of Subnetting a Class B Address ............................................. B-4

Figure D-1. Create NDPS Manager Object Window .................................................. D-2

Figure D-2. Create Printer Agent Window ................................................................. D-3

Figure D-3. Conﬁgure Port Handler Window .............................................................. D-4

Figure E-1. NETGEAR Print Server IP Address Conﬁguration ................................. E-2

Figures xiii

This page intentionally blank.

xiv Figures

Tables

Table 1-1. LED Descriptions .....................................................................................1-4

Table 2-1. Cable Selection and Normal/Uplink Push Button Settings ......................2-2

Table 3-1. Fields and Descriptions for TCP/IP Conﬁguration ..................................3-28

Table 4-1. Fields and Descriptions for TCP/IP Conﬁguration ..................................4-28

Table 4-2. Add a Spooled LPR Printer Fields .........................................................4-29

Table 4-3. Add LPR Compatible Printer Fields .......................................................4-30

Table 5-1. PSERVER Mode Printer Number Mapping ..............................................5-5

Table 5-2. RPRINTER Mode Printer Name Mapping ...............................................5-8

Table 5-3. Logical Printer Conﬁguration Entries .....................................................5-23

Table 6-1. FTP Files in the Directory .......................................................................6-8

Table 6-2. FTP Commands ....................................................................................... 6-8

Table 6-3. Sample Commands for Using LPD on System V ...................................6-11

Table 6-4. Sample Commands for Using LPD on BSD ...........................................6-13

Table 6-5. Socket Number Deﬁnitions ....................................................................6-14

Table 7-1. Control Buttons on All Menu Tabs ............................................................ 7-4

Table 7-2. System Menu Tab Fields .......................................................................... 7-6

Table 7-3. NetWare PSERVER Menu Tab Fields ......................................................7-7

Table 7-4. NetWare RPrinter Menu Tab Fields .........................................................7-9

Table 7-5. TCP/IP Menu Tab Fields ........................................................................7-11

Table 7-6. Logical Port Menu Tab Fields .................................................................7-13

Table 7-7. Advanced Print Server Conﬁguration Menu Bar Selections ..................7-14

Table 7-8. Printer Menu Options .............................................................................7-14

Table 7-9. PSCONFIG Program Options ................................................................7-15

Table 7-10. NetWare Print Server Mode Fields ........................................................7-17

Table 7-11. TCP/IP Conﬁguration Fields ..................................................................7-18

Table 7-12. NetBEUI Conﬁguration Fields ................................................................7-19

Table 7-13. Parameters and Deﬁnitions for Logical Printer Conﬁguration ................7-20

Table 7-14. Parameters and Deﬁnitions for PSERVER Mode ...................................7-22

Table 7-15. Parameters and Deﬁnitions for RPRINTER Mode .................................7-24

Tables xv

Table B-1. Netmask Notation Translation Table for One Octet ................................. B-5

Table B-2. Netmask Formats ................................................................................... B-5

Table C-1. Conﬁguration Settings ............................................................................. C-1

Table C-2. CONFIG File Line Numbers .................................................................... C-3

Table E-1. IP Conﬁguration Settings ........................................................................ E-1

xvi Tables

Preface

Congratulations on your purchase of the NETGEAR™ Model PS104 Print Server, Model PS105 Print Server, Model PS110 Print Server, or Model PS113 Print Server.

Supporting multiple protocols and operating systems, these print servers provide an effective solution for networked PCs to connect to the same printer, processing and trafﬁcking printing requests to any parallel device. These print servers are fast and easy to set up with FirstGear™, a NETGEAR software conﬁguration program.

Purpose

This guide describes how to set up the Model PS104 Print Server, Model PS105 Print Server, Model PS110 Print Server, and Model PS113 Print Server. If your network is operating in a Microsoft environment and you are using Microsoft Windows 95, Windows 98, Windows NT, or Windows

Guide

reference information.



2000, refer to the

(NETGEAR part number M1-PS100NA-1). However, this guide provides you with further

Model PS104/PS105/PS110/PS113 Print Server Quick Installation

In this guide, the Model PS104 Print Server, the Model PS105 Print Server, the Model PS110 Print Server, and the Model PS113 Print Server are referred to collectively as the Model PS104/PS105/ PS110/PS113 Series of print servers or just the print server. Each model is referred to speciﬁcally when features or functions are unique to that particular model.

Audience

To conﬁgure and install the print server, you should have the following background and experience:

• Working knowledge of basic network management concepts and terminology

• Working knowledge of tools and procedures to install and operate electronic equipment

Preface xvii

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Conventions

This section describes the conventions used in this guide.

Special Message Formats

This guide uses the following formats to highlight special messages:

This format is used to highlight information of importance or special interest.

Note:

Caution:

equipment failure or loss of data.

Warning:

equipment damage.

Danger:

mishandling equipment.

This format is used to highlight information that will help you prevent

This format is used to highlight material involving possibility of injury or

This format is used to alert you that you may incur an electrical shock by

Use of Enter, Type, and Press

This guide uses “enter,” “type,” and “press” to describe the following actions:

• When you read “enter,” type the text and press the Enter key.

• When you read “type,” type the text, but do not press the Enter key.

• When you read “press,” press only the alphanumeric or named key.

xviii Preface

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Other Conventions

This guide uses the following additional conventions:

italics

Initial Caps Menu titles and window and button names.

Book titles and UNIX ﬁle, command, and directory names.

Related Publication

If you are using Microsoft Windows 95, Windows 98, Windows NT, or Windows 2000 and have a network card installed with the NetBEUI protocol, refer to the

PS110/Model PS113 Print Server Installation Guide

This guide provides instructions for installing the print servers by using the FirstGear Utility, a program developed by NETGEAR for fast and easy device conﬁguration.

(document part number M1-PS100NA-1).

Model PS104/Model PS105/Model

Preface xix

Chapter 1

Introduction

This chapter describes the features and the components of the Model PS104/PS105/PS110/PS113 print server.

Features

The Model PS100 series of print servers offers:

• Support for multiple protocols (NetBEUI, TCP/IP, and IPX/SPX)

• Support for multiple operating systems (Windows 95, Windows 98, Windows NT,

Windows 2000, Novell NetWare, and UNIX)

• Easy conﬁguration of the device with FirstGear, NETGEAR conﬁguration software that

assures fast and easy setup for Windows 95, Windows 98, and Window NT users

• Support for 10BASE-T Ethernet connection with four 10BASE-T ports on the Model PS104

Print Server, four 10BASE-T ports and a BNC port on the Model PS105 Print Server, or 10/100BASE-T Ethernet connection on the Model PS110 and Model PS113 Print Server

• One IEEE 1284 bidirectional parallel port on the Model PS104 and Model PS105 Print

Servers, two bidirectional parallel ports on the Model PS110 Print Server, and three bidirectional parallel ports on the Model PS113 Print Server

• Extensive LED indicators for at-a-glance status information

• Built-in repeater functionality (Model PS104 and Model PS105 Print Servers)

• Compact size to ﬁt into limited space in a work area

• In a TCP/IP environment, conﬁgurability to allow others to print to one of your printers from

anywhere on the Internet

Introduction 1-1

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Front Panel

The LEDs that indicate the status of the server, ports, and printer are located on the front panels of the Model PS104 Print Server, the Model PS105 Print Server, the Model PS110 Print Server, and the Model PS113 Print Server as illustrated in Figure respectively.

2 31

1-1, Figure 1-2, Figure 1-3, and Figure 1-4,

10 Mbps

Print Server

PWR

Link/Act Alert

PRINTER

On=Link; Blinking=Rx

NETWORK

Col

Key:

1 = PWR (power) LED 2 = PRINTER LEDs 3 = NETWORK LEDs

Figure 1-1. Front Panel of the Model PS104 Print Server

2 31

10 Mbps

Print Server

PWR

Key:

1 = PWR (power) LED 2 = PRINTER LEDs 3 = NETWORK LEDs

Link/Act Alert

PRINTER

On=Link; Blinking=Rx

NETWORK

Col

MODEL

PS104

8625EB

PS105

9224EB

Figure 1-2. Front Panel of the Model PS105 Print Server

1-2 Introduction

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

2 3 41

10/100 Mbps Print Server

PWR

Link/Act Alert

PRINTER 1

Link/Act Alert

PRINTER 2

Link 100M Rx Tx Col

NETWORK

Key:

1 = PWR (power) LED 2 = PRINTER 1 LEDs 3 = PRINTER 2 LEDs 4 = Network LEDs

Figure 1-3. Front Panel of the Model PS110 Print Server

PWR

Key:

1 = PWR (power) LED 2 = PRINTER 1 LEDs 3 = PRINTER 2 LEDs 4 = PRINTER 3 LEDs 5 = Network LEDs

2 3 51

10/100 Mbps Print Server

Link/Act Alert

PRINTER 1

Link/Act Alert

PRINTER 2

Link/Act Alert

PRINTER 3

MODEL

PS110

8626EB

Link 100M Rx Tx Col

NETWORK

MODEL

PS113

9600EA

Figure 1-4. Front Panel of the Model PS113 Print Server

Introduction 1-3

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

LEDs

There are 8 LEDs on the front panel of the Model PS104 Print Server, 9 LEDs on the front panel of the Model PS105 Print Server, 10 LEDs on the front panel of the Model PS110 Print Server, and 12 LEDs on the front panel of the Model PS113 Print Server. T of each of the LEDs.

Table 1-1. LED Descriptions

Label Color Activity Description

PWR (power) Green On Power is supplied to the print server.

PRINTER, PRINTER 1, PRINTER 2, or PRINTER 3

• Link/Act Green On A printer is connected to the port.

Off No printer is connected to the port.

Blinking Data transmission is occurring on the port.

• Alert Amber On The connected printer is ofﬂine, is out of paper, or has a paper jam.

Off The connection between the printer and print server is good.

NETWORK (Model PS104 and PS105)

• Link/Rx Green Off No link exists between the port and the network.

On The 10 Mbps half-duplex link between the print server and the network

is good.

Blinking Incoming data is on the port.

• Col (collision)

Amber Blinking Data collision is occurring on the network. Note that occasional

collisions are normal.

able 1-1 describes the activity

1-4 Introduction

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Table 1-1. LED Descriptions (continued)

Label Color Activity Description

NETWORK (Model PS110 and PS113)

• Link Green On The link between the port and the network is good.

• 100M Green On The link between the port and the network is a half-duplex 100 Mbps connection.

Off The link between the port and the network is a half-duplex 10 Mbps

connection.

• Tx Green Blinking The print server is sending data out of the port.

• Rx Green Blinking The print server is receiving data on the port.

• Col

(collision)

Amber Blinking Data collision is occurring on the network. Note that occasional

collisions are normal.

Rear Panel

The rear panel of the Model PS104 Print Server and the Model PS105 Print Server has one parallel PRINTER port, the rear panel of the Model PS110 Print Server has two parallel ports for printers (PRINTER 1 and PRINTER 2), and the rear panel of the Model PS113 Print Server has three parallel ports for printers (PRINTER 1, PRINTER 2, and PRINTER 3). The ports on the ﬁrst two print servers accept either a printer or another parallel device such as a plotter. The ports on the second two print servers accept two or three ports, therefore, two or three parallel devices can be connected and can operate simultaneously.

The Model PS104 Print Server has four 10BASE-T network ports. The Model PS105 Print Server has four 10BASE-T network ports and one BNC network port. The Model PS110 and Model PS113 Print Server each has one 10/100BASE-T network port. The 10/100BASE-T port is an autonegotiation port that operates in 100 Mbps and in half-duplex mode when connected to a Fast Ethernet network.

Introduction 1-5

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Normal/Uplink Push Button on the Model PS104/PS105 Print Server

The Normal/Uplink push button on the Model PS104 Print Server and the Model PS105 Print Server allows you to select Normal (MDI-X) or Uplink (MDI) wiring for NETWORK port 1, eliminating the need to use a crossover cable. Ports 2 to 4 on the print server are permanently conﬁgured for Normal wiring.

As illustrated in Figure

1-5, Figure 1-6, Figure 1-7, and Figure 1-8 all the print servers have a

power adapter receptacle that accepts a 12 V DC power adapter.

21 3 4

NETWORK

PRINTER

Key:

1 = PRINTER Port 2 = NETWORK port (10BASE-T connectors) 3 = Normal/Uplink push button 4 = Power adapter receptacle

432

Figure 1-5. Rear Panel of the Model PS104 Print Server

1 2 3 4

NETWORK

PRINTER

4321

Normal/Uplink

BNC

Normal/Uplink

12VDC 0.8-1.2A

8624EB

12VDC 0.8-1.2A

Key:

1 = PRINTER Port 2 = Network Port (Four 10BASE-T and One BNC Connector) 3 = Normal/Uplink push button 4 = Power adapter receptacle

9225EB

Figure 1-6. Rear Panel of the Model PS105 Print Server

1-6 Introduction

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

1 2 3 4

PRINTER 2 PRINTER 1

NETWORK

Key:

1 = PRINTER 2 (parallel) port 2 = PRINTER 1 (parallel) port 3 = NETWORK port (10/100BASE-T connector) 4 = Power adapter receptacle

Figure 1-7. Rear Panel of the Model PS110 Print Server

PRINTER 3

Key:

1 = PRINTER 3 (parallel) port 2 = PRINTER 2 (parallel) port 3 = PRINTER 1 (parallel) port 4 = NETWORK port (10/100BASE-T connector) 5 = Power adapter receptacle

2 3 4 5

PRINTER 2 PRINTER 1

12VDC 0.8-1.2A

8627EB

NETWORK

12VDC 0.8-1.2A

9601EA

Figure 1-8. Rear Panel of the Model PS113 Print Server

Introduction 1-7

Chapter 2

Installation

This chapter describes the installation and setup of the NETGEAR Model PS104/PS105/PS110/ PS113 print server.

Preparing the Site

Before you begin installing the print server, prepare the installation site. Make sure the operating environment meets the physical requirements of the print server, as described in Appendix

“Technical Speciﬁcations.”

Verifying Package Contents

Your package should contain the following:

• Model PS104 Print Server, Model PS105 Print Server, Model PS110 Print Server, or Model PS113 Print Server

• Power adapter

• BNC terminator and T-connector (Model PS105 only)

• Model PS104/PS105/PS110/PS113 Print Server Resource CD

• Model PS104/PS105/PS110/PS113 Print Server Installation Guide

• Warranty & Owner Registration Card

• Customer Support Phone Card

Call your reseller or NETGEAR Customer Support in your area if there are any wrong, missing, or damaged parts. Refer to “Customer Support your area.

Keep the carton, including the original packing materials. Use them to repack the print server if you need to return it for repair.

Installation 2-1

” on page iii for the location of customer support in

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Connecting Devices to the Print Server

The Model PS104 Print Server has four 10BASE-T network ports. The Model PS105 Print Server has four 10BASE-T network ports and one BNC network port. The Model PS110 and Model PS113 Print Server each has one 10/100BASE-T network port that is autosensing and will support either 10 Mbps or 100 Mbps connections, depending on the connected device. The 10/100BASE-T network port operates in half-duplex mode.

Ports 2 through 4 on the Model PS104 Print Server are permanently conﬁgured for MDI-X wiring; port 1 can be set to MDI (Uplink) or MDI-X (Normal) by using the Normal/Uplink push button switch. The BNC port 1 on the Model PS105 Print Server is for network connections with BNC cabling. The BNC-T connection included in the package contents must be used with the coaxial cable for a 10BASE 2 connection to other network devices that have a BNC port. To terminate the connection on the last device in the network segment, you must use the BNC terminator, which is included in the package contents. The one network port on the Model PS110 and Model PS113 Print Server is permanently conﬁgured for Uplink wiring.

Refer to T

able 2-1 for setting the Normal/Uplink push button switch and for selecting either a

crossover or straight-through cable when connecting your print server to other devices.

Table 2-1. Cable Selection and Normal/Uplink Push Button Settings

Connecting Network Port Connecting Device Cable Used

Model PS104 Print Server

Port 1 set to Uplink

Port 1 set to Normal

Ports 2 through 4

Model PS105 Print Server

Por t 1

Port 2 set to Uplink

Ports 3 through 5

Model PS110 and Model PS113 Print Server

Note:

Ethernet speciﬁcations limit the twisted pair cable (called a twisted pair segment)

Hub or switch

PC or router

Hub or switch

Straight-through cable

BNC cable with 50 ohm terminator

Straight-through cable

Crossover cable

extended from a network port to 100 meters in length.

2-2 Installation

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Verifying Power

To complete the installation, connect the power adapter ﬁrst to the power adapter receptacle on the print server rear panel and then to the power outlet on the wall. When power has been applied to the print server:

• The green PWR (power) LED on the front panel is on.

• On the Model PS104 Print Server and the Model PS105 Print Server, the green Link/Rx LED

on each connected network port is on.

• On the Model PS110 and the Model PS113 Print Sever, the green Link LED on each connected printer port is on.

• The green Link/Act LED on the connected PRINTER, PRINTER 1, PRINTER 2, or PRINTER 3 port is on.

Make sure the network interface cards installed in the workstations are in working condition and the software driver has been installed on the cards.

If required, verify the integrity of the print server by resetting it. Turn power to the print server off and then back on. If the problem continues and you have completed all the preceding diagnoses, contact NETGEAR Customer Support. For the telephone number of the representative in your area, refer to “Customer Support

” on page iii.

Installation 2-3

Chapter 3

Microsoft Windows 95 and Windows 98 Printing

This chapter describes how to conﬁgure and use the NETGEAR Model PS104/PS105/PS110/ PS113 print server in a Microsoft Windows networking environment.

To correctly conﬁgure your hardware and software for the Microsoft Windows platform, you must:

• Install FirstGear for Print Server software.

• Run Setup.

• Conﬁgure the user PC to print to the NETGEAR print server.

FirstGear for Print Server

This section describes how to install and set up the print server with the FirstGear for Print Server Program in Windows 95, Windows 98, or Windows 2000. There are several options to choose from:

• User Installation—used through the NetBEUI protocol, this option is geared toward the user who is already connected to the LAN and needs to set up a PC to the NETGEAR print server.

• Admin Installation—this option is geared toward the user who is connected to the LAN and also manages the print server.

• User Installation with diskette—this option generates an installation ﬂoppy disk for the user without a CD-ROM drive.

Microsoft Windows 95 and Windows 98 Printing 3-1

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

To install and set up your network and your print server for the NETGEAR print server, you must be using a PC with a Windows 95, Windows 98, Windows NT 3.51, or later operating system and with either the TCP/IP protocol or the NetBEUI protocol enabled.

Before proceeding with these instructions, be sure to assign a name to your

Note:

workgroup on your PC. NETGEAR strongly recommends that you exit all Windows programs before running the Setup program. It is also necessary to install the FirstGear software on every PC in the network that will use the printers attached to the Model PS104/PS105/PS110/PS113 print server.

Installing and Setting Up FirstGear—User Installation

To install the NETGEAR print server software for user installation:

Turn on the power to your PC.

Insert the NETGEAR Resource CD-ROM.

The NETGEAR window brieﬂy opens, and the FirstGear introductory window, as illustrated in Figure 3-1, opens.

If it does not, click on Start > Run and then type in “Install.exe” at the prompt (for example, “D:Install.exe”) to start the installation process.

Figure 3-1. FirstGear Introductory Window

3-2 Microsoft Windows 95 and Windows 98 Printing

Click on Next.

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Another FirstGear window, as illustrated in Figure

Figure 3-2. User Installation Option Window

3-2, opens.

Microsoft Windows 95 and Windows 98 Printing 3-3

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

4. Choose “User PC Installation” and click on Next.

The NETGEAR Print Server Software Installation window, as illustrated in Figure

Figure 3-3. NETGEAR Print Server Software Installation Window

3-3, opens.

3-4 Microsoft Windows 95 and Windows 98 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

5. Click on Next.

The Choose Destination Location window, as illustrated in Figure

Figure 3-4. Choose Destination Location Window

3-4, opens.

Microsoft Windows 95 and Windows 98 Printing 3-5

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

6. Click on Next.

The Select Program Folder window, as illustrated in Figure

Figure 3-5. Select Program Folder Window

3-5, opens.

3-6 Microsoft Windows 95 and Windows 98 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

7. Type Firstgear for Print Server in the Program Folders entry ﬁeld (default) or select a

folder from the Existing Folders list.

You can type in a unique name you have chosen for the program folder at the “Program Folders” prompt or click on a selection in the Existing Folder ﬁeld to title the folder with another name. The name will automatically display in the Program Folders entry ﬁeld.

8. Click on Next.

The Setup Complete window, as illustrated in Figure

Figure 3-6. Setup Complete Window

9. Click on Finish.

3-6, opens.

The FirstGear Print Server Program is now installed on your PC.

You must now set up your PC to recognize the print server.

Microsoft Windows 95 and Windows 98 Printing 3-7

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Setting Up Your PC to Recognize the Print Server

You must set up each PC that will print to the print server. Before proceeding, verify that:

• The print cable is connected to the printer port.

• The AC adapter is plugged into the wall socket.

• The Ethernet cable is plugged into the LAN.

To set up each PC:

1. Double-click on the desktop icon, as illustrated in Figure 3-7, that you named in step 7 in

the previous section, “

Installing and Setting Up FirstGear—User Installation.”

Figure 3-7. Firstgear for Print Server Icon

3-8 Microsoft Windows 95 and Windows 98 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

The Firstgear for Print Server window, as illustrated in Figure 3-8, opens.

Figure 3-8. Setup Icon

2. Double-click on Setup in the Firstgear for Print Server window.

The Setup window opens, as illustrated in Figure

Figure 3-9. Setup Window

3. Make sure that the NETGEAR print server and the printer that connects to it are both

3-9.

powered on.

4. Make sure that the cable connections between them are properly connected.

Microsoft Windows 95 and Windows 98 Printing 3-9

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

5. Click on OK.

The Printer Select window, as illustrated in Figure

3-10, opens.

The Printer Select window will stay in the background while you work through subsequent setup windows because you will use this window to complete the setup process.

Figure 3-10. Printer Select Window (Add Port)

Note: If the cables are not properly connected, your PC screen will appear empty when

the Printer Select window opens. If so, check the cable connections and click on the Refresh button, which will initiate the PC to browse again for a port.

3-10 Microsoft Windows 95 and Windows 98 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

6. Click on the printer port you want to use with the print server, and click on Add.

The ADDPORT window for Epson print connection, as illustrated in Figure

Figure 3-11. ADDPORT Window (Epson Connection)

7. Click on No if you do not have an Epson Stylus Color printer attached to the port, and

3-11, opens.

continue to step 8.

Click on Yes if you do have an Epson Stylus Color printer (or plan to install one). You must disable the Epson printer.

To disable:

a. Click on the Program Files folder on your hard drive.

b. Start the Epson Spool Manager.

The Queue Setup window opens, as illustrated in Figure

Figure 3-12. Epson Spool Manager Queue Setup Window

Microsoft Windows 95 and Windows 98 Printing 3-11

3-12.

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

c. Select Queue Setup, and click on Use Print Manager for this port.

d. Click on OK to exit the Queue Setup window.

The ADDPORT window, as illustrated in Figure you have successfully added the port.

Figure 3-13. ADDPORT Window

8. Click on OK.

The Add Printer Wizard window, as illustrated in Figure

3-13, opens. This window informs you that

3-14, opens.

Figure 3-14. Add Printer Wizard Window (Manufacturer and Model of Printer)

3-12 Microsoft Windows 95 and Windows 98 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

9. Click on Next after clicking on the names of the manufacturer and printer model you are

adding.

If your printer is not listed, click on Have Disk and insert the driver disk that you received from the printer manufacturer. Install the driver, proceeding as instructed until the Add Printer Wizard window, as illustrated in Figure

3-15, opens.

Figure 3-15. Add Printer Wizard Window (Driver Installation)

Microsoft Windows 95 and Windows 98 Printing 3-13

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

10. If you have already installed the printer driver, select Keep existing driver

(recommended), and click on Next. If you have not installed the driver, do so now as prompted by the screen, as illustrated in Figur

e 3-15.

The Add Printer Wizard window for naming your printer, as illustrated in Figure

Figure 3-16. Add Printer Wizard Window (Printer Name)

3-16, opens.

3-14 Microsoft Windows 95 and Windows 98 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

11. Type a name for the printer (if you want it to have a unique name) and decide if you want

this printer to be your default printer; then click on Next.

The Add Printer Wizard window for printing a test page, as illustrated in Figure

Figure 3-17. Add Printer Wizard Window (Print Test Page)

3-17, opens.

Microsoft Windows 95 and Windows 98 Printing 3-15

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

12. Select Yes when asked to print a test page, and click on Finish.

The Add Printer window closes and the Printer Select window, as illustrated in Figure comes back into view.

3-18,

Figure 3-18. Add Port Window (Setup Complete)

13. Click on End to complete the setup process.

You are now ready to use the printer attached to your print server.

3-16 Microsoft Windows 95 and Windows 98 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Installing and Setting Up FirstGear—Admin Installation

Choose this option if you are using Windows 95 or Windows 98 to install, print, and manage the NETGEAR print server.

Note: It is necessary to install the FirstGear software on every PC in the network that

will use the printers attached to the Model PS104/PS105/PS110/PS113 print server.

To install the NETGEAR print server software for admin installation:

1. Turn on the power to your PC.

2. Insert the NETGEAR Resource CD-ROM.

The NETGEAR window brieﬂy opens, and the FirstGear Introductory window, as illustrated in Figure

If it does not, click on Start > Run > and then type in “Install.exe” at the prompt (for example, “D:Install.exe”) to start the installation process.

3-19, opens.

Figure 3-19. FirstGear Introductory Window

Microsoft Windows 95 and Windows 98 Printing 3-17

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

3. Click on Next.

Another FirstGear window, as illustrated in Figure

3-20, opens.

Figure 3-20. “Admin Installation” Option Window

3-18 Microsoft Windows 95 and Windows 98 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

4. Choose “Admin PC Installation” and click on Next.

The NETGEAR Print Server Software Installation window, as illustrated in Figure opens.

Figure 3-21. NETGEAR Print Server Software Installation Window

3-21,

Microsoft Windows 95 and Windows 98 Printing 3-19

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

5. Click on Next.

The Choose Destination Location window, as illustrated in Figure

Figure 3-22. Choose Destination Location Window

3-22, opens.

3-20 Microsoft Windows 95 and Windows 98 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

6. Click on Next to install the NETGEAR print server program in the Program Files folder.

If you want to have the program installed elsewhere, click on Browse to ﬁnd an alternate location for the software.

The Select Program Folder window, as illustrated in Figure

Figure 3-23. Select Program Folder Window

3-23, opens.

7. Type Firstgear for Print Server in the Program Folders entry ﬁeld (default) or select a

folder from the Existing Folders list.

You can type in a unique name you have chosen for the program folder at the “Program Folders” prompt or click on a selection in the Existing Folders ﬁeld to title the folder with another name. The name automatically displays in the Program Folders entry ﬁeld.

8. Click on Next.

The Information window opens. This window displays the folder where the FirstGear software is saved, the space required for the software, and the space remaining on your hard drive.

Microsoft Windows 95 and Windows 98 Printing 3-21

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

9. Click on Next.

The software is copied to the program folder you requested in step 7.

A window opens, asking you if you want to install Adobe Acrobat (a software program that will allow you to view the manual on line).

10. Click on Yes if you want Adobe Acrobat to be installed. If you already have Adobe

Acrobat installed in your PC, clicking on Yes will override the version you currently have installed.

Skip to step 12 if you do not want to install Adobe Acrobat.

11. Click on Next when the Adobe Acrobat Setup window opens.

Follow the screen prompts to install Adobe Acrobat.

The Setup Complete window, as illustrated in Figure

Figure 3-24. Setup Complete Window

12. Click on Finish.

3-24, opens.

The FirstGear Print Server program is now installed on your PC.

You must now set up your PC to print to the print server. Proceed to “

Setting Up Your PC to

Recognize the Print Server.”

3-22 Microsoft Windows 95 and Windows 98 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Setting Up Your PC to Recognize the Print Server

Refer to “Setting Up Your PC to Recognize the Print Server” on page 3-8 for instructions.

Installing and Setting Up FirstGear—Diskette Option

Use this option if your system does not have a CD-ROM drive.

To install the FirstGear software with a diskette:

1. Insert a blank diskette into Drive A, and click on OK, as illustrated in Figure 3-25.

The diskette installation will not work in any other drive but drive A, and you must also use a high-density disk.

Figure 3-25. Install From Disk Window

2. Refer to “Installing and Setting Up FirstGear—User Installation” on page 3-2 or “Installing

and Setting Up FirstGear—Admin Installation on page 3-17 to continue with the installation

and setup process.

For more information about the advanced setup features for the NETGEAR print server, refer to

Chapter

Microsoft Windows 95 and Windows 98 Printing 3-23

7, “Using Advanced Management Tools.”

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Setting up the Print Server Using NetBEUI and TCP/IP

Conﬁguring the Print Server Using NetBEUI

No additional print server conﬁguration is necessary after you have followed the steps outlined in

“

Setting Up Your PC to Recognize the Print Server” starting on page 3-8.

Conﬁguring the Print Server Using TCP/IP

To conﬁgure the print server using TCP/IP:

1. Double-click on the Firstgear for Print Server icon, as illustrated in Figure 3-27, on your

desktop.

Figure 3-26. Firstgear for Print Server Icon

3-24 Microsoft Windows 95 and Windows 98 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

The Firstgear for Print Server window, as illustrated in Figure 3-27, opens.

Figure 3-27. Firstgear for Print Server Window

Microsoft Windows 95 and Windows 98 Printing 3-25

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

2. Double-click on the NETGEAR Print Server Administration icon.

The NETGEAR Print Server Administration Program window, as illustrated in Figure opens.

3-28,

Figure 3-28. NETGEAR Print Server Administration Program Window

3-26 Microsoft Windows 95 and Windows 98 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

3. Click on the Advanced button, as illustrated in Figure 3-28.

The TCP/IP menu opens, as illustrated in Figure

Figure 3-29. TCP/IP Menu

3-29.

4. Click on the TCP/IP menu tab, which is located at the top of the window, as illustrated in

Figur

e 3-29.

Refer to T

Microsoft Windows 95 and Windows 98 Printing 3-27

able 3-1 on page page 3-28 for a description of each ﬁeld in the TCP/IP menu.

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

5. Select Enable or Disable to enable or disable DHCP.

If DHCP is enabled, the print server can be set up to obtain its IP address from a DHCP (Dynamic Host Conﬁguration Protocol) server or can be manually assigned an IP address at this menu tab.

If DHCP is disabled, be sure that the IP address assigned to the device is not already in use when assigning the IP address manually.

For a private TCP/IP network, you can use the IETP-designated private addresses (for example, 192.168.X.X or 10.X.X.X). For more information about IP addresses, refer to

Appendix

6. Type the subnet mask and gateway address (if DHCP is disabled) or proceed to step 7.

7. Click on the Save To Device button to download the new print server conﬁguration.

8. Click on Return to Main Menu to exit the Advanced Conﬁguration window.

9. Click on Exit on the main menu.

Table 3-1. Fields and Descriptions for TCP/IP Conﬁguration

Field Description

B, “Understanding IP Addresses.”

DHCP This option allows you to enable or disable the print server’s ability to get its IP address from

a DHCP (Dynamic Host Conﬁguration Protocol) server. When disabled, you can provide a ﬁxed IP address in the IP address, Gateway address, and Subnet Mask ﬁelds (listed in this table).

IP Address This IP address is assigned to the print server. If you have a private LAN and do not plan to

connect to the TCP/IP-based Internet, NETGEAR recommends that you use an address from the IETP-designated private addresses (for example, 192.168.x.x or 10.x.x.x).

Gateway Address

Subnet Mask This subnet mask deﬁnes the range of addresses that are reachable on your local LAN.

This IP address is what the print server uses for stations with IP addresses not reachable on your local LAN.

Your print server is now set up to use the TCP/IP protocol for networking. If you enable DHCP, you must prepare the DHCP server to receive a DHCP query from the print server. Then reset the print server so it can then obtain an IP address from the DHCP server.

If you run into any difﬁculty with the static IP Setup, there is the possibility that you inadvertently disabled the DHCP protocol and/or assigned a wrong subnet IP address. Proceed to Appendix

“IP Setup,” for more information to help you force a static IP address to the print server.

3-28 Microsoft Windows 95 and Windows 98 Printing

Chapter 4

Microsoft Windows NT and Windows 2000 Printing

This chapter describes how to conﬁgure and use the NETGEAR Model PS104/PS105/PS110/ PS113 print server in a Microsoft Windows NT and Windows 2000 networking environment.

To correctly conﬁgure your hardware and software for the Microsoft Windows platform, you must:

• Install FirstGear for Print Server software.

• Run Setup

• Conﬁgure the user PC to print to the NETGEAR print server.

FirstGear for Print Server

This section describes how to install and set up the print server with the FirstGear for Print Server Program in Windows NT. There are several options to choose from:

• User Installation—used through the NetBEUI protocol, this option is geared toward the user who is already connected to the LAN and needs to set up a PC to the NETGEAR print server.

• Admin Installation—this option is geared toward the user who is connected to the LAN and also manages the print server.

• User Installation with diskette—this option generates an installation ﬂoppy disk for the user without a CD-ROM drive.

To install and set up your network and your print server for the NETGEAR print server, you must be using a PC with Windows NT 3.51 and later operating system and with either the TCP/IP protocol or the NetBEUI protocol enabled.

Microsoft Windows NT and Windows 2000 Printing 4-1

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Choose this option, User Installation, to be able to print to the print server.

Note: Before proceeding with these instructions, be sure to assign a name to your

workgroup on your PC. Installation and setup of the NETGEAR software is required on each PC needing access to the printers that will be attached to the print server. NETGEAR strongly recommends that you exit all Windows programs before running the Setup program.

Installing and Setting Up FirstGear—User Installation

To install the NETGEAR print server software for user installation:

1. Turn on the power to your PC.

2. Insert the NETGEAR Resource CD-ROM.

The NETGEAR window brieﬂy opens and the FirstGear Introductory window, as illustrated in

Figure

If it does not, click on Start > Run and then type in “Install.exe” at the prompt (for example, “D:Install.exe”) to start the installation process.

4-1, opens.

Figure 4-1. FirstGear Introductory Window

4-2 Microsoft Windows NT and Windows 2000 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

3. Click on Next.

Another FirstGear window, as illustrated in Figure

4-2, opens.

Figure 4-2. User PC Installation Option Window

Microsoft Windows NT and Windows 2000 Printing 4-3

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

4. Choose “User PC Installation” and click on Next.

The NETGEAR Print Server Software Installation window, as illustrated in Figure

Figure 4-3. NETGEAR Print Server Software Installation Window

4-3, opens.

4-4 Microsoft Windows NT and Windows 2000 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

5. Click on Next.

The Choose Destination Location window, as illustrated in Figure

Figure 4-4. Choose Destination Location Window

4-4, opens.

Microsoft Windows NT and Windows 2000 Printing 4-5

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

6. Click on Next to install the NETGEAR Print Server program in the Program Files folder.

If you want to have the program placed elsewhere, click on Browse to ﬁnd an alternate location for the software.

The Select Program Folder window, as illustrated in Figure

Figure 4-5. Select Program Folder Window

4-5, opens.

7. Type Firstgear for Print Server in the Program Folders entry ﬁeld (default), or select a

folder from the Existing Folders list.

You can also type in a unique name for the print server folder. Verify that the information on the screen is correct.

4-6 Microsoft Windows NT and Windows 2000 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

8. Click on Next.

The Setup Complete window, as illustrated in Figure

Figure 4-6. Setup Complete Window

4-6, opens.

9. Click on Finish.

The FirstGear Print Server Program is now installed on your PC. You must now set up your PC to recognize the print server.

Microsoft Windows NT and Windows 2000 Printing 4-7

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Setting Up Your PC to Recognize the Print Server

You must set up each PC that will print to the print server. Before proceeding, verify that:

• The print cable is connected to the printer port.

• The AC adapter is plugged into the wall socket.

• The Ethernet cable is plugged into the LAN.

To set up each PC:

1. Double-click on the desktop icon, as illustrated in Figure 4-7, that you named in step 7 of

the previous section, “

Installing and Setting Up FirstGear—User Installation.”

Figure 4-7. Firstgear for Print Server Icon

4-8 Microsoft Windows NT and Windows 2000 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

The Firstgear for Print Server window, as illustrated in Figure 4-8, opens.

Figure 4-8. Firstgear for Print Server Setup Icon

2. Click on Setup.

The Setup window, as illustrated in Figure

Figure 4-9. Setup Window

Make sure the NETGEAR print server and the printer that connects to it are both

4-9, opens.

powered on.

4. Make sure the cable connections between them are properly connected.

Microsoft Windows NT and Windows 2000 Printing 4-9

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

5. Click on OK.

The Printer Select window, as illustrated in Figure

4-10, opens.

The Printer Select window will stay in the background while you work through subsequent setup windows because you will use this window to complete the setup process.

Figure 4-10. Printer Select Window (Add Port)

Note: If the cables are not properly connected, your PC screen will appear empty when

the Printer Select window opens. If so, check the cable connections and click on the Refresh button, which will initiate the PC to browse again for a port.

6. Click on the printer port you want to use with the print server and click on Add.

The ADDPORT window for Epson printer connection, as illustrated in Figure

Figure 4-11. ADDPORT Window (Epson Connection)

4-10 Microsoft Windows NT and Windows 2000 Printing

4-11, opens.

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

7. Click on Yes if you have an Epson Stylus Color printer attached to the port, otherwise

Click on No.

The ADDPORT window, as illustrated in Figure

4-12, opens. This window informs you that

you have successfully added the port.

Figure 4-12. Add Port Window (Added port successfully)

8. Click on OK.

The Add Printer Wizard, as illustrated in Figure

4-13, opens.

Figure 4-13. Add Printer Wizard Window (Add Ports)

Microsoft Windows NT and Windows 2000 Printing 4-11

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

9. Select the port you added in the previous step. Do not click on Add Port.

10. Click on Next.

The Add Printer Wizard window, as illustrated in Figure

Figure 4-14. Add Printer Wizard Window (Manufacturer and Model of Printer)

4-14, opens.

4-12 Microsoft Windows NT and Windows 2000 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

11. Click on Next after clicking on the names of the manufacturer and printer model you are

adding in the Add Printer Wizard window.

If your printer is not listed, click on Have Disk and insert the driver disk that you received from the printer manufacturer. Install the driver, proceeding as instructed.

The Add Printer Wizard window, as illustrated in Figure

Figure 4-15. Add Printer Wizard Window (Printer Name)

4-15, opens.

Microsoft Windows NT and Windows 2000 Printing 4-13

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

12. Type a name for the printer (if you want it to have a unique name) and decide if you want

this printer to be your default printer; then click on Next.

Another Add Printer Wizard screen, as illustrated in Figure

4-16, opens. With this screen, you

can choose to either share or not share the print server with other users in the network. If you do want to share the print server, you must click on all of the operating systems that will be sharing the print server.

Figure 4-16. Add Printer Wizard Window (Sharing Ports Screen)

4-14 Microsoft Windows NT and Windows 2000 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

13. Click on Next.

Another Add Printer Wizard window, as illustrated in Figure

Figure 4-17. Add Printer Wizard Window (Print Test Page)

4-17, opens.

Microsoft Windows NT and Windows 2000 Printing 4-15

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

14. Click on Finish.

The Add Printer Wizard window closes and the Printer Select window, as illustrated in

Figure

4-18, comes back into view.

Figure 4-18. Printer Select Window (End Setup)

15. Click on End.

You are now ready to use the printer attached to your print server.

4-16 Microsoft Windows NT and Windows 2000 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Installing and Setting Up FirstGear—Admin Installation

Choose this option to install, print, and manage the NETGEAR print server.

Note: It is necessary to install the FirstGear software on every PC in the network that

will use the printers attached to the Model PS104/PS105/PS110/PS113 print server.

1. Turn on the power to your PC.

2. Insert the NETGEAR Resource CD-ROM.

The NETGEAR window brieﬂy opens, and the Firstgear Introductory window, as illustrated in

Figure

If it does not, click on Start > Run and then type in “Install.exe” at the prompt (for example, “D:Install.exe”) to start the installation process.

4-19, opens.

Figure 4-19. FirstGear Introductory Window

Microsoft Windows NT and Windows 2000 Printing 4-17

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

3. Click on Next.

Another FirstGear window, as illustrated in Figure

4-20, opens.

Figure 4-20. Admin Installation Option Window

4-18 Microsoft Windows NT and Windows 2000 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

4. Select “Admin PC Installation” and click on Next.

The NETGEAR Print Server Software Installation window, as illustrated in Figure opens.

4-21,

Figure 4-21. NETGEAR Print Server Software Installation Window

Microsoft Windows NT and Windows 2000 Printing 4-19

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

5. Click on Next.

The Choose Destination Location window, as illustrated in Figure

4-22, opens.

Figure 4-22. Choose Destination Location Window

4-20 Microsoft Windows NT and Windows 2000 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

6. Click on Next to install the NETGEAR Print Server program in the Program Files folder.

If you want to have the program placed elsewhere, click on Browse to ﬁnd an alternate location for the software.

The Select Program Folder, as illustrated in Figure

Figure 4-23. Select Program Folder Window

4-23, opens.

7. Type Firstgear for Print Server in the Program Folders entry ﬁeld (default) or select a

folder from the Existing Folders list.

8. Click on Next.

The Information window opens. This window displays the folder where the FirstGear software is saved, the space required for the software, and the space remaining on your hard drive.

Microsoft Windows NT and Windows 2000 Printing 4-21

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

9. Click on Next.

The software will be copied to the program folder you requested in step 7.

A window opens, asking you if you want to install Adobe Acrobat (a software program that will allow you to view the manual on line).

10. Click on Yes if you want Adobe Acrobat to be installed. If you already have Adobe

Acrobat installed in your PC, clicking on Yes will override the version you currently have installed.

Skip to step 12 if you do not want to install Adobe Acrobat.

11. Click on Next when the Adobe Acrobat Setup window opens.

Follow the screen prompts to install Adobe Acrobat.

The Setup Complete window, as illustrated in Figure

4-24, opens.

Figure 4-24. Setup Complete Window

4-22 Microsoft Windows NT and Windows 2000 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

12. Click on Finish.

The FirstGear Print Server Program is now installed on your PC.

You must now set up your PC to print to the print server. Proceed to “

Recognize the Print Server” on page 4-8.

Setting Up Your PC to

Setting Up Your PC to Recognize the Print Server

Refer to page 4-8 for instructions on setting up your PC to recognize the print server.

Installing and Setting Up FirstGear—Diskette Option

Use this option if your system does not have a CD-ROM drive.

To install the FirstGear software:

1. Insert a blank diskette into the Drive A, and click on OK, as illustrated in Figure 4-25.

The diskette installation will not work in any other drive but drive A, and you must also use a high-density disk.

Figure 4-25. Install From Disk Window

2. Refer to “Installing and Setting Up FirstGear—User Installation” on page 4-2 to continue with

the installation and setup process.

For information about the advanced setup procedures for the NETGEAR print server, refer to

Chapter

Microsoft Windows NT and Windows 2000 Printing 4-23

7, “Using Advanced Management Tools.”

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Setting up the Print Server Using NetBEUI and TCP/IP

Conﬁguring the Print Server Using NetBEUI

No additional print server conﬁguration is necessary after you have followed the steps outlined in

“

Setting Up Your PC to Recognize the Print Server” starting on page 4-8.

Conﬁguring the Print Server Using TCP/IP

To conﬁgure the print server using TCP/IP:

1. Double-click on the Firstgear for Print Server icon, as illustrated in Figure 4-26, on your

desktop.

Figure 4-26. Firstgear for Print Server Icon

4-24 Microsoft Windows NT and Windows 2000 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

The Firstgear for Print Server window, as illustrated in Figure 4-27, opens.

Figure 4-27. Firstgear for Print Server Window

Microsoft Windows NT and Windows 2000 Printing 4-25

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

2. Double-click on the NETGEAR Print Server Administration icon.

The NETGEAR Print Server Administration Program window, as illustrated in Figure opens.

4-28,

Figure 4-28. NETGEAR Print Server Administration Program Window

4-26 Microsoft Windows NT and Windows 2000 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

3. Click on the Advanced button, as illustrated in Figure 4-28.

The TCP/IP menu opens, as illustrated in Figure

4-29.

Figure 4-29. TCP/IP Menu

4. Click on the TCP/IP menu tab, which is located at the top of the window, as illustrated in

Figur

e 4-29.

Refer to T

5. Select Enable or Disable to enable or disable DHCP.

able 4-1 on page page 4-28 for a description of each ﬁeld in the TCP/IP menu.

If DHCP is enabled, the print server can be set up to obtain its IP address from a DHCP (Dynamic Host Conﬁguration Protocol) server or can be manually assigned an IP address at this menu tab.

If DHCP is disabled, be sure that the IP address assigned to the device is not already in use when assigning the IP address manually.

For a private TCP/IP network, you can use the IETP-designated private addresses (for example, 192.168.X.X or 10.X.X.X). For more information about IP addresses, refer to

Appendix

Microsoft Windows NT and Windows 2000 Printing 4-27

B, “Understanding IP Addresses.”

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

6. Type the subnet mask and gateway address (if DHCP is disabled) or proceed to step 7.

7. Click on the Save To Device button to download the new print server conﬁguration.

8. Click on Return to Main Menu to exit the Advanced Conﬁguration window.

9. Click on Exit on the main menu, and proceed to the next section, “Setting Up Spooled

LPR Printing with Windows NT 3.51.

Table 4-1. Fields and Descriptions for TCP/IP Conﬁguration

Field Description

DHCP This option allows you to enable or disable the print server’s ability to get its IP address from

a DHCP (Dynamic Host Conﬁguration Protocol) server. When disabled, you can provide a ﬁxed IP address in the IP address, Gateway address, and Subnet Mask ﬁelds (listed in this table).

IP Address This IP address is assigned to the print server. If you have a private LAN and do not plan to

connect to the TCP/IP-based Internet, NETGEAR recommends that you use an address from the IETP-designated private addresses (for example, 192.168.x.x or 10.x.x.x).

Gateway Address

Subnet Mask This subnet mask deﬁnes the range of addresses that are reachable on your local LAN.

This IP address is what the print server uses for stations with IP addresses not reachable on your local LAN.

If you run into any difﬁculty with the static IP Setup, there is the possibility that you inadvertently disabled the DHCP protocol and/or assigned a wrong subnet IP address. Proceed to Appendix

“IP Setup,” for more information to help you force a static IP address to the print server.

Setting Up Spooled LPR Printing with Windows NT 3.51

Before starting the PC conﬁguration, you must conﬁgure the print server for using TCP/IP as described in “

To prepare for spooled LPR printing:

1. Click on the Network icon in the Control Panel.

The Network Settings dialog box opens.

4-28 Microsoft Windows NT and Windows 2000 Printing

Conﬁguring the Print Server Using TCP/IP” on page 4-24.

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

2. Click on the Add Software button.

The Network Software dialog box opens.

3. Select TCP/IP Protocol And Related Components in the Network Software dialog box,

and then click on Continue.

The Windows NT TCP/IP Installation Options dialog box opens.

4. Click on the TCP/IP Network Printing Support option.

5. Click on OK.

Windows NT Setup displays a message asking for the full path to the Windows NT distribution ﬁles.

6. Type the appropriate location, and then click on Continue.

All necessary ﬁles are copied to your hard disk.

If you did not check the Enable Automatic DHCP Conﬁguration option in the Windows NT TCP/IP Installation Options dialog box, you must complete all the required TCP/IP conﬁguration procedures manually. After you ﬁnish conﬁguring TCP/IP, the Network Settings dialog box opens. For more information about IP addresses, refer to Appendix B,

“Understanding IP Addresses.”

7. Click on Close, and then restart your computer so the changes take effect.

To add a spooled LPR printer in the NT station:

1. Choose Create Printer from the Printer menu in Print Manager to open the dialog box.

2. Type data in the entry ﬁelds of the dialog box, using the deﬁnitions in Table 4-2.

Table 4-2. Add a Spooled LPR Printer Fields

Field Description

Printer Name Type a name (up to 32 characters). This name appears in the title bar of the

printer window.

Driver Click on the appropriate driver for the attached printer.

Description Type a printer description for other network users to reference.

3. Click on Other in the Print To entry ﬁeld.

The Print Destinations dialog box opens.

Microsoft Windows NT and Windows 2000 Printing 4-29

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

4. Click on LPR Port in the Available Print Monitor list, and then click on OK.

The Add LPR Compatible Printer window opens.

5. Type data in the entry ﬁelds of the Add LPR Compatible Printer window, using the

deﬁnitions in T

Table 4-3. Add LPR Compatible Printer Fields

Field Description

able 4-3.

Name or Address of Host Providing LPD

Name of Printer On That Machine

6. Click on the Share This Printer on the Network option, when the Create Printer dialog

Enter the IP address of your print server.

Enter the appropriate logical printer number (for example, L1). Use only logical printers when implementing the LPR printer port in the Windows NT system. If you are using the Model PS104 and Model PS105, L1 and L2 logical ports are mapped into physical port P1. If you are using the Model PS110 Print Server, the factory default L1 and L2 logical ports are mapped into physical ports P1 and P2, respectively. If you are using the Model PS113 Print Server, the factory default L1, L2, and L3 logical ports are mapped into physical ports P1, P2, and P3, respectively.

box reopens.

In the Share Name box, Printer Manager creates an MS-DOS compatible resource name, which you can change. In the Location box, you can enter information about the printer location. Network users see this information when browsing to ﬁnd this printer.

7. Complete any other conﬁguration information in the Create Printer dialog box.

Setting Up Spooled LPR Printing with Windows NT 4.0

Before starting the PC conﬁguration, you must conﬁgure the print server for using TCP/IP as described in “

Conﬁguring the Print Server Using TCP/IP” on page 4-24.

To prepare for spooled LPR printing:

1. Click on Start from the Windows NT desktop, select Settings, and then select Control

Panel.

2. Double-click on Network.

4-30 Microsoft Windows NT and Windows 2000 Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

3. Click on the Service option and make sure that Simple TCP/IP Service and Microsoft

TCP/IP Printing are enabled.

If they are not enabled, select the Add option and enable them.

4. Reboot the computer for the changes to take effect, if you added services in step 3.

To add a spooled LPR printer:

1. Click on Start from the Windows NT desktop, select Settings, and then select Printers.

2. Double-click on Add Printer to start the Add Printer Wizard.

3. Click on My Computer, and then click on Next when prompted with “This printer will be

managed by.”

4. Click on Add Port, click on LPR Port, and then click on New Port.

5. Type the IP address of the print server in the Name of Address of the server providing

the LPR dialog box.

6. Use the information provided in Table 4-2 to type the appropriate logical printer number

(L1..L3 or L1..L8, depending on the model) as previously conﬁgured on the print server in the Name of printer or print queue ﬁeld on the Create Printer dialog box.

Use only the logical printer when implementing the LPR printer port on the Windows NT system. If you are using the Model PS104 or PS105 Print Server, all three logical ports are mapped to the same PRINTER port. If you are using the Model PS110 Print Server, the factory default is L1 = P1 and L2 = P2. If you are using the Model PS113 Print Server, the factory default is L1 = P1, L2 = P2, and L3 = P3.

7. Click on OK.

8. Click on Close when the Printer Ports window reopens, and then install your printer

driver as usual.

9. Click on Sharing when prompted to indicate whether or not the printer will be shared.

10. Type the shared printer name in the Shared dialog box.

This shared name is how other PCs will see this printer on the network.

With this procedure, other windows-based PCs can browse the network to see the print spooler on the Windows NT PC and print to it. The conﬁguration procedure for each PC is the same as described in “

Microsoft Windows NT and Windows 2000 Printing 4-31

Setting Up Spooled LPR Printing with Windows NT 3.51” on page 4-28.

Chapter 5

Novell NetWare Printing

This chapter describes how to conﬁgure and use the NETGEAR Model PS104 Print Server, Model PS105 Print Server, Model PS110 Print Server, and Model PS113 Print Server in the Novell NetWare environment.

Conﬁguration Overview

This section describes the requirements and outlines the PSERVER or RPRINTER mode conﬁguration in either a NetWare Bindery or a NetWare Directory Services (NDS) network environment.

To conﬁgure your print server for the Novell NetWare environment, you must have:

• NetWare Version 3.1x, NetWare Version 4.x, or NetWare Version 5.x

• NetWare PCONSOLE V1.21 or higher installed in your network ﬁle server

• NetWare Print Server V1.22 or higher (for remote printer mode only)

• DOS 3.3 or higher installed on all of the workstations in your network

• Network installation completed

Novell NetWare Printing 5-1

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

The following two operating modes are possible in bindery (NetWare 3.x), NDS network environment (NetWare 4.x), or NDPS (NetWare 5.x):

• PSERVER mode

PSERVER mode is faster and uses fewer resources than RPRINTER mode but occupies a user login slot. The NETGEAR print server emulates a NetWare PSERVER.

When activated, the device:

– Logs in to speciﬁed NetWare ﬁle server(s)

– Polls the speciﬁed print queues

If there are print jobs in the print queue, the print server retrieves them from the print queue.

– Sends the received network packet data to the printer

• RPRINTER mode

RPRINTER mode does not use a login slot. NETGEAR recommends that PSERVER mode be used if possible. The print server emulates a NetWare Remote Printer.

When activated, the device:

– Connects to NetWare PSERVER

– Receives the print jobs sent by PSERVER

– Sends the received network packet data to the printer

It is a two-step process to set up the Model PS104/PS105/PS110/PS113 print server in the NetWare environment. The NetWare ﬁle server must ﬁrst be conﬁgured, and then you can conﬁgure your print server.

Conﬁguring the NetWare File Server

NetWare server conﬁguration can be executed through the DOS-based PCONSOLE (NetWare 3.x and NetWare 4.x), NWADMIN (NetWare 4.x), or NWADMN32 (NetWare 5.x) based on Windows. All of these programs are provided as part of NetWare. Refer to the following sections for conﬁguring the ﬁle server using PCONSOLE. For information about NWADMIN, refer to the NetWare user’s manual.

5-2 Novell NetWare Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

The following sections describe how to determine a device name for your print server and set up the following three printing components on a Novell NetWare server:

• Print queue

• Print server

• Print

Conﬁguring Your Print Server

There are two methods for conﬁguring the print server in a NetWare environment: the FirstGear Administration Program based on Windows, or the PSCONFIG program based on MS-DOS. Both programs are on the Model PS104/PS105/PS110/PS113 Print Server Resource CD that comes with your print server.

Additionally, you can also run the QUICKSET conﬁguration program to conﬁgure the print server and the current Novell server in a single operation.

This chapter provides step-by-step instructions to set up the ﬁle server and the print server using PCONSOLE and PSCONFIG programs. For detailed descriptions on the various options of PSCONFIG, the FirstGear Administration Program, and QUICKSET, refer to Chapter

Advanced Management Tools.”

7, “Using

Determining a Device Name for Your Print Server

The Model PS104/PS105/PS110/PS113 print server is capable of servicing multiple protocols simultaneously. However, you must always use the same name for the print server when you are using more than one protocol. When the print server name is changed, the print operations in all protocols are affected; therefore, it is important that you decide on a permanent print server name before setting up the device. Also make sure that you decide on and assign a different name for each of the print servers on the network.

Using Your Print Server in a NetWare 3.x Network

When conﬁguring using the PSCONFIG utility, copy all ﬁles in \DOS directory on the Model PS104/PS105/PS110/PS113 Print Server Resource CD to the hard disk of your workstation. The PSCONFIG program is in this directory.

Novell NetWare Printing 5-3

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Setting PSERVER Mode in NetWare 3.x (Bindery Mode)

To set up the NetWare ﬁle server to connect to the Model PS104/PS105/PS110/PS113 print server in the NetWare PSERVER mode, ﬁrst designate a NetWare ﬁle server that your print server will log on to retrieve print jobs. Log on to the file server as SUPERVISOR or as a user with SUPERVISOR privileges. The print server can be conﬁgured to service multiple NetWare Bindery ﬁle servers as described in “ NetWare ﬁle servers has to be designated as the master ﬁle server, and this ﬁle server is the one that must be conﬁgured and logged on to.

To set up the NetWare ﬁle server:

1. Execute the PCONSOLE program from the system volume of the ﬁle server.

2. Create queues.

To create queues:

a. Select Print Queue Information in the Available Options window.

b. Press the [Ins] key to add a new queue.

c. Type in a queue name and press [Enter].

Using Advanced Functions” on page 5-20. However, one of the

d. Repeat steps b and c until you have the number of queues you want.

e. Press [Esc] to return to the PCONSOLE Main Menu.

3. Add the print server.

To inform the NetWare ﬁle server that a print server exists:

a. Select Print Server Information from the PCONSOLE Main Menu.

b. Press [Ins] to add a new print server.

c. Type the print server name.

The factory default name for the print server is PSxxxxxx (shown on the label on the bottom of the device).

4. Assign printers.

To associate a NetWare printer object with each printer port of the print server:

a. Select the print server you added in step 3.

b. Select Print Server Conﬁguration.

c. Select Printer Conﬁguration.

5-4 Novell NetWare Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

d. Select the printer number on the Conﬁgured Printers submenu, using the printer

number mapping as shown in T

able 5-1.

For more information about logical ports, refer to “

Table 5-1. PSERVER Mode Printer Number Mapping

Print Server Port File Server Printer Number

Printer port 1 Printer number 0

Printer port 2 Printer number 1

Logical port 1 Printer number 8

Logical port 2 Printer number 9

Logical port 3 Printer number 10

Logical port 4 Printer number 11

Logical port 5 Printer number 12

Logical port 6 Printer number 13

Logical port 7 Printer number 14

Logical port 8 Printer number 15

e. Enter the print server name in the Name entry ﬁeld.

Leave the Type entry ﬁeld with the default value of Deﬁned elsewhere.

f. Press [Esc].

Using Logical Ports” on page 5-22.

g. Select Yes to save the changes.

h. Repeat steps d, e, and f for each printer port on the print server.

i. Press [Esc] to return to the Print Server Conﬁguration menu.

5. Associate printers with print queues.

To associate print queues with the printer(s) attached to your print server:

a. Select Queues Serviced by Printer from the Print Server Conﬁguration menu.

b. Select a printer you want to assign a print queue to.

c. Press [Ins] when the File Server Queue Priority window opens.

d. Select the print queue that you want the printer to service.

e. Press [Enter] to accept the default priority level.

Novell NetWare Printing 5-5

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

f. Press [Esc] to return to the Deﬁned Printers window.

g. Repeat steps b through f until all printer and queue associations are conﬁgured

completely.

h. Press [Esc] until you exit out of the PCONSOLE program.

6. Conﬁgure your print server.

To conﬁgure your print server:

a. Execute PSCONFIG while logged on to the ﬁle server.

This program was previously copied from the print server resource CD into your hard disk.

b. Select the print server that you want to conﬁgure.

c. Select Change Conﬁguration.

d. Select NetWare Conﬁguration.

e. Verify that PS is the Operation Mode.

PS must be the operation mode for the print server to operate in PSERVER mode. If the operation mode is RP, the print server operates in RPRINTER mode. It can operate in only one mode at a time.

f. Select the Master File Server entry ﬁeld to open the Select the Master File Server

window.

g. Select the name of the ﬁle server you just conﬁgured.

h. Press [Esc] to return to the Select Conﬁguration Item window.

i. Select System Conﬁguration if any change to the print server is necessary.

j. Select Execute Change.

k. Press [Enter] when asked if you are sure.

l. Press [Esc] when a window opens indicating the conﬁguration is complete.

m. Press [Esc] to return to the Active Device List main menu.

Press F2 to make sure that the new print server name is activated if it was changed.

n. Press [Esc] to exit out of the PSCONFIG program.

Your print server is now set up in the NetWare networking environment. You can access the print server using NetWare commands printing to the designated queue.

5-6 Novell NetWare Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Setting RPRINTER Mode in NetWare 3.x (Bindery Mode)

To set up the NetWare ﬁle server to connect to the Model PS104/PS105/PS110/PS113 print server in the NetWare RPRINTER mode, ﬁrst designate a NetWare ﬁle server that your print server will log on to retrieve print jobs. Log on to the ﬁle server as SUPERVISOR or as a user with SUPERVISOR privileges. The print server can be conﬁgured to service multiple NetWare Bindery ﬁle servers as described in “ NetWare ﬁle servers has to be designated as the master ﬁle server, and this ﬁle server is the one that must be conﬁgured and logged on to.

To set up the NetWare ﬁle server:

1. Execute the PCONSOLE program from the system volume of the ﬁle server.

2. Create queues.

To create queues:

a. Select Print Queue Information in the Available Options window.

b. Press [Ins] to add a new queue.

c. Type in a queue name and press [Enter].

Using Advanced Functions” on page 5-20. However, one of the

d. Repeat steps b and c until you have the number of queues you want.

e. Press [Esc] to return to the PCONSOLE Main Menu.

3. Add the print server.

To inform the NetWare ﬁle server that a print server exists:

a. Select Print Server Information from the PCONSOLE Main Menu.

b. Press [Ins] to add a new print server.

c. Type the print server name.

This name is not the name of the print server. It is the print server that you will set up on the NetWare ﬁle server. At the end of the installation process, you will load PSERVER.NLM on the ﬁle server using this name.

4. Assign printers.

This step should be done every time you add a new print server or when you connect a new printer to the print server.

Novell NetWare Printing 5-7

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

To associate a NetWare printer object with each printer port of the print server:

a. Select the print server you added in step 3.

b. Select Print Server Conﬁguration.

c. Select Printer Conﬁguration.

d. Select the entry with printer number 0 on the Conﬁgured Printers submenu to open

the Printer 0 Conﬁguration window.

e. Type the predetermined print server name in the Name entry ﬁeld, using the

convention shown in T

able 5-2.

When referring to the table, assume that PSxxxxxx is the predetermined name of the print server. You can provide a name different from the one presently in the print server, and then you can change the name of the device when you execute the PSCONFIG program for the RPRINTER setup.

The factory default name for the print server is PSxxxxxx as shown on the label on the bottom of the device.

Table 5-2. RPRINTER Mode Printer Name Mapping

Print Server Port Printer Name in File Server

Printer port 1 PSxxxxxx

Printer port 2 PSxxxxxx_P2

Logical port 1 PSxxxxxx_L1

Logical port 2 PSxxxxxx_L2

Logical port 3 PSxxxxxx_L3

Logical port 4 PSxxxxxx_L4

Logical port 5 PSxxxxxx_L5

Logical port 6 PSxxxxxx_L6

Logical port 7 PSxxxxxx_L7

Logical port 8 PSxxxxxx_L8

f. Select the Type entry ﬁeld to open the Printer Types window.

g. Select Remote Parallel, LPT1 in the Printer Types window and press [Enter].

h. Press [Esc].

i. Select Yes to save the changes.

5-8 Novell NetWare Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

j. Repeat steps d through f for each printer port on the print server.

k. Press [Esc] to return to the Print Server Conﬁguration menu.

5. Associate printers with print queues.

To associate print queues with the printer(s) attached to your print server:

a. Select Queues Serviced by Printer from the Print Server Conﬁguration menu.

b. Select a printer you want to assign a print queue to.

c. Press [Ins] when the File Server Queue Priority window opens.

d. Select the print queue that you want the printer to service.

e. Press [Enter] to accept the default priority level.

f. Press [Esc] to return to the Deﬁned Printers window.

g. Repeat steps b through f until all printer and queue associations are conﬁgured

completely.

h. Press [Esc] until you exit out of the PCONSOLE program.

6. Conﬁgure your print server.

To conﬁgure your print server:

a. Execute PSCONFIG while logged on to the ﬁle server.

This program was previously copied from the print server resource CD into your hard disk.

b. Select the print server that you want to conﬁgure.

c. Select Change Conﬁguration.

d. Select NetWare Conﬁguration.

e. Verify that RP is the operation mode.

RP must be the operation mode for the print server to operate in RPRINTER mode. If the operation mode is PS, the print server operates in PSERVER mode. It can operate only in one mode at a time.

f. Select and enter the name of the NetWare print server in the Novell PSERVER (P1)

entry ﬁeld.

This name is the NetWare print server that you entered in step 3 c.

You can also modify the Novell PSERVER ﬁeld of the other printer ports if they exist.

Novell NetWare Printing 5-9

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

g. Press [Esc] to return to the Select Conﬁguration Item window.

h. Select System Conﬁguration if any change to the print server is necessary.

If a change is necessary, select Device Name, change it to the new print server name, and exit back into the Select Conﬁguration Item window.

i. Select Execute Change.

j. Press [Enter] when asked if you are sure.

k. Press [Esc] when a window opens indicating that the conﬁguration is complete.

l. Press [Esc] to return to the Active Device List main menu.

Press F2 to make sure that the new print server name is activated if it was changed.

m. Press [Esc] to exit out of the PSCONFIG program.

7. Load the PSERVER.NLM on the NetWare ﬁle server.

If the NetWare print server to which the NETGEAR print server will be connected has been previously loaded, you must unload and reload it again. If you are unloading and reloading the PSERVER NetWare Loadable Module (NLM), start with step a. If you are loading the NLM for the ﬁrst time, go to step d.

To load the NetWare PSERVER module:

a. Go to the ﬁle server console where the PSERVER.NLM is running.

b. Press [Alt] + [Esc] until the print server NLM window opens.

c. Press [Esc] to stop the print server NLM and answer Yes.

d. Enter the following command when the NetWare NLM has been unloaded:

load pserver xxxx

xxxx is the same NetWare print server entered in steps 3 c and 6 f.

Your print server is now set up as a remote printer in the NetWare networking environment. You can access the print server using NetWare commands printing to the designated queue or printer.

5-10 Novell NetWare Printing

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

Using Your Print Server in a NetWare 4.x Network

In NetWare 3.x, all user-related information is stored in a database called the Bindery. NetWare server administration programs such as SYSCON and PCONSOLE modify information in the Bindery to manage the operation of the ﬁle server. The main disadvantage of the Bindery database is that it is limited to a single ﬁle server. Networks with a large number of servers can become difﬁcult to manage, because each server has to be conﬁgured separately. In a large enterprise with a large number of servers, it could become extremely difﬁcult to coordinate the administration of ﬁle servers across the entire enterprise.

Novell introduced NetWare Directory Services (NDS), which allows administration on a more global basis, in NetWare 4.x. NDS organizes objects by administrative domain, not by ﬁle server. The advantage of NDS is that the user logs on to a tree rather than a particular ﬁle server. However, to retain backward compatibility, NetWare 4.x still provides Bindery emulation to ease the transition into NDS.

To be able to conﬁgure the NetWare 4.x or IntraNetWare ﬁle server in NDS mode, the client station conducting the conﬁguration must have Novell Client32 installed. There are different versions of Client32 software for Ms-DOS, Windows 3.1, and Windows 95. With Windows NT, the IntraNetWare software for Windows NT is necessary. Without Client32 or IntraNetWare, the ﬁle server can only be conﬁgured in Bindery mode.

Setting PSERVER Mode in a NetWare 4.x NDS Mode Network

As described at the beginning of the chapter, you should determine a unique name and permanent name for the print server prior to starting any conﬁguration process. Also make sure that you have a unique name for each of the NETGEAR print servers on the network.

Log in to your NDS network as ADMIN or as a user with Administrator access privileges. Make a note of the NDS tree and NDS context name that appear on the screen. This information will be used later to conﬁgure the NETGEAR print server.

Novell NetWare Printing 5-11

Installation and Reference for the Model PS104/PS105/PS110/PS113 Print Server

To conﬁgure the NDS ﬁle server to use the Model PS104/PS105/PS110/PS113 print server in PSERVER mode:

1. Execute the PCONSOLE program from the System volume of the ﬁle server.

The Available Options window opens. Make sure that the following ﬁve menu selections are in the window:

• Print Queues

• Printers

• Print Servers

• Quick Setup

• Change Context

If you do not see these ﬁve menu selections, you are not running Client32. You will have to exit PCONSOLE, log out, and log in to the NDS ﬁle server when you have Client32 installed.

2. Conﬁgure the ﬁle server using Quick Setup.

To conﬁgure the ﬁle server using Quick Setup:

a. Select Quick Setup from the Available Options window.

b. Type the predetermined print server name in the Print Server ﬁeld.

This name is the one you chose earlier before starting the ﬁle server conﬁguration. The factory default name for the print server is PSxxxxxx (shown on the label on the bottom of the device).

c. Type the printer name you want in the New Printer ﬁeld.

This name is the one used to associate a NetWare printer object with each printer port of the Model PS104/PS105/PS110/PS113 print server.

d. Type the print queue name you want in the New Print Queue ﬁeld.

e. Press F10 to save.

The printer number is automatically assigned by Quick Setup starting from printer number 0. It can be modiﬁed by selecting Printers from the Available Options main menu, selecting the designated printer, and changing the Printer Number in the Printer Conﬁguration window. The print server port to printer number mapping is shown in

able 5-1 on page 5-5.

5-12 Novell NetWare Printing

Netgear PS113 Reference Guide
