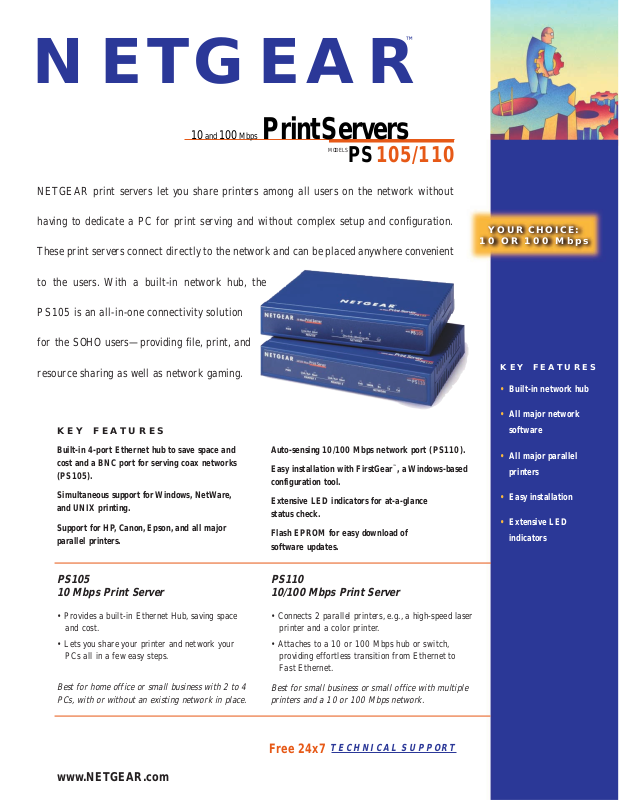

Netgear PS105, PS110 BROCHURE

NETGEAR print servers let you share printers among all users on the network without

having to dedicate a PC for print serving and without complex setup and configuration.

These pri nt se rvers connect directly to the network and can be placed anywhere con venient

to the users. With a built-in network hub, the

PS105 is an all-in-one connectivity solution

for the SOHO users—providing file, print, and

resource sharing as well as network gaming.

™

NETGEAR

PS105/110

MODELS

10 and 100 Mbps

Print Servers

YOUR CHOICE:

10 OR 100 Mbps

Free 24x7

TECHNICAL SUPPORT

PS105 10 Mbps Print Server

• Provides a built-in Ethernet Hub,saving space and cost.

• Lets you share your printer and network your PCs all in a few easy steps.

Best for home office or small business with 2 to 4 PCs, with or without an existing network in place.

PS110 10/100 Mbps Print Server

• Connects 2 parallel printers, e.g., a high-speed laser printer and a color printer.

• Attaches to a 10 or 100 Mbps hub or switch, providing effortless transition from Ethernet to Fast Ethernet.

Best for small business or small office with multiple printers and a 10 or 100 Mbps network.

Auto-sensing 10/100 Mbps network port (PS110). Easy installation with FirstGear

™

, a Windows-based

configuration tool. Extensive LED indicators for at-a-glance

status check. Flash EPROM for easy download of

software updates.

KEY FEATURES

Built-in 4-port Ethernet hub to save space and cost and a BNC port for serving coax networks (PS105).

Simultaneous suppor t for Windows, NetWare, and UNIX printing.

Support for HP, Canon, Epson, and all major parallel printers.

KEY FEATURES

• Built-in network hub

• All major network

software

• All major parallel

printers

• Easy installation

• Extensive LED

indicators

www.NETGEAR.com

PS105 PS110

Printer Port

One IEEE 1284 Two IEEE 1284 bi-directional parallel-port bi-directional parallel-ports

Network Port

Four 10BASE-T ports (RJ-45) One speed-sensing 10/100 Mbps port IEEE 802.3i Ethernet compliant (RJ-45) compliant with One 10BASE-2 port (BNC) IEEE 802.3i Ethernet and

IEEE 802.3u Fast Ethernet

Status LED

Unit power, collision power, collision Printer connection link,activity,alert link,activity,alert (per printer port) Network connection link,receive (per network port) link,10 or 100 Mbps,receive,transmit

Network Protocol

TCP/IP, IPX/SPX, and NetBEUI

Dimensions

W 189 mm (7.41") D 122 mm (4.81") H 21 mm (1.21")

Weight

0.73 kg (1.6 lbs)

Power Specification

12V DC 0.6A max; 7W AC Localized plug for North America, Japan,UK, Europe,Australia

Environmental Specifications

Operating temperature 0 to 40ºC (32 to 104ºF) Operating humidity 90% maximum relative humidity, noncondensing

Electromagnetic Compliance

CE Mark,commercial FCC Part 15 Class B EN 55 022 (CISPR 22),Class B VCCI class B ITE

Safety Agency Approvals (Power Adapter)

UL listed (UL 1950) CSA certified (CSA 22.2 #950) TUV licensed (EN 60 950) T-Mark

Warranty

Print server: 5 years Power adapter: 2 years

PACKAGE CONTENTS

• Print server

• Power adapter

• Quick Installation

Guide

• Resource CD

• Warranty card

• Phone card

SPECIFICATIONS

123

NETWORK

PRINTER

12VDC 1.2A

Normal/Uplink

PS105 print server

Router for Internet access

TYPICAL NETWORK SETUP

NETWORK

PRINTER 1 PRINTER 2

12VDC 1.2A

Model PS110 Print Server

NETGEAR Model

DS108 hub

Auto 10/100 Mbps

DUAL SPEED

10 Mbps 100 Mbps
