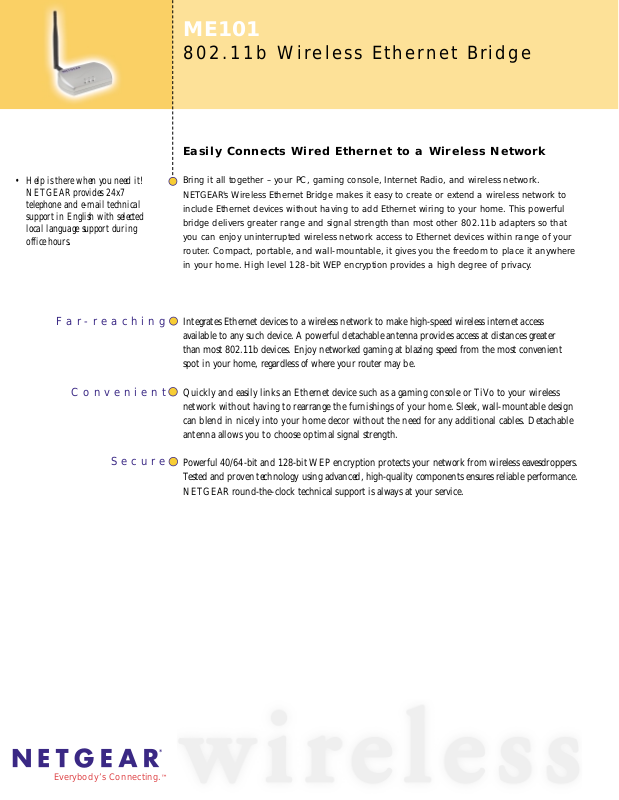

Netgear ME101 Data Sheet

M E 101

802.11b Wireless Ethernet Bridge

Easily Connects Wired Ethernet to a Wireless Network

Bring it all together – your PC, gaming console, Internet Radio, and wireless network. NETGEAR's Wireless Ethernet Bridge makes it easy to create or extend a wireless network to include Ethernet devices without having to add Ethernet wiring to your home. This powerful bridge delivers greater range and signal strength than most other 802.11b adapters so that you can enjoy uninterrupted wireless network access to Ethernet devices within range of your router. Compact, portable, and wall-mountable, it gives you the freedom to place it anywhere in your home. High level 128-bit WEP encryption provides a high degree of privacy.

Integrates Ethernet devices to a wireless network to make high-speed wireless internet access available to any such device. A powerful detachable antenna provides access at distances greater than most 802.11b devices. Enjoy networked gaming at blazing speed from the most convenient spot in your home, regardless of where your router may be.

Quickly and easily links an Ethernet device such as a gaming console or TiVo to your wireless network without having to rearrange the furnishings of your home. Sleek, wall-mountable design can blend in nicely into your home decor without the need for any additional cables. Detachable antenna allows you to choose optimal signal strength.

Powerful 40/64-bit and 128-bit WEP encryption protects your network from wireless eavesdroppers. Tested and proven technology using advanced, high-quality components ensures reliable performance. NETGEAR round-the-clock technical support is always at your service.

Far-reaching

Convenient

Secure

• Help is there when you need it! NETGEAR provides 24x7 telephone and e-mail technical support in English with selected local language support during office hours.

Everybody’s Connecting.™

Internet

4500 Great America Parkway Santa Clara, CA 95054 USA Phone: 1-888-NETGEAR E-mail: info@NETGEAR.com www.NETGEAR.com

, the NETGEAR logo, The Gear Guy, Everybody's connecting and Auto Uplink are trademarks or registered trademarks of Netgear, Inc. in the United States and/or other countries. Microsoft, Windows, and Windows Media Player are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. All rights reserved.

D-ME101-0

System Requirements

Configuring the Access Point

-PC with available Ethernet port

-Windows 98, Me, 2000, XP, MAC 0S or Linux

-2 Mbytes of available disk space

Sharing of Broadband Cable/DSL Service

-Cable/DSL Wireless Router with an available

10Base-T or 10/100 Port

Package Contents

-ME101 Wireless Ethernet Bridge with

detachable antenna

-Wireless Ethernet Bridge CD

-Power adapter

-3.05m (10ft.) cross-over Ethernet cable

-Installation guide

-Warranty card

-Support information card

NETGEAR Related Products

-MA521 802.11b Wireless PC Card

-MA111 802.11b Wireless USB Adapter

-MR814 802.11b Cable/DSL Wireless Router

Technical Specifications

• Utility:

-Windows98, Me, 2000, XP

• Network Speeds:

-1, 2, 5.5, 11 Mbps

• Network Port:

One 10BASE-T Ethernet port

• LED:

- Displays Power, Wireless Link/Act, Ethernet

Link/Act

• Power Adapter:

-Plug is localized to country of sale for North

America, Japan, UK, Europe, Australia

• Frequency Band:

-2.4 GHz

• Modulation Technique:

-Direct Sequence Spread Spectrum (DSSS)

• Encryption:

-40/64-bit & 128-bit WEP Encryption

• Operating Range*:

- Indoor Environment:

1 Mbps @ 115 m (377 ft) 2 Mbps @ 90 m (295 ft)

5.5Mbps @ 82 m (269 ft) 11 Mbps @ 50 m (164 ft)

- Outdoor Environment:

1 Mbps @ 550 m (1804 ft) 2 Mbps @ 400 m (1312 ft)

5.5Mbps @ 352 m (1155 ft) 11 Mbps @ 160 m (525 ft)

* Actual results will vary depending upon the operating environment.

• Antenna:

- 4 dBi

• Channels:

- North America: 11 Channels

- Europe: 13 Channels

- Japan: 14 Channels

• Warranty:

- NETGEAR 3-year warranty

ME101 802.11b Wireless Ethernet Bridge

family

room

Cable/DSL modem

MR814 Cable/DSL Wireless Router

Desktop PC with Ethernet connection

Macintosh computer with

ME101 802.11b Wireless Ethernet Bridge

Gaming console with

ME101 802.11b Wireless Ethernet Bridge
