Netgear GS752TPv2, GS728TPPv2, GS752TPP, GS728TPv2 User guide

Download

User Manual

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

GS728TPv2 GS728TPPv2 GS752TPv2 GS752TPP

September 2021 202-12021-06

NETGEAR, Inc. 350 East Plumeria Drive San Jose, CA 95134, USA

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Support and Community

Visit netgear.com/support to get your questions answered and access the latest downloads.

You can also check out our NETGEAR Community for helpful advice at

community.netgear.com.

Regulatory and Legal

Si ce produit est vendu au Canada, vous pouvez accéder à ce document en français canadien à https://www.netgear.com/support/download/.

(If this product is sold in Canada, you can access this document in Canadian French at https://www.netgear.com/support/download/.)

For regulatory compliance information including the EU Declaration of Conformity, visit https://www.netgear.com/about/regulatory/.

See the regulatory compliance document before connecting the power supply.

For NETGEAR's Privacy Policy, visit

By using this device, you are agreeing to NETGEAR's Terms and Conditions at https://www.netgear.com/about/terms-and-conditions. If you do not agree, return the device to your place of purchase within your return period.

Do not use this device outdoors. For products that support Power over Ethernet (PoE), the PoE source is intended

a building connection only.

for intr

Applicable to 6 GHz devices only: Only use the device indoors. The operation of 6 GHz devices is prohibited on oil

tforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while

pla flying above 10,000 feet. Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems.

This switch is designed for indoor use only. If you want to connect to a device located outdoors, the outdoor device must be pr the switch and the outdoor device. Failure to do so can damage the switch.

WARNING: Befor

safety and warranty information.

operly grounded and surge protected, and you must install an Ethernet surge protector inline between

e connecting this switch to outdoor cables or devices, see https://kb.netgear.com/000057103 for

https://www.netgear.com/about/privacy-policy.

Trademarks

Revision History

Publication Part Number

202-12021-06 September 2021 We removed “Managed Pro” from the product name. 202-12021-05 August 2021 We changed 202-12021-04 April 2021

Publish Date Comments

• We changed Chapter 1, Get Started to document the following:

- The new device UI login options for initial access to the device UI. (HTTP

rather than HTTPS is now the default protocol for access to the device UI.) See

the switch off-network and not connected to the Internet, and Credentials for the device UI.

- The new options to register the switch to activate your warranty. See

- The new requirements to change the management mode. See

management mode of the switch.

Configure the CoS settings for an interface on page 301.

Access the switch on-network and connected to the Internet, Access

Change the

User Manual2

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

(continued) 202-12021-04

202-12021-03 March 2020 • We changed Reboot the switch.

202-12021-02 February 2020 • We changed the login procedures for all tasks, including the tasks for initial

(continued)

April 2021

(continued)

• We changed the login steps in all tasks in the manual to document the new device UI login options.

• We changed

• We added

• We changed

registration status.

• We made multiple minor changes, including changes in terminology.

• We changed

following sections:

Reset the switch to factory default settings but maintain the registration

status.

Reset the switch to factory default settings and reset the registration

status.

access in with your NETGEAR account, you now can access the switch with the device admin password. You now can also obtain and use a registration key for offline access.

• We changed

• We added

certificate file on the switch.

• We changed local browser interface to device UI.

Manage the Smart Control Center.

Browser security warning with HTTPS access.

Reset the switch to factory default settings and reset the

Reset the switch to its factory default settings and added the

Chapter 1, Get Started. After you register and access the switch

Credentials for the device UI. Register the switch and added two sections:

Reset the switch to its factory default settings.

Use an HTTP session to download and install an SSL security

202-12021-01 August 2019 • We changed the login procedures for all tasks. After you register and access

the switch with your NETGEAR account, you can now access the switch with the device admin password.

• The switch now supports management through the NETGEAR Insight app and Insight Cloud portal.

• We reorganized the information in Chapter 1, Get Started and added or revised the following sections:

Available publications

Switch management options and default management mode

About on-network and off-network access

Access the switch on-network and connected to the Internet

Access the switch off-network and not connected to the Internet

Credentials for the device UI

Change the language of the device UI

Change the management mode of the switch

PoE Max LED in the Device View

LED Mode LED in the Device View

User Manual3

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

(continued) 202-12021-01

202-11825-03 October 2018 • Changed Switch management options and default management mode.

202-11825-02 June 2018 Changed Configure VLAN settings.

(continued)

August 2019

(continued) In other chapters, we added the following sections:

- PoE concepts

Device class power requirements

Power allocation and power budget concepts

Hardware technical specifications

• Throughout the manual, we did the following:

- We added or revised many standard sections.

- We updated the Auto-VoIP VLAN information.

- We made many other minor changes and improvements.

• We published the manual in a new format.

• Added

• Changed

• Added

• Removed references to the resource CD.

Use the NETGEAR Switch Discovery Tool to discover the switch

when it is connected to the Internet.

Use the NETGEAR Insight mobile app to discover the IP address of

the switch.

Change the device admin password for the device UI. Configure the HTTP settings. Configure the HTTPS settings.

You cannot log in to the switch.

202-11825-01 April 2018 First publication.

User Manual4

Chapter 1 Get Started

Available publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Switch management options and default management mode . . . . . . . . .16

Manage the switch by using the device UI . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Software Requirements to use the device UI . . . . . . . . . . . . . . . . . . . . . .17

Supported web browsers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Navigation tabs, configuration menus, and page menu. . . . . . . . . . . . .17

Configuration and Status Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Buttons in the device UI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

User-defined fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Context-sensitive help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

About on-network and off-network access. . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Access the switch on-network and connected to the Internet . . . . . . . . . . 21

Use se a Windows-based computer to access the switch

on-network and connected to the Internet . . . . . . . . . . . . . . . . . . . . . . . .22

Use the NETGEAR Insight mobile app to discover the IP

address of the switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Use the NETGEAR Switch Discovery Tool to discover the

switch when it is connected to the Internet. . . . . . . . . . . . . . . . . . . . . . . .24

Discover the switch in a network with a DHCP server

using the Smart Control Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Use other options to discover the switch IP address. . . . . . . . . . . . . . . .27

Access the switch on-network when you know the switch IP address .27

Access the switch off-network and not connected to the Internet . . . . . . . 29

Credentials for the device UI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

access the switch online . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

registration key for offline access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Access the switch offline with a registration key. . . . . . . . . . . . . . . . . . . .34

Change the language of the device UI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Change the management mode of the switch . . . . . . . . . . . . . . . . . . . . . . . 37

About changing the management mode . . . . . . . . . . . . . . . . . . . . . . . . .37

Change the management mode to NETGEAR Insight

Mobile App and Insight Cloud Portal. . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Change the management mode back to Directly Connect

to Web-browser Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Use the Device View of the device UI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Power LED in the Device View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Fan LED in the Device View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

PoE Max LED in the Device View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

LED Mode LED in the Device View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Configure interface settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Access the NETGEAR support website. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Access the user manual online . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Chapter 2 Configure System Information

View or define system information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

View the fan status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

View the power supply information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

View the software versions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

View the system CPU status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Configure the CPU thresholds. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

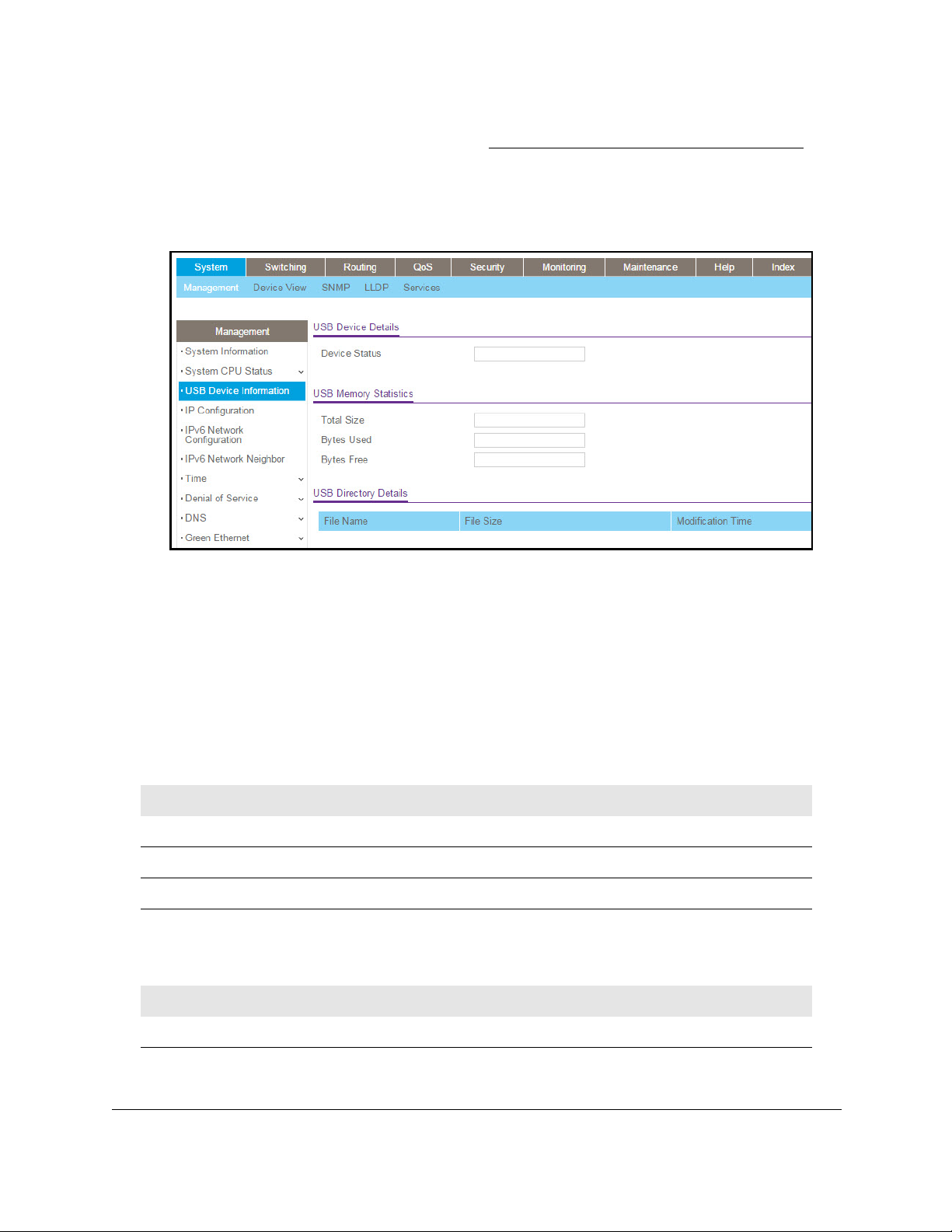

View USB device information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Configure the IP network settings for management access . . . . . . . . . . . . 61

Configure the IPv4 network and VLAN settings for the

device UI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Configure the IPv6 network settings for the local browser

interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

View the IPv6 network neighbors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Configure the time settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Configure the time setting manually . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Configure the time settings with SNTP and configure the

global SNTP settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

View the SNTP global status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Configure an SNTP server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Configure daylight saving time settings . . . . . . . . . . . . . . . . . . . . . . . . . .76

View the daylight saving time status . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Configure denial of service settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Configure Auto-DoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Configure denial of service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Configure DNS settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Configure the global DNS settings and add a DNS server. . . . . . . . . . .85

Remove a DNS server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Configure and view host name-to-IP address information. . . . . . . . . . .88

Configure green Ethernet settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Configure the global green Ethernet settings . . . . . . . . . . . . . . . . . . . . .91

Configure green Ethernet interface settings. . . . . . . . . . . . . . . . . . . . . . .92

Use the Device View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Configure Power over Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

PoE concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

Device class power requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

Power allocation and power budget concepts. . . . . . . . . . . . . . . . . . . . .95

Configure the global PoE settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Configure the PoE port settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

Configure SNMP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Configure the SNMPv1 and SNMPv2 community . . . . . . . . . . . . . . . . 102

User Manual6

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Configure SNMPv1 and SNMPv2 trap settings. . . . . . . . . . . . . . . . . . . 105

Configure SNMPv1 and SNMPv2 trap flags . . . . . . . . . . . . . . . . . . . . . 108

View the supported MIBs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Configure SNMPv3 users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Configure Link Layer Discovery Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . .111

Configure LLDP global settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Configure LLDP port settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

View the LLDP-MED network policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Configure the LLDP-MED port settings . . . . . . . . . . . . . . . . . . . . . . . . . 117

View the local information advertised through LLDP . . . . . . . . . . . . . 118

View the LLDP neighbors information . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Configure a DHCP L2 relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

Enable the DHCP L2 relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Configure a DHCP L2 relay interface . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

View DHCP L2 relay interface statistics . . . . . . . . . . . . . . . . . . . . . . . . . 127

Configure DHCP snooping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Configure the global DHCP snooping settings . . . . . . . . . . . . . . . . . . 129

Enable DHCP for all member interfaces of a VLAN . . . . . . . . . . . . . . . 130

Configure DHCP snooping interface settings. . . . . . . . . . . . . . . . . . . . 131

Configure static DHCP bindings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Configure DHCP snooping persistent settings. . . . . . . . . . . . . . . . . . . 134

View or clear DHCP snooping statistics . . . . . . . . . . . . . . . . . . . . . . . . . 136

Configure Dynamic ARP Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Configure the global DAI settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Configure DAI on a VLAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Configure DAI on an interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Configure a DAI ACL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

View DAI Statistics per VLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Set up PoE timer schedules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

Create a PoE timer schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Specify the settings for an absolute PoE timer schedule . . . . . . . . . . 147

Specify the settings for a recurring PoE timer schedule . . . . . . . . . . . 149

Change the settings for a recurring PoE timer schedule entry . . . . . 151

Delete a PoE timer schedule entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Delete a PoE timer schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Chapter 3 Configure Switching

Configure the port settings and maximum frame size. . . . . . . . . . . . . . . 155

Configure link aggregation groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158

Configure LAG settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Configure LAG membership . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Set the LACP system priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Set the LACP port priority settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Configure VLANs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .164

Configure VLAN settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Configure VLAN membership. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

View the VLAN status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Configure the PVID settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

User Manual7

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Configure a MAC-based VLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Configure protocol-based VLAN groups. . . . . . . . . . . . . . . . . . . . . . . . 176

Configure protocol-based VLAN group membership . . . . . . . . . . . . 178

Configure a voice VLAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .179

Configure GARP switch settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Configure GARP ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

Configure Auto-VoIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185

Configure the Auto-VoIP protocol-based settings . . . . . . . . . . . . . . . . 185

Configure the Auto-VoIP OUI-based properties . . . . . . . . . . . . . . . . . 187

Configure the OUI-based port settings . . . . . . . . . . . . . . . . . . . . . . . . . 188

Manage the OUI table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Display the Auto-VoIP status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

Configure Spanning Tree Protocol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .193

Configure the STP settings and view the STP status . . . . . . . . . . . . . . 194

Configure the CST Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196

Configure the CST port settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198

View the CST port status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

View the Rapid STP information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Manage the MST settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

Configure and view the port settings for an MST instance. . . . . . . . . 206

View the STP Statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

Configure multicast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210

View, search, or clear the MFDB table . . . . . . . . . . . . . . . . . . . . . . . . . . 210

View the MFDB statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

Configure the auto-video multicast settings. . . . . . . . . . . . . . . . . . . . . 213

Manage IGMP snooping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .214

Configure IGMP snooping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

Configure IGMP snooping for interfaces. . . . . . . . . . . . . . . . . . . . . . . . 216

View, search, or clear the IGMP snooping table. . . . . . . . . . . . . . . . . . 218

Configure IGMP snooping for VLANs . . . . . . . . . . . . . . . . . . . . . . . . . . 219

Modify IGMP snooping settings for a VLAN . . . . . . . . . . . . . . . . . . . . . 221

Disable IGMP snooping on a VLAN and remove it from the table . . 222

Configure one or more IGMP multicast router interfaces. . . . . . . . . . 222

Configure an IGMP multicast router VLAN . . . . . . . . . . . . . . . . . . . . . . 224

IGMP snooping querier overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225

Configure an IGMP snooping querier . . . . . . . . . . . . . . . . . . . . . . . . . . 225

Configure an IGMP snooping querier for VLANs. . . . . . . . . . . . . . . . . 227

Display the status of the IGMP snooping querier for VLANs . . . . . . . 228

Manage MLD snooping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .229

Enable MLD snooping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

Configure MLD snooping for interfaces . . . . . . . . . . . . . . . . . . . . . . . . 231

Configure the MLD VLAN settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233

Modify the MLD snooping settings for a VLAN . . . . . . . . . . . . . . . . . . 234

Remove MLD snooping from a VLAN . . . . . . . . . . . . . . . . . . . . . . . . . . 235

Configure one or more MLD multicast router interfaces . . . . . . . . . . 236

Configure an MLD multicast router VLAN . . . . . . . . . . . . . . . . . . . . . . . 237

Configure an MLD snooping querier. . . . . . . . . . . . . . . . . . . . . . . . . . . 238

Configure the MLD snooping querier VLAN settings . . . . . . . . . . . . . 239

User Manual8

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Configure multicast VLAN registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . .241

Configure the global MVR settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242

Configure an MVR group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243

Configure MVR group membership. . . . . . . . . . . . . . . . . . . . . . . . . . . . 244

Configure the MVR interface settings. . . . . . . . . . . . . . . . . . . . . . . . . . . 245

View the MVR statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

View, search, and manage the MAC address table. . . . . . . . . . . . . . . . . . .248

View, search, or clear the MAC address table. . . . . . . . . . . . . . . . . . . . 249

Set the dynamic address aging interval. . . . . . . . . . . . . . . . . . . . . . . . . 250

Add a static MAC address to the MAC address table . . . . . . . . . . . . . 251

Configure Layer 2 loop protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .252

Configure global Layer 2 loop protection. . . . . . . . . . . . . . . . . . . . . . . 253

View and configure Layer 2 loop protection on a port . . . . . . . . . . . . 254

Chapter 4 Configure Routing

Routing concepts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258

Configure the routing mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .258

Configure the router settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258

View the IP routing statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259

Configure IPv6 routing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .263

Configure the global IPv6 routing settings . . . . . . . . . . . . . . . . . . . . . . 263

View the IPv6 route table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264

Configure the IPv6 VLAN interface settings . . . . . . . . . . . . . . . . . . . . . 265

Configure an IPv6 prefix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

View the IPv6 routing statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270

View, search, or clear the IPv6 neighbor table . . . . . . . . . . . . . . . . . . . 275

Configure an IPv6 static route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277

Configure IPv6 route preferences. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278

Configure VLAN routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .280

Create a routing interface with the VLAN Static Routing Wizard. . . . 280

Manage a VLAN routing interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282

Delete a VLAN routing interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283

Configure router discovery for a VLAN routing interface. . . . . . . . . . . . . .284

Manage routes and view the routing table. . . . . . . . . . . . . . . . . . . . . . . . . .286

Manually add a route and view the routing table . . . . . . . . . . . . . . . . 286

Modify a route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288

Delete a route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289

Configure Address Resolution Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . .290

View the ARP cache. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291

Manually add an entry to the ARP table. . . . . . . . . . . . . . . . . . . . . . . . . 292

View or globally configure the ARP table . . . . . . . . . . . . . . . . . . . . . . . 294

Remove ARP entries from the ARP cache . . . . . . . . . . . . . . . . . . . . . . . 296

Chapter 5 Configure Quality of Service

Quality of Service concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299

Manage Class of Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .299

CoS configuration concepts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299

User Manual9

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Configure the global CoS settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300

Configure the CoS settings for an interface . . . . . . . . . . . . . . . . . . . . . 301

Configure the CoS queue settings for an interface . . . . . . . . . . . . . . . 303

Map 802.1p priorities to queue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305

Map DSCP values to queues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306

Manage Differentiated Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .307

Defining DiffServ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308

Configure the DiffServ mode and display the entries in the

DiffServ private MIB tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309

Configure a DiffServ class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310

Configure DiffServ IPv6 class settings . . . . . . . . . . . . . . . . . . . . . . . . . . 317

Configure a DiffServ Policy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322

Configure the DiffServ service interface . . . . . . . . . . . . . . . . . . . . . . . . 328

View DiffServ service statistic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 332

Chapter 6 Manage Device Security

Change the device admin password for the device UI . . . . . . . . . . . . . . 335

Manage the RADIUS settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .336

Configure the global RADIUS server settings. . . . . . . . . . . . . . . . . . . . 336

Configure a RADIUS authentication server on the switch. . . . . . . . . . 339

Configure a RADIUS accounting server. . . . . . . . . . . . . . . . . . . . . . . . . 342

Configure the TACACS+ settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .345

Configure the global TACACS+ settings . . . . . . . . . . . . . . . . . . . . . . . . 345

Configure a TACACS+ server on the switch . . . . . . . . . . . . . . . . . . . . . 346

Modify the settings for a TACACS+ server on the switch . . . . . . . . . . 347

Remove a TACACS+ server from the switch . . . . . . . . . . . . . . . . . . . . . 348

Configure authentication lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .349

Configure an HTTP authentication list . . . . . . . . . . . . . . . . . . . . . . . . . . 349

Configure an HTTPS authentication list . . . . . . . . . . . . . . . . . . . . . . . . . 351

Configure the dot1x authentication list . . . . . . . . . . . . . . . . . . . . . . . . . 352

Manage the Smart Control Center. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .354

Configure management access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .355

Configure the HTTP settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355

Configure the HTTPS settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 357

Browser security warning with HTTPS access . . . . . . . . . . . . . . . . . . . . 358

Manage certificates for HTTPS access . . . . . . . . . . . . . . . . . . . . . . . . . . 359

Control access with profiles and rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .363

Add an access profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363

Add a rule to the access profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365

Activate the access profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367

Display the access profile summary and the number of

filtered packets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 368

Deactivate an access profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 369

Remove an access profile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370

Configure port authentication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371

Configure global 802.1X settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371

User Manual10

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Manage port authentication on individual ports . . . . . . . . . . . . . . . . . 373

View the port summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 377

View the client summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 379

Set up traffic control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .380

Manage MAC filtering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 380

Configure storm control settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384

Manage port security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 387

Configure protected ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392

Manage private VLANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393

Configure access control lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .400

Use the ACL Wizard to create a simple ACL . . . . . . . . . . . . . . . . . . . . . 401

Configure a MAC ACL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 407

Configure MAC ACL rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410

Configure MAC bindings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415

View or delete MAC ACL bindings in the MAC binding table . . . . . . 417

Configure a basic or extended IPv4 ACL. . . . . . . . . . . . . . . . . . . . . . . . 418

Configure rules for a basic IPv4 ACL . . . . . . . . . . . . . . . . . . . . . . . . . . . 422

Configure rules for an extended IPv4 ACL . . . . . . . . . . . . . . . . . . . . . . 427

Configure an IPv6 ACL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434

Configure rules for an IPv6 ACL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 438

Configure IP ACL interface bindings . . . . . . . . . . . . . . . . . . . . . . . . . . . 445

View or delete IP ACL bindings in the IP ACL binding table . . . . . . . 447

Configure VLAN ACL bindings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 448

Chapter 7 Monitor the Switch and the Traffic

Monitor the switch and the ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 452

View or clear switch statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 452

View port statistics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 455

View and manage detailed port statistics . . . . . . . . . . . . . . . . . . . . . . . 458

View or clear EAP and EAPoL statistics . . . . . . . . . . . . . . . . . . . . . . . . . 465

Perform a cable test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 466

Configure and view the logs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .468

Manage and view the memory logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 468

Manage and view the flash log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 470

Manage the server log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 472

View or clear the trap logs and the counters . . . . . . . . . . . . . . . . . . . . 475

Configure port mirroring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 477

Chapter 8 Maintain or Troubleshoot the switch

Reboot the switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 481

Reset the switch to its factory default settings . . . . . . . . . . . . . . . . . . . . . . .482

Reset the switch to factory default settings but maintain the

registration status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 482

Reset the switch to factory default settings and reset the

registration status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 483

Export a file from the switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .485

Use TFTP to export a file from the switch to a TFTP server. . . . . . . . . 485

User Manual11

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Use HTTP to export a file from the switch to a computer . . . . . . . . . . 487

Export a file from the switch to a USB device . . . . . . . . . . . . . . . . . . . . 488

Download a file to the switch or update the software . . . . . . . . . . . . . . . .489

Use TFTP to download a file to the switch or update the

software image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 490

Use HTTP to download a file to the switch or update the

software image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 492

Use an HTTP session to download and install an SSL

security certificate file on the switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . 494

Download a file from a USB device . . . . . . . . . . . . . . . . . . . . . . . . . . . . 496

Manage software images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .498

Copy a software image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 498

Configure dual image settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 499

View the dual image status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 501

Perform diagnostics and troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .502

Ping an IPv4 address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 502

Ping an IPv6 address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 504

Send an IPv4 traceroute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 506

Send an IPv6 traceroute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 508

Enable remote diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 510

Configure memory dump settings and perform a full

memory dump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 511

You cannot log in to the switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 513

Appendix A Configuration Examples

Virtual local area networks (VLANs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 516

VLAN configuration examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 517

Access control lists (ACLs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .518

MAC ACL example configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 518

Basic IPv4 ACL example configuration . . . . . . . . . . . . . . . . . . . . . . . . . 520

Differentiated Services (DiffServ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .521

Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 521

DiffServ traffic classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 522

Create policies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 522

DiffServ example configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 524

802.1X access control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .525

802.1X example configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 527

Multiple Spanning Tree Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .528

MSTP example configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 529

VLAN routing interfaces. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .531

Appendix B Specifications and Default Settings

Switch default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 534

General feature default settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .535

System setup and maintenance settings . . . . . . . . . . . . . . . . . . . . . . . . . . .542

Port characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .543

Traffic control settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .543

User Manual12

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Quality of service settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .544

Security settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .544

System management settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .545

Settings for other features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .545

Hardware technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .546

User Manual13

1Get Started

This user manual describes how you can configure and operate the following NETGEAR 24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports by using the device user interface (UI):

• GS728TPv2. NETGEAR 24-Port Gigabit PoE+ Smart Switch With 4 SFP Ports. model provides a PoE power budget of 190W.

• GS728TPPv2. NETGEAR 24-Port Gigabit PoE+ Smart Switch With 4 SFP Ports. model provides a PoE power budget of 380W.

• GS752TPv2. NETGEAR 48-Port Gigabit PoE+ Smart Switch With 4 SFP Ports. model provides a PoE power budget of 380W.

• GS752TPP. NETGEAR 48-Port Gigabit PoE+ Smart Switch With 4 SFP Ports. model provides a PoE power budget of 760W.

The manual describes the software configuration procedures and explains the options that are

available within those procedures.

This chapter contains the following sections:

•

Available publications

• Switch management options and default management mode

• Manage the switch by using the device UI

• Access the switch on-network and connected to the Internet

• Access the switch off-network and not connected to the Internet

• Credentials for the device UI

• Register the switch

• Change the language of the device UI

• Change the management mode of the switch

• Use the Device View of the device UI

• Configure interface settings

• Access the NETGEAR support website

• Access the user manual online

This

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Note: In this manual, we refer to all switch models as the switch. Unless

noted otherwise, all information applies to all switch models.

Note: For more information about the topics covered in this manual, visit the

support website at netgear.com/support.

Note: Firmware updates with new features and bug fixes are made available

from time to time at products can regularly check the site and download new firmware, or you can check for and download new firmware manually features or behavior of your product does not match what is described in this guide, you might need to update your firmware.

netgear.com/support/download/. Some

. If the

Available publications

The following guides are available at netgear.com/support/download/:

• Installation Guide

• Hardware Installation Guide

For information about the NETGEAR Insight app and Insight Cloud portal, visit netgear.com/insight and netgear.com/support/product/Insight.aspx. For knowledge base articles about NETGEAR Insight, visit

netgear.com/support.

Get Started User Manual15

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Switch management options and default management mode

If you prefer, you can use the switch as a plug-and-play device, so you do not need to set up a custom configuration. Just connect power, connect to your network and to your other devices, and you’re done.

The switch provides administrative management options that let you configure, monitor, and control the network. and the network from a web browser. If you are an Insight Premium or Pro subscriber, you can choose to manage the switch by using the NETGEAR Insight app on a smartphone or tablet or from the Insight Cloud portal that is available from a web browser on your Windows-based computer, Mac, or tablet.

The switch provides the following management options that let you discover the switch on the network and configure, monitor

• Device UI. By default, the management mode of the switch is set to Directly Connect to Web Browser Interface, which lets you access the device UI. In this mode, you can change all settings of the switch.

• NETGEAR Insight app and Insight Cloud portal. If you set the management mode of the switch to NETGEAR Insight Mobile following applications to manage the switch remotely:

- NETGEAR Insight app.

use the NETGEAR Insight app to discover the switch on the network and add the switch to a NETGEAR Insight network location. You can then set up the switch in the network and manage and monitor the switch remotely from your smartphone or tablet. You can choose from four methods to add the switch to the NETGEAR Insight app: You can scan your network for the switch, scan the QR code or the barcode of the switch, or add the serial number of the switch. A free trial is available for new customers.

- Insight Cloud portal.

the NETGEAR Insight Cloud portal to set up the switch in the network, perform advanced remote setup, configuration, and management, monitor the switch, analyze the switch and network usage, and, if necessary, troubleshoot the switch and the network. A free trial is available for new customers.

The device UI is enabled by default, allowing you to configure the switch

, and control the switch:

App and Insight Cloud Portal, you can use the

As an Insight Premium or Insight Pro subscriber, you can

As an Insight Premium or Insight Pro subscriber, you can use

For more information about NETGEAR Insight, visit netgear.com/support/product/Insight.aspx. For knowledge base articles about NETGEAR Insight, visit

To use the NETGEAR Insight app or Insight Cloud portal methods, you must change the management method to NETGEAR Insight Mobile so, you can also change the management method back to Directly Connect to Web Browser Interface and use the device UI. For more information, see of the switch on page 37.

Get Started User Manual16

netgear.com/support.

netgear.com/insight and

App and Insight Cloud Portal. After you do

Change the management mode

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Manage the switch by using the device UI

This manual describes how to use the device UI to manage and monitor the switch. For information about using the NETGEAR Insight app and Insight Cloud portal to manage

the switch, visit netgear.com/insight and netgear.com/support/product/Insight.aspx. For knowledge base articles about NETGEAR Insight, visit

Software Requirements to use the device UI

To access the switch by using a web browser, the browser must meet the following software requirements:

• HTML version 4.0, or later

• HTTP version 1.1, or later

Supported web browsers

netgear.com/support.

The following browsers were tested and support the device UI. Later browser versions might function fine but were not tested. The supported web browsers include the following:

• Microsoft Internet Explorer (IE) version 11

• Microsoft Edge

• Mozilla Firefox version 45

• Chrome version 51

• Safari on Windows OS versions 5.1

• Safari on MAC OS X version 10.1

Navigation tabs, configuration menus, and page menu

The following figure shows the System Information page for model GS752TPP.

Get Started User Manual17

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Navigation tab Configuration menu

Page menu

Language menu

Logout button

Page help

Button

Configuration status

and options

Figure 1. Switch navigation tabs, configuration menus, and page menu

The navigation tabs along the top of the device UI give you quick access to the various switch functions. The tabs are always available and remain constant, regardless of which feature you configure.

When you select a tab, the features for that tab appear as menus directly under the tabs. The configuration menus in the blue bar change according to the navigation tab that is selected.

The configuration pages for each feature are available as submenu links in the page menu on the left side of the page. Some items in the menu expand to reveal multiple submenu links, as the following figure shows.

Get Started User Manual18

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Link

Submenu

links

Figure 2. Switch page menu link and submenu links

Configuration and Status Options

The area directly under the configuration menus and to the right of the links displays the configuration information or status for the page you select. On pages that contain configuration options, you might be able to enter information into fields, select options from menus, select check boxes, and select radio buttons.

Each page contains access to the HTML-based help that explains the fields and configuration options for the page.

Buttons in the device UI

Each page also contains command buttons. The following table shows the command buttons that are used throughout the pages in the device UI:

Table 1. Command buttons in the device UI

Button Function Add Clicking the Add button adds the new item configured in the heading row of a table. Apply Clicking the Apply button saves your settings. Configuration changes take effect immediately Cancel Clicking the Cancel button cancels the configuration on the page and resets the data on the

page to the previous values of the switch.

Delete Clicking the Delete button removes the selected item. Refresh Clicking the Refresh button refreshes the page with the latest information from the device. Logout Clicking the Logout button ends the session.

Get Started User Manual19

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

User-defined fields

User-defined fields can contain 1 to 159 characters, unless otherwise noted on the configuration web page. All characters can be used except for the ones stated in the following table (unless specifically noted in a procedure for a feature).

Table 2. Invalid characters for user-defined fields

Invalid characters for user-defined fields

\ | / < > * ?

Context-sensitive help

When you log in to the switch, every page contains a link to the online help () that contains information to assist in configuring and managing the switch. The online help pages are context sensitive. For example, if the IP Configuration page is open, the help topic for that page displays if you click the link to the online help.

About on-network and off-network access

You can access the switch either on-network or off-network:

• On-network and connected to the Internet. When you use the device UI, for easiest access, we recommend that you cable the switch to a network that is connected to the Internet and that includes a router or DHCP server that assigns IP addresses, power on the switch, and then use a computer that is connected to the same network as the switch to connect to the device UI. W

For more information, see on page 21).

• Off-network and not connected to the Internet. Y connected directly only to the computer that you are using to configure it. That is, the switch is not connected to the network and the Internet. We refer to this setup as off-network or offline. If your network does not include a DHCP server (or a router that functions as a DHCP server), you must access the switch off-network.

For more information, see Internet on page 29.

Note: We recommend that you register the switch to activate your warranty.

For more information, see Register the switch on page 32.

e refer to this setup as on-network.

Access the switch on-network and connected to the Internet

ou can also configure the switch

Access the switch off-network and not connected to the

Get Started User Manual20

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Access the switch on-network and connected to the Internet

The DHCP client on the switch is enabled by default, allowing a DHCP server or router on the network to assign an IP address to the switch.

• If the switch is on-network, connected to a DHCP server, and connected to the Internet, you can use a Windows-based computer to access the device UI. We also recommend that you register the switch with NETGEAR to activate your warranty. For more information about accessing the device UI, see access the switch on-network and connected to the Internet on page 22.

If you use a Mac, or if you do not know the IP address of the switch, use one of the following tools to discover the IP address of the switch on the network:

Use se a Windows-based computer to

• NETGEAR Insight mobile app: iOS or Android mobile device and discover the IP address of the switch. See NETGEAR Insight mobile app to discover the IP address of the switch on page 23.

• NETGEAR Switch Discovery Tool (NSDT): If you use a Mac or a Windows-based computer

NETGEAR Switch Discovery Tool to discover the switch when it is connected to the

Internet on page 24.

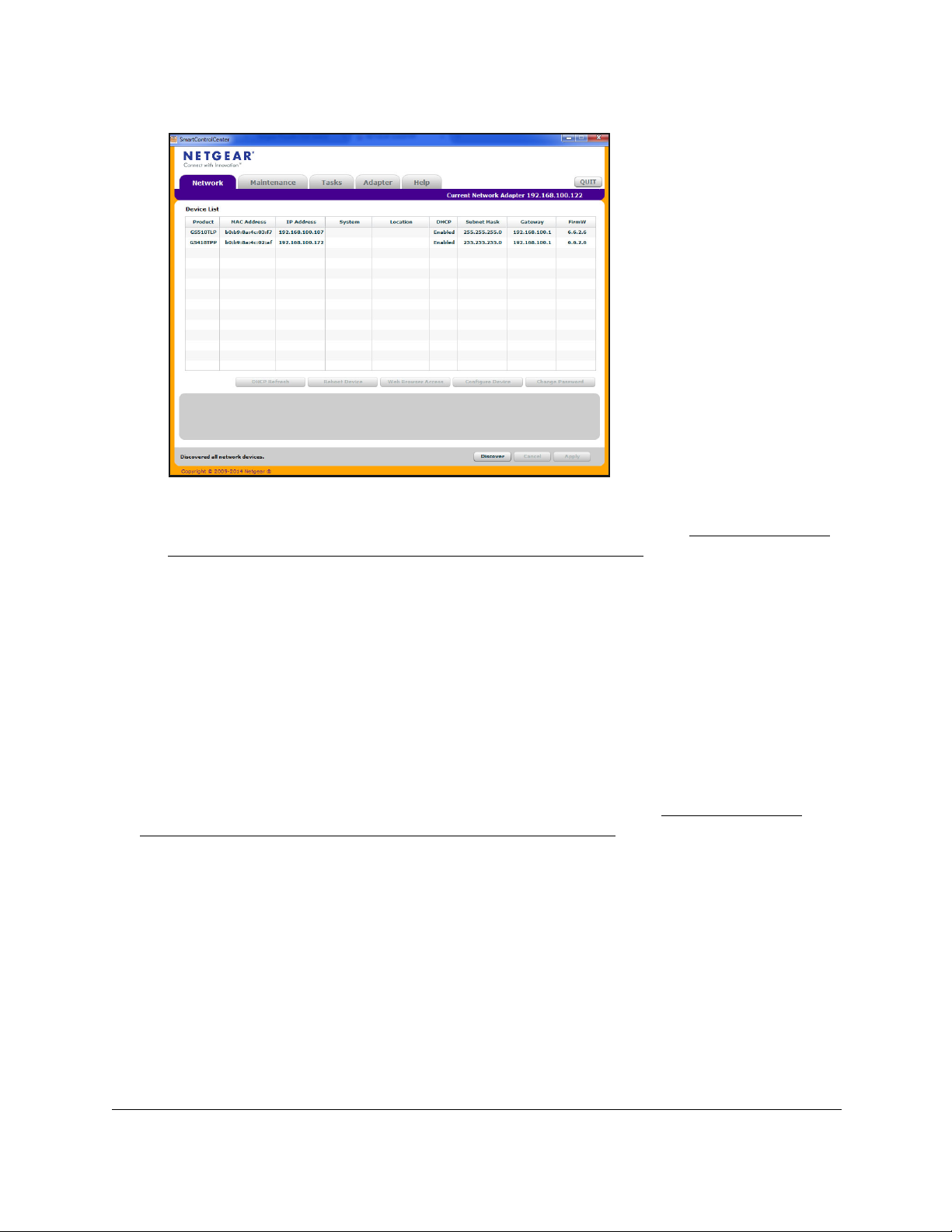

• NETGEAR Smart Control Center (SCC): You can install the SCC on a Windows-based computer. See Control Center on page 26.

• Other tools: You can also get the IP address of the switch from the DHCP server in the network or use an IP scanner utility. See address on page 27.

When you know the IP address, you can configure the switch in the following ways:

• Device UI: For configuration of all switch features, access the switch over the device UI. See

• NETGEAR Smart Control Center (SCC): For configuration of a limited number of switch features, use the SCC on a Windows-based computer to discover the IP address of the switch, but you cannot use the SCC to perform any actions on the switch. However, if you enable the configuration option of the SCC, you can use it to configure the switch. See

, you can use the NSDT to discover the switch on your network. See

Discover the switch in a network with a DHCP server using the Smart

Access the switch on-network when you know the switch IP address on page 27.

You can install the NETGEAR Insight mobile app on an

Use the

Use other options to discover the switch IP

. By default, you can use the SCC

Manage the Smart Control Center on page 354.

For more information about the SCC, visit

• NETGEAR Insight app and Insight Cloud portal: mode of the switch so that you can use the NETGEAR Insight app and Insight Cloud portal to manage the switch remotely. For more information, see management mode of the switch on page 37.

Get Started User Manual21

netgear.com/support/product/SCC.

You can change the management

Change the

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Use se a Windows-based computer to access the switch on-network and connected to the Internet

For the following procedure, the network must provide Internet access.

T o use a W indows-based computer to determine the switch IP address and access the switch on-network and connected to the Internet:

1. Cable the switch to a network with a router or DHCP server that manages IP addresses.

2. Power on the switch.

The DHCP server assigns the switch an IP address.

3. Connect your computer to the same network as the switch. You can use a WiFi or wired network connection.

4. Open Windows Explorer

5. Click the Network link.

6. If prompted, enable the Network Discovery feature.

7. Under Network Infrastructure, locate the switch model number

The model number can be GS728TPv2, GS728TPPv2, GS752TPv2, or GS752TPP.

8. Double-click GSmodel-XXXXXX, in which GSmodel is the model number of your switch and XXXXXX represents the last six digits of the switch MAC address.

The page that displays depends on whether your browser is connected to the Internet, whether the switch is connected to the Internet, and whether you activated the warranty

9. Enter your credentials, which depend on the page that displays:

• Register to activate your warranty page displays: If you did not yet activate your

warranty

- Register Your Device: T

- Enter Registration Key: If you obtained a registration key

- Skip Registration & Access the UI:

, the Register to activate your warranty page displays.

button, and follow the directions onscreen to register the switch with your email address and password. After you activate your warranty, you are no longer prompted to register the switch.

If you do not have a NETGEAR account, you can create one.

information, see registration key for offline access on page 33.

activate your warranty, but if you do not activate your warranty within 30 days of purchase, your warranty entitlement might be affected.

o activate your warranty , click the Register Your Device

, enter it. For more

You do not need to register the switch to

If you do not activate your warranty, the Register to activate your warranty page continues to display when you log in.

Get Started User Manual22

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

• Device UI login page displays: If you previously registered the switch with NETGEAR to activate your warranty, the Device UI login page displays. Enter one of the following credentials:

- Device admin password:

admin password is password. The first time that you enter the default device admin password, the Change Default Password page displays, requiring you to customize the device admin password for greater security.

Note:Insight network password: If you previously logged in to the device

UI, you changed the management mode to NETGEAR Insight, and you added the switch to an Insight network location, password to access the device UI. (In such a situation, the Insight network password replaces the switch device admin password.)

Enter the device admin password. The default device

enter the Insight network

For information about the credentials, see

10. Click the Go button.

11. If the Change Default Password page displays, specify and confirm a new device admin

password, click the Submit button, and log in again with your new password. The System Information page displays. You can now configure the switch.

Credentials for the device UI on page 30.

Use the NETGEAR Insight mobile app to discover the IP address of the switch

If the switch is connected to a WiFi router or access point, and the switch is connected to the Internet, the NETGEAR Insight mobile app lets you discover the switch in your network.

If you do not use the NETGEAR Insight app to claim the switch by adding it to an Insight network location, the switch is not registered and your warranty is not activated.

Using the NETGEAR Insight app to discover the IP address of the switch in your network is not the same as managing the switch with the Insight app or the Insight Cloud Portal.

Note: The default management mode of the switch is the device UI. If you want

to use the Insight app or the Insight Cloud Portal to manage the switch, you first must change the management mode (see

management mode to NETGEAR Insight Mobile App and Insight

Cloud Portal on page 38). After you do so, you can manage the switch

with Insight and add the switch to an Insight network location.

Change the

Get Started User Manual23

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

To use the NETGEAR Insight app to discover the IP address of the switch in your network when the switch is connected to the Internet:

1. On your iOS or Android mobile device, go to the app store, search for NETGEAR

Insight, download the latest version of the app, and install the app.

2. Connect your mobile device to the WiFi network of the WiFi router or access point to which the switch is connected.

3. Open the NETGEAR Insight app.

4. If you did not set up a NETGEAR account, tap Create NETGEAR

onscreen instructions.

5. Enter the email address and password for your account and tap LOG IN.

Account and follow the

After you log in to your account, the IP address of the switch displays in the device list.

6. W

rite down the IP address for future use.

ou can use this IP address to access the switch directly from a web browser. For

Y information about how to do this, see

switch IP address on page 27.

Access the switch on-network when you know the

Use the NETGEAR Switch Discovery Tool to discover the switch when it is connected to the Internet

For easiest access, we recommend that you cable the switch to a network with a router or DHCP server that assigns IP addresses, power on the switch, and then use a computer that is connected to the same network as the switch.

The NETGEAR Switch Discovery Tool lets you discover the switch in your network and access the device UI of the switch from a Mac or a Windows-based computer.

o install the NETGEAR Switch Discovery Tool and discover the IP address of the

T switch in your network when the switch is connected to the Internet:

1. Download the Switch Discovery T

netgear.com/support/product/netgear-switch-discovery-tool.aspx.

ool by visiting

Depending on the computer that you are using, download either the Mac version or the version for a Windows-based computer.

2. Temporarily disable the firewall, Internet security, antivirus programs, or all of these on the computer that you use to configure the switch.

Get Started User Manual24

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

3. Unzip the NSDT files, and click or double-click the .exe file (for example, NSDT-1.2.102.exe) to install the program on your computer.

You might see the tool icon appear on your Mac dock or Windows desktop.

4. Reenable the security services on your computer

5. Power on the switch. The DHCP server assigns the switch an IP address.

6. Connect your computer to the same network as the switch. You can use a WiFi or wired connection. The computer and the switch must be on the

same Layer 2 network.

7. Open the Switch Discovery To open the program, double-click the NETGEAR Switch Discovery T

Tool.

ool icon on your

desktop. The initial page displays a menu and a button.

8. From the Choose a connection menu, menu, select the network for this switch.

9. Click the Start Searching button.

The NSDT displays the IP addresses of the switches that it discovers.

10. T

o access the switch from the NSDT, do the following:

a. Click the ADMIN P

AGE button next to your switch.

The page that displays depends on whether you activated the warranty.

b. Enter your credentials, which depend on the page that displays:

• Register to activate your warranty page displays: If you did not yet activate

your warranty, the Register to activate your warranty page displays.

- Register Your Device: T

o activate your warranty, click the Register Your Device button, and follow the directions onscreen to register the switch with your email address and password. After you activate your warranty, you are no longer prompted to register the switch.

If you do not have a NETGEAR account, you can create one.

- Enter Registration Key: If you obtained a registration key information, see

, enter it. For more

registration key for offline access on page 33.

- Skip Registration & Access the UI:

You do not need to register the switch to activate your warranty, but if you do not activate your warranty within 30 days of purchase, your warranty entitlement might be affected.

If you do not activate your warranty, the Register to activate your warranty page continues to display when you log in.

• Device UI login page displays:

If you previously registered the switch with NETGEAR to activate your warranty , the Device UI login page displays. Enter one of the following credentials:

Get Started User Manual25

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

- Device admin password: Enter the device admin password. The default device admin password is password. The first time that you enter the default device admin password, the Change Default Password page displays, requiring you to customize the device admin password.

- Insight network password: If you previously logged in to the device UI, you changed the management mode to NETGEAR Insight, and you added the switch to an Insight network location, access the device UI. (In such a situation, the Insight network password replaces the switch device admin password.)

enter the Insight network password to

For information about the credentials, see

c. If you enter a password, click the Go button; If you enter a registration key

Submit button.

d. If the Change Default Password page displays, specify and confirm a new device

admin password, click the Submit button, and log in again with your new password.

The System Information page displays. You can now configure the switch.

Credentials for the device UI on page 30.

, click the

Discover the switch in a network with a DHCP server using the Smart Control Center

This section describes how to set up your switch in a network that includes a DHCP server. The DHCP client on the switch is enabled by default. When you connect the switch to your network, the DHCP server automatically assigns an IP address to the switch. Use the Smart Control Center (SCC) to discover the IP address automatically assigned to the switch.

For information about the SCC, visit

Note: By default, you can use the SCC to discover the IP address of the

switch, but you cannot use the SCC to perform any actions on the switch. However, if you enable the configuration option of the SCC, you can use it to configure the switch (see

Center on page 354).

https://www.netgear.com/support/product/SCC.

Manage the Smart Control

To install the switch in a network with a DHCP server:

1. Connect the switch to a network with a DHCP server

2. Power on the switch by connecting its power cord.

3. Install the SCC on your computer

4. Start the SCC.

5. Click the Discover button for the SCC to discover all the devices in the subnet.

Get Started User Manual26

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

6. Write down the switch IP address assigned by the DHCP server. For information about how to access the device UI of the switch, see

on-network when you know the switch IP address on page 27.

Access the switch

Use other options to discover the switch IP address

If the switch is on-network, you can use one of the following options to determine the switch IP address:

• Access the DHCP server. You can access the DHCP server (or router that functions as a DHCP server) in your network and view the IP address that is assigned to the switch. For more information, see the documentation for your DHCP server (or router).

• IP scanner utility. IP scanner utilities are available free of charge on the Internet. An IP scanner utility lets you discover the IP address that is assigned to the switch.

For information about how to access the device UI of the switch, see

on-network when you know the switch IP address on page 27.

Access the switch

Access the switch on-network when you know the switch IP address

If the switch is on-network and you know the switch IP address, you can access the device UI.

For the following procedure, the network must provide Internet access.

Get Started User Manual27

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

To access the switch on-network when you know the switch IP address:

1. Launch a web browser.

2. In the address field of your web browser

, enter the IP address of the switch.

The page that displays depends on whether your browser is connected to the Internet, whether the switch is connected to the Internet, and whether you activated the warranty

3. Enter your credentials, which depend on the page that displays:

• Register to activate your warranty page displays: If the switch is online and you

did not yet activate your warranty

, the Register to activate your warranty page

displays.

- Register Your Device: T

o activate your warranty , click the Register Your Device button, and follow the directions onscreen to register the switch with your email address and password. After you activate your warranty, you are no longer prompted to register the switch.

If you do not have a NETGEAR account, you can create one.

- Enter Registration Key: If you obtained a registration key information, see

, enter it. For more

registration key for offline access on page 33.

- Skip Registration & Access the UI:

You do not need to register the switch to activate your warranty, but if you do not activate your warranty within 30 days of purchase, your warranty entitlement might be affected.

If you do not activate your warranty, the Register to activate your warranty page continues to display when you log in.

• Device UI login page displays:

If you previously registered the switch with NETGEAR to activate your warranty, the Device UI login page displays. Enter one of the following credentials:

- Device admin password:

Enter the device admin password. The default device admin password is password. The first time that you enter the default device admin password, the Change Default Password page displays, requiring you to customize the device admin password for greater security.

- Insight network password: If you previously logged in to the device UI, you changed the management mode to NETGEAR Insight, and you added the switch to an Insight network location,

enter the Insight network password to access the device UI. (In such a situation, the Insight network password replaces the switch device admin password.)

For information about the credentials, see

4. Click the Go button. If the Change Default Password page displays, specify and confirm a new device admin

password, click the Submit button, and log in again with your new password.

Get Started User Manual28

Credentials for the device UI on page 30.

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Access the switch off-network and not connected to the Internet

The default IP address of the switch is 192.168.0.239. The IP address of the computer that you use to access the switch off-network must be in the same subnet as the default IP address of the switch.

Note: If you prefer to use the Smart Control Center (SCC) to configure the

switch, you must access the switch off-network as described in the following procedure and then enable the configuration option of the SCC (see Manage the Smart Control Center on page 354).

To access the switch off-network and not connected to the Internet:

1. Change the IP settings of your computer to be in the same subnet as the IP settings of

the switch. If the DHCP client of the switch is enabled and you remove the switch from the network

with the DHCP server with a subnet of 255.255.255.0. If you already disabled the DHCP client and assigned a static IP address to the switch, change the IP settings of your computer to be in the same subnet as the static IP address.

For more information about changing the IP settings on your computer, see one of the following knowledge base articles at the NETGEAR website:

• Windows-based computer. See the following article:

https://kb.netgear.com/27476/How-to-set-a-static-IP-address-in-Windows

• Mac. See the following article:

https://kb.netgear.com/000037250/Setting-a-static-IP-address-on-your-network-a dapter-in-Mac-OS-for-direct-access-to-an-access-point

(The Mac article is written for an access point but is also valid for a switch.)

2. Connect your computer to the switch using an Ethernet cable.

3. Power on the switch by connecting its power cord.

4. Launch a web browser

5. Open a web browser

This is the default IP address of the switch. If you already disabled the DHCP client and assigned a static IP address to the switch, enter the static IP address of the switch.

, the IP address reverts to the default IP address of 192.168.0.239

, and enter http://192.168.0.239.

The Enter Registration Key page displays.

6. Do one of the following:

• Enter a registration key. If you obtained a registration key

Get Started User Manual29

, do the following:

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

a. Type or paste the key.

For more information, see Register the switch with your NETGEAR account and get a registration key for offline access on page 33.

b. Click the Submit button.

• Do not register at this time and access the device UI: Do the following:

a. Click the Skip Registration &

The Device UI login page displays.

b. Enter one of the following credentials:

- Device admin password: Enter the device admin password. The default

device admin password is password. The first time that you enter the default device admin password, the Change Default Password page displays, requiring you to customize the device admin password.

For information about the credentials, see Credentials for the device UI on page 30.

7. If the Change Default Password page displays, specify and confirm a new device admin password, click the Submit button, and log in again with your new password.

The System Information page displays. You can now configure the switch.

8. After you complete the configuration of the switch, reconfigure the computer that you used for this process to its original

TCP/IP settings.

Access the UI button.

enter the Insight network password to

You can now connect your switch to your network using an Ethernet cable.

Credentials for the device UI

The information in this section applies to accessing the switch device UI in either management mode. That is, it does not apply to accessing the NETGEAR Insight app and Cloud portal.

To access the device UI, and depending on your situation, use one of the following credentials:

NETGEAR account credentials:

•

You can register the switch online to activate your warranty by entering your NETGEAR account credentials (see the switch online on page 32). If you do not have a NETGEAR account, you can create one.

Get Started User Manual30

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Alternatively , you can obtain a registration key and enter the key when the switch is offline so that you are no longer prompted to activate your warranty (see

with your NETGEAR account and get a registration key for offline access on page 33).

• Device admin password: You can access the device UI with your device admin password. The first time that you access the device UI, enter the default device admin password

(password), after which you are required to customize the password for greater security Subsequent times that you log in to the device UI, use your customized device admin password.

NETGEAR Insight network location password:

•

NETGEAR Insight can affect how you access the switch device UI. After you add the switch to an Insight network location and change the management mode of the switch so that you can use the NETGEAR Insight app and Insight Cloud portal to manage the switch remotely (see

Change the management mode of the switch on page 37), the Insight network location password replaces the switch device admin password. To access the device UI, you must enter the Insight network location password.

Even if you temporarily change the management mode of the switch back to Direct Connect Web Browser Interface, for example to change settings that are not Insight-manageable or for debugging purposes, you must enter the Insight network location password.

For information about how the Insight network password functions, visit netgear.com/support/product/Insight.aspx. For knowledge base articles about NETGEAR Insight, visit

netgear.com/support.

The following table lists the essential credential options for access to the device UI.

Table 3. Credentials for access to the device UI

Management mode in the device UI

Default mode: Direct Connect Web Browser Interface (Local LAN Only)

NETGEAR Insight Mobile App and Insight Cloud Portal (Cloud/ Remote)

1. This situation occurs if you temporarily change the management mode of the switch from NETGEAR Insight Mobile App and

Insight Cloud Portal back to Direct Connect Web Browser Interface.

Added to an Insight network

No Device admin password

Yes No Device admin password Limited device UI menu.

Yes Insight network password Limited device UI menu.

Credentials Device UI menu

Full device UI menu

Insight network password

Not managed through NETGEAR Insight.

Managed through NETGEAR Insight.

Get Started User Manual31

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Register the switch

You can register the switch online or offline to activate your warranty, after which you are no longer prompted to activate your warranty when you log in:

• Online registration for on-network access: If your switch is on-network or connected to the Internet, you can register the switch with your NETGEAR account credentials and activate your warranty. During the registration process, the switch contacts a NETGEAR server. For more information, see access the switch online on page 32.

• Registration for off-network access: is connected to the Internet and get a registration key. If the switch is off-network or not connected to the Internet, you can enter the registration key . After you do so, the Register to activate your warranty page no longer displays when you log in. For more information,

see

offline access on page 33.

You can register your switch from any device that

Register the switch with your NETGEAR account and access the switch online

For initial registration and access with your NETGEAR account, the switch must be connected to the Internet so that it can communicate with a NETGEAR server.

If you do not have a free NETGEAR account, you can create one during the registration process.

To register and access the switch online over the device UI with your NETGEAR account:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Register to activate your warranty page displays.

f-network using an Ethernet cable.

, enter the IP address of the switch.

Access the switch on-network and

4. Click the Register Y switch with your email address and password and activate the warranty.

You are only prompted to do this once to confirm registration of your switch.

Get Started User Manual32

our Device button and follow the directions onscreen to register the

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

If you did not yet create a NETGEAR account, click the Create account link, follow the directions onscreen to create an account, and register the switch with your email address and password.

For information about the credentials, see

5. If the Change Default Password page displays, specify and confirm a new device admin password, click the Submit button, and log in again with your new password.

The System Information page displays. You can now configure the switch.

Credentials for the device UI on page 30.

Register the switch with your NETGEAR account and get a registration key for offline access

Note: If you register your switch with your NETGEAR account and then

access the switch connected to the Internet, you do not need a registration key because the Device UI login page displays. That is, you are no longer prompted to activate your warranty.

After you register your switch with your NETGEAR account, you can get a registration key, access the switch of to the device UI, enter the registration key. After you enter the registration key, you are no longer prompted to activate your warranty. Instead, the Device UI login page displays.

You can visit serial number, and get a registration key.

mynetgear.com, log in to your NETGEAR account, register the switch using its

fline or not connected to the Internet, and either before or after you log in

You can also use the NETGEAR Insight app to get a registration key. NETGEAR Insight Premium or Pro subscribers can use the Insight Cloud Portal to get a registration key. For information about how the registration key functions with Insight, visit netgear.com/support/product/Insight.aspx. For knowledge base articles about NETGEAR Insight, visit

To register the switch with your NETGEAR account and get a registration key:

1. From a computer or mobile device that is connected to the Internet, go to

mynetgear.com.

2. Log in to your NETGEAR account. If you do not have a free NETGEAR account, you can create one.

3. From the menu on the left, select Register a Product . The page adjusts.

4. In the Serial Number field, enter the serial number of the switch. The serial number consists of 13 digits. The serial number is usually printed on a label on

the bottom or the back panel of the switch.

5. Click the Register button.

Get Started User Manual33

netgear.com/support.

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

The switch is registered with NETGEAR.

6. If the My Products page does not display The page adjusts.

7. Select the radio button for the newly registered switch, and click the Get Registration Key button.

The registration key is displayed, and an email with the registration key is sent to your NETGEAR account email address.

, select My Products from the menu.

Access the switch offline with a registration key

After you get a registration key, you can access the switch offline and enter the registration

key. For more information, see one of the following sections:

• Access the switch offline and enter the registration key before you log in on page 34

• Access the switch offline and enter the registration key after you log in on page 35

After you enter the registration key , you are no longer prompted to activate your warranty

when you log in. Instead, the Device UI login page displays.

Access the switch offline and enter the registration key before you log in

If you obtain a registration key , you can access the switch offline and enter the key before you log in to the device UI.

To access the switch offline and enter the registration key before you log in to the device UI:

1. Change the IP settings of your computer to be in the same subnet as the IP settings of

the switch. If the DHCP client of the switch is enabled and you remove the switch from the network

For more information about changing the IP settings on your computer, see one of the following knowledge base articles at the NETGEAR website:

• Windows-based computer: See the following article:

https://kb.netgear.com/27476/How-to-set-a-static-IP-address-in-Windows

• Mac: See the following article:

https://kb.netgear.com/000037250/Setting-a-static-IP-address-on-your-network-a dapter-in-Mac-OS-for-direct-access-to-an-access-point

(The Mac article is written for an access point but is also valid for a switch.)

2. Connect your computer to the switch using an Ethernet cable.

3. Power on the switch by connecting its power cord.

, the IP address reverts to the default IP address of 192.168.0.239

Get Started User Manual34

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

4. Launch a web browser.

5. Open a web browser

This is the default IP address of the switch. If you already disabled the DHCP client and assigned a static IP address to the switch, enter the static IP address of the switch.

The Enter Registration Key page displays.

, and enter http://192.168.0.239.

6. Enter the registration key

7. Click the Submit button.

The registration takes effect on the switch and you are no longer prompted to activate your warranty when you log in.

The Device UI login page displays.

8. Enter one of the following credentials:

• Device admin password:

admin password is password. The first time that you enter the default device admin password, the Change Default Password page displays, requiring you to customize the device admin password.

• Insight network password: If you previously logged in to the device UI, you changed the management mode to NETGEAR Insight, and you added the switch to an Insight network location, a situation, the Insight network password replaces the switch device admin password.)

9. Click the Go button.

10. If the Change Default Password page displays, specify and confirm a new device admin

password, click the Submit button, and log in again with your new password. The System Information page displays. You can now configure the switch.

Enter the device admin password. The default device

enter the Insight network password to access the device UI. (In such

11. After you complete the configuration of the switch, reconfigure the computer that you used for this process to its original

You can now connect your switch to your network using an Ethernet cable.

TCP/IP settings.

Access the switch offline and enter the registration key after you log in

If you access the switch offline and obtain a registration key afterwards, you can enter the key on a page in the device UI.

To access the switch offline and enter the registration key after you log in to the device UI:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

Get Started User Manual35

f-network using an Ethernet cable.

, enter the IP address of the switch.

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

If you do not know the IP address of the switch, see Access the switch on-network and connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Register to activate your warranty page displays.

4. Click the Skip Registration & The Device UI login page displays.

5. Enter one of the following credentials:

• Device admin password:

admin password is password. The first time that you enter the default device admin password, the Change Default Password page displays, requiring you to customize the device admin password.

• Insight network password: If you previously logged in to the device UI, you changed

the management mode to NETGEAR Insight, and you added the switch to an Insight network location, a situation, the Insight network password replaces the switch device admin password.)

6. Click the Go button.

7. If the Change Default Password page displays, specify and confirm a new device admin

password, click the Submit button, and log in again with your new password.

The System Information page displays. You can now configure the switch.

8. Select Maintenance > Registration Key.

The Registration Key page displays.

enter the Insight network password to access the device UI. (In such

Access the UI button.

Enter the device admin password. The default device

9. In the field, type or paste the registration key

10. Click the Submit button.

The registration takes effect on the switch and you are no longer prompted to activate your warranty when you log in.

Change the language of the device UI

By default, the language is set to Auto. You can set the language to a specific one.

To change the language of the device UI:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

Get Started User Manual36

f-network using an Ethernet cable.

, enter the IP address of the switch.

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

5. Click the Go button. The System Information page displays.

6. At the top of the page, to the left of W A confirmation pop-up window displays.

7. Click the OK button. You are logged out. The language of the device UI is set to the language that you

selected. To continue configuring the switch, log in again.

Credentials for the device UI on page 30.

elcome, select a language from the language menu.

Change the management mode of the switch

By default, the management mode on the switch is Directly Connect to Web Browser Interface (which is the same as the device UI). You can also change the management mode to NETGEAR Insight Mobile App and Insight Cloud Portal.

About changing the management mode

The following applies to changing the management mode:

• Changing to the NETGEAR Insight Mobile App and Insight Cloud Portal mode.

- The first time that you enable this mode, the switch is reset to its factory default

settings so that you can create the switch configuration and network topology using the Insight app or the Insight Cloud portal.

- If you previously added the switch to a network location on the Insight app or Insight

Cloud portal, all Insight-manageable device settings are returned to the last

Get Started User Manual37

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

configuration saved on the cloud server, including the switch device admin password (that is, the password is reset to the Insight network location password).

- If you use the Insight app or the Insight Cloud portal, you can temporarily change the

management mode of the switch back to Directly Connect to W You can then access the device UI for settings that are not Insight-manageable, for complex tasks such as integrating with an existing network of devices that are not managed through Insight, and for debugging purposes. When you are done, you can change the management mode back to NETGEAR Insight Mobile App and Insight Cloud Portal.

• Changing back to Directly Connect to W

After you change the management mode, back up your configuration. Then, reset the

switch to factory defaults. Finally more information, see Web-browser Interface on page 39.

After you change the management mode, the follow occurs:

Change the management mode back to Directly Connect to

, restore your configuration and reboot the switch. For

eb Browser Interface mode.

eb Browser Interface.

- The NETGEAR Insight Mobile

disabled and the current Insight-manageable device settings are saved to the cloud server.

- Any changes that you make using the Directly Connect to W

management mode are not saved to the cloud server.

- All configuration menus and options are available in the device UI.

App and Insight Cloud Portal management mode is

eb Browser Interface

Change the management mode to NETGEAR Insight Mobile App and Insight Cloud Portal

To change the management mode of the switch to NETGEAR Insight Mobile App and Insight Cloud portal:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

f-network using an Ethernet cable.

, enter the IP address of the switch.

Access the switch on-network and

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

Get Started User Manual38

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

5. Click the Go button. The System Information page displays.

6. Select the NETGEAR Insight Mobile An Alert pop-up window displays.

7. Read the text, and click the OK button. The pop-up window closes.

8. Click the Apply button. Another pop-up window displays.

9. Click the OK button. The pop-up window closes, the System Information page closes, and your settings are

saved. The following occurs:

• The first time that you enable this mode, the switch is reset to its factory default

settings.

• The switch connects to the cloud server

• If you previously added the switch to a network on the Insight app or Insight Cloud

portal, all Insight-manageable device settings are returned to the last configuration saved on the cloud server password is reset to the Insight network password).

• The Device UI login page might display again. (Y

, including the device admin password (that is, the

Credentials for the device UI on page 30.

App and Insight Cloud Portal radio button.

ou can close the page.)

You can now manage the switch using the Insight app or Insight Cloud portal.

For more information about NETGEAR Insight, visit netgear.com/support/product/Insight.aspx. For knowledge base articles about NETGEAR Insight, visit

netgear.com/support.

netgear.com/insight and

Change the management mode back to Directly Connect to Web-browser Interface

To change the management mode of the switch back to Directly Connect to Web Browser Interface:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

Get Started User Manual39

f-network using an Ethernet cable.

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

2. Launch a web browser.

3. In the address field of your web browser

, enter the IP address of the switch.

If you do not know the IP address of the switch, see

Access the switch on-network and

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Select the Directly Connect to W

eb Browser Interface radio button.

An Alert pop-up window displays.

7. Read the text, and click the OK button. The pop-up window closes.

8. Click the Apply button.

Another pop-up window displays.

9. Click the OK button.

The pop-up window closes, the System Information page closes, and your settings are

saved.

Any current Insight-manageable device settings are saved to the cloud server.

The Device UI login page displays.

10. Log in again. The System Information page displays.

Note: The following step uses an HTTP session to back up the configuration.

For information about using a TFTP session, see

Use TFTP to export a

file from the switch to a TFTP server on page 485.

11. Back up the configuration: a. Select Maintenance > Export > HTTP File Export.

The HTTP File Export page displays.

b. From the File T

ype menu, select Text Configuration.

c. Click the Apply button.

Get Started User Manual40

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

A pop-up window displays.

d. Navigate to a location on your computer and save the file.

The file transfer begins. The page displays information about the file transfer progress.

12. Reset the switch to factory default settings: a. Select Maintenance > Reset > Factory Default.

The Default Settings page displays.

b. Select the Reset configuration to factory default (EXCEPT registered device

status), and clear device logs radio button.

This option resets the switch to its factory default settings but does not change its registration status with NETGEAR.

c. Click the Apply button.

An Alert pop-up window displays.

d. Click the OK button.

All configuration settings are reset to their factory default values. The DHCP client on the switch is enabled.

Your device admin password is reset to the default password

(password). This process takes about 135 seconds. The Device UI login page displays. In the unlikely situation that the Device UI page does not display and you cannot log

in, see

Access the switch on-network and connected to the Internet on page 21 or

Access the switch off-network and not connected to the Internet on page 29.

e. Enter the device admin password.

The default device admin password is password.

The first time that you enter the default device admin password, the Change Default Password page displays, requiring you to customize the device admin password.

The System Information page displays.

Note: The following step uses an HTTP session to restore the configuration. For

information about using a TFTP session, see

Use TFTP to download a file

to the switch or update the software image on page 490.

13. Restore the configuration that you saved in

Step 11:

a. Select Maintenance > Update > HTTP Firmware/File Update.

The HTTP Firmware/File Update page displays.

b. From the File T

ype menu, select Text Configuration.

c. Click the Browse button and locate and select configuration file that yo

Step 11.

d. Click the Apply button.

Get Started User Manual41

u saved in

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

The file transfer begins. The page displays information about the progress of the file transfer. The switch applies the configuration automatically.

14. Reboot the switch: a. Select Maintenance > Reset > Device Reboot.

The Device Reboot page displays.

b. Select the check box. c. Click the Apply button.

An Alert pop-up window displays.

d. Click the OK button to confirm.

The switch reboots. The Device UI login page displays.

15. Log in again.

The System Information page displays. You can now configure the switch using all

options in the device UI.

Use the Device View of the device UI

The Device View displays the ports on the switch. This graphic tool provides an alternate way to navigate to configuration and monitoring options. The graphic tool also provides information about device ports, configuration and status, tables, and feature components.

To use the Device View:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

f-network using an Ethernet cable.

, enter the IP address of the switch.

Access the switch on-network and

4. Enter one of the following passwords:

• Enter your device admin password.

Get Started User Manual42

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

• If you previously managed the switch through the Insight app or Cloud portal, enter the Insight network password for the last Insight network location.

For information about the credentials, see Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Select System > Device V The Device V

iew page displays.

iew.

The following figure shows the Device View page for model GS728TPPv2.

The system LEDs display on the left side on the Device View page. Depending upon the status of the port, the port color on the Device View page is either

green or black:

• Green indicates that the port is linking up.

• Black indicates that no link is present.

Each port also provides one LED on the Device View page to indicate the link status of the port:

• A green LED indicates that the port is linking at a speed of 1 Gbps.

• A yellow LED indicates that the port is linking at a speed of 10 Mbps or 100 Mbps.

7. T

o display a port menu that shows configuration and statistics options, click a port.

ou can select a menu option to access the page that contains the configuration or

Y monitoring options.

8. To display the main menu, right-click the switch graphic but do not right-click a specific port. The menu contains the same options as the navigation tabs at the top of the page.

can select a menu option to access the page that contains the configuration or monitoring options.

The following figure shows the details on the Device View page for model GS728TPPv2.

Get Started User Manual43

You

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Power LED in the Device View

The Power LED in the Device View is a bicolor LED that serves as an indicator of power and diagnostic status:

• Solid green. The power is supplied to the switch and operating normally.

Fan LED in the Device View

The Fan LED in the Device View indicates the following status:

• Solid yellow. The fan is faulty

• Off. The fan is operating normally.

PoE Max LED in the Device View

For models GS110TPv3 and GS110TPP, the PoE Max LED in the Device View indicates the following status:

• Off. Sufficient (more than 7W of) PoE power is available.

• Solid yellow. Less than 7W of PoE power is available.

Note: The physical PoE Max LED on the switch can also blink yellow,

indicating that at least once during the previous two minutes, less than 7W of PoE power was available.

LED Mode LED in the Device View

The LED Mode LED indicates if the port LEDs function in Ethernet Mode or PoE Mode:

• Solid green. The port LEDs function in Ethernet Mode and indicate switching information (link, speed, and activity).

Get Started User Manual44

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

• Solid yellow. The port LEDs function in PoE Mode and indicate PoE information (PoE-powered or PoE fault).

Note: The LED Mode button on the switch front panel lets you switch

between Ethernet Mode and PoE Mode.

Configure interface settings

The switch supports physical and logical interfaces. Interfaces are identified by their type and the interface number. The physical ports are Gigabit interfaces and are numbered on the front panel. You configure the logical interfaces by using the software.

The following table describes the naming convention for all interfaces available on the switch.

Table 4. Naming conventions for interfaces

Interface Description Example

Physical The physical ports are Gigabit Ethernet

interfaces and are numbered sequentially starting from 1.

Link aggregation group (LAG) LAG interfaces are logical interfaces that are

used only for bridging functions.

CPU management interface This is the internal switch interface that

determines the switch base MAC address. This interface is not configurable and is always listed in the MAC

Routing VLAN interfaces This is an interface used for routing functionality. VLAN 1, VLAN 2, VLAN 3

Address Table.

g1, g2, g12

l1, l2, l3

For some features that allow you to configure interface settings, you can apply the same settings simultaneously to any of the following:

• A single port

• Multiple ports

• All ports

• A single LAG

• Multiple LAGs

• All LAGs

• Multiple ports and LAGs

• All ports and LAGs

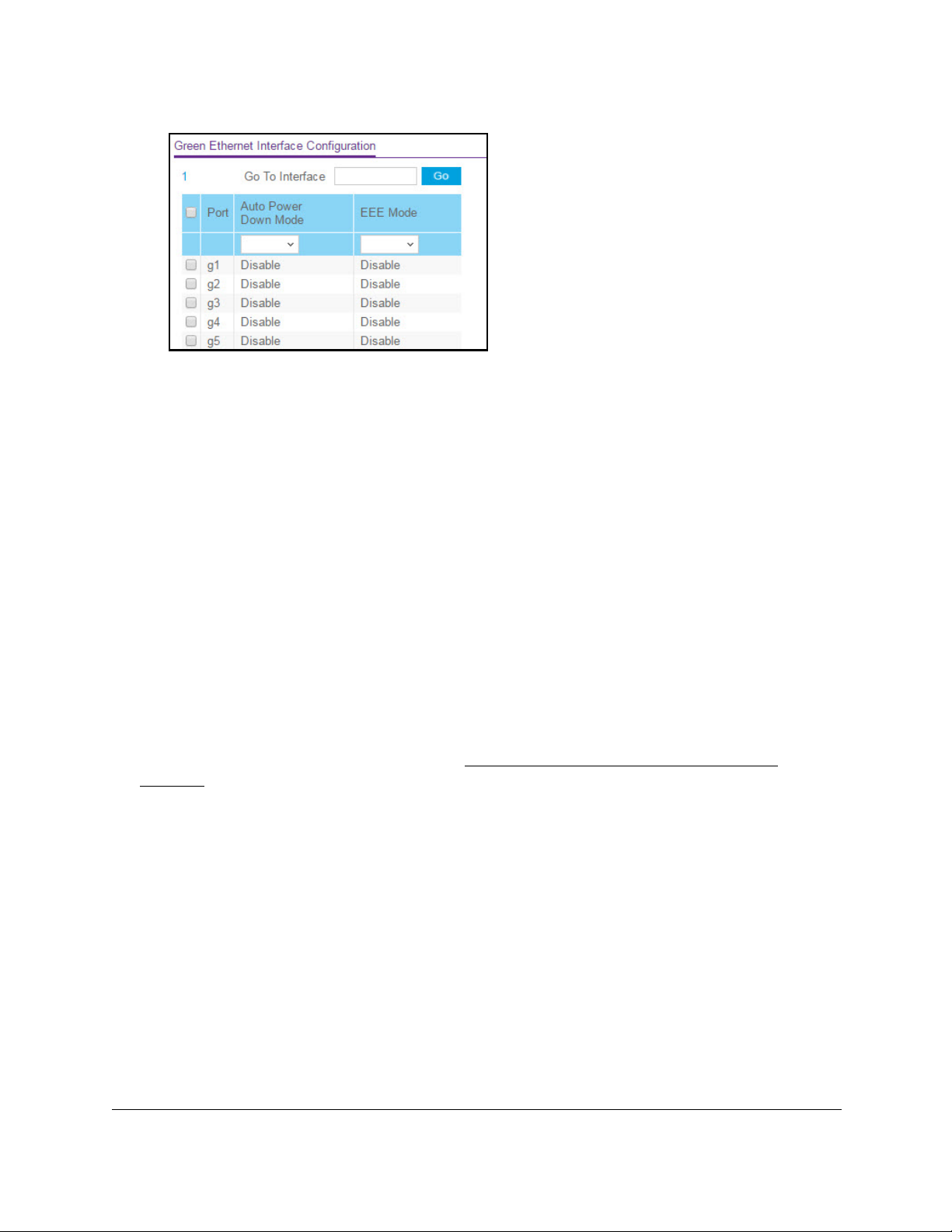

Many of the pages that allow you to configure or view interface settings include links to display all ports, all LAGs, or all ports and LAGs on the page.

Get Started User Manual45

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Use these links as follows:

• To display all ports, click the 1 link.

• To display all LAGs, click the LAGS link.

• To display all ports and LAGs, click the All

link.

The procedures in this section describe how to select the ports and LAGs to configure. The procedures assume that you are already logged in to the switch. If you do not know how to log in to the switch, see

Access the switch on-network and connected to the Internet on

page 21 or Access the switch off-network and not connected to the Internet on page 29.

To configure a single port by using the Go To Interface field:

1. Ensure that the page is displaying all ports, and not only the LAGs.

2. In the Go To Interface field, type the port number

For example, type g4. For more information, see

Table 4, Naming conventions for interfaces on page 45.

3. Click the Go button. The check box associated with the interface is selected, the row for the selected interface

is highlighted, and the interface number displays in the heading row.

4. Configure the desired settings.

5. Click the Apply button.

Your settings are saved.

To configure a single LAG by using the Go To Interface field:

1. Click the LAG link or the All link to display the LAGs.

2. In the Go T

For more information, see

o Interface field, type the LAG number

Table 4, Naming conventions for interfaces on page 45.

3. Click the Go button.

Get Started User Manual46

, for example l3.

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

The check box associated with the interface is selected, the row for the selected interface is highlighted, and the interface number appears in the heading row.

4. Configure the desired settings.

5. Click the Apply button.

Your settings are saved.

To configure a single port:

1. Ensure that the page is displaying all ports, and not only the LAGs.

2. Select the check box next to the port number

The row for the selected interface is highlighted, and the interface number appears in the heading row.

3. Configure the desired settings.

4. Click the Apply

button.

Your settings are saved.

To configure a single LAG:

1. Click the LAG link or the All link to display the LAGs.

2. Select the check box next to the LAG number

The row for the selected interface is highlighted, and the interface number appears in the heading row.

3. Configure the desired settings.

4. Click the Apply

button.

Your settings are saved.

To configure multiple ports:

1. Ensure that the page is displaying all ports, and not only the LAGs.

2. Select the check box next to each port to configure.

The row for each selected interface is highlighted.

3. Configure the desired settings.

Get Started User Manual47

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

4. Click the Apply button. Your settings are saved.

To configure multiple LAGs:

1. Click the LAG link or the All link to display the LAGs.

2. Select the check box next to each LAG to configure.

The check box associated with each interface is selected, and the row for each selected

interface is highlighted.

3. Configure the desired settings.

4. Click the Apply button.

Your settings are saved.

To configure all ports:

1. Ensure that the page is displaying only ports, and not LAGs.

2. Select the check box in the heading row

The check boxes for all ports are selected and the rows for all ports are highlighted.

3. Configure the desired settings.

4. Click the Apply button.

Your settings are saved.

To configure all LAGs:

1. Click the LAG link to display only the LAG interfaces.

2. Select the check box in the heading row

The check box associated with every LAG is selected, and the rows for all LAGs are highlighted.

3. Configure the desired settings.

4. Click the Apply

button.

Your settings are saved.

Get Started User Manual48

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

To configure multiple ports and LAGs:

1. Click the All link to display all ports and LAGs.

2. Select the check box associated with each port and LAG to configure.

The rows for the selected ports and LAGs are highlighted.

3. Configure the desired settings.

4. Click the Apply button.

Your settings are saved.

To configure all ports and LAGs:

1. Click the All link to display all ports and LAGs.

2. Select the check box in the heading row

The check box associated with every port and LAG is selected, and the rows for all ports and LAGs are highlighted.

3. Configure the desired settings.

4. Click the Apply button.

Your settings are saved.

Access the NETGEAR support website

From the device UI, you can access the NETGEAR support website at netgear.com/support.

To access the support website from the device UI:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays.

f-network using an Ethernet cable.

, enter the IP address of the switch.

Access the switch on-network and

If you did not yet activate your warranty, the Register to activate your warranty page displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

Get Started User Manual49

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Select Help > Support. The Support page displays.

7. T

o access the NETGEAR support site for the switch, click the Apply button.

Access the user manual online

The user manual (the guide you are now reading) is available at the NETGEAR download center at

To access the user manual online from the device UI:

netgear.com/support/download/.

1. Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or

connect directly to a switch that is of

2. In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

3. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

4. Click the Go button. The System Information page displays.

f-network using an Ethernet cable.

Access the switch on-network and

Credentials for the device UI on page 30.

5. Select Help > Online Help > User Guide. The User Guide page displays.

6. T

o access the NETGEAR download center, click the Apply button.

Enter the model number of the switch.

Get Started User Manual50

2Configure System Information

This chapter contains the following sections:

•

View or define system information

• Configure the IP network settings for management access

• Configure the time settings

• Configure denial of service settings

• Configure DNS settings

• Configure green Ethernet settings

• Use the Device View

• Configure Power over Ethernet

• Configure SNMP

• Configure Link Layer Discovery Protocol

• Configure a DHCP L2 relay

• Configure DHCP snooping

• Configure Dynamic ARP Inspection

• Set up PoE timer schedules

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

View or define system information

When you log in, the System Information page displays. You can configure and view general device information.

To view or define system information:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.

2. Launch a web browser.

3. In the address field of your web browser, enter the IP address of the switch.

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

5. Click the Go button. The System Information page displays.

Credentials for the device UI on page 30.

Access the switch on-network and

Configure System Information User Manual52

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

6. Define the following fields:

• System Name. Enter the name to identify this switch. Y

ou can use up to 255

alphanumeric characters. The default is blank.

• System Location. Enter the location of this switch. Y

ou can use up to 255

alphanumeric characters. The default is blank.

• System Contact. Enter the contact person for this switch. Y

ou can use up to 255

alphanumeric characters. The default is blank.

7. Click the Apply button. Your settings are saved.

The following table describes the status information that the System Information page displays.

Table 5. System Information

Field Description

Product Name The product name of this switch. Serial Number The serial number of the switch. System Object OID The base object ID for the switch's enterprise MIB. Date & Time The current date and time. System Up Time The time in days, hours, and minutes since the last switch reboot. Base Mac Address Universally assigned hardware address of the switch.

View the fan status

You can view the status of the fans in all units. These fans remove the heat generated by the power, CPU, and other components, and allow the switch to function normally.

To view the fan status:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.

2. Launch a web browser.

3. In the address field of your web browser, enter the IP address of the switch.

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

Access the switch on-network and

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

Configure System Information User Manual53

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Scroll down to the Fans section.

7. To refresh the page, click the Refresh button.

The following table describes the nonconfigurable fan status information.

Table 6. Fan status

Field Description

FAN The fan index used to identify the fan for the switch. Description The description of the temperature sensor. Type Specifies whether the fan module is fixed or removable. Speed The fan speed. Duty level(%) The duty level of the fan. State Specifies whether the fan is operational.

View the power supply information

You can view s the status of the power supplies.

To view the power supplies status:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.

2. Launch a web browser.

3. In the address field of your web browser, enter the IP address of the switch.

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

Configure System Information User Manual54

Access the switch on-network and

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see Register the switch on page 32.

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Scroll down to the Power supplies section.

7. To refresh the page, click the Refresh button.

The following table describes the nonconfigurable Power supplies information.

Table 7. Power supplies status

Field Description

Power supply The power supply index used for the unit. Description The description of the power supply. Type Specifies whether the power module is fixed or removable. State Specifies the state of the power module.

View the software versions

You can view the software versions that are running on the switch.

To view the software versions:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.

2. Launch a web browser.

3. In the address field of your web browser, enter the IP address of the switch.

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

Configure System Information User Manual55

Access the switch on-network and

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see Register the switch on page 32.

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Scroll down to the V

ersions section.

7. To refresh the page, click the Refresh button.

The following table describes the nonconfigurable information displayed in the Versions

section of the System Information page.

Table 8. Versions information

Field Description

Model Name The model name of the switch. Boot Version The version of the bootloader software of the switch. Software Version The version number of the code currently running on the switch.

View the system CPU status

You can monitor the CPU, memory resources, and utilization patterns across various intervals to assess the performance, load, and stability.

To view the system CPU status:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.

2. Launch a web browser.

3. In the address field of your web browser, enter the IP address of the switch.

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

Configure System Information User Manual56

Access the switch on-network and

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see Register the switch on page 32.

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Select System > Management > System CPU Status > System CPU Status.

The CPU Utilization section shows the memory information, task-related information, and percentage of CPU utilization per task.

The following table describes CPU Memory Status information.

Table 9. CPU Memory Status information

Field Description

Total System Memory The total memory of the switch in KBytes. Available Memory The available memory space for the switch in KBytes.

Configure System Information User Manual57

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Configure the CPU thresholds

The CPU Utilization Threshold notification feature allows you to configure thresholds that, when exceeded, trigger a notification. The notification occurs through SNMP trap and syslog messages.

To configure the CPU thresholds:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.

2. Launch a web browser.

3. In the address field of your web browser, enter the IP address of the switch.

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

5. Click the Go button. The System Information page displays.

6. Select System > Management > System CPU Status > CPU Threshold.

Credentials for the device UI on page 30.

Access the switch on-network and

7. Specify the thresholds:

• Rising Threshold. Notification is generated when the total CPU utilization exceeds

this threshold value over the configured time period. The range is 1 to 100.

Configure System Information User Manual58

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

• Rising Interval. This utilization monitoring time period can be configured from 5 to 86400 seconds in multiples of 5 seconds.

• Falling Threshold. Notification is triggered when the total CPU utilization falls below this level for a configured period of time.

The falling utilization threshold must be equal to or less than the rising threshold value. notification was sent previously. Configuring the falling utilization threshold and time period is optional. If the Falling CPU utilization settings are not configured, the settings automatically get the same values as the Rising CPU utilization settings. The range is 1 to 100.

The falling utilization threshold notification is sent only if a rising threshold

• Falling Interval. seconds to 86400 seconds in multiples of 5 seconds.

• Free Memory Threshold.

8. Click the Apply button.

Your settings are saved.

The utilization monitoring time period can be configured from 5

The free memory threshold value for the CPU in KB.

View USB device information

You can display the USB device status, memory statistics, and directory details. The limitations for the USB device supported on the switch are as follows:

• The USB disk must comply with the USB 2.0 standard.

• The USB disk must be file type F To display the USB device information:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

AT32 or VFAT. File type NTFS is not supported.

f-network using an Ethernet cable.

, enter the IP address of the switch.

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

Configure System Information User Manual59

Access the switch on-network and

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

For information about the credentials, see Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Select System > Management > USB Device Information.

The Device Status field displays the current status of the device. The status is one of the following:

• Active. The device is USB plugged in and recognized by the switch.

• Inactive. The device is not mounted.

•

Invalid. The device is not present or an invalid device is plugged in.

7. To refresh the page, click the Refresh button.

The following table describes the USB Memory Statistics information.

Table 10. USB Memory Statistics information

Field Description

Total Size The USB flash device storage size in bytes. Bytes Used The size of memory used on the USB flash device. Bytes Free The size of memory free on the USB flash device.

The following table describes the USB Directory Details information.

Table 11. USB directory details information

Field Description

File Name The name of the file stored in the USB flash drive.

Configure System Information User Manual60

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Table 11. USB directory details information

Field Description

File Size The size, in bytes, of the file stored in the USB flash drive. Modification Time The last modification time of the file stored in the USB flash drive.

Configure the IP network settings for management access

You can configure network information for the device UI, which is the logical interface used for in-band connectivity with the switch through any of the switch’s front-panel ports. The settings associated with the device UI do not affect the configuration of the front panel ports through which traffic is switched or routed.

Configure the IPv4 network and VLAN settings for the device UI

You can configure the IPv4 network information for the device UI, which is the logical interface used for in-band connectivity with the switch through any of the switch’s front-panel ports.

To configure the IPv4 network and VLAN settings for the device UI:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

f-network using an Ethernet cable.

, enter the IP address of the switch.

Access the switch on-network and

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

Configure System Information User Manual61

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

For information about the credentials, see Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Select the appropriate radio button to determine how to configure the network information for the switch management interface:

• Dynamic IP Address (DHCP). Specifies that the switch must obtain the IP address

through a DHCP server

• Dynamic IP Address (BOOTP). Specifies that the switch must obtain the IP address

through a BootP server

• Static IP Address. Specifies that the IP address, subnet mask, and default gateway

must be manually configured. Enter this information in the fields below this radio button.

7. If you selected the Static IP

Address radio button, configure the following network

information:

• IP Address.

The IP address of the network interface. The default value is

192.168.0.239. Each part of the IP address must start with a number other than zero. For example, IP addresses 001.100.192.6 and 192.001.10.3 are not valid.

• Subnet Mask.

The IP subnet mask for the interface. The default value is

255.255.255.0.

• Default Gateway.

The default gateway for the IP interface. The default value is

192.168.0.254.

8. Specify the VLAN ID for the management VLAN. The management VLAN is used to establish an IP connection to the switch from a

workstation that is connected to a port in the same VLAN. If not specified, the active management VLAN ID is 1 (default), which allows an IP connection to be established through any port.

When the management VLAN is set to a different value, an IP connection can be made only through a port that is part of the management VLAN.

Also, the port VLAN ID (PVID) of the port to be connected in that management VLAN must be the same as the management VLAN ID.

Note: Make sure that the VLAN that must be the management VLAN exists.

Also make sure that the PVID of at least one port in the VLAN is the

same as the management VLAN ID. For information about creating VLANs and configuring the PVID for a port, see

Configure VLANs on

page 164.

The following requirements apply to the management VLAN:

• Only one management VLAN can be active at a time.

• When a new management VLAN is configured, connectivity through the existing

management VLAN is lost.

Configure System Information User Manual62

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

• The management station must be reconnected to the port in the new management VLAN.

9. Click the Apply button. Your settings are saved.

Configure the IPv6 network settings for the local browser interface

You can configure IPv6 network information for the device UI, which is the logical interface used for in-band connectivity with the switch through any of the switch’s front-panel ports.

To access the switch over an IPv6 network, you must initially configure the switch with IPv6 information (an IPv6 prefix, prefix length, and default gateway). You can configure IPv6 using one of the following options:

• IPv6 auto-configuration

• DHCPv6

When in-band connectivity is established, IPv6 information can be changed using SNMP-based management or web-based management.

To configure the IPv6 network settings for the device UI:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

f-network using an Ethernet cable.

, enter the IP address of the switch.

Access the switch on-network and

For information about the credentials, see

5. Click the Go button. The System Information page displays.

Configure System Information User Manual63

Credentials for the device UI on page 30.

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

6. Select System > Management > IPv6 Network Configuration. The IPv6 Network Global Configuration page displays.

7. Ensure that the

8. Determine how the switch acquires an IPv6 address:

• IPv6 Address Auto Configuration Mode. When this mode is enabled, the network

interface can acquire an IPv6 address through IPv6 Neighbor Discovery Protocol (NDP) and through the use of router advertisement messages. When this mode is disabled, the network interface does not use the native IPv6 address auto-configuration features to acquire an IPv6 address. enabled only when DHCPv6 is not enabled on any of the management interfaces.

• DHCPv6. Next to Current Network Configuration Protocol, select the DHCPv6 radio

button to enable the DHCPv6 client on the interface. network information from a DHCPv6 server. Selecting the None radio button disables the DHCPv6 client on the network interface. When DHCPv6 is enabled, the DHCPv6 Client DUID field displays the client identifier used by the DHCPv6 client (if enabled) when sending messages to the DHCPv6 server.

9. In the IPv6 Gateway field, specify the default gateway for the IPv6 network interface.

The gateway address is in IPv6 global or link-local address format.

o configure one or more static IPv6 addresses for the management interface, do the

10. T following:

a. In the IPv6 Prefix/Prefix Length field, specify the static IPv6 prefix and prefix to the

IPv6 network interface.

Admin Mode Enable radio button is selected.

Auto-configuration can be

The switch attempts to acquire

The address is in the global address format.

b. In the EUI64 menu, select T

flag for IPv6 address, or select False to omit the EUI flag.

c. Click the Add button.

11. Click the Apply button.

Your settings are saved.

rue to enable the Extended Universal Identifier (EUI)

View the IPv6 network neighbors

You can view information about the IPv6 neighbors that the switch discovered through the network interface by using the Neighbor Discovery Protocol (NDP).

To view the IPv6 Network Neighbor Table:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.

2. Launch a web browser.

3. In the address field of your web browser

, enter the IP address of the switch.

Configure System Information User Manual64

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Select System > Management > IPv6 Network Neighbor.

The following table describes the information the IPv6 Network Neighbor page displays about each IPv6 neighbor that the switch discovered.

Table 12. IPv6 network interface neighbor table information

Field Description

IPv6 address The IPv6 address of a neighbor switch visible to the network interface. MAC address The MAC address of a neighbor switch. IsRtr

• true (1). The neighbor machine is a router

• false (2). The neighbor machine is not a router.

Neighbor State The state of the neighboring switch:

• reachable (1). The neighbor is reachable by this switch.

• stale

• delay (3). No information was received from the neighbor during

• probe (4). The switch is attempting to probe for this neighbor.

• unknown (5). Unknown status.

Last Updated The last sysUpTime that this neighbor was updated.

Configure System Information User Manual65

(2). Information about the neighbor is scheduled for deletion.

the delay period.

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Configure the time settings

The switch supports the Simple Network Time Protocol (SNTP). As its name suggests, it is a less complicated version of Network Time Protocol, which is a system for synchronizing the clocks of networked computer systems, primarily when data transfer is handled through the Internet. You can also set the system time manually.

Configure the time setting manually

You can view and adjust date and time settings.

To manually configure the time setting:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

f-network using an Ethernet cable.

2. Launch a web browser.

3. In the address field of your web browser

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

5. Click the Go button. The System Information page displays.

6. Select System > Management > T

, enter the IP address of the switch.

Access the switch on-network and

Credentials for the device UI on page 30.

ime > Time Configuration.

Configure System Information User Manual66

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

7. Select the Clock Source Local radio button.

8. In the Date field, specify the current date in months, days, and years (MM/DD/YYYY).

9. In the T

Note: If you do not enter a date and time, the switch calculates the date and

ime field, specify the current time in hours, minutes, and seconds (HH:MM:SS).

time using the CPU’s clock cycle.

10. In the Time Zone Name field, specify a time zone. In the Offset Hours

and number of minutes that the time zone is different from the Coordinated Universal Time (UTC). value is UTC.

11. In the Offset Hours field, specify the number of hours that the time zone is different from UTC.

The allowed range is –12 to 13.

12. In the Offset Minutes field, specify the number of minutes that the time zone is different from UTC.

The allowed range is 0 to 59.

13. Click the Apply button. Your settings are saved.

The time zone can affect the display of the current system time. The default

and Offset Minutes fields, you can also specify the number of hours

The default value is 0.

Configure the time settings with SNTP and configure the global SNTP settings

To configure the time by using SNTP and configure the global SNTP settings:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.

2. Launch a web browser.

Configure System Information User Manual67

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

3. In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see

Access the switch on-network and

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Select System > Management > T

ime > T

ime Configuration.

7. Select the Clock Source SNTP radio button.

The page refreshes and displays the SNTP Global Configuration section, the SNTP Global Status section, and the SNTP GLobal Status section.

Configure System Information User Manual68

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

You can set the local clock to SNTP only if the following two conditions are met:

• The SNTP server is configured.

• The SNTP last attempt status is successful.

8. In the T

ime Zone Name field, specify a time zone.

In the Offset Hours and Offset Minutes fields, you can also specify the number of hours and number of minutes that the time zone is dif

ferent from the Coordinated Universal Time (UTC). The time zone can affect the display of the current system time. The default value is UTC.

Note: When you use an SNTP or NTP time server, the time data that is

received from the server is based on the UTC, which is the same as Greenwich Mean Time (GMT). This might not be the time zone in which the switch is located.

9. In the Offset Hours field, specify the number of hours that the time zone is dif

ferent from

UTC. The allowed range is –12 to 13. The default value is 0.

10. In the Offset Minutes field, specify the number of minutes that the time zone is dif from UTC.

The allowed range is 0 to 59. The default value is 0.

11. Next to Client Mode, select the mode of operation of the SNTP client:

• Unicast. SNTP operates in a point-to-point fashion.

A unicast client sends a request to a designated server at its unicast address and expects a reply from which it can determine the time and, optionally, the round-trip delay and local clock offset relative to the server.

ferent

• Broadcast. SNTP operates in the same manner as multicast mode but uses a local broadcast address instead of a multicast address.

The broadcast address provides a

single-subnet scope while a multicast address provides an Internet-wide scope.

The default value is Unicast.

12. If the SNTP client mode is Unicast, use the SNTP Server Configuration page to add the IP address or DNS name of one or more SNTP servers for the switch to poll.

For more information, see

Configure an SNTP server on page 72.

13. In the Port field, specify the local UDP port that the SNTP client receives server packets on. The allowed range is 1025 to 65535 and 123. The default value is 123. When the default

value is configured, the actual client port value used in SNTP packets is assigned by the operating system.

14. In the Unicast Poll Interval field, specify the number of seconds between unicast poll requests expressed as a power of 2. to

Configure System Information User Manual69

The allowed range is 6 to 10. The default value is 6.

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

15. In the Broadcast Poll Interval field, specify the number of seconds between broadcast poll requests expressed as a power of 2.

Broadcasts received prior to the expiry of this interval are discarded. The allowed range is 6 to 10.

16. In the Unicast Poll Timeout field, specify the number of seconds to wait for an SNTP response to a unicast poll request.

The allowed range is 1 to 30. The default value is 5.

17. In the Unicast Poll Retry field, specify the number of times to retry a unicast poll request to an SNTP server after the first time-out before the switch attempts to use the next configured server

The allowed range is 0 to 10. The default value is 1.

18. Click the Apply button. Your settings are saved.

The default value is 6.

View the SNTP global status

When you select the SNTP option as the clock source, you can view the SNTP global status.

To view SNTP global status:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

f-network using an Ethernet cable.

, enter the IP address of the switch.

Access the switch on-network and

For information about the credentials, see

5. Click the Go button. The System Information page displays.

Configure System Information User Manual70

Credentials for the device UI on page 30.

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

6. Select System > Management > Time > Time Configuration. When you select the SNTP option as the clock source, the SNTP Global Status is

displayed below the SNTP Global Configuration section.

7. Click the Refresh button to refresh the page with the latest information about the switch.

The following table displays the nonconfigurable SNTP Global Status information.

Table 13. SNTP Global Status information

Field Description

Version The SNTP version that the client supports. Supported mode The SNTP modes that the client supports. Multiple modes can be supported by

a client.

Last Update Time The local date and time (UTC) that the SNTP client last updated the system

clock.

Last Attempt Time The local date and time (UTC) of the last SNTP request or receipt of an

unsolicited message.

Last Attempt Status The status of the last SNTP request or unsolicited message for both unicast

and broadcast modes. If no message was received from a server

Other is displayed. These values are appropriate for all operational modes.

• Other.

• Success. The SNTP operation was successful and the system time was

• Request Timed Out. After an SNTP request was sent to an SNTP server,

• Bad Date Encoded. The time provided by the SNTP server is not valid.

• Version Not Supported. The SNTP version supported by the server is

• Server Unsynchronized. The SNTP server is not synchronized with its

• Server Kiss Of Death. The SNTP server indicated that no further queries

Server IP Address The IP address of the server for the last received valid packet. If no message

was received from any server

Address Type The address type of the SNTP server address for the last received valid

packet.

Server Stratum The claimed stratum of the server for the last received valid packet.

The status of the last request is unknown.

updated.

the response timer expired before a response from the server was received.

not compatible with the version supported by the client.

peers. This is indicated by the leap indicator field in the SNTP message.

were to be sent to this server. This is indicated by a stratum field equal to 0 in a message received from a server.

, an empty string is shown.

, a status of

Reference Clock ID The reference clock identifier of the server for the last received valid packet. Server mode The mode of the server for the last received valid packet. Unicast Server Max Entries The maximum number of unicast server entries that can be configured on this

client.

Configure System Information User Manual71

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Table 13. SNTP Global Status information (continued)

Field Description

Unicast Server Current Entries The number of current valid unicast server entries configured for this client. Broadcast Count The number of unsolicited broadcast SNTP messages that were received and

processed by the SNTP client since the last reboot.

Configure an SNTP server

SNTP assures accurate network device clock time synchronization up to the millisecond. Time synchronization is performed by a network SNTP server. The switch operates only as an SNTP client and cannot provide time services to other systems.

Time sources are established by strata. Strata define the accuracy of the reference clock. The higher the stratum (where zero is the highest), the more accurate the clock. receives time from Stratum 1 and above since it is itself a Stratum 2 device.

The following is an example of strata:

Stratum 0. A real-time clock is used as the time source, for example, a GPS system.

•

• Stratum 1.

A server that is directly linked to a Stratum 0 time source is used. Stratum 1

time servers provide primary network time standards.

• Stratum 2.

The time source is distanced from the Stratum 1 server over a network path. For example, a Stratum 2 server receives the time over a network link, through NTP, from a Stratum 1 server.

The device

Information received from SNTP servers is evaluated based on the time level and server type.

SNTP time definitions are assessed and determined by the following time levels:

•T1. Time that the original request was sent by the client.

•T2.

•T3.

•T4.

Time that the original request was received by the server. Time that the server sent a reply.

Time that the client received the server's reply. The device can poll unicast server types for the server time. Polling for unicast information is used for polling a server for which the IP address is known.

SNTP servers that were configured on the device are the only ones that are polled for synchronization information.

T1 through T4 are used to determine server time. This is the preferred method for synchronizing device time because it is the most secure method. If this method is selected, SNTP information is accepted only from SNTP servers defined on the device using the SNTP Server Configuration page.

The device retrieves synchronization information, either by actively requesting information or at every poll interval.

Y ou can view and modify information for adding and modifying Simple Network T ime Protocol SNTP servers.

Configure System Information User Manual72

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Add an SNTP server

To add an SNTP server:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.

2. Launch a web browser.

3. In the address field of your web browser, enter the IP address of the switch.

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

5. Click the Go button. The System Information page displays.

6. Select System > Management > T

Credentials for the device UI on page 30.

ime > SNTP Server Configuration.

Access the switch on-network and

7. From the Server Type menu, select the type of SNTP address to enter in the address field. The address can be either an IPv4 address or host name (DNS). The default value is

IPv4.

8. In the Address field, specify the IP address or the host name of the SNTP server. This is a text string of up to 64 characters, containing the encoded unicast IP address or

host name of an SNTP server. Unicast SNTP requests are sent to this address. If this

Configure System Information User Manual73

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

address is a DNS host name, then that host name is resolved into an IP address each time an SNTP request is sent to it.

9. If the UDP port on the SNTP server to which SNTP requests are sent is not the standard port (123), specify the port number in the Port field.

The valid range is 1 to 65535. The default value is 123.

10. In Priority field, specify the priority order in which the switch must query the servers. The SNTP client on the device continues sending SNTP requests to different servers until

a successful response is received, or all servers are exhausted.

The priority indicates the order in which to the switch must query the servers. The request is sent to an SNTP server with a priority value of 1 first, then to a server with a priority value of 2, and so on. If any servers are assigned the same priority, the SNTP client contacts the servers in the order that they appear in the table. The valid range is 1 to 3. The default value is 1.

11. Click the Add button. The SNTP server entry is added.

12. Repeat the previous steps to add additional SNTP servers. You can configure up to three SNTP servers.

The SNTP Server Status table displays status information about the SNTP servers configured on your switch.

The following table describes the SNTP Server Global Status

information.

Table 14. SNTP Server Status information

Field Description

Address All the existing server addresses. If no server configuration exists, a message stating

that no SNTP server exists displays on the page.

Last Update Time The local date and time (UTC) that the response from this server was used to update

the system clock. Last Attempt Time The local date and time (UTC) that this SNTP server was last queried. Last Attempt Status The status of the last SNTP request or unsolicited message for both unicast and

broadcast modes. If no message was received from a server

displayed. These values are appropriate for all operational modes:

• Other.

• Success. The SNTP operation was successful and the system time was updated.

• Request Timed Out. After an SNTP request was sent to an SNTP server, the

• Bad Date Encoded. The time provided by the SNTP server is not valid.

• Version Not Supported. The SNTP version supported by the server is not

• Server Unsynchronized. The SNTP server is not synchronized with its peers. This

The status of the last request is unknown, or no SNTP responses were

received.

response timer expired before a response from the server was received.

compatible with the version supported by the client.

is indicated by the leap indicator field on the SNTP message.

, a status of Other is

Configure System Information User Manual74

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Table 14. SNTP Server Status information (continued)

Field Description

Requests The number of SNTP requests made to this server since last agent reboot. Failed Requests The number of failed SNTP requests made to this server since the last reboot.

Change the settings for an existing SNTP server

To change the settings for an existing SNTP server:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

f-network using an Ethernet cable.

, enter the IP address of the switch.

If you do not know the IP address of the switch, see

Access the switch on-network and

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Select System > Management > T

ime > SNTP Server Configuration.

The SNTP Server Configuration page displays.

7. Select the check box next to the configured server

8. Specify new values in the available fields.

9. Click the Apply button.

Your settings are saved.

Configure System Information User Manual75

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Remove an SNTP server

To remove an SNTP server:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

f-network using an Ethernet cable.

, enter the IP address of the switch.

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

5. Click the Go button. The System Information page displays.

6. Select System > Management > T The SNTP Server Configuration page displays.

7. Select the check box next to the configured server to remove.

8. Click the Delete button.

Credentials for the device UI on page 30.

ime > SNTP Server Configuration.

Access the switch on-network and

The entry is removed, and the device is updated.

Configure daylight saving time settings

You can configure settings for summer time, which is also known as daylight saving time. Used in some countries around the world, summer time is the practice of temporarily advancing clocks during the summer months. Typically clocks are adjusted forward one or more hours near the start of spring and are adjusted backward in autumn.

To configure the daylight saving time settings:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

Configure System Information User Manual76

f-network using an Ethernet cable.

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

2. Launch a web browser.

3. In the address field of your web browser, enter the IP address of the switch.

If you do not know the IP address of the switch, see

Access the switch on-network and

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Select System > Management > T

ime > Daylight Saving Configuration

7. Select a Daylight Saving (DST) radio button:

• Disable. Disable daylight saving time.

• Recurring. Daylight saving time occurs at the same time every year. The start and

end times and dates for the time shift must be manually configured.

• Recurring EU. The system clock uses the standard recurring summer time settings

used in countries in the European Union. When this option is selected, the rest of the applicable fields on the page are automatically populated and cannot be edited.

Configure System Information User Manual77

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

• Recurring USA. The system clock uses the standard recurring daylight saving time settings used in the United States. When this option is selected, the rest of the applicable fields on the page are automatically populated and cannot be edited.

• Non Recurring. Daylight saving time settings are in effect only between the start date and end date of the specified year

. When this option is selected, the summer time

settings do not repeat on an annual basis.

8. Click the Apply button. Your settings are saved.

The fields in the following tables are visible only when the DayLight Saving (DST) Recurring,

Recurring EU, or Recurring USA radio button is selected.

Table 15. Daylight saving setting is Recurring, Recurring EU, or Recurring USA

Field Description

Begins At These fields are used to configure the start values of the date and time.

• Week. Configure the start week.

• Day. Configure the start day.

• Month. Configure the start month.

• Hours. Configure the start hours.

• Minutes. Configure the start minutes.

Ends At These fields are used to configure the end values of date and time.

• Week. Configure the end week.

• Day. Configure the end day

• Month

• Hours. Configure the end hours.

• Minutes. Configure the end minutes.

Offset Configure recurring offset in minutes. The valid range is 1–1440 minutes. Zone Configure the time zone.

. Configure the end month.

The fields in the following table are visible only when the DayLight Saving (DST) Non

Recurring radio button is selected.

Table 16. Daylight saving setting is Non Recurring

Field Description

Begins At These fields are used to configure the start values of the date and time.

• Week. Configure the start week.

• Day. Configure the start day

• Month

• Hours. Configure the start hours.

• Minutes. Configure the start minutes.

. Configure the start month.

Configure System Information User Manual78

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Table 16. Daylight saving setting is Non Recurring (continued)

Field Description

Ends At These fields are used to configure the end values of date and time.

• Week. Configure the end week.

• Day. Configure the end day

• Month. Configure the end month.

• Hours. Configure the end hours.

• Minutes. Configure the end minutes.

Offset Specify the number of minutes to shift the summer time from the standard

time. The valid range is 1–1440 minutes.

Zone Specify the acronym associated with the time zone when summer time is in

fect. This field is not validated against an official list of time zone

acronyms.

View the daylight saving time status

The Daylight Saving (DST) Status section shows information about the summer time settings and whether the time shift for summer time is currently in effect.

To view the daylight saving time status:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

f-network using an Ethernet cable.

2. Launch a web browser.

3. In the address field of your web browser

If you do not know the IP address of the switch, see

, enter the IP address of the switch.

Access the switch on-network and

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Select System > Management > T

Configure System Information User Manual79

ime > DayLight Saving Configuration.

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

7. To refresh the page, click the Refresh button.

The following table displays the nonconfigurable daylight saving status information.

Table 17. Daylight Saving (DST) Status information

Field Description

Daylight Saving (DST) The Daylight Saving value, which is one of the following:

• Disable

• Recurring

• Recurring USA

• Non Recurring

Begins At The start date of daylight saving time. This field is not displayed when

daylight saving time is disabled.

Ends At The end date of daylight saving time. This field is not displayed when

daylight saving time is disabled.

Offset (in Minutes) The offset value in minutes.This field is not displayed when daylight saving

time is disabled.

Zone The zone acronym. This field is not displayed when daylight saving time is

disabled.

Daylight Saving (DST) in Effect Indicates whether daylight saving time is in effect.

Configure System Information User Manual80

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Configure denial of service settings

You can configure the Denial of Service (DoS) settings for the switch. The switch provides support for classifying and blocking specific types of DoS attacks.

Configure Auto-DoS

You can automatically enable all the DoS features available on the switch, except for the L4 Port attack. For information about the types of DoS attacks the switch can monitor and block,

Configure denial of service on page 82.

see

To enable the Auto-DoS feature:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

f-network using an Ethernet cable.

, enter the IP address of the switch.

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

5. Click the Go button. The System Information page displays.

6. Select System > Management > Denial of Service > The Auto-DoS Configuration page displays.

7. Select the When an attack is detected, a warning message is logged to the buffered log and is sent

to the syslog server manually by the admin user.

Auto-DoS Mode Enable radio button.

. At the same time, the port is shut down and can be enabled only

Credentials for the device UI on page 30.

Access the switch on-network and

Auto-DoS Configuration.

Configure System Information User Manual81

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

8. Click the Apply button. Your settings are saved.

Configure denial of service

You can select which types of denial of service (DoS) attacks the switch monitors and blocks.

To configure individual DoS settings:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

f-network using an Ethernet cable.

, enter the IP address of the switch.

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

5. Click the Go button. The System Information page displays.

6. Select System > Management > Denial of Service > Denial of Service Configuration.

Credentials for the device UI on page 30.

Access the switch on-network and

Configure System Information User Manual82

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

7. Select the types of DoS attacks for the switch to monitor and block and configure any associated values:

• Denial of Service Min TCP Header Size. Specify the minimum allowed

size. If you select the Denial of Service

TCP Fragment Enable radio button, the

TCP header

switch first drops packets for which the first TCP fragments include the following TCP payload: IP_Payload_Length - IP_Header_Size < Min_TCP_Header_Size. Enter a value in the range from 0 to 31. The default value is 20.

• Denial of Service Max ICMP Packet Size. Specify the maximum allowed ICMP

packet size. If you select the Denial of Service ICMPv4 Enable radio button or the Denial of Service ICMPv6 Enable radio button, the switch drops ICMP or ICMPv6 ping packets that exceed the size that you specify to 16376.

The default value is 512.

. Enter a value in the range from 0

• Denial of Service ICMPv4. Enabling ICMPv4 DoS prevention causes the switch to

drop ICMPv4 packets with a type set to ECHO_REQ (ping) and a size that exceeds the specified maximum allowed ICMP packet size. By default, this option is disabled.

• Denial of Service ICMPv6. Enabling ICMPv6 DoS prevention causes the switch to

drop ICMPv6 packets with a type set to ECHO_REQ (ping) and a size that exceeds the specified maximum allowed ICMPv6 packet size. By default, this option is disabled.

• Denial of Service Ping of death. Enabling Ping of Death DoS prevention causes the

switch to drop ICMP ping packet larger than 65535 bytes. By default, this option is disabled.

Configure System Information User Manual83

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

• Denial of Service IPv6 Fragment. Enabling IPv6 Fragment DoS prevention causes the switch to drop IPv6 packets for which the header is fragmented, the More flag is set to 1, and the payload length is smaller than 1240. By default, this option is disabled.

• Denial of Service ICMP Fragment. Enabling ICMP Fragment DoS prevention causes the switch to drop fragmented ICMP packets. By default, this option is disabled.

• Denial of Service Smurf. Enabling Smurf DoS prevention causes the switch to drop broadcast ICMP echo request packets. By default, this option is disabled.

• Denial of Service SIP=DIP. Enabling SIP=DIP DoS prevention causes the switch to drop packets with a source IP address that is equal to the destination IP address. By default, this option is disabled.

• Denial of Service SMAC=DMAC. Enabling SMAC=DMAC DoS prevention causes the switch to drop packets with a source MAC address that is equal to the destination MAC address. By default, this option is disabled.

• Denial of Service TCP FIN&URG&PSH. Enabling

TCP FIN & URG & PSH DoS prevention causes the switch to drop packets for which the TCP FIN, URG, and PSH flags are set to 1 and for which the TCP sequence number is set to 0. By default, this option is disabled.

• Denial of Service TCP Flag&Sequence. Enabling

TCP Flag DoS prevention causes the switch to drop packets for which the TCP control flags are set to 0 and the TCP sequence number is set to 0. By default, this option is disabled.

• Denial of Service TCP Fragment. Enabling

TCP Fragment DoS prevention causes the switch to drop packets with a TCP payload for which the IP payload length minus the IP header size is smaller than the minimum allowed TCP header size. By default, this option is disabled.

• Denial of Service TCP Offset. Enabling

TCP Offset DoS prevention causes the switch to drop packets with a TCP header offset of 1. By default, this option is disabled.

• Denial of Service TCP Port. Enabling

TCP Port DoS prevention causes the switch to drop packets with a TCP source port that is equal to the TCP destination port. By default, this option is disabled.

• Denial of Service TCP SYN&FIN. Enabling

TCP SYN & FIN DoS prevention causes the switch to drop packets for which the TCP flags SYN and FIN are set to 1. By default, this option is disabled.

• Denial of Service TCP SYN&RST. Enabling

TCP SYN & RST DoS prevention causes the switch to drop packets for which the TCP flags SYN and RST are set to 1. By default, this option is disabled.

• Denial of Service UDP Port. Enabling UDP Port DoS prevention causes the switch to drop packets with a UDP source port that is equal to the UDP destination port. By default, this option is disabled.

8. Click the Apply button. Your settings are saved.

Configure System Information User Manual84

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Configure DNS settings

You can configure information about DNS servers that the network uses and how the switch operates as a DNS client.

Configure the global DNS settings and add a DNS server

You can configure the global DNS settings and DNS server information.

To configure the global DNS settings and add a DNS server:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

f-network using an Ethernet cable.

, enter the IP address of the switch.

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

5. Click the Go button. The System Information page displays.

6. Select System > Management > DNS > DNS Configuration.

Credentials for the device UI on page 30.

Access the switch on-network and

Configure System Information User Manual85

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

7. Select the Disable or Enable radio button to specify whether to disable or enable the administrative status of the DNS client.

• Enable.

domain name.

Allow the switch to send DNS queries to a DNS server to resolve a DNS

The DNS is enabled by default.

• Disable. Prevent the switch from sending DNS queries.

8. In the DNS Default Name field, enter the default DNS domain name to include in DNS

queries. When the system is performing a lookup on an unqualified host name, this field is

provides the domain name (for example, if default domain name is netgear user enters test, then test is changed to test.netgear

.com to resolve the name). The name

.com and the

must not be longer than 255 characters.

9. In the DNS Server field, specify the IPv4 address to which the switch sends DNS queries.

10. Click the Add button.

The server is added to the list. You can specify up to eight DNS servers. The Preference

field displays the server preference order.

The preference is set in the order in which

preferences were entered.

11. To remove a DNS server from the list, select its check box and click the Delete

button.

If you click the Delete button without selecting a DNS server, all the DNS servers are deleted.

12. Click the Apply

button.

Your settings are saved.

13. To refresh the page, click the Refresh

button.

Configure System Information User Manual86

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

The following table displays DNS Server Configuration information.

Table 18. DNS Server Configuration information

Field Description

ID The identification of the DNS Server. Preference Shows the preference of the DNS server. The preferences are

determined by the order in which they were entered.

Remove a DNS server

You can remove a DNS server that you no longer need.

To remove a DNS server:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.

2. Launch a web browser.

3. In the address field of your web browser, enter the IP address of the switch.

If you do not know the IP address of the switch, see

Access the switch on-network and

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Select System > Management > DNS > DNS Configuration.

7. In the DNS Server Configuration table, select the check box for the DNS server

Note: If you do not select a DNS server, all the DNS servers are removed

after you click the

Delete button.

8. Click the Delete button.

The DNS server is removed.

Configure System Information User Manual87

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Configure and view host name-to-IP address information

You can manually map host names to IP addresses or view dynamic host mappings.

Add a static entry to the dynamic host mapping table

To add a static entry to the local dynamic host mapping table:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.

2. Launch a web browser.

3. In the address field of your web browser, enter the IP address of the switch.

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

5. Click the Go button. The System Information page displays.

6. Select System > Management > DNS > Host Configuration.

Credentials for the device UI on page 30.

Access the switch on-network and

7. In the Host Name (1 to 255 characters) field, specify the static host name to add. Its length cannot exceed 255 characters and it is a required field.

8. In the IPv4/IPv6 Address field, enter the IP address to associate with the host name.

Configure System Information User Manual88

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

9. Click the Add button. The entry displays in the list on the page.

Remove an entry from the dynamic host mapping table

To remove an entry from the dynamic host mapping table:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

f-network using an Ethernet cable.

, enter the IP address of the switch.

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

5. Click the Go button. The System Information page displays.

6. Select System > Management > DNS > Host Configuration. The DNS Host Configuration page displays.

7. Select the check box next to the entry to remove.

8. Click the Delete button.

Credentials for the device UI on page 30.

Access the switch on-network and

Change the host name or IP address in an entry of the dynamic host mapping table, view all entries, or clear all entries

T o change the host name or IP address in an entry of the dynamic host mapping table, view all entries, or clear all entries:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

Configure System Information User Manual89

f-network using an Ethernet cable.

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

3. In the address field of your web browser, enter the IP address of the switch. If you do not know the IP address of the switch, see

Access the switch on-network and

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Select System > Management > DNS > Host Configuration.

The DNS Host Configuration page display.

7. Select the check box next to the entry to update.

8. Enter the new information in the appropriate field.

9. Click the Apply button.

Your settings are saved.

10. T

o clear all the dynamic host name entries from the list, click the Clear

button.

The dynamic host mapping table shows host name-to-IP address entries that the switch learned. The following table describes the dynamic host fields.

Table 19. Dynamic Host Mapping information

Field Description

Host Lists the host name that you assign to the specified IP address. Total Time since the dynamic entry was first added to the table. Elapsed Time since the dynamic entry was last updated. Type The type of the dynamic entry. Addresses Lists the IP address associated with the host name.

Configure System Information User Manual90

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Configure green Ethernet settings

You can configure the green Ethernet features to reduce power consumption.

Configure the global green Ethernet settings

You can configure the global green Ethernet settings.

To configure the global green Ethernet settings:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser, enter the IP address of the switch.

f-network using an Ethernet cable.

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

5. Click the Go button. The System Information page displays.

6. Select System > Management > Green Ethernet > Green Ethernet Configuration.

Credentials for the device UI on page 30.

Access the switch on-network and

7. Select the Auto Power Down Mode Disable or Enable radio button. By default, this mode is disabled. When a port link is down, the underlying physical layer

goes down for a short period and then checks for port link pulses again so that auto-negotiation remains possible. In this way, the switch saves power when no link partner is present for the port.

Configure System Information User Manual91

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

8. Select the EEE Mode Disable or Enable radio button. By default, this mode is disabled. Energy Efficient Ethernet (EEE) combines the MAC with

a family of physical layers that support operation in a low power mode. It is defined by the IEEE 802.3az standard. Lower power mode enables both the send and receive sides of the link to disable some functionality for power savings when lightly loaded. low power mode does not change the link status. Frames in transit are not dropped or corrupted in transition to and from low power mode. Transition time is transparent to upper layer protocols and applications.

9. Click the Apply button. Your settings are saved.

Configure green Ethernet interface settings

You can configure green Ethernet settings for individual interfaces.

To configure the green Ethernet interface settings:

Transition to

1. Connect your computer to the same network as the switch. You can use a WiFi or wired connection to connect your computer to the network, or

connect directly to a switch that is of

2. Launch a web browser.

3. In the address field of your web browser

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

5. Click the Go button.

f-network using an Ethernet cable.

, enter the IP address of the switch.

Access the switch on-network and

Credentials for the device UI on page 30.

The System Information page displays.

6. Select System > Management > Green Ethernet > Green Ethernet Interface Configuration.

Configure System Information User Manual92

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

7. Select one or more interfaces by taking one of the following actions:

• To configure a single interface, select the check box associated with the interface, or type the interface number in the Go T

• To configure multiple interfaces with the same settings, select the check box

associated with each interface.

• To configure all interfaces with the same settings, select the check box in the heading row

o Interface field and click the Go button.

8. From the EEE mode menu, select Enable or Disable.

The default is Disable. If the EEE mode is not supported, then N/A is displayed.

9. Click the Apply button. Your settings are saved.

Use the Device View

For information about the device view, see Use the Device View of the device UI on page 42.

Configure System Information User Manual93

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Configure Power over Ethernet

You can configure the global Power over Ethernet (PoE) configuration settings and the PoE settings for each port.

PoE concepts

The following table shows the PoE+ capacity for each model.

Table 20. PoE capacities

Model Maximum Power Budget

Across All Active PoE+ Ports

GS728TPv2 190W GS728TPPv2 380W GS752TPv2. 380W GS752TPP 760W

By default, supplied power is prioritized in ascending port order, up to the total power budget of the device. If the power requirements for the attached devices exceed the total power budget of the switch, the power to the device on the highest-numbered PoE+ port is disabled to make sure that the devices connected to the higher-priority, lower-numbered PoE+ ports are supported first.

It is important to note that although a device is listed as an 802.3at (PoE+) powered or

802.3af (PoE) powered device, it might not require the maximum power limit that is specified. Many devices require less power the devices correctly report their PoE class to the switch.

, allowing all PoE+ ports to be active simultaneously

Maximum PoE Power Per Individual Port

30W PoE+ (IEEE 802.3at)

Device class power requirements

PoE and PoE+ use Ethernet cables to supply power to PoE-capable devices on the network, such as WiFi access points, IP cameras, VoIP phones, and switches. The switch is compliant with the IEEE 802.3at standard (PoE+) and backward compatible with the IEEE 802.3af standard (PoE). The switch can pass power through to any powered device (PD) that supports these standards. PoE and PoE+ let you power such devices without the need for a separate power supply.

, when

The switch supports a Plug-and-Play process by which it detects the type of device that is connected to one of its PoE+ ports and whether that device needs power and how much so that the switch can provide the correct power to the device.

During the Plug-and-Play process, the connected device can provide its Class response to the switch in many ways, depending on how the vendor programmed the device.

Configure System Information User Manual94

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

The following table shows the device classes for PoE+ devices adhering to the IEEE 802.3at standard. The device classes for PoE devices adhering to the IEEE 802.3af standard are identical with the exception that Device Class 4 is not supported.

Table 21. PoE and PoE+ device class power allocation

Device Class

0 PoE and PoE+ 0.44W–12.95W 15.4W 16.2W 1 PoE and PoE+ 0.44W–3.84W 4.0W 4.2W 2 PoE and PoE+ 3.84W–6.49W 7.0W 7.4W 3 PoE and PoE+ 6.49W–12.95W 15.4W 16.2W 4 PoE+ only 12.95W–25.5W 30.0W 31.6W

Standard Range of Power Deliv-

ered to the Powered Device

Minimum Output at PoE Switch Port (Minimum Allocated)

Maximum Output at PoE Switch Port (Maximum Allocated)

Power allocation and power budget concepts

The switch is a smart switch in that it can allocate the required power to a connected device by using a prioritization scheme: By default, power is supplied in ascending port order (that is, lower port numbers are served first) until the power budget is consumed and insufficient power remains to allocate to the next device. When less than 7W of PoE power is available on a port, the port PoE LED lights yellow, and the attached device does not receive power from the port. However, the switch continues to send data through the port connection.

The switch is also a smart switch in that it can override the IEEE power classification of a powered device (PD): If the PD consumes less power than required by its power classification, the switch provides only the power that the PD consumes instead of the power that is required by the PD’

s power classification.

If some PoE+ ports are in use and deliver power

, you can calculate the available power budget for the other PoE+ ports by subtracting the consumed (that is, delivered power) from the total available power budget. (For information about the total available power budget, see PoE concepts on page 94.)

An example for model GS728TPv2: Port 1 delivers 4.4W to a PD. The available power budget is 185.6W (190W–4.4W).

An example for model GS752TPP: A Class 4 PD is attached to Port 1, a Class 2 PD to Port 2, and another Class 4 PD to Port 3. However, the PDs consume less power than defined by their classes: The PD attached to Port 1 consumes 7.3W, the PD attached to Port 2 consumes 4.7W, and the PD attached to Port 3 consumes 8.9W. So even though the switch provides power to two Class 4 devices and one Class 3 device, if the default power adapter is installed, the available power budget is 739.1W (760W–7.3–4.7–8.9W).

Configure System Information User Manual95

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

To determine the delivered power by a PoE+ port:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.

2. Launch a web browser.

3. In the address field of your web browser, enter the IP address of the switch.

If you do not know the IP address of the switch, see

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

5. Click the Go button. The System Information page displays.

6. Select System > PoE > Advanced > PoE Port Configuration.

Credentials for the device UI on page 30.

Access the switch on-network and

The delivered power is stated in the Output Power (mW) column.

Configure the global PoE settings

To configure the global PoE settings:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.

Configure System Information User Manual96

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

2. Launch a web browser.

3. In the address field of your web browser, enter the IP address of the switch.

If you do not know the IP address of the switch, see

Access the switch on-network and

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Select System > PoE > Basic > PoE Configuration.

7. In the System Usage Threshold field, enter a number from 1 to 99 to set the threshold

level at which a trap is sent if the consumed power exceeds the threshold power.

8. From the Power Management mode menu, select the power management algorithm that the switch uses to deliver power to the requesting powered devices (PDs):

• Static. Specifies that the power allocated for each port depends on the type of power

threshold configured on the port.

• Dynamic. Specifies that the power consumption on each port is measured and

calculated in real time.

9. To active the PoE traps, from the Traps menu, select Enable

Selecting Disable deactivates the PoE traps. The default setting is Enabled.

10. Click the Apply

button.

Your settings are saved.

Configure System Information User Manual97

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

The following table describes the nonconfigurable fields on the page.

Table 22. PoE Configuration fields

Field Description

Firmware Version The firmware version of the PoE firmware component. Power Status The power status. Total Power Available Watts The maximum amount of power in watts that the switch can deliver to all ports. Threshold Power Watts If the consumed power is below the threshold power, the switch can power up

another port. power

Note: The threshold power value is determined by the value that you enter in the System Usage Threshold field.

Consumed Power Watts The total amount of power in watts that is being delivered to all ports.

The consumed power can be between the nominal and threshold

. The threshold power is displayed in watts.

Configure the PoE port settings

To configure the PoE port settings:

1. Connect your computer to the same network as the switch.

You can use a WiFi or wired connection to connect your computer to the network, or connect directly to a switch that is off-network using an Ethernet cable.

2. Launch a web browser.

3. In the address field of your web browser, enter the IP address of the switch.

If you do not know the IP address of the switch, see

Access the switch on-network and

connected to the Internet on page 21 or Access the switch off-network and not connected to the Internet on page 29.

The Device UI login page displays. If you did not yet activate your warranty, the Register to activate your warranty page

displays. For more information, see

4. Enter one of the following passwords:

• Enter your device admin password.

• If you previously managed the switch through the Insight app or Cloud portal, enter

the Insight network password for the last Insight network location.

For information about the credentials, see

Credentials for the device UI on page 30.

5. Click the Go button. The System Information page displays.

6. Select System > PoE >

Configure System Information User Manual98

Advanced > PoE Port Configuration.

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

7. Select one or more interfaces by taking one of the following actions:

• To configure a single interface, select the check box associated with the port, or type

the port number in the

Go To Interface field and click the Go button.

• To configure multiple interfaces with the same settings, select the check box

associated with each interface.

• To configure all interfaces with the same settings, select the check box in the heading row

8. From the Port Power menu, select the administrative PoE mode of the port:

• Enable. The port’

• Disable. The port’

s capacity to deliver power is enabled. This is the default setting.

s capacity to deliver power is disabled.

9. From the Port Priority menu, select the priority for the port in relation to other ports if the total power that the switch is capable of delivering exceeds the total power budget:

• Low. Low priority.

This is the default setting.

• Medium. Medium priority.

•

High. High priority.

•

Critical. Critical priority.

The port priority determines which ports can still deliver power after the total power delivered by the switch exceeds the total power budget. (In such a situation, the switch might not be able to deliver power to all connected devices.) If the same priority applies to two ports, the lower-numbered port receives higher priority.

10. From the Power Mode

• 802.3af.

The port is powered in and limited to the IEEE 802.3af mode.

menu, select the PoE mode that the port must function in:

A PD that requires IEEE 802.3at does not receive power if the port functions in IEEE 802.3af mode.

• Legacy. The port is powered using high-inrush current, which is used by legacy PDs that require more than 15W to power up.

•

Pre-802.3at. The port is initially powered in the IEEE 802.3af mode and, before

75 msec pass, is switched to the high power IEEE 802.3at mode. Select this mode if the PD does not perform Layer 2 classification or if the switch performs 2-event Layer 1 classification.

•

802.3at. The port is powered in the IEEE 802.3at mode and is backward compatible

with IEEE 802.3af.

The 802.3at mode is the default mode. In this mode, if the switch

Configure System Information User Manual99

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

detects that the attached PD requests more power than IEEE 802.3af but is not an IEEE 802.3at Class 4 device, the PD does not receive power from the switch.

11. From the Power Limit T

ype menu, select how the port controls the maximum power that it

can deliver:

• None.

The port draws up to Class 0 maximum power in low power mode and up to

Class 4 maximum power in high power mode.

• Class.

• User.

The port power limit is equal to the class of the attached PD.

The port power limit is equal to the value that is specified in the Power Limit

(mW) field. This is the default setting.

Note: If a PD does not report its class correctly, use of these options can

preserve additional PoE power by preventing the switch from delivering more power than the PD requires. However, depending on which option you select, a PD that does not report its class correctly might not power up at all.

12. In the Power Limit (mW) field, enter the maximum power (in mW) that the port can deliver The range is 3,000–30,000 mW. The default is 30,000 mW.

13. From the Detection T

• IEEE 802.

The port performs a 4-point resistive detection. This is the default setting.

• 4pt 802.3af + Legacy .

ype menu, select how the port detects the attached PD:

The port performs a 4-point resistive detection, and if required,

continues with legacy detection.

• Legacy.

The port performs legacy detection.

14. From the T

imer Schedule menu, select a timer schedule or select None, which is the

default selection. For information about setting up and configuring PoE timer schedules, see

timer schedules on page 146.

15. Click the Apply button. Your settings are saved.

The following table describes the nonconfigurable fields on the page.

Table 23. PoE Port Configuration

Field Description

High Power All ports supports high power mode. Max Power (mW) The maximum power in milliwatts that can be provided by the port.

Set up PoE

Configure System Information User Manual100

Netgear GS752TPv2, GS728TPPv2, GS752TPP, GS728TPv2 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual

24-Port and 48-Port Gigabit Ethernet PoE+ Smart Switches with 4 SFP Ports

Contents

1Get Started

Available publications

Switch management options and default management mode

Manage the switch by using the device UI

Software Requirements to use the device UI

Supported web browsers

Navigation tabs, configuration menus, and page menu

Configuration and Status Options

Buttons in the device UI

User-defined fields

Context-sensitive help

About on-network and off-network access

Access the switch on-network and connected to the Internet

Use se a Windows-based computer to access the switch on-network and connected to the Internet

Use the NETGEAR Insight mobile app to discover the IP address of the switch

Use the NETGEAR Switch Discovery Tool to discover the switch when it is connected to the Internet
