Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

NETGEAR, Inc.

4500 Great America Parkway Santa Clara, CA 95054 USA

202-10027-01 Version 2.0 March 2004

March 2004, 202-10027-01

Trademarks

NETGEAR is a trademark of Netgear, Inc. Microsoft, Windows, and Wi ndow s NT are registered trademar ks of Microsoft Corporation. Other brand and product names are registered trademarks or trademarks of their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice.

NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruct ions, may cause harmf ul interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

1. FCC RF Radiation Exposure Statement: The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body .

2. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

3. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.

EN 55 022 Declaration of Conformance

This is to certify that the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22).

March 2004, 202-10027-01

Bestätigung des Herstellers/Importeurs

Es wird hiermit bestätigt, daß das ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P gemäß der im BMPT-AmtsblVfg 243/1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung.

Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen.

Certificate of the Manufacturer/Importer

It is hereby certified that the ProSafe Wireless 802.1 1g Firewall/Print Server Model FWG114P has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating instructions.

Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market and has been granted the right to test the series for compliance with the regulations.

Voluntary Contr ol Council for Interference (VCCI) Statement

This equipment is in the second category (information equipment to be used in a residential area or an adjacent area thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas.

When used near a radio or TV receiver , it may become the cause of radio interference. Read instructions for correct handling.

March 2004, 202-10027-01

iii

March 2004, 202-10027-01

Chapter 1 About This Manual

Audience, Conventions, Scope ......................................................................................1-1

How to Use this Manual ..................................................................................................1-2

How to Print this Manual .................................................................................................1-3

Chapter 2 Introduction

Key Features of the FWG114P .......................................................................................2-1

Full Routing on Both the Broadband and Serial Ports .............................................2-2

802.11g and 802.11b Wireless Networking ..............................................................2-2

Virtual Private Networking ........................................................................................2-3

A Powerful, True Firewall with Content Filtering ......................................................2-3

Security ....................................................................................................................2-4

Autosensing Ethernet Connections with Auto Uplink ...............................................2-4

Extensive Protocol Support ......................................................................................2-4

Easy Installation and Management ..........................................................................2-5

Package Contents ..........................................................................................................2-6

The FWG114P Front Panel ......................................................................................2-7

The FWG114P Rear Panel ......................................................................................2-8

Chapter 3 Connecting the FWG114P to the Internet

What You Will Need Before You Begin ..................... .... .......................................... ........3-1

Cabling and Computer Hardware Requirements .....................................................3-1

Computer Network Configuration Requirements .....................................................3-1

Internet Configuration Requirements ....................................................................... 3-2

Where Do I Get the Internet Configuration Parameters? ............................. ............3-2

Record Your Internet Connection Information ..........................................................3-3

Connecting the FWG114P Wireless Firewall/Print Server ..... .... ... ... ...............................3-4

Verify That Basic Requirements Are Met .................................................................3-4

Contents v

March 2004, 202-10027-01

Basic Setup Troubleshooting Tips ..................................................................................3-9

FWG114P Setup Wizard Auto Detection ........................................................................3-9

Wizard-Detected Login Account Setup ..................................................................3-10

Wizard-Detected Dynamic IP Account Setup .........................................................3-12

Wizard-Detected Fixed IP Account Setup ..............................................................3-13

How to Configure the Serial Port as the Primary Internet Connection .........................3-14

Testing Your Internet Connection ..................................................................................3-16

Manually Configuring Your Internet Connection ........................................ ... ... ... .... ......3-17

How to Manually Configure the Primary Internet Connection ................................3-18

Chapter 4 Wireless Configuration

Observing Performance, Placement, and Range Guidelines .........................................4-1

Implementing Appropriate Wireless Security ..................................................................4-2

Understanding Wireless Settings ...................................................................................4-3

Default Factory Settings ...........................................................................................4-7

Before You Change the SSID and WEP Settings ....................................................4-8

How to Set Up and Test Basic Wireless Connectivity ..............................................4-9

How to Restrict Wireless Access by MAC Address ...............................................4-10

How to Configure WEP ..........................................................................................4-11

How to Configure WPA ..........................................................................................4-12

How to Configure WPA-PSK ..................................................................................4-13

Chapter 5 Serial Port Configuration

Configuring a Serial Port Modem ...................................................................................5-2

Basic Requirements for Serial Port Modem Configuration .......................................5-2

How to Configure a Serial Port Modem ....................................................................5-2

Configuring Auto-Rollover ..............................................................................................5-3

Basic Requirements for Auto-Rollover .....................................................................5-3

How to Configure Auto-Rollover ...............................................................................5-3

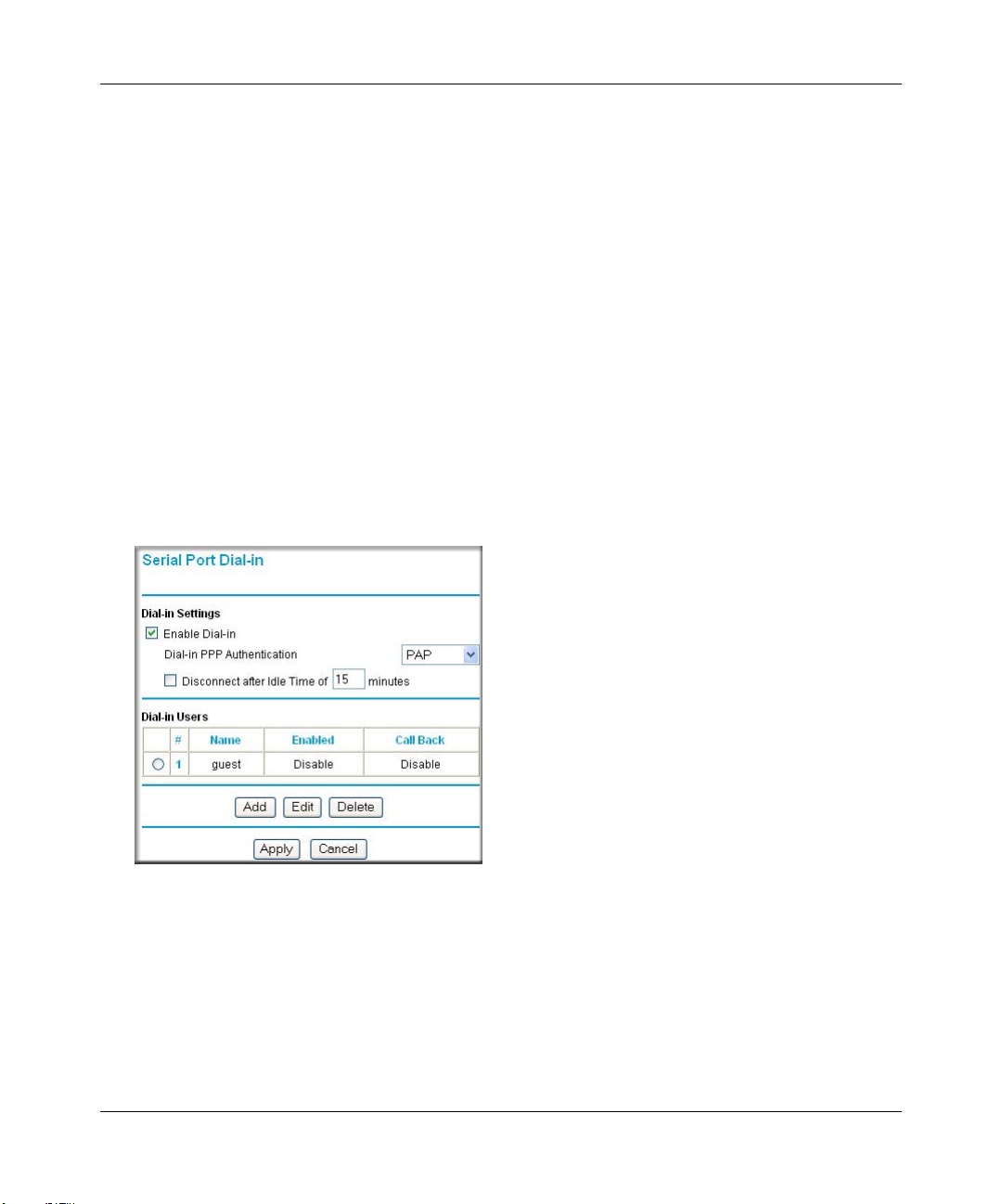

Configuring Dial-in on the Serial Port .............................................................................5-4

Basic Requirements for Dial-in .................................................................................5-5

How to Configure Dial-in ..........................................................................................5-5

Configuring LAN-to-LAN Settings ...................................................................................5-6

Basic Requirements for LAN-to-LAN Connections ..................................................5-6

How to Configure LAN-to-LAN Connections ............................................................5-6

vi Contents

March 2004, 202-10027-01

Chapter 6 Firewall Protection and Content Filtering

Firewall Protection and Content Filtering Overview ............ ... .... ... ... ... .... ... ... ... ...............6-1

Using the Block Sites Menu to Screen Content ..............................................................6-1

Services and Rules Regulate Inbound and Outbound Traffic .........................................6-3

Defining a Service ....................................................................................................6-3

Using Inbound/Outbound Rules to Block or Allow Services .....................................6-4

Examples of Using Services and Rules to Regulate Traffic ...........................................6-6

Inbound Rules (Port Forwarding) .............................. ............................................... 6-6

Example: Port Forwarding to a Local Public Web Server ..................................6-7

Example: Port Forwarding for Videoconferencing .............................................6-8

Example: Port Forwarding for VPN Tunnels when NAT is Off ...........................6-8

Outbound Rules (Service Blocking or Port Filtering) ........................... ...... ....... ...... ..6-9

Outbound Rule Example: Blocking Instant Messaging ....................................6-10

Other Rules Considerations .........................................................................................6-10

Order of Precedence for Rules ..............................................................................6-11

Rules Menu Options ...............................................................................................6-11

Using a Schedule to Block or Allow Content or Traffic .................................................6-12

Setting the Time Zone ........ ... .... ... ... .......................................... ... .... ... ...................6-13

Getting E-Mail Notifications of Event Logs and Alerts ..................................................6-13

Viewing Logs of Web Access or Attempted Web Access .............................................6-16

What to Include in the Event Log ...........................................................................6-17

Chapter 7 Print Server

Printing Options ..............................................................................................................7-1

For Windows XP and 2000, Use TCP/IP LPR Printing ...................................................7-2

For Windows 95/98/Me, Use the Netgear Printer Port Driver .........................................7-5

Printing from the Macintosh ............................................................................................7-8

Windows Printer Port Management .............................. ... ... ... .... ... ... ... .... ... ... ... ... .... ... ... ..7-9

Troubleshooting the Print Server ..................................................................................7-11

Chapter 8 Virtual Private Networking

Overview of FWG114P Policy-Based VPN Configuration ..............................................8-1

Using Policies to Manage VPN Traffic .....................................................................8-2

Using Automatic Key Management ..................................... ................................... .. 8-2

Contents vii

March 2004, 202-10027-01

IKE Policies’ Automatic Key and Authentication Management ................................8-3

VPN Policy Configuration for Auto Key Negotiation ..................... ............................ 8-6

VPN Policy Configuration for Manual Key Exchange ...............................................8-9

Using Digital Certificates for IKE Auto-Policy Authentication .......................................8-14

Certificate Revocation List (CRL) ...........................................................................8-14

Walk-Through of Configuration Scenarios on the FWG114P ............................. .... ... ...8-15

How to Use the VPN Wizard to Configure a VPN Tunnel .............................................8-15

VPNC Scenario 1: Gateway to Gateway with Preshared Secrets .........................8-19

Scenario 1: FWG114P to FWG114P with Preshared Secrets ................................8-20

How to Check VPN Connections ...........................................................................8-24

VPNC Scenario 2: Gateway-to-Gateway with Certificates ............................... ...... 8-25

Scenario 2: FWG114P to FWG114P with Certificates ...........................................8-26

Netgear VPN Client to FWG114P ............. .... ................................................................8-32

Configuration Profile .................................. ... ... ... .... ... ... ... .... ... ................................8-32

Step-By-Step Configuration of FWG114P Gateway .....................................................8-33

Step-By-Step Configuration of the Netgear VPN Client ...............................................8-38

Testing the VPN Connection ............................ ... ... ... .... ... ... ... .... ... ... ... .... ... ... ... ... ..........8-45

From the Client PC to the FWG114P ..... ... ... ... ... .... ... ... ... .... ... ... ... .... ... ... ... ... .... ... ...8-45

From the FWG114P to the Client PC .....................................................................8-46

Monitoring the PC VPN Connection ......................... .... ... ... ... .... ... ... ... .... ... ... ... ... .... ......8-46

Viewing the FWG114P VPN Status and Log Information .............................................8-47

Chapter 9 Maintenance

Viewing Wireless Firewall/Print Server Status Information ............................................. 9-1

Viewing a List of Attached Devices .................................................................................9-5

Upgrading the Router Software ......................................................................................9-6

Configuration File Management .....................................................................................9-6

Restoring and Backing Up the Configuration ...........................................................9-7

Erasing the Configuration .........................................................................................9-8

Changing the Administrator Password ...........................................................................9-8

Chapter 10 Advanced Configuration

Using the WAN Setup Options .............. ... .... ... ... ... ... .... ... ... ... .... ... ... ... .... ......................10-1

How to Configure Dynamic DNS ..................................................................................10-3

Using the LAN IP Setup Options ..................................................................................10-5

viii Contents

March 2004, 202-10027-01

Configuring LAN TCP/IP Setup Parameters ..........................................................10-5

Using the Router as a DHCP server ......................................................................10-7

Using Address Reservation ....................................................................................10-7

Configuring Static Routes .............................................................................................10-8

Enabling Remote Management Access .....................................................................10-10

Using Universal Plug and Play (UPnP) ......................................................................10-11

Advanced Wireless Settings .......................................................................................10-12

Chapter 11 Troubleshooting

Basic Functioning .........................................................................................................11-1

Power LED Not On .................................................................................................11-1

LEDs Never Turn Off ..............................................................................................11-2

LAN or Internet Port LEDs Not On ......... ... ... ... ... .... ... ... ..........................................11-2

Troubleshooting the Web Configuration Interface ........................................................11-3

Troubleshooting the ISP Connection ............................................................................11-4

Troubleshooting a TCP/IP Network Using a Ping Utility ...............................................11-5

Testing the LAN Path to Your Router .....................................................................1 1-5

Testing the Path from Your Computer to a Remote Device ...................................11-6

Restoring the Default Configuration and Password ............ ... .... ... ... ... .... ... ... ... ... .... ... ...11-7

Problems with Date and Time .......................................................................................11-7

Appendix A Technical Specifications

Appendix B Networks, Routing, and Firewall Basics

Related Publications ...................................................................................................... B-1

Basic Router Concepts .................................................................................................. B-1

What is a Router? ................................................................................................... B-1

Routing Information Protocol ................................................................................... B-2

IP Addresses and the Internet ......................................... .... ... ... ... .... ... ... ... ... .... ... ... . B-2

Netmask .................................... ................................................................ ..............B-4

Subnet Addressing .................................................................................................. B-4

Private IP Addresses ................................. ... ... ... .......................................... ........... B-7

Single IP Address Operation Using NAT ................................................................. B-7

MAC Addresses and Address Resolution Protocol ................................................. B-9

Related Documents ................................................................................................. B-9

Contents ix

March 2004, 202-10027-01

Domain Name Server .............................................................................................. B-9

IP Configuration by DHCP ..................................................................... ... ... ......... B-10

Internet Security and Firewalls .................................................................................... B-10

What is a Firewall? .................................................................................................B-11

Stateful Packet Inspection ............................... ... .... ... ... ... .... ... ................................B-11

Denial of Service Attack .........................................................................................B-11

Ethernet Cabling ................................. ... ... .... .......................................... ... ... ... .............B-11

Category 5 Cable Quality ...................................................................................... B-12

Inside Twisted Pair Cables .................................................................................... B-13

Uplink Switches, Crossover Cables, and MDI/MDIX Switching ............................ B-14

Appendix C Preparing Your Network

Preparing Your Computers for TCP/IP Networking ......................... ... .... ... ... ... ... .... ...... . C-1

Configuring Windows 95, 98, and Me for TCP/IP Networking ....................................... C-2

Install or V erify Windows Networking Components ................................................. C-2

Enabling DHCP to Automatically Configure TCP/IP Settings ................................. C-4

Selecting Windows’ Internet Access Method ................ ......................... ........... C-4

Verifying TCP/IP Properties ....................................................................................C-5

Configuring Windows NT, 2000 or XP for IP Networking ................................. .............. C-5

Installing or Verifying Windows Networking Components ......... ... .... ... ...... ... .... ... ... . C-5

Verifying TCP/IP Properties ....................................................................................C-6

Configuring the Macintosh for TCP/IP Networking ........................................................ C-6

MacOS 8.6 or 9.x ............................... .......................................... ........................... C-6

MacOS X ...... ...................................... .... ... ... ... ... .... ... ... ....................................... ... . C-7

Verifying TCP/IP Properties for Macintosh Computers ........................................... C-8

Verifying the Readiness of Your Internet Account ......................................................... C-9

Are Login Protocols Used? ..................................................................................... C-9

What Is Your Configuration Information? ................................................................ C-9

Obtaining ISP Configuration Information for Windows Computers .......................C-10

Obtaining ISP Configuration Information for Macintosh Computers ..................... C-11

Restarting the Network ................................................................................................C-12

Appendix D Firewall Log Formats

Action List ...................................................................................................................... D-1

Field List ........................................................................................................................D-1

x Contents

March 2004, 202-10027-01

Outbound Log ..................................... .......................................... ................................. D-1

Inbound Log ...................................................................................................................D-2

Other IP Traffic ......... ... ... .... ... ... ... ....................................... ... .... ... ... ... ...........................D-2

Router Operation ........................................................................................................... D-3

Other Connections and Traffic to this Router ................................................................ D-4

DoS Attack/Scan ...........................................................................................................D-4

Access Block Site .......................................................................................................... D-6

All Web Sites and News Groups Visited ........................................................................D-6

System Admin Sessions ................................................................................................ D-6

Policy Administration LOG .............................................................................................D-7

Appendix E Wireless Networking Basics

Wireless Networking Overview .............................. ... .... ... ... ... .... ... ... ... .... ... ... ... ... .... ... .... E-1

Infrastructure Mode ................................................................................................. E-1

Ad Hoc Mode (Peer-to-Peer Workgroup) ................................................................ E-2

Network Name: Extended Service Set Identification (ESSID) ................................ E-2

Authentication and WEP Data Encryption ..................................................................... E-2

802.11 Authentication .............................................................................................. E-3

Open System Authentication .............................. .... ... ... ... .... ... ... ... .... ....................... E-3

Shared Key Authentication ...................................................................................... E-4

Overview of WEP Parameters ................................................................................ E-5

Key Size .................................................................................................................. E-6

WEP Configuration Options ............................... .... ... ... ... ........................................ E-7

Wireless Channels ....................... .... ... ... ... ..................................................................... E-7

WPA Wireless Security .................................................................................................. E-8

How Does WPA Compare to WEP? ........................................................................ E-9

How Does WPA Compare to IEEE 802.11i? ........................................................ E-10

What are the Key Features of WPA Security? ...................................................... E-10

WPA Authentication: Enterprise-level User

Authentication via 802.1x/EAP and RADIUS .................................................. E-12

WPA Data Encryption Key Management ........................................................ E-14

Is WPA Perfect? ........................................... .......................................... ............... E-16

Product Support for WPA ...................................................................................... E-16

Supporting a Mixture of WPA and WEP Wireless Clients is Discouraged ...... E-16

Changes to Wireless Access Points ............................................................... E-17

Changes to Wireless Network Adapters ......................................................... E-17

Contents xi

March 2004, 202-10027-01

Changes to Wireless Client Programs .......................... ......................... ......... E-18

Appendix F Virtual Private Networking

What is a VPN? ..............................................................................................................F-1

What is IPSec and How Does It Work? ..........................................................................F-2

IPSec Security Features ..................................................................... ... ... ... .... ... ... ..F-2

IPSec Components ................................ ... .......................................... ... ... ... ............F-2

Encapsulating Security Payload (ESP) ....................................................................F-3

Authentication Header (AH) ...................................... ... ... .... ... ... ... .... ... ... ... ... .... ... ... ..F-4

IKE Security Association ........... .......................................... ... ... ... ............................F-4

Mode ...................................... ...................... ....................... ....................... ........F-5

Key Management .....................................................................................................F-6

Understand the Process Before You Begin ....................................................................F-6

VPN Process Overview ............... .... ... ... ... .... ... ... ... ... .......................................... .... ... ... ..F-7

Network Interfaces and Addresses ..........................................................................F-7

Interface Addressing ..........................................................................................F-7

Firewalls ............................................................................................................F-8

Setting Up a VPN Tunnel Between Gateways .........................................................F-8

VPNC IKE Security Parameters ............... .... ... .............................................................F-10

VPNC IKE Phase I Parameters ..............................................................................F-10

VPNC IKE Phase II Parameters .............................................................................F-11

Testing and Troubleshooting .........................................................................................F-11

Additional Reading .......................................................... ... ... .... ... ... ... .... ... ... ... ... ..........F-11

Appendix G NETGEAR VPN Configuration FVS318 or FVM318 to FWG114P

Configuration Template ..................................................................................................G-1

Step-By-Step Configuration of FVS318 or FVM318 Gateway A ....................................G-2

Step-By-Step Configuration of FWG114P Gateway B ...................................................G-5

Test the VPN Connection ..............................................................................................G-9

Appendix H NETGEAR VPN Configuration FVS318 or FVM318 with FQDN to FVS328

Configuration Template .................................................................................................. H-1

Using DDNS and Fully Qualified Domain Names (FQDN) ..................................... H-2

Step-By-Step Configuration of FVS318 or FVM318 Gateway A .................................... H-3

xii Contents

March 2004, 202-10027-01

Step-By-Step Configuration of FVS328 Gateway B ...................................... .................H-7

Test the VPN Connection ............................................................................................ H-11

Glossary

List of Glossary Terms ...................................................................................................G-1

Index

Contents xiii

March 2004, 202-10027-01

xiv Contents

March 2004, 202-10027-01

Chapter 1

About This Manual

Congratulations on your purchase of the NETGEAR® ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P. This chapter introduces important features of this manual.

Audience, Conventions, Scope

This reference manual assumes that the reader has basic-to-intermediate computer and Internet skills. However, basic computer network, Internet, firewall, and networking technology tutorial information is provided in the appendices.

This guide uses the following typographical conventions:

Table 1. Typographical conventions

italics Emphasis, books, CDs, URL names

bold times roman User input

courier font Screen text, file and server names, extensions, commands, IP addresses

This guide uses the following formats to highlight special messages:

Note: This format is used to highlight information of importance or special interest.

This manual is written according to these specifications.

Table 1-1. Manual Specifications

Product Version ProSafe Wireless 802.11g Firewall/Print Server Model FWG1 14P v2 Firmware Version Version 2 Release 06 Manual Veraion and Publication Date Manual Version 2.0, March 2004

Note: Product updates are available on the NETGEAR, Inc. Web site at

http://kbserver.netgear.com/products/FWG114P.asp.

About This Manual 1-1

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

How to Use this Manual

The HTML version of this manual includes a variety of navigation features as well as links to PDF versions of the full manual and individual chapters.

2 3

Figure Preface -2: HTML version of this manual

1. Left pane. Use the left pane to view the Contents, Index, Search, and Favorites tabs.

To view the HTML version of the manual, you must have a version 4 or later IE or Netscape browser with JavaScript enabled.

2. Toolbar buttons. Use the toolbar buttons across the top to navigate, print pages, and more.

The Show in Contents button locates the current topic in the Contents tab.

Previous/Next buttons display the previous or next topic.

The PDF button links to a PDF version of the full manual.

The Print button prints the current topic. Using this button when a step-by-step procedure is displayed will send the entire procedure to your printer. You do not have to worry about specifying the correct range of pages.

3. Right pane. Use the right pane to view the contents of the manual. Also, each page of the

manual includes a link at the top right which links to a PDF file containing just the currently selected chapter of the manual.

1-2 About This Manual

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

How to Print this Manual

To print this manual you may choose one of the following options, according to your needs:

• Printing a “How To” Sequence of Steps in the HTML View. Use the Print button on

the upper right of the toolbar to print the currently displayed topic. Using this button when a step-by-step procedure is displayed will send the entire procedure to your printer. You do not have to worry about specifying the correct range of pages.

• Printing a Chapter. Use the link at the top right of any page.

– Click the “PDF of This Chapter” link at the top right of any page in the chapter you want

to print. The PDF version of the chapter you were viewing opens in a browser window. Note: Your computer must have the free Adobe Acrobat reader installed in order to view

and print PDF files. The Acrobat reader is available on the Adobe Web site at

http://www.adobe.com.

– Click the print icon in the upper left of the window.

Tip: If your printer supports printing two pages on a single sheet of paper, you can save paper and printer ink by selecting this feature.

• Printing the Full Manual. Use the PDF button in the toolbar at the top right of the browser

window. – Click the PDF button on the upper right of the toolbar. The PDF version of the

chapter you were viewing opens in a browser window.

– Click the print icon in the upper left of the window.

Tip: If your printer supports printing two pages on a single sheet of paper, you can save paper and printer ink by selecting this feature.

About This Manual 1-3

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

1-4 About This Manual

March 2004, 202-10027-01

Chapter 2

Introduction

This chapter describes the features of the NETGEAR ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P.

Key Features of the FWG114P

The ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P, with a 4-port switch, connects your LAN to the Internet through a broadband modem. With auto fail-over connectivity through the serial port, the FWG114P provides highly reliable Internet access.

The FWG114P is a complete security solution that protects your network from attacks and intrusions and enables secure communications using Virtual Private Networks (VPNs). Unlike simple Internet sharing routers that rely on Network Address Translation (NAT) for security, the FWG114P uses Stateful Packet Inspection for Denial of Service attack (DoS) attack protection and intrusion detection. The FWG114P allows Internet access for up to 253 users. It provides multiple Web content filtering options, plus browsing activity reporting and instant alerts via e-mail. Parents or network administrators can establish restricted access policies based on time-of-day, Web site addresses and address keywords, and share high-speed cable/DSL Internet access for up to 253 personal computers.

With minimum setup, you can install and use the router within minutes. The FWG114P Wireless Firewall/Print Server provides the following features:

• 802.11g and 802.11b standards-based wireless networking.

• Easy, Web-based setup for installation and management.

• Supports two VPN tunnels, Content Filtering, and Site Blocking Security.

• Built-in 4-port 10/100 Mbps Switch and USB 2.0 Printer Port.

• Ethernet and Serial ports for connection to a WAN device, such as a broadband modem.

• Extensive Protocol Support.

• Login capability.

• Front panel LEDs for easy monitoring of status and activity.

• Flash memory for firmware upgrade.

• NAT off (classical routing).

Introduction 2-1

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Full Routing on Both the Broadband and Serial Ports

You can install, configure, and operate the FWG114P to take full advantage of a variety of routing options on both the serial and broadband WAN ports, including:

• Internet access via either the serial or broadband port.

• Auto fail-over connectivity through an analog or ISDN modem connected to the serial port. If the broadband Internet connection fails, after waiting for an amount of time you specify , the FWG114P can automatically establish a backup ISDN or dial-up Internet connection via the serial port on the firewall.

• Remote Access Server (RAS) that allows you to log in remotely through the serial port to access a server on your LAN, other LAN resources, or the Internet, based on a user name and password you define.

• LAN-to-LAN access between two FWG114P wireless firewall/print servers through the serial port, with the option of enabling auto-failover Internet access across the serial LAN-to-LAN connection.

802.11g and 802.11b Wireless Networking

The FWG114P Wireless Firewall/Print Server includes an 802.11g-compliant wireless access point. The access point provides:

• 802.11b standards-based wireless networking at up to 11 Mbps.

• 802.11g wireless networking at up to 54 Mbps, which conforms to the 802.11g standard.

• WPA enterprise class strong security with RADIUS and certificate authentication as well as dynamic encryption key generation.

• WPA-PSK pre-shared key authentication without the overhead of RADIUS servers but with all of the strong security of WPA.

• 64-bit and 128-bit WEP encryption security.

• WEP keys can be generated manually or by passphrase.

• Wireless access can be restricted by MAC Address.

• Wireless network name broadcast can be turned off so that only devices that have the network name (SSID) can connect.

2-2 Introduction

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Virtual Private Networking

The FWG114P Wireless Firewall/Print Server provides a secure encrypted connection between your local network and remote networks or clients. Its VPN features include:

• Support for up to 2 simultaneous VPN connections.

• Support for industry standard VPN protocols. The ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P supports standard

keying methods (Manual or IKE), standard authentication methods (MD5 and SHA-1), and standard encryption methods (DES, 3DES). It is compatible with many other VPN products.

• Support for up to 168 bit encryption (3DES) for maximum security.

• Support for VPN Main Mode, Aggressive mode, or Manual Keying.

• Support for Fully Qualified Domain Name (FQDN) configuration when the Dynamic DNS feature is enabled with one of the supported service providers.

A Powerful, True Firewall with Content Filtering

Unlike simple Internet sharing NAT routers, the FWG114P is a true firewall, using stateful packet inspection to defend against hacker attacks. Its firewall features include:

• DoS protection. Automatically detects and thwarts DoS attacks, such as Ping of Death, SYN Flood, LAND

Attack, and IP Spoofing.

• Blocks unwanted traffic from the Internet to your LAN.

• Blocks access from your LAN to Internet locations or services that you specify as off-limits.

• Logs security incidents. The FWG114P will log security events, such as blocked incoming traffic, port scans, attacks,

and administrator logins. You can configure the router to e-mail the log to you at specified intervals. You can also configure the router to send immediate alert messa ges to your e-mail address or e-mail pager whenever a significant event occurs.

• With its content filtering feature, the FWG114P prevents objectionable content from reaching your PCs. The router allows you to control access to Internet content by screening for keywords within Web addresses. You can configure the router to log and report attempts to access objectionable Internet sites.

Introduction 2-3

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Security

The FWG114P Wireless Firewall/Print Server is equipped with several features designed to maintain security, as described in this section:

• PCs hidden by NAT. NAT opens a temporary path to the Internet for requests originating from the local network.

Requests originating from outside the LAN are discarded, preventing users outside the LAN from finding and directly accessing the PCs on the LAN.

• Port forwarding with NAT. Although NAT prevents Internet locations from directly accessing the PCs on the LAN, the

router allows you to direct incoming traffic to specific PCs based on the service port number of the incoming request, or to one designated “DNS” host computer. You can specify forwarding of single ports or ranges of ports.

Autosensing Ethernet Connections with Auto Uplink

With its internal 8-port 10/100 switch, the FWG114P can connect to either a 10 Mbps standard Ethernet network or a 100 Mbps Fast Ethernet network. Both the LAN and WAN interfaces are autosensing and capable of full-duplex or half-duplex operation.

The router incorporates Auto Uplink whether the Ethernet cable plugged into the port should have a ‘normal’ connection, such as to a computer, or an ‘uplink’ connection, such as to a switch or hub. That port will then configure itself to the correct configuration. This feature also eliminates the need to worry about crossover cables, as Auto Uplink will accommodate either type of cable to make the right connection.

technology. Each Ethernet port will automatically sense

Extensive Protocol Support

The FWG114P W ireless Firewall/Print Server supports the Transmission Control Protocol/Internet Protocol (TCP/IP) and Routing Information Protocol (RIP). For further information about TCP/IP, refer to Appendix B, “Network, Routing, and Firewall Basics.”

2-4 Introduction

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

• The ability to enable or disable IP address sharing by NAT. The FWG114P allows several networked PCs to share an Internet account using only a single

IP address, which may be statically or dynamically assigned by your Internet service provider (ISP). This technique, known as NAT, allows the use of an inexpensive single-user ISP account. This feature can also be turned off completely for using the FWG114P in settings where you want to manage the IP address scheme of your organization.

• Automatic configuration of attached PCs by DHCP. The FWG114P Wireless Firewall/Print Server dynamically assigns network configuration

information, including IP, gateway, and domain name server (DNS) addresses, to attached PCs on the LAN using the Dynamic Host Configuration Protocol (DHCP). This feature greatly simplifies configuration of PCs on your local network .

• DNS Proxy. When DHCP is enabled and no DNS addresses are specified, the router provides its own

address as a DNS server to the attached PCs. The router obtains actual DNS addresses from the ISP during connection setup and forwards DNS requests from the LAN.

• PPP over Ethernet (PPPoE). PPPoE is a protocol for connecting remote hosts to the Internet over a DSL connection by

simulating a dial-up connection. This feature eliminates the need to run a login program, such as Entersys or WinPOET on your computer.

• PPTP login support for European ISPs, BigPond login for Telstra cable in Australia.

• Classical IP (RFC 1577). Some Internet service providers, in Europe for example, use Classical IP in their ADSL

services. In such cases, the firewall is able to use the Classical IP address from the ISP.

Easy Installation and Management

You can install, configure, and operate the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P within minutes after connecting it to the network. The following features simplify installation and management tasks:

• Automatic fail-over connectivity through an analog or ISDN modem connected to the serial port. If the broadband modem Internet connection fails, after waiting for an amount of time you specify, the FWG114P can automatically establish a backup ISDN or dial-up Internet connection via the serial port on the firewall.

Introduction 2-5

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

• Browser-based management. Browser-based configuration allows you to easily configure your router from almost any type

of personal computer, such as Windows, Macintosh, or Linux. A user-friendly Setup Wizard is provided and online help documentation is built into the browser-based Web Management Interface.

• Smart Wizard. The FWG114P Wireless Firewall/Print Server automatically senses the type of Internet

connection, asking you only for the information required for your type of ISP account.

• Diagnostic functions. The firewall incorporates built-in diagnostic functions, such as Ping, DNS lookup, and remote

reboot.

• Remote management. The firewall allows you to log in to the Web Management Interface from a remote location on

the Internet. For security, you can limit remote management access to a specified remote IP address or range of addresses, and you can choose a nonstandard port number.

• Visual monitoring. The FWG114P Wireless Firewall/Print Server’s front panel LEDs provide an easy way to

monitor its status and activity .

• Regional support, including ISPs like Telstra DSL and BigPond, or Deutsche Telekom.

• Flash memory for firmware upgrades.

Package Contents

The product package should contain the following items:

• ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P.

•AC power adapter.

• Category 5 (Cat 5) Ethernet cable.

• FWG114P Installation Guide (M-10150-02).

• Resource CD for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P (SW-10023-02), including:

— This manual. — Application Notes and other helpful information.

• Registration and Warranty Card.

If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the carton, including the original packing materials, in case you need to return the router for repair.

2-6 Introduction

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

The FWG114P Front Panel

The front panel of the FWG114P contains the status LEDs. Use the LEDs to verify various operations. Viewed from left to right, Table 2-1 describes the LEDs on the front of the router.

Broadband

ProSafe 802.11g Wireless Firewall/Print Server

ACT

PWR

TEST

ALERT

PRINTER MODEM IN TERNET LOCAL WLAN

100

LINK

1234

LNK/ACT

Figure 2-1: FWG114P Front Panel Table 2-1. LED Descriptions

Label Activity Description

POWER On Power is supplied to the firewall. TEST On

Off

PRINTER

ACT On

Blinking

ALERT On (Amber) The printer has a problem, such as out of paper, out of ink, or a

The system is initializing. The system is ready and running.

The printer is connected and powered on. Data is being transmitted or received by the Printer port.

paper jam.

100

LNK/ACT

MODEL

FWG114P

MODEM

ACT Blinking Data is being transmitted or received by the Modem port. LINK On (Amber) The port has detected a link with an attached device.

INTERNET Note: The operation of these LEDs depends on how the WAN port is configured.

100 (100 Mbps) On

Off

LINK/ACT (Link/Activity)

On Blinking

The Internet (WAN) port is operating at 100 Mbps. The Internet (WAN) port is operating at 10 Mbps.

The Internet port has detected a link with an attached device. Data is being transmitted or received by the Internet port.

LOCAL

100 (100 Mbps) On

Off

LINK/ACT (Link/Activity)

On Blinking

WLAN On

Blinking

The Local port is operating at 100 Mbps. The Local port is operating at 10 Mbps.

The Local port has detected a link with an attached device. The Local port is transmitting or receiving data.

The Wireless (WLAN) port is operating. The Wireless (WLAN) port is transmitting or receiving data.

Introduction 2-7

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

The FWG114P Rear Panel

The rear panel of the FWG114P W ireless Firewall/Print Server contains the port connections listed below.

LOCA L

MODEM

USB

10/100M

4321

INTERNET

12VDC, 1.0A

Figure 1-2: FWG114P Rear Panel

Viewed from left to right, the rear panel contains the following features:

• Wireless antenna.

• DB-9 serial port for modem connection.

• USB 2.0 Printer Port.

• Factory Default Reset push button.

• Four Ethernet LAN ports.

• Internet Ethernet WAN port for connecting the router to a broadband modem.

• AC power adapter outlet.

2-8 Introduction

March 2004, 202-10027-01

Chapter 3

Connecting the FWG114P to the Internet

This chapter describes how to set up the router on your local area network (LAN) and connect to the Internet. You will find out how to configure your ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P for Internet access using the Setup Wizard, or how to manually configure your Internet connection.

What You Will Need Before You Begin

You need to prepare these three things before you begin:

1. An active Internet service, such as those provided by a cable or DSL broadband account.

2. Locate the Internet Service Provider (ISP) configuration information for your broadband

account.

3. Connect the router to a broadband modem and a computer as explained below.

Cabling and Computer Hardware Requirements

To use the FWG114P Wireless Firewall/Print Server on your network, each computer must have an installed Ethernet Network Interface Card (NIC) and an Ethernet cable. If the computer will connect to your network at 100 Mbps, you must use a Category 5 (CAT5) cable, such as the one provided with your router.

Computer Network Configuration Requirements

The FWG114P includes a built -in Web Configuration Manager. To access the configuration menus on the FWG114P, you must use a Java-enabled Web browser program that supports HTTP uploads, such as Microsoft Internet Explorer or Netscape Navigator. Use Internet Explorer or Netscape Navigator versions 4.0 or above. Free browser programs are readily available for Windows, Macintosh, or UNIX/Linux.

Connecting the FWG114P to the Internet 3-1

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

For the initial connection to the Internet and configuration of your router, you will need to connect a computer to the router that is set to automatically get its TCP/IP configuration from the router via DHCP.

Note: For help with DHCP configuration, please refer to Appendix C, “Preparing Your Network.”

The cable or DSL modem broadband access device must provide a standard 10 Mbps (10BASE-T) Ethernet interface.

Internet Configuration Requirements

Depending on how your ISP set up your Internet account, you might need one or more of these configuration parameters to connect your router to the Internet:

• Host and Domain Names.

• ISP login name and password.

• ISP Domain Name Server (DNS) Addresses.

• Fixed IP address which is also known as static IP address.

Where Do I Get the Internet Configuration Parameters?

There are several ways you can gather the required Internet connection information:

• Your ISP provides all the information needed to connect to the Internet. If you cannot locate this information, you can ask your ISP to provide it or you can try one of the options below.

• If you have a computer already connected using the active Internet access account, you can gather the configuration information from that computer.

— For Windows 95/98/ME, open the Network control panel, select the TCP/IP entry for the

Ethernet adapter, and click Properties. Record all the settings for each tab page.

— For Windows 200 0/XP, open the Local Area Network Connection, select the TCP/IP entry

for the Ethernet adapter, and click Properties. Record all the settings for each tab page.

— For Macintosh computers, open the TCP/IP or Network control panel. Record all the

settings for each section.

•You may also refer to the FWG114P Resour ce CD for the NETGEAR Router ISP Guide which provides Internet connection information for many ISPs.

Once you locate your Internet configuration parameters, you may want to record them on the following form:

3-2 Connecting the FWG114P to the Internet

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Record Yo ur Internet Connection Information

Print this page. Fill in the configuration parameters from your Internet Service Provider (ISP). ISP Login Name: The login name and password are case sensitive and must be entered exactly as

given by your ISP. For AOL customers, the login name is their primary screen name. Some ISPs use your full e-mail address as the login name. The Service Name is not required by all ISPs. If you connect using a login name and password, then fill in the following:

Password: __________________________ __

Service Name: _____________________________ Fixed or Static IP Address: If you have a static IP address, record the following information. For

example, 169.254.141.148 could be a valid IP address. Fixed or Static Internet IP Address: ______

.______.______.______ Gateway IP Address: ______.______.______.______ Subnet Mask: ______.______.______.______

ISP DNS Server Addresses: If you were given DNS server addresses, fill in the following: Primary DNS Server IP Address: ______

.______.______.______

Secondary DNS Server IP Address: ______.______.______.______ Host and Domain Names: Some ISPs use a specific host or domain name like CCA7324-A or

home. If you have not been given host or domain names, you can use the following examples as a

guide:

• If your main e-mail account with your ISP is

aaa@yyy.com, then use aaa as your host name.

Your ISP might call this your account, user, host, computer, or system name.

• If your ISP’s mail server is ISP Host Name: _________________________

mail.xxx.yyy.com, then use xxx.yyy.com as the domain name.

ISP Domain Name: _______________________

Serial Port Internet Access: If you use a dial-up account, record the following: Account/User Name: _________________________ Telephone number: ______________________

Connecting the FWG114P to the Internet 3-3

March 2004, 202-10027-01

Password: _________________________

Alternative number: ______________________

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Connecting the FWG114P Wireless Firewall/Print Server

This section provides instructions for connecting the FWG114P Wireless Firewall/Print Server. Also, the Resource CD for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P (SW-10023-02), includ ed with yo ur ro uter, contains an animated Installation Assistant to help you through this procedure.

Verify That Basic Requirements Are Met

Assure that the following requirements are met:

• You have your broadband Internet service settings handy.

• The computer is configured to obtain an IP address automatically via DHCP. For instructions

on how to do this, please see the Reference Manual on the Resource CD for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P (SW-10023-02).

1. CONNECT THE WIRELESS FIREWALL/PRINT SERVER

a. Turn off your computer and cable or DSL modem. b. Disconnect the Ethernet cable (A) from your computer which connects to the broadband

modem.

Disconnect

from

computer

Figure 3-1: Disconnect the broadband modem

3-4 Connecting the FWG114P to the Internet

&DEOHRU'6/PRGHP

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Securely insert the Ethernet cable from your broadband modem into the Internet port (B)

on the FWG114P.

Internet Port

LOCAL

10/100M

USB

4321

MODEM

Broadband modem

Figure 3-2: Connect the broadband modem to the router

Securely insert one end of the Ethernet cable that came with your wireless firewall/print server into a Local port on the router, such as Local port 4 (C), and the other end into the Ethernet port of your computer (D).

INTERNET

12VDC, 1.0A

Local Port 4

USB

MODEM

Broadband modem

LOCAL

10/100M

4321

INTERNET

12VDC, 1.0A

Figure 3-3: Connect the computers on your network to the router

Note: The FWG114P incorporates Auto UplinkTM technology which eliminates the need to worry about crossover cables by automatically adjusting to the cable type.

Connecting the FWG114P to the Internet 3-5

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

RESTART YOUR NETWORK IN THE CORRECT SEQUENCE

Warning: Failure to restart your network in the correct sequence could prevent you from

connecting to the Internet.

a. First, turn on the broadband modem and wait 2 minutes. b. Now, turn on your wireless firewall/print server. c. Last, turn on your computer.

Note: If software usually logs you in to the Internet, do not run that software, or cancel it if it starts automatically.

Broadband

ProSafe 802.11g Wireless Firewall/Print Server

PWR

TEST

PRINTER MODEM INTERNET LOCAL WLAN

Power Test

ACT

LINK

ALERT

Internet Port

100

1234

LNK/ACT

MODEL

FWG114P

100

LNK/ACT

Local Port 4

Figure 3-4: Verify the connections to the firewall

Check the status lights and verify the following:

• Power: The power light goes on when your turn the wireless firewall/print server on.

• Test: The test light turns on, then goes off after less than a minute.

• Local: A Local light on the router is lit. If no Local lights are lit, check that the Ethernet cable connecting the powered on computer to the router is securely attached at both ends.

• Internet: The Internet light on the wireless firewall/print server is lit. If the Internet light is not lit, make sure the Ethernet cable is securely attached to the wireless firewall/print server Internet port and the powered on modem.

3-6 Connecting the FWG114P to the Internet

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

a. From your PC, launch your Internet browser. Because you are not yet connected to the

Internet, your browser will display a page not found message.

b. Connect to the wireless firewall/print server by typing http://192.168.0.1 in the address

field of Internet Explorer or Netscape

Figure 3-5: Log in to the firewall

Enter admin for the router user name and password for the router password, both in

Navigator.

lower case letters.A login window opens as shown here:

Figure 3-6: Login window

After logging in to the router, you will see the Internet connection Setup Wizard on the settings main page.

Connecting the FWG114P to the Internet 3-7

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

4. RUN THE SETUP WIZARD TO CONNECT TO THE INTERNET

Figure 3-7: Setup Wizard

You are now connected to the router. If you do not see the menu above, click the Setup Wizard link on the upper left of the main menu.

b. Choose NAT or Classical Routing. Typically, NAT is used. NAT automatically assigns

private IP addresses (192.168.0.x) to LAN connected devices. Classical routing lets you directly manage the IP addresses the FWG114P uses.

Note: If you choose not to use NAT, each computer on the LAN connected to the FWG114P must have a valid public IP address in the same subnet as the Wan port of the FWG114P. For more information on NAT, please see “Single IP Add ress Operation Usin g

NAT” on page B-7. Furthermore, if you turn NAT off and plan to use VPN, you will have

to open UDP port 500 in the Security settings according to the instructions at

c. Click Next to proceed. Input your ISP settings, as needed. d. At the end of the Setup Wizard, click the Test button to verify your Internet connection

and register your product. If you have trouble connecting to the Internet, use the Troubleshooting Tips below to correct basic problems, or refer to the Reference Manual on the CD.

If you were unable to connect to the firewall, please refer to Basic Functioning “Basic

Functioning” on page 11-1.

You are now connected to the Internet! Note: For wireless placement and range guidelines, and wireless configuration instructions, please

see Chapter 4, “Wireless Configuration.”

3-8 Connecting the FWG114P to the Internet

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Basic Setup Troubleshooting Tips

Here are some tips for correcting simple problems that prevent with you from connecting to the Internet or connecting to the wireless firewall/print server.

Be sure to restart your network in the correct sequence.

Follow this sequence. Turn off the modem, wireless firewall/print server, and computer. Turn on the modem first and wait two minutes. Next, turn on the wireless firewall/print server, and finally the computer.

Make sure the Ethernet cables are securely plugged in.

• For each powered on computer connected to the wireless firewall/print server with a securely plugged in Ethernet cable, the corresponding wireless firewall/print server Local port status light will be lit. The label on the bottom of the wireless firewall/print server identifies the number of each Local port.

• The Internet port status light on the wireless firewall/print server will be lit if the Ethernet cable from the wireless firewall/print server to the modem is plugged in securely and the modem and wireless firewall/print server are turned on.

Make sure the network settings of the computer are correct.

LAN connected computers must be configured to obtain an IP address automatically via DHCP, unless you have turned NAT off and are managing the IP addresses directly. For instructions on these configuration settings, please see the Reference Manu al on the Resource CD for the ProSafe Wire less 802.11g Firewall/Print Server Model FWG114P (SW-10023-02).

FWG114P Setup Wizard Auto Detection

There are two ways you can configure your firewall to connect to the Internet:

• Let the FWG114P auto-detect the type of Internet connection you have and configure it.

• Manually choose which type of Internet connection you have and configure it.

These options are described below. Unless your ISP uses DHCP, you will need the parameters from your ISP you entered in “Record Your Internet Connection Information” on page 3.

The Setup Wizard will can check for the following connection types:

• Dynamic IP assignment

• A login protocol, such as PPPoE

Connecting the FWG114P to the Internet 3-9

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

• Fixed IP address assignment Next, the Setup Wizard will report which connection type it has discovered, and then display

the appropriate configuration menu. If the Setup Wizard finds no connection, you will be prompted to check the physical connection between your firewall and the cable or DSL modem. When the connection is properly made, the firewall’s Internet LED should be on.

The procedures for filling in the configuration menu for each type of connection follow below.

Wizard-Detected Login Account Setup

If the Setup Wizard determines that your Internet service account uses a login protocol, such as PPP over Ethernet (PPPoE), you will be directed to a menu like the PPPoE menu in Figure 3-8:

Figure 3-8: Setup Wizard menu for PPPoE login accounts

Enter your Account Name (may also be called Host Name) and Domain Name. These parameters may be necessary to access your ISP’s services, such as mail or news servers. If you leave the Domain Name field blank, the firewall will attempt to learn the domain automatically from the ISP. If this is not successful, you may need to enter it manually.

2. Enter the PPPoE login user name and password provided by your ISP. These fields are case

sensitive. If you wish to change the idle timeout, enter a new value in minutes.

3-10 Connecting the FWG114P to the Internet

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Note: You will no longer need to launch the ISP’s login program on your computer in order to access the Internet. When you start an Internet application, your firewall will automatically log you in.

3. The Idle Timeout setting determines how long to wait after there is no activity before

disconnecting from the Internet. This is useful in countries where Internet service charges are based on the amount of time connected to the Internet. Whenever a computer on the network requests access to the Internet the FWG114P will automatically reconnect.

4. Domain Name Server (DNS) Address: If you know that your ISP does not automatically

transmit DNS addresses to the firewall during login, select “Use these DNS servers” and enter the IP address of your ISP’s Primary DNS Server. If a Secondary DNS Server address is available, enter it also.

Note: If you enter an address here, after you finish configuring the firewall, reboot your PCs so that the settings take effect.

5. Click Apply to save your settings.

6. Click Test to test your Internet connection. If the NETGEAR Web site does not appear within

one minute, refer to Chapter 11, “Troubleshooting”.

Connecting the FWG114P to the Internet 3-11

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Wizard-Detected Dynamic IP Account Setup

If the Setup Wizard determines that your Internet service account uses Dynamic IP assignment, you will be directed to the menu shown in Figure 3-9 below:

Figure 3-9: Setup Wizard menu for Dynamic IP address

2. If you know that your ISP does not automatically transmit DNS addresses to the firewall

during login, select “Use these DNS servers” and enter the IP address of your ISP’s Primary DNS Server. If a Secondary DNS Server address is available, enter it also.

Note: DNS servers are required to perform the function of translating an Internet name, such as www.netgear.com to a numeric IP address. For a fixed IP address configuration, you must obtain DNS server addresses from your ISP and enter them manually here. Y ou should reboot your PCs after configuring the firewall for these settings to take effect.

3. The Router’s MAC Address is the Ethernet MAC address that will be used by the firewall on

the Internet port.

3-12 Connecting the FWG114P to the Internet

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

If your ISP allows access from only one specific computer’s Ethernet MAC address, select “Use this MAC address.” The firewall will then capture and use the MAC address of the computer that you are now using. You must be using the one computer that is allowed by the ISP. Otherwise, you can type in a MAC address.

Note: Some ISPs will register the Ethernet MAC address of the network interface card in your computer when your account is first opened. They will then only accept traffic from the MAC address of that computer. This feature allows your firewall to masquerade as that computer by using its MAC address.

4. Click Apply to save your settings.

5. Click Test to test your Internet connection. If the NETGEAR Web site does not appear within

one minute, refer to Chapter 11, “Troubleshooting”.

Wizard-Detected Fixed IP Account Setup

If the Setup Wizard determines that your Internet service account uses Fixed IP assignment, you will be directed to the menu shown in Figure 3-10 below:

Figure 3-10: Setup Wizard menu for Fixed IP address

Connecting the FWG114P to the Internet 3-13

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Enter your assigned IP Address, Subnet Mask, and the IP Address of your ISP’s gateway

router. This information should have been provided to you by your ISP. You will need the configuration parameters from your ISP you recorded in “Record Your Internet Connection Information” on page 3.

2. Enter the IP address of your ISP’s Primary DNS Server. If a Secondary DNS Server address is

available, enter it also. Note: DNS servers are required to perform the function of translating an Internet name, such

as www.netgear.com to a numeric IP address. For a fixed IP address configuration, you must obtain DNS server addresses from your ISP and enter them manually here. Y ou should reboot your PCs after configuring the firewall for these settings to take effect.

3. Click Apply to save the settings.

4. Click Test to test your Internet connection. If the NETGEAR Web site does not appear within

one minute, refer to Chapter 11, “Troubleshooting.

How to Configure the Serial Port as the Primary Internet Connection

Use the procedure below to configure an Internet connection via the serial port of your firewall. There are three steps to configuring the serial port of your firewall for an Internet connection:

1. Connect the firewall to your ISDN or dial-up analog modem.

2. Configure the firewall.

3. Connect to the Internet.

Follow the steps below to configure a serial port Internet connection on your firewall.

1. Connect the Firewall to your ISDN or dial-up modem a. Turn off your modem and connect the cable from the serial port of the FWG114P to the

modem.

b. Turn on the modem and wait about 30 seconds for the lights to stop blinking.

2. Configure the Serial Port of the Firewall. a. Use a browser to log in to the firewall at http://192.168.0.1 with its default User Name of

admin and default Password of password, or using whatever Password you have set up.

b. From the Setup Basic Settings menu, click Serial Port.

3-14 Connecting the FWG114P to the Internet

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Figure 3-11: Serial Internet Connection configuration menu

Fill in the ISDN or analog ISP Internet configuration parameters as appropriate:

• For a Dial-up Account, enter the Account information. Check “Connect as required” to enable the firewall to automatically dial the number. To enable Idle Time disconnect, check the box and enter a time in minutes.

• To configure the Internet IP settings, fill in the address parameters your ISP provided.

d. Configure the Modem parameters.

Connecting the FWG114P to the Internet 3-15

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Note: You can validate modem string settings by first connecting the modem directly to a computer, establishing a connection to your ISP, and then copying the modem string settings from the computer configuration and pasting them into the FWG114P Modem Properties Initial String field. For more information on this procedure, please refer to the support area of the NETGEAR Web site.

• Select the Serial Line Speed. This is the maximum speed the modem will attempt to use. For ISDN permanent connections, the speeds are typically 64000 or 128000 bps. For dial-up modems, 56000 bps would be a typical setting.

• Select the Modem Type: – For ISDN, select “Permanent connection (leased line).” – For dial-up, select your modem from the list. “Standard Modem” should work in

most cases.

– If your modem is not on the list, select “User Defined” and enter the Modem

Properties.

Note: If you are using the “User Defined” Modem Type, you must first use the Serial Port menu Modem link to fill in the Modem Properties settings for your modem.

e. Click Apply to save your settings.

3. Connect to the Internet to test your configuration.

a. If you have a broadband connection, disconnect it. b. From a workstation, open a browser and test your serial port Internet connection.

Note: The response time of your serial port Internet connection will be slower than a broadband Internet connection.

Testing Your Internet Connection

After completing the Internet connection configuration, your can test your Internet connection. Log in to the firewall, then, from the Setup Basic Settings link, click the Test button. If the NETGEAR Web site does not appear within one minute, refer to Chapter 11, “Troubleshooting.”

Note: Popup blocking software may block the test page from opening. Alternately, you can just

open a new browser window and browse the Internet. To access the Internet from any computer connected to your firewall, launch a browser, such as

Microsoft Internet Explorer or Netscape Navigator. You should see the firewall’s Internet LED blink, indicating communication to the ISP. The browser should begin to display a Web page.

3-16 Connecting the FWG114P to the Internet

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Manually Configuring Your Internet Connection

You can manually configure your firewall using the menu below, or you can allow the Setup Wizard to determine your configuration as described in the previous section.

ISP Does Not Require Login

ISP Does Require Login

Figure 3-12: Browser-based configuration Basic Settings menu

Connecting the FWG114P to the Internet 3-17

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

How to Manually Configure the Primary Internet Connection

Use these steps to manually configure the primary Internet connection in the Basic Settings menu.

1. Select your Internet connection type (broadband with or without login, or serial).

Note: If you are a Telstra BigPond broadband customer, or if you are in an area, such as Austria that uses broadband PPTP, login is required. If so, select BigPond or PPTP from the Internet Service Type drop down box.

2. Enter your Account Name (may also be called Host Name) and Domain Name. These

parameters may be necessary to access your ISP’s services, such as mail or news servers.

3. If needed, enter the PPPoE login user name and password provided by your ISP. These fields

are case sensitive. To change the login timeout, enter a new value in minutes. Note: You will no longer need to run the ISP’s login program on your computer in order to

access the Internet. When you start an Internet application, your firewall automatically logs you in.

4. You should only disable NAT if you are sure you do not require it. NAT automatically assigns

private IP addresses (for example, 192.168.0.x) to LAN connected devices. When NAT is disabled, only standard routing is performed by this router.

Note: Disabling NAT will reboot the router and reset all the FWG114P configuration settings to the factory default. Disable NAT only if you plan to install the FWG114P in a setting where you will be manually administering the IP address space on the LAN side of the router.

5. Internet IP Address: If your ISP assigned you a permanent, fixed IP address for your computer,

select “Use Static IP Address.” Enter the IP address your ISP assigned. Also enter the IP Subnet Mask and the Gateway IP address. The Gateway is the ISP’s router to which your firewall will connect.

6. Domain Name Server (DNS) Address: If your ISP does not automatically transmit DNS

addresses to the firewall during login, select “Use These DNS Servers” and enter the IP address of your ISP’s Primary DNS Server. If a Secondary DNS Server address is availa ble, enter it.

Note: A DNS server is a host on the Internet that translates Internet names (such as www .netgear.com) to numeric IP addresses. Typically your ISP transfers the IP address of one or two DNS servers to your firewall during login. If the ISP does not transfer an address, you must obtain it from the ISP and enter it manually here. If you enter an address here, you should reboot your PCs after configuring the firewall.

3-18 Connecting the FWG114P to the Internet

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Router’s MAC Address: This section determines the Ethernet MAC address that will be used

by the firewall on the Internet port. Some ISPs will register the Ethernet MAC address of the network interface card in your computer when your account is first opened. They will then only accept traffic from the MAC address of that computer. This feature allows your firewall to masquerade as that computer by “cloning” its MAC address. To change the MAC address, select “Use This Computer’s MAC Address.” The firewall will then capture and use the MAC address of the computer that you are now using. You must be using the one computer that is allowed by the ISP. Or, select “Use This MAC Address” and enter it.

8. Click Apply to save your settings.

9. Click Test to test your Internet connection. If the NETGEAR Web site does not appear within

one minute, refer to Chapter 11, “Troubleshooting.”

The remaining chapters in this manual describe how to configure the Advanced features of your firewall, and how to troubleshoot problems that may occur.

Connecting the FWG114P to the Internet 3-19

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

3-20 Connecting the FWG114P to the Internet

March 2004, 202-10027-01

Chapter 4

Wireless Configuration

This chapter describes how to configure the wireless features of your FWG114P Wireless Firewall/Print Server.

Observing Performance, Placement, and Range Guidelines

In planning your wireless network, you should consider the level of security required. You should also select the physical placement of your FWG114P in order to maximize the network speed. For further information on wireless networking, refer to in Appendix E, “Wireless Networking

Basics.”

Note: Failure to follow these guidelines can result in significant performance

degradation or inability to wirelessly connect to the wireless firewall/print server. For complete range and performance specifications, please see Appendix A, “Technical

Specifications.”

The operating distance or range of your wireless connection can vary significantly bas ed on the physical placement of the FWG114P Wireless Firewall/Print Server. The latency, data throughput performance, and notebook power consumption also vary depending on your configuration choices. For best results, place your wireless firewall/print server:

• Near the center of the area in which your PCs will operate.

• In an elevated location, such as a high shelf where the wirelessly connected PCs have line-of-sight access (even if through walls). The best location is elevated, such as wall mounted or on the top of a cubicle, and at the center of your wireless coverage area for all the mobile devices.

• Away from sources of interference, such as PCs, microwaves, and 2.4 GHz cordless phones.

• Away from large metal surfaces.

Be aware that the time it takes to establish a wireless connection can vary depending on both your security settings and placement. WEP connections can take slightly longer to establish. Also, WEP encryption can consume more battery power on a notebook computer.

Wireless Configuration 4-1

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Implementing Appropriate Wireless Security

Note: Indoors, computers can connect to wireless networks at ranges of 300 feet or

more. Such distances allow others outside of your area to access your network.

Unlike wired network data, your wireless data transmissions can extend beyond your walls and can be received by anyone with a compatible adapter. For this reason, use the security features of your wireless equipment. The FWG114P Wireless Firewall/Print Server provides highly effective security features which are covered in detail in this chapter.

:LUHOHVV'DWD 6HFXULW\2SWLRQV

5DGLXV8SWR)HHW

.O3ECURITY%ASYBUTNOSECURITY

Á?aM?a

+Á.?wjËoåÔ±¤¤~Ë8ÁjjÄÄËÁjÝ?Ê+ÁÍË.jÁÜjÁ

$&7



3:5

7(67

$/(57

/1.$&7

02).4%2 -/$%- ).4%2.%4 ,/#!, 7,!.

FWG114P



#

8¤¤|+



/1.$&7

-!#!CCESS,IST.ODATASECURITY 7%03ECURITYBUTSOME PERFORMANCEIMPACT 70!OR70!03+6ERYSTRONGSECURITY

Figure 4-1: FWG114P wireless data security options

There are several ways you can enhance the security of your wireless network:

• Restrict Access Based on MAC Address. You can allow only trusted PCs to connect so that unknown PCs cannot wirelessly connect to the FWG114P. Restricting access by MAC address adds an obstacle against unwanted access to your network, but the data broadcast over the wireless link is fully exposed.

• Tu rn Off the Broadcast of the Wireless Network Name SSID. If you disable broadcast of the SSID, only devices that have the correct SSID can connect. This nullifies wireless network ‘discovery’ feature of some products, such as Windows XP, but the data is still exposed.

• WEP. Wired Equivalent Privacy (WEP) data encryption provides data security. WEP Shared Key authentication and WEP data encryption will block all but the most determined eavesdropper.

4-2 Wireless Configuration

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

• WPA or WPA-PSK. Wi-Fi Protected Access (WPA) data encryption provides data security . The very strong authentication along with dynamic per frame rekeying of WPA make it virtually impossible to compromise. Because this is a new standard, wireless device driver and software availability may be limited.

Understanding Wireless Settings

T o configure the wireless settings of your FWG1 14P, click the W ireless link in the Setup section of the main menu. The wireless settings menu will appear, as shown below.

Figure 4-2: Wireless Settings menu

Note: The 802.11b and 802.1 1g wireless networking protocols are configured in exactly

the same fashion. The FWG114P will automatically adjust to the 802.11g or 802.11b protocol as the device requires without compromising the speed of the other devices.

Wireless Configuration 4-3

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

• Wireless Network. The station name of the FWG114P. — Wireless Network Name (SSID). The SSID is also known as the wireless network name.

Enter a value of up to 32 alphanumeric characters. In a setting where there is more than one wireless network, different wireless network names provide a means for separating the traffic. Any device you want to participate in the 802.11b/g wireless network will need to use this SSID for that network. The FWG114P default SSID is: NETGEAR.

— Region. This field identifies the region where the FWG114P can be used. It may not be

legal to operate the wireless features of the wireless firewall/print server in a region other than one of those identified in this field. Unless you select a region, you will only be able to use Channel 11.

— Channel. This field determines which operating frequency will be used. It should not be

necessary to change the wireless channel unless you notice interference problems with another nearby access point. For more information on the wireless channel frequencies, please refer to “Wireless Channels” on page E-7.

— Mode. Select the desired wireless mode. The options are:

• g & b - Both 802.11g and 802.11b wireless stations can be used.

• g only - Only 802.11g wireless stations can be used.

• b only - All 802.11b wireless stations can be used. 802.11g wireless stations can still be used if they can operate in 802.11b mode.

The default is “g & b” which allows both 802.11g and 802.11b wireless stations to access this device.

• Wireless Access Point — Enable Wireless Access Point. Enables the wireless radio. When disabled, there are no

wireless communications through the FWG114P.

— Allow Broadcast of Name (SSID). The default setting is to enable SSID broadcast. If you

disable broadcast of the SSID, only devices that have the correct SSID can connect. Disabling SSID broadcast somewhat hampers the wireless network ‘discovery’ feature of some products.

• Wireless Card Access List

Lets you restrict wireless connections according to a list of Trusted PCs MAC addresses. When the Trusted PCs Only radio button is selected, the FWG114P checks the MAC address of the wireless station and only allows connections to PCs identified on the trusted PCs list.

T o restrict access based on MAC addresses, click the Set up Access List button and update the MAC access control list.

4-4 Wireless Configuration

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

• Security Options

Table 4-1. Wireless Security Options

Field Description Disable

WEP (Wired

Equivalent Privacy)

Wireless security is not used. Y ou can select th e following W EP options:

Authentication Type

• Open: the FWG114P does not perform any authentication.

• Shared: WEP shared key authentication. For a full explanation of WEP shared key, see

“Authentication and WEP Data Encryption” on page E-2.

Encryption Strength

• If Shared or Open Network Authentication is enabled, you can choose 64- or 128-bit WEP data encryption. Note: With Open Network Authentication and 64- or 128-bit WEP Data Encryption, the FWG114P does perform 64- or 128-bit data encryption but does not perform any authentication.

Security Encryption (WEP) Key

These key values must be identical on all wireless devices in your network (key 1 must be the same for all, key 2 must be the same for all, and so on). The FWG114P provides two methods for creating WEP encryption keys:

• Passphrase. These characters are case sensitive. Enter a word or group of printable characters in the Passphrase box and click the Generate button. Note: Not all wireless adapters support passphrase key generation.

• Manual. These values are not case sensitive.

64-bit WEP: enter 10 hexadecimal digits (any combination of 0-9, a-f, or A-F). 128-bit WEP: enter 26 hexadecimal digits (any combination of 0-9, a-f, or A-F).

Wireless Configuration 4-5

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Table 4-1. Wireless Security Options

Field Description

WPA-PSK

(Wi-Fi Protected Access Pre-Shared Key)

WPA User authentication is implemented using RADIUS servers. For a full explanation of

WPA Pre-Shared-Key uses a pre-shared key to perform the authentication and generate the initial data encryption keys. Then, it dynamically varies the encryption key. For a full explanation of WPA, see “WPA Wireless Security” on page E-8.

WPA, see “WPA Wireless Security” on page E-8. Fill in the following:

• Primary Radius Server Name/IP Address This field is required. Enter the name or IP address of the Radius Server on your LAN.

• Secondary Radius Server Name/IP Address This field is optional. Enter the name or IP address of the Secondary Radius Server on your LAN.

• Radius Port Enter the port number used for connections to the Radius Server.

• Radius Shared Key Enter the desired value for the Radius shared key. This key enables the FWG114P to log in to the Radius server and must match the value used on the Radius server.

Radius Accounting Option

The Radius Accounting option can be enabled so that you can track various information like who connected to the network, when they connected, how long they were connected, how much network traffic they generated, and so on.

4-6 Wireless Configuration

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Default Factory Settings

The FWG114P default factory settings shown below. You can restore these defaults with the Factory Default Restore button on the rear panel as seen in the illustration “FWG1 14P Rear Panel”

on page 2-8. After you install the FWG114P Wireless Firewall/Print Server, use the procedures

below to customize any of the settings to better meet your networking needs.

FEATURE DEFAULT FACTORY SETTINGS

SSID NETGEAR

RF Channel 11 until the region is selected

Access Point Enabled

SSID broadcast Enabled

Wireless Card Access List for

Access Point Connections

WEP Security Disabled

Authentication Type Open System

All wireless stations allowed

Wireless Configuration 4-7

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Before You Change the SSID and WEP Settings

Take the following steps: For a new wireless network, print or copy this form and fill in the configuration parameters. For an

existing wireless network, the person who set up or is responsible for the network will be able to provide this information. Be sure to set the Regulatory Domain correctly as the first step.

• SSID: The Service Set Identification (SSID) identifies the wireless local area network. Wireless is the default FWG114P SSID. However, you may customize it by using up to 32 alphanumeric characters. Write your customized SSID on the line below.

Note: The SSID in the wireless firewall/print server is the SSID you configure in the wireless adapter card. All wireless nodes in the same network must be configured with the same SSID:

• Authentication

Circle one: Open System or Shared Key. Choose “Shared Key” for more security. Note: If you select shared key, the other devices in the network will not connect unless they

are set to Shared Key as well and have the same keys in the same positions as those in the FWG114P.

• WEP Encryption Keys

For all four 802.11b keys, choose the Key Size. Circle one: 64 or 128 bits Key 1: ___________________________________ Key 2: ___________________________________ Key 3: ___________________________________ Key 4: ___________________________________

• WPA-PSK (Pre-Share d Key)

Record the WPA-PSK key: Key: ___________________________________

• WPA RADIUS Settings

For WPA, record the following RADIUS settings: Server Name/IP Address: Primary _________________ Port: ___________________________________ Shared Key: ___________________________________

Secondary __________________

Use the procedures described in the following sections to configure the FWG114P. Store this information in a safe place.

4-8 Wireless Configuration

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

How to Set Up and Test Basic Wireless Connectivity

Follow the instructions below to set up and test basic wireless connectivity. Once you have established basic wireless connectivity , you can enable security settings appropriate to your needs.

1. Log in using the default LAN address of http://192.168.0.1 with the default user name of

admin and default password of password, or using whatever LAN address and password you have set up.

Figure 4-3: Wireless Settings menu

Set the Regulatory Domain correctly.

3. Choose a suitable descriptive name for the wireless network name (SSID). In the SSID box,

enter a value of up to 32 alphanumeric characters. The default SSID is NETGEAR. Note: The characters are case sensitive. An access point always functions in infrastructure

mode. The SSID for any wireless device communicating with the access point must match the SSID configured in the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P. If they do not match, you will not get a wireless connection to the FWG114P.

4. Set the Channel.

It should not be necessary to change the wireless channel unless you notice interference problems with another nearby wireless router or access point. Select a channel that is not being used by any other wireless networks within several hundred feet of your wireless firewall/print server. For more information on the wireless channel frequencies please refer to “Wireless

Channels” on page E-7.

5. Depending on the types of wireless adapters you have in your computers, choose from the

Mode drop-down list.

6. For initial configuration and test, leave the Wireless Card Access List set to “All Wireless

Stations” and the Encryption Strength set to “Disable.”

Wireless Configuration 4-9

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Click Apply to save your changes.

Note: If you are configuring the FWG114P from a wireless computer and you change

the wireless firewall/print server’ s SSID, channel, or security settings, you will lose your wireless connection when you click on Apply. You must then change the wireless settings of your computer to match the FWG114P’s new settings.

8. Configure and test your PCs for wireless connectivity.

Program the wireless adapter of your PCs to have the same SSID that you configured in the FWG114P. Check that they have a wireless link and are able to obtain an IP address by DHCP from the wireless firewall/print server.

Once your PCs have basic wireless connectivity to the wireless firewall/print server, then you can configure the advanced options and wireless security functions.

How to Restrict Wireless Access by MAC Address

To restrict access based on MAC addresses, follow these steps:

1. Log in at the default LAN address of http://192.168.0.1 with the default user name of admin

and default password of password.

2. Click Wireless in the main menu of the FWG114P. From the Wireless Settings menu, click

Setup Access List.

3. Click the Turn Access Control On checkbox to enable MAC filtering.

4. Click Add to open the W ireless Card Access Setup menu. You can select a device from the list

of available wireless cards the FWG114P has discovered in your area, or you can manually enter the MAC address and Device Name (usually the NetBIOS name).

5. Click Add to add this device to your MAC access control list.

Note: When configuring the FWG114P from a wireless computer whose MAC address

is not in the access control list, if you select Turn Access Control On, you will lose your wireless connection when you click Apply. You must then access the wireless firewall/ print server from a wired computer or from a wireless computer which is on the access control list to make any further changes.

4-10 Wireless Configuration

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Be sure to click Apply to save your trusted wireless PCs list settings. Now, only devices on

this list will be allowed to wirelessly connect to the FWG114P.

To remove a MAC address from the table, click to select it, then click the Delete button.

How to Configure WEP

Note: When changing the wireless settings from a wireless computer , you will lose your

wireless connection when you click Apply. You must then either configure your wireless adapter to match the new wireless settings or access the wireless firewall/print server from a wired computer to make any further changes.

To configure WEP data encryption, follow these steps:

1. Log in at the default LAN address of http://192.168.0.1 with the default user name of admin

and default password of password, or using whatever LAN address and password you set up.

2. Click Wireless Settings in the main menu of the FWG114P.

3. Click the WEP radio button. The WEP options menu will open.

4. Choose the Authentication Type and Encryption Strength options. You can manu ally or

automatically program the four data encryption keys. These values must be identical on all PCs and Access Points in your network.

• Automatic - Enter a word or group of printable charac te rs in the Pas sp hras e bo x. This

phrase is case sensitive. Click Generate. The four keys will be automatically generated.

• Manual - Enter ten hexadecimal digits (any combination of 0-9, a-f, or A-F)

These hex values are not case sensitive. Select which of the four keys will be the default.

Please refer to “Overview of WEP Parameters” on page E-5 for a full explanation of each of these options, as defined by the IEEE 802.11b wireless communication standard.

5. Click Apply to save your settings.

Wireless Configuration 4-11

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

How to Configure WPA

Note: Not all wireless adapters support WPA. Furthermore, client software is required on the client. Windows XP and Windows 2000 with Service Pack 3 do include the client software that supports WPA. Nevertheless, the wireless adapter hardware and driver must also support WPA. Consult the product document for your wireless adapter and WPA client software for instructions on configuring WPA settings.

To configure WPA, follow these steps:

1. Log in at the default LAN address of http://192.168.0.1 with the default user name of admin

and default password of password, or using whatever LAN address and password you have set up.

2. Click Wireless Settings in the Setup section of the main menu of the FWG114P.

Figure 4-4: Wireless Settings menu

Choose the WPA radio button. The WPA menu will open.

4. Enter the Radius settings.

5. Click Apply to save your settings.

4-12 Wireless Configuration

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

How to Configure WPA-PSK

To configure WPA-PSK, follow these steps:

1. Log in at the default LAN address of http://192.168.0.1, with the default user name of admin

and default password of password, or using whatever LAN address and password you have set up.

2. Click Wireless Settings in the Setup section of the main menu of the FWG114P.

3. Choose the WPA-PSK radio button. The WPA-PSK menu will open.

4. Enter the pre-shared key in the Passphrase field.

5. Enter the Key Lifetime. This setting determines how often the encryption key is changed.

Shorter periods provide greater security, but adversely affect performance.

6. Click Apply to save your settings.

Wireless Configuration 4-13

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

4-14 Wireless Configuration

March 2004, 202-10027-01

Chapter 5

Serial Port Configuration

This chapter describes how to configure the serial port options of your ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P. The FWG114P serial port lets you share the broadband connection of another FWG114P, share resources between two LANs, and take advantage of the routing functions on the broadband (WAN), LAN, and serial network interfaces.

Note: If you configure the serial port of the FWG114P as the primary Internet connection, you will not be able to configure the other serial port options. For instructions on configuring the serial port as the primary Internet connection, please see “How to Configure the Serial Port as the Primary

Internet Connection“ on page 3-14.

The FWG114P provides these serial port configuration options:

•Modem

Use this option to configure the serial modem settings for any of the features below.

• Auto-Rollover

Use this option to provide a backup connection for your broadband service. If the broadband service you configured in the Basic Settings menu fails, the FWG114P will automatically connect to the Internet through the serial port. However, you will then be accessing the Internet at a slower speed than you would through your broadband service.

• Dial-in

Dial-in lets a single remote computer connect to the FWG114P through the serial port to gain access to LAN resources or a remote access server.

• LAN-to-LAN

LAN-to-LAN enables direct communications between two FWG114P wireless firewall/print servers to:

— Share resources on the two LANs. — Let use rs on one FWG114P share the Internet connection of the other FWG114P. — Let use rs on one FWG114P connect to the Internet through the second FWG114P in case

the broadband connection of the first FWG114P fails.

The procedures for these configuration options are presented below.

Serial Port Configuration 5-1

March 2004, 202-10027-01M-10207-01, Reference Manual v2

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Configuring a Serial Port Modem

You can configure a serial port modem for any of the features described above. Be sure you have prepared the basic requirements listed below, then follow the ‘how to’ procedure.

Basic Requirements for Serial Port Modem Configuration

Configuring a serial port modem requires these elements:

1. A serial analog or ISDN modem.

2. A serial modem cable with a DB9 connector.

3. An active phone or ISDN line.

How to Configure a Serial Port Modem

Follow the steps below to configure a serial port modem.

1. From the main menu, click Modem in the Serial Port section.

Figure 5-1: Serial Port Modem configuration menu

Select the Serial Line Speed. This is the maximum speed the modem will attempt to use. For ISDN permanent connections, the speeds are typically 64000 or 128000 bps. For dial-up modems, 56000 bps would be a typical setting.

3. Select the Modem Type:

— For ISDN, selec t “Permanent connection (leased line).”

5-2 Serial Port Configuration

March 2004, 202-10027-01M-10207-01, Reference Manual v2

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

— For dial-up, “Standard Modem” should work in most cases. Otherwise, select your modem

from the list.

— If your modem is not on the list, select “User Defined” and enter the Modem Properties.

If you are using the “User Defined” selection and configuring your own modem stings, fill in the Modem Properties settings.

Note: Y ou can validate modem string settings by first connecting the modem directly to a computer, establishing a connection to your ISP, and then copying the modem string settings from the computer configuration and pasting them into the FWG114P Modem Properties Initial String field. For more information on this procedure, please refer to the support area of the NETGEAR Web site.

4. Click Apply to save your settings.

Configuring Auto-Rollover

You can configure the serial port of the FWG114P to provide an auto-rollover backup connection for your broadband service.

Be sure you have prepared the basic requirements listed below, then follow the ‘how to’ procedure.

Basic Requirements for Auto-Rollover

Auto-Rollover requires these elements:

1. A broadband connection to the FWG114P.

2. An ISDN or analog phone line with an active ISDN or dial-up ISP account.

3. A serial modem properly configured and attached to the DB9 connector on the serial port.

4. The Auto-Rollover settings configured and applied to the FWG114P.

How to Configure Auto-Rollover

Follow the steps below to configure a serial port auto-rollover connection.

1. Configure a serial port modem according to the instructions above.

2. From the main menu, click Auto-rollover in the Serial Port section.

Serial Port Configuration 5-3

March 2004, 202-10027-01M-10207-01, Reference Manual v2

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Figure 5-2: Auto-Rollover configuration menu

Configure the Auto-Rollover settings.

4. Click Apply for the changes to take effect.

Configuring Dial-in on the Serial Port

Dial-in lets a single remote computer connect to the FWG114P through the serial port to gain access to LAN resources or a remote access server.

Be sure you have prepared the basic requirements listed below, then follow the ‘how to’ procedure.

5-4 Serial Port Configuration

March 2004, 202-10027-01M-10207-01, Reference Manual v2

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Basic Requirements for Dial-in

Dial-in requires these elements:

1. A broadband connection to the FWG114P.

2. An analog phone line.

3. A serial modem properly configured and attached to the DB9 connector on the serial port.

4. The Dial-in settings configured and applied to the FWG114P.

How to Configure Dial-in

Follow the steps below to configure a serial port dial-in connection.

1. Configure a serial port modem according to the instructions above.

2. From the Serial Port section of the main menu, click Dial-in.

Figure 5-3: Serial Port Dial-in settings screen

Configure the Dial-in settings.

4. Click Apply for the changes to take effect.

Serial Port Configuration 5-5

March 2004, 202-10027-01M-10207-01, Reference Manual v2

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Configuring LAN-to-LAN Settings

LAN-to-LAN enables direct communications between two FWG114P wireless firewall/print servers.

6HULDO&RQQHFWLRQ

)LUHZDOO$

Á?aM?a

+Á.?wjËoåÔ±¤¤~Ë8ÁjjÄÄËÁjÝ?Ê+ÁÍË.jÁÜjÁ

$&7



$&7



$/(57

3:5

7(67

$/(57

/1.$&7

02).4%2 -/$%- ).4%2.%4 ,/#!, 7,!.

#

8¤¤|+



/1.$&7

)LUHZDOO%

Á?aM?a

+Á.?wjËoåÔ±¤¤~Ë8ÁjjÄÄËÁjÝ?Ê+ÁÍË.jÁÜjÁ

$&7



$&7



$/(57

/1.$&7

3:5

7(67

$/(57

02).4%2 -/$%- ).4%2.%4 ,/#!, 7,!.

#

8¤¤|+



/1.$&7





Figure 5-4: LAN-to-LAN network configuration

Basic Requirements for LAN-to-LAN Connections

Serial port LAN-to-LAN configurations require these elements:

1. An ISDN or analog phone line with an active ISDN or dial-up ISP account.

2. A serial modem properly configured and attached to the DB9 connector on the serial port.

3. A broadband connection to one FWG114P for LAN-to-LAN auto-rollover Internet access.

4. The LAN-to-LAN settings configured and applied to the two FWG114P wireless firewall/print

servers.

How to Configure LAN-to-LAN Connections

Follow these steps to configure a serial port LAN-to-LAN connection.

1. Configure a serial port modem.

2. From the main menu, click LAN-to-LAN in the Serial Port section.

5-6 Serial Port Configuration

March 2004, 202-10027-01M-10207-01, Reference Manual v2

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Figure 5-5: LAN-to-LAN configuration menu

Configure the LAN-to-LAN settings.

Note: The LAN subnet address of each FWG114P must be different.

4. Click Apply for the changes to take effect.

Serial Port Configuration 5-7

March 2004, 202-10027-01M-10207-01, Reference Manual v2

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

5-8 Serial Port Configuration

March 2004, 202-10027-01M-10207-01, Reference Manual v2

Chapter 6

Firewall Protection and

Content Filtering

This chapter describes how to use the content filtering features of the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P to protect your network. These features can be found by clicking on the Content Filtering heading in the Main Menu of the browser interface.

Firewall Protection and Content Filtering Overview

The ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P provides you with Web content filtering options, plus browsing activity reporting and instant alerts via e-mail. Parents and network administrators can establish restricted access policies based on time-of-day, Web addresses, and Web address keywords. You can also block Internet access by applic ations and services, such as chat or games.

A firewall is a special category of router that protects one network (the “trusted” network, such as your LAN) from another (the “untrusted” network, such as the Internet), while allowing communication between the two. A firewall incorporates the functions of a NAT (Network Address Translation) router, while adding features for dealing with a hacker intrusion or attack, and for controlling the types of traffic that can flow between the two networks. Unlike simple Internet sharing NAT routers, a firewall uses a process called stateful packet inspec tion to protect your network from attacks and intrusions. NAT performs a very limited stateful inspection in that it considers whether the incoming packet is in response to an outgoing request, but true Stateful Packet Inspection goes far beyond NAT.

To configure these features of your router, click on the subheadings under the Content Filtering heading in the Main Menu of the browser interface. The subheadings are described below:

Using the Block Sites Menu to Screen Content

The FWG114P allows you to restrict access based on the following categories:

• Use of a proxy server

• Type of file (Java, ActiveX, Cookie)

Firewall Protection and Content Filtering 6-1

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

• Web addresses

• Web address keywords

These options are discussed below. The Keyword Blocking menu is shown here.

Figure 6-1: Block Sites menu

T o enable filtering, click the checkbox next to the type of filtering you want to enable. The filtering choices are:

• Proxy: blocks use of a proxy server

• Java: blocks use of Java applets

• ActiveX: blocks use of ActiveX components (OCX files) used by IE on Windows

• Cookies: blocks all cookies

To enable keyword blocking, check “Turn keyword blocking on”, then click Apply. To add a keyword or domain, type it in the Keyword box, click Add Keyword, then click Apply.

6-2 Firewall Protection and Content Filtering

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

To delete a keyword or domain, select it from the list, click Delete Keyword, then click Apply. Keyword application examples:

• If the keyword "XXX" is specified, the URL <http://www.badstuff.com/xxx.html> is blocked, as is the newsgroup alt.pictures.XXX.

• If the keyword “.com” is specified, only Web sites with other domain suffixes (such as .edu or .gov) can be viewed.

• If you want to block all Internet browsing access, enter the keyword “.”.

Up to 255 entries are supported in the Keyword list. To specify a Trusted User, enter that computer’s IP address in the Trusted User box and click

Apply . You may specify one Trusted User, which is a computer that will be exempt from blocking and logging. Since the Trusted User will be identified by an IP address, you should configure that computer with a fixed or reserved IP address.

Services and Rules Regulate Inbound and Outbound Traffic

The ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P firewall lets you regulate what ports are available to the various TCP/IP protocols. Follow these two steps to configure inbound or outbound traffic:

1. Define a Service

2. Set up an Inbound or Outbound Rule that uses the Service

These steps are discussed below.

Defining a Service

Services are functions performed by server computers at the request of client computers. For example, Web servers serve Web pa ges, time servers serve time and date information, and game hosts serve data about other players’ moves. When a computer on the Internet sends a request for service to a server computer, the requested service is identified by a service or port number. This number appears as the destination port number in the transmitted IP packets. For example, a packet that is sent with destination port number 80 is an HTTP (Web server) request.

Firewall Protection and Content Filtering 6-3

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

The service numbers for many common protocols are defined by the Internet Engineering Task Force (IETF) and published in RFC1700, “Assigned Numbers.” Service numbers for other applications are typically chosen from the range 1024 to 65535 by the authors of the application.

Although the FWG114P already holds a list of many service port numbers, you are not limited to these choices. Use the Services menu to add additional services and applications to the list for use in defining firewall rules. The Services menu shows a list of services that you have defined.

To define a new service, first you must determine which port number or range of n umbers is used by the application. This information can usually be determined by contacting the publisher of the application or from user groups of newsgroups. When you have the port number information, go the Services menu and click on the Add Custom Service button. The Add Services menu will appear.

To add a service,

1. Enter a descriptive name for the service so that you will remember what it is.

2. Select whether the service uses TCP or UDP as its transport protocol.

If you can’t determine which is used, select both.

3. Enter the lowest port number used by the service.

4. Enter the highest port number used by the service.

If the service only uses a single port number, enter the same number in both fields.

5. Click Apply.

The new service will now appear in the Services menu, and in the Service name selection box in the Rules menu.

Using Inbound/Outbound Rules to Block or Allow Services

Firewall rules are used to block or allow specific traffic passing through from one side of the wireless firewall/print server to the other. Inbound rules (WAN to LAN) restrict access by outsiders to private resources, selectively allowing only specific outside users to access specific resources. Outbound rules (LAN to WAN) determine what outside resources local users can have access to.

A firewall has two default rules, one for inbound traffic and one for outbound. The default rules of the FWG114P are:

• Inbound: Block all access from outside except responses to requests from the LAN side.

• Outbound: Allow all access from the LAN side to the outside.

6-4 Firewall Protection and Content Filtering

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

These default rules are shown in the Rules table of the Rules menu in Figure 6-2:

Figure 6-2: Rules menu

You can define additional rules that will specify exceptions to the default rules. By adding custom rules, you can block or allow access based on the service or application, source or destinat ion IP addresses, and time of day. You can also choose to log traffic that matches or does not match the rule you have defined.

To create a new rule, click the Add button. To edit an existing rule, select its button on the left side of the table and click Edit. To delete an existing rule, select its button on the left side of the table and click Delete. To move an existing rule to a different position in the table, select its button on the left side of the

table and click Move. At the script prompt, enter the number of the desired new position and click OK.

An example of the menu for defining or editing a rule is shown in Figure 6-3. The parameters are:

Firewall Protection and Content Filtering 6-5

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

• Service. From this list, select the application or service to be allowed or blocked. The list already displays many common services, but you are not limited to these choices. Use the Services menu to add any additional services or applications that do not already appear.

• Action. Choose how you would like this type of traffic to be handled. You can block or allow always, or you can choose to block or allow according to the schedule you have defined in the Schedule menu.

• Source Address. Specify traffic originating on the LAN (outbound) or the WAN (inbound), and choose whether you would like the traffic to be restricted by source IP address. You can select Any, a Single address, or a Range. If you select a range of addresses, enter the range in the start and finish boxes. If you select a single address, enter it in the start box.

• Destination Address.The Destination Address will be assumed to be from the opposite (LAN or WAN) of the Source Address. As with the Source Address, you can sele ct Any, a Single address, or a Range unless NAT is enabled and the destination is the LAN. In that case, you must enter a Single LAN address in the start box.

• Log. You can select whether the traffic will be logged. The choices are: – Never - no log entries will be made for this service. – Match - traffic of this type which matches the parameters and action will be logged.

Examples of Using Services and Rules to Regulate Traffic

Use the examples to see how you combine Services and Rules to regulate how the TCP/IP protocols are used on your firewall to enable either blocking or allowing specific Internet traffic on your wireless firewall/print server.

Inbound Rules (Port Forwarding)

Because the FWG114P uses Network Address Translation (NAT), your network presents only one IP address to the Internet, and outside users cannot directly address any of your local computers. However, by defining an inbound rule, also known as port forwarding, you can make a local server (for example, a Web server or game server) visible and available to the Internet. The rule tells the router to direct inbound traffic for a particular service to one local server based on the destination port number. This is also known as port forwarding.

6-6 Firewall Protection and Content Filtering

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Note: Some home broadband accounts do not allow you to run any server processes

(such as a Web or FTP server). Your ISP may check for servers and suspend your account if it discovers active servers at your location. If you are unsure, refer to the Acceptable Use Policy of your ISP.

Follow these guidelines when setting up port forwarding inbound rules:

• If your external IP address is assigned dynamically by your ISP, the IP address may change periodically as the DHCP lease expires. Consider using the Dyamic DNS feature in the Advanced menus so that external users can always find your network.

• If the IP address of the local server computer is assigned by DHCP, it may change when the computer is rebooted. To avoid this, use the Reserved IP address feature in the LAN IP menu to keep the computer’s IP address constant.

• Local computers must access the local server using the local LAN address of the computer. Attempts by local computers to access the server using the external WAN IP address will fail.

Remember that allowing inbound services opens holes in your FWG114P Wireless Firewall/Print Server. Only enable those ports that are necessary for your network. Following are two application examples of inbound rules:

Example: Port Forwarding to a Local Public Web Server

If you host a public W eb ser ver on your local network, you can define a rule to allow inbound Web (HTTP) requests from any outside IP address to the IP address of your Web server any time of day.

Figure 6-3: Rule example: A Local Public Web Server

Firewall Protection and Content Filtering 6-7

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

This rule is shown in Figure 6-3.

Example: Port Forwarding for Videoconferencing

If you want to allow incoming videoconferencing to be initiated from a restricted range of outside IP addresses, such as from a branch office, you can create an inbound rule. In the example shown in Figure 6-4, CU-SeeMe is a predefined service and its connections are allowed only from a specified range of external IP addresses. In this case, we have also specified logging of any incoming CU-SeeMe requests that do not match the allowed parameters.

Figure 6-4: Rule example: Videoconference from Restrict ed Addresses

Example: Port Forwarding for VPN Tunnels when NAT is Off

If you want to allow incoming VPN IPSec tunnels to be initiated from outside IP addresses anywhere on the Internet when NAT is off, first create a service and then an inbound rule.

6-8 Firewall Protection and Content Filtering

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Figure 6-5: Service example: port forwarding for VPN when NAT is Off

In the example shown in Figure 6-5, UDP port 500 connections are defined as the IPSec service.

Figure 6-6: Inbound rule example: VPN IPSec when NAT is off

In the example shown in Figure 6-6, VPN IPSec connections are allowed any internal LAN IP address.

Outbound Rules (Service Blocking or Port Filtering)

The FWG114P allows you to block the use of certain Internet services by computers on your network. This is called service blocking or port filtering. You can define an outbound rule to block Internet access from a local computer based on:

• IP address of the local computer (source address)

Firewall Protection and Content Filtering 6-9

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

• IP address of the Internet site being contacted (destination address)

•Time of day

• Type of service being requested (service port number)

Outbound Rule Example: Blocking Instant Messaging

If you want to block Instant Messenger usage by employees during working hours, you can create an outbound rule to block that application from any internal IP address to any external address according to the schedule that you have created in the Schedule menu. Y ou can also have the router log any attempt to use Instant Messenger during that blocked period.

Figure 6-7: Rule example: Blocking Instant Messenger

Other Rules Considerations

The order of precedence of rules is determined by the position of the rule on a list of many rules. Also, there are optional Rules settings you can configure. These topics are presented here.

6-10 Firewall Protection and Content Filtering

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Order of Precedence for Rules

As you define new rules, they are added to the tables in the Rules menu. For any traffic attempting to pass through the firewall, the packet information is subjected to the rules in the order of the entries in the Rules T able, beginning at the top and proceeding to the default rules at the bottom. In some cases, the order of precedence of two or more rules may be important in determining the disposition of a packet. The Move button allows you to relocate a defined rule to a new position in the table.

Rules Menu Options

Use the Options checkboxes to enable the following:

• Enable VPN Passthrough (IPSec, PPTP, L2TP)

If LAN users need to use VPN (Virtual Private Networking) software on their computer, and connect to remote sites or servers, enable this checkbox. This will allow the VPN protocols (IPSec, PPTP, L2TP) to be used. If this checkbox is not checked, these protocols are blocked.

• Drop fragmented IP packets If checked, all fragmented IP pack ets wil l be dropped (discarded). Normally, this should NOT

be checked.

• Block TCP flood If checked, when a TCP flood attack is detected, the port used will be closed, and no traffic

will be able to use that port.

• Block UDP flood If checked, when a UDP flood attack is detected, all traffic from that IP address will be

blocked.

• Block non-standard packets If checked, only known packet types will be accepted; other packets will be blocked. The

known packet types are TCP, UDP, ICMP, ESP, and GRE. Note that these are packet types, not protocols.

Firewall Protection and Content Filtering 6-11

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Using a Schedule to Block or Allow Content or Traffic

If you enabled content filtering in the Block Sites menu, or if you defined an outbound rule to use a schedule, you can set up a schedule for when blocking occurs or when access is restricted. The router allows you to specify when blocking will be enforced by configuring the Schedule tab shown below.

Figure 6-8: Schedule menu

To block keywords or Internet domains based on a schedule, select Every Day o r select one or more days. If you want to limit access completely for the selected days, select All Day. Otherwise, If you want to limit access during certain times for the selected days, type a Start Time and an End Time.

6-12 Firewall Protection and Content Filtering

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Note: Enter the values in 24-hour time format. For example, 10:30 am would be 10 hours and 30

minutes and 10:30 pm would be 22 hours and 30 minutes. Be sure to click Apply when you have finished configuring this menu.

Setting the Time Zone

The FWG114P W ireless Firewall/Print Server uses the Network T ime Protocol (NTP) to obtain the current time and date from one of several Network Time Servers on the Internet. In order to localize the time for your log entries, you must specify your Time Zone:

• Time Zone. Select your local time zone. This setting will be used for the blocking schedule and for time-stamping log entries.

• Daylight Savings Time. Select this check box for daylight savings time. Note: If your region uses Daylight Savings Time, you must manually select Adjust for

Daylight Savings Time on the first day of Daylight Savings Time, and unselect it at the end. Enabling Daylight Savings Time will add one hour to the standard time.

Be sure to click Apply when you have finished configuring this menu.

Getting E-Mail Notifications of Event Logs and Alerts

In order to receive logs and alerts by e-mail, you must provide your e-mail information in the E-Mail subheading:

Firewall Protection and Content Filtering 6-13

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Figure 6-9: E-mail menu

• Tu rn e-mail notification on. Select this check box if you want to receive e-mail logs and alerts from the router.

• Send alerts and logs by e-mail. If you enable e-mail notification, these boxes cannot be blank. Enter the name or IP address of your ISP’s outgoing (SMTP) mail server (such as mail.myISP.com). You may be able to find this information in the configuration menu of your e-mail program. Enter the e-mail address to which logs and alerts will be sent. This e-mail address will also be used as the From address. If you leave this box blank, log and alert messages will not be sent via e-mail. Check “My Mail Server requires authentication” if you need to log in to your SMTP server in order to send e-mail. If this is checked, you must enter the login name and password for your mail server.

Tip: Y ou used this information when you set up your e-mail program. If you canno t remember it, check the settings in your e-mail program.

• Send E-mail alerts immediately. You can specify that logs are immediately sent to the specified e-mail address when any of the following events occur:

6-14 Firewall Protection and Content Filtering

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

– If a Denial of Service attack is detected. – If a Port Scan is detected. – If a user on your LAN attempts to access a website that you blocked using Keyword

blocking.

• Send logs according to this schedule. You can specify that logs are sent to you according to a schedule. Select whether you would like to receive the logs Hourly , Daily, Weekly, When Full, or None for no logs. Depending on your selection, you may also need to specify:

– Day for sending log

Relevant when the log is sent weekly or daily.

– Time for sending log

Relevant when the log is sent daily or weekly.

If the Weekly, Daily or Hourly option is selected and the log fills up before the specified period, the log is automatically e-mailed to the specified e-mail address. After the log is sent, the log is cleared from the router’s memory. If the router cannot e-mail the log file, the log buffer may fill up. In this case, the router overwrites the log and discards its contents.

Be sure to click Apply when you have finished configuring this menu.

Firewall Protection and Content Filtering 6-15

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Viewing Logs of Web Access or Attempted Web Access

The router will log security-related events, such as denied incoming and outgoing service requests, hacker probes, and administrator logins. If you enable content filtering in the Block Sites menu, the Log page will also show you when someone on your network tries to access a blocked site. If you enabled e-mail notification, you will receive these logs in an e-mail message. If you do not have e-mail notification enabled, you can view the logs here.

Figure 6-10: Logs menu

See Appendix D, “Firewall Log Formats” for a full explanation of log entry formats.

6-16 Firewall Protection and Content Filtering

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Log action buttons are described in Table 6-1.

Table 6-1. Log action buttons

Field Description

Refresh Refreshes the log screen. Clear Log Clears the log entries. Send Log E-mails the log immediately.

What to Include in the Event Log

Use these checkboxes to determ ine whic h even ts ar e included in the log. Checking all options wi ll increase the size of the log, so it is good practice to disable any events which are not really required.

• All Websites and news groups visited - If checked, all visited websites and newsgroups are logged.

• All Incoming TCP/UDP/ICMP traffic - If checked, all incoming TCP/UDP/ICMP connections and traffic is logged.

• All Outgoing TCP/UDP/ICMP traffic - If checked, all outgoing TCP/UDP/ICMP connections and traffic is logged.

• Other IP traffic - If checked, all other traffic (IP packets which are not TCP, UDP, or ICMP) is logged.

• Router operation (start up, get time, etc.) - If checked, Router operations, such as starting up and getting the time from the Internet Time Server, are logged.

• Connection to the Web-based interface of this Router - If checked, Administrator connections to the Web-based interface will be logged.

• Other connections and traffic to this Router - If checked, this will log traffic sent to thi s Router (rather than through this Router to the Internet).

• Allow duplicate log entries - If checked, then events or packets which fall within more than one (1) category above will have a log entry for each category in which they belong. This will generate a large number of log entries. If unchecked, then events or packets will only be logged once. Usually, this should be left unchecked.

Logging programs are available for Windows, Macintosh, and Linux computers.

Firewall Protection and Content Filtering 6-17

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Enable one of these three options, as required:

• Disable - select this if you do not have a Syslog server.

• Broadcast on LAN - the Syslog data is broadcast, rather than sent to a specific Syslog server. Use this if your Syslog Server does not have a fixed IP address.

• Send to this Syslog server IP address - If your Syslog server has a fixed IP address, select this option, and enter the IP address of your Syslog server.

6-18 Firewall Protection and Content Filtering

March 2004, 202-10027-01

Chapter 7

Print Server

This chapter describes how to install and configure the print server in your ProSafe Wireless

802.11g Firewall/Print Server Model FWG114P.

Printing Options

The FWG114P supports these methods for printing:

• For Windows XP and 2000 Only: TCP/IP Line Printer Remote (LPR) Printing — No software needs to be installed — Windows XP or 2000 users can print directly to the firewall. Print jobs are spooled

(queued) on each computer. The computer sends the print job directly to the LAN IP address of the FWG114P.

• For Windows 95/98/Me, NT4.0, 2000, and XP: Netgear Printer Port Driver — Install the Netgear Printer Port Driver on Each computer. — After installing the Print Port Driver from the Resource CD for the ProSafe Wireless

802.1 1g Firewall/Print Server Model FWG114P (SW-10023-02) Windows users can print directly to the firewall. Print jobs are spooled (queued) on each computer.

• For Macintosh computers: LPR printing

— No software needs to be installed — LPR printing can be set up on any Macintosh that has Desktop Printing installed or

available. Desktop Printing is supported on MacOS versions beginning from 8.1. LaserWriter8 version 8.5.1 or higher is also required.

• For Windows NT 4.0 Server or 2000 Server: LPD/LPR Printing — No software needs to be installed — If using Windows NT 4.0 Server or Windows 2000 S erver , LPD/LPR printing can be used .

No software needs to be installed on either the Windows Server or each client computer. Print jobs will be spooled (queued) on the Windows Server, and can be managed using the standard Windows Server tools.

Print Server 7-1

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

For Windows XP and 2000, Use TCP/IP LPR Printing

Follow these instructions to set up TCP/IP printing on your Windows XP and 2000 PCs.

Install the FWG114P, connect your printer to the USB port on the FWG114P, and run the Windows Add Printer Wizard.

a. Follow the instructions in the printed

Installation Guide or this manual to install your FWG114P. Connect your printer to the USB port on the back of the FWG114P.

b. From the Windows Start menu of a

computer connected to the FWG114P, click Printers and Faxes.

Add Printer Wizard

c. Click Add a printer. Click Next to

proceed.

d. Be sure to choose the Local printer

attached to this computer option.

Local or Network Printer screen

Click Next to proceed.

e. On the Select a Printer Port screen, be

sure to choose the Create a new port: option.

From the Type of port: drop-down list, be sure to select Standard TCP/IP Port.

Select a Printer Port screen

Click Next to proceed.

This will start the Add Standard TCP/IP Printer Port Wizard.

7-2 Print Server

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Complete the Add Standard TCP/IP Printer Port Wizard.

a. Click Next to proceed with the Add

Standard TCP/IP Printer Port Wizard. The Add Port screen will display.

b. From the Add Port screen, enter

192.168.0.1, the FWG114P default LAN IP address, in the IP Address field.

Add Standard TCP/IP Printer Port Wizard

Note: If you changed the default LAN IP Address of the FWG114P, be sure to use the address you assigned here. The Port Name is automatically filled in.

Add Port Screen

Click Next to proceed.

c. In the Device Type section of the

Additional Port Information Required screen, select Custom.

Additional Port Information Required

d. In the Custom selection, click Settings. e. The Port Settings tab page opens. In the

Protocol section, select the LPR radio button, and enter FWG114P as the Queue Name in the LPR Settings section. Click OK to close this tab page.

Click Next to proceed.

The Add Printer Wizard will now prompt you to install the software for the printer you attached to the FWG114P.

Additional Port Information Required

Print Server 7-3

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Identify the printer connected to FWG114P USB printer port.

a. From the Install Printer Software screen

selection lists, find the manufacturer and model of the printer you connected to the USB port on the FWG114P.

Click Next to proceed. If the printer software is already installed

on this computer, the Add Printer Wizard will inform you and let you keep the existing driver.

b. The Name Your Printer screen prompts

for a descriptive name and if you want it to be the default. Enter your choices.

Click Next to proceed.

c. On the Printer Sharing screen, accept the

Add Printer Wizard Install Printer Software page

If you do not see your make and model printer in the lists, and you are connected to the Internet, you can click the Windows Update button to download additional printer software from the Microsoft Web site, or you can click the Have Disk button to install the printer software from a disk you have.

“Do not share this printer” option and click Next to proceed.

Print a test page to verify successful printing on your network.

a. Upon completion of the Add Printer Wizard, you will be prompted to print a test page. b. Check the printer attached to the FWG114P to see that the test page printed successfully.

If you are unable to print a test page, see “Troubleshooting the Print Server“ on page -11.

Note: If two long files are sent to the printer at once, Windows will pop up a print failure error message. This message can be ignored. The file will print once the printer finishes printing the first file.

7-4 Print Server

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

For Windows 95/98/Me, Use the Netgear Printer Port Driver

Follow these instructions to set up the Netgear Printer Port Drive on Windows 9x PCs.

Install the Netgear Printer Port Driver and configuration utility software.

a. Follow the instructions in the printed

Installation Guide or this manual to install your FWG114P.

b. Connect your printer to the USB port on

the back of the FWG114P.

c. Insert the Resource CD for the

FWG114P into the CD-ROM drive of a computer connected to the FWG114P.

The CD main page shown at the right will load.

d. Click the Print Server button.

Follow the instructions for running the setup utility.

Warning: If you are installing the Netgear printer port driver on a Windows co mputer where an Epson printer had been installed, you must disable the Epson Spool Manager. Failure to disable Epson Spool Manager software will prevent the Netgear printer port driver from operating.

T o disable the Epson Spool Manager, run the Epson Spool Manager, select Queue Setup from the menu, click Use Print Manager for this port, and click OK to exit.

FWG114P Resource CD

e. Click Next to proceed through the

Netgear Printer Port Installation Wizard steps.

Note: W indows 2000 or XP may require you to be logged on with administrator rights.

Netgear Printer Port Installation Wizard

Print Server 7-5

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Set up the Netgear printer port driver.

a. Click Finish when the Installation

Wizard is done.

The Printer Port Setup utility displays, and queries the network to locate the print server in the FWG114P.

After a short delay, the Printer Port Setup utility will display the port it finds in the FWG114P print server.

b. Click Add to add this printer port to your

computer.

The Printer Port Setup utility will report that Port FWG114P_P1 has been added to the computer.

c. Click Exit to exit the Printer Port Setup

utility.

The Windows Add Printer Wizard automatically runs.

Netgear Printer Port Installation Wizard

Note: Under Windows 95, you may

receive an error message stating that SETUPAPI.DLL was not found. In this case, you should upgrade your Internet Explorer to version 5 or later.

Netgear Printer Port Setup Utility

7-6 Print Server

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Identify the printer connected to the FWG114P USB printer port.

a. From the Add Printer Wizard screen

selection lists, find the manufacturer and model of the printer you connected to the USB port on the FWG114P.

Click Next to proceed. If the printer software is already installed

Windows Add Printer Wizard

on this PC, the Add Printer Wizard will inform you and let you keep the existing driver.

b. Be sure to select the FWG114P_P1 port

in the Add Printer Wizard. Click Next.

c. The Name Your Printer screen prompts

for a descriptive name and if you want it to be the default. Enter your choices.

If prompted about Sharing, do not enable Sharing.

Click Next to proceed and finish the Add Printer Wizard steps.

Windows Add Printer Wizard

Print Server 7-7

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Print a test page to verify successful printing on your network.

a. Upon completion of the Add Printer Wizard, print a test page.

– From the Windows Start menu, select Setup > Printers. – Highlight the printer you just added. – Right-click and the select Properties.

The printer properties dialog box opens to the General tab page.

– On the General tab page, click Print Test Page.

b. Check the printer attached to the FWG114P to see that the test page printed successfully.

If you are unable to print a test page, see “Troubleshooting the Print Server“ on page -11.

Printing from the Macintosh

Macintosh computers can connect to a TCP/IP network printer using the Line Printer Remote (LPR) protocol. LPR printing can be set up on any Macintosh that has Desktop Printing installed or available. Desktop Printing is supported on MacOS versions beginning from 8.1. LaserWriter8 version 8.5.1 or higher is also required.

To configure the Macintosh to use the print server, follow these steps:

1. From the Apple Extras folder, under Apple LaserW riter Software, launch the Desktop Printing

Utility. A new window titled New Desktop Printer appears.

2. Select LaserWriter 8 in the “With” drop-down menu.

3. Select Printer (LPR) and click OK. A new window called Untitled 1 will open.

4. If the PostScript Printer Description does not match your printer, click Change... and select

your actual printer. If your printer model does not appear, click the Generic button.

5. Click OK to return to the Untitled 1 window.

6. In the LPR Printer Selection box, click Change...

7-8 Print Server

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

7. In the Printer Address field, type the name or IP address of the FWG114P Wireless Firewall/

Print Server. The IP address will usually be 192.168.0.1. You can leave the Queue Name blank.

Click Verify to make sure your computer can see the printer. You should see the IP address displayed above the button. If no IP Address appears, check that you have correctly typed the queue name or IP Address.

Click OK to return to the Untitled 1 window.

8. At the bottom of the Untitled 1 dialog box, click Create....

When prompted, rename the printer with a descriptive name and click Save. A printer icon should now appear on your desktop.

9. Quit the Desktop Printer Utility.

Windows Printer Port Management

• Print jobs can be managed from Windows. Open the Printers folder (Start -> Settings -> Printers) and double-click any printer to see the current print jobs.

• To delete a port created by this setup program, use the Windows Delete Port facility:

a. Right-click any printer in the Printers folder, and select Properties. b. Highlight the port you want to delete. c. Use the Delete Port button to delete the port. This button is on either the Details or Ports

tab, depending on your version of Windows.

• If you change the printer attached to the FWG114P, run the Add Port program again and select the new printer.

The options for the Print Port Driver are accessed via the Windows Port Settings button. Use Start -> Settings -> Printers to open the Printers folder, then right-click the Printer and select

Properties. The Port Settings button is on either the Details or Port tab, depending on your version of Windows. An example screen is shown below:

Print Server 7-9

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Figure 7-1: Print Port Configuration menu

Items shown on this screen are as follows:

•Port If desired, click Browse Device to select a different device. The Select Device Port button

supports multi-port models, but the FWG114P Wireless Firewall/Print Server is a single-port print server. The Port Name is shown in the Printer's Properties.

•Banner Check this option to print a banner page before each print job. The User Name you enter will

be printed on the banner page. If using a PostScript Printer, check the PostScript box.

• Retry Interval Determines how often Windows will poll the print server to establish a connection when the

printer is busy.

7-10 Print Server

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Troubleshooting the Print Server

Note: When the TCP/IP LPR configuration is used, if two long files are sent to the printer at once, Windows will pop up a print failure error message. This message can be ignored. The file will print once the printer finishes printing the first file. This does not happen when the Netgear Printer Port driver is used.

Question: When I tried to install the Printer Driver for Peer-to-Peer printing, I received an error message and the installation was aborted.

Answer: This may be caused by an existing installation of the printer port software. Before attempting another installation, remove the existing installation and restart your PC.

To remove an existing printer port installation:

a. Open Start -> Settings -> Control Panel -> Add/Remove Programs. b. Look for an entry with a name like “NETGEAR ProSafe Firewall Router”, “NETGEAR

Print Server”, "Print Server Driver" or "Print Server Port".

c. Select this item, click Add/Remove, and confirm the deletion.

Question: I am using Windows 95. The Printer Driver installed and ran, but when I selected a port and clicked Add, the printer was not installed.

Answer: Try installing the printer using the standard Windows tools, as follows:

a. From Start -> Settings, open the Printers folder, and start the Add Printer Wizard. b. When prompted, select Network Printer and click Next.

Print Server 7-11

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

c. For Network Path or Queue, enter a dummy value, such as \\123, as shown below.

Select NO for “Do you print from MS-DOS-based programs?”.

d. Click Next.

Figure 7-2: Windows Add Printer Wizard

e. The printer wizard will display a message stating that "The Network Printer is off-line".

This is OK. Continue the Add Printer Wizard until finished.

f. When finished, go to Start -> Settings -> Printers. The new printer icon will be grayed out

indicating the printer is not ready.

7-12 Print Server

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

g. Right-click the new printer and select Properties. Then select the Details tab, as shown

below.

Figure 7-3: Windows Printer Properties

h. Click the Add Port button. On the resulting screen, select Other, then select the

NETGEAR Print Server Port as the port to add.

i. Click OK to see the Print Port Configuration screen. j. Click the Browse Device button, select the firewall, and click OK.

Print Server 7-13

March 2004, 202-10027-01

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

k. Click OK to return to the Printers folders, and right-click on the new printer. Make sure

that the Work Offline option is NOT checked.

l. From the printer Properties page, General tab, print a test page to confirm that the settings

work.

m. The new printer icon should no longer be grayed out, and the printer is ready for use.

7-14 Print Server

March 2004, 202-10027-01

Netgear FWG114P Reference Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Contents

Audience, Conventions, Scope

How to Use this Manual

How to Print this Manual

Key Features of the FWG114P

Full Routing on Both the Broadband and Serial Ports

802.11g and 802.11b Wireless Networking

Virtual Private Networking

A Powerful, True Firewall with Content Filtering

Security

Autosensing Ethernet Connections with Auto Uplink

Extensive Protocol Support

Easy Installation and Management

Package Contents

The FWG114P Front Panel

The FWG114P Rear Panel

What You Will Need Before You Begin

Cabling and Computer Hardware Requirements

Computer Network Configuration Requirements
