N150 Wireless ADSL2+ Modem Router DGN1000Bv3

User Manual

August 2013 202-11326-01

350 East Plumeria Drive San Jose, CA 95134 USA

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Support

Thank you for selecting NETGEAR products. After installing your device, locate the serial number on the label of your product and use it to register your product

at https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR recommends registering your product through the NETGEAR website. For product updates and web support, visit http://support.netgear.com.

Phone (US & Canada only): 1-888-NETGEAR. Phone (Other Countries): Check the list of phone numbers at

http://support.netgear.com/general/contact/default.aspx.

Trademarks

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved.

Chapter 1 Hardware Setup

Chapter 2 Getting Started

Unpack Your Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Hardware Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Side Panel with Restore Factory Settings Button. . . . . . . . . . . . . . . . . .12

Bottom Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Position Your Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Plug-to-WAN Jack Adapter and ADSL Microfilters. . . . . . . . . . . . . . . . . . .14

German Plug-to-WAN Jack Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . .14

ADSL Microfilters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Cable Your Modem Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Modem Router Setup Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Use Standard TCP/IP Properties for DHCP . . . . . . . . . . . . . . . . . . . . . .17

Gather ISP Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Wireless Devices and Security Settings. . . . . . . . . . . . . . . . . . . . . . . . .17

Types of Logins and Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

NETGEAR genie Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Use NETGEAR genie after Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Update the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Dashboard (BASIC Home Screen). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Join Your Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Manual Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Wi-Fi Protected Setup Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

NETGEAR genie App and Mobile genie App. . . . . . . . . . . . . . . . . . . . . . .22

Chapter 3 NETGEAR genie Basic Settings

Internet Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Internet Setup Screen Fields: No Login Required . . . . . . . . . . . . . . . . .25

Internet Setup Screen Fields: Login Required . . . . . . . . . . . . . . . . . . . .26

Internet Setup Screen Fields: Fields That Display

Irrespective of Whether Login Is Required. . . . . . . . . . . . . . . . . . . . . . .30

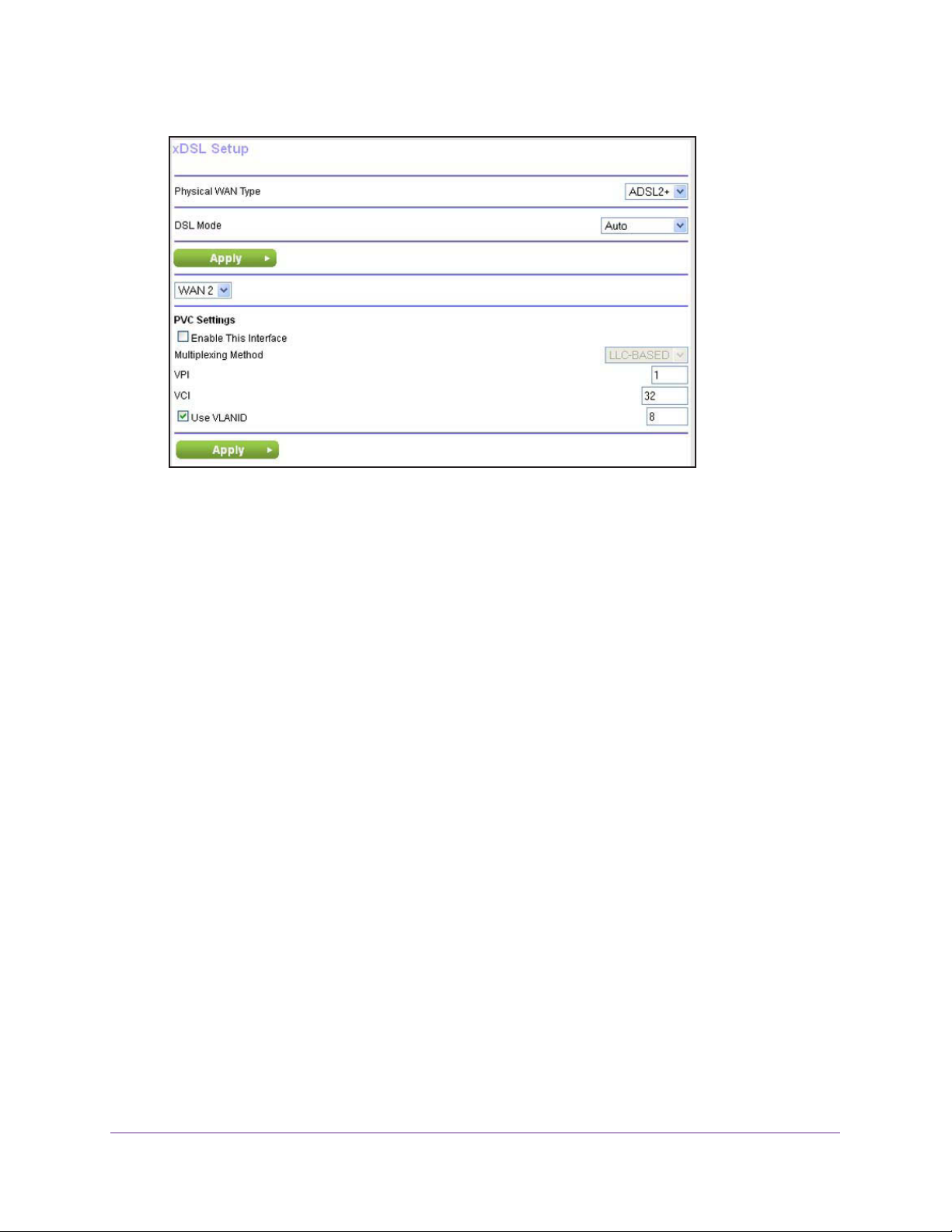

xDSL Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Configure Regular Internet Service . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Configure IPTV Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

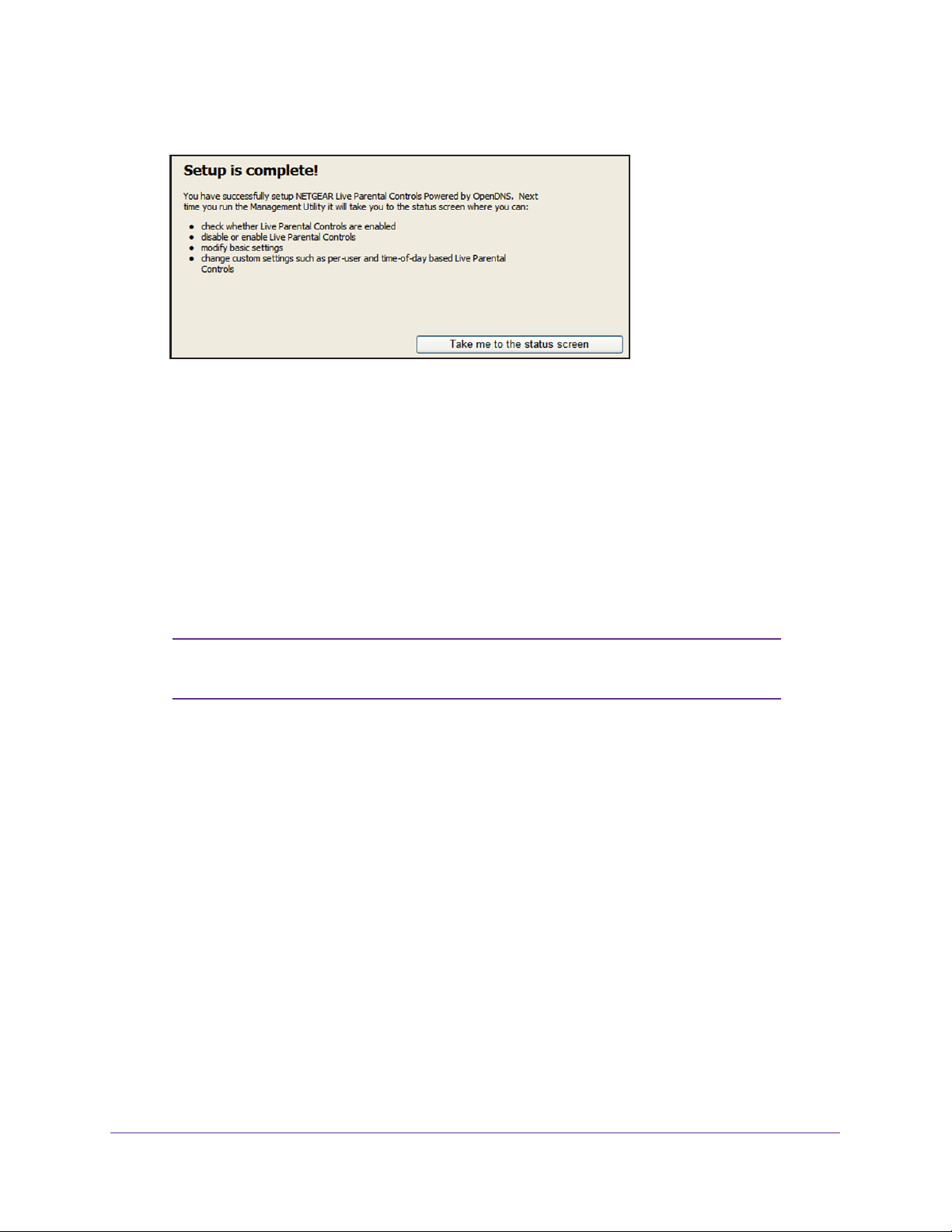

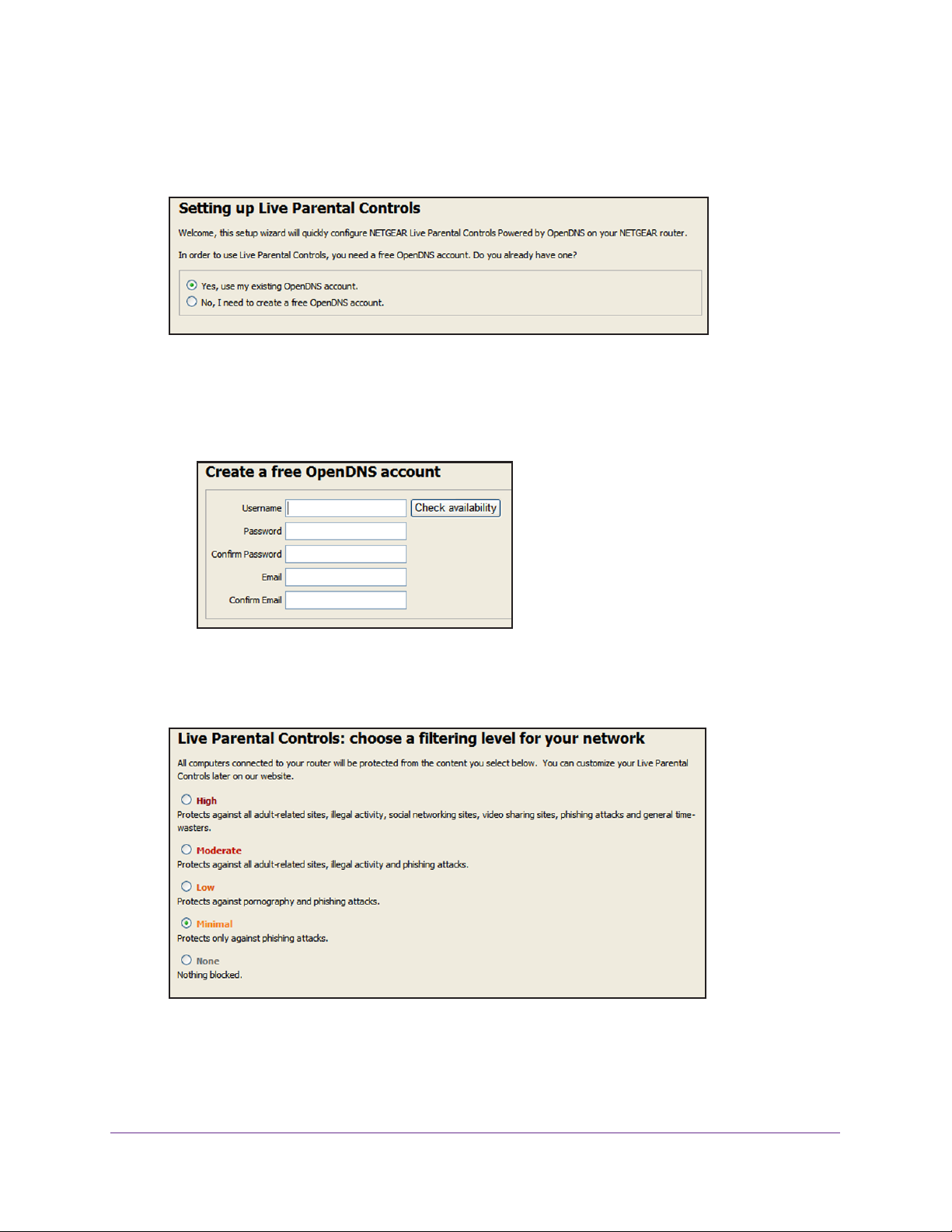

Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

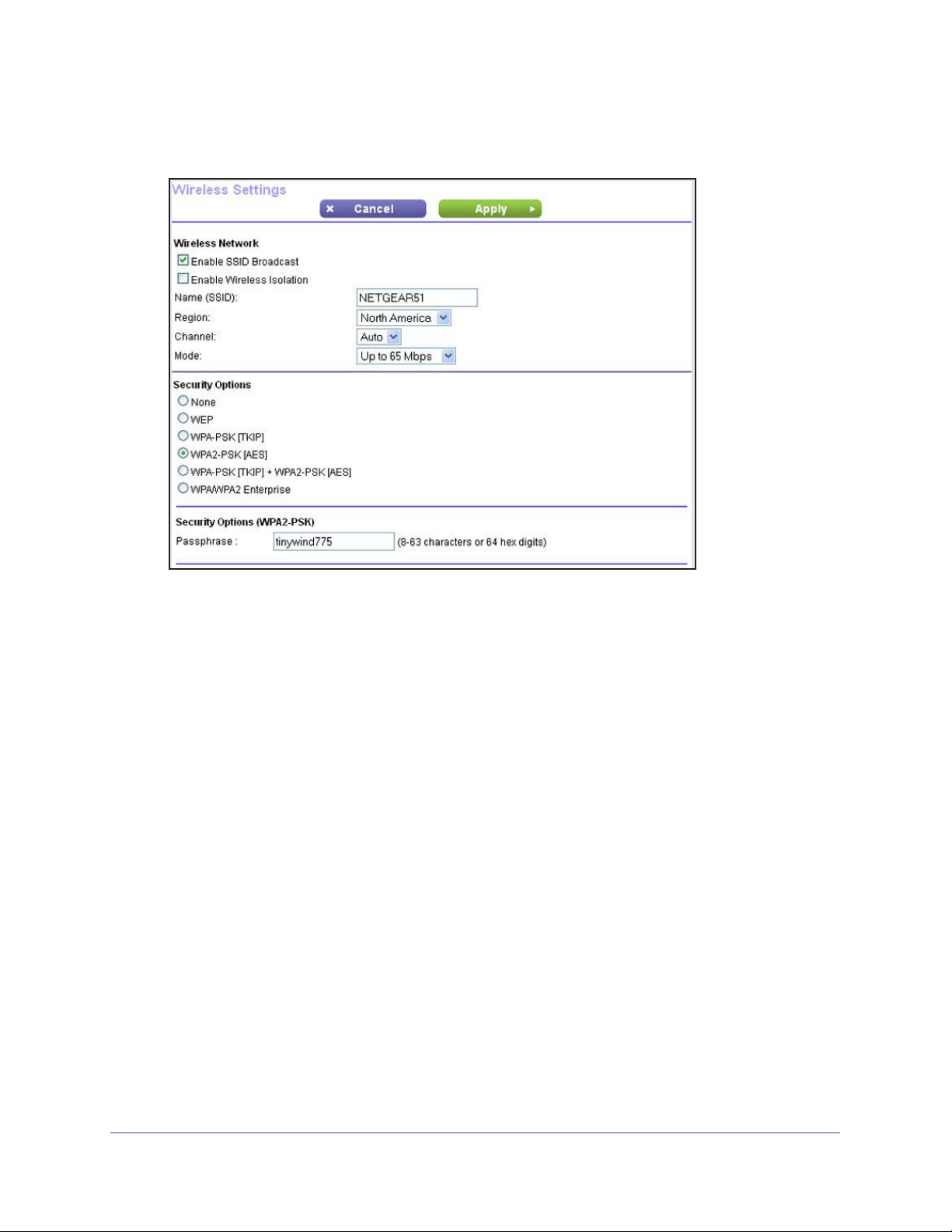

Wireless Settings Screen Fields. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

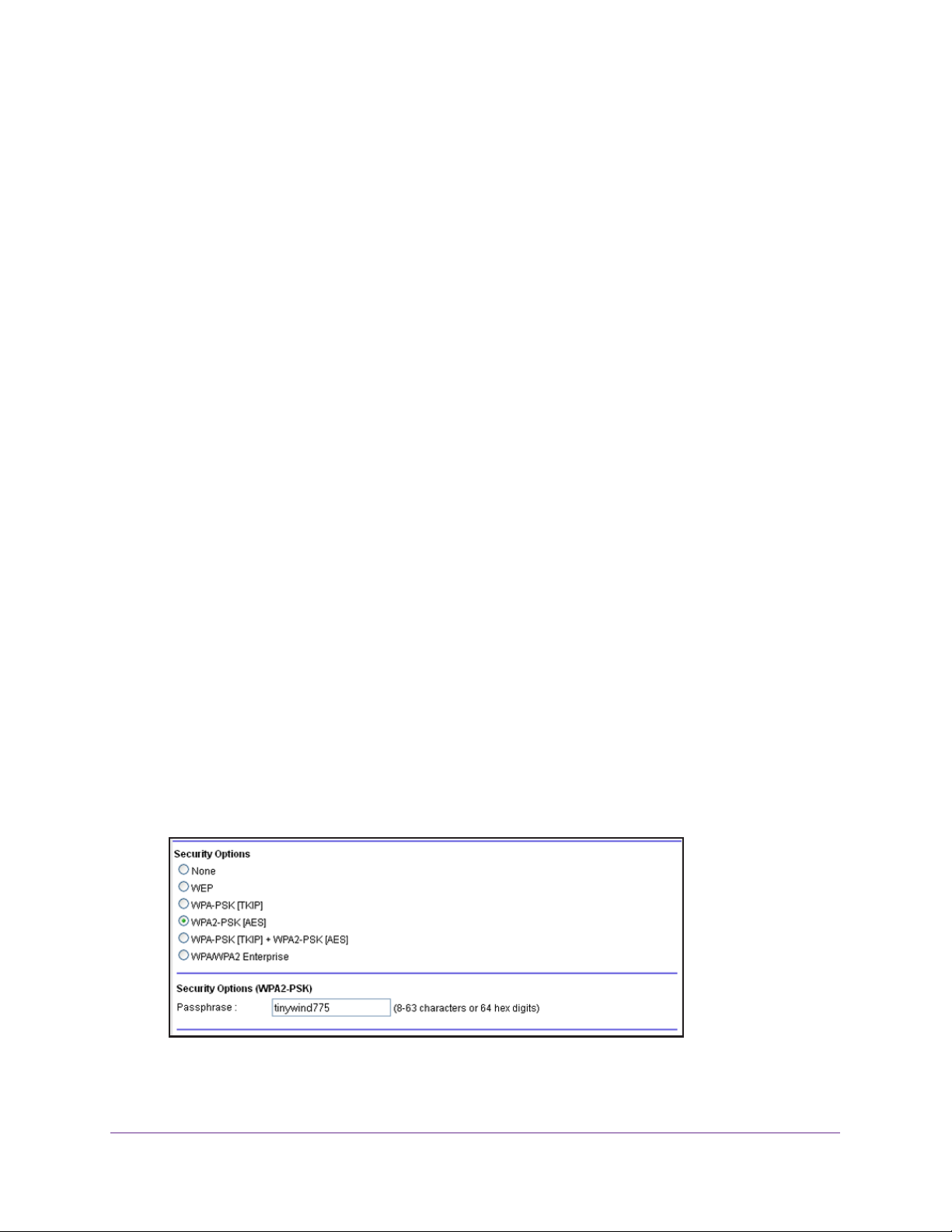

Security Options: WPA-PSK, WPA2-PSK, and

WPA-PSK + WPA2-PSK Mixed Mode . . . . . . . . . . . . . . . . . . . . . . . . . .39

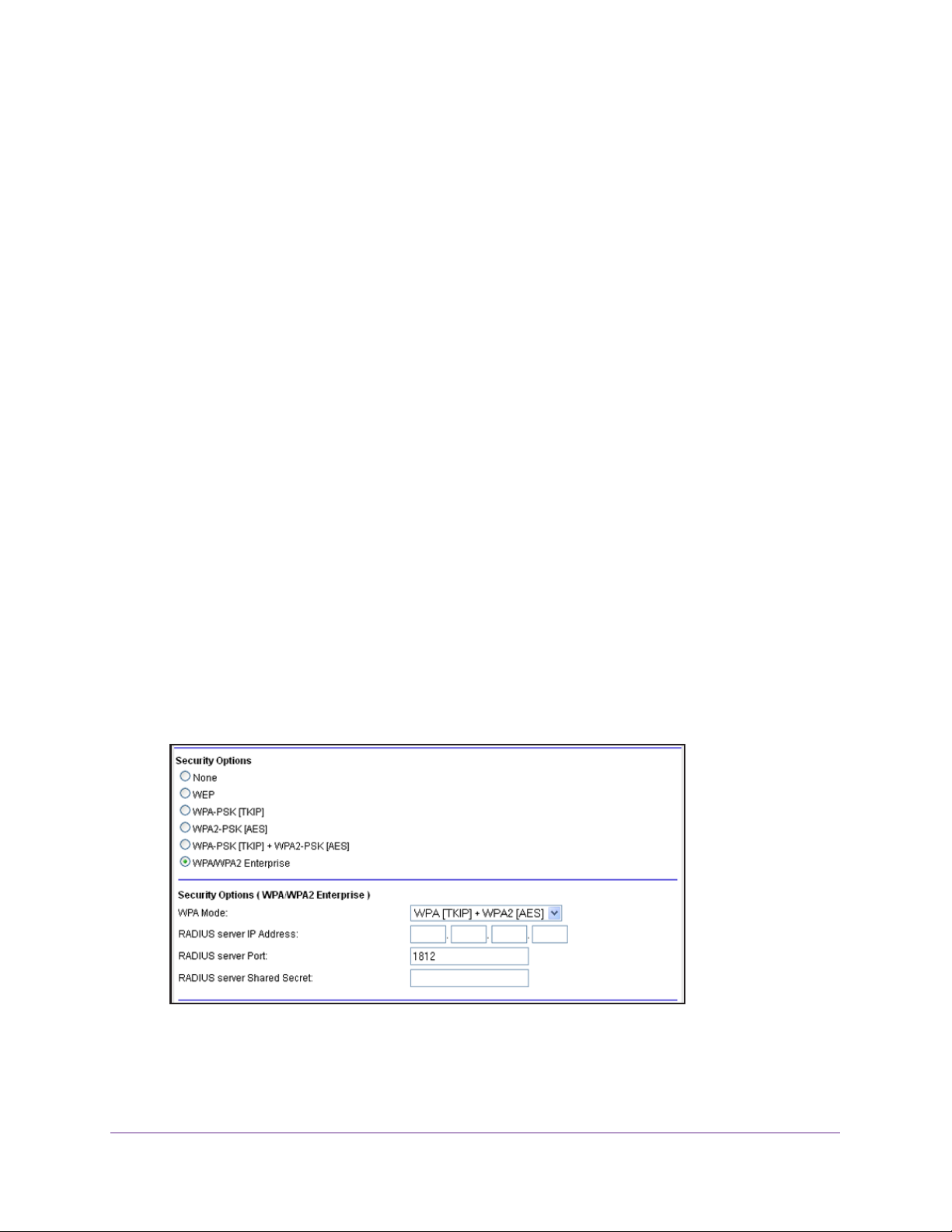

Security Options: WPA/WPA2 Enterprise . . . . . . . . . . . . . . . . . . . . . . .40

Security Options: WEP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Set Up a Guest Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

View Attached Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Chapter 4 NETGEAR genie ADVANCED Home

NETGEAR genie ADVANCED Home Screen . . . . . . . . . . . . . . . . . . . . . .47

Internet Connection Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

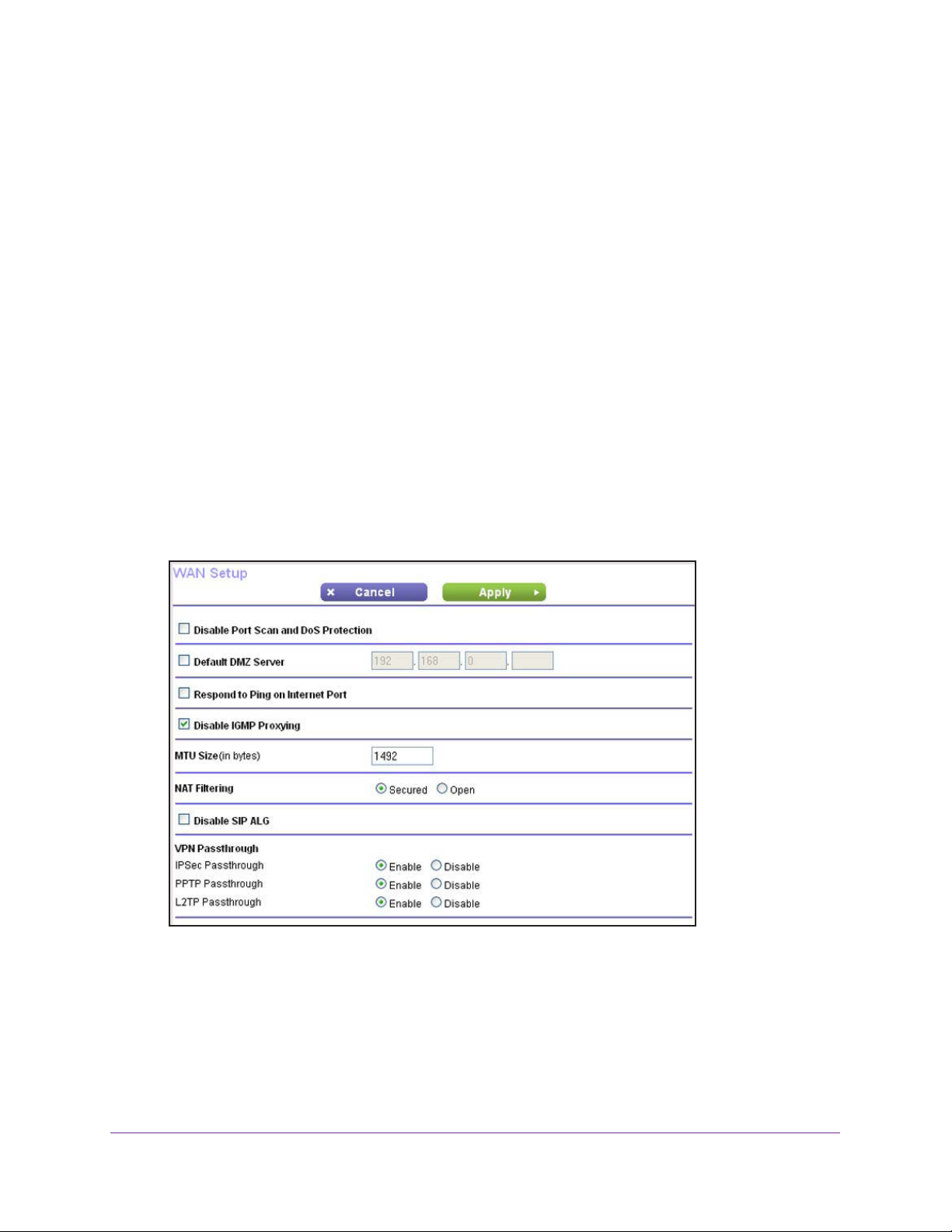

WAN Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Default DMZ Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Change the MTU Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

LAN Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

LAN Setup Screen Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Specify DHCP Server Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

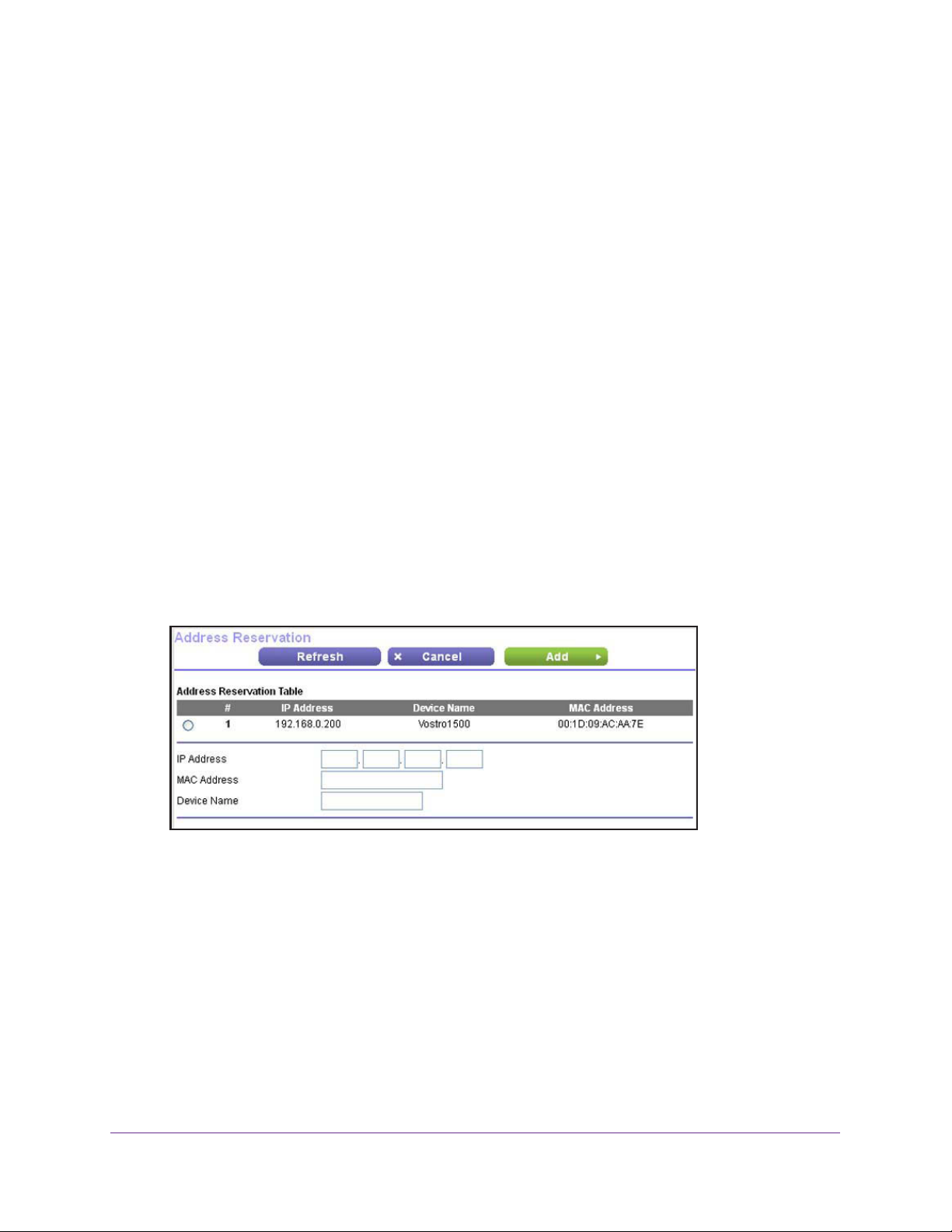

Set Up Address Reservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

WPS Wizard for WiFi Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

QoS Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

WMM QoS for Wireless Multimedia Applications. . . . . . . . . . . . . . . . . .59

Quality of Service Priority Rules and Internet Access . . . . . . . . . . . . . .60

Bandwidth Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Chapter 5 Security

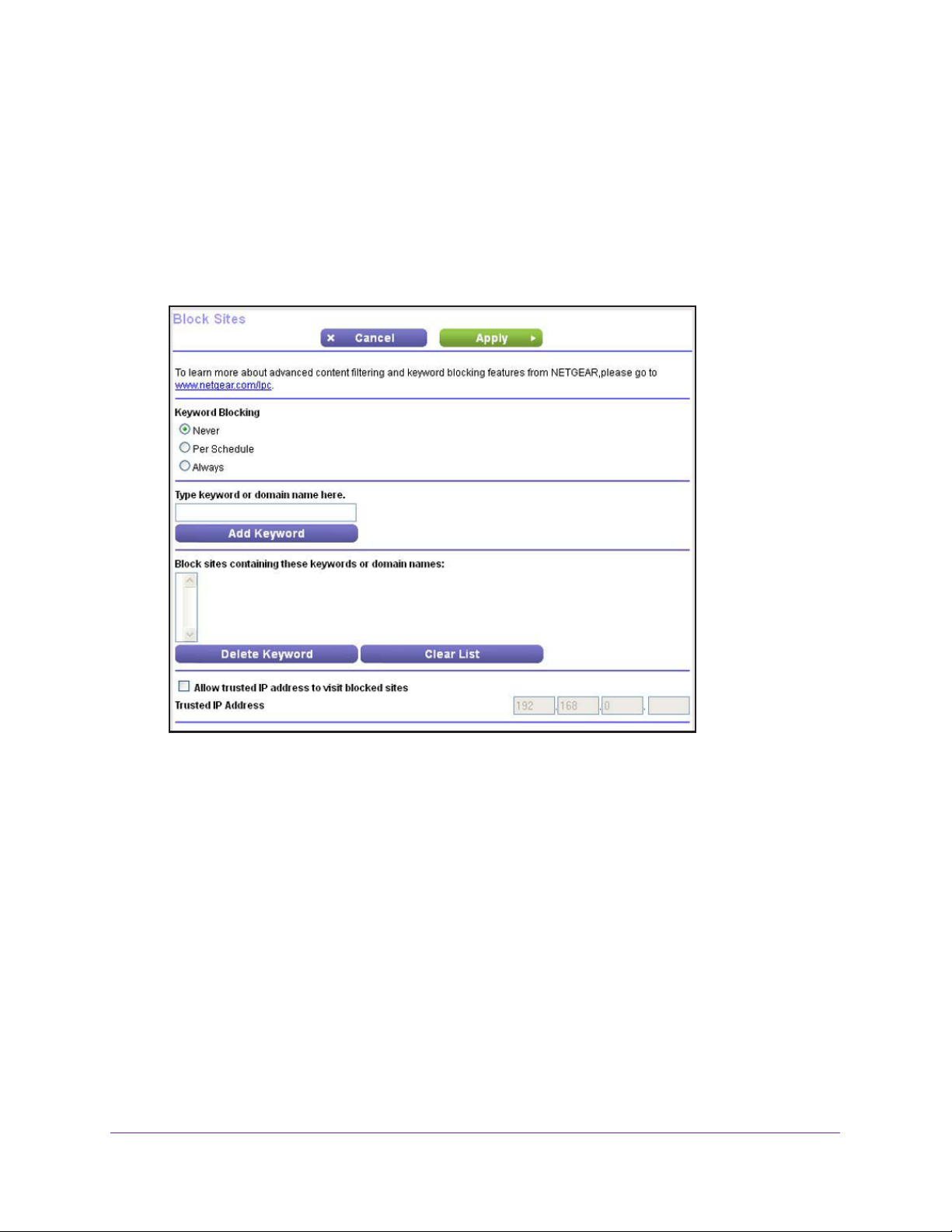

Keyword Blocking of HTTP Traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

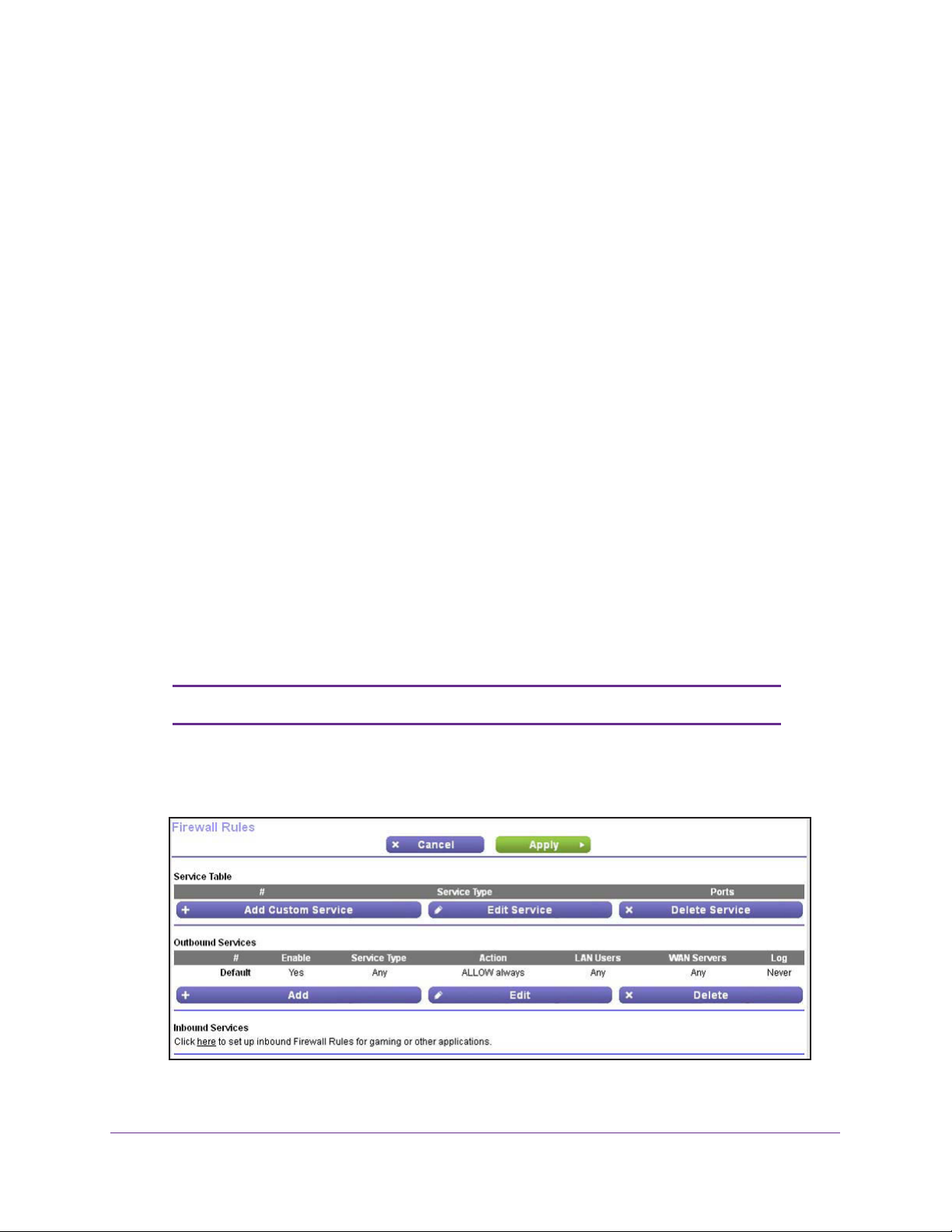

Set Up Firewall Rules to Control Network Access . . . . . . . . . . . . . . . . . . .70

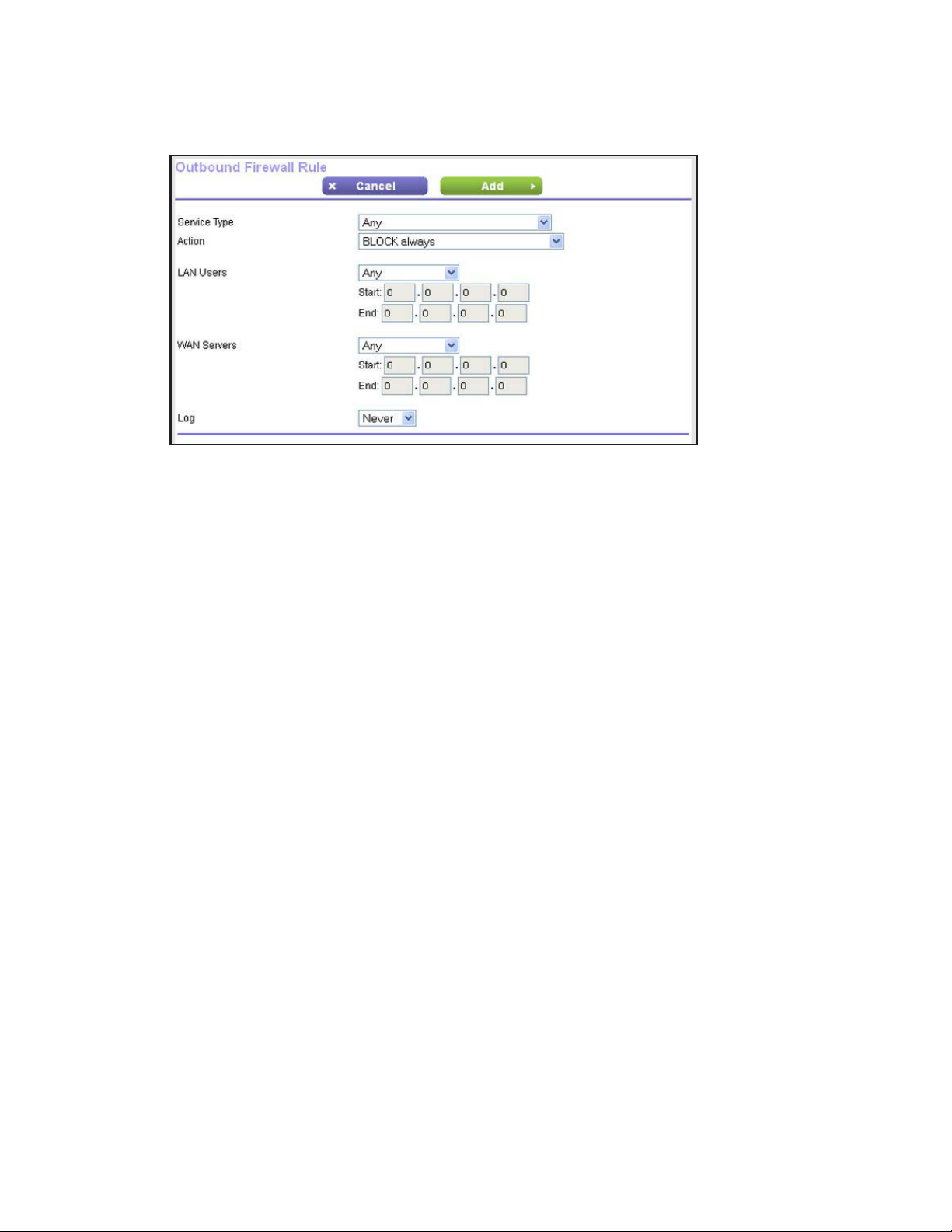

Manage Outbound Firewall Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Manage Inbound Firewall Rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Add Custom Services to Allow or Block. . . . . . . . . . . . . . . . . . . . . . . . . . .74

Schedule When to Block the Internet. . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Security Event Email Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Chapter 6 Administration

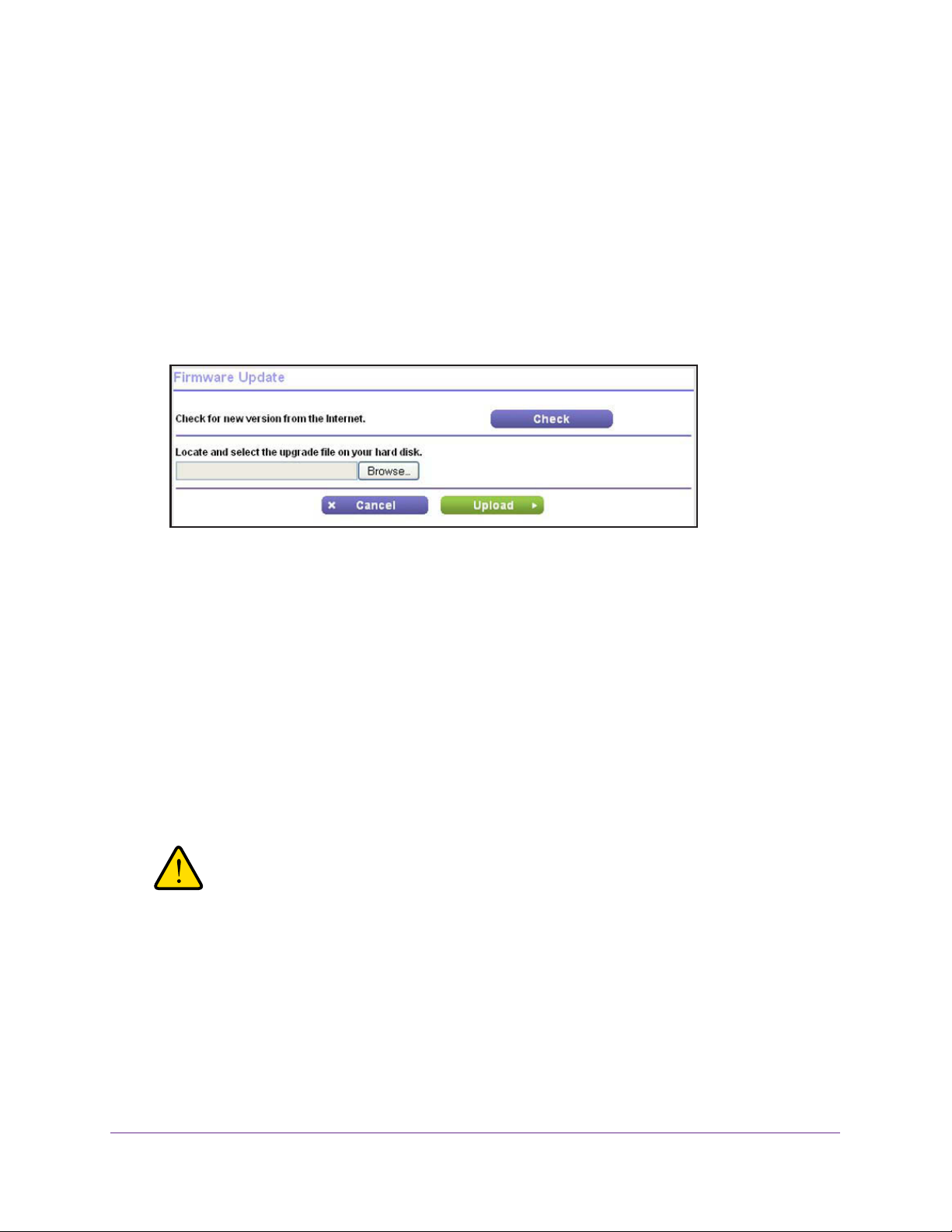

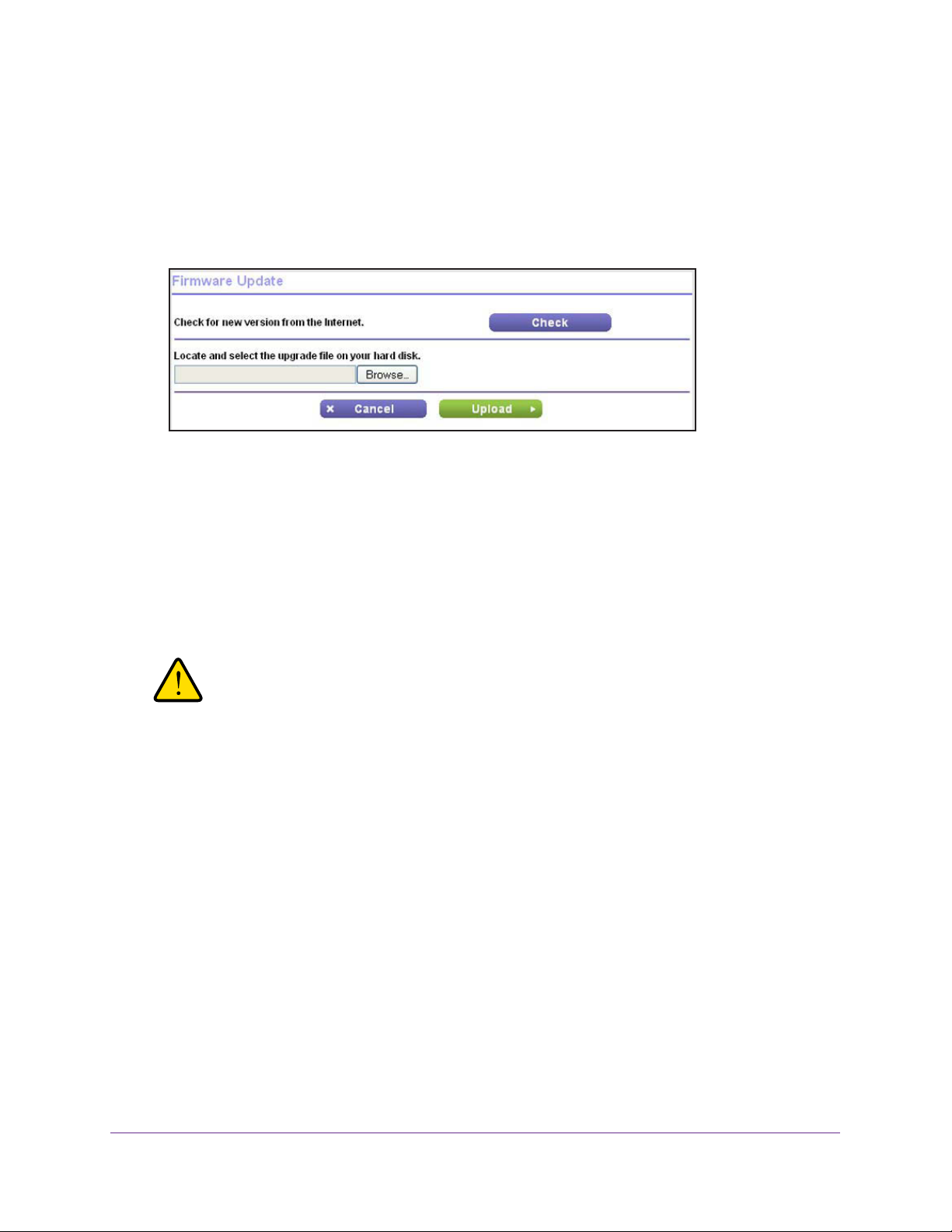

Update the Modem Router Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

View Router Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Router Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

Internet Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83

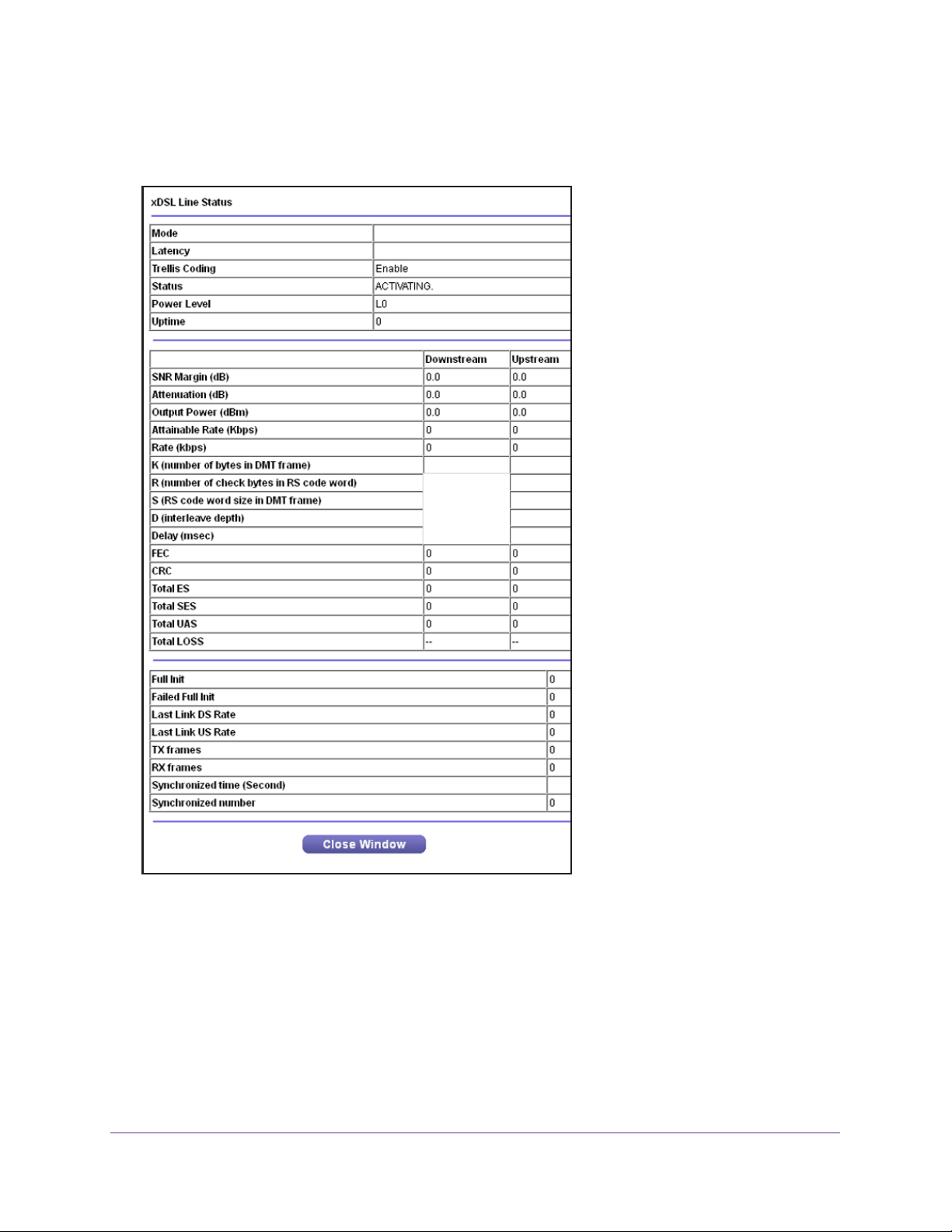

Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Guest Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

View and Manage the Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Change Which Actions and Events Are Logged. . . . . . . . . . . . . . . . . . .89

Set Up How the System Logs Are Sent . . . . . . . . . . . . . . . . . . . . . . . . .90

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Manage the Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Back Up Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Restore Configuration Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Erase the Current Configuration Settings. . . . . . . . . . . . . . . . . . . . . . . .91

Change the Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91

Password Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

Perform Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Chapter 7 Advanced Settings

Advanced Wireless Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

Control the Wireless Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

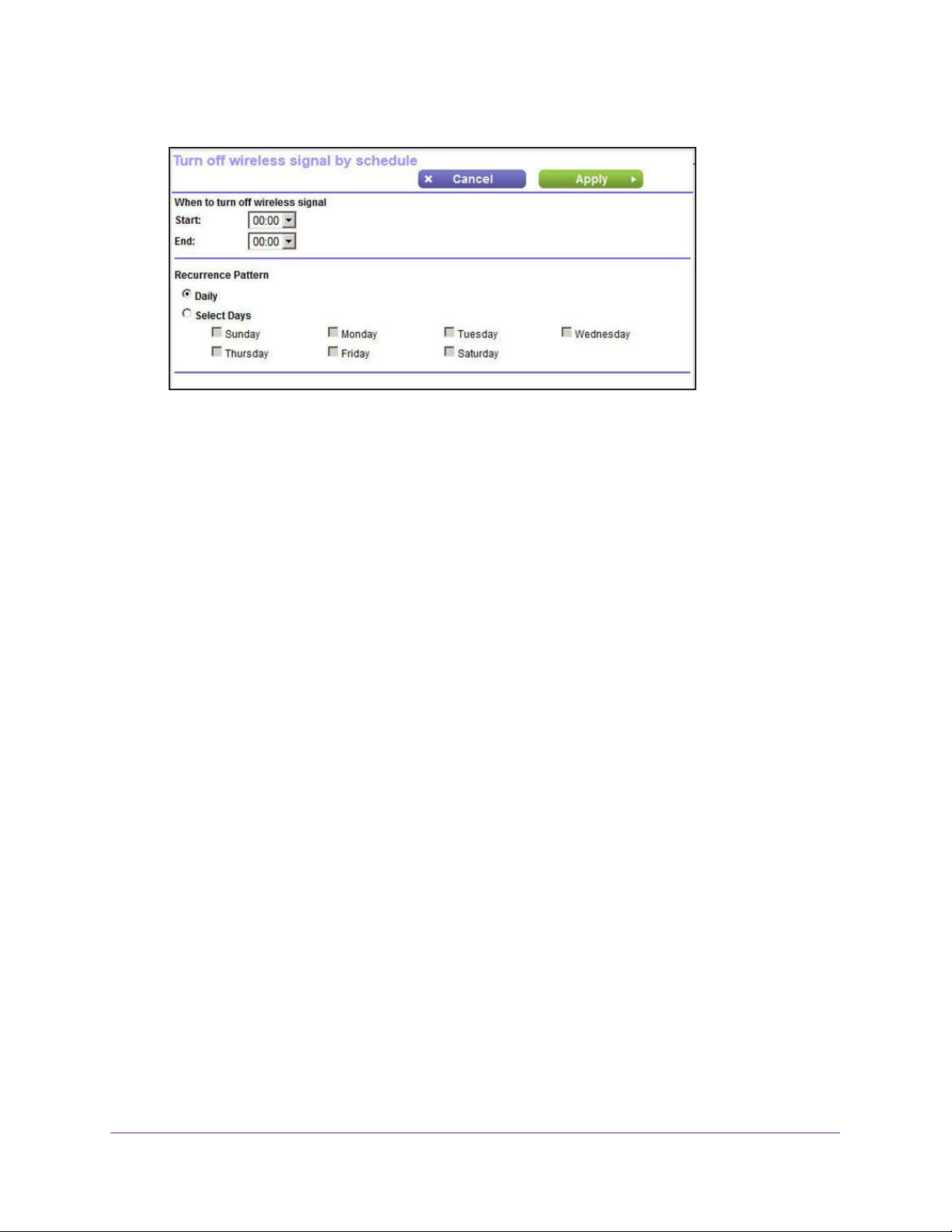

Set Up a Wireless Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

View or Change WPS Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

Set Up a Wireless Access List by MAC Address . . . . . . . . . . . . . . . . .101

Wireless Distribution System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Set Up the Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Set Up a Repeater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105

Port Forwarding and Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

Remote Computer Access Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

Port Triggering to Open Incoming Ports. . . . . . . . . . . . . . . . . . . . . . . .108

Port Forwarding to Permit External Host Communications . . . . . . . . .109

How Port Forwarding Differs from Port Triggering . . . . . . . . . . . . . . . .110

Set Up Port Forwarding to Local Servers. . . . . . . . . . . . . . . . . . . . . . . . .111

Manage Custom Services for Port Forwarding. . . . . . . . . . . . . . . . . . .112

Application Example: Make a Local Web Server Public. . . . . . . . . . . .114

Set Up and Manage Port Triggering. . . . . . . . . . . . . . . . . . . . . . . . . . . . .114

Manage Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Manage Port Triggering Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

Dynamic DNS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118

Static Routes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

Remote Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121

Universal Plug and Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122

IPv6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .123

Requirements for Entering IPv6 Addresses . . . . . . . . . . . . . . . . . . . . .124

IPv6 Filtering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

Auto Detect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

IPv6 Auto Config. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .126

IPv6 6to4 Tunnel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127

IPv6 Pass Through. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

IPv6 Fixed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

IPv6 DHCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131

IPv6 PPPoE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132

Traffic Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .134

Restricting Internet Traffic by Volume. . . . . . . . . . . . . . . . . . . . . . . . . .136

Restricting Internet Traffic by Connection Time . . . . . . . . . . . . . . . . . . . .137

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Chapter 8 Troubleshooting

Quick Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139

Sequence to Restart Your Network . . . . . . . . . . . . . . . . . . . . . . . . . . .139

Check Ethernet Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . .139

Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139

Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139

Troubleshoot with the LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140

Power LED Is Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140

Power LED Is Red . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140

Power LED Is Blinking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141

WiFi LED Is Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141

LAN LED Is Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141

Cannot Log In to the Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . .141

Troubleshoot the Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . .142

ADSL Link. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142

Internet LED Is Red . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143

Obtaining an Internet IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143

Troubleshoot PPPoE or PPPoA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Troubleshoot Internet Browsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144

Changes Not Saved. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145

Wireless Connectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .145

Incorrect Date or Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

TCP/IP Network Not Responding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

Test the LAN Path to Your Modem Router. . . . . . . . . . . . . . . . . . . . . .146

Test the Path from Your Computer to a Remote Device . . . . . . . . . . .147

Appendix A Supplemental Information

Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .149

Technical and Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .151

Appendix B Notification of Compliance

1. Hardware Setup

Get to know your modem router

The NETGEAR® N150 Wireless ADSL2+ Modem Router DGN1000Bv3, going forward in this

manual referred to as the modem router, provides an easy and secure way to set up a wireless home network with fast access to the Internet. You must connect the modem router to a high-speed digital subscriber line (DSL).

If you have not already set up your new modem router using the installation guide that comes in the box, this chapter walks you through the hardware setup. Chapter 2, Getting Started, explains how to set up your Internet connection.

This chapter contains the following sections:

• Unpack Your Modem Router

• Hardware Features

• Position Your Modem Router

• Plug-to-WAN Jack Adapter and ADSL Microfilters

• Cable Your Modem Router

Note: For more information about the topics covered in this manual, visit

the support website at support.netgear.com.

Note: Firmware updates with new features and bug fixes are made

available from time to time on downloadcenter.netgear.com. Some products can regularly check the site and download new firmware, or you can check for and download new firmware manually features or behavior of your product do not match what is described in this guide, you might need to update your firmware.

. If the

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Unpack Your Modem Router

Your box contains the items that are shown in the following figure. An installation guide and documentation CD are also included. In the unlikely event that any parts are incorrect, missing, or damaged, contact your NETGEAR dealer.

N150 Modem Router

Power adapter

DSL cable

Figure 1. Package contents

German plug-to-WAN adapter

Ethernet cable

Hardware Setup

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Hardware Features

Before you cable your modem router, take a moment to become familiar with the front panel, back panel, and label. Pay particular attention to the LEDs on the front panel.

Front Panel

The modem router front panel has the status LEDs that are shown in the following figure. The WiFi and WPS buttons are to the left of the WiFi and WPS status LEDs.

WPS button

WiFi On/Off button

WPS LED

WiFi LED

Internet LED

DSL LED

LAN port LEDs (1–4)

Power LED

Figure 2. Front panel LEDs and buttons

Hardware Setup

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

The following table describes the buttons and LEDs on the front panel.

Table 1. Front panel buttons and LEDs

Button LED Description

WPS Pressing the WPS button lets you use Wi-Fi Protected Setup (WPS) to join the

network (see Wi-Fi Protected Setup Method on page 21). The WPS LED has the following behavior:

• Solid green. Wireless security has been enabled.

• Blinking green.

• Off. WPS is not enabled.

WiFi Pressing the WiFi button turns the wireless radio in the modem router on or off. By

default, WiFi is on. The WiFi LED has the following behavior:

• Solid green. There

• Blinking green. Data is being transmitted or received over the WiFi link.

• Off.

There is no WiFi connectivity. You can still plug an Ethernet cable into one of the LAN ports to get wired connectivity . For more information about the use of this button, see Advanced W

A WPS-capable device is connecting to the device.

is WiFi

connectivity.

ireless Settings on page 97.

Internet • Solid green. You have an Internet connection. If the connection timed out based

on the setting you entered on the Internet Setup screen, but the DSL connection is still present, the LED stays green. If the Internet connection is dropped for any other reason, the LED turns off.

DSL

LAN (1–4)

Power

• Solid red. The Internet (IP) see Troubleshoot the Internet Connection on page 142.

• Blinking green. Data is being transmitted over the DSL port.

• Off. No Internet connection is detected or the device is in bridge mode (an external device handles the ISP connection).

• Solid green. You have a DSL connection. In technical terms, the DSL port is synchronized with an ISP’s network-access device.

• Blinking green. DSL line.

• Solid red. The

• Off. The unit is off or there is no DSL link established.

• Solid green. The LAN port has detected an Ethernet link with a device.

• Off. No link is detected on this port.

• Solid green. Power is supplied to the modem router.

• Solid red. The modem router performs a power-on self-test (POST) when it starts. After about one minute, the Power LED turns solid green. If the Power LED remains red or lights red at any other time, a device malfunction has occurred.

• Off

. Power is not supplied to the modem router.

• Blinking red. If you press the Restore Factory Settings button for seven seconds (pressing it briefly only resets the unit), the Power LED blinks red three times and then turns green as the modem router resets to the factory defaults.

The modem router is negotiating the best possible speed on the

connection

DSL

connection failed. For troubleshooting information,

is not established.

Hardware Setup

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Back Panel

The back panel has the buttons and port connections as shown in the following figure.

ADSL port

Ethernet LAN ports

Figure 3. Back panel connections and buttons

Power adapter input

On/Off button

Hardware Setup

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Side Panel with Restore Factory Settings Button

You can return the modem router to its factory settings. On the right panel of the modem router, use the end of a paper clip or some other similar object to press and hold the Restore Factory Settings button for at least seven seconds. The modem router resets and returns to the factory settings.

Restore Factory Settings button

Figure 4. Right side panel with Restore Factory Settings button

For a list of factory default settings, see Factory Settings on page 149.

Hardware Setup

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Bottom Panel

The label on the bottom panel of the modem router shows the preset login information, MAC address, and serial number.

WiFi network nameMAC address Serial number

Figure 5. Label on the bottom panel of the modem router

Password

Position Your Modem Router

The modem router lets you access your network from virtually anywhere within the operating range of your wireless network. However, the operating distance or range of your wireless connection can vary significantly depending on the physical placement of your modem router. For example, the thickness and number of walls the wireless signal passes through can limit the range. For best results, place your modem router:

• Near the center of the area where your computers and other devices operate and

preferably within line of sight to your wireless devices.

• So it is accessible to an AC power outlet and near Ethernet cables for wired computers.

• In an elevated location such as a high shelf, keeping the number of walls and ceilings

between the modem router and your other devices to a minimum.

• A

way from electrical devices that are potential sources of interference, such as ceiling fans, home security systems, microwaves, computers, or a 2.4 GHz cordless phone and its base.

• A way from any large metal surfaces, such as a solid metal door or aluminum studs. Large

expanses of other materials such as glass, insulated walls, fish tanks, mirrors, brick, and concrete can also affect your wireless signal.

Hardware Setup

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Plug-to-WAN Jack Adapter and ADSL Microfilters

If this is the first time you have cabled a modem router between a DSL phone line and your computer or laptop, you might not be familiar with ADSL microfilters. If you are, you can skip this section and proceed to Cable Your Modem Router on page 15.

German Plug-to-WAN Jack Adapter

If your subscriber line supports ADSL2+ Annex J, use the German plug-to-WAN jack adapter in between the DSL line and the microfilter or splitter. This adapter is part of the package that came with your modem router.

Plugs into the DSL line

Figure 6. German plug-to-WAN jack adapter

ADSL Microfilters

An ADSL microfilter is a small inline device that filters DSL interference out of standard phone

equipment that shares the same line with your DSL service. Every telephone device that connects to a telephone line that provides DSL service needs an ADSL microfilter to filter out the DSL interference. Examples of devices are telephones, fax machines, answering machines, and caller ID displays. Not every phone line in your home necessarily carries DSL service. That depends on the DSL service setup in your home.

One-Line ADSL Microfilter

Plug the ADSL microfilter into the wall outlet and plug your phone equipment into the jack labeled Phone. The modem router plugs directly into a separate DSL line. Plugging the modem router into the phone jack blocks the Internet connection.

Plugs into DSL line

Figure 7. One-line ADSL microfilter

If you do not have a separate DSL line for the modem router, the best solution is to use an

ADSL microfilter with a built-in splitter (see the next section, T wo-Line ADSL Microfilter).

If you do not have a separate DSL line for the modem router, the second-best solution is to get a separate splitter. To use a one-line filter with a separate splitter, insert the splitter into the phone outlet, connect the one-line filter to the splitter, and connect the phone to the filter.

Hardware Setup

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Two-Line ADSL Microfilter

Use an ADSL microfilter with a built-in splitter if you have a single wall outlet that provides connectivity for both the modem router and your telephone equipment. Plug the ADSL microfilter into the wall outlet, plug your phone equipment into the jack labeled Phone, and plug the modem router into the jack labeled ADSL.

Plugs into the DSL line

Figure 8. Two-line ADSL microfilter with built-in splitter

Summary

• German plug-to-WAN jack adapter. Use if your subscriber line supports ADSL2+ Annex J to

provide a connection between the DSL line and the microfilter or splitter.

• One-line ADSL microfilter. Use with a phone or fax machine.

• Splitter. Use with a one-line ADSL microfilter to share an outlet with a phone and the

modem router.

• Two-line ADSL microfilter with built-in splitter. Use to share an outlet with a phone

and the modem router.

Cable Your Modem Router

Use a DSL Internet connection. For help with installation, see the installation guide that came in the package with your product and that is available online from

downloadcenter.netgear.com.

For information about how to access the modem router to view or change the settings, see

Chapter 2, Getting Started.

Hardware Setup

2. Getting Started

Connect to the modem router

This chapter explains how to use NETGEAR genie® to set up your modem router after you

complete cabling as described in the installation guide and in the previous chapter.

This chapter contains the following sections:

• Modem Router Setup Preparation

• Types of Logins and Access

• NETGEAR genie Setup

• Use NETGEAR genie after Installation

• Update the Firmware

• Dashboard (BASIC Home Screen)

• Join Your Wireless Network

• NETGEAR genie App and Mobile genie App

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Modem Router Setup Preparation

You can set up your modem router with the NETGEAR genie automatically, or you can use the genie menus and screens to set up your modem router manually. Before you start the setup process, get your ISP information and make sure the computers and devices in the network have the settings described here.

Use Standard TCP/IP Properties for DHCP

If you set up your computer to use a static IP address, you must change the settings so that it uses Dynamic Host Configuration Protocol (DHCP).

Gather ISP Information

If you have DSL broadband service, you might need the following information to set up your modem router and to check that your Internet configuration is correct. Your Internet service provider (ISP) provided you with all of the information needed to connect to the Internet. If you cannot locate this information, ask your ISP to provide it. When your Internet connection is working, you no longer need to launch the ISP’s login program on your computer to access the Internet. When you start an Internet application, your modem router automatically logs you in. Make sure that you have the following information:

• The ISP configuration information for your DSL account

• ISP login name and password

• Fixed or static IP address settings (special deployment by ISP; this is rare)

Wireless Devices and Security Settings

Make sure that the wireless device or computer that you are using supports WPA or WPA2 wireless security, which is the wireless security supported by the modem router.

Types of Logins and Access

There are separate types of logins that have different purposes. It is important that you understand the difference so that you know which login to use when.

• Modem Router login logs you in to the modem router web management interface. For

more information about this login, see Use NETGEAR genie after Installation on page 19.

• ISP login logs you in to your Internet service. Y

this login information in a letter or some other way. If you cannot find this login information, contact your service provider.

• Wireless network key or password. Y our modem router is preset with a unique wireless

network name (SSID) and password for wireless access. of your modem router.

our service provider has provided you with

This information is on the label

Getting Started

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

NETGEAR genie Setup

NETGEAR genie runs on any device with a web browser.

 To use NETGEAR genie to set up your modem router:

1. Turn on the modem router by pressing the On/Off button.

2. Make sure that your computer or wireless device is connected to the modem router with an

Ethernet cable (wired) or wirelessly with the preset security settings listed on the product label.

3. Launch your Internet browser

• The first time you set up the Internet connection for your modem router, the browser

goes to http://www.routerlogin.net, and the NETGEAR genie screen displays.

• If you already used the NETGEAR genie, type http://www.routerlogin.net in the

address field for your browser to display the NETGEAR genie screen. See Use

NETGEAR genie after Installation on page 19.

4. Follow the onscreen instructions to complete NETGEAR genie setup.

NETGEAR genie guides you through connecting the modem router to the Internet.

If the browser cannot display the web page:

• Make sure that the computer is connected to one of the four LAN Ethernet ports or

wirelessly to the modem router.

• Make sure that the modem router Power LED is solid green and the WiFi LED is lit.

• Close and reopen the browser or clear the browser cache.

• Browse to http://www

• If the computer is set to a static or fixed IP address (this is uncommon), change it to

obtain an IP address automatically from the modem router.

.routerlogin.net.

Getting Started

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

If the modem router does not connect to the Internet:

1. Review your settings to be sure that you have selected the correct options and typed

everything correctly.

2. Contact your ISP to verify that you have the correct configuration information.

3. Read Chapter 8, Troubleshooting. If problems persist, register your NETGEAR product and

contact NETGEAR technical support.

Use NETGEAR genie after Installation

When you first set up your modem router, NETGEAR genie automatically starts when you launch an Internet browser on a computer that is connected to the modem router. If you want to view or change settings for the modem router, you can use genie again.

 To access genie:

1. Launch your browser from a computer or wireless device that is connected to the

modem router.

2. T

ype http://www

.routerlogin.net or http://www.routerlogin.com.

The login screen displays.

3. Enter admin for the modem router user name and password for the modem router

password, both in lowercase letters.

Note: The modem router user name and password are different from the user

name and password for logging in to your Internet connection. For more information, see Types of Logins and Access on page 17.

Update the Firmware

When you set up your modem router and are connected to the Internet, the modem router automatically checks for you to see if newer firmware is available. If it is, a message is displayed on the top of the screen.

 To update the firmware:

1. Click the message that tells you new firmware is available.

During the firmware update, you cannot access the Internet.

2. Click the Ye

s button to update the modem router with the latest firmware.

CAUTION:

To avoid the risk of corrupting the firmware, do not interrupt the update. For example, do not close the browser, click a link, or load a new page. Do not turn off the modem router.

Getting Started

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

After the update, the modem router restarts.

For more information, see Update the Modem Router Firmware on page 80.

Dashboard (BASIC Home Screen)

The modem router BASIC Home screen has a dashboard that lets you see the status of your Internet connection and network at a glance. You can click any of the six sections of the dashboard to view and change the settings. The left column has menus. You can use the

ADVANCED tab to access more menus and screens.

Language

Menus

(Click the ADVANCED tab to view more)

Dashboard (Click to view details)

Help

Figure 9. BASIC Home screen with dashboard, language, and online help

• Home. This dashboard screen displays when you log in to the modem router.

• Language. Select your language from the menu.

• Internet. Set, update, and check the ISP settings of your modem router.

• W

ireless. View or change the wireless settings for your modem router.

• Attached Devices

. View the devices connected to your network.

• Parental Controls. Download and set up parental controls to prevent objectionable

content from reaching your computers.

• Guest Network

. Set up a guest network to allow visitors to use your modem router’

Internet connection.

• ADVANCED tab. Set the modem router up for unique situations such as when remote

access by IP or by domain name from the Internet is needed. See Chapter 7, Advanced

Settings. You need a solid understanding of networking to use this tab.

• Help & Support. Go to the NETGEAR support site to get information, help, and product

documentation. These links work after you have an Internet connection.

Getting Started

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Join Your Wireless Network

You can use the manual or the WPS method to join your wireless network. For instructions about how to set up a guest network, see Set Up a Guest Network on page 43.

Manual Method

With the manual method, choose the network that you want and type its password to connect.

 To connect manually:

1. On your computer or wireless device, open the software that manages your wireless

connections. This software scans for all wireless networks in your area.

2. Look for your network and select it.

The unique WiFi network name (SSID) and password are on the modem router label. If you changed these settings, look for the network name that you used.

3. Enter the modem router password.

4. Click the Connect button.

Wi-Fi Protected Setup Method

Wi-Fi Protected Setup (WPS) lets you connect to a secure WiFi network without typing its password. Instead, press a button or enter a PIN. NETGEAR calls WPS Push 'N' Connect.

Some older WiFi equipment is not compatible with WPS. WPS works only with WP A2 or WP A wireless security.

 To use WPS to join the wireless network:

1. Press the WPS button on the modem router front panel

2. Within two minutes, press the WPS button on your wireless device, or follow the WPS

instructions that came with the device. The WPS process automatically sets up your wireless computer with the network

password and connects you to the wireless network.

Getting Started

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

NETGEAR genie App and Mobile genie App

The genie app is the easy dashboard for managing, monitoring, and repairing your home network. See the NETGEAR genie App User Manual for details about the genie apps.

Retrieve wireless password

Figure 10. genie app dashboard

About genie

Language

Dashboard (Click to view details)

Support

The genie app can help you with the following:

• Automatically repair common wireless network problems.

• Have easy access to features like Live Parental Controls, guest access, Internet traf

meter, speed test, and more.

fic

The genie mobile app works on your iPhone, iPad, or

Phone status

Search NETGEAR support

Figure 11. genie mobile app home screen

Getting Started

Android phone:

Information about genie mobile app and the connected router

3. NETGEAR genie Basic Settings

Your Internet connection and WiFi network

This chapter contains the following sections:

• Internet Setup

• xDSL Setup

• Parental Controls

• Basic Wireless Settings

• Set Up a Guest Network

• View Attached Devices

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Internet Setup

NETGEAR recommends that you use the Setup Wizard to detect the Internet connection and automatically set up the modem router (see Internet Connection Setup Wizard on page 47).

You can view or change the basic ISP information on the Internet Setup screen. If your ISP provides you with regular Internet service and Internet protocol television (IPTV)

service, you must configure the Internet settings for both interface WAN1 and interface WAN2, as directed by your ISP interface WAN1 and once for interface W AN2, using the information that your IPS provides to you.

 To view or change the basic Internet setup:

1. From the Home screen, select Internet.

. In that case, complete the following procedure twice, once for

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

The fields that display on the Internet Setup screen depend on whether your Internet connection requires a login.

If your Internet connection does require a login, the fields that display also depend on the selected encapsulation method and whether you select the T-Online, T&T, or Other radio button. The settings are described in the following sections.

2. From WAN menu in the upper left of the screen, select the W

your ISP.

AN1. Interface WAN2 is used for regular Internet service. This is the default

• W

selection.

• WAN2. Interface WAN2 is used for IPTV only. When you select W

button is selected automatically, and the screen adjusts.

Note: The Router Mode menu next to the WAN menu is fixed at the Router

Mode selection.

3. If you selected W

• Yes. Select the encapsulation method and enter the login name. If you want to

change the login time-out, enter a new value in minutes.

• No. Enter the account and domain names, only if needed.

4. Enter the settings for the IP address and DNS server

The default settings usually work fine. If you have problems with your connection, check the ISP settings.

5. Click the Apply

Your settings are saved.

AN1 from the W

button.

AN menu, select the Yes or No radio button.

AN interface, as directed by

AN2, the No radio

6. T

o test your Internet connection, click the T

If the NETGEAR website does not display within one minute, see Chapter 8,

Troubleshooting.

The following sections describe all of the possible fields on the Internet Setup screen.

est button.

Internet Setup Screen Fields: No Login Required

These fields display only when no login is required, that is, when you select No radio button.

• Account Name (If required). Enter the account name provided by your ISP.

also be called the host name.

• Domain Name (If required). Enter the domain name provided by your ISP.

Internet IP

• Get Dynamically from ISP. Y

automatically assigns these addresses.

Address.

our ISP uses DHCP to assign your IP address. Your ISP

NETGEAR genie Basic Settings

This might

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

• Use Static IP Address. Enter the IP address, IP subnet mask, and the gateway IP

address that your ISP assigned. The gateway is the ISP’s modem router to which your modem router connects.

• Use IP Over ATM (IPoA). Enter the IP address, IP subnet mask, and the gateway IP

address that your ISP assigned for your IPoA service. router to which your modem router connects.

For the Domain Name Server (DNS) Address, Router MAC Address, and NAT (Network

Address Translation) sections, see Internet Setup Screen Fields: Fields That Display

Irrespective of Whether Login Is Required

on page 30.

The gateway is the ISP’s modem

Internet Setup Screen Fields: Login Required

These fields display only when your ISP requires a login, that is, when you select the Yes radio button. The fields that display also depend on the selected encapsulation method and whether you select the T-Online, T&T, or Other radio button.

Encapsulation is PPPoE and Your ISP is T-Online

These fields display only when you select PPPoE from the Encapsulation menu and the T-Online radio button.

Figure 12. Internet Setup screen: fields that are specific to the T-Online selection

• Connection identifier. The connection identifier that T-Online provides.

• T-Online number. The online number that

• Co-user suffix. The co-user suffix that

• Password. The password that you use to log in to T

• Service Name (if Required). If T-Online provided a service name, enter it here.

• Connection Mode

• Idle Timeout (In Minutes). This field is masked out and not available.

. This field is masked out and not available.

T-Online provides.

-Online.

NETGEAR genie Basic Settings

Internet IP Address.

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

• Get Dynamically from ISP. T-Online uses DHCP to assign your IP address.

T-Online

automatically assigns these addresses.

• Use Static IP Address. Enter the static IP address that

T-Online provides.

For the Domain Name Server (DNS) Address, Router MAC Address, and NAT (Network Address Translation) sections, see

Internet Setup Screen Fields: Fields That Display

Irrespective of Whether Login Is Required on page 30.

Encapsulation is PPPoE and Your ISP is 1&1

These fields display only when you select PPPoE from the Encapsulation menu and the 1&1 radio button.

Figure 13. Internet Setup screen: fields that are specific to the 1&1 selection

• Login. The login name that you use to log in to 1&1. The name has a prefix of 1und1/ and

an affix of @online.de. For example, if your login name is ABCDE, the entire login string automatically becomes 1und1/ABCDE@online.de.

• Password. The password that you use to log in to 1&1.

• Service Name (if Required). If 1&1 provided a service name, enter it here.

• Connection Mode

This field is masked out and not available.

• Idle Timeout (In Minutes). This field is masked out and not available.

Internet IP

Address.

• Get Dynamically from ISP. 1&1 uses DHCP to assign your IP address. 1&1 automatically

assigns these addresses.

• Use Static IP

For the Domain Name Server (DNS) Address Translation) sections, see

Address. Enter the static IP address that 1&1 provides.

Address, Router MAC Address, and NAT (Network

Internet Setup Screen Fields: Fields That Display

Irrespective of Whether Login Is Required on page 30.

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Encapsulation is PPPoE and Your ISP is Other

These fields display only when you select PPPoE from the Encapsulation menu and the Other radio button.

Figure 14. Internet Setup screen: fields that are specific to the Other selection

• Login. The login name that you use to log in to your ISP. By default, the login name is

guest.

• Password. The password that you use to log in to your ISP.

• Service Name (if Required)

• Connection Mode.

This field is masked out and not available.

. If your ISP provided a service name, enter it here.

• Idle Timeout (In Minutes). This field is masked out and not available.

Internet IP Address

• Get Dynamically from ISP. Your ISP uses DHCP to assign your IP address.

Your ISP

automatically assigns these addresses.

• Use Static IP Address. Enter the static IP address that your ISP provides.

For the Domain Name Server (DNS)

Address, Router MAC Address, and NAT (Network

Address Translation) sections, see Internet Setup Screen Fields: Fields That Display

Irrespective of Whether Login Is Required

on page 30.

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Encapsulation is PPPoA

These fields display only when you select PPPoA from the Encapsulation menu. You cannot select an ISP radio button with the PPPoA selection.

Figure 15. Internet Setup screen: fields that are specific to PPPoA encapsulation

• Login. The login name that you use to log in to your ISP. By default, the login name is

guest.

• Password. The password that you use to log in to your ISP.

• Service Name (if Required)

• Connection Mode.

This field is masked out and not available.

• Idle Timeout (In Minutes). In almost most scenarios, this field is masked out and is not

available. If it is available and you want to change the login time-out, enter a new value in minutes. This setting determines how long the modem router keeps the Internet connection active after there is no Internet activity from the LAN. means never log out. The default setting is 5 seconds.

. If your ISP provided a service name, enter it here.

A value of 0 (zero)

Internet IP Address.

• Get Dynamically from ISP. Your ISP uses DHCP to assign your IP address.

Your ISP

automatically assigns these addresses.

• Use Static IP Address. Enter the static IP address that your ISP provides.

For the Domain Name Server (DNS)

Address and NAT (Network Address Translation)

sections, see the following section, Internet Setup Screen Fields: Fields That Display

Irrespective of Whether Login Is Required.

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Internet Setup Screen Fields: Fields That Display Irrespective of Whether Login Is Required

These fields display irrespective of whether your ISP requires a login: Domain Name Server (DNS) Address. The DNS server is used to look up site addresses

based on their names.

• Get Automatically from

automatically assigns this address.

• Use These DNS Servers. If you know that your ISP requires specific servers, select this

option. Enter the IP address of your ISP’s primary DNS server address is available, enter it also.

Router MAC Address. The Ethernet MAC address that the modem router uses on the Internet port. Some ISPs register the MAC address of the network interface card in your computer when your account is first opened. of that computer. This feature allows your modem router to use your computer’s MAC address (also called cloning).

• Use Default

• Use Computer MAC Address.

the computer that you are now using. You must use the one computer that the ISP allows.

• Use This MAC Address

NAT (Network Address Translation). NAT allows computers on your home network to

share the modem router Internet connection. NA in most situations. The following settings are available:

• Enable. NAT is enabled.

• Disable. NAT is disabled.

Address

ISP. Your ISP uses DHCP to assign your DNS servers. Y our ISP

. If a secondary DNS server

They accept traffic only from the MAC address

. Use the default MAC address.

The modem router captures and uses the MAC address of

. Enter the MAC address that you want to use.

T is enabled by default because it is needed

This is the default setting.

xDSL Setup

NETGEAR recommends that you use the Setup Wizard to detect the DSL connection and automatically set up the modem router (see Internet Connection Setup Wizard on page 47).

If you have technical experience and are sure of the correct DSL mode, multiplexing method, and virtual circuit number for the virtual path identifier (VPI) and virtual channel identifier (VCI), you can specify those settings on the xDSL Setup screen. NETGEAR recommends that you change the W and VLAN ID only if your ISP provided you this information.

Use interface WAN1 for regular Internet service. Use interface WAN2 for Internet protocol television (IPTV) service. If your ISP provides IPTV service in addition to regular Internet service, you must configure both interface WAN1 and interface W provide IPTV service to you, do not configure and enable interface WAN2.

AN interface selection and enter the multiplexing method, VPI, VCI,

AN2. If your ISP does not

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Configure Regular Internet Service

The modem router uses interface WAN1 for regular Internet service.

 To configure the DLS setup for regular Internet service:

1. Select BASIC > xDSL Setup.

The selection from the Physical WAN Type menu is fixed at ADSL2+.

2. From the DSL Mode menu, select the DSL mode that your ISP provided you:

• Auto. The modem router detects the DSL mode automatically. This is the default

setting.

• ADSL (g.dmt).

• ADSL2.

• ADSL2+.

3. Click the upper Apply

button.

The DSL mode is saved.

4. From the W

AN menu, select WAN1.

WAN 1 is used for normal Internet service. This is the default selection.

5. Leave the Enable This Interface check box selected.

This is the default selection for interface WAN1.

6. From the Multiplexing Method menu, select LLC-based or VC-based, as indicated by your

ISP

7. For the VPI, type a number between 0 and 255, as indicated by your ISP.

The default setting is 0.

8. For the VCI, type a number between 32 and 65535, as indicated by your ISP.

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

The default setting is 38.

9. Depending on your configuration, either disable or configure and enable the VLAN:

• If you do not use interface WAN2 for IPTV service, clear the

Use VLANID check box.

The check box might be cleared by default.

• If you do use interface WAN2 for IPTV service (see the next section,

Service), configure the following settings:

- Enter the VLAN ID, as indicated by your ISP.

If you select

T-Online as your service provider (see Internet Setup on page 24),

the default VLAN ID is 7.

- Select the Use VLANID check box.

If you select T-Online as your service provider (see Internet Setup on page 24), this check box is selected by default.

10. Click the lower Apply button.

The WAN1 interface and PVC settings are saved.

11. If you do not use interface W

AN2 for IPTV service, make sure that interface W

disabled:

a. From the WAN menu, select W

AN2. b. Clear the Enable This Interface check box. c. Click the lower Apply button.

Interface WAN2 is disabled.

Configure IPTV Service

Configure IPTV

AN2 is

The modem router uses interface WAN2 only for Internet protocol television (IPTV) service.

 To configure the DLS setup for IPTV service:

1. Select BASIC > xDSL Setup.

The xDSL screen displays (see the figure on the next page). The selection from the Physical WAN Type menu is fixed at ADSL2+.

2. From the DSL Mode menu, select the DSL mode that your ISP provided you:

• Auto. The modem router detects the DSL mode automatically. This is the default

setting.

• ADSL (g.dmt)

• ADSL2.

• ADSL2+.

3. Click the upper Apply button.

The DSL mode is saved.

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

4. From the WAN menu, select W AN2.

Interface WAN2 is used for IPTV only. The screen adjusts. The Multiplexing Method menu becomes unavailable and the default VLAN ID changes to 8, but the Use VLANID check box remains cleared.

5. Select the Enable This Interface check box.

If you select T -Online as your service provider (see Internet Setup on page 24), this check box is selected by default for interface WAN2. For other service providers, this check box might be cleared for interface W

AN2.

Note: The Multiplexing Method menu is disabled for interface WAN2.

6. For the VPI, type a number between 0 and 255, as indicated by your ISP.

The default setting is 0.

7. For the VCI, type a number between 32 and 65535, as indicated by your ISP.

The default setting is 38.

8. Enter the VLAN ID, as indicated by your ISP.

If you select

-Online as your service provider (see Internet Setup on page 24), the

default VLAN ID is 8.

9. Select the Use VLANID check box.

If you select T-Online as your service provider (see Internet Setup on page 24), this check box is selected by default for interface WAN2.

10. Click the lower Apply button.

The WAN2 interface and PVC settings are saved.

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Parental Controls

The first time you select Parental Controls from the BASIC Home screen, your browser goes to the Live Parental Controls website. You can learn more about Live Parental Controls or download the application.

Figure 16. Live Parental Controls website

 To set up Live Parental Controls:

1. Select Parental Controls on the dashboard screen.

2. Click either the W

3. Follow the onscreen instructions to download and install the NETGEAR Live Parental

Controls Management utility. After installation, Live Parental Controls automatically starts.

indows Users or Mac Users button.

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

4. Click the Next button, read the note, and click the Next button again to proceed.

Because Live Parental Controls uses free OpenDNS accounts, you are prompted to log in or create a free account.

5. Select the radio button that applies to you and click the Next button.

• If you already have an OpenDNS account, leave the Yes radio button selected.

• If you do not have an OpenDNS account, select the No radio button.

If you are creating an account, the following screen displays:

a. Fill in the fields. b. Click the Next button.

After you log on or create your account, the filtering level screen displays:

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

6. Select the radio button for the filtering level that you want and click the Next button.

7. Click the Take me to the status screen button.

Parental controls are now set up for the modem router. The dashboard shows Parental Controls as Enabled.

Basic Wireless Settings

The Wireless Settings screen lets you view or configure the wireless network setup. The modem router comes with preset security. This means that the WiFi network name

(SSID), network key (password), and security option (encryption protocol) are preset in the factory. Y

NETGEAR recommends that you do not change your preset security settings. If you change

your preset security settings, make a note of the new settings and store it in a safe place where you can easily find it.

If you use a wireless computer to change the wireless network name (SSID) or other wireless security settings, you are disconnected when you click the Apply button. T problem, use a computer with a wired connection to access the modem router.

ou can find the preset SSID and password on the label of the unit.

Note: The preset SSID and password are uniquely generated for every

device to protect and maximize your wireless security.

o avoid this

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

 To view or change basic wireless settings:

1. Select BASIC > Wireless.

The screen sections, settings, and procedures are explained in the following sections.

2. Change the settings as needed.

3. Click the Apply button.

Your settings are saved. If you were connected wirelessly to the modem router and you changed the SSID or

wireless security

, you are disconnected from the network.

4. If you changed the settings, make sure that you can connect wirelessly to the network with

its new settings. If you cannot connect wirelessly, check the following:

• Is your computer or wireless device connected to another wireless network in your

area? Some wireless devices automatically connect to the first open network (without wireless security) that they discover.

• Is your computer or wireless device trying to connect to your network with its old

settings (before you changed the settings)? If so, update the wireless network selection in your computer or wireless device to match the current settings for your network.

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Wireless Settings Screen Fields

You can use this screen to view or change the wireless network settings and the security option.

• Enable SSID Broadcast. This feature allows the modem router to broadcast its SSID so

wireless stations can see this wireless name (SSID) in their scanned network lists. This check box is selected by default. To turn off the SSID broadcast, clear this check box, and click the Apply button.

• Enable W

that join the network can use the Internet, but cannot access each other or access Ethernet devices on the network.

• Name (SSID). The SSID is also known as the wireless network name. Enter a

32-character (maximum) name in this field. This field is case-sensitive. is randomly generated, and NETGEAR strongly recommends that you do not change this

setting.

• Region.

menu. In the United States, the region is fixed to North

• Channel. This setting is the wireless channel the modem router uses.

is Auto, which allows the modem router to select the channel automatically. You can also enter a value from 1 through 13. (For products on the North American market, only Channels 1 through 11 can be operated.) Do not change the channel unless you experience interference (shown by lost connections or slow data transfers). If this happens, experiment with different channels to see which is the best.

ireless Isolation

The location where the modem router is used. Select from the countries in the

. If this check box is selected, computers or wireless devices

The default SSID

America and is not changeable.

The default setting

To reduce interference when you use multiple access points, ensure that adjacent access points use dif between adjacent access points is four channels (for example, use Channels 1 and 5, or 6 and 10).

• Mode. Up to 65 Mbps is the default setting. The other settings are Up to 54 Mbps, and

Up to 150 Mbps:

- Up to 54 Mbps allows 802.11g and 802.1

legacy mode that does not support 802.11n devices n the network.

- Up to 65 Mbps allows 802.11n, 802.1

mode works well for most networks.

- Up to 150 Mbps allows 802.11n, 802.1

Use this mode if most devices in the network support 802.11n.

• Security Options. The modem

settings are on the product label. NETGEAR recommends that you use preset security so that you can refer to the label if you forget the WiFi password. However, you can change the security option and passphrase. If you want to change the security options, see the following sections.

ferent radio frequency channels.

router comes with unique preset wireless security. These

The recommended channel spacing

1b devices to join the network. This is a

1g, and 802.1 1b devices to join the network. This

1g, and 802.11b devices to join the network.

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Security Options: WPA-PSK, WPA2-PSK, and WPA-PSK + WPA2-PSK Mixed Mode

WPA encryption is built into all hardware that has the Wi-Fi-certified seal. This seal means that the product is authorized by the Wi-Fi Alliance (http://www.wi-fi.org/) because it complies with the worldwide single standard for high-speed wireless local area networking.

These types of wireless security options use a pre-shared key (PSK), which is the same as a passphrase, wireless network password, or network key. For help with WPA settings on your wireless computer or device, see the instructions that came with your product.

ou can select from the following wireless PSK security options:

• WPA-PSK [TKIP]. Wi-Fi Protected Access (WPA) provides strong data security with

Temporal Key Integrity Protocol (TKIP) encryption. This option supports speeds of up to 54 Mbps only.

• WPA2-PSK [AES]. Wi-Fi Protected Access version 2 (WPA2) provides strong data

security with security that is enabled by default. WPA2 provides the most reliable security. This option supports speeds of up to 150 Mbps. If not all clients in your network support WP A2, select WPA-PSK + WPA2-PSK mixed mode.

• WP

A-PSK [TKIP] + WPA2-PSK [AES]. WPA-PSK + WPA2-PSK is referred to as mixed

mode, which supports a combination of TKIP and WPA2 clients. For WPA clients, this option supports speeds of up to 54 Mbps only. For WPA2 clients, this option supports speeds of up to 150 Mbps.

Advanced Encryption Standard (AES) encryption. This is the preset wireless

AES encryption for both WPA and

 To change the WPA wireless security option and passphrase:

1. Select BASIC > Wireless.

The Wireless Settings screen displays.

2. In the Security Options section, select one of the WPA options with PSK:

• WPA-PSK [TKIP]

• WPA2-PSK [AES]

• WPA-PSK [TKIP] + WP

3. In the associated Passphrase field, enter the passphrase that you want to use.

A2-PSK [AES]

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

The passphrase is a text string from 8 to 63 ASCII characters or exactly 64 hexadecimal digits. A hexadecimal digit is one of the following characters: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F (uppercase or lowercase).

Wireless clients must use the passphrase to access the wireless network through the modem router.

4. Click the Apply button.

Security Options: WPA/WPA2 Enterprise

This security option is not for home use but is typically used in a business or enterprise. WP A/WPA2 Enterprise does not use a passphrase but supports 802.1x authentication, which requires an internal or external RADIUS server. A Remote Authentication Dial In User Service (RADIUS) server provides Authentication, Authorization, and Accounting (AAA) management to grant (or deny) computers access to your wireless network.

WPA/WPA2 Enterprise can support WPA [TKIP] for WPA clients only, WPA2 [AES] for WPA2 clients only

, and WPA [TKIP] + WP encryption, for both WPA and WPA2 clients. WPA clients are supported at speeds of up to 54 Mbps only. WPA2 clients are supported at speeds of up 300 Mbps.

A2 [AES], which is a combination of TKIP and AES

WP A/WPA2 Enterprise supports five Extensible Authentication Protocol (EAP) authentication methods: EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, and EAP-SIM.

 To configure WPA/WPA2 Enterprise security:

1. Select BASIC > Wireless.

The Wireless Settings screen displays.

2. In the Security Options section, select the WPA/WPA2 Enterprise

radio button.

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

3. Select the WPA mode:

• WPA [TKIP]

• WPA2 [AES]

• WPA [TKIP] + WPA2 [AES]

4. Type the IP address of the RADIUS server.

The address can be on your LAN or it can be an external address.

5. Enter the port number for the RADIUS server in the range from 1 to 6553.

The default number is 1812.

6. T

ype the shared secret, which needs to be between 1 and 128 characters.

The default value is blank. The shared secret is case-sensitive.

7. Click the Apply

button.

Security Options: WEP

Wired Equivalent Privacy (WEP) security is a legacy authentication and data encryption mode that has been superseded by WPA-PSK and WPA2-PSK. WEP supports speeds of up to 54 Mbps (the modem router can support speeds of up 150 Mbps) and does not function with WPS. However, if you set up a wireless distribution system (WDS; see Wireless

Distribution System on page 103), WEP is the only security that can be supported.

Note: The WEP option displays only if you select Up to 54 Mbps from the

Mode menu.

 To configure WEP security:

1. Select BASIC > Wireless

The Wireless Settings screen displays.

2. In the Security Options section, select the WEP radio button.

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

3. From the Authentication Type menu, select one of the following types:

• Shared Key. Clients can use only shared key authentication.

• Automatic. Client can use either open system or shared key authentication.

4. From the Encryption Strength menu, select the encryption key size:

• 64-bit. Standard WEP encryption, using 40/64-bit encryption.

• 128-bit. Standard WEP encryption, using 104/128-bit encryption. This selection

provides higher encryption security.

5. Generate the key automatically or enter it manually:

• Automatic key generation:

a. In the Passphrase field, enter a passphrase: b. Click the

Generate button.

For 64-bit WEP, four different WEP keys are generated. For 128-bit WEP, only one WEP key is generated, and the four key fields are populated with the same WEP key

• Manual key generation:

a. Specify the active key by selecting the Key 1, Key 2, Key 3, or Key 4 radio

button. Only one key can be the active key

b. Enter the value for the key manually:

- For 64-bit WEP, enter 10 hexadecimal digits (any combination of 0–9, A–F).

The key values are not case-sensitive.

For 128-bit WEP, enter 26 hexadecimal digits (any combination of 0–9, A–F).

The key values are not case-sensitive.

6. Click the Apply

button.

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Set Up a Guest Network

Adding a guest network allows visitors at your home to use the Internet without using your wireless security key. You can set up to three guest networks, all of which can be active at a same time. However, if all three guest networks are active, only one is displayed on the Router Status screen (see View Router Status on page 82). By default, none of the guest networks are enabled.

 To set up a guest network:

1. Select BASIC > Guest Network.

2. In the Network Profiles table, select the radio button to the left of the profile that you want to

set up.

3. Select any of the following wireless settings:

• Enable Guest Network. When this check box is selected, the guest network is

enabled, and guests can connect to your network using the SSID of this profile.

• Enable SSID Broadcast. If this check box is selected, the wireless access point

broadcasts its name (SSID) to all wireless stations. Stations with no SSID can adopt the correct SSID for connections to this access point.

• Allow guest to access My Local Network. If this check box is selected, anyone who

connects to this SSID has access to your local network, not just Internet access.

• Enable W

devices that join the network can use the Internet but cannot access each other or access Ethernet devices on the network.

ireless Isolation. If this check box is selected, wireless computers or

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

4. (Optional) Change the name of the guest network.

The default names are NETGEAR-Guest1, NETGEAR-Guest2, and NETGEAR-Guest3. The guest network name is case-sensitive and can be up to 32 characters. You then

manually configure the wireless devices in your network to use the guest network name in addition to the main SSID.

5. Select a security option from the menu and configure the associated settings.

The security options are described in the following sections:

• Security Options: WPA-PSK, WPA2-PSK, and WPA-PSK + WPA2-PSK Mixed Mode

on page 39

• Security Options: WPA/WPA2 Enterprise on page 40

• Security Options: WEP on page 41

6. Click the Apply button.

Your settings are saved.

View Attached Devices

You can view all computers and devices that are currently connected to your network.

 To go to the Attached Devices screen:

1. From the BASIC Home screen, select Attached Devices.

Wired devices are connected to the modem router with Ethernet cables. Wireless devices have joined the wireless network. The following information is displayed:

• # (number). The order in which the device joined the network.

• IP Address. The IP address that the modem router assigned to this device when it

joined the network. This number can change if a device is disconnected and rejoins the network.

NETGEAR genie Basic Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

• MAC Address. The unique MAC address for each device does not change. The MAC

address is typically shown on the product label.

• Device Name. If the device name is known, it is shown here.

2. (Optional) Click the Refresh button.

The information onscreen is updated.

NETGEAR genie Basic Settings

4. NETGEAR genie ADVANCED Home

Specify custom settings

This chapter contains the following sections:

• NETGEAR genie ADVANCED Home Screen

• Internet Connection Setup Wizard

• WAN Setup

• LAN Setup

• WPS Wizard for WiFi Connections

• QoS Setup

The following selections on the ADVANCED Home screen are described in separate chapters:

• Security. See Chapter 5, Security.

• Administration. See Chapter 6, Administration.

• Advanced Setup. See Chapter 7, Advanced Settings.

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

NETGEAR genie ADVANCED Home Screen

The genie ADVANCED Home dashboard presents status information. The content is the same as what is on the Router Status screen available from the Administration menu. For more information about the fields on the screen, see View Router Status on page 82. The genie ADVANCED Home screen is shown in the following figure:

Internet Connection Setup Wizard

You can use the Setup Wizard to detect your DSL and Internet settings and automatically set up your modem router. The Setup Wizard is not the same as the genie screens that display the first time you connect to your modem router to set it up.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

 To use the Setup Wizard:

1. Select ADVANCED > Setup Wizard.

2. From the Country menu, select your location. Note: If you have purchased the modem router in the US, you cannot change

the country, and the selection is fixed at the US.

3. Select the Ye

If you select No, you are taken to the Internet Setup screen (see Internet Setup page 24).

4. Click the Next button.

The Setup Wizard searches your Internet connection for servers and protocols to determine your ISP configuration.

s radio button.

Setup Menu

Select ADVANCED > Setup to display the Setup menu. The following selections are available:

• xDSL Setup. This is a shortcut to the same xDSL Setup screen that you can access from

the dashboard on the BASIC Home screen. For information, see xDSL Setup on page 30.

• Internet Setup. This is a shortcut to the same Internet Setup screen that you can access

from the dashboard on the BASIC Home screen. For information, see Internet Setup page 24.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

• Wireless Setup. This is a shortcut to the same Wireless Settings screen that you can

access from the dashboard on the BASIC Home screen. For information, see Basic

Wireless Settings on page 36.

• Guest Network. This is a shortcut to the same Guest Network screen that you can

access from the dashboard on the BASIC Home screen. For information, see Set Up a

Guest Network on page 43

• WAN Setup. Internet (WAN) setup. For information, see WAN Setup

• LAN Setup. Local area network (LAN) setup. For information, see LAN Setup on

page 53.

• QoS Setup. Quality of Service (QoS) setup. For information, see QoS Setup on page 59.

on page 49.

WAN Setup

The WAN Setup screen lets you configure a DMZ (demilitarized zone) server, change the maximum transmit unit (MTU) size, enable the modem router to respond to a ping on the WAN (Internet) port, and configure other settings for your Internet connection.

 To view or change the WAN settings:

1. Select ADVANCED > Setup > WAN Setup

2. Specify the following settings:

• Disable Port Scan and DoS Protection. DoS protection protects your LAN against

denial of service attacks such as Syn flood, Smurf

Attack, UDP Flood, ARP Attack, Spoofing ICMP, Null Scan, and many others. Disable

this feature only in special circumstances.

Attack, Ping of Death, T

eardrop

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

• Default DMZ Server. This feature is sometimes helpful when you are playing online

games or videoconferencing. Be careful when using this feature because it makes the firewall security less effective. For more information, see the following section, Default

DMZ Server.

• Respond to Ping on Internet Port. If you want the modem router to respond to a

ping from the Internet, select this check box. Use this feature only as a diagnostic tool because it allows your modem router to be discovered. Do not select this check box unless you have a specific reason.

• Disable IGMP Proxying. IGMP proxying allows computers on the LAN to receive the

multicast traf selected, and the IGMP proxy is disabled, preventing multicast traf

fic they are subscribed to from the Internet. By default, this check box is

fic from the Internet to the LAN. Clear the Disable IGMP Proxying check box to allow multicast traffic from the Internet to the LAN.

• MTU Size (in bytes).

The normal MTU (maximum transmit unit) value for most Ethernet networks is 1500 bytes, or 1492 bytes for PPPoE connections. For some ISPs, you might need to reduce the MTU. Reduce the MTU only if you are sure that it is necessary for your ISP connection. For more information, see

Change the MTU

Size on page 51.

• NA T Filtering. Network

Address Translation (NAT) determines how the modem router

processes inbound traffic:

- Secured NAT. Provides a secured firewall to protect the computers on the LAN

from attacks from the Internet, but might prevent some Internet games, point-to-point applications, or multimedia applications from functioning. By default, the Secured radio button is selected.

Open NA

T. Provides a much less secured firewall, but allows almost all Internet

applications to function.

• Disable SIP ALG.

The Session Initiation Protocol (SIP) Application Level Gateway (ALG) is enabled by default to optimize VoIP phone calls that use the SIP. Select the Disable SIP ALG check box to disable the SIP ALG. Disabling the SIP ALG might be useful when you are running certain applications.

• VPN Passthrough. When the modem router has Network

Address

Translation (NAT) enabled, it filters encrypted tunnel packets through NAT, causing these packets to become invalid. VPN pass-through allows encrypted tunnel packets to go through without being filtered, and is enabled by default for IPSec, PPTP, and L2TP packets. Do not disable VPN pass-through for IPSec, PPTP, or L2TP unless you have a specific reason.

3. Click the Apply button.

Your settings are saved.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Default DMZ Server

The default DMZ server feature is helpful when you are using some online games and videoconferencing applications that are incompatible with Network Address Translation (NAT). The modem router is programmed to recognize some of these applications and to work correctly with them, but other applications might not function well. In some cases, one local computer can run the application correctly if the IP address for that computer is entered as the default DMZ server.

WARNING:

DMZ servers pose a security risk. A computer designated as the default DMZ server loses much of the protection of the firewall and is exposed to exploits from the Internet. If compromised, the DMZ server computer can be used to attack other computers on your network.

The modem router discards incoming traffic from the Internet that is not a response to one of your local computers or a service that you have set up on the Port Forwarding / Port

riggering screen. Instead of discarding this traf

T the traffic to one computer on your network. This computer is called the default DMZ server.

 To set up a default DMZ server:

1. Select ADVANCED > Setup > W

The WAN Setup screen displays.

2. Select the Default DMZ Server check box.

3. T

ype the IP address.

4. Click the Apply

Your settings are saved.

button.

AN Setup.

fic, you can have the modem router forward

Change the MTU Size

The maximum transmission unit (MTU) is the largest data packet a network device transmits. When one network device communicates across the Internet with another, the data packets travel through many devices along the way. If a device in the data path has a lower MTU setting than the other devices, the data packets are split or “fragmented” to accommodate the device with the smallest MTU.

The best MTU setting for NETGEAR equipment is often just the default value. In some situations, changing the value fixes one problem but causes another unchanged unless one of these situations occurs:

• You have problems connecting to your ISP or other Internet service, and the technical

support of either the ISP or NETGEAR recommends changing the MTU setting.

NETGEAR genie ADV ANCED Home

. Leave the MTU

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

These web-based applications might require an MTU change:

- A secure website that does not open, or displays only part of a web page

- Yahoo email

- MSN portal

- America Online’

s DSL service

• You use VPN and have severe performance problems.

• You used a program to optimize MTU for performance reasons, and now you have

connectivity or performance problems.

Note: An incorrect MTU setting can cause Internet communication problems.

For example, you might not be able to access certain websites, frames within websites, secure login pages, or FTP or POP servers.

If you suspect an MTU problem, a common solution is to change the MTU to 1400. If you are willing to experiment, you can gradually reduce the MTU from the maximum value of 1500 until the problem goes away. The following table describes common MTU sizes and applications.

Table 2. Common MTU sizes

MTU Application

1500 The largest Ethernet packet size. This setting is typical for connections that do not use PPPoE or

VPN, and is the default value for NETGEAR modem routers, adapters, and switches. 1492 Used in PPPoE environments. 1472 Maximum size to use for pinging. (Larger packets are fragmented.) 1468 Used in some DHCP environments. 1460 Usable by AOL if you do not have large email attachments, for example. 1436 Used in PPTP environments or with VPN. 1400 Maximum size for AOL DSL. 576 Typical value to connect to dial-up ISPs.

 To change the MTU size:

1. Select ADVANCED > Setup > WAN Setup

The WAN Setup screen displays.

2. In the MTU Size field, enter a value from 64 to 1500.

3. Click the Apply button.

Your settings are saved.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

LAN Setup

The LAN Setup screen allows configuration of LAN IP services such as Dynamic Host Configuration Protocol (DHCP) and Routing Information Protocol (RIP).

The modem router is shipped preconfigured to use private IP addresses on the LAN side and to act as a DHCP server. The modem router’s default LAN IP configuration is:

• LAN IP address. 192.168.0.1

• Subnet mask. 255.255.255.0

These addresses are part of the designated private address range for use in private networks and are suitable for most applications. If your network requires a dif scheme, you can change these settings on the LAN Setup screen.

Note: If you change the LAN IP address of the modem router while

connected through the browser, you are disconnected. If you want to continue to use the modem router menus, open a new connection to the new IP address and log in again.

ferent IP addressing

 To change the LAN settings:

1. Select ADVANCED > Setup > LAN Setup.

2. Specify the settings that you want to customize.

These settings are described in the following sections.

3. Click the Apply button.

Your settings are saved.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

LAN Setup Screen Settings

The following settings are available.

Device Name

By default, the device name is DGN1000Bv3, which is the modem router model. You can change the device name to another name.

LAN TCP/IP Setup

• IP Address. The LAN IP address of the modem router. By default the LAN IP address is

192.168.0.1.

• IP Subnet Mask. The LAN subnet mask of the modem router. By default the IP subnet

mask is 255.255.255.0. Combined with the IP address, the IP subnet mask allows a device to know which other addresses are local to it, and which addresses must be reached through a gateway or router

• RIP Direction. Router Information Protocol (RIP) allows the modem router to exchange

routing information with other routers. and receives RIP packets. Both is the default setting. With the Both or Out Only setting, the modem router broadcasts its routing table periodically setting, the modem router incorporates the RIP information that it receives.

• RIP V

ersion. This setting controls the format and the broadcasting method of the RIP

packets that the modem router sends. It recognizes both formats when receiving. By default, the RIP function is disabled.

- RIP-1

- RIP-2 carries more information. Both RIP-2B and RIP-2M send the routing data in

is universally supported. It is adequate for most networks, unless you have an

unusual network setup.

RIP-2 format. RIP-2B uses subnet broadcasting. RIP-2M uses multicasting.

This setting controls how the modem router sends

. With the Both or In Only

Use Router as DHCP Server

By default, the Use Router as DHCP Server check box is selected so that the modem router functions as a Dynamic Host Configuration Protocol (DHCP) server.

• Starting IP Address. Specify the start of the range for the pool of IP addresses in the

same subnet as the modem router. By default, the starting IP address is 192.168.0.2.

• Ending IP Address. Specify the end of the range for the pool of IP addresses in the

same subnet as the modem router. By default, the ending IP address is 192.168.0.254.

For more information, see

Specify DHCP Server Settings on page 55.

Address Reservation

When you specify a reserved IP address for a computer on the LAN, that computer receives the same IP address each time it accesses the modem router’s DHCP server. Assign reserved IP addresses to servers that require permanent IP settings.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

For more information, see Set Up Address Reservation on page 56.

Specify DHCP Server Settings

By default, the modem router functions as a DHCP server. The modem router assigns IP, DNS server, and default gateway addresses to all computers connected to the LAN. The assigned default gateway address is the LAN address of the modem router. The modem router assigns IP addresses to the attached computers from a pool of addresses specified on the LAN Setup screen. Each pool address is tested before it is assigned to avoid duplicate addresses on the LAN. For most applications, the default DHCP and TCP/IP settings of the modem router work well.

The modem router delivers the following parameters to any LAN device that requests DHCP:

• An IP address from the range that you have defined

• Subnet mask

• Gateway IP address (the modem router’s LAN IP address)

• DNS server IP address (the modem router’s LAN IP address)

ou can specify the pool of IP addresses that the modem router assigns by setting the starting IP address and ending IP address. These addresses must be part of the same IP address subnet as the modem router’

s LAN IP address. Using the default addressing scheme, define a range between 192.168.1.2 and 192.168.1.254, although you might want to save part of the range for devices with fixed addresses.

 To specify the pool of IP addresses that the modem router assigns:

1. Select ADVANCED > LAN Setup.

The LAN Setup screen displays.

2. Make sure that the Use Router as a DHCP Server check box is selected.

3. Specify the range of IP addresses.

For example, using the default addressing scheme, define a range between 192.168.0.2 and 192.168.0.254, although you might want to save part of the range for devices with fixed addresses.

• In the Starting IP

Address field, specify the start of the range for the pool of IP

addresses in the same subnet as the modem router.

• In the Ending IP Address field, specify the end of the range for the pool of IP

addresses in the same subnet as the modem router.

4. Click the Apply

button.

Your settings are saved.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

 To disable the DHCP Server feature on the modem router:

1. Select ADVANCED > LAN Setup.

The LAN Setup screen displays.

2. Clear the Use Router as DHCP Server check box.

3. Click the Apply button.

Your settings are saved.

4. (Optional) If there is no other DHCP server on your network, set your computers’ IP

addresses manually so that they can access the modem router.

Set Up Address Reservation

When you specify a reserved IP address for a computer on the LAN, that computer always receives the same IP address each time it accesses the modem router’s DHCP server. NETGEAR recommends that you assign a reserved IP address to a computer or server that requires permanent IP settings.

 To reserve an IP address:

1. Select ADVANCED > Setup > LAN Setup.

The LAN Setup screen displays.

2. In the Address Reservation section of the screen, click the Add

button.

3. In the IP Address field, type the IP address to assign to the computer or server.

Choose an IP address from the modem router’s LAN subnet, such as 192.168.0.x.

Tip: If the computer is already on your network, you can select the

corresponding radio button from the Address Reservation T

able. The computer’s information is automatically copied into the IP Address, MAC Address, and Device Name fields.

ype the MAC address of the computer or server.

4. T

5. (Optional) Type a name for the computer or server

6. Click the Apply button.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

The reserved address is entered into the Address Reservation Table on the LAN Setup screen.

The reserved address is not assigned until the next time the computer contacts the modem router’s DHCP server. Reboot the computer, or access its IP configuration and force a DHCP release and renew.

 To change a reserved address entry:

1. Select ADVANCED > Setup > LAN Setup

The LAN Setup screen displays.

2. In the Address Reservation Table, select the radio button next to the reserved address that

you want to change.

3. Click the Edit

button.

4. Change the settings.

5. Click the Apply button.

The changes are entered into the Address Reservation Table on the LAN Setup screen.

 To delete a reserved address entry:

1. Select ADVANCED > Setup > LAN Setup

The LAN Setup screen displays.

2. In the Address Reservation Table, select the radio button next to the reserved address that

you want to delete.

3. Click the Delete

button.

The reserved address is removed from the Address Reservation Table on the LAN Setup screen.

WPS Wizard for WiFi Connections

The WPS Wizard helps you add a WPS-capable client device (a wireless device or computer) to your network. On the client device, either press its WPS button or locate its WPS PIN.

 To use the WPS Wizard:

1. Select ADVANCED > WPS W

Add WPS Client screen displays.

2. Click the Next button.

izard.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

The following screen lets you select the method for adding the WPS client (a wireless device or computer).

3. Select the radio button for the setup method that you want to use, and follow the steps.

• Push Button.

a. Either click the WPS button on this screen, or press the WPS button on the front

of the modem router.

b. Within two minutes, go to the wireless client and press its WPS button to join the

network without entering a password.

• PIN Number. The screen adjusts.

a. Enter the client security PIN. b. Click the Next button. c. Within two minutes, go to the client device and use its WPS software to join the

network without entering a password.

The modem router attempts to add the WPS-capable device. The WPS LED

on the front of the modem router blinks green. When the modem router establishes a WPS connection, the LED is solid green, and the modem router WPS screen displays a confirmation message.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

QoS Setup

Quality of Service (QoS) is an advanced feature that can be used to prioritize some types of traffic ahead of others. The modem router can provide QoS prioritization over the wireless link and on the Internet connection. You use the QoS Setup screen to set up QoS features.

The following sections describe the QoS features.

WMM QoS for Wireless Multimedia Applications

The modem router supports Wi-Fi Multimedia Quality of Service (WMM QoS) to prioritize wireless voice and video traffic over the wireless link. WMM QoS, which is enabled by default, provides prioritization of wireless data packets from different applications based on four access categories: voice, video, best effort, and background. For an application to receive the benefits of WMM QoS, both the application and the client running that application must have WMM enabled. Legacy applications that do not support WMM and applications that do not require QoS are assigned to the best effort category, which receives a lower priority than voice and video. WMM QoS is enabled by default.

If the modem router functions in Up to 65 Mbps wireless mode or Up to 150 Mbps wireless mode, you cannot disable WMM. Up to 54 Mbps wireless mode.

 To disable WMM QoS if the modem router functions in Up to 54 Mbps wireless mode:

1. Select ADVANCED > Setup > QoS Setup.

2. Clear the Enable WMM check box.

3. Click the Apply button.

Your settings are saved.

Y ou can disable WMM only if the modem router functions in

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Quality of Service Priority Rules and Internet Access

You can give prioritized Internet access to the following types of traffic:

• Specific applications

• Specific online games

• Individual Ethernet LAN ports of the modem router

• A specific device by MAC address

To specify prioritization of traffic, you must create a policy for the type of traffic and add the policy to the QoS Policy table on the QoS Setup screen. (The QoS Policy table displays only after you click the Setup QoS rule button on QoS Policy table lists many common applications and online games that can benefit from QoS handling.

the QoS Setup screen.) For convenience, the

By default, QoS is disabled for Internet traf rules that you created are not activated, and no traf

 To enable QoS for Internet traffic and activate the QoS rules:

1. Select ADVANCED > Setup > QoS Setup.

2. Select the Turn Internet Access QoS On check box.

3. Click the Apply button.

Your settings are saved.

The following sections describe how to manage and create QoS rules, which are also

referred to as QoS policies.

fic, the default QoS rules and any custom QoS

fic is prioritized.

Manage QoS Rules

The following procedure refers to preconfigured QoS rules. For information about how to create custom QoS rules, see the sections following this section.

 To view or change a QoS rule:

1. Select ADVANCED > Setup > QoS Setup.

The QoS Setup screen displays.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

2. Click the Setup QoS rule button.

All preconfigured QoS rules are displayed in a table, along with their priority (Highest, High, Normal, or Low) and a description:

3. Select the radio button next to the QoS policy that you want to view or change.

4. Click the Edit button.

The QoS - Priority Rules screen displays.

5. Change the policy settings.

For information about changing policy setting, see the following sections:

• Create a QoS Rule for an Application or Online Game on page 62

• Create a QoS Rule for a Modem Router LAN Port on page 64

• Create a QoS Rule for a MAC Address on page 64

6. On the QoS - Priority Rules screen, click the Apply button.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Your changes are saved in the table on the QoS Setup screen.

 To delete a QoS rule:

1. Select ADVANCED > Setup > QoS Setup

The QoS Setup screen displays.

2. Click the Setup QoS rule button.

All preconfigured QoS rules are displayed in a table, along with their priority (Highest, High, Normal, or Low) and a description.

3. Select the radio button next to the QoS policy that you want to delete.

WARNING:

Do not click the Delete All button. If you do, all preconfigured and custom QoS rules are deleted.

4. Click the Delete button.

The QoS policy is removed from the table.

Create a QoS Rule for an Application or Online Game

 To create a QoS policy for an application or online game:

1. Select ADVANCED > Setup > QoS Setup

The QoS Setup screen displays.

2. Click the Setup QoS rule button.

The existing QoS rules display.

3. Click the Add Priority Rule button.

The QoS - Priority Rules screen displays.

4. From the Priority Category menu, select either Applications or On-line gaming:

• Applications.

Applications menu lets you select existing applications, but scroll

The

down to the bottom of the menu to select Add a new application.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

The screen adjusts:

• On-line gaming. The On-line gaming menu lets you select existing games, but scroll

down to the bottom of the menu to select Add a new game. The screen adjusts:

5. In the QoS Policy for field, type a descriptive name for the new application or game.

6. From the Priority menu, select the priority that this traffic needs to receive relative to other

applications and traffic when accessing the Internet: Select

7. In the Connection Type field, select either

Highest, High, Normal, or Low.

TCP, UDP, or TCP/UDP.

8. In the Starting Port and Ending Port fields, specify the port number or range of port numbers

that is used by the application or game.

9. On the QoS - Priority Rules screen, click the Apply button.

The rule is saved in the QoS Policy table on the QoS Setup screen.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Create a QoS Rule for a Modem Router LAN Port

 T o create a QoS policy for a device connected to one of the modem router’ s LAN ports:

1. Select ADVANCED > Setup > QoS Setup.

The QoS Setup screen displays.

2. Click the Setup QoS rule button.

The existing QoS rules display

3. Click the Add Priority Rule button.

The QoS - Priority Rules screen displays.

4. From the Priority Category menu, select Ethernet LAN Port.

The screen adjusts:

5. From the Ethernet LAN Port menu, select the LAN port (1, 2, 3, or 4) for which you want to

configure the QoS policy. The QoS Policy for field is automatically completed.

6. From the Priority menu, select the priority that this traffic needs to receive relative to other

applications and traffic when accessing the Internet: Select

Highest, High, Normal, or Low.

7. On the QoS - Priority Rules screen, click the Apply button.

The rule is saved in the QoS Policy table on the QoS Setup screen.

Create a QoS Rule for a MAC Address

 To create a QoS policy for traffic from a specific MAC address:

1. Select ADVANCED > Setup > QoS Setup.

The QoS Setup screen displays.

2. Click the Setup QoS rule button.

The existing QoS rules display

3. Click the Add Priority Rule button.

The QoS - Priority Rules screen displays.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

4. From the Priority Category menu, select MAC Address.

The screen adjusts:

5. In the QoS Policy for field, type a descriptive name for the new policy.

6. If the device for which you want to create a QoS policy is displayed in the MAC Device List,

select its radio button. The information from the MAC Device List populates the QoS Policy (that is, the policy

name), MAC

Address, and Device Name fields.

7. (Optional) If the device does not display in the MAC Device List, click the Refresh button.

If it still does not display

, complete the QoS Policy (that is, the policy name), MAC

Address, and Device Name fields manually.

8. From the Priority menu, select the priority that this traffic needs to receive relative to other

applications and traffic when accessing the Internet: Select

Highest, High, Normal, or Low.

9. On the QoS - Priority Rules screen, click the Apply button.

The rule is saved in the QoS Policy table on the QoS Setup screen.

 To edit a MAC address on the MAC Device List:

1. Select ADVANCED > Setup > QoS Setup.

The QoS Setup screen displays.

2. Click the

Setup QoS rule button.

The existing QoS rules display.

3. Click the Add Priority Rule button.

The QoS - Priority Rules screen displays.

4. From the Priority Category menu, select MAC Address.

The MAC Device List displays.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

5. Select the radio button next to the device that you want to change.

6. Change the MAC address, device name, or priority.

7. Click the Edit

button.

Note: You cannot edit a device that was detected by the modem router and

automatically added to the MAC Device List.

The device information is saved in the MAC Device List.

 To remove a MAC address from the MAC Device List:

1. Select ADVANCED > Setup > QoS Setup

The QoS Setup screen displays.

2. Click the Setup QoS rule button.

The existing QoS rules display.

3. Click the Add Priority Rule button.

The QoS - Priority Rules screen displays.

4. From the Priority Category menu, select MAC Address.

The MAC Device List displays.

5. Select the radio button next to the device that you want to remove.

6. Click the Delete button.

Note: You cannot remove a device that was detected by the modem router

and automatically added to the MAC Device List.

The device information is removed from the MAC Device List.

NETGEAR genie ADV ANCED Home

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Bandwidth Control

Bandwidth control lets you set a limit to the bandwidth that is available for traffic from the modem router to the Internet.

 To set the maximum uplink bandwidth:

1. Select ADVANCED > Setup > QoS Setup.

2. Select the Turn Bandwidth Control On check box.

3. Select the Automatically check Internet Uplink bandwidth radio button.

4. Click the Check button.

The modem router detects the available uplink bandwidth. After about one minute, the available bandwidth displays onscreen.

This information can help you to determine the

maximum bandwidth setting that you want to allow.

5. Select the

Uplink bandwidth radio button.

6. Enter the maximum bandwidth that you want to allow.

7. Select either Kbps

or Mbps.

8. Click the Apply button.

Your settings are saved.

NETGEAR genie ADV ANCED Home

5. Security

Keep unwanted content out of your network

This chapter explains how to use the basic firewall features of the modem router to prevent

objectionable content from reaching the computers and devices on your network.

This chapter includes the following sections:

• Keyword Blocking of HTTP Traffic

• Set Up Firewall Rules to Control Network Access

• Add Custom Services to Allow or Block

• Schedule When to Block the Internet

• Security Event Email Notifications

Note: For information about Live Parental Controls, see Parental Controls

on page 34.

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Keyword Blocking of HTTP Traffic

Use keyword blocking to prevent certain types of HTTP traffic from accessing your network. By default, keyword blocking is disabled. The blocking can be always or according to a schedule.

 To set up keyword blocking:

1. Select ADVANCED > Security > Block Sites.

2. Select one of the keyword blocking options:

• Per Schedule. Turn on keyword blocking according to the Schedule screen settings.

For more information, see

• Always. Turn on keyword blocking all the time, independent of the Schedule screen.

3. In the Keyword field, enter a keyword or domain.

Here are some sample entries:

• Specify XXX to block http://www

• Specify .com if you want to allow only sites with domain suffixes such as .edu or .gov.

• Enter a period (.) to block all Internet browsing access.

4. Click the Add Keyword

5. T

o add more keywords or domains, repeat Step 3 and Step 4.

The keyword list supports up to 32 entries.

button.

Schedule When to Block the Internet on page 76.

.badstuff.com/xxx.html.

Security

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

6. Click the Apply button.

Your settings are saved.

 To delete a keyword or domain:

1. Select ADVANCED > Security > Block Sites

The Block Sites screen displays.

2. From the keyword list, select the keyword or domain that you want to remove.

3. Click the Delete Keyword button.

4. Click the Apply button.

Your settings are saved.

 To remove all keywords and domains:

1. Select ADVANCED > Security > Block Sites

The Block Sites screen displays.

2. Click the Clear List button.

3. Click the Apply button.

Your settings are saved.

You can exempt one trusted computer from blocking and logging. The computer you exempt needs to have a fixed (static) IP address.

 To specify a trusted computer:

1. Select ADVANCED > Security > Block Sites

The Block Sites screen displays.

2. In the Trusted IP Address field, enter the IP address of the trusted computer.

The first three octets of the IP address are automatically populated and depend on the IP address that is assigned to the modem router on the LAN Setup screen.

3. Click the Apply

button.

Your settings are saved.

Set Up Firewall Rules to Control Network Access

Your modem router has a firewall that blocks unauthorized access to your wireless network and permits authorized inbound and outbound communications. Authorized communications are established according to inbound and outbound rules. The firewall has the following two default rules:

• Inbound. Block all access from outside except responses to requests from the LAN side.

• Outbound. Allow all access from the LAN side to the outside.

Security

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

You can add rules to further restrict the outbound communications or more widely open the inbound communications. Exceptions can be based on the service or application, source or destination IP addresses, and time of day . You can log traffic that matches or does not match the rule and change the order of rule precedence.

Traffic attempting to pass through the firewall is subjected to the rules in the order shown in the Rules table from the top (highest precedence) to the bottom. In some cases, the order of precedence determines which communications are allowed into or out of the network.

The Firewall Rules screen lists all firewall rules that you have added.

• To add a firewall rule for outbound traffic, see the following section, Manage Outbound

Firewall Rules.

• To add a custom service that can be used in a firewall rule for outbound traf

Custom Services to Allow or Block

on page 74.

fic, see Add

• To add or change firewall rules for inbound traffic, see Set Up Port Forwarding to Local

Servers on page 111 and Set Up and Manage Port T

riggering on page 114.

After you have added outbound firewall rules, you can specify the days and time that you want to block Internet access. For more information, see Schedule When to Block the

Internet on page 76.

Manage Outbound Firewall Rules

By default, the firewall allows all access from the LAN side to the outside. You can set up rules to restrict access to particular services or applications and to restrict particular source or destination IP addresses.

Note: You cannot change or delete the default outbound firewall rule.

 To add an outbound firewall rule:

1. Select ADVANCED > Security > Firewall Rules.

Security

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

2. In the Outbound Services section, click the Add button.

3. Select the service or application to be covered by this rule.

If the service or application that you want does not display in the menu, you can define it (see Add Custom Services to Allow or Block on page 74).

4. Select the action you want for traffic covered by this rule:

• BLOCK always. Always block the traffic covered by this rule.

• BLOCK by schedule, otherwise Allow. Allow the traf

fic covered by this rule, unless

it is blocked according to the schedule specified on the Schedule screen (see

Schedule When to Block the Internet on page 76).

• ALLOW always. Always allow the traffic covered by this rule (this selection is the

default setting).

• ALLOW by schedule, otherwise Block. Block the traffic covered by this rule, unless

it is blocked according to the schedule specified on the Schedule screen (see

Schedule When to Block the Internet on page 76

Note: ALLOW rules are useful only when the traffic is already covered by a

BLOCK rule. Use these rules when you want to allow a subset of traffic that is blocked by another rule.

5. Specify which computers on your network are af

fected by this rule, based on their source

(LAN) IP address:

• Any.

• Single address

All local IP addresses are covered by this rule.

. Type the required address in the Start field.

• Address range. Type the start address for the range in the Start field and the end

address for the range in the End field.

6. Specify which Internet locations are covered by the rule, based on their destination (WAN) IP

address:

• Any.

All Internet IP addresses are covered by this rule.

Security

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

• Single address. Type the required address in the Start field.

• Address range. T

ype the start address for the range in the Start field and the end

address for the range in the End field.

7. Specify whether traffic covered by this rule is logged:

• Never. The modem router never logs traffic covered by this rule, whether it matches

or not.

• Always. The modem router logs traf fic that is covered by this rule, whether it matches

or not. Logging can be useful when you are debugging your rules.

8. Click the Add button.

The new firewall rule is added to the Outbound Services table on the Firewall Rules screen. The firewall rule is enabled by default.

 To disable an existing outbound firewall rule:

1. Select ADVANCED > Security > Firewall Rules.

The Firewall Rules screen displays.

2. In the Outbound Services table, clear the Enable

check box for the firewall rule that you

want to disable.

3. Click the Apply button.

Your settings are saved.

 To change an existing outbound firewall rule:

1. Select ADVANCED > Security > Firewall Rules.

The Firewall Rules screen displays.

2. In the Outbound Services table, select the radio button to the left of the firewall rule that you

want to change.

3. Click the Edit

button.

The Block Services Setup screen displays. This screen has the same fields as the Outbound Firewall Rule screen on which you can set up a new firewall rule.

4. Change the settings of the firewall rule.

5. Click the Accept button.

The changed settings of the firewall rule are shown in the Outbound Services table on the Firewall Rules screen.

The firewall rule is enabled by default.

 To remove an existing outbound firewall rule:

1. Select ADVANCED > Security > Firewall Rules.

The Firewall Rules screen displays.

2. In the Outbound Services table, select the radio button to the left of the firewall rule that you

want to remove.

Security

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

3. Click the Delete button.

The firewall rule is removed from the Outbound Services table on the Firewall Rules screen.

Manage Inbound Firewall Rules

By default, the firewall blocks all access from outside except responses to requests from the LAN side. You can set up rules to allow access to particular services, applications, ports, and computers. These rules are implemented through port forwarding and port triggering.

 To add an inbound firewall rule:

1. Select ADVANCED > Security > Firewall Rules.

The Firewall Rules screen displays.

2. In the Inbound Services section, click the here link.

ou are redirected to the Port Forwarding / Port Triggering screen. For more information,

see Set Up Port Forwarding to Local Servers on page 111 and Set Up and Manage Port

Triggering on page 114.

Add Custom Services to Allow or Block

You can define your own incoming and outgoing custom services to allow or block. Once you add your own custom services, they are available on the Outbound Firewall Rule screen (see

Manage Outbound Firewall Rules on page 71).

Before you add a custom service, first determine which port number or range of numbers is used by the service or application. You can usually determine this information by contacting the publisher of the application or the user groups or news groups.

 To add a custom service:

1. Select ADVANCED > Security > Firewall Rules.

Security

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

2. In the Service Table section, click the Add Custom Service button.

3. In the Service Type/User Defined field, type a suitable name for the new service or

application.

4. From the Protocol menu, select the correct type of protocol for the new service:

• TCP

• UDP

• TCP/UDP

Note: If you are not sure which protocol to select, select TCP/UDP.

5. In the Starting Port field, enter the starting port number for the new service or application.

6. In the Ending Port field, enter the ending port number for the new service or application.

If the service or application uses a single port number

, enter that number in both fields.

7. Click the Add button.

The new service or application is added to the Services

Table on the Firewall Rules

screen.

 To change an existing custom service:

1. Select ADVANCED > Security > Firewall Rules.

The Firewall Rules screen displays.

2. In the Service T

3. Click the

able, select the radio button to the left of the service that you want to change.

Edit Service button.

The Add Services screen displays.

4. Change the settings for the service or application.

5. Click the Accept button.

The changed settings of the custom service are shown in the Service T

able o

n the

Firewall Rules screen.

 To remove an existing custom service:

1. Select ADVANCED > Security > Firewall Rules.

The Firewall Rules screen displays.

Security

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

2. In the Service Table, select the radio button to the left of the service that you want to remove.

3. Click the Delete Service button.

The custom service is removed from the Service Table on the Firewall Rules screen.

Schedule When to Block the Internet

After you have added keyword blocking (see Keyword Blocking of HTTP Traffic on page 69),

outbound firewall rules (see Set Up Firewall Rules to Control Network Access on page 70), or both, you can specify the days and time that you want to block Internet access.

By default, there is no schedule and Internet access is blocked according to the keywords that you have specified and the outbound firewall rules that you have added.

 To schedule blocking:

1. Select ADVANCED > Security > Schedule.

2. Set up the schedule for blocking keywords and services.

• Days to Block. Select days on which you want to apply blocking by selecting the

appropriate check boxes, or select the Every Day check box to select the check boxes for all days.

• Time of Day to Block. Select a start and end time in 24-hour format, or select the All

Day check box for 24-hour blocking.

3. Select your time zone from the Time Zone menu.

4. If you use daylight saving time, select the Automatically adjust for daylight savings time

check box.

Security

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

5. Click the Apply button.

Your settings are saved.

Security Event Email Notifications

To receive logs and alerts by email, provide your email information in the E-mail screen, and specify which alerts you want to receive and how often.

 To set up email notifications:

1. Select ADVANCED > Security > E-mail.

2. Select the Turn Email Notification On check box.

3. In the Your Outgoing Mail Server field, enter the name of your ISP’s outgoing (SMTP) mail

server (such as mail.myISP.com). Y

ou might be able to find this information in the configuration screen of your email

program. If you leave this field blank, log and alert messages are not sent.

4. Enter the email address to which logs and alerts are sent in the Send to This Email Address

field. This email address is also used for the From address. If you leave this field blank, log and

alert messages are not sent.

5. If your outgoing email server requires authentication, set up the authentication:

a. Select the b. Fill in the User Name and Password fields for the outgoing email server

6. (Optional) Select the Send Alerts Immediately check box.

Email alerts are sent immediately when someone attempts to visit a blocked site.

My Mail Server requires authentication check box.

Security

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

7. (Optional) Select when logs are sent automatically:

a. Select an option from the menu:

• When log is full

• Hourly

• Daily

• W

eekly

• None

b. If you select Daily or W

eekly

, select the time from the menu, and select the a.m. or

p.m. radio button.

c. If you select Weekly

, select the day from the menu.

Logs are sent automatically . If the log fills up before the specified time, the log is emailed. After the log is sent, the log is cleared from the modem router memory. If the modem router cannot email the log file, the log buf

fer might fill up. In this case, the modem router

overwrites the log and discards its contents.

8. Click the Apply button.

Your settings are saved.

Security

6. Administration

Manage your network

This chapter describes the modem router settings for administering and maintaining your

modem router and home network.

This chapter includes the following sections:

• Update the Modem Router Firmware

• View Router Status

• View and Manage the Logs

• Manage the Configuration File

• Change the Password

• Password Recovery

• Perform Diagnostics

For information about other administrative tasks, see the following sections:

• For information about viewing attached devices, see View Attached Devices on page 44.

• For information about upgrading or checking the status of your modem router over the

Internet, see Remote Management on page 121.

• For information about monitoring Internet traf

fic, See Traffic Meter on page 134.

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Update the Modem Router Firmware

The modem router firmware (routing software) is stored in flash memory. You can update the firmware from the Administration menu on the ADVANCED tab. You might see a message at the top of the genie screens when new firmware is available for your product.

You can use the Check button on the Router Update screen to check and update to the latest firmware for your product if new firmware is available.

 To check for new firmware and update your modem router:

1. Select ADVANCED > Administration > Router Update

2. Click the Check button.

The modem router finds new firmware information if any is available.

3. Click the Yes button.

The modem router locates the firmware that you downloaded and begins the update. The firmware file ends in .img.

4. (Optional) If you have manually downloaded new firmware from the NETGEAR support

website: a. Click the

select the firmware file.

b. Click the Upload

Browse button,

button.

navigate to the firmware file (the file ends in .img), and

A progress bar shows the progress of the firmware upload process.

WARNING:

To avoid the risk of corrupting the firmware, do not interrupt the upload. For example, do not close the browser, click a link, or load a new page. Do not turn off the modem router.

When the upload is complete, your modem router restarts. The firmware update process typically takes about three minutes.

Administration

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

 To download new firmware manually and update your modem router:

1. Visit downloadcenter.netgear.com, locate the DGN1000Bv3 support page, and

download the new firmware.

2. Read the new firmware release notes to determine whether you must reconfigure the

modem router after upgrading.

3. Select ADV

ANCED > Administration > Router Update

4. Locate and select the firmware file on your computer:

a. Click the Browse update. b. Navigate to the firmware file.

The file ends in .img.

c. Select the firmware file.

5. Click the Upload button.

A progress bar shows the progress of the firmware upload process.

WARNING:

To avoid the risk of corrupting the firmware, do not interrupt the upload. For example, do not close the browser, click a link, or load a new page. Do not turn off the modem router.

When the upload is complete, your modem router restarts. The firmware update process typically takes about three minutes.

Administration

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

View Router Status

 To view modem router status and usage information:

Depending on the screen that you have open, select ADVANCED or ADVANCED Home

Administration

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Router Information

The following settings are displayed:

• Hardware Version

• Firmware Version. The version of the modem router firmware. It changes if you update

the modem router firmware.

• GUI Language Version.

• LAN Port.

- MAC Address.

address used by the Ethernet (LAN) port of the modem router.

- IP Address. The IP address used by the Ethernet (LAN) port of the modem router.

The default is 192.168.0.1.

- DHCP Server. Identifies whether the modem router’s built-in DHCP server is active

for devices on the LAN.

 To reboot the modem router:

Click the Reboot button.

. The modem router model.

The localized language of the web management interface.

The Media

Access Control address. This is the unique physical

Internet Port

The following settings are displayed:

• MAC Address. The Media

used by the Internet (WAN) port of the modem router.

• IP Address. The IP address used by the Internet (W

address is shown or the address is 0.0.0.0, the modem router cannot connect to the Internet.

• Connection. This field shows if the modem router is using a fixed IP address on the

AN. If the value is DHCP Client, the modem router obtains an IP address dynamically

from the ISP.

• IP Subnet Mask. The IP subnet mask used by the Internet (W

router.

• Domain Name Server. The Domain Name Server addresses used by the modem router.

A Domain Name Server translates human-language URLs such as www IP addresses.

Access Control address, which is the unique physical address

AN) port of the modem router. If no

AN) port of the modem

.netgear.com into

Administration

Statistics Screen

 To view statistics:

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

1. Depending on the screen that you have open, select ADVANCED or ADV

ANCED

Home.

2. In the Internet Port pane, click the Show Statistics button.

The following information is displayed:

• System Up Time.

The time elapsed since the modem router was last restarted.

• Port. The statistics for the WAN (Internet), four LAN (Ethernet) ports, and WLAN

(wireless LAN) port. For each port, the screen displays:

- Status. The link status of the port.

- TxPkts. The number of packets transmitted on this port since reset or manual clear.

- RxPkts

- Collisions

- Tx B/s

. The number of packets received on this port since reset or manual clear.

. The number of collisions on this port since reset or manual clear.

. The current transmission (outbound) bandwidth used on the WAN and LAN

ports.

- Rx B/s

- Up Time

. The current reception (inbound) bandwidth used on the WAN and LAN ports.

. The time elapsed since this port acquired the link.

• Poll Interval. The interval at which the statistics are updated in this screen.

 To change the polling frequency:

1. In the Poll Interval field, enter a time in seconds.

2. Click the Set Interval button.

 To stop the polling:

Click the Stop button.

Connection Status Screen

 To view and change the Internet connection status:

1. Depending on the screen that you have open, select ADVANCED or ADV

Home.

Administration

ANCED

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

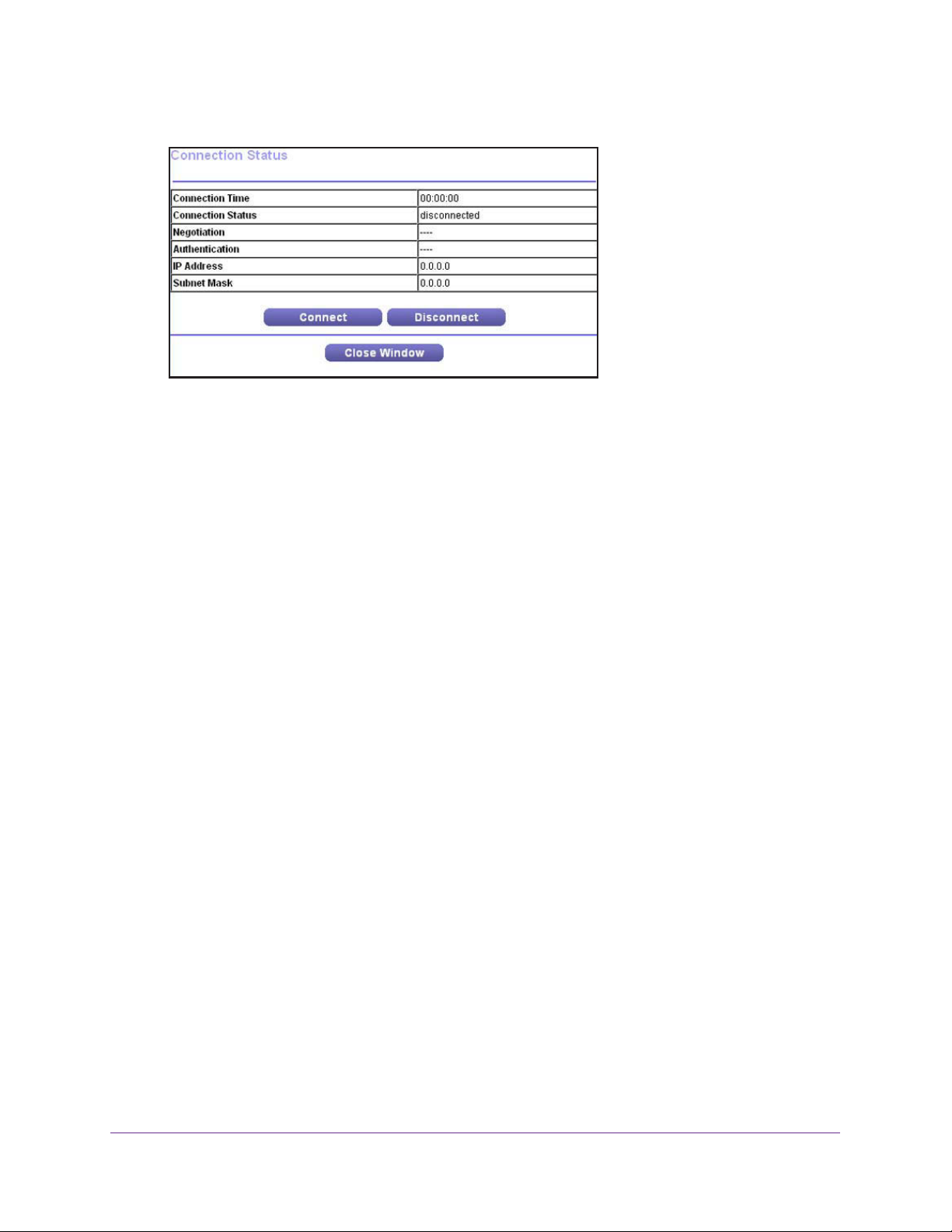

2. In the Internet Port pane, click the Connection Status button.

The following information displays:

• Connection Time. The time elapsed since the last connection to the Internet through

the DSL port.

• Connection Status

• Negotiation. ---- (which indicates of

. Connected or disconnected.

f) or Successful.

• Authentication. ---- (which indicates off) or Successful.

• IP Address. The IP address that is assigned to the modem router.

• Subnet Mask. The subnet mask that is assigned to the modem router.

3. (Optional) Connect or disconnect the modem router from the Internet.

• Click the Connect button.

• Click the Disconnect button.

 To close the Connection Status screen:

Click the Close Window button.

Modem

The following settings are displayed:

• xDSL Firmware Version.

cannot manage the xDSL firmware.

• Modem Status. Connected, disconnected, or system crash.

• DownStream Connection Speed.

router detected.

• UpStream Connection Speed. The upstream connection speed that the modem router

detected.

• VPI. The VPI that you configured on the xDSL Setup screen, or the default VPI, which

is 0.

• VCI. The VCI that you configured on the xDSL Setup screen, or the default VCI, which

is 38.

The firmware version is displayed for information only. You

The downstream connection speed that the modem

Administration

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

 To view the modem statistics:

Click the Modem Statistics button.

The information that is displayed on this screen is not described in this manual. This information is typically used by NETGEAR support.

 To close the xDSL Line Status screen:

Click the Close Window button.

Administration

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Wireless Settings

The following settings are displayed:

• Name (SSID). The wireless network name (SSID) that the modem router uses.

• Region. The geographic region where the modem router is being used. It might be illegal

to use the wireless features of the modem router in some parts of the world.

• Channel

Auto. When Auto is selected, the modem router finds the best operating channel available.

• Mode. The wireless mode: Up to 54 Mbps, Up to 65 Mbps (default), or Up to 150 Mbps.

• Wireless AP. Indicates On or Of

enabled. If this feature is not enabled, the Wireless LED on the front panel is off.

• Broadcast Name. Indicates On or Off to specify if the modem router is broadcasting its

SSID.

• Wireless isolation. Indicates On or Off to specify if wireless isolation prevents wireless

clients from communicating with each other when they join the wireless network.

• Wi-Fi Protected Setup. Indicates whether WPS is configured for this network.

. The operating channel of the wireless port being used.

f to specify if the radio feature of the modem router is

The default channel is

Guest Network

The following settings are displayed:

• Name (SSID). The wireless network name (SSID) used by the modem router for the

guest network. NETGEAR-Guest3. If all guest networks are active at the same time, the screen shows only NETGEAR-Guest1.

ireless AP. Indicates On or Of

• W

network.

• Broadcast Name. Indicates On or Off to specify if the modem router is broadcasting the

SSID for the guest network.

• Wireless Isolation. Indicates On or Off to specify if wireless isolation prevents wireless

clients from communicating with each other when they join the guest network.

• Allow guest to access My Local Network. Indicates On or Off to specify if a user who

connects to the guest network can access the local network that is associated with the modem router.

The default names are NETGEAR-Guest1, NETGEAR-Guest2, and

f to specify if the radio feature is enabled for any guest

View and Manage the Logs

The log is a detailed record of websites that users have accessed or attempted to access, modem router operation, DoS attacks and port scans, wireless access, and other information. Up to 256 entries are stored in the log.

Administration

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

You can specify which types of actions and events are logged, and how the system logs are sent. By default, all actions and events are logged, and the system logs are not sent anywhere.

 To view logs:

Select ADVANCED > Administration > Logs.

Depending on the type of action that was logged, the log screen can show the following information:

• Action. Whether access was blocked or allowed, whether a service was initialized,

whether a user logged in, and so on.

• Source IP. The IP address of the initiating device for this log entry.

• T arget address. The name or IP address of the website or news group that a user visited

or attempted to access, the IP address from which a DoS or port scan was initiated, the IP address from which time was synchronized, the MAC address to which the DHCP server issues an IP address, and so on.

• Date and time

The date and time the log entry was recorded.

Administration

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

 To refresh the log screen:

Click the Refresh button.

 To clear the log entries:

Click the Clear Log button.

 To email the log immediately:

Click the Send Log button.

Note: To send and receive emails, make sure that you have set up and

enabled email notification (see Security Event Email Notifications on page 77).

Change Which Actions and Events Are Logged

 To configure which actions are logged:

1. Select ADVANCED >

Administration > Logs.

The Logs screen displays.

2. Select or clear any of the following check boxes:

• Attempted access to allowed sites. Log attempts to access websites that are

allowed.

• Attempted access to blocked sites and services. Log attempts to access websites

and services that are blocked.

• Connections to the W

eb-based interface of this Router. Log access to the modem

router web management interface.

• Router operation (startup, get time etc). Log modem router operation events such

as startup, Internet connection, firmware initialization, and time synchronization.

• Known DoS attacks and Port Scans. Log DoS attacks and port scans.

• Port Forwarding / Port T

riggering. Log port forwarding and port triggering events.

• Wireless access. Log access by wireless clients.

• Automatic Internet connection reset. Log when the Internet connection is reset

automatically.

• T urn off wireless signal by schedule. Log when the radio is turned of

f if the wireless

signal is scheduled to be turned off.

By default, all of these check boxes are selected.

3. Click the Apply button.

Your settings are saved.

Administration

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Set Up How the System Logs Are Sent

By default, no system logs (syslogs) are sent. Before you set up where the system logs are sent, set up when system logs are sent and enable email notification (see Security Event

Email Notifications on page 77).

 To set up where system logs are sent:

1. Select ADVANCED > Administration > Logs

The Logs screen displays.

2. Specify where system logs are sent by selecting one of the following check boxes:

• Broadcast on LAN. The system logs are sent to the broadcast IP address

(255.255.255.255) on the LAN.

• Send to this Syslog server IP address. The system logs are sent to the syslog

server that you need to specify in the IP address fields.

3. Click the Apply button.

our settings are saved.

Manage the Configuration File

The configuration settings of the modem router are stored within the modem router in a configuration file. You can back up (save) this file to your computer, restore it, or reset it to the factory default settings.

Back Up Settings

 To back up the modem router’s configuration settings:

1. Select ADVANCED > Administration >

2. Click the Back Up button.

3. Choose a location to store the .cfg file that is on a computer on your network.

A copy of the current settings is saved.

Administration

Backup Settings.

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Restore Configuration Settings

 To restore configuration settings that you backed up:

1. Select ADVANCED >

The Backup Settings screen displays.

2. Click the Browse button.

3. Locate and select the .cfg file.

4. Click the Restore button.

The file is uploaded to the modem router, and the modem router reboots.

WARNING:

Do not interrupt the reboot process.

Administration > Backup Settings.

Erase the Current Configuration Settings

Y ou can use the Erase button erase the configuration and restore the factory default settings. You might want to erase the configuration if you move the modem router to a different network.

You can also use the Restore Factory Settings button on the right side panel of the modem router to erase the configuration and restore the factory settings. For more information, see

Side Panel with Restore Factory Settings Button on page 12 and Factory Settings on

page 149.

 To erase the configuration settings:

1. Select ADVANCED >

The Backup Settings screen displays.

2. Click the Erase button.

The factory default settings are restored. The user name is admin, the password is password, and the LAN IP address is 192.168.0.1. DHCP is enabled.

Administration > Backup Settings.

Change the Password

This feature let you change the default password that is used to log in to the modem router with the user name admin.

Changing the password is not the same as changing the password for wireless access. The label on the modem router shows your unique wireless network name (SSID) and password for wireless access (for more information, see Bottom Panel on page 13).

Administration

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

 To change the password for the user name admin:

1. Select ADVANCED > Administration > Set Password.

2. Type the old password, and type the new password twice.

3. (Optional) Specify a value in minutes to change the automatic logout time.

By default, if you are logged in to the web management interface as an administrator and the web management interface remains idle for five minutes, you are logged out automatically

4. Click the Apply button.

our settings are saved.

Password Recovery

NETGEAR recommends that you enable password recovery if you change the password for the user name admin. Then you can recover the password if it is forgotten. This recovery is supported in Internet Explorer, Firefox, and Chrome browsers, but not in the Safari browser.

 To set up password recovery:

1. Select ADVANCED > Administration > Set Password

The Set Password screen displays.

2. Select the Enable Password Recovery check box.

Administration

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

The screen adjusts:

3. From the lists, select two security questions, and provide answers to them.

4. Click the Apply button.

Your settings are saved.

 To recover your password:

1. In the address field of your browser, type www.routerlogin.net.

A login screen displays.

2. Click the

If password recovery is enabled, you are prompted to answer two security questions.

3. Enter the saved answers to the security questions.

Cancel button.

Perform Diagnostics

You can perform two diagnostics tests:

• Ping an IP address or Host Name. Use this test to send a ping packet request to the

specified IP address or host name. This test is often used to test a connection. If the request times out (in other words, no

reply is received), this result usually means that the destination is unreachable. Note, however, that some network devices can be configured not to respond to a ping.

• Perform a DNS Lookup. A DNS (Domain Name Server) converts the Internet name (for

example, www.netgear.com) to an IP address. If you need the IP address of a web, FTP, mail, or other server on the Internet, do a DNS

lookup to find the IP address.

For normal operation, these tests are not required.

Administration

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

 To perform diagnostic tests:

1. Select ADVANCED > Administration > Diagnostics.

2. (Optional) Ping an IP address or host name:

a. Type an IP address or host name in the field. b. Click the Ping

button.

The ping results display onscreen.

c. T

o return to the Diagnostics screen, click the Back button.

3. (Optional) Perform a DNS lookup:

a. T

ype an Internet name in the field.

b. Click the Lookup

button.

The IP address displays, and the DNS Server field displays the primary and secondary DNS servers that were detected on the W

 To display the internal routing table:

AN.

1. Select ADVANCED > Administration > Diagnostics.

The Diagnostics screen displays.

2. Click the Display

button.

The internal routing table displays onscreen.

3. T

o return to the Diagnostics screen, click the Back button.

ou can perform a remote restart of the modem router. Use this operation if the modem

Y router seems to have become unstable or is not operating normally.

Rebooting breaks any existing connections either to the modem router (for example, a connection to the web management interface) or through the modem router (for example, LAN users accessing the Internet). However, connections to the Internet are automatically reestablished if possible.

Administration

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

 To reboot the modem router:

1. Select ADVANCED > Administration > Diagnostics.

The Diagnostics screen displays.

2. Click the Reboot button.

Administration

7. Advanced Settings

Set up unique situations

This chapter describes the advanced features of your modem router. Networking knowledge is

needed to implement some of these features.

This chapter includes the following sections:

• Advanced Wireless Settings

• Wireless Distribution System

• Port Forwarding and Port Triggering

• Set Up Port Forwarding to Local Servers

• Set Up and Manage Port Triggering

• Dynamic DNS

• Static Routes

• Remote Management

• Universal Plug and Play

• IPv6

• Traffic Meter

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

Advanced Wireless Settings

You can use this screen to turn the wireless radio on and off, to configure advanced wireless settings, to specify WPS settings, to use AP mode, and to set up a wireless access list.

Control the Wireless Radio

By default, the wireless radio is enabled so that you can connect wirelessly to the modem router. You can turn the wireless radio on or off on the Advanced Wireless Settings screen or by using the WiFi On/Off button on the modem router front panel. When the wireless radio is off, you can still use an Ethernet cable for a LAN connection to the modem router.

 To turn the radio on or off and change advanced settings for your wireless network:

1. Select ADVANCED > Advanced Setup > W

ireless Settings.

By default, the Enable Wireless Router Radio check box is selected.

2. (Optional) Clear the Enable Wireless Router Radio check box.

Clearing this check box turns off the WiFi feature of the modem router. When the wireless radio is disabled, you can still use the modem router by connecting computers to the modem router with an Ethernet cable. By default, the wireless radio is enabled.

3. (Optional) Clear the Enable 20/40 MHz Coexistence

By default, 20/40 MHz coexistence is enabled to prevent interference between wireless network in your environment at the expense of the wireless speed. If there are no other

Advanced Settings

check box.

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

wireless networks in your environments, you can clear the Enable 20/40 MHz Coexistence check box to increase the wireless speed to the maximum supported speed.

WARNING:

The Fragmentation Length, CTS/RTS Threshold, and Preamble Mode options are reserved for wireless testing and advanced configuration only. Do not change these settings unless directed by NETGEAR support. Incorrect settings might disable the wireless function of the modem router unexpectedly.

4. (Optional) Lower the wireless transmit power by selecting a value lower than 100% from the

ransmit Power Control menu.

T The setting of 100% allows the modem router to use the maximum wireless transmit

power to transmit wireless packets. Reducing the transmit power can save the power consumption for the modem router but also reduces the wireless coverage. If you want to have maximum wireless coverage, NETGEAR recommends that you leave the setting on

the Transmit Power Control menu a

100%.

5. Click the Apply button.

Your changes take effect.

Set Up a Wireless Schedule

You can use this feature to turn off the wireless signal from your modem router at times when you do not need a wireless connection. For example, you might turn it off for the weekend if you leave town. You can create up to 20 wireless schedules.

Note: You can configure a wireless schedule only if the modem router

obtained its network time. If you do not have a DSL or Internet connection, the modem router cannot reach a network time server, and you cannot configure a wireless schedule.

 To configure and enable a wireless schedule:

1. Select ADVANCED >

The Advanced Wireless Settings screen displays.

2. Click the Add a new period button.

Advanced Setup > Wireless Settings.

Advanced Settings

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

The screen adjusts:

3. Use the menus, radio buttons, and check boxes to set up a period during which you want

the wireless signal to be turned off. The Start and End menus use 24-hour clock settings. Setting up a schedule is

self-explanatory.

4. Click the Apply button.

our settings are saved. The Advanced Wireless Settings screen displays.

5. Select the Turn off wireless signal by schedule check box to activate the schedule.

6. Click the Apply button.

our settings are saved. The wireless schedule is added to the table on the Advanced

Wireless Settings screen.

 To change a wireless schedule:

1. Select ADVANCED > Advanced Setup > W

ireless Settings.

The Advanced Wireless Settings screen displays.

2. In the table, select the radio button next to the wireless Schedule for which you want to

make a change.

3. Click the Edit button.

The screen adjusts.

4. Use the menus, radio buttons, and check boxes to modify the period during which you want

the wireless signal to be turned of

5. Click the Apply button.

our settings are saved. The table on the Advanced Wireless Settings screen displays

the modified wireless schedule.

 To remove a wireless schedule:

1. Select ADVANCED > Advanced Setup > W

The Advanced Wireless Settings screen displays.

Advanced Settings

ireless Settings.

N150 Wireless ADSL2+ Modem Router DGN1000Bv3

2. In the table, select the radio button next to the wireless Schedule that you want to remove.

3. Click the Delete button.

The wireless schedule is removed from the table on the Advanced Wireless Settings screen.

View or Change WPS Settings

You can control how WPS functions on the modem router. NETGEAR recommends that you use caution if you change the WPS settings.

Note: For information about how to use WPS to add wireless devices and

other equipment to your wireless network, see WPS Wizard for WiFi

Connections on page 57.

You cannot set up the WPS settings when the security is WEP. Make sure that the security mode is WPA-PSK, WP

A2-PSK, or WPA-PSK + WPA2-PSK mixed mode. For information

about configuring the security mode, see Basic Wireless Settings on page 36. You can do the following with the modem router’s PIN:

• Disable the PIN entirely.

• Change the number of times that a PIN connection is allowed to fail before the PIN is

automatically disabled. By default, the PIN is automatically disabled after three failed connection attempts. If the PIN is automatically disabled, it remains so until you restart the modem router. While the PIN is disabled, the WPS LED blinks slowly

• Turn off automatic disabling of the PIN.

 To specify WPS settings:

1. Select ADVANCED >

Advanced Setup > Wireless Settings.

The Advanced Wireless Settings screen displays. The Router’s PIN field displays the PIN that you use on a registrar (for example, from the

Network Explorer on a Vista Windows computer) to configure the modem router’ wireless settings through WPS. For more information, see WPS Wizard for WiFi

Connections on page 57.

2. (Optional) Clear the Enable Router’

s PIN check box.

The modem router’s PIN is disabled. By default, the PIN is enabled, but there might be situations in which you want to disable the PIN.

The PIN function might temporarily be disabled when the modem router detects suspicious attempts to break into the modem router’s wireless settings by using the modem router’

s PIN through WPS. You can manually enable the PIN function by

selecting the Enable Router’s PIN check box.

Advanced Settings

100
