Netgear C7100V User Manual

Download

AC1900 Cable Modem Voice Router

Model C7100V User Manual

February 2017

202-11722-01

350 East Plumeria Drive

San Jose, CA 95134

USA

AC1900 Cable Modem Voice Router

Support

Thank you for purchasing this NETGEAR product. You can visit www.netgear.com/support to register your product, get help, access the latest downloads and user manuals, and join our community. We recommend that you use only official NETGEAR support resources.

Conformity

For the current EU Declaration of Conformity, visit http://kb.netgear.com/app/answers/detail/a_id/11621.

Compliance

For regulatory compliance information, visit http://www.netgear.com/about/regulatory.

See the regulatory compliance document before connecting the power supply.

Trademarks

AC1900 Cable Modem Voice Router

Chapter 1 Hardware Overview

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Top Panel WPS Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Rear Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Product Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Install an Optional Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Replace the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Position Your Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Install and Activate Your Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Connect Your Modem Router to a Computer. . . . . . . . . . . . . . . . . . . . . . . . . . 14

Call Comcast XFINITY to Activate Internet Service and

Perform a Speed Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Chapter 2 Connect to the Network and Access the Modem Router

Connect to the Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Wired Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

WiFi Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Types of Logins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Access the Modem Router With the NETGEAR genie App . . . . . . . . . . . . . . . . . 21

Chapter 3 Specify Your Internet Settings

Specify the Cable Connection Starting Frequency . . . . . . . . . . . . . . . . . . . . . . . 23

View Modem Router Initialization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Manually Set Up the Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Specify an IPv6 Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Change the MTU Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Chapter 4 Control Access to the Internet

Set Up Parental Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Block Access to Your Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Use Keywords to Block Internet Sites. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Delete a Keyword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Block Services From the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Schedule When to Block Internet Sites and Services . . . . . . . . . . . . . . . . . . . . . . 36

Avoid Blocking on a Trusted Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Set Up Security Event Email Notifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Manage Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Enable or Disable NAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Chapter 5 Share USB Devices Attached to the Modem Router

USB Storage Device Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Connect a USB Storage Device to the Modem Router . . . . . . . . . . . . . . . . . . . . 43

AC1900 Cable Modem Voice Router

Access a USB Drive Connected to the Modem Router From

a Windows Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Map a USB Device to a Windows Network Drive . . . . . . . . . . . . . . . . . . . . . . . . . 44

Access a USB Storage Device That Is Connected to

the Modem Router From a Mac . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Control Access to the USB Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Use FTP Within the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

View Network Folders on a USB Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . 48

Add a Network Folder on a USB Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . 49

Edit a Network Folder on a USB Storage Device. . . . . . . . . . . . . . . . . . . . . . . . . . 50

Approve USB Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Access the USB Storage Device Through the Internet. . . . . . . . . . . . . . . . . . . . . 52

Set Up FTP Access Through the Internet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Access the USB Storage Device Through the Internet With FTP . . . . . . . . . . 54

Safely Remove a USB Storage Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Chapter 6 Share a USB Printer

Install the Printer Driver and Cable the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Download the ReadySHARE Printer Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Install the ReadySHARE Printer Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Use the Shared Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

View or Change the Status of a Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Use the Scan Feature of a Multifunction USB Printer . . . . . . . . . . . . . . . . . . . . . 61

Change NETGEAR USB Control Center Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Chapter 7 Voice Telephone Lines

Connect a Telephone Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

View the Voice Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

View the MTA Call List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

View the EMTA Event Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Chapter 8 Specify Network Settings

View or Change WAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Set Up a Default DMZ Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Manually Configure LAN Switch Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Change the Modem Router’s Device Name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Change the LAN TCP/IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Specify the IP Addresses That the Modem Router Assigns . . . . . . . . . . . . . . . . 73

Disable the DHCP Server Feature in the Modem Router. . . . . . . . . . . . . . . . . . . 75

Manage LAN IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Reserve an IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Edit a Reserved IP Address Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Delete a Reserved IP Address Entry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Improve Network Connections With Universal Plug-N-Play . . . . . . . . . . . . . . . 77

Use the WPS Wizard for WiFi Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Specify Basic WiFi Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

AC1900 Cable Modem Voice Router

Change the WiFi Security Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Set Up a Guest Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Control the WiFi Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Use the WiFi On/Off Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Enable or Disable the WiFi Radios. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Set Up a WiFi Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Specify WPS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Chapter 9 Manage Your Network

Change the admin Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

View Modem Router Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Display Internet Port Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Check the Internet Connection Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

View the Battery Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

View and Manage Logs of Modem Router Activity . . . . . . . . . . . . . . . . . . . . . . . 92

View Event Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Run the Ping Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Run the Traceroute Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Monitor Internet Traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

View Devices Currently on the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Manage the Modem Router Configuration File. . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Back Up Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Restore Configuration Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Erase the Current Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

View Wireless Access Points in Your Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

View or Change the Modem Router Wireless Channel . . . . . . . . . . . . . . . . . . . 102

Dynamic DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Specify a DNS Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Change the Dynamic DNS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Remote Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105

Chapter 10 Specify Internet Port Settings

Set Up Port Forwarding to a Local Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Add a Custom Port Forwarding Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Edit a Port Forwarding Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Delete a Port Forwarding Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Application Example: Make a Local Web Server Public . . . . . . . . . . . . . . . . .111

How the Modem Router Implements the Port Forwarding Rule . . . . . . . . . 112

Set Up Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Add a Port Triggering Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Application Example: Port Triggering for Internet Relay Chat . . . . . . . . . . .114

Chapter 11 Troubleshooting

Troubleshoot with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Power LED Is Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

LEDs Never Turn Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

AC1900 Cable Modem Voice Router

Internet LED Is Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Troubleshoot the Cable Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Cannot Log In to the Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Changes Not Saved . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

WiFi Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Phone Does Not Get a Dial Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Troubleshoot Your Network Using the Ping Utility . . . . . . . . . . . . . . . . . . . . . . . 119

Test the LAN Path to Your Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Test the Path From Your Computer to a Remote Device. . . . . . . . . . . . . . . . 120

Appendix A Supplemental Information

Factory Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

1. Hardware Overview

The modem router provides you with an easy and secure way to set up a WiFi home network with fast Internet access through a coaxial cable and two VoIP telephone lines. The modem router battery (sold separately) provides up to five hours of talk time and eight hours or idle time for voice service during a power outage.

The modem router delivers combined WiFi connection speeds. High-powered amplifiers with antennas provide WiFi coverage anywhere around your home, inside or out.

To set up your new modem router, use the installation guide. This chapter provides supplemental information that can help you with the setup.

This chapter contains the following sections:

• Package Contents

• Front Panel

• Top Panel WPS Button

• Rear Panel

• Product Label

• Install an Optional Battery

• Replace the Battery

• Position Your Modem Router

• Install and Activate Your Modem Router

AC1900 Cable Modem Voice Router

Package Contents

Your package includes the following items.

Modem router

Power cord

Phone cable

Ethernet cable

Quick start gude

Figure 1. Package contents

Front Panel

The front panel contains status LEDs. Use the LEDs to verify status and connections.

Power LED

DS/US LED (downstream and upstream)

Online LED

2.4 GHz WiFi LED

5 GHz WiFi LED

Tel (voice) port 1 LED

Tel (voice) port 2 LED

Battery LED

Figure 2. Front panel LEDs

Hardware Overview

AC1900 Cable Modem Voice Router

You can use the LEDs to verify status and connections. The following table lists and describes each LED and the WPS button on the front panel.

Table 1. Front panel LEDs and button of the modem router

LED Icon Description

Power

DS/US

Online

2.4 GHz WiFi

5 GHz WiFi

• Solid white. The modem router is receiving power and is functioning normally.

• Off.

• Solid white. One or more downstream channels are locked.

• Slow

• Fast

• Off.

• Solid white. The modem router is connected to the Internet.

• Blinking.

• Off.

• Solid white. The 2.4 GHz WiFi radio is functioning and available for use.

• Slow

• Fast

• Off.

• Solid white. The 5 GHz WiFi radio is functioning and available for use.

• Slow blinking.

• Fast

• Off.

The modem router is not receiving power.

blinking. Downstream locking is in progress.

blinking. Upstream locking is in progress.

No downstream channel is locked.

The modem router is downloading a configuration file from the cable

provider’s CMTS.

The modem router is not connected to the Internet.

blinking. At least one computer or WiFi device is connected to the 2.4

GHz network or someone pressed the WPS button.

blinking. At least one computer or WiFi device is sending or receiving

data on the 2.4 GHz network.

The 2.4 GHz WiFi radio is disabled. (If the radio is disabled, see Control

the WiFi Radios on

network or someone pressed the WPS button.

blinking. At least one computer or WiFi device is sending or receiving

data on the 5 GHz network.

The 5 GHz WiFi radio is disabled. (If the radio is disabled, see Control the

WiFi Radios on

page 83.)

At least one computer or WiFi device is connected to the 5 GHz

page 83.)

Tel (voice) port 1 and Tel (voice) port 2

Battery

• Solid white. The telephone line is provisioned and ready to use.

• Slow blinking. Registration is in progress for the telephone line or the phone is

f the hook.

• Off.

• Solid white. The battery is charged.

• Fast

• Off.

The telephone line is not registered or is not provisioned.

blinking. The battery power is low, or the modem router detected a

grounding error or a problem with the voltage.

The battery is not working.

Hardware Overview

AC1900 Cable Modem Voice Router

Top Panel WPS Button

The WPS button is on the top panel.

WPS button

Press the WPS button to connect to the WiFi network without typing the WiFi password. For more information about using WPS, see WiFi Connection on page 18.

Rear Panel

The rear panel contains ports, connectors, and a recessed button.

Reset button

USB ports (2)

Voice ports (2)

Ethernet LAN ports (4)

Coaxial cable connector

Power input

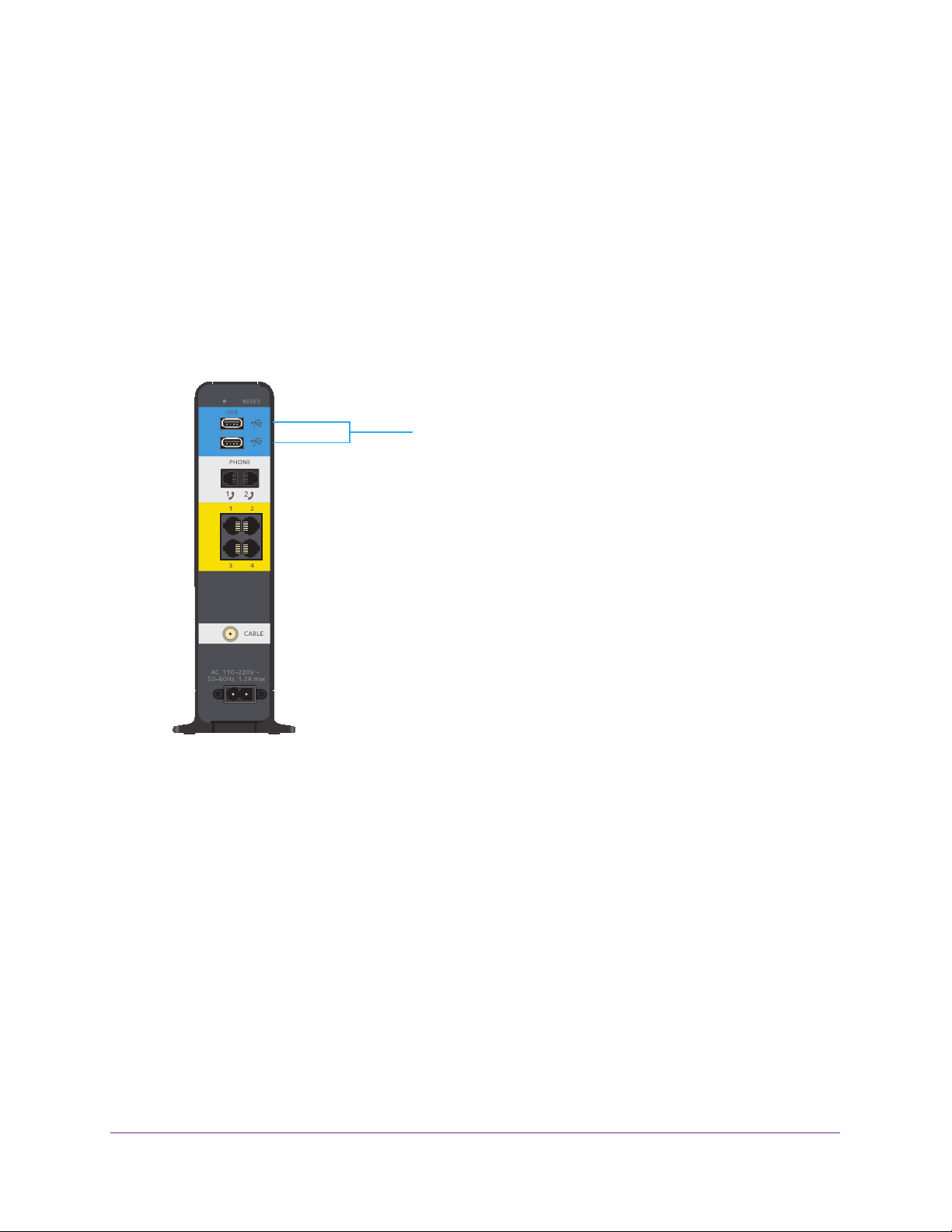

Figure 3. Rear panel connections and button

The rear panel contains the following components, viewed from top to bottom:

• Reset

button. To set the modem router to the original factory settings, press and hold the

Reset button for at least seven seconds. For more information, see Factory Settings on

page 123.

Hardware Overview

AC1900 Cable Modem Voice Router

• USB ports. The USB ports lets you connect a USB hard drive, flash drive, or printer to the

modem router.

• T

el (voice) ports. Connect Voice over IP (VoIP) telephone lines.

• Four Ethernet LAN ports.

These ports support 1000 Mpbs, 100 Mpbs, and 10 Mpbs connections. Use the Ethernet LAN ports to connect local computers to the modem router’s Ethernet LAN.

• Coaxial cable connector.

Attach a coaxial cable to the cable service provider’s

connection.

• Power input connector.

Attach the power cord to this input.

Product Label

The label on the modem router shows the login information, MAC addresses, serial number, WiFi network names, and WiFi password (key).

CM MAC address

EMTA MAC address

Serial number

WiFi network name (SSID)

WiFi network password

Figure 4. Modem router label

Hardware Overview

AC1900 Cable Modem Voice Router

Install an Optional Battery

A battery is not included with the modem router, but you can purchase a NETGEAR modem

router battery (sold separately) and install it. The battery can give you five hours of additional talk time and eight hours of idle time for voice service during a power outage. Battery access is on the bottom of the modem router.

 To install the battery:

1. Make

2. Open

3. Insert

Do not attempt to remove the battery’s plastic tab. The plastic tab allows you to easily remove the battery later if it must be replaced.

4. Close the battery compartment door.

sure that the modem router is unplugged.

the battery compartment door.

the battery into the modem router.

Replace the Battery

Battery access is on the bottom of the modem router.

 To replace the battery:

1. Unplug

2. Open

3. Pull

4. Insert

the modem router.

the battery compartment door.

the plastic tab to remove the battery.

the replacement battery and close the battery compartment door.

Hardware Overview

AC1900 Cable Modem Voice Router

Position Your Modem Router

The modem router lets you access your network from anywhere within the operating range of your WiFi network. However, the operating distance or range of your WiFi connection can vary significantly depending on the physical placement of your modem router. For example, the thickness and number of walls the WiFi signal passes through can limit the range.

For best results, place your modem router according to the following guidelines:

• Place your modem router on an upper floor of a multifloor home or office.

• Place your modem router near the center of the area where your computers and other

devices operate, and within line of sight to your WiFi devices.

• Make sure that the modem router is within reach of an AC power outlet and near Ethernet

cables for wired computers.

• Place the modem router in an elevated location, minimizing the number walls and ceilings

between the modem router and your other devices.

• Place the modem router away from electrical devices such as these:

- Ceiling fans

- Home security systems

- Microwaves

- Computers

- Base of a cordless phone

- 2.4 GHz cordless phone

• Place the modem router away from large metal surfaces, large glass surfaces, insulated

walls, and items such as these:

- Solid metal doors

- Aluminum studs

- Fish tanks

- Mirrors

- Brick

- Concrete

When you use multiple access points, it is better if adjacent access points use different radio frequency channels to reduce interference. The recommended channel spacing between adjacent access points is five channels (for example, use Channels 1 and 6, or 6 and 11).

Hardware Overview

AC1900 Cable Modem Voice Router

Install and Activate Your Modem Router

The modem router provides a connection between your cable Internet provider’s network and your computer, router, or WiFi router.

Connect Your Modem Router to a Computer

During the installation and activation, you must connect the modem router directly to a computer.

Cable modem

Cable wall outlet

Power cord

Ethernet cable

Coax cable

Phone cable

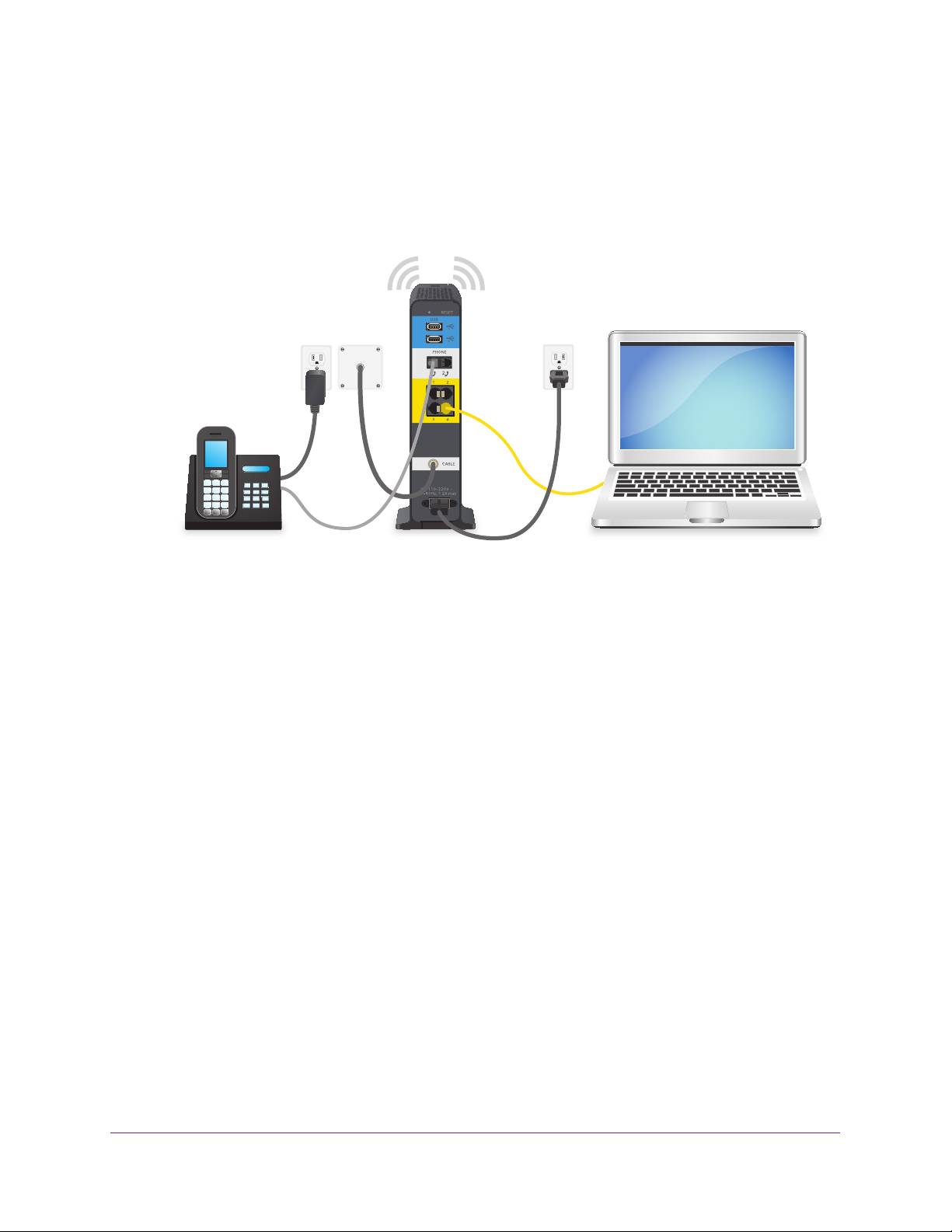

Figure 5. Connect the modem router directly to a computer

Note: Before you connect your modem router and contact your cable Internet

provider, collect your cable account number, account phone number, and login information (your email address or user name and password).

 To connect your modem router directly to a computer:

1. Connect

a coaxial cable.

Use the coaxial cable that your cable company provided to connect modem router to a cable wall outlet. Make sure that the cable is tightly connected.

2. Turn off the computer to which you intend to connect the modem router.

3. Use

the Ethernet cable provided in the package to connect the Gigabit Ethernet port on the

modem router to an Ethernet port on the computer.

4. Connect

one end of the phone cable to the Tel (Voice) port on the rear panel of the modem

router and the other end of the phone cable to the telephone.

5. T

urn on the computer.

the cable port on the

Hardware Overview

AC1900 Cable Modem Voice Router

6. Connect the power cord provided in the package to the modem router and plug the power

cord into an electrical outlet.

When the startup procedure is completed, the Power LED

7. W

ait for the modem router to come online.

It takes at least 10 minutes for the modem router to come online on the network. During this time, the LED behavior is as follows:

• The Downstream/Upstream LED

one or more downstream channels, the LED blinks fast when the modem router is locking one or more upstream channels, and it lights solid white when one or more downstream channels are locked.

• After the modem router registers with your cable Internet provider

lights white.

Even though an Internet connection is established, Internet service set it up with your cable Internet provider.

For information about how to activate your Internet service and register your telephone lines, see Call Comcast XFINITY to Activate Internet Service and Register the Voice Telephone

Lines on page 15.

blinks slowly when the modem router is locking

lights white.

, the Internet LED

is available only after you

Call Comcast XFINITY to Activate Internet Service and Register the Voice Telephone Lines

Before you start the activation process, make sure that your account number, account phone number, and login information (your email address or user name and password) are nearby.

 To activate your Internet connection with Comcast XFINITY’s self-activation process:

1. Call

2. When

3. W

4. If

Comcast XFINITY customer service at 1-800-XFINITY (1-800-934-6489).

asked, provide your account information and provide the modem router’s model

number and MAC address, which are on the modem router label.

For more information, see Product Label on page 11.

ait for Comcast XFINITY to confirm that your modem router is active.

If you do not get an Internet connection with the modem router, look for your modem router online, and do one of the following depending on what Comcast XFINITY tells you about your modem router:

• If the modem router is not visible, Comcast XFINITY can give you instructions to

verify why the modem router does not connect with your high-speed Internet service.

• If the modem router is visible to Comcast XFINITY

your online status again.

you connected telephone lines, ask Comcast XFINITY to register your voice telephone

lines.

, reboot the modem router. Check

ask Comcast XFINITY to

Hardware Overview

AC1900 Cable Modem Voice Router

The Tel (Voice) LED blinks while the phone is being registered and then lights solid white once it is registered.

After the voice line is registered, you can hear a dial tone when the phone is off-hook.

For information about voice telephone lines, see Chapter 7, Voice Telephone Lines.

Perform a Speed Test

To determine the accurate Internet speed, visit the speed test website of your cable Internet provider and perform a speed test.

If your actual speed is lower than your subscribed speed, contact your cable Internet provider.

Hardware Overview

2. Connect to the Network and

Access the Modem Router

This chapter contains the following sections:

• Connect to the Network

• Types of Logins

• Log In to the Modem Router

• Access the Modem Router With the NETGEAR genie App

AC1900 Cable Modem Voice Router

Connect to the Network

You can connect to the modem router’s network through a wired or WiFi connection. If you set up your computer to use a static IP address, change the settings so that it uses Dynamic Host Configuration Protocol (DHCP).

Wired Connection

You can connect your computer to the modem router using an Ethernet cable and join the modem router’s local area network (LAN).

 To connect your computer to the modem router with an Ethernet cable:

1. Make sure that the modem router is receiving power (its Power LED is lit).

2. Connect an Ethernet cable to an Ethernet port on your computer.

3. Connect the other end of the Ethernet cable to one of the numbered Ethernet ports.

Your computer connects to the local area network (LAN). A message might display on your computer screen to notify you that an Ethernet cable is connected.

WiFi Connection

You can connect to the modem router’s WiFi network with Wi-Fi Protected Setup (WPS) or you can find and select the WiFi network.

 To use WPS to connect to the WiFi network:

1. Make sure that the modem router is receiving power (its Power LED is lit).

2. Check the WPS instructions for your WiFi-enabled computer or mobile device.

3. Press the WPS button on the modem router.

4. Within two minutes, on your computer or mobile device, press its WPS button or follow its

instructions for WPS connections.

Your computer or mobile device connects to the WiFi network.

 To find and select the WiFi network:

1. Make sure that the modem router is receiving power (its Power LED is lit).

2. On your computer or mobile device, find and select the WiFi network.

Connect to the Network and Access the Modem Router

AC1900 Cable Modem Voice Router

The WiFi network name is on the modem router label.

3. Join the WiFi network and enter the WiFi password.

The password is on the modem router label.

Your computer or mobile device connects to the WiFi network.

Types of Logins

Separate types of logins serve different purposes. It is important that you understand the difference so that you know which login to use when.

Types of logins:

• W

iFi network key or password. Your modem router is preset with a unique WiFi

network name (SSID) and password for WiFi access. This information is on the modem router label.

Note: Your modem router broadcasts dual-band 2.4 GHz and 5 GHz WiFi

signals. The label shows the SSID for the 2.4 GHz signal. For information about 5 GHz WiFi settings, see Specify Basic WiFi

Settings on page 79.

• Modem router login.

web browser as admin.

This logs you in to the modem router interface as admin from a

Connect to the Network and Access the Modem Router

AC1900 Cable Modem Voice Router

Log In to the Modem Router

When you connect to the network (either with WiFi or with an Ethernet cable), you can use a web browser to access the modem router to view or change its settings. The first time you access the modem router, the modem router automatically checks to see if it can connect to your Internet service.

 To log in to the modem router:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The first time you log in to the modem router, you are prompted to change the admin password and set up security questions. You must enter these settings before you can access the Internet.

an Internet browser from a computer or mobile device that is connected to the

the modem router user name and password.

The default password is password. The user name and

4. Enter a new password.

5. Select

security questions and enter the answers.

Connect to the Network and Access the Modem Router

6. Click the Next button.

AC1900 Cable Modem Voice Router

7. Click the Next button.

The modem router connects to the Internet. The BASIC Home page displays the Internet connection.

the status of

Access the Modem Router With the NETGEAR genie App

The genie app is the easy dashboard for managing, monitoring, and repairing your home network. The genie app can help you with the following:

• Automatically repair common WiFi network problems.

• Easily

traffic meter, speed test, and more.

 To use the genie app to access the modem router:

1. V

2. Follow

3. Launch

The genie app dashboard page displays.

manage modem router features like Live Parental Controls, guest access, Internet

isit the NETGEAR genie web page at NETGEAR.com/genie.

the onscreen instructions to install the app on your smartphone, tablet, or computer.

the genie app.

Connect to the Network and Access the Modem Router

3. Specify Your Internet Settings

Usually, the quickest way to set up the modem router to use your Internet connection is to allow the modem router to detect the Internet connection when you first access the modem router with a web browser. You can also customize or specify your Internet settings.

This chapter contains the following sections:

• Specify the Cable Connection Starting Frequency

• View Modem Router Initialization

• Manually Set Up the Internet Connection

• Specify an IPv6 Internet Connection

• Change the MTU Size

AC1900 Cable Modem Voice Router

Specify the Cable Connection Starting Frequency

The starting frequency is automatically generated. For most Internet connections, you do not need to specify this information. If you must enter a starting frequency, contact your Internet provider.

 To change the starting frequency:

1. Launch

network.

2. T

ype http://routerlogin.net or http://192.168.0.1.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select Cable

a web browser from a computer or mobile device that is connected to the

the modem router user name and password.

The default password is password. The user name and

Connection.

The page displays the status of all downstream and upstream channels.

5. In

6. Click

the Starting Frequency field, type a number.

the Apply button.

Your settings are saved.

Specify Your Internet Settings

AC1900 Cable Modem Voice Router

View Modem Router Initialization

You can track the initialization procedure of the modem router and get details about the downstream and upstream cable channel. The time is displayed after the modem router is initialized.

The modem router automatically goes through the following steps in the provisioning process:

1. Scans

2. Obtains

3. Connects

 To view the status of the modem router initialization:

1. Launch

network.

2. T

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select Cable

and locks the downstream frequency and then ranges the upstream channels.

a WAN address for the modem router.

to the Internet.

a web browser from a computer or mobile device that is connected to the

ype http://routerlogin.net or http://192.168.0.1.

the modem router user name and password.

The default password is password. The user name and

Connection.

The Startup Procedure section displays the initialization progress. The page also displays the status of all downstream and upstream channels.(Scroll down to view all the channels.) The number of downstream and upstream channels that are locked depends on the number of channels that your Internet provider uses.

Specify Your Internet Settings

AC1900 Cable Modem Voice Router

Manually Set Up the Internet Connection

In most situations, you do not need to change these settings. We recommend that you use the default settings for DHCP because most cable Internet services provide the IP address through DHCP.

 To specify the Internet connection settings:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

an Internet browser from a computer or mobile device that is connected to the

the modem router user name and password.

The default password is password. The user name and

ANCED > Setup > Internet.

5. If your Internet connection requires an account name or host name, type it in the Account

Name (If Required) field.

6. If

your Internet connection requires a domain name, type it in the Domain Name (If

Required) field.

For the other sections in this page, the default settings usually them.

7. Select an Internet IP Address radio buttons:

• Get

Dynamically from ISP. Your ISP uses DHCP to assign your IP address. Your ISP

automatically assigns these addresses.

Specify Your Internet Settings

work, but you can change

AC1900 Cable Modem Voice Router

• Use Static IP Address. Enter the IP address, IP subnet mask, and gateway IP

address that your ISP assigned. The gateway is the ISP modem router to which your modem router connects.

8. Select a Domain Name Server (DNS) Address radio button:

• Get Automatically from ISP. Your ISP uses DHCP to assign your DNS servers. Your

ISP automatically assigns this address.

• Use These DNS Servers. If you know that your ISP requires specific servers, select

this option. Enter the IP address of your ISP’s primary DNS server. If a secondary DNS server address is available, enter it also.

9. Select a Router MAC Address radio button:

• Use Default Address. Use the default MAC address.

• Use Computer MAC Address. The modem router captures and uses the MAC

address of the computer that you are now using. You must use the one computer that the ISP allows.

• Use This MAC Address. Enter the MAC address that you want to use.

10. Click the Apply button.

Your settings are saved.

If the NETGEAR website does not display within one minute, see Chapter 11,

Troubleshooting.

Specify an IPv6 Internet Connection

 To specify an IPv6 Internet connection:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the modem router user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

Specify Your Internet Settings

AC1900 Cable Modem Voice Router

4. Select ADVANCED > Advanced Setup > IPv6.

If your Internet provider supports IPV6, the System Delegated Prefix field displays IPv6 information.

5. Select an IP Address Assignment radio button:

• Use DHCP Server.

IPv6 systems might not support the DHCP client function.

• Auto Config.

This setting specifies how the modem router assigns IPv6 addresses to the home network (the LAN).

6. Complete

7. Click

Your settings are saved.

the fields in the Server Settings section.

the Apply button.

This method passes more information to LAN devices, but some

This is the default setting.

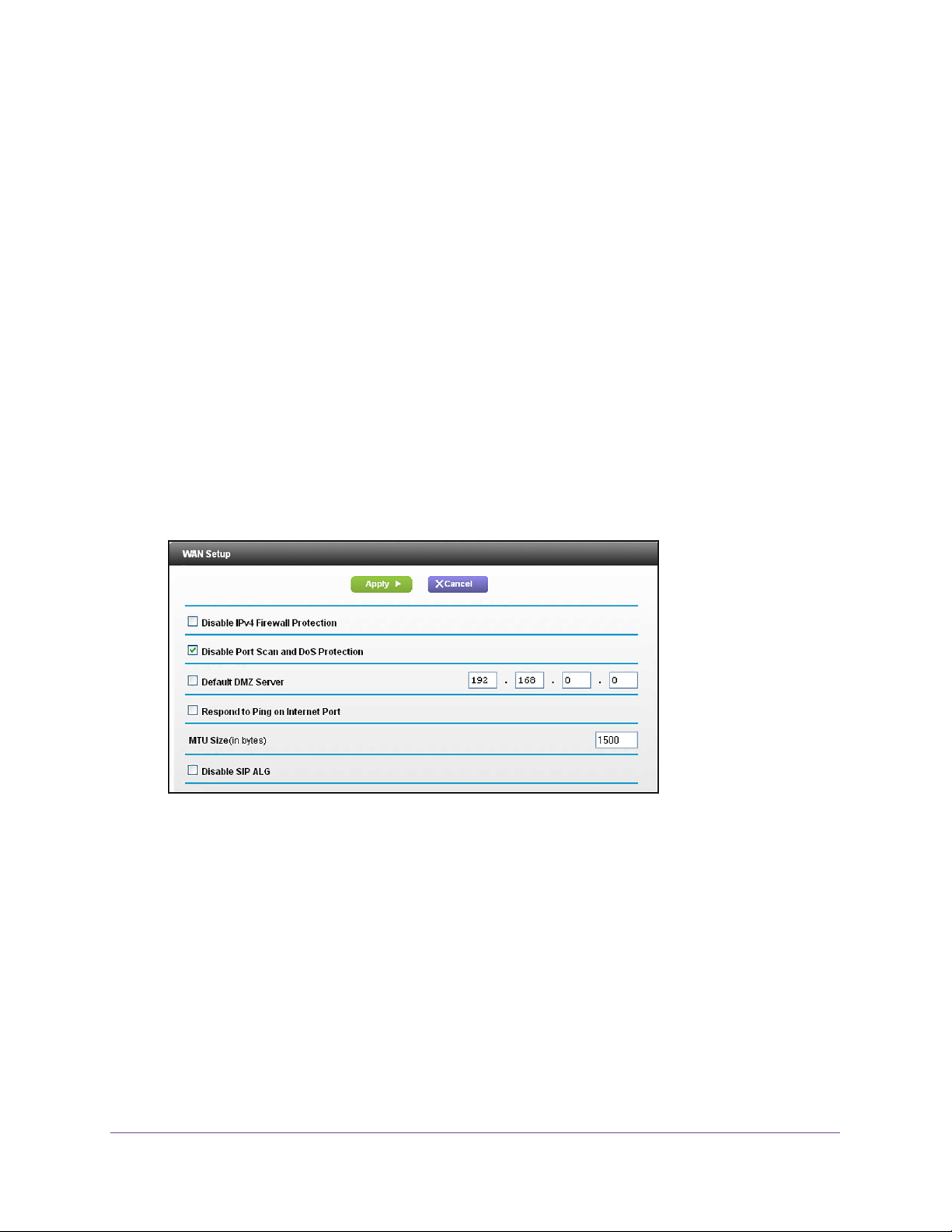

Change the MTU Size

The maximum transmission unit (MTU) is the largest data packet a network device transmits. When one network device communicates across the Internet with another, the data packets travel through many devices along the way. If a device in the data path uses a lower MTU setting than the other devices, the data packets must be split or “fragmented” to accommodate the device with the smallest MTU.

The best MTU setting for NETGEAR equipment is often the default changing the value fixes one problem but causes another. Leave the MTU unchanged unless one of these situations occurs:

value. In some situations,

Specify Your Internet Settings

AC1900 Cable Modem Voice Router

• You experience problems connecting to your ISP or other Internet service, and the

technical support of either the ISP or NETGEAR recommends changing the MTU setting. These web-based applications might require an MTU change:

- A secure website that does not open, or displays only part of a web page

- Y

ahoo email

- MSN portal

- America Online’

• Y

ou use VPN and experience severe performance problems.

• Y

ou used a program to optimize MTU for performance reasons, and now you are

s DSL service

experiencing connectivity or performance problems.

Note: An incorrect MTU setting can cause Internet communication

problems. For example, you might not be able to access certain websites, frames within websites, secure login pages, or FTP or POP servers.

 To change the MTU size:

1. Launch

an Internet browser from a computer or mobile device that is connected to the

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

the modem router user name and password.

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

ANCED > Setup > WAN Setup.

The default password is password. The user name and

Specify Your Internet Settings

AC1900 Cable Modem Voice Router

5. In the MTU Size field, enter a value from 64 to 1500.

6. Click

the Apply button.

Your settings are saved.

If you suspect an MTU problem, a common solution is to change the

MTU to 1400. If you are willing to experiment, you can gradually reduce the MTU from the maximum value of 1500 until the problem goes away. The following table describes common MTU sizes and applications.

Table 2. Common MTU sizes

MTU Application

1500 The largest Ethernet packet size. This setting is typical for connections that do not use

1492 Used in PPPoE environments.

1472 Maximum size to use for pinging. (Larger packets are fragmented.)

1468 Used in some DHCP environments.

1460 Usable by AOL if you do not use large email attachments, for example.

PPPoE or VPN, and is the default value for NETGEAR routers, adapters, and switches.

Specify Your Internet Settings

4. Control Access to the Internet

The modem router comes with a built-in firewall that helps protect your home network from unwanted intrusions from the Internet.

This chapter includes the following sections:

• Set Up Parental Controls

• Block Access to Your Network

• Use Keywords to Block Internet Sites

• Block Services From the Internet

• Schedule When to Block Internet Sites and Services

• Avoid Blocking on a Trusted Computer

• Set Up Security Event Email Notifications

• Manage Services

• Enable or Disable NAT

AC1900 Cable Modem Voice Router

Set Up Parental Controls

The first time that you select Parental Controls from the BASIC Home page, your browser goes to the Parental Controls website, where you can learn more about parental controls. To set up parental controls, you must download the genie app.

 To set up parental controls:

1. Launch

network.

2. T

ype http://www.routerlogin.net.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select Parental

The Parental Controls website opens.

5. Click

6. Follow

7. Open

Live Parental Controls automatically starts.

8. Click

Because Live Parental Controls uses free OpenDNS accounts, you are prompted to log in or create a free account.

an Internet browser from a computer or mobile device that is connected to the

the user name and password for the modem router.

The default password is password. The user name and

Controls.

the button for the genie app or version that you want to download and use.

the onscreen instructions to download and install the genie app.

the genie app and select Parental Controls.

the Next button, read the note, and click the Next button again.

9. Select a radio button as follows:

• If you already own an OpenDNS account, leave the Ye

• If you did not yet create an OpenDNS account, select the No radio button.

If you are creating an account, the Create a free OpenDNS account page displays.

Do the following:

a. Complete

the fields.

Control Access to the Internet

s radio button selected.

AC1900 Cable Modem Voice Router

b. Click the Next button.

After you log on or create your account, the filtering level page displays.

10. Select a radio button for a filtering level and click the Next button.

The Setup is complete page displays.

11. Click the Take me to the status page button.

The Status page displays. Parental controls are now set up for the modem router.

12. To enable parental controls, click the Enable Live Parental Controls button.

Block Access to Your Network

You can use access control to block access to your network.

 To set up access control:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select ADVANCED > Security > Access Control.

The Access Control page displays.

5. Select the Turn on Access Control check box.

You must select this check box before you can specify an access rule and use the Allow and Block buttons. When this check box is cleared, all devices are allowed to connect, even if the device is in the blocked list.

6. Select an access rule:

• Allow all new devices to connect. With this setting, if you buy a new device, it can

access your network. You don’t need to enter its MAC address in this page. We recommend that you leave this radio button selected.

• Block all new devices from connecting. With this setting, if you buy a new device,

before it can access your network, you must enter its MAC address for an Ethernet connection and its MAC address for a WiFi connection in the allowed list.

The access rule does not affect previously blocked or allowed devices. It applies only to devices joining your network in the future after you apply these settings.

Control Access to the Internet

AC1900 Cable Modem Voice Router

7. To allow the computer or device you’re currently using to continue to access the network,

select the check box next to your computer or device, and click the Allow button.

8. Click

the Apply button.

Your settings are saved.

Use Keywords to Block Internet Sites

You can use keywords to block certain Internet sites from your network. You can use blocking all the time or based on a schedule.

 To set block Internet sites:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

an Internet browser from a computer or mobile device that is connected to the

the user name and password.

The default password is password. The user name and

ANCED > Security > Block Sites.

5. Select a keyword blocking option:

• Per Schedule.

Schedule When to Block Internet Sites and Services on page 36.)

• Always.

6. In

the Type keyword or domain field, enter a keyword or domain that you want to block.

Turn on keyword blocking continuously.

Turn on keyword blocking according to a schedule that you set. (See

Control Access to the Internet

AC1900 Cable Modem Voice Router

For example:

• Specify XXX to block http://www.badstuff.com/xxx.html.

• Specify .com if you want to allow only sites with domain suffixes such as .edu or .gov.

• Enter a period (.) to block all Internet browsing access.

7. Click the Add Keyword button.

The keyword is added to the keyword list. The keyword list supports up to 32 entries.

8. Click the Apply button.

Your settings are saved.

Delete a Keyword

 To delete keywords from the list:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select ADVANCED > Security > Block Sites.

The Block Sites page displays.

5. Do one of the following:

• To delete a single word, select it and click the Delete Keyword button.

The keyword is removed from the list.

• To delete all keywords on the list, click the Clear List button.

All keywords are removed from the list.

6. Click the Apply button.

Your settings are saved.

Control Access to the Internet

AC1900 Cable Modem Voice Router

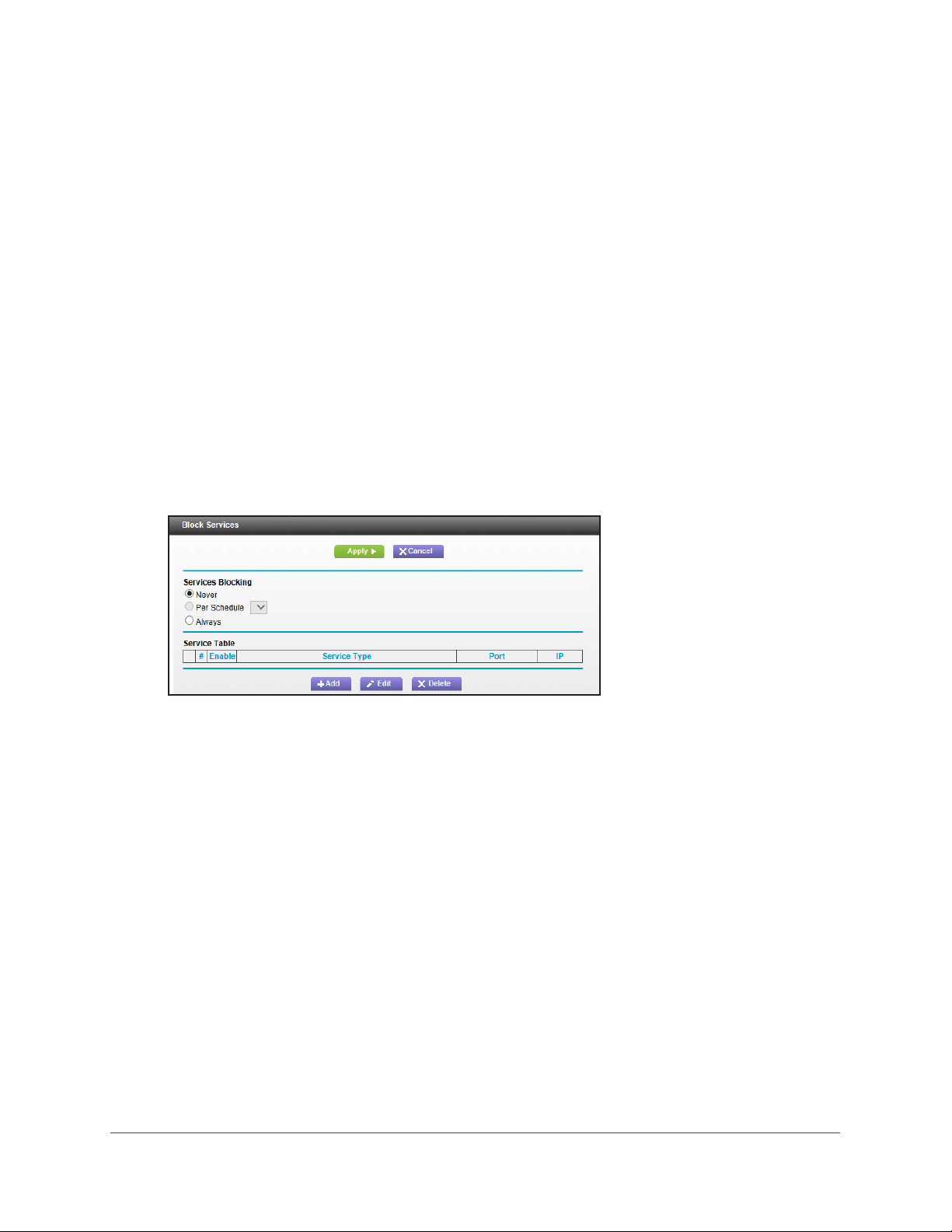

Block Services From the Internet

You can block Internet services on your network based on the type of service. You can block the services all the time or based on a schedule.

 To block services:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select

5. Specify when to block the services:

• T

an Internet browser from a computer or mobile device that is connected to the

the user name and password.

The default password is password. The user name and

ADVANCED > Security > Block Services.

o block the services all the time, select the Always radio button.

o block the services based on a schedule, select the Per Schedule radio button.

For information about how to specify the schedule, see Schedule When to Block

Internet Sites and Services on page 36.

Control Access to the Internet

AC1900 Cable Modem Voice Router

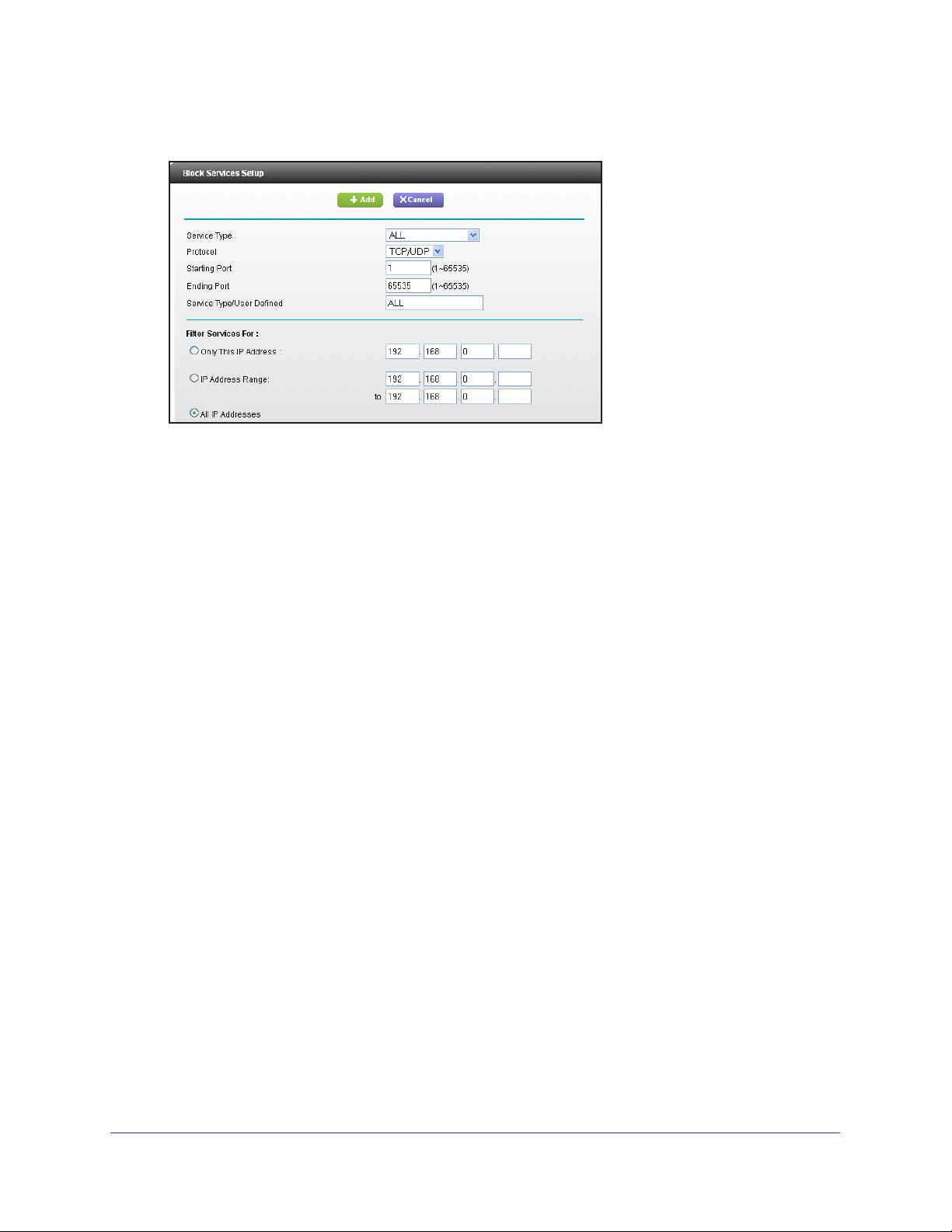

6. Click the Add button.

7. To add a service that is in the Service Type menu, select the application or service.

The settings for this service automatically display in the fields.

8. T

o add a service or application that is not in the menu, select User Defined, and do the

following:

a. If you know that the application uses either

protocol. Otherwise, select TCP/UDP (both).

b. Enter

• If the service uses a single port number

• T

9. Specify which devices on your LAN are affected by the rule, based on their IP addresses:

• Only This IP

• IP

addresses on your network.

• All lP

10. Click

Your settings are saved.

the starting port and ending port numbers.

o find out which port numbers the service or application uses, you can contact the publisher of the application, ask user groups or newsgroups, or search on the Internet.

Address. Block services for a single computer.

Address Range. Block services for a range of computers with consecutive IP

Addresses. Block services for all computers on your network.

the Add button.

TCP or UDP, select the appropriate

, enter that number in both fields.

Schedule When to Block Internet Sites and Services

When you schedule blocking, the same schedule is used to block sites and to block services. For information about how to specify what you want the modem router to block, see Use

Keywords to Block Internet Sites on page 33 and Block Services From the Internet on

page 35.

Control Access to the Internet

AC1900 Cable Modem Voice Router

 To schedule blocking:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select ADVANCED > Security > Schedule.

The Schedule page displays.

5. Specify when to block keywords and services:

• Days to Block. Select the check box for each day that you want to block the

keywords or select the Every Day check box, which automatically selects the check boxes for all days.

• Time of Day to Block. Select a start and end time in 24-hour format, or select All

Day for 24-hour blocking.

6. Select your time zone.

7. If you live in an area that observes daylight saving time, select the Automatically adjust for

daylight savings time check box.

8. Click the Apply button.

Your settings are saved.

Avoid Blocking on a Trusted Computer

You can exempt one trusted computer from blocking. The computer you exempt must use a fixed IP address. You can use the reserved IP address feature to specify the IP address. See

Manage LAN IP Addresses on page 75.

 To specify a trusted computer:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

Control Access to the Internet

AC1900 Cable Modem Voice Router

4. Select ADVANCED > Security > Block Sites.

The Block Sites page displays.

5. Scroll

6. In

7. Click

down and select the Allow trusted IP address to visit blocked sites check box.

the Trusted IP Address field, enter the IP address of the trusted computer.

the Apply button.

Your settings are saved.

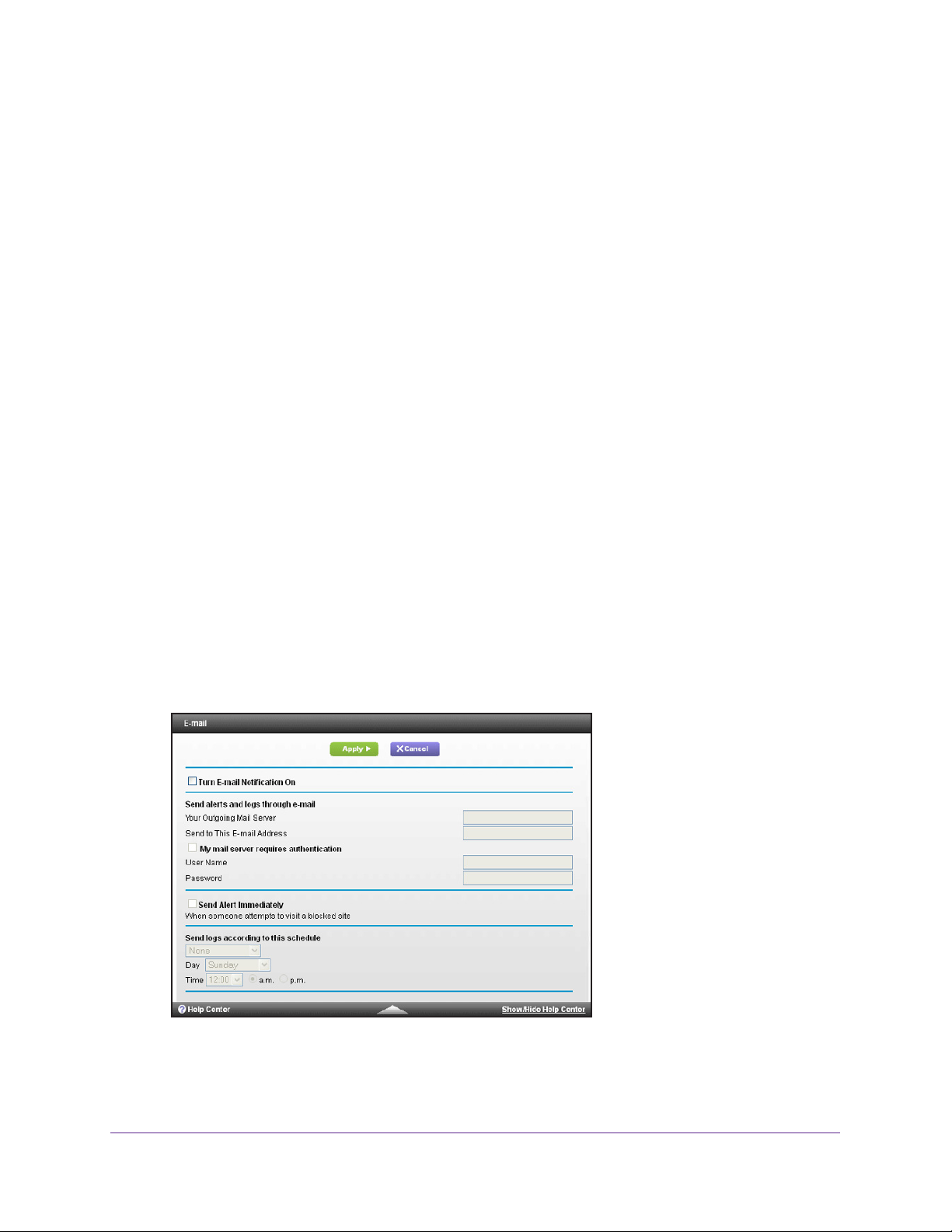

Set Up Security Event Email Notifications

The modem router can email you its logs of modem router activity. The log records activity and security events such as attempts to access blocked sites or services.

 To set up email notifications:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

an Internet browser from a computer or mobile device that is connected to the

the user name and password.

The default password is password. The user name and

The BASIC Home page displays.

4. Select ADV

5. Select the Turn Email Notification On check box.

6. In

the Your Outgoing Mail Server field, enter the name of your ISP outgoing (SMTP) mail

server (such as mail.myISP.com).

ANCED > Security > E-mail.

Control Access to the Internet

AC1900 Cable Modem Voice Router

You might be able to find this information in the configuration page of your email program. If you leave this field blank, log and alert messages are not sent.

7. Enter the email address to which logs and alerts are sent in the Send to This E-mail

Address field.

This email address is also used for the From address. If this field is blank, log and alert messages are not sent.

8. If your outgoing email server requires authentication, select the My Mail Server requires

authentication check box, and do the following:

a. In the User Name field, type the user name for the outgoing email server.

b. In the Password field, type the password for the outgoing email server.

9. To send alerts when someone attempts to visit a blocked site, select the Send Alerts

Immediately check box.

10. To send logs based on a schedule, specify these settings:

• From the Send logs according to this schedule menu, select the schedule type.

• From the Day menu, select the day.

• From the Time menu, select the time, and select the am or pm radio button.

11. Click the Apply button.

Your settings are saved.

Logs are sent automatically. If the log fills before the specified time, it is sent. After the log is sent, it is cleared from the modem router memory. If the modem router cannot email the log and the log buffer fills, the modem router overwrites the log.

Manage Services

You can block Internet access by specific users on your local network based on their IP addresses. For example, you can prevent the use of certain Internet services such as surfing the web (HTTP) by everyone or just a few people on your network. You can configure service blocking to be on never, according to a schedule, or always.

 To manage services:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

Control Access to the Internet

AC1900 Cable Modem Voice Router

4. Select ADVANCED > Security > Services.

5. Select or clear check boxes to enable or disable services.

• When firewall features are enabled, the modem router performs stateful packet

inspection (SPI) and protects against denial of service (DoS) attacks.

• When IPSec pass-through is enabled, IPSec traf

fic is forwarded. When it is disabled,

this traffic is blocked.

• When PPTP pass-through is enabled, PPTP traf

fic is forwarded. When it is disabled,

this traffic is blocked.

• When

Multicast is enabled, the modem router can pass multicasting streams through

the firewall.

• When port scan detection is enabled, the modem router can respond to

Internet-based port scans.

• When IP flood detection is enabled, the modem router can block malicious devices

that are attempting to flood devices.

• Y

ou can use the Web Features check boxes to set certain web-oriented cookies, Java

scripts, and pop-up windows to be blocked by the firewall.

• Y

ou can use the NAT ALG Status check boxes to allow NAT traversal filters for certain

application layer control and data protocols.

6. Click

the Apply button.

Your settings are saved.

Control Access to the Internet

AC1900 Cable Modem Voice Router

Enable or Disable NAT

Network address translation (NAT) is a method of remapping one IP address space into another by modifying network address information in Internet Protocol (IP) datagram packet headers while they are in transit across a traffic routing device.

 To enable or disable NAT:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select ADVANCED > Security > NAT Mode.

The NAT page displays.

5. Select or clear the Turn NAT On check box.

6. Click the Apply button.

Your settings are saved.

Control Access to the Internet

5. Share USB Devices Attached to the

Modem Router

This chapter describes how to access and configure a USB storage drive attached to your modem router. The USB port on the modem router can be used only to connect USB storage devices like flash drives or hard drives, or a printer. Do not connect computers, USB modems, CD drives, or DVD drives to the modem router USB port.

The chapter contains the following sections:

• USB Storage Device Requirements

• Connect a USB Storage Device to the Modem Router

• Control Access to the USB Storage Device

• Use FTP Within the Network

• Add a Network Folder on a USB Storage Device

• Edit a Network Folder on a USB Storage Device

• Approve USB Devices

• Access the USB Storage Device Through the Internet

• Safely Remove a USB Storage Device

For more information about ReadySHARE features, visit netgear.com/readyshare.

AC1900 Cable Modem Voice Router

USB Storage Device Requirements

The modem router works with most USB-compliant external flash and hard drives. For the most up-to-date list of USB storage devices that the modem router supports, visit

kbserver.netgear.com/readyshare.

Some USB external hard drives and flash drives require you to load the drivers onto the computer before the computer can access the USB device. Such USB devices do not work with the modem router.

The modem router supports the following file system types for full read/write access:

AT16

• F

AT32

• NTFS

• NTFS with compression format enabled

• Ext2

• Ext3

• Ext4

• XFS

• HFS+

Connect a USB Storage Device to the Modem Router

ReadySHARE lets you access and share USB storage devices that are connected to the appropriate modem router port. (If your USB storage device uses special drivers, it is not compatible.)

 To connect a USB device:

1. Insert

your USB storage drive into a USB port on the rear panel of the modem router.

USB ports (2)

Share USB Devices Attached to the Modem Router

AC1900 Cable Modem Voice Router

2. If your USB storage device uses a power supply, connect it.

You must use the power supply when you connect the USB storage device to the router.

When you connect the USB drive to the modem router USB port, it might take up to two minutes before it is ready for sharing. By default, the USB drive is available to all computers on your local area network (LAN).

Access a USB Drive Connected to the Modem Router From a Windows Computer

 To access a USB storage device from a Windows computer:

1. Connect a USB storage device to a USB port on your router.

2. If your USB storage device uses a power supply, connect it.

You must use the power supply when you connect the USB storage device to the modem router.

When you connect the USB storage device to the modem router’s port, it might take up to two minutes before it is ready for sharing. By default, the USB storage device is available to all computers on your local area network (LAN).

3. Select Start > Run.

4. Enter \\readyshare in the dialog box.

5. Click the OK button.

A window automatically opens and displays the files and folders on the USB storage

device.

Map a USB Device to a Windows Network Drive

 To map a USB device to a Windows network drive:

1. Connect a USB storage device to a USB port on the router.

If your USB storage device uses a power supply, you must use it when you connect the device to the router.

When you connect the USB storage device to the router’s port, it might take up to two minutes before it is ready for sharing. By default, the device is available to all computers on your local area network (LAN).

2. Select Start > Run.

3. Enter \\readyshare in the dialog box.

4. Click the OK button.

5. Right-click the USB device and select Map network drive.

6. Select the drive letter to map to the new network folder.

Share USB Devices Attached to the Modem Router

AC1900 Cable Modem Voice Router

7. Click the Finish button.

The USB storage device is mapped to the drive letter that you specified.

8. To connect to the USB storage device as a different user, select the Connect using

different credentials check box, click the Finish button, and do the following:

a. Type the user name and password.

b. Click the OK button.

The USB drive is mapped to the drive letter that you specified.

Access a USB Storage Device That Is Connected to the Modem Router From a Mac

 To access the device from a Mac:

1. Connect a USB storage device to a USB port on your router.

If your USB storage device uses a power supply, you must use it when you connect the USB storage device to the router.

When you connect the USB storage device to the router’s port, it might take up to two minutes before it is ready for sharing. By default, the USB storage device is available to all computers on your local area network (LAN).

2. On a Mac that is connected to the network, select Go > Connect to Server.

3. In the Server Address field, enter smb://readyshare.

4. When prompted, select the Guest radio button.

If you set up access control on the router and you allowed your Mac to access the network, select the Registered User radio button and enter admin for the name and password for the password. For more information about access control, see View Devices Currently on the Network on page 83.

5. Click the Connect button.

A window automatically opens and displays the files and folders on the USB storage device.

Control Access to the USB Storage Device

You can specify the device name, workgroups, and network folders for your USB device.

 To specify the USB access settings:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

Share USB Devices Attached to the Modem Router

AC1900 Cable Modem Voice Router

3. Enter the user name and password.

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

ANCED > USB Storage > Advanced Settings.

The default password is password. The user name and

5. Specify access to the USB storage device:

• Network Device Name.

This is the name used to access the USB device connected

to the modem router. The default is readyshare.

• W

orkgroup. If you are using a Windows workgroup rather than a domain, the

workgroup name is displayed here. The name works only in an operating system that supports NetBIOS, such as Microsoft Windows.

• Access Method. Select the check boxes for the access methods that you want:

- Network Neighborhood/MacShare. Enabled by default.

- HTTP. Enabled by default.

You can type

http://readyshare.routerlogin.net/shares to access the USB storage device.

- HTTP

(via Internet). Disabled by default. If you enable this feature, remote users

can type http://<public IP address/shares> (for example, http://1.1.10.102/shares) or a URL domain name to access the USB storage device over the Internet. This feature supports file uploading only.

- FTP. Disabled by default.

- FTP

(via Internet). Disabled by default. If you select this check box, remote users

can access the USB storage device through FTP over the Internet. This feature supports both downloading and uploading of files.

6. If you changed the settings, click the Apply button.

Your settings are saved.

Share USB Devices Attached to the Modem Router

AC1900 Cable Modem Voice Router

Use FTP Within the Network

File Transfer Protocol (FTP) lets you send and receive large files faster.

 To set up FTP access:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

an Internet browser from a computer or mobile device that is connected to the

the user name and password.

The default password is password. The user name and

ANCED > USB Storage > Advanced Settings.

5. Select the FTP check box.

6. Click

the Apply button.

Your settings are saved.

Share USB Devices Attached to the Modem Router

AC1900 Cable Modem Voice Router

View Network Folders on a USB Storage Device

You can view or change the network folders on the USB storage device.

 To view network folders:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

an Internet browser from a computer or mobile device that is connected to the

the user name and password.

The default password is password. The user name and

ANCED > USB Storage > Advanced Settings.

5. Scroll down to the Available Networks Folder section, and view the following settings:

• Share Name. If only one device is connected, the default share name is

USB_Storage. (Some modem router models include more than one USB port.)

You can click the name, or you can type it in the address field of your web browser Not Shared is shown, the default share was deleted, and no other share for the root folder exists. Click the link to change this setting.

• Read

network folder. All–no password (the default) allows all users to access the network folder. The password for admin is the same one that you use to log in to the modem router.

Access and Write Access. Show the permissions and access controls on the

Share USB Devices Attached to the Modem Router

. If

AC1900 Cable Modem Voice Router

• Folder Name. Full path of the network folder.

• V

olume Name. Volume name from the storage device (either USB storage device or

HDD).

• T

otal Space and Free Space. Show the current utilization of the storage device.

Add a Network Folder on a USB Storage Device

You can add network folders on the USB storage device.

 To add a network folder:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

The USB Storage (Advanced Settings) page displays.

5. Click

an Internet browser from a computer or mobile device that is connected to the

the user name and password.

The default password is password. The user name and

ANCED > ReadySHARE.

the Create Network Folder button.

If this page does not display, your web browser might be blocking pop-ups. If it is, change the browser settings to allow pop-ups.

6. In the USB Device menu, select the USB storage device.

7. Click

8. In

9. In

the Browse button and in the Folder field, select the folder.

the Share Name field, type the name of the share.

the Read Access menu and the Write Access menu, select the settings that you want.

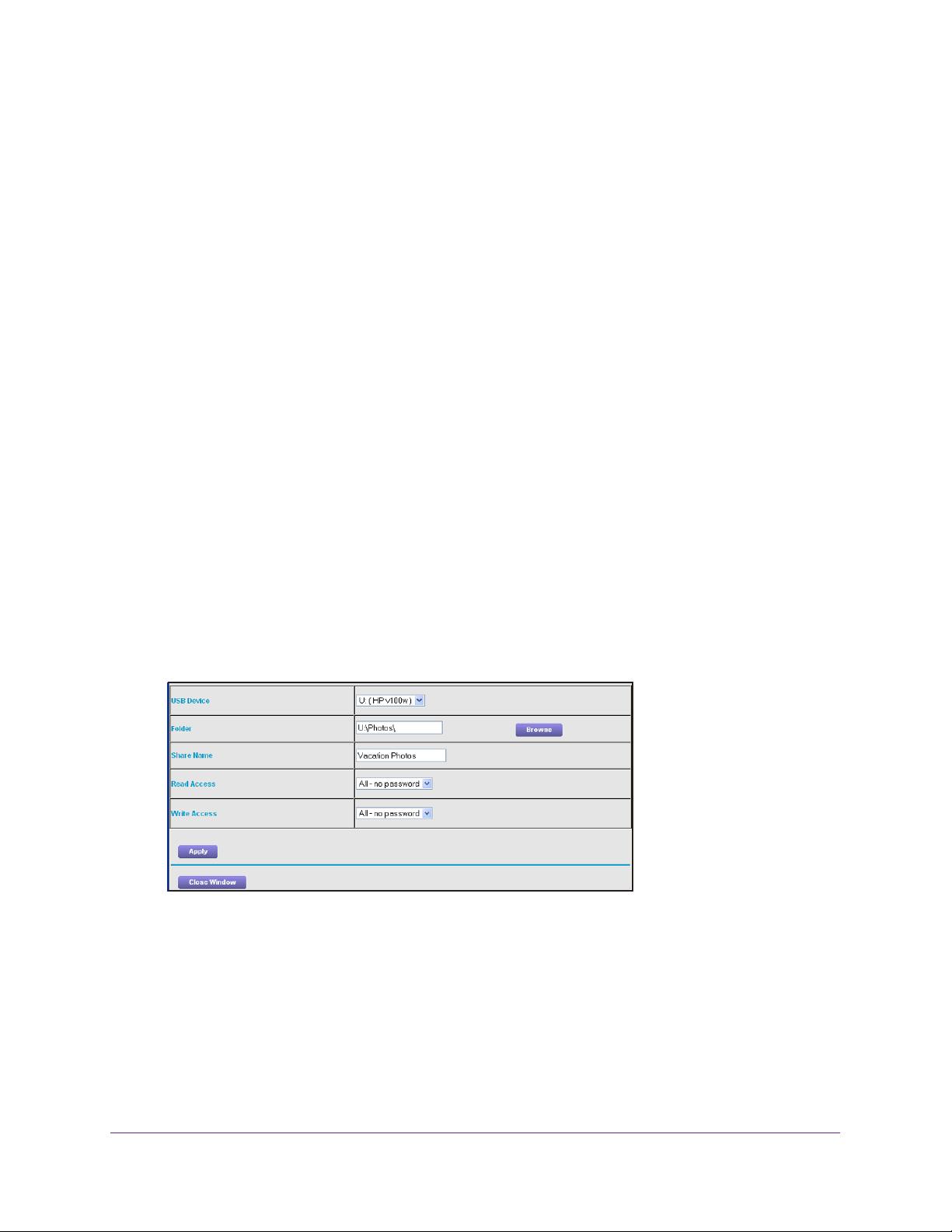

Share USB Devices Attached to the Modem Router

AC1900 Cable Modem Voice Router

The user name (account name) for All–no password is guest. The password for admin is the same one that is used to log in to the modem router. By default, it is password.

10. Click the Apply button.

The folder is added on the USB device.

Edit a Network Folder on a USB Storage Device

You can add network folders on the USB storage device.

 To edit a network folder:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select ADVANCED > ReadySHARE.

The USB Storage (Advanced Settings) page displays.

5. Click the Edit button.

The Edit Network Folder page displays the same settings shown on the Add a Network Folder page.

6. Change the settings in the fields as needed.

7. Click the Apply button.

Your settings are saved.

Approve USB Devices

For more security, you can set up the modem router to share only USB devices that you approve.

 To approve USB devices:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

Share USB Devices Attached to the Modem Router

AC1900 Cable Modem Voice Router

3. Enter the user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

ANCED > Advanced Setup > USB Settings.

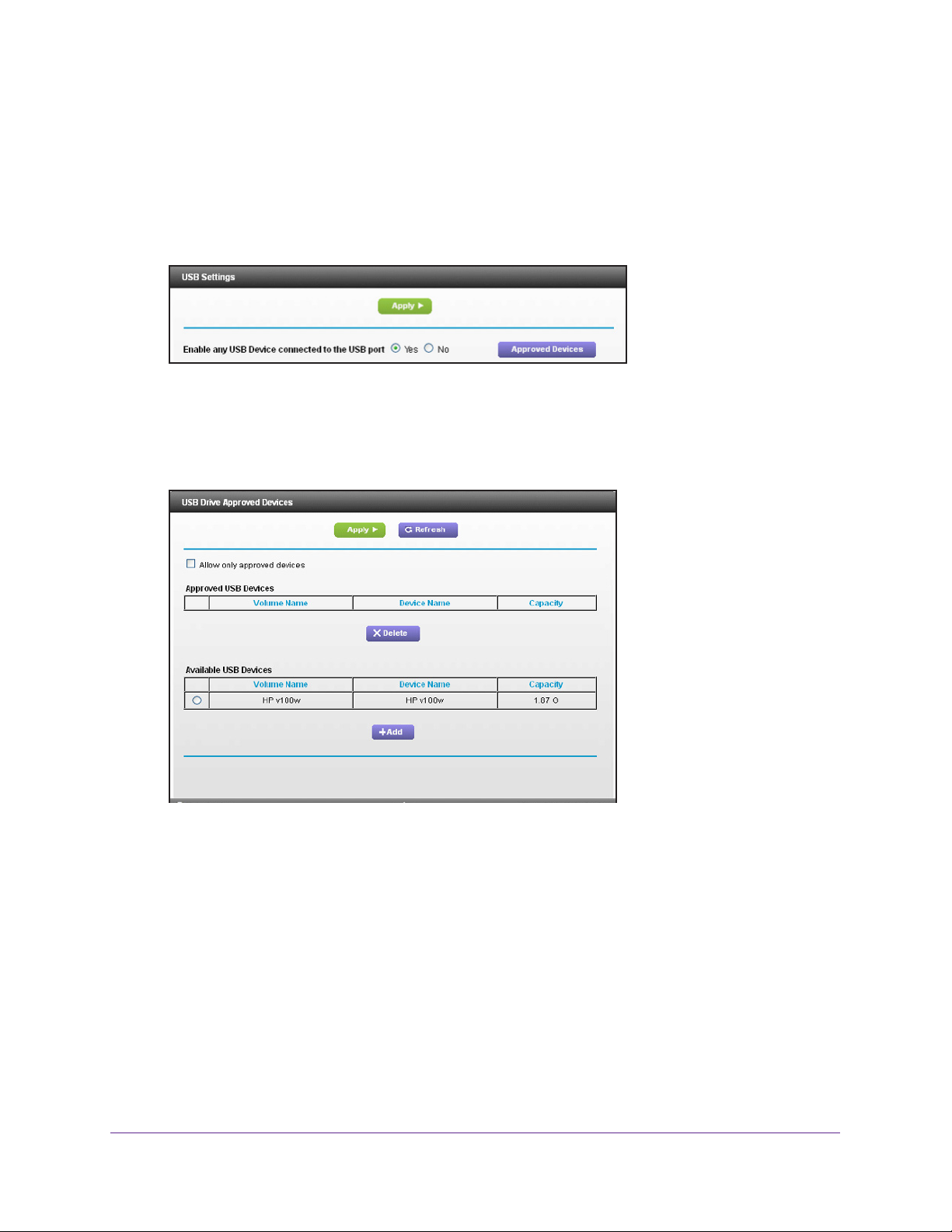

By default the Enable any USB Device connection to the USB port radio button is selected. This setting lets you connect and access all your USB storage devices.

5. Select the No radio button.

6. Click

the Approved Devices button.

The approved and available USB devices display.

7. In

8. Click

9. Select

10. Click

the Available USB Devices menu, select the drive that you want to approve.

the Add button.

the Allow only approved devices check box.

the Apply button.

Your settings are saved.

11. T

o work with another USB device, first click the Safely Remove USB Device button for the

currently connected USB device.

12. Connect

the other USB device, and repeat this process.

Share USB Devices Attached to the Modem Router

AC1900 Cable Modem Voice Router

Access the USB Storage Device Through the Internet

You can access the USB storage device through the Internet when you’re not home.

 To access the USB storage device from a remote computer:

1. Launch a web browser on a computer that is not on your home network.

2. Connect to your modem router:

• To connect with Dynamic DNS, type the DNS name.

To use a Dynamic DNS account, you must enter the account information on the Dynamic DNS page. See

• To connect without Dynamic DNS, type the modem router’s Internet port IP address.

You can view the modem router’s Internet IP address on the BASIC Home page.

You can use FTP to share files on a USB storage device connected to the modem router.

Dynamic DNS on page 103.

Set Up FTP Access Through the Internet

 To set up FTP access:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

Share USB Devices Attached to the Modem Router

AC1900 Cable Modem Voice Router

4. Select ADVANCED > USB Storage > Advanced Settings.

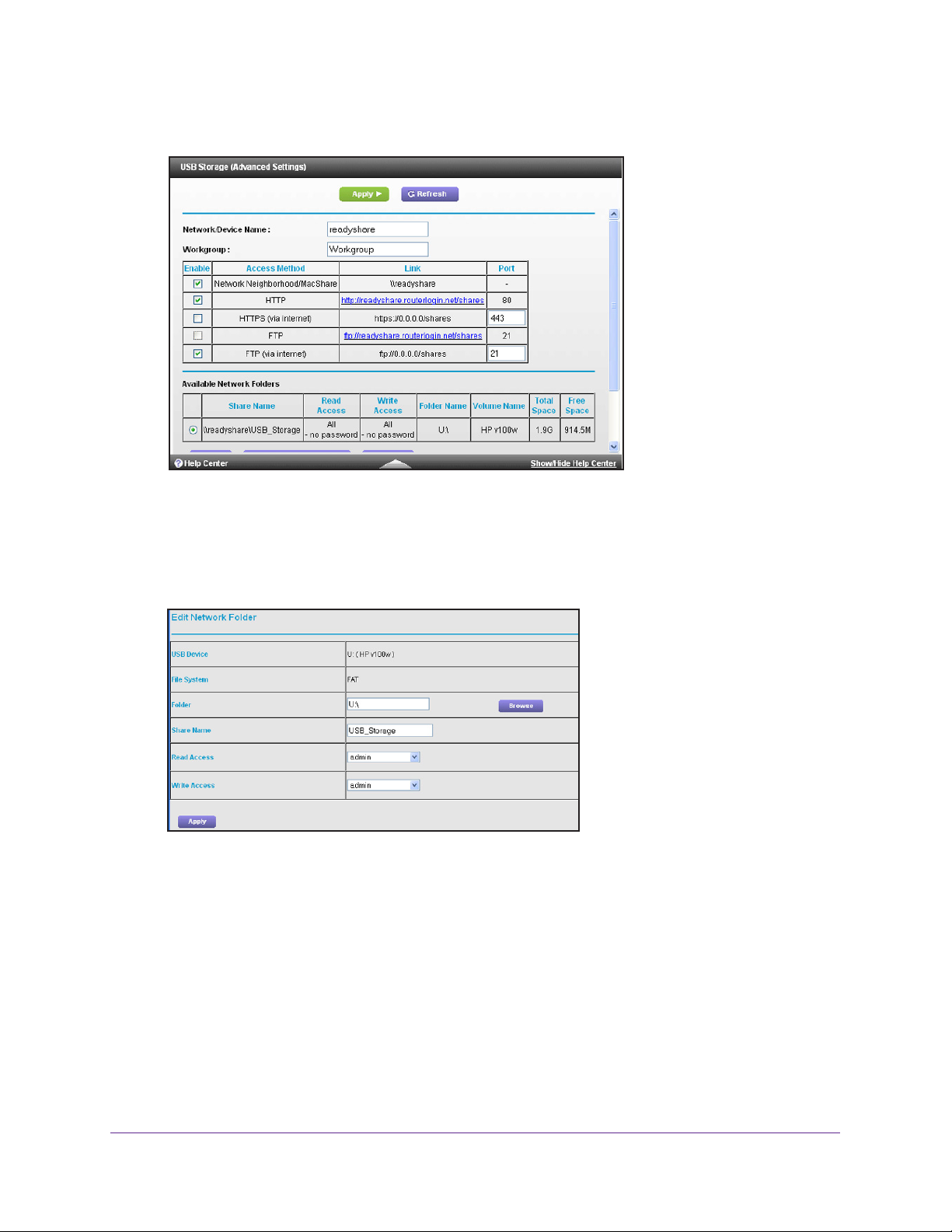

5. Select the FTP (via Internet) check box.

6. Click

the Apply button.

Your settings are saved.

7. T

o limit access to the admin user, click the Edit button.

8. In the Read Access menu, select admin.

9. In

10. Click

the Write Access menu, select admin.

the Apply button.

Your settings are saved.

Share USB Devices Attached to the Modem Router

AC1900 Cable Modem Voice Router

Access the USB Storage Device Through the Internet With FTP

You must first set up FTP via Internet access. For information about setting up FTP via Internet access, see

 To access the USB storage device with FTP from a remote computer:

1. To download, launch an Internet browser.

2. To upload, use an FTP client such as filezilla.

3. Type ftp:// and the Internet port IP address in the address field of the browser.

For example, type ftp://10.1.65.4.

If you are using Dynamic DNS, type the DNS name.

For example, type ftp://MyName.mynetgear.com.

4. When prompted, log in.

• To log in as admin, in the user name field, type admin and in the password field, type

the same password that you use to log in to the modem router.

Set Up FTP Access Through the Internet on page 52.

• To log in as guest, in the user name field, enter guest.

The guest user name does not require a password. To restrict access to the USB storage device, you can specify that only the admin user can access it. See

USB Devices on page 50.

You can view only the files and folders that your account can access. The files and folders on the USB storage device display. For example, you might see share/partition1/directory1.

Approve

Safely Remove a USB Storage Device

Before you physically disconnect a USB storage device from the modem router USB port, log in to the modem router and take the drive offline.

 To remove a USB disk drive safely:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select USB Storage > Basic Settings.

Share USB Devices Attached to the Modem Router

AC1900 Cable Modem Voice Router

The USB Storage page displays.

5. Click the Safely Remove USB Device button.

This takes the drive offline.

6. Physically disconnect the USB storage device.

Share USB Devices Attached to the Modem Router

6. Share a USB Printer

The ReadySHARE Printer utility lets you share a USB printer that is connected to a USB port on your modem router. You can share this USB printer among the Windows and Mac computers on your network.

This chapter contains the following sections:

• Install the Printer Driver and Cable the Printer

• Download the ReadySHARE Printer Utility

• Install the ReadySHARE Printer Utility

• Use the Shared Printer

• View or Change the Status of a Printer

• Use the Scan Feature of a Multifunction USB Printer

• Change NETGEAR USB Control Center Settings

AC1900 Cable Modem Voice Router

Install the Printer Driver and Cable the Printer

Some USB printer manufacturers (for example, HP and Lexmark) request that you do not connect the USB cable until the installation software prompts you to do so.

 To install the driver and cable the printer:

1. On

2. Use

each computer on your network that shares the USB printer, install the driver

software for the USB printer.

If you cannot find the printer driver, contact the printer manufacturer

a USB printer cable to connect the USB printer to a modem router USB port.

USB ports (2)

Download the ReadySHARE Printer Utility

The utility works on Windows and Mac computers.

 To download the utility:

1. V

isit netgear.com/readyshare.

2. Scroll

the page.

3. Click

• Download PC installer and get started.

• Download Mac installer and get started.

4. Follow

install this utility.

down to the Print From the Comfort of Your Home Network section at the bottom of

one of the following links:

This is the utility for Windows computers.

This is the utility for MAC computers.

the onscreen instructions to download the ReadySHARE Printer utility setup file and

Share a USB Printer

AC1900 Cable Modem Voice Router

Install the ReadySHARE Printer Utility

You must install the ReadySHARE Printer utility on each computer that will share the printer.

After you install it, the utility displays as NETGEAR USB Control Center on your computer.

 To install the utility:

1. Double-click

2. Follow the wizard instructions to install NETGEAR USB Control Center.

After the InstallShield Wizard completes the installation, the NETGEAR USB Control

Center prompts you to select a language.

the ReadySHARE Printer utility setup file that you downloaded.

Share a USB Printer

AC1900 Cable Modem Voice Router

3. Select a language from the menu and click the OK button.

Some firewall software, such as Comodo, blocks NETGEAR USB Control Center from accessing the USB printer. If you do not see the USB printer displayed, you can disable the firewall temporarily to allow the utility to work.

4. Select

The printer status changes to Manually connected by Mycomputer. Now only your computer can use the printer

5. Click the Disconnect button.

The status changes to Available. Now all computers on the network can use the printer

6. T

the printer and click the Connect button.

o exit the utility, select System > Exit.

Use the Shared Printer

For each computer, after you click the Connect and Disconnect buttons once, the utility automatically manages the printing queue and handling. By default, the utility starts automatically whenever you log on to Windows and runs in the background.

 To manually connect and print:

1. Click the NETGEAR USB Control Center icon .

The main page displays.

2. Click

the Connect button.

The printer status changes to Manually connected by Mycomputer. Now computer that you are using can use this printer.

3. Use the print feature in your application to print your document.

4. T

o release the printer so that all computers on the network can use it, click the Disconnect

button.

Share a USB Printer

, only the

AC1900 Cable Modem Voice Router

 To print and release the printer to any computer on the network:

1. To print your document, use the print feature in your application.

The NETGEAR USB Control Center automatically connects your computer to the USB printer and prints the document. If another computer is already connected to the printer your print job goes into a queue to wait to be printed.

your document does not print, use the NETGEAR USB Control Center to check the status.

2. If

View or Change the Status of a Printer

 To view or change the status:

1. Click the NETGEAR USB Control Center icon .

The Status column shows the status for each device:

• A

vailable. No print jobs are in progress. You can use the USB printer from any

computer in the network.

• Connected.

print job is done.

• Manually Connected by. Only the connected computer can use the printer

• W

aiting to Connect. Your computer is not connected to the shared printer yet.

2. T

o print from your computer when the status shows Manually connected by to another

computer, click the Disconnect button.

The printer is released from the connection and the status changes to

3. T

o print from your computer when the status shows Waiting to Connect, do the following:

a. Click the Connect button.

The printer status changes to Manually connected by Mycomputer. Now only your computer can use the printer

b. To allow the printer to be shared, click the Disconnect button.

The printer is released from the connection and the status changes to

Your computer is connected to the printer and will be released when your

Available.

Share a USB Printer

AC1900 Cable Modem Voice Router

Use the Scan Feature of a Multifunction USB Printer

If your USB printer supports scanning, you can also use the USB printer for scanning. For example, the USB printer displayed in the Windows Printers and Faxes window is ready for print jobs.

 To use the scan feature of a multifunction USB printer:

1. Launch

2. Make

3. C

lick the Network Scanner button.

The scanner page displays so that you can use the USB printer for scanning.

the NETGEAR USB Control Center.

sure that the printer status shows as Available.

Share a USB Printer

AC1900 Cable Modem Voice Router

Change NETGEAR USB Control Center Settings

You can stop the NETGEAR USB Control Center from starting automatically when you log in to Windows. You can also change the language and specify the time-out to release the printer connection.

 To turn off automatic NETGEAR USB Control Center startup:

1. Click the NETGEAR USB Control Center icon .

The NETGEAR USB Control Center page displays.

2. Select T

3. Clear

4. Click

Your settings are saved.

 To change the language:

ools > Configuration.

the Automatically execute when logging on Windows check box.

the OK button.

1. Click the NETGEAR USB Control Center icon .

The NETGEAR USB Control Center page displays.

2. Select T

The Control Center Configuration page displays.

3. In

4. Click

The next time NETGEAR USB Control Center starts, the language changes.

ools > Configuration.

the Language menu, select a language.

the OK button.

Share a USB Printer

AC1900 Cable Modem Voice Router

 To specify the time-out:

1. Click the NETGEAR USB Control Center icon .

The NETGEAR USB Control Center page displays.

2. Select T

ools > Configuration.

The Control Center Configuration page displays.

3. In

the Timeout field, type the number of minutes.

The time-out is the number of minutes that a computer when the connection isn’t being used.

4. Click the OK button.

Your settings are saved.

holds its connection to the printer

Share a USB Printer

7. Voice Telephone Lines

This chapter contains the following sections:

• Connect a Telephone Line

• View the Voice Status

• View the MTA Call List

• View the EMTA Event Log

AC1900 Cable Modem Voice Router

Connect a Telephone Line

 To connect a telephone line:

1. Connect one end of the phone cable to the Tel (Voice) port on the rear panel of the

modem router.

Phone cable

2. Connect the other end of the phone cable to the telephone.

3. Call

Comcast XFINITY customer service at 1-800-XFINITY (1-800-934-6489) and ask

them to register the phone lines.

The Tel (Voice) LED blinks while the phone is being registered and

After the voice line is registered, you can hear a dial tone when the phone is of

View the Voice Status

 To view the voice status:

1. Launch

network.

2. T

ype http://routerlogin.net or http://192.168.0.1.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

a web browser from a computer or mobile device that is connected to the

the modem router user name and password.

The default password is password. The user name and

then lights solid white.

f-hook.

The BASIC Home page displays.

Voice Telephone Lines

AC1900 Cable Modem Voice Router

4. Select Voice > Voice Status.

The following information displays:

• MT

This page automatically refreshes every 60 seconds to update the provisioning state.

A Provision Status. This is the current MTA provision state.

A MAC Address. This is the MAC address of the MTA interface.

A Telephony Line 1 and Line 2 Status. These are the hook states of line 1 and

line 2.

A Line 1 and Line 2 HD Audio Status. These are the MTA HD audio status of line 1 and line 2 during codec negotiation. If the lines are enabled, it means each line is capable of using G.722. But the codec in conversation also depends on the codec capability of the remote side.

View the MTA Call List

This list contains the per-call measurements for EMTA. It shows the codec used for the last call and some of the previous calls.

 To view or refresh the voice status:

1. Launch

network.

2. T

ype http://routerlogin.net or http://192.168.0.1.

a web browser from a computer or mobile device that is connected to the

A login window opens.

3. Enter

the modem router user name and password.

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

The default password is password. The user name and

Voice Telephone Lines

AC1900 Cable Modem Voice Router

4. Select Voice > MTA Call List.

5. To see the most recent entries, click the Refresh button.

View the EMTA Event Log

 To view the EMTA event log:

1. Launch

network.

2. T

ype http://routerlogin.net or http://192.168.0.1.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

a web browser from a computer or mobile device that is connected to the

the modem router user name and password.

The default password is password. The user name and

ANCED > Administration > EMTA Event Log.

Voice Telephone Lines

8. Specify Network Settings

This chapter includes the following sections:

• View or Change WAN Settings

• Set Up a Default DMZ Server

• Manually Configure LAN Switch Ports

• Change the Modem Router’s Device Name

• Change the LAN TCP/IP Settings

• Specify the IP Addresses That the Modem Router Assigns

• Disable the DHCP Server Feature in the Modem Router

• Manage LAN IP Addresses

• Use the WPS Wizard for WiFi Connections

• Specify Basic WiFi Settings

• Change the WiFi Security Option

• Set Up a Guest Network

• Control the WiFi Radios

• Set Up a WiFi Schedule

• Specify WPS Settings

AC1900 Cable Modem Voice Router

View or Change WAN Settings

You can view or configure wide area network (WAN) settings for the Internet port. You can set up a DMZ (demilitarized zone) server, change the maximum transmit unit (MTU) size, and enable the modem router to respond to a ping to its WAN (Internet) port.

 To view or change the WAN settings:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

an Internet browser from a computer or mobile device that is connected to the

the user name and password.

The default password is password. The user name and

ANCED > Setup > WAN Setup.

iew or change the following settings:

5. V

• Disable IPv4 Firewall Protection. W

cleared so that the firewall protects your modem router.

• Disable Port Scan and DoS Protection. DoS protection protects your LAN against

denial of service attacks such as Syn flood, Smurf others. Select this check box only in special circumstances.

• Default

you are playing online games or videoconferencing, but it makes the firewall security less effective. See Set Up a Default DMZ Server on page 70.

• Respond to Ping on Internet Port.

discovered. Use this feature only as a diagnostic tool or if a specific reason exists.

• MTU Size (in bytes).

Ethernet networks is 1500 bytes, or 1492 bytes for PPPoE connections. Change the

DMZ Server. This feature is disabled by default. It is sometimes helpful when

The normal MTU (maximum transmit unit) value for most

Specify Network Settings

e recommend that you leave this check box

Attack, Ping of Death, and many

This feature allows your modem router to be

AC1900 Cable Modem Voice Router

MTU only if you are sure that it is necessary for your ISP connection. See Change the

MTU Size on page 27.

• Disable SIP ALG. Some VoIP applications do not work well with the SIP ALG.

Selecting this check box to turn off the SIP ALG might help your VoIP devices to create or accept a call through the modem router.

SIP ALG stands for Application Layer Gateway, and is common in many commercial routers. It intends to prevent some of the problems caused by router firewalls by inspecting VoIP traffic (packets) and if necessary modifying it. Many routers have SIP ALG turned on by default.

6. Click the Apply button.

Your settings are saved.

Set Up a Default DMZ Server

The default DMZ server feature is helpful when you are using some online games and videoconferencing applications that are incompatible with Network Address Translation (NAT). The modem router is programmed to recognize some of these applications and to work correctly with them, but other applications might not function well. In some cases, one local computer can run the application correctly if the IP address for that computer is entered as the default DMZ server.

WARNING:

DMZ servers pose a security risk. A computer designated as the default DMZ server loses much of the protection of the firewall and is exposed to exploits from the Internet. If compromised, the DMZ server computer can be used to attack other computers on your network.

The modem router usually detects and discards incoming traffic from the Internet that is not a response to one of your local computers or a service that you configured in the Port Forwarding/Port Triggering page. Instead of discarding this traffic, you can direct the modem router to forward the traffic to one computer on your network. This computer is called the default DMZ server.

 To set up a default DMZ server:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

Specify Network Settings

AC1900 Cable Modem Voice Router

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

5. Select

6. T

ype the IP address.

7. Click

Your settings are saved.

ANCED > Setup > WAN Setup.

the Default DMZ Server check box.

the Apply button.

Manually Configure LAN Switch Ports

The modem router’s LAN interference is a 10/100/1GBASE-T Ethernet switch. By default, the switch ports are set to automatically negotiate speed and duplex with any connected device. Manual configuration might be desirable if the devices fail to properly autonegotiate.

 To manually configure LAN switch ports:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

an Internet browser from a computer or mobile device that is connected to the

the user name and password.

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

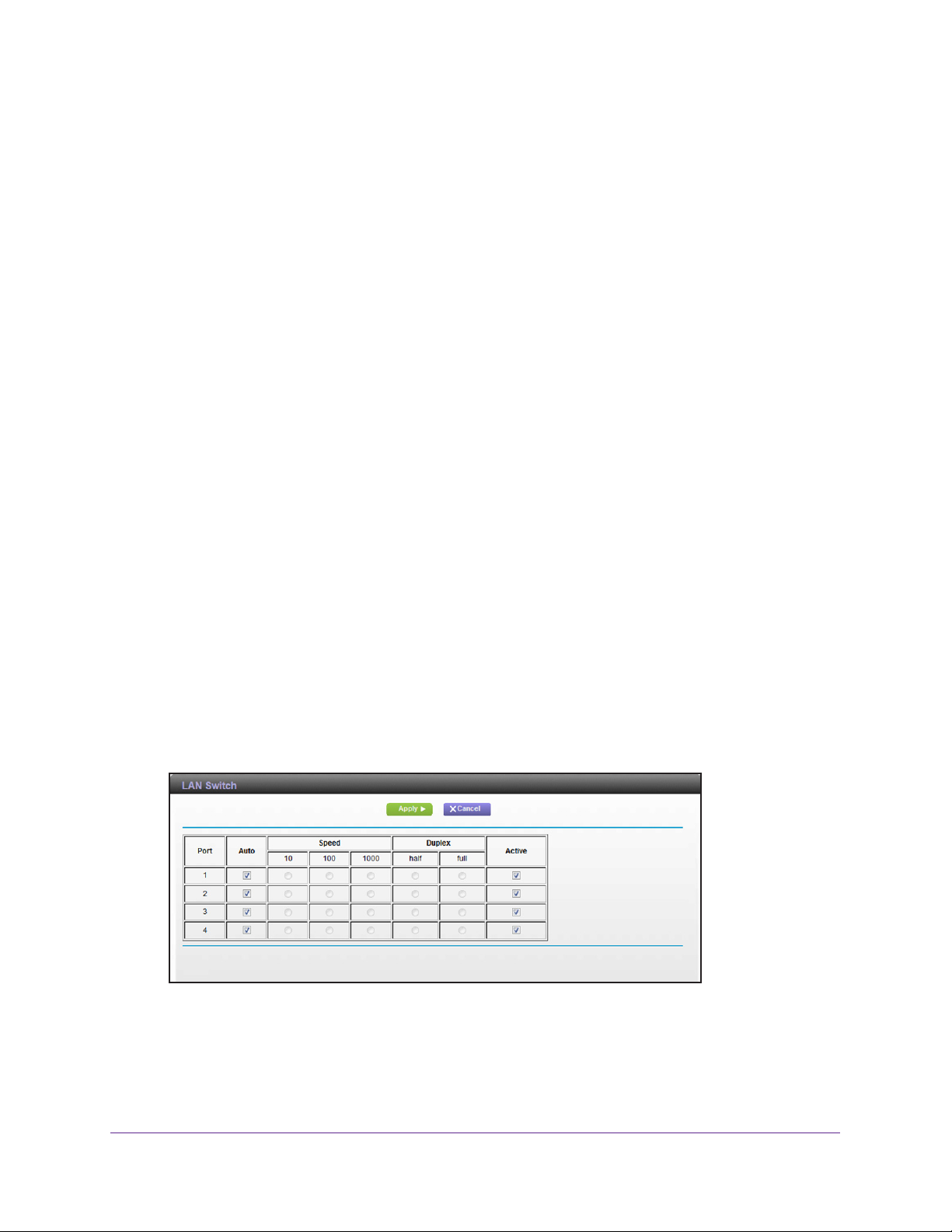

5. Select the appropriate speed and duplex.

6. T

o disable a LAN port, clear the check box in the Active column.

7. Click

Your settings are saved.

ANCED > Setup > LAN Switch.

the Apply button.

The default password is password. The user name and

Specify Network Settings

AC1900 Cable Modem Voice Router

Change the Modem Router’s Device Name

The modem router’s device name is C7100V. This device name displays in file manager when you browse your network.

 To change the modem router’s device name:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select ADVANCED > Setup > LAN Setup.

The LAN Setup page displays.

5. In the Device Name field, type a new name.

6. Click the Apply button.

Your settings are saved.

Change the LAN TCP/IP Settings

The modem router is preconfigured to use private IP addresses on the LAN side and to act as a DHCP server. The modem router’s default LAN IP configuration is as follows:

• LAN IP address. 192.168.0.1

• Subnet mask. 255.255.255.0

These addresses are part of the designated private address range for use in private networks and are suitable for most applications. If your network requires a different IP addressing scheme, you can change these settings.

You might want to change these settings if you need a specific IP subnet that one or more devices on the network uses, or if competing subnets use the same IP scheme.

 To change the LAN TCP/IP settings:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

Specify Network Settings

AC1900 Cable Modem Voice Router

3. Enter the user name and password.

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

ANCED > Setup > LAN Setup.

The default password is password. The user name and

5. In the IP Address fields, type the IP address.

6. In

7. Click

8. To reconnect, close your browser, relaunch it, and log in to the modem router

the IP Subnet Mask fields, type the subnet mask of the modem router.

The IP address and subnet mask identify which addresses are local to a specific device and which must be reached through a gateway or modem router.

the Apply button.

Your settings are saved.

If you changed the LAN IP address of the modem router, you are disconnected change takes effect.

when this

Specify the IP Addresses That the Modem Router Assigns

By default, the modem router acts as a Dynamic Host Configuration Protocol (DHCP) server. The modem router assigns IP, DNS server, and default gateway addresses to all computers connected to the LAN. The assigned default gateway address is the LAN address of the modem router.

These addresses must be part of the same IP address subnet as the address. Using the default addressing scheme, define a range between 192.168.0.2 and

192.168.0.254, although you can save part of the range for devices with fixed addresses.

modem router’s LAN IP

Specify Network Settings

AC1900 Cable Modem Voice Router

 To specify the pool of IP addresses that the modem router assigns:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

the user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

ANCED > Setup > LAN Setup.

5. Make sure that the Use Router as DHCP Server check box is selected.

6. Specify

a. In the Starting IP

the range of IP addresses that the modem router assigns:

Address field, type the lowest number in the range.

This IP address must be in the same subnet as the modem router.

b. In

the Ending IP Address field, type the number at the end of the range of IP

addresses.

This IP address must be in the same subnet as the modem router.

7. Click

the Apply button.

Your settings are saved.

The modem router delivers the following parameters to any LAN device that requests

• An IP address from the range that you defined

• Subnet mask

• Gateway IP address (the modem router’

• DNS server IP address (the modem router’

Specify Network Settings

s LAN IP address)

DHCP:

AC1900 Cable Modem Voice Router

Disable the DHCP Server Feature in the Modem Router

By default, the modem router acts as a DHCP server. The modem router assigns IP, DNS server, and default gateway addresses to all computers connected to the LAN. The assigned default gateway address is the LAN address of the modem router.

You can use another device on your network as the DHCP server, or specify the network settings of all your computers.

 To disable the DHCP server feature in the modem router:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select ADVANCED > Setup > LAN Setup.

The LAN Setup page displays.

5. Clear the Use Router as DHCP Server check box.

6. Click the Apply button.

(Optional) If this service is disabled and no other DHCP server is on your network, set your computer IP addresses manually so that they can access the modem router.

Manage LAN IP Addresses

When you specify a reserved IP address for a computer on the LAN, that computer always receives the same IP address each time it accesses the modem router’s DHCP server. Assign reserved IP addresses to computers or servers that require permanent IP settings.

Reserve an IP Address

 To reserve an IP address:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

Specify Network Settings

AC1900 Cable Modem Voice Router

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select ADVANCED > Setup > LAN Setup.

The LAN Setup page displays.

5. In the Address Reservation section, click the Add button.

6. In the IP Address field, type the IP address to assign to the computer or server.

Choose an IP address from the modem router’s LAN subnet, such as 192.168.0.x.

7. Type the MAC address of the computer or server.

Tip: If the computer is already on your network, you can copy its MAC

address from the Attached Devices page and paste it here.

8. Click the Apply button.

The reserved address is entered into the table.

The reserved address is not assigned until the next time the computer contacts the modem router’s DHCP server. Reboot the computer, or access its IP configuration and force a DHCP release and renew.

Edit a Reserved IP Address Entry

 To edit a reserved address entry:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select ADVANCED > Setup > LAN Setup.

The LAN Setup page displays.

5. Select the radio button next to the reserved address.

6. Click the Edit button.

7. Change the settings.

8. Click the Apply button.

Your settings are saved.

Specify Network Settings

AC1900 Cable Modem Voice Router

Delete a Reserved IP Address Entry

 To delete a reserved address entry:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select ADVANCED > Setup > LAN Setup.

The LAN Setup page displays.

5. Select the radio button next to the reserved address.

6. Click the Delete button.

The address is removed.

Improve Network Connections With Universal Plug-N-Play

Universal Plug-N-Play (UPnP) helps devices, such as Internet appliances and computers, access the network and connect to other devices as needed. UPnP devices can automatically discover the services from other registered UPnP devices on the network.

If you use applications such as multiplayer gaming, peer-to-peer connections, or real-time communications such as instant messaging or remote assistance (a feature in Windows XP), enable UPnP.

 To enable Universal Plug-N-Play:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select ADVANCED > Advanced Setup > UPnP.

Specify Network Settings

AC1900 Cable Modem Voice Router

The UPnP page displays.

5. Select the Turn UPnP On check box.

By default, this check box is selected. UPnP for automatic device configuration can be enabled or disabled. If the Turn UPnP On check box is cleared, the modem router does not allow any device to automatically control modem router resources such as port forwarding.

6. Type the advertisement period in minutes.

The advertisement period specifies how often the modem router broadcasts its UPnP information. This value can range from 1 to 1440 minutes. The default period is 30 minutes. Shorter durations ensure that control points receive current device status at the expense of more network traffic. Longer durations can compromise the freshness of the device status, but can significantly reduce network traffic.

7. Type the advertisement time to live in hops.

The time to live for the advertisement is measured in hops (steps) for each UPnP packet sent. Hops are the steps a packet takes between routers. The number of hops can range from 1 to 255. The default value for the advertisement time to live is 4 hops, which should be fine for most home networks. If you notice that some devices are not being updated or reached correctly, it might be necessary to increase this value.

8. Click the Apply button.

The UPnP Portmap Table displays the IP address of each UPnP device that is accessing the modem router and which ports (internal and external) that device opened. The UPnP Portmap Table also displays what type of port is open and whether that port is still active for each IP address.

9. To refresh the information in the UPnP Portmap table, click the Refresh button.

Use the WPS Wizard for WiFi Connections

The WPS Wizard helps you add a computer or mobile device to your WiFi network without typing the WiFi password.

 To use the WPS Wizard:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

Specify Network Settings

AC1900 Cable Modem Voice Router

4. Select ADVANCED > WPS Wizard.

A page displays that explains WPS.

5. Click the Next button.

The WPS page displays.

6. Select the radio button for the setup method that you want to use:

• Push button. Click the WPS button on this page.

• PIN Number. The page adjusts. Enter the client security PIN, and click the Next

button.

7. Within two minutes, go to the client device and use its WPS software to connect to the WiFi

network.

The WPS process automatically sets up your computer or mobile device with the network password when it connects. The modem router WPS page displays a confirmation message.

Specify Basic WiFi Settings

The modem router comes with preset security. This means that the WiFi network name (SSID), network key (password), and security option (encryption protocol) are preset in the factory. You can find the preset SSID and password on the modem router label.

Note: The preset SSID and password are uniquely generated for every

device to protect and maximize your WiFi security.

If you change your preset security settings, make a note of the new settings and store it in a safe place where you can easily find it.

If you use a WiFi connection to change the WiFi network name (SSID) or WiFi security settings, you are disconnected when you click the Apply button. To avoid this problem, use a computer with a wired connection to access the modem router.

 To specify basic WiFi settings:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

Specify Network Settings

4. Select Wireless.

AC1900 Cable Modem Voice Router

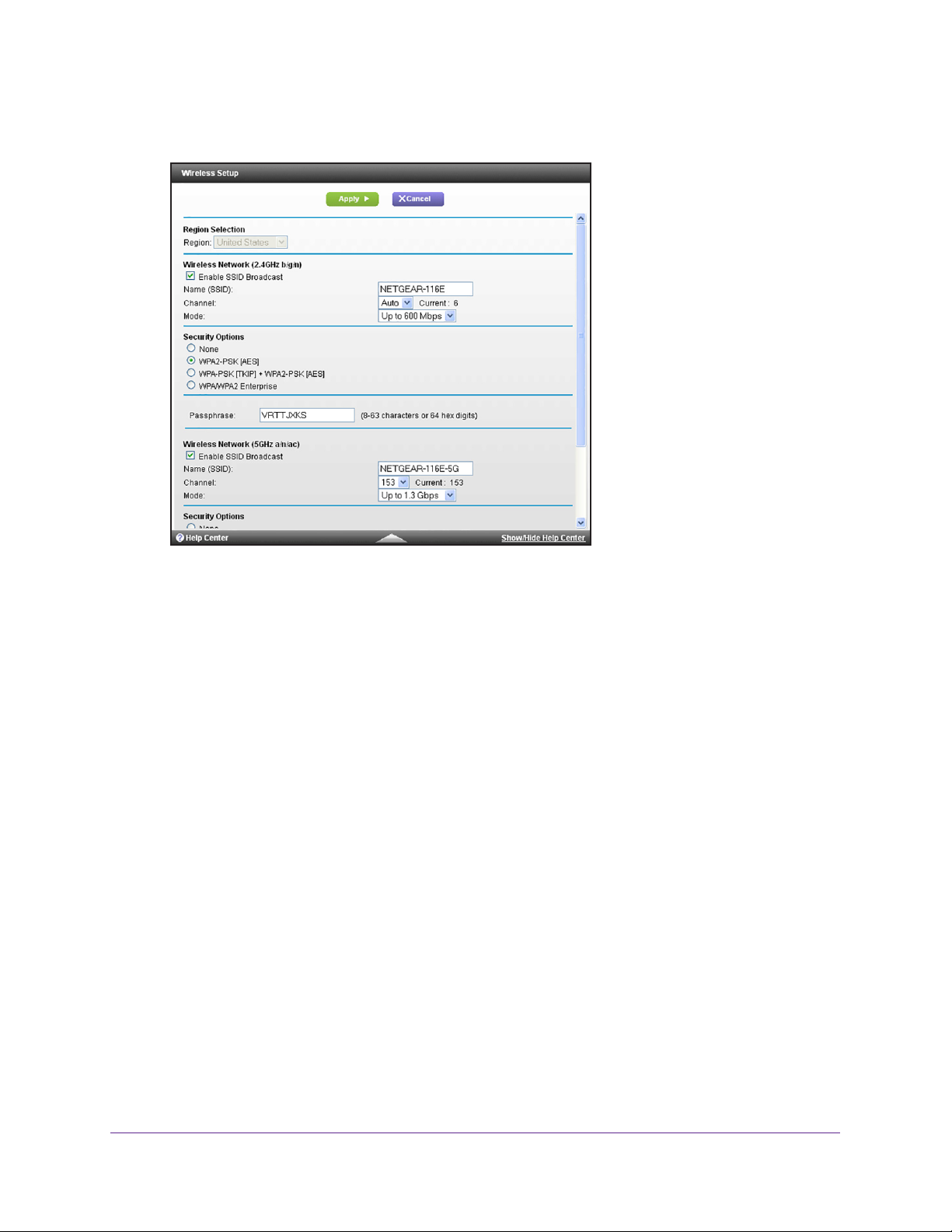

5. In the Region menu, select your region.

In some locations, you cannot change this setting.

6. T

o control the SSID broadcast, select or clear the Enable SSID Broadcast check box.

When this check box is selected, the modem router broadcasts its network name (SSID) so that it displays when you scan for local WiFi networks on your computer or mobile device.

7. T

o change the network name (SSID), type a new name in the Name (SSID) field.

The name can be up to 32 characters long and it is case-sensitive.

The default SSID is randomly generated and is on the modem router label. If you change the name, make sure to write down the new name and keep it in a safe place.

o change the WiFi channel, select a number in the Channel menu.

8. T

In some regions, not all channels are available. Do not change the channel unless you experience interference (shown by lost connections or slow data transfers). If this happens, experiment with dif

ferent channels to see which is the best.

When you use multiple access points, it is better if adjacent access points use dif channels to reduce interference. The recommended channel spacing between adjacent access points is four channels (for example, use Channels 1 and 5, or 6 and 10).

o change the mode, select it from the Mode menu.

9. T

ferent

For 2.4 GHz, Up to 600 Mbps is the default setting. Mbps and Up to 54 Mbps.

Specify Network Settings

The other settings are Up to 289

AC1900 Cable Modem Voice Router

For 5 GHz, Up to 1300 Mbps is the default setting, which allows 802.11ac and 802.11a WiFi devices to join the network. The other settings are Up to 600 Mbps and Up to 289

Mbps.

10. Click the Apply button.

Your settings are saved.

If you used WiFi to connect to the network and you changed the SSID, you are disconnected from the network.

11. Make sure that you can connect to the WiFi network with its new settings.

If you cannot connect with WiFi, check the following:

• Is your computer or mobile device connected to another WiFi network in your area?

Some computers and mobile devices automatically connect to the first open network without WiFi security that they discover.

• Is your computer or mobile device trying to connect to your network with its old

settings (before you changed the settings)? If so, update the WiFi network selection in your computer or mobile device to match the current settings for your network.

Change the WiFi Security Option

Your modem router comes with preset WPA2 or WPA security. The password that you enter to connect to your network is unique to your modem router and is on the modem router label. We recommend that you do not disable security.

 To change the WPA settings:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select Wireless.

The Wireless Settings page displays.

5. Under Security Options, select a WPA option.

The WPA2 options use the newest standard for the strongest security, but some older computers and mobile devices cannot use WPA2. By default, the WPA2-PSK [AES] radio button is selected.

The Passphrase field displays.

Specify Network Settings

AC1900 Cable Modem Voice Router

6. In the Passphrase field, enter the network key (password) that you want to use.

It is a text string from 8 to 63 characters.

7. W

rite down the new password and keep it in a secure place for future reference.

8. Click

the Apply button.

Your settings are saved.

Set Up a Guest Network

A guest network allows visitors at your home to use the Internet without using your WiFi

security key. You can add a guest network to each WiFi network: 2.4 GHz b/g/n and

5.0 GHz a/n.

 To set up a guest network:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select Guest

an Internet browser from a computer or mobile device that is connected to the

the user name and password.

The default password is password. The user name and

Network.

Specify Network Settings

AC1900 Cable Modem Voice Router

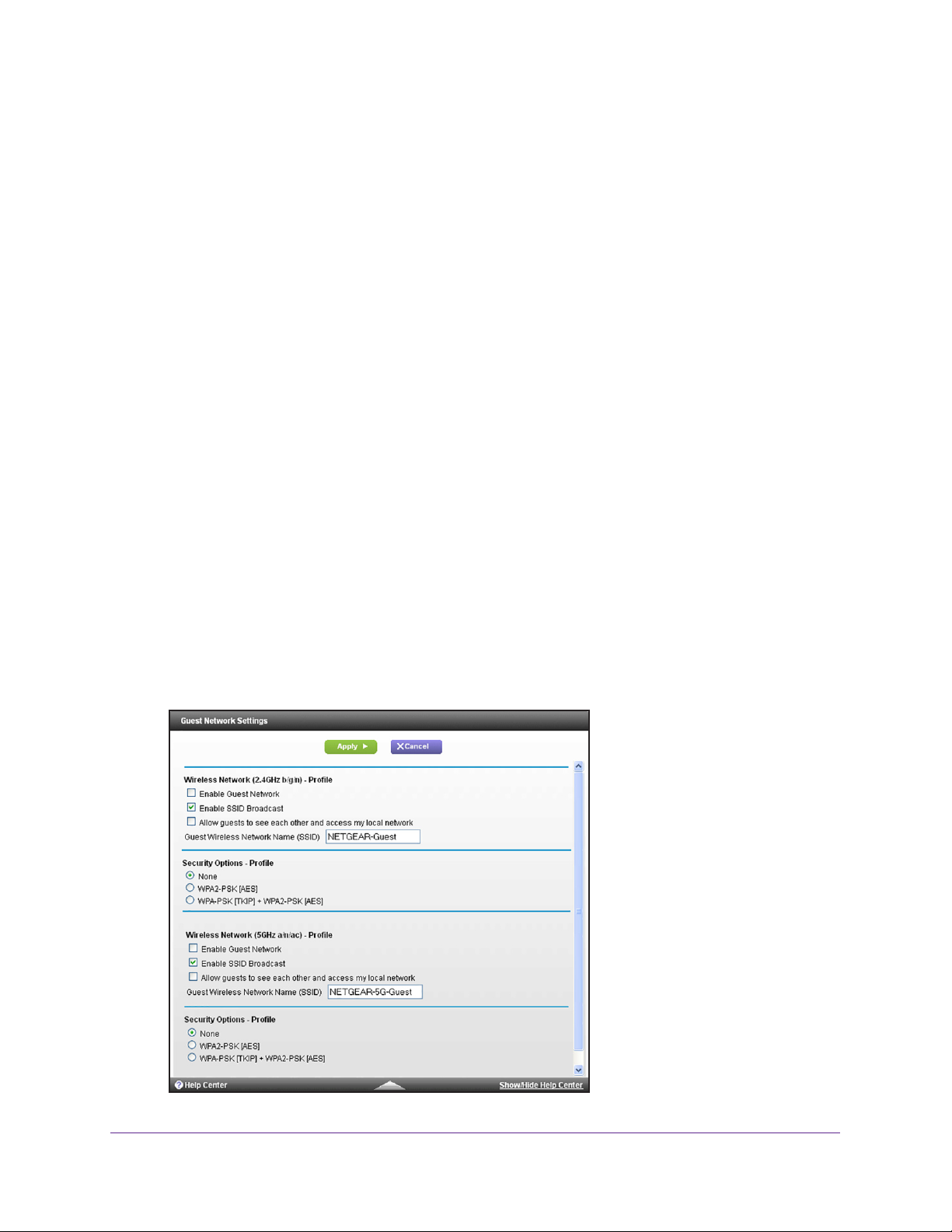

5. Select any of the following settings:

• Enable Guest Network. When this check box is selected, the guest network is

enabled, and guests can connect to your network using the SSID of this profile.

• Enable SSID Broadcast. If this check box is selected, the WiFi access point

broadcasts its name (SSID) to all stations. Stations with no SSID can adopt the correct SSID for connections to this access point.

• Allow guest to see each other and access my local network. If this check box is

selected, anyone who connects to this SSID can access your local network, not just the Internet.

6. Give the guest network a name.

The guest network name is case-sensitive and can be up to 32 characters. You then manually configure the devices in your network to use the guest network name in addition to the main SSID.

7. Select a security option.

The WPA2 options use the newest standard for the strongest security, but some older computers and mobile devices cannot use it. We recommend that you select the WPA-PSK [TKIP] + WPA2-PSK [AES] radio button. This setting protects your WiFi network and lets computers and mobile devices connect to the WiFi network by using either WPA2 or WPA security.

8. Click the Apply button.

Your settings are saved.

Control the WiFi Radios

The modem router’s internal WiFi radios broadcast signals in the 2.4 GHz and 5 GHz ranges. By default, they are on so that you can use WiFi to connect to the modem router. When the WiFi radios are off, you can still use an Ethernet cable for a LAN connection to the modem router.

You can turn the WiFi radios on and off with the WiFi On/Off button on the modem router, or you can log in to the modem router and enable or disable the WiFi radios. If you are close to the modem router, it might be easier to press its WiFi On/Off button. If you are away from the modem router or already logged in, it might be easier to enable or disable the radios.You can also turn the WiFi radios off and on based on a schedule. (See page 85.)

Use the WiFi On/Off Button

 To turn the WiFi radios off and on with the WiFi On/Off button:

Set Up a WiFi Schedule on

Press the WiFi On/Off button on the front of the modem router for two seconds.

If you turned off the WiFi radios, the WiFi On/Off LED and the WPS LED turn off. If you turned on the WiFi radios, the WiFi On/Off LED and the WPS LED light.

Specify Network Settings

AC1900 Cable Modem Voice Router

Enable or Disable the WiFi Radios

If you used the WiFi On/Off button to turn off the WiFi radios, you can’t log in to the modem router to turn them back on. You must press the WiFi On/Off button again for two seconds to turn the WiFi radios back on.

 To enable or disable the WiFi radios:

1. Launch

an Internet browser from a computer or mobile device that is connected to the

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

the user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

ANCED > Advanced Setup > Wireless Settings.

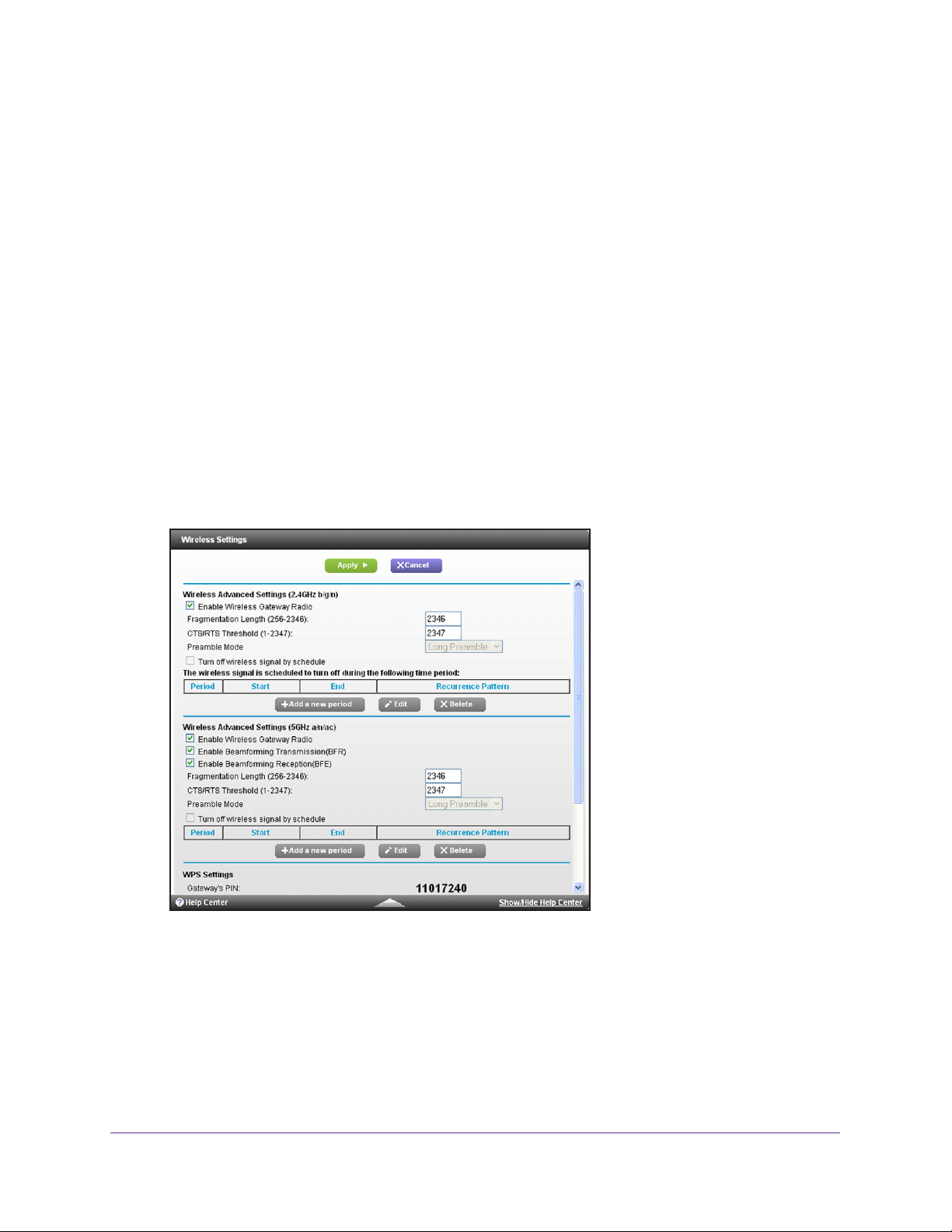

5. Select or clear the Enable Wireless Gateway Radio check boxes in the 2.4 GHz and 5

GHz sections of the page.

Clearing these check boxes turns off the WiFi feature of the modem router.

6. Click

the Apply button.

If you turned off both WiFi radios, the WiFi On/Off LED and the WPS LED turn of

f. If you

turned on the WiFi radios, the WiFi On/Off LED and the WPS LED light.

Specify Network Settings

AC1900 Cable Modem Voice Router

Set Up a WiFi Schedule

You can use this feature to turn off the WiFi signal from your modem router at times when you do not need a WiFi connection. For example, you might turn it off for the weekend if you leave town.

 To set up the WiFi schedule:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

The Advanced Wireless Settings page displays.

5. Click

an Internet browser from a computer or mobile device that is connected to the

the user name and password.

The default password is password. The user name and

ANCED > Advanced Setup > Wireless Settings.

the Add a new period button.

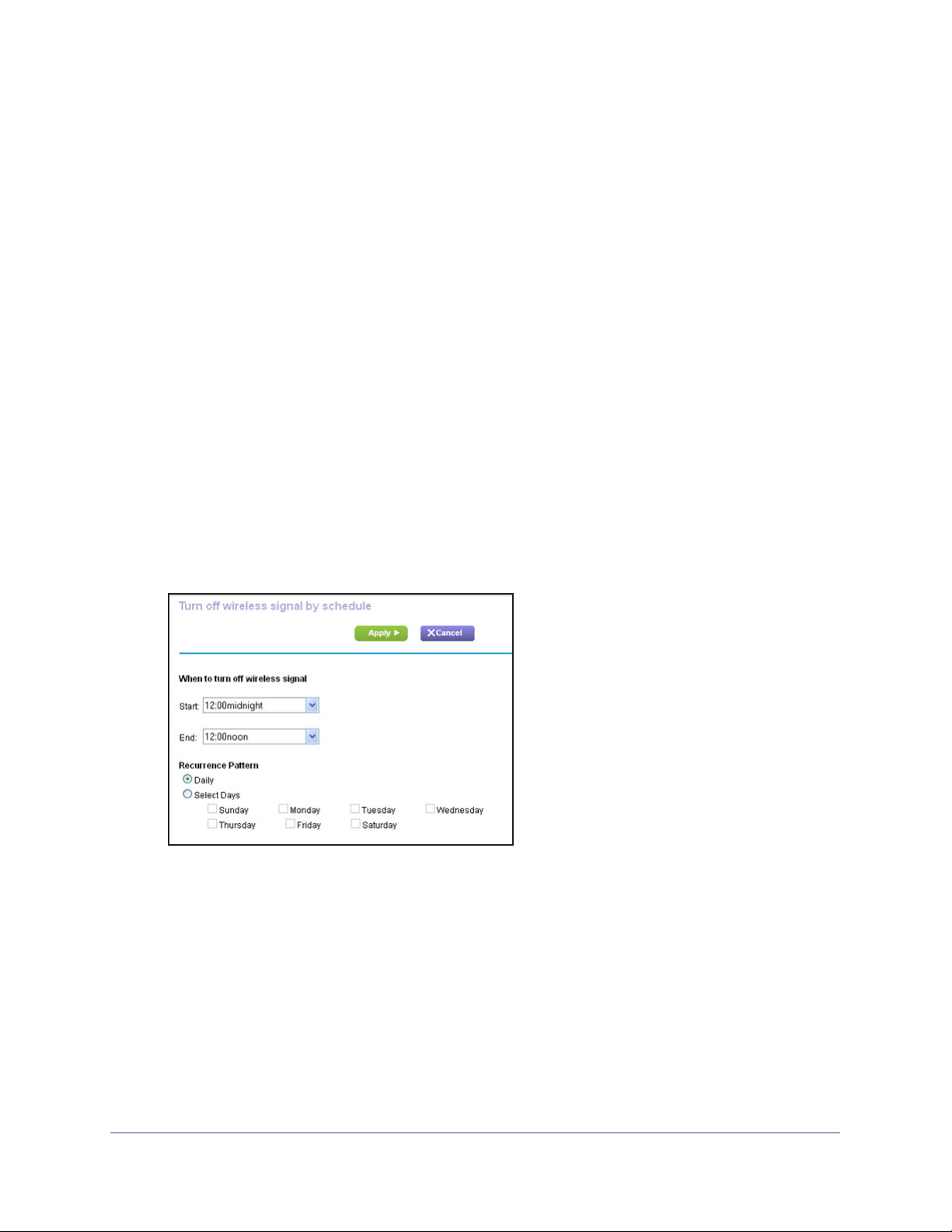

6. Use the menus, radio buttons, and check boxes to set up a period during which you want to

turn off the WiFi signal.

7. Click

8. Select

9. Click

the Apply button.

The Advanced Wireless Settings page displays.

the Turn off wireless signal by schedule check box to activate the schedule.

the Apply button.

Your settings are saved.

Specify Network Settings

AC1900 Cable Modem Voice Router

Specify WPS Settings

Wi-Fi Protected Setup (WPS) lets you join the WiFi network without typing the WiFi password.

 To specify WPS settings:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select ADVANCED > Advanced Setup > Wireless Settings.

The Router’s PIN field displays the PIN that you use on a registrar (for example, from the Network Explorer on a Windows Vista computer) to configure the modem router’s WiFi settings through WPS.

5. (Optional) Select or clear the Disable Router’s PIN check box.

The PIN function might temporarily be disabled when the modem router detects suspicious attempts to break into the modem router’s WiFi settings by using the modem router’s PIN through WPS. You can manually enable the PIN function by selecting the

Disable Router’s PIN check box.

6. (Optional) Select or clear the Keep Existing Wireless Settings check box.

By default, the Keep Existing Wireless Settings check box is selected. We recommend that you leave this check box selected.

If you clear this check box, the next time a new WiFi client uses WPS to connect to the modem router, the modem router WiFi settings change to an automatically generated random SSID and security key.

7. Click the Apply button.

Your settings are saved.

Specify Network Settings

9. Manage Your Network

This chapter describes the modem router settings for administering and maintaining your modem router and home network.

The chapter includes the following sections:

• Change the admin Password

• View Modem Router Status

• View the Battery Status

• View and Manage Logs of Modem Router Activity

• View Event Logs

• Run the Ping Utility

• Run the Traceroute Utility

• Monitor Internet Traffic

• View Devices Currently on the Network

• Manage the Modem Router Configuration File

• View Wireless Access Points in Your Area

• View or Change the Modem Router Wireless Channel

• Dynamic DNS

• Remote Management

AC1900 Cable Modem Voice Router

Change the admin Password

This feature let you change the default password that is used to log in to the modem router with the user name admin. This password is not the one that you use for WiFi access. The modem router label shows your unique WiFi network name (SSID) and password for WiFi access.

Note: Be sure to change the password for the user name admin to a secure

password. The ideal password contains no dictionary words from any language and contains uppercase and lowercase letters, numbers, and symbols. It can be up to 30 characters.

 To set the password for the user name admin:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

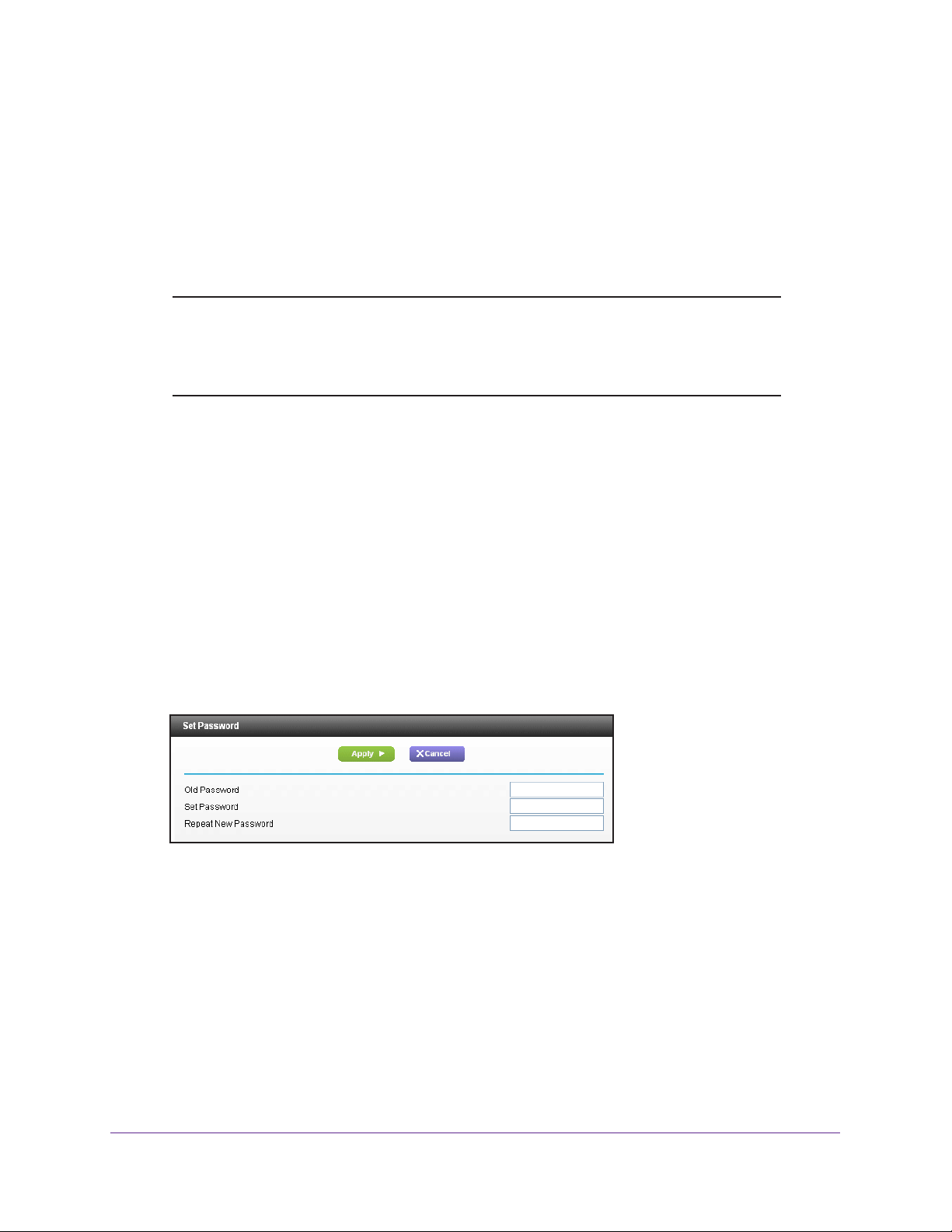

5. Type the old password, and type the new password twice.

6. Click

an Internet browser from a computer or mobile device that is connected to the

the user name and password.

The default password is password. The user name and

ANCED > Administration > Set Password.

the Apply button.

Your settings are saved.

Manage Your Network

AC1900 Cable Modem Voice Router

View Modem Router Status

 To view modem router status and usage information:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

4. Click

the user name and password.

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

the ADVANCED tab.

The default password is password. The user name and

5. For

information about the displayed settings, click the Show/Hide Help Center link at the

bottom of the page.

Display Internet Port Statistics

 To display Internet port statistics:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

an Internet browser from a computer or mobile device that is connected to the

Manage Your Network

AC1900 Cable Modem Voice Router

3. Enter the user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive.

4. The BASIC Home page displays.

5. Click

the ADVANCED tab.

The ADVANCED Home page displays.

6. In

the Internet Port pane, click the Show Statistics button.

The following information displays:

• System Up T

• Port.

The statistics for the WAN (Internet) and LAN (Ethernet) ports. For each port,

ime. The time elapsed since the modem router was last restarted.

the page displays the following information:

- Status.

- TxPkts.

The link status of the port.

The number of packets transmitted on this port since reset or manual

clear.

- RxPkts.

- Collisions.

- Tx B/s.

The number of packets received on this port since reset or manual clear.

The number of collisions on this port since reset or manual clear.

The current transmission (outbound) bandwidth used on the WAN and

LAN ports.

- Rx B/s.

The current reception (inbound) bandwidth used on the WAN and LAN

ports.

- Up T

- Poll Interval.

ime. The time elapsed since this port acquired the link.

The interval at which the statistics are updated on this page.

7. T

o change the polling frequency, enter a time in seconds in the Poll Interval field and click

the Set Interval button.

8. T

o stop the polling entirely, click the Stop button.

Manage Your Network

AC1900 Cable Modem Voice Router

Check the Internet Connection Status

 To check the Internet connection status:

1. Launch

an Internet browser from a computer or mobile device that is connected to the

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

the user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive.

The BASIC Home page displays.

4. Click

the ADVANCED tab.

The ADVANCED Home page displays.

5. In

the Internet Port pane, click the Connection Status button.

The following information displays:

• IP

• Subnet Mask.

• Default Gateway.

Address. The IP address that is assigned to the modem router.

The subnet mask that is assigned to the modem router.

The IP address for the default gateway that the modem router

communicates with.

• DHCP Server.

The IP address for the Dynamic Host Configuration Protocol server that provides the TCP/IP configuration for all the computers that are connected to the modem router.

• DNS Server.

The IP address of the Domain Name Service server that provides

translation of network names to IP addresses.

• Lease Obtained.

• Lease Expires.

6. T

o return the status of all items to 0, click the Release button.

7. T

o refresh the window, click the Renew button.

The date and time when the lease was obtained.

The date and time that the lease expires.

Manage Your Network

AC1900 Cable Modem Voice Router

8. To exit, click the Close Window button.

View the Battery Status

 To check the battery status:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

an Internet browser from a computer or mobile device that is connected to the

the user name and password.

The default password is password. The user name and

ANCED > Administration > Battery Status.

View and Manage Logs of Modem Router Activity

The log is a detailed record of the websites you accessed or attempted to access and other modem router actions. Up to 256 entries are stored in the log. Log entries display only when keyword blocking is enabled and no log entries are made for the trusted user

 To view and manage logs:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

an Internet browser from a computer or mobile device that is connected to the

Manage Your Network

A login window opens.

AC1900 Cable Modem Voice Router

3. Enter

the user name and password.

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

ANCED > Administration > Logs.

The default password is password. The user name and

The Logs page shows the following information:

• Source.

• T

arget. The name or IP address of the website or news group visited or to which

The IP address of the initiating device for this log entry.

access was attempted.

5. T

o customize the log, scroll down to view the bottom of the page and clear or select the

check boxes.

6. T

o refresh the log page, click the Refresh button.

7. T

o clear the log entries, click the Clear Log button.

8. T

o email the log immediately, click the Send Log button.

Manage Your Network

AC1900 Cable Modem Voice Router

View Event Logs

Event logs capture important modem router events.

 To view the event logs:

1. Launch

network.

2. T

ype http://routerlogin.net or http://192.168.0.1.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

a web browser from a computer or mobile device that is connected to the

the modem router user name and password.

The default password is password. The user name and

ANCED > Administration > Event Log.

The Event Log page shows the following information:

• T

ime. The time the event log entry was recorded.

• Priority.

• Description.

5. T

o refresh the log page, click the Refresh button.

6. T

o clear the log entries, click the Clear Log button.

The severity for this event log entry.

A description of this event log entry.

Manage Your Network

AC1900 Cable Modem Voice Router

Run the Ping Utility

Ping is an administration utility that tests whether a computer on the network is reachable and measures the time it takes messages sent from the originating device to reach a destination computer and return.

 To run a ping test:

1. Launch

network.

2. T

ype http://routerlogin.net or http://192.168.0.1.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

a web browser from a computer or mobile device that is connected to the

the modem router user name and password.

The default password is password. The user name and

ANCED > Administration > Diagnostics.

In the Utility menu, Ping is selected by default.

5. Select

6. Specify

• T

• Ping Size.

• No. of Pings.

• Ping Interval.

7. Click

The ping results display.

the Ping Test Parameters IPv4 or IPv6 radio button.

the following parameters for the ping utility:

arget. The IP address of the ping target computer.

The size (in bytes) of the ping packet.

The number of times to ping the target computer. The maximum

number of pings is 128.

The time between pings.

the Start Test button.

Manage Your Network

AC1900 Cable Modem Voice Router

8. To stop a ping test, click the Abort Test button.

9. T

o clear the results from the display, click the Clear Results button.

Run the Traceroute Utility

To display the route and measure transit delays of packets across an IP, run the traceroute utility.

 To run a traceroute test:

1. Launch

network.

2. T

ype http://routerlogin.net or http://192.168.0.1.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

The Diagnostics page displays.

5. In

a web browser from a computer or mobile device that is connected to the

the modem router user name and password.

The default password is password. The user name and

ANCED > Administration > Diagnostics.

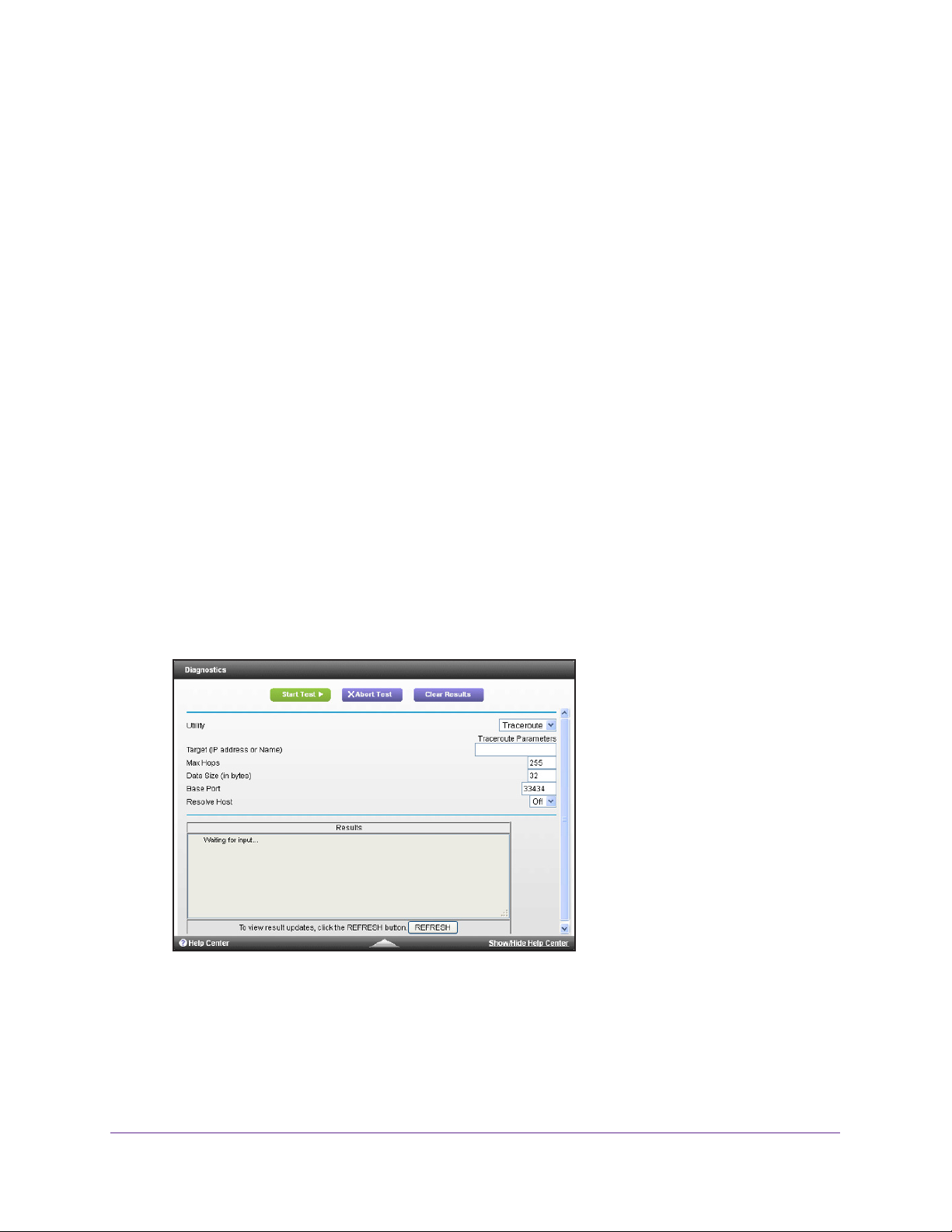

the Utility menu, select Traceroute.

6. Specify the following parameters for the traceroute utility:

arget. The IP address or host name of the computer that you are tracing.

• T

• Max Hops.

• Data Size.

• Base Port.

The maximum number of hops to allow when tracing the route.

The input the size (in bytes) of the packet.

The port number to send the packet to.

Manage Your Network

AC1900 Cable Modem Voice Router

• Resolve Host. Select On to resolve the host name to the IP address.

7. Click

the Start Test button.

The traceroute results display.

8. T

o clear the results from the display, click the Clear Results button.

Monitor Internet Traffic

Traffic metering allows you to monitor the volume of Internet traffic that passes through the modem router Internet port. You can set limits for traffic volume.

 To monitor Internet traffic:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

The user name is admin. password are case-sensitive.

The BASIC Home page displays.

an Internet browser from a computer or mobile device that is connected to the

the user name and password.

The default password is password. The user name and

4. Select ADV

ANCED > Advanced Setup > Traffic Meter.

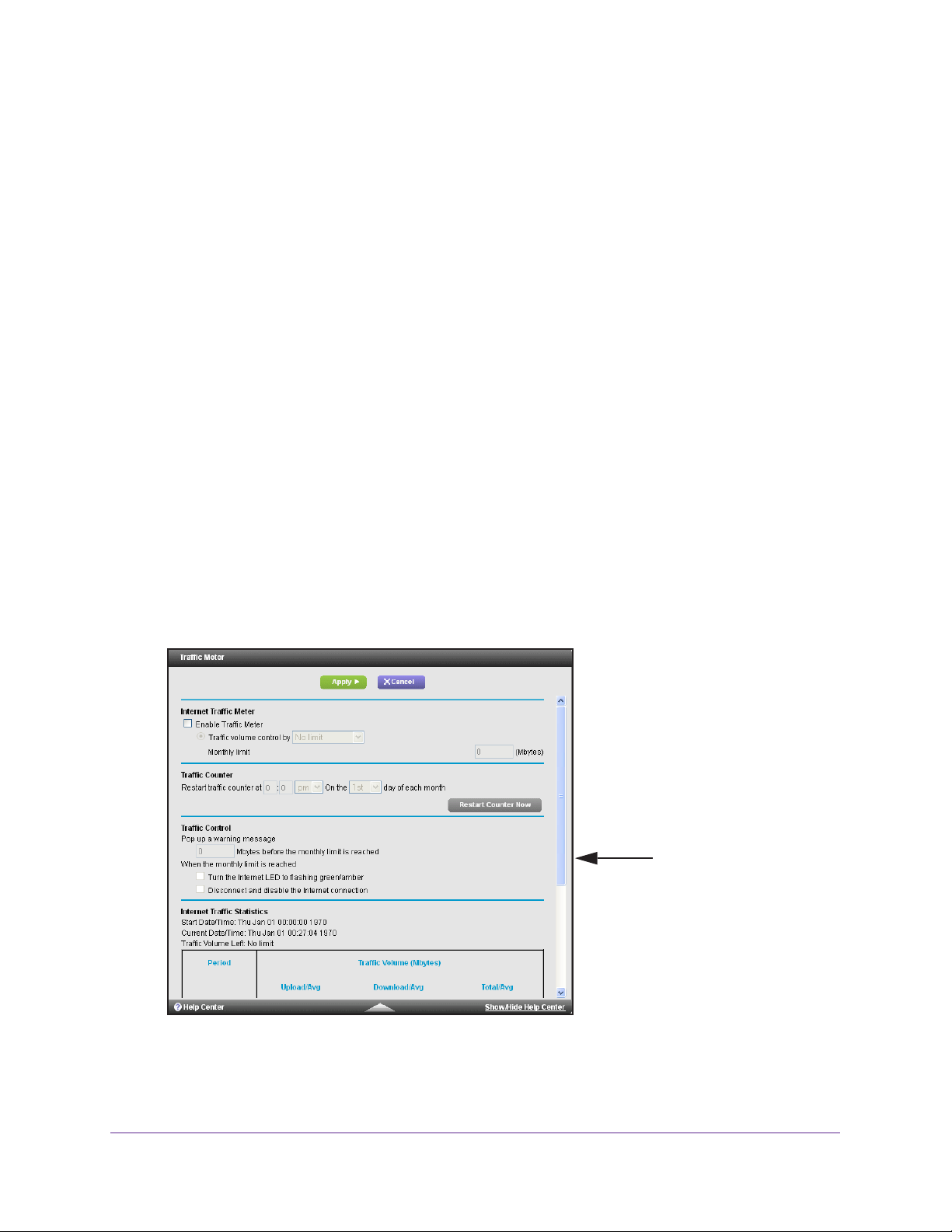

Scroll to view more settings

5. Select the Enable Traffic Meter check box.

6. T

o control the volume of Internet traffic, use either the traffic volume control feature or the

connection time control feature:

Manage Your Network

AC1900 Cable Modem Voice Router

• Select the Traffic volume control by radio button and then select one of the

following options:

- No Limit. No restriction is applied when the traffic limit is reached.

- Download only. The restriction is applied to incoming traffic only.

- Both Directions. The restriction is applied to both incoming and outgoing traffic.

• Select the Connection time control radio button and enter the allowed hours in the

Monthly limit field.

7. If your ISP charges for extra data volume when you make a new connection, enter the extra

data volume in MB in the Round up data volume for each connection by field.

8. In the Traffic Counter section, set the traffic counter to begin at a specific time and date.

To start the traffic counter immediately, click the Restart Counter Now button.

9. In the Traffic Control section, enter a value in minutes to specify when the modem router

issues a warning message before the monthly limit of Mbytes or hours is reached.

By default, the value is 0 and no warning message is issued. Select one of the following to occur when the limit is attained:

• The Internet LED blinks green or amber.

• The Internet connection is disconnected and disabled.

10. Click the Apply button.

The Internet Traffic Statistics section helps you to monitor the data traffic.

11. To update the Traffic Statistics section, click the Refresh button.

12. To display more information about the data traffic on your modem router and to change the

poll interval, click the Traffic Status button.

View Devices Currently on the Network

You can view all computers or devices that are currently connected to your network.

 To view devices on the network:

1. Launch an Internet browser from a computer or mobile device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home page displays.

Manage Your Network

AC1900 Cable Modem Voice Router

4. Select Attached Devices.

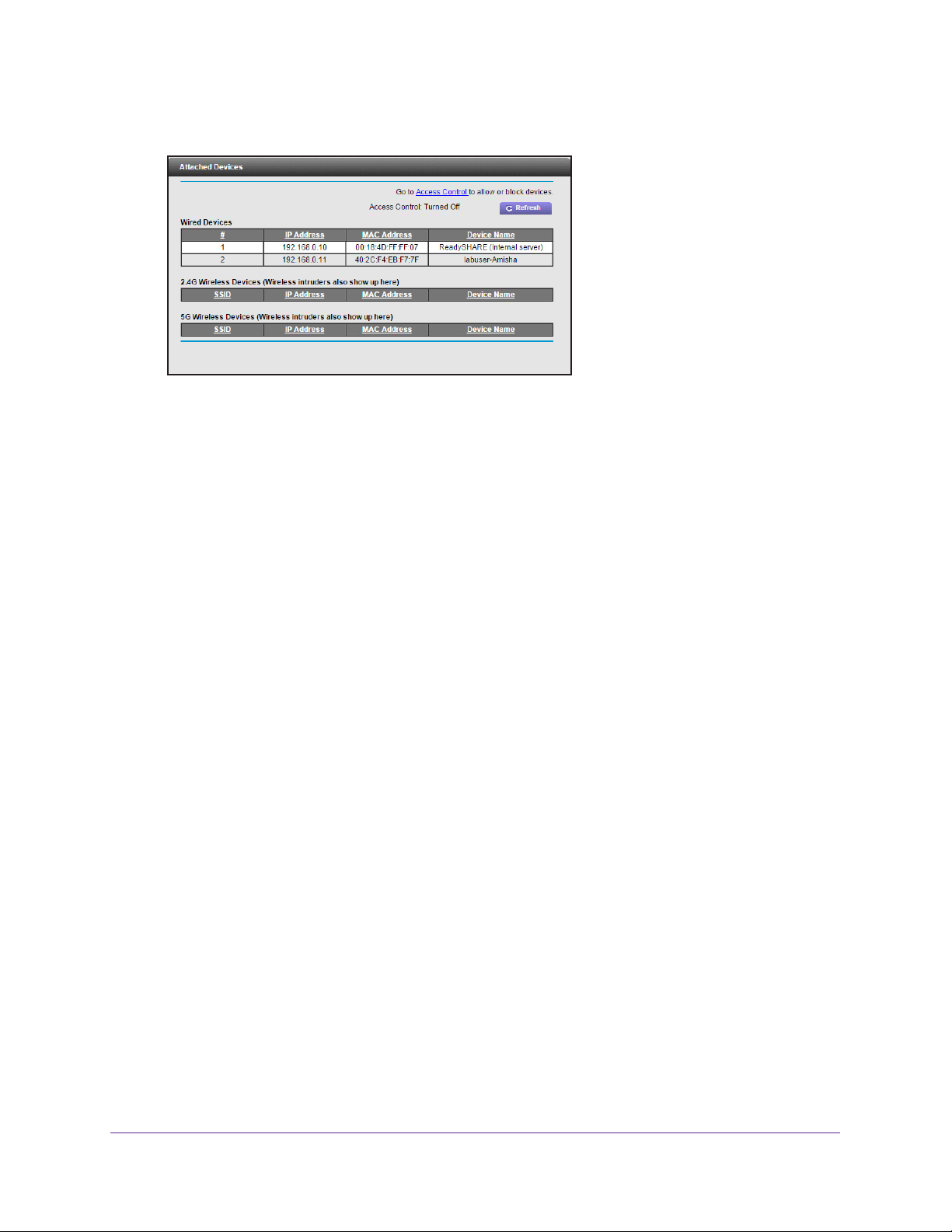

The Wired Devices section lists devices that are connected to the modem router with Ethernet cables. The Wireless Devices section lists devices that are connected to the WiFi network. The following information is displayed:

• Status.

• Device Name. If the device name is known, it is shown here.

• IP

joined the network. This number can change if a device is disconnected and rejoins the network.

• MAC

address is typically shown on the product label.

5. T

o update this page, click the Refresh button.

The status of the device, Allowed or Blocked.

Address. The IP address that the modem router assigned to this device when it

Address. The unique MAC address for each device does not change. The MAC

Manage the Modem Router Configuration File

The configuration settings of the modem router are stored within the modem router in a configuration file. You can back up (save) this file to your computer, restore it, or reset it to the factory default settings.

Back Up Settings

 To back up the modem router’s configuration settings:

1. Launch

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

an Internet browser from a computer or mobile device that is connected to the

A login window opens.

3. Enter

the user name and password.

The user name is admin. password are case-sensitive.

The default password is password. The user name and

Manage Your Network

AC1900 Cable Modem Voice Router

The BASIC Home page displays.

4. Select ADV

ANCED > Administration > Backup Settings.

5. Click the Back Up button.

6. Specify

a location on your network.

A confirmation message displays.

7. Click

the OK button.

A copy of the current settings is saved in the location you specified.

Restore Configuration Settings

 To restore configuration settings that you backed up:

1. Launch

an Internet browser from a computer or mobile device that is connected to the

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login window opens.

3. Enter

the user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive.

The BASIC Home page displays.

4. Select ADV

ANCED > Administration > Backup Settings.

The Backup Settings page displays.

5. Click

6. Click

the Browse button to find and select the .cfg file.

the Restore button.

The file is uploaded to the modem router and the modem router reboots.

WARNING:

Do not interrupt the reboot process.

Manage Your Network

100

Netgear C7100V User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

AC1900 Cable Modem Voice Router

1. Hardware Overview

Package Contents

Front Panel

Top Panel WPS Button

Rear Panel

Product Label

Install an Optional Battery

Replace the Battery

Position Your Modem Router

Install and Activate Your Modem Router

Connect Your Modem Router to a Computer

Call Comcast XFINITY to Activate Internet Service and Register the Voice Telephone Lines

Perform a Speed Test

Connect to the Network

Wired Connection

WiFi Connection

Types of Logins

Log In to the Modem Router

Access the Modem Router With the NETGEAR genie App

3. Specify Your Internet Settings

Specify the Cable Connection Starting Frequency

View Modem Router Initialization

Manually Set Up the Internet Connection

Specify an IPv6 Internet Connection

Change the MTU Size

4. Control Access to the Internet

Set Up Parental Controls

Block Access to Your Network

Use Keywords to Block Internet Sites

Delete a Keyword

Block Services From the Internet

Schedule When to Block Internet Sites and Services

Avoid Blocking on a Trusted Computer

Set Up Security Event Email Notifications

Manage Services

Enable or Disable NAT

USB Storage Device Requirements

Connect a USB Storage Device to the Modem Router

Access a USB Drive Connected to the Modem Router From a Windows Computer

Map a USB Device to a Windows Network Drive

Access a USB Storage Device That Is Connected to the Modem Router From a Mac

Control Access to the USB Storage Device

Use FTP Within the Network

View Network Folders on a USB Storage Device

Add a Network Folder on a USB Storage Device

Edit a Network Folder on a USB Storage Device

Approve USB Devices

Access the USB Storage Device Through the Internet

Set Up FTP Access Through the Internet

Access the USB Storage Device Through the Internet With FTP

Safely Remove a USB Storage Device

6. Share a USB Printer

Install the Printer Driver and Cable the Printer

Download the ReadySHARE Printer Utility

Install the ReadySHARE Printer Utility

Use the Shared Printer

View or Change the Status of a Printer

Use the Scan Feature of a Multifunction USB Printer

Change NETGEAR USB Control Center Settings

7. Voice Telephone Lines

Connect a Telephone Line

View the Voice Status

View the MTA Call List

View the EMTA Event Log

8. Specify Network Settings

View or Change WAN Settings

Set Up a Default DMZ Server

Manually Configure LAN Switch Ports

Change the Modem Router’s Device Name

Change the LAN TCP/IP Settings

Specify the IP Addresses That the Modem Router Assigns

Disable the DHCP Server Feature in the Modem Router

Manage LAN IP Addresses

Reserve an IP Address

Edit a Reserved IP Address Entry
