NEC PS9513, PS9513L1, PS9513L2, PS9513L3 DATA SHEET

0 (0)

DATA SHEET

PHOTOCOUPLER

PS9513,PS9513L1,PS9513L2,PS9513L3

1 Mbps, OPEN COLLECTOR OUTPUT, FOR GATE DRIVE INTERFACE

INTELLIGENT POWER MODULE

8 mm CREEPAGE 8-PIN DIP HIGH-SPEED PHOTOCOUPLER −NEPOC Series−

DESCRIPTION

The PS9513, PS9513L1, PS9513L2 and PS9513L3 are optically coupled isolators containing a GaAlAs LED on the input side and a photo diode and a signal processing circuit on the output side on one chip.

The PS9513 is designed specifically for high common mode transient immunity (CMR) and low pulse width distortion with operating temperature. It is suitable for IPM drive.

The PS9513L1 is lead bending type for long creepage distance.

The PS9513L2 is lead bending type for long creepage distance (Gull-wing) for surface mount.

The PS9513L3 is lead bending type (Gull-wing) for surface mounting.

FEATURES



PIN CONNECTIONS

• Long creepage distance (8 mm MIN. : PS9513L1, PS9513L2)







(Top View)





• High common mode transient immunity (CMH, CML = ±15 kV/μs MIN.)









8

7

6

5

1. NC

• High-speed response (tPHL = 500 ns MAX., tPLH = 750 ns MAX.)









2.

Anode

• Maximum propagation delays (tPLH − tPHL = 270 ns TYP.)

















3.

Cathode

• Pulse width distortion ( | tPHL − tPLH | = 270 ns TYP.)









4. NC









5. GND

• Open collector output

















6.

VO

• Ordering number of tape product : PS9513L2-E3 : 1 000 pcs/reel

1

2

3

4

7. NC

8.

VCC

: PS9513L3-E3 : 1 000 pcs/reel













Pb-Free product

Safety standards

UL approved: File No. E72422

CSA approved: No. CA 101391

BSI approved: No. 8937, 8938

SEMKO approved: No. 615433

NEMKO approved: No. P06207243

DEMKO approved: No. 314091

FIMKO approved: No. FI 22827

DIN EN60747-5-2 (VDE0884 Part2) approved (Option)

APPLICATIONS

IPM Driver

General purpose inverter

The information in this document is subject to change without notice. Before using this document, please confirm that this is the latest version.

Not all products and/or types are available in every country. Please check with an NEC Electronics sales representative for availability and additional information.

Document No. PN10679EJ02V0DS (2nd edition)

Date Published August 2008 NS



2007, 2008

Printed in Japan

The mark <R> shows major revised points.

The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.

NEC PS9513, PS9513L1, PS9513L2, PS9513L3 DATA SHEET

PS9513,PS9513L1,PS9513L2 PS9513L3

PACKAGE DIMENSIONS (UNIT: mm)

DIP Type

PS9513

9.25+0.5–0.25

1.01+0–0..42

7.62

6.5+0–0..51

3.5±0.2

0.5±0.15

2.54

0 to 15˚







Lead Bending Type (Gull-wing) For Surface Mount

PS9513L3

9.25+0.5–0.25





1.01+0–0..24

3.5±0.2



0.635±0.15



0.5±0.15

2.54



0.74±0.25





9.65±0.4

6.5+0–0..51

2

Data Sheet PN10679EJ02V0DS

PS9513,PS9513L1,PS9513L2 PS9513L3

Lead Bending Type For Long Creepage Distance

PS9513L1

9.25+0.5–0.25



10.16

1.01+0–0..24

6.5+0–0..15

3.5±0.2























0 to 15˚























0.5±0.15















2.54



































































Lead Bending Type For Long Creepage Distance (Gull-wing) For Surface Mount

PS9513L2

9.25+0.5–0.25





11.8±0.4



1.01+0–0..24

6.5+0–0..15

3.5±0.2



0.25±0.2

0.5±0.15

2.54

0.9±0.25







Data Sheet PN10679EJ02V0DS

3

PS9513,PS9513L1,PS9513L2 PS9513L3

FUNCTIONAL DIAGRAM

8

2

6

3

5

Shield

LED

Output





ON

L





OFF

H





<R> MARKING EXAMPLE

No. 1 pin





Mark

9513

Type Number



N 831

Assembly Lot

N

8 31





Week Assembled



Year Assembled



(Last 1 Digit)





In-house Code





(L or T)



Rank Code



PHOTOCOUPLER CONSTRUCTION

Parameter

PS9513, PS9513L3

PS9513L1, PS9513L2







Air Distance (MIN.)

7 mm

8 mm







Outer Creepage Distance (MIN.)

7 mm

8 mm







Isolation Distance (MIN.)

0.4 mm

0.4 mm







4

Data Sheet PN10679EJ02V0DS

PS9513,PS9513L1,PS9513L2 PS9513L3

ORDERING INFORMATION

Part Number

Order Number

Solder Plating

Packing Style

Safety Standard

Application Part





Specification



Approval

Number*1













PS9513

PS9513-AX

Pb-Free

Magazine case 50 pcs

Standard products

PS9513













PS9513L1

PS9513L1-AX

(Ni/Pd/Au)



(UL, CSA, BSI,

PS9513L1













PS9513L2

PS9513L2-AX





SEMKO, NEMKO,

PS9513L2













PS9513L3

PS9513L3-AX





DEMKO, FIMKO

PS9513L3













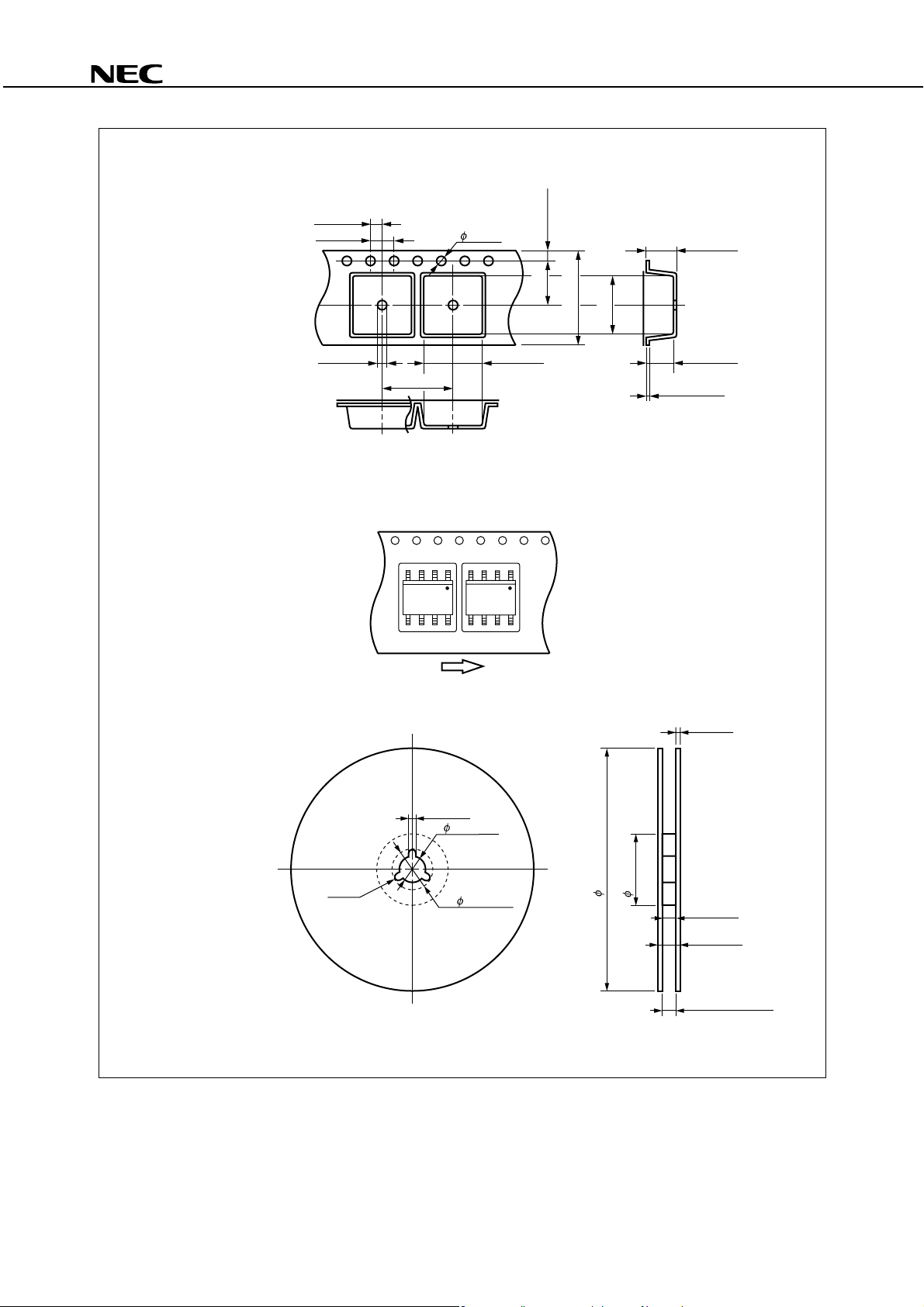

PS9513L2-E3

PS9513L2-E3-AX



Embossed Tape 1 000 pcs/reel

approved)

PS9513L2













PS9513L3-E3

PS9513L3-E3-AX







PS9513L3













PS9513-V

PS9513-V-AX



Magazine case 50 pcs

DIN EN60747-5-2

PS9513













PS9513L1-V

PS9513L1-V-AX





(VDE0884 Part2)

PS9513L1













PS9513L2-V

PS9513L2-V-AX





Approved (Option)

PS9513L2













PS9513L3-V

PS9513L3-V-AX







PS9513L3













PS9513L2-V-E3

PS9513L2-V-E3-AX



Embossed Tape 1 000 pcs/reel



PS9513L2













PS9513L3-V-E3

PS9513L3-V-E3-AX







PS9513L3













*1 For the application of the Safety Standard, following part number should be used.

Data Sheet PN10679EJ02V0DS

5

PS9513,PS9513L1,PS9513L2 PS9513L3

ABSOLUTE MAXIMUM RATINGS (TA = 25°C, unless otherwise specified)



Parameter

Symbol

Ratings

Unit











Diode

Forward Current *1

IF

25

mA













Reverse Voltage

VR

5.0

V











Detector

Supply Voltage

VCC

−0.5 to +35

V













Output Voltage

VO

−0.5 to +35

V













Output Current

IO

15

mA













Power Dissipation *2

PC

100

mW











Isolation Voltage *3

BV

5 000

Vr.m.s.









Operating Ambient Temperature

TA

−40 to +100

°C









Storage Temperature

Tstg

−55 to +125

°C











*1 Reduced to 0.33 mA/°C at TA = 70°C or more.

*2 Reduced to 2.0 mW/°C at TA = 70°C or more.

*3 AC voltage for 1 minute at TA = 25°C, RH = 60% between input and output. Pins 1-4 shorted together, 5-8 shorted together.

RECOMMENDED OPERATING CONDITIONS

Parameter

Symbol

MIN.

TYP.

MAX.

Unit













Forward Current

IF

10



20

mA













Output Voltage

VO

0



30

V













Supply Voltage

VCC

4.5

15

30

V













Input Voltage

VF

0



0.8

V













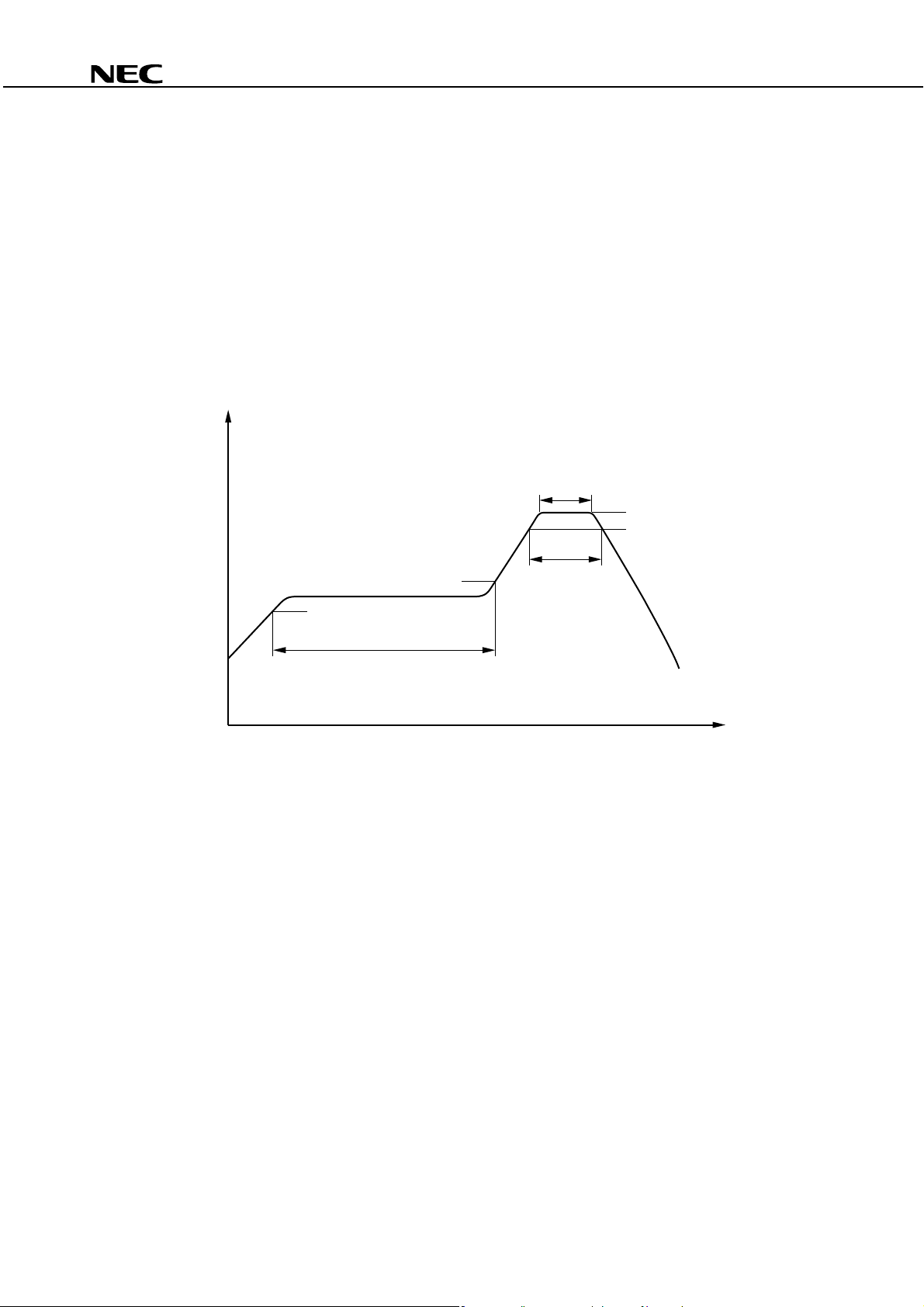

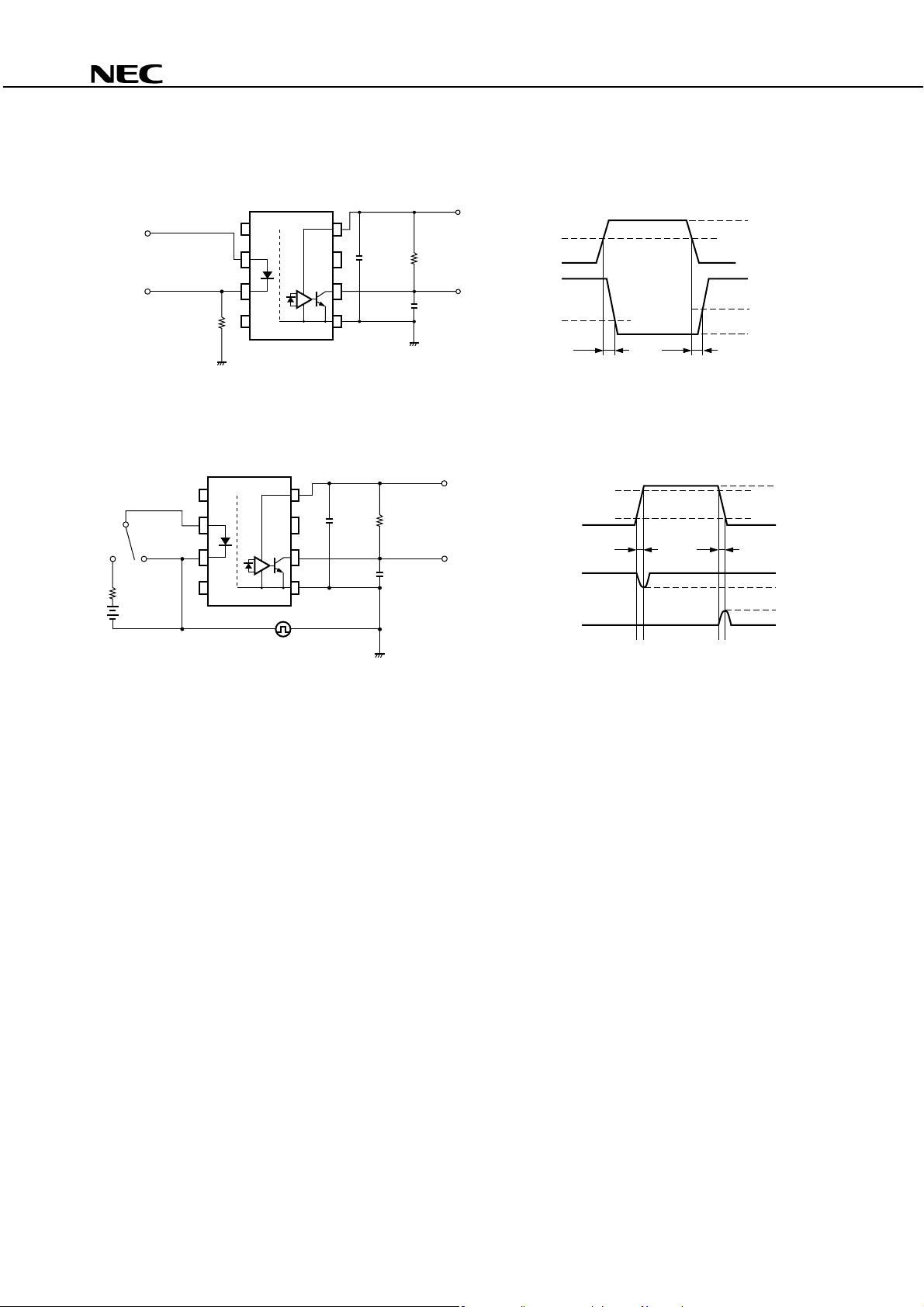

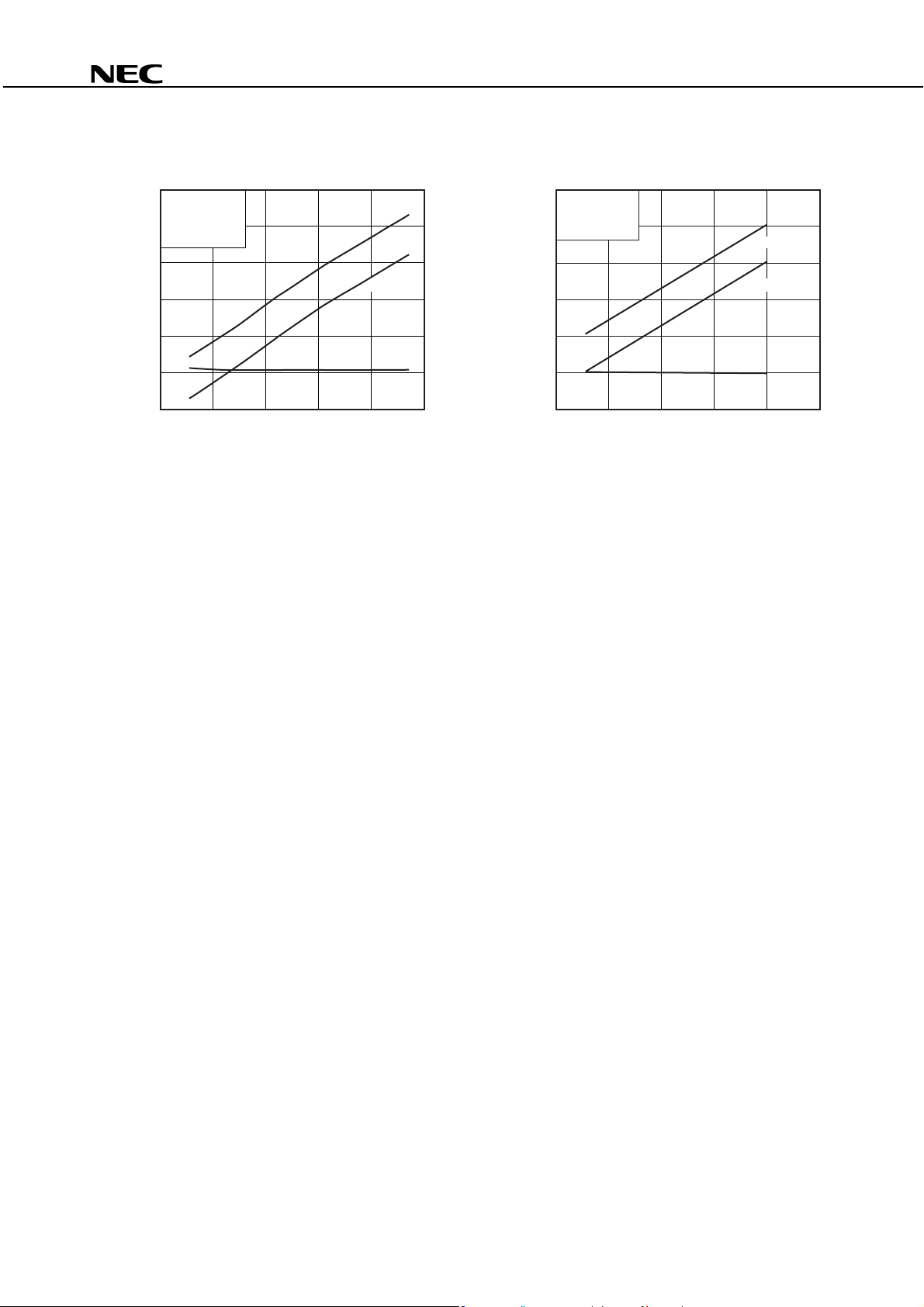

6

Data Sheet PN10679EJ02V0DS
