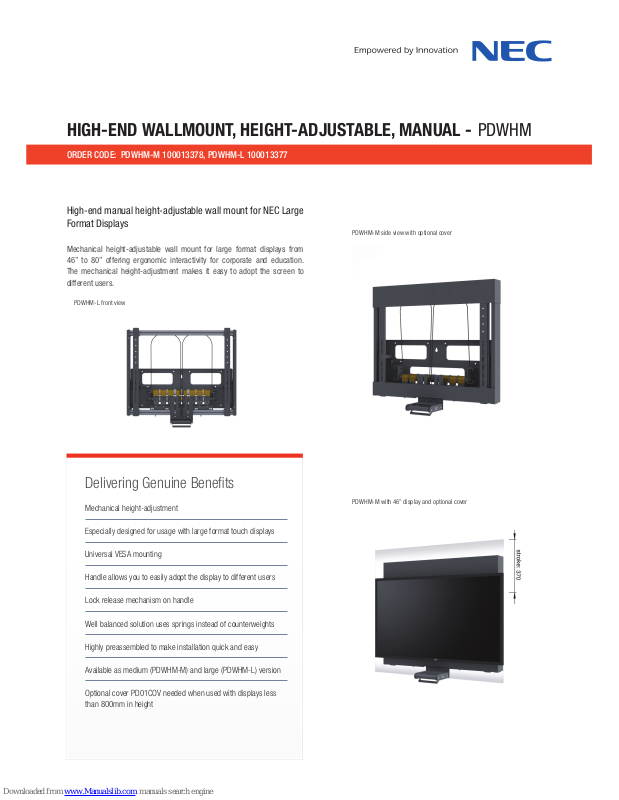

NEC PDWHM-M, PDWHM-L USER MANUAL
ORDER CODE: PDWHM-M 100013378, PDWHM-L 100013377
HIGH-END WALLMOUNT, HEIGHT-ADJUSTABLE, MANUAL - PDWHM
High-end manual height-adjustable wall mount for NEC Large
Format Displays
Mechanical height-adjustable wall mount for large format displays from
46” to 80” offering ergonomic interactivity for corporate and education.
The mechanical height-adjustment makes it easy to adopt the screen to
different users.
Delivering Genuine Benets
Mechanical height-adjustment
Especially designed for usage with large format touch displays
Universal VESA mounting
Handle allows you to easily adopt the display to different users
Lock release mechanism on handle
Well balanced solution uses springs instead of counterweights
Highly preassembled to make installation quick and easy
Available as medium (PDWHM-M) and large (PDWHM-L) version
Optional cover PD01COV needed when used with displays less
than 800mm in height
PDWHM-M side view with optional cover
PDWHM-L front view
PDWHM-M with 46” display and optional cover
This document is © Copyright 2013 NEC Display Solutions Europe GmbH. All rights are reserved in favour of their respective owners. The document, or parts
thereof, should not be copied, adapted, redistributed, or otherwise used without the prior written permission of NEC Display Solutions Europe GmbH. This
document is provided “as is” without warranty of any kind whatsoever, either express or implied. Errors and omissions are excepted.
NEC Display Solutions Europe GmbH may make changes, revisions or improvements in, or discontinue the supply of any product described or referenced in
this document at any time without notice. 16 July 2013
NEC Information:
Call: +49 (0)89/99 699-0
Email: infomail@nec-displays.com
www.nec-display-solutions.com
TECHNICAL SPECIFICATIONS
TECHNICAL DRAWINGS
ORDER CODE: PDWHM-M 100013378 PDWHM-L 100013377
HIGH-END WALLMOUNT, HEIGHT-ADJUSTABLE, MANUAL - PDWHM
130
min 100 - max 600
min 300 - max 800
35 (6x)
50 (5x)
8,2 (6x)
R4,1 all
50 (5x)
Lowest position
348
361,5
238,5
773,5
Stroke appr 370
B
Highest position
186,5
103
960
263
280 140 280
135 165
600 50
700
9 (8x)
35
70
R4,6
857 + 130
5
130
min 100 - max 600
min 300 - max 800
8,2 (6x)
50 (5x) 35 (6x)
50 (5x)
R4,1 all
Lowest position
361,5
348
238,5
773,5
Stroke appr 370
B
Highest position
186,5
103
960
263
280 140 280
135 165
600 50
700
9 (8x)
35
70
R4,6
5
857 +130
MODEL PDWHM-M PDWHM-L
ORDER CODE 100013378 100013377
COVER PD01COV 100013429
MAX. LOAD CAPACITY (KG) 45 115
RECOMMENDED DISPLAY SIZE 46” to 55” 65” to 80”
ORIENTATION Landscape
HEIGHT ADJUSTMENT (MM) 370
VESA PATTERN (MM) 200x200 to 800x400
PRODUCT WEIGHT (KG) 30 35
SHIPPING WEIGHT (KG) 33 38
PACKAGE DIMENSION (MM) 990 x 820 x 120
SHIPPING CONTENT Wall mount frame, Handle, VESA mounting rails
FINISH Painted metal, anthracite
SUPPORTED NEC PUBLIC DISPLAYS V462-TM, V463-TM and all Large Format Displays
from 46” and 55”
V651-TM, V652-TM and all Large Format
Displays from 65” to 80”
WARRANTY 5 years
